1. MySQL 5.6 Replication New feature
데이터기술팀 운영파트
조민

2. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

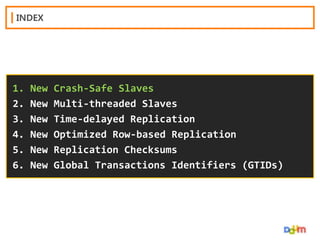

3. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

4. 1. New Crash-Safe Slaves (설정)
my.cnf
relay-log-info-repository=TABLE
master-info-repository=TABLE
# default FILE
==============================================================
mysql> stop slave;
Query OK, 0 rows affected, 1 warning (0.00 sec)
mysql> set global master_info_repository='TABLE';
Query OK, 0 rows affected (0.02 sec)
mysql> set global relay_log_info_repository='TABLE';
Query OK, 0 rows affected (0.02 sec)
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.09 sec)

5. 1. New Crash-Safe Slaves
mysql> select * from mysql.slave_master_infoG
*************************** 1. row ***************************
Number_of_lines: 23
Master_log_name: mysql-bin.000005
Master_log_pos: 2396
Host: 10.98.98.115
User_name: mig
User_password: mig
Port: 7979
Connect_retry: 60
Enabled_ssl: 0
Ssl_ca:
Ssl_capath:
Ssl_cert:
Ssl_cipher:
Ssl_key:
Ssl_verify_server_cert: 0
Heartbeat: 1800
Bind:
Ignored_server_ids: 0
Uuid: c35b769a-8fac-11e2-a667-00a0d1e293e2
Retry_count: 86400
Ssl_crl:
Ssl_crlpath:
Enabled_auto_position: 0
1 row in set (0.00 sec)

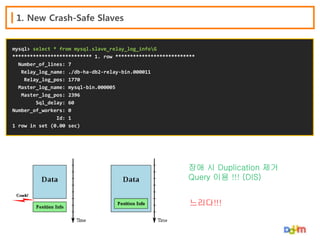

6. 1. New Crash-Safe Slaves
mysql> select * from mysql.slave_relay_log_infoG
*************************** 1. row ***************************
Number_of_lines: 7
Relay_log_name: ./db-ha-db2-relay-bin.000011
Relay_log_pos: 1770
Master_log_name: mysql-bin.000005
Master_log_pos: 2396
Sql_delay: 60
Number_of_workers: 0
Id: 1
1 row in set (0.00 sec)
장애 시 Duplication 제거
Query 이용 !!! (DIS)
느리다!!!

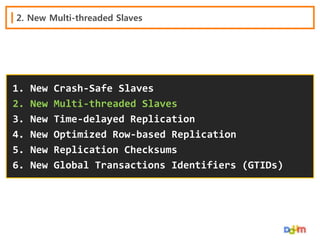

7. 2. New Multi-threaded Slaves
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

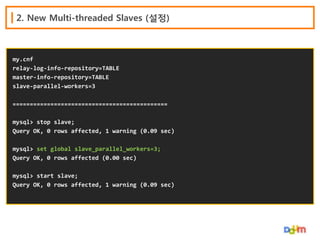

8. 2. New Multi-threaded Slaves (설정)
my.cnf
relay-log-info-repository=TABLE
master-info-repository=TABLE
slave-parallel-workers=3
=============================================
mysql> stop slave;
Query OK, 0 rows affected, 1 warning (0.09 sec)
mysql> set global slave_parallel_workers=3;
Query OK, 0 rows affected (0.00 sec)
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.09 sec)

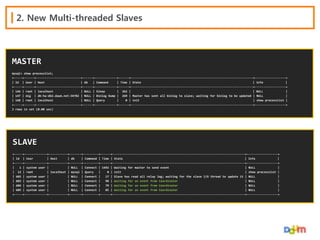

9. 2. New Multi-threaded Slaves
MASTER
mysql> show processlist;
+-----+------+--------------------------+------+-------------+------+-----------------------------------------------------------------------+------------------+
| Id | User | Host
| db
| Command
| Time | State
| Info
|
+-----+------+--------------------------+------+-------------+------+-----------------------------------------------------------------------+------------------+
| 146 | root | localhost
| NULL | Sleep
| 362 |
| NULL
|
| 147 | mig | db-ha-db2.daum.net:34782 | NULL | Binlog Dump | 269 | Master has sent all binlog to slave; waiting for binlog to be updated | NULL
|
| 148 | root | localhost
| NULL | Query
|
0 | init
| show processlist |
+-----+------+--------------------------+------+-------------+------+-----------------------------------------------------------------------+------------------+
3 rows in set (0.00 sec)
SLAVE
+-----+-------------+-----------+-------+---------+------+-----------------------------------------------------------------------------+------------------+
| Id | User
| Host
| db
| Command | Time | State
| Info
|
+-----+-------------+-----------+-------+---------+------+-----------------------------------------------------------------------------+------------------+
|
1 | system user |
| NULL | Connect | 1692 | Waiting for master to send event
| NULL
|
| 12 | root
| localhost | mysql | Query
|
0 | init
| show processlist |
| 602 | system user |
| NULL | Connect |
17 | Slave has read all relay log; waiting for the slave I/O thread to update it | NULL
|
| 603 | system user |
| NULL | Connect |
98 | Waiting for an event from Coordinator
| NULL
|
| 604 | system user |
| NULL | Connect |
79 | Waiting for an event from Coordinator
| NULL
|
| 605 | system user |
| NULL | Connect |
85 | Waiting for an event from Coordinator
| NULL
|
+-----+-------------+-----------+-------+---------+------+-----------------------------------------------------------------------------+------------------+

10. 2. New Multi-threaded Slaves
mysql> select * from slave_worker_infoG
*************************** 1. row ***************************
Id: 1
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
*************************** 2. row ***************************
Id: 2
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
*************************** 3. row ***************************
Id: 3
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
3 rows in set (0.00 sec)

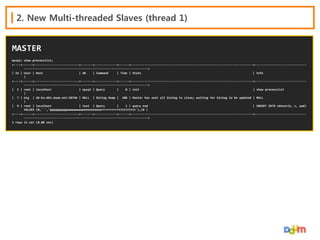

11. 2. New Multi-threaded Slaves (thread 1)
MASTER
mysql> show processlist;
+----+------+--------------------------+-------+-------------+------+-----------------------------------------------------------------------+-----------------------------------------------------------------------------------------------------+
| Id | User | Host
| db
| Command
| Time | State
| Info
|
+----+------+--------------------------+-------+-------------+------+-----------------------------------------------------------------------+-----------------------------------------------------------------------------------------------------+
| 5 | root | localhost
| mysql | Query
|
0 | init
| show processlist
|
| 7 | mig | db-ha-db2.daum.net:58746 | NULL | Binlog Dump | 208 | Master has sent all binlog to slave; waiting for binlog to be updated | NULL
|
| 9 | root | localhost
| test | Query
|
1 | query end
| INSERT INTO sbtest(k, c, pad)
VALUES (0,' ','qqqqqqqqqqwwwwwwwwwweeeeeeeeeerrrrrrrrrrtttttttttt'),(0 |
+----+------+--------------------------+-------+-------------+------+-----------------------------------------------------------------------+-----------------------------------------------------------------------------------------------------+
3 rows in set (0.00 sec)

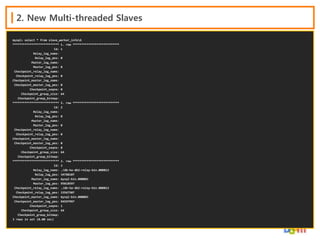

12. 2. New Multi-threaded Slaves
mysql> select * from slave_worker_infoG
*************************** 1. row ***************************
Id: 1
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
*************************** 2. row ***************************
Id: 2
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
*************************** 3. row ***************************
Id: 3
Relay_log_name: ./db-ha-db2-relay-bin.000013
Relay_log_pos: 34788107
Master_log_name: mysql-bin.000003
Master_log_pos: 95818597
Checkpoint_relay_log_name: ./db-ha-db2-relay-bin.000013
Checkpoint_relay_log_pos: 33567507
Checkpoint_master_log_name: mysql-bin.000003
Checkpoint_master_log_pos: 94597997
Checkpoint_seqno: 1
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
3 rows in set (0.00 sec)

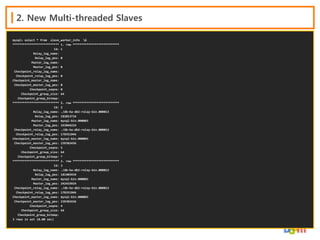

13. 2. New Multi-threaded Slaves
mysql> select * from slave_worker_info G
*************************** 1. row ***************************
Id: 1
Relay_log_name:
Relay_log_pos: 0
Master_log_name:
Master_log_pos: 0
Checkpoint_relay_log_name:
Checkpoint_relay_log_pos: 0
Checkpoint_master_log_name:
Checkpoint_master_log_pos: 0
Checkpoint_seqno: 0
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
*************************** 2. row ***************************
Id: 2
Relay_log_name: ./db-ha-db2-relay-bin.000013
Relay_log_pos: 182013734
Master_log_name: mysql-bin.000003
Master_log_pos: 243044224
Checkpoint_relay_log_name: ./db-ha-db2-relay-bin.000013
Checkpoint_relay_log_pos: 178351946
Checkpoint_master_log_name: mysql-bin.000003
Checkpoint_master_log_pos: 239382436
Checkpoint_seqno: 5
Checkpoint_group_size: 64
Checkpoint_group_bitmap: *
*************************** 3. row ***************************
Id: 3
Relay_log_name: ./db-ha-db2-relay-bin.000013
Relay_log_pos: 181403434
Master_log_name: mysql-bin.000003
Master_log_pos: 242433924
Checkpoint_relay_log_name: ./db-ha-db2-relay-bin.000013
Checkpoint_relay_log_pos: 178351946
Checkpoint_master_log_name: mysql-bin.000003
Checkpoint_master_log_pos: 239382436
Checkpoint_seqno: 4
Checkpoint_group_size: 64
Checkpoint_group_bitmap:
3 rows in set (0.00 sec)

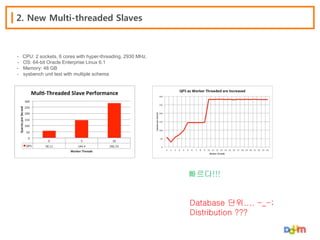

14. 2. New Multi-threaded Slaves
-
CPU: 2 sockets, 6 cores with hyper-threading, 2930 MHz.
OS: 64-bit Oracle Enterprise Linux 6.1
Memory: 48 GB
sysbench unit test with multiple schema
빠르다!!!
Database 단위.... -_-;
Distribution ???

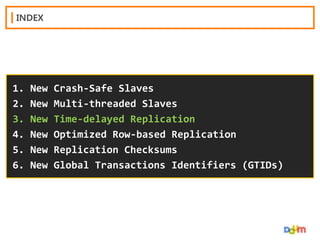

15. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

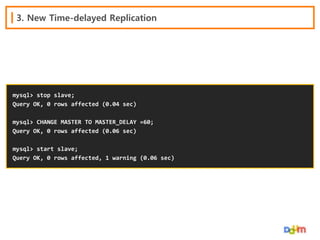

16. 3. New Time-delayed Replication
mysql> stop slave;
Query OK, 0 rows affected (0.04 sec)
mysql> CHANGE MASTER TO MASTER_DELAY =60;
Query OK, 0 rows affected (0.06 sec)
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.06 sec)

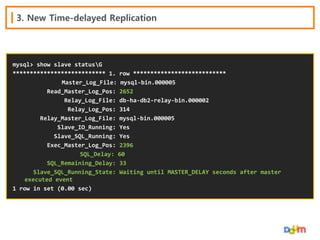

17. 3. New Time-delayed Replication
mysql> show slave statusG
*************************** 1. row ***************************
Master_Log_File: mysql-bin.000005
Read_Master_Log_Pos: 2652
Relay_Log_File: db-ha-db2-relay-bin.000002
Relay_Log_Pos: 314
Relay_Master_Log_File: mysql-bin.000005
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Exec_Master_Log_Pos: 2396
SQL_Delay: 60
SQL_Remaining_Delay: 33
Slave_SQL_Running_State: Waiting until MASTER_DELAY seconds after master
executed event
1 row in set (0.00 sec)

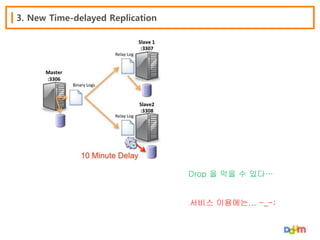

18. 3. New Time-delayed Replication
Drop 을 막을 수 있다…
서비스 이용에는... -_-;

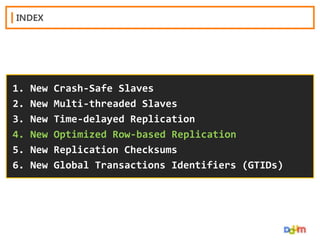

19. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

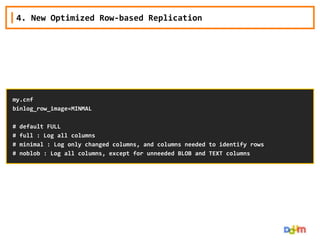

20. 4. New Optimized Row-based Replication
my.cnf
binlog_row_image=MINMAL
#
#
#
#
default FULL
full : Log all columns
minimal : Log only changed columns, and columns needed to identify rows
noblob : Log all columns, except for unneeded BLOB and TEXT columns

21. 4. New Optimized Row-based Replication
mysql> reset master;
Query OK, 0 rows affected (0.08 sec)
mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File
| Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000001 |
151 |
|
|
|
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
mysql> show session variables like 'binlog_row_image';
+------------------+-------+
| Variable_name
| Value |
+------------------+-------+
| binlog_row_image | FULL |
+------------------+-------+
1 row in set (0.00 sec)
mysql> update sss set k=10 where id=1;
Query OK, 1 row affected (0.01 sec)
Rows matched: 1 Changed: 1 Warnings: 0
mysql> show master status;
+------------------+----------+--------------+------------------+----------------------------------------+
| File
| Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set
|
+------------------+----------+--------------+------------------+----------------------------------------+
| mysql-bin.000001 |
511 |
|
| c35b769a-8fac-11e2-a667-00a0d1e293e2:1 |
+------------------+----------+--------------+------------------+----------------------------------------+
1 row in set (0.00 sec)

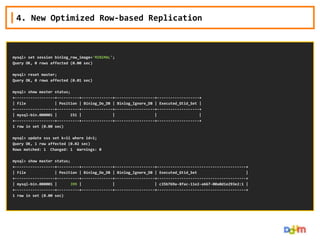

22. 4. New Optimized Row-based Replication
mysql> set session binlog_row_image='MINIMAL';
Query OK, 0 rows affected (0.00 sec)
mysql> reset master;
Query OK, 0 rows affected (0.01 sec)
mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File
| Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000001 |
151 |
|
|
|
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
mysql> update sss set k=11 where id=1;
Query OK, 1 row affected (0.02 sec)
Rows matched: 1 Changed: 1 Warnings: 0
mysql> show master status;
+------------------+----------+--------------+------------------+----------------------------------------+
| File
| Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set
|
+------------------+----------+--------------+------------------+----------------------------------------+
| mysql-bin.000001 |
399 |
|
| c35b769a-8fac-11e2-a667-00a0d1e293e2:1 |
+------------------+----------+--------------+------------------+----------------------------------------+
1 row in set (0.00 sec)

23. 4. New Optimized Row-based Replication
mysql> show session variables like 'binlog_row_image';
+------------------+-------+
| Variable_name
| Value |
+------------------+-------+
| binlog_row_image | FULL |
+------------------+-------+
1 row in set (0.00 sec)mysql> update sss set k=12 where
id=1;
Query OK, 1 row affected (0.01 sec)
Rows matched: 1 Changed: 1 Warnings: 0
mysql> show session variables like 'binlog_row_image';
+------------------+---------+
| Variable_name
| Value
|
+------------------+---------+
| binlog_row_image | MINIMAL |
+------------------+---------+
1 row in set (0.00 sec)mysql> update sss set k=11 where
id=1;
Query OK, 1 row affected (0.02 sec)
Rows matched: 1 Changed: 1 Warnings: 0
### UPDATE `ttt`.`sss`
### WHERE
###
@1=1
###
@2=11
###
@3=''
###
@4='qqqqqqqqqqwwwwwwwwwweeeeeeeeeerrrrrrrrrrtttttttttt
'
### SET
###
@1=1
###
@2=12
###
@3=''
###
@4='qqqqqqqqqqwwwwwwwwwweeeeeeeeeerrrrrrrrrrtttttttttt
'
# at 728
### UPDATE `ttt`.`sss`
### WHERE
###
@1=1
### SET
###
@2=11
# at 368

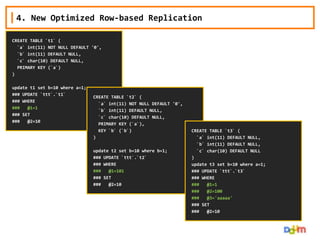

24. 4. New Optimized Row-based Replication
CREATE TABLE `t1` (
`a` int(11) NOT NULL DEFAULT '0',
`b` int(11) DEFAULT NULL,
`c` char(10) DEFAULT NULL,
PRIMARY KEY (`a`)
)
update t1 set b=10 where a=1;
### UPDATE `ttt`.`t1`
### WHERE
###
@1=1
### SET
###
@2=10
CREATE TABLE `t2` (
`a` int(11) NOT NULL DEFAULT '0',
`b` int(11) DEFAULT NULL,
`c` char(10) DEFAULT NULL,
PRIMARY KEY (`a`),
KEY `b` (`b`)
)
update t2 set b=10 where b=1;
### UPDATE `ttt`.`t2`
### WHERE
###
@1=101
### SET
###
@2=10
CREATE TABLE `t3` (
`a` int(11) DEFAULT NULL,
`b` int(11) DEFAULT NULL,
`c` char(10) DEFAULT NULL
)
update t3 set b=10 where a=1;
### UPDATE `ttt`.`t3`
### WHERE
###
@1=1
###
@2=100
###
@3='aaaaa'
### SET
###
@2=10

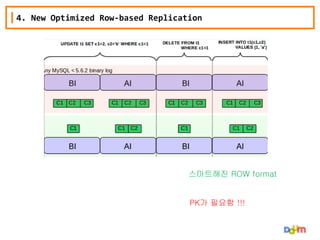

25. 4. New Optimized Row-based Replication
스마트해진 ROW format
PK가 필요함 !!!

26. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

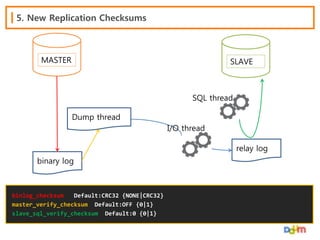

27. 5. New Replication Checksums
MASTER
SLAVE
SQL thread
Dump thread
I/O thread
relay log
binary log
binlog_checksum
Default:CRC32 {NONE|CRC32}
master_verify_checksum Default:OFF {0|1}
slave_sql_verify_checksum Default:0 {0|1}

28. 5. New Replication Checksums
mysql> show binlog events in 'mysql-bin.000007' from 191;
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
| Log_name
| Pos | Event_type | Server_id | End_log_pos | Info
|
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
| mysql-bin.000007 | 191 | Gtid
|
1234 |
239 | SET @@SESSION.GTID_NEXT= 'c35b769a-8fac-11e2-a667-00a0d1e293e2:39' |
| mysql-bin.000007 | 239 | Query
|
1234 |
316 | BEGIN
|
| mysql-bin.000007 | 316 | Query
|
1234 |
418 | use `ttt`; insert into ttt values (12345)
|
| mysql-bin.000007 | 418 | Xid
|
1234 |
449 | COMMIT /* xid=1053612 */
|
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
4 rows in set (0.00 sec)
Binlog 수정
mysql> show binlog events in 'mysql-bin.000007' from 191;
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
| Log_name
| Pos | Event_type | Server_id | End_log_pos | Info
|
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
| mysql-bin.000007 | 191 | Gtid
|
1234 |
239 | SET @@SESSION.GTID_NEXT= 'c35b769a-8fac-11e2-a667-00a0d1e293e2:39' |
| mysql-bin.000007 | 239 | Query
|
1234 |
316 | BEGIN
|
| mysql-bin.000007 | 316 | Query
|
1234 |
418 | use `ttt`; insert into ttt values (12341)
|
| mysql-bin.000007 | 418 | Xid
|
1234 |
449 | COMMIT /* xid=1053612 */
|
+------------------+-----+------------+-----------+-------------+--------------------------------------------------------------------+
4 rows in set (0.00 sec)
mysql> SET GLOBAL MASTER_VERIFY_CHECKSUM=1;
Query OK, 0 rows affected (0.00 sec)
mysql> show binlog events in 'mysql-bin.000007' from 191;
ERROR 1220 (HY000): Error when executing command SHOW BINLOG EVENTS: Wrong offset or I/O error
#130327 20:59:04 server id 1234
use `ttt`/*!*/;
SET TIMESTAMP=1364385544/*!*/;
insert into ttt values (12645)
/*!*/;
# at 418
end_log_pos 418 CRC32 0x171597fb
Query
thread_id=148
exec_time=0
error_code=0

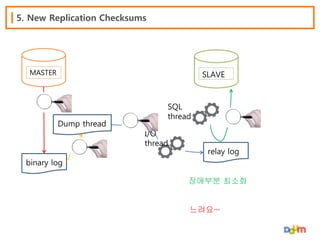

29. 5. New Replication Checksums
MASTER
SLAVE
Dump thread
SQL
thread
I/O
thread
relay log
binary log
장애부분 최소화
느려요~

30. INDEX
1.
2.
3.
4.
5.
6.
New
New
New
New
New
New
Crash-Safe Slaves
Multi-threaded Slaves
Time-delayed Replication
Optimized Row-based Replication
Replication Checksums
Global Transactions Identifiers (GTIDs)

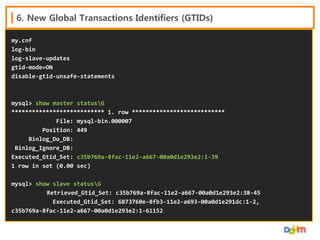

31. 6. New Global Transactions Identifiers (GTIDs)
my.cnf
log-bin
log-slave-updates
gtid-mode=ON
disable-gtid-unsafe-statements
mysql> show master statusG
*************************** 1. row ***************************
File: mysql-bin.000007
Position: 449
Binlog_Do_DB:
Binlog_Ignore_DB:
Executed_Gtid_Set: c35b769a-8fac-11e2-a667-00a0d1e293e2:1-39
1 row in set (0.00 sec)
mysql> show slave statusG
Retrieved_Gtid_Set: c35b769a-8fac-11e2-a667-00a0d1e293e2:38-45
Executed_Gtid_Set: 6873760e-8fb3-11e2-a693-00a0d1e291dc:1-2,
c35b769a-8fac-11e2-a667-00a0d1e293e2:1-61152

32. 6. New Global Transactions Identifiers (GTIDs)

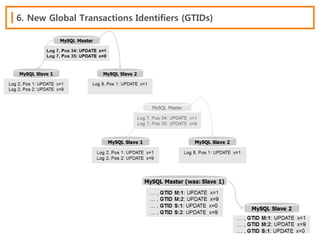

33. 6. New Global Transactions Identifiers (GTIDs)

35. 고맙습니다
