Session 1.2 enrich your knowledge graphs: linked data integration with pool party semantic integrator
- 1. Tomas Knap Semantic WebCompany Enrich Your Knowledge Graphs: Linked Data Integration with PoolParty Semantic Integrator 1
- 2. Agenda ▸ PoolParty SemanticIntegrator & UnifiedViews ▸ General data acquisition tasks ▹ Schema mapping ▹ Entity linking ▹ Data fusion ▸ PoolParty Semantic Integrator and data acquisition tasks 2

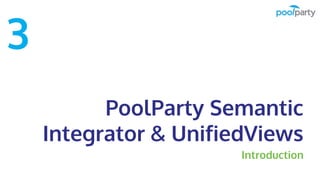

- 3. PoolParty Semantic Integrator &UnifiedViews Introduction 3
- 4. PoolParty Semantic Integrator ▸ A semantictechnology suite ▹ Organize and maintain company knowledge ■ Skos thesauri/ontology ▹ Annotate documents with resources from a knowledge base ▹ Provide focused search on top of the annotated document space ▸ https://www.poolparty.biz/ ▹ Or please visit PoolParty booth 4

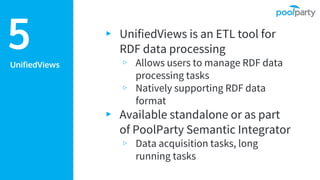

- 5. UnifiedViews ▸ UnifiedViews isan ETL tool for RDF data processing ▹ Allows users to manage RDF data processing tasks ▹ Natively supporting RDF data format ▸ Available standalone or as part of PoolParty Semantic Integrator ▹ Data acquisition tasks, long running tasks 5

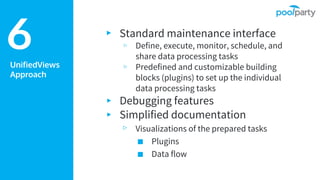

- 6. UnifiedViews Approach ▸ Standard maintenanceinterface ▹ Define, execute, monitor, schedule, and share data processing tasks ▹ Predefined and customizable building blocks (plugins) to set up the individual data processing tasks ▸ Debugging features ▸ Simplified documentation ▹ Visualizations of the prepared tasks ■ Plugins ■ Data flow 6

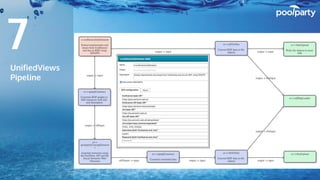

- 7.

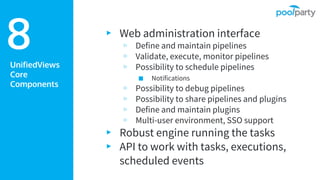

- 8. UnifiedViews Core Components ▸ Web administrationinterface ▹ Define and maintain pipelines ▹ Validate, execute, monitor pipelines ▹ Possibility to schedule pipelines ■ Notifications ▹ Possibility to debug pipelines ▹ Possibility to share pipelines and plugins ▹ Define and maintain plugins ▹ Multi-user environment, SSO support ▸ Robust engine running the tasks ▸ API to work with tasks, executions, scheduled events 8

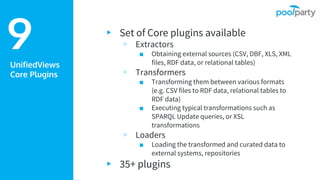

- 9. UnifiedViews Core Plugins ▸ Setof Core plugins available ▹ Extractors ■ Obtaining external sources (CSV, DBF, XLS, XML files, RDF data, or relational tables) ▹ Transformers ■ Transforming them between various formats (e.g. CSV files to RDF data, relational tables to RDF data) ■ Executing typical transformations such as SPARQL Update queries, or XSL transformations ▹ Loaders ■ Loading the transformed and curated data to external systems, repositories ▸ 35+ plugins 9

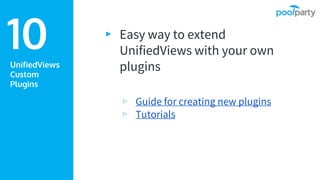

- 10. UnifiedViews Custom Plugins ▸ Easy wayto extend UnifiedViews with your own plugins ▹ Guide for creating new plugins ▹ Tutorials 10
- 11.

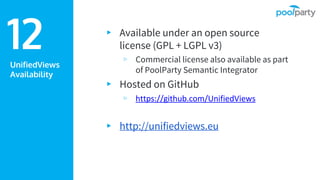

- 12. UnifiedViews Availability ▸ Available underan open source license (GPL + LGPL v3) ▹ Commercial license also available as part of PoolParty Semantic Integrator ▸ Hosted on GitHub ▹ https://github.com/UnifiedViews ▸ http://unifiedviews.eu 12
- 13.

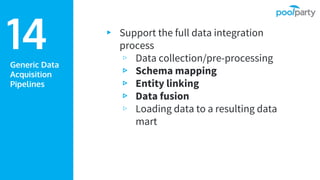

- 14. Generic Data Acquisition Pipelines ▸ Supportthe full data integration process ▹ Data collection/pre-processing ▹ Schema mapping ▹ Entity linking ▹ Data fusion ▹ Loading data to a resulting data mart 14
- 15. General Data Acquisition Tasks SchemaMapping 15

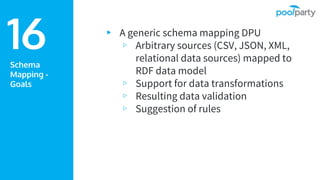

- 16. Schema Mapping - Goals ▸ Ageneric schema mapping DPU ▹ Arbitrary sources (CSV, JSON, XML, relational data sources) mapped to RDF data model ▹ Support for data transformations ▹ Resulting data validation ▹ Suggestion of rules 16

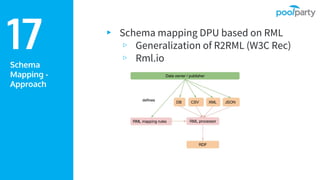

- 17. Schema Mapping - Approach ▸ Schemamapping DPU based on RML ▹ Generalization of R2RML (W3C Rec) ▹ Rml.io 17
- 18. Schema Mapping - Approach ▸ UnifiedViewspipeline ▹ Explain inputs, mappings, outputs ■ http://rml.io/spec.html#example-input ▹ Explain DPU’s configuration 18

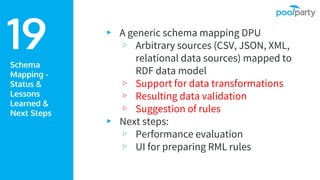

- 19. Schema Mapping - Status & Lessons Learned& Next Steps ▸ A generic schema mapping DPU ▹ Arbitrary sources (CSV, JSON, XML, relational data sources) mapped to RDF data model ▹ Support for data transformations ▹ Resulting data validation ▹ Suggestion of rules ▸ Next steps: ▹ Performance evaluation ▹ UI for preparing RML rules 19
- 20. General Data Acquisition Tasks EntityLinking 20

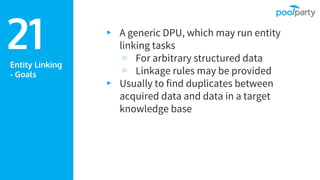

- 21. Entity Linking - Goals ▸A generic DPU, which may run entity linking tasks ▹ For arbitrary structured data ▹ Linkage rules may be provided ▸ Usually to find duplicates between acquired data and data in a target knowledge base 21

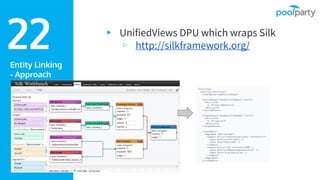

- 22. Entity Linking - Approach ▸UnifiedViews DPU which wraps Silk ▹ http://silkframework.org/22

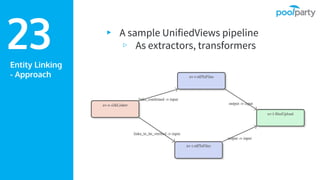

- 23. Entity Linking - Approach ▸A sample UnifiedViews pipeline ▹ As extractors, transformers23

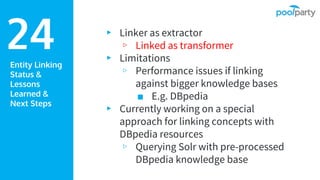

- 24. Entity Linking Status & Lessons Learned& Next Steps ▸ Linker as extractor ▹ Linked as transformer ▸ Limitations ▹ Performance issues if linking against bigger knowledge bases ■ E.g. DBpedia ▸ Currently working on a special approach for linking concepts with DBpedia resources ▹ Querying Solr with pre-processed DBpedia knowledge base 24
- 25. General Data Acquisition Tasks DataFusion 25

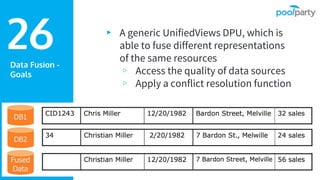

- 26. Data Fusion - Goals ▸A generic UnifiedViews DPU, which is able to fuse different representations of the same resources ▹ Access the quality of data sources ▹ Apply a conflict resolution function 26

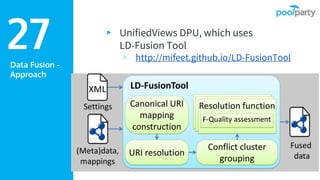

- 27. Data Fusion - Approach ▸UnifiedViews DPU, which uses LD-Fusion Tool ▹ http://mifeet.github.io/LD-FusionTool 27

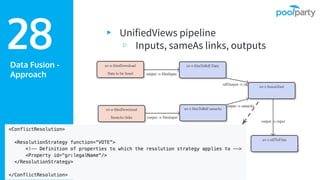

- 28. Data Fusion - Approach ▸UnifiedViews pipeline ▹ Inputs, sameAs links, outputs28

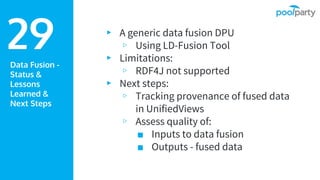

- 29. Data Fusion - Status& Lessons Learned & Next Steps ▸ A generic data fusion DPU ▹ Using LD-Fusion Tool ▸ Limitations: ▹ RDF4J not supported ▸ Next steps: ▹ Tracking provenance of fused data in UnifiedViews ▹ Assess quality of: ■ Inputs to data fusion ■ Outputs - fused data 29

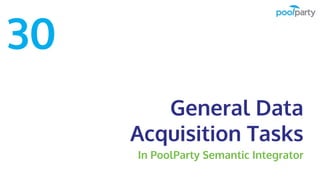

- 30. General Data Acquisition Tasks InPoolParty Semantic Integrator 30
- 31. PoolParty Semantic Integrator and Data Acquisition Tasks ▸ Userinterface to see overview of data acquisition tasks ▹ List of tasks, its creation, execution, status ▸ Possibility to browse/examine resulting integrated data ▹ E.g. to see the resulting fused data 31
- 32.

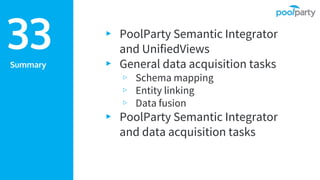

- 33. Summary ▸ PoolParty SemanticIntegrator and UnifiedViews ▸ General data acquisition tasks ▹ Schema mapping ▹ Entity linking ▹ Data fusion ▸ PoolParty Semantic Integrator and data acquisition tasks 33
- 34. Contact Tomas Knap, PhD Architect& Researcher Semantic Web Company Research interests: ▸ Linked Data integration and quality ▸ Linked Data management Contact: ▸ tomas.knap@semantic-web.com 34 © Semantic Web Company - http://www.semantic-web.at/ and http://www.poolparty.biz/
