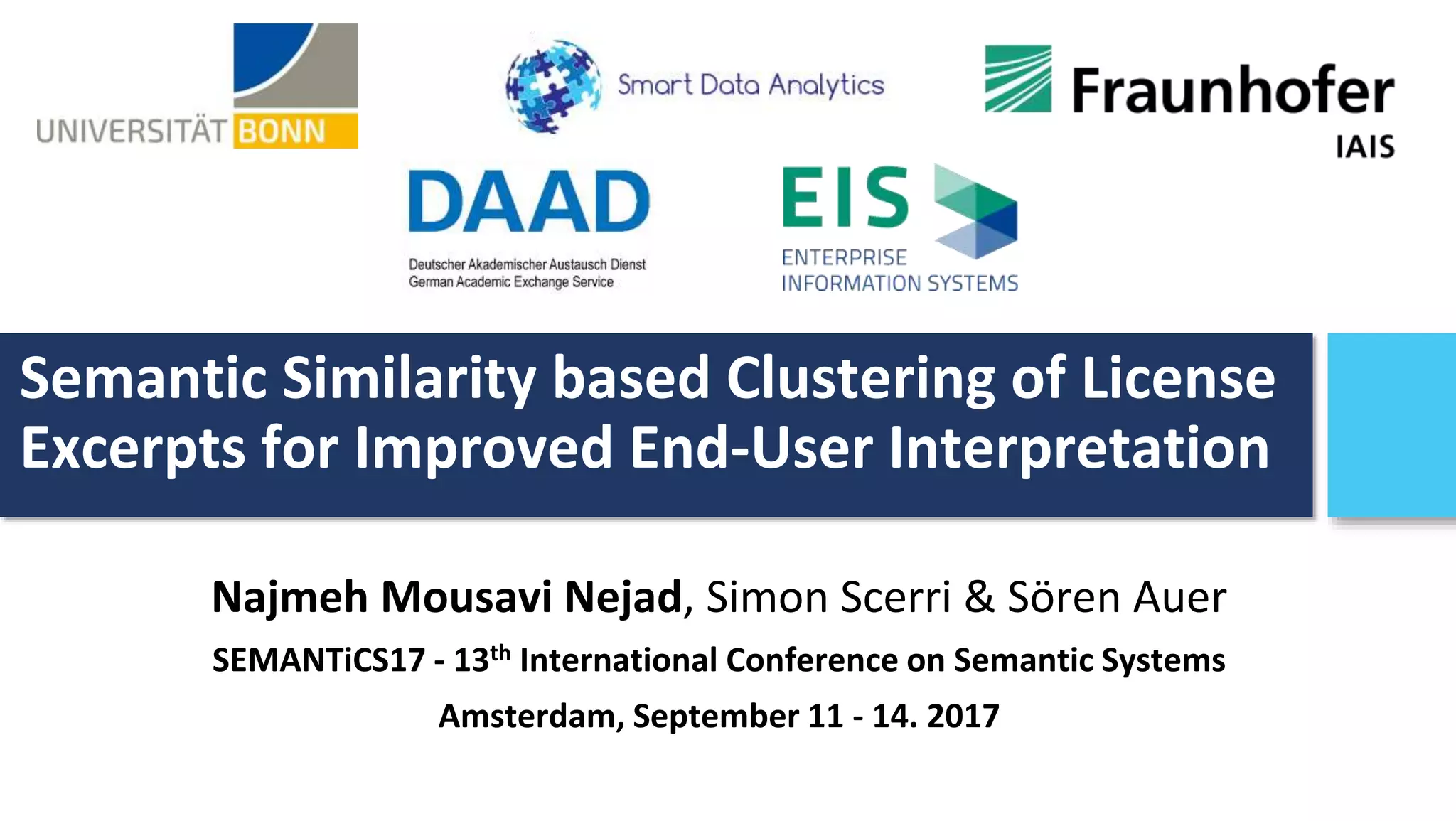

1. Semantic Similarity based Clustering of License
Excerpts for Improved End-User Interpretation
Najmeh Mousavi Nejad, Simon Scerri & Sören Auer
SEMANTiCS17 - 13th International Conference on Semantic Systems
Amsterdam, September 11 - 14. 2017

2. 2 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation

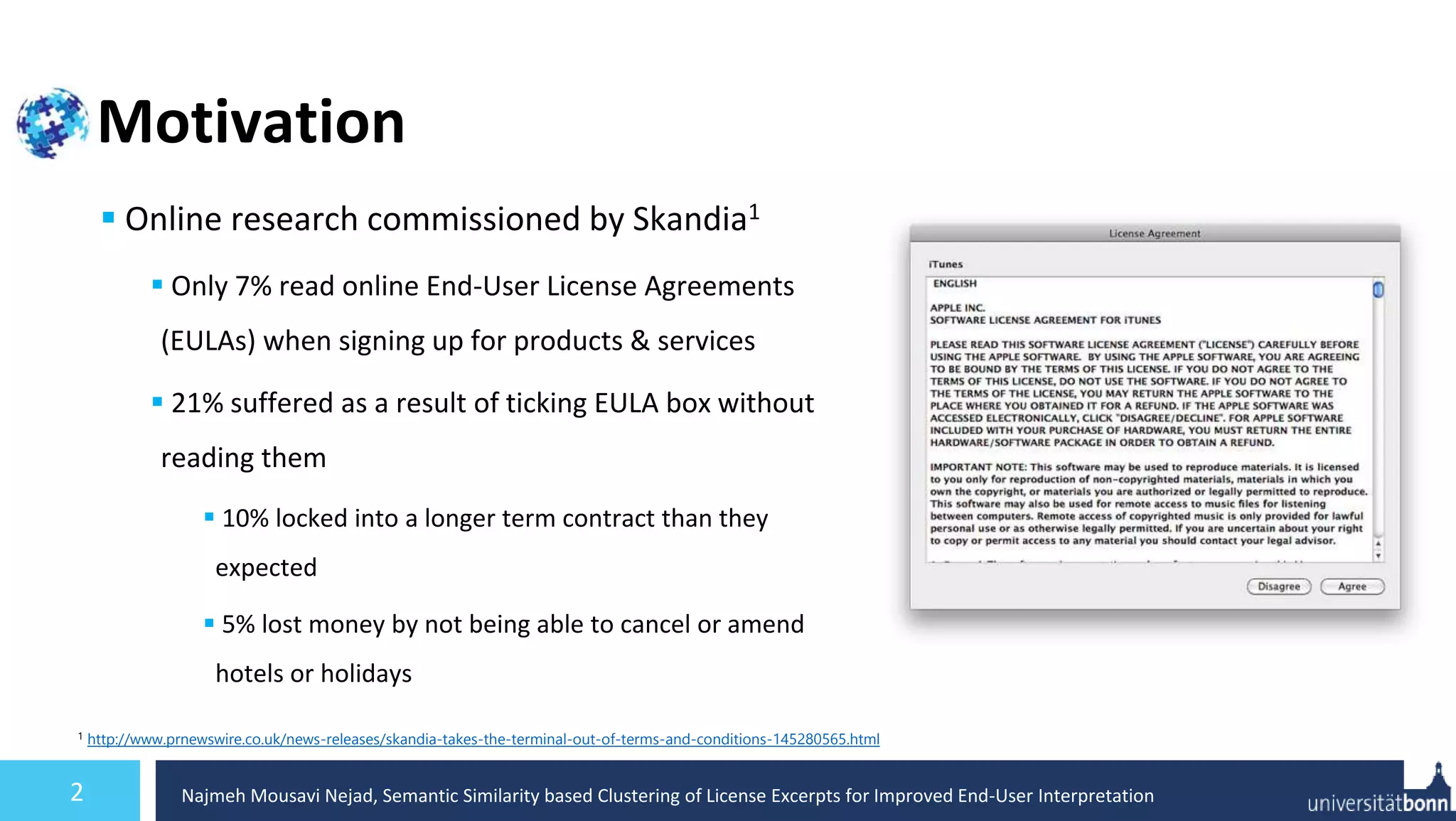

Motivation
 Online research commissioned by Skandia1
 Only 7% read online End-User License Agreements
(EULAs) when signing up for products & services
 21% suffered as a result of ticking EULA box without
reading them
1 http://www.prnewswire.co.uk/news-releases/skandia-takes-the-terminal-out-of-terms-and-conditions-145280565.html
 10% locked into a longer term contract than they
expected
 5% lost money by not being able to cancel or amend
hotels or holidays

3. 3 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Problem Statement
 Given an EULA (End-User License Agreement) in the natural language, we want to provide a
user-friendly summary of permissions, prohibitions & duties.
 Focus of this Work: clustering similar extracted excerpts of EULAs for the benefit of end-user
You may reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense,
and distribute the Work and such Derivative Works in Source or Object form.
You may reproduce and distribute copies of the Work or Derivative Works with or without
modifications and You may add Your own attribution notices within Derivative Works

4. 4 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Related Work
 Manual: online service (tldrlegal.com)
 Semi-automatic
 NLL2RDF (Cabrio, et al., ESWC 2014)
 First attempt to generate RDF expressions of EULAs
 Exploit CC REL & ODRL vocabularies & supervised machine learning
 Limitation: few number of rights
 EULAide (Mousavi Nejad, et al., SEMANTiCS 2016)
 Exploits ontology-based information extraction to extract permissions, prohibitions & duties from EULAs
 Taken as a basis in this work
 Limitation: a lot of extracted excerpts for long EULAs

5. 5 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Approach
 Building a similarity matrix for each class considering different features of extracted segments
 Features for each class (e.g., permission, prohibitions & duties) are extracted with JAPE rules
 Action, Condition, PolicyType
 Exploiting a distributional semantic approach for computing short text similarity
 DISCO: DIstributionally related words using CO-occurrences
 Has a word space builder: creates the word embedding database over a text corpus
 Computes semantic similarity based on the word vectors

6. 6 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Approach – Continued
 Using a hierarchical clustering algorithm to cluster each class (e.g., permission,
prohibitions & duties)
a
c , d e , f
a , c , d b e , f g
b c d e f g

7. 7 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Architecture
User
Front-end
Web
Interface
HTML,
CSS,
Angular
JS
EULA File
Permission,
Duty &
Prohibition
clusters
Back-end
FormData/
String
XML/JSON
data
Application
Server
Ontology
File
Permission, Duty,
Prohibition
DISCO
API
3 Similarity
Matrixes for
the 3 classes
Clustering
Algorithm
3 classes, each clustered based on their similarities
Customized
GATE OBIE
Pipeline
(feature
extraction
phase added)
Stanford
Dependency
Parser
Annotations
with features
Annotations with
extracted objects
Or URL

8. 8 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Feature Extraction
 Three different features are extracted with JAPE rules
 Sequence of actions: copy, share, distribute
 Condition on which a specific action is granted or forbidden or obliged
 PolicyType: copyright, patent or intellectual property right
If you join a Dropbox for business account, you must use it in compliance with your employer’s terms & policies.
Each contributor grants you a patent license to make, use, sell, import and transfer the work.
condition action
policy type action

9. 9 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Sketch of Semantic Clustering Algorithm
Input: permissions, prohibitions, duties with features
1: for all three classes do
2: for all segment pairs in each class do
3: A = similarity between actions
4: B = similarity between conditions
5: C = similarity between policy types
6: D = similarity between the remainders of segments
7: finalSim = A + B + C + D
8: add finalSim to the corresponding matrix cell
9: end for
10: do HAC clustering for the matrix with a threshold
11: end for
Output: clustered permissions, prohibitions & duties

10. 10 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
EULAide Platform Web Interface

11. 11 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Experiments
 The Clustering Approach Evaluation
 Does the semantic based clustering compress information?
 Does the feature extraction phase improve the result?
 Usability experiments
 Does using EULAide need less time and effort for EULA comprehension?
 Does semi-automatic IE lead to information loss?
 How easy is exploiting EULAide regarding human perception?

12. 12 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Clustering Approach Evaluation
 Result of clustering for 4 EULAs
 Clusters-M (Baseline): without features
 Clusters-Mf (our algorithm): with feature extraction phase
#Instances #Baseline Clusters #Our Approach Clusters
Permission 30 18 20
Duty 27 24 20
Prohibition 40 32 35
 Does the semantic based clustering compress information? YES

13. 13 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Clustering Approach Evaluation
 Compiling a gold standard for EULA clustering is hard
 Solution: measuring the inter-annotator agreement
approximately
 Five subject were asked to devise their own clustering
criteria as they best deemed fit
 Computing the agreement between them:
𝑅𝑎𝑛𝑑 𝐼𝑛𝑑𝑒𝑥 =
𝑇𝑃 + 𝑇𝑁
𝑇𝑃 + 𝐹𝑃 + 𝐹𝑁 + 𝑇𝑁
 Does the feature extraction phase improve the result?
h1 h2 h3 h4 h5 M Mf
h1 (1) 0.71 0.89 0.91 0.71 0.93 0.97
h2 * (1) 0.61 0.63 0.95 0.7 0.68
h3 * * (1) 0.92 0.63 0.86 0.86
h4 * * * (1) 0.65 0.85 0.88
h5 * * * * (1) 0.7 0.67
RI of clustering Result for Duties

14. 14 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Clustering Approach Evaluation
 Accumulated deviation of Mf from Human = 9%
 Accumulated deviation of M from Human = 10%
 Does the feature extraction phase improve the result?
Human M Mf
Permission 0.79 0.83 0.81
Duty 0.76 0.81 0.81
Prohibition 0.83 0.84 0.85
 Feature-based approach:
 Generates more fined-grained clusters
 Are more attuned to human intuition and perception
average rand index
YES

15. 15 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Usability Evaluation
 Does using EULAide need less time and effort for EULA comprehension?
 Does semi-automatic IE lead to information loss?
 Experimental setup for the 4 EULAs
 A legal expert designed 5 multiple choices questions for each EULA
 6 students read EULAs in 2 modes: natural text & EULAide
h1 h2 h3 h4 h5 h6
1-full × × ×
1-EULAide × × ×
2-full × × ×
2-EULAide × × ×
3-full × × ×
3-EULAide × × ×
4-full × × ×
4-EULAide × × ×
 They answered the questions in 2 phases
 Phase1: using memory without looking
 Phase2: using search tools for finding the answers

16. 16 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Usability Evaluation
Correct Incorrect Unanswered in phase1
Phase2
correct
Phase2
incorrect
Phase2
Unanswered
EULA-full 67 8 18.5 5 1.5
EULAide 62 15 6.5 4.5 12
Reading Answering
phase1
Answering
phase2
EULA-full 1185 75 152
EULAide 315 72 77
 Does using EULAide need less time and effort
for EULA comprehension? YES
 Does semi-automatic IE lead to information
loss? YES
average time in seconds
average percentage of questions results (%)

17. 17 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Usability Test
 How easy is using EULAide regarding human perception?
 USE questionnaire: usefulness, satisfaction, ease of learning and ease of use1
 Contains 30 questions
 1 = strongly dissatisfied, 7 = strongly satisfied
 With 6 participants
1 http://garyperlman.com/quest/quest.cgi?form=USE
Usefulness Ease of
use
Ease of
learning
satisfaction
6.14 6.11 6.75 6.0
 Recommendations by participants:
 Extending the idea of summary in the header of each accordion
 Including other aspects of EULAs: what is the agreement between us and the service provider?

18. 18 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Conclusions & Future Works
 EULAide is the first comprehensive approach for EULA interpretation
 Clustering is effective and reduces the number of relevant terms for users to focus on initially
 EULAide is visual & simple to digest EULAs
 It saves around 75% of the time
 But it has a marginal price of 10.5% loss of valuable information
 Future works
 Improving the feature extraction phase
 Extending the summarization technique of each cluster for the benefit of end users
nejad@cs.uni-bonn.de

19. THANK YOU !
nejad@cs.uni-bonn.de

20. 20 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
References
 All images are from Pixabay which are released under Creative Commons CC0 into the public domain.

21. 21 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Backup Slide
 Agglomerative hierarchical clustering (HAC) is an established, well-known technique which has been shown to be a successful
method for text and document clustering
 Furthermore, among different HAC methods, the average linkage has been proved to be the most suitable one for text categorization
[1, 24]. Once the proper clustering technique is identifed, we can pass similarity matrices to the clustering component. The HAC
process continues until it reaches a pre-defned threshold.
 In average linkage hierarchical clustering, the distance between two clusters is defined as the average distance between each point
in one cluster to every point in the other cluster

22. 22 Najmeh Mousavi Nejad, Semantic Similarity based Clustering of License Excerpts for Improved End-User Interpretation
Backup Slide
 DISCO computation method
𝑆𝑖𝑚 𝑇1, 𝑇2 =
𝑑𝑖𝑟𝑒𝑐𝑡𝑒𝑑𝑆𝑖𝑚 𝑇1, 𝑇2 + 𝑑𝑖𝑟𝑒𝑐𝑡𝑒𝑑𝑆𝑖𝑚(𝑇2, 𝑇1)
2
𝑑𝑖𝑟𝑒𝑐𝑡𝑒𝑑𝑆𝑖𝑚 𝑇1, 𝑇2 = 𝑖=1
𝑛
[ 𝑤𝑒𝑖𝑔ℎ𝑡(𝑤𝑖1)* max
1≤𝑗≤𝑛
𝑊𝑜𝑟𝑑𝑆𝑖𝑚 𝑤𝑖1, 𝑤𝑗2 ]
 5 participants could reveal about 80% of all usability problems that exist in a product (Nielsen,
1993).
