Stefan Dietze gave a keynote presentation covering three main topics: 1) Challenges in entity retrieval from heterogeneous linked datasets and knowledge graphs due to diversity and lack of standardization. 2) Approaches for enabling discovery and search through dataset recommendation, profiling, and entity retrieval methods that cluster entities to address link sparsity. 3) Going beyond linked data to exploit semantics embedded in web markup, with case studies in data fusion for entity reconciliation and retrieval.

1. Retrieval, Crawling and Fusion of
Entity-centric Data on the Web
Stefan Dietze
L3S Research Center, Hannover, Germany
- Keynote at 2nd International Keystone Conference, IKC2016 -
09/09/16 1Stefan Dietze

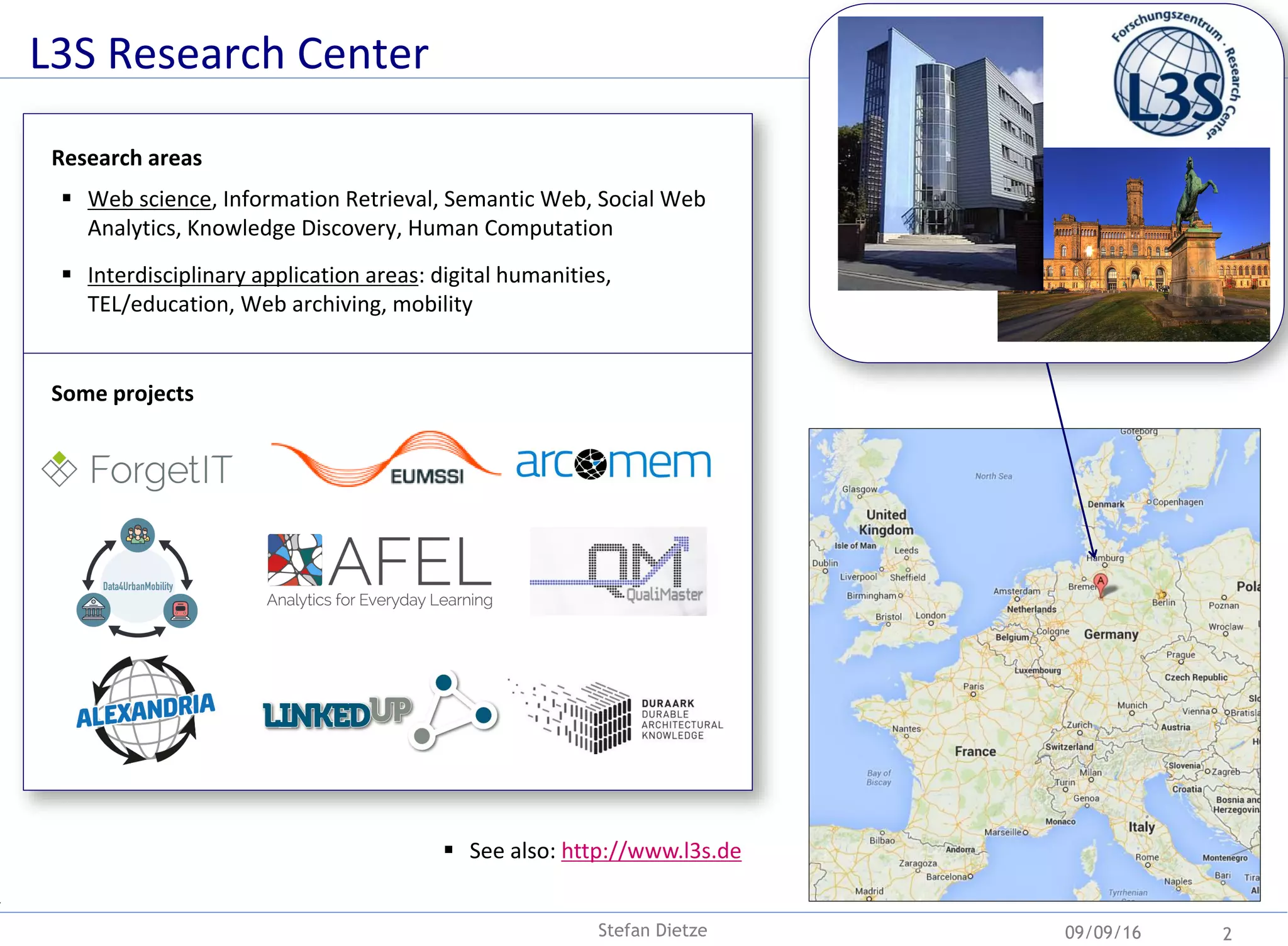

2. Research areas
 Web science, Information Retrieval, Semantic Web, Social Web
Analytics, Knowledge Discovery, Human Computation
 Interdisciplinary application areas: digital humanities,
TEL/education, Web archiving, mobility
Some projects
L3S Research Center
09/09/16 2
 See also: http://www.l3s.de
Stefan Dietze

3. Acknowledgements: team
09/09/16 3Stefan Dietze
 Pavlos Fafalios (L3S)
 Besnik Fetahu (L3S)
 Ujwal Gadiraju (L3S)
 Eelco Herder (L3S)
 Ivana Marenzi (L3S)
 Ran Yu (L3S)
 Pracheta Sahoo (L3S, IIT India)
 Bernardo Pereira Nunes (L3S, PUC Rio de Janeiro)
 Mathieu d‘Aquin (The Open University, UK)
 Mohamed Ben Ellefi (LIRMM, France)
 Davide Taibi (CNR, Italy)
 Konstantin Todorov (LIRMM, France)
 ...

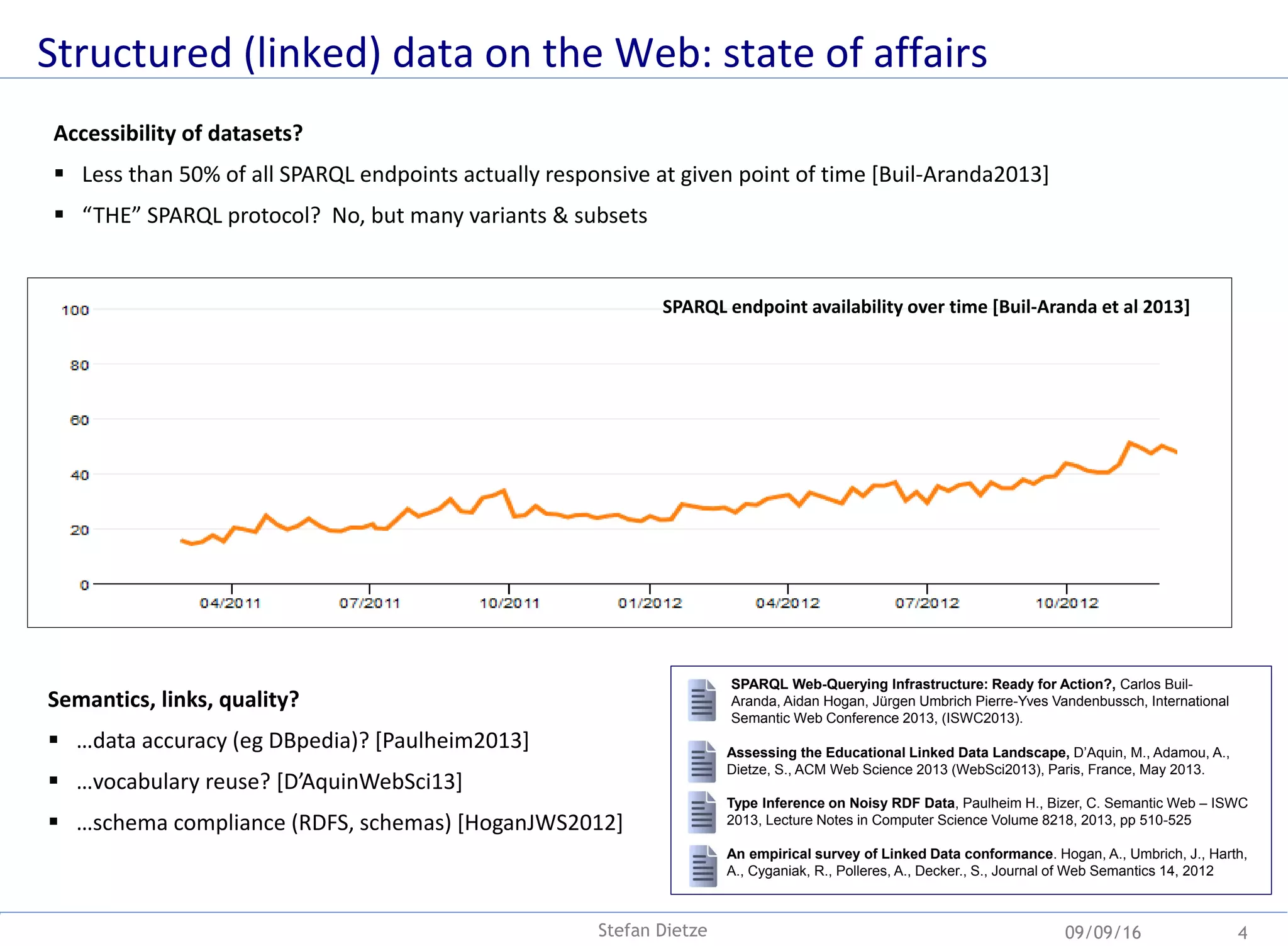

4. Structured (linked) data on the Web: state of affairs
SPARQL endpoint availability over time [Buil-Aranda et al 2013]
Accessibility of datasets?
 Less than 50% of all SPARQL endpoints actually responsive at given point of time [Buil-Aranda2013]
 “THE” SPARQL protocol? No, but many variants & subsets
Semantics, links, quality?
 …data accuracy (eg DBpedia)? [Paulheim2013]
 …vocabulary reuse? [D’AquinWebSci13]
 …schema compliance (RDFS, schemas) [HoganJWS2012]
Stefan Dietze
Assessing the Educational Linked Data Landscape, D’Aquin, M., Adamou, A.,
Dietze, S., ACM Web Science 2013 (WebSci2013), Paris, France, May 2013.
Type Inference on Noisy RDF Data, Paulheim H., Bizer, C. Semantic Web – ISWC
2013, Lecture Notes in Computer Science Volume 8218, 2013, pp 510-525
An empirical survey of Linked Data conformance. Hogan, A., Umbrich, J., Harth,
A., Cyganiak, R., Polleres, A., Decker., S., Journal of Web Semantics 14, 2012
09/09/16 4
SPARQL Web-Querying Infrastructure: Ready for Action?, Carlos Buil-
Aranda, Aidan Hogan, Jürgen Umbrich Pierre-Yves Vandenbussch, International
Semantic Web Conference 2013, (ISWC2013).

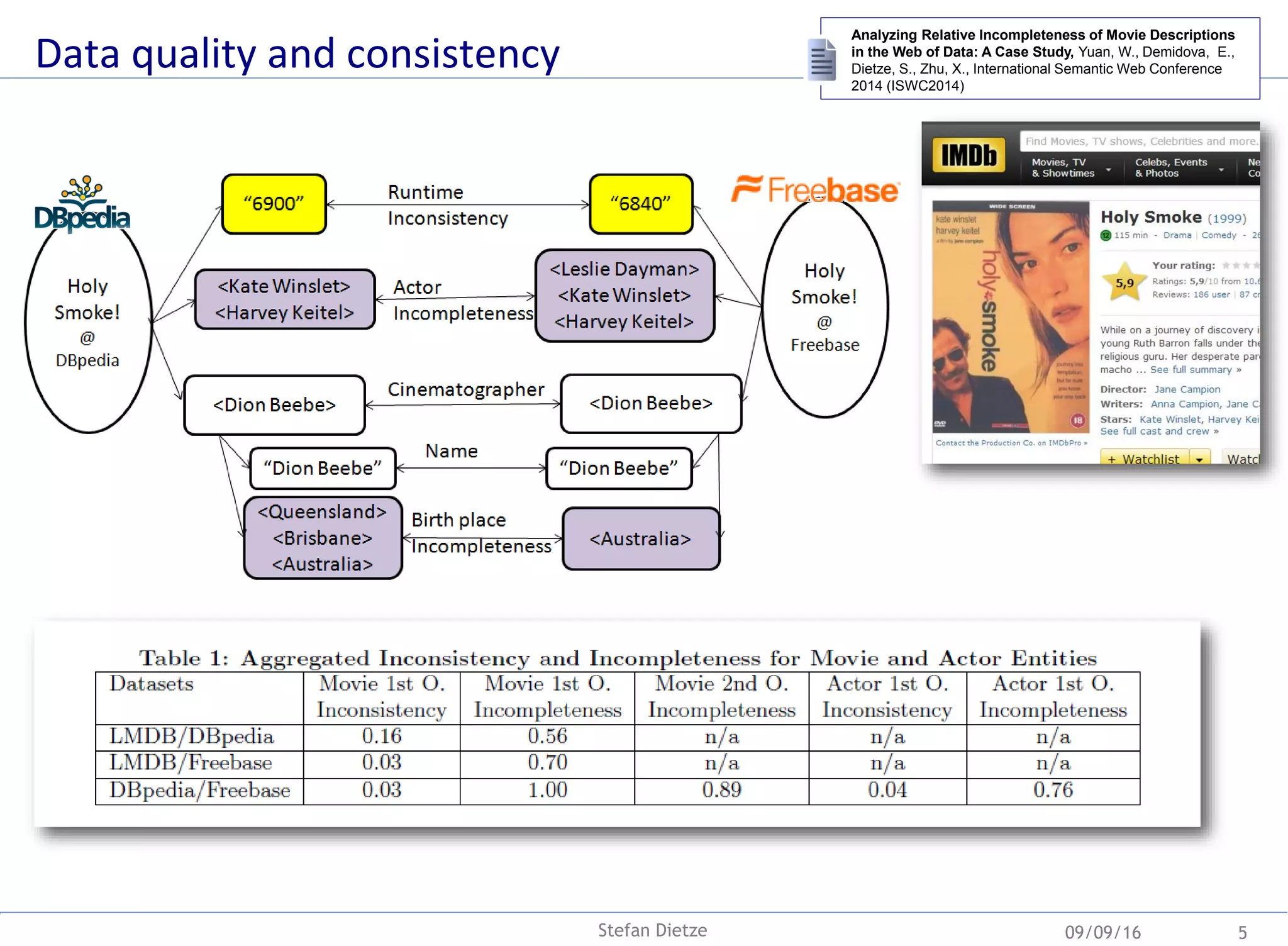

5. Data quality and consistency
Analyzing Relative Incompleteness of Movie Descriptions
in the Web of Data: A Case Study, Yuan, W., Demidova, E.,
Dietze, S., Zhu, X., International Semantic Web Conference
2014 (ISWC2014)
09/09/16Stefan Dietze 5

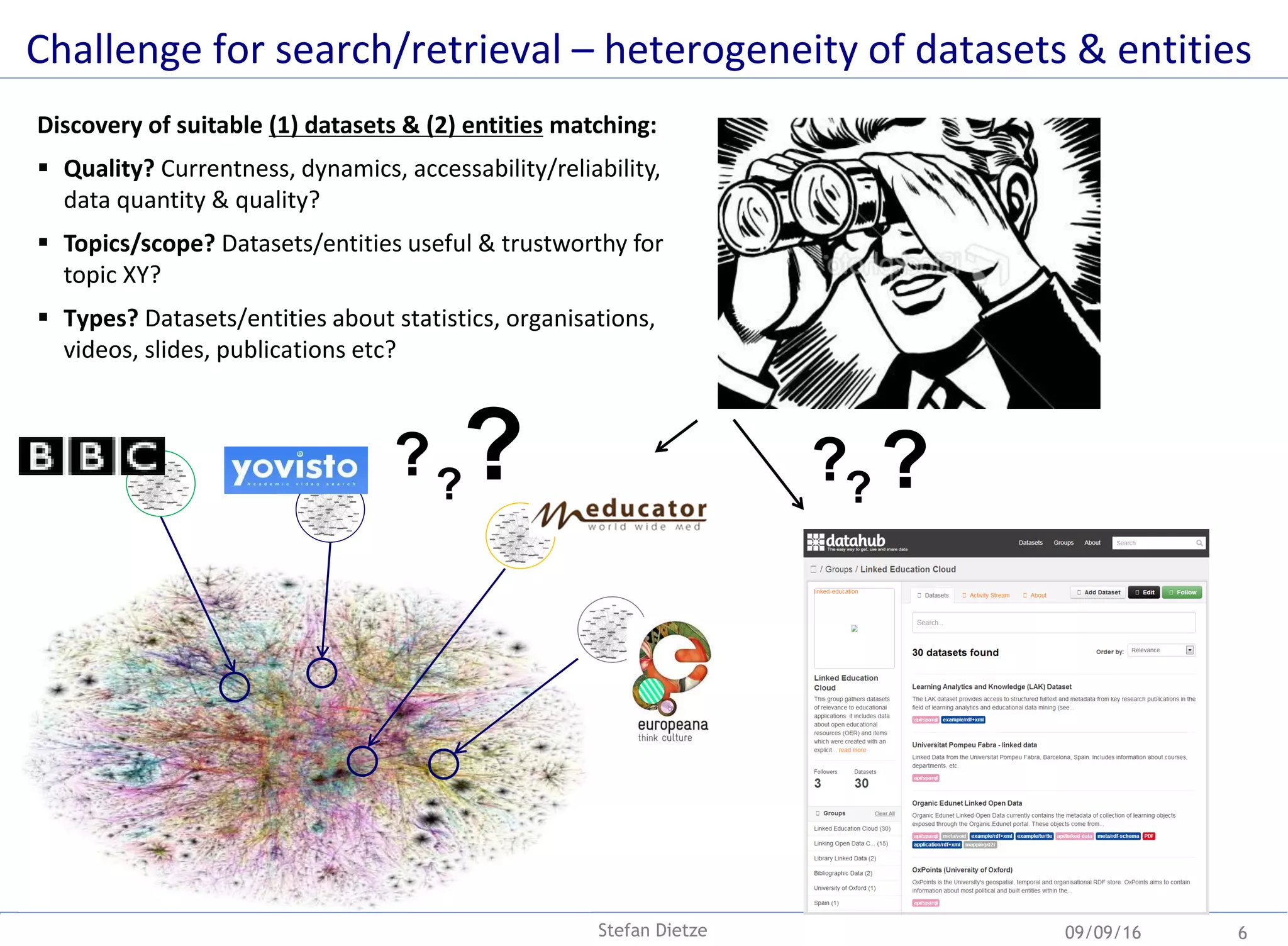

6. Challenge for search/retrieval – heterogeneity of datasets & entities
Stefan Dietze 09/09/16
??? ?? ?
Discovery of suitable (1) datasets & (2) entities matching:
 Quality? Currentness, dynamics, accessability/reliability,
data quantity & quality?
 Topics/scope? Datasets/entities useful & trustworthy for
topic XY?
 Types? Datasets/entities about statistics, organisations,
videos, slides, publications etc?
6

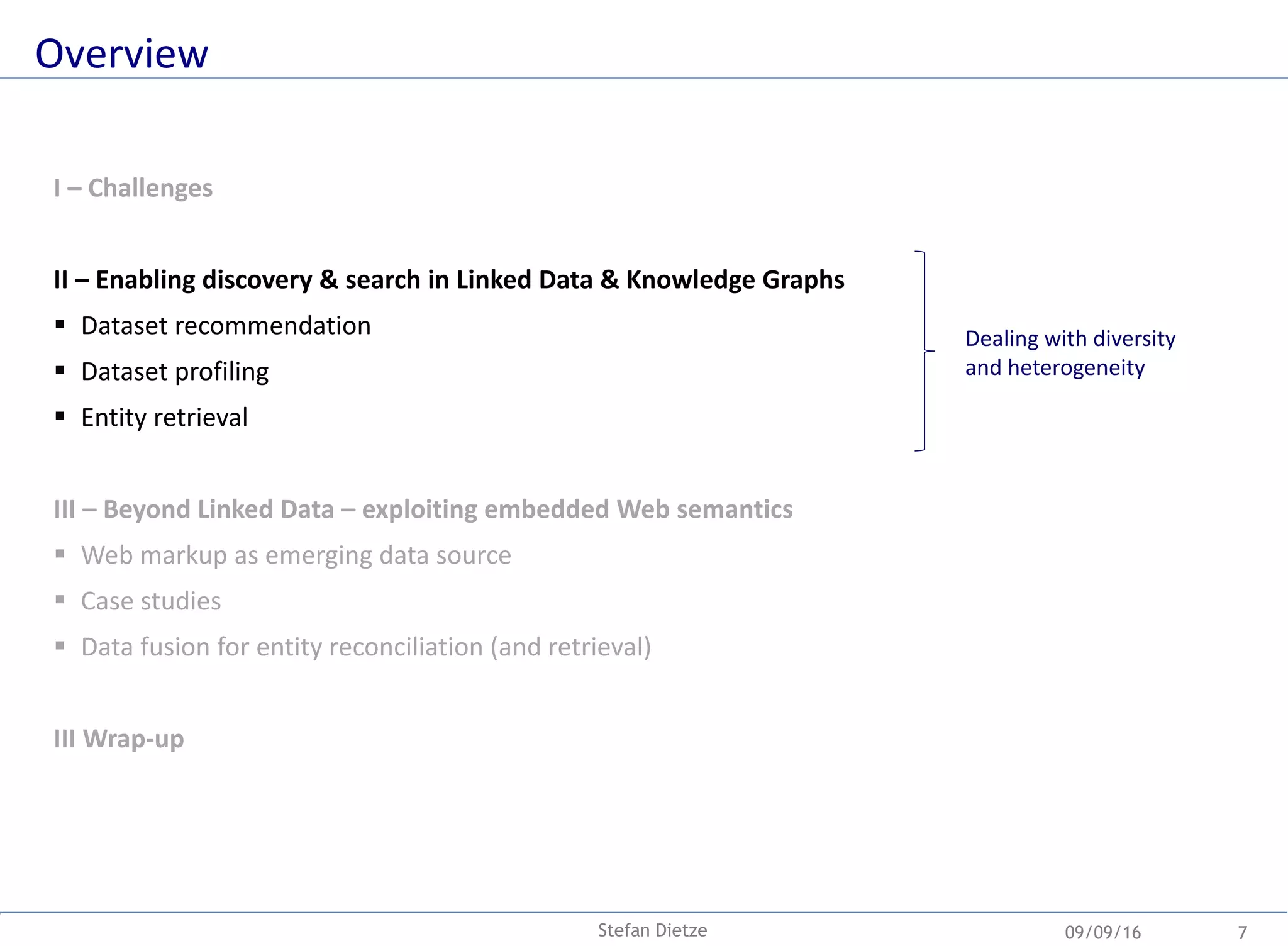

7. Overview
09/09/16Stefan Dietze 7
I – Challenges
II – Enabling discovery & search in Linked Data & Knowledge Graphs
 Dataset recommendation
 Dataset profiling
 Entity retrieval
III – Beyond Linked Data – exploiting embedded Web semantics
 Web markup as emerging data source
 Case studies
 Data fusion for entity reconciliation (and retrieval)
III Wrap-up
Dealing with diversity
and heterogeneity

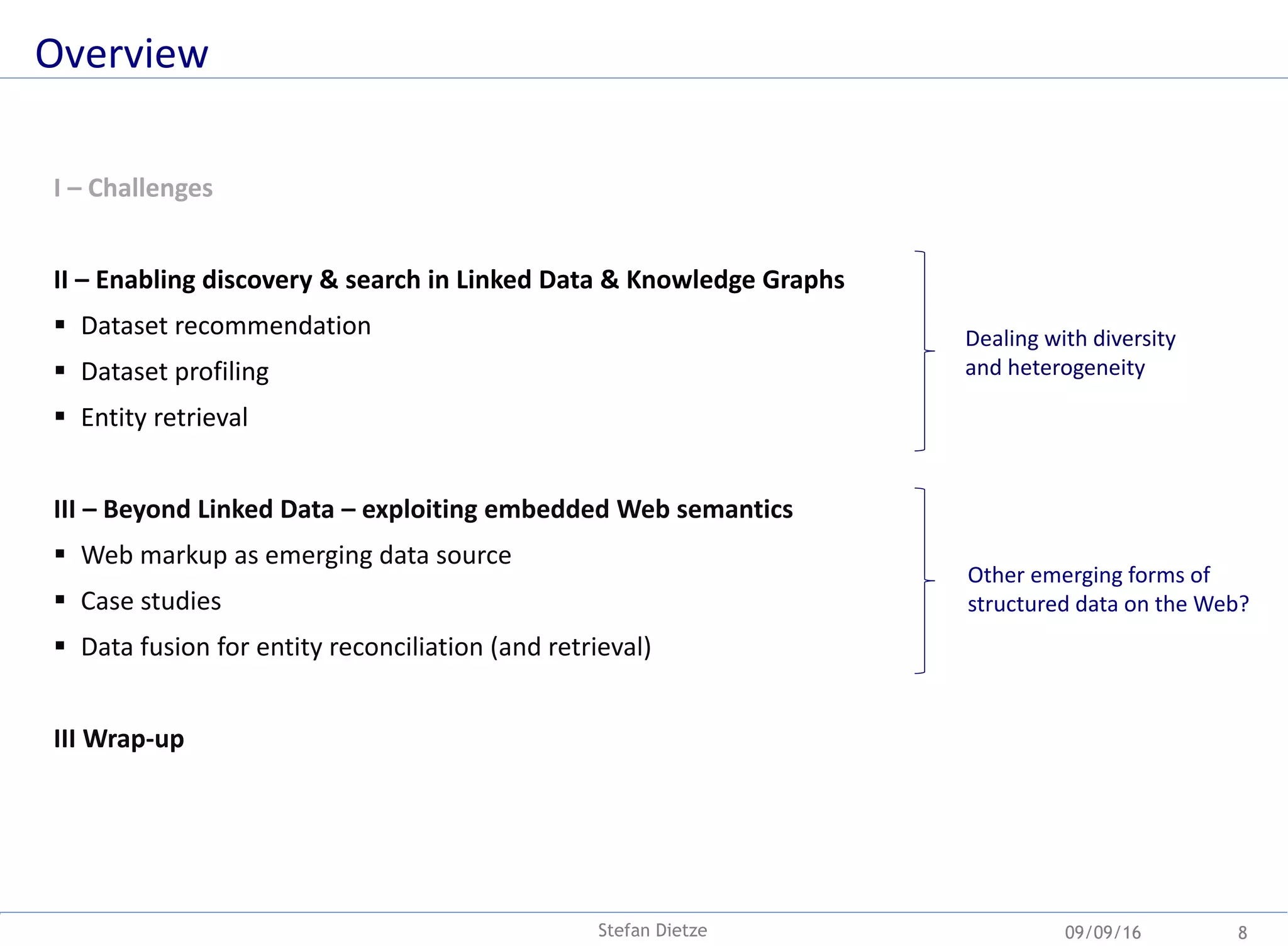

8. Overview
09/09/16Stefan Dietze 8
I – Challenges
II – Enabling discovery & search in Linked Data & Knowledge Graphs
 Dataset recommendation
 Dataset profiling
 Entity retrieval
III – Beyond Linked Data – exploiting embedded Web semantics
 Web markup as emerging data source
 Case studies
 Data fusion for entity reconciliation (and retrieval)
III Wrap-up
Dealing with diversity
and heterogeneity
Other emerging forms of
structured data on the Web?

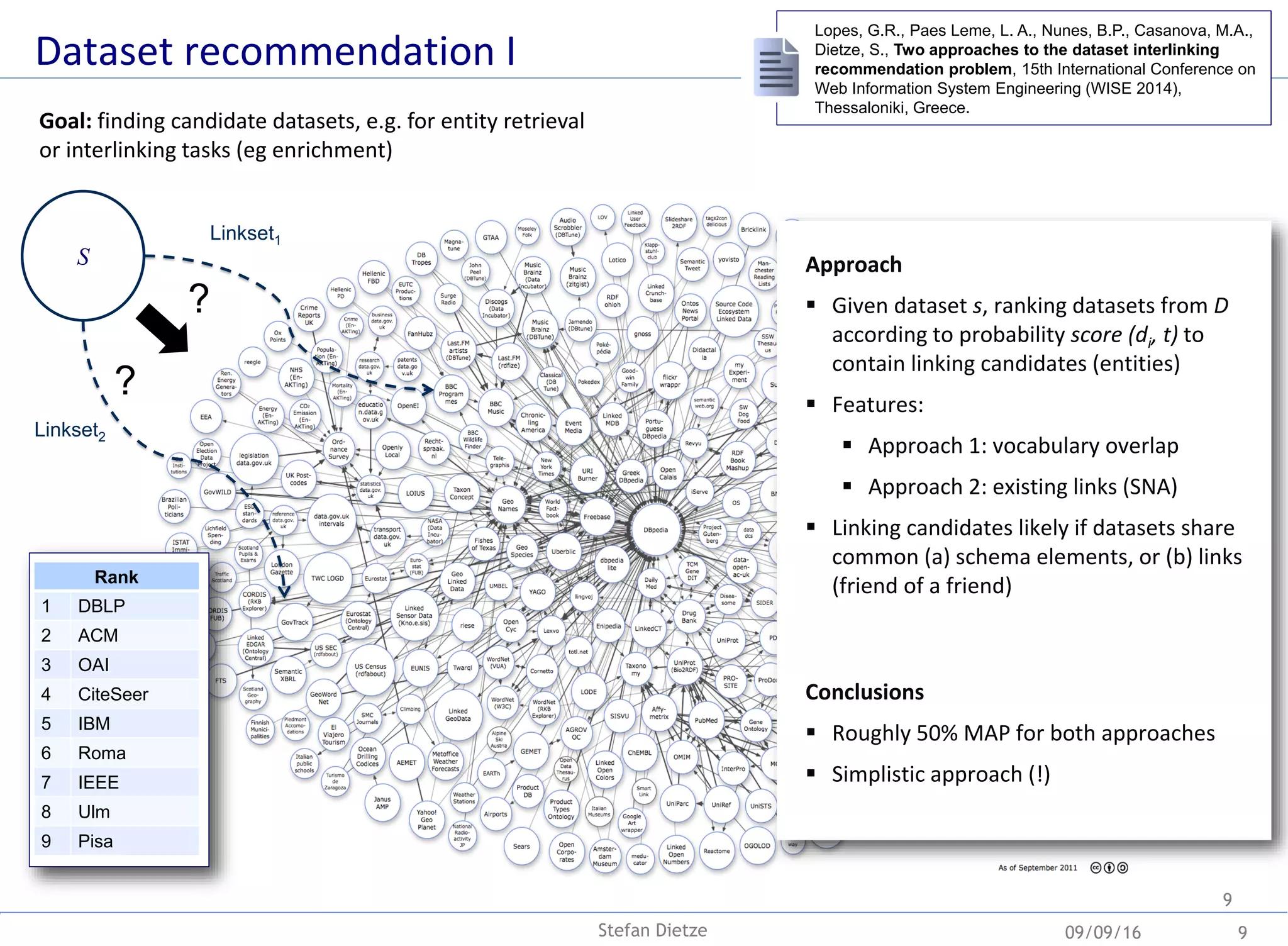

9. 09/09/16
Dataset recommendation I
9
S
Linkset1
Linkset2
Approach
 Given dataset s, ranking datasets from D
according to probability score (di, t) to
contain linking candidates (entities)
 Features:
 Approach 1: vocabulary overlap
 Approach 2: existing links (SNA)
 Linking candidates likely if datasets share
common (a) schema elements, or (b) links
(friend of a friend)
Conclusions
 Roughly 50% MAP for both approaches
 Simplistic approach (!)
Lopes, G.R., Paes Leme, L. A., Nunes, B.P., Casanova, M.A.,
Dietze, S., Two approaches to the dataset interlinking
recommendation problem, 15th International Conference on
Web Information System Engineering (WISE 2014),
Thessaloniki, Greece.
Rank
1 DBLP
2 ACM
3 OAI
4 CiteSeer
5 IBM
6 Roma
7 IEEE
8 Ulm
9 Pisa
?
?
Stefan Dietze 9
Goal: finding candidate datasets, e.g. for entity retrieval
or interlinking tasks (eg enrichment)

10. 09/09/16
Ben Ellefi, M., Bellahsene, Z., Dietze, S., Todorov, K.,
Intension-based Dataset Recommendation for Data
Linking, 13th Extended Semantic Web Conference
(ESWC2016), Heraklion, Crete, May, 2016, ESWC2016
Stefan Dietze 10

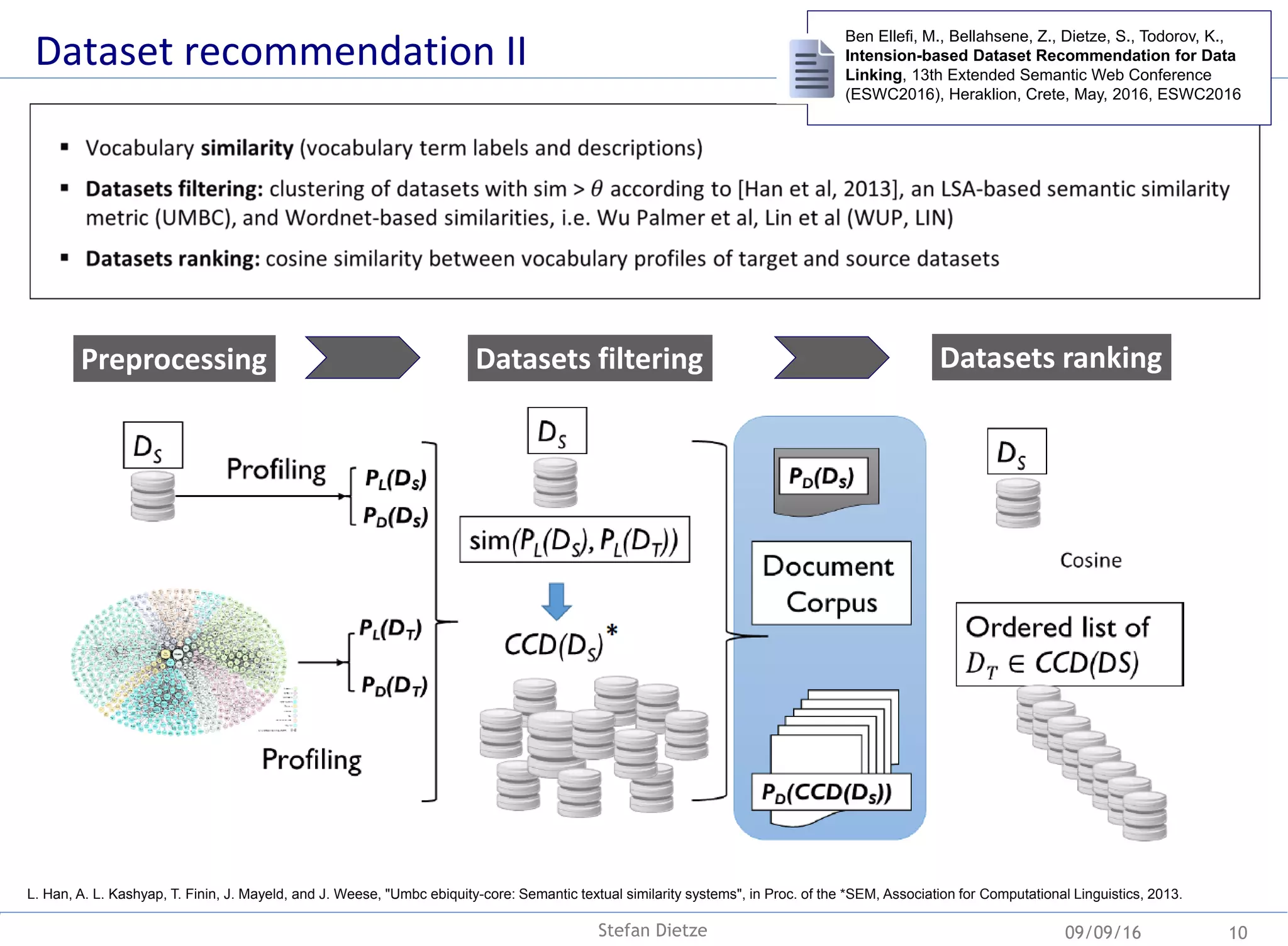

Dataset recommendation II
L. Han, A. L. Kashyap, T. Finin, J. Mayeld, and J. Weese, "Umbc ebiquity-core: Semantic textual similarity systems", in Proc. of the *SEM, Association for Computational Linguistics, 2013.
Preprocessing Datasets rankingDatasets filtering

11. 09/09/16
Ben Ellefi, M., Bellahsene, Z., Dietze, S., Todorov, K.,
Intension-based Dataset Recommendation for Data
Linking, 13th Extended Semantic Web Conference
(ESWC2016), Heraklion, Crete, May, 2016.ESWC2016
Stefan Dietze 11

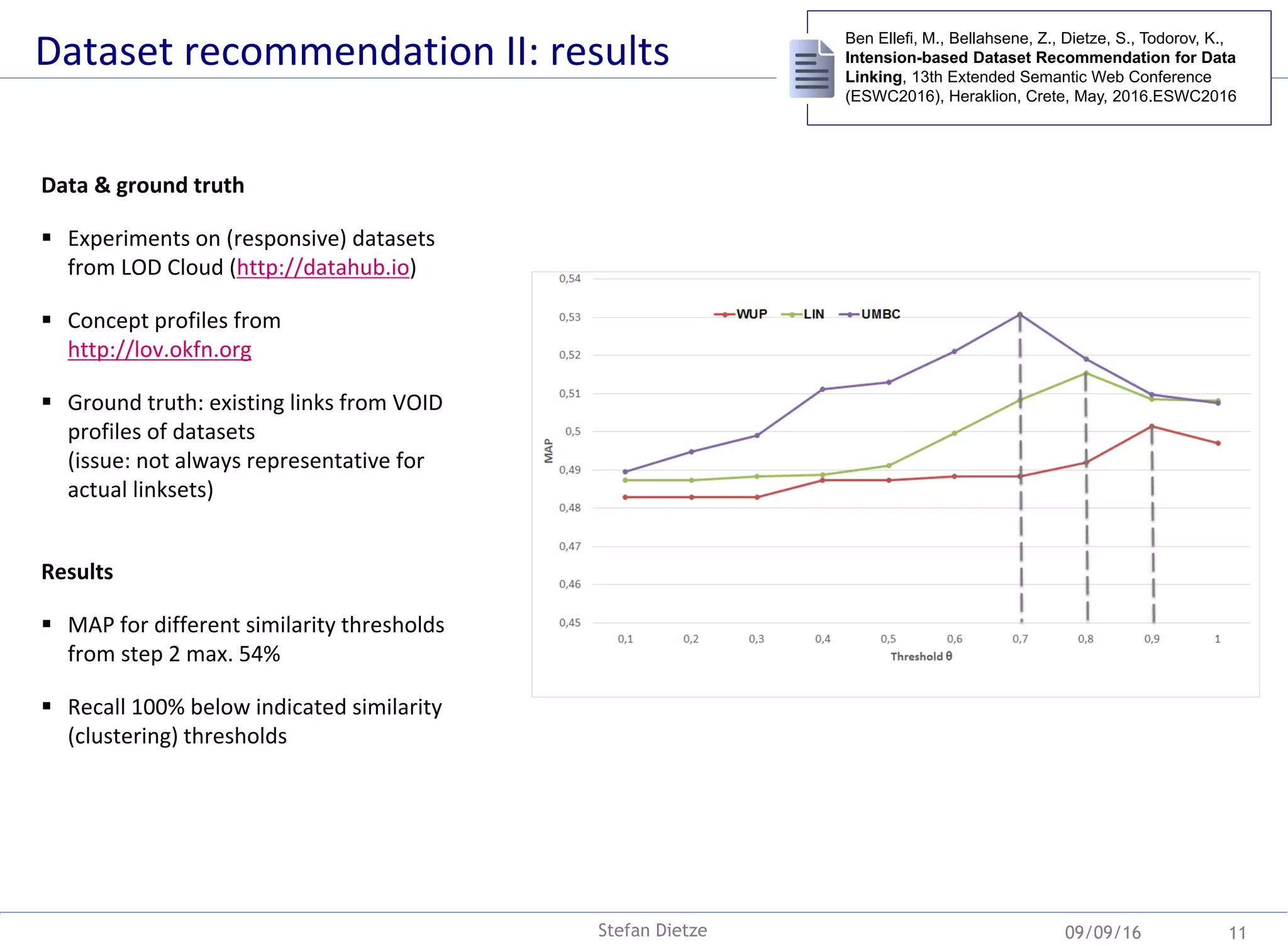

Dataset recommendation II: results
Data & ground truth
 Experiments on (responsive) datasets
from LOD Cloud (http://datahub.io)
 Concept profiles from
http://lov.okfn.org
 Ground truth: existing links from VOID
profiles of datasets
(issue: not always representative for
actual linksets)
Results
 MAP for different similarity thresholds
from step 2 max. 54%
 Recall 100% below indicated similarity
(clustering) thresholds

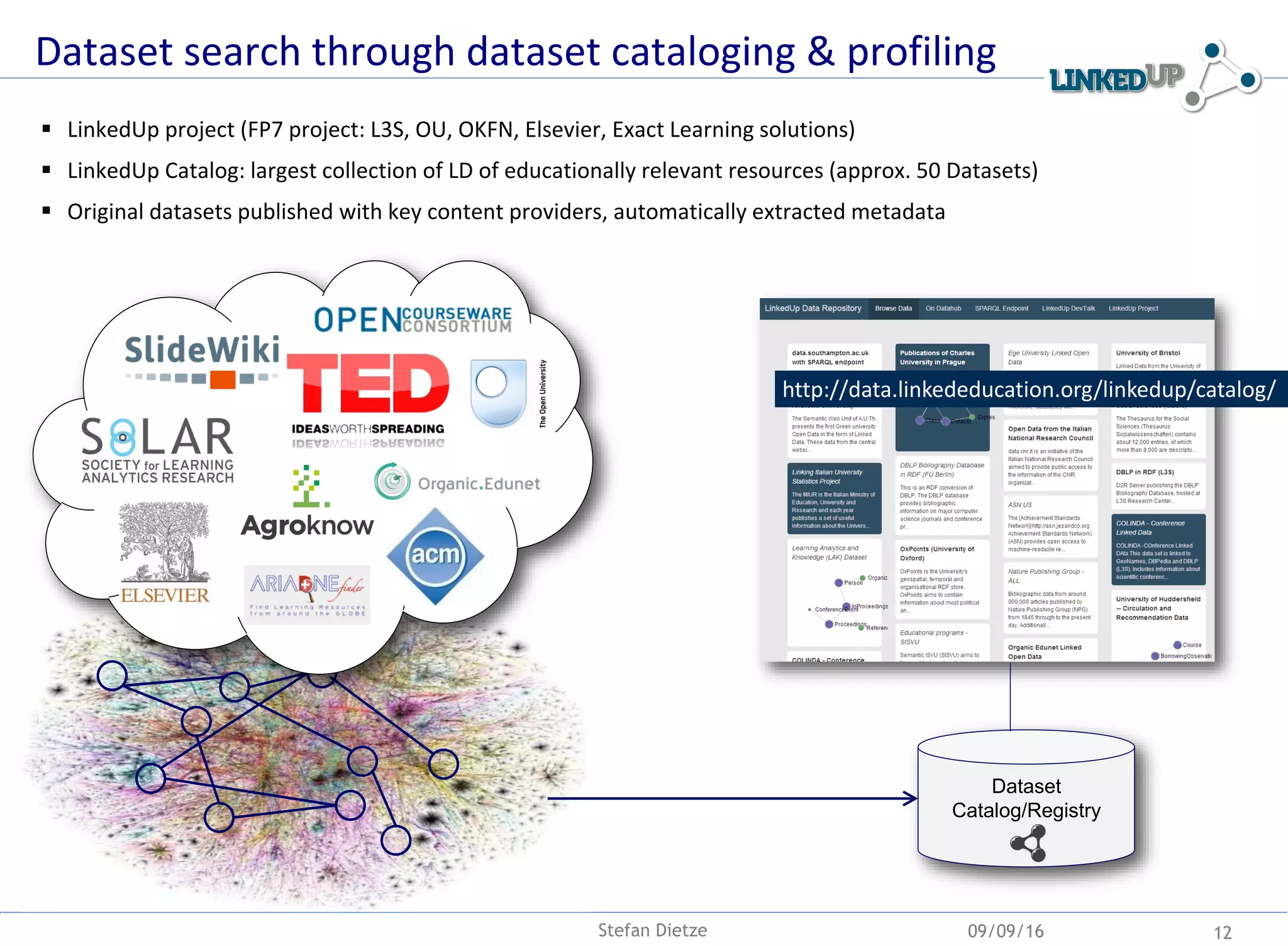

12. Dataset search through dataset cataloging & profiling
Dataset
Catalog/Registry
http://data.linkededucation.org/linkedup/catalog/
 LinkedUp project (FP7 project: L3S, OU, OKFN, Elsevier, Exact Learning solutions)
 LinkedUp Catalog: largest collection of LD of educationally relevant resources (approx. 50 Datasets)
 Original datasets published with key content providers, automatically extracted metadata
09/09/16 12Stefan Dietze

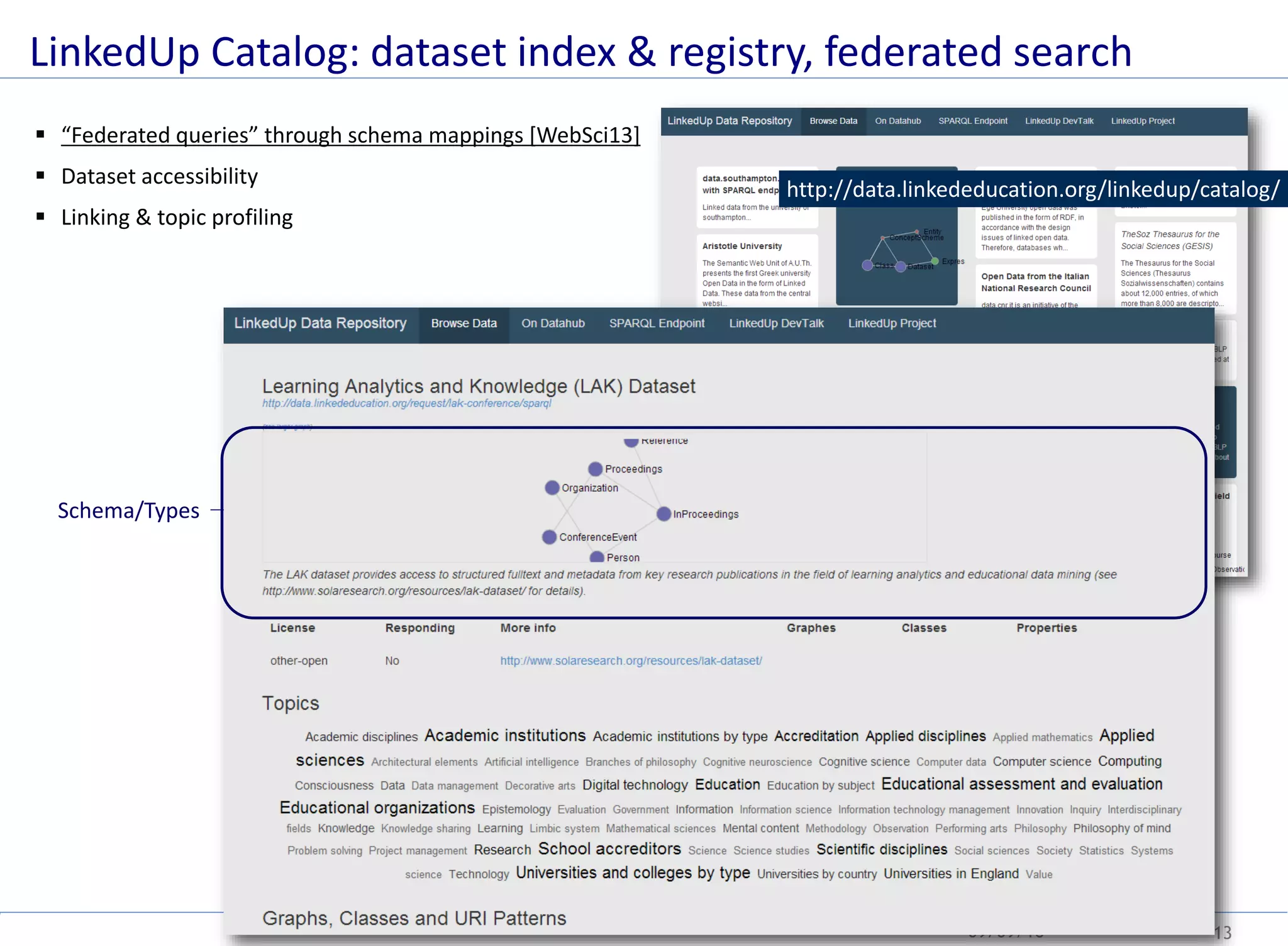

13. 09/09/16 13Stefan Dietze
http://data.linkededucation.org/linkedup/catalog/
LinkedUp Catalog: dataset index & registry, federated search
 “Federated queries” through schema mappings [WebSci13]
 Dataset accessibility
 Linking & topic profiling
Schema/Types

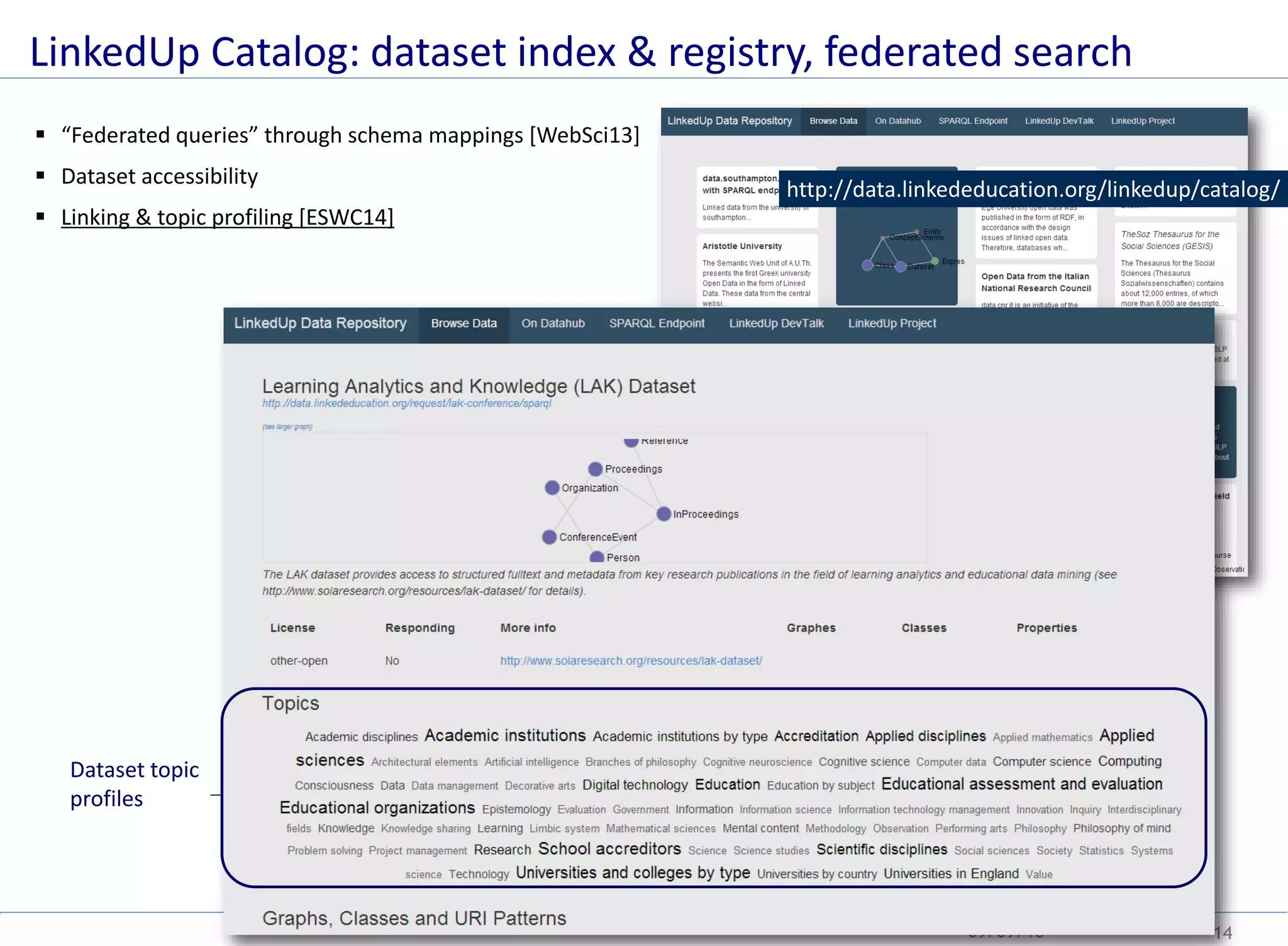

14. 09/09/16 14Stefan Dietze
http://data.linkededucation.org/linkedup/catalog/
LinkedUp Catalog: dataset index & registry, federated search
 “Federated queries” through schema mappings [WebSci13]
 Dataset accessibility
 Linking & topic profiling [ESWC14]
Dataset topic
profiles

15. db:Biology
db:Cell biology
Dataset
Catalog/Registry
yov:Video
<yo:Video …>
<dc:title>Lecture 29 –
Stem Cells</dc:title>
…
</yo:Video…>
Yovisto Video

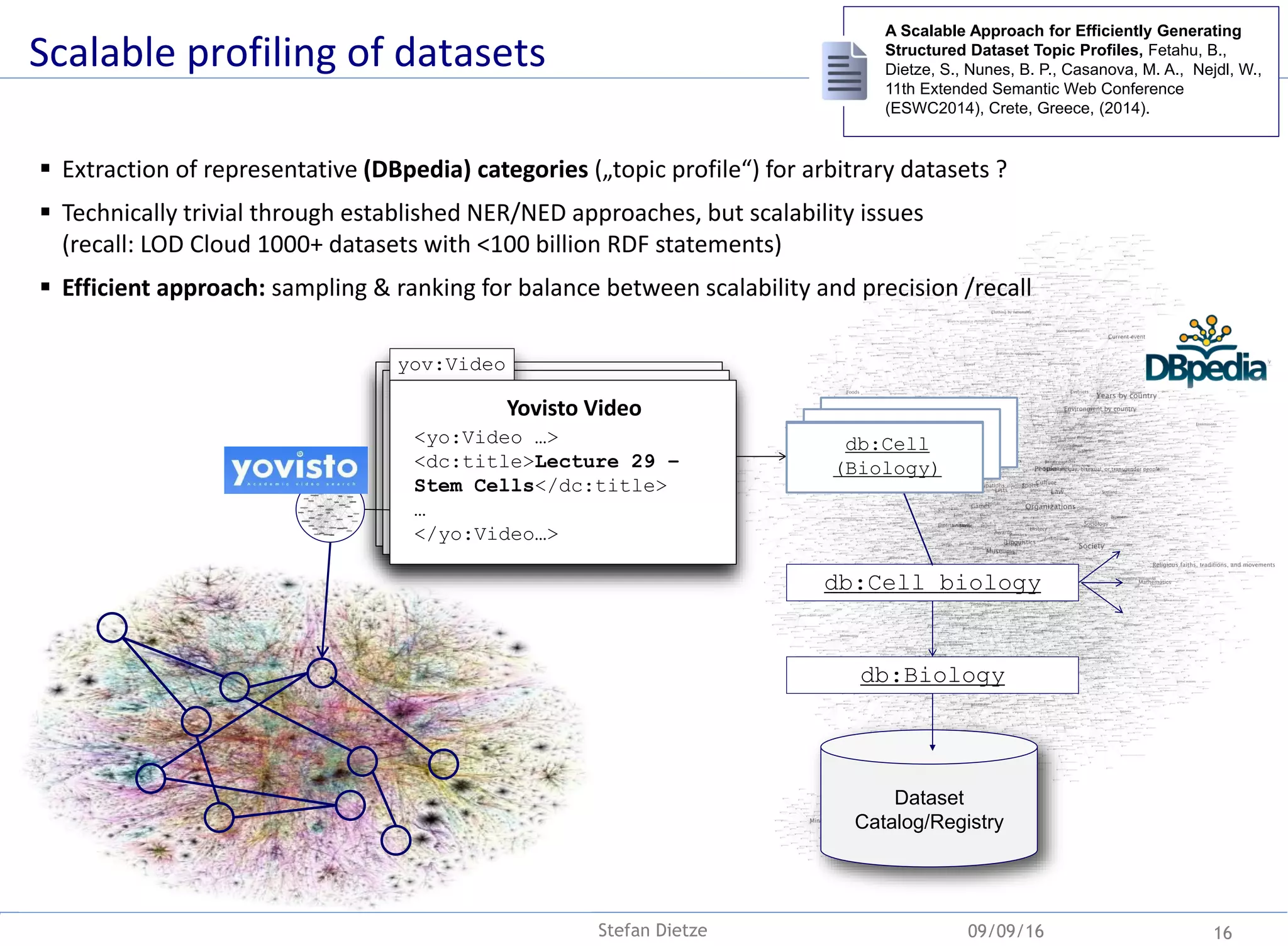

 Extraction of representative (DBpedia) categories („topic profile“) for arbitrary datasets ?
 Technically trivial through established NER/NED approaches, but scalability issues
(recall: LOD Cloud 1000+ datasets with <100 billion RDF statements)
 Efficient approach: sampling & ranking for balance between scalability and precision /recall
Scalable profiling of datasets
A Scalable Approach for Efficiently Generating
Structured Dataset Topic Profiles, Fetahu, B.,
Dietze, S., Nunes, B. P., Casanova, M. A., Nejdl, W.,
11th Extended Semantic Web Conference
(ESWC2014), Crete, Greece, (2014).
db:Cell
(Biology)
09/09/16 16
db:Cell
(Biology)
Stefan Dietze

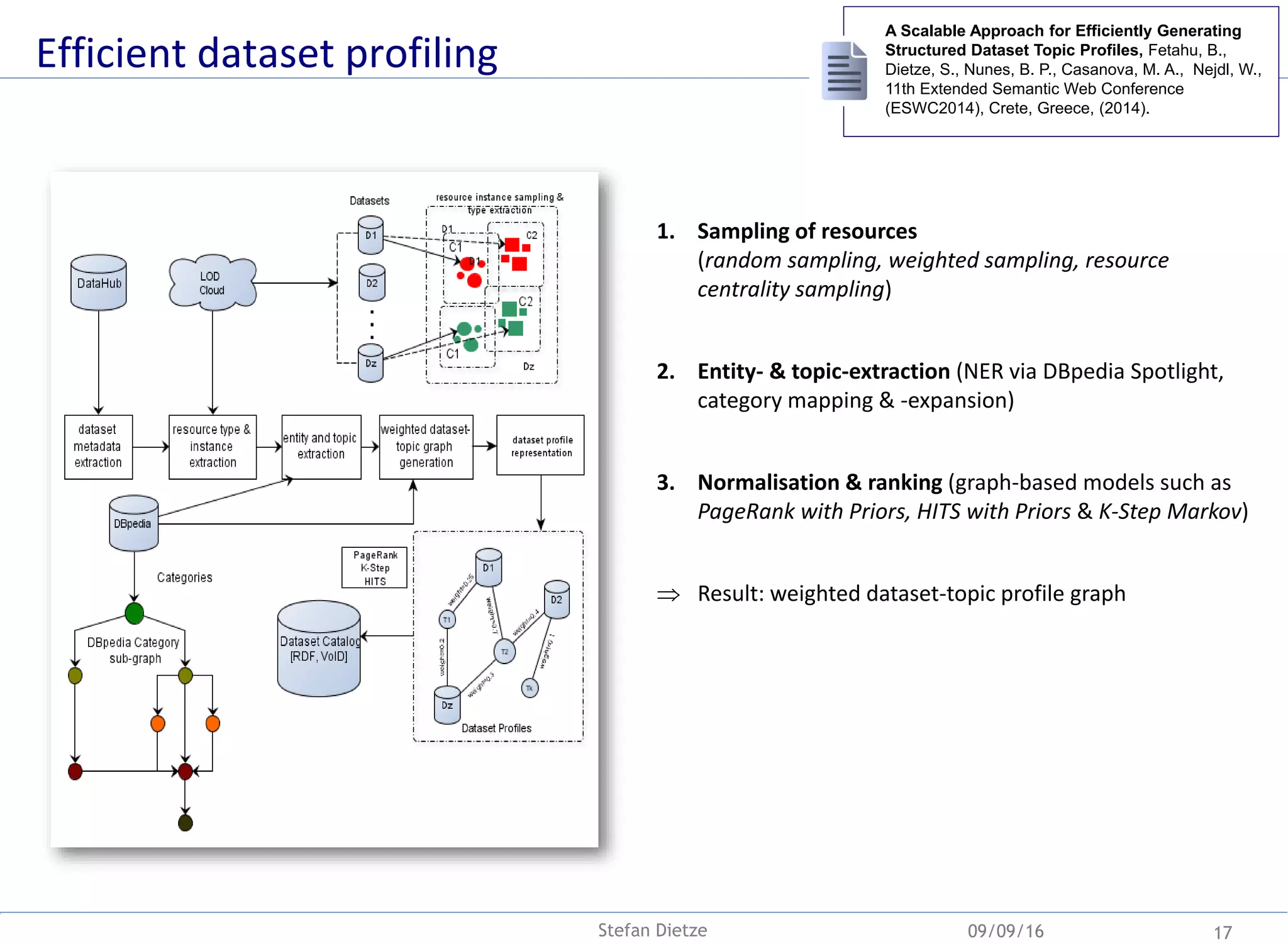

16. Efficient dataset profiling
1. Sampling of resources
(random sampling, weighted sampling, resource
centrality sampling)
2. Entity- & topic-extraction (NER via DBpedia Spotlight,
category mapping & -expansion)
3. Normalisation & ranking (graph-based models such as
PageRank with Priors, HITS with Priors & K-Step Markov)
 Result: weighted dataset-topic profile graph
A Scalable Approach for Efficiently Generating
Structured Dataset Topic Profiles, Fetahu, B.,
Dietze, S., Nunes, B. P., Casanova, M. A., Nejdl, W.,
11th Extended Semantic Web Conference
(ESWC2014), Crete, Greece, (2014).
09/09/16 17Stefan Dietze

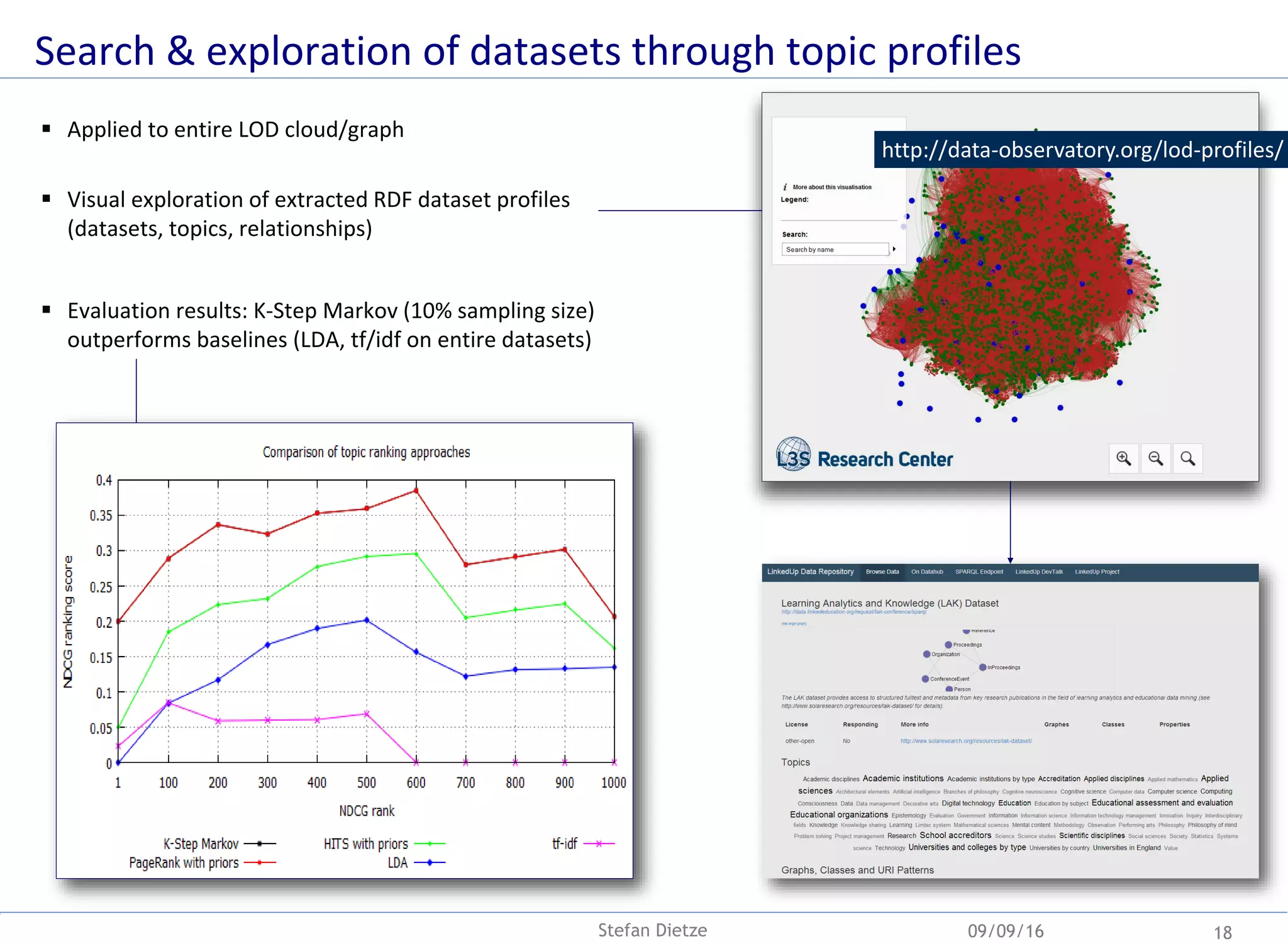

17. Search & exploration of datasets through topic profiles
 Applied to entire LOD cloud/graph
 Visual exploration of extracted RDF dataset profiles
(datasets, topics, relationships)
 Evaluation results: K-Step Markov (10% sampling size)
outperforms baselines (LDA, tf/idf on entire datasets)
http://data-observatory.org/lod-profiles/
09/09/16 18Stefan Dietze

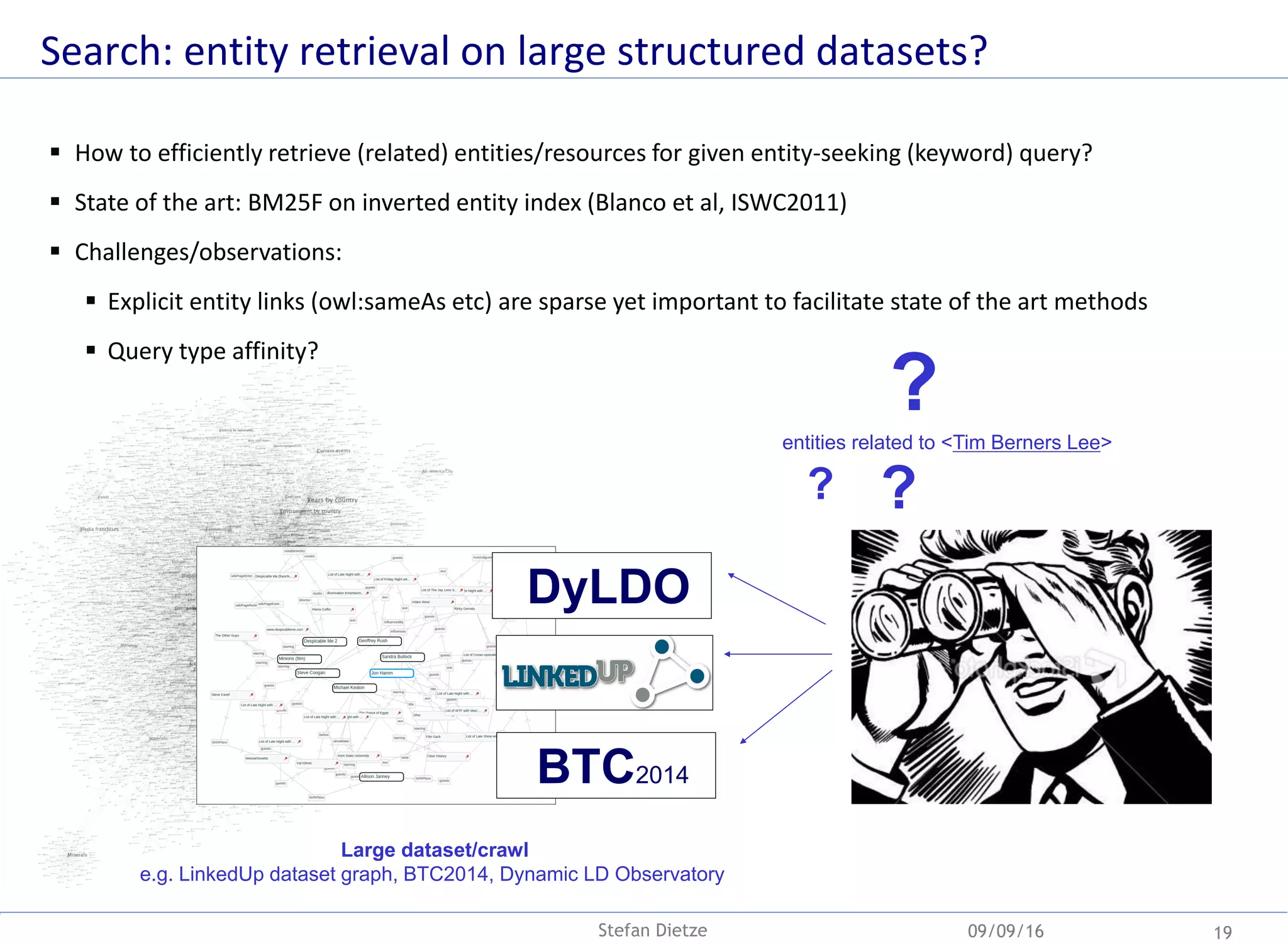

18. Search: entity retrieval on large structured datasets?
 How to efficiently retrieve (related) entities/resources for given entity-seeking (keyword) query?
 State of the art: BM25F on inverted entity index (Blanco et al, ISWC2011)
 Challenges/observations:
 Explicit entity links (owl:sameAs etc) are sparse yet important to facilitate state of the art methods
 Query type affinity?
09/09/16 19Stefan Dietze
??
Large dataset/crawl
e.g. LinkedUp dataset graph, BTC2014, Dynamic LD Observatory
entities related to <Tim Berners Lee>
?
BTC2014
DyLDO

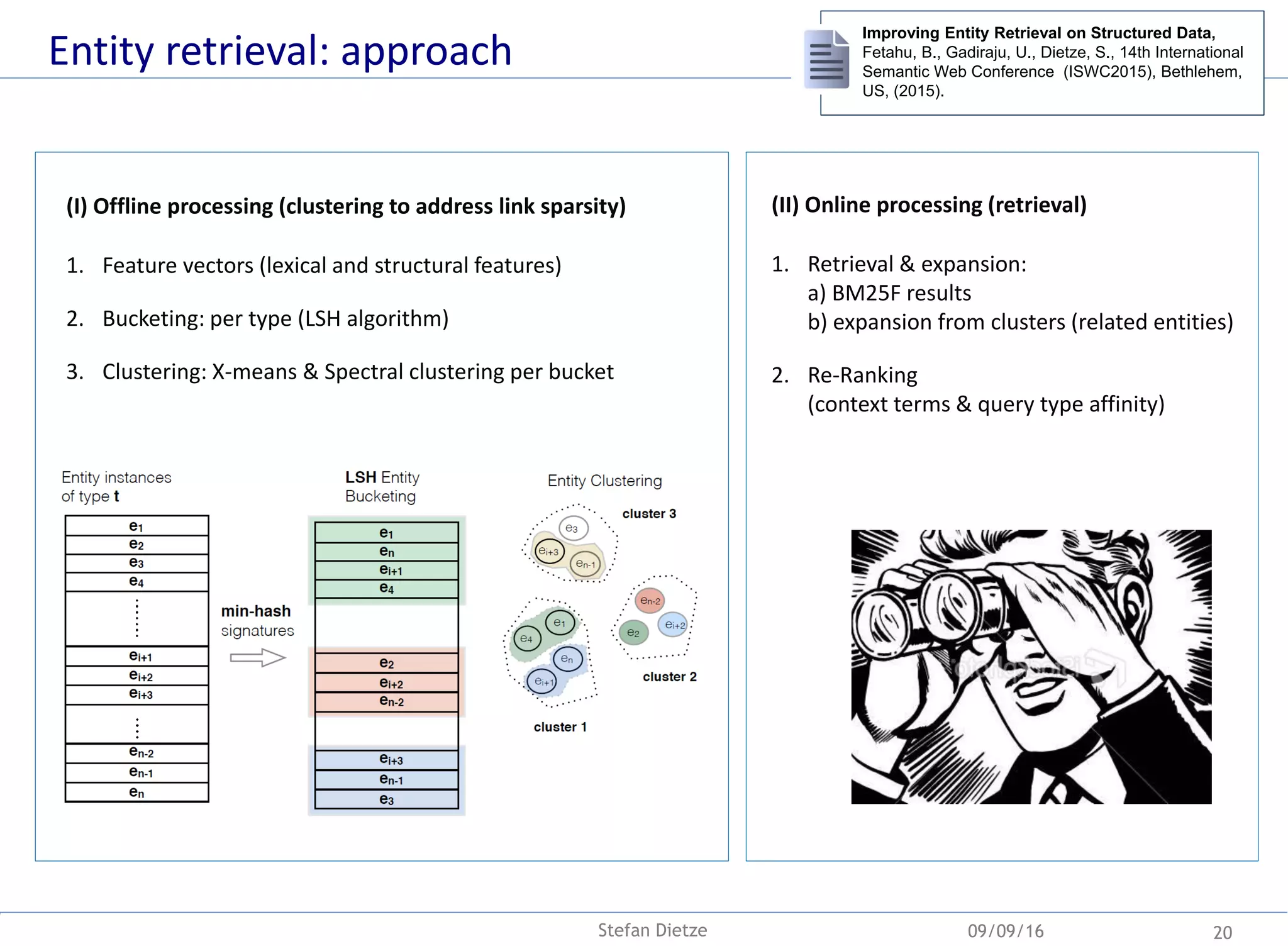

19. Entity retrieval: approach
(I) Offline processing (clustering to address link sparsity)
1. Feature vectors (lexical and structural features)
2. Bucketing: per type (LSH algorithm)
3. Clustering: X-means & Spectral clustering per bucket
Improving Entity Retrieval on Structured Data,
Fetahu, B., Gadiraju, U., Dietze, S., 14th International
Semantic Web Conference (ISWC2015), Bethlehem,
US, (2015).
(II) Online processing (retrieval)
1. Retrieval & expansion:
a) BM25F results
b) expansion from clusters (related entities)
2. Re-Ranking
(context terms & query type affinity)
09/09/16 20Stefan Dietze

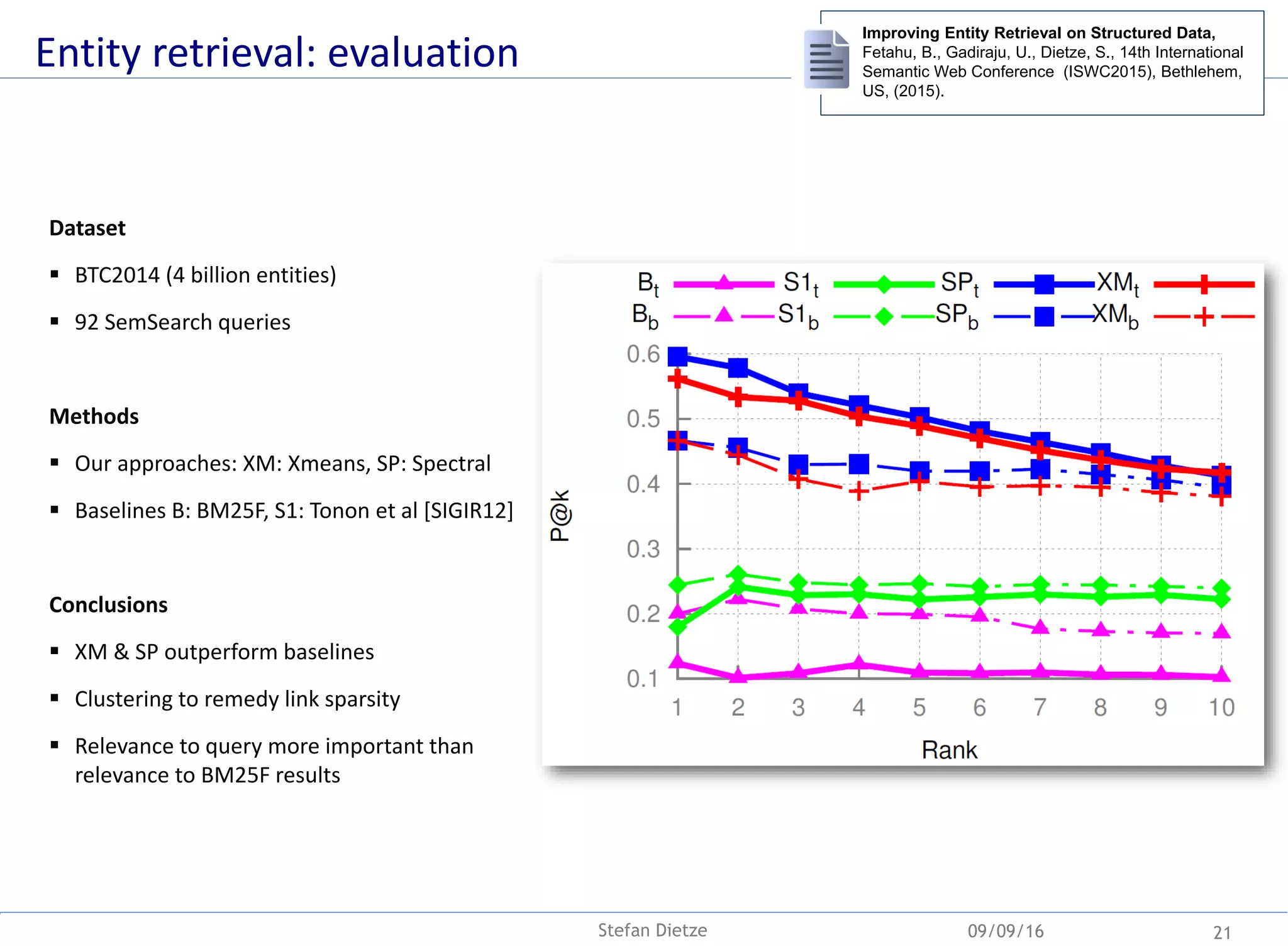

20. Dataset
 BTC2014 (4 billion entities)
 92 SemSearch queries
Methods
 Our approaches: XM: Xmeans, SP: Spectral
 Baselines B: BM25F, S1: Tonon et al [SIGIR12]
Conclusions
 XM & SP outperform baselines
 Clustering to remedy link sparsity
 Relevance to query more important than
relevance to BM25F results
Improving Entity Retrieval on Structured Data,
Fetahu, B., Gadiraju, U., Dietze, S., 14th International
Semantic Web Conference (ISWC2015), Bethlehem,
US, (2015).
Entity retrieval: evaluation
09/09/16 21Stefan Dietze

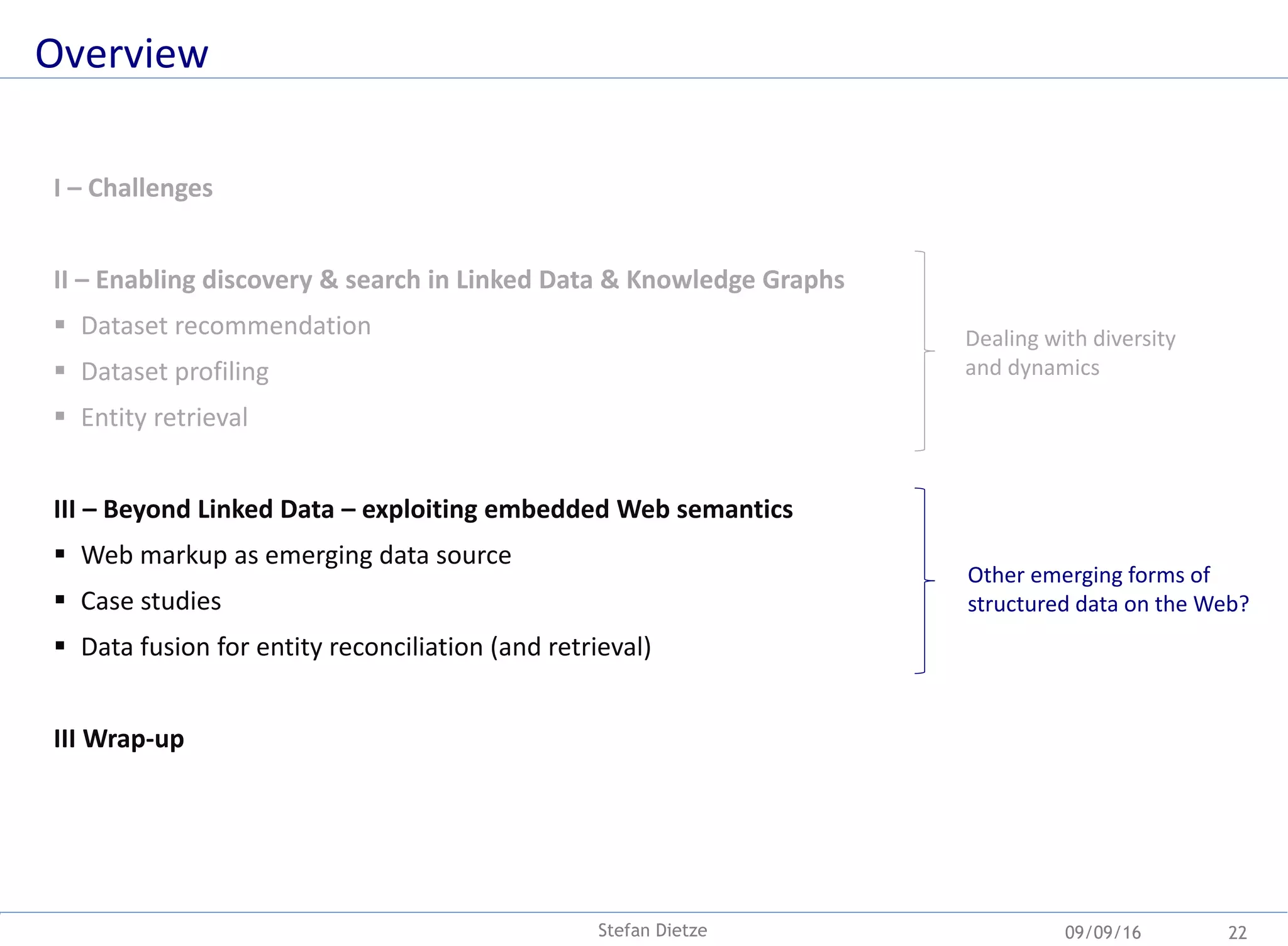

21. Overview
09/09/16Stefan Dietze 22
I – Challenges
II – Enabling discovery & search in Linked Data & Knowledge Graphs
 Dataset recommendation
 Dataset profiling
 Entity retrieval
III – Beyond Linked Data – exploiting embedded Web semantics
 Web markup as emerging data source
 Case studies
 Data fusion for entity reconciliation (and retrieval)
III Wrap-up
Dealing with diversity
and dynamics
Other emerging forms of
structured data on the Web?

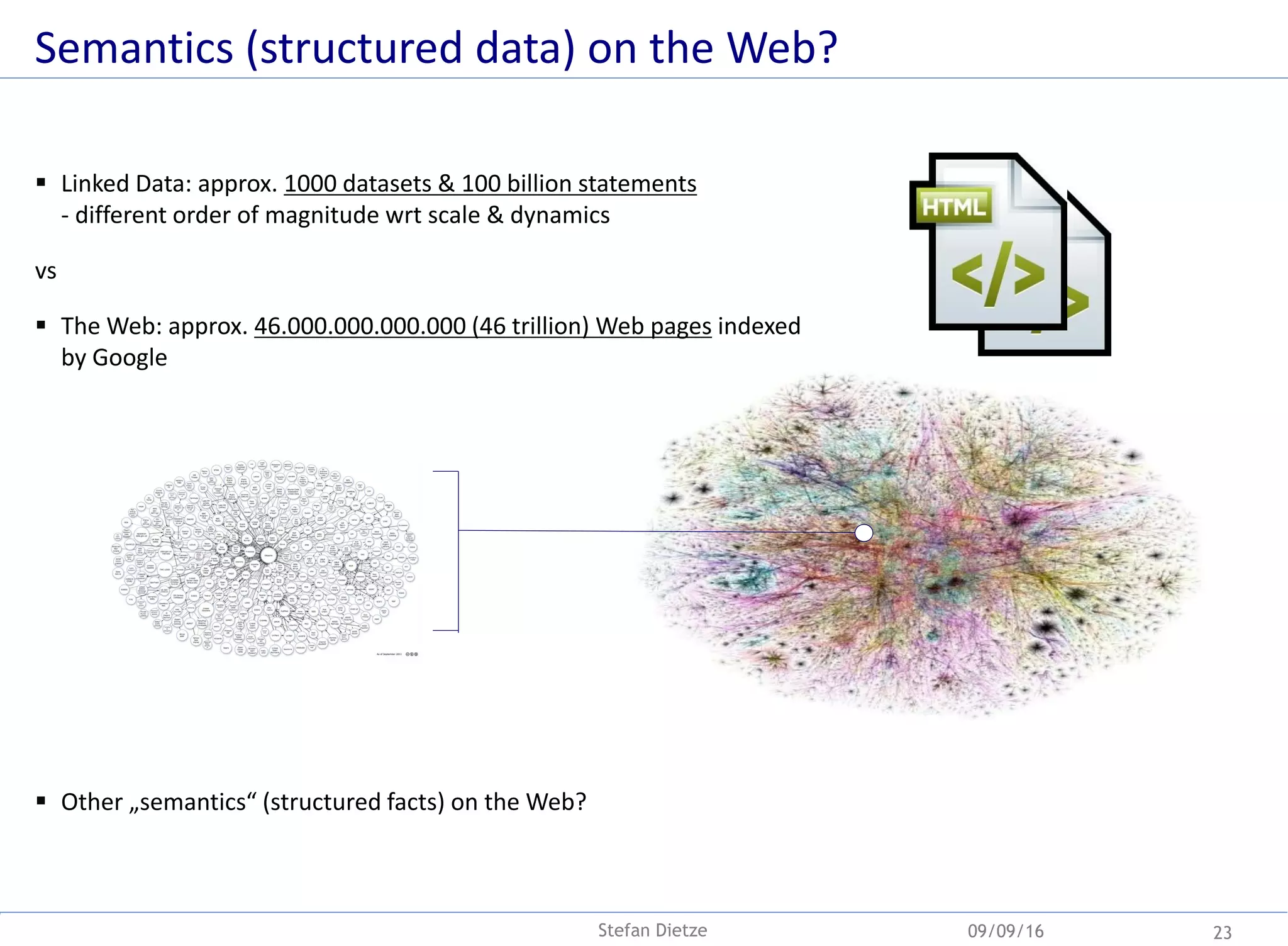

22.  Linked Data: approx. 1000 datasets & 100 billion statements
- different order of magnitude wrt scale & dynamics
vs
 The Web: approx. 46.000.000.000.000 (46 trillion) Web pages indexed
by Google
 Other „semantics“ (structured facts) on the Web?
Semantics (structured data) on the Web?
09/09/16 23Stefan Dietze

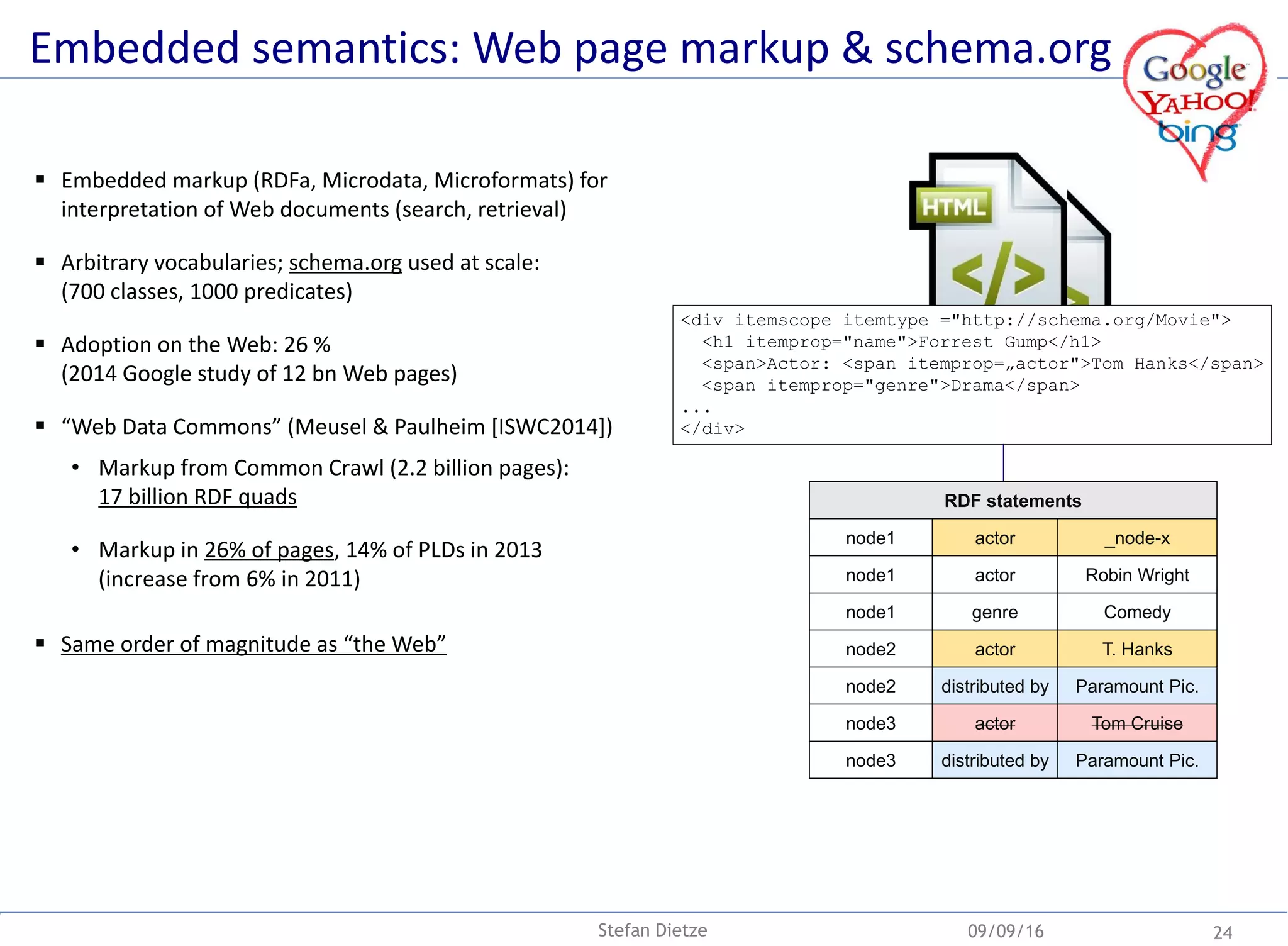

23.  Embedded markup (RDFa, Microdata, Microformats) for
interpretation of Web documents (search, retrieval)
 Arbitrary vocabularies; schema.org used at scale:
(700 classes, 1000 predicates)
 Adoption on the Web: 26 %
(2014 Google study of 12 bn Web pages)
 “Web Data Commons” (Meusel & Paulheim [ISWC2014])
• Markup from Common Crawl (2.2 billion pages):
17 billion RDF quads
• Markup in 26% of pages, 14% of PLDs in 2013
(increase from 6% in 2011)
 Same order of magnitude as “the Web”
Embedded semantics: Web page markup & schema.org
<div itemscope itemtype ="http://schema.org/Movie">
<h1 itemprop="name">Forrest Gump</h1>
<span>Actor: <span itemprop=„actor">Tom Hanks</span>
<span itemprop="genre">Drama</span>
...
</div>
09/09/16 24
RDF statements
node1 actor _node-x
node1 actor Robin Wright
node1 genre Comedy
node2 actor T. Hanks
node2 distributed by Paramount Pic.
node3 actor Tom Cruise
node3 distributed by Paramount Pic.
Stefan Dietze

24.  schema:Product instances in Web Data Commons
 Facts: 1.414.937.431
(= 302.246.120 instances, i.e. products)
 Providers (distinct Pay Level Domains, PLDs): 93.705
 Power Law distribution of terms across PLDs
 Top 10 PLDs
 Top provider ? (company)
09/09/16 25Stefan Dietze

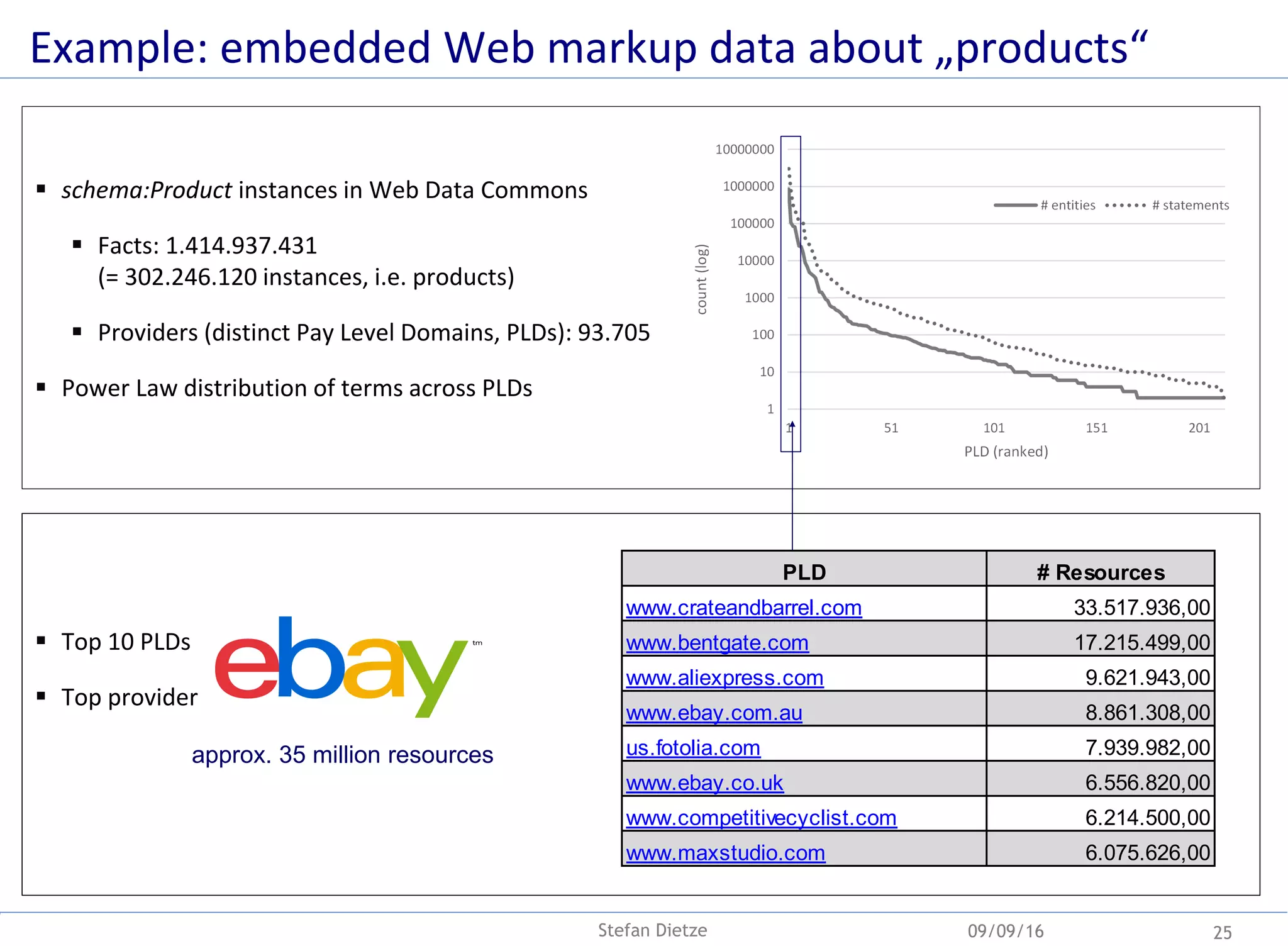

Example: embedded Web markup data about „products“
PLD # Resources
www.crateandbarrel.com 33.517.936,00
www.bentgate.com 17.215.499,00
www.aliexpress.com 9.621.943,00
www.ebay.com.au 8.861.308,00
us.fotolia.com 7.939.982,00
www.ebay.co.uk 6.556.820,00
www.competitivecyclist.com 6.214.500,00
www.maxstudio.com 6.075.626,00
approx. 35 million resources

25. 1
10
100
1000
10000
100000
1000000
10000000
1 51 101 151 201
count(log)
PLD (ranked)
# entities # statements
Study on sample Web crawl (WDC)
 Metadata about scholarly articles, e.g.
s:ScholarlyArticle): 6.793.764 quads, 1.184.623
entities, 429 distinct predicates
(in WDC and for 1 type alone)
 Top 5 domains: Springer, MDPI, BMJ,
diabetesjournals.org, mendeley.com,
Biodiversitylibrary.org
Domains, topics, disciplines?
 Life Sciences and Computer Science predominant
 Top-10 article titles
 Most important publishers/journals, libraries
represented

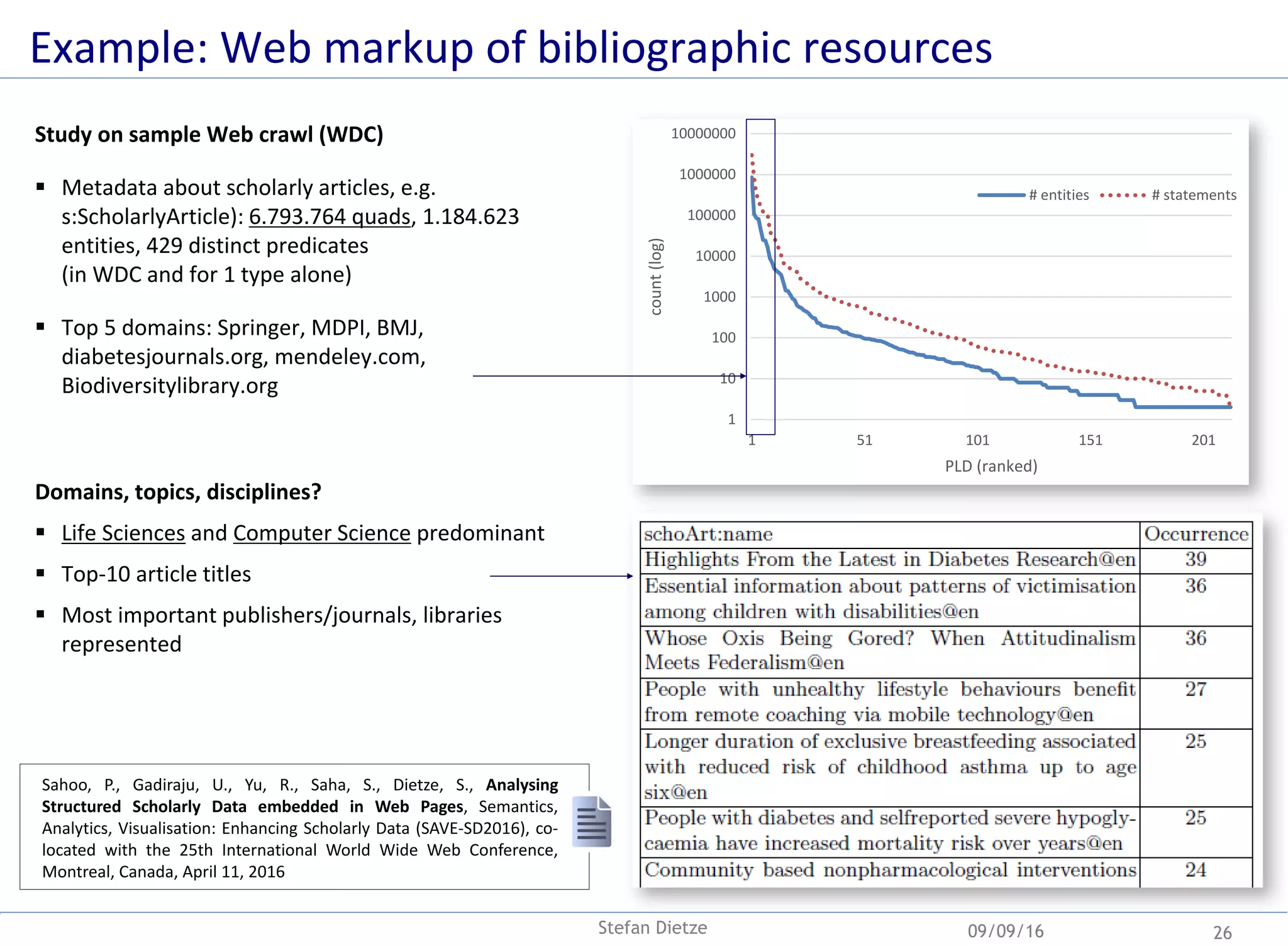

Example: Web markup of bibliographic resources
09/09/16 26Stefan Dietze
Sahoo, P., Gadiraju, U., Yu, R., Saha, S., Dietze, S., Analysing
Structured Scholarly Data embedded in Web Pages, Semantics,
Analytics, Visualisation: Enhancing Scholarly Data (SAVE-SD2016), co-
located with the 25th International World Wide Web Conference,
Montreal, Canada, April 11, 2016

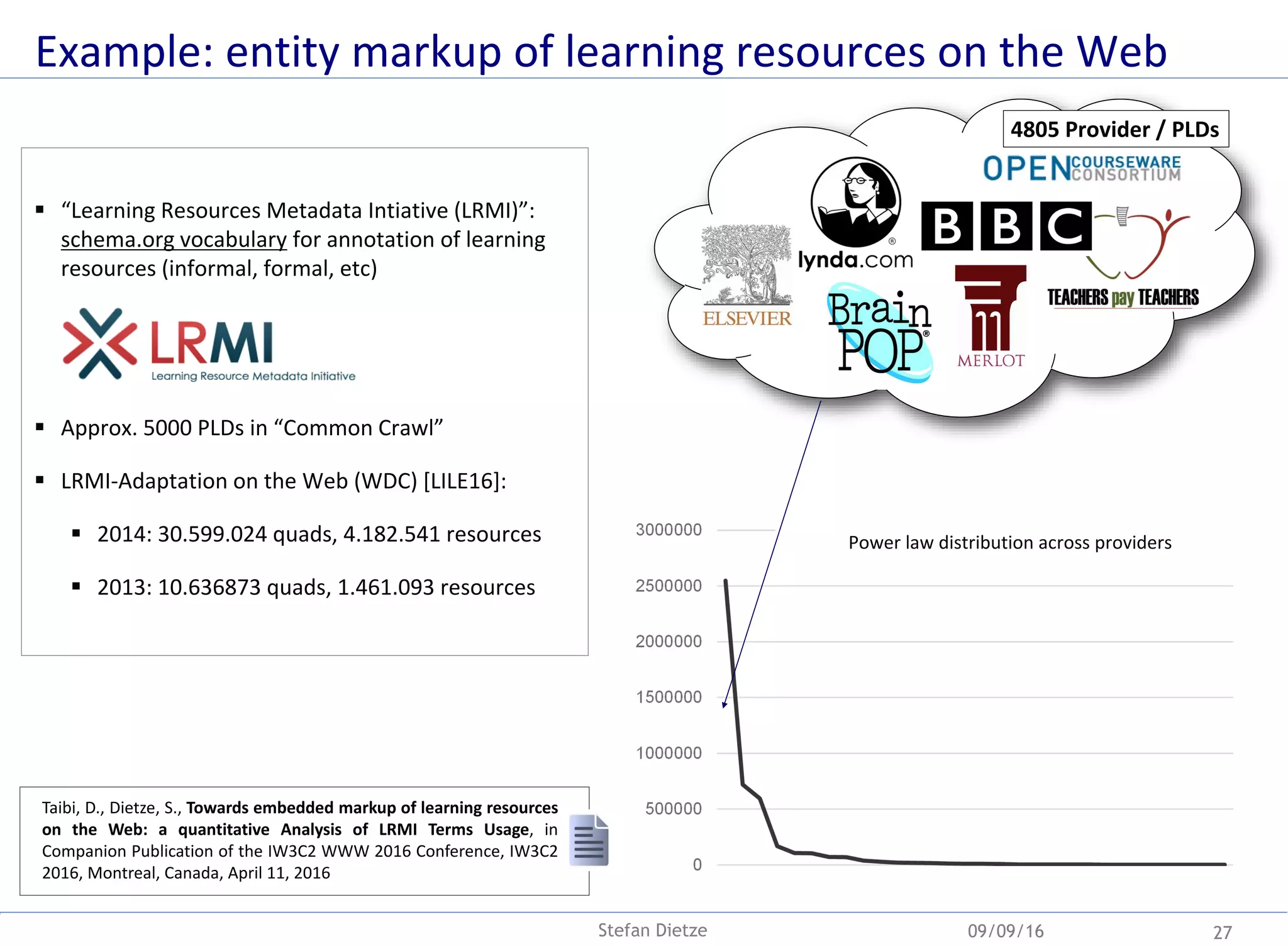

26. Example: entity markup of learning resources on the Web
 “Learning Resources Metadata Intiative (LRMI)”:
schema.org vocabulary for annotation of learning
resources (informal, formal, etc)
 Approx. 5000 PLDs in “Common Crawl”
 LRMI-Adaptation on the Web (WDC) [LILE16]:
 2014: 30.599.024 quads, 4.182.541 resources
 2013: 10.636873 quads, 1.461.093 resources
09/09/16 27
Power law distribution across providers
4805 Provider / PLDs
Taibi, D., Dietze, S., Towards embedded markup of learning resources
on the Web: a quantitative Analysis of LRMI Terms Usage, in
Companion Publication of the IW3C2 WWW 2016 Conference, IW3C2
2016, Montreal, Canada, April 11, 2016
Stefan Dietze

27. 09/09/16 28Stefan Dietze

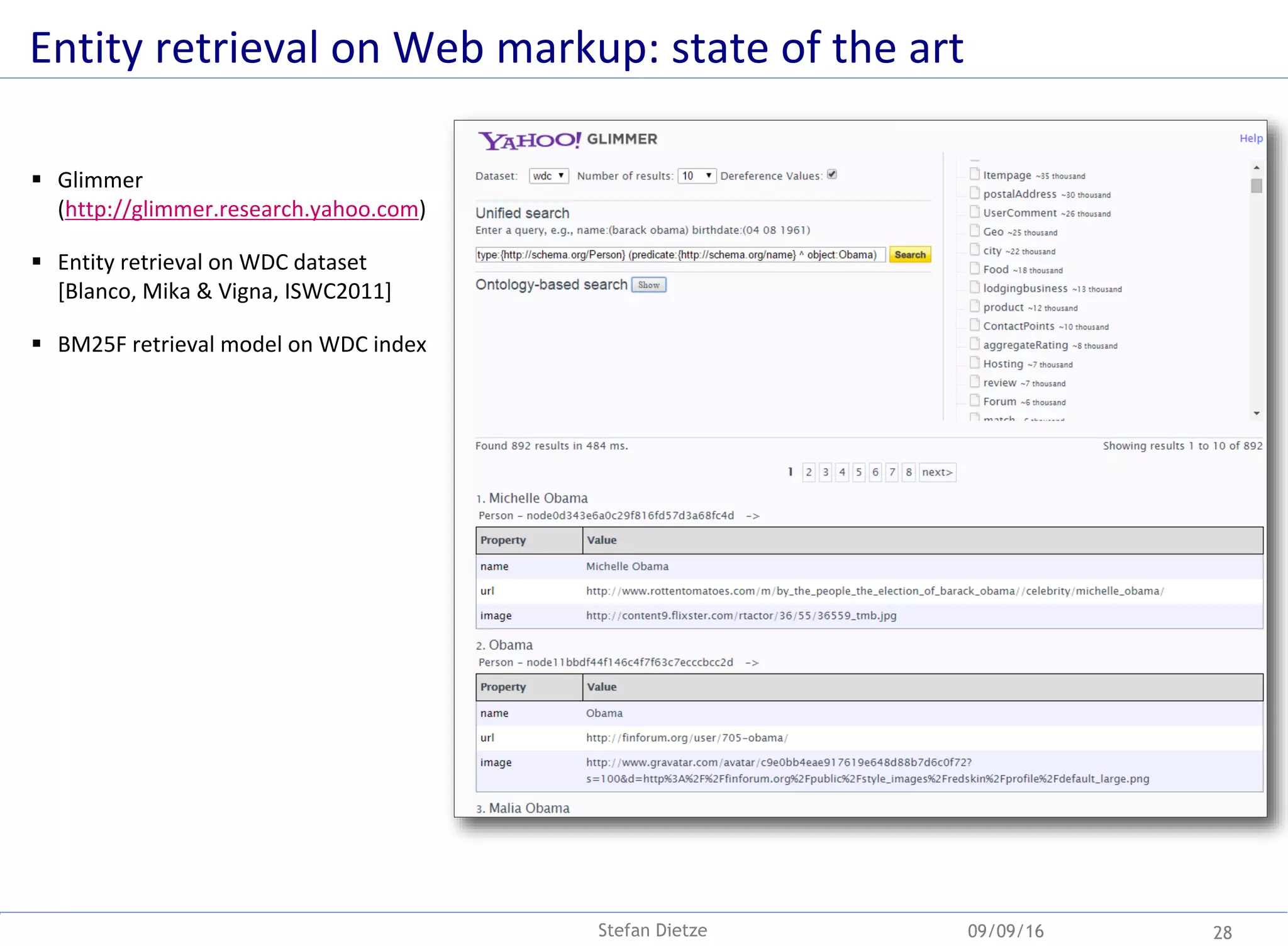

Entity retrieval on Web markup: state of the art
 Glimmer
(http://glimmer.research.yahoo.com)
 Entity retrieval on WDC dataset
[Blanco, Mika & Vigna, ISWC2011]
 BM25F retrieval model on WDC index

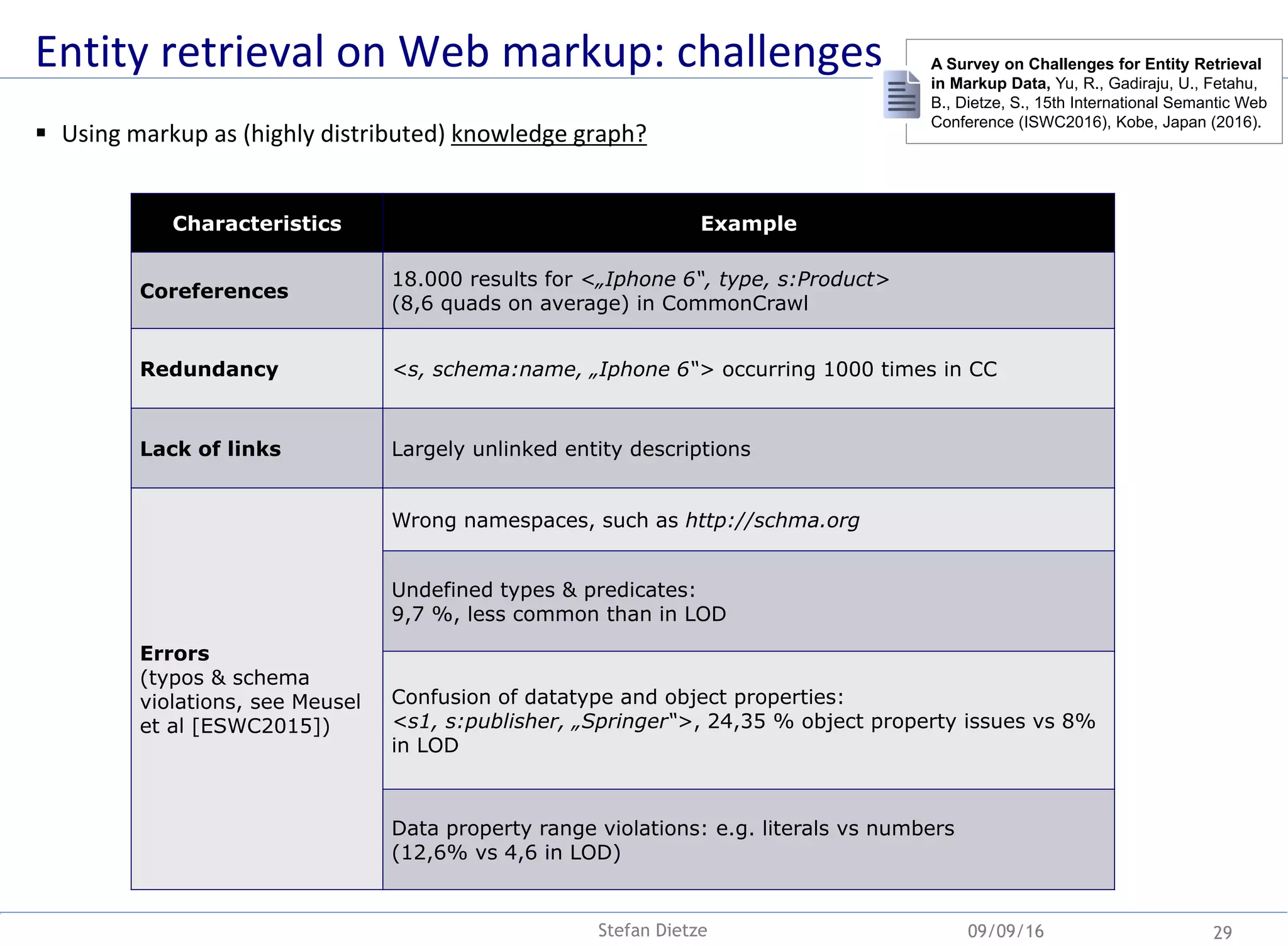

28. Entity retrieval on Web markup: challenges
09/09/16 29
Characteristics Example
Coreferences
18.000 results for <„Iphone 6“, type, s:Product>
(8,6 quads on average) in CommonCrawl
Redundancy <s, schema:name, „Iphone 6“> occurring 1000 times in CC
Lack of links Largely unlinked entity descriptions
Errors
(typos & schema
violations, see Meusel
et al [ESWC2015])
Wrong namespaces, such as http://schma.org
Undefined types & predicates:
9,7 %, less common than in LOD
Confusion of datatype and object properties:
<s1, s:publisher, „Springer“>, 24,35 % object property issues vs 8%
in LOD
Data property range violations: e.g. literals vs numbers
(12,6% vs 4,6 in LOD)
 Using markup as (highly distributed) knowledge graph?
Stefan Dietze
A Survey on Challenges for Entity Retrieval
in Markup Data, Yu, R., Gadiraju, U., Fetahu,
B., Dietze, S., 15th International Semantic Web
Conference (ISWC2016), Kobe, Japan (2016).

29.  Obtaining consolidated entity description/facts (or graph) for a
given resource/entity from Web markup?
 Aiding tasks: such as document annotation, augmentation
or semantic enrichment of existing data- or knowledge bases

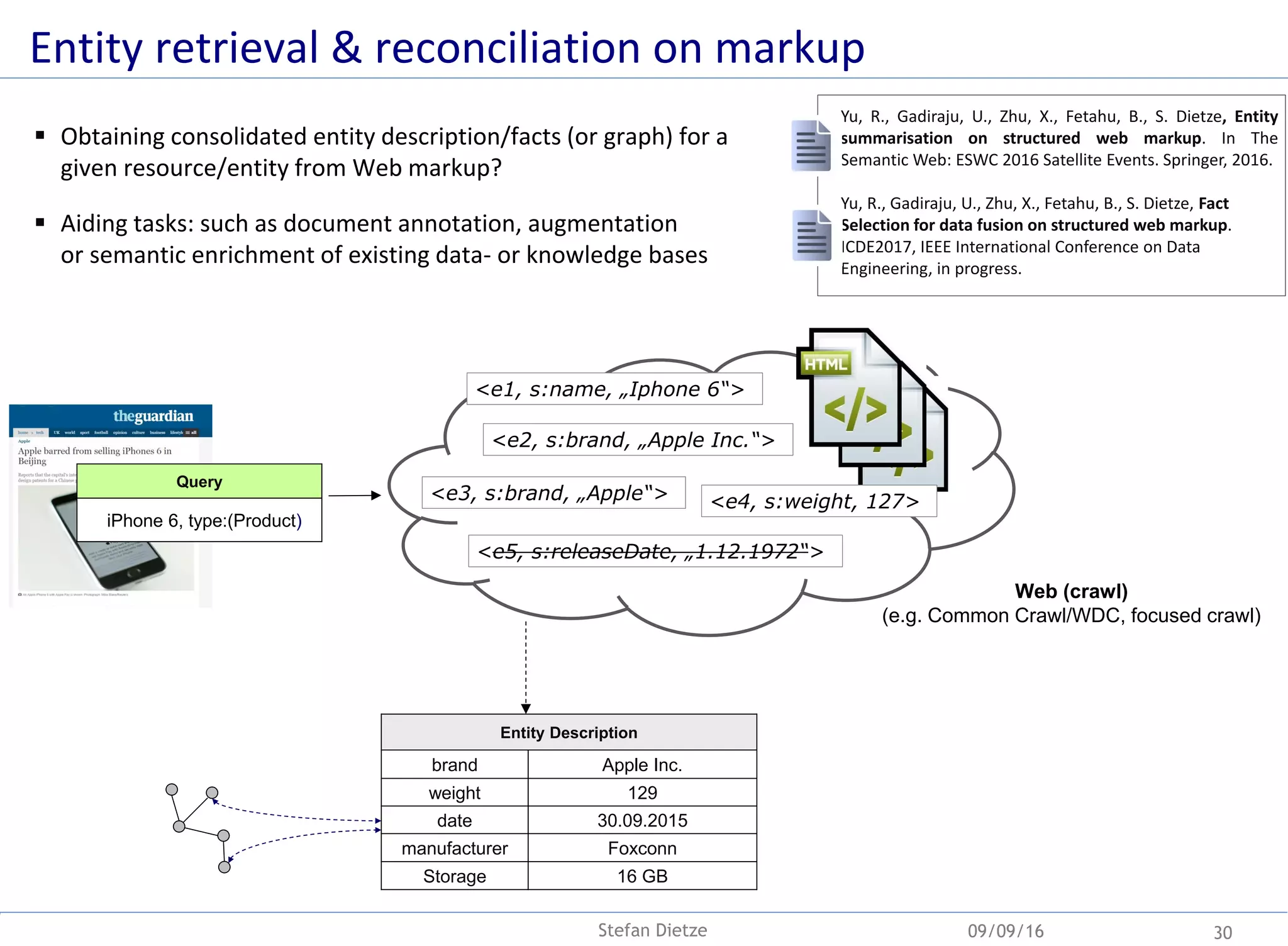

Entity retrieval & reconciliation on markup
09/09/16 30
Yu, R., Gadiraju, U., Zhu, X., Fetahu, B., S. Dietze, Entity
summarisation on structured web markup. In The
Semantic Web: ESWC 2016 Satellite Events. Springer, 2016.
Yu, R., Gadiraju, U., Zhu, X., Fetahu, B., S. Dietze, Fact
Selection for data fusion on structured web markup.
ICDE2017, IEEE International Conference on Data
Engineering, in progress.
Query
iPhone 6, type:(Product)
Entity Description
brand Apple Inc.
weight 129
date 30.09.2015
manufacturer Foxconn
Storage 16 GB
<e1, s:name, „Iphone 6“>
<e2, s:brand, „Apple Inc.“>
<e3, s:brand, „Apple“> <e4, s:weight, 127>
<e5, s:releaseDate, „1.12.1972“>
Web (crawl)
(e.g. Common Crawl/WDC, focused crawl)
Stefan Dietze

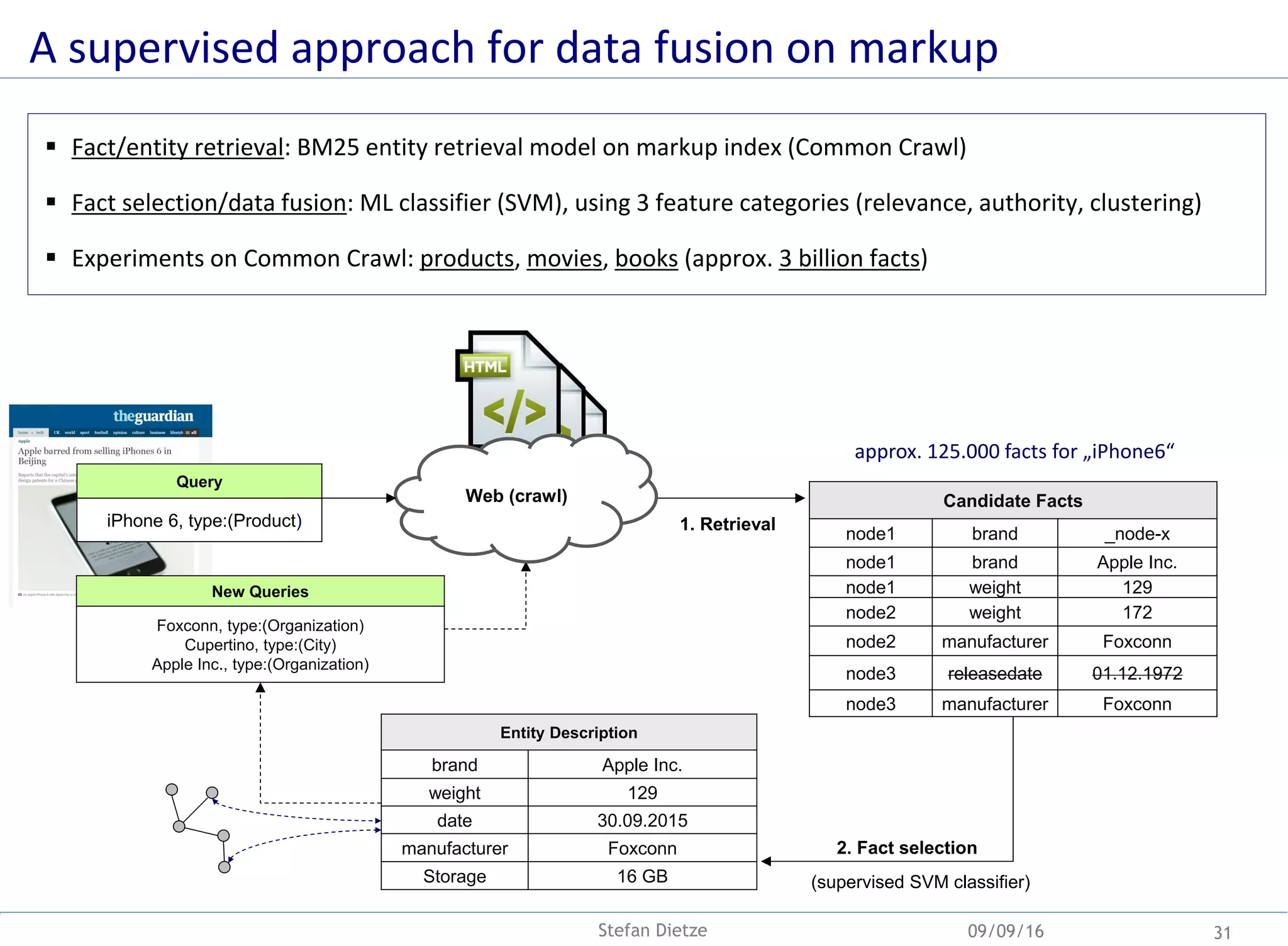

30. A supervised approach for data fusion on markup
09/09/16 31
 Fact/entity retrieval: BM25 entity retrieval model on markup index (Common Crawl)
 Fact selection/data fusion: ML classifier (SVM), using 3 feature categories (relevance, authority, clustering)
 Experiments on Common Crawl: products, movies, books (approx. 3 billion facts)
1. Retrieval
2. Fact selection
New Queries
Foxconn, type:(Organization)
Cupertino, type:(City)
Apple Inc., type:(Organization)
(supervised SVM classifier)
Entity Description
brand Apple Inc.
weight 129
date 30.09.2015
manufacturer Foxconn
Storage 16 GB
Query
iPhone 6, type:(Product)
Candidate Facts
node1 brand _node-x
node1 brand Apple Inc.
node1 weight 129
node2 weight 172
node2 manufacturer Foxconn
node3 releasedate 01.12.1972
node3 manufacturer Foxconn
Web page
markup
Web (crawl)
approx. 125.000 facts for „iPhone6“
Stefan Dietze

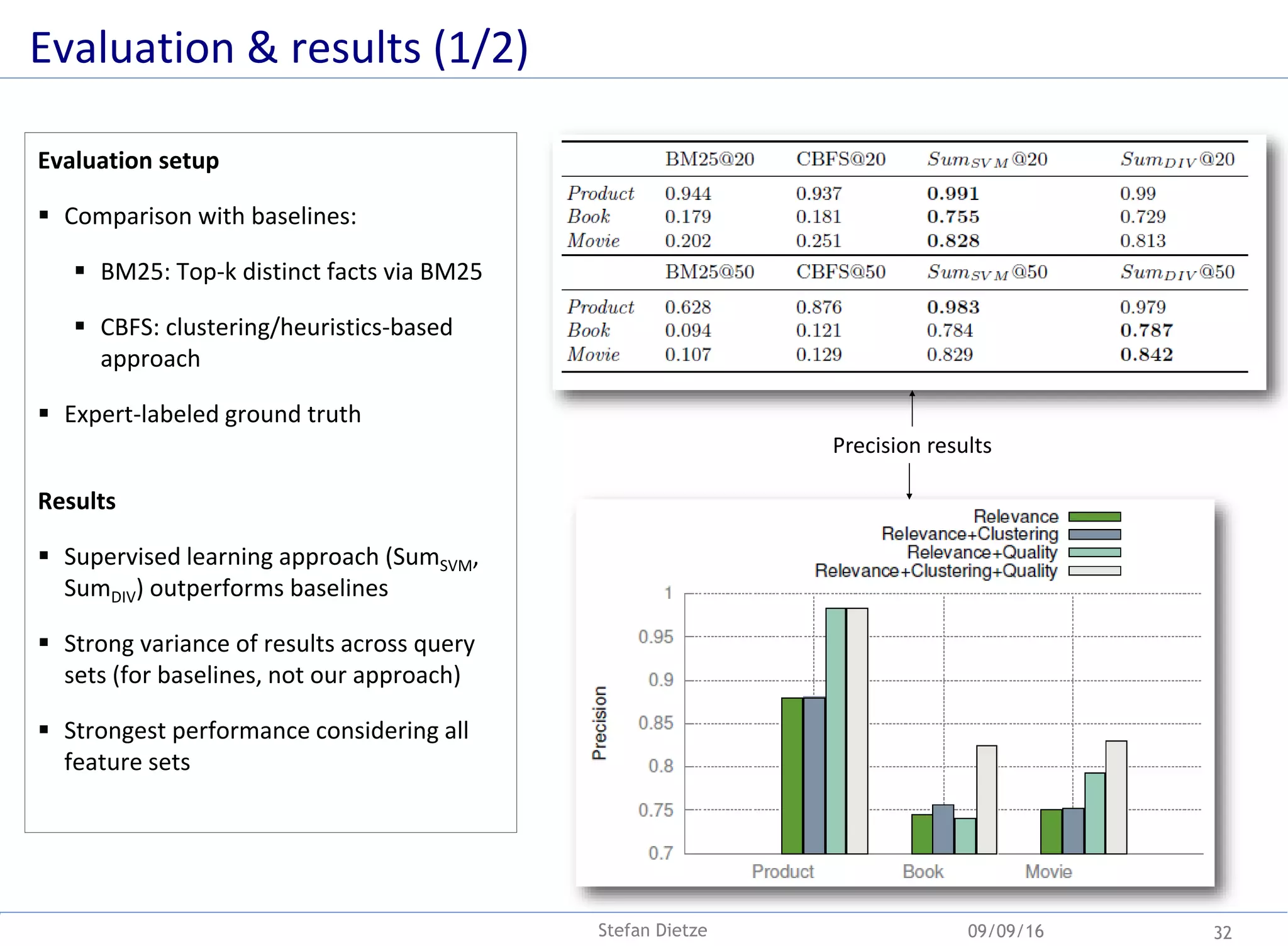

31. Evaluation & results (1/2)
09/09/16 32Stefan Dietze
Evaluation setup
 Comparison with baselines:
 BM25: Top-k distinct facts via BM25
 CBFS: clustering/heuristics-based
approach
 Expert-labeled ground truth
Results
 Supervised learning approach (SumSVM,
SumDIV) outperforms baselines
 Strong variance of results across query
sets (for baselines, not our approach)
 Strongest performance considering all
feature sets
Precision results

32. 09/09/16 33Stefan Dietze

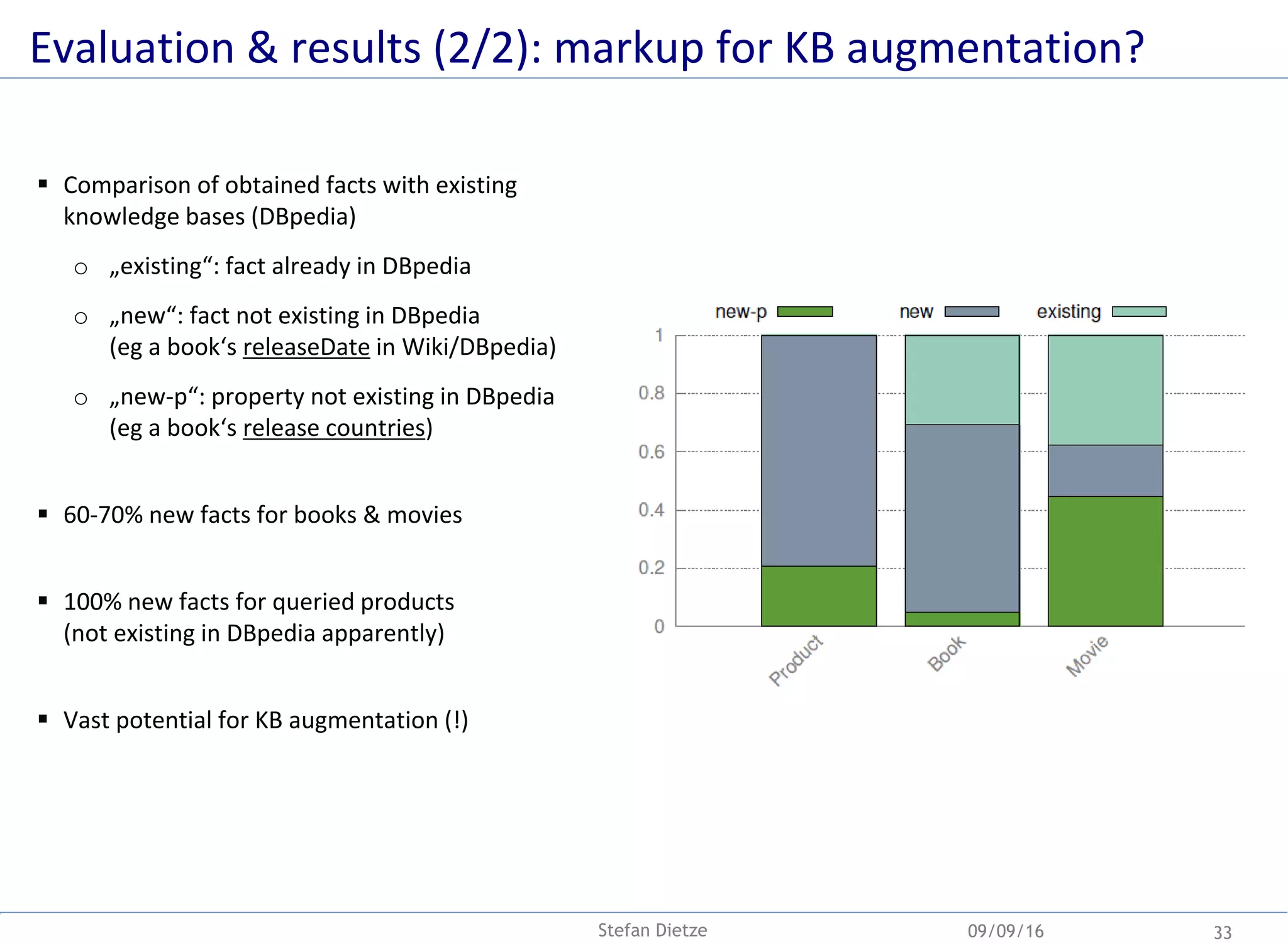

Evaluation & results (2/2): markup for KB augmentation?
 Comparison of obtained facts with existing
knowledge bases (DBpedia)
o „existing“: fact already in DBpedia
o „new“: fact not existing in DBpedia
(eg a book‘s releaseDate in Wiki/DBpedia)
o „new-p“: property not existing in DBpedia
(eg a book‘s release countries)
 60-70% new facts for books & movies
 100% new facts for queried products
(not existing in DBpedia apparently)
 Vast potential for KB augmentation (!)

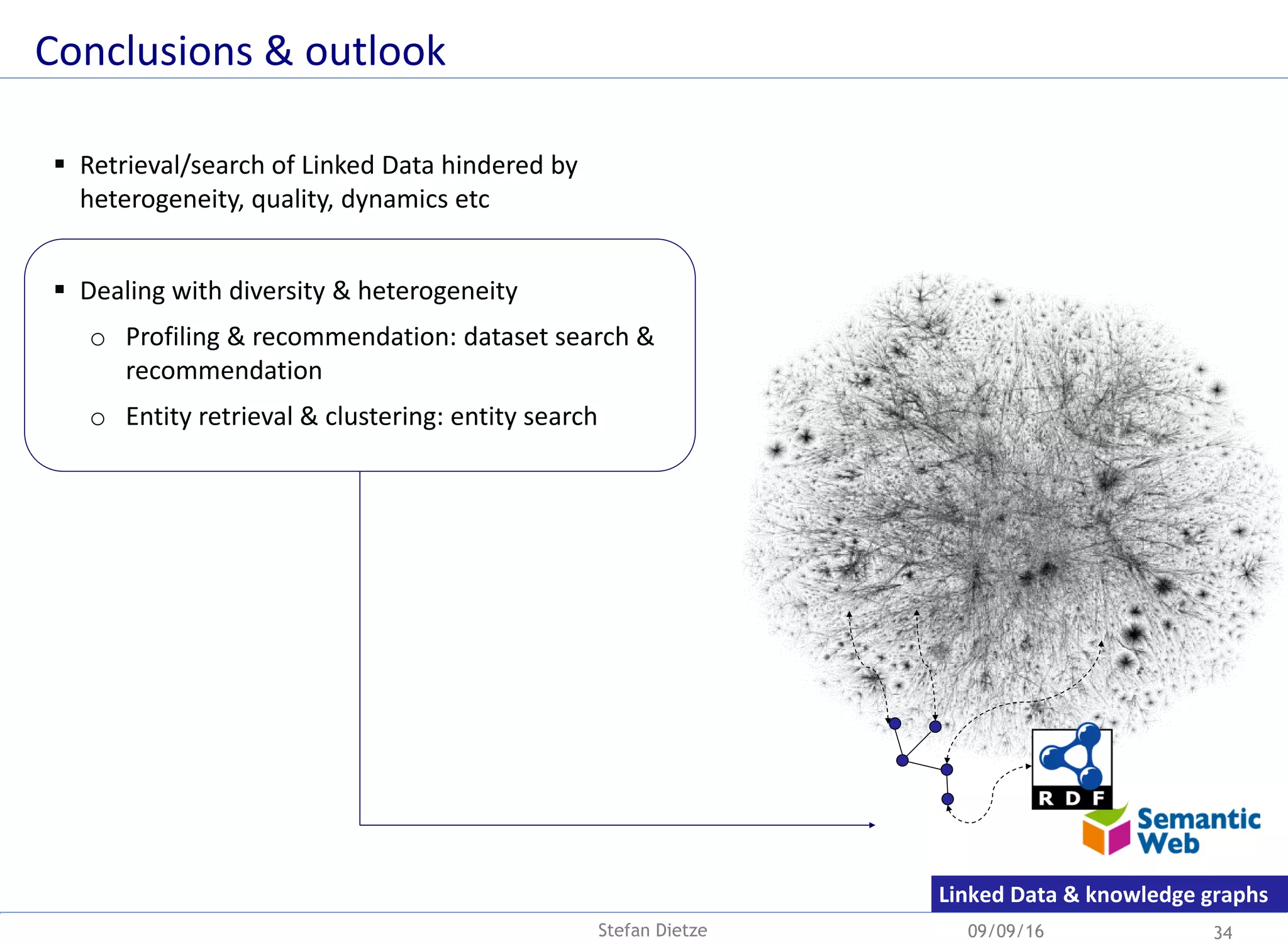

33. Linked Data & knowledge graphs
Conclusions & outlook
09/09/16 34Stefan Dietze
 Retrieval/search of Linked Data hindered by
heterogeneity, quality, dynamics etc
 Dealing with diversity & heterogeneity
o Profiling & recommendation: dataset search &
recommendation
o Entity retrieval & clustering: entity search

34. Entity
node1 name
Molecular structure of
nucleic acids
node1 author James D. Watson
node1 publisher Nature
node1 datePublished 1956
node1 datePublished 1953
Entity
node2 name Francis Crick
node2 name Cricks
node2 born 1916
Embedded data/markup
Unstructured (Web) data/docs
Linked Data & knowledge graphs
Conclusions & outlook

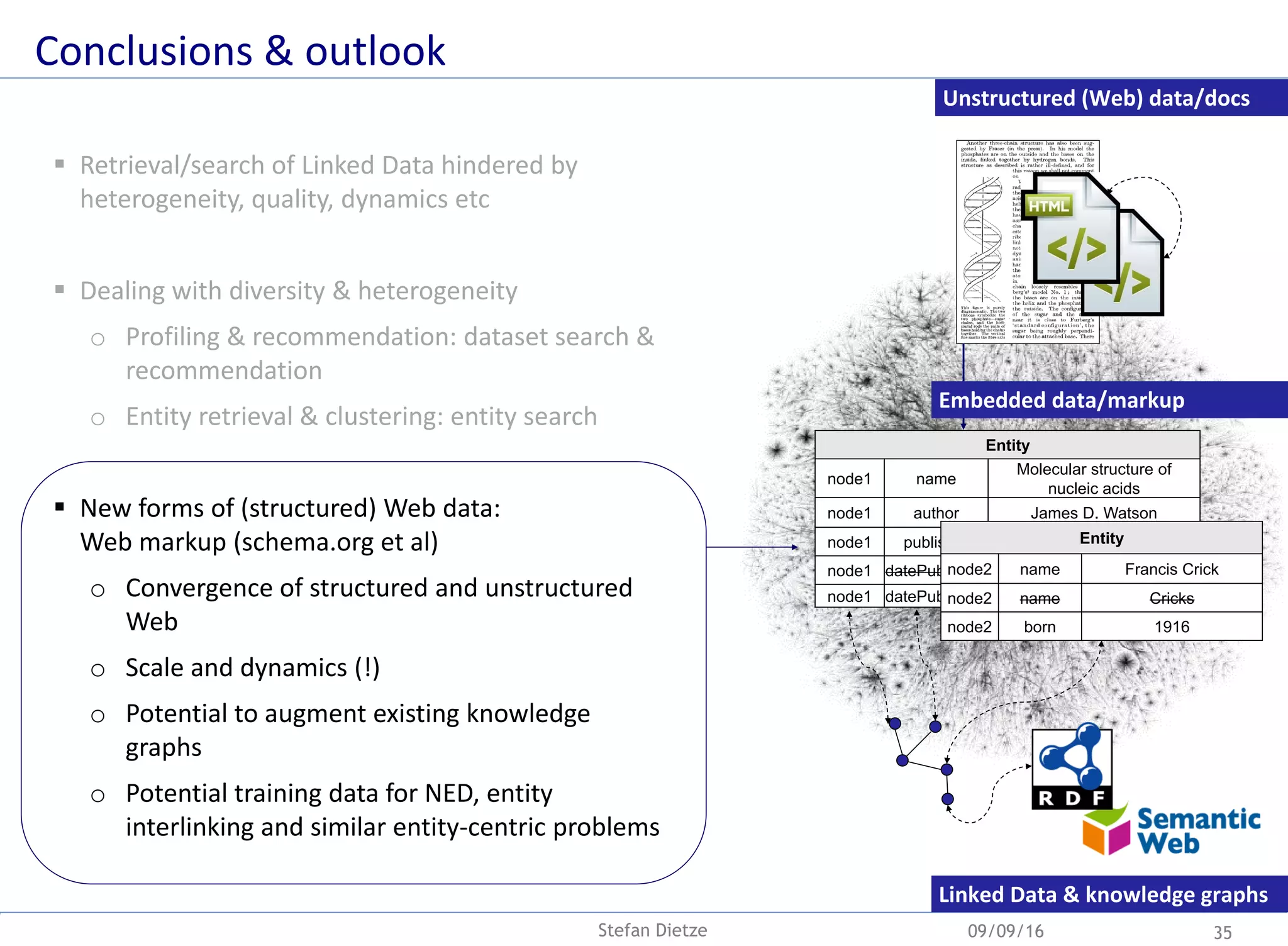

09/09/16 35Stefan Dietze
 Retrieval/search of Linked Data hindered by
heterogeneity, quality, dynamics etc
 Dealing with diversity & heterogeneity
o Profiling & recommendation: dataset search &
recommendation
o Entity retrieval & clustering: entity search
 New forms of (structured) Web data:
Web markup (schema.org et al)
o Convergence of structured and unstructured
Web
o Scale and dynamics (!)
o Potential to augment existing knowledge
graphs
o Potential training data for NED, entity
interlinking and similar entity-centric problems

35. Entity
node1 name
Molecular structure of
nucleic acids
node1 author James D. Watson
node1 publisher Nature
node1 datePublished 1956
node1 datePublished 1953
Entity
node2 name Francis Crick
node2 name Cricks
node2 born 1916
Embedded data/markup
Unstructured (Web) data/docs
Linked Data & knowledge graphs

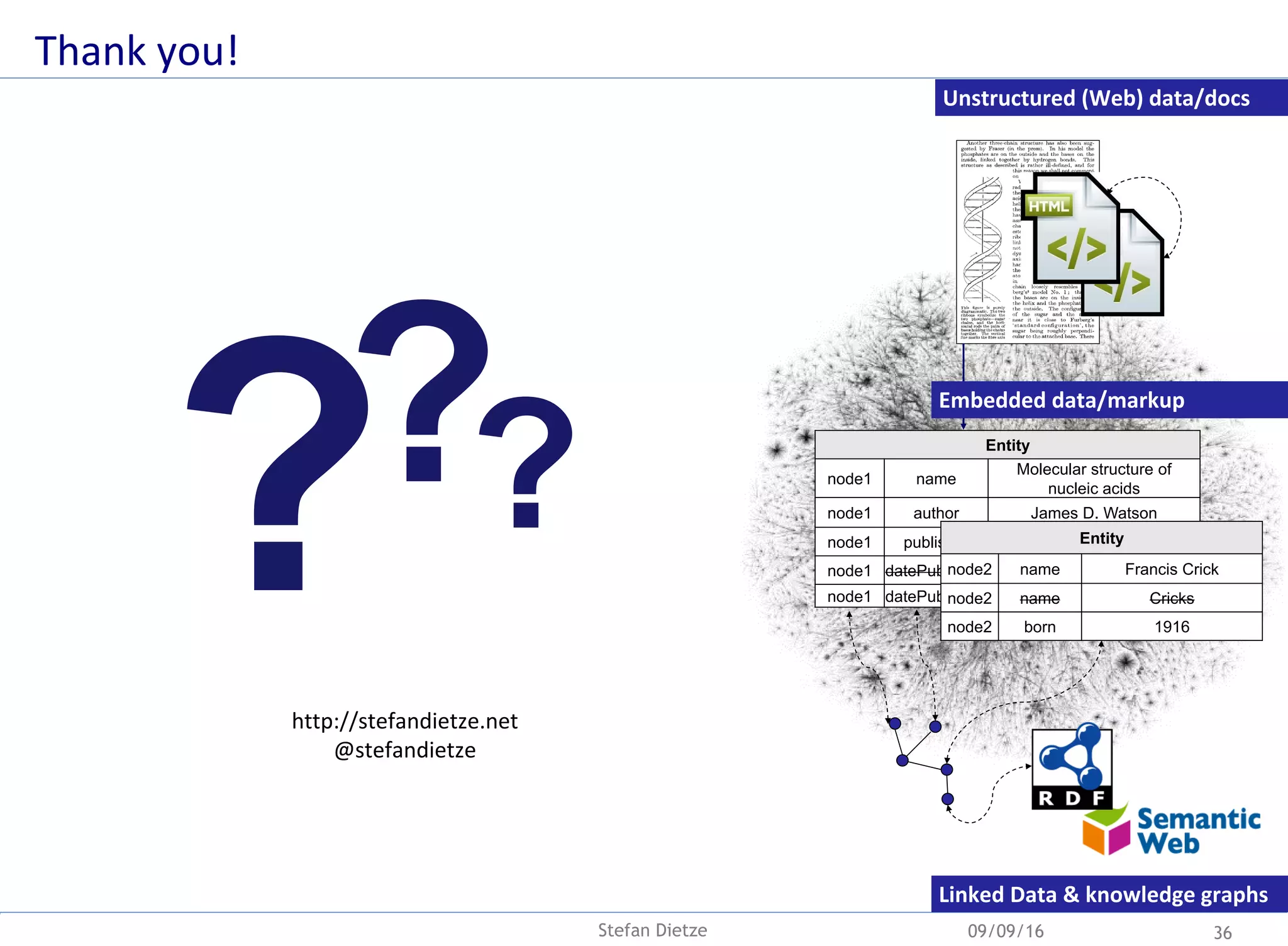

Thank you!
09/09/16 36Stefan Dietze
?
http://stefandietze.net
@stefandietze
