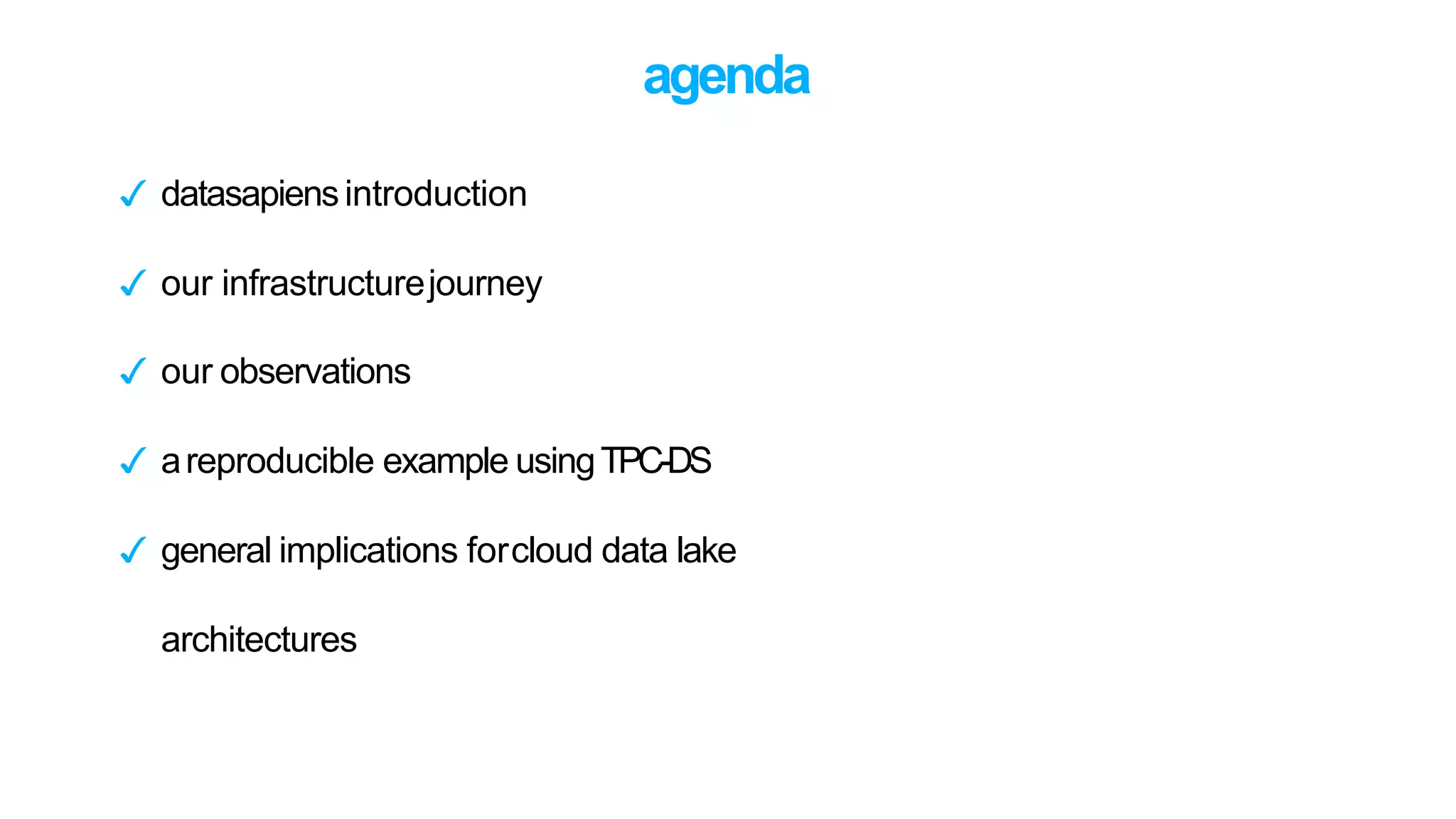

1. agenda
✓ datasapiensintroduction
✓ our infrastructurejourney
✓ our observations
✓ areproducible example usingTPC-DS
✓ general implications forcloud data lake
architectures

2. datasapiensintroduction

3. 3 products
15 countries
over 100m weekly transactions
DATASCIENCE
BUSINESS
EXPERIENCE
TECHNOLOGY
aboutdatasapiens

4. our tools help to turn datainto profit
BUSINESSINSIGHTS
Drive your businessthrough data.
OurBIwith an embedded insights
framework helpsyou to become a data-
driven company.
BRANDSINSIGHTS
Commercialize your dataassets.
We provide an industry-leading BI
platform to drive cooperation with your
suppliers.
internalusers suppliers
PERSONALISEDOFFERS
Increase customerengagement, salesand
margin.
We introduce a simple plan-do-review
processto continuouslymeasure and
improve the loyalty lifecycle of your
customers.
customers

5. someusersof ourproducts

6. our infrastructurejourney

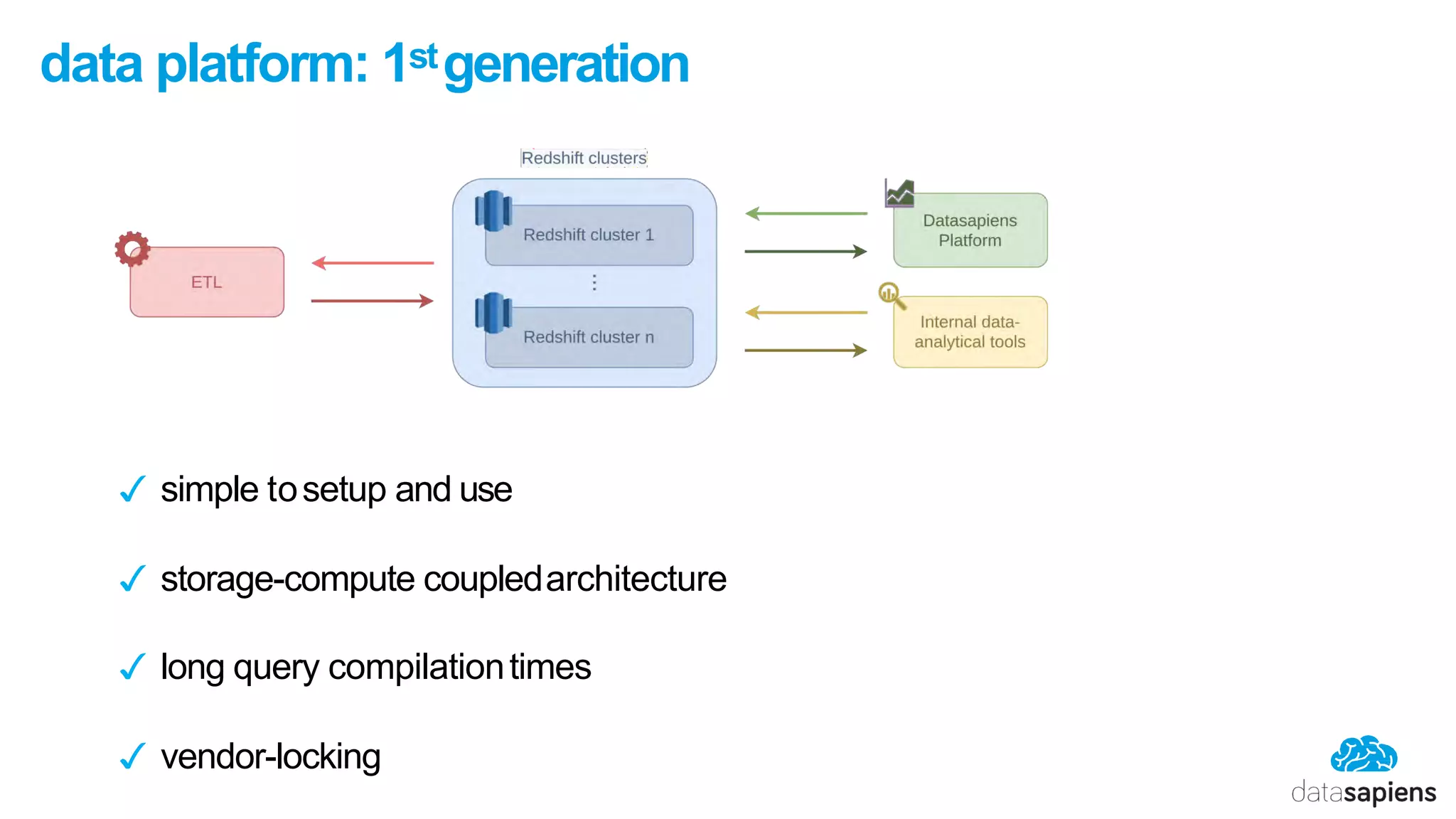

7. data platform: 1stgeneration
✓ simple tosetup and use
✓ storage-compute coupledarchitecture
✓ long query compilationtimes
✓ vendor-locking

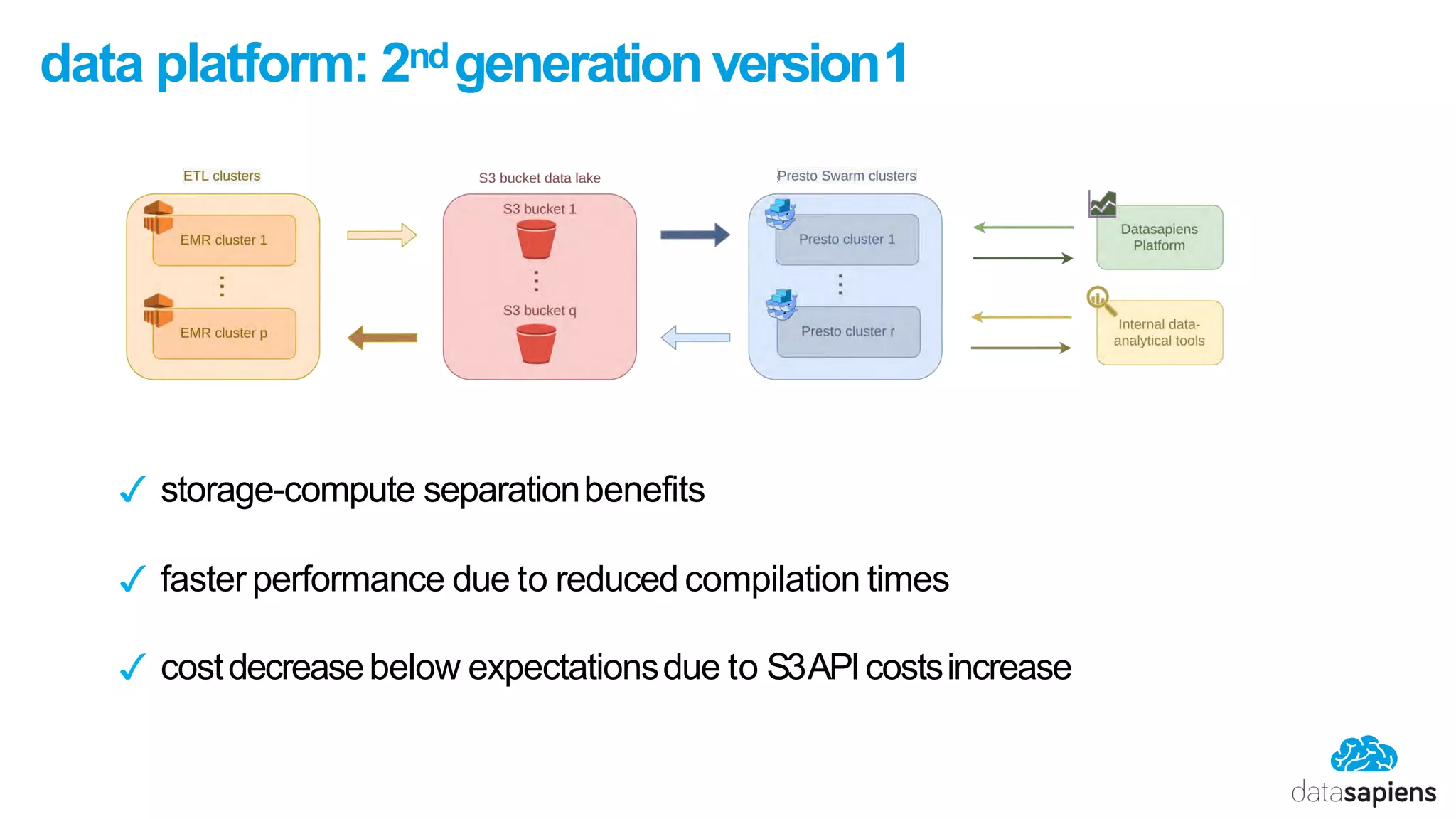

8. data platform: 2ndgeneration version1
✓ storage-compute separationbenefits
✓ faster performance due to reduced compilation times
✓ costdecreasebelow expectationsdue to S3APIcostsincrease

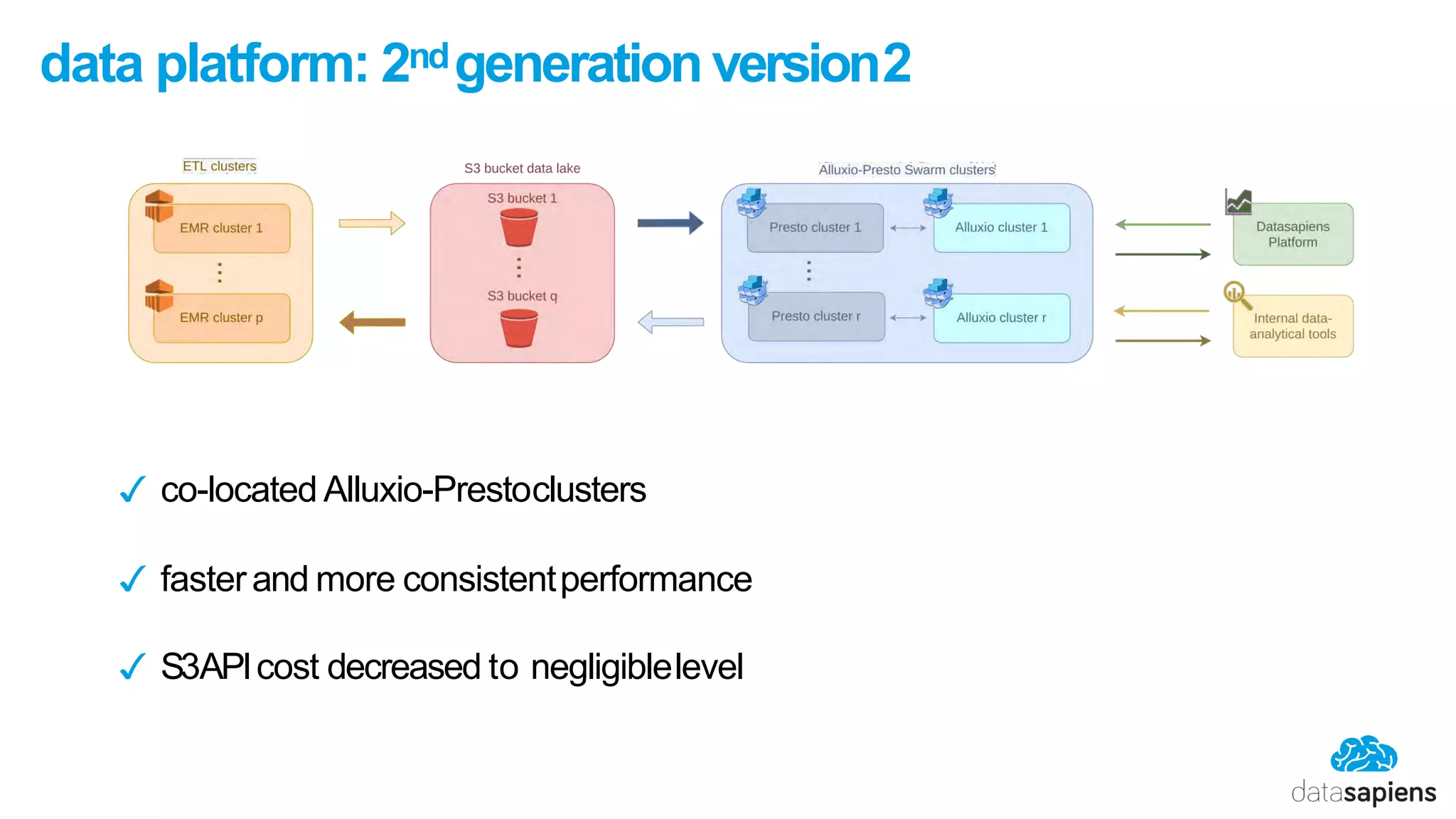

9. ✓ co-located Alluxio-Prestoclusters
✓ fasterand more consistentperformance
✓ S3APIcost decreased to negligiblelevel
data platform: 2ndgeneration version2

10. ourobservations

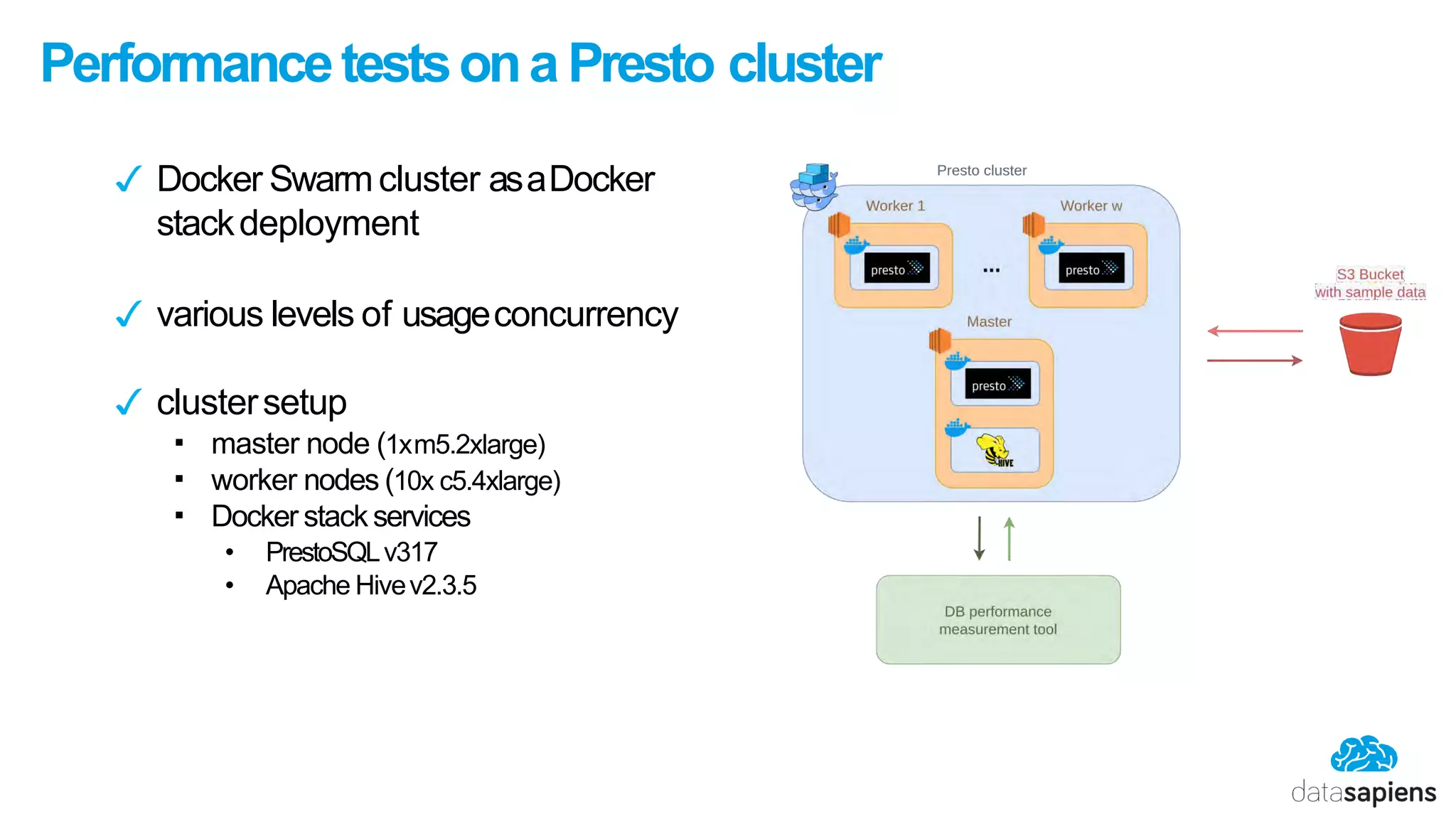

11. Performancetestsona Presto cluster
✓ Docker Swarmcluster asaDocker
stackdeployment
✓ various levels of usageconcurrency
✓ clustersetup
▪ master node (1xm5.2xlarge)
▪ worker nodes (10x c5.4xlarge)
▪ Docker stackservices
• PrestoSQLv317
• Apache Hivev2.3.5

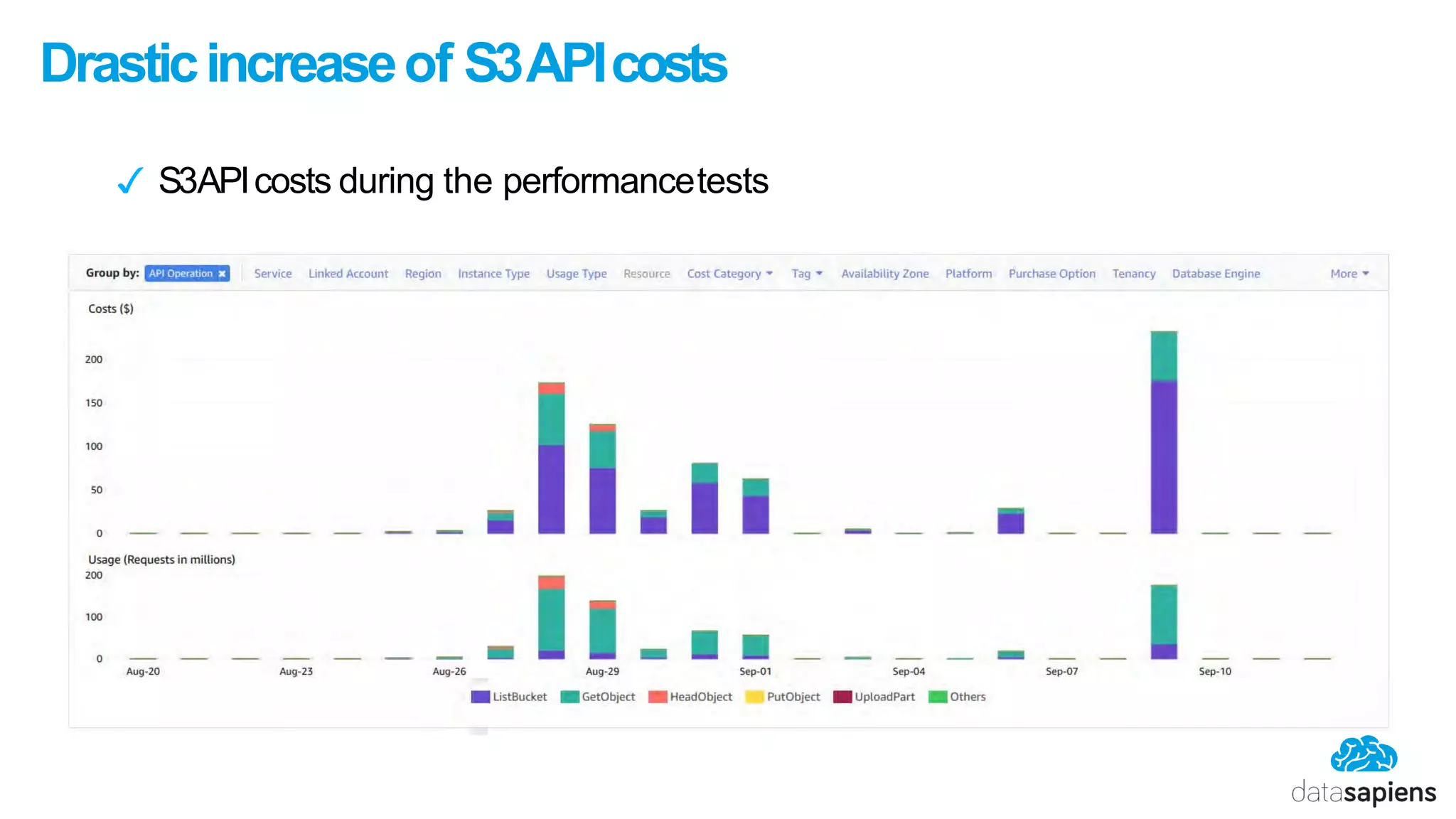

12. Drasticincreaseof S3APIcosts
✓ S3APIcosts during the performancetests

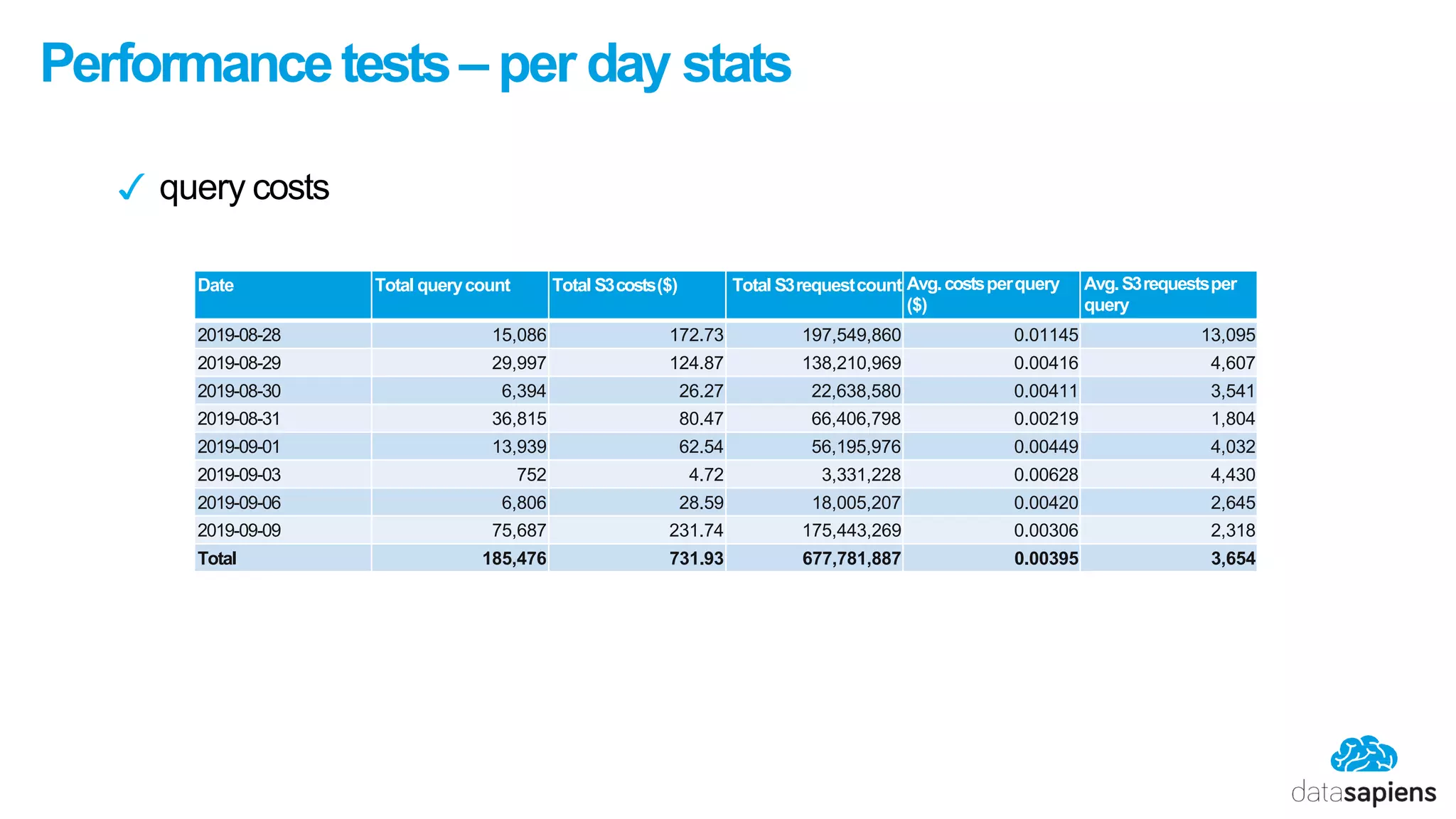

13. Performancetests– per day stats
✓ query costs
Date Total querycount Total S3costs($) Total S3requestcount Avg.costsperquery
($)
Avg.S3requestsper
query
2019-08-28 15,086 172.73 197,549,860 0.01145 13,095
2019-08-29 29,997 124.87 138,210,969 0.00416 4,607
2019-08-30 6,394 26.27 22,638,580 0.00411 3,541
2019-08-31 36,815 80.47 66,406,798 0.00219 1,804
2019-09-01 13,939 62.54 56,195,976 0.00449 4,032
2019-09-03 752 4.72 3,331,228 0.00628 4,430
2019-09-06 6,806 28.59 18,005,207 0.00420 2,645
2019-09-09 75,687 231.74 175,443,269 0.00306 2,318
Total 185,476 731.93 677,781,887 0.00395 3,654

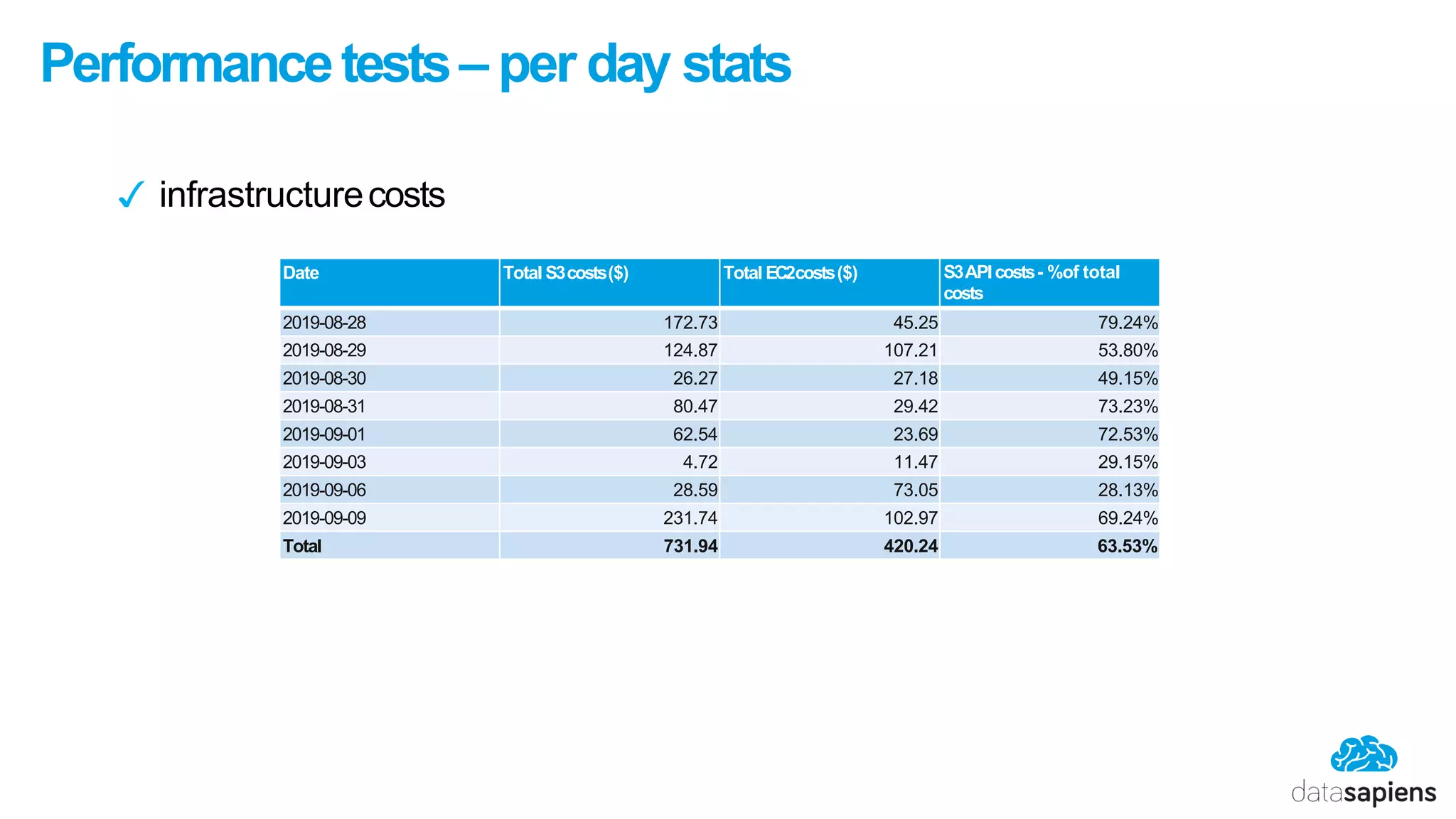

14. Performancetests– per day stats
✓ infrastructurecosts
Date Total S3costs($) Total EC2costs($) S3APIcosts- %of total
costs
2019-08-28 172.73 45.25 79.24%
2019-08-29 124.87 107.21 53.80%
2019-08-30 26.27 27.18 49.15%
2019-08-31 80.47 29.42 73.23%
2019-09-01 62.54 23.69 72.53%
2019-09-03 4.72 11.47 29.15%
2019-09-06 28.59 73.05 28.13%
2019-09-09 231.74 102.97 69.24%
Total 731.94 420.24 63.53%

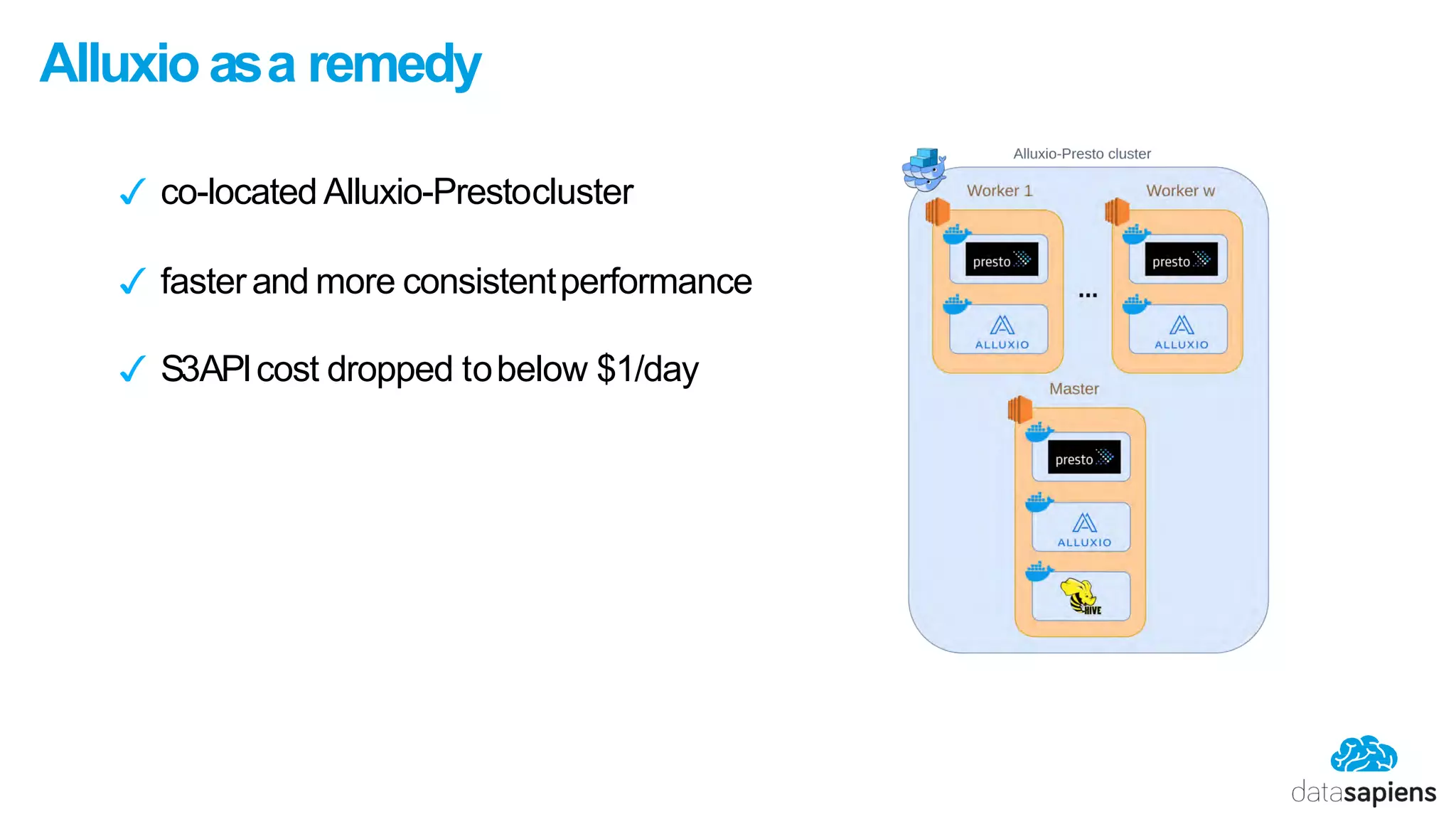

15. Alluxioasa remedy
✓ co-located Alluxio-Prestocluster
✓ fasterand more consistentperformance
✓ S3APIcost dropped tobelow $1/day

16. a reproducible exampleusing TPC-DS

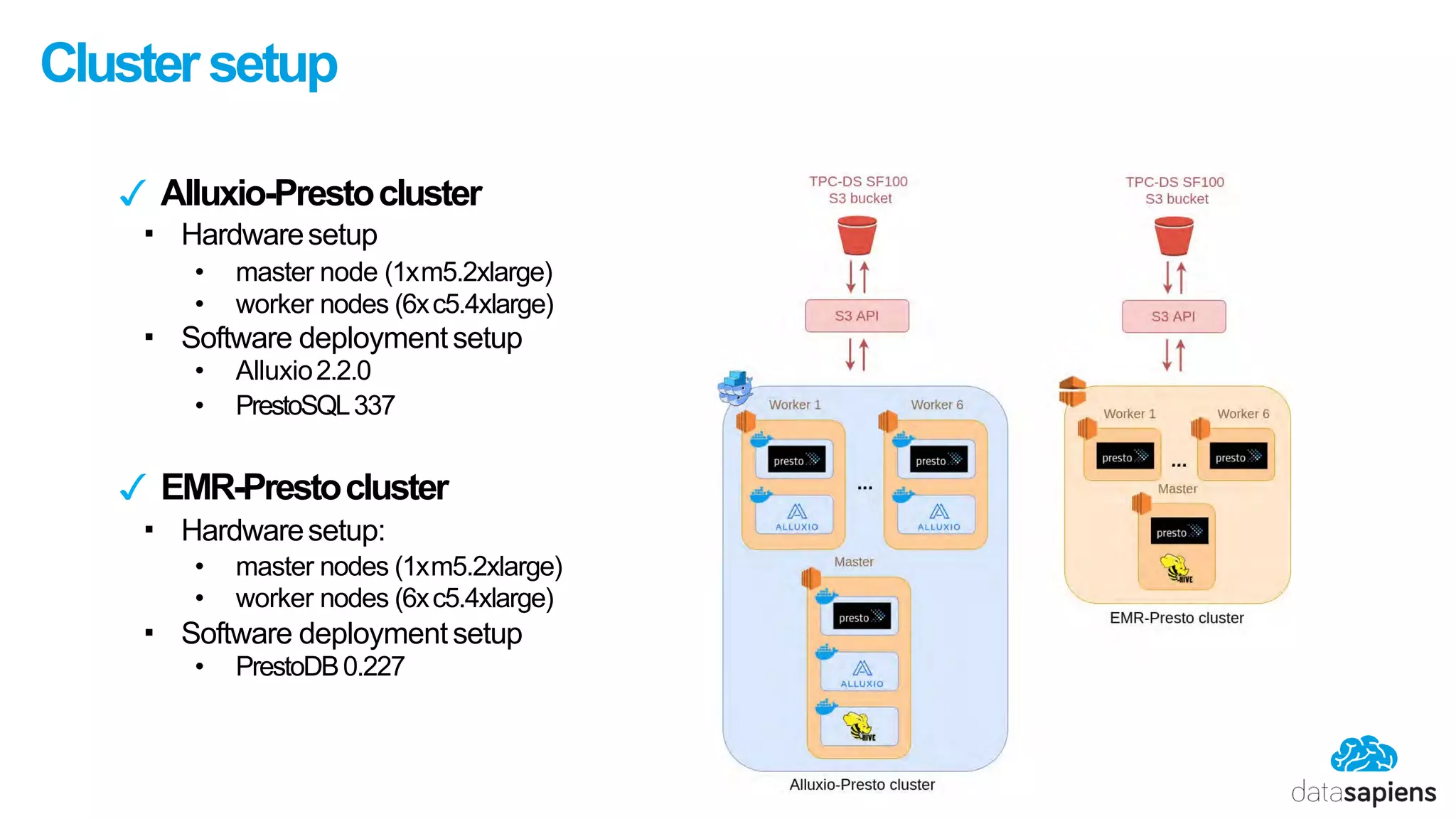

17. Clustersetup
✓ Alluxio-Prestocluster
▪ Hardwaresetup
• master node (1xm5.2xlarge)
• worker nodes (6xc5.4xlarge)
▪ Software deploymentsetup
• Alluxio2.2.0
• PrestoSQL337
✓ EMR-Prestocluster
▪ Hardwaresetup:
• master nodes (1xm5.2xlarge)
• worker nodes (6xc5.4xlarge)
▪ Software deploymentsetup
• PrestoDB0.227

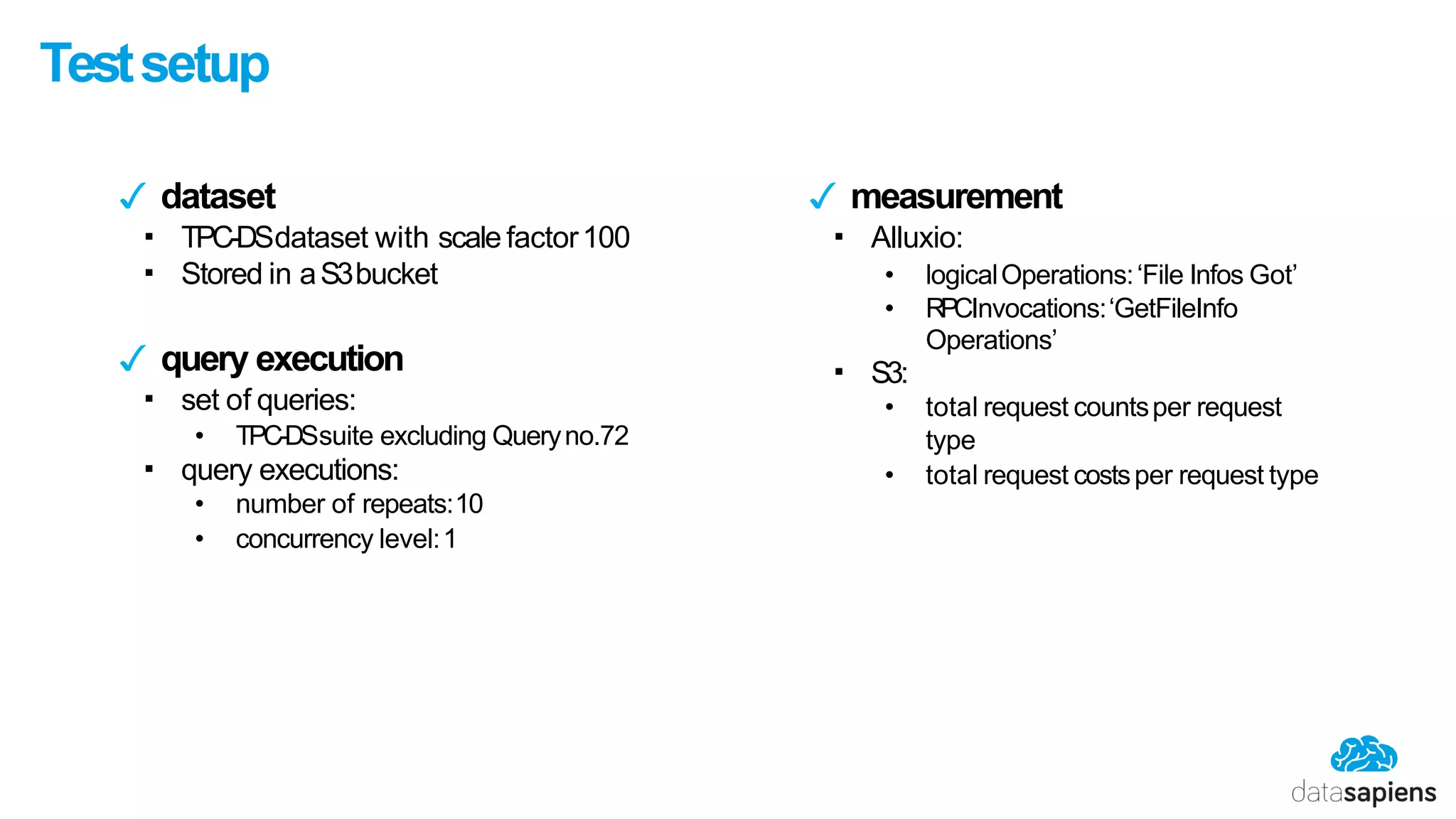

18. Testsetup
✓ dataset
▪ TPC-DSdataset with scale factor100
▪ Stored in aS3bucket
✓ query execution
▪ set of queries:
• TPC-DSsuite excluding Queryno.72
▪ query executions:
• number of repeats:10
• concurrency level:1
▪ S3:
✓ measurement
▪ Alluxio:
• logicalOperations:‘File Infos Got’
• RPCInvocations:‘GetFileInfo
Operations’
• total request countsper request
type
• total request costsper request type

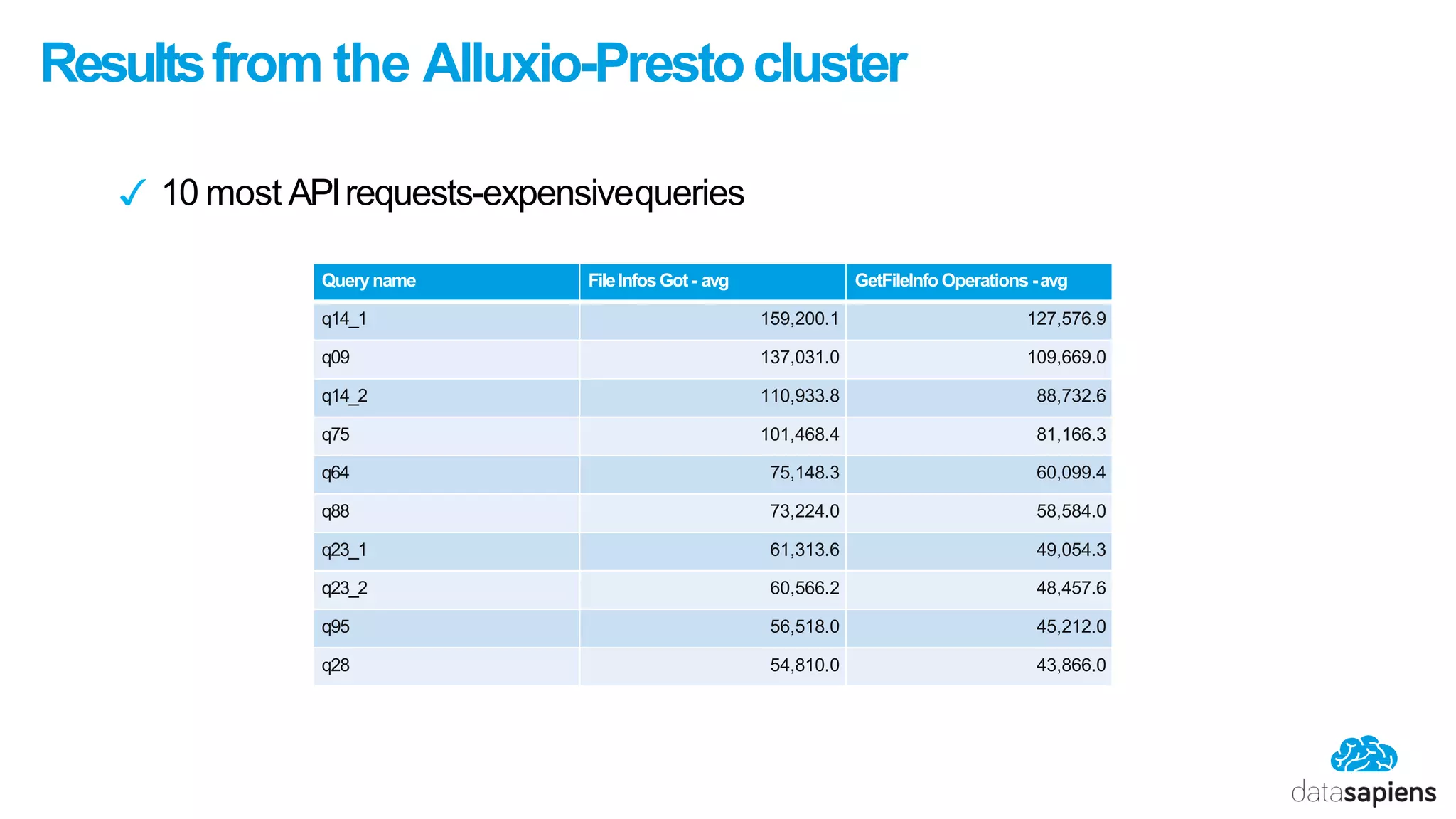

19. Resultsfrom the Alluxio-Prestocluster
✓ 10 most APIrequests-expensivequeries
Queryname FileInfosGot- avg GetFileInfo Operations -avg
q14_1 159,200.1 127,576.9
q09 137,031.0 109,669.0
q14_2 110,933.8 88,732.6
q75 101,468.4 81,166.3
q64 75,148.3 60,099.4
q88 73,224.0 58,584.0
q23_1 61,313.6 49,054.3
q23_2 60,566.2 48,457.6
q95 56,518.0 45,212.0
q28 54,810.0 43,866.0

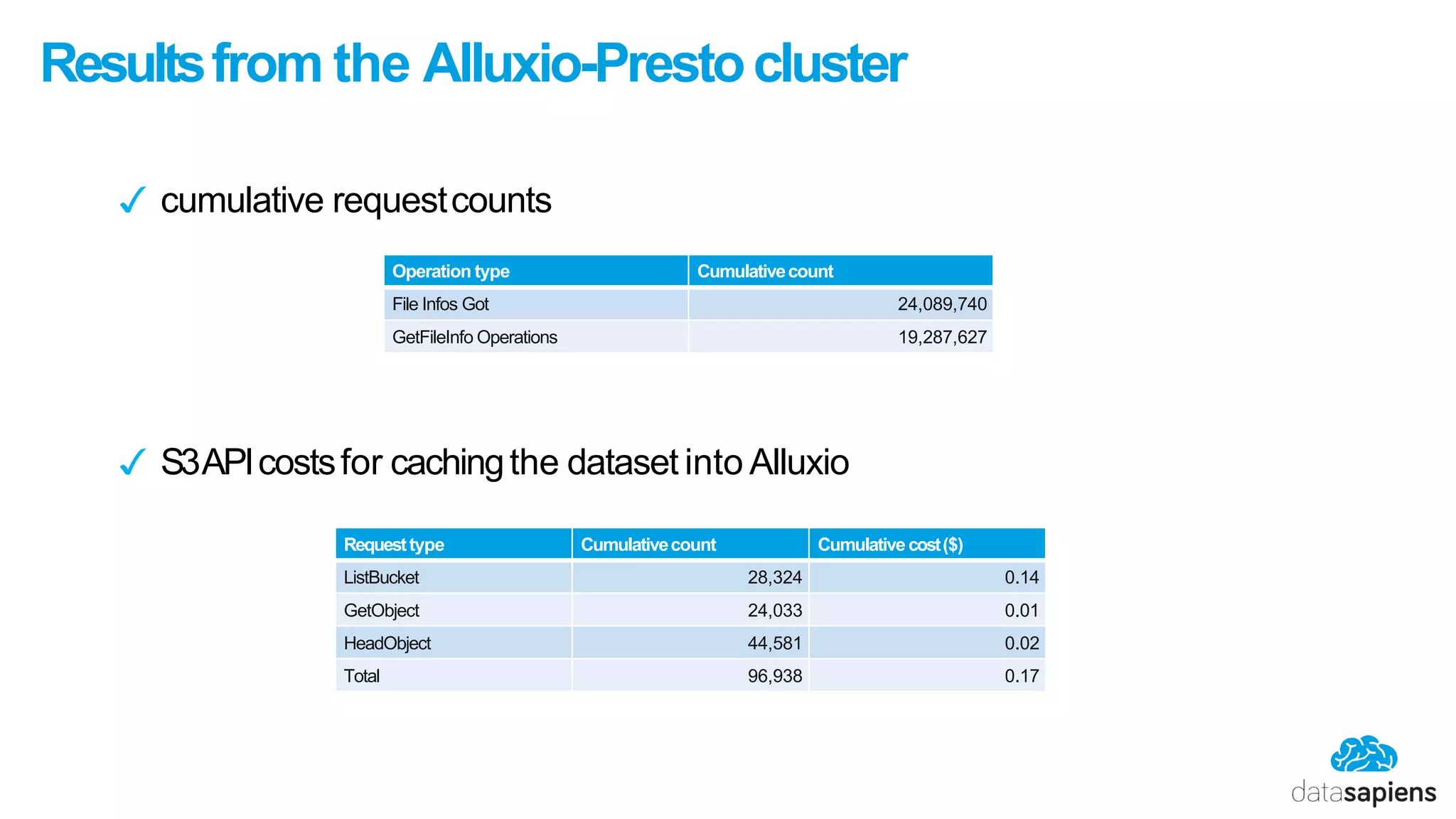

20. Resultsfrom the Alluxio-Prestocluster
✓ cumulative requestcounts
✓ S3APIcostsfor cachingthe dataset into Alluxio
Operation type Cumulativecount
File Infos Got 24,089,740
GetFileInfo Operations 19,287,627
Requesttype Cumulativecount Cumulative cost($)
ListBucket 28,324 0.14
GetObject 24,033 0.01
HeadObject 44,581 0.02
Total 96,938 0.17

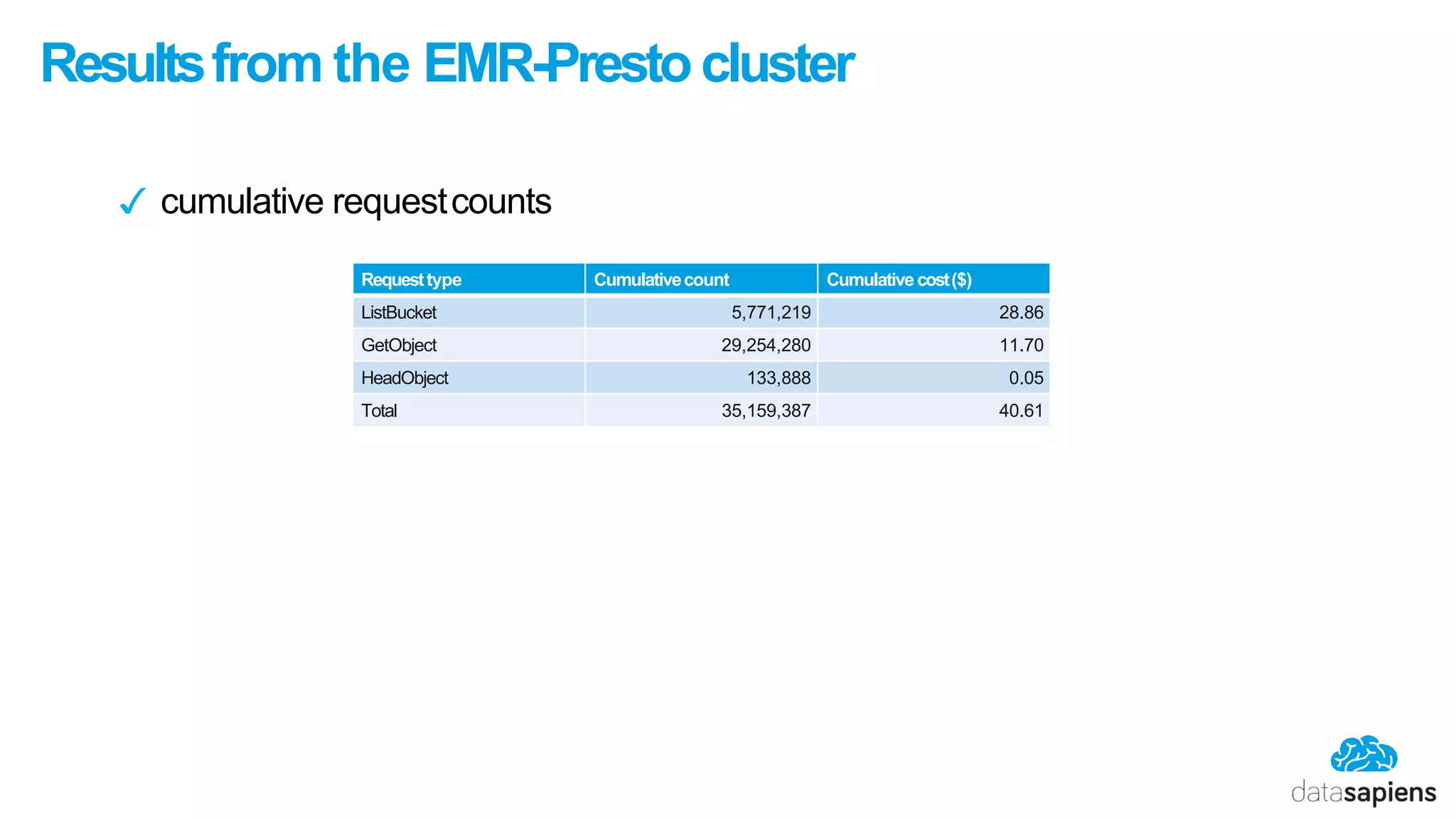

21. Resultsfrom the EMR-Prestocluster
✓ cumulative requestcounts
Requesttype Cumulativecount Cumulative cost($)
ListBucket 5,771,219 28.86
GetObject 29,254,280 11.70
HeadObject 133,888 0.05
Total 35,159,387 40.61

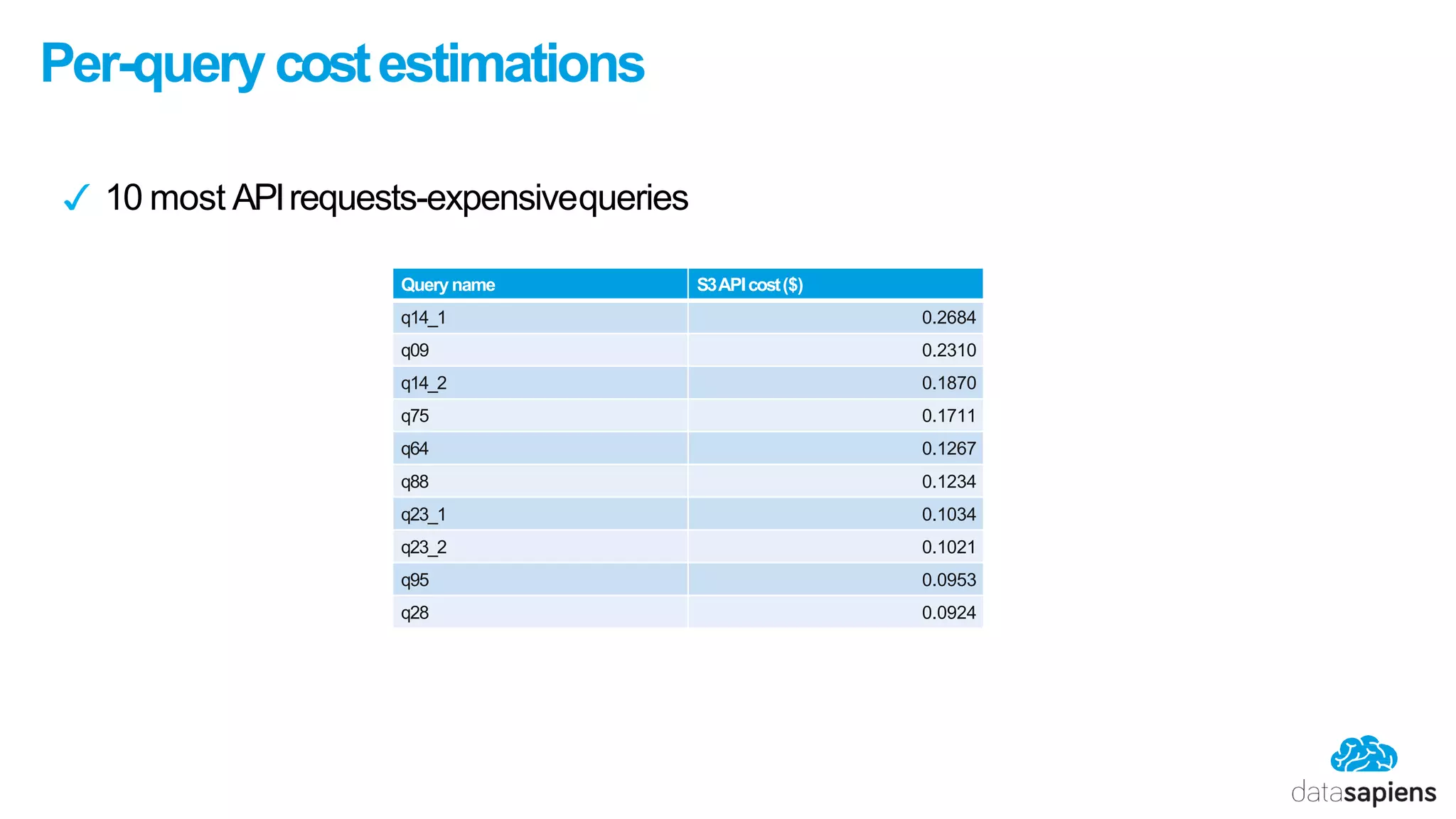

22. Per-query costestimations
✓ 10 most APIrequests-expensivequeries
Queryname S3APIcost($)
q14_1 0.2684
q09 0.2310
q14_2 0.1870
q75 0.1711
q64 0.1267
q88 0.1234
q23_1 0.1034
q23_2 0.1021
q95 0.0953
q28 0.0924

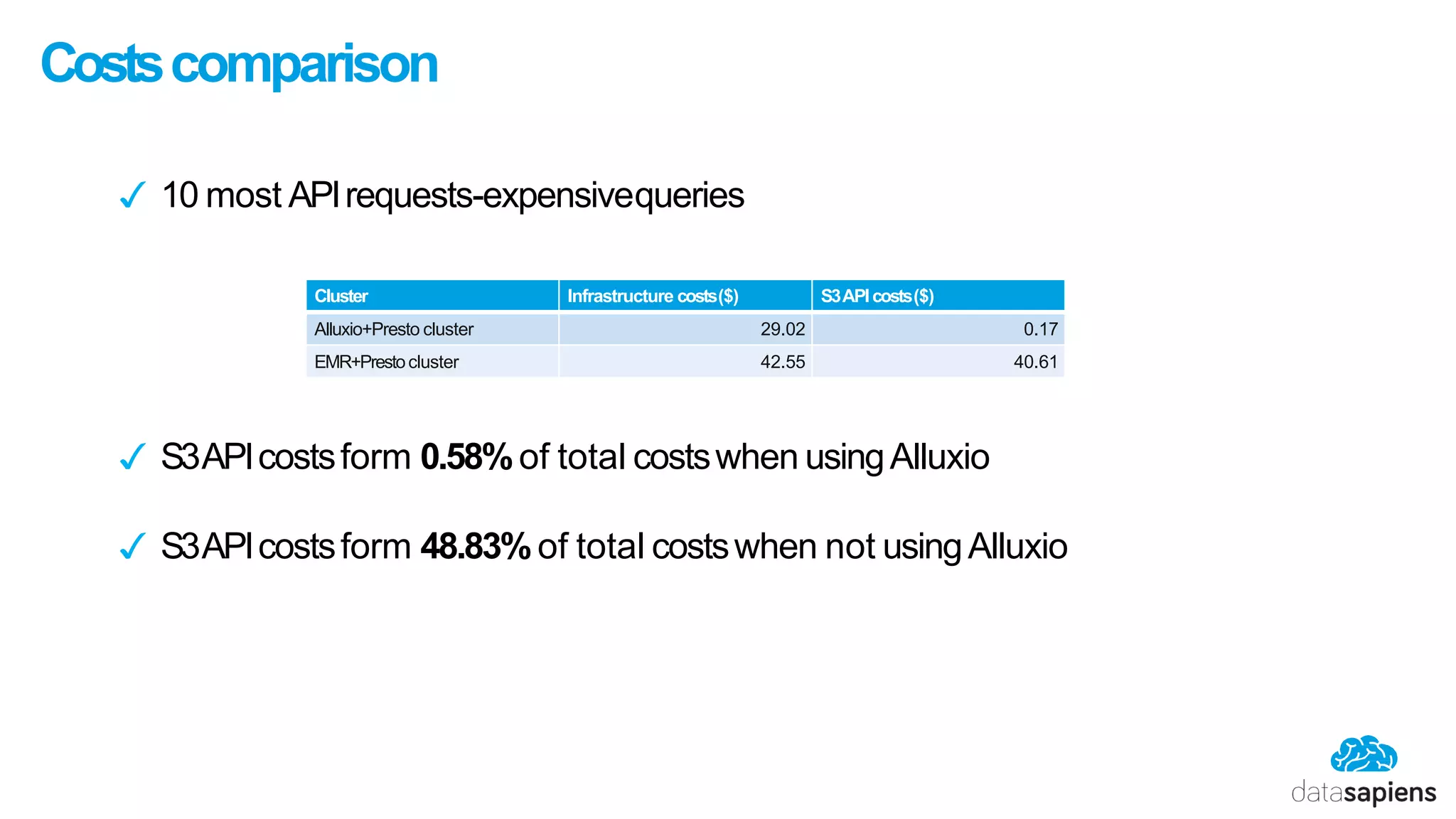

23. Costscomparison
✓ 10 most APIrequests-expensivequeries
✓ S3APIcostsform 0.58%of total costswhen usingAlluxio
✓ S3APIcostsform 48.83%of total costswhen not usingAlluxio
Cluster Infrastructure costs($) S3APIcosts($)
Alluxio+Presto cluster 29.02 0.17
EMR+Prestocluster 42.55 40.61

24. generalimplications for clouddata lakearchitectures

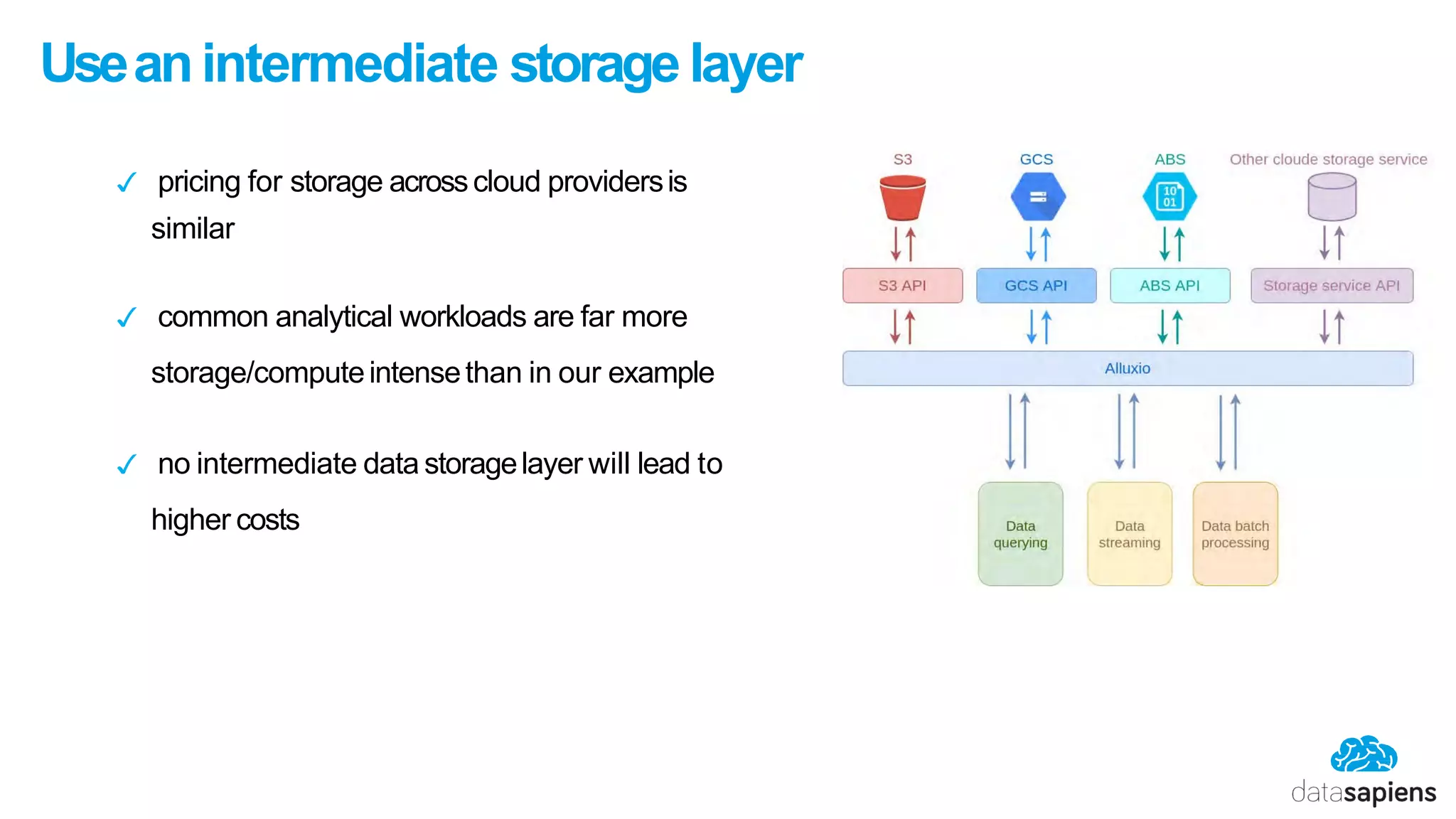

25. Useanintermediate storage layer
✓ pricing for storage acrosscloud providersis
similar
✓ common analytical workloads are far more
storage/computeintensethan in our example
✓ no intermediate data storagelayer will lead to
higher costs

26. Q&A
