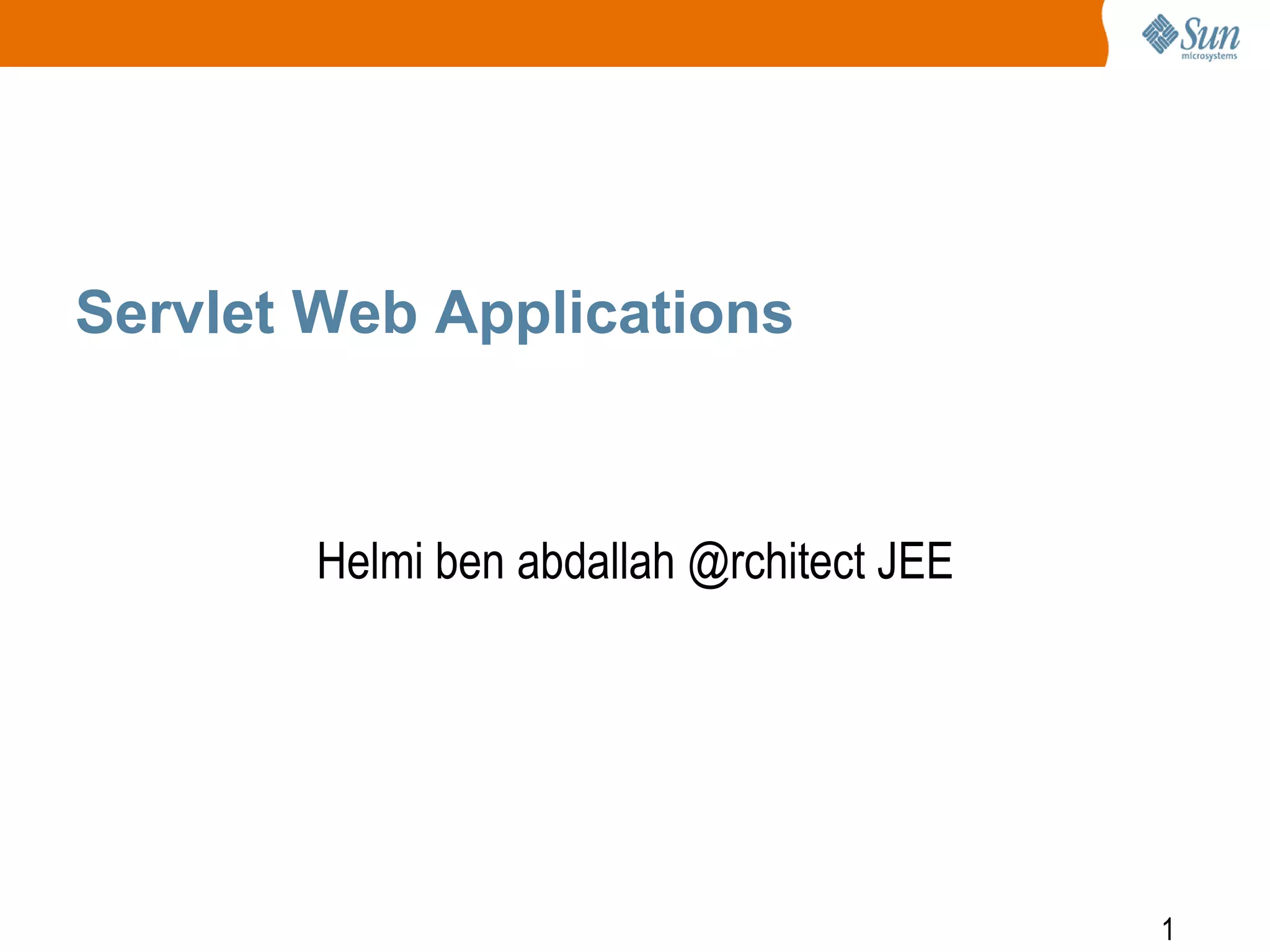

Servlet Web Applications
Helmi ben abdallah @rchitect JEE

2. 2

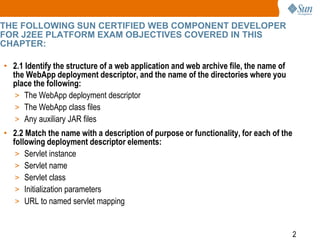

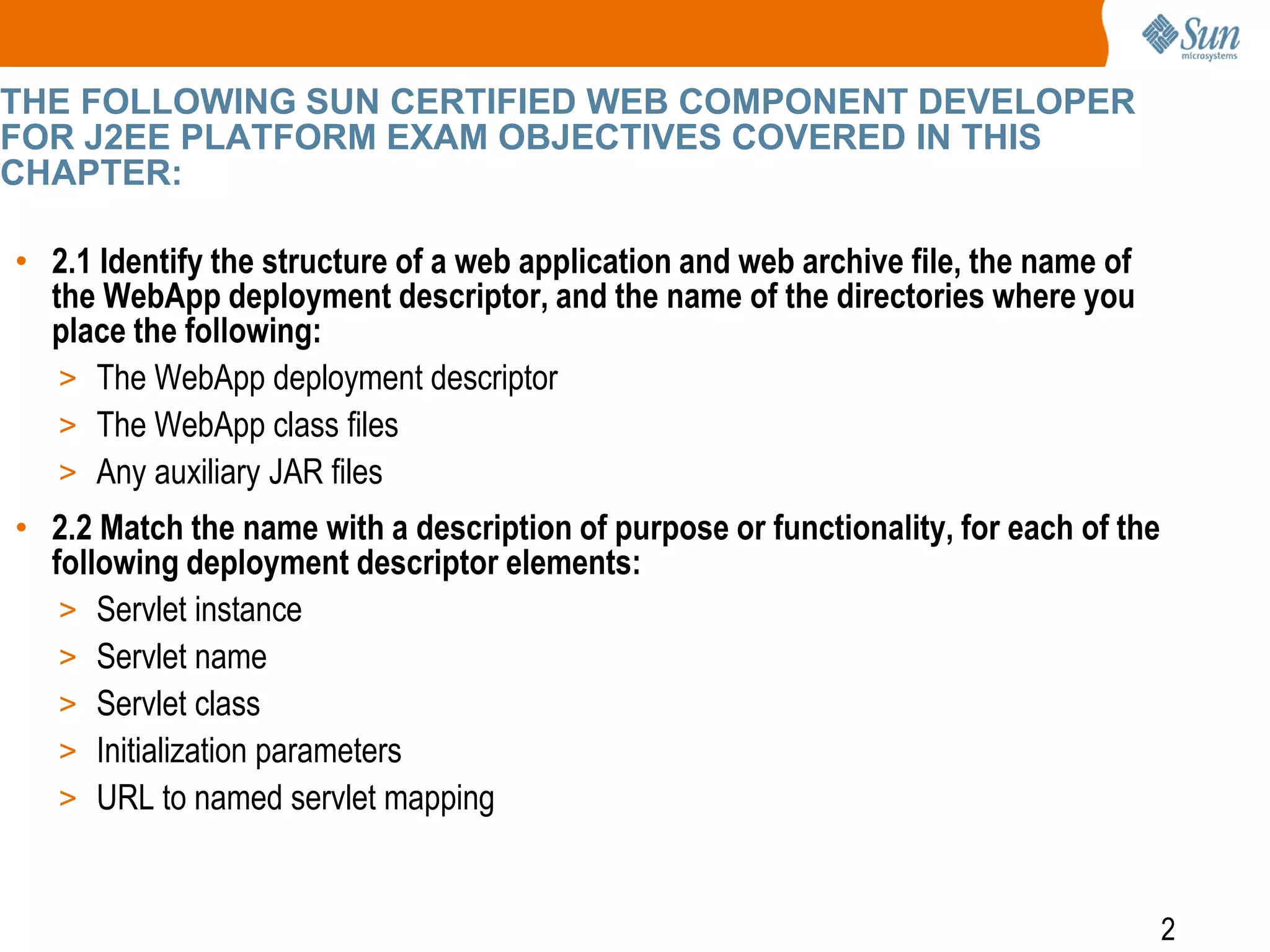

THE FOLLOWING SUN CERTIFIED WEB COMPONENT DEVELOPER
FOR J2EE PLATFORM EXAM OBJECTIVES COVERED IN THIS
CHAPTER:
• 2.1 Identify the structure of a web application and web archive file, the name of
the WebApp deployment descriptor, and the name of the directories where you
place the following:
> The WebApp deployment descriptor
> The WebApp class files
> Any auxiliary JAR files
• 2.2 Match the name with a description of purpose or functionality, for each of the
following deployment descriptor elements:
> Servlet instance
> Servlet name
> Servlet class
> Initialization parameters
> URL to named servlet mapping

3. 3

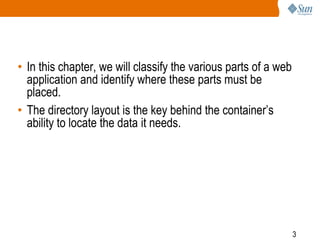

• In this chapter, we will classify the various parts of a web
application and identify where these parts must be
placed.
• The directory layout is the key behind the container’s
ability to locate the data it needs.

4. 4

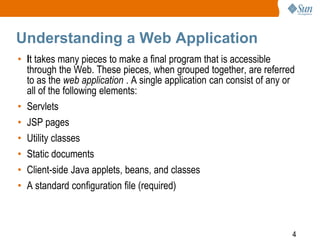

Understanding a Web Application
• It takes many pieces to make a final program that is accessible
through the Web. These pieces, when grouped together, are referred
to as the web application . A single application can consist of any or
all of the following elements:
• Servlets
• JSP pages
• Utility classes
• Static documents
• Client-side Java applets, beans, and classes
• A standard configuration file (required)

5. 5
Understanding a Directory Structure
The hierarchy is made up of three significant layers.
1. The first is the context.It is one or more directories used to locate the web
application associated to the client request.
2. Within the context exists the /WEB-INF directory. It contains several
subdirectories that help organize class files and compressed Java files.
The /WEB-INF directory also contains web.xml. This layer is hidden from
the client. the client cannot directly access files from within the /WEB-INF
directory.
3. The final layer is quite the opposite. It is located directly within the context
and contains all client-viewable files. This includes welcome and error
pages, graphic or audio files, and so forth.

6. 6
The Context
The context itself is the root for a single web application.
The container then locates the servlet by using the following mapping
rules in the order they are performed. Assuming that the “servlet
path pattern” defines the request URL and the “incoming path”
defines the longest context path match, the servlet container will try
to find:
Exact mapping : All strings match exactly. Here is an example of a
match:
Servlet path pattern: /foo/bar
Incoming path: /foo/bar
Path mapping : The string begins with a forward slash (/) and ends
witha forward slash and asterisk (/*). The longest match determines
the servlet requested.
Here is an example of a match:
Servlet path pattern: /programs/wordprocessing/*
Incoming path: /programs/wordprocessing/index.html
Incoming path: /programs/wordprocessing/wp2.4/start.jsp

7. 7

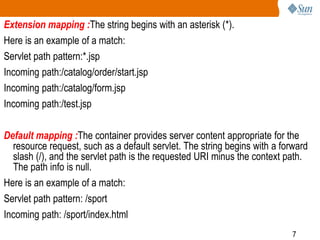

Extension mapping :The string begins with an asterisk (*).
Here is an example of a match:
Servlet path pattern:*.jsp
Incoming path:/catalog/order/start.jsp
Incoming path:/catalog/form.jsp
Incoming path:/test.jsp
Default mapping :The container provides server content appropriate for the
resource request, such as a default servlet. The string begins with a forward
slash (/), and the servlet path is the requested URI minus the context path.
The path info is null.
Here is an example of a match:
Servlet path pattern: /sport
Incoming path: /sport/index.html

8. 8

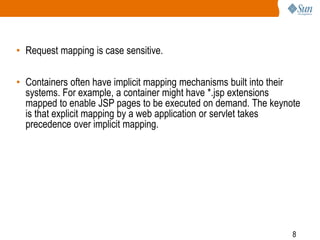

• Request mapping is case sensitive.
• Containers often have implicit mapping mechanisms built into their
systems. For example, a container might have *.jsp extensions
mapped to enable JSP pages to be executed on demand. The keynote
is that explicit mapping by a web application or servlet takes
precedence over implicit mapping.

9. 9

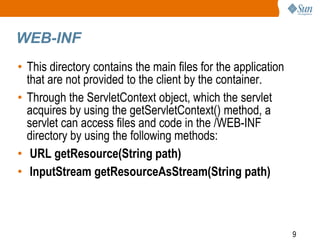

WEB-INF
• This directory contains the main files for the application
that are not provided to the client by the container.
• Through the ServletContext object, which the servlet
acquires by using the getServletContext() method, a
servlet can access files and code in the /WEB-INF
directory by using the following methods:
• URL getResource(String path)
• InputStream getResourceAsStream(String path)

10. 10

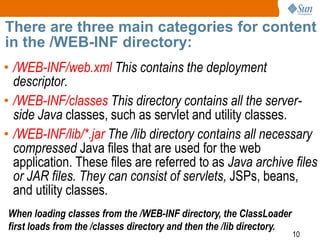

There are three main categories for content
in the /WEB-INF directory:
• /WEB-INF/web.xml This contains the deployment
descriptor.
• /WEB-INF/classes This directory contains all the server-
side Java classes, such as servlet and utility classes.
• /WEB-INF/lib/*.jar The /lib directory contains all necessary
compressed Java files that are used for the web
application. These files are referred to as Java archive files
or JAR files. They can consist of servlets, JSPs, beans,
and utility classes.
When loading classes from the /WEB-INF directory, the ClassLoader
first loads from the /classes directory and then the /lib directory.

11. 11

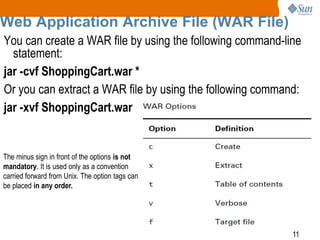

Web Application Archive File (WAR File)
You can create a WAR file by using the following command-line
statement:
jar -cvf ShoppingCart.war *
Or you can extract a WAR file by using the following command:
jar -xvf ShoppingCart.war
The minus sign in front of the options is not
mandatory. It is used only as a convention
carried forward from Unix. The option tags can
be placed in any order.

12. 12

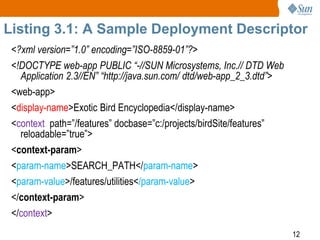

Listing 3.1: A Sample Deployment Descriptor
<?xml version=”1.0” encoding=”ISO-8859-01”?>
<!DOCTYPE web-app PUBLIC “-//SUN Microsystems, Inc.// DTD Web
Application 2.3//EN” “http://java.sun.com/ dtd/web-app_2_3.dtd”>
<web-app>
<display-name>Exotic Bird Encyclopedia</display-name>
<context path=”/features” docbase=”c:/projects/birdSite/features”
reloadable=”true”>
<context-param>
<param-name>SEARCH_PATH</param-name>
<param-value>/features/utilities</param-value>
</context-param>
</context>

13. 13

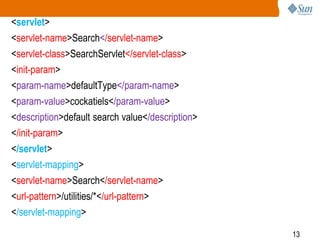

<servlet>
<servlet-name>Search</servlet-name>
<servlet-class>SearchServlet</servlet-class>
<init-param>
<param-name>defaultType</param-name>
<param-value>cockatiels</param-value>
<description>default search value</description>
</init-param>
</servlet>
<servlet-mapping>
<servlet-name>Search</servlet-name>
<url-pattern>/utilities/*</url-pattern>
</servlet-mapping>

14. 14

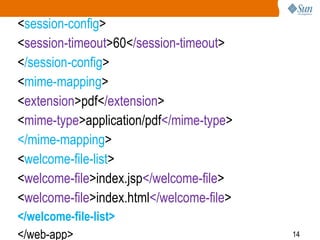

<session-config>
<session-timeout>60</session-timeout>
</session-config>
<mime-mapping>
<extension>pdf</extension>
<mime-type>application/pdf</mime-type>
</mime-mapping>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
<welcome-file>index.html</welcome-file>
</welcome-file-list>
</web-app>

15. 15

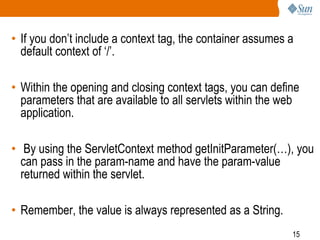

• If you don’t include a context tag, the container assumes a
default context of ‘/’.
• Within the opening and closing context tags, you can define
parameters that are available to all servlets within the web
application.
• By using the ServletContext method getInitParameter(…), you
can pass in the param-name and have the param-value
returned within the servlet.
• Remember, the value is always represented as a String.

16. 16
Basic Servlet Tags
<servlet>
<servlet-name>Search</servlet-name>
<servlet-class>SearchServlet</servlet-class>
</servlet>

17. 17

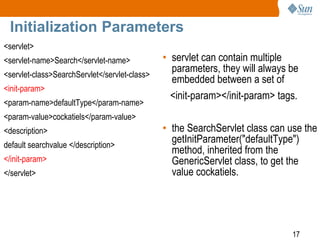

Initialization Parameters
<servlet>
<servlet-name>Search</servlet-name>
<servlet-class>SearchServlet</servlet-class>
<init-param>
<param-name>defaultType</param-name>
<param-value>cockatiels</param-value>
<description>
default searchvalue </description>
</init-param>
</servlet>
• servlet can contain multiple
parameters, they will always be
embedded between a set of
<init-param></init-param> tags.
• the SearchServlet class can use the
getInitParameter("defaultType")
method, inherited from the
GenericServlet class, to get the
value cockatiels.

18. 18

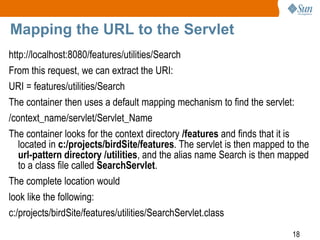

Mapping the URL to the Servlet
http://localhost:8080/features/utilities/Search
From this request, we can extract the URI:
URI = features/utilities/Search
The container then uses a default mapping mechanism to find the servlet:
/context_name/servlet/Servlet_Name
The container looks for the context directory /features and finds that it is
located in c:/projects/birdSite/features. The servlet is then mapped to the
url-pattern directory /utilities, and the alias name Search is then mapped
to a class file called SearchServlet.
The complete location would
look like the following:
c:/projects/birdSite/features/utilities/SearchServlet.class

19. 19

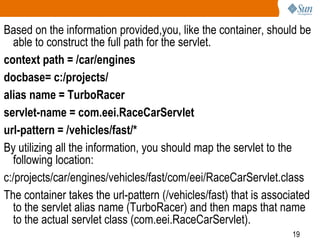

Based on the information provided,you, like the container, should be
able to construct the full path for the servlet.
context path = /car/engines
docbase= c:/projects/
alias name = TurboRacer
servlet-name = com.eei.RaceCarServlet
url-pattern = /vehicles/fast/*
By utilizing all the information, you should map the servlet to the
following location:
c:/projects/car/engines/vehicles/fast/com/eei/RaceCarServlet.class
The container takes the url-pattern (/vehicles/fast) that is associated
to the servlet alias name (TurboRacer) and then maps that name
to the actual servlet class (com.eei.RaceCarServlet).

20. 20

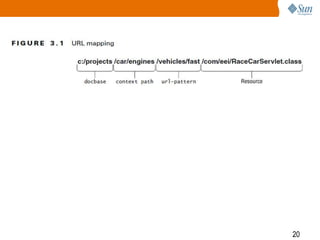

21. 21

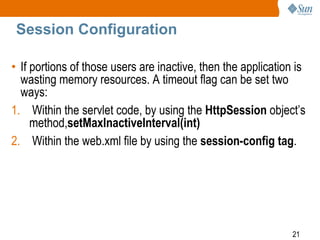

Session Configuration
• If portions of those users are inactive, then the application is
wasting memory resources. A timeout flag can be set two
ways:
1. Within the servlet code, by using the HttpSession object’s
method,setMaxInactiveInterval(int)
2. Within the web.xml file by using the session-config tag.

22. 22

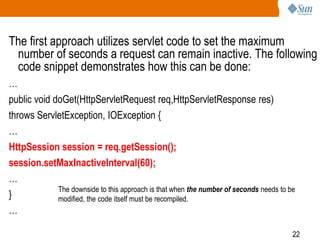

The first approach utilizes servlet code to set the maximum
number of seconds a request can remain inactive. The following
code snippet demonstrates how this can be done:
…
public void doGet(HttpServletRequest req,HttpServletResponse res)
throws ServletException, IOException {
…
HttpSession session = req.getSession();
session.setMaxInactiveInterval(60);
…
}
…
The downside to this approach is that when the number of seconds needs to be
modified, the code itself must be recompiled.

23. 23

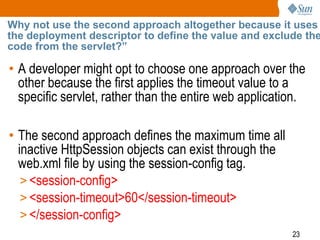

Why not use the second approach altogether because it uses
the deployment descriptor to define the value and exclude the
code from the servlet?”
• A developer might opt to choose one approach over the
other because the first applies the timeout value to a
specific servlet, rather than the entire web application.
• The second approach defines the maximum time all
inactive HttpSession objects can exist through the
web.xml file by using the session-config tag.
> <session-config>
> <session-timeout>60</session-timeout>
> </session-config>

24. 24
MIME Type Mappings
• When transmitting information between the client and server,
both parties need to know the format of the content being
transferred.
• The Multipurpose Internet Mail Extensions (MIME) type
defines the format of the request or response.
• A MIME type is a String that defines the type and subtype:
type/subtype. Some common examples are
text/html, text/plain,and image/gif.

25. 25

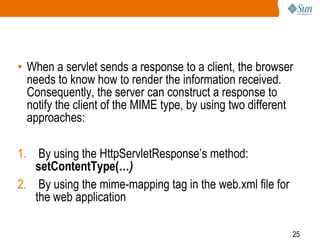

• When a servlet sends a response to a client, the browser
needs to know how to render the information received.
Consequently, the server can construct a response to
notify the client of the MIME type, by using two different
approaches:
1. By using the HttpServletResponse’s method:
setContentType(…)
2. By using the mime-mapping tag in the web.xml file for
the web application

26. 26

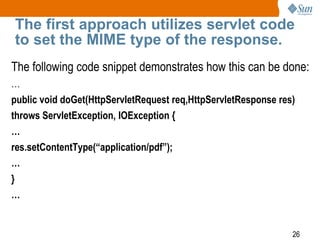

The first approach utilizes servlet code
to set the MIME type of the response.
The following code snippet demonstrates how this can be done:
…
public void doGet(HttpServletRequest req,HttpServletResponse res)
throws ServletException, IOException {
…
res.setContentType(“application/pdf”);
…
}
…

27. 27

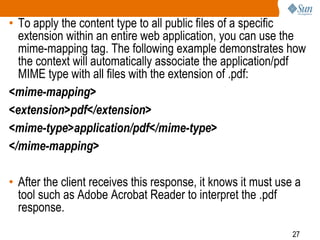

• To apply the content type to all public files of a specific
extension within an entire web application, you can use the
mime-mapping tag. The following example demonstrates how
the context will automatically associate the application/pdf
MIME type with all files with the extension of .pdf:
<mime-mapping>
<extension>pdf</extension>
<mime-type>application/pdf</mime-type>
</mime-mapping>
• After the client receives this response, it knows it must use a
tool such as Adobe Acrobat Reader to interpret the .pdf
response.

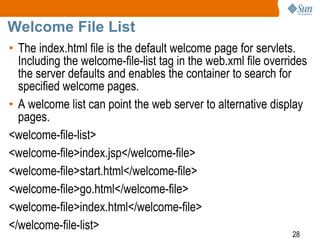

28. 28
Welcome File List
• The index.html file is the default welcome page for servlets.
Including the welcome-file-list tag in the web.xml file overrides
the server defaults and enables the container to search for
specified welcome pages.
• A welcome list can point the web server to alternative display
pages.
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
<welcome-file>start.html</welcome-file>
<welcome-file>go.html</welcome-file>
<welcome-file>index.html</welcome-file>
</welcome-file-list>

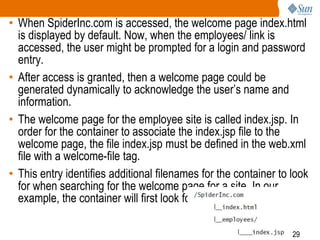

29. 29
• When SpiderInc.com is accessed, the welcome page index.html
is displayed by default. Now, when the employees/ link is
accessed, the user might be prompted for a login and password
entry.
• After access is granted, then a welcome page could be
generated dynamically to acknowledge the user’s name and
information.
• The welcome page for the employee site is called index.jsp. In
order for the container to associate the index.jsp file to the
welcome page, the file index.jsp must be defined in the web.xml
file with a welcome-file tag.
• This entry identifies additional filenames for the container to look
for when searching for the welcome page for a site. In our
example, the container will first look for index.html.

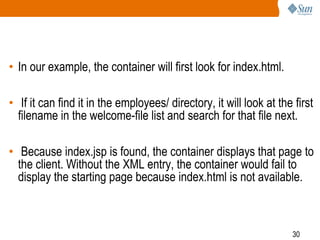

30. 30
• In our example, the container will first look for index.html.
• If it can find it in the employees/ directory, it will look at the first
filename in the welcome-file list and search for that file next.
• Because index.jsp is found, the container displays that page to
the client. Without the XML entry, the container would fail to
display the starting page because index.html is not available.

31. 31

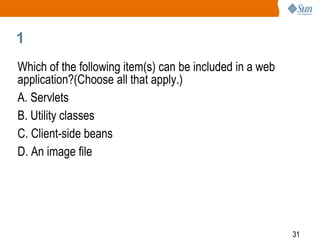

1
Which of the following item(s) can be included in a web
application?(Choose all that apply.)
A. Servlets
B. Utility classes
C. Client-side beans
D. An image file

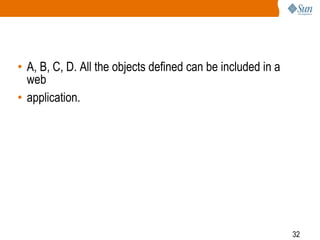

32. 32
• A, B, C, D. All the objects defined can be included in a
web
• application.

33. 33

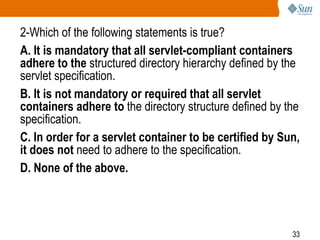

2-Which of the following statements is true?
A. It is mandatory that all servlet-compliant containers
adhere to the structured directory hierarchy defined by the
servlet specification.
B. It is not mandatory or required that all servlet
containers adhere to the directory structure defined by the
specification.
C. In order for a servlet container to be certified by Sun,
it does not need to adhere to the specification.
D. None of the above.

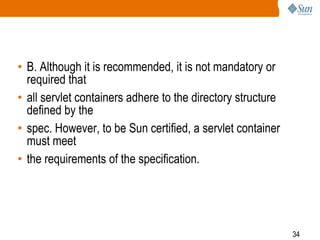

34. 34
• B. Although it is recommended, it is not mandatory or
required that
• all servlet containers adhere to the directory structure
defined by the
• spec. However, to be Sun certified, a servlet container
must meet
• the requirements of the specification.

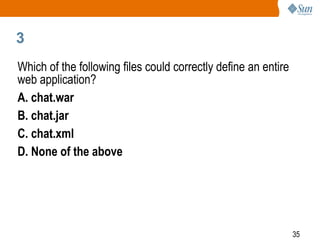

35. 35
3
Which of the following files could correctly define an entire
web application?
A. chat.war
B. chat.jar
C. chat.xml
D. None of the above

36. 36

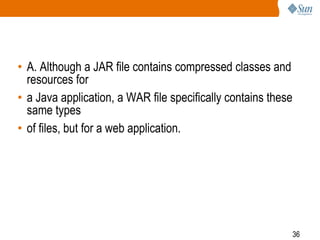

• A. Although a JAR file contains compressed classes and
resources for
• a Java application, a WAR file specifically contains these
same types
• of files, but for a web application.

37. 37
4

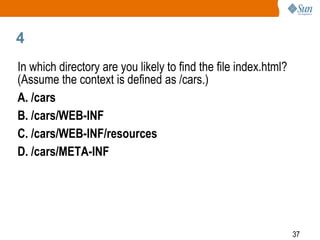

In which directory are you likely to find the file index.html?
(Assume the context is defined as /cars.)
A. /cars
B. /cars/WEB-INF
C. /cars/WEB-INF/resources
D. /cars/META-INF

38. 38

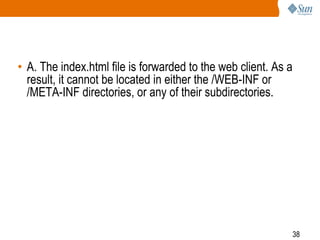

• A. The index.html file is forwarded to the web client. As a
result, it cannot be located in either the /WEB-INF or
/META-INF directories, or any of their subdirectories.

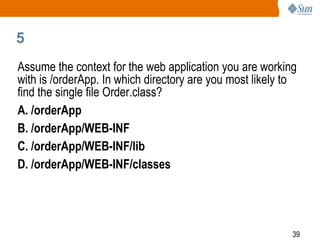

39. 39
5
Assume the context for the web application you are working
with is /orderApp. In which directory are you most likely to
find the single file Order.class?
A. /orderApp
B. /orderApp/WEB-INF
C. /orderApp/WEB-INF/lib
D. /orderApp/WEB-INF/classes

40. 40
• D. All individual classes are located in the /WEB-
INF/classes directory.
• If the class is compressed and converted to a JAR file, its
JAR file
• needs
• to be placed in the /WEB-INF/lib
• directory.

41. 41
6
Assume the context for the web application you are working
with is /book. In which directory are you most likely to find
the file called BookApp.war?
A. /book
B. /book/WEB-INF
C. /book/WEB-INF/lib
D. /book/META-INF

42. 42

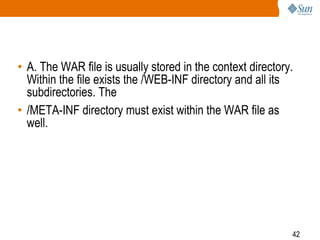

• A. The WAR file is usually stored in the context directory.
Within the file exists the /WEB-INF directory and all its
subdirectories. The
• /META-INF directory must exist within the WAR file as
well.

43. 43

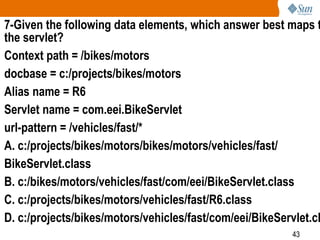

7-Given the following data elements, which answer best maps t
the servlet?
Context path = /bikes/motors
docbase = c:/projects/bikes/motors
Alias name = R6
Servlet name = com.eei.BikeServlet
url-pattern = /vehicles/fast/*
A. c:/projects/bikes/motors/bikes/motors/vehicles/fast/
BikeServlet.class
B. c:/bikes/motors/vehicles/fast/com/eei/BikeServlet.class
C. c:/projects/bikes/motors/vehicles/fast/R6.class
D. c:/projects/bikes/motors/vehicles/fast/com/eei/BikeServlet.cl

44. 44

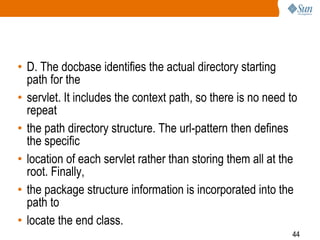

• D. The docbase identifies the actual directory starting
path for the
• servlet. It includes the context path, so there is no need to
repeat
• the path directory structure. The url-pattern then defines
the specific
• location of each servlet rather than storing them all at the
root. Finally,
• the package structure information is incorporated into the
path to
• locate the end class.

45. 45
8-The <session-timeout></session-timeout> tag must be
embedded in which outer tags?
A. <web-app><session-config>HERE</session-config>
</web-app>
B. <web-app><servlet><servlet-
config>HERE</servletconfig></servlet></web-app>
C. <web-app>HERE</web-app>
D. None of the above

46. 46

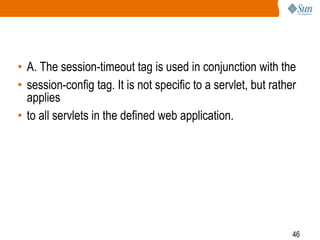

• A. The session-timeout tag is used in conjunction with the
• session-config tag. It is not specific to a servlet, but rather
applies
• to all servlets in the defined web application.

47. 47
9

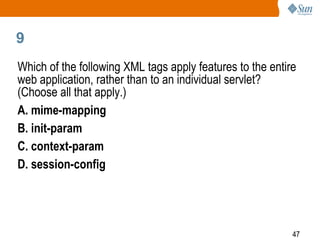

Which of the following XML tags apply features to the entire
web application, rather than to an individual servlet?
(Choose all that apply.)
A. mime-mapping
B. init-param
C. context-param
D. session-config

48. 48

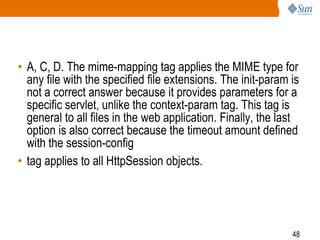

• A, C, D. The mime-mapping tag applies the MIME type for
any file with the specified file extensions. The init-param is
not a correct answer because it provides parameters for a
specific servlet, unlike the context-param tag. This tag is
general to all files in the web application. Finally, the last
option is also correct because the timeout amount defined
with the session-config
• tag applies to all HttpSession objects.

49. 49
10-Which of the following tags is used to identify the
minimum amount of time a container must wait to remove
an inactive HttpSession object?
A. session-config-min
B. session-timeout-min
C. session-timeout-max
D. session-timeout
E. session-config

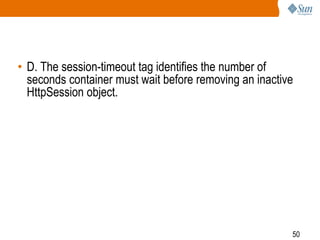

50. 50
• D. The session-timeout tag identifies the number of
seconds container must wait before removing an inactive
HttpSession object.

51. 51

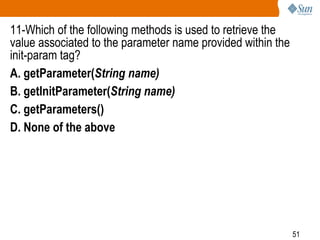

11-Which of the following methods is used to retrieve the
value associated to the parameter name provided within the
init-param tag?
A. getParameter(String name)
B. getInitParameter(String name)
C. getParameters()
D. None of the above

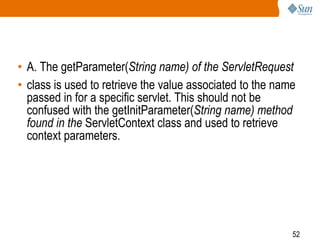

52. 52
• A. The getParameter(String name) of the ServletRequest
• class is used to retrieve the value associated to the name
passed in for a specific servlet. This should not be
confused with the getInitParameter(String name) method
found in the ServletContext class and used to retrieve
context parameters.

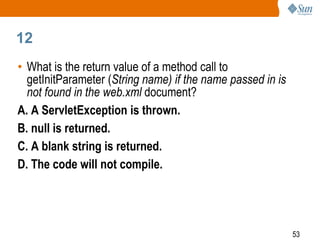

53. 53
12
• What is the return value of a method call to
getInitParameter (String name) if the name passed in is
not found in the web.xml document?
A. A ServletException is thrown.
B. null is returned.
C. A blank string is returned.
D. The code will not compile.

54. 54
• B. When the string passed into the getInitParameter
(String
• name) method cannot be matched to a param-name tag,
null is
• returned.

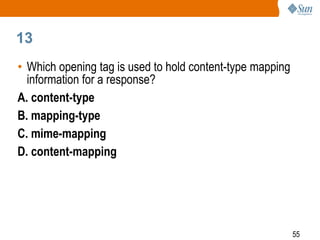

55. 55
13
• Which opening tag is used to hold content-type mapping
information for a response?
A. content-type
B. mapping-type
C. mime-mapping
D. content-mapping

56. 56

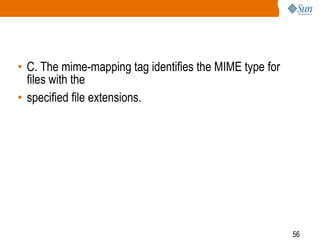

• C. The mime-mapping tag identifies the MIME type for
files with the
• specified file extensions.

57. 57

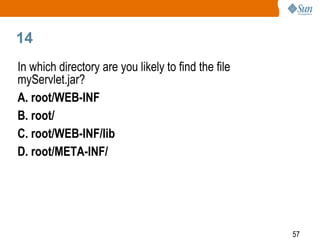

14
In which directory are you likely to find the file
myServlet.jar?
A. root/WEB-INF
B. root/
C. root/WEB-INF/lib
D. root/META-INF/

58. 58

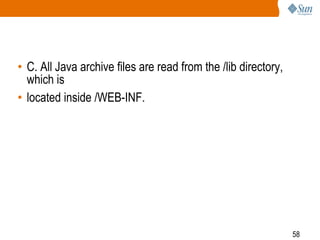

• C. All Java archive files are read from the /lib directory,
which is
• located inside /WEB-INF.

59. 59

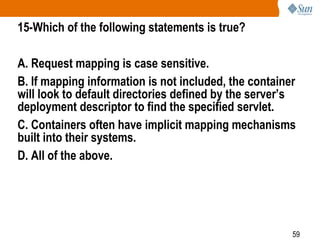

15-Which of the following statements is true?
A. Request mapping is case sensitive.
B. If mapping information is not included, the container
will look to default directories defined by the server’s
deployment descriptor to find the specified servlet.
C. Containers often have implicit mapping mechanisms
built into their systems.
D. All of the above.

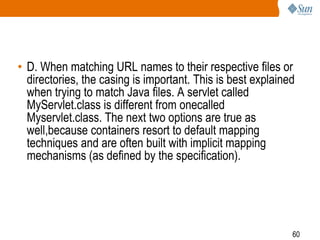

60. 60
• D. When matching URL names to their respective files or
directories, the casing is important. This is best explained
when trying to match Java files. A servlet called
MyServlet.class is different from onecalled
Myservlet.class. The next two options are true as
well,because containers resort to default mapping
techniques and are often built with implicit mapping
mechanisms (as defined by the specification).
