This document demonstrates how to upload a local file to a remote server using Oracle ADF Mobile. It describes setting up the development environment, creating an application and task flow, adding JavaScript code to call the device camera and upload the photo, and including Java code to call the JavaScript functions. The server component is a simple JSP page that accepts a file upload. When the user taps a button, it opens the camera to take a photo, uploads the file to the server, and logs the response.

1. FILE UPLOAD IN
ORACLE ADF MOBILE
An Oracle White Paper – 12-03-2014
Vinay Kumar
Abstract
This paper demonstrates a way to upload a local file to a remote server in ADF
Mobile

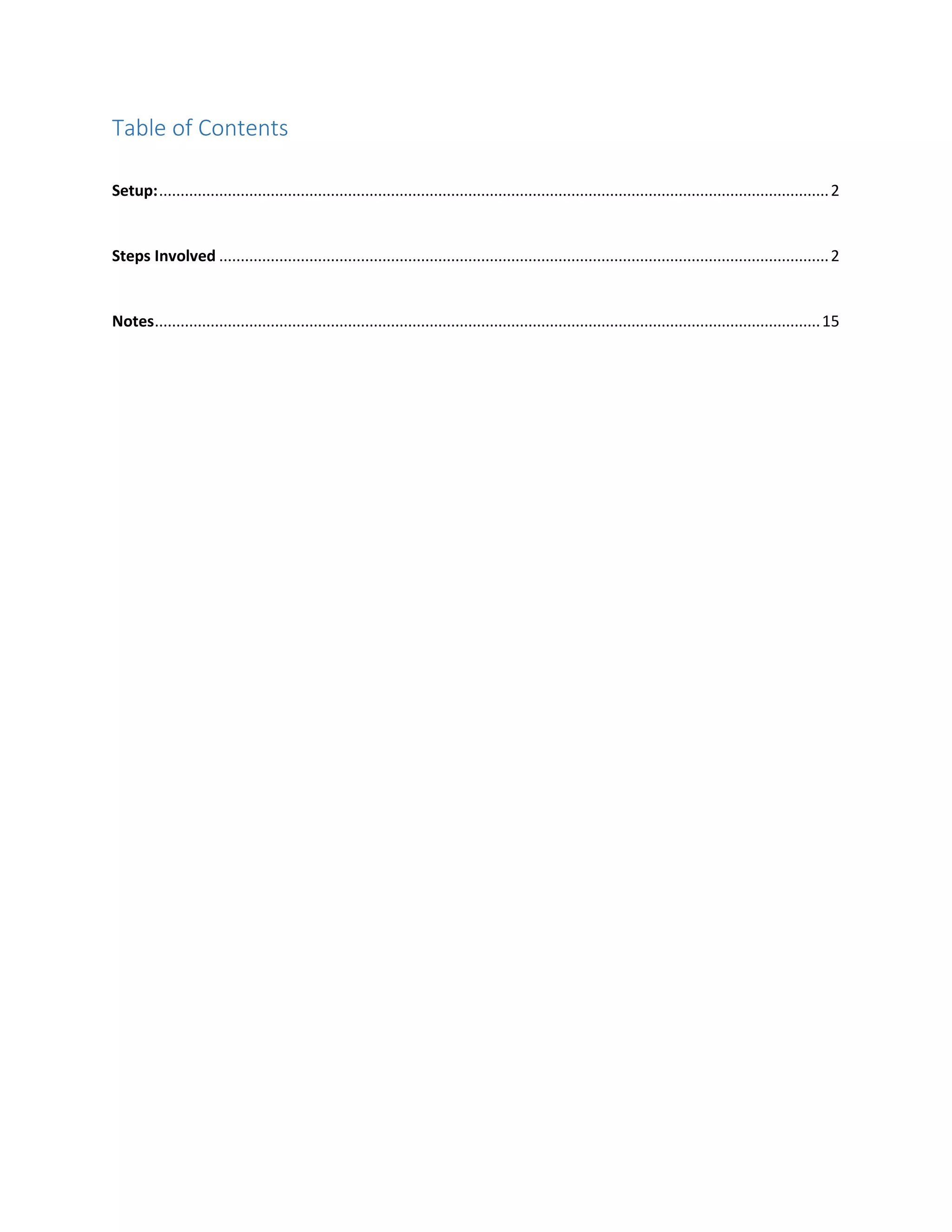

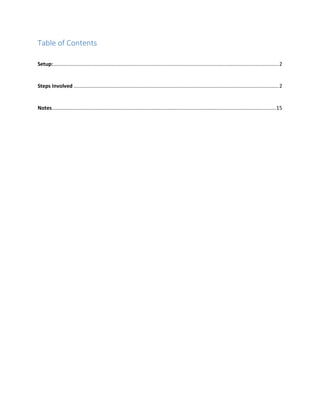

2. Table of Contents
Setup:............................................................................................................................................................2
Steps Involved ..............................................................................................................................................2
Notes...........................................................................................................................................................15

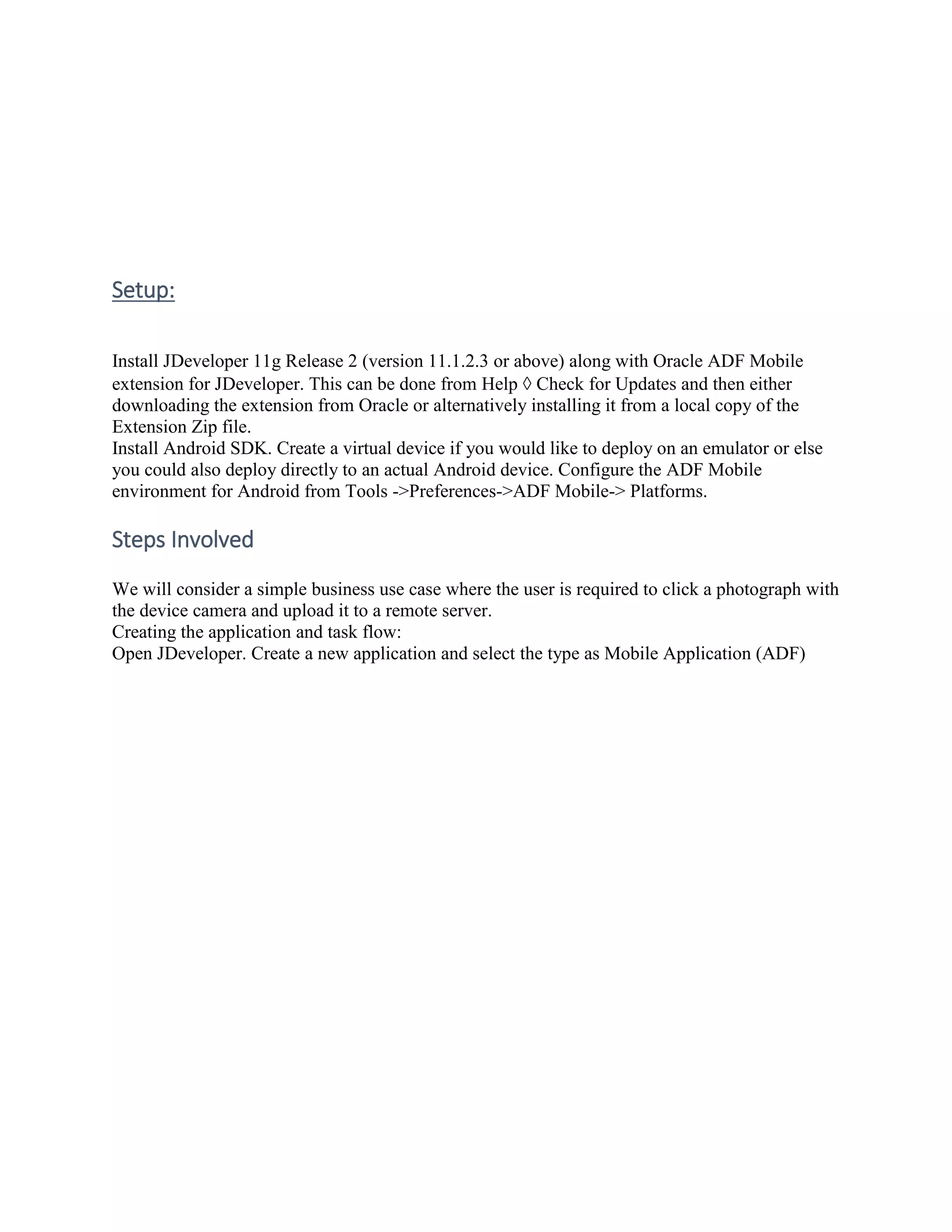

3. Setup:
Install JDeveloper 11g Release 2 (version 11.1.2.3 or above) along with Oracle ADF Mobile
extension for JDeveloper. This can be done from Help  Check for Updates and then either
downloading the extension from Oracle or alternatively installing it from a local copy of the
Extension Zip file.
Install Android SDK. Create a virtual device if you would like to deploy on an emulator or else
you could also deploy directly to an actual Android device. Configure the ADF Mobile
environment for Android from Tools ->Preferences->ADF Mobile-> Platforms.
Steps Involved
We will consider a simple business use case where the user is required to click a photograph with
the device camera and upload it to a remote server.
Creating the application and task flow:

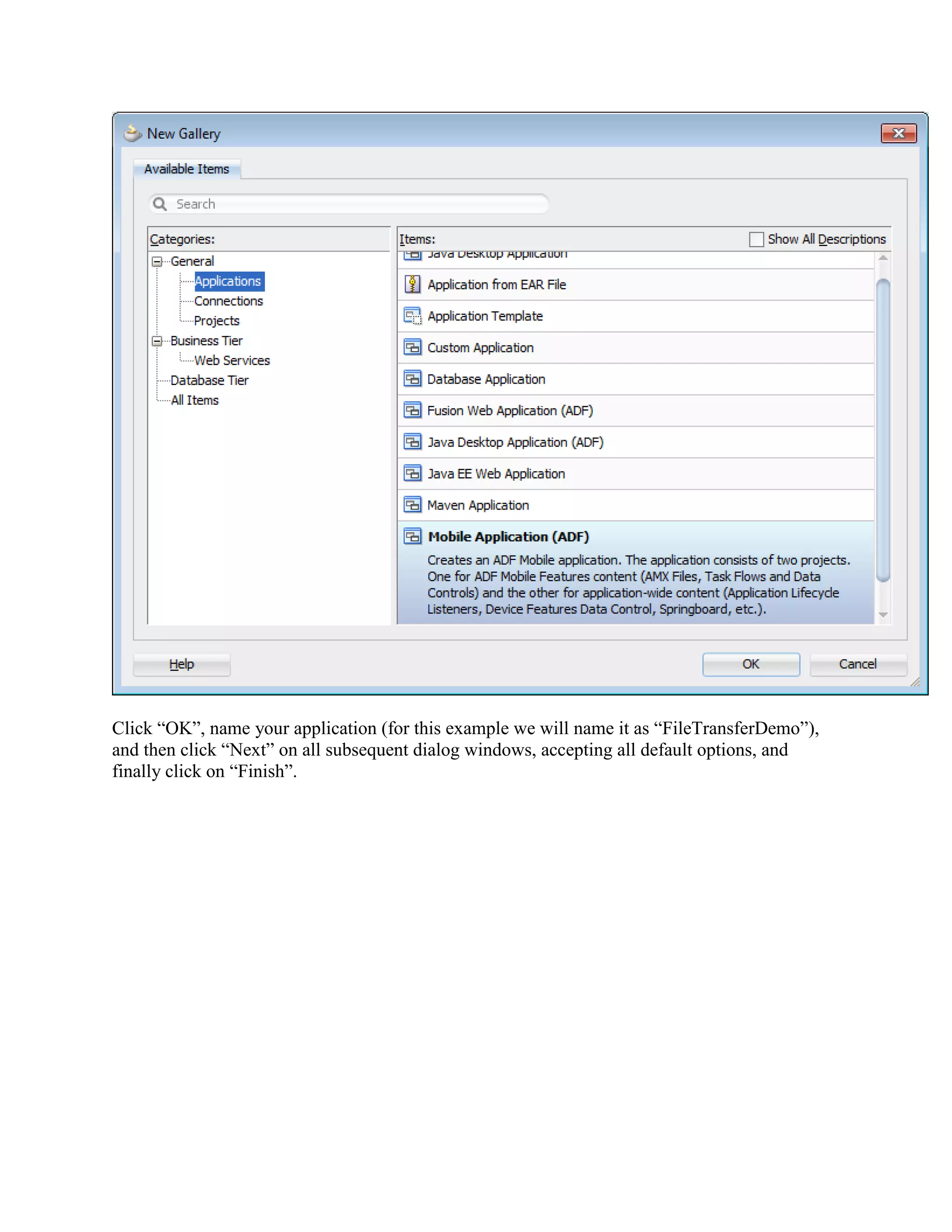

Open JDeveloper. Create a new application and select the type as Mobile Application (ADF)

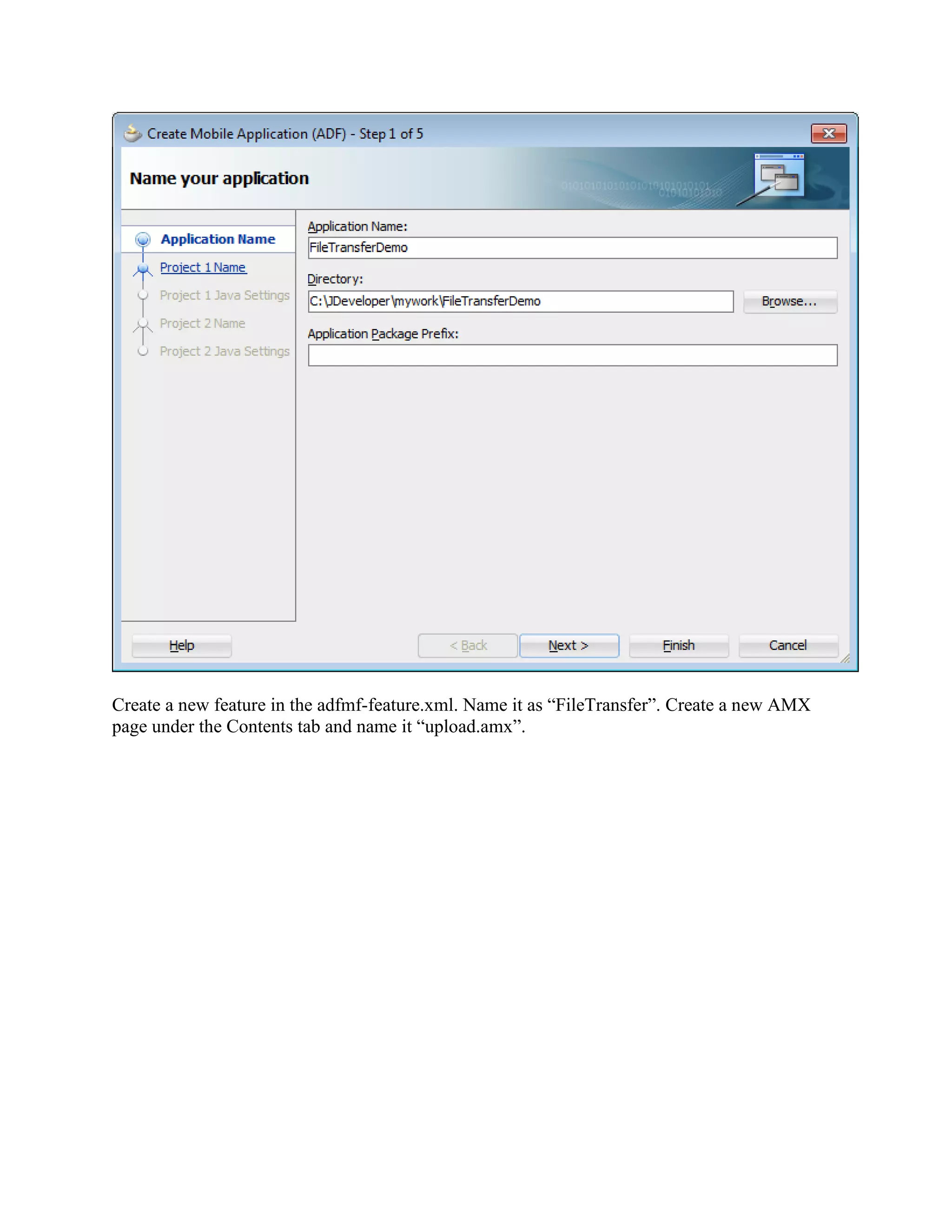

4. Click “OK”, name your application (for this example we will name it as “FileTransferDemo”),
and then click “Next” on all subsequent dialog windows, accepting all default options, and
finally click on “Finish”.

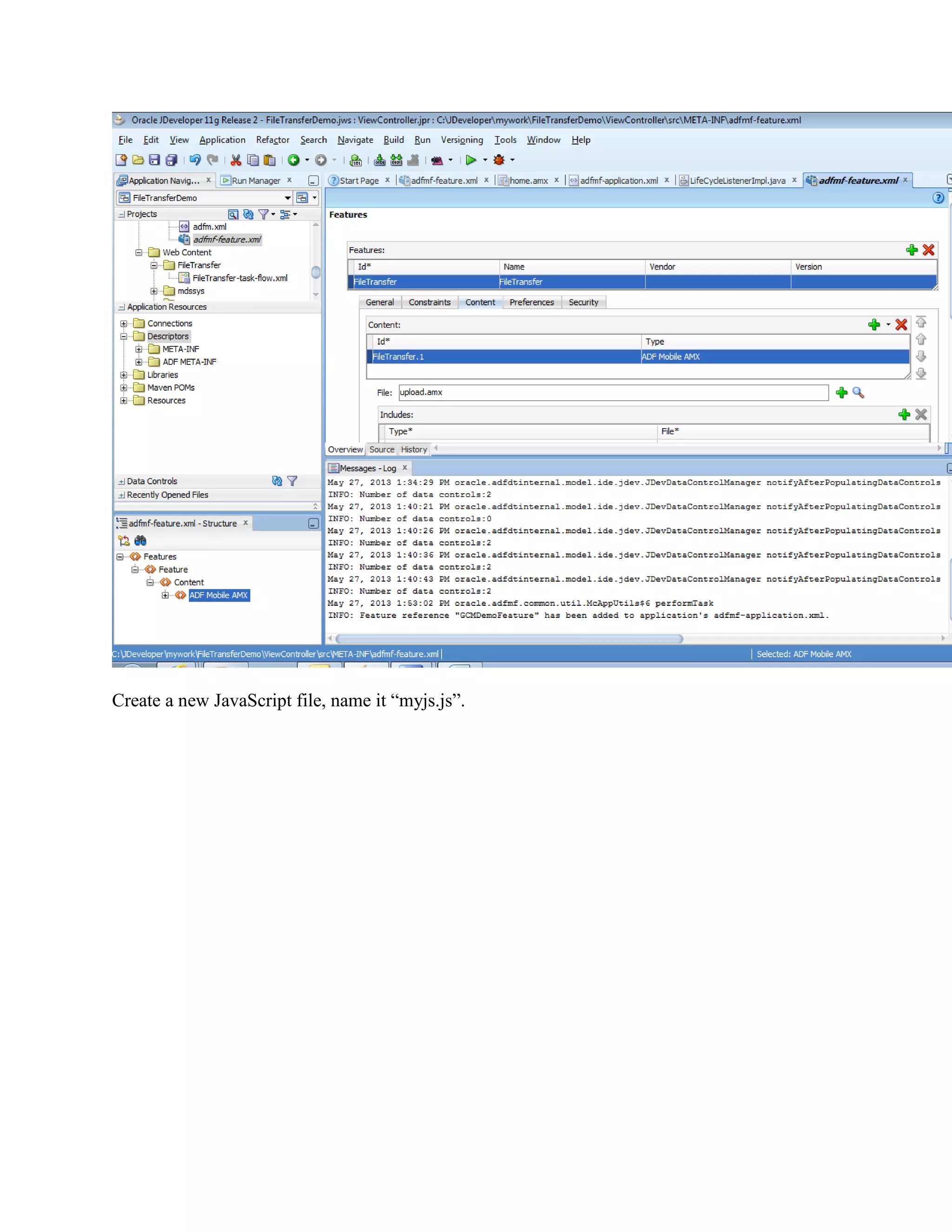

5. Create a new feature in the adfmf-feature.xml. Name it as “FileTransfer”. Create a new AMX
page under the Contents tab and name it “upload.amx”.

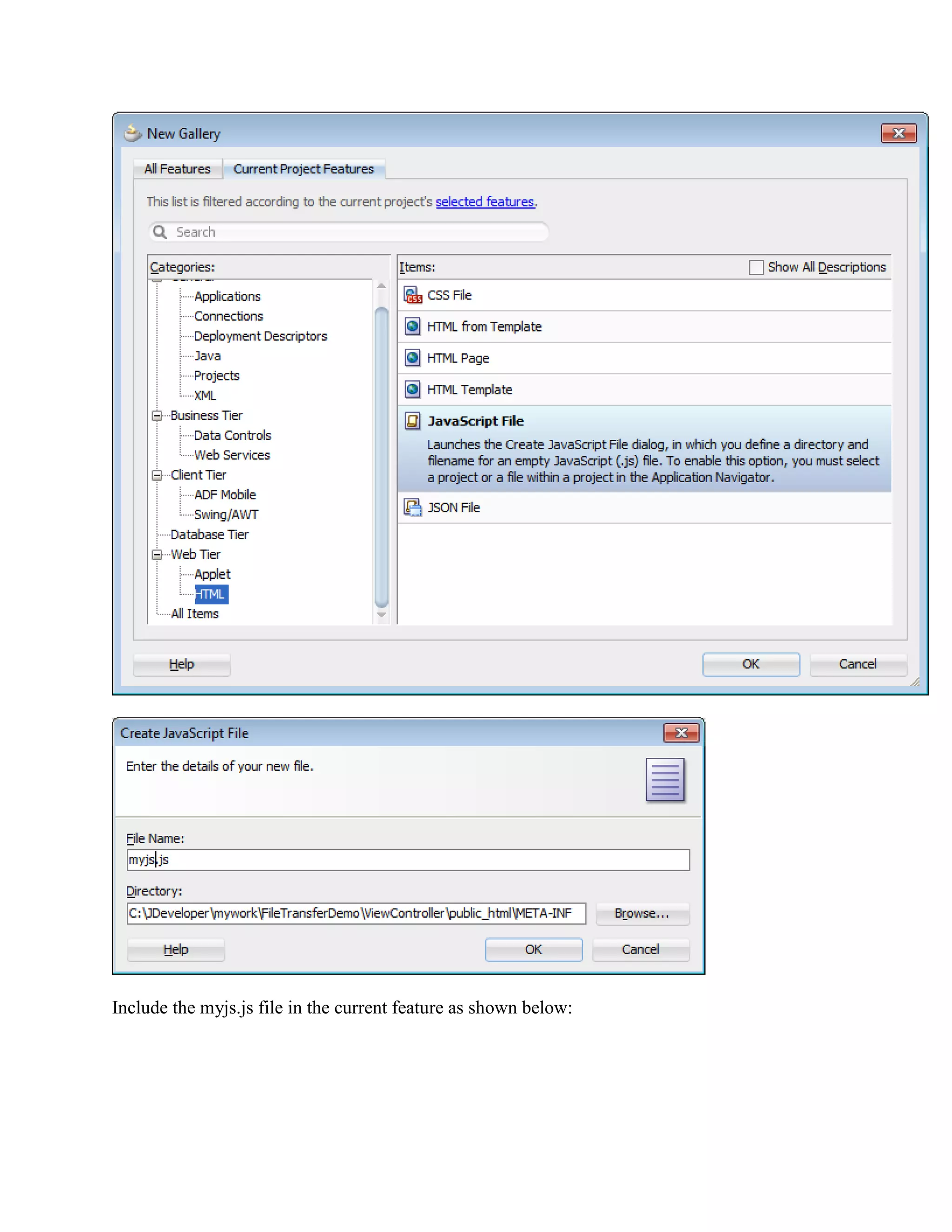

6. Create a new JavaScript file, name it “myjs.js”.

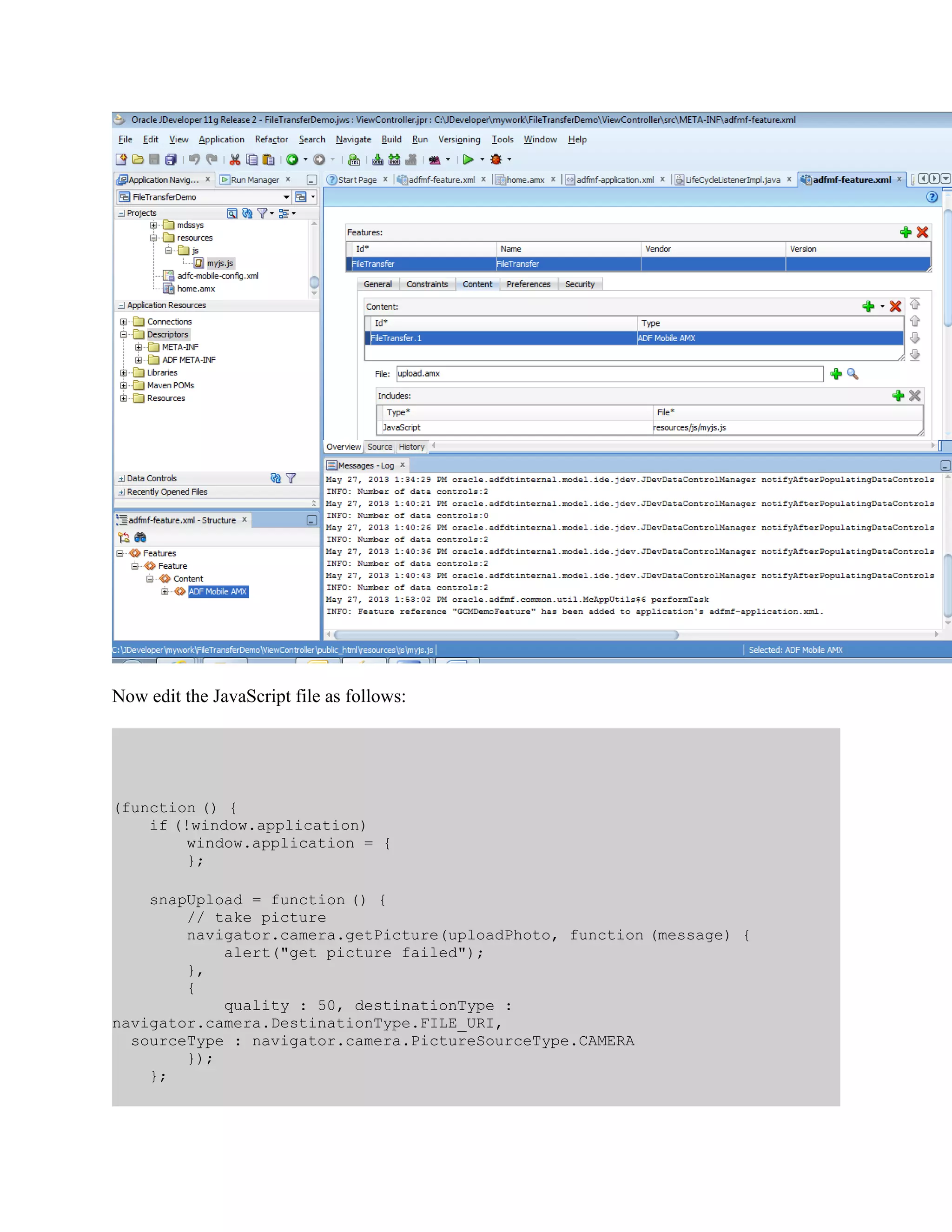

7. Include the myjs.js file in the current feature as shown below:

8. Now edit the JavaScript file as follows:
(function () {
if (!window.application)
window.application = {
};
snapUpload = function () {
// take picture
navigator.camera.getPicture(uploadPhoto, function (message) {
alert("get picture failed");
},
{
quality : 50, destinationType :
navigator.camera.DestinationType.FILE_URI,
sourceType : navigator.camera.PictureSourceType.CAMERA
});
};

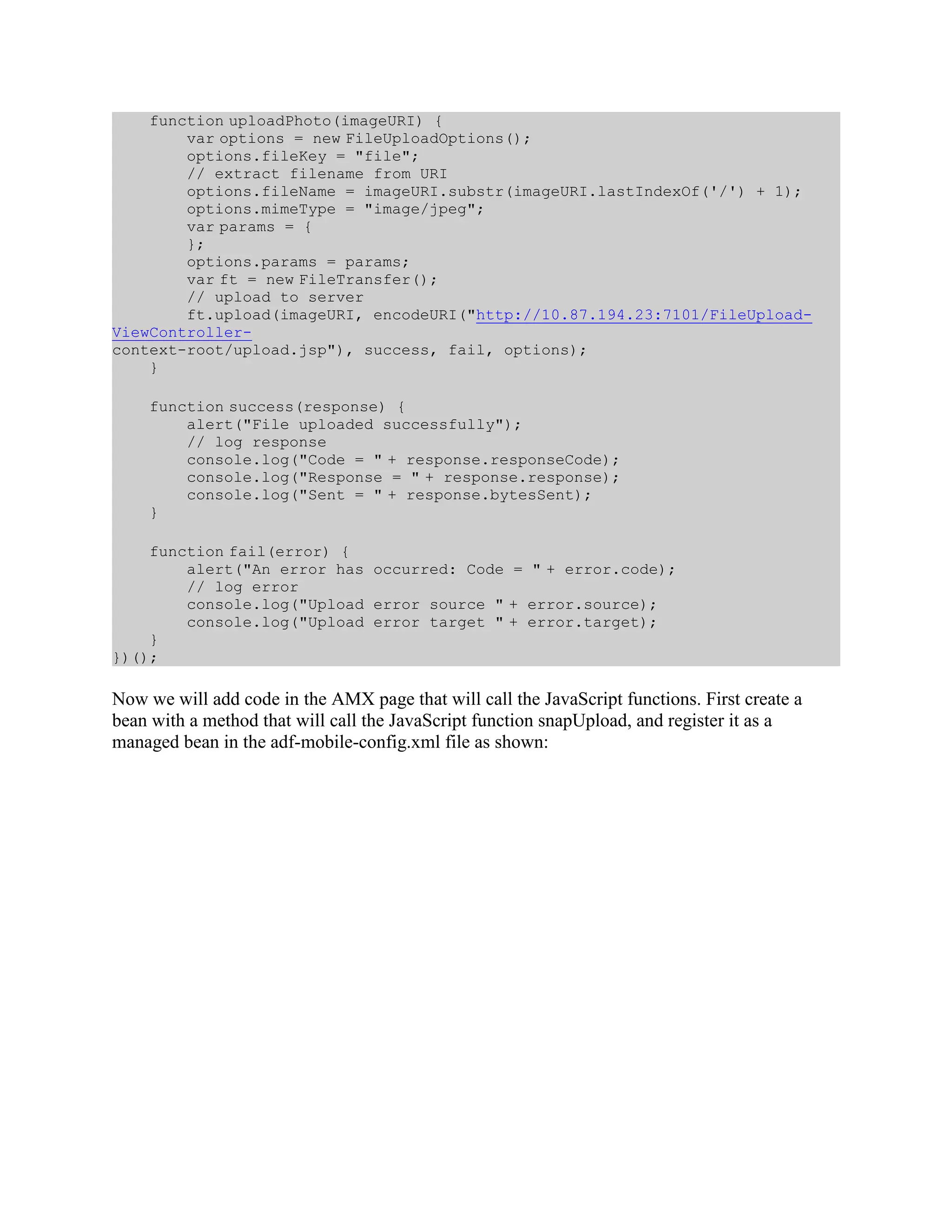

9. function uploadPhoto(imageURI) {
var options = new FileUploadOptions();
options.fileKey = "file";
// extract filename from URI
options.fileName = imageURI.substr(imageURI.lastIndexOf('/') + 1);
options.mimeType = "image/jpeg";
var params = {
};
options.params = params;
var ft = new FileTransfer();
// upload to server
ft.upload(imageURI, encodeURI("http://10.87.194.23:7101/FileUpload-
ViewController-
context-root/upload.jsp"), success, fail, options);
}
function success(response) {
alert("File uploaded successfully");
// log response
console.log("Code = " + response.responseCode);
console.log("Response = " + response.response);
console.log("Sent = " + response.bytesSent);
}
function fail(error) {
alert("An error has occurred: Code = " + error.code);
// log error
console.log("Upload error source " + error.source);
console.log("Upload error target " + error.target);
}
})();

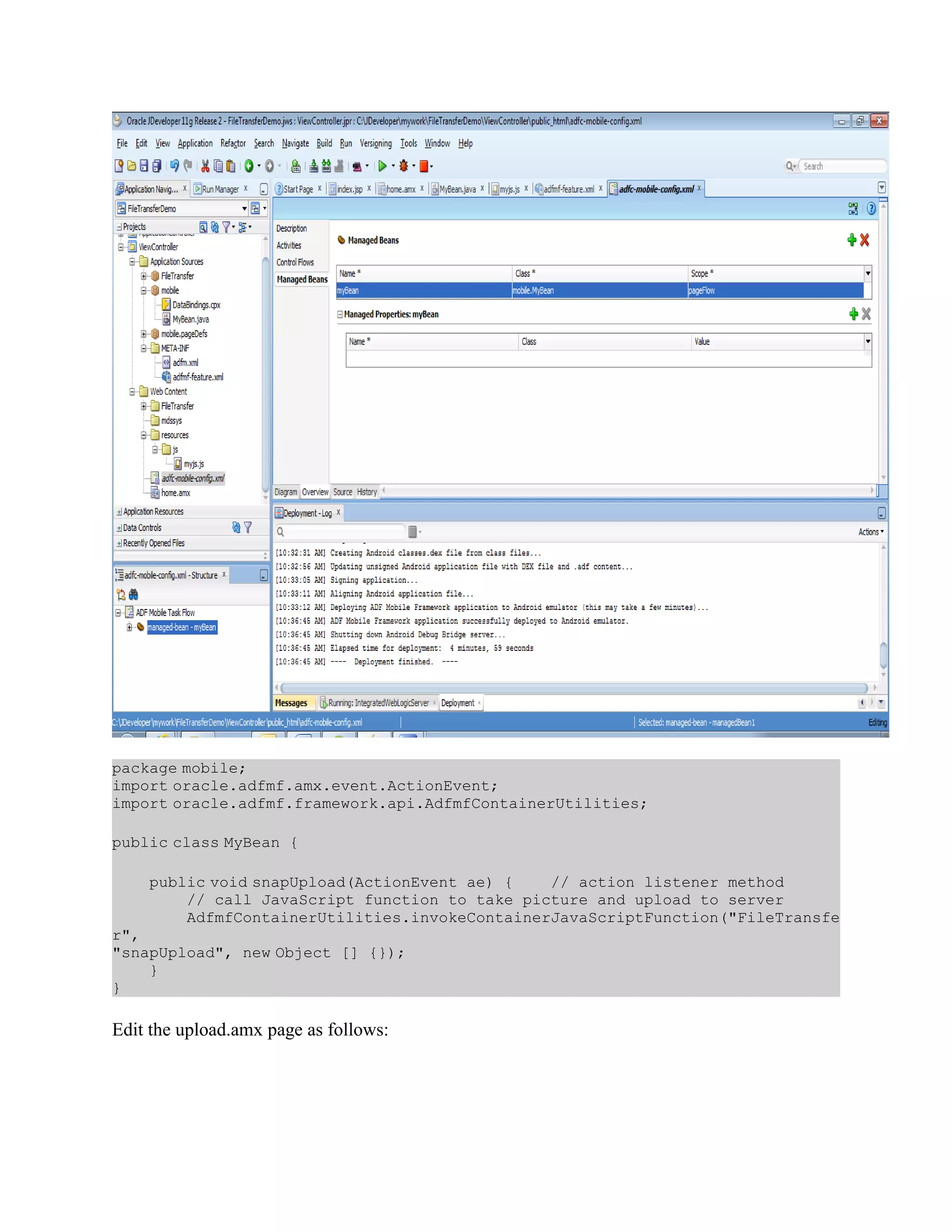

Now we will add code in the AMX page that will call the JavaScript functions. First create a
bean with a method that will call the JavaScript function snapUpload, and register it as a
managed bean in the adf-mobile-config.xml file as shown:

10. package mobile;
import oracle.adfmf.amx.event.ActionEvent;
import oracle.adfmf.framework.api.AdfmfContainerUtilities;
public class MyBean {
public void snapUpload(ActionEvent ae) { // action listener method
// call JavaScript function to take picture and upload to server
AdfmfContainerUtilities.invokeContainerJavaScriptFunction("FileTransfe
r",
"snapUpload", new Object [] {});
}
}
Edit the upload.amx page as follows:

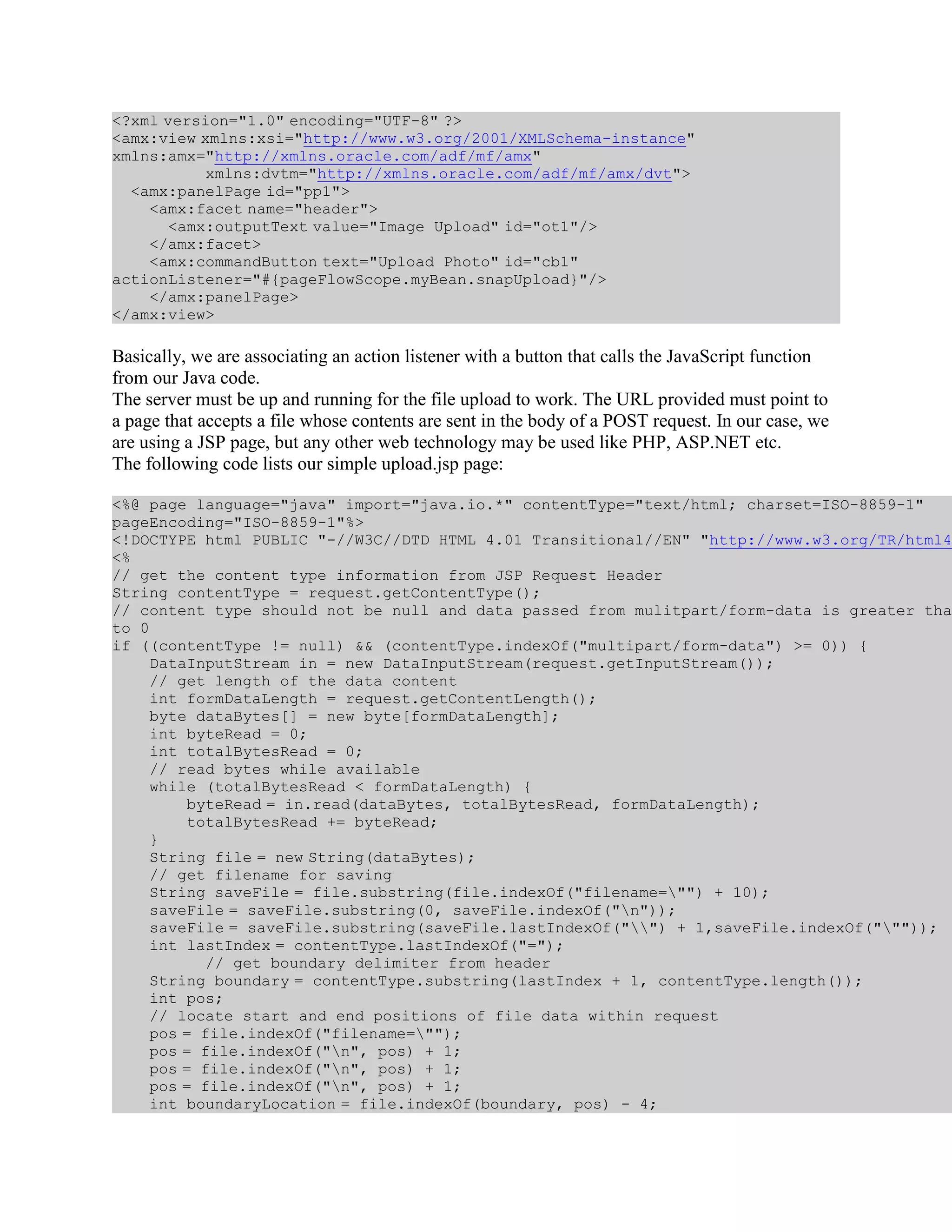

11. <?xml version="1.0" encoding="UTF-8" ?>
<amx:view xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:amx="http://xmlns.oracle.com/adf/mf/amx"
xmlns:dvtm="http://xmlns.oracle.com/adf/mf/amx/dvt">
<amx:panelPage id="pp1">
<amx:facet name="header">
<amx:outputText value="Image Upload" id="ot1"/>
</amx:facet>
<amx:commandButton text="Upload Photo" id="cb1"
actionListener="#{pageFlowScope.myBean.snapUpload}"/>
</amx:panelPage>
</amx:view>
Basically, we are associating an action listener with a button that calls the JavaScript function
from our Java code.
The server must be up and running for the file upload to work. The URL provided must point to
a page that accepts a file whose contents are sent in the body of a POST request. In our case, we
are using a JSP page, but any other web technology may be used like PHP, ASP.NET etc.
The following code lists our simple upload.jsp page:
<%@ page language="java" import="java.io.*" contentType="text/html; charset=ISO-8859-1"
pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4
<%
// get the content type information from JSP Request Header
String contentType = request.getContentType();
// content type should not be null and data passed from mulitpart/form-data is greater tha
to 0
if ((contentType != null) && (contentType.indexOf("multipart/form-data") >= 0)) {
DataInputStream in = new DataInputStream(request.getInputStream());
// get length of the data content
int formDataLength = request.getContentLength();
byte dataBytes[] = new byte[formDataLength];
int byteRead = 0;
int totalBytesRead = 0;
// read bytes while available
while (totalBytesRead < formDataLength) {
byteRead = in.read(dataBytes, totalBytesRead, formDataLength);
totalBytesRead += byteRead;
}
String file = new String(dataBytes);
// get filename for saving
String saveFile = file.substring(file.indexOf("filename="") + 10);
saveFile = saveFile.substring(0, saveFile.indexOf("n"));
saveFile = saveFile.substring(saveFile.lastIndexOf("") + 1,saveFile.indexOf("""));
int lastIndex = contentType.lastIndexOf("=");
// get boundary delimiter from header
String boundary = contentType.substring(lastIndex + 1, contentType.length());
int pos;
// locate start and end positions of file data within request
pos = file.indexOf("filename="");
pos = file.indexOf("n", pos) + 1;
pos = file.indexOf("n", pos) + 1;
pos = file.indexOf("n", pos) + 1;
int boundaryLocation = file.indexOf(boundary, pos) - 4;

12. int startPos = ((file.substring(0, pos)).getBytes()).length;
int endPos = ((file.substring(0, boundaryLocation)).getBytes()).length;
// create a new file with the same name as source and copy the file contents to it
FileOutputStream fout = new FileOutputStream(saveFile);
fout.write(dataBytes, startPos, (endPos - startPos));
fout.flush();
fout.close();
%>
<br></br>
<table border="2">
<tr>
<td>
<b>You have successfully uploaded the file by the name of:</b>
<%=new File(saveFile).getAbsolutePath()%>
</td>
</tr>
</table>
<%
} // end if
%>

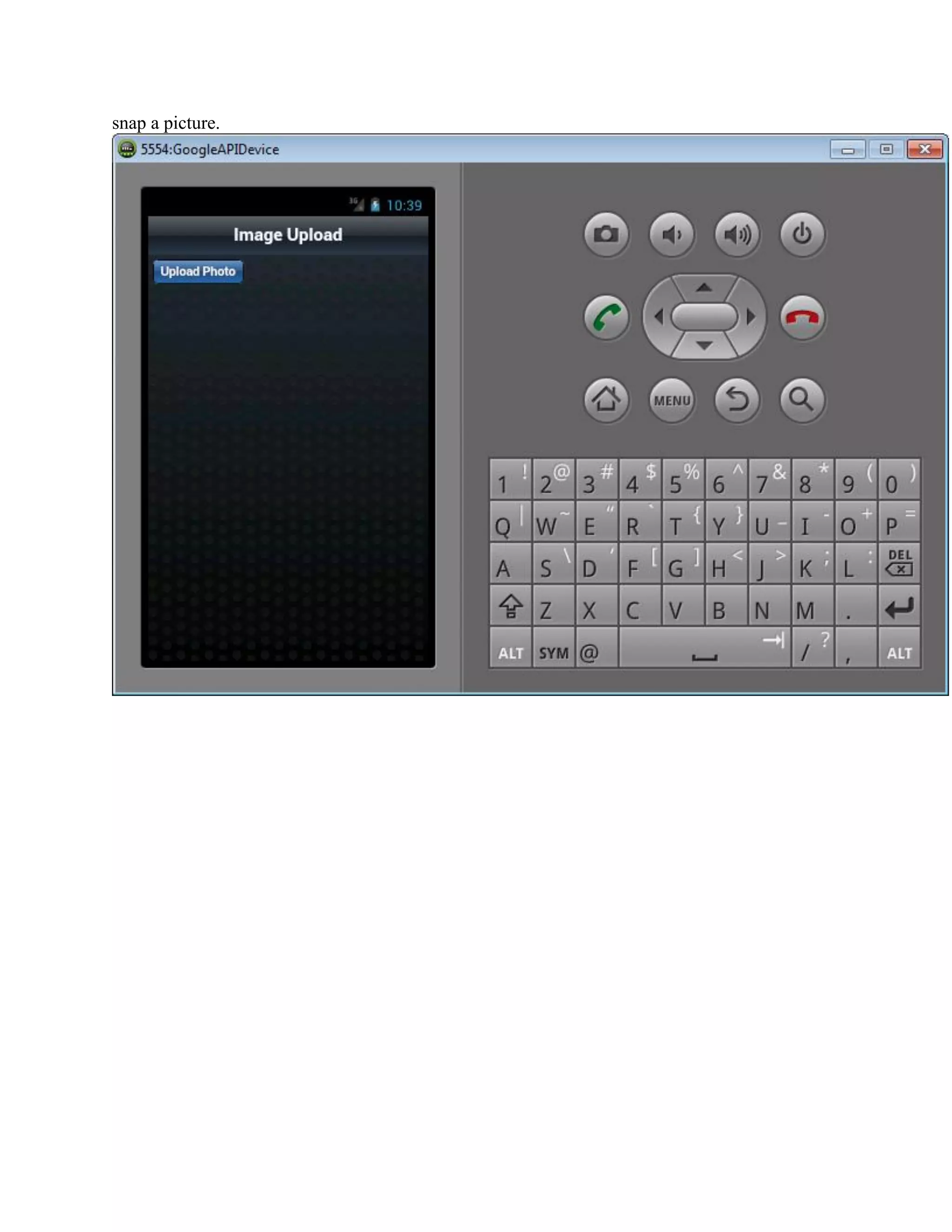

Finally, deploy the application to an Android device or emulator using the Application  Deploy
menu.Tapping on the “Upload Photo” button opens up the device camera using which you can

13. snap a picture.

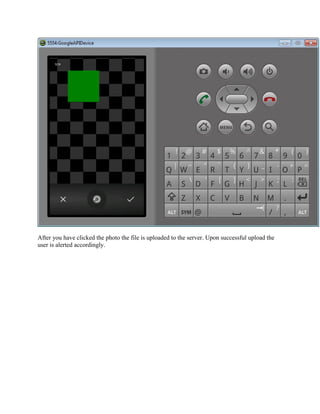

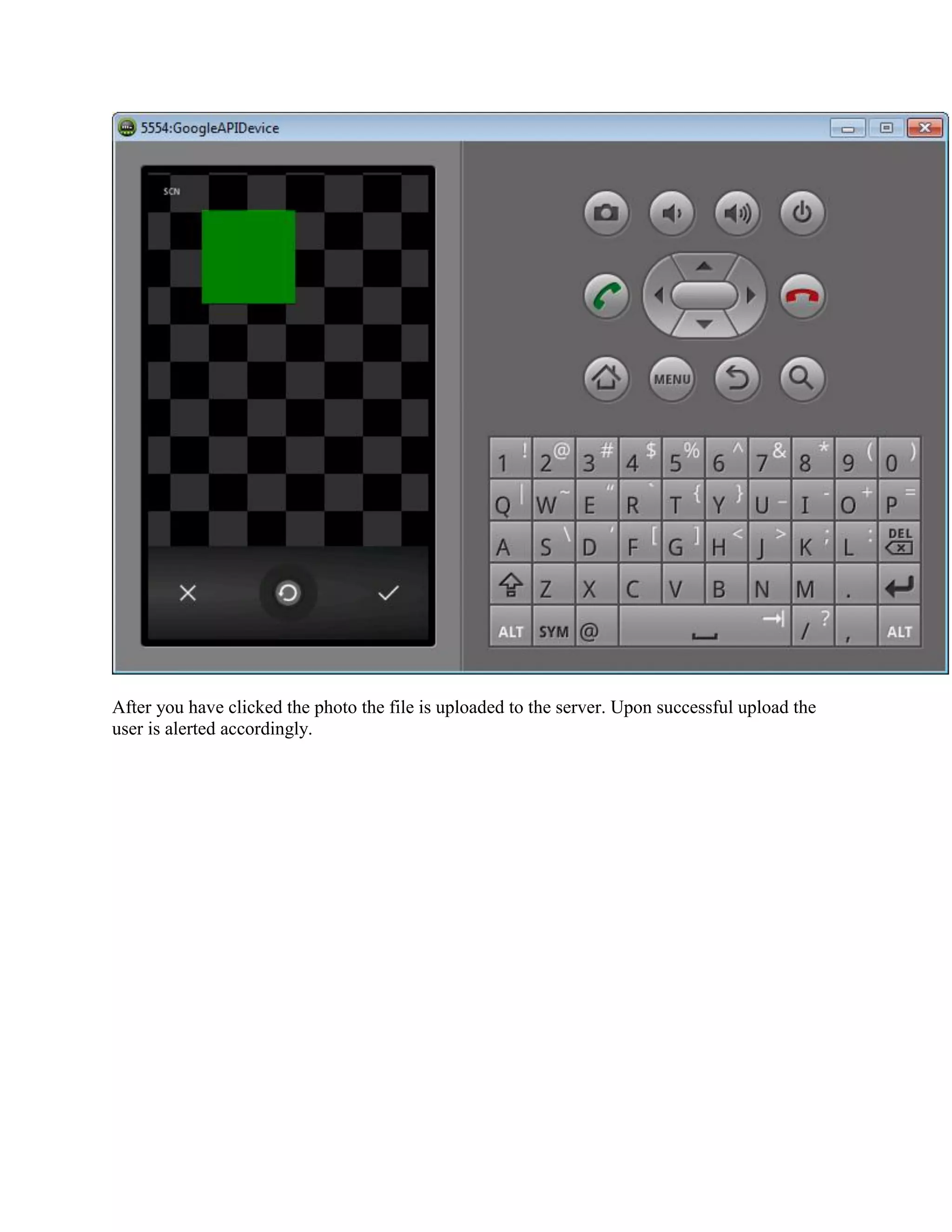

14. After you have clicked the photo the file is uploaded to the server. Upon successful upload the
user is alerted accordingly.

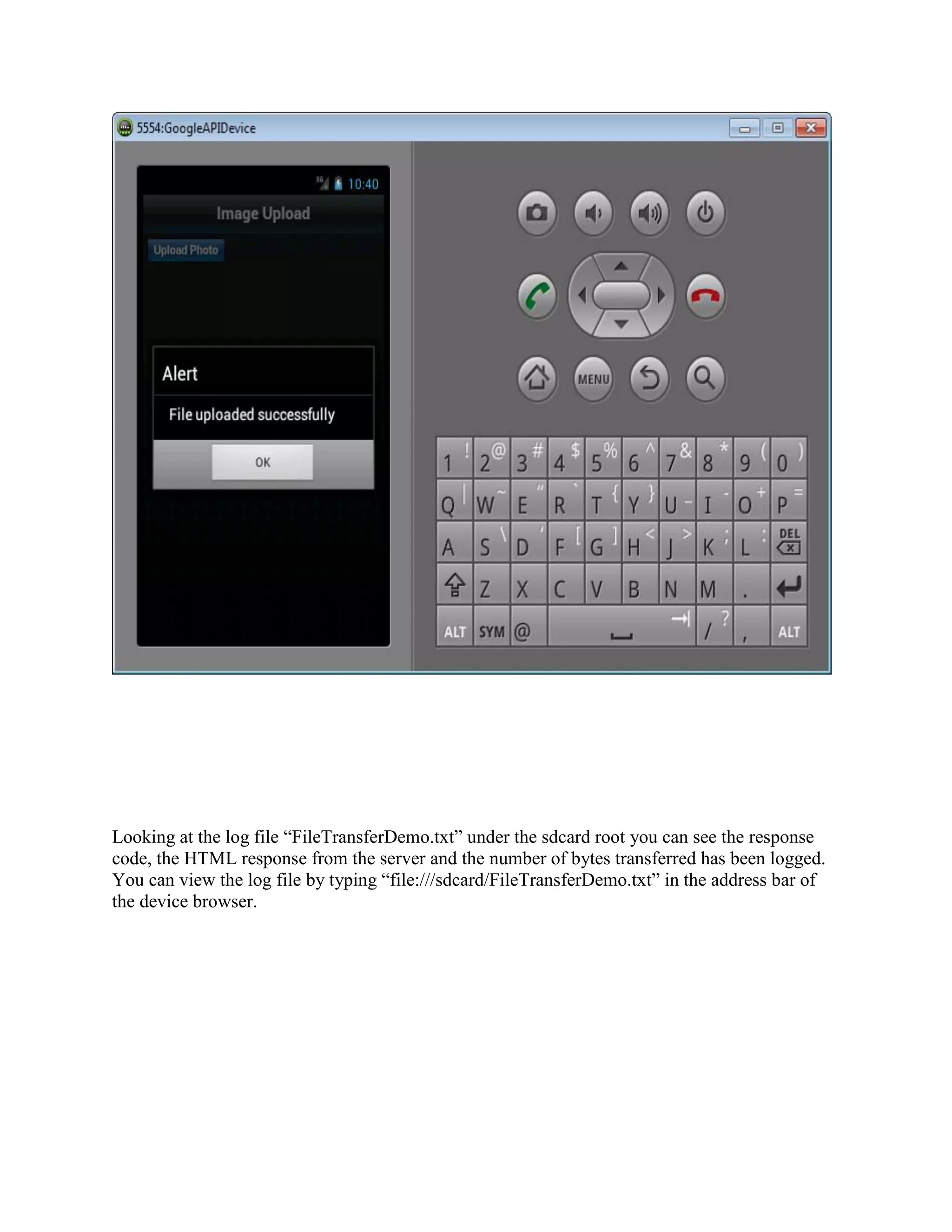

15. Looking at the log file “FileTransferDemo.txt” under the sdcard root you can see the response
code, the HTML response from the server and the number of bytes transferred has been logged.
You can view the log file by typing “file:///sdcard/FileTransferDemo.txt” in the address bar of
the device browser.

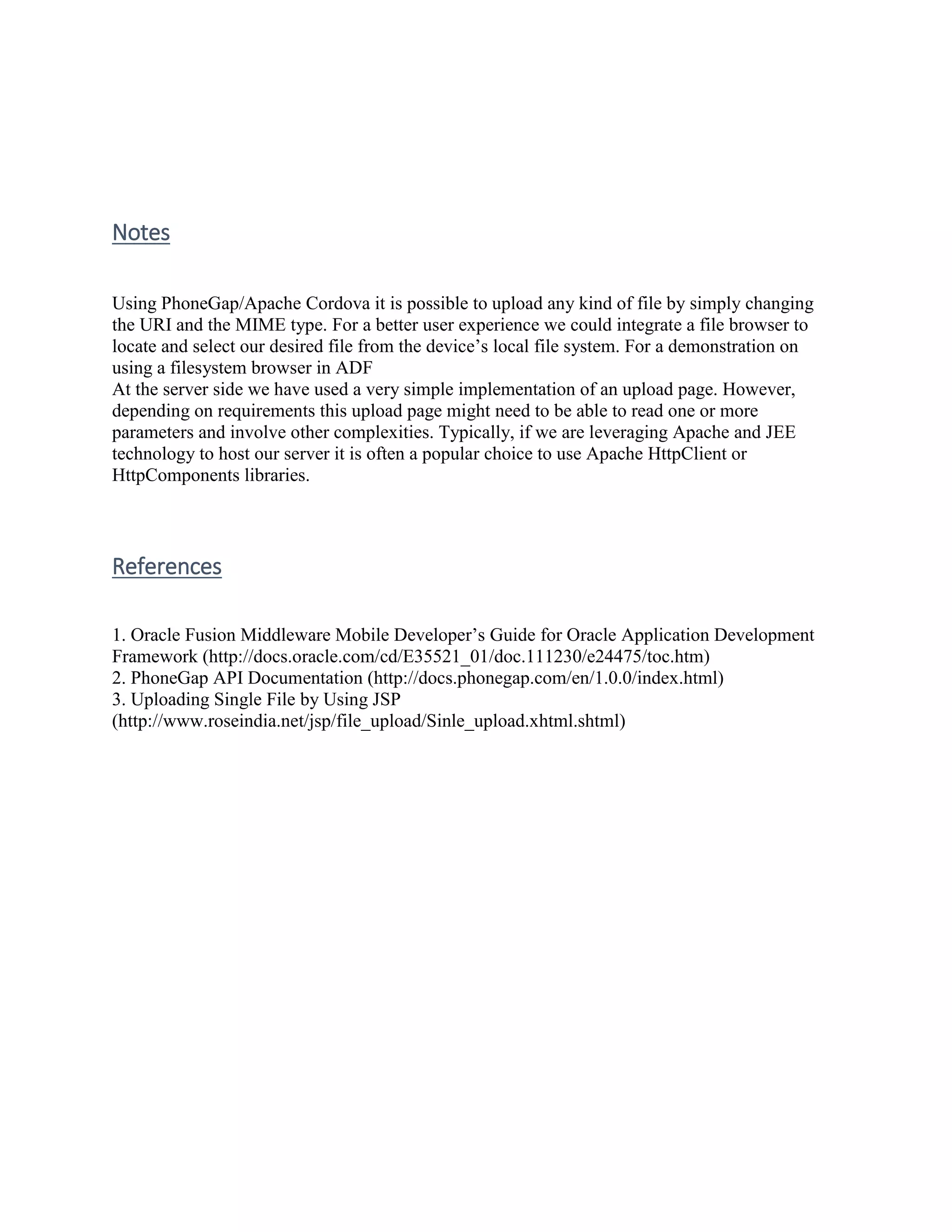

16. Notes
Using PhoneGap/Apache Cordova it is possible to upload any kind of file by simply changing
the URI and the MIME type. For a better user experience we could integrate a file browser to
locate and select our desired file from the device’s local file system. For a demonstration on
using a filesystem browser in ADF
At the server side we have used a very simple implementation of an upload page. However,
depending on requirements this upload page might need to be able to read one or more
parameters and involve other complexities. Typically, if we are leveraging Apache and JEE
technology to host our server it is often a popular choice to use Apache HttpClient or
HttpComponents libraries.
References
1. Oracle Fusion Middleware Mobile Developer’s Guide for Oracle Application Development
Framework (http://docs.oracle.com/cd/E35521_01/doc.111230/e24475/toc.htm)
2. PhoneGap API Documentation (http://docs.phonegap.com/en/1.0.0/index.html)
3. Uploading Single File by Using JSP
(http://www.roseindia.net/jsp/file_upload/Sinle_upload.xhtml.shtml)
