This document provides the design brief for a proposed 4-star hotel to be built in Kalamboli, Navi Mumbai. Key details include: - The site is located near the proposed Navi Mumbai International Airport with good transportation access. - The goal is to design a hotel that caters to international travelers and boosts the local real estate market. - The design must include required hotel facilities within the constraints of a maximum 50m height and 33% ground coverage while allocating 15% of land to recreation areas.

1. Dr. BaliramHiray College of Architecture
A.D. Brief for Fifth Year Semester- 9, 2018-19
4 Star Hotel At Kalamboli, Navi Mumbai
The City and Industrial Development Corporation (CIDCO) has proposed an International airport
near Ulwe in Panvel on the outskirts of Mumbai. The official site is now being calledPushpak, a new
node in Navi Mumbai.Navi Mumbai International Airport(NMIA) is a proposed Greenfield
International Airport to be built on the national highway NH4B near Panvel, approx. 35 kms. from
Mumbai’s existing international airport (CSIA).The Navi Mumbai airport will be approx. 8.0 kms off
the Mumbai-Pune Expressway, 123.0 kms from Pune City, 54.0 kms. fromColaba, Mumbai and 43.0
kms from Mumbai’s ChatrapatiShivaji International Airport.
Kalamboli, one of the nodes of Navi Mumbai,is a transportation hub and is among the biggest iron
and steel delivery centers in India. It is divided into sectors, which are further divided into plots.
The proposed site is located at a strategic location at the junction of the Sion-Panvel Highway, NH
4, Panvel By-Pass, NH 17 and Mumbai-Pune Expressway. The eastern side of the plot is an industrial
belt with warehouses of companies like ACC Cement, Food Corporation of Indiaetc. The North and
Western Sides show residential and commercial development.
Aim:To Design a 4 Star Hotel in the reserved Commercial plot at Kalamboli, Navi Mumbai.
Objective:
 To cater to the needs of the International travelers.
 To boost the real estate market of Navi Mumbai.
 To understand and Design an urban commercial space, recreation activities for massesand
surrounding spaces.
 Development of appropriate architectural forms, their grouping and composition.
 Architectural detailing.
 Provision of required infrastructure and services.
Design constraints:
 6.0 mt. set back from all sides.
 Basement shall extent up to ground set back margins (6.0 mts.)
 Maximum building height shall be 50.0 mts. (inclusive of Top of Staircase Cabin, OHT, Lift
Machine Room or any Architectural features)
 Recreation Garden area to be provided @15% of total plot area
 Maximum ground coverage shall be 33% of Net plot area (Total plot area less RG)

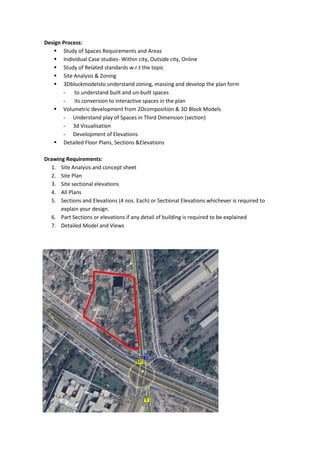

2. Design Process:
 Study of Spaces Requirements and Areas
 Individual Case studies- Within city, Outside city, Online
 Study of Related standards w.r.t the topic
 Site Analysis & Zoning
 3Dblockmodelsto understand zoning, massing and develop the plan form
- to understand built and un-built spaces
- its conversion to interactive spaces in the plan
 Volumetric development from 2Dcomposition & 3D Block Models
- Understand play of Spaces in Third Dimension (section)
- 3d Visualisation
- Development of Elevations
 Detailed Floor Plans, Sections &Elevations
Drawing Requirements:
1. Site Analysis and concept sheet
2. Site Plan
3. Site sectional elevations
4. All Plans
5. Sections and Elevations (4 nos. Each) or Sectional Elevations whichever is required to
explain your design.
6. Part Sections or elevations if any detail of building is required to be explained
7. Detailed Model and Views
