Selection and Design of Condensers
0 INTRODUCTION/PURPOSE
1 SCOPE
2 FIELD OF APPLICATION

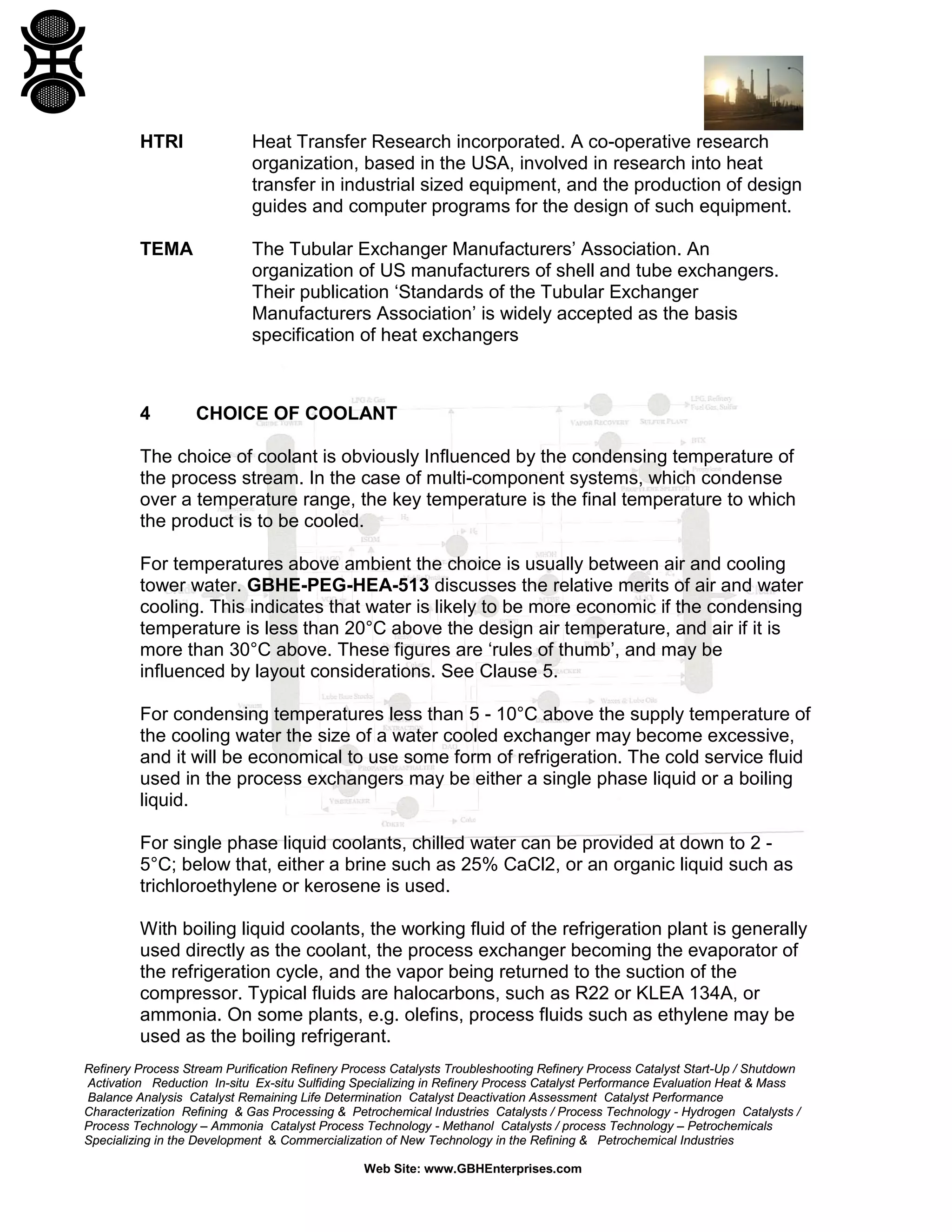

3 DEFINITIONS
4 CHOICE OF COOLANT
5 LAYOUT CONSIDERATIONS
5.1 Distillation Column Condensers

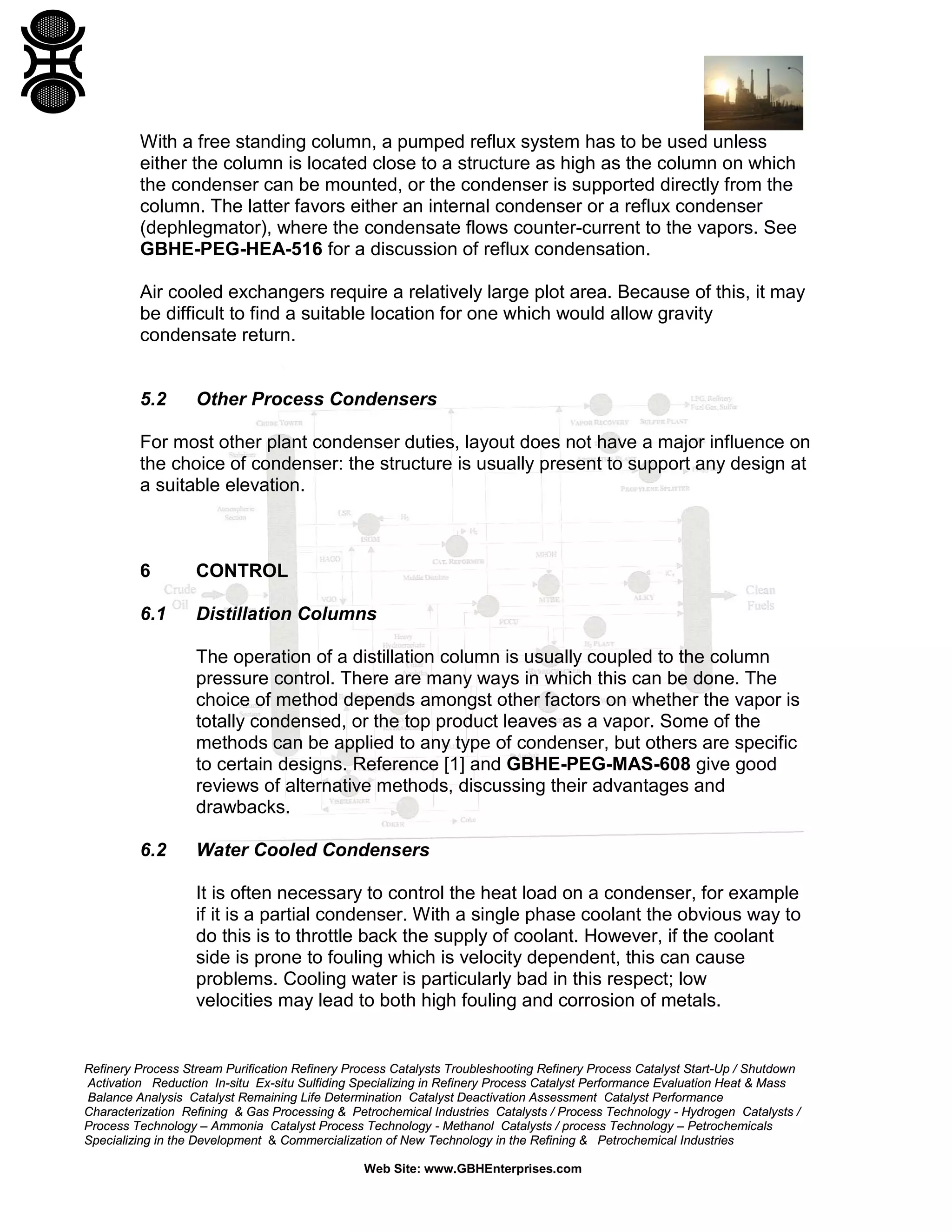

5.2 Other Process Condensers
6 CONTROL
6.1 Distillation Columns
6.2 Water Cooled Condensers

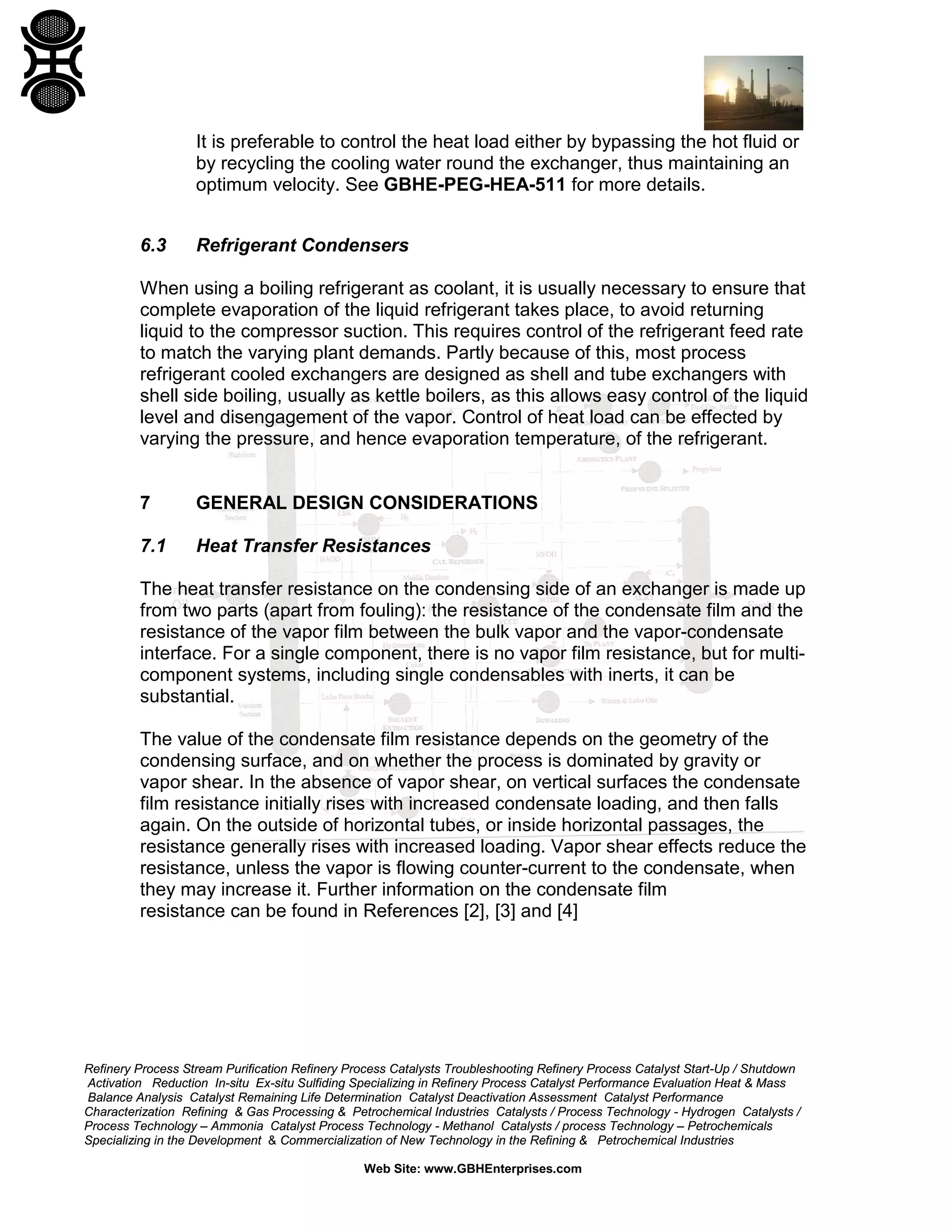

6.3 Refrigerant Condensers
7 GENERAL DESIGN CONSIDERATIONS

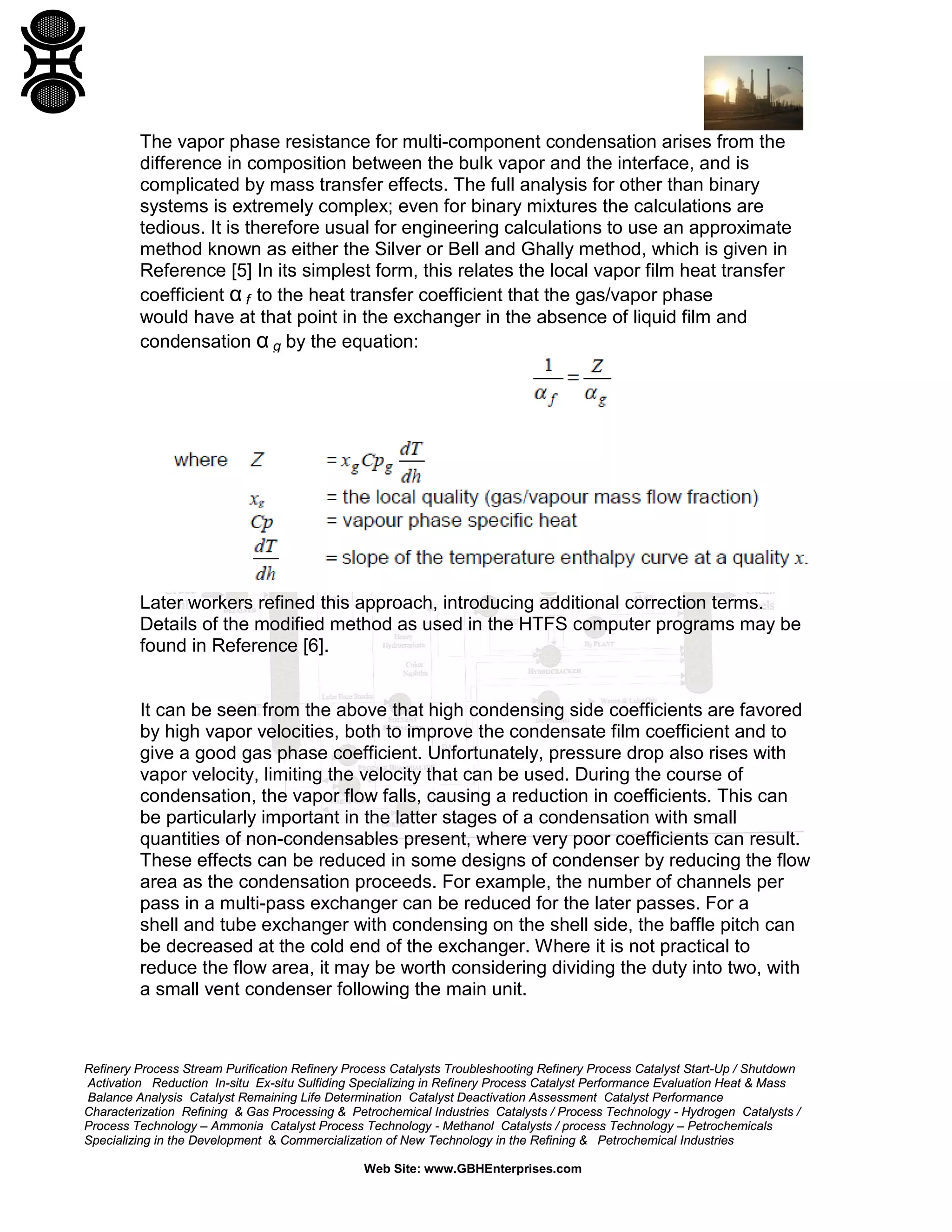

7.1 Heat Transfer Resistances

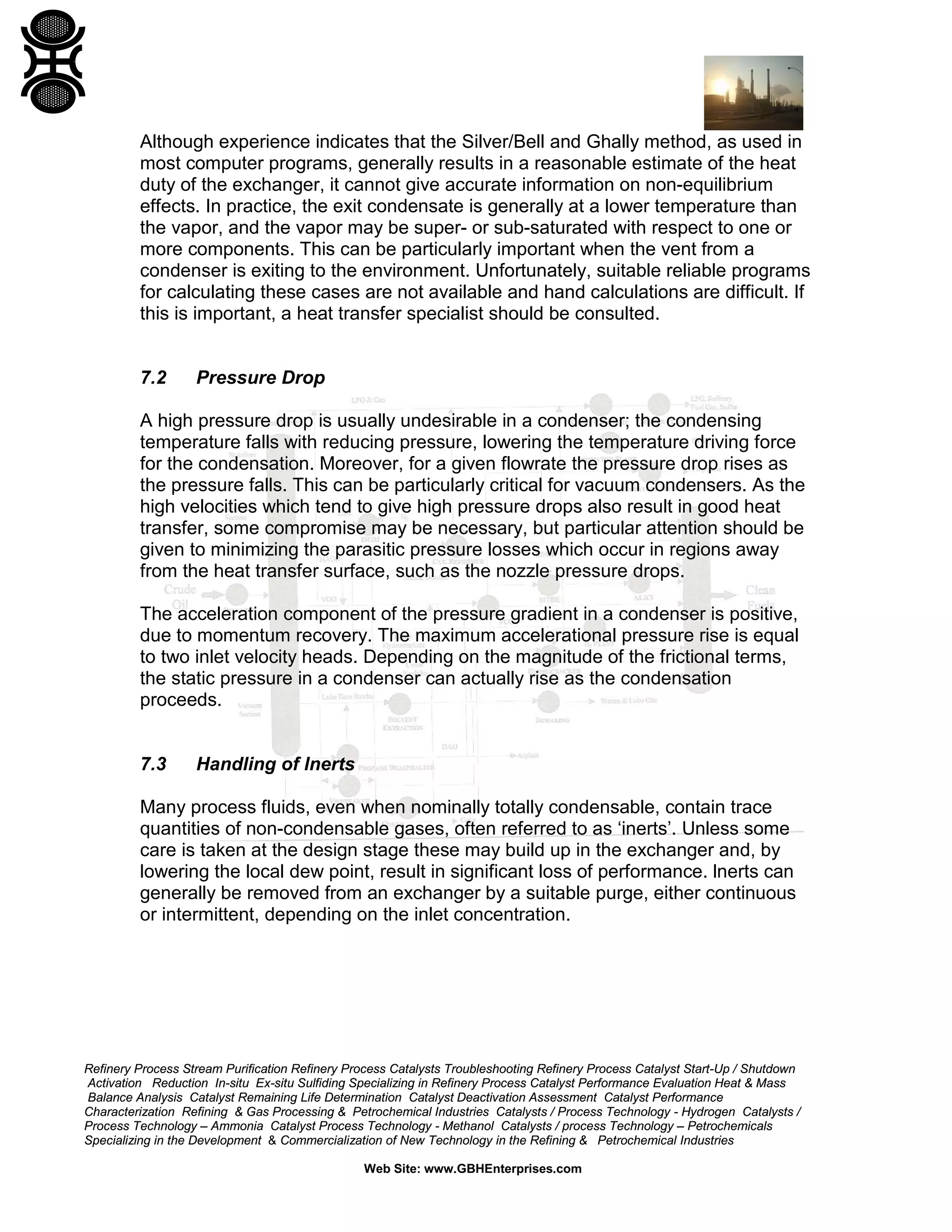

7.2 Pressure Drop

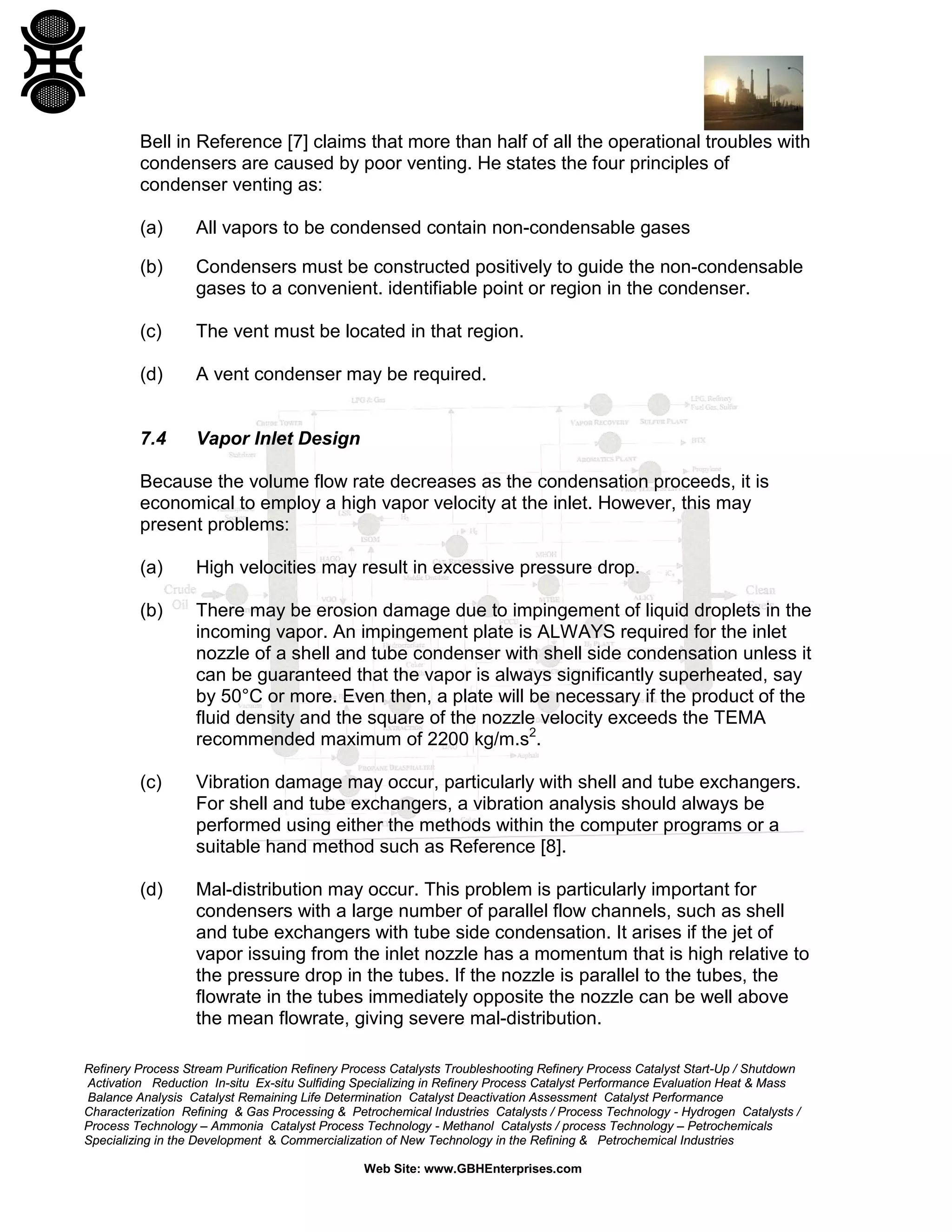

7.3 Handling of Inerts
7.4 Vapor Inlet Design
7.5 Drainage of Condensate
8 SUMMARY OF TYPES AVAILABLE
8.1 Direct Contact Condensers

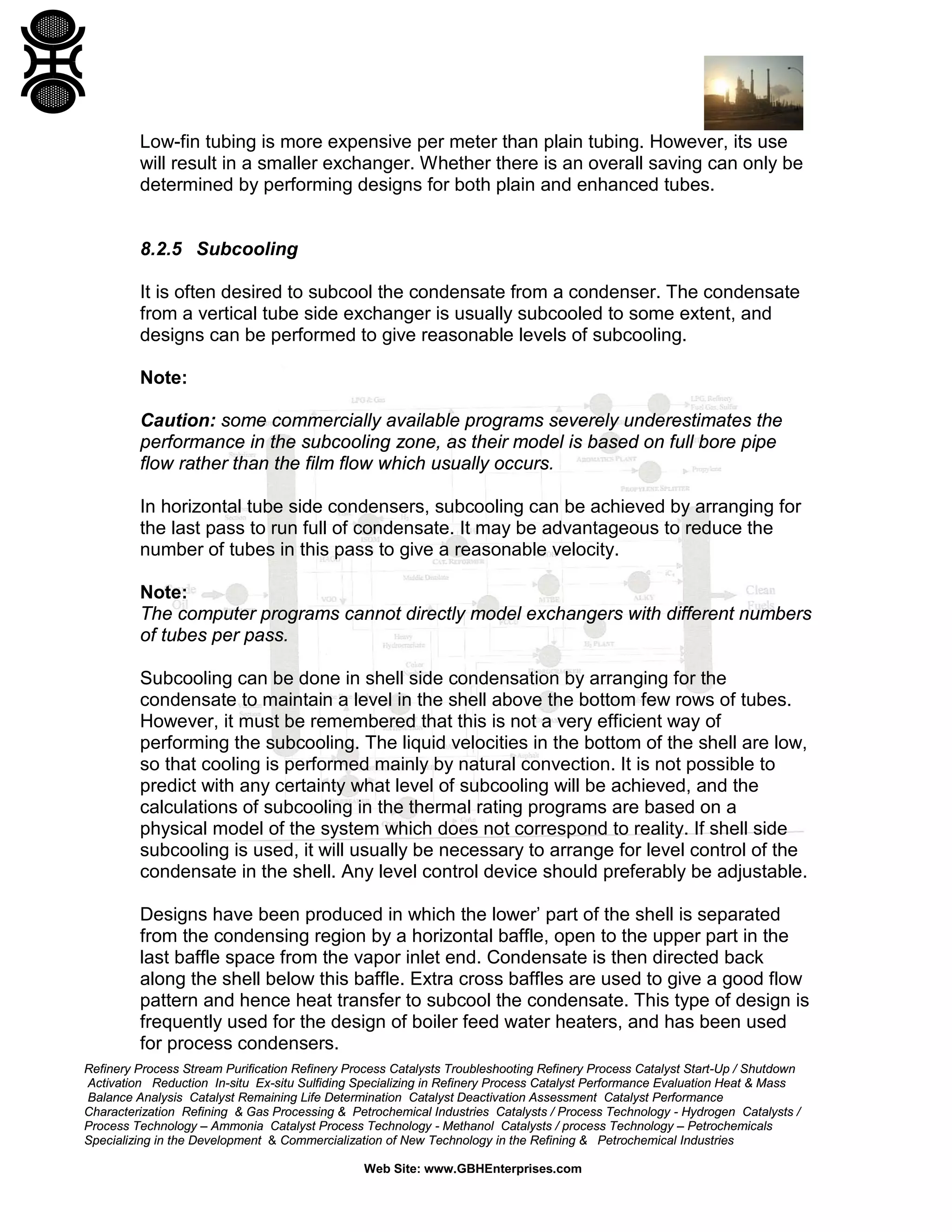

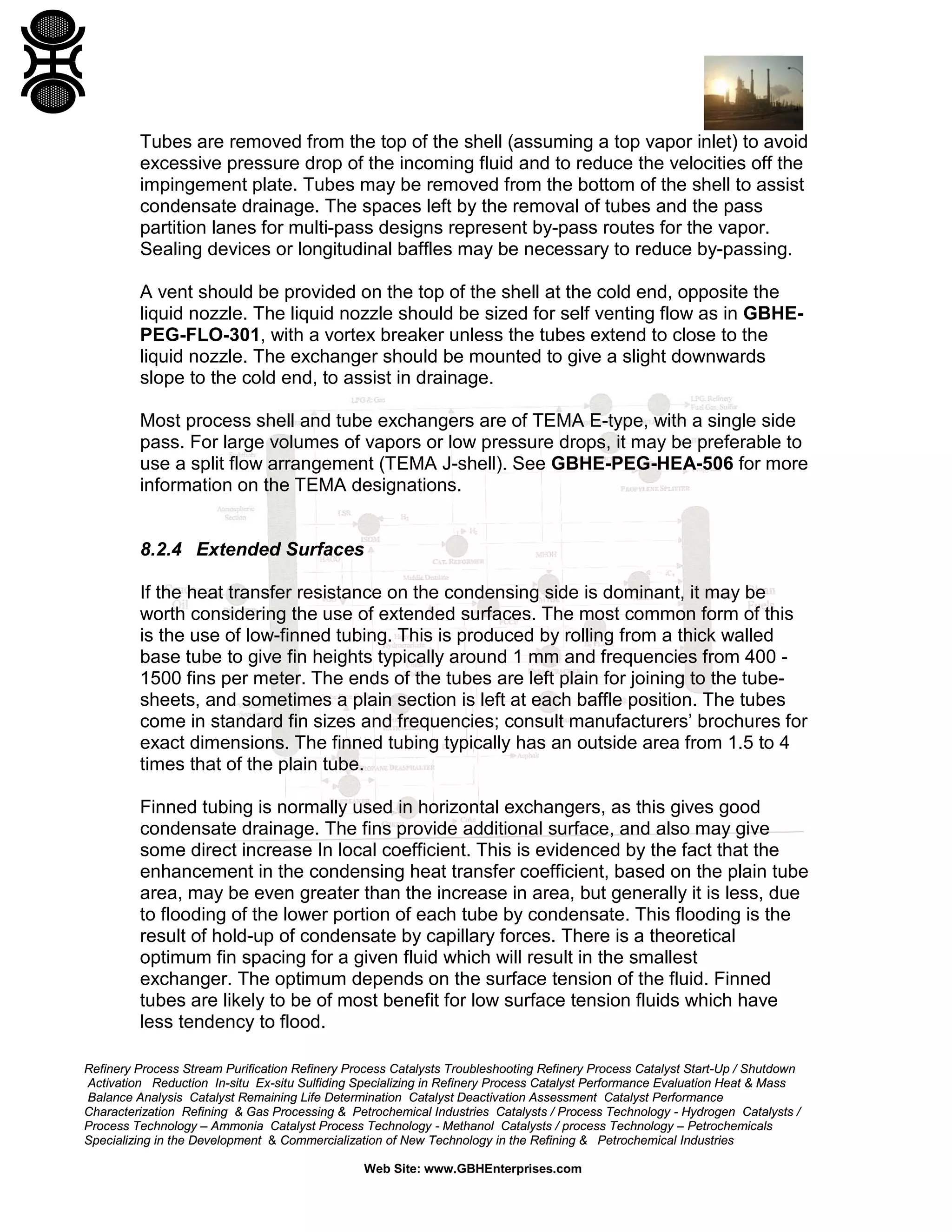

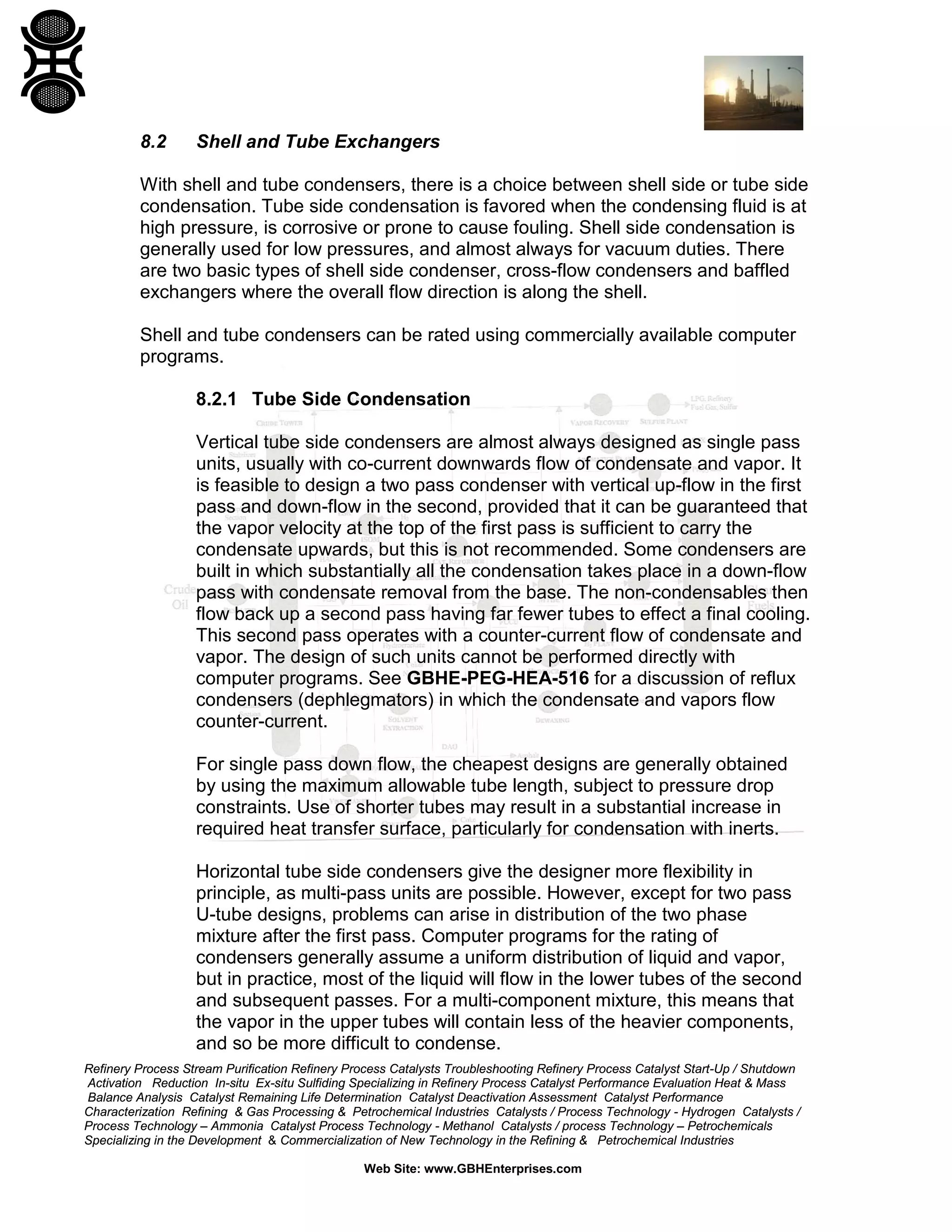

8.2 Shell and Tube Exchangers

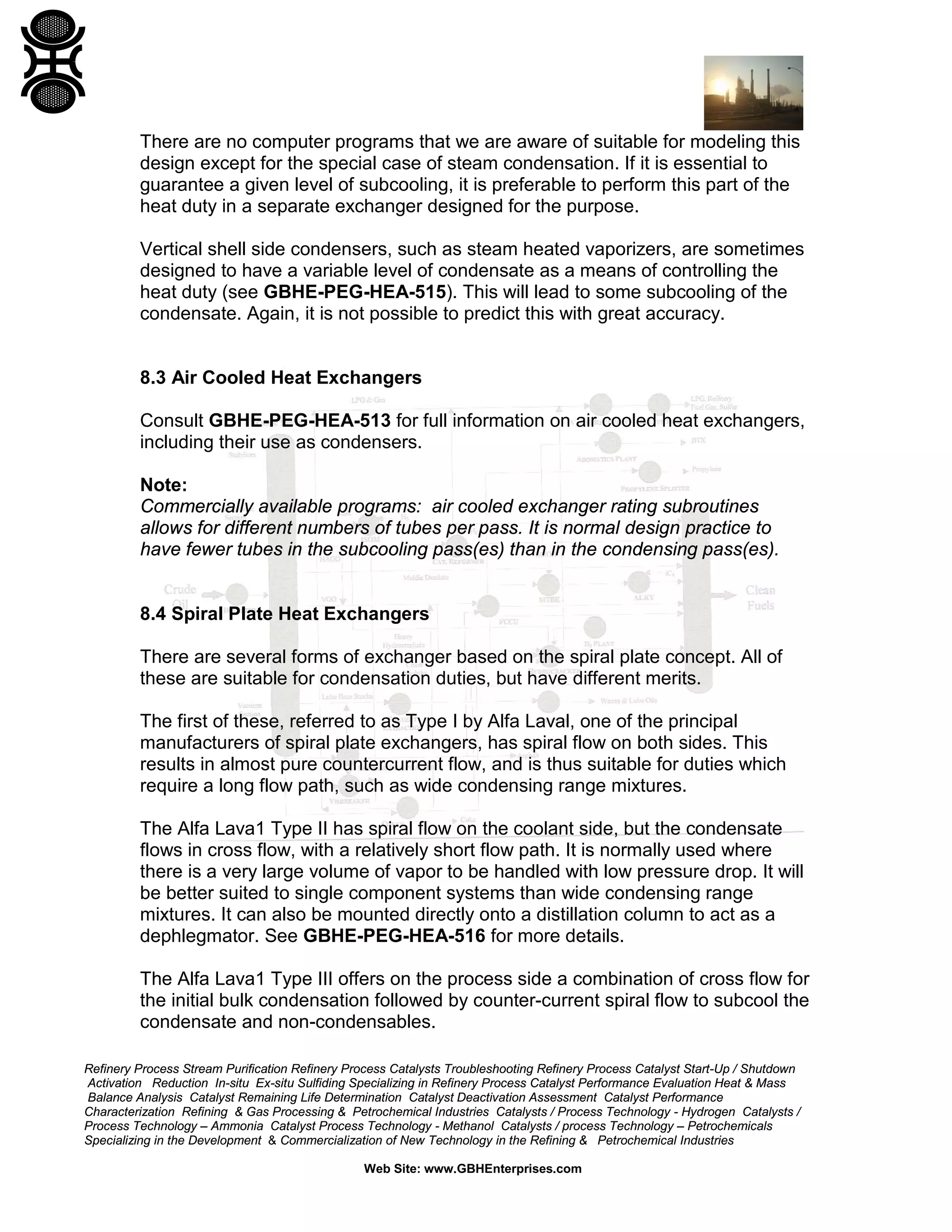

8.3 Air Cooled Heat Exchangers
8.4 Spiral Plate Heat Exchangers

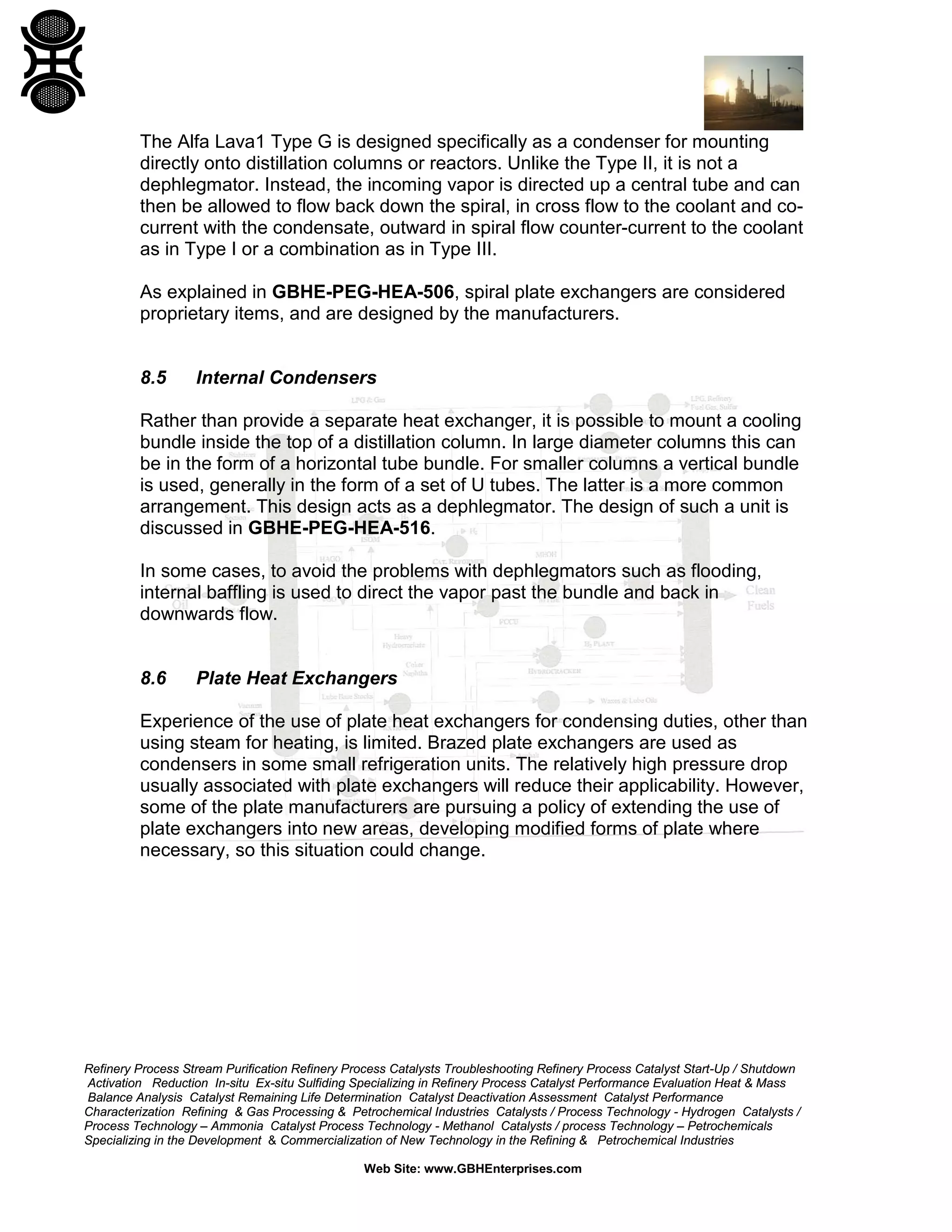

8.5 Internal Condensers
8.6 Plate Heat Exchangers

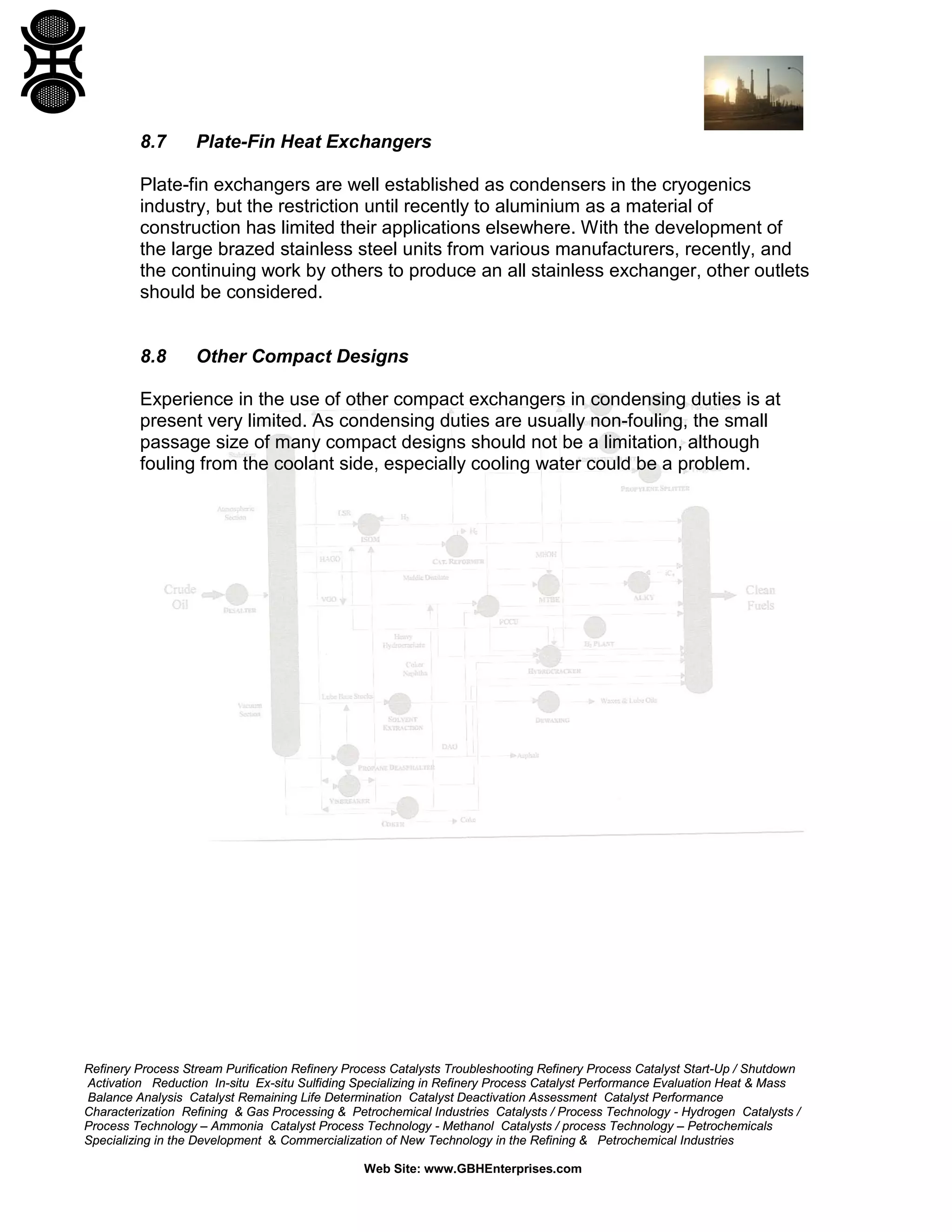

8.7 Plate-Fin Heat Exchangers
8.8 Other Compact Designs

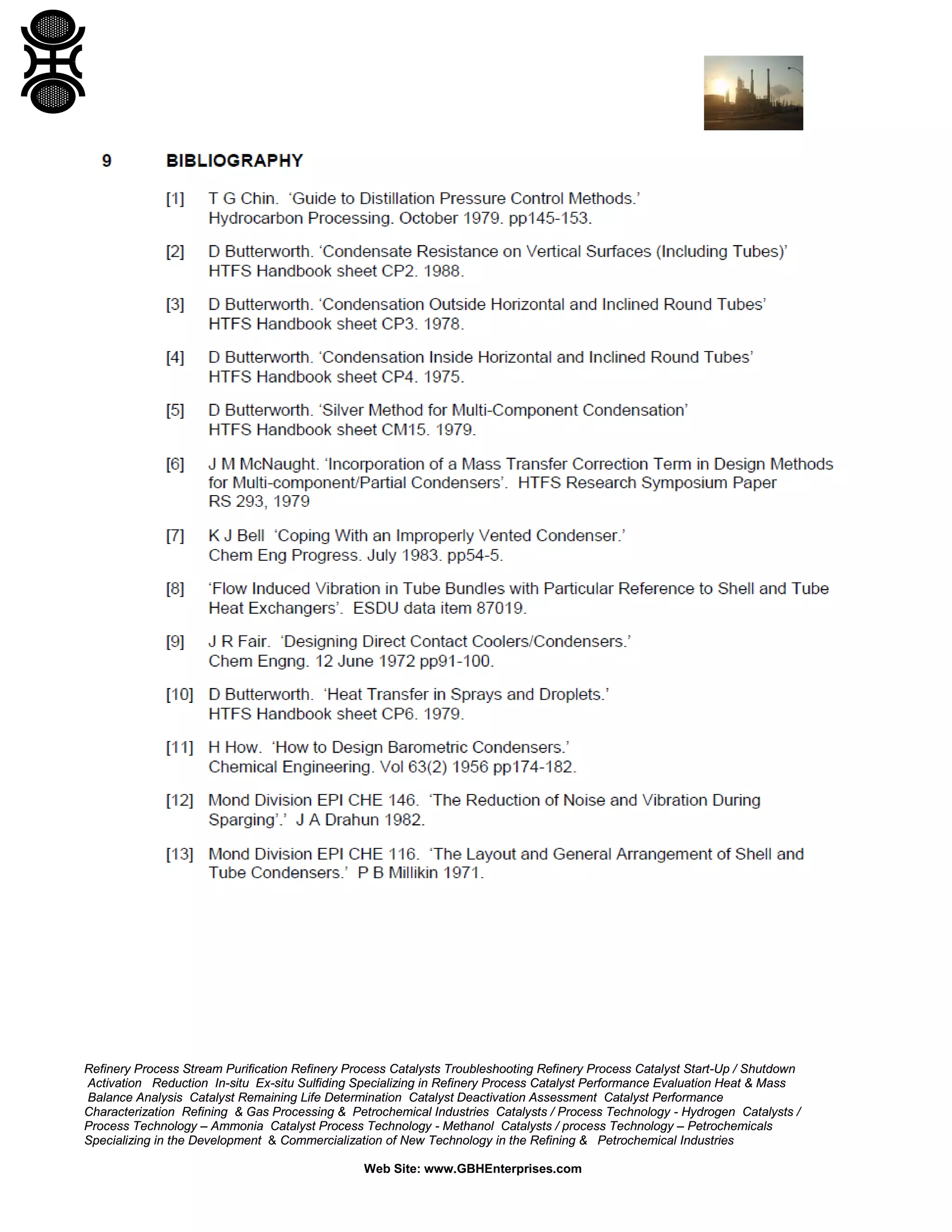

9 BIBLIOGRAPHY
FIGURES
1 DIRECT CONTACT CONDENSER WITH INDIRECT COOLER FOR RECYCLED CONDENSATE

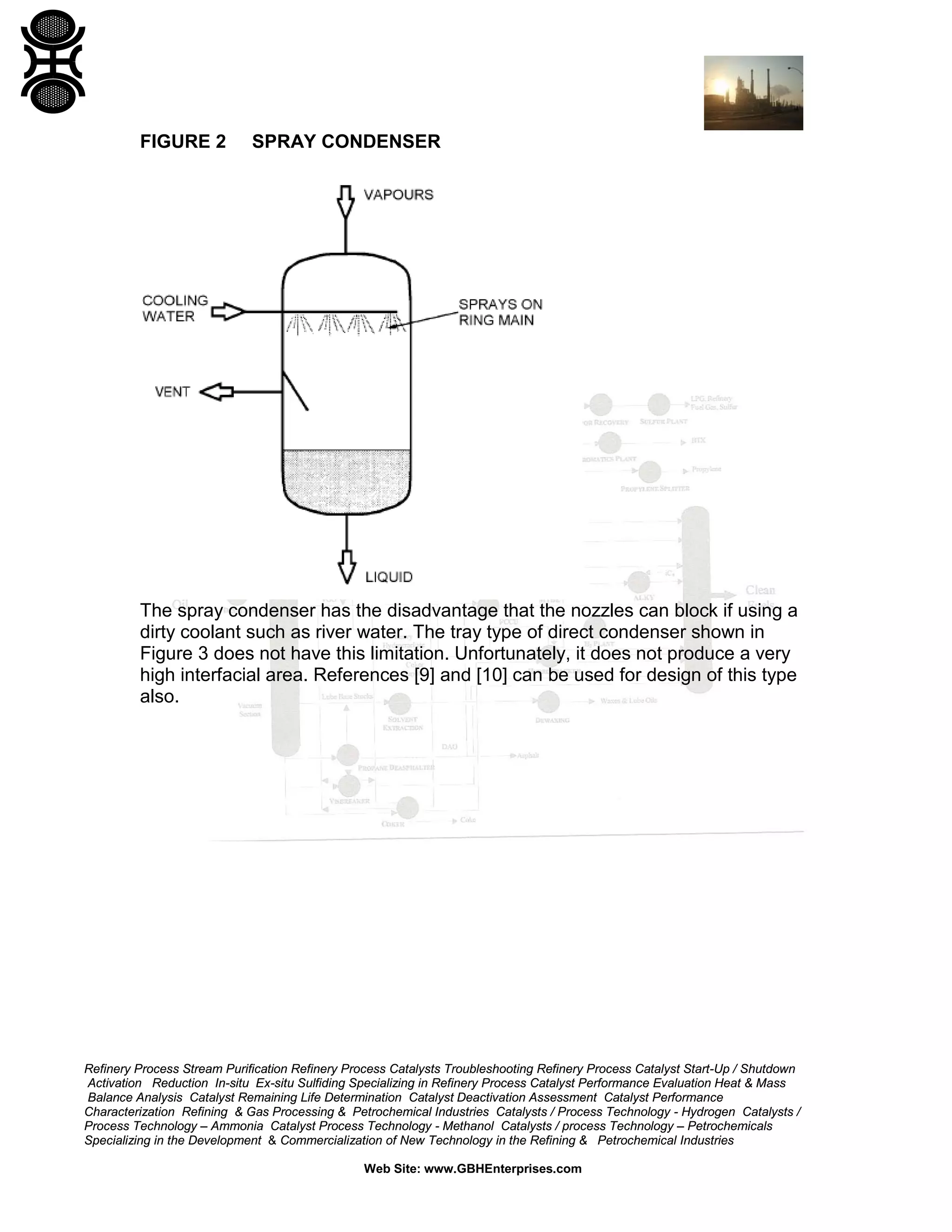

2 SPRAY CONDENSER

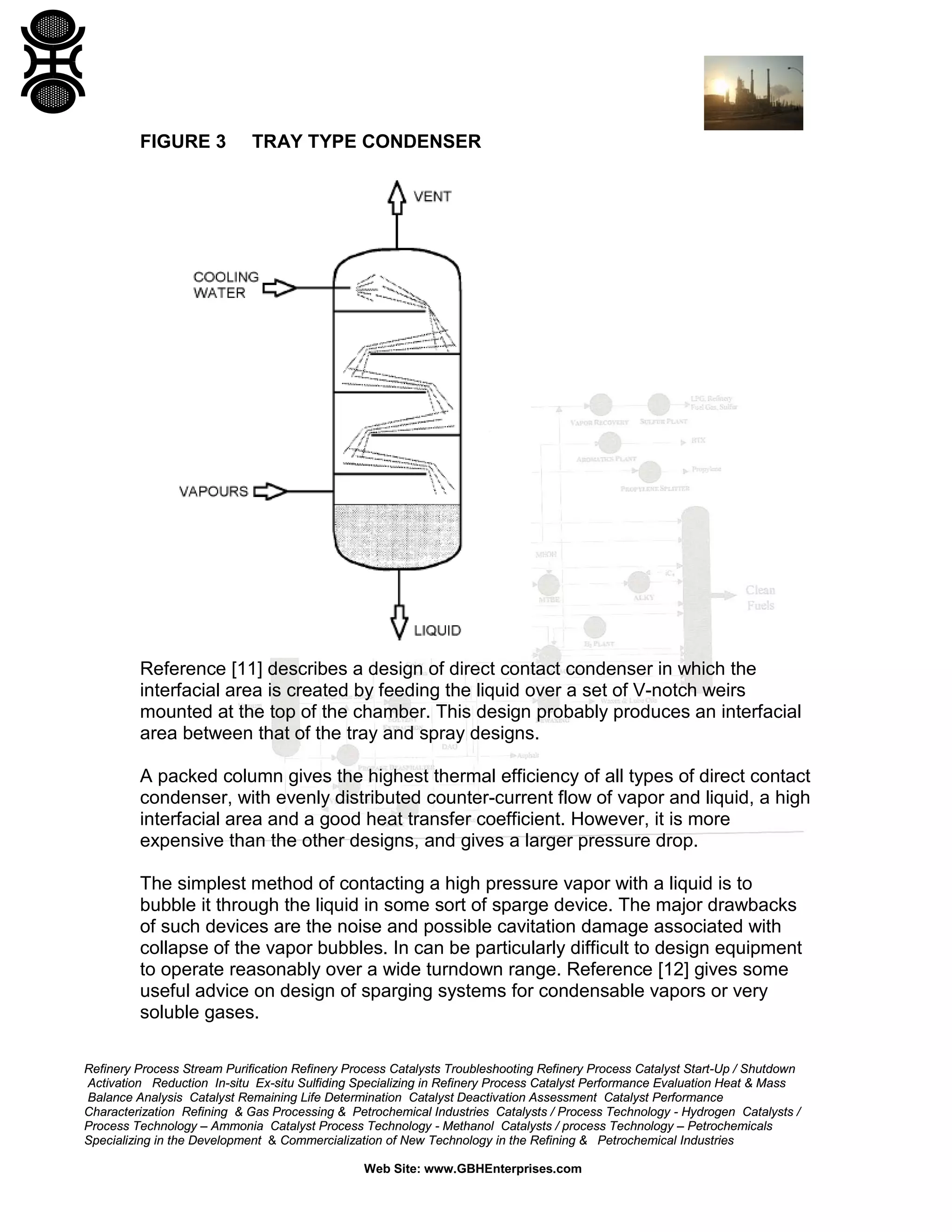

3 TRAY TYPE CONDENSER

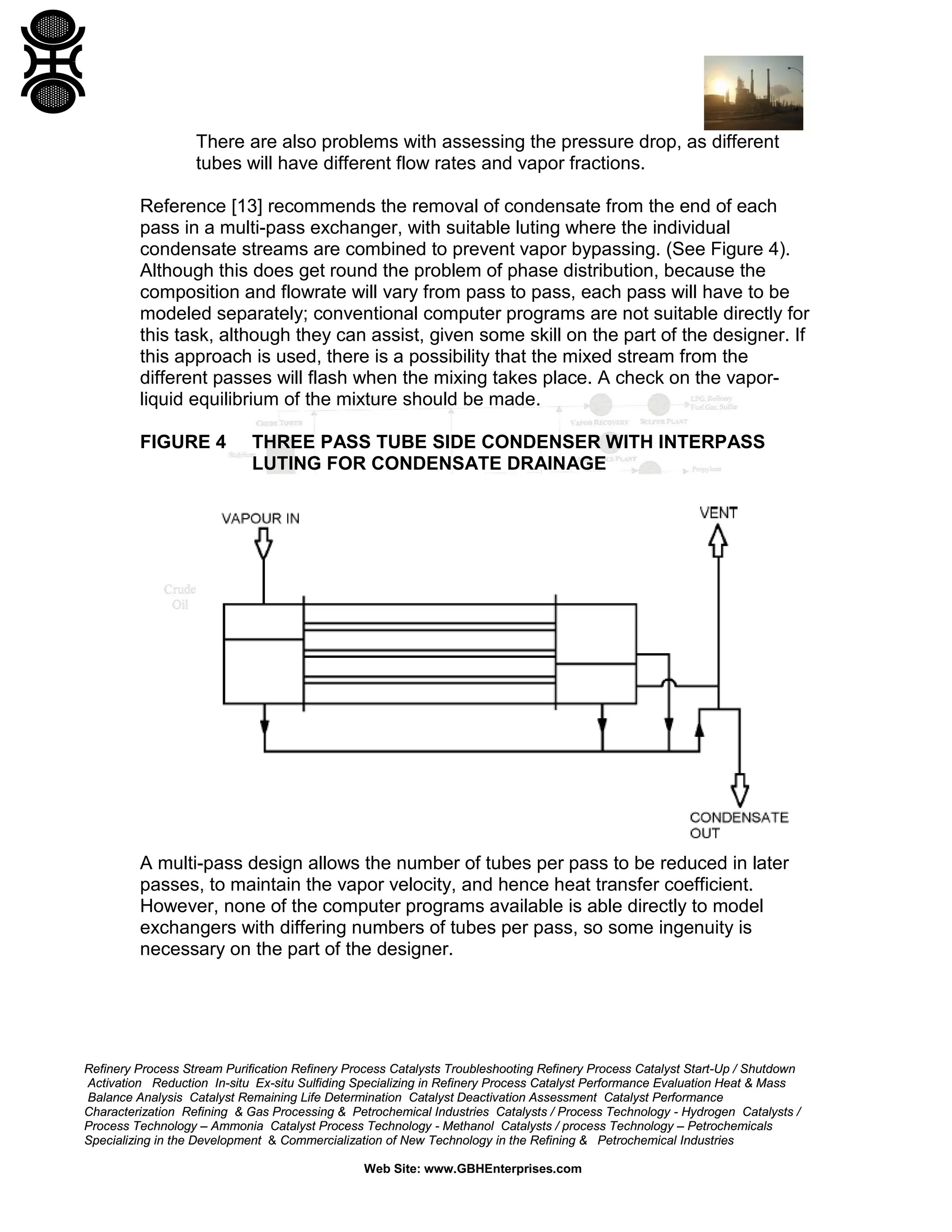

4 THREE PASS TUBE SIDE CONDENSER WITH INTERPASS LUTING FOR CONDENSATE DRAINAGE
5 CROSS FLOW CONDENSER WITH SINGLE PASS COOLANT
Shell and Tube Heat Exchangers Using Cooling Water
0 INTRODUCTION/PURPOSE
1 SCOPE
2 FIELD OF APPLICATION
3 DEFINITIONS
3.1 HTFS
3.2 TEMA
4 CHECKLIST
5 QUALITY OF COOLING WATER
6 COOLING WATER ON SHELL SIDE OR TUBE SIDE
7 COOLING WATER ON THE SHELL SIDE
7.1 Baffle Spacing
7.2 Impingement Plates
7.3 Horizontal or Vertical Shell Orientation
7.4 Baffle Cut Orientation
7.5 Sludge Blowdown
7.6 Removable Bundles
8 FOULING RESISTANCES AND LIMITING TEMPERATURES
9 PRESSURE DROP
9.1 Pressure Drop Restrictions
9.2 Fouling and Pressure Drop
9.3 Elevation of a Heat Exchanger in the Plant
10 MATERIALS OF CONSTRUCTION
11 WATER VELOCITY
11.1 Low Water Velocity
11.1.1 Tube Side Water Flow
11.1.2 Shell Side Water Flow
11.2 High Water Velocity
12 ECONOMICS
13 DIRECTION OF WATER FLOW
14 VENTS AND DRAINS
15 CONTROL
15.1 Operating Variables
15.2 Heat Load Control
15.2.1 General
15.2.2 Heat load control by varying cooling water flow
15.3 Orifice Plates
16 MAINTENANCE
