2. 2

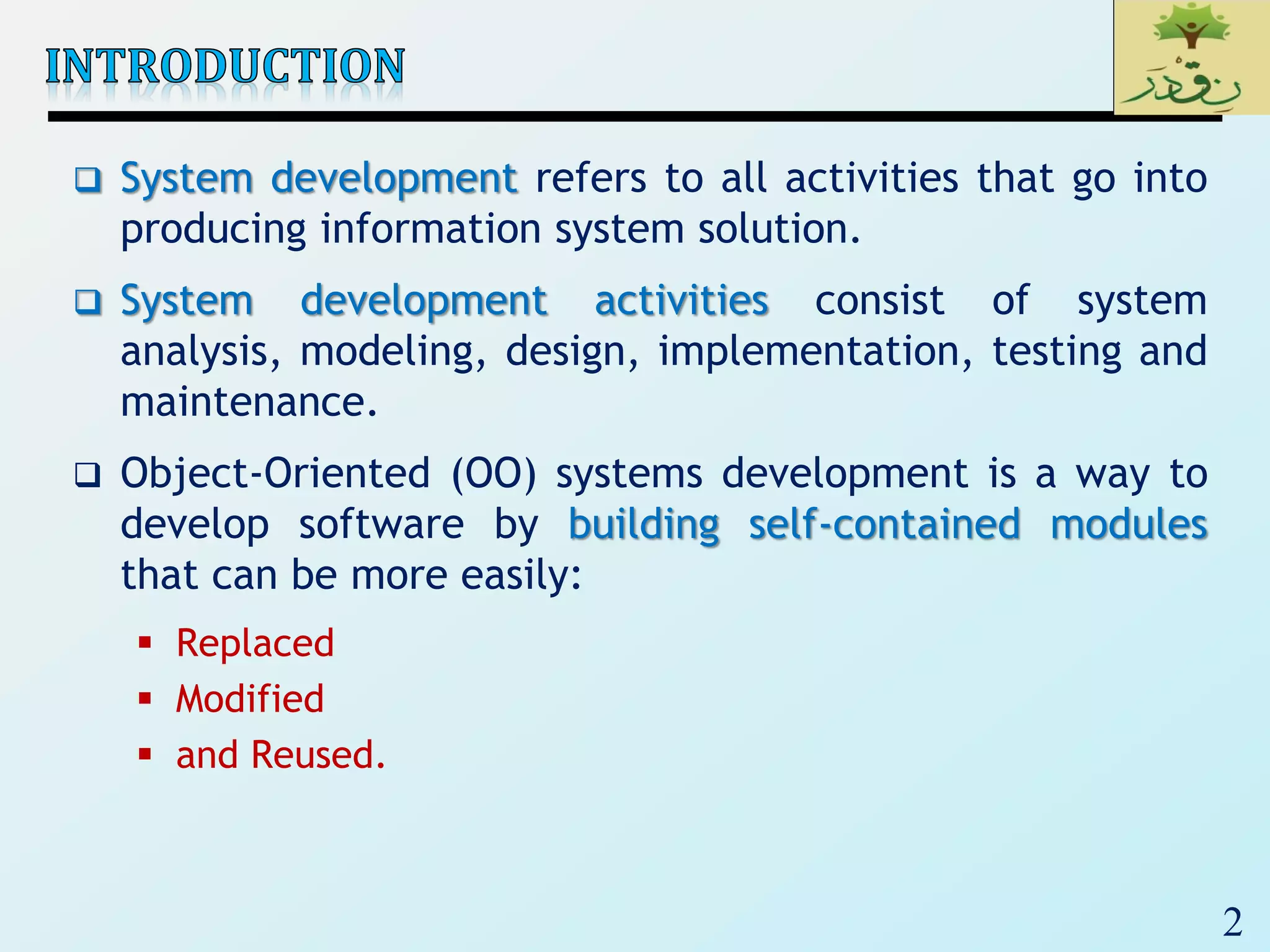

System development refers to all activities that go into
producing information system solution.
System development activities consist of system
analysis, modeling, design, implementation, testing and
maintenance.
Object-Oriented (OO) systems development is a way to
develop software by building self-contained modules
that can be more easily:
Replaced
Modified
and Reused.
3. 3
A software system is a set of mechanism for performing
certain action on certain data.
Algorithm + Data structure = Program
4. 4
The code is subdivided into modules
Each module is made of procedures and data structures
Procedures operate on data, e.g. modifying them
e.g. the “C” programming language
There is no strong connection between procedures
Every procedure may possibly access any data and modify
it and data
5. 5
OO approach is more like creating a lot of helpers that
take on an active role, a spirit, that form a community
whose interactions become the application.
Models the problem to be solved as a set of interacting
objects, each carrying its own state and exhibiting its
own behavior
By separating concerns, this approach has proved to be
robust and useful to solve more complex programming
problems.
6. 6
The physical world is made of a set of objects that can
interact
Each of them presents
An identity (objects can be recognized)
A state (objects remember their history)
A behavior (objects react to external stimuli in a
predictable way)
7. 7
Faster development,
Increased quality
Raising the level of abstraction.
It adapts to
Changing requirements
Easier to maintain
More robust
Promote greater design
Code reuse
8. 8
Goals:
Define Objects and classes
Describe objects‘ methods, attributes and how objects
respond to messages,
Define Polymorphism, Inheritance, data abstraction,
encapsulation, and protocol,
Describe objects relationships,
Describe object persistence.
Understand meta-classes.
9. 9
The term object was first formally utilized in the Similar
language to simulate some aspect of reality.
An object is an entity.
It knows things (has attributes)
It does things (provides services or has methods)
Note:
Attributes or properties represented by data type and
describe object‘s state (data)
Methods define objects behavior and specify the way in
which an Object‘s data are manipulated.
10. 10
It Knows things (attributes)
I am an Employee.
I know my name, social security number and my address.
Attributes
I am a Car.
I know my color,
manufacturer, cost,
owner and model.
It does things (methods)
I know how to compute my payroll.
11. 11
In an object-oriented system, everything is an object:
numbers, arrays, records, fields, files, forms, an
invoice, etc.
An Object is anything, real or abstract, about which we
store data and those methods that manipulate the data.
Conceptually, each object is responsible for itself.
A window object is responsible for things like opening,
sizing, and closing itself.
12. 12
When developing an O-O application, two basic
questions always arise.
What objects does the application need?
What functionality should those objects have?
14. 14
Represent named properties of a UML class
UML class can have many attributes of different names
Attribute name is generally a short noun or a noun
phrase written in lowerCase-first text
Attribute declaration may include visibility, type and
initial value: +attributeName : type = initial-value
15. 15
Represent named services provided by a UML class
UML class can have many operations of different
names
Operation name is generally a short verb or a verb
phrase written in lowerCase-first text
Operation may include visibility, parameters, and
return type: +opName(param1 : type = initial_value)
: return-type
16. 16
Three levels of class, attribute and operation visibility:
• private (-), available only to the current class
• protected (#), available to the current and inherited
classes
• public (+), available to the current and other classes
17. 17
Each class represents a set of objects that share the
same attributes, operations, relationships, and
semantics
For each of the class attributes, objects can have
specific attribute values
For each of the class operations, objects may have
different implementations
18. 18
Represent a relation between a parent (a more abstract
class) and a child (a more specific class)
Generally referred to as a “is-a-kind-of” relationship
Child objects may be used instead of parent objects
since they share attributes and operations; the opposite
is not true
19. 19
An object-oriented system organizes classes into
subclass-super hierarchy.
At the top of the hierarchy are the most general classes
and at the bottom are the most specific
A subclass inherits all of the properties and methods
(procedures) defined in its super class.
20. 20
Inheritance is a relationship between classes where one
class is the parent class of another (derived) class.
Inheritance allows classes to share and reuse behaviors
and attributes.
The real advantage of inheritance is that we can build
upon what we already have and,
Reuse what we already have.
23. 23
OO systems permit a class to inherit from more than
one superclass.
24. 24
Information hiding is a principle of hiding internal data
and procedures of an object.
By providing an interface to each object in such a way
as to reveal as little as possible about its inner
workings.
Encapsulation protects the data from corruption.
25. 25
Objects perform operations in response to messages.
For example, you may communicate with your
computer by sending it a message from hand-help
controller.
26. 26
Consider a payroll program that processes employee
records at a small manufacturing firm. This company
has three types of employees:
Managers: Receive a regular salary.
Office Workers: Receive an hourly wage and are eligible
for overtime after 40 hours.
Production Workers: Are paid according to a piece rate.
27. 27
Structured Approach
FOR EVERY EMPLOYEE DO
BEGIN
IF employee = manager THEN
CALL computeManagerSalary
IF employee = office worker THEN
CALL computeOfficeWorkerSalary
IF employee = production worker THEN
CALL computeProductionWorkerSalary
END
34. 34
The concept of association represents relationships
between objects and classes. For example a pilot can
fly planes
Association can be binary, between two classes, or n-
ary, among more than two classes
Can include association name, direction, role names,
multiplicity, and aggregation type
35. 35
Represent a specific, whole/part structural relationship
between class objects
Composition [is entirely made of]: (closed diamond)
represents exclusive relationship between two class
objects (e.g., a faculty cannot exist without nor be a part
of more than one university)
Aggregation [is part of]: (open diamond) represents
nonexclusive relationship between two class objects (e.g.,
a student is a part of one or more faculties)
36. 36
Objects have a lifetime. An object can persist beyond
application session boundaries, during which the object
is stored in a file or a database, in some file or database
form.
37. 37
Everything is an object.
How about a class?
Is a class an object?
Yes, a class is an object! So, if it is an object, it must
belong to a class.
Indeed, class belongs to a class called a Meta-Class or
a class' class.
Meta-class used by the compiler. For example, the
meta-classes handle messages to classes, such as
constructors and "new.“
