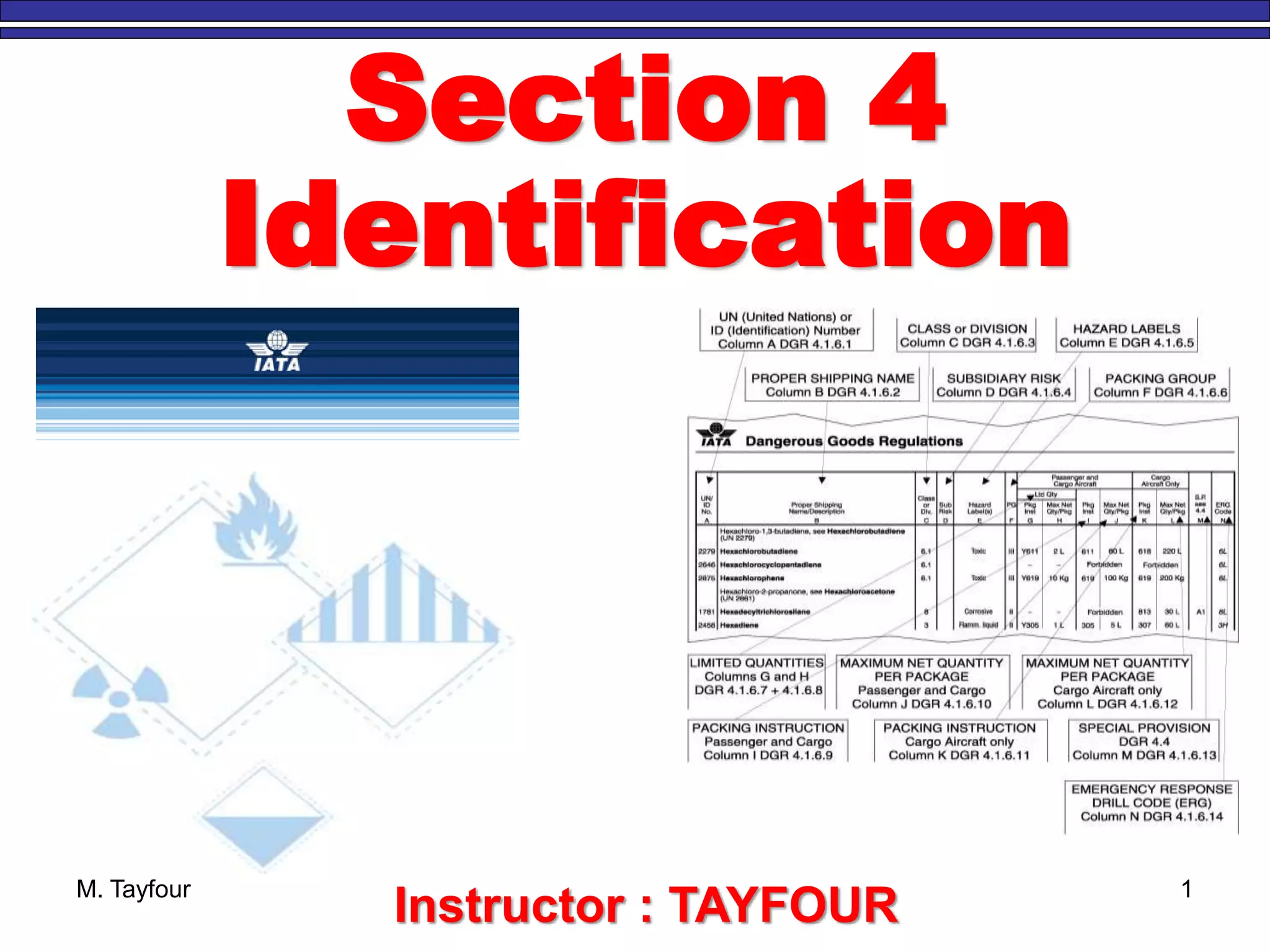

Section 4 identification

M. Tayfour 1
Instructor : TAYFOUR
Section 4
Identification

M. Tayfour 2

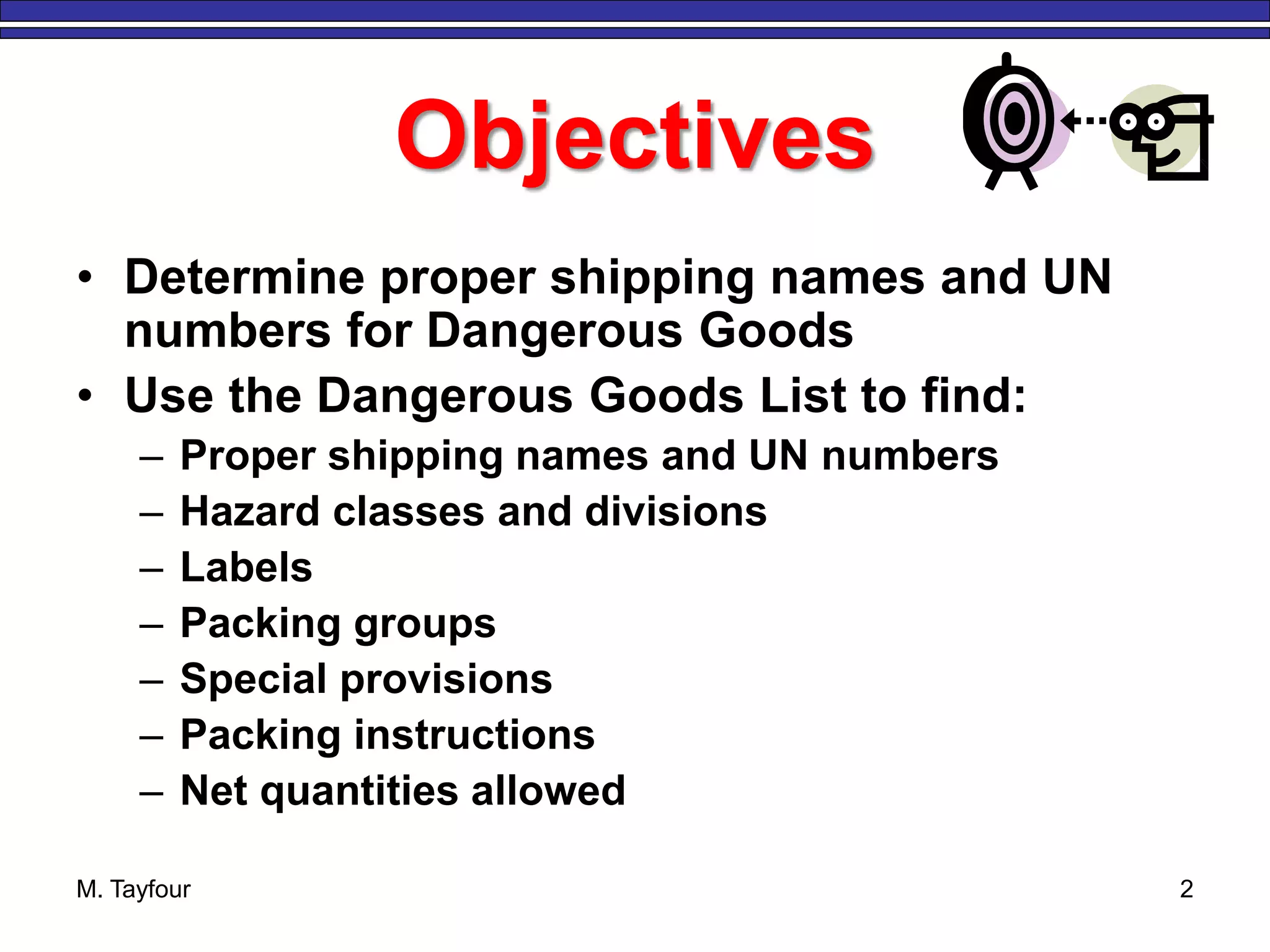

Objectives
• Determine proper shipping names and UN
numbers for Dangerous Goods
• Use the Dangerous Goods List to find:
– Proper shipping names and UN numbers
– Hazard classes and divisions
– Labels
– Packing groups
– Special provisions
– Packing instructions
– Net quantities allowed

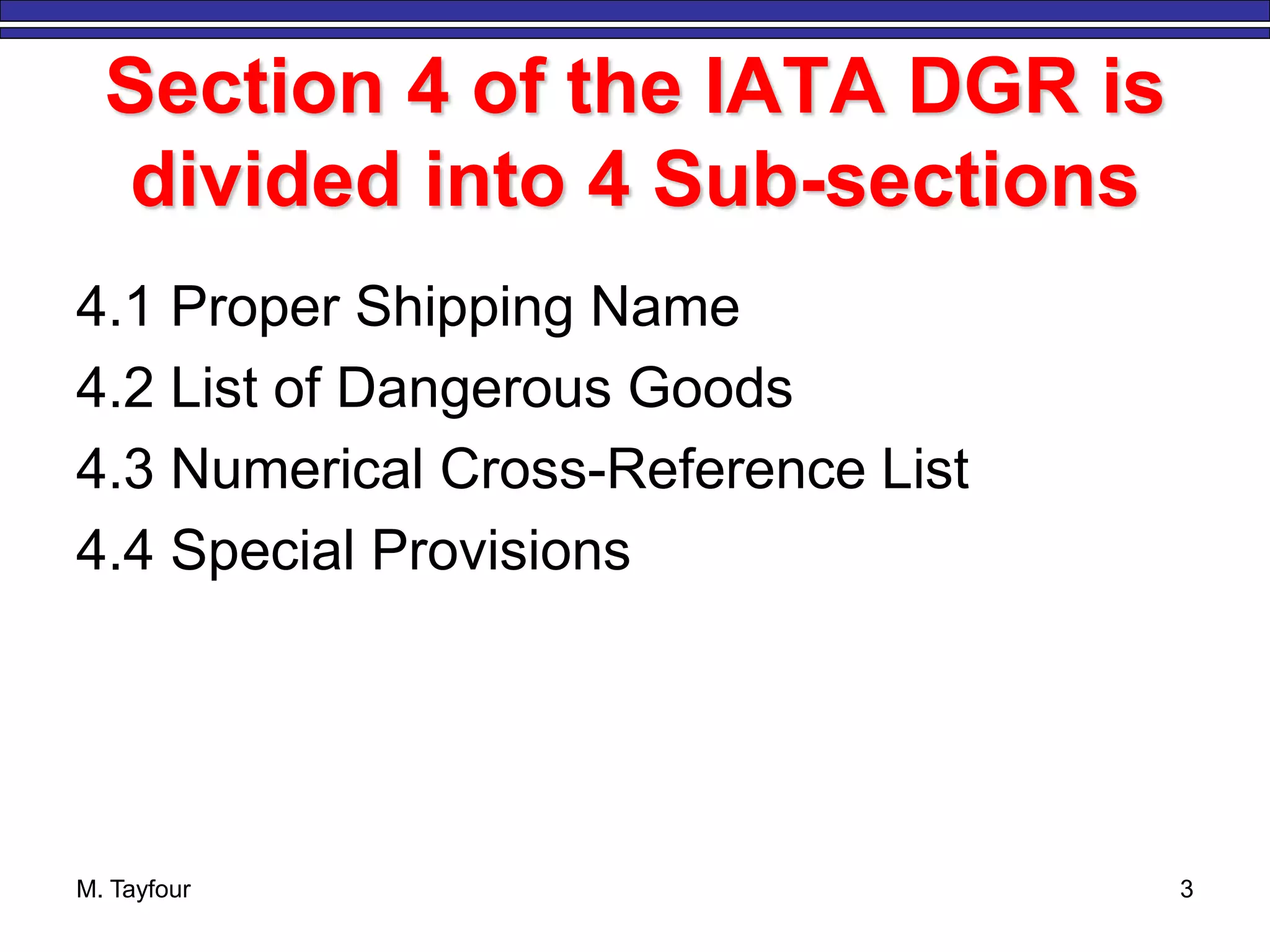

Section 4 of the IATA DGR is
divided into 4 Sub-sections
4.1 Proper Shipping Name
4.2 List of Dangerous Goods
4.3 Numerical Cross-Reference List
4.4 Special Provisions
M. Tayfour 3

4

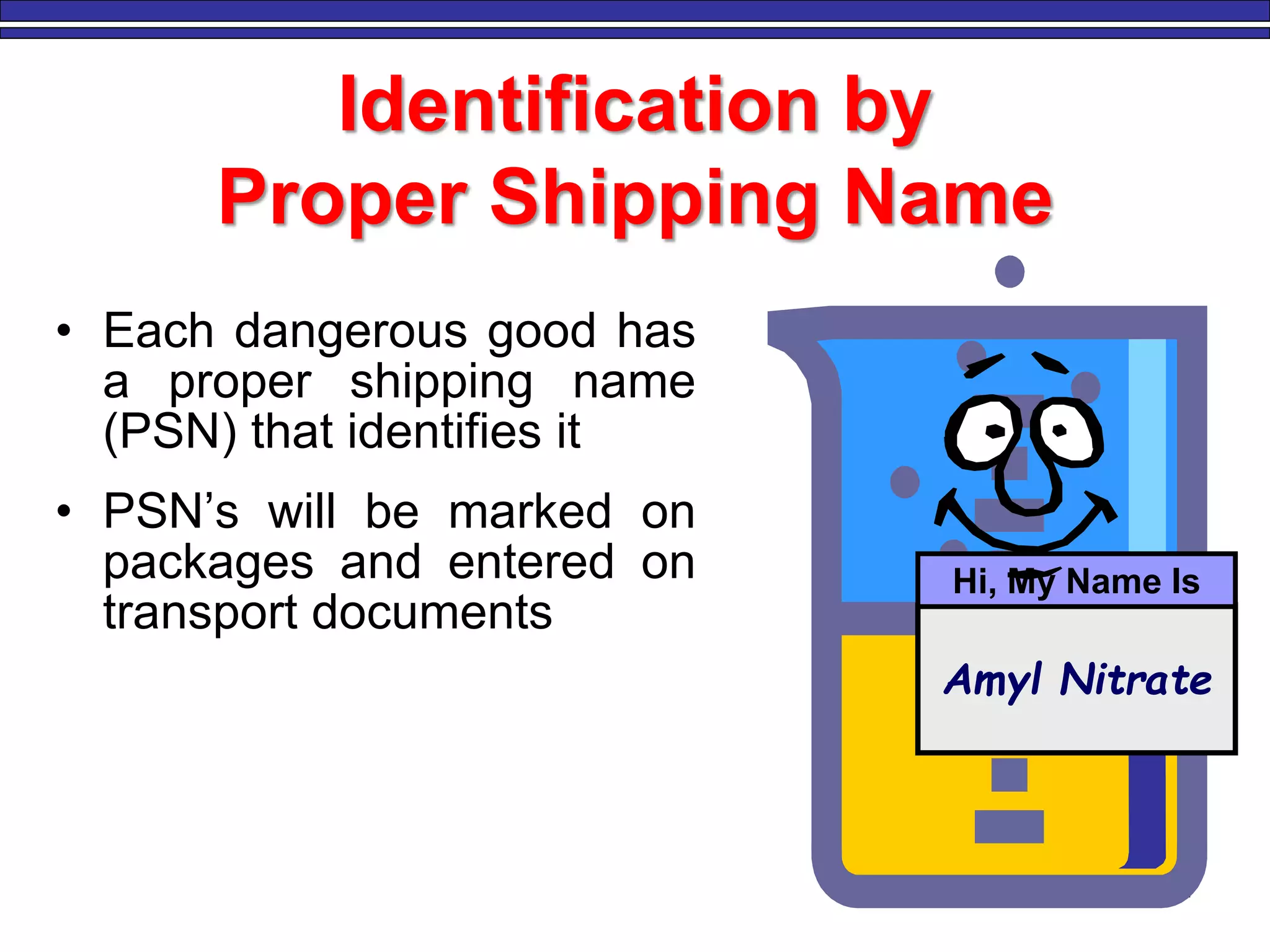

Identification by
Proper Shipping Name

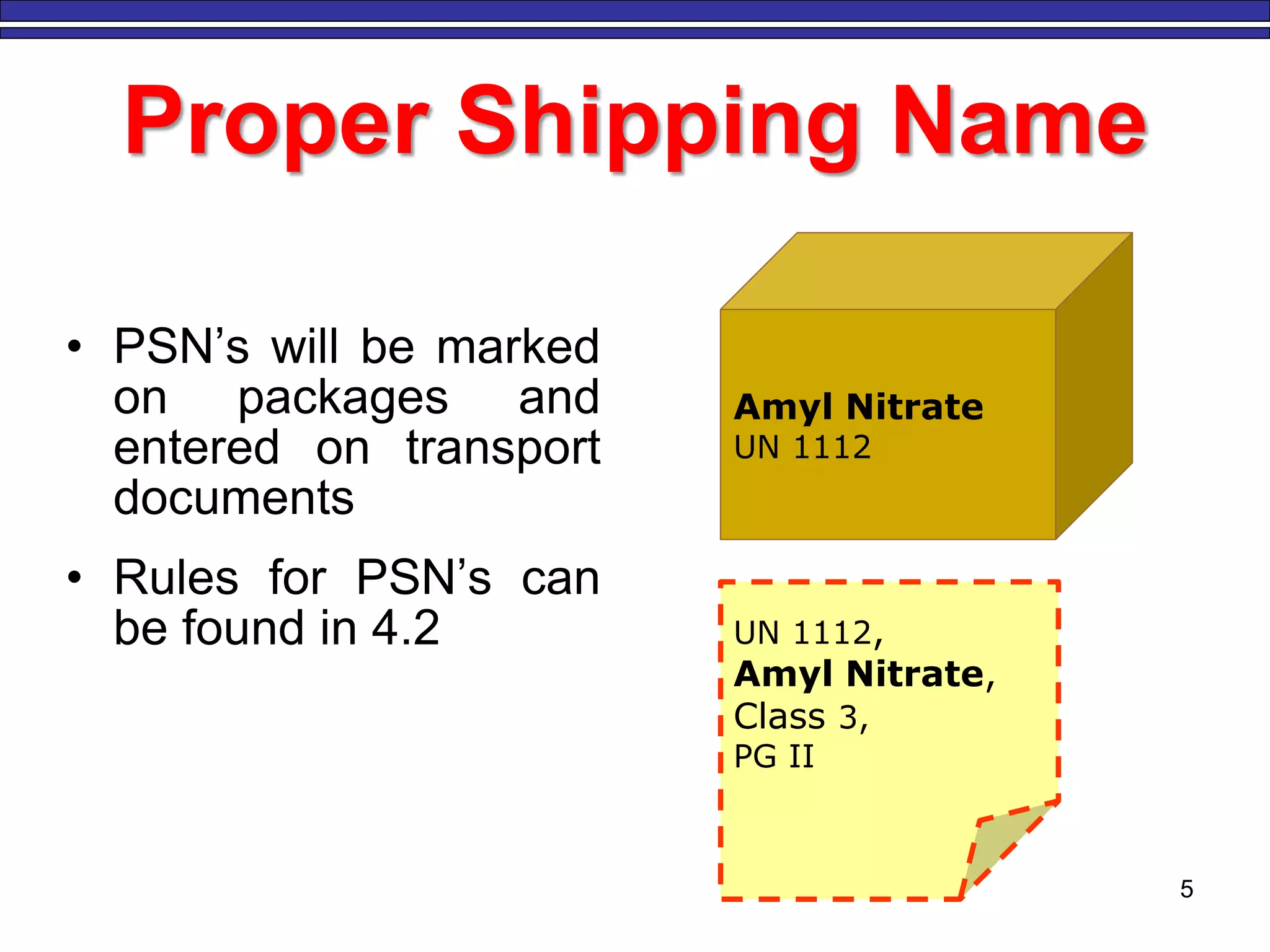

• Each dangerous good has
a proper shipping name
(PSN) that identifies it
• PSN’s will be marked on
packages and entered on
transport documents
Amyl Nitrate
Hi, My Name Is

5
• PSN’s will be marked
on packages and
entered on transport
documents
• Rules for PSN’s can
be found in 4.2
Amyl Nitrate
UN 1112
UN 1112,
Amyl Nitrate,
Class 3,
PG II

6

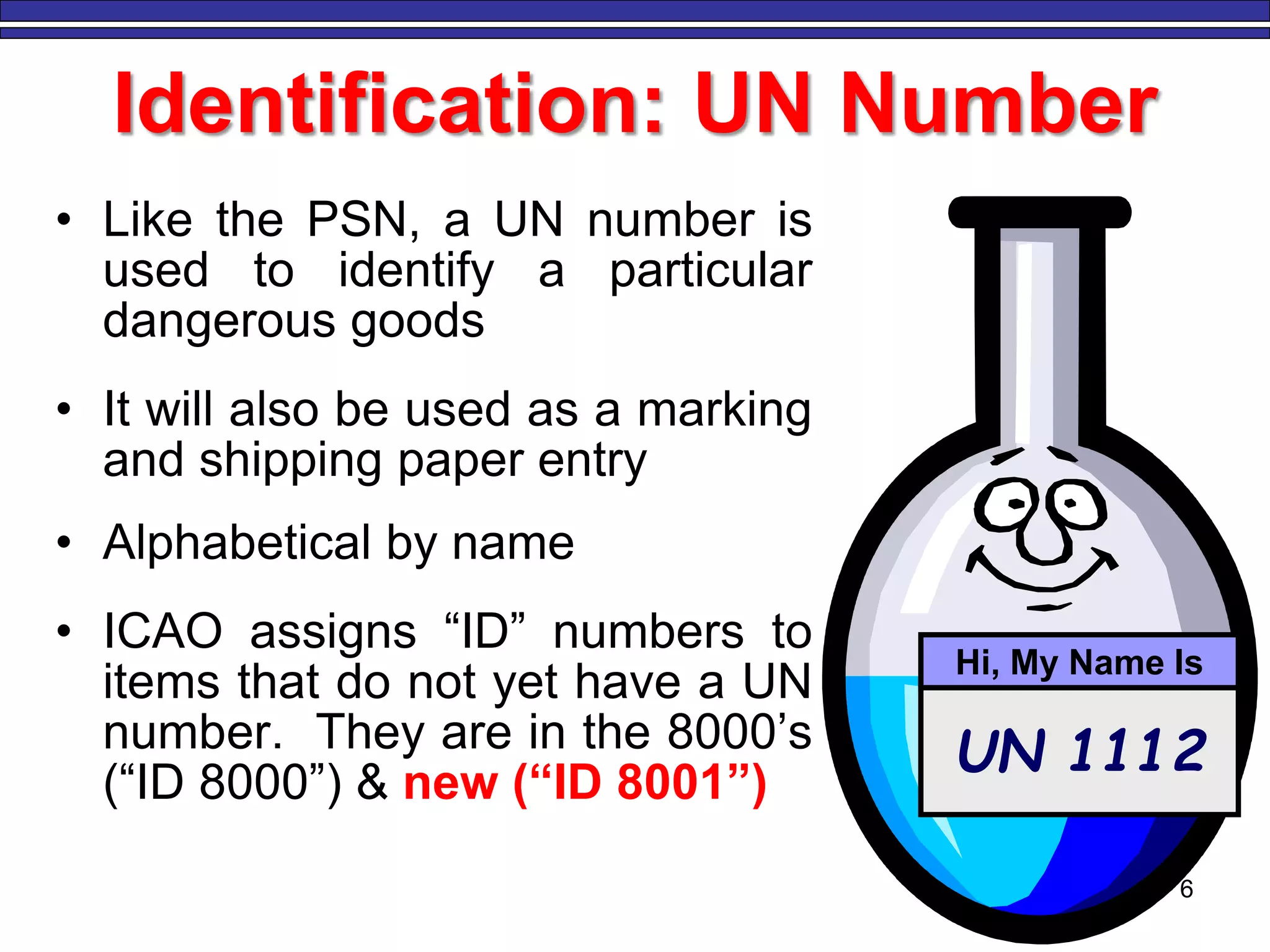

Identification: UN Number
• Like the PSN, a UN number is
used to identify a particular
dangerous goods
• It will also be used as a marking
and shipping paper entry
• Alphabetical by name
• ICAO assigns “ID” numbers to
items that do not yet have a UN
number. They are in the 8000’s
(“ID 8000”) & new (“ID 8001”)
UN 1112
Hi, My Name Is

7

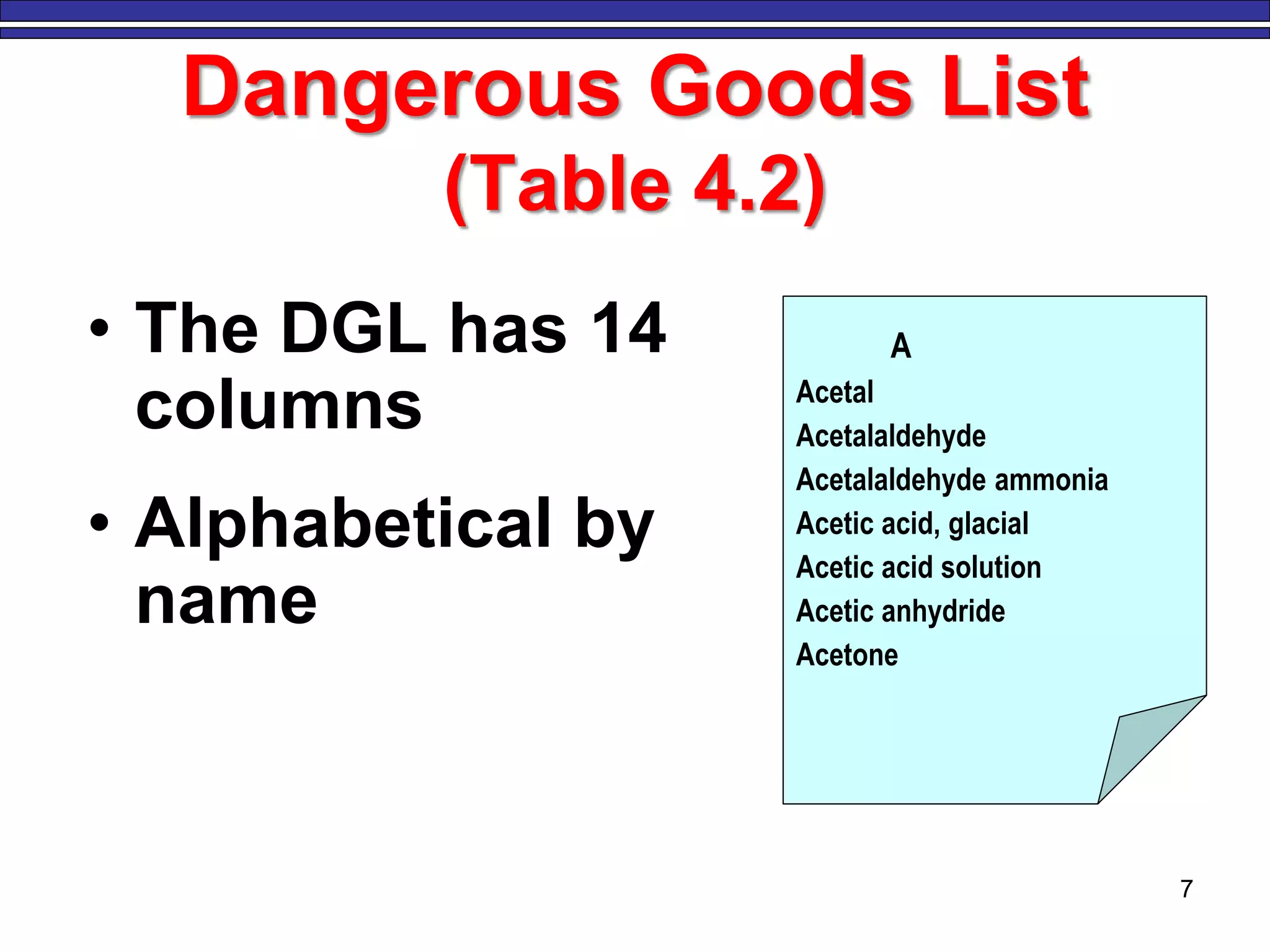

Dangerous Goods List
(Table 4.2)
• The DGL has 14
columns
• Alphabetical by
name
A
Acetal
Acetalaldehyde
Acetalaldehyde ammonia
Acetic acid, glacial
Acetic acid solution
Acetic anhydride
Acetone

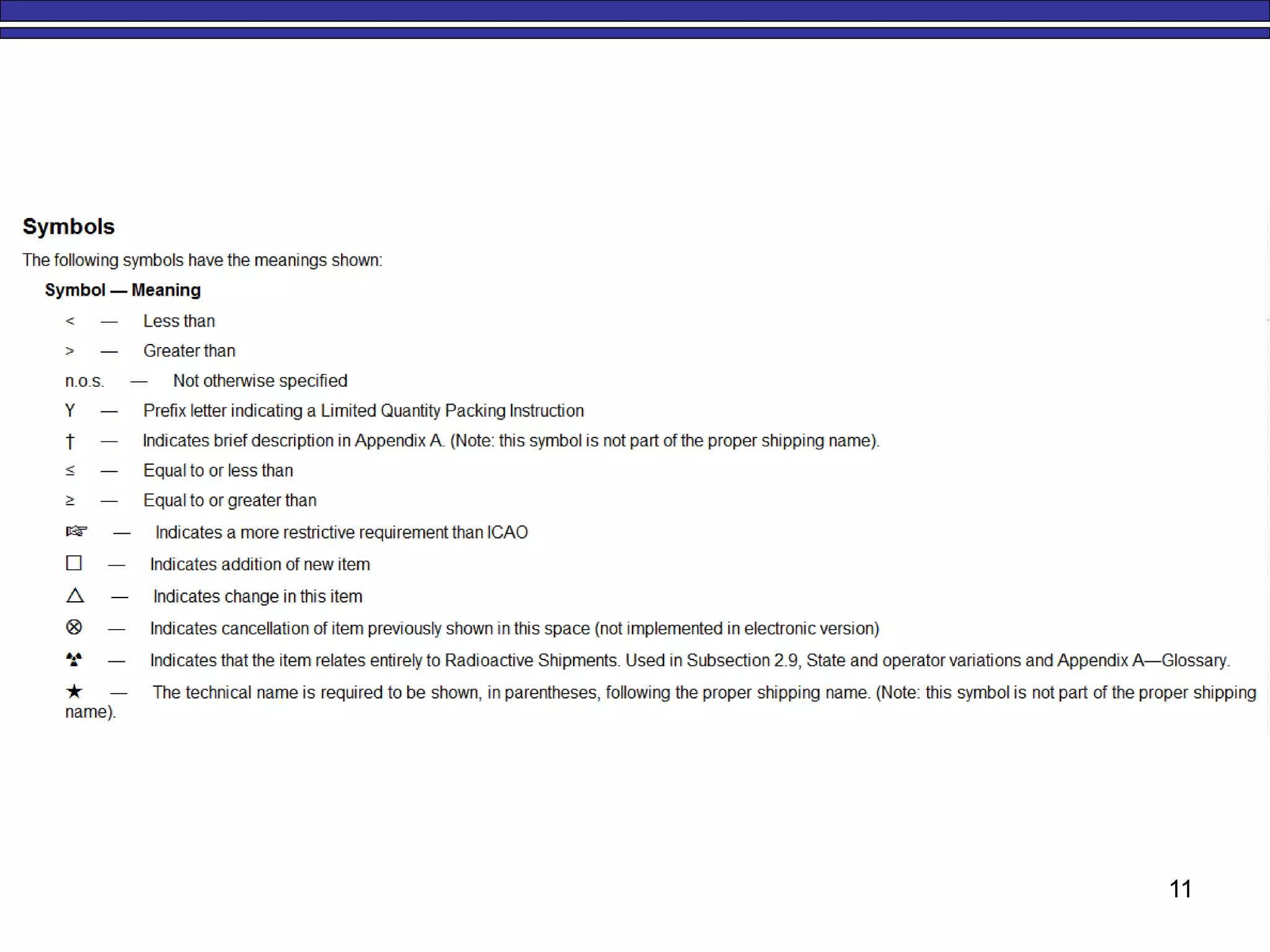

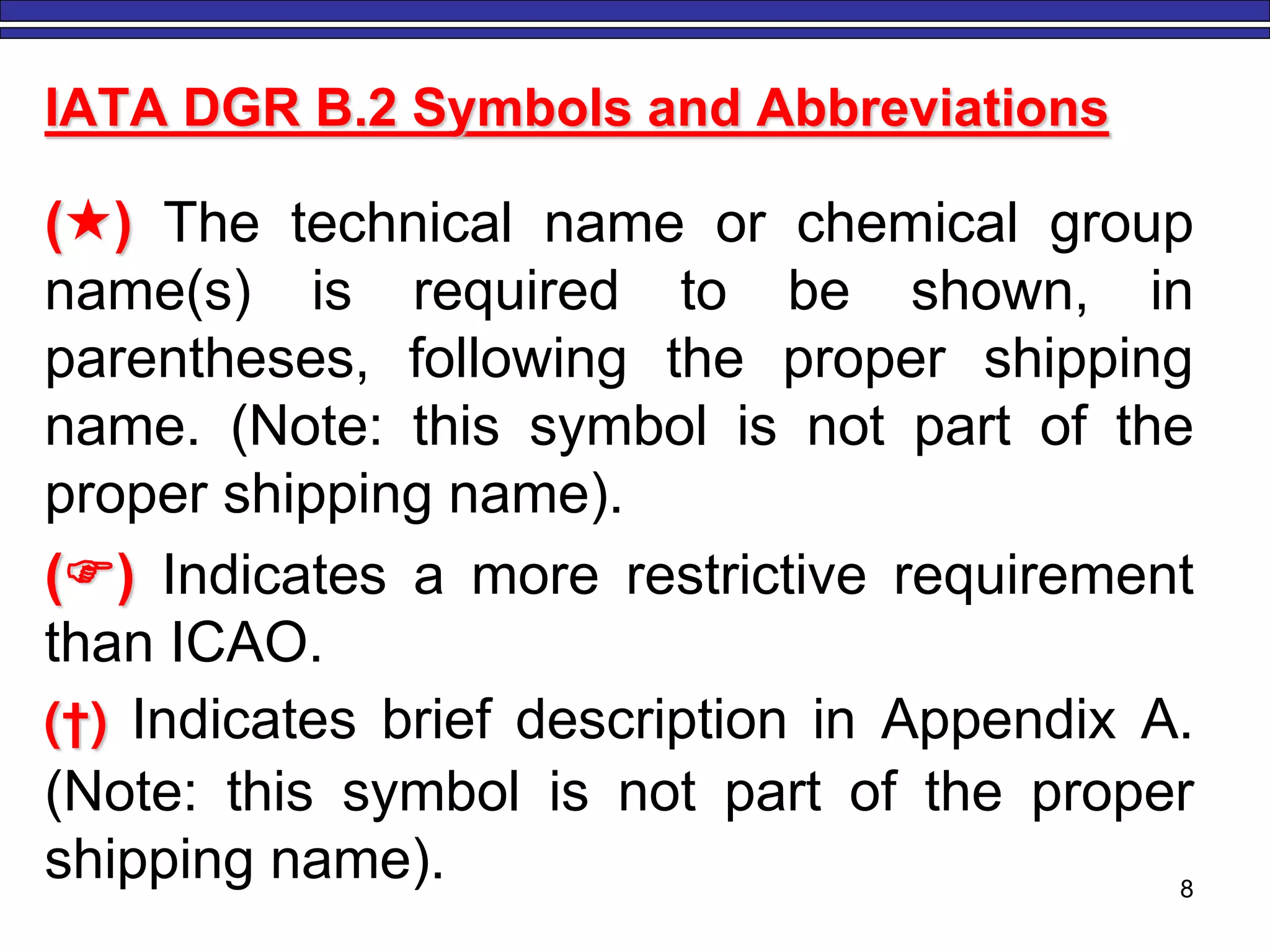

IATA DGR B.2 Symbols and Abbreviations
() The technical name or chemical group
name(s) is required to be shown, in
parentheses, following the proper shipping
name. (Note: this symbol is not part of the
proper shipping name).
() Indicates a more restrictive requirement
than ICAO.
(†) Indicates brief description in Appendix A.
(Note: this symbol is not part of the proper
shipping name). 8

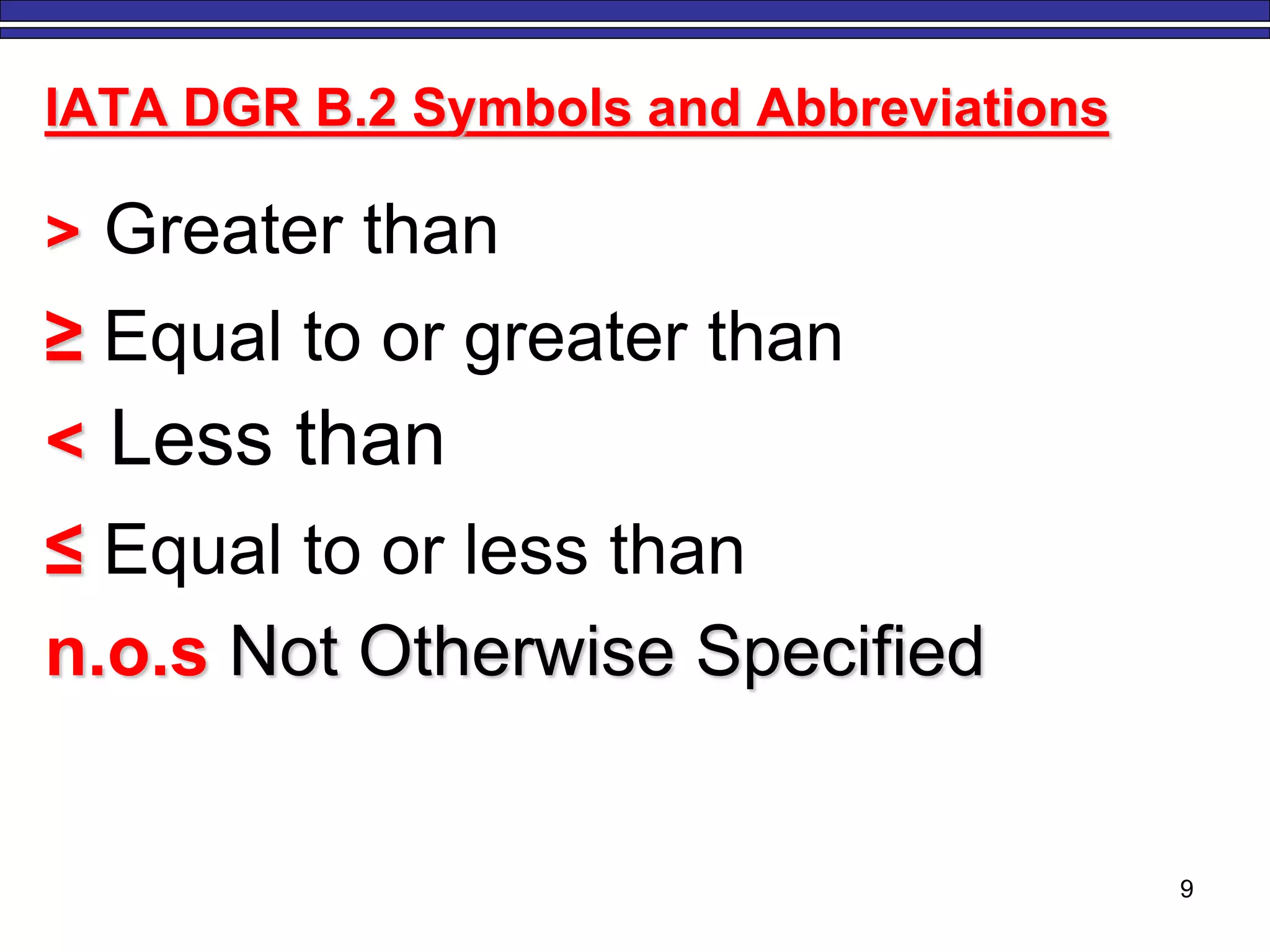

> Greater than
≥ Equal to or greater than
< Less than
≤ Equal to or less than
n.o.s Not Otherwise Specified
9

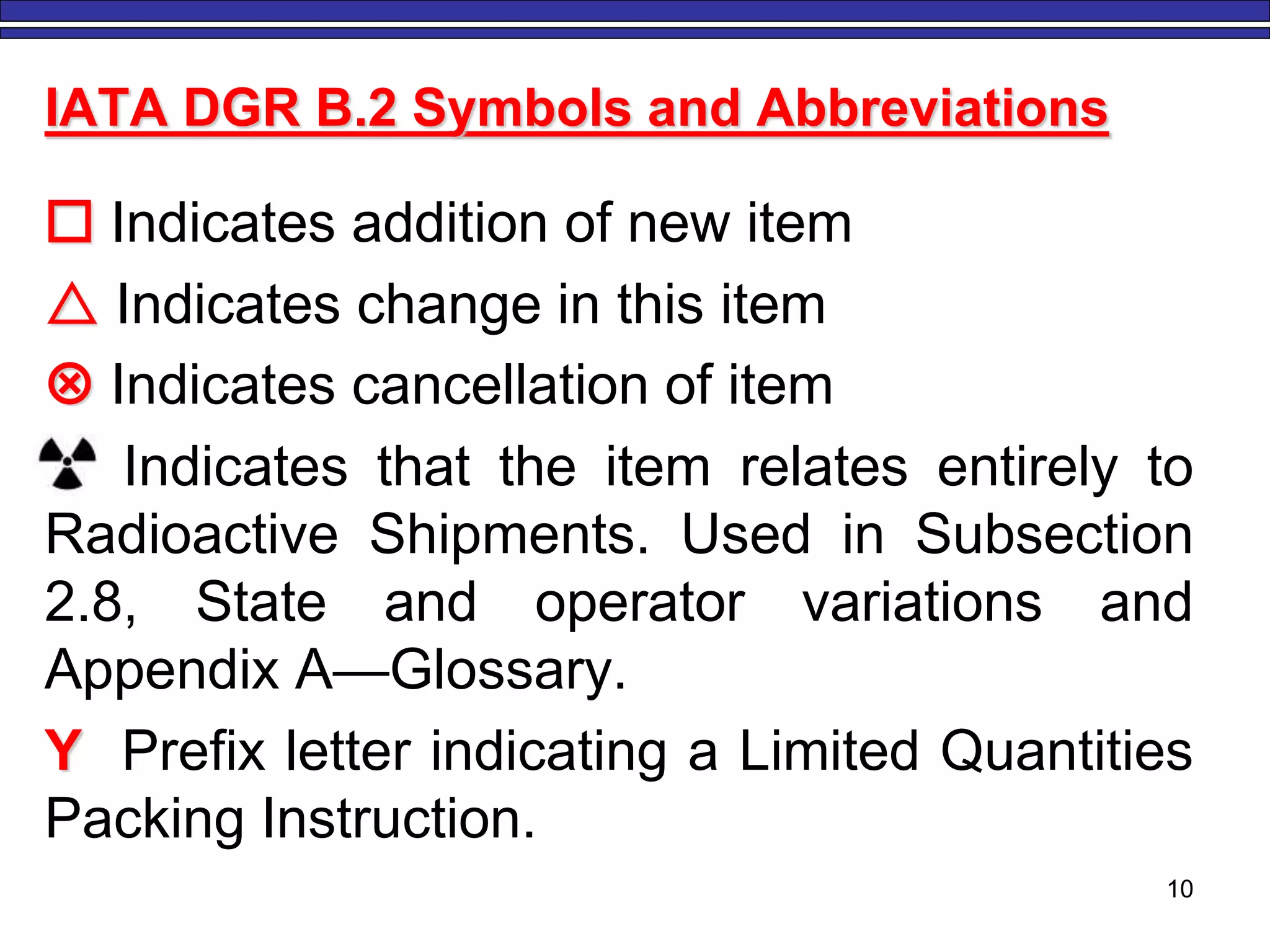

 Indicates addition of new item
 Indicates change in this item
 Indicates cancellation of item
Indicates that the item relates entirely to
Radioactive Shipments. Used in Subsection
2.8, State and operator variations and
Appendix A—Glossary.
Y Prefix letter indicating a Limited Quantities
Packing Instruction.
10

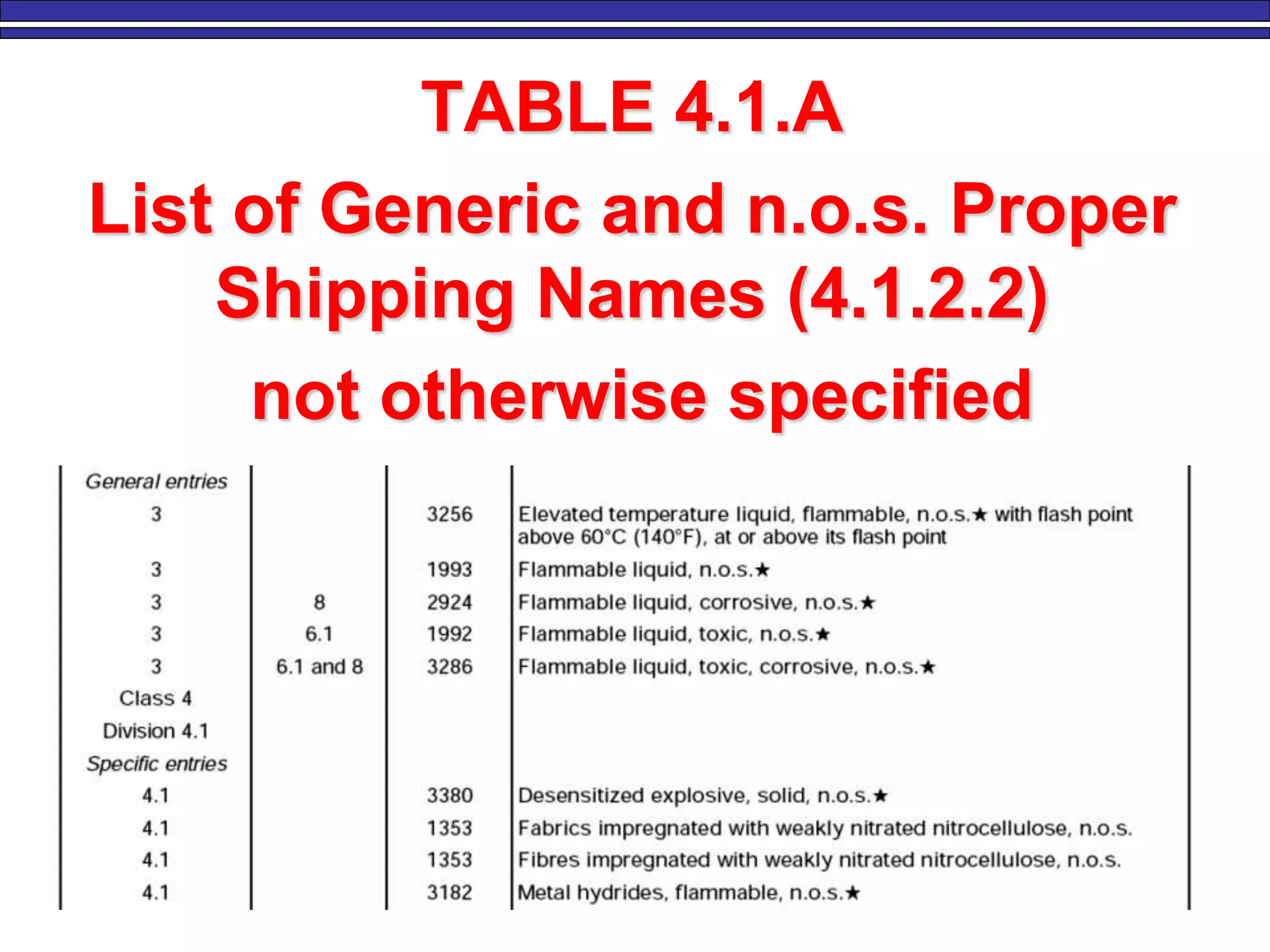

TABLE 4.1.A
List of Generic and n.o.s. Proper
Shipping Names (4.1.2.2)
not otherwise specified
12

13

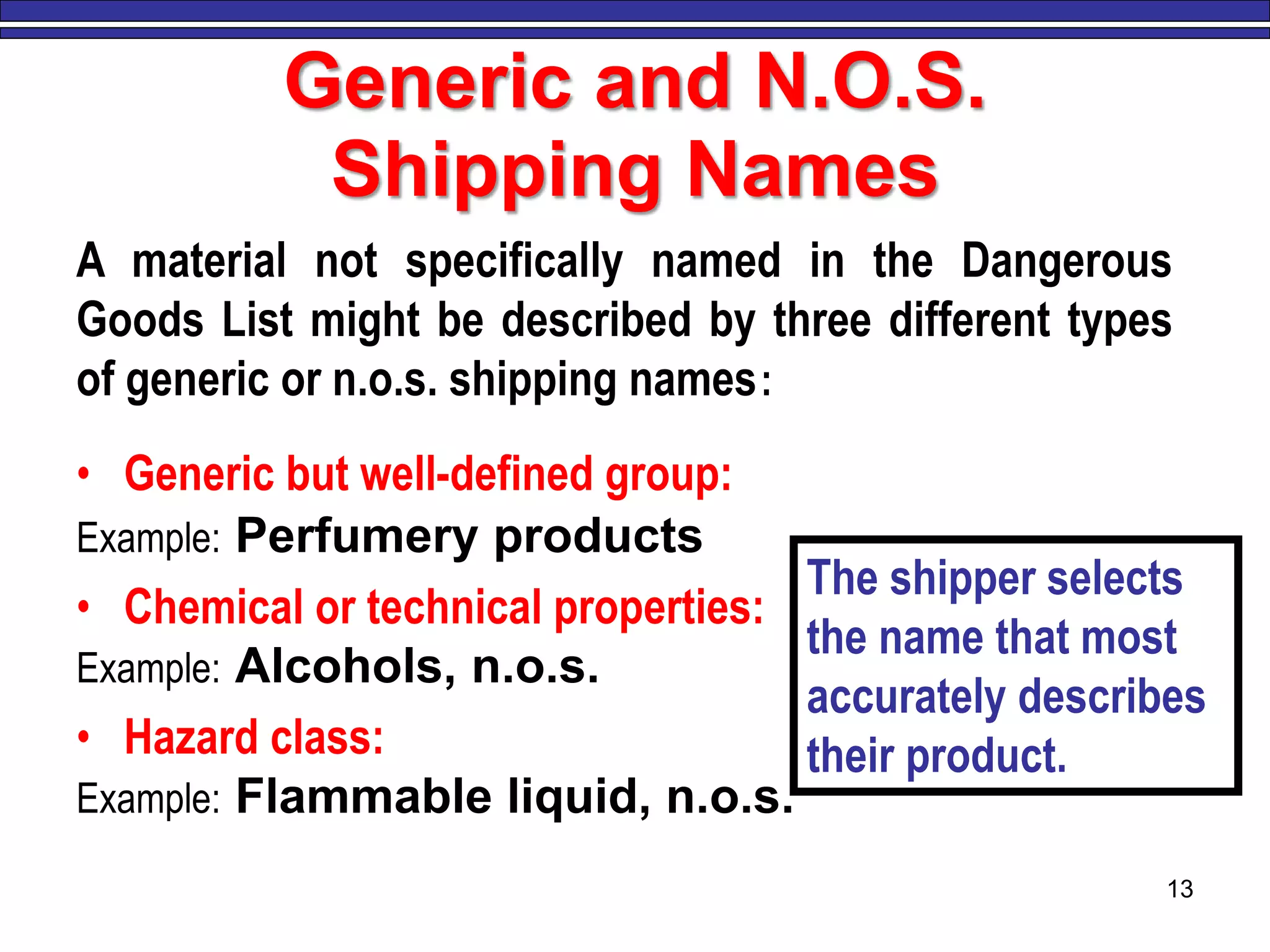

Generic and N.O.S.
Shipping Names
• Generic but well-defined group:
Example: Perfumery products
• Chemical or technical properties:
Example: Alcohols, n.o.s.
• Hazard class:
Example: Flammable liquid, n.o.s.
A material not specifically named in the Dangerous
Goods List might be described by three different types
of generic or n.o.s. shipping names:
The shipper selects
the name that most
accurately describes
their product.

M. Tayfour 14

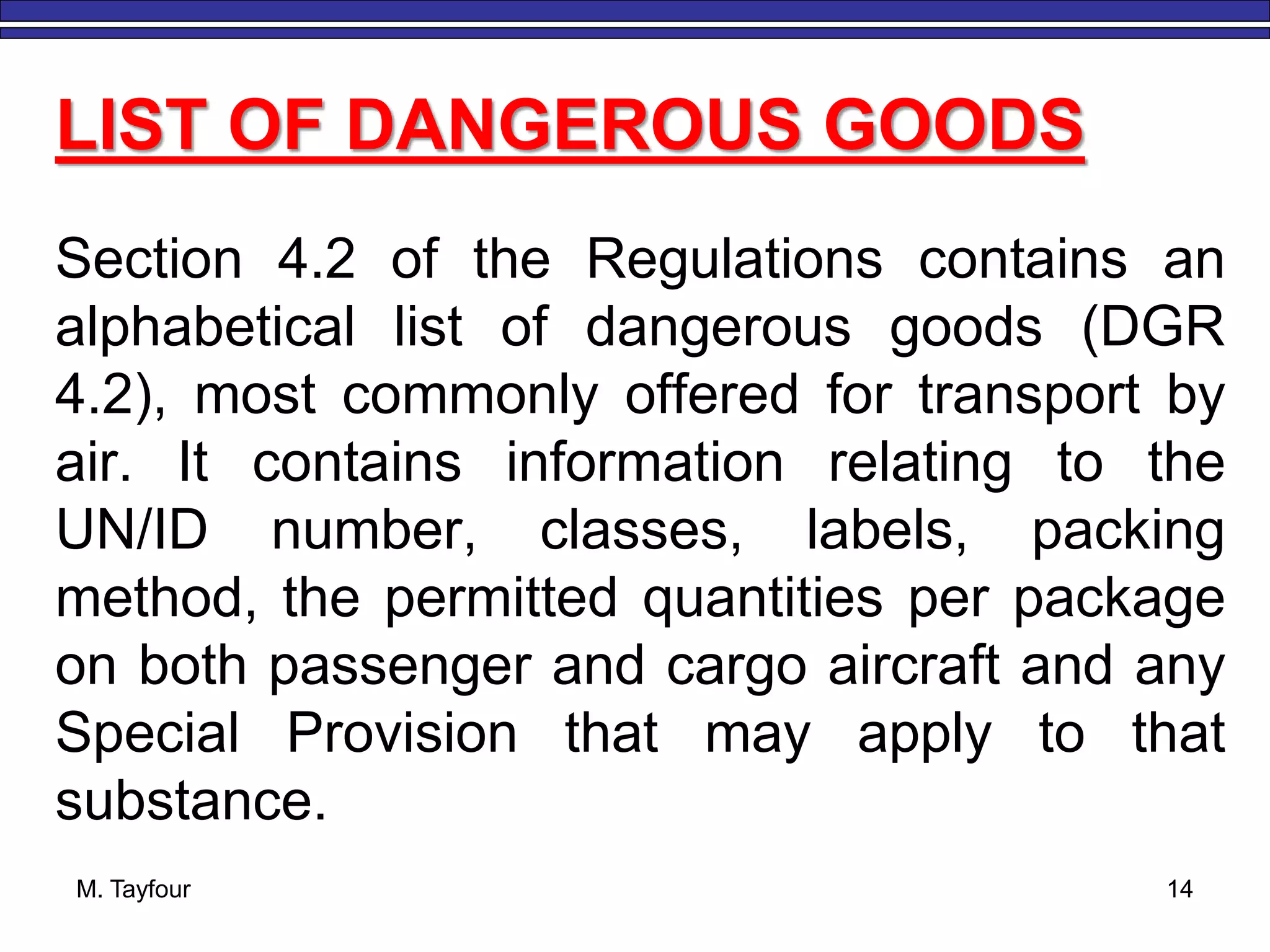

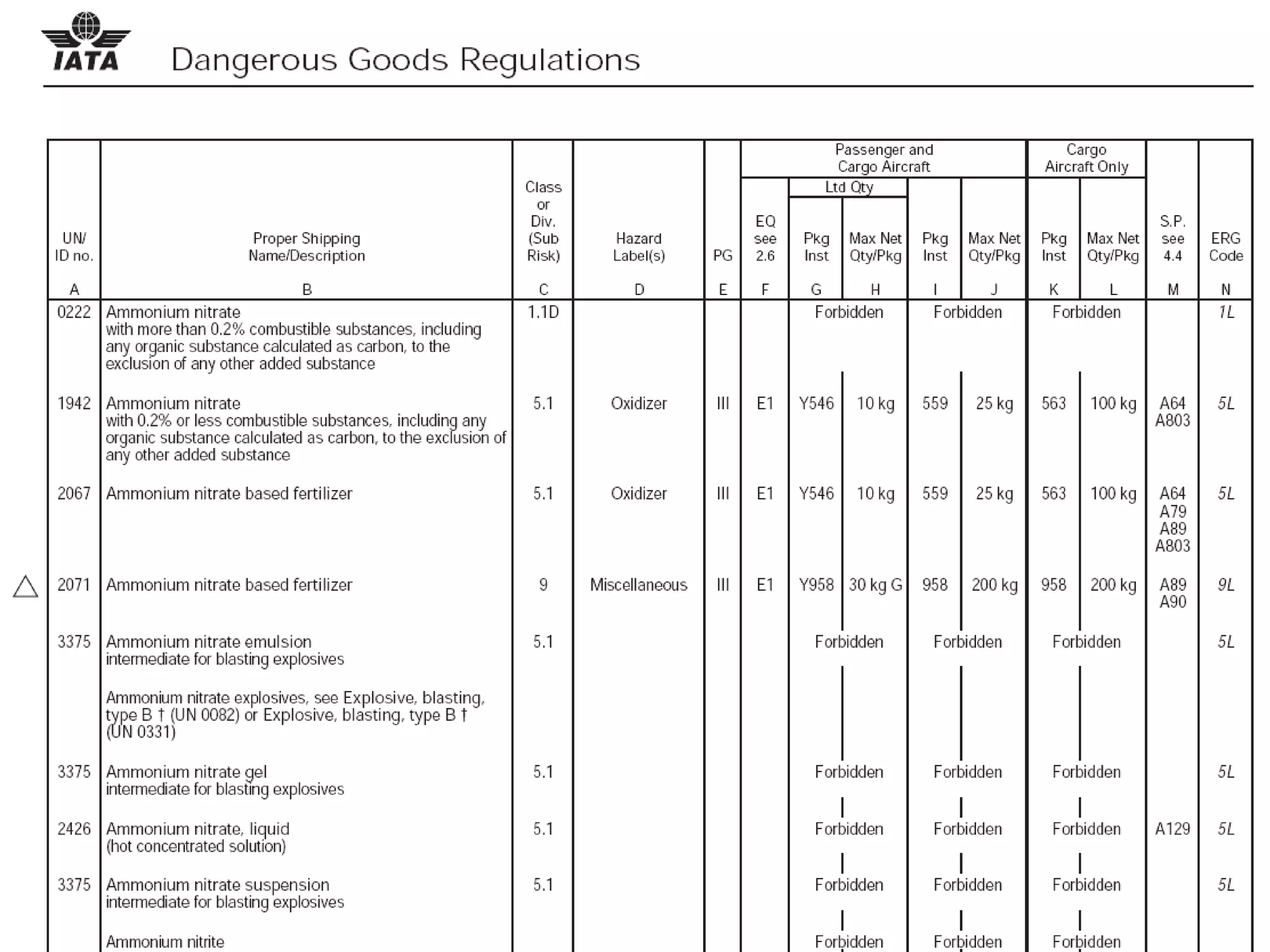

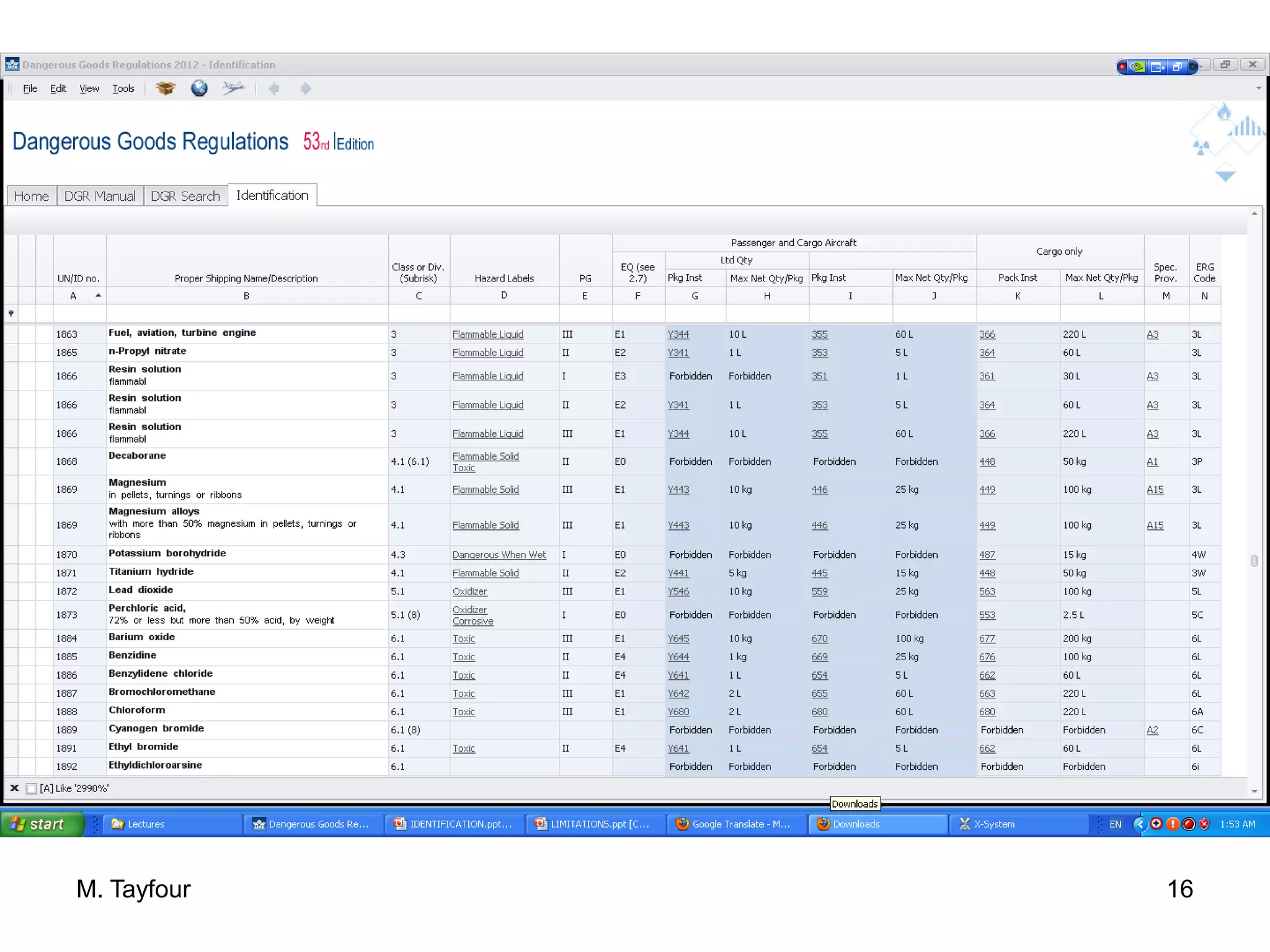

Section 4.2 of the Regulations contains an
alphabetical list of dangerous goods (DGR
4.2), most commonly offered for transport by
air. It contains information relating to the
UN/ID number, classes, labels, packing
method, the permitted quantities per package
on both passenger and cargo aircraft and any
Special Provision that may apply to that
substance.
LIST OF DANGEROUS GOODS

18

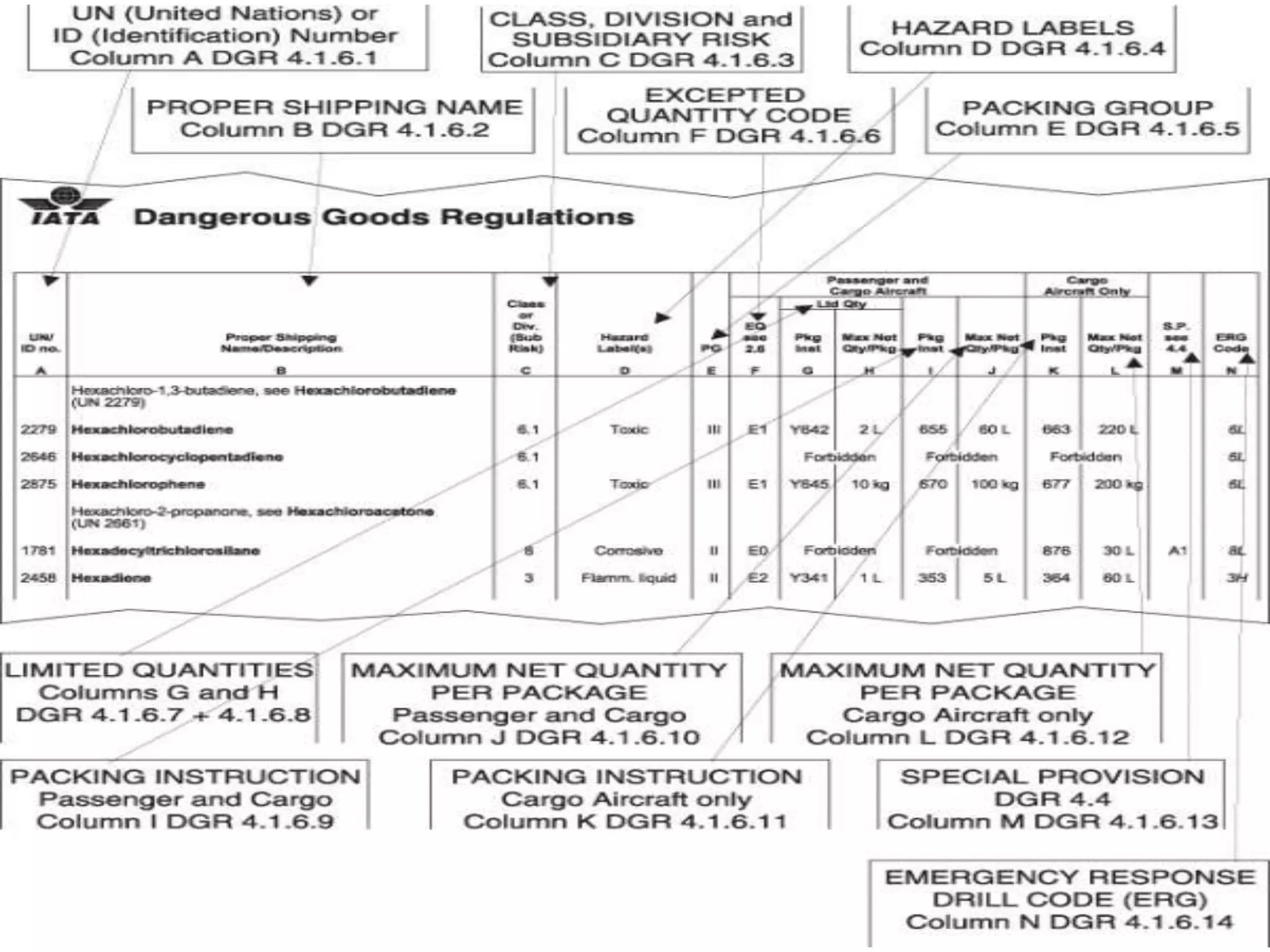

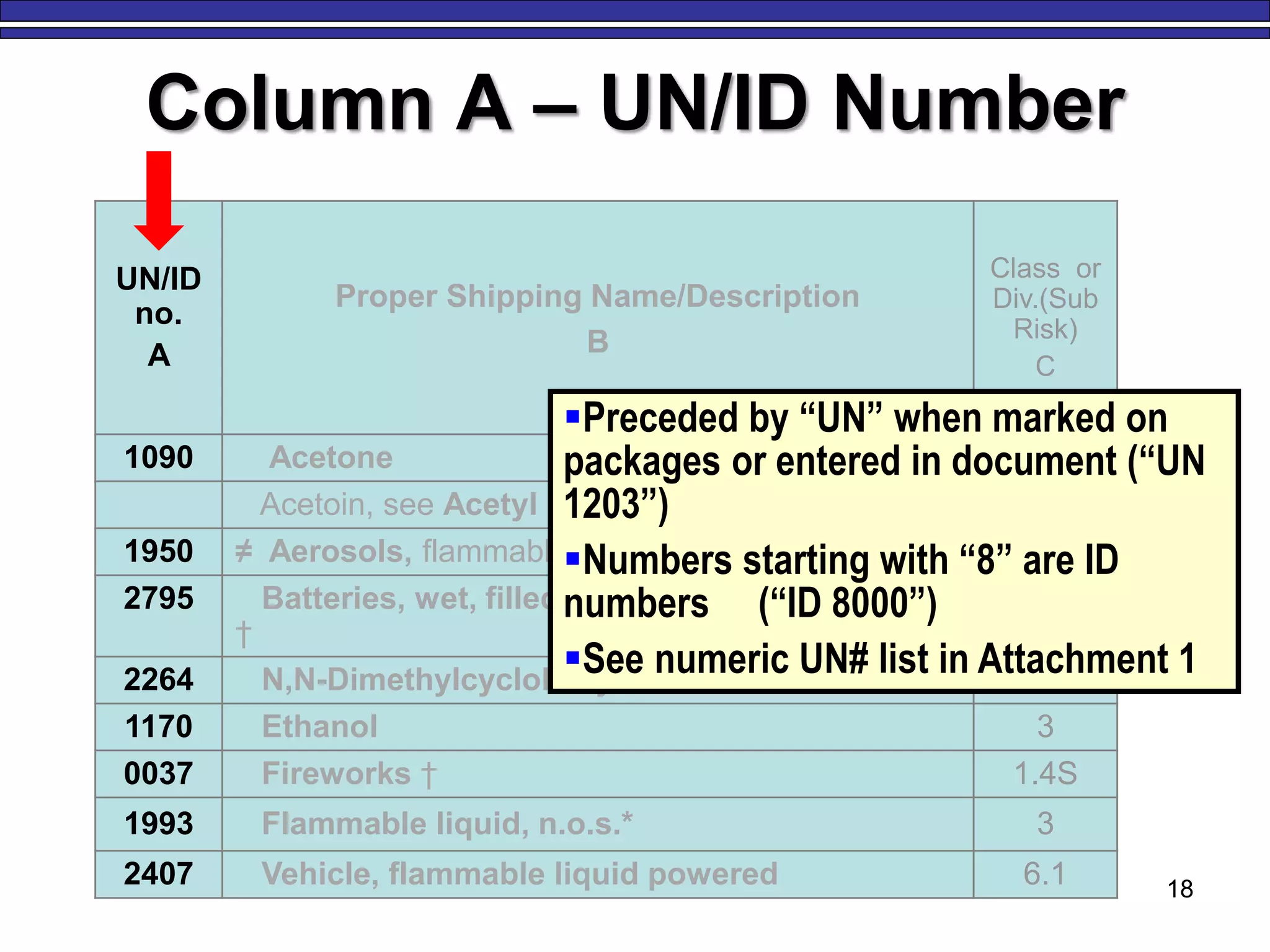

Column A – UN/ID Number
UN/ID
no.
A
Proper Shipping Name/Description
B
Class or
Div.(Sub
Risk)
C
1090 Acetone 3
Acetoin, see Acetyl methyl carbinol
1950 ≠ Aerosols, flammable 2.1
2795 Batteries, wet, filled with alkali, electric storage
†
8
2264 N,N-Dimethylcyclohexylamine 8
1170 Ethanol 3
0037 Fireworks † 1.4S
1993 Flammable liquid, n.o.s.* 3
2407 Vehicle, flammable liquid powered 6.1
Preceded by “UN” when marked on
packages or entered in document (“UN
1203”)
Numbers starting with “8” are ID
numbers (“ID 8000”)
See numeric UN# list in Attachment 1

UN/ID
no.
A
Proper Shipping
Name/Description
B
Class
or
Div.(Su
b Risk)
C
1090 Acetone 3
1950 ≠ Aerosols, flammable 2.1
2795 Batteries, wet, filled with alkali, electric storage † 8
2264 N,N-Dimethylcyclohexylamine 8
1170 Ethanol 3
0037 Fireworks † 1.4S
1993 Flammable liquid, n.o.s.* 3
2407 Vehicle, flammable liquid powered 6.1
19

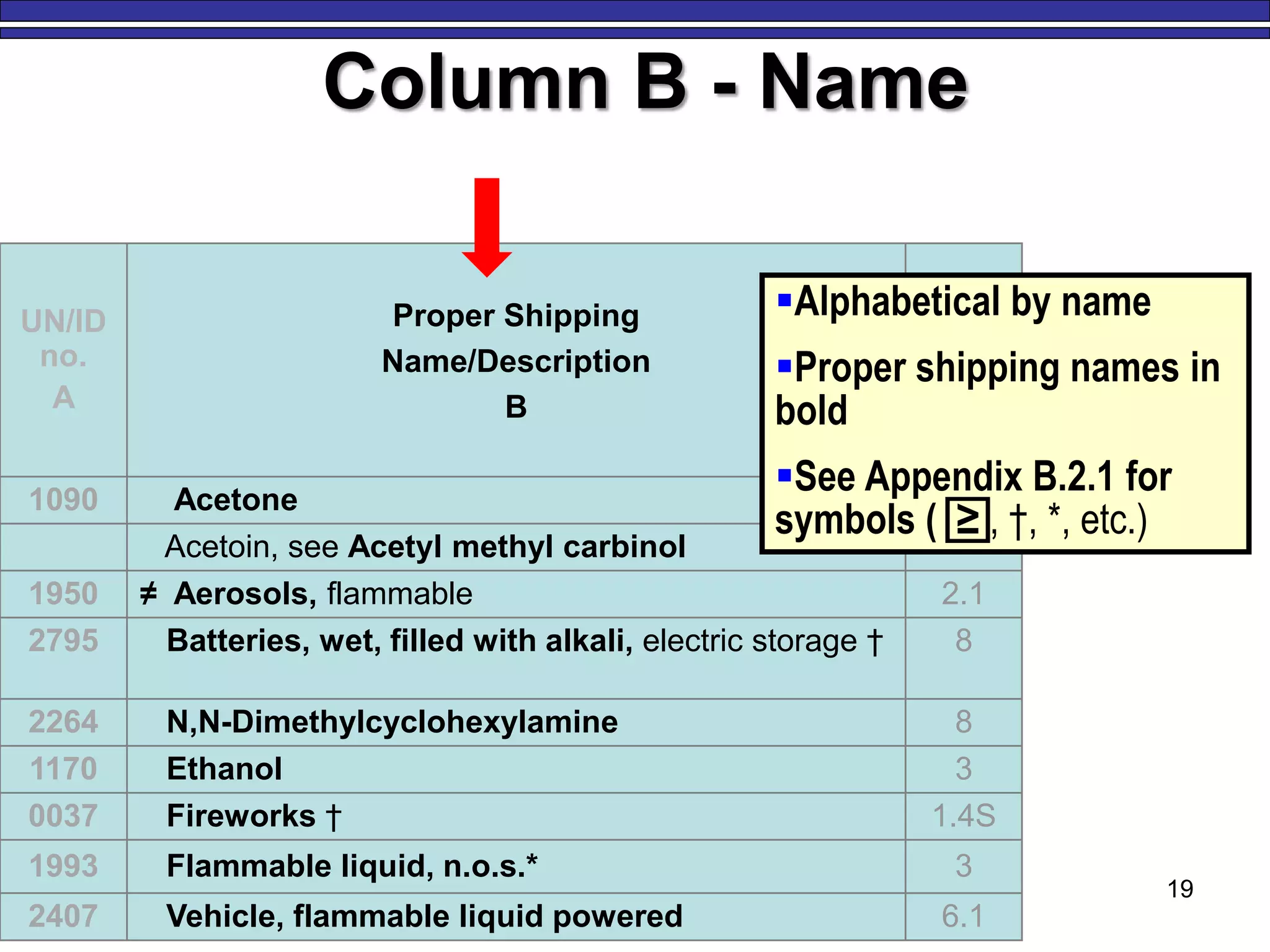

Column B - Name
Alphabetical by name
Proper shipping names in
bold
See Appendix B.2.1 for
symbols ( ≥ ⃞, †, *, etc.)

20

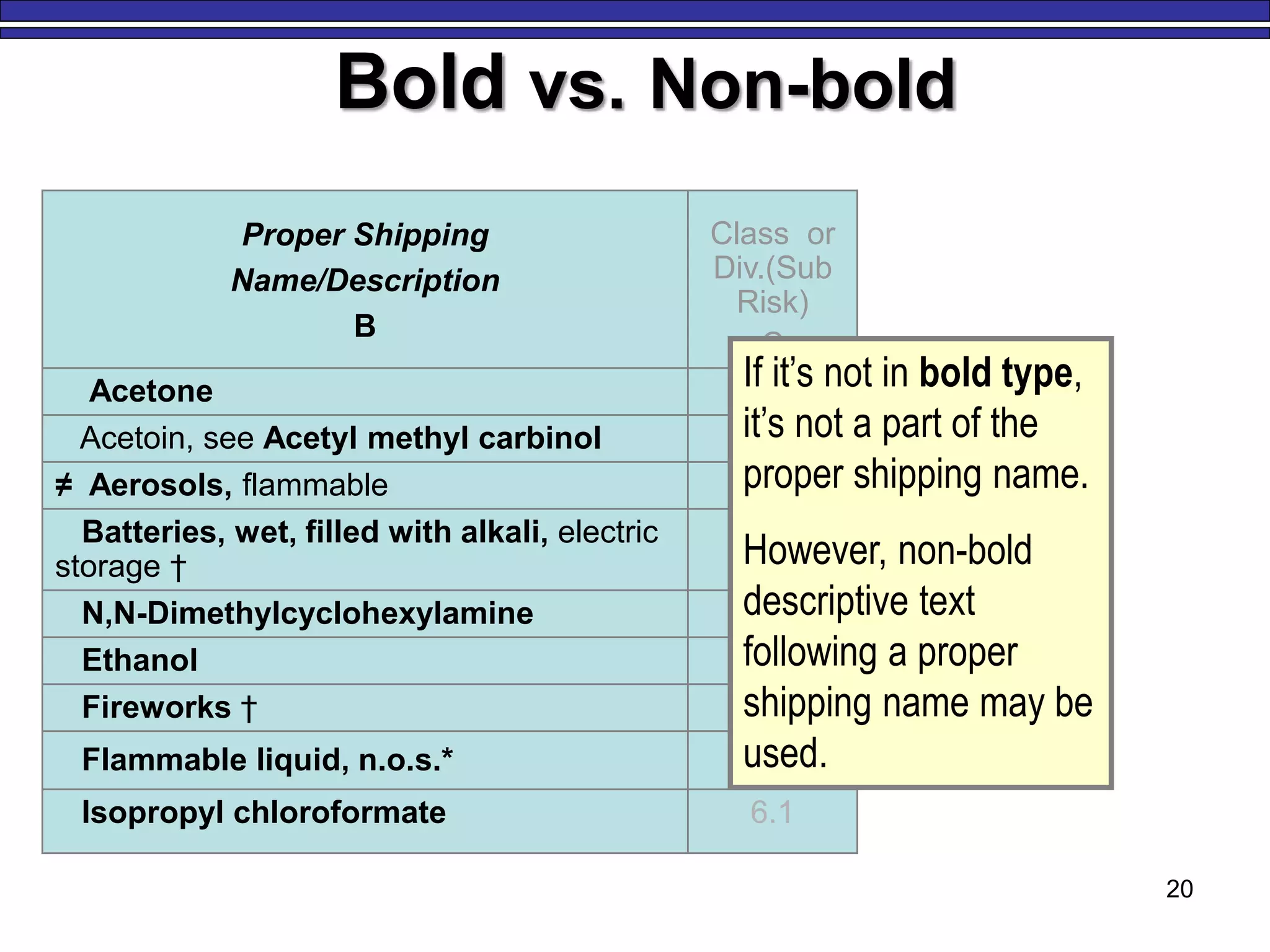

Bold vs. Non-bold
Proper Shipping
Name/Description
B
Class or
Div.(Sub
Risk)
C
Acetone 3
≠ Aerosols, flammable 2.1
Batteries, wet, filled with alkali, electric
storage †
8
N,N-Dimethylcyclohexylamine 8
Ethanol 3
Fireworks † 1.4S
Flammable liquid, n.o.s.* 3
Isopropyl chloroformate 6.1
If it’s not in bold type,
it’s not a part of the
proper shipping name.
However, non-bold
descriptive text
following a proper
shipping name may be
used.

21

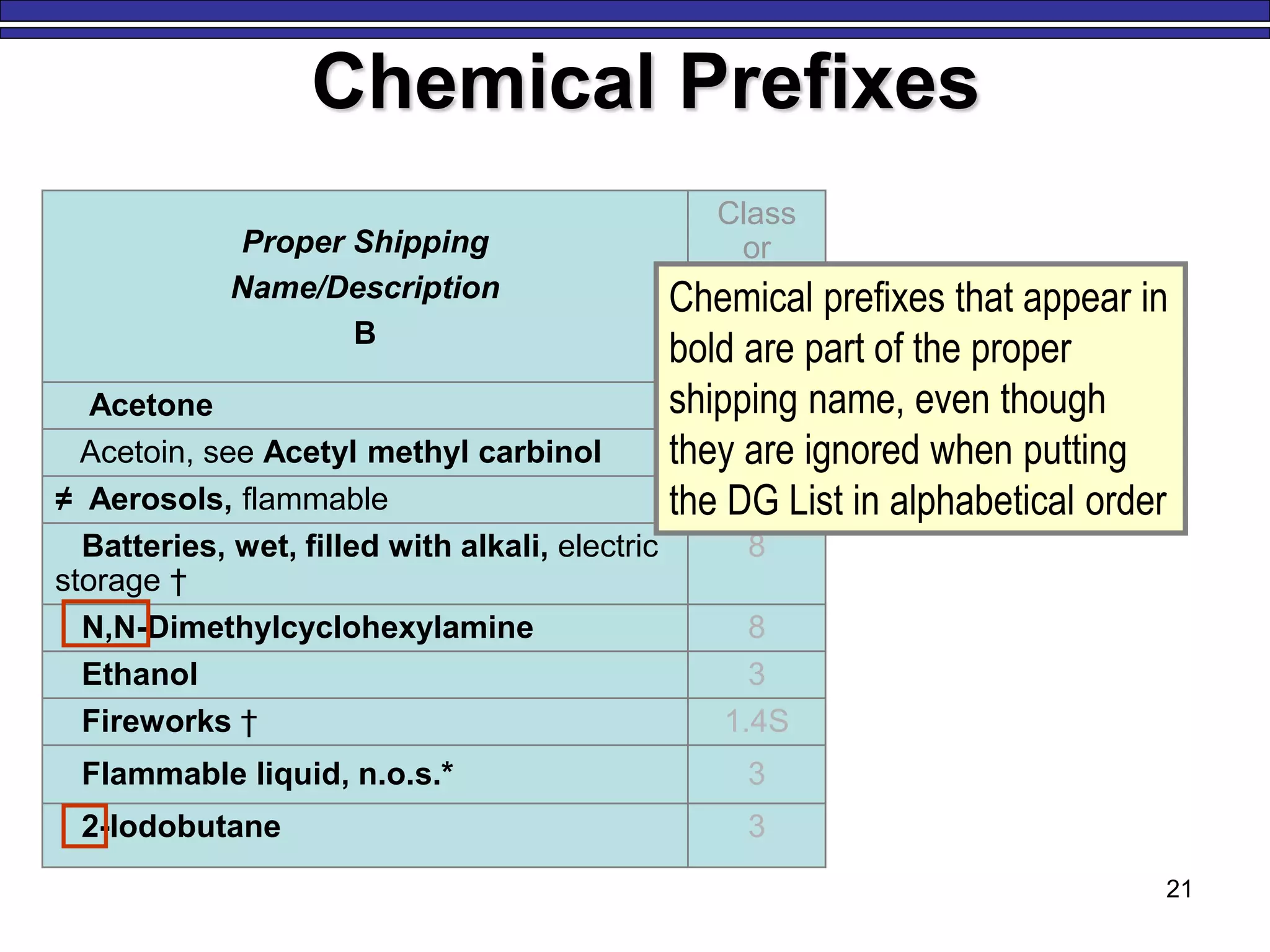

Chemical Prefixes
Proper Shipping
Name/Description
B
Class
or
Div.(Su
b Risk)
C
Acetone 3
storage †
8
Ethanol 3
Fireworks † 1.4S
2-Iodobutane 3
Chemical prefixes that appear in
bold are part of the proper
shipping name, even though
they are ignored when putting
the DG List in alphabetical order

22

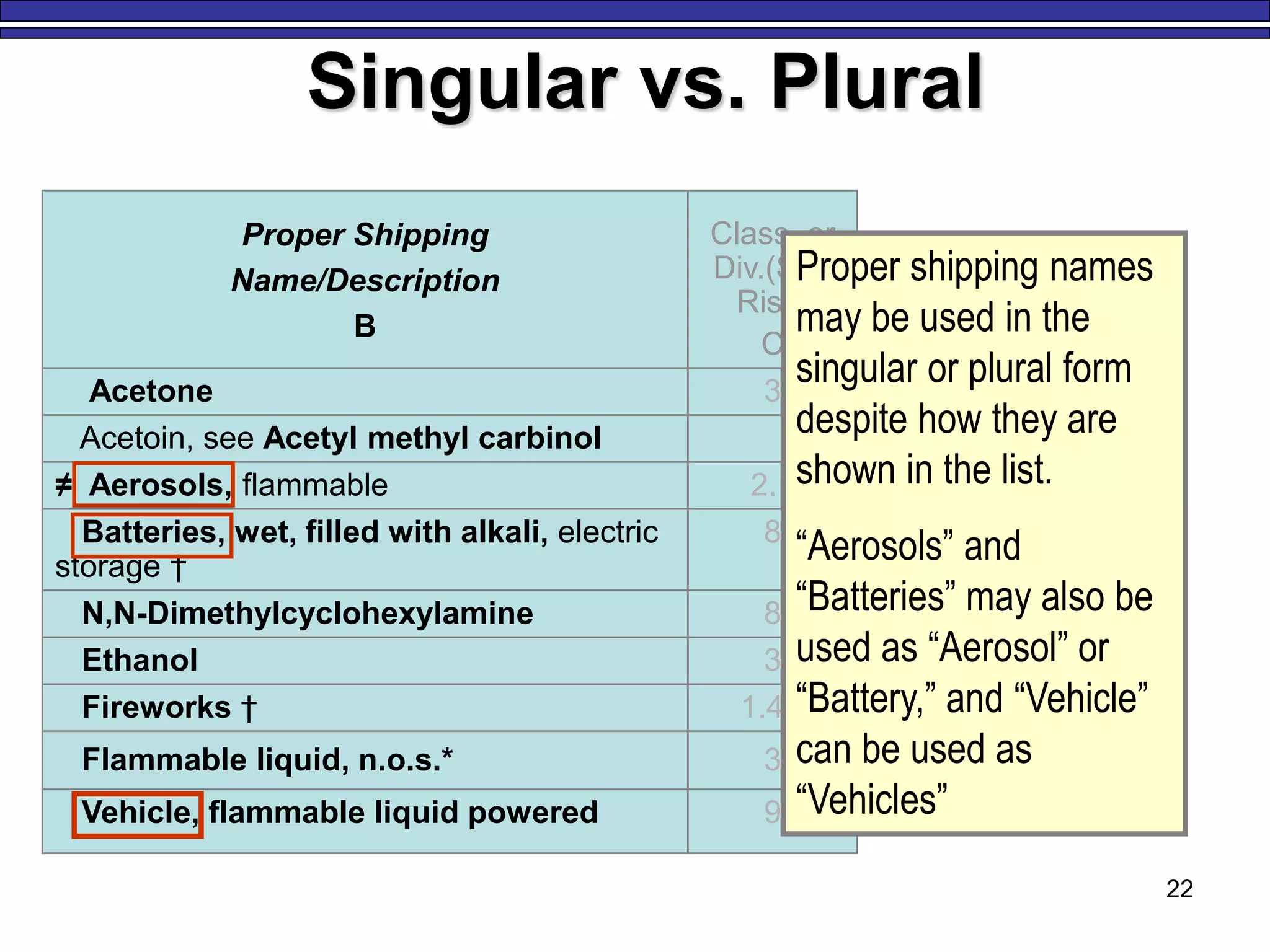

Singular vs. Plural
Proper Shipping
Name/Description
B
Class or
Div.(Sub
Risk)
C
Acetone 3
storage †
8
Ethanol 3
Fireworks † 1.4S
Vehicle, flammable liquid powered 9
Proper shipping names
may be used in the
singular or plural form
despite how they are
shown in the list.
“Aerosols” and
“Batteries” may also be
used as “Aerosol” or
“Battery,” and “Vehicle”
can be used as
“Vehicles”

23

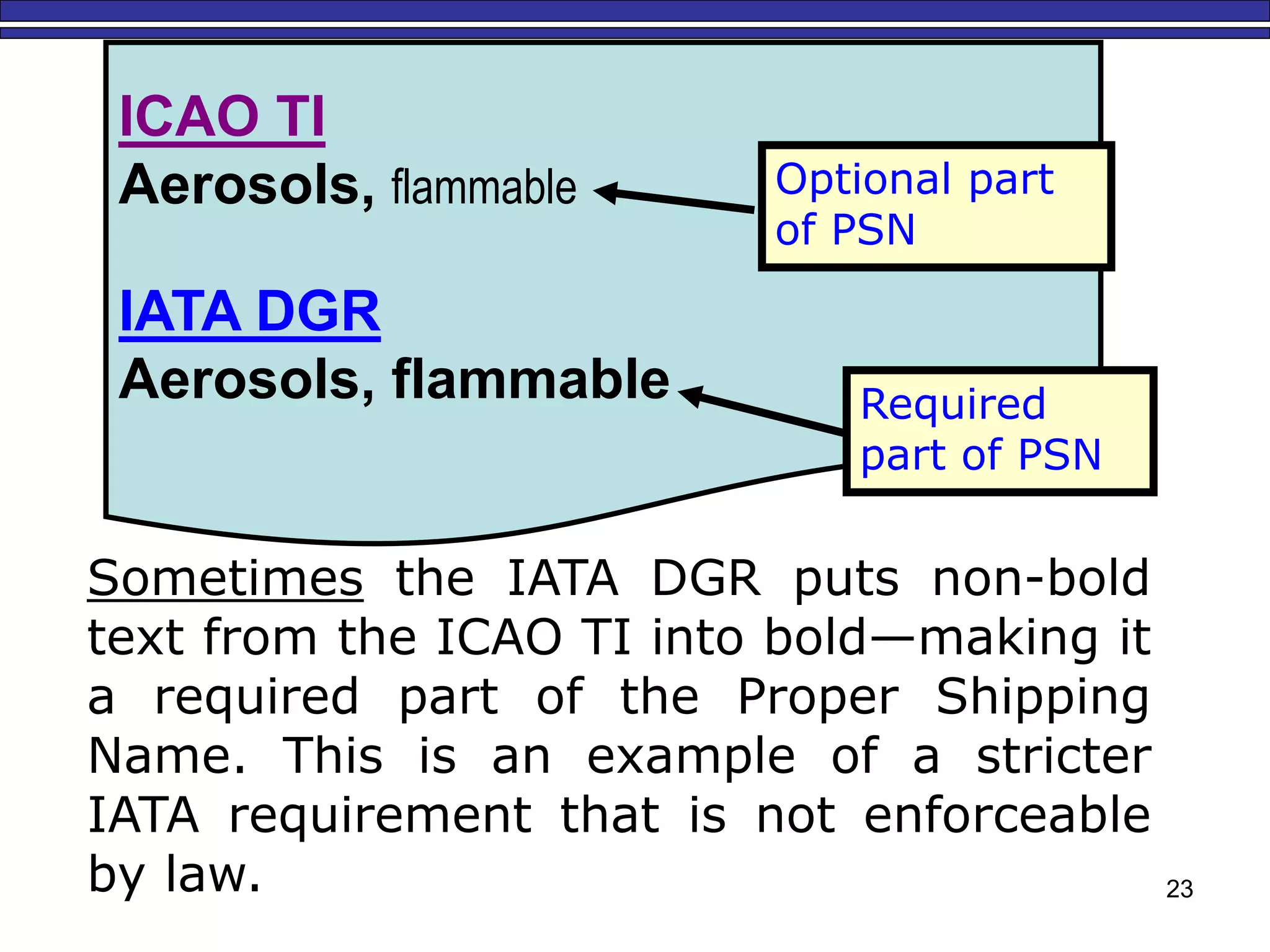

ICAO TI
Aerosols, flammable
IATA DGR
Aerosols, flammable
Sometimes the IATA DGR puts non-bold
text from the ICAO TI into bold—making it
a required part of the Proper Shipping
Name. This is an example of a stricter
IATA requirement that is not enforceable
by law.
Optional part
of PSN
Required
part of PSN

24

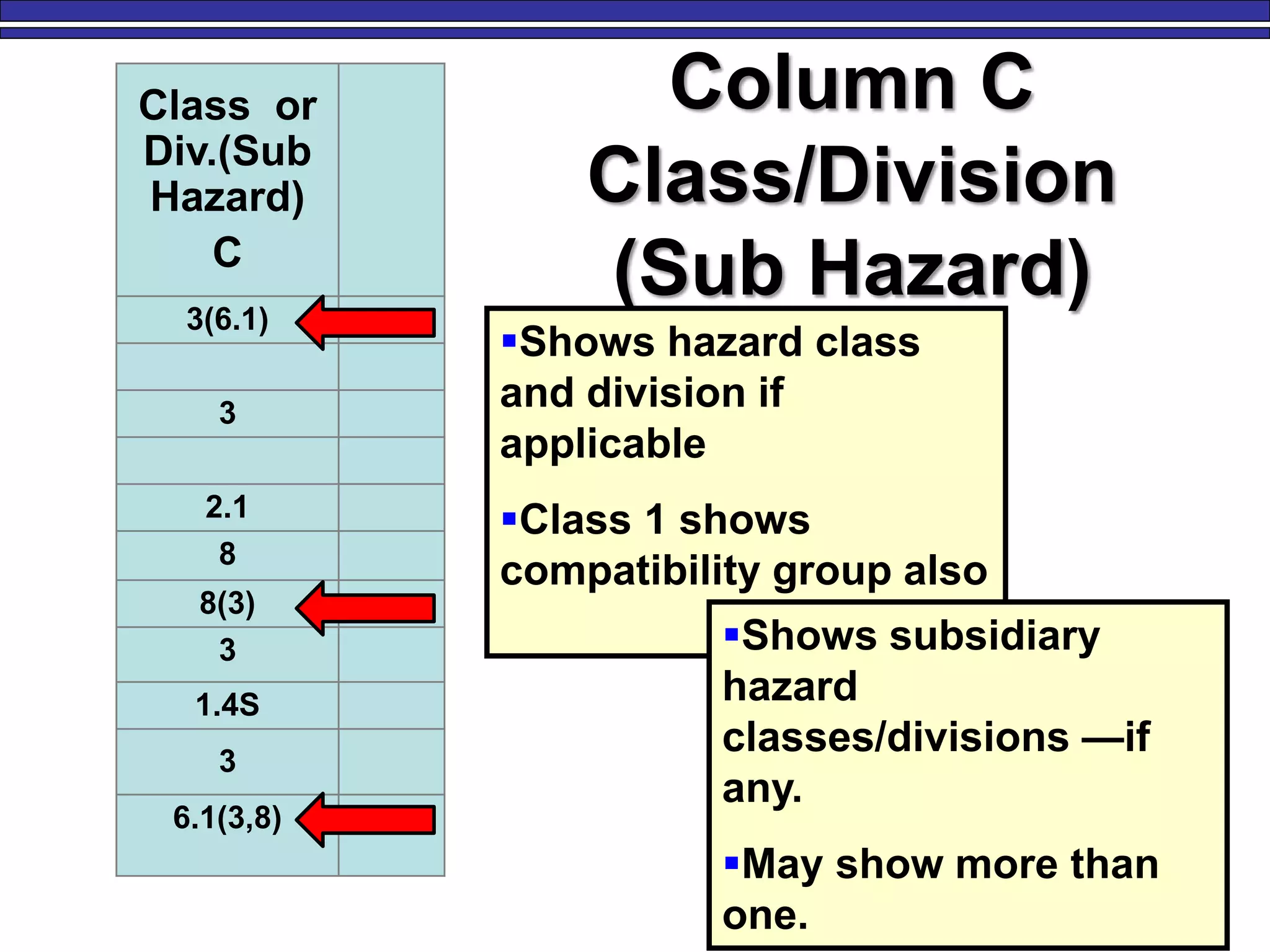

Column C
Class/Division
(Sub Hazard)
Class or
Div.(Sub
Hazard)
C
3(6.1)
3
2.1
8
8(3)
3
1.4S
3
6.1(3,8)
Shows hazard class
and division if
applicable
Class 1 shows
compatibility group also
Shows subsidiary
hazard
classes/divisions —if
any.
May show more than
one.

25

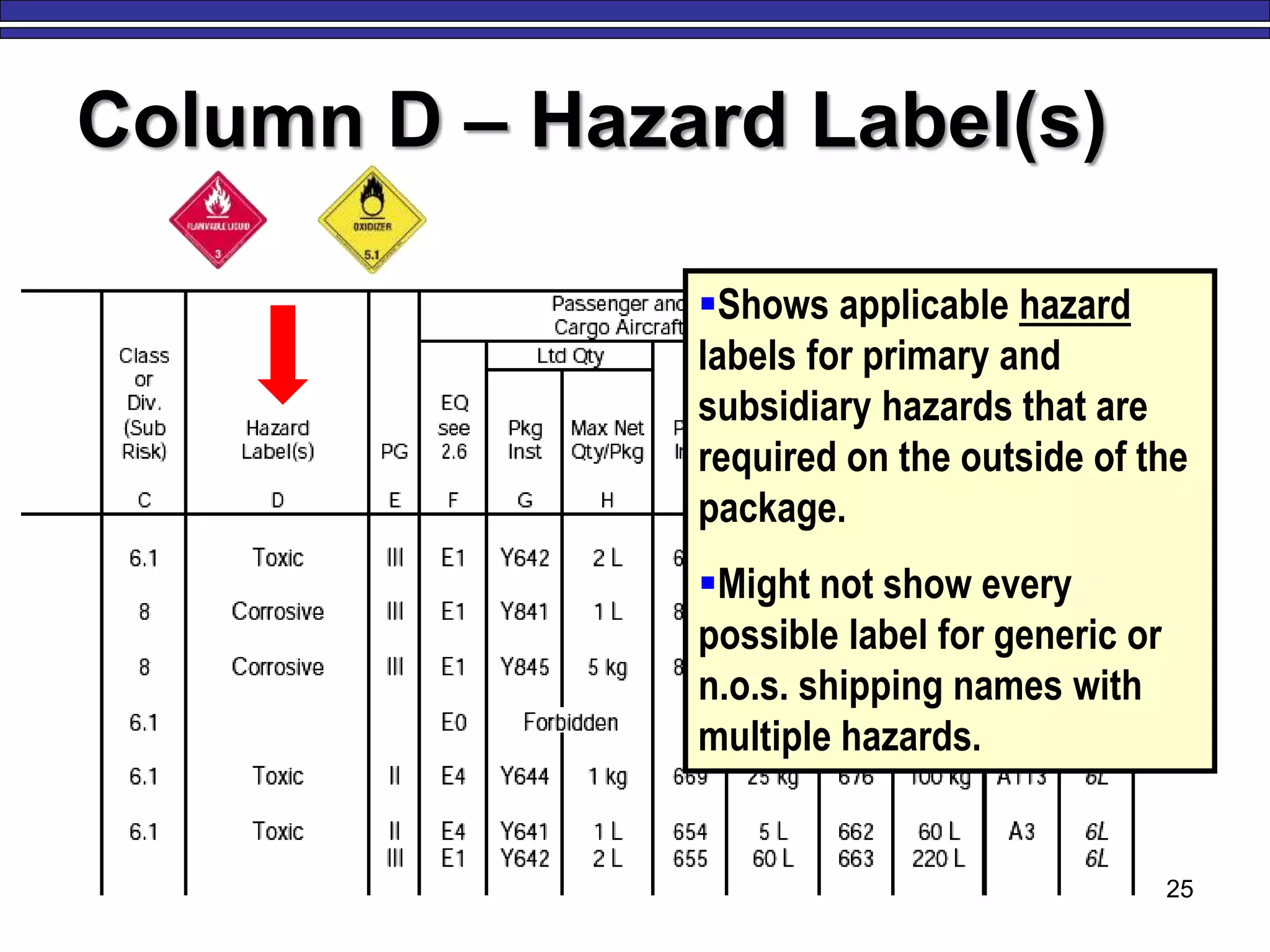

Column D – Hazard Label(s)
Shows applicable hazard
labels for primary and
subsidiary hazards that are
required on the outside of the
package.
Might not show every
possible label for generic or
n.o.s. shipping names with
multiple hazards.

26

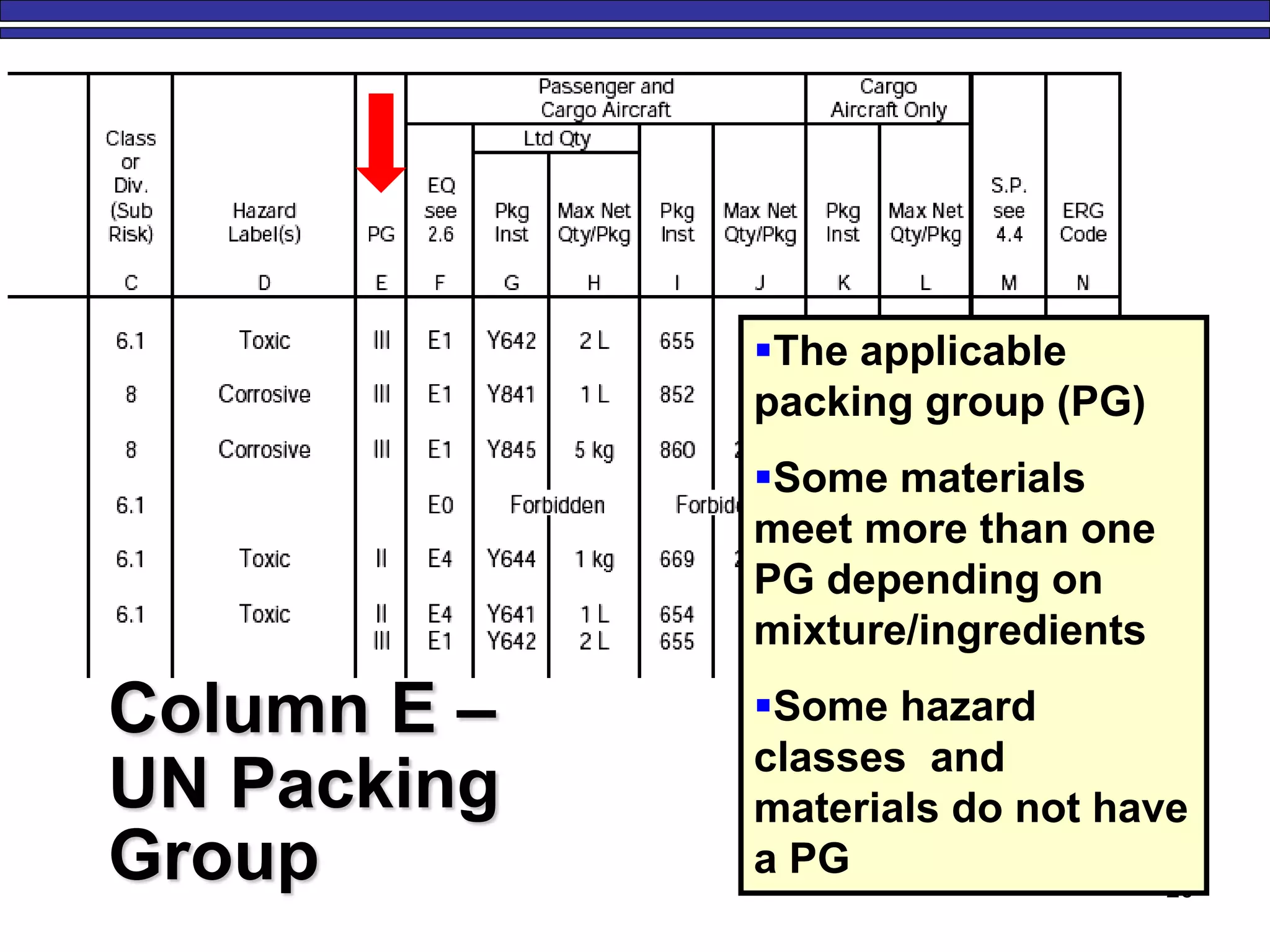

The applicable
packing group (PG)
Some materials
meet more than one
PG depending on
mixture/ingredients
Some hazard
classes and
materials do not have
a PG
Column E –
UN Packing
Group

27

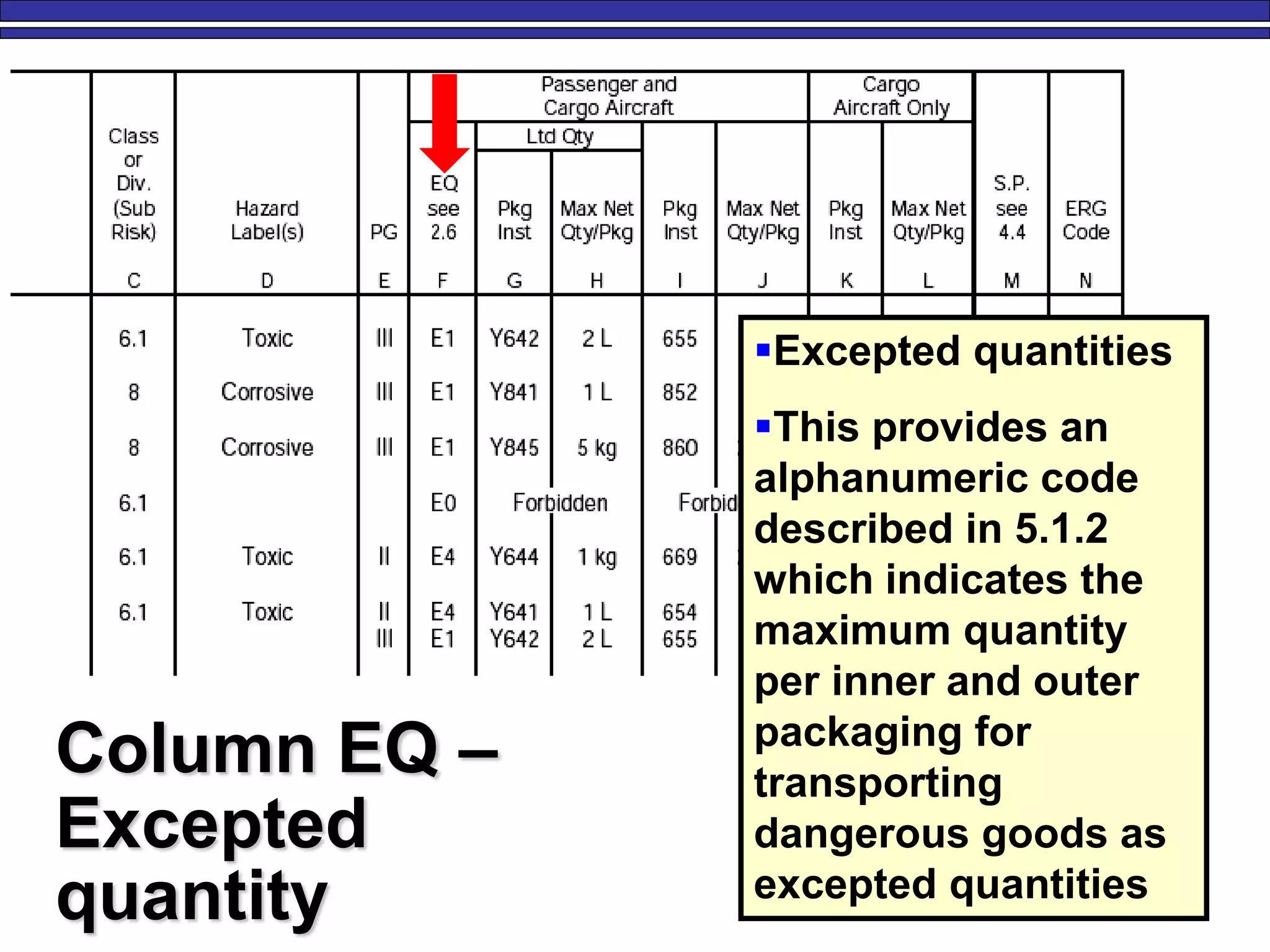

Excepted quantities
This provides an
alphanumeric code
described in 5.1.2
which indicates the
maximum quantity
per inner and outer
packaging for
transporting
dangerous goods as
excepted quantities
Column EQ –
Excepted
quantity

28

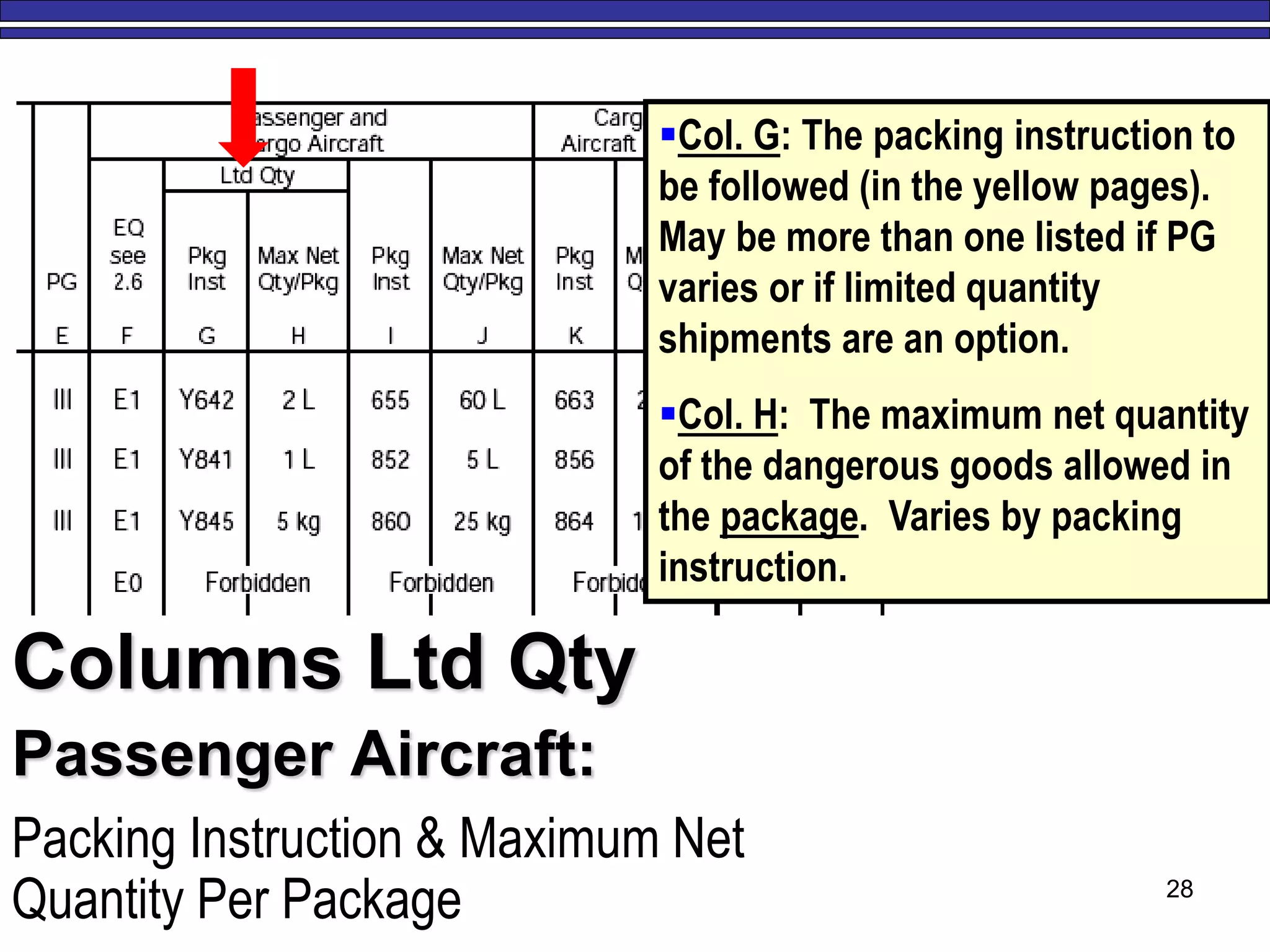

Columns Ltd Qty
Passenger Aircraft:
Packing Instruction & Maximum Net
Quantity Per Package
Col. G: The packing instruction to
be followed (in the yellow pages).
May be more than one listed if PG
varies or if limited quantity
shipments are an option.
Col. H: The maximum net quantity
of the dangerous goods allowed in
the package. Varies by packing
instruction.

29

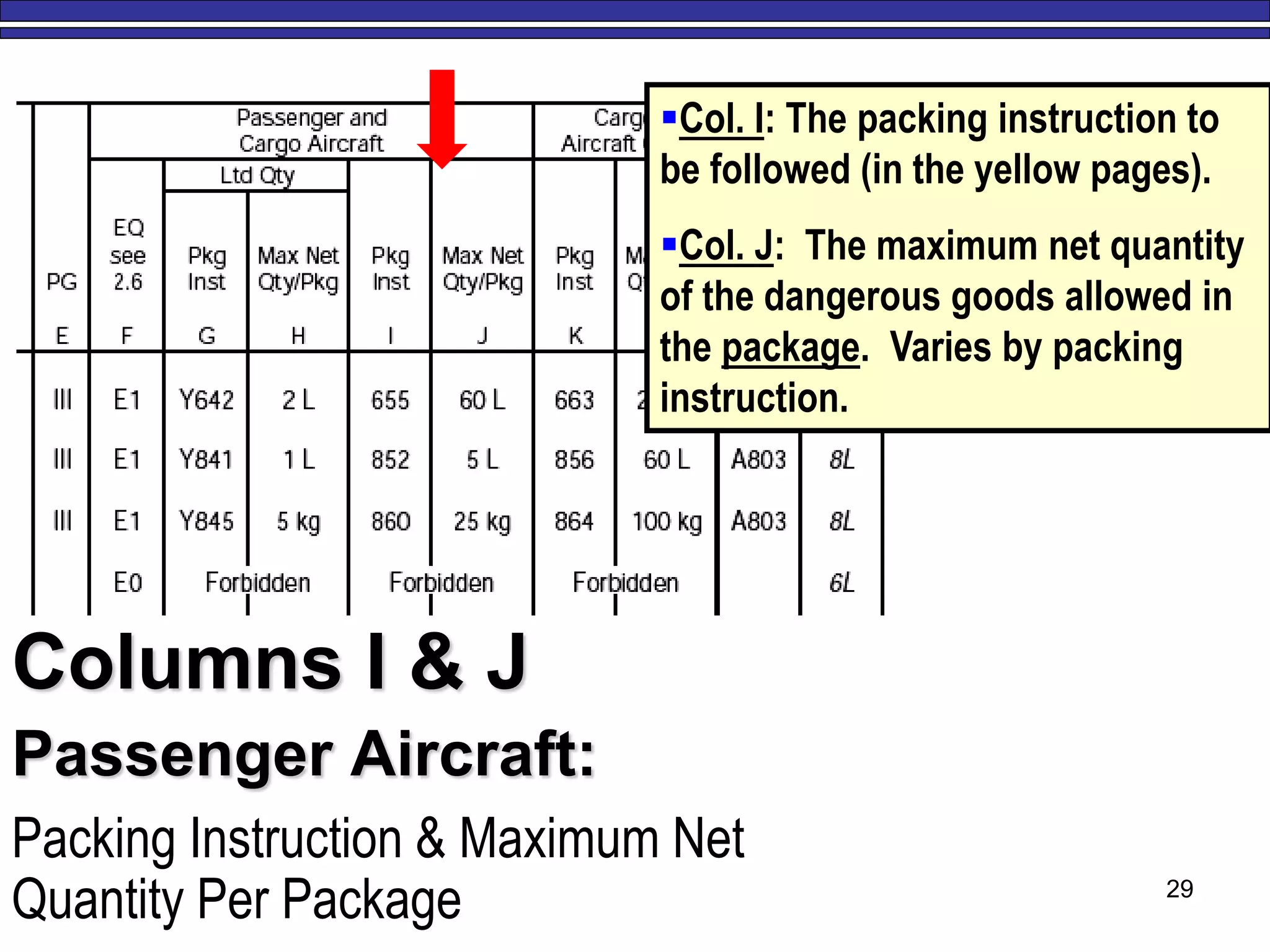

Columns I & J
Passenger Aircraft:
Col. I: The packing instruction to
be followed (in the yellow pages).
Col. J: The maximum net quantity
of the dangerous goods allowed in
the package. Varies by packing
instruction.

30

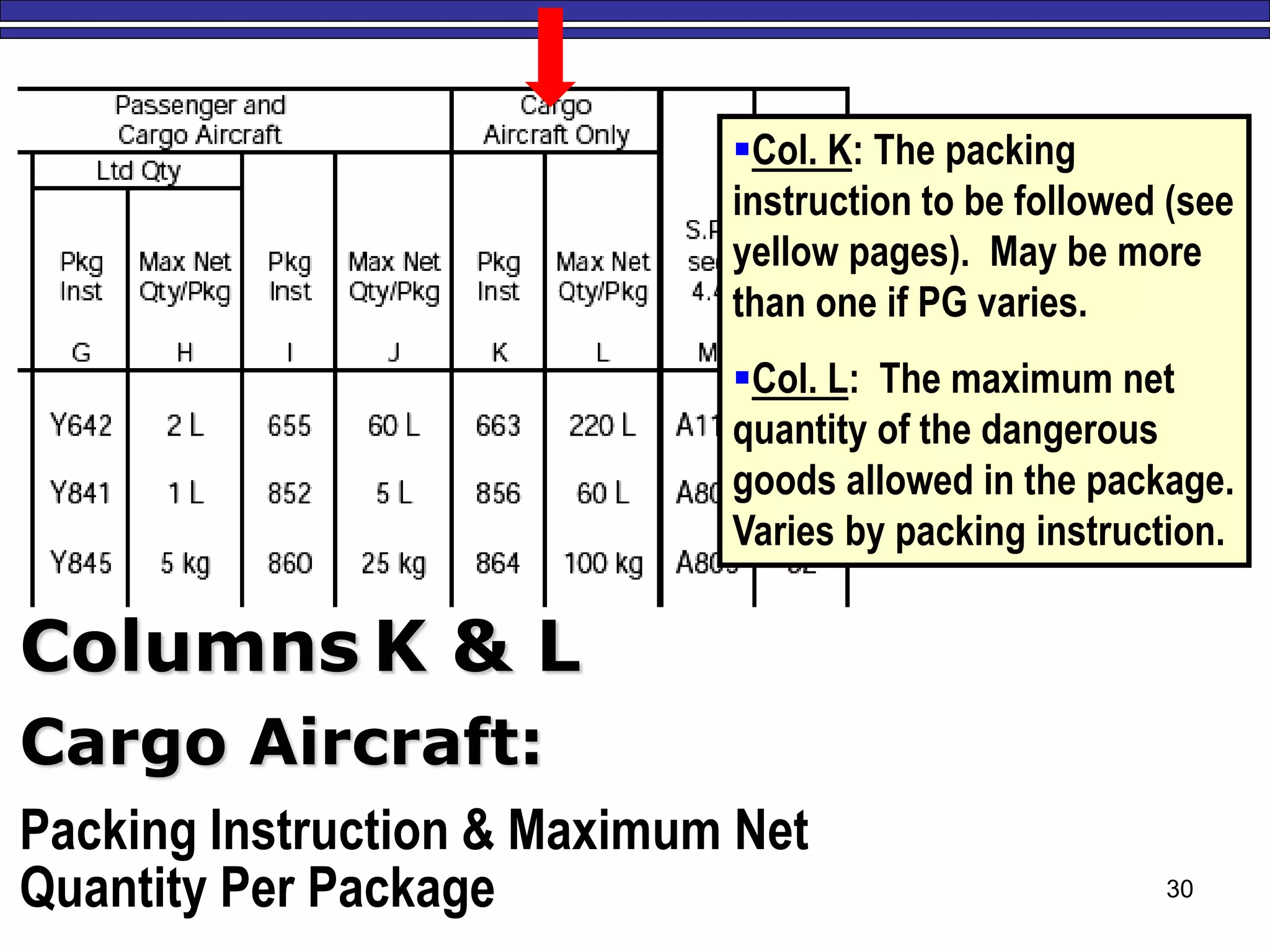

Columns K & L
Cargo Aircraft:
Col. K: The packing
instruction to be followed (see
yellow pages). May be more
than one if PG varies.
Col. L: The maximum net
quantity of the dangerous
goods allowed in the package.
Varies by packing instruction.

31

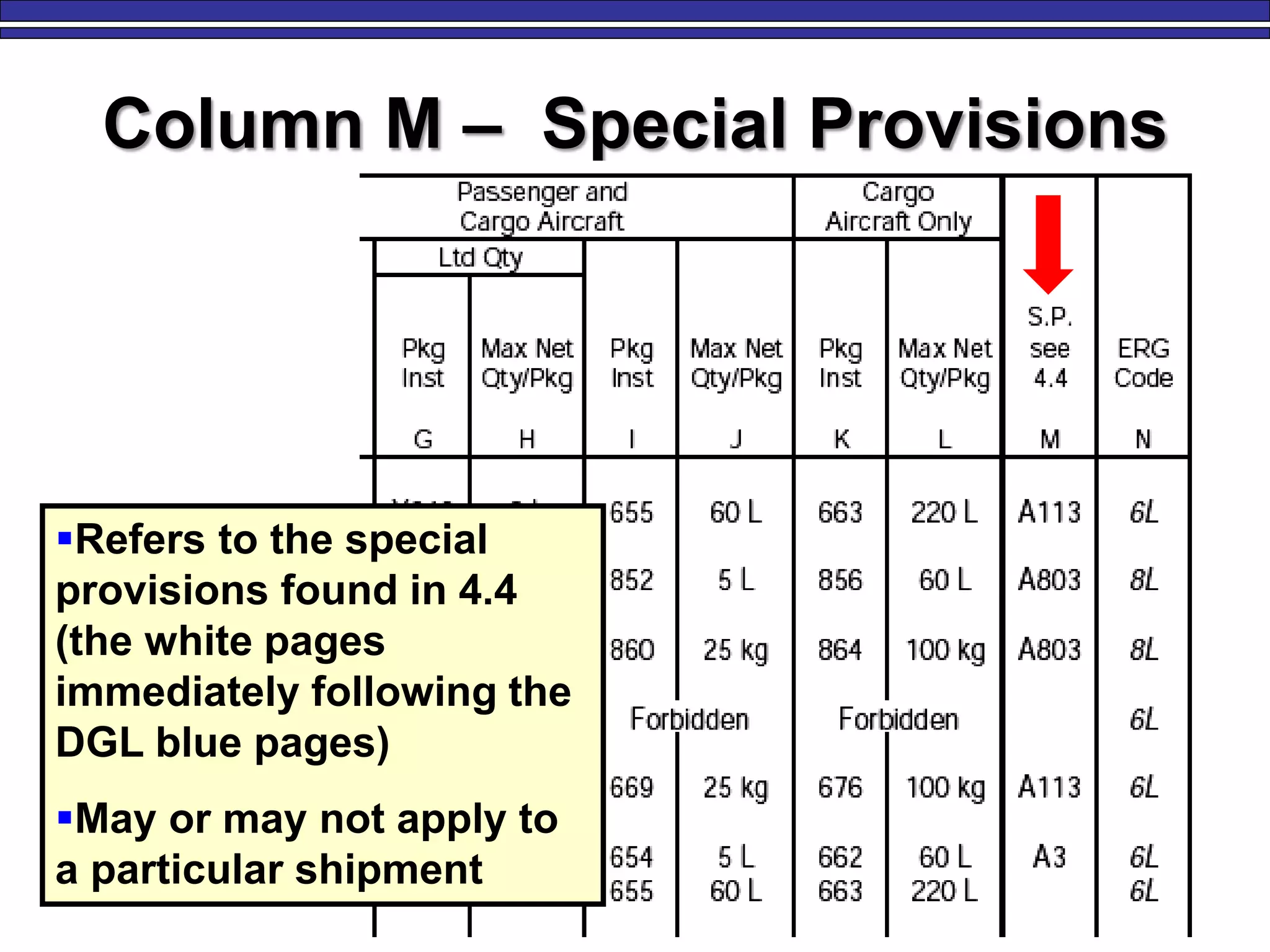

Column M – Special Provisions
Refers to the special
provisions found in 4.4
(the white pages
immediately following the
DGL blue pages)
May or may not apply to
a particular shipment

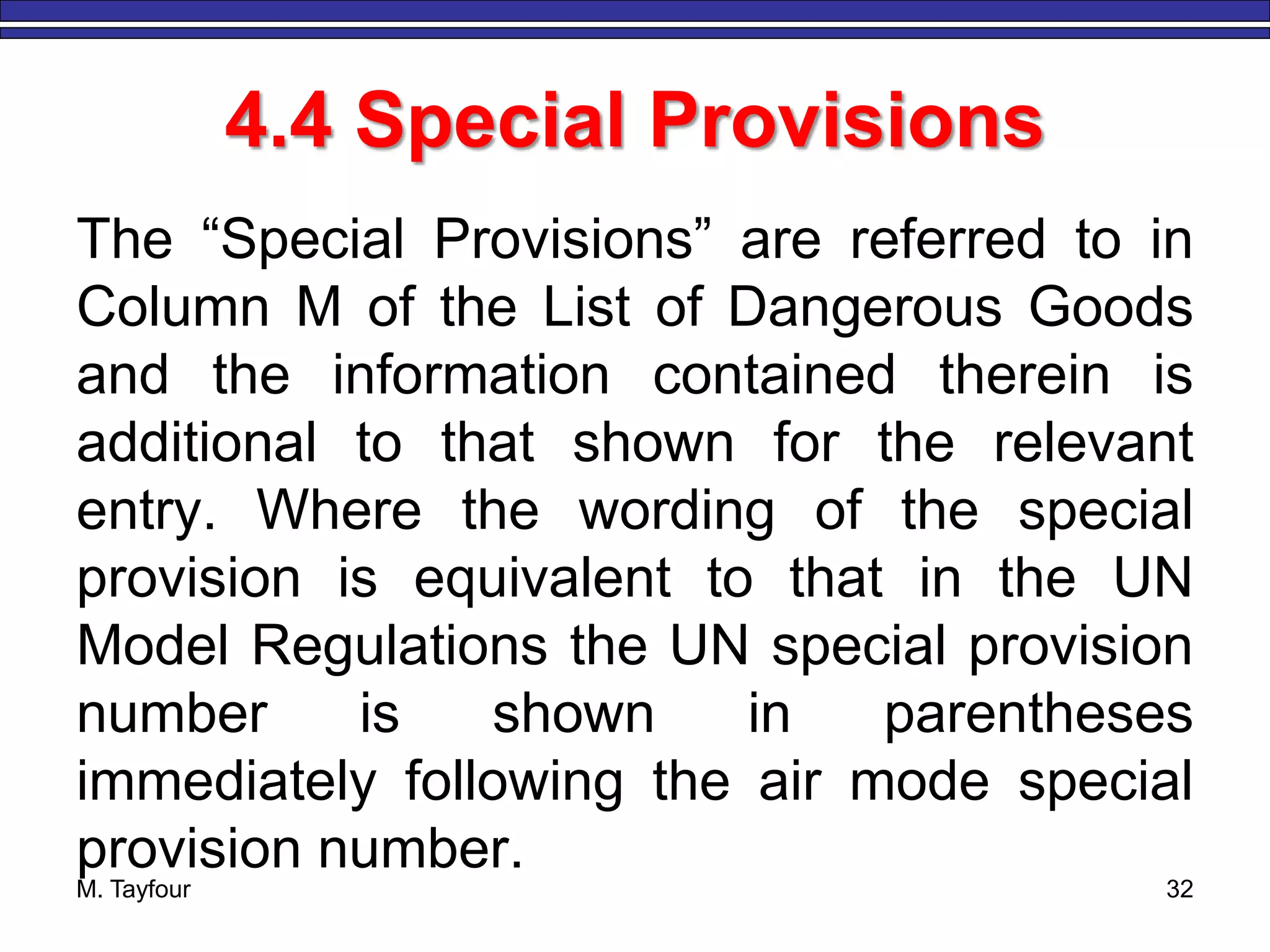

4.4 Special Provisions
The “Special Provisions” are referred to in
Column M of the List of Dangerous Goods
and the information contained therein is
additional to that shown for the relevant
entry. Where the wording of the special
provision is equivalent to that in the UN
Model Regulations the UN special provision
number is shown in parentheses
immediately following the air mode special
provision number.
M. Tayfour 32

33

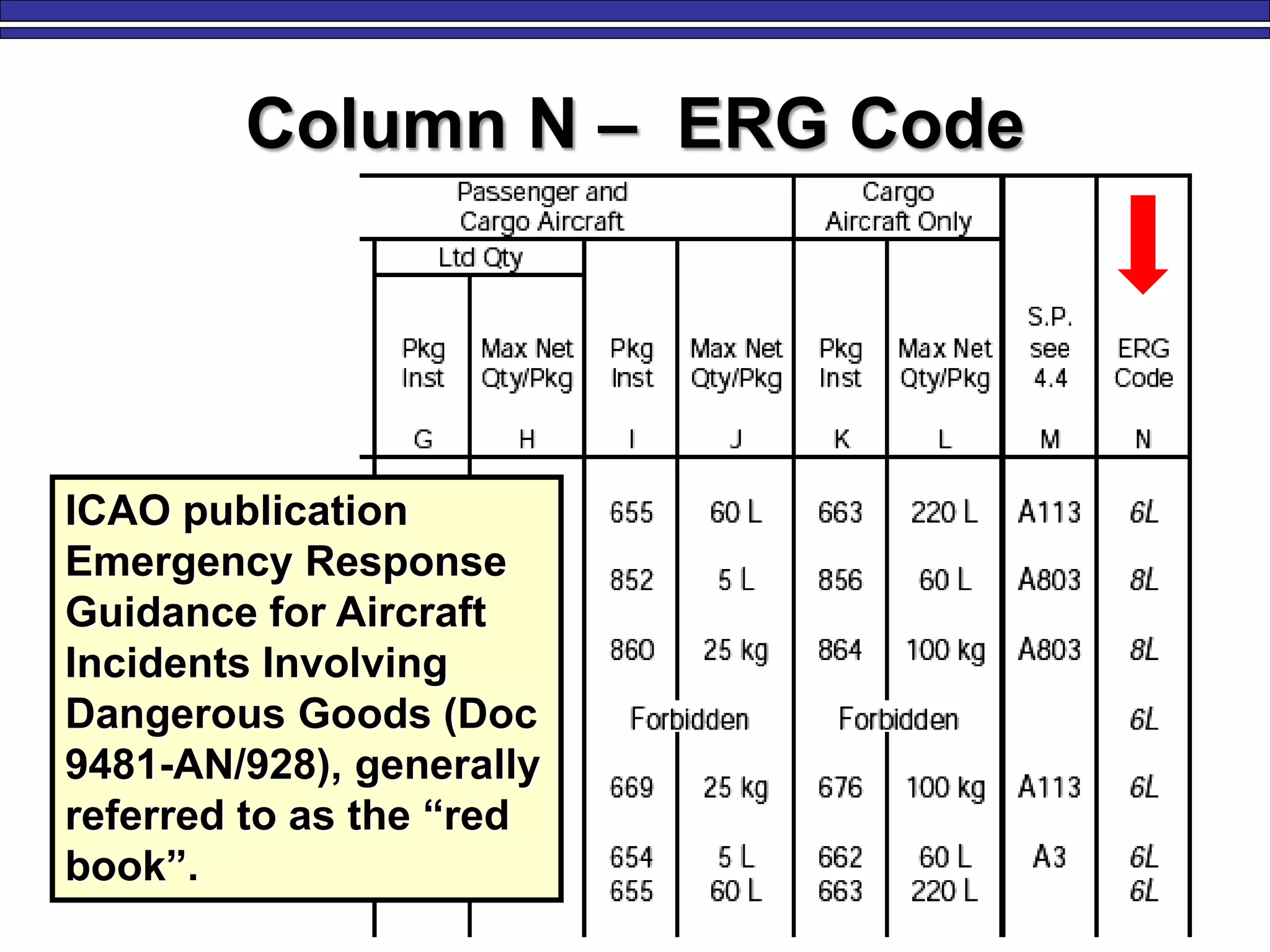

Column N – ERG Code
ICAO publication
Emergency Response
Guidance for Aircraft
Incidents Involving
Dangerous Goods (Doc
9481-AN/928), generally
referred to as the “red
book”.

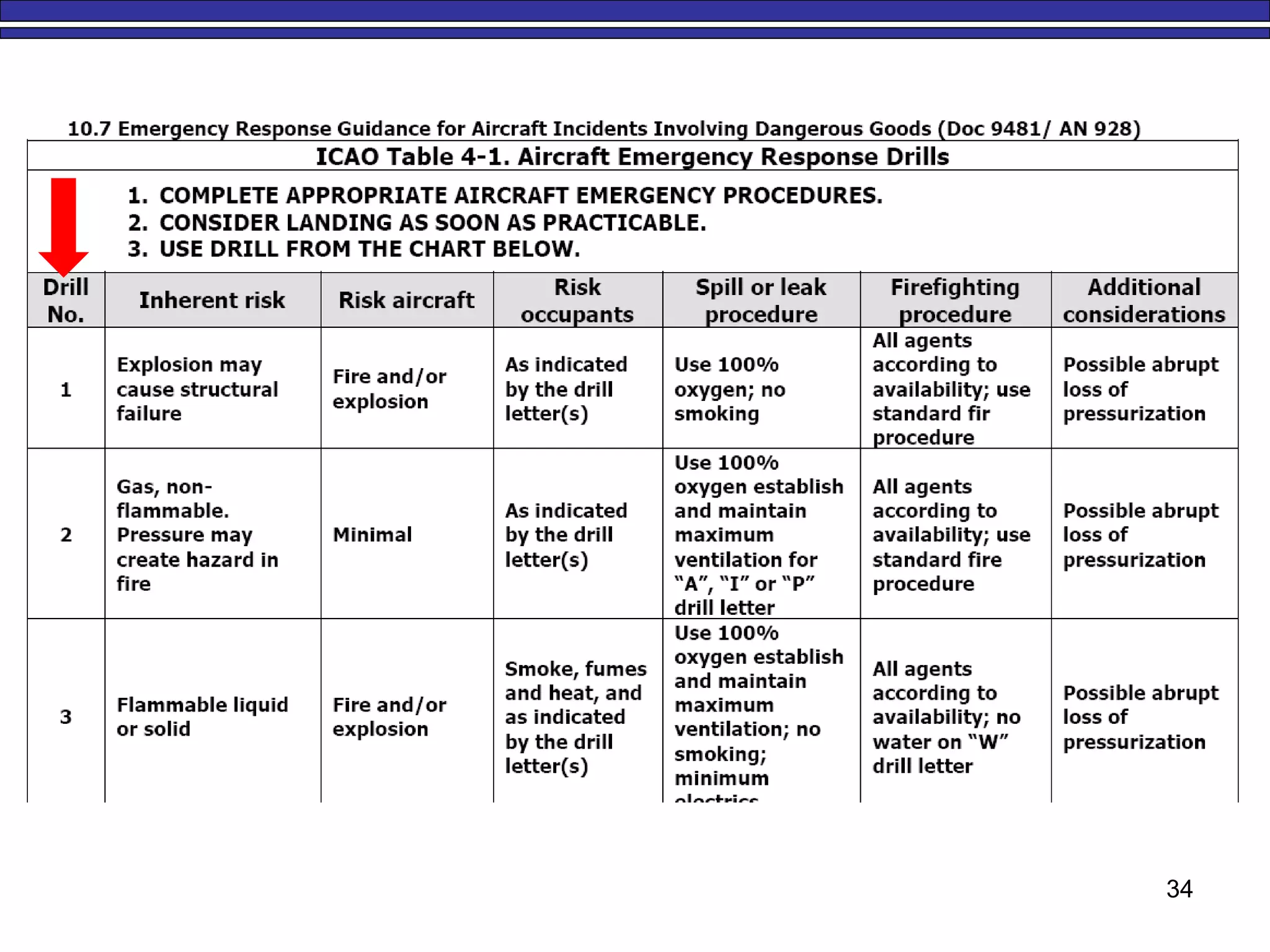

35

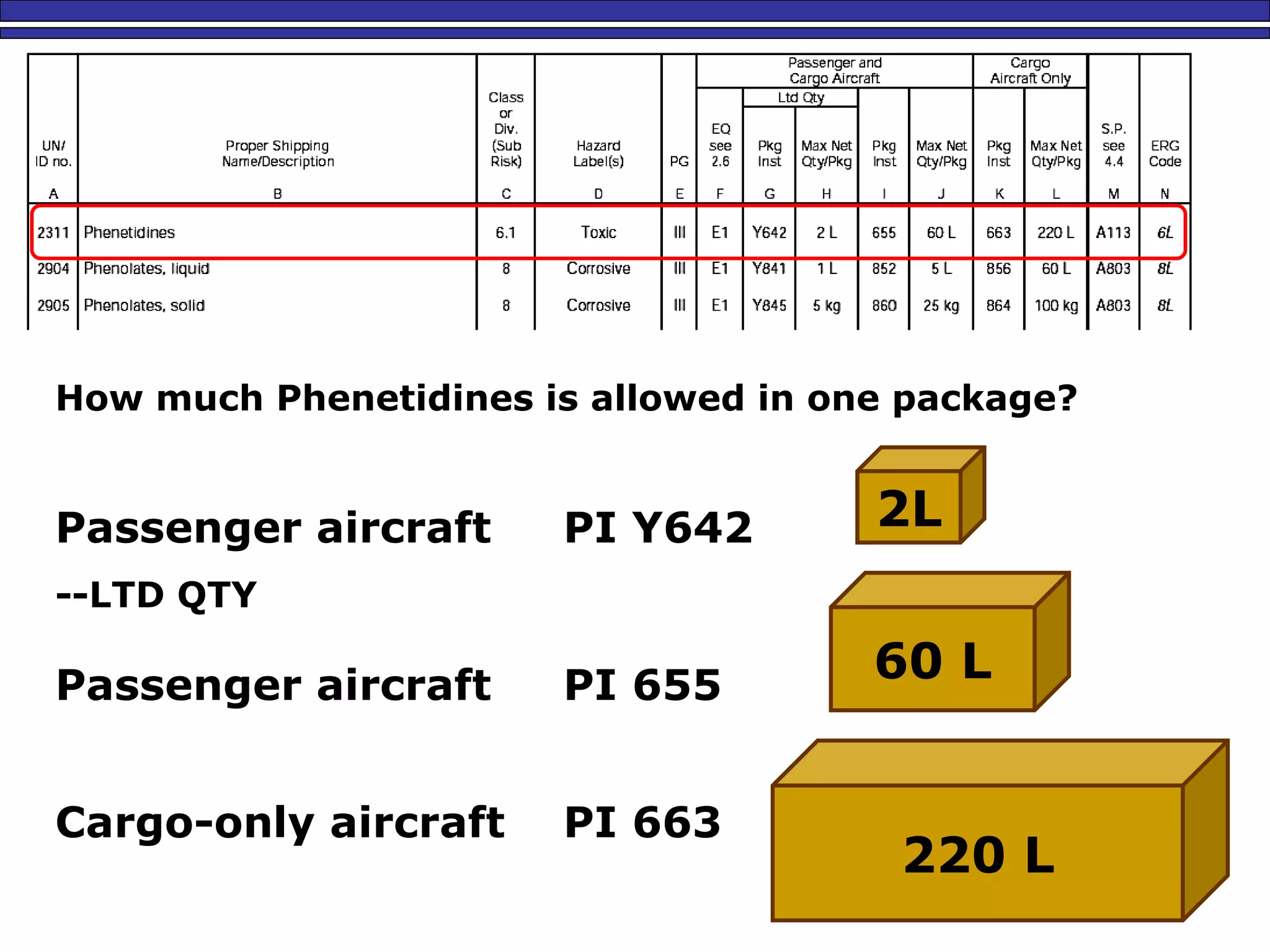

How much Phenetidines is allowed in one package?
Passenger aircraft PI Y642
--LTD QTY
Passenger aircraft PI 655
Cargo-only aircraft PI 663
60 L
2L
220 L

M. Tayfour 36

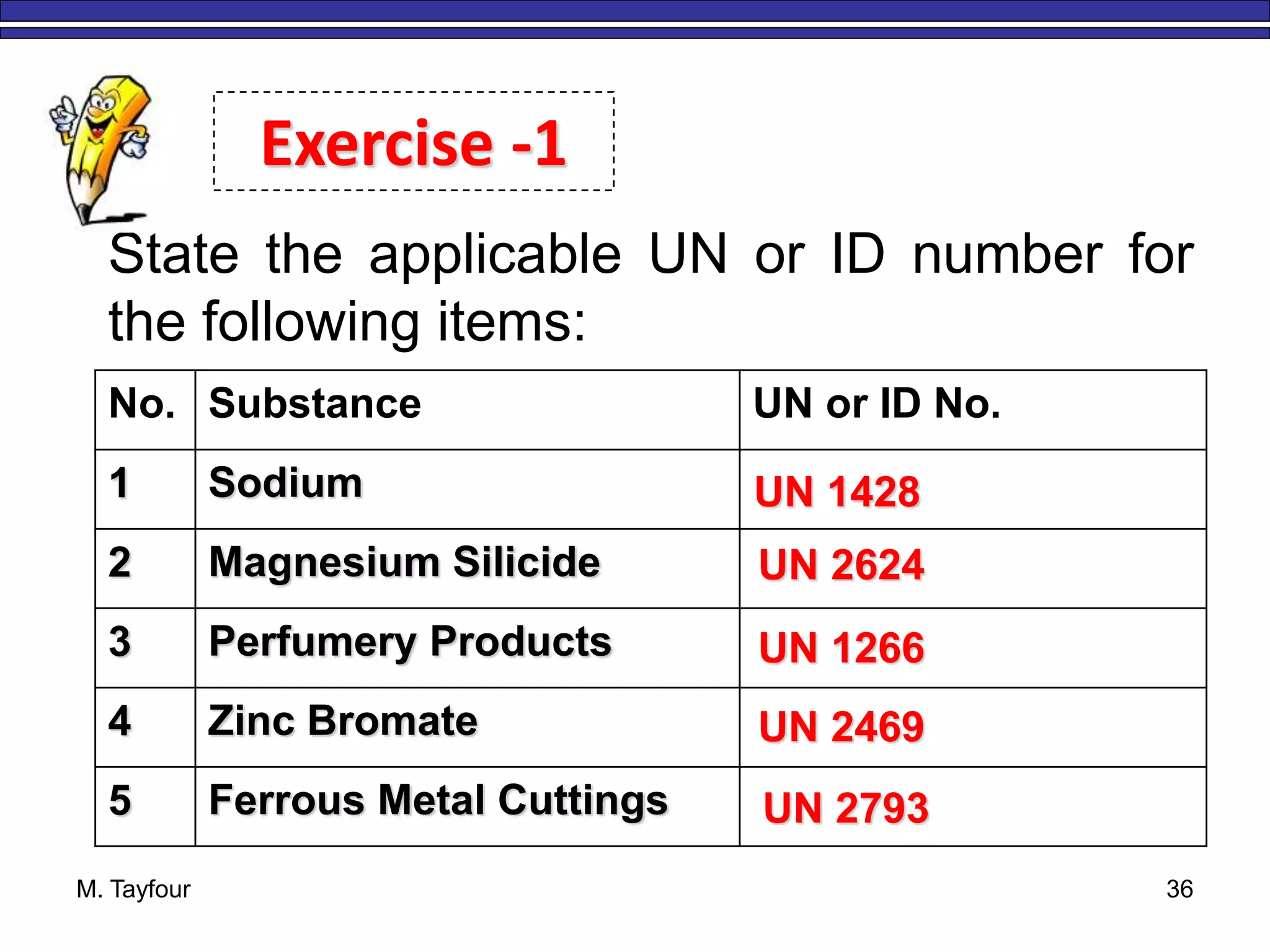

State the applicable UN or ID number for
the following items:
No. Substance UN or ID No.
1 Sodium
2 Magnesium Silicide
3 Perfumery Products
4 Zinc Bromate
5 Ferrous Metal Cuttings
UN 1428
UN 2624
UN 1266
UN 2469
UN 2793
Exercise -1

M. Tayfour 37

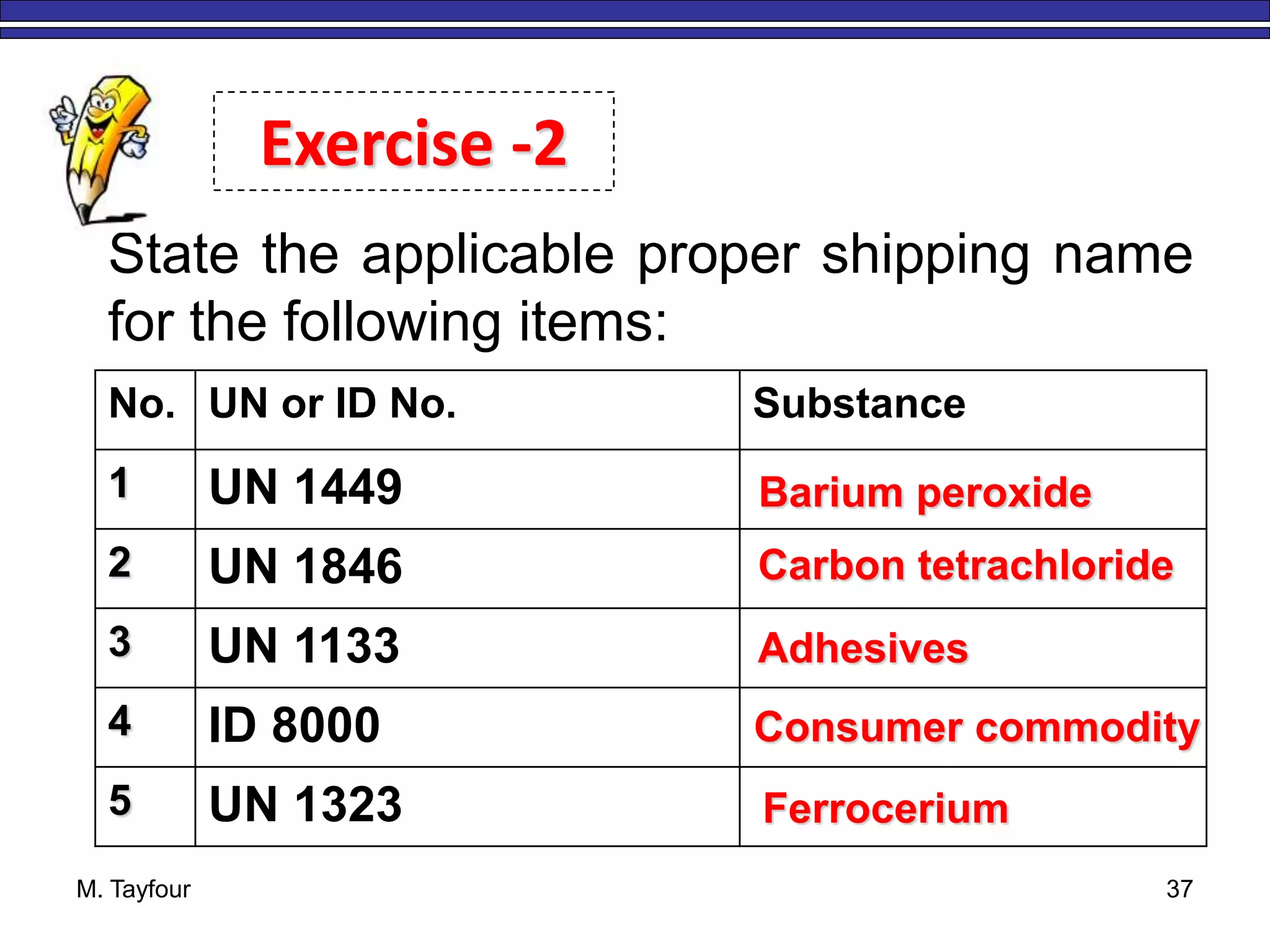

State the applicable proper shipping name
for the following items:
No. UN or ID No. Substance
1 UN 1449
2 UN 1846
3 UN 1133
4 ID 8000
5 UN 1323
Barium peroxide
Carbon tetrachloride
Adhesives
Consumer commodity
Ferrocerium
Exercise -2

M. Tayfour 38

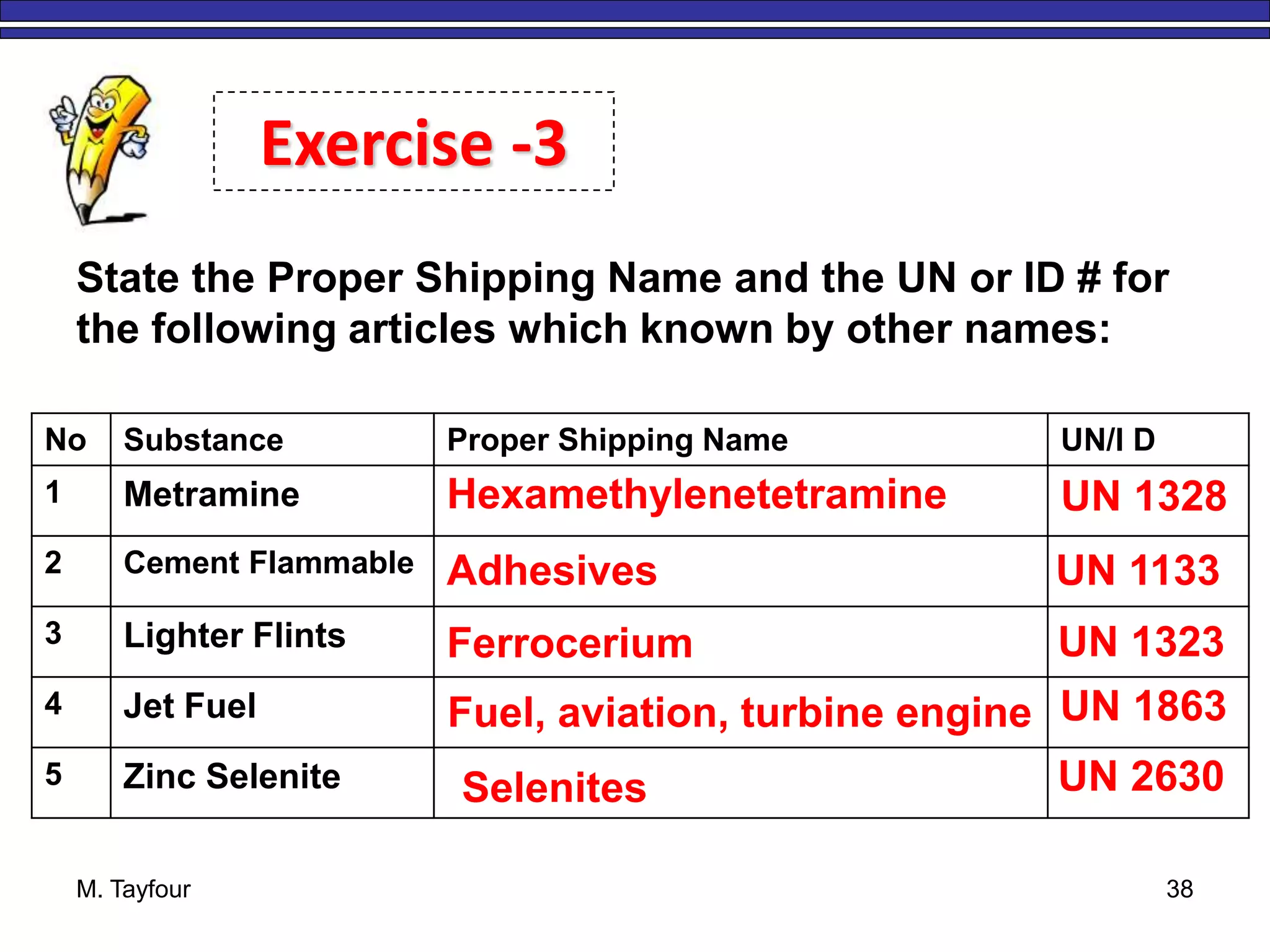

State the Proper Shipping Name and the UN or ID # for
the following articles which known by other names:
Exercise -3
No Substance Proper Shipping Name UN/I D
1 Metramine
2 Cement Flammable
3 Lighter Flints
4 Jet Fuel
5 Zinc Selenite
Hexamethylenetetramine
Adhesives
Ferrocerium
Fuel, aviation, turbine engine
Selenites
UN 1328
UN 1133
UN 1323
UN 1863
UN 2630

M. Tayfour 39

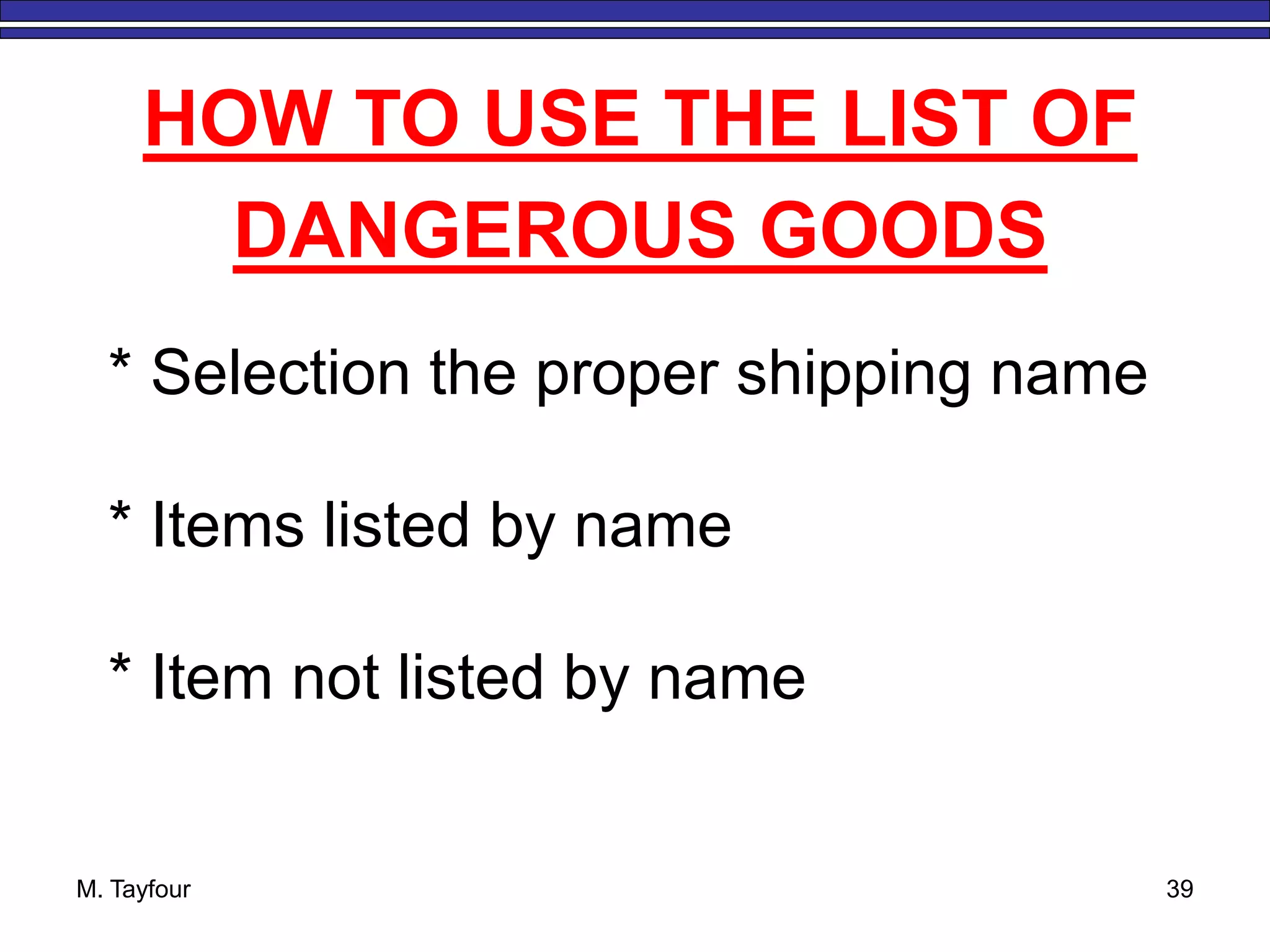

HOW TO USE THE LIST OF
DANGEROUS GOODS
* Selection the proper shipping name
* Items listed by name
* Item not listed by name

M. Tayfour 40

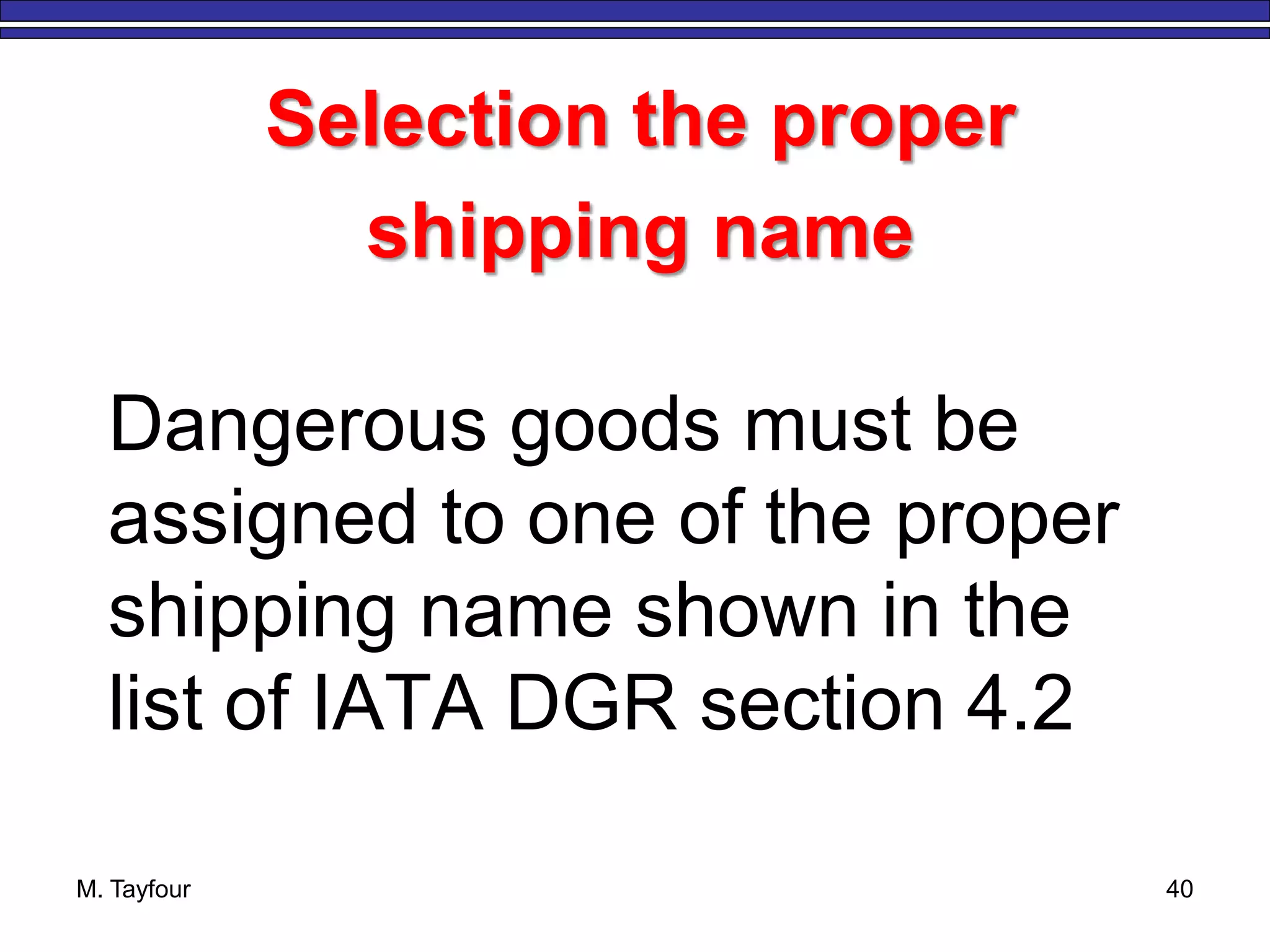

Selection the proper
shipping name
Dangerous goods must be
assigned to one of the proper
shipping name shown in the
list of IATA DGR section 4.2

M. Tayfour 41

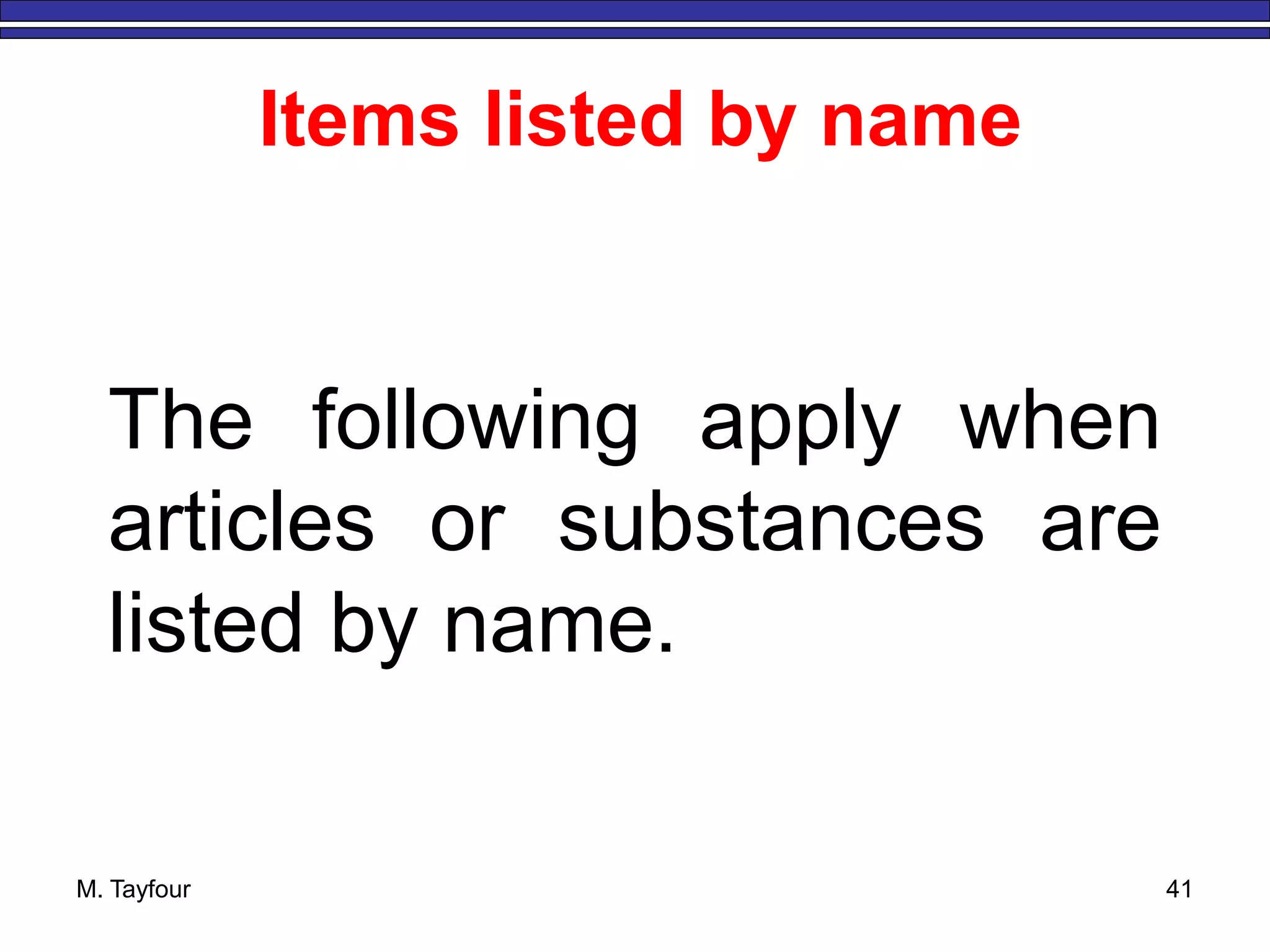

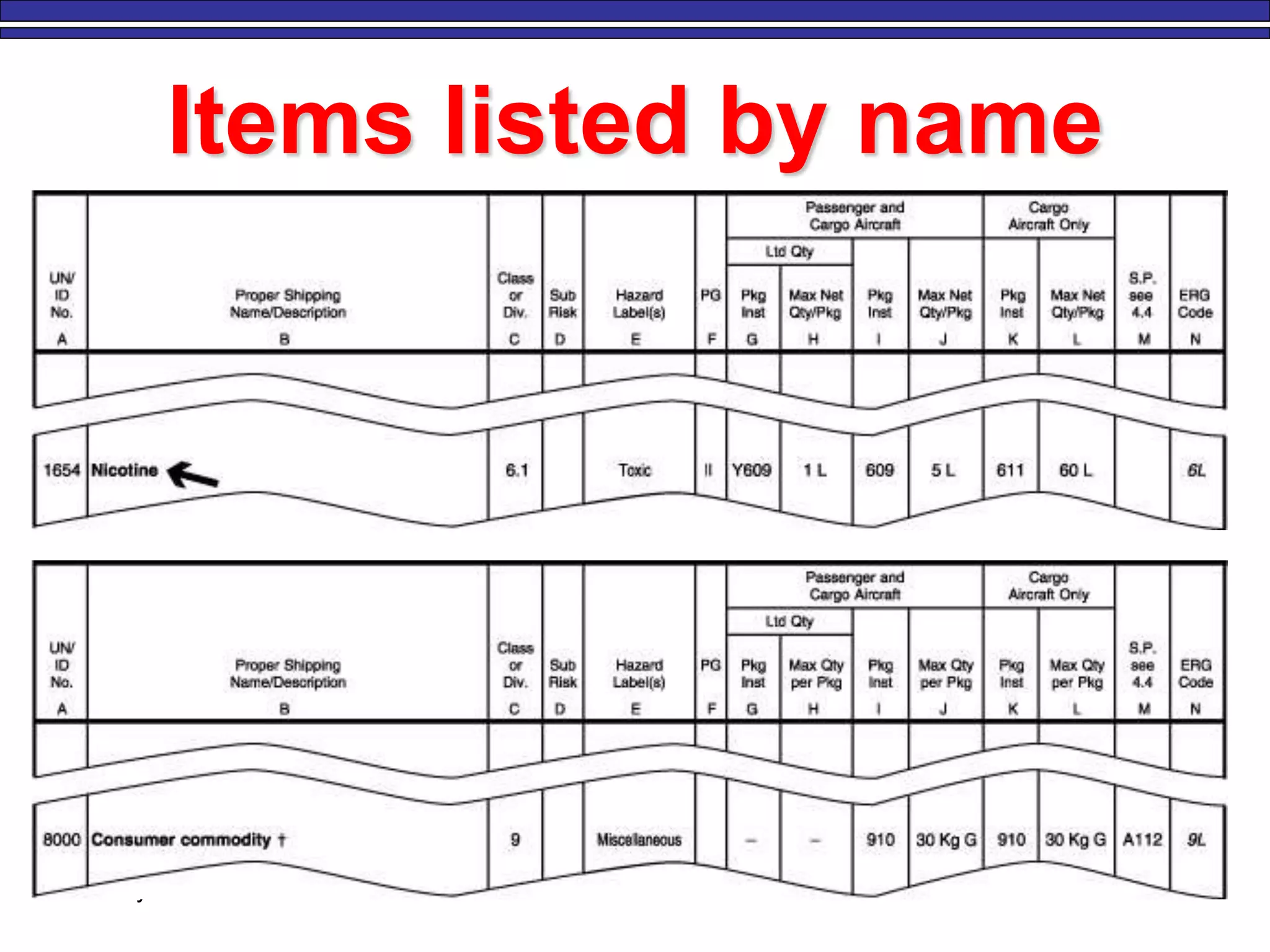

Items listed by name
The following apply when
articles or substances are
listed by name.

Items listed by name
M. Tayfour 42

M. Tayfour 43

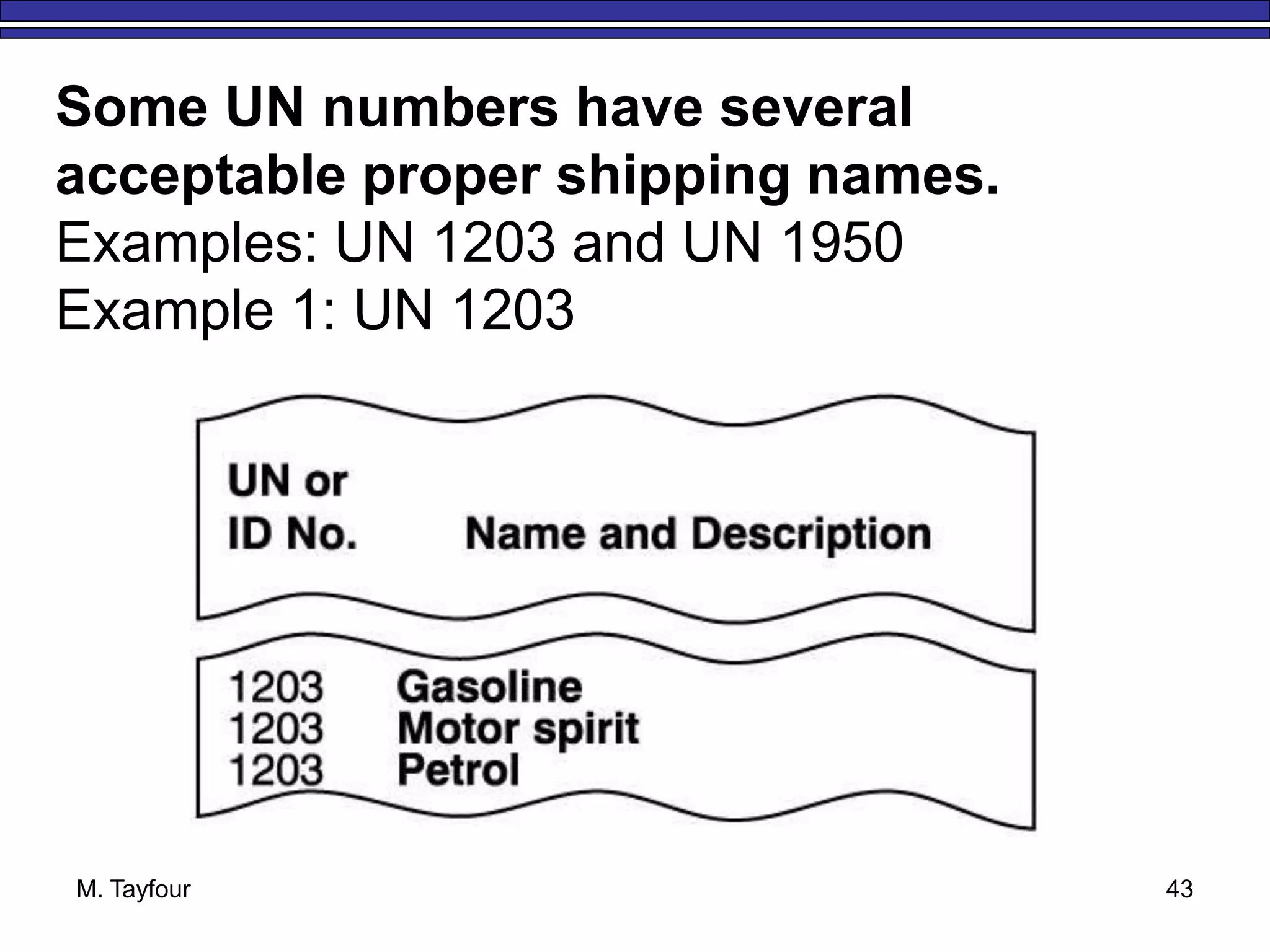

Some UN numbers have several
acceptable proper shipping names.
Examples: UN 1203 and UN 1950
Example 1: UN 1203

M. Tayfour 44
The proper shipping name for UN 1203 is,
therefore, either: Gasoline, Motor Spirit or Petrol.

M. Tayfour 45

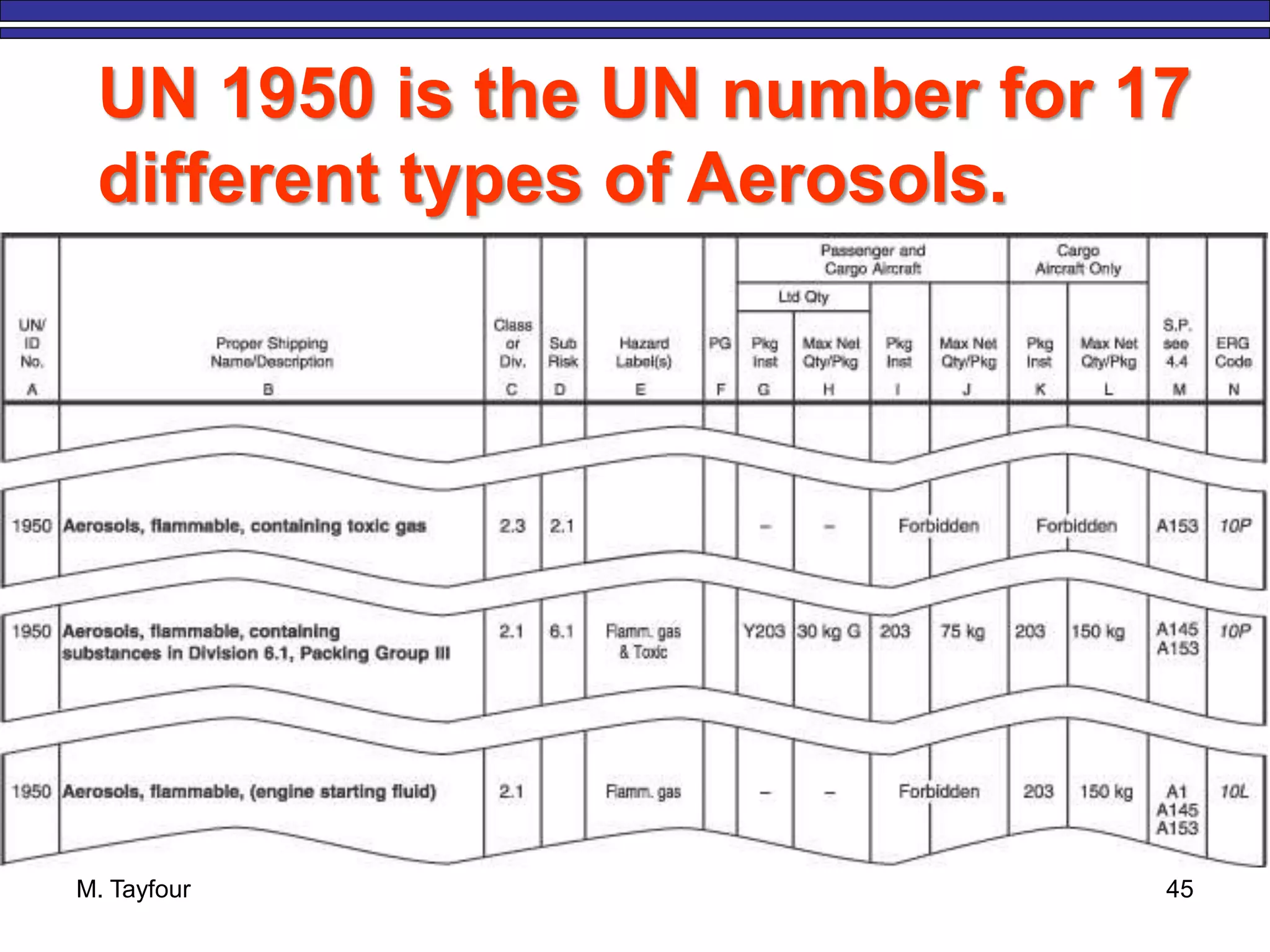

UN 1950 is the UN number for 17
different types of Aerosols.

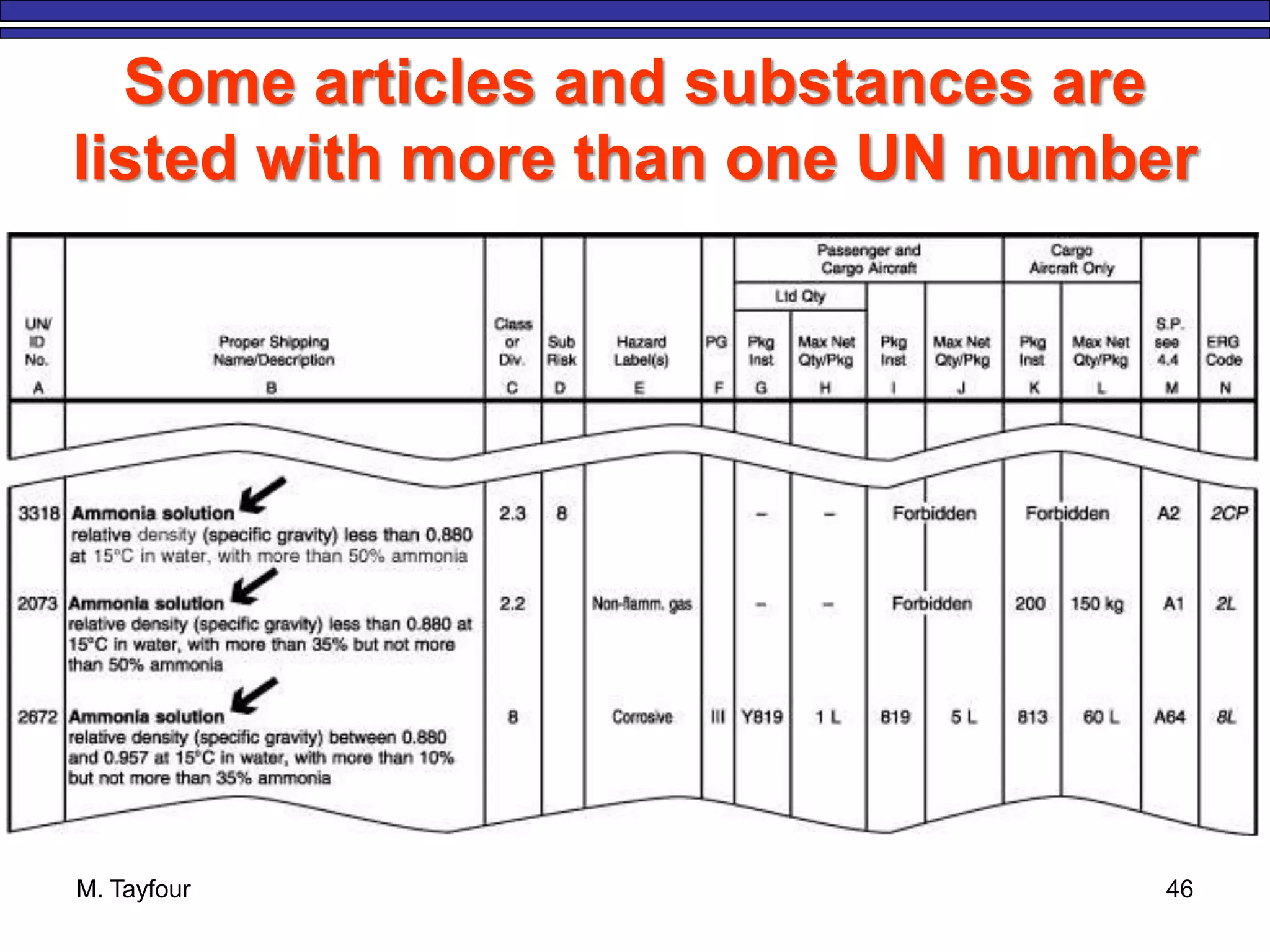

Some articles and substances are
listed with more than one UN number
M. Tayfour 46

M. Tayfour 47

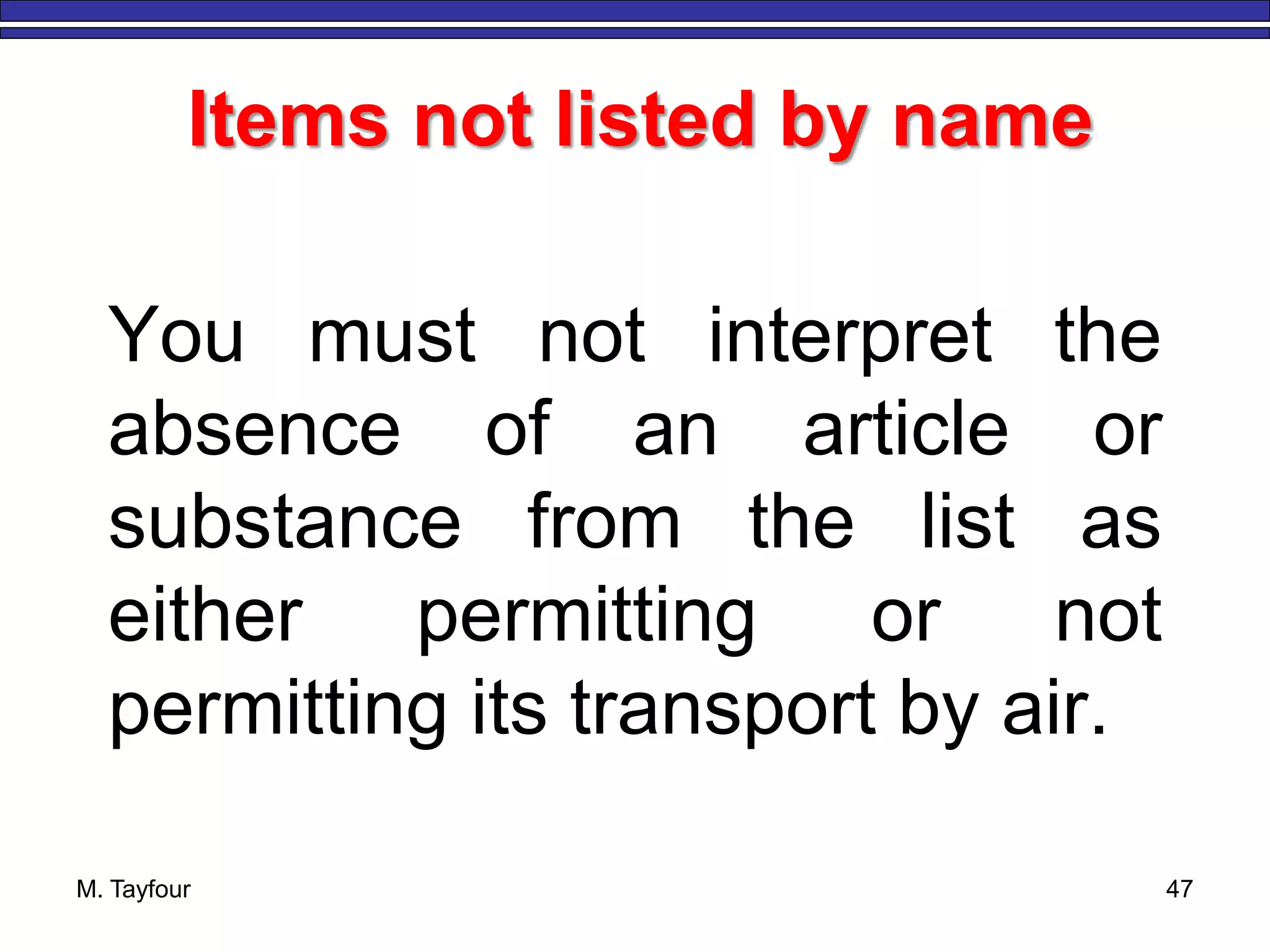

Items not listed by name
You must not interpret the
absence of an article or
substance from the list as
either permitting or not
permitting its transport by air.

M. Tayfour 48

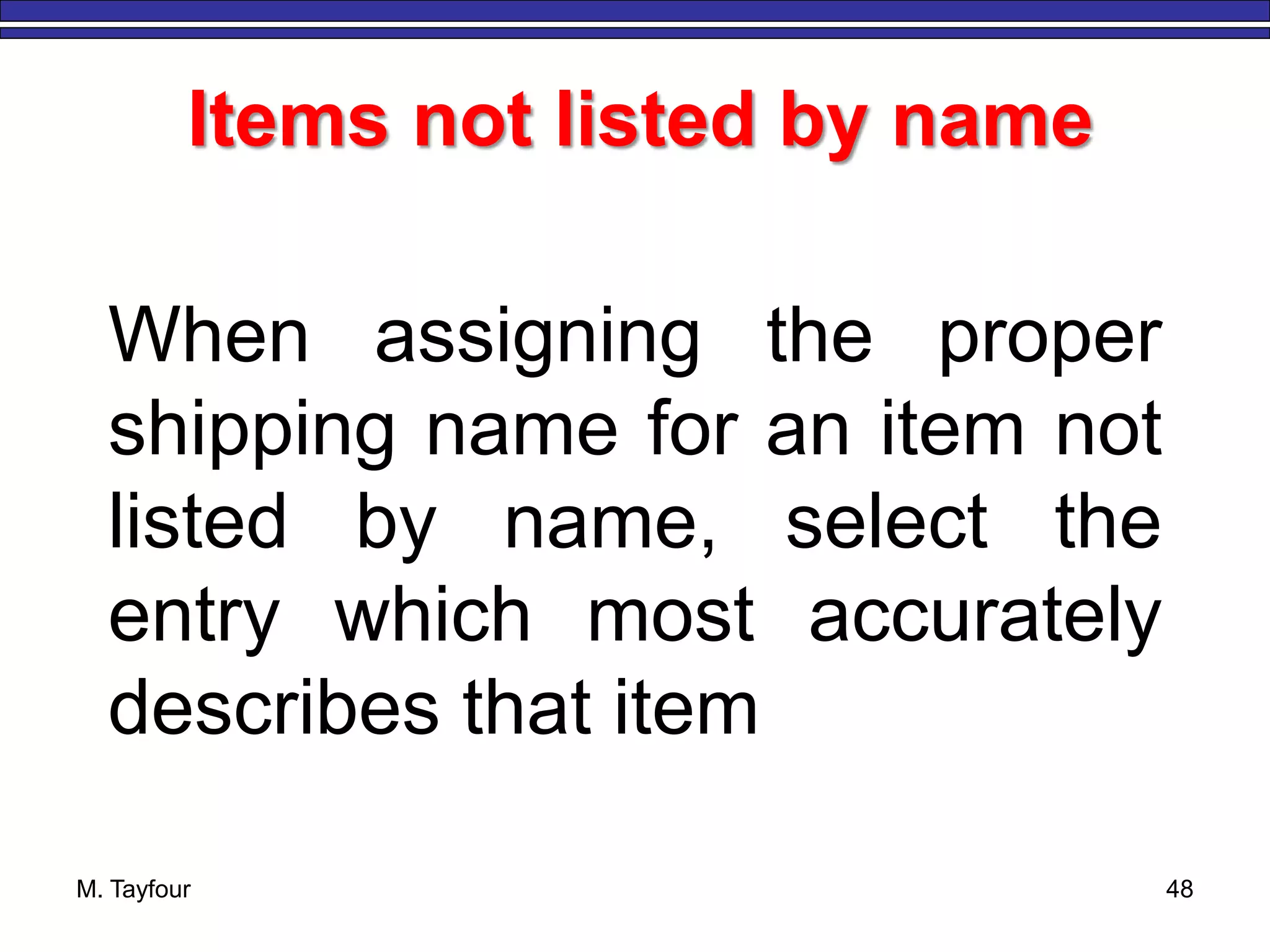

When assigning the proper
shipping name for an item not
listed by name, select the
entry which most accurately
describes that item

M. Tayfour 49

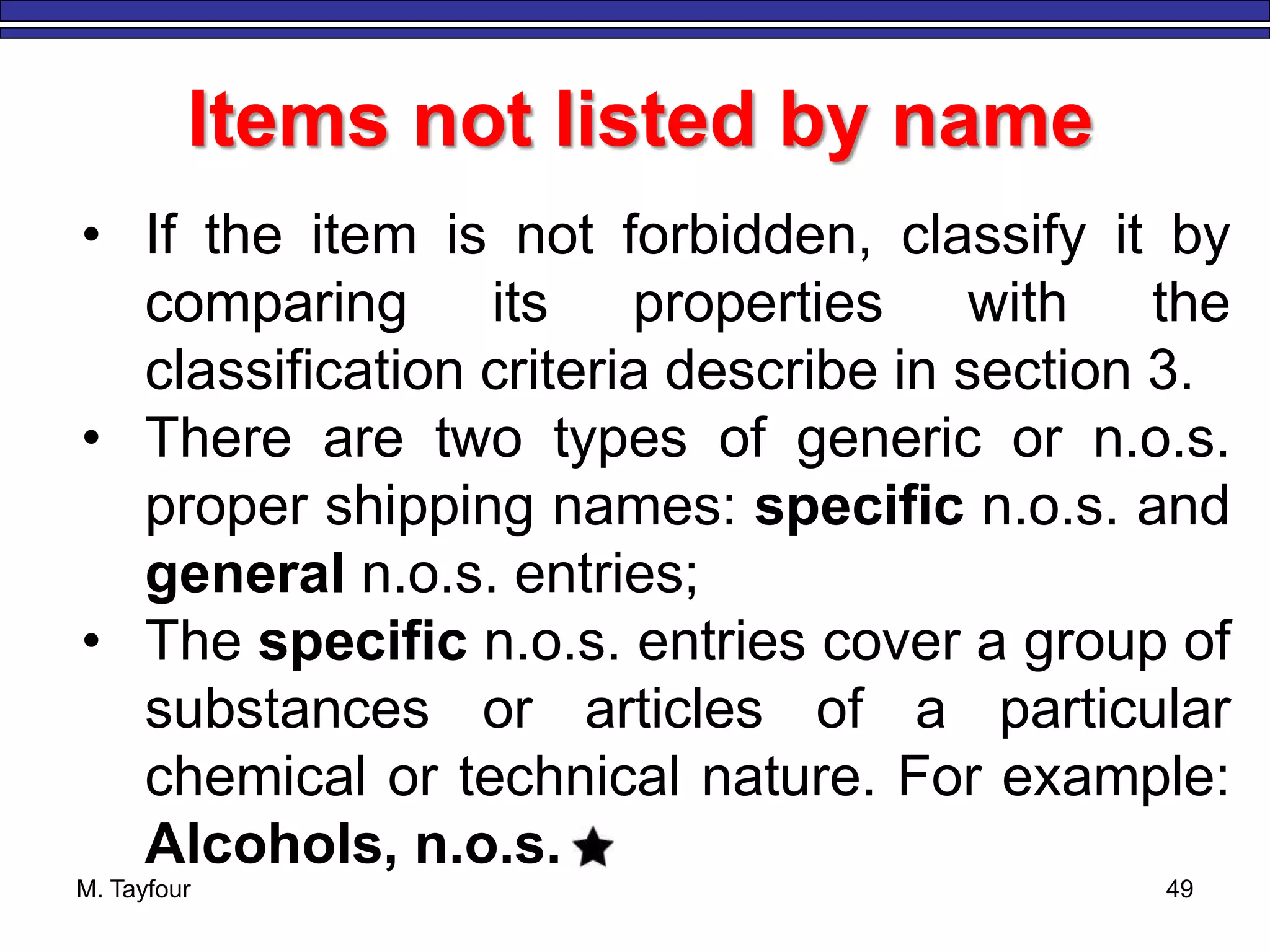

• If the item is not forbidden, classify it by
comparing its properties with the
classification criteria describe in section 3.
• There are two types of generic or n.o.s.
proper shipping names: specific n.o.s. and
general n.o.s. entries;
• The specific n.o.s. entries cover a group of
substances or articles of a particular
chemical or technical nature. For example:
Alcohols, n.o.s.

M. Tayfour 50

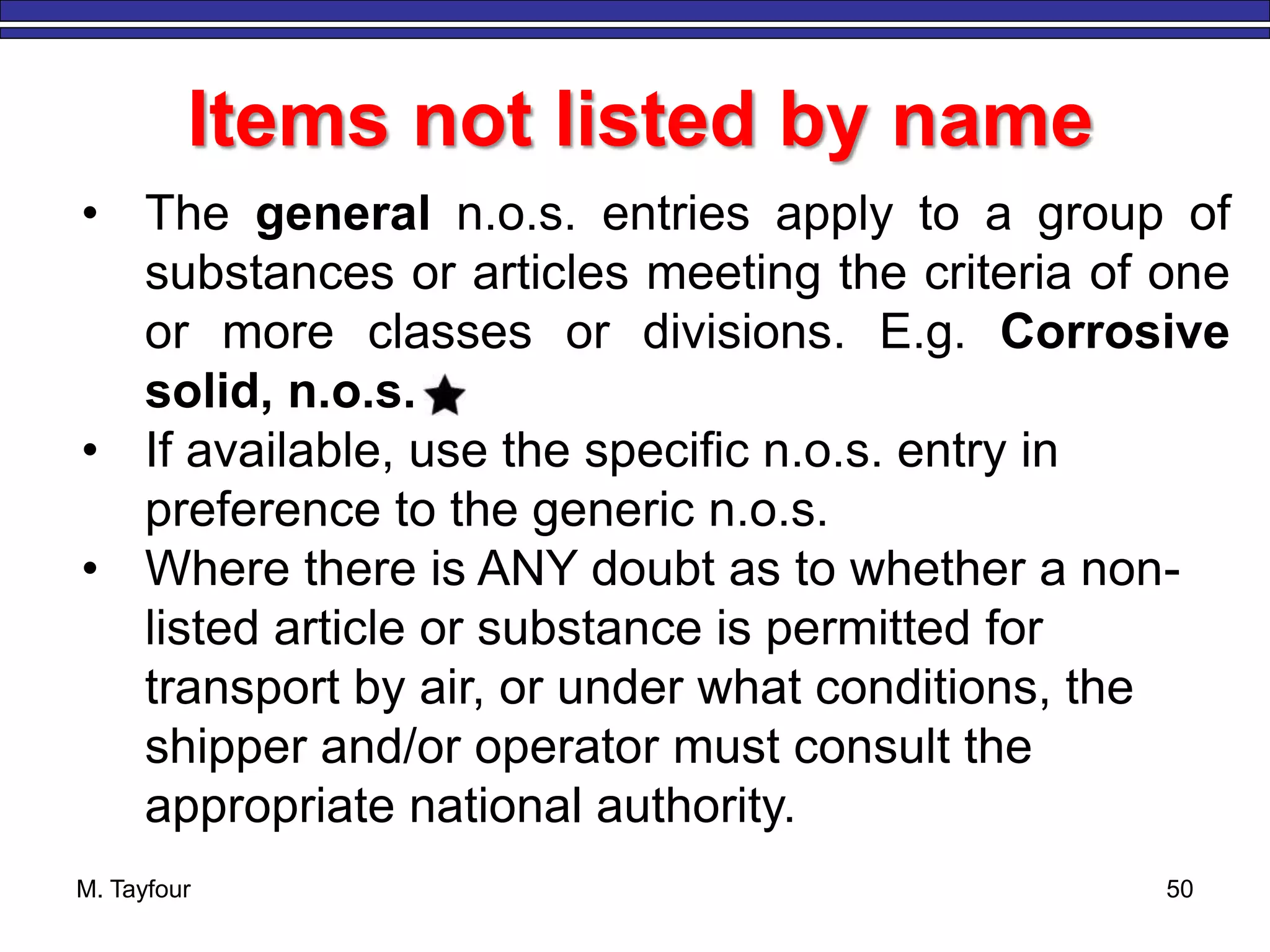

• The general n.o.s. entries apply to a group of
substances or articles meeting the criteria of one
or more classes or divisions. E.g. Corrosive
solid, n.o.s.
• If available, use the specific n.o.s. entry in
preference to the generic n.o.s.
• Where there is ANY doubt as to whether a non-
listed article or substance is permitted for
transport by air, or under what conditions, the
shipper and/or operator must consult the
appropriate national authority.

M. Tayfour 51

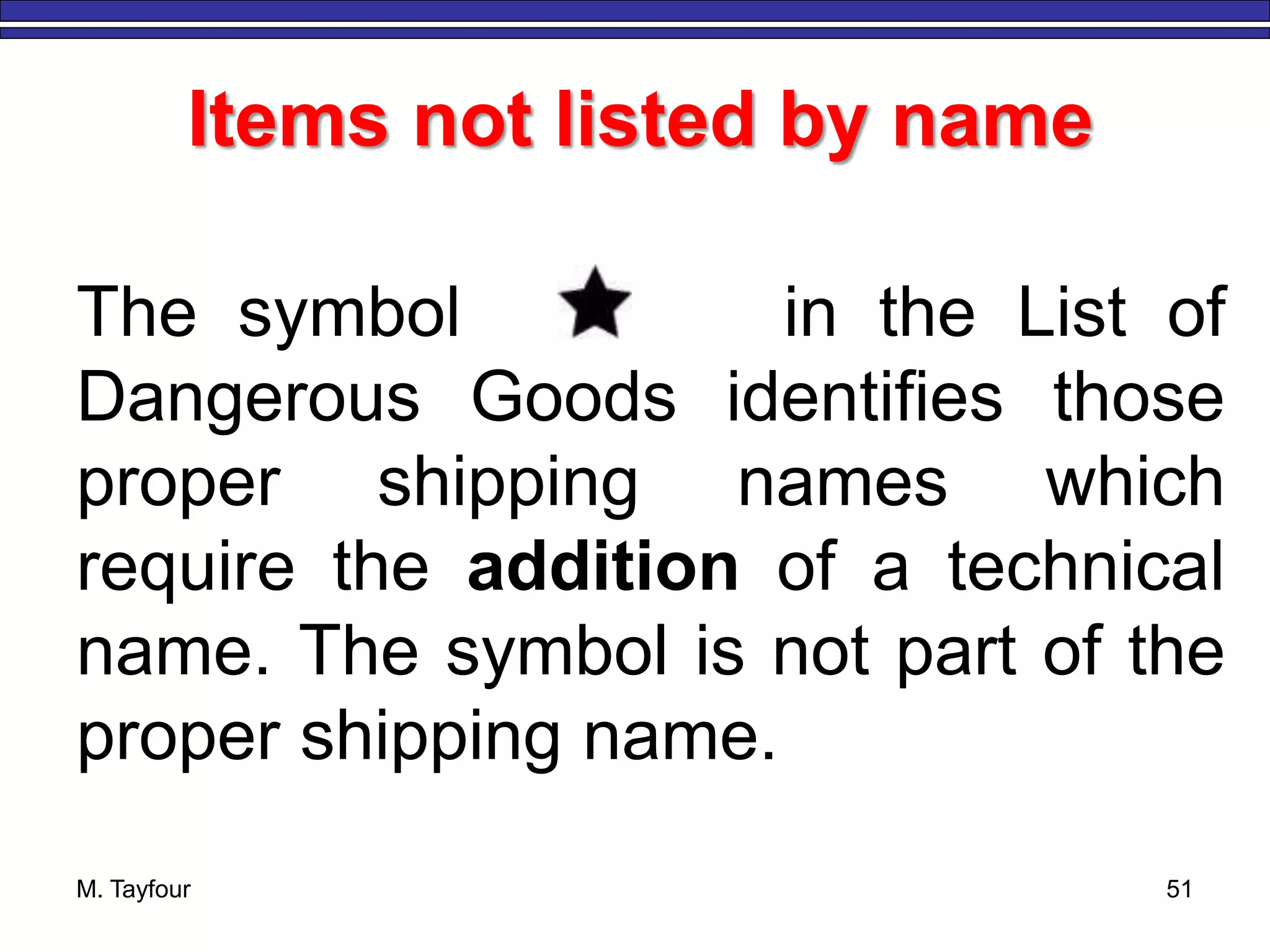

The symbol in the List of
Dangerous Goods identifies those
proper shipping names which
require the addition of a technical
name. The symbol is not part of the
proper shipping name.

M. Tayfour 52

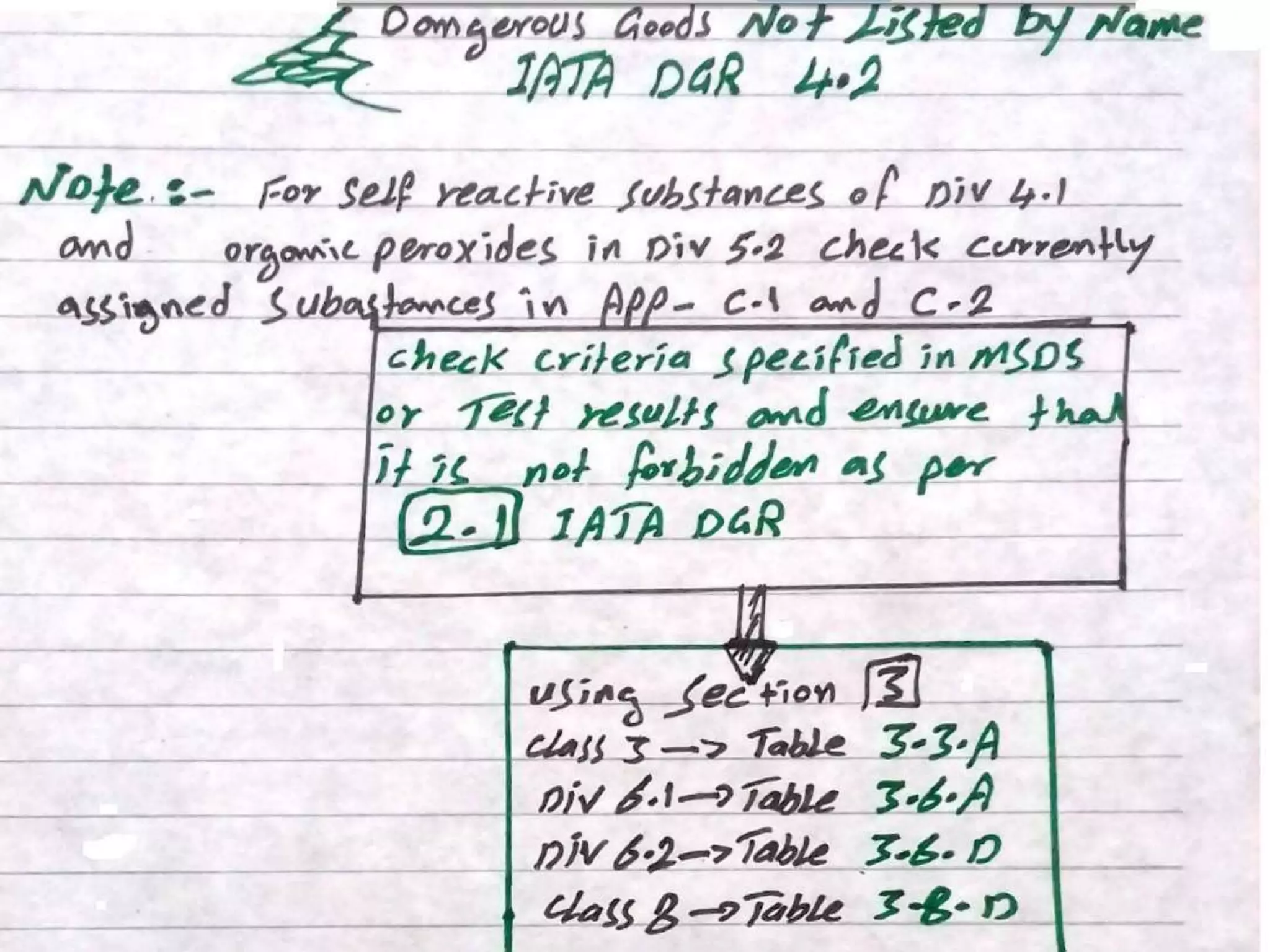

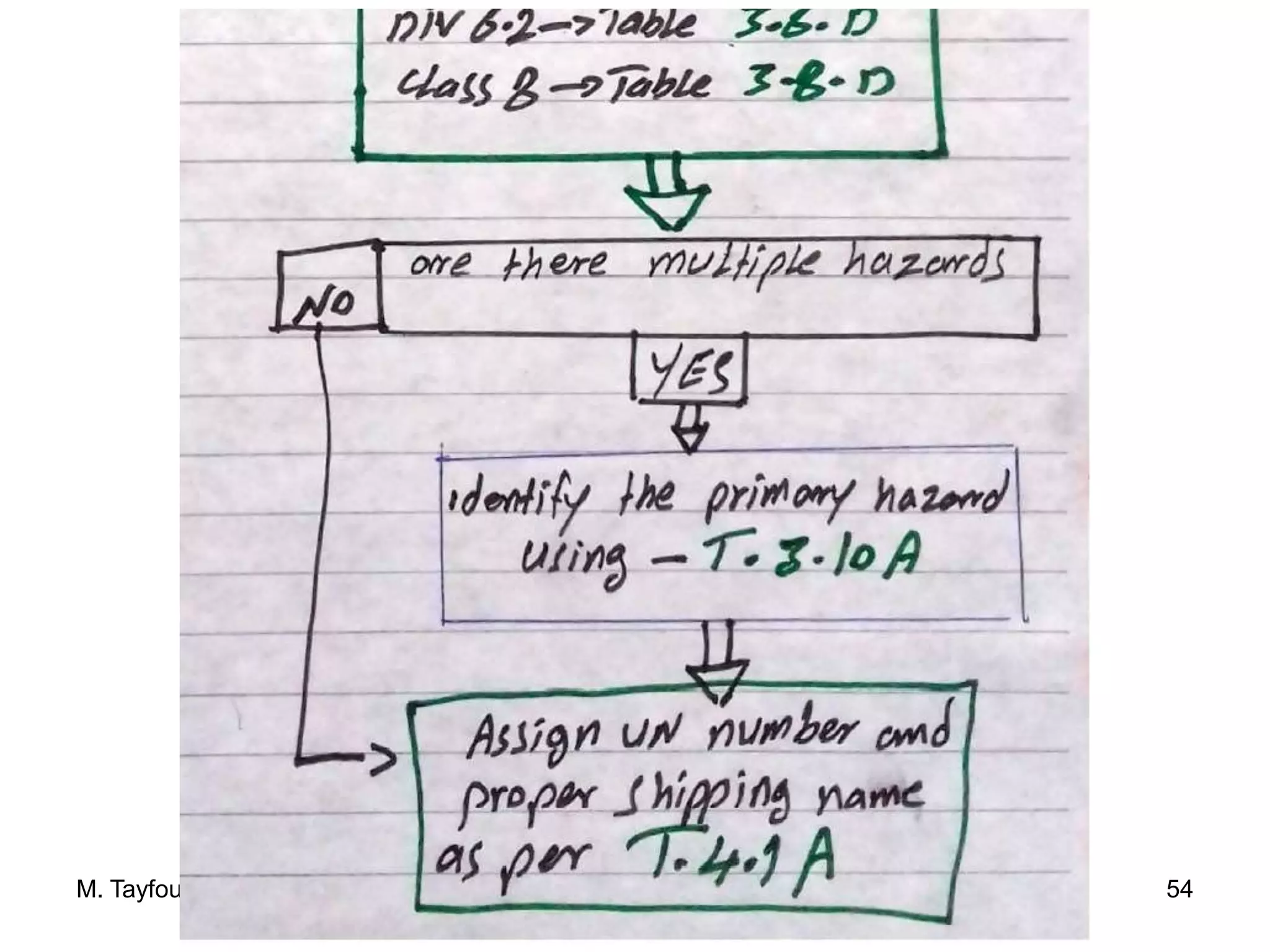

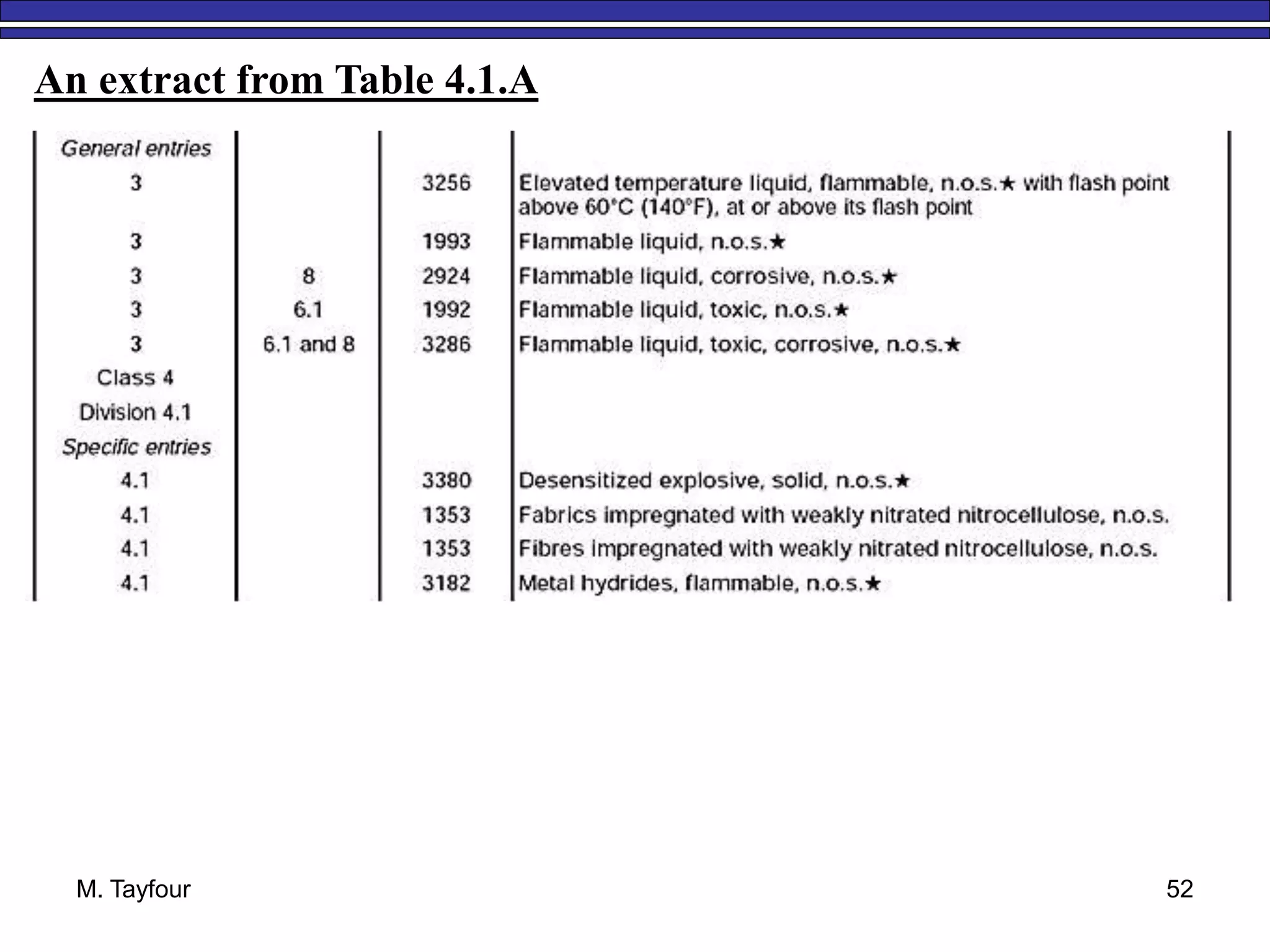

An extract from Table 4.1.A

M. Tayfour 55
How to allocate Proper Shipping Name & UN Number
Example 1 – (Specific Entries)
Methyl propanoate, is an Ether with a flash point of -2°C and an initial boiling point of
80oC and is not listed in IATA DGR 4.2
STEP 1 Determine the characteristics of the substance (using Material Safety
Data Sheet (MSDS), test results, flash point, boiling point etc.) Flash
point -2°C; initial boiling point 80°C
STEP 2 Check if forbidden: According to IATA DGR 2.1.1 and 4.2 – (Not
forbidden)
STEP 3 Classify the substance: Class 3 Packing Group II
STEP 4 Assign the proper shipping name that most accurately describes the
substance using Table 4.1.A

M. Tayfour 56
“

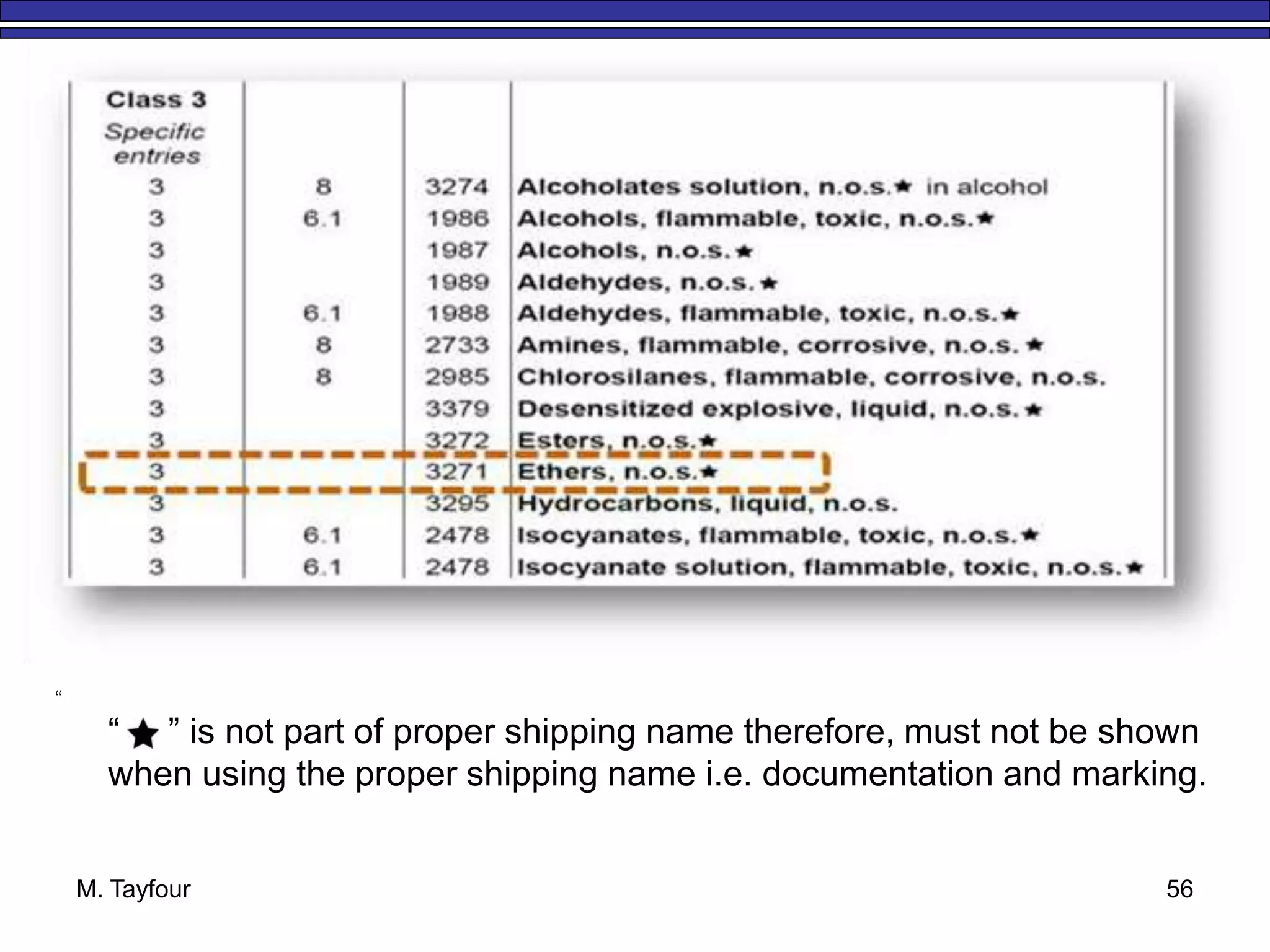

“ ” is not part of proper shipping name therefore, must not be shown
when using the proper shipping name i.e. documentation and marking.

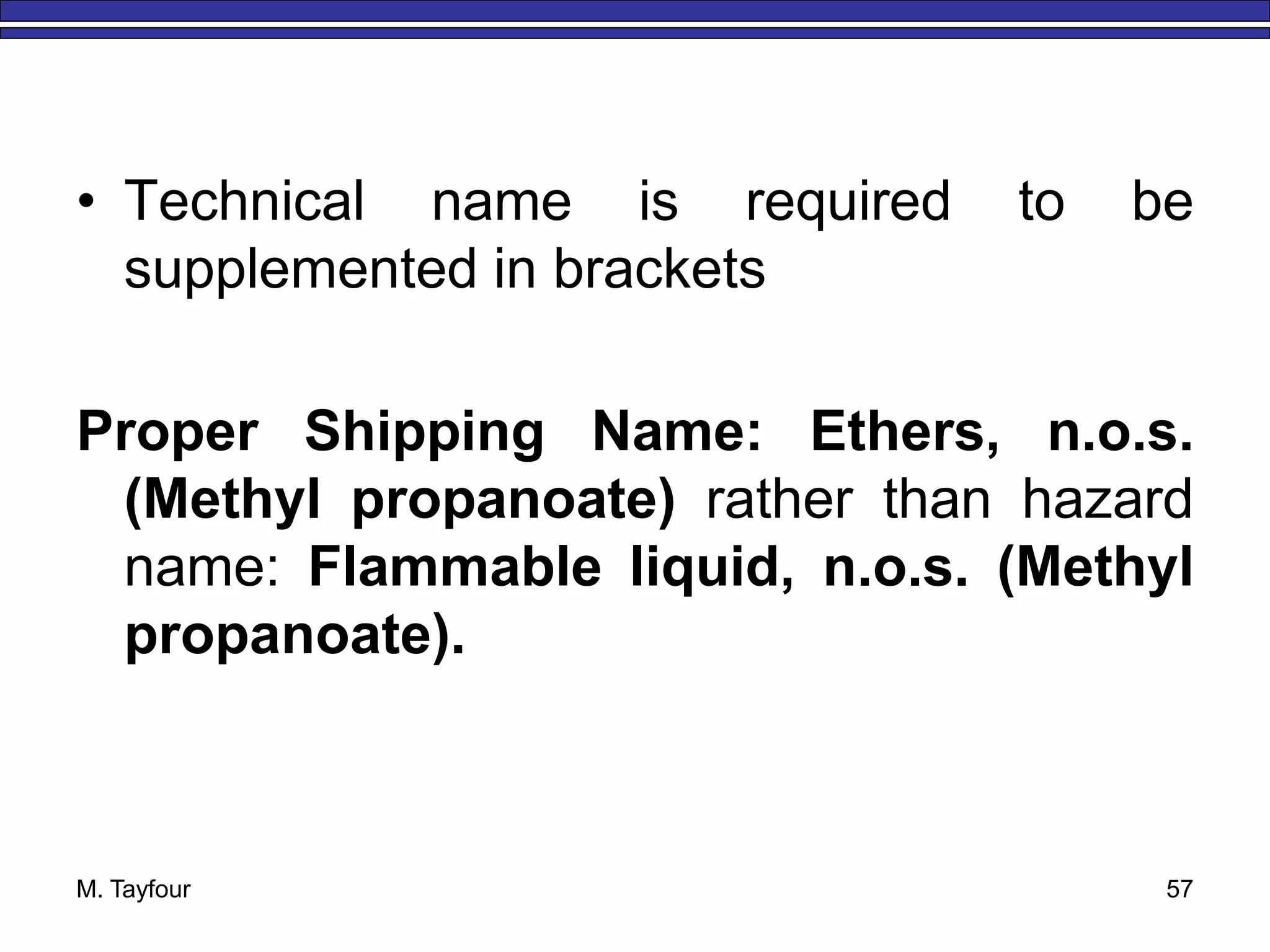

• Technical name is required to be
supplemented in brackets
Proper Shipping Name: Ethers, n.o.s.
(Methyl propanoate) rather than hazard
name: Flammable liquid, n.o.s. (Methyl
propanoate).
M. Tayfour 57

M. Tayfour 58

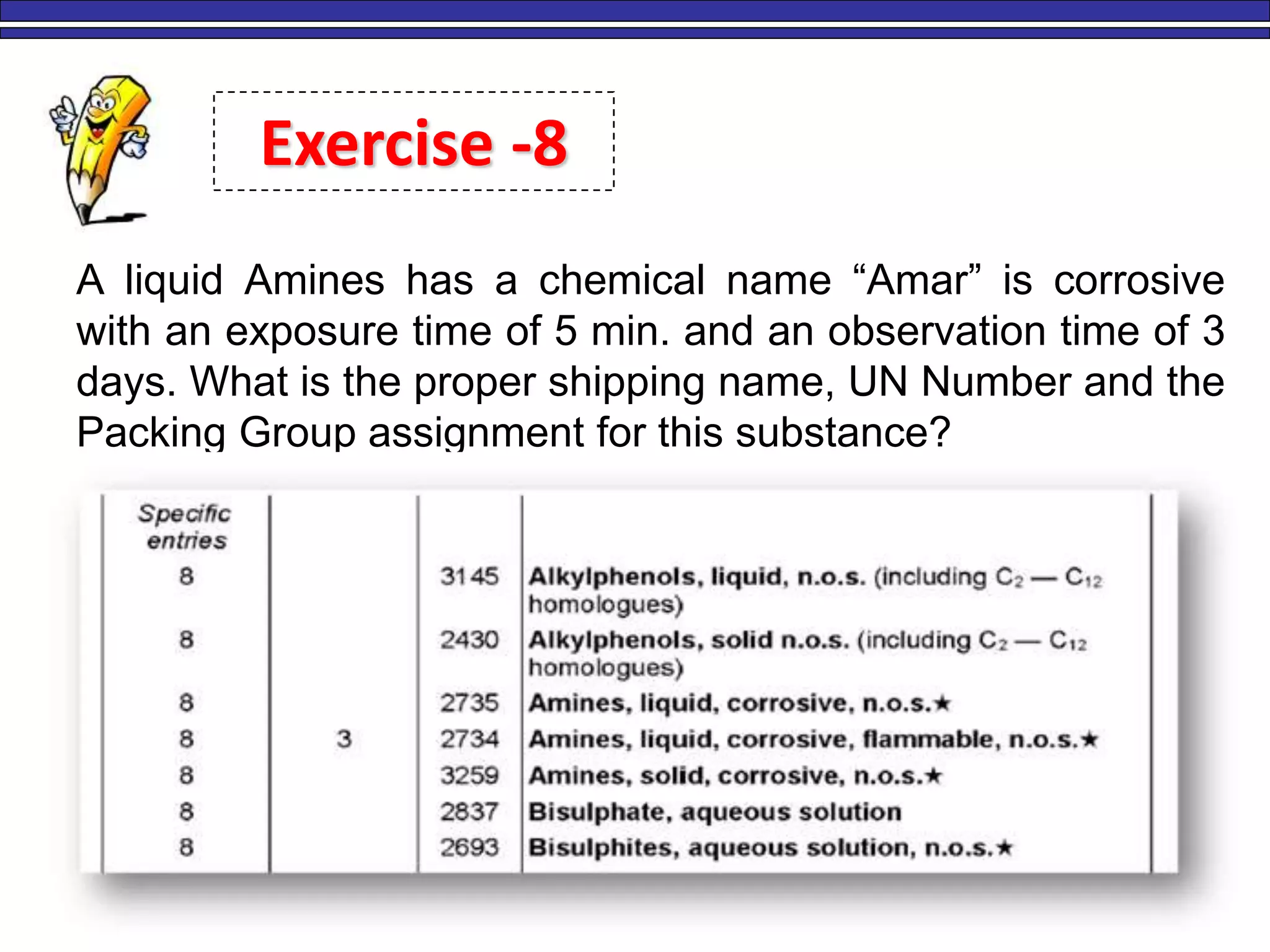

A liquid Amines has a chemical name “Amar” is corrosive
with an exposure time of 5 min. and an observation time of 3
days. What is the proper shipping name, UN Number and the
Packing Group assignment for this substance?
Exercise -8

M. Tayfour 59

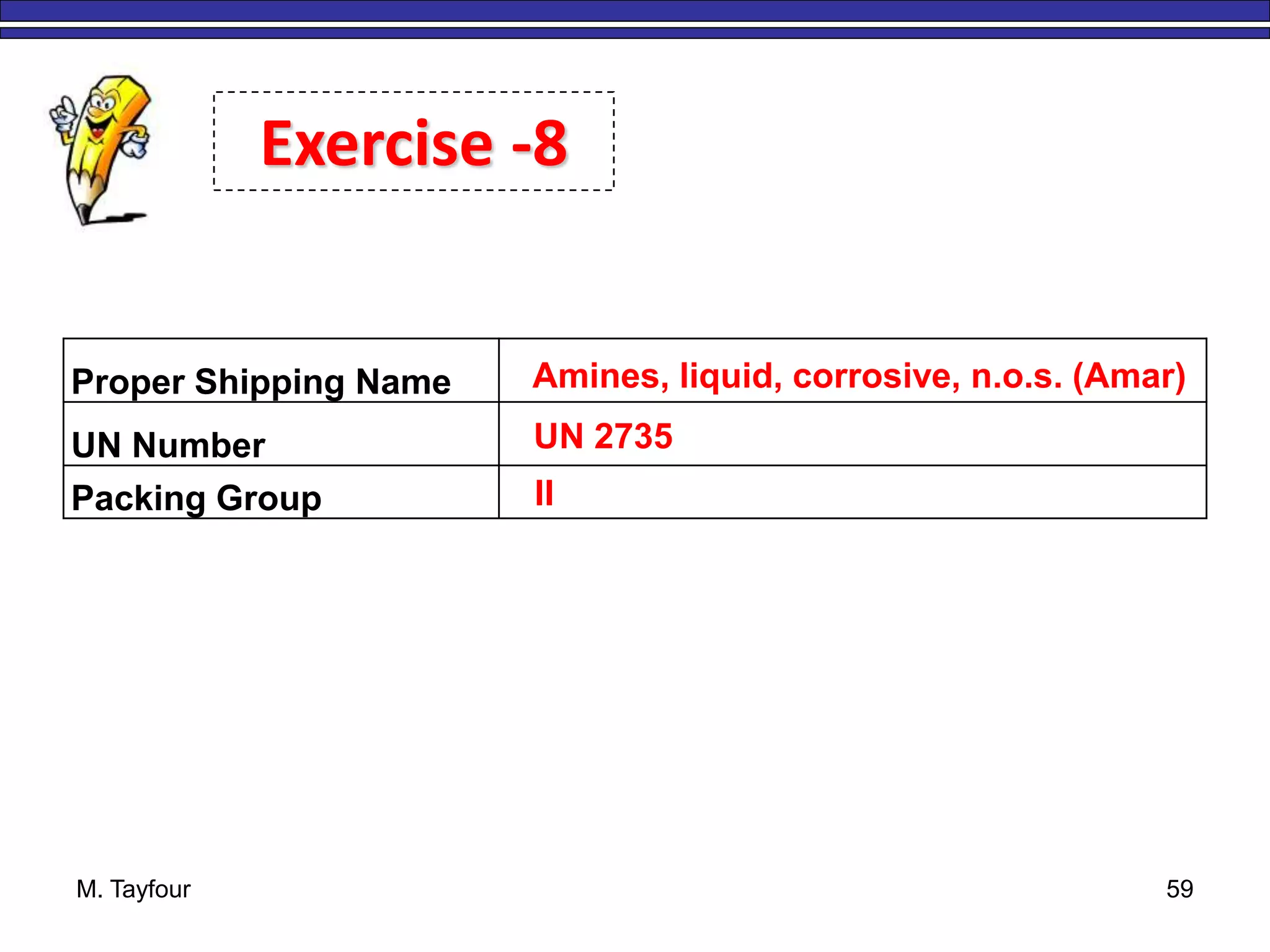

Exercise -8
UN Number
Packing Group
Amines, liquid, corrosive, n.o.s. (Amar)
UN 2735
II

M. Tayfour 60
Exercise -8

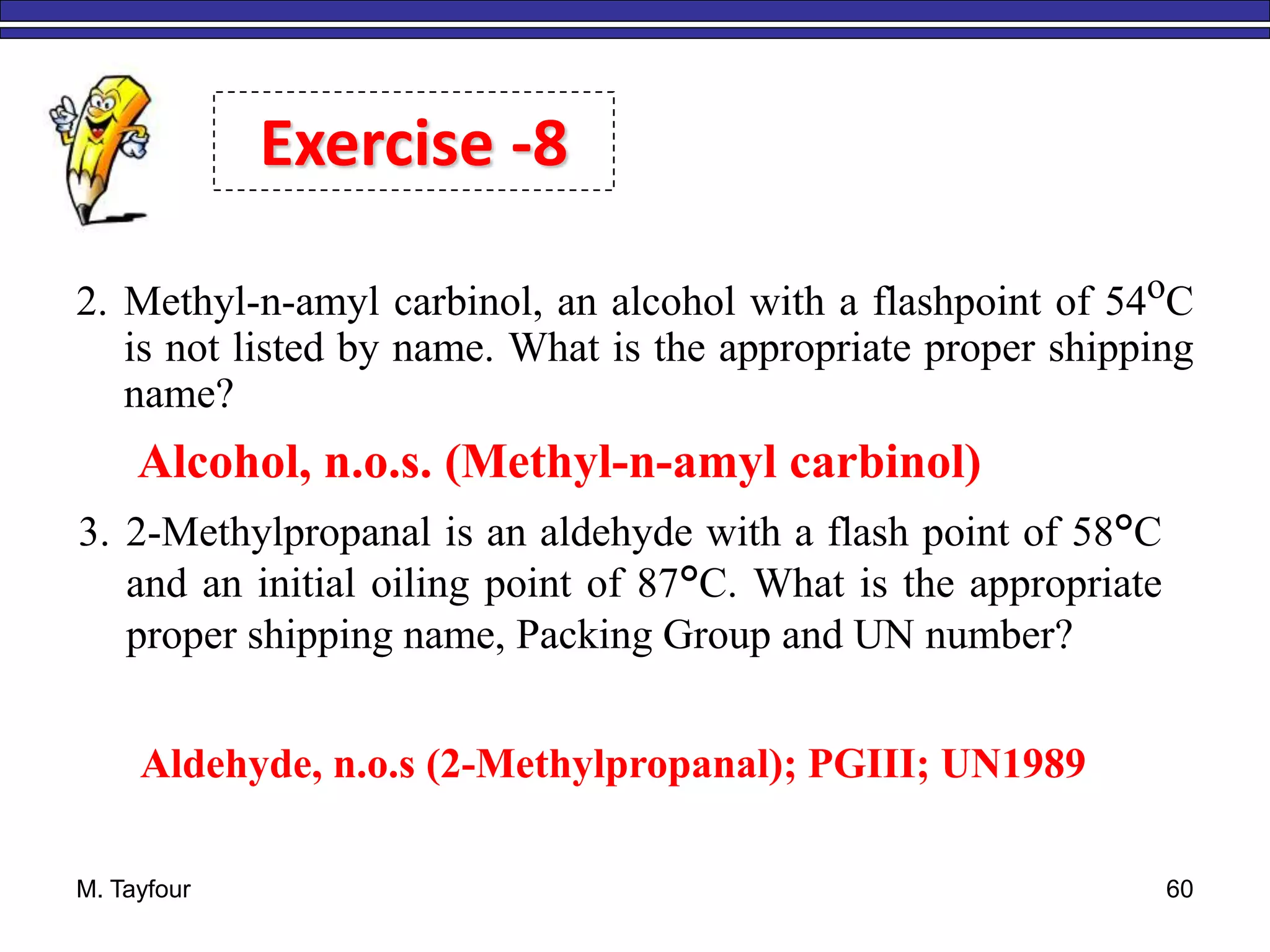

2. Methyl-n-amyl carbinol, an alcohol with a flashpoint of 54oC
is not listed by name. What is the appropriate proper shipping
name?
Alcohol, n.o.s. (Methyl-n-amyl carbinol)
3. 2-Methylpropanal is an aldehyde with a flash point of 58°C
and an initial oiling point of 87°C. What is the appropriate
proper shipping name, Packing Group and UN number?
Aldehyde, n.o.s (2-Methylpropanal); PGIII; UN1989

M. Tayfour 61

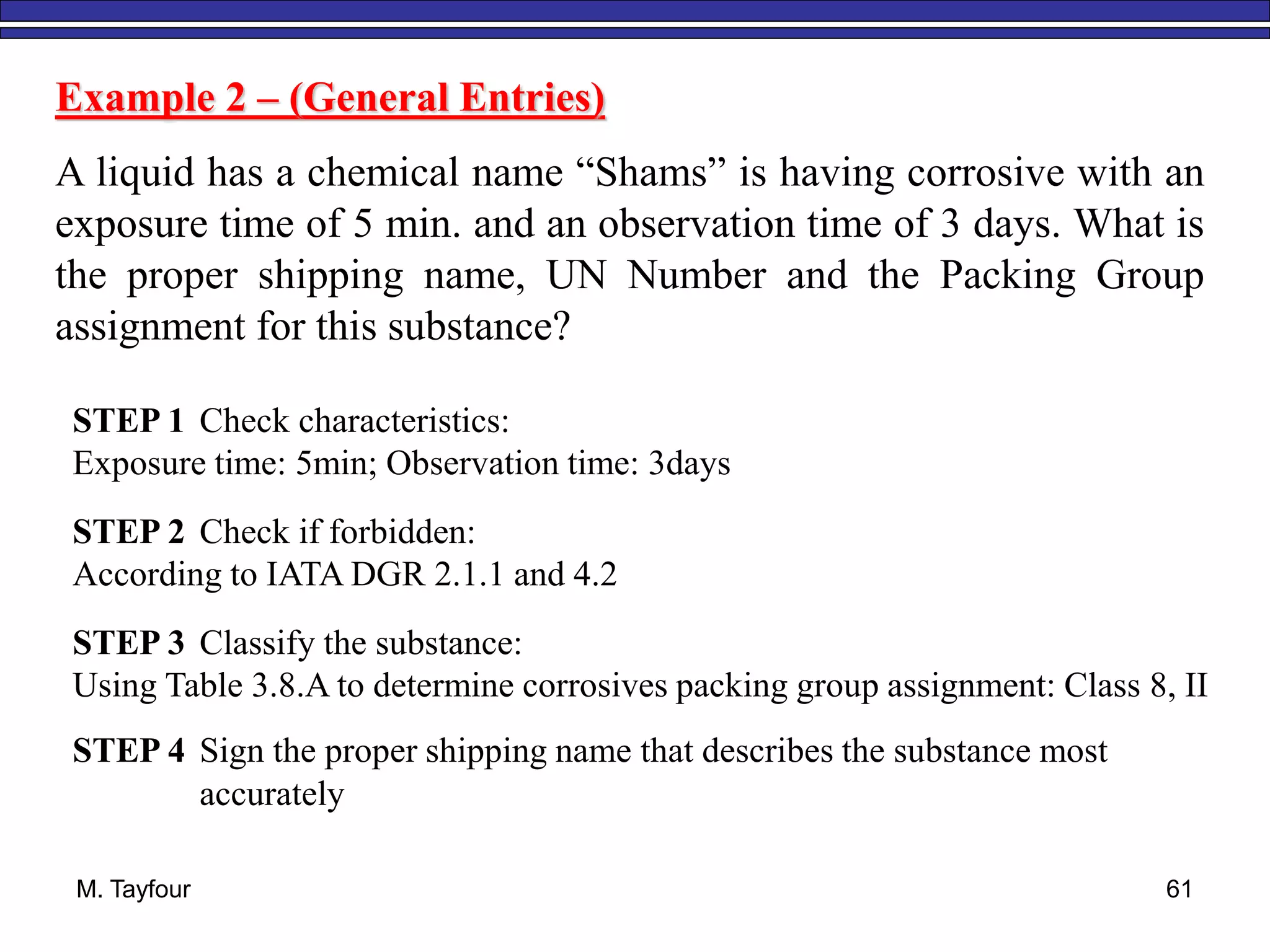

Example 2 – (General Entries)
A liquid has a chemical name “Shams” is having corrosive with an
exposure time of 5 min. and an observation time of 3 days. What is
the proper shipping name, UN Number and the Packing Group
assignment for this substance?
STEP 1 Check characteristics:
Exposure time: 5min; Observation time: 3days
STEP 2 Check if forbidden:
According to IATA DGR 2.1.1 and 4.2
STEP 3 Classify the substance:
Using Table 3.8.A to determine corrosives packing group assignment: Class 8, II
STEP 4 Sign the proper shipping name that describes the substance most
accurately

M. Tayfour 62
Therefore:
Proper Shipping Name :
UN Number :
Packing Group :
Corrosive liquid, n.o.s.(Shams)
UN 1760
II
Exercise -8

M. Tayfour 63
Mixtures and Solutions with Single Hazard
A mixture or solution containing a substance Listed by name in the List of
Dangerous Goods (IATA DGR 4.2) mixed with one or more Substances not
subject to these Regulations Must be identified by the listed proper shipping
Name. The qualifying words “mixture” or “Solution” must be added, e.g.
Lead cyanide Mixture. The concentration of the mixture or Solution may be
added.
Example: Acetone 75% solution.
The proper shipping name of a mixture for
which the above mentioned exception applies is
the appropriate n.o.s. entry plus the technical
name in parentheses. The words “mixture” or
solution must be added, e.g. Toxic solid,
inorganic n.o.s. (Lead cyanide mixture).
Proper shipping Name of a Mixture or
Solution where the Degree of Hazard
Remains Unchanged

M. Tayfour 64

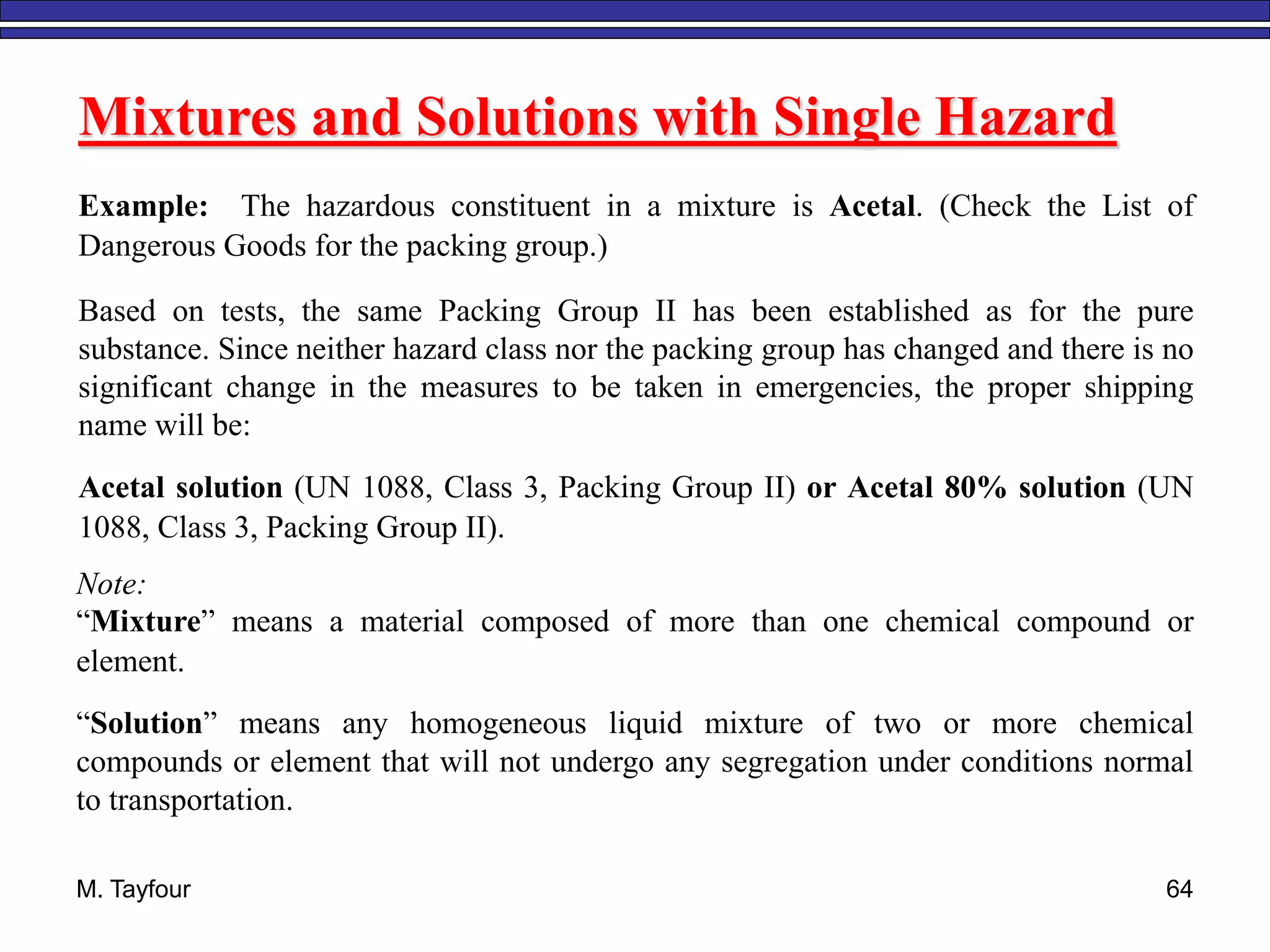

Example: The hazardous constituent in a mixture is Acetal. (Check the List of
Dangerous Goods for the packing group.)
Based on tests, the same Packing Group II has been established as for the pure
substance. Since neither hazard class nor the packing group has changed and there is no
significant change in the measures to be taken in emergencies, the proper shipping
name will be:
Acetal solution (UN 1088, Class 3, Packing Group II) or Acetal 80% solution (UN
1088, Class 3, Packing Group II).
Note:
“Mixture” means a material composed of more than one chemical compound or
element.
“Solution” means any homogeneous liquid mixture of two or more chemical
compounds or element that will not undergo any segregation under conditions normal
to transportation.

M. Tayfour 65
Proper Shipping Name of a Mixture or Solution where the Degree of Hazard
Differs from that Shown in the List of Dangerous Goods
Example: Acetal is again the hazardous constituent in a mixture. But now, based on
tests, Packing Group III has been established for this mixture. The hazard class remains
the same, but as there is a change in the packing group, the proper shipping name will
be (DGR
4.1.3.1):
Flammable liquid, n.o.s. (Acetal) (UN 1993, Class 3, Packing Group III)
or Flammable liquid, n.o.s. (Acetal solution) (UN1993, Packing Group III)
or Flammable liquid, n.o.s. (containing Acetal) (UN1993, Packing Group III)
Note:
If the Acetal is mixed with such a large solution of a substance which is not subject to
these Regulations, that it no longer meets the criteria of Class 3 Flammable Liquid, or
the criteria of any other class.
It is no longer classified as dangerous goods, and the words “Not Restricted” should
be shown on the air waybill. DGR 4.1.3.2.

M. Tayfour 66

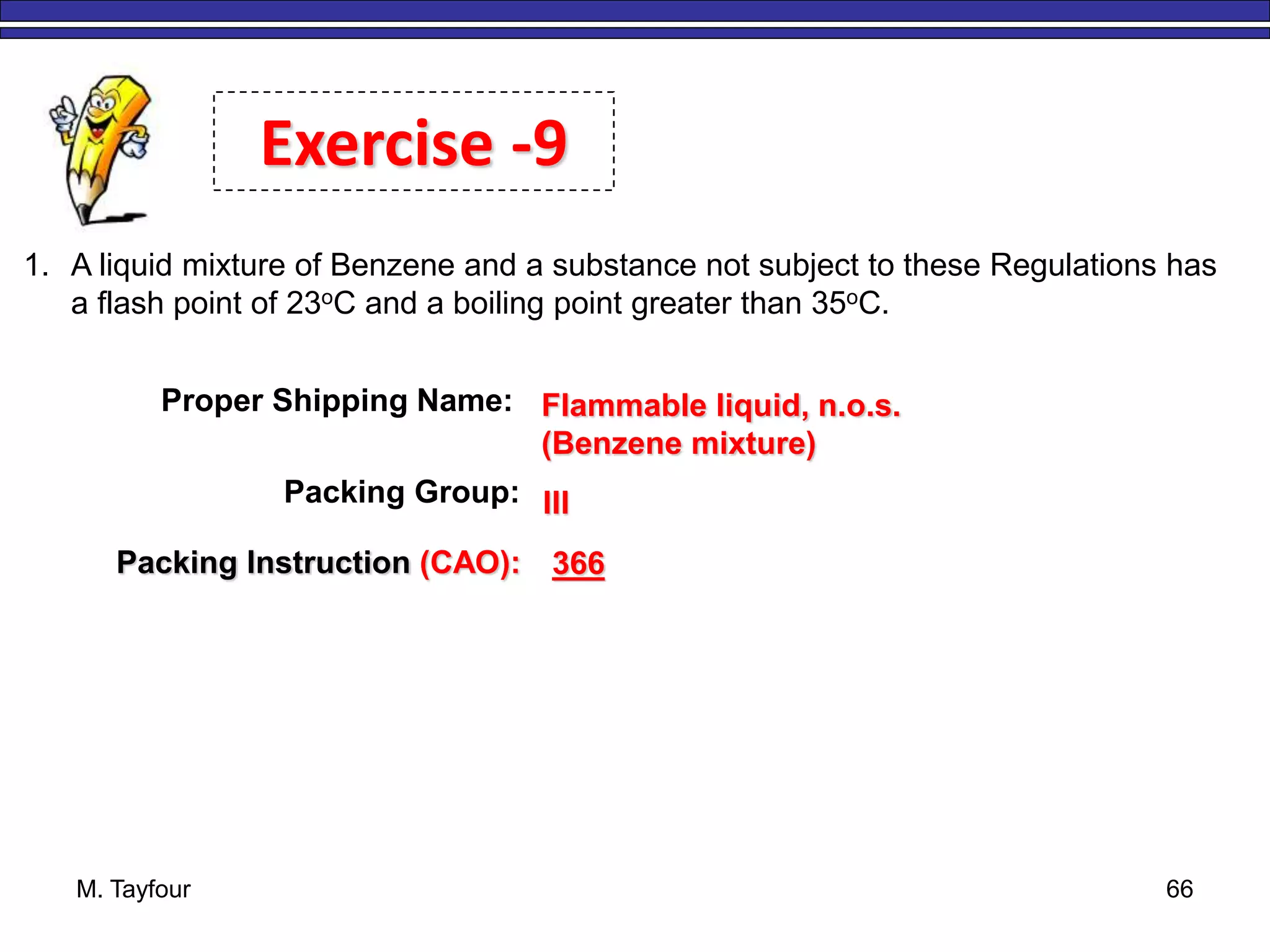

1. A liquid mixture of Benzene and a substance not subject to these Regulations has
a flash point of 23oC and a boiling point greater than 35oC.
Exercise -9
Proper Shipping Name: Flammable liquid, n.o.s.
(Benzene mixture)
Packing Group: III
Packing Instruction (CAO): 366

M. Tayfour 67

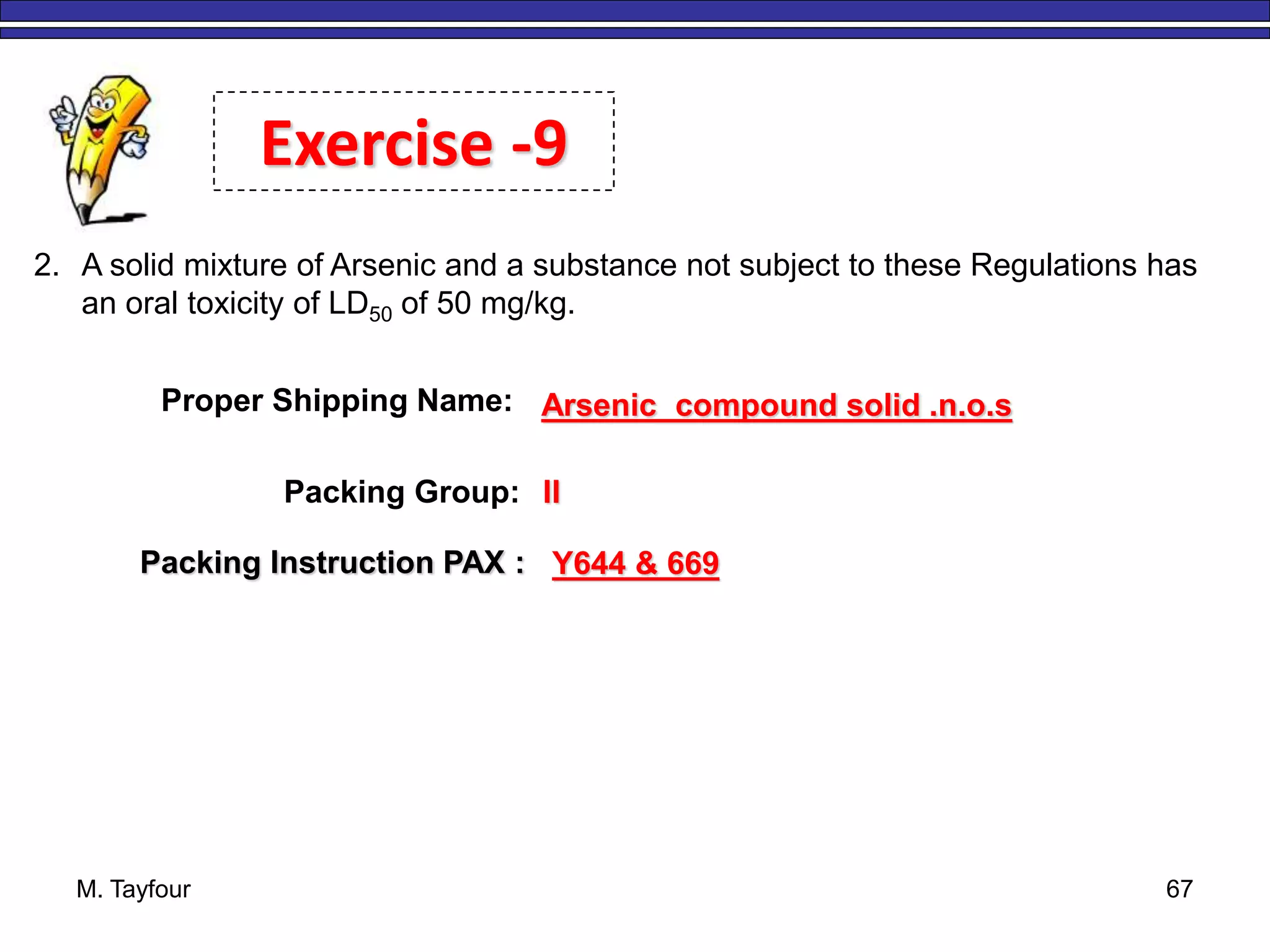

2. A solid mixture of Arsenic and a substance not subject to these Regulations has
an oral toxicity of LD50 of 50 mg/kg.
Exercise -9
Proper Shipping Name: Arsenic compound solid .n.o.s
Packing Group: II
Packing Instruction PAX : Y644 & 669

M. Tayfour 68

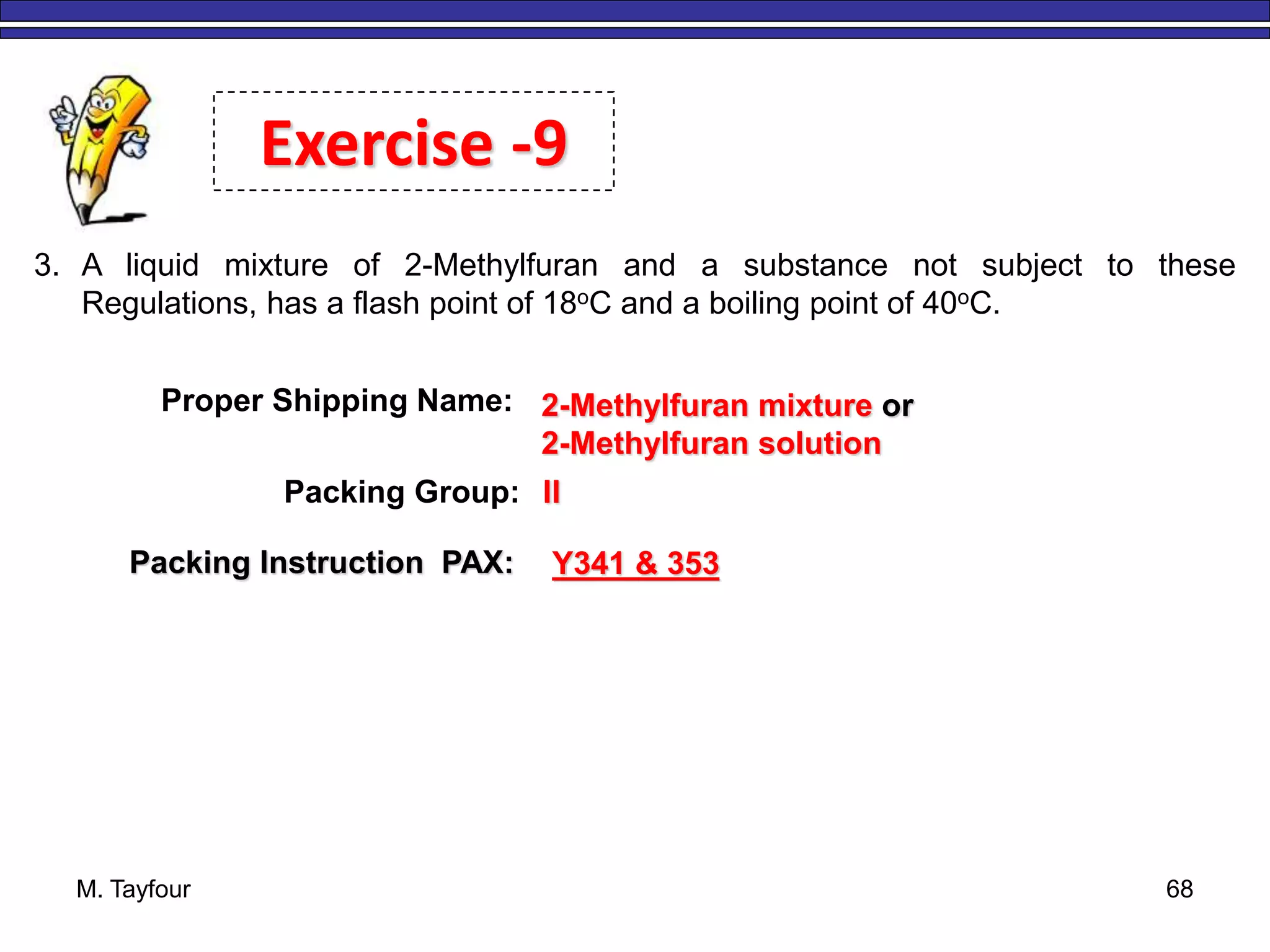

3. A liquid mixture of 2-Methylfuran and a substance not subject to these
Regulations, has a flash point of 18oC and a boiling point of 40oC.
Exercise -9
Proper Shipping Name: 2-Methylfuran mixture or
2-Methylfuran solution
Packing Group: II
Packing Instruction PAX: Y341 & 353

M. Tayfour 69

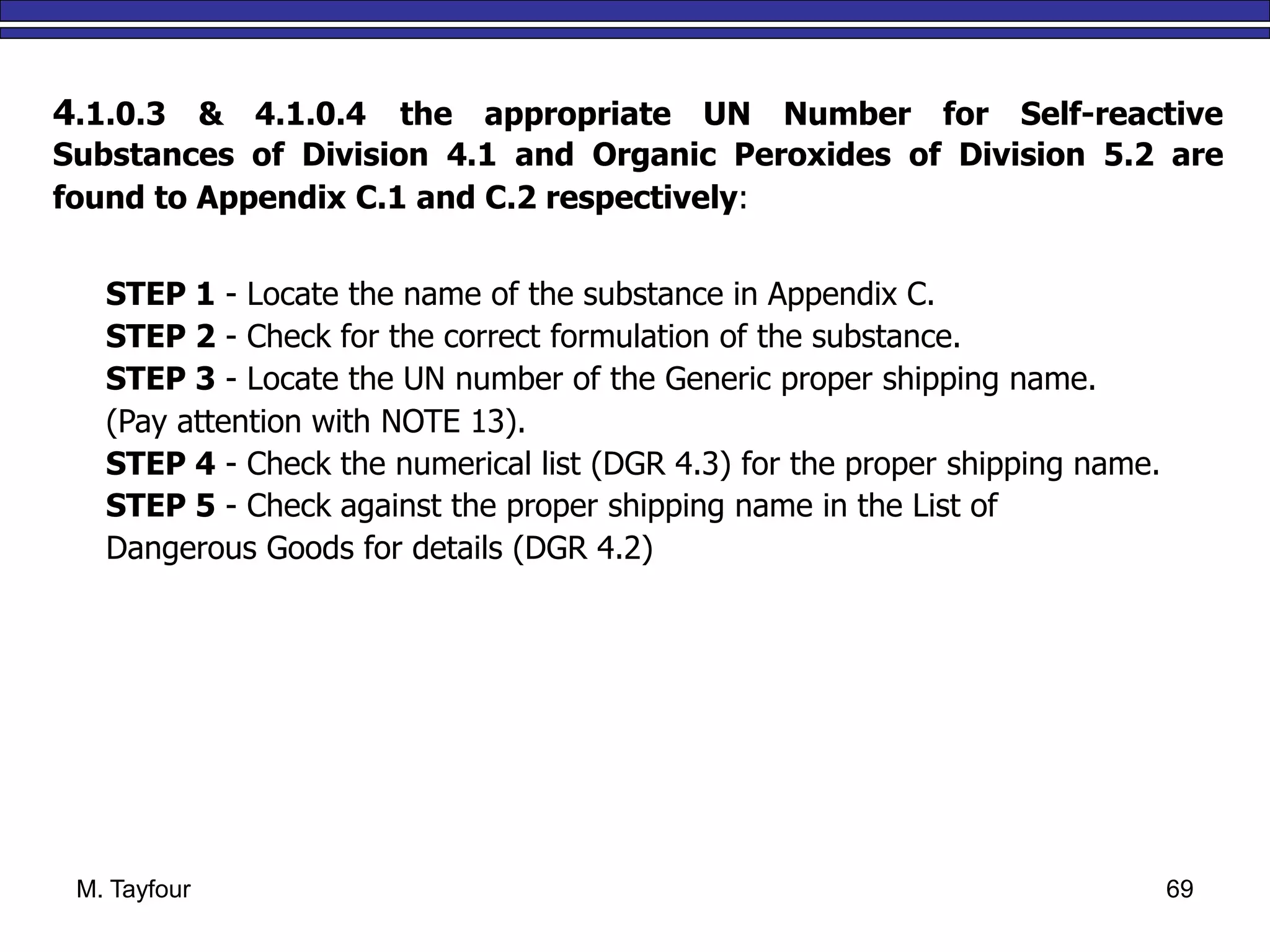

4.1.0.3 & 4.1.0.4 the appropriate UN Number for Self-reactive
Substances of Division 4.1 and Organic Peroxides of Division 5.2 are
found to Appendix C.1 and C.2 respectively:
STEP 1 - Locate the name of the substance in Appendix C.
STEP 2 - Check for the correct formulation of the substance.
STEP 3 - Locate the UN number of the Generic proper shipping name.
(Pay attention with NOTE 13).
STEP 4 - Check the numerical list (DGR 4.3) for the proper shipping name.
STEP 5 - Check against the proper shipping name in the List of
Dangerous Goods for details (DGR 4.2)

M. Tayfour 70

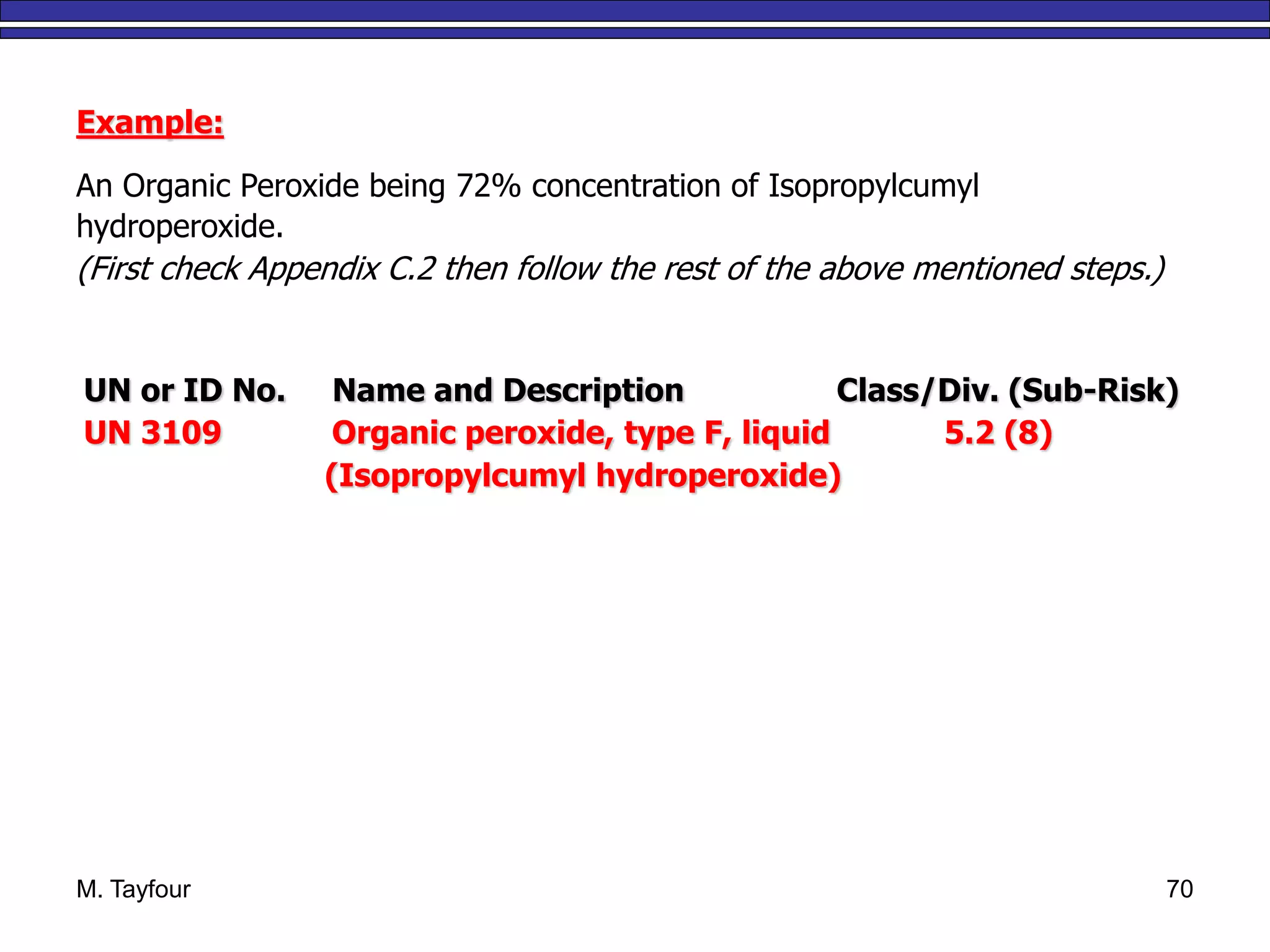

Example:
An Organic Peroxide being 72% concentration of Isopropylcumyl
hydroperoxide.
(First check Appendix C.2 then follow the rest of the above mentioned steps.)
UN or ID No. Name and Description Class/Div. (Sub-Risk)
UN 3109 Organic peroxide, type F, liquid 5.2 (8)
(Isopropylcumyl hydroperoxide)

M. Tayfour 71

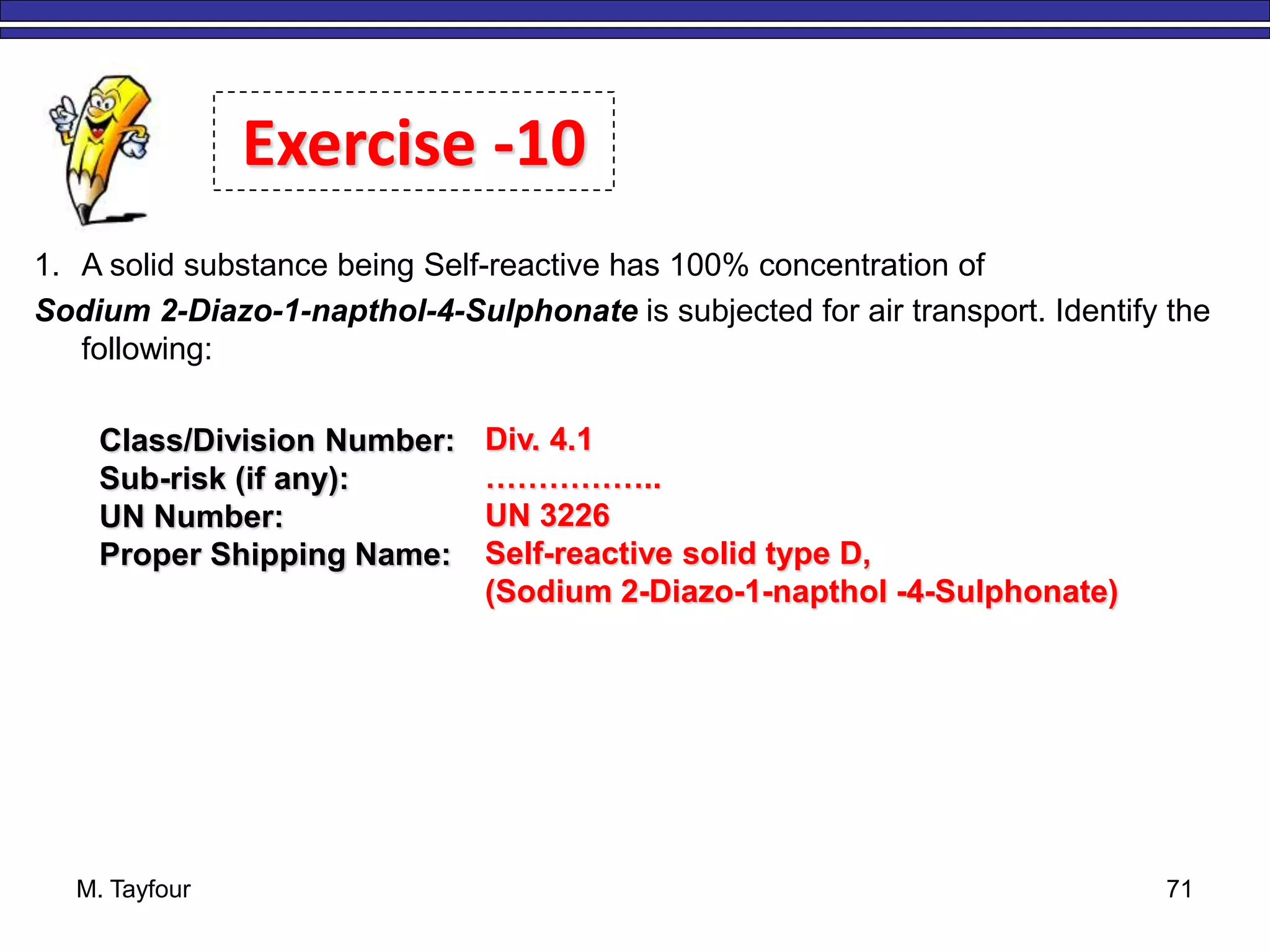

1. A solid substance being Self-reactive has 100% concentration of
Sodium 2-Diazo-1-napthol-4-Sulphonate is subjected for air transport. Identify the
following:
Exercise -10
Class/Division Number:
Sub-risk (if any):
UN Number:
Proper Shipping Name:
Div. 4.1
……………..
UN 3226
Self-reactive solid type D,
(Sodium 2-Diazo-1-napthol -4-Sulphonate)

M. Tayfour 72

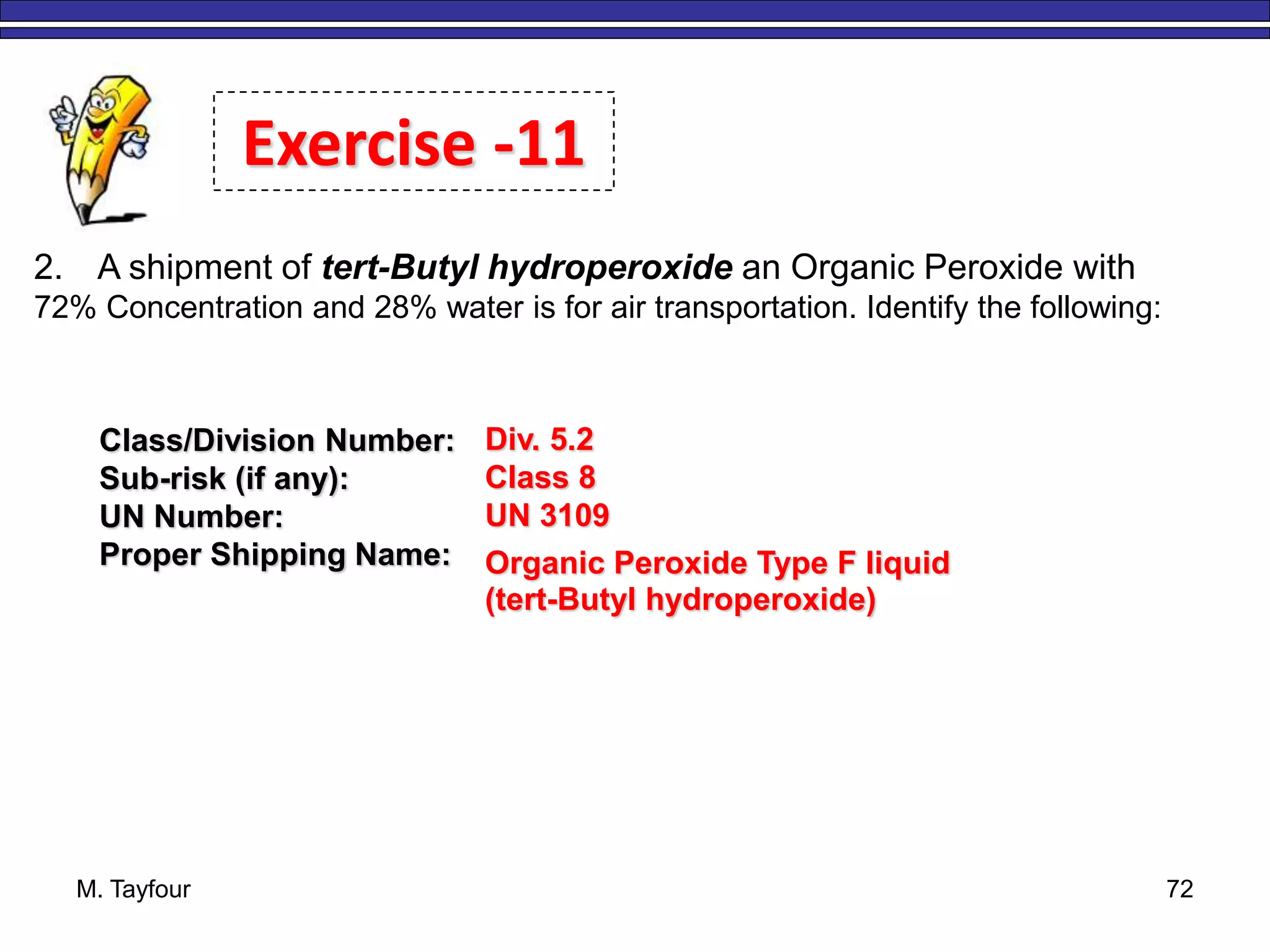

2. A shipment of tert-Butyl hydroperoxide an Organic Peroxide with
72% Concentration and 28% water is for air transportation. Identify the following:
Exercise -11
Class/Division Number:
Sub-risk (if any):
UN Number:
Proper Shipping Name:
Div. 5.2
Class 8
UN 3109
Organic Peroxide Type F liquid
(tert-Butyl hydroperoxide)

M. Tayfour 73

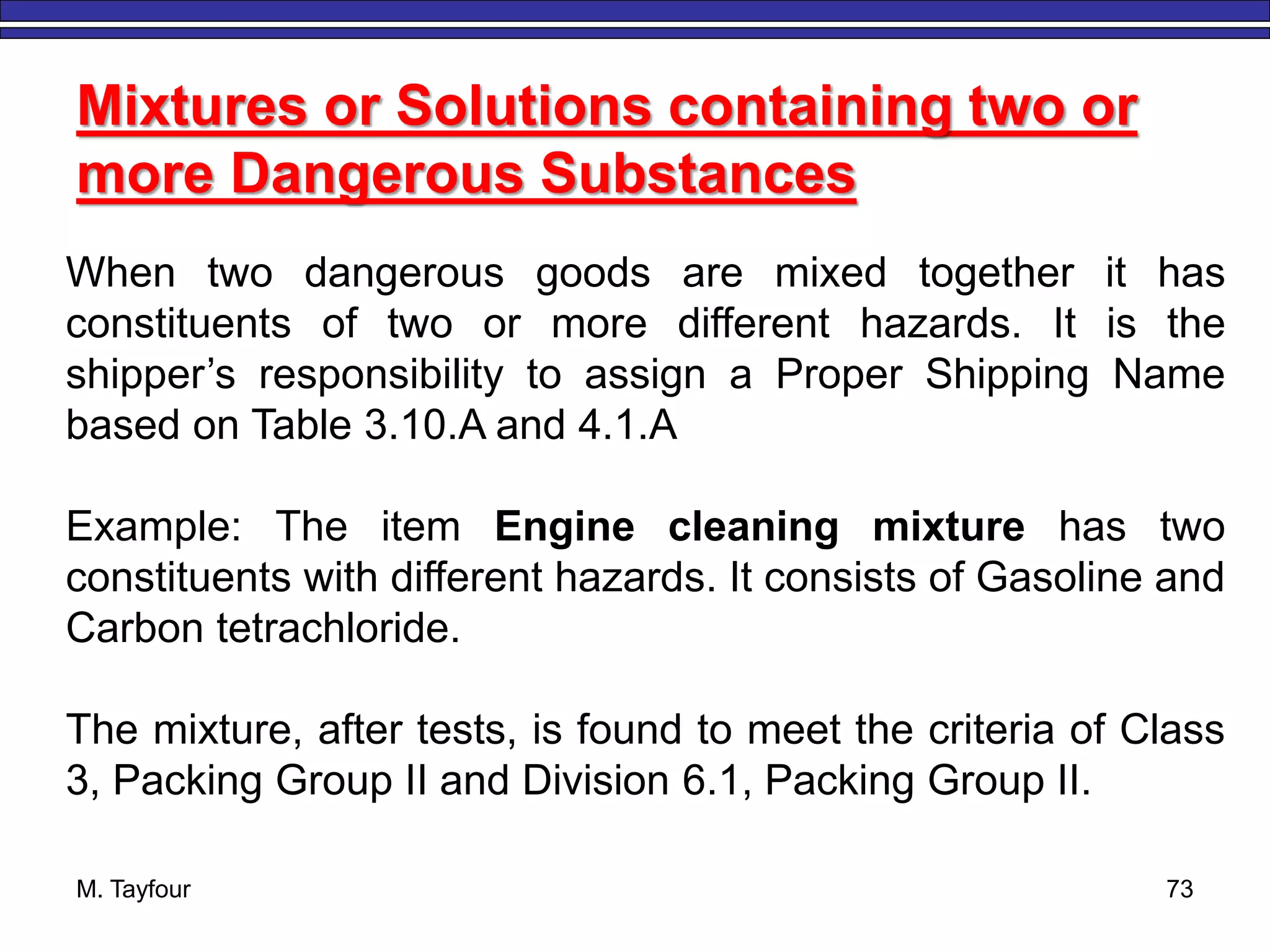

Mixtures or Solutions containing two or
more Dangerous Substances
When two dangerous goods are mixed together it has
constituents of two or more different hazards. It is the
shipper’s responsibility to assign a Proper Shipping Name
based on Table 3.10.A and 4.1.A
Example: The item Engine cleaning mixture has two
constituents with different hazards. It consists of Gasoline and
Carbon tetrachloride.
The mixture, after tests, is found to meet the criteria of Class
3, Packing Group II and Division 6.1, Packing Group II.

M. Tayfour 74
Mixtures or Solutions containing two or
more Dangerous Substances
According to IATA DGR Table 3.10.A the
Primary Hazard is Class 3, Flammable
liquid and therefore the Subsidiary hazard
is Division 6.1, Toxic Substance. The
applicable Packing Group is II. The Proper
Shipping name and the UN Number are
Flammable liquid, toxic, n.o.s.
(Gasoline and Carbon tetrachloride
solution) UN1992.

M. Tayfour 75

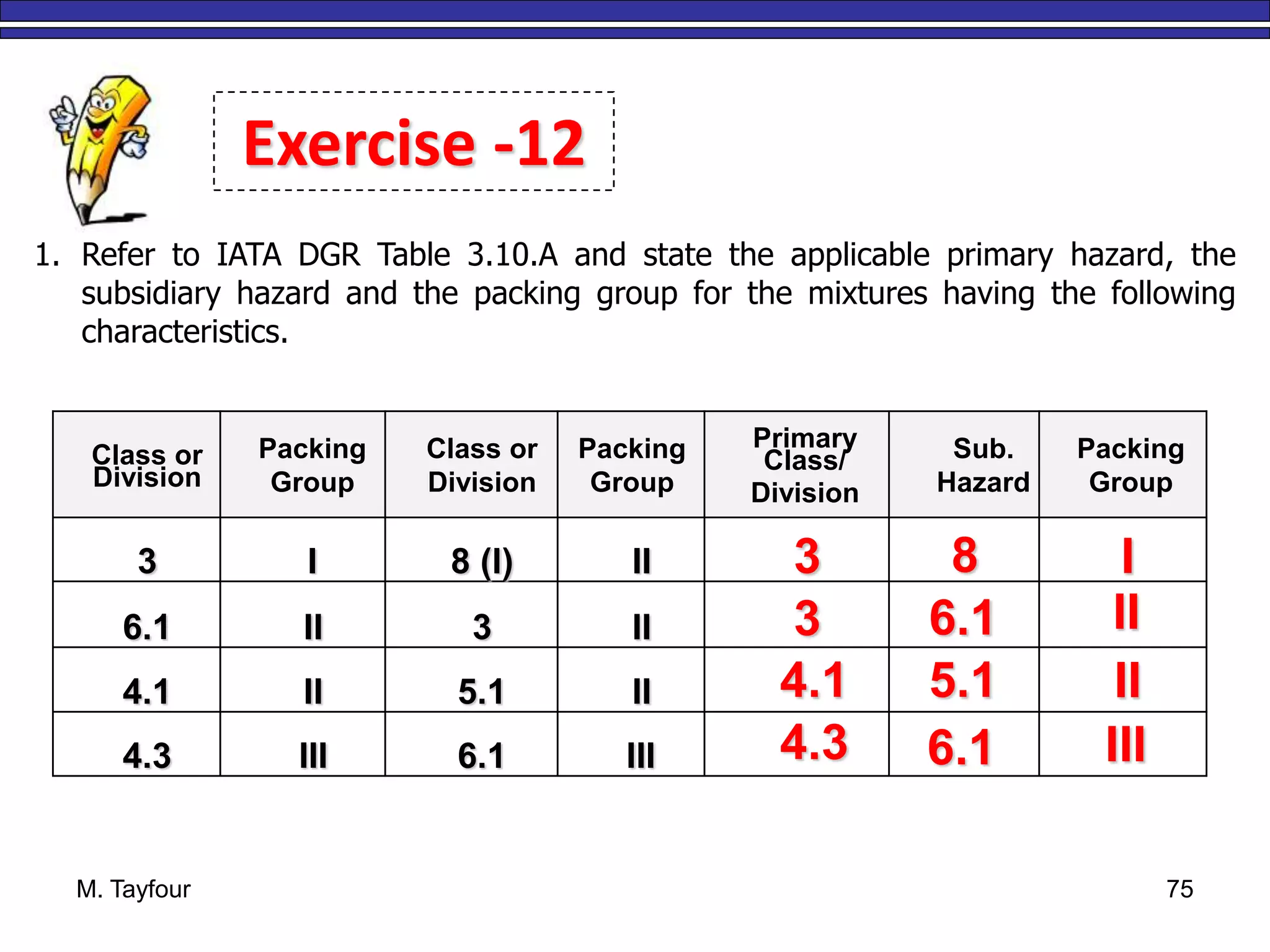

1. Refer to IATA DGR Table 3.10.A and state the applicable primary hazard, the
subsidiary hazard and the packing group for the mixtures having the following
characteristics.
Class or
Division
Packing
Group
Class or
Division
Packing
Group
Primary
Class/
Division
Sub.
Hazard
Packing
Group
3 I 8 (l) II
6.1 II 3 II
4.1 II 5.1 II
4.3 III 6.1 III
3
3
4.1
4.3
8
6.1
5.1
6.1
I
II
II
III
Exercise -12

76

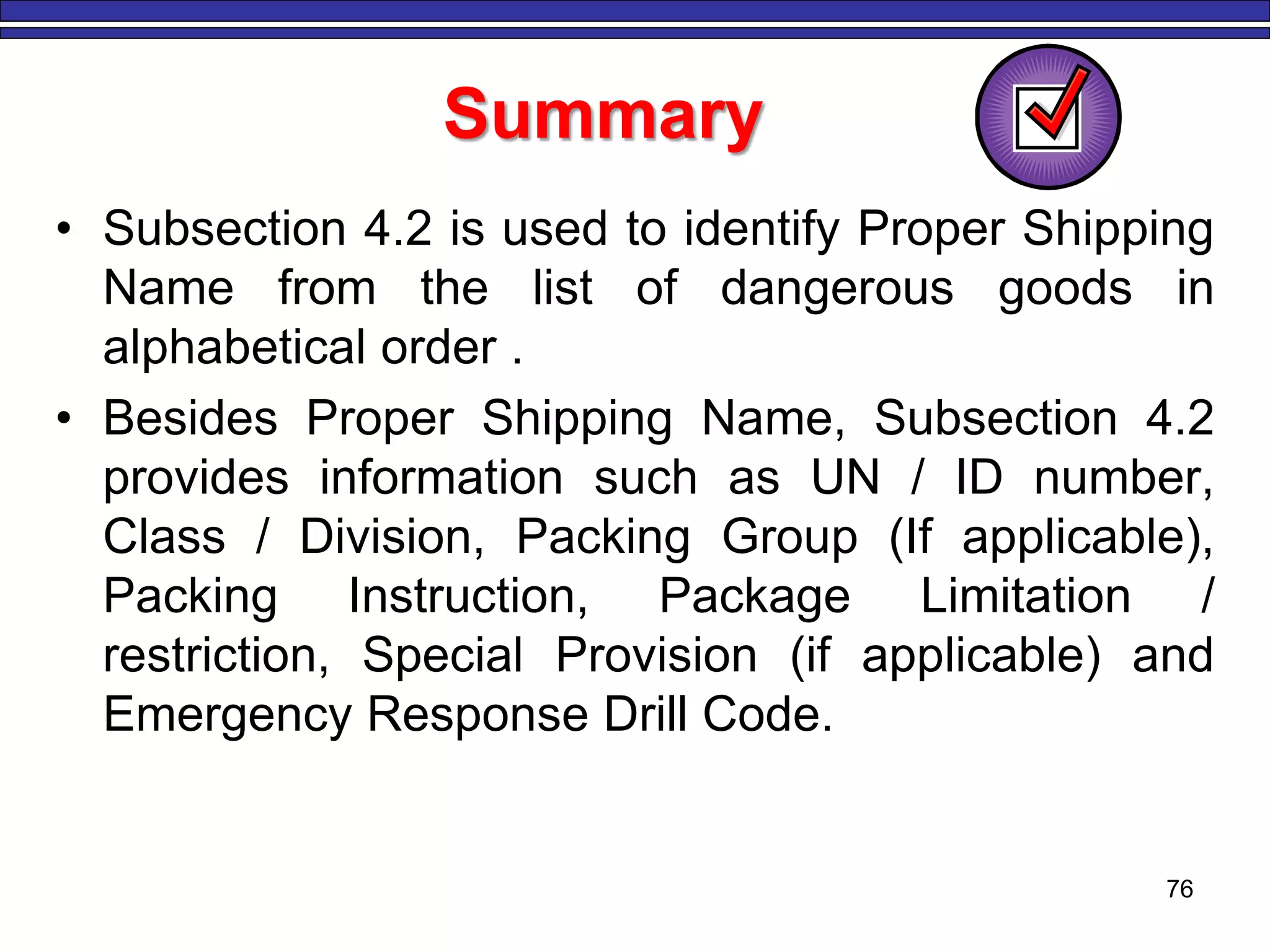

Summary
• Subsection 4.2 is used to identify Proper Shipping
Name from the list of dangerous goods in
alphabetical order .
• Besides Proper Shipping Name, Subsection 4.2
provides information such as UN / ID number,
Class / Division, Packing Group (If applicable),
Packing Instruction, Package Limitation /
restriction, Special Provision (if applicable) and
Emergency Response Drill Code.

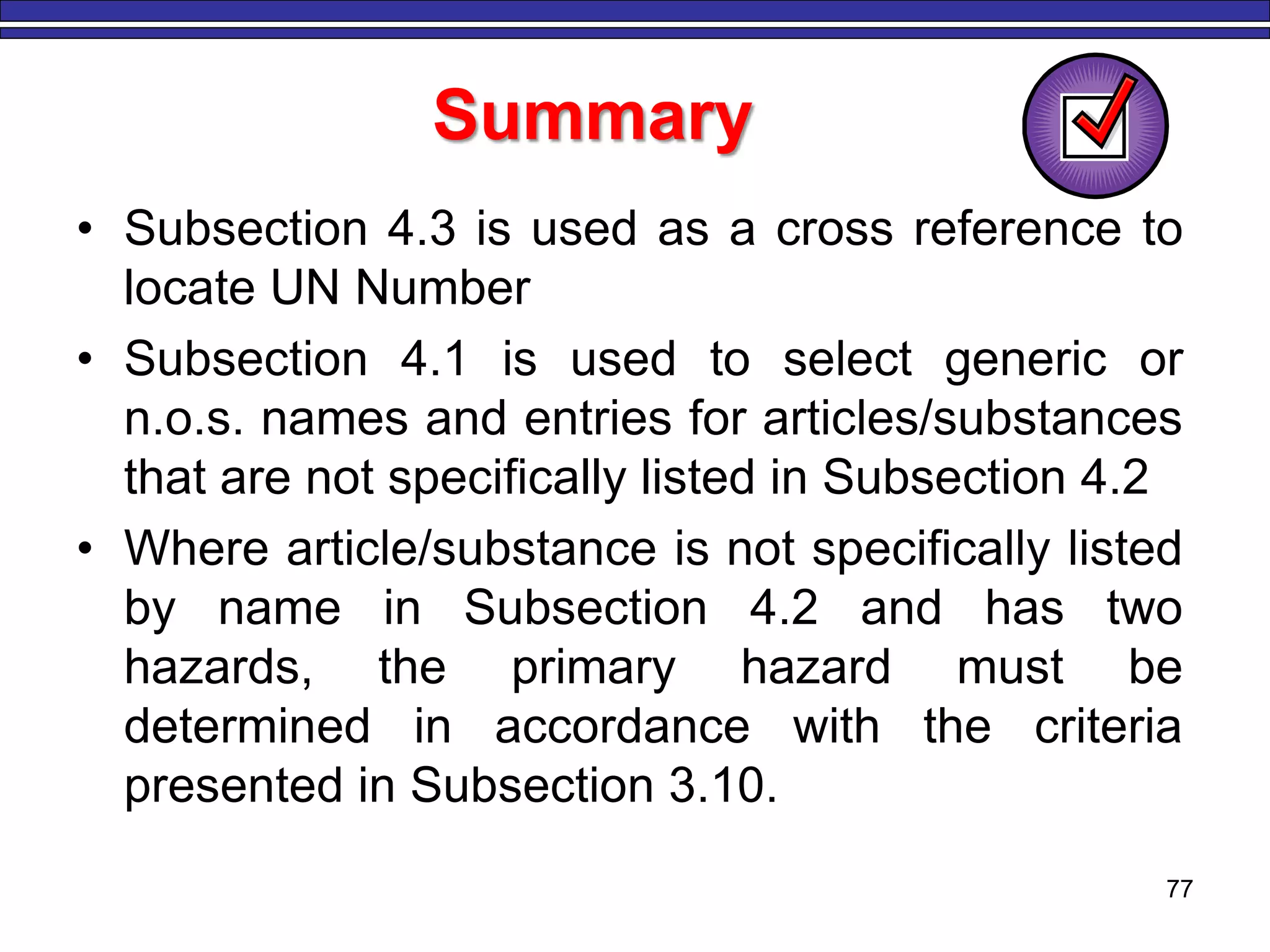

77
Summary
• Subsection 4.3 is used as a cross reference to
locate UN Number
• Subsection 4.1 is used to select generic or
n.o.s. names and entries for articles/substances
that are not specifically listed in Subsection 4.2
• Where article/substance is not specifically listed
by name in Subsection 4.2 and has two
hazards, the primary hazard must be
determined in accordance with the criteria
presented in Subsection 3.10.

M. Tayfour 78
Any Questions?
Thank
You…

Section 4 identification

More Related Content

What's hot

Similar to Section 4 identification

More from Mohamed Tayfour

Recently uploaded

Section 4 identification
