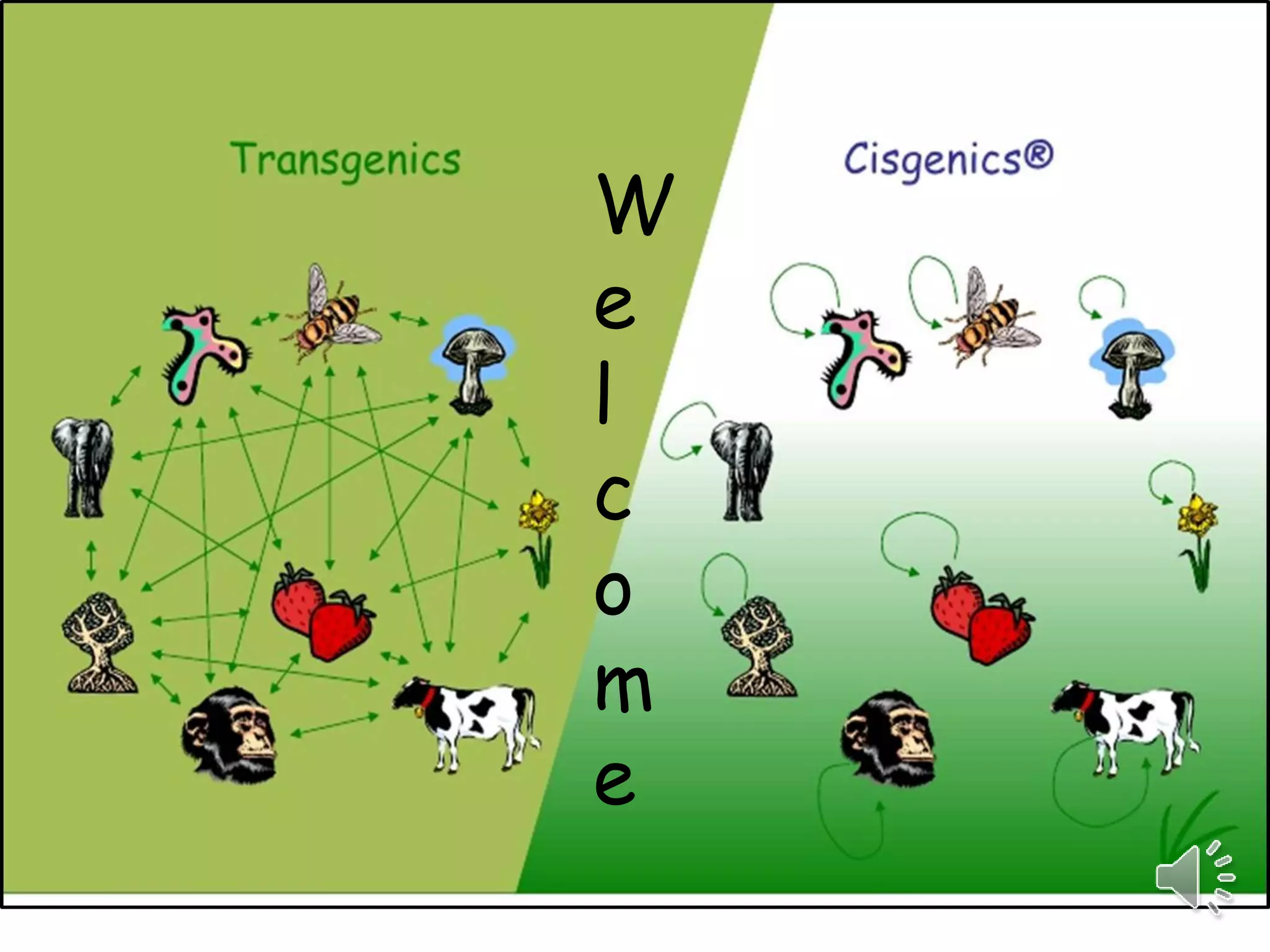

1. W
e
l
c
o
m
e

2. CISGENESIS AND
INTRAGENESIS :NEW TOOLS
IN CROP IMPROVEMENT
Presented By:
SAURABH PANDEY
PALB-3252
Sr. M.Sc.(Ag.)

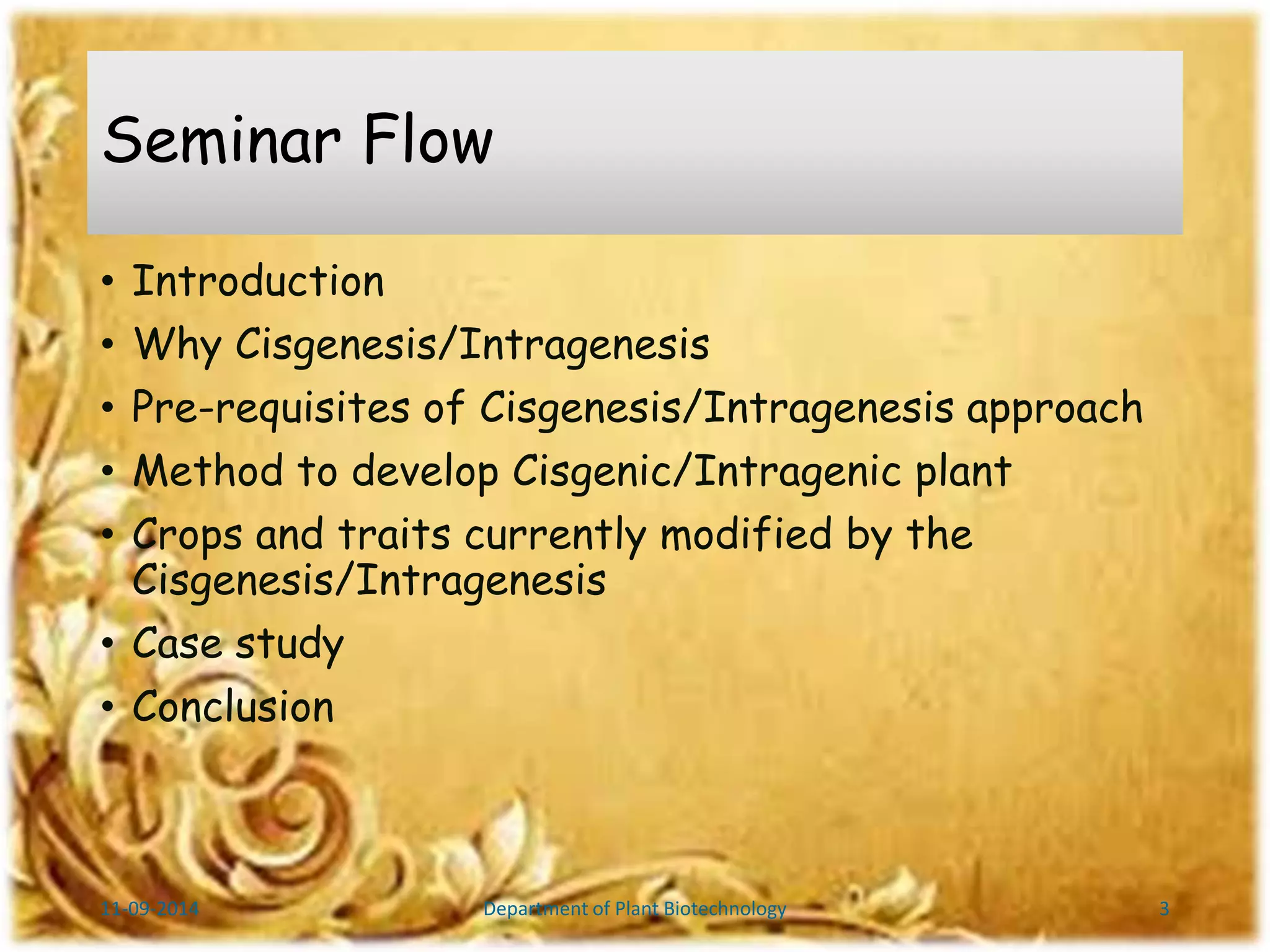

3. Seminar Flow
• Introduction
• Why Cisgenesis/Intragenesis
• Pre-requisites of Cisgenesis/Intragenesis approach
• Method to develop Cisgenic/Intragenic plant
• Crops and traits currently modified by the
Cisgenesis/Intragenesis
• Case study
• Conclusion
11-09-2014 Department of Plant Biotechnology 3

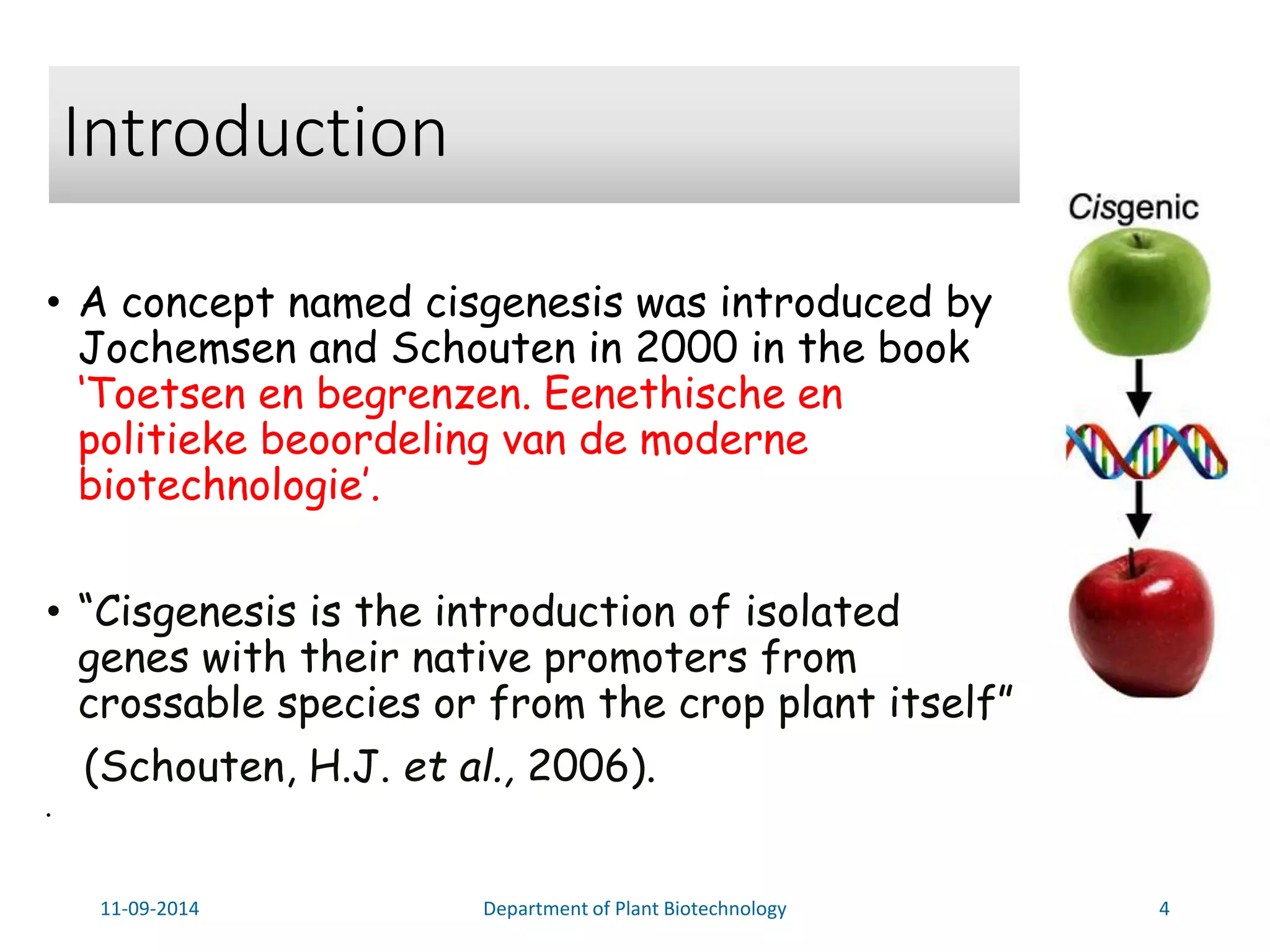

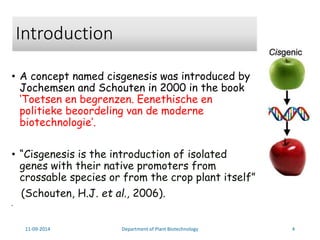

4. Introduction
• A concept named cisgenesis was introduced by
Jochemsen and Schouten in 2000 in the book
‘Toetsen en begrenzen. Eenethische en
politieke beoordeling van de moderne
biotechnologie’.
• “Cisgenesis is the introduction of isolated
genes with their native promoters from
crossable species or from the crop plant itself”
(Schouten, H.J. et al., 2006).
•
11-09-2014 Department of Plant Biotechnology 4

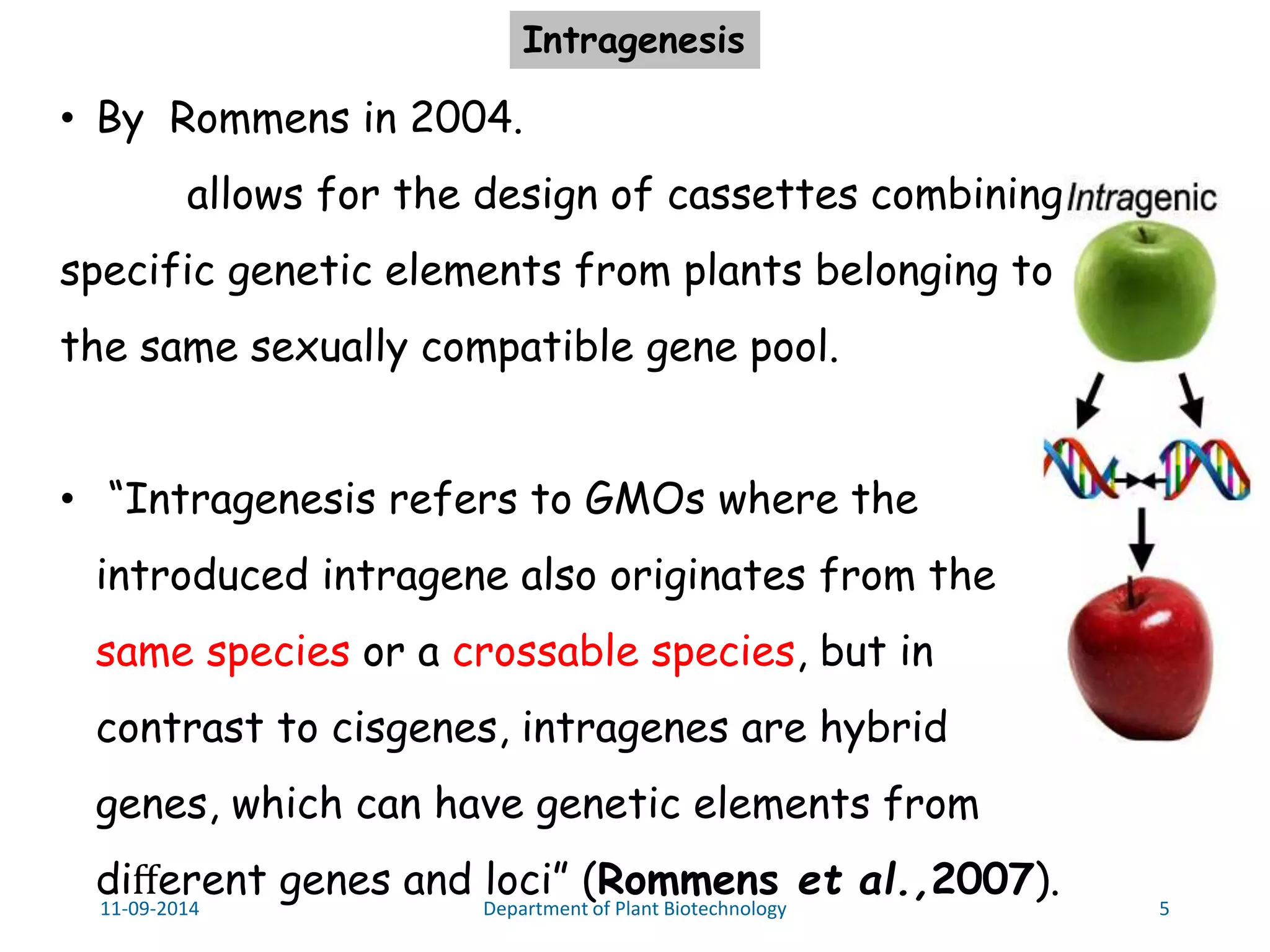

5. Intragenesis
• By Rommens in 2004.
allows for the design of cassettes combining
specific genetic elements from plants belonging to
the same sexually compatible gene pool.
• “Intragenesis refers to GMOs where the
introduced intragene also originates from the
same species or a crossable species, but in
contrast to cisgenes, intragenes are hybrid
genes, which can have genetic elements from
different genes and loci” (Rommens et al.,2007).
11-09-2014 Department of Plant Biotechnology 5

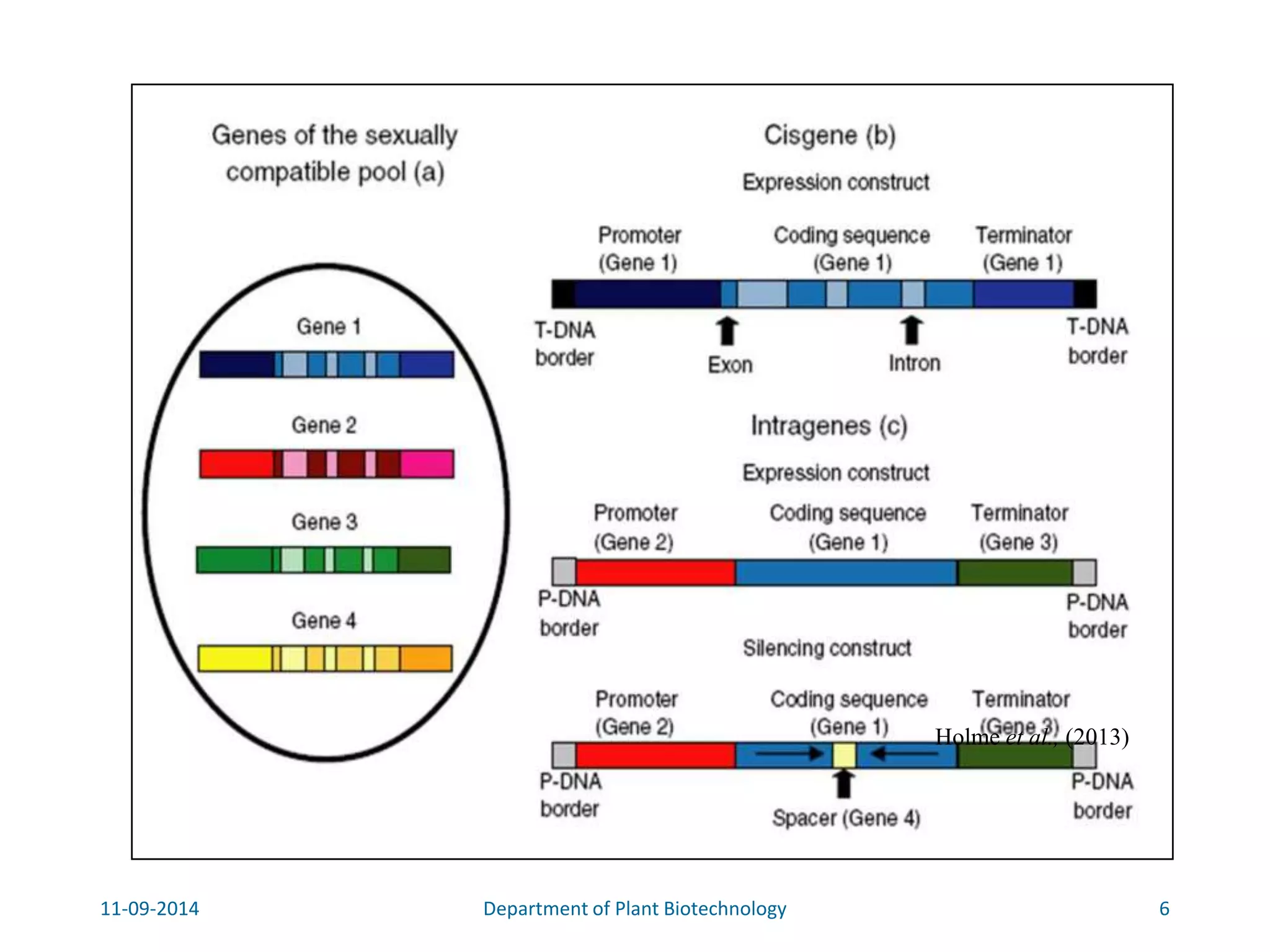

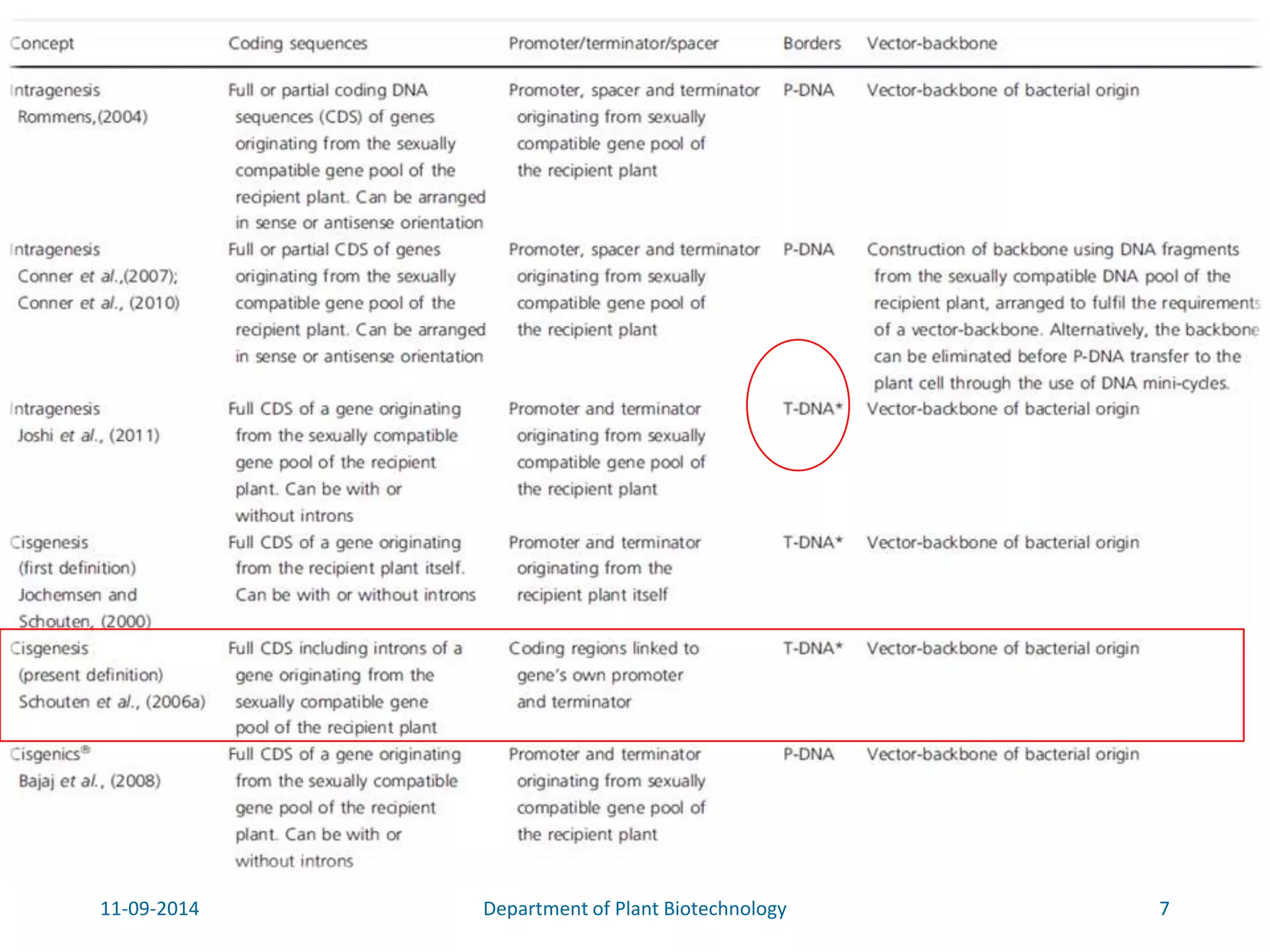

6. Holme et al., (2013)
11-09-2014 Department of Plant Biotechnology 6

7. 11-09-2014 Department of Plant Biotechnology 7

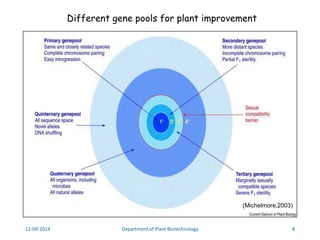

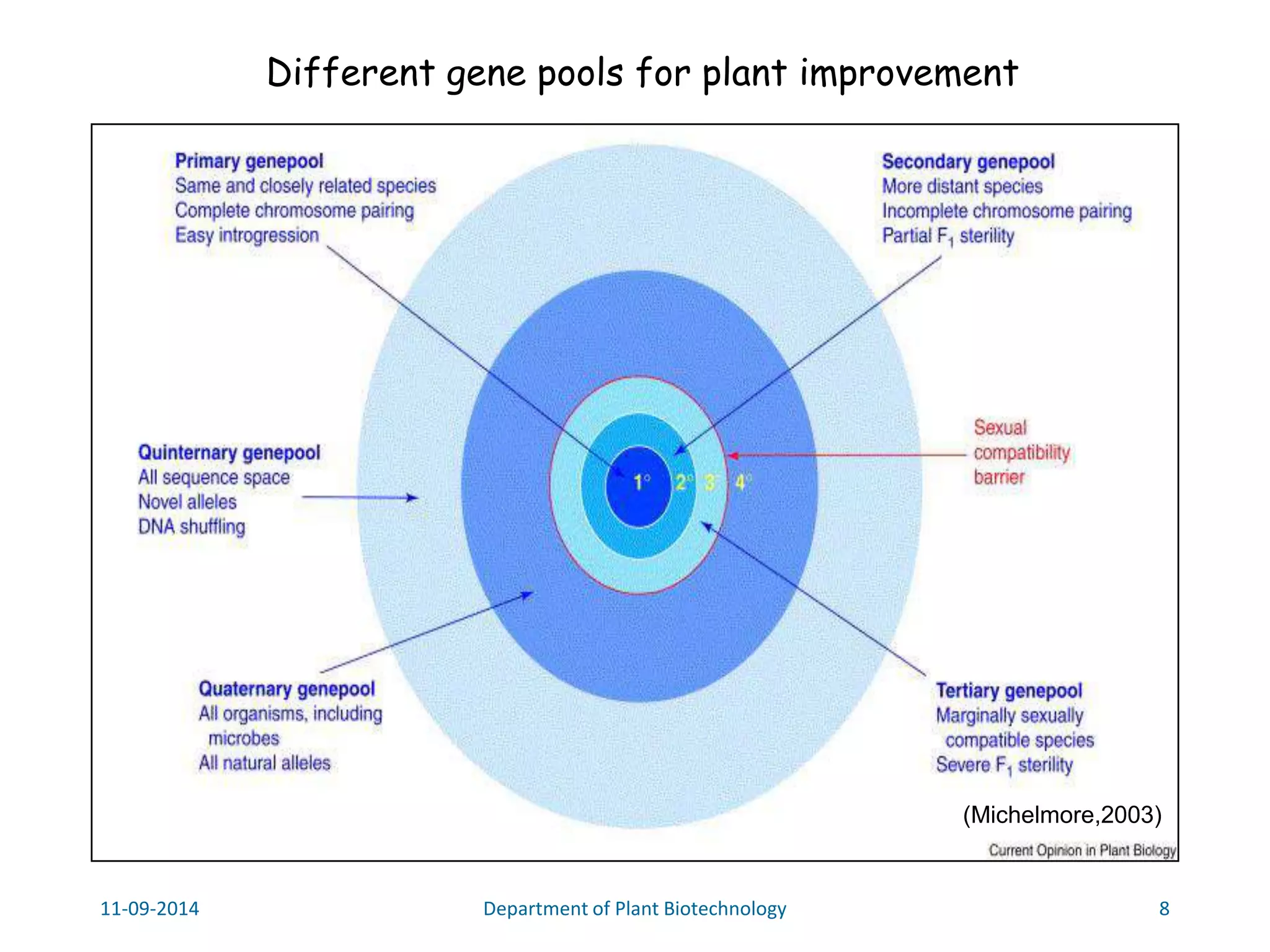

8. Different gene pools for plant improvement
(Michelmore,2003)
11-09-2014 Department of Plant Biotechnology 8

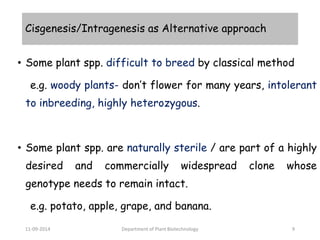

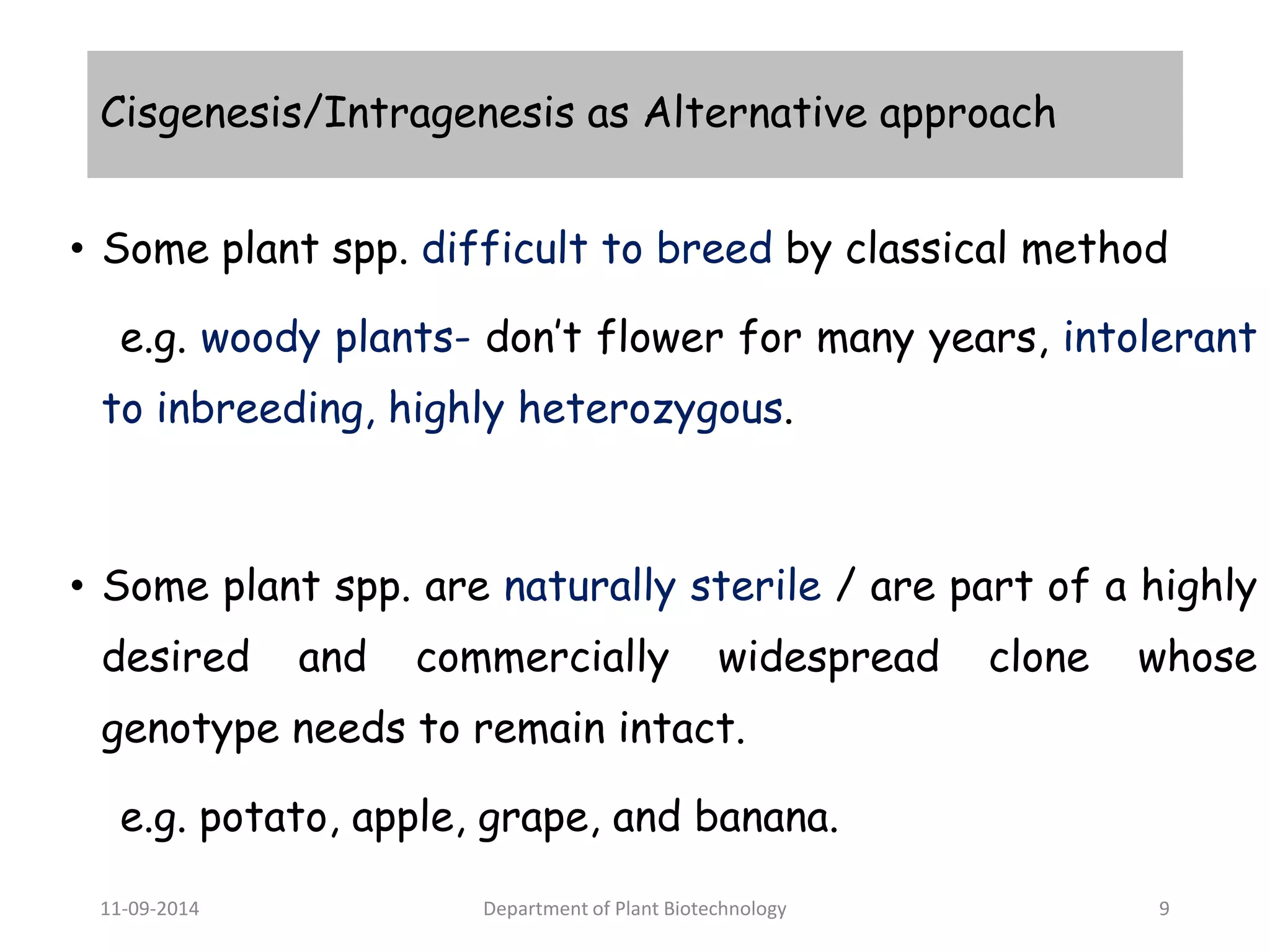

9. Cisgenesis/Intragenesis as Alternative approach
• Some plant spp. difficult to breed by classical method
e.g. woody plants- don’t flower for many years, intolerant
to inbreeding, highly heterozygous.
• Some plant spp. are naturally sterile / are part of a highly
desired and commercially widespread clone whose
genotype needs to remain intact.
e.g. potato, apple, grape, and banana.
11-09-2014 Department of Plant Biotechnology 9

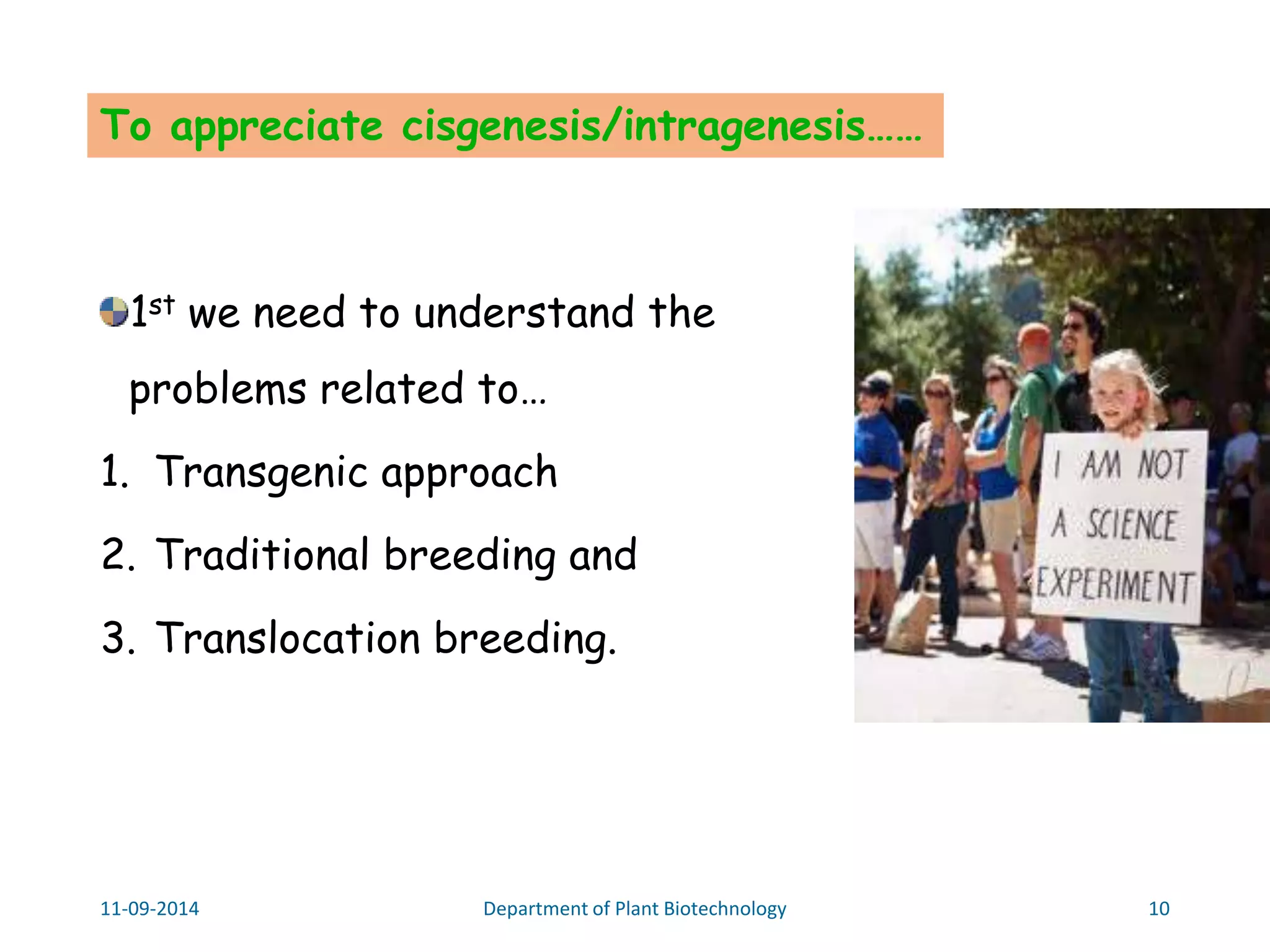

10. To appreciate cisgenesis/intragenesis……
1st we need to understand the
problems related to…
1. Transgenic approach
2. Traditional breeding and
3. Translocation breeding.
11-09-2014 Department of Plant Biotechnology 10

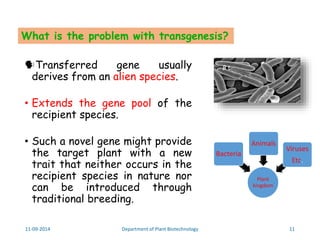

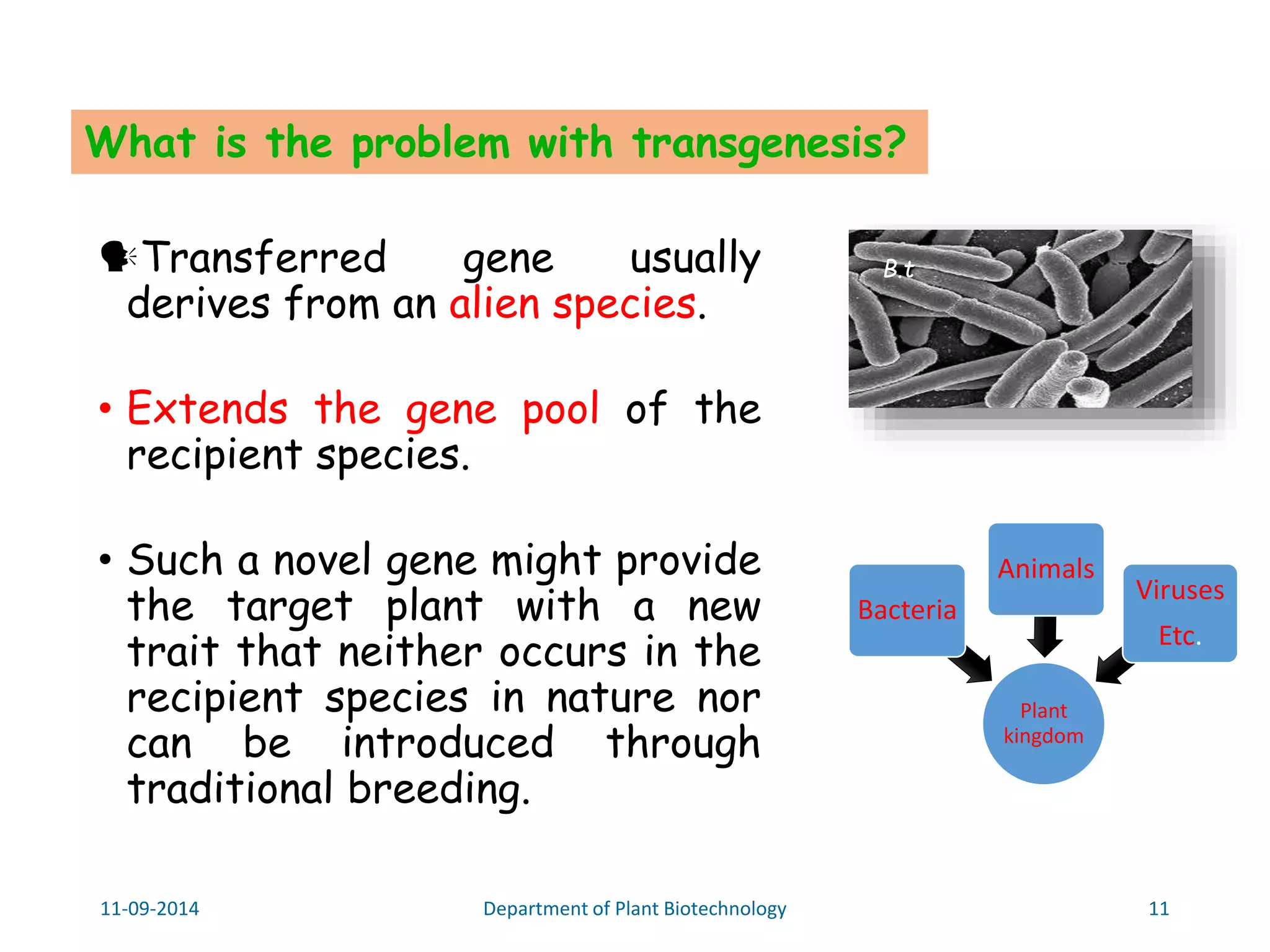

11. What is the problem with transgenesis?
Transferred gene usually
derives from an alien species.
• Extends the gene pool of the
recipient species.
• Such a novel gene might provide
the target plant with a new
trait that neither occurs in the
recipient species in nature nor
can be introduced through
traditional breeding.
Animals
Plant
kingdom
B.t
Bacteria
Viruses
Etc.
11-09-2014 Department of Plant Biotechnology 11

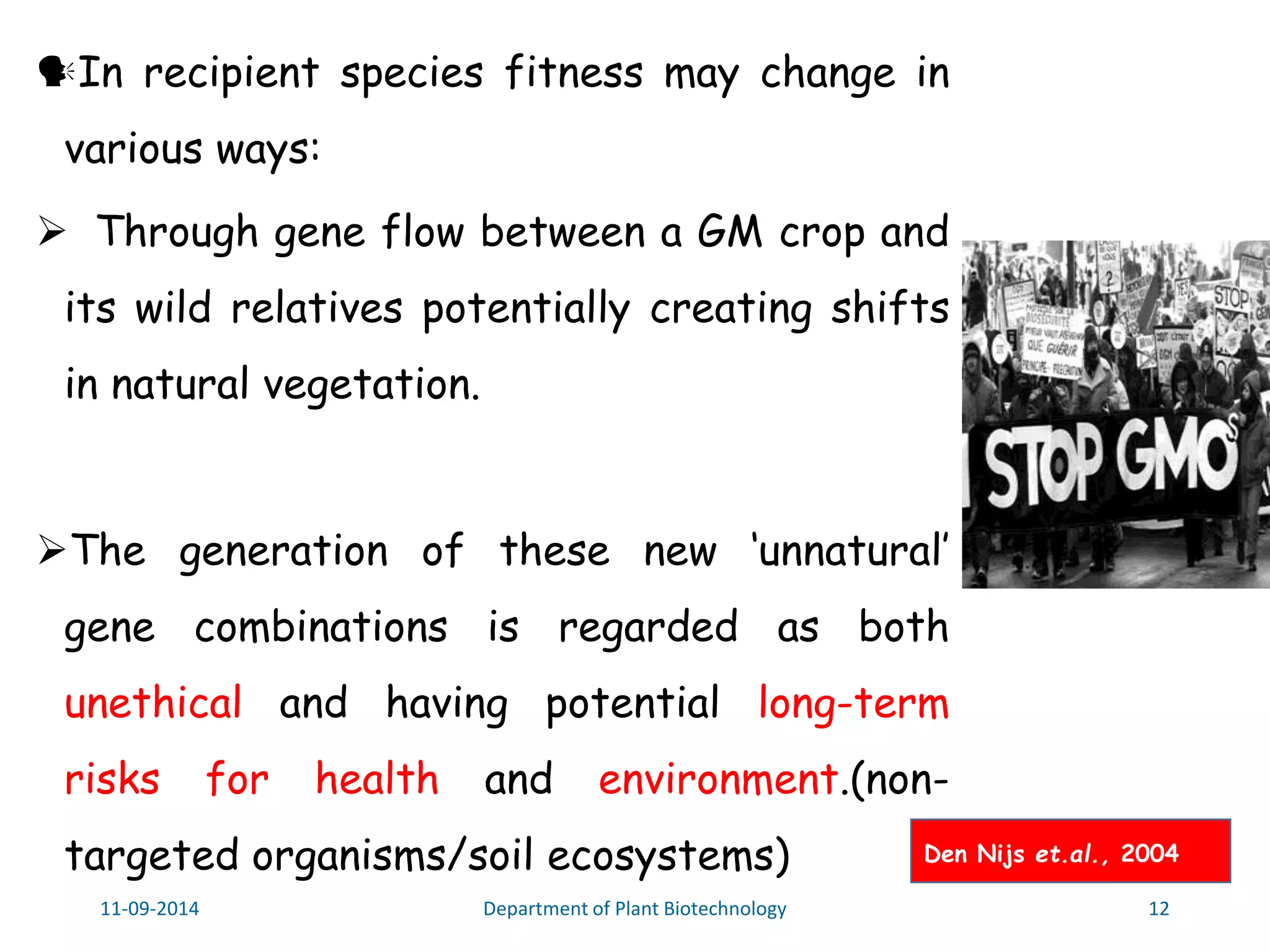

12. In recipient species fitness may change in
various ways:
 Through gene flow between a GM crop and
its wild relatives potentially creating shifts
in natural vegetation.
The generation of these new ‘unnatural’
gene combinations is regarded as both
unethical and having potential long-term
risks for health and environment.(non-targeted
organisms/soil ecosystems)
Den Nijs et.al., 2004
11-09-2014 Department of Plant Biotechnology 12

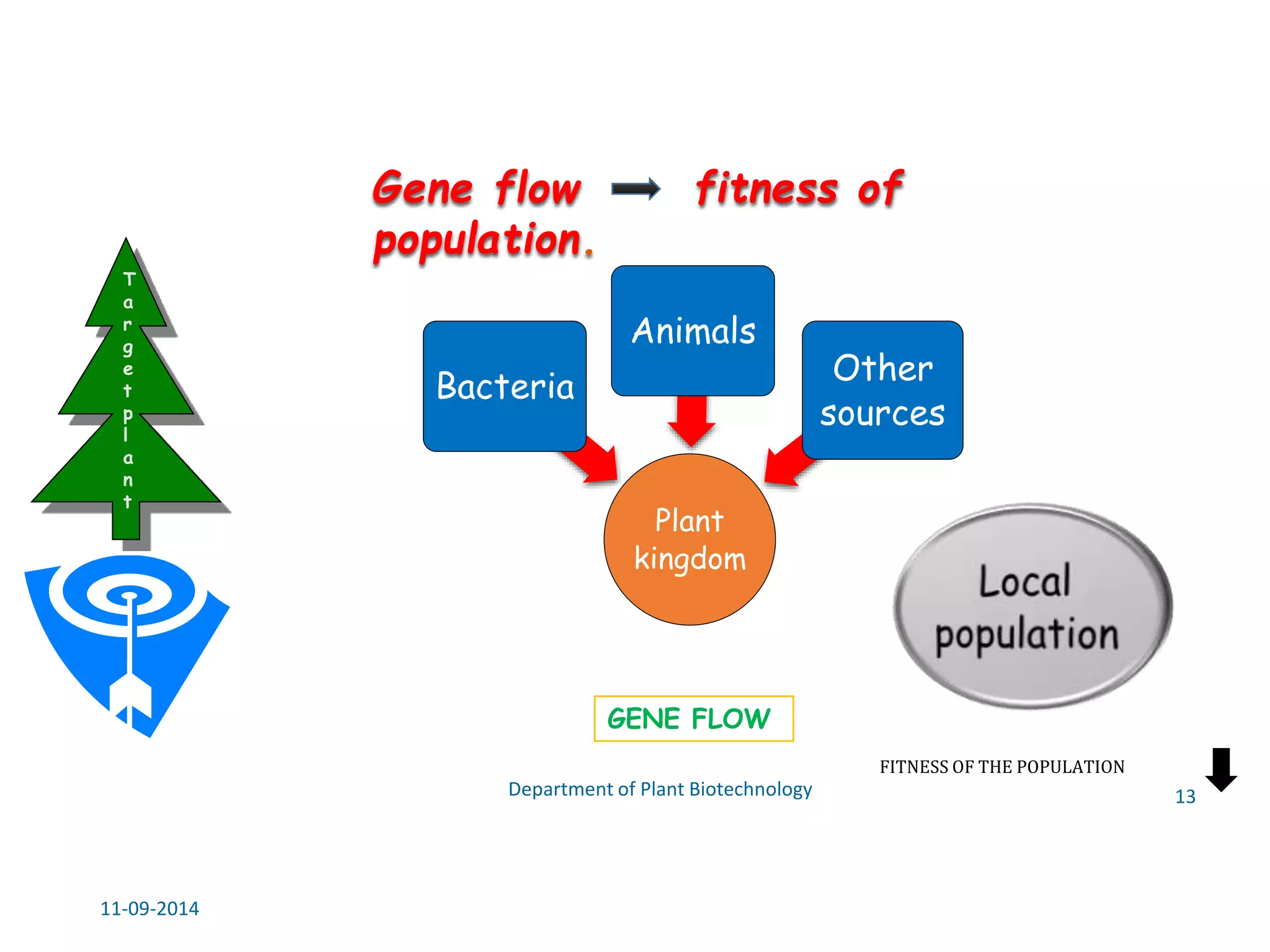

13. 11-09-2014
Gene flow fitness of
population
Animals
Plant
kingdom
Bacteria
Other
sources
GENE FLOW
FITNESS OF THE POPULATION
Department of Plant Biotechnology 13
T
a
r
g
e
t
p
l
a
n
t

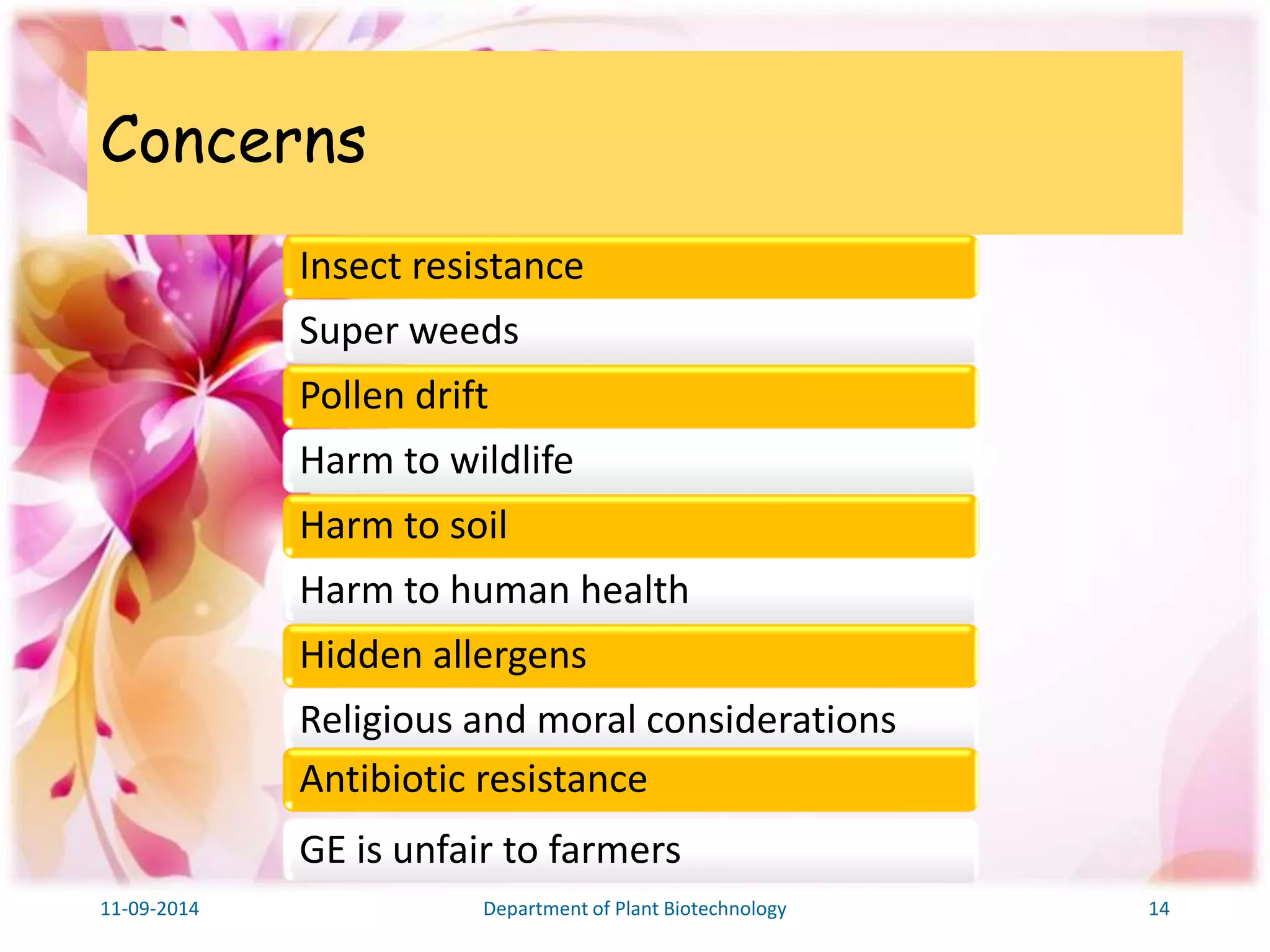

14. Concerns
Insect resistance
Super weeds
Pollen drift
Harm to wildlife
Harm to soil
Harm to human health
Hidden allergens
Religious and moral considerations
Antibiotic resistance
GE is unfair to farmers
11-09-2014 Department of Plant Biotechnology 14

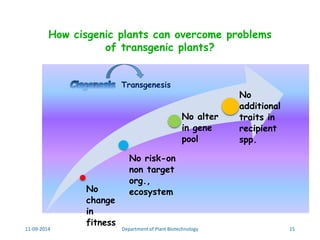

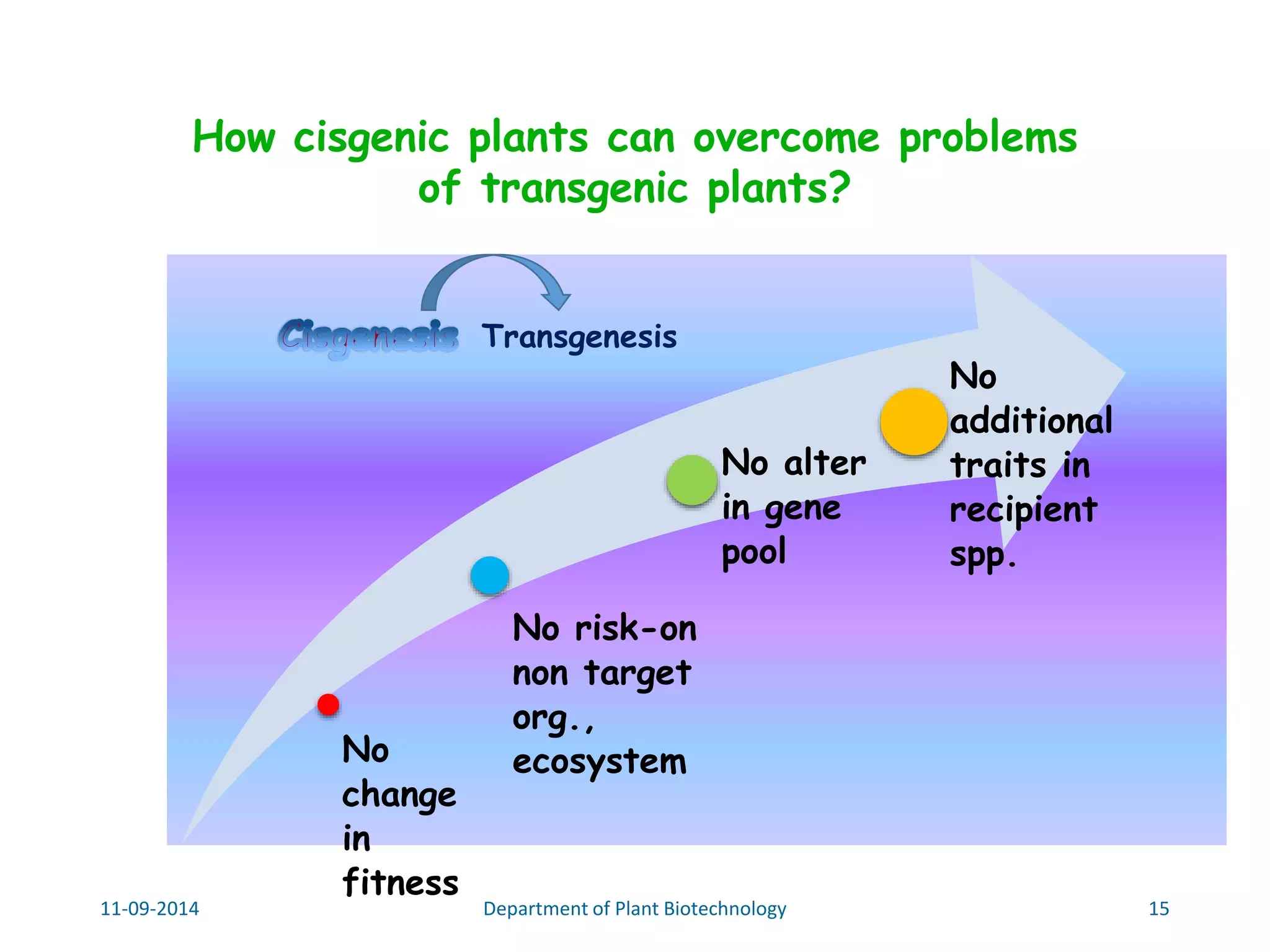

15. How cisgenic plants can overcome problems
of transgenic plants?
No
change
in
fitness
Transgenesis
No risk-on
non target
org.,
ecosystem
No alter
in gene
pool
No
additional
traits in
recipient
spp.
11-09-2014 Department of Plant Biotechnology 15

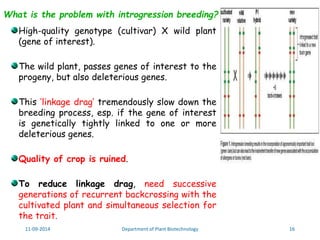

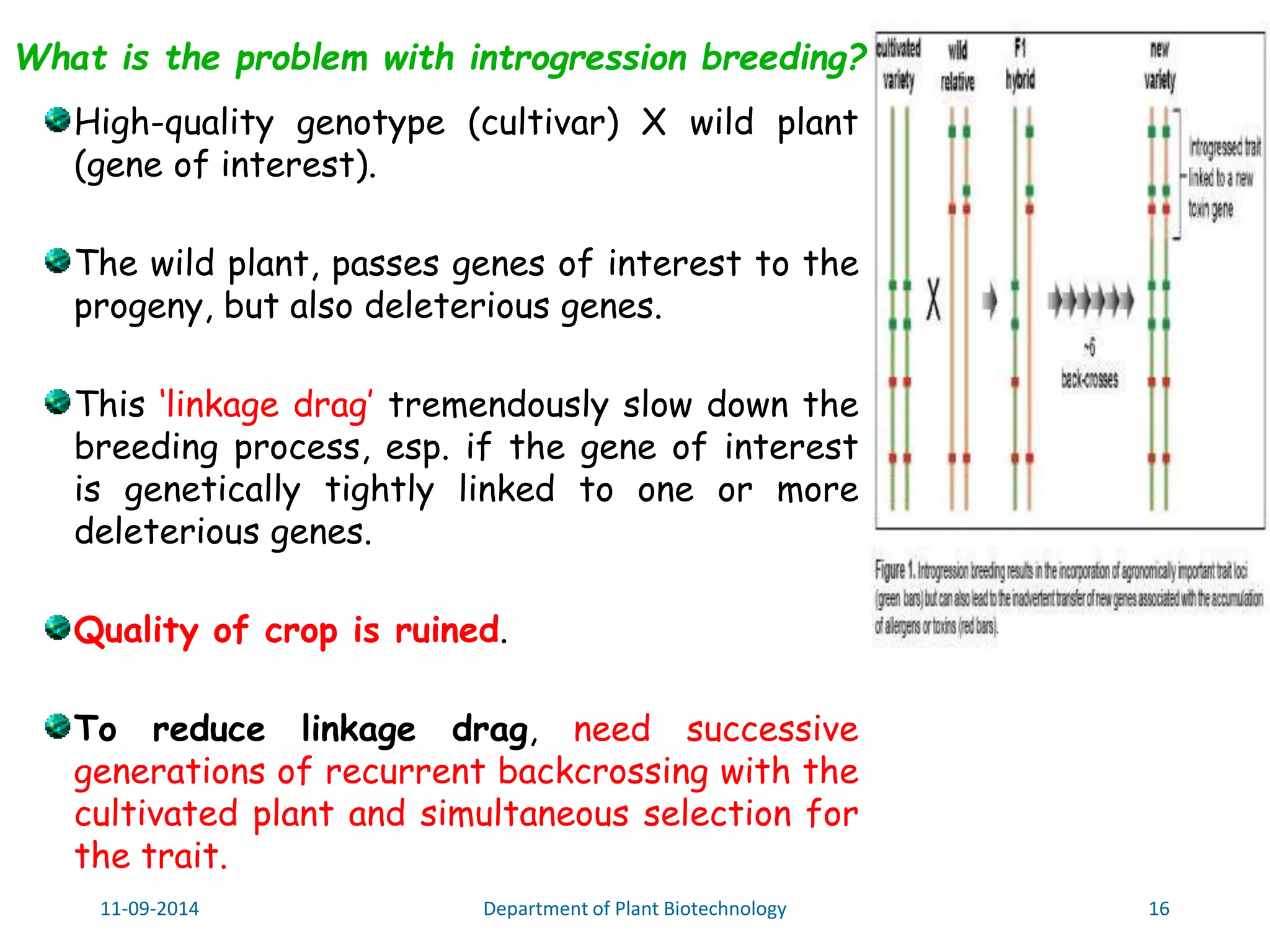

16. What is the problem with introgression breeding?
High-quality genotype (cultivar) X wild plant
(gene of interest).
The wild plant, passes genes of interest to the
progeny, but also deleterious genes.
This ‘linkage drag’ tremendously slow down the
breeding process, esp. if the gene of interest
is genetically tightly linked to one or more
deleterious genes.
Quality of crop is ruined.
To reduce linkage drag, need successive
generations of recurrent backcrossing with the
cultivated plant and simultaneous selection for
the trait.
11-09-2014 Department of Plant Biotechnology 16

17. Contd..

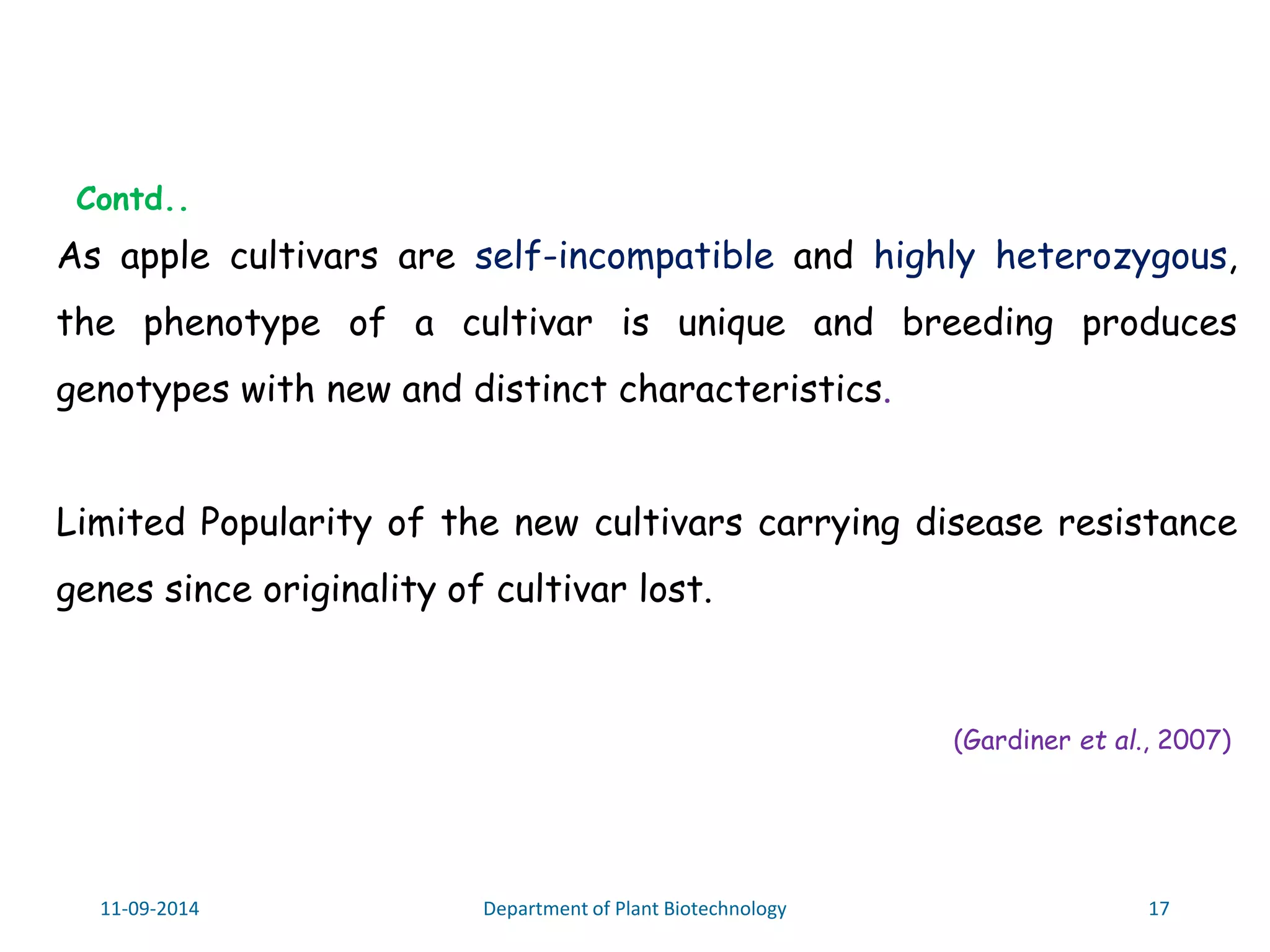

As apple cultivars are self-incompatible and highly heterozygous,
the phenotype of a cultivar is unique and breeding produces
genotypes with new and distinct characteristics.
Limited Popularity of the new cultivars carrying disease resistance
genes since originality of cultivar lost.
(Gardiner et al., 2007)
11-09-2014 Department of Plant Biotechnology 17

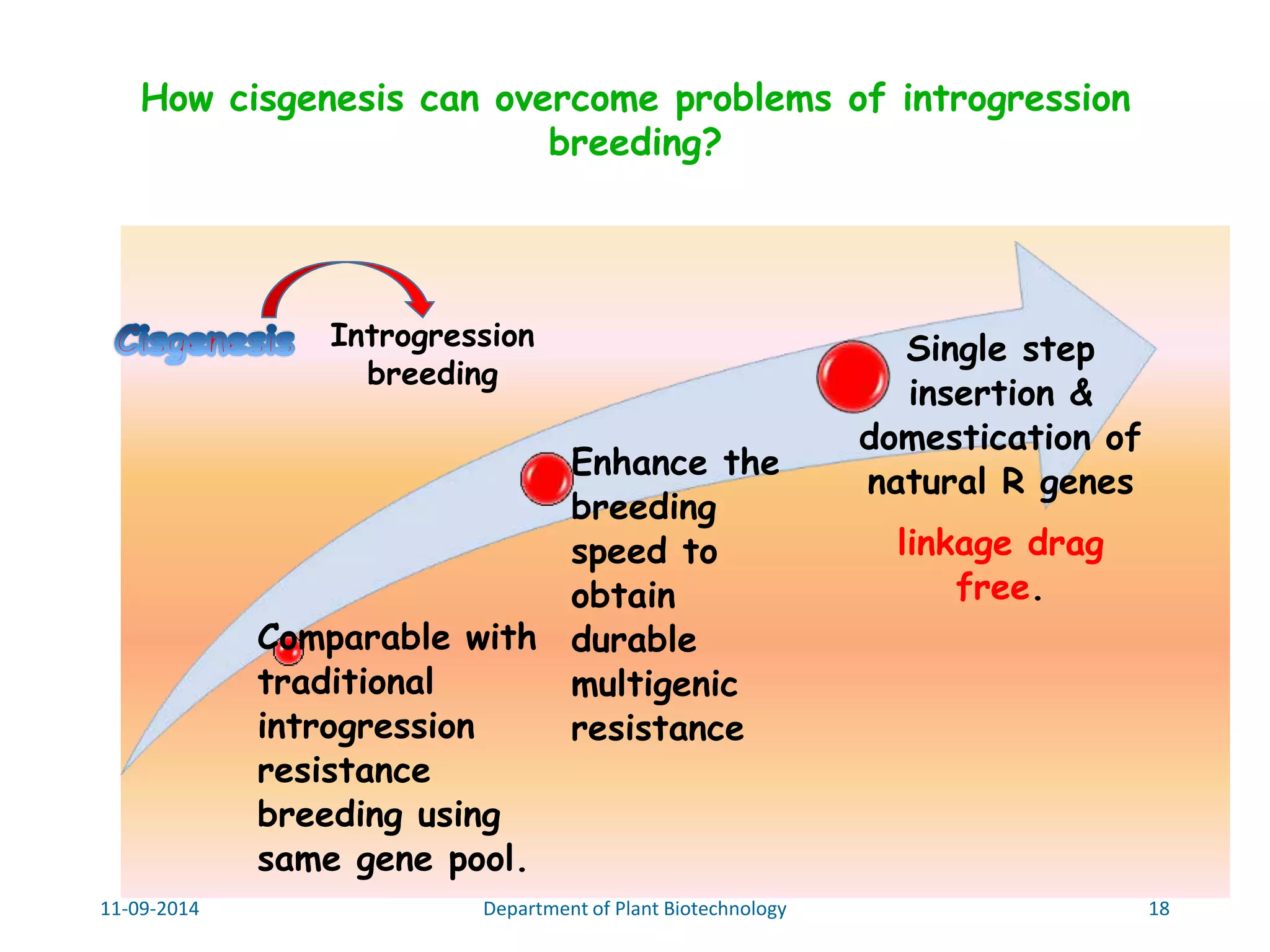

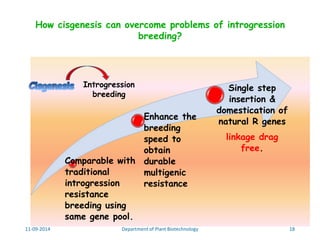

18. How cisgenesis can overcome problems of introgression
Introgression
breeding
Comparable with
traditional
introgression
resistance
breeding using
same gene pool.
breeding?
Enhance the
breeding
speed to
obtain
durable
multigenic
resistance
Single step
insertion &
domestication of
natural R genes
linkage drag
free.
11-09-2014 Department of Plant Biotechnology 18

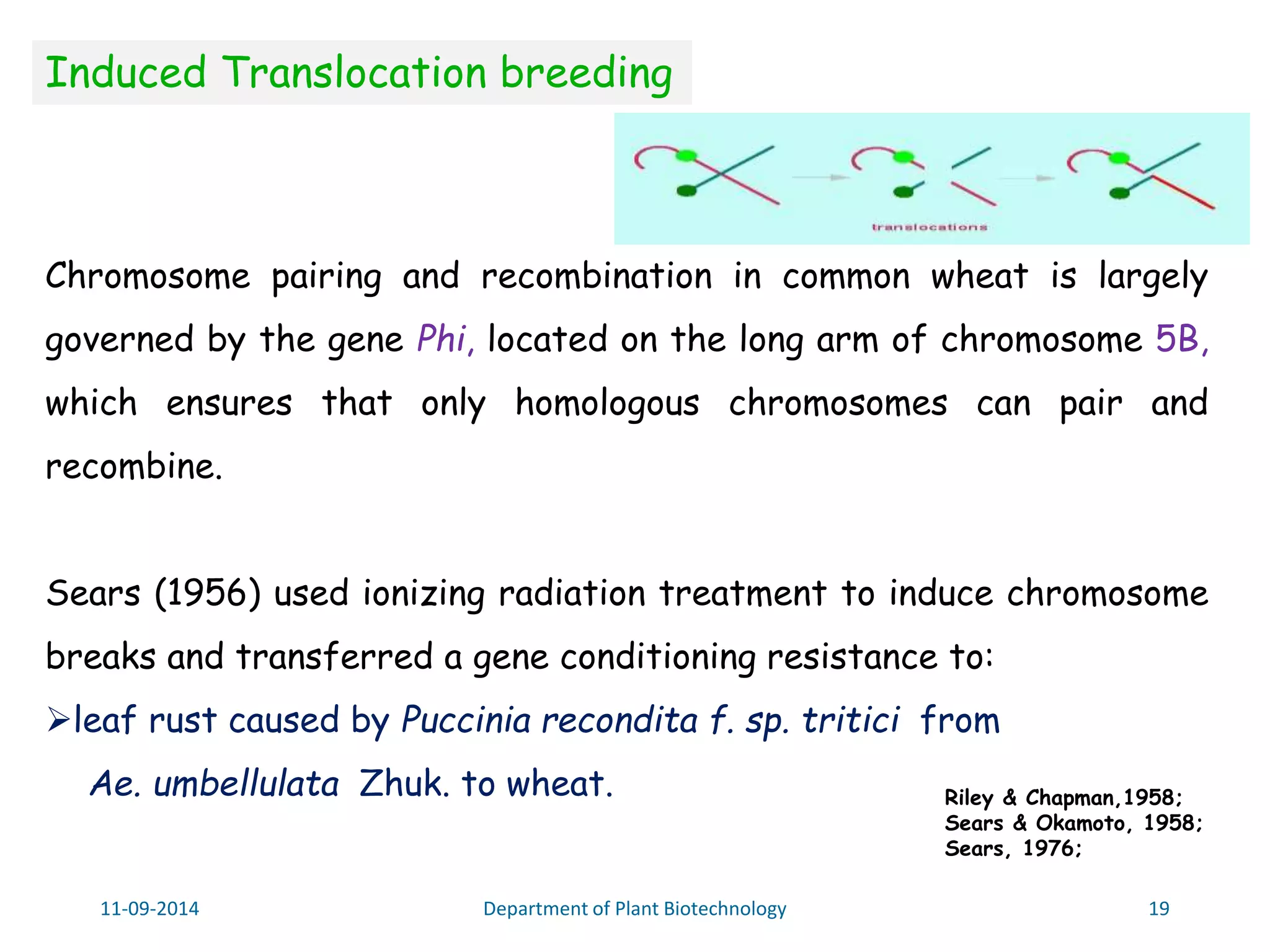

19. Induced Translocation breeding
Chromosome pairing and recombination in common wheat is largely
governed by the gene Phi, located on the long arm of chromosome 5B,
which ensures that only homologous chromosomes can pair and
recombine.
Sears (1956) used ionizing radiation treatment to induce chromosome
breaks and transferred a gene conditioning resistance to:
leaf rust caused by Puccinia recondita f. sp. tritici from
Ae. umbellulata Zhuk. to wheat.
Riley & Chapman,1958;
Sears & Okamoto, 1958;
Sears, 1976;
11-09-2014 Department of Plant Biotechnology 19

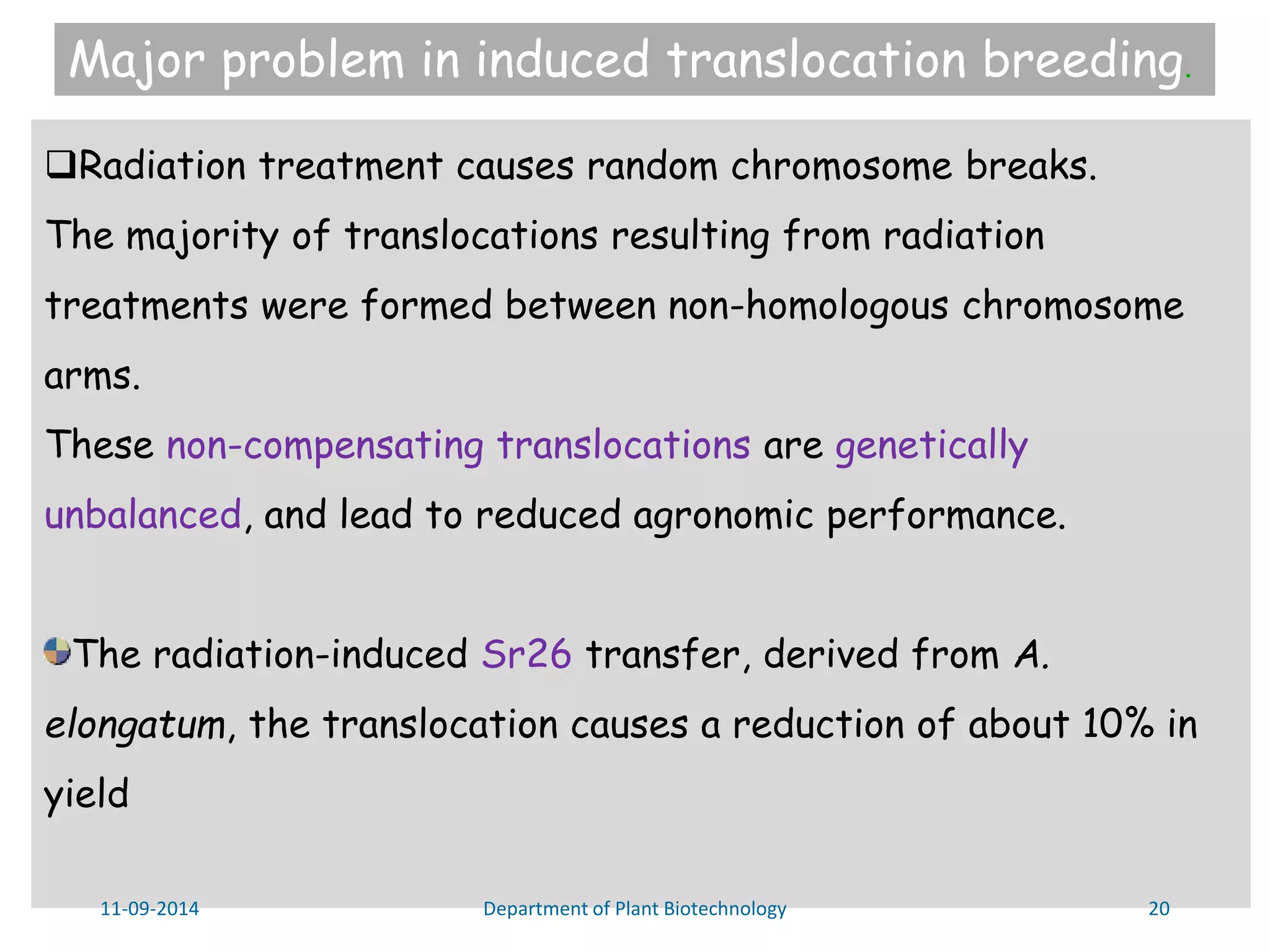

20. Major problem in induced translocation breeding.
Radiation treatment causes random chromosome breaks.
The majority of translocations resulting from radiation
treatments were formed between non-homologous chromosome
arms.
These non-compensating translocations are genetically
unbalanced, and lead to reduced agronomic performance.
The radiation-induced Sr26 transfer, derived from A.
elongatum, the translocation causes a reduction of about 10% in
yield
11-09-2014 Department of Plant Biotechnology 20

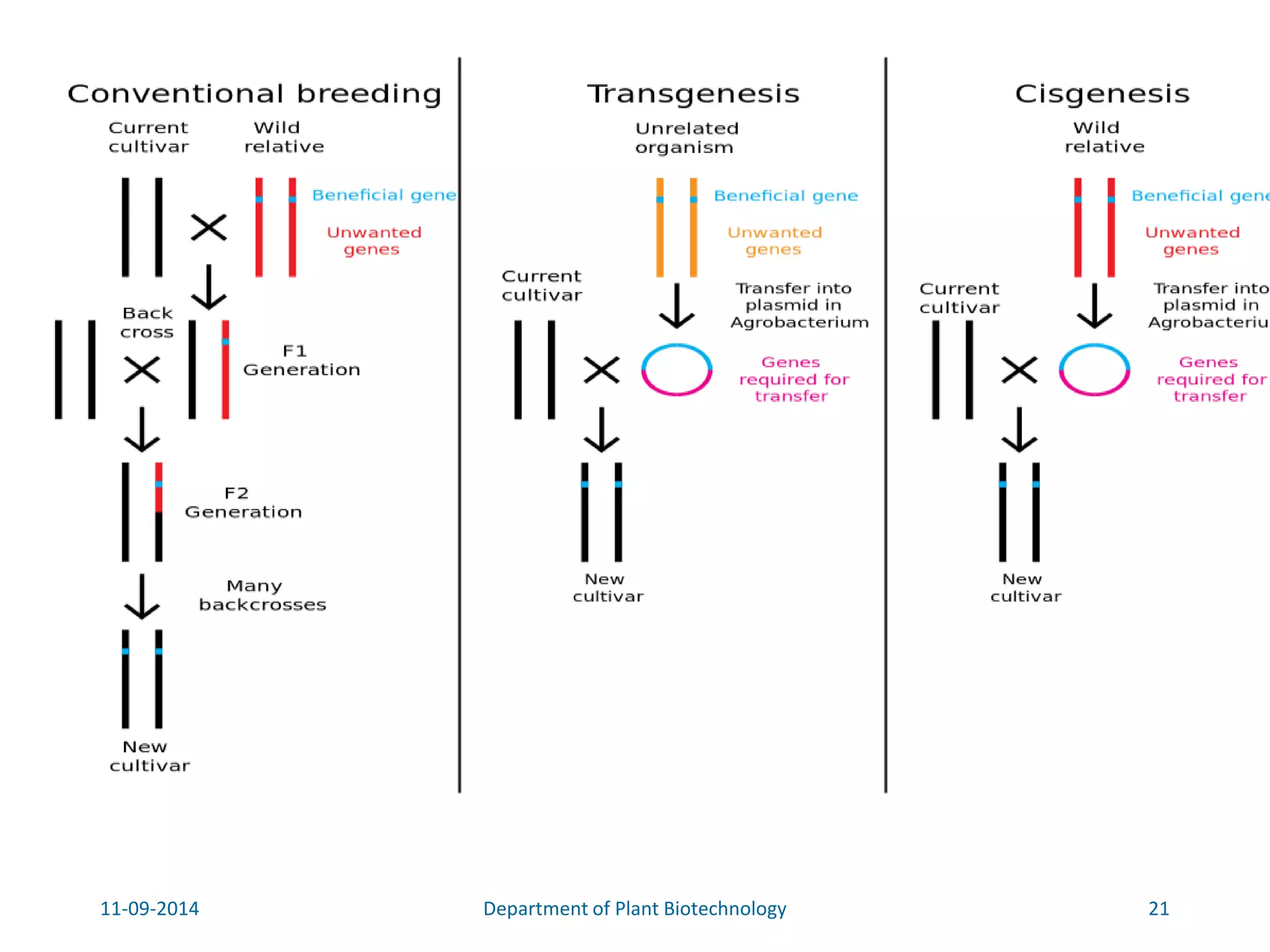

21. 11-09-2014 Department of Plant Biotechnology 21

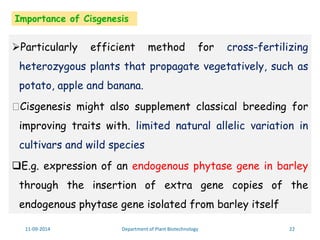

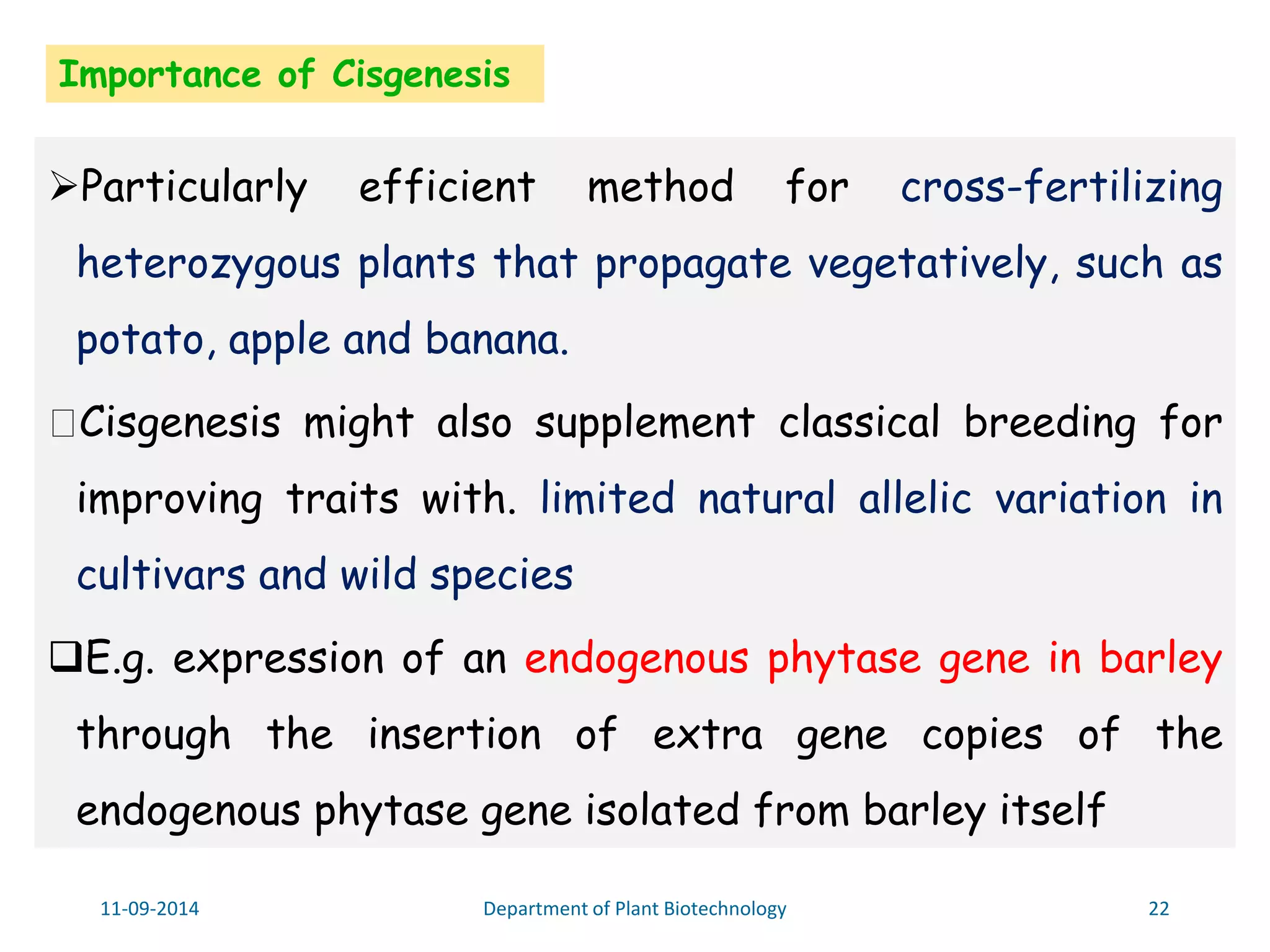

22. Importance of Cisgenesis
Particularly efficient method for cross-fertilizing
heterozygous plants that propagate vegetatively, such as
potato, apple and banana.
Cisgenesis might also supplement classical breeding for
improving traits with. limited natural allelic variation in
cultivars and wild species
E.g. expression of an endogenous phytase gene in barley
through the insertion of extra gene copies of the
endogenous phytase gene isolated from barley itself
11-09-2014 Department of Plant Biotechnology 22

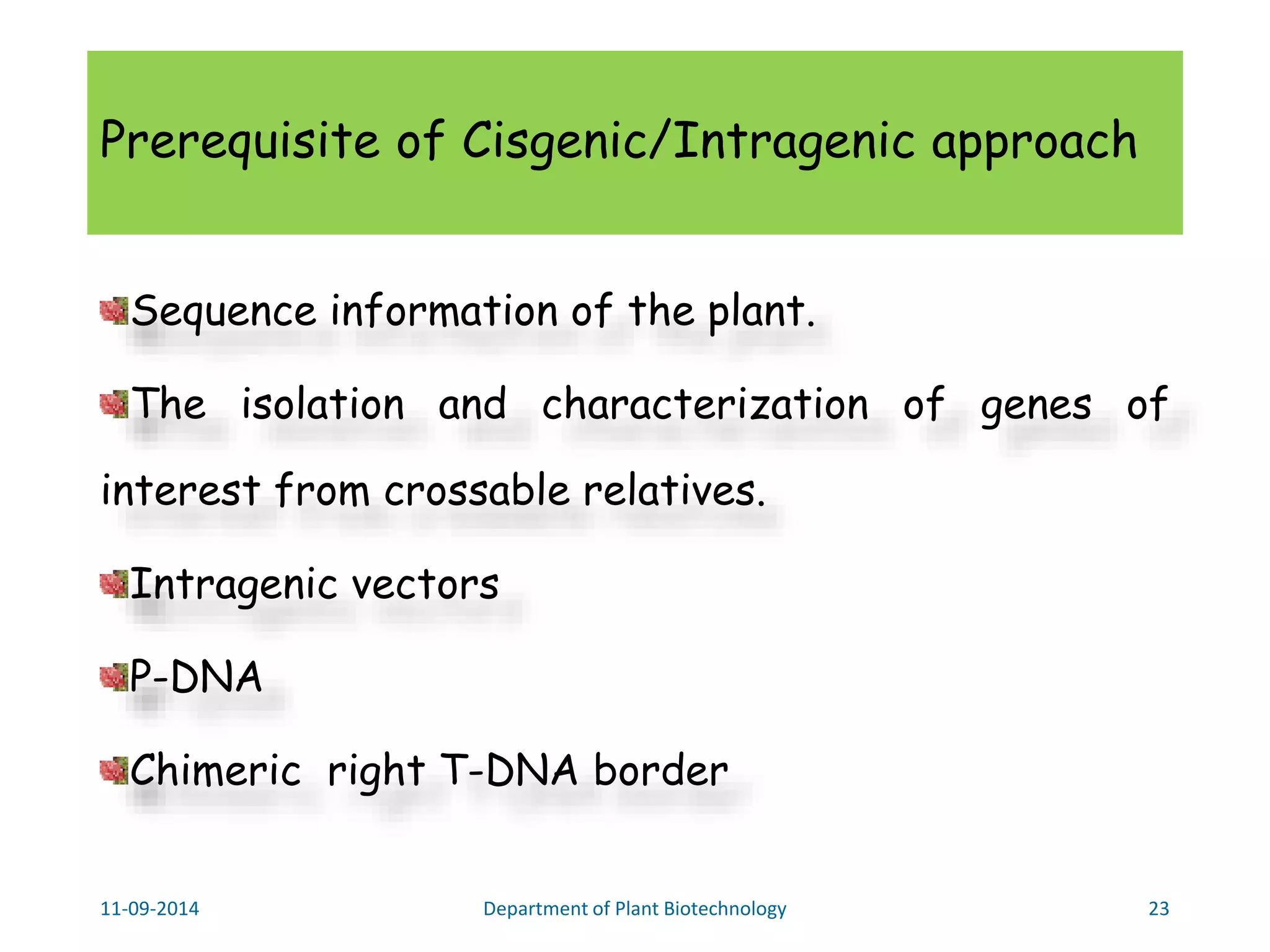

23. Prerequisite of Cisgenic/Intragenic approach
Sequence information of the plant.
The isolation and characterization of genes of
interest from crossable relatives.
Intragenic vectors
P-DNA
Chimeric right T-DNA border
11-09-2014 Department of Plant Biotechnology 23

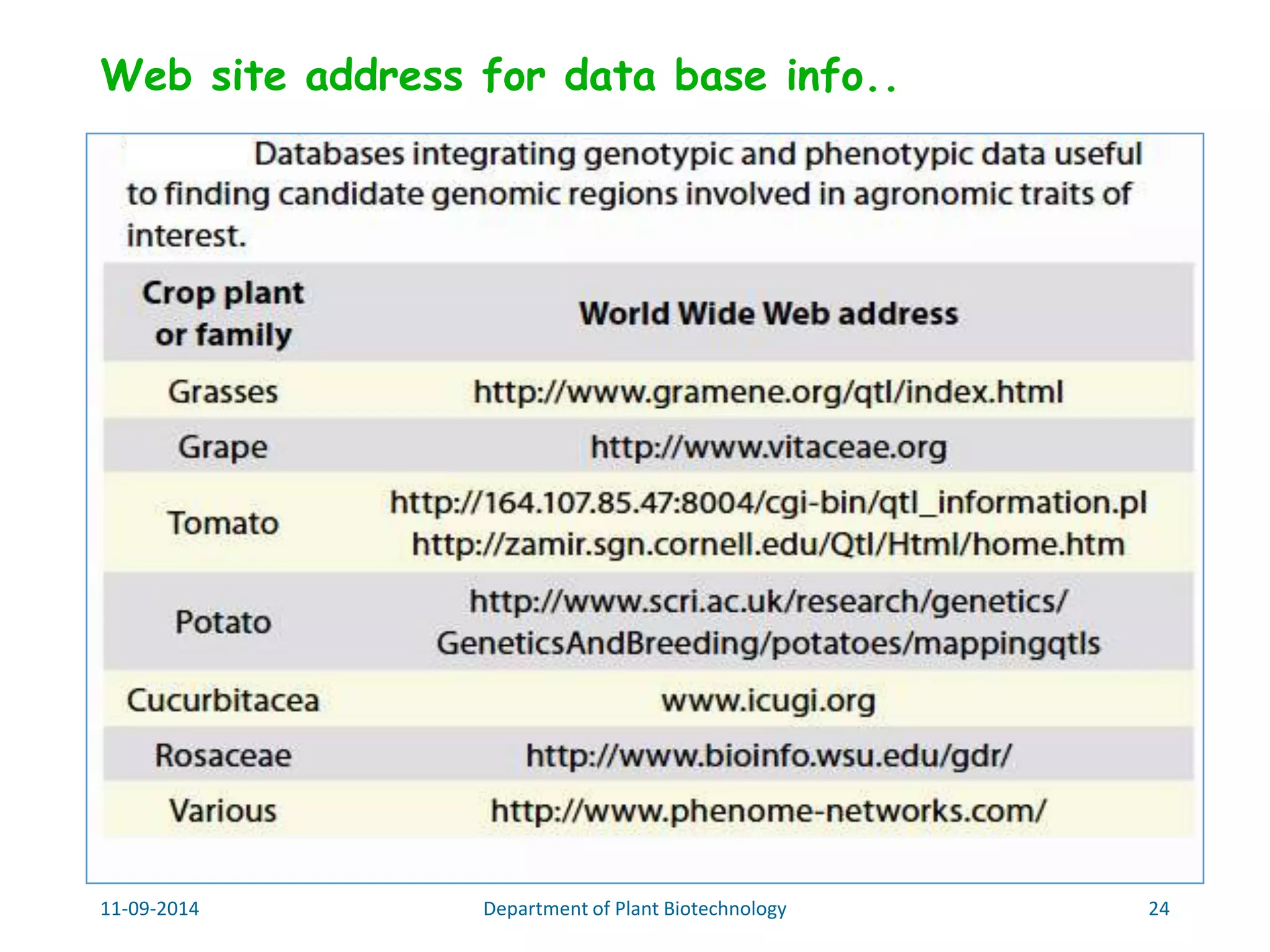

24. Web site address for data base info..
11-09-2014 Department of Plant Biotechnology 24

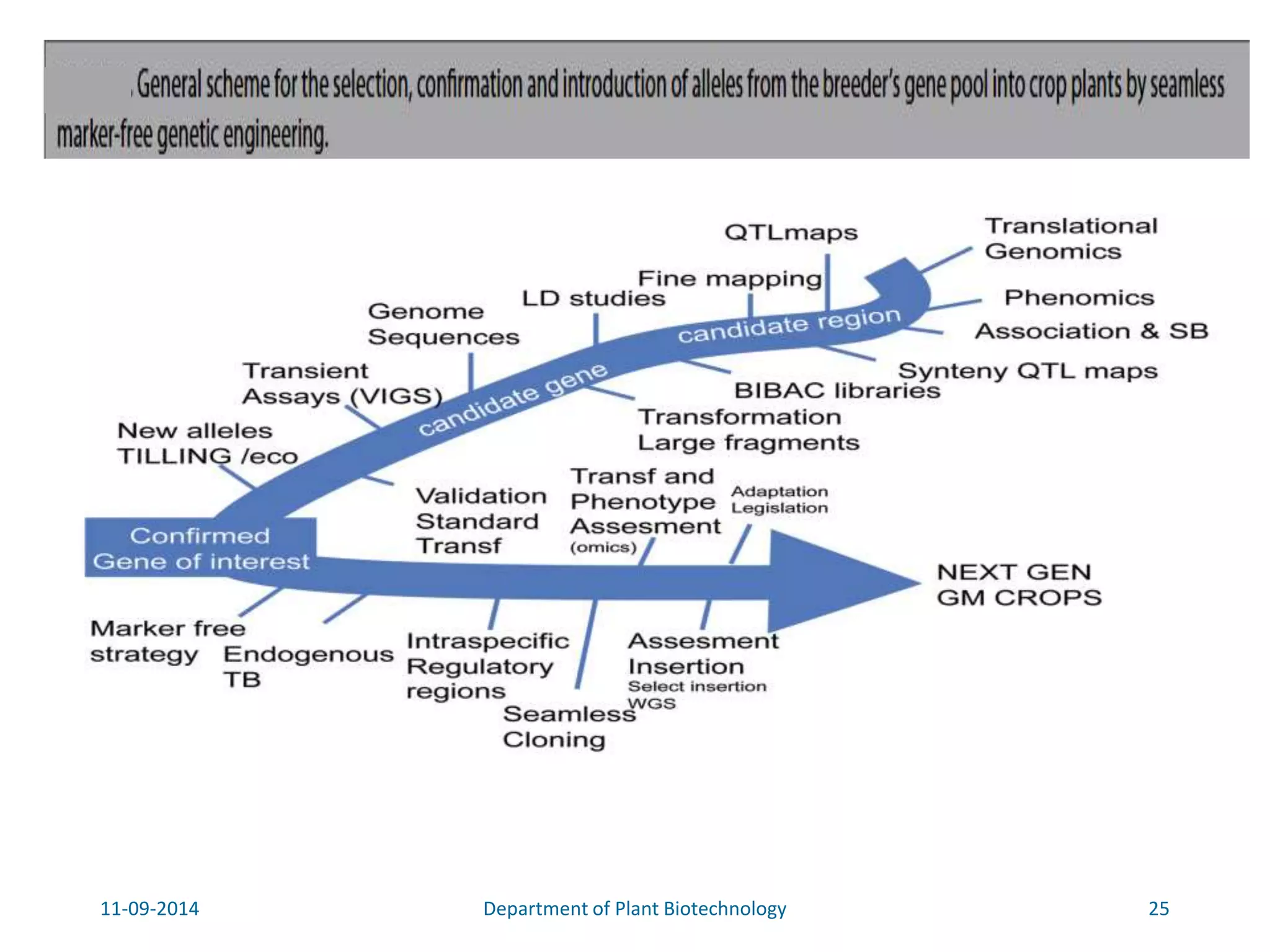

25. 11-09-2014 Department of Plant Biotechnology 25

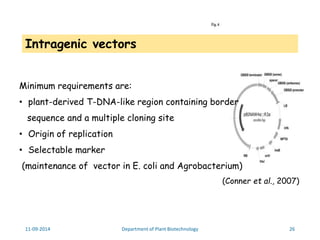

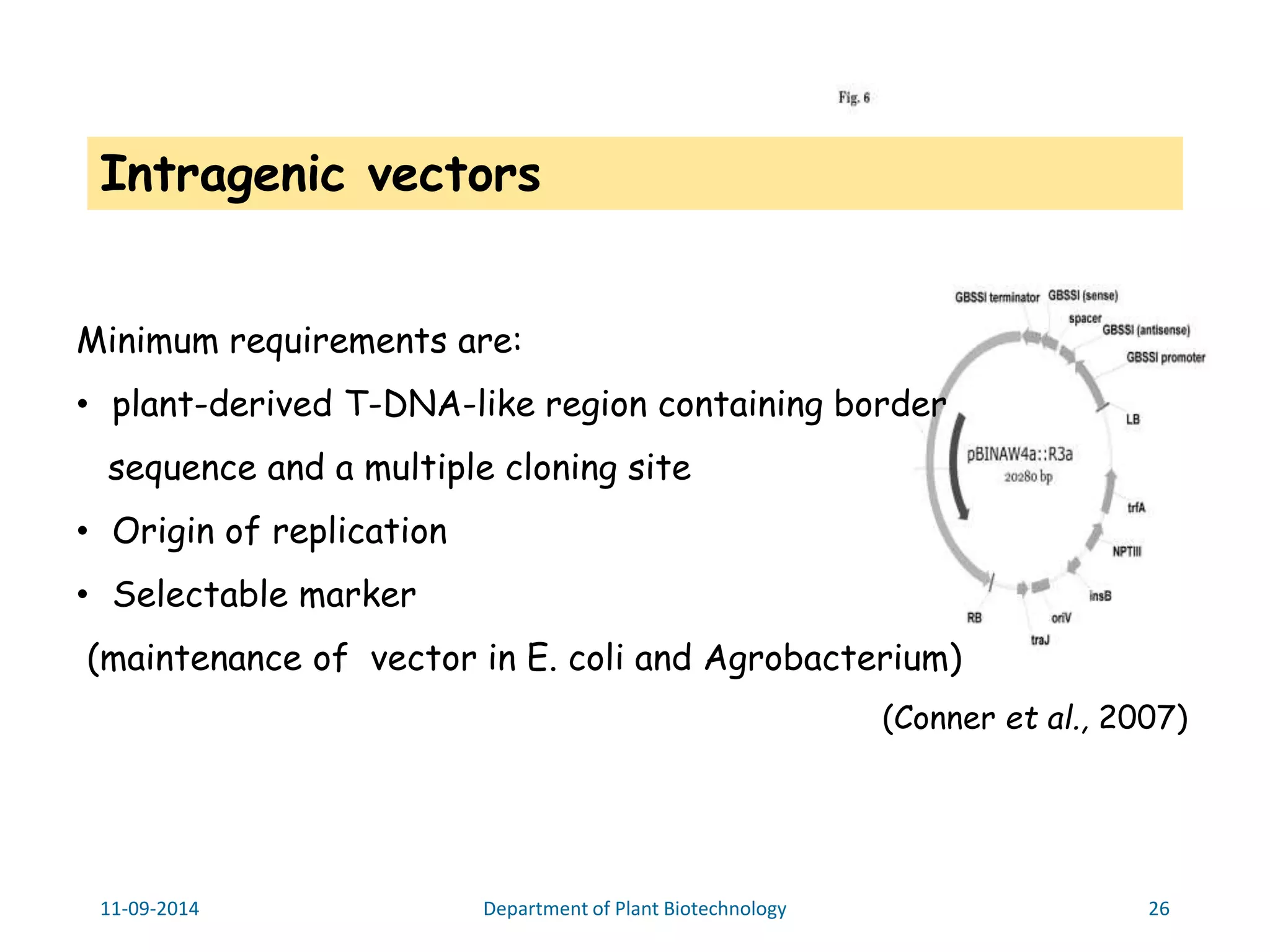

26. Intragenic vectors
Minimum requirements are:
• plant-derived T-DNA-like region containing border
sequence and a multiple cloning site
• Origin of replication
• Selectable marker
(maintenance of vector in E. coli and Agrobacterium)
(Conner et al., 2007)
11-09-2014 Department of Plant Biotechnology 26

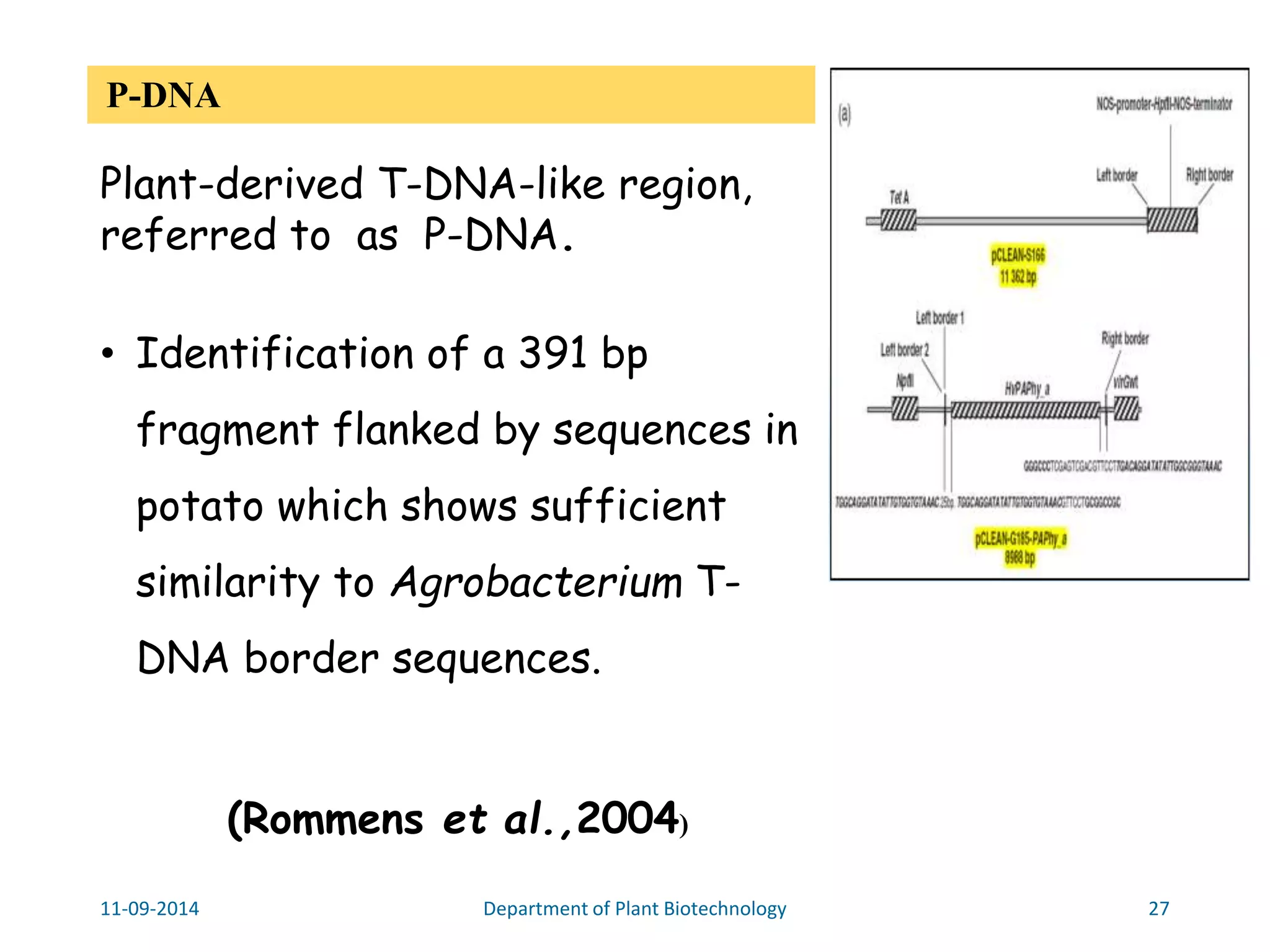

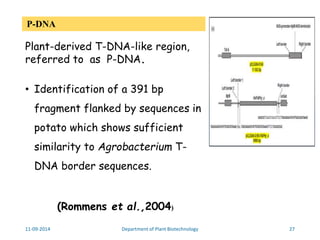

27. P-DNA
Plant-derived T-DNA-like region,
referred to as P-DNA.
• Identification of a 391 bp
fragment flanked by sequences in
potato which shows sufficient
similarity to Agrobacterium T-DNA
border sequences.
(Rommens et al.,2004)
11-09-2014 Department of Plant Biotechnology 27

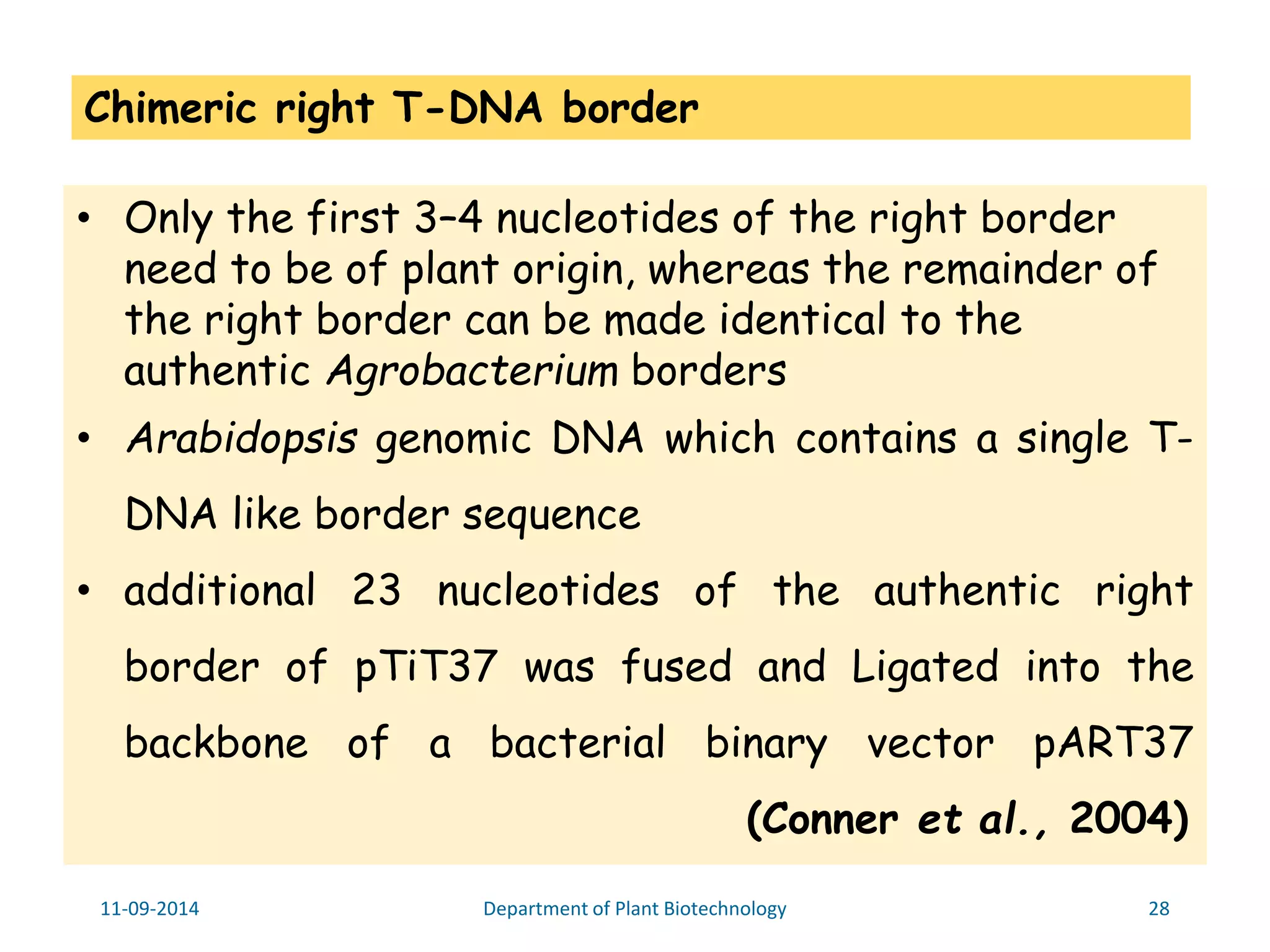

28. Chimeric right T-DNA border
• Only the first 3–4 nucleotides of the right border
need to be of plant origin, whereas the remainder of
the right border can be made identical to the
authentic Agrobacterium borders
• Arabidopsis genomic DNA which contains a single T-DNA
like border sequence
• additional 23 nucleotides of the authentic right
border of pTiT37 was fused and Ligated into the
backbone of a bacterial binary vector pART37
(Conner et al., 2004)
11-09-2014 Department of Plant Biotechnology 28

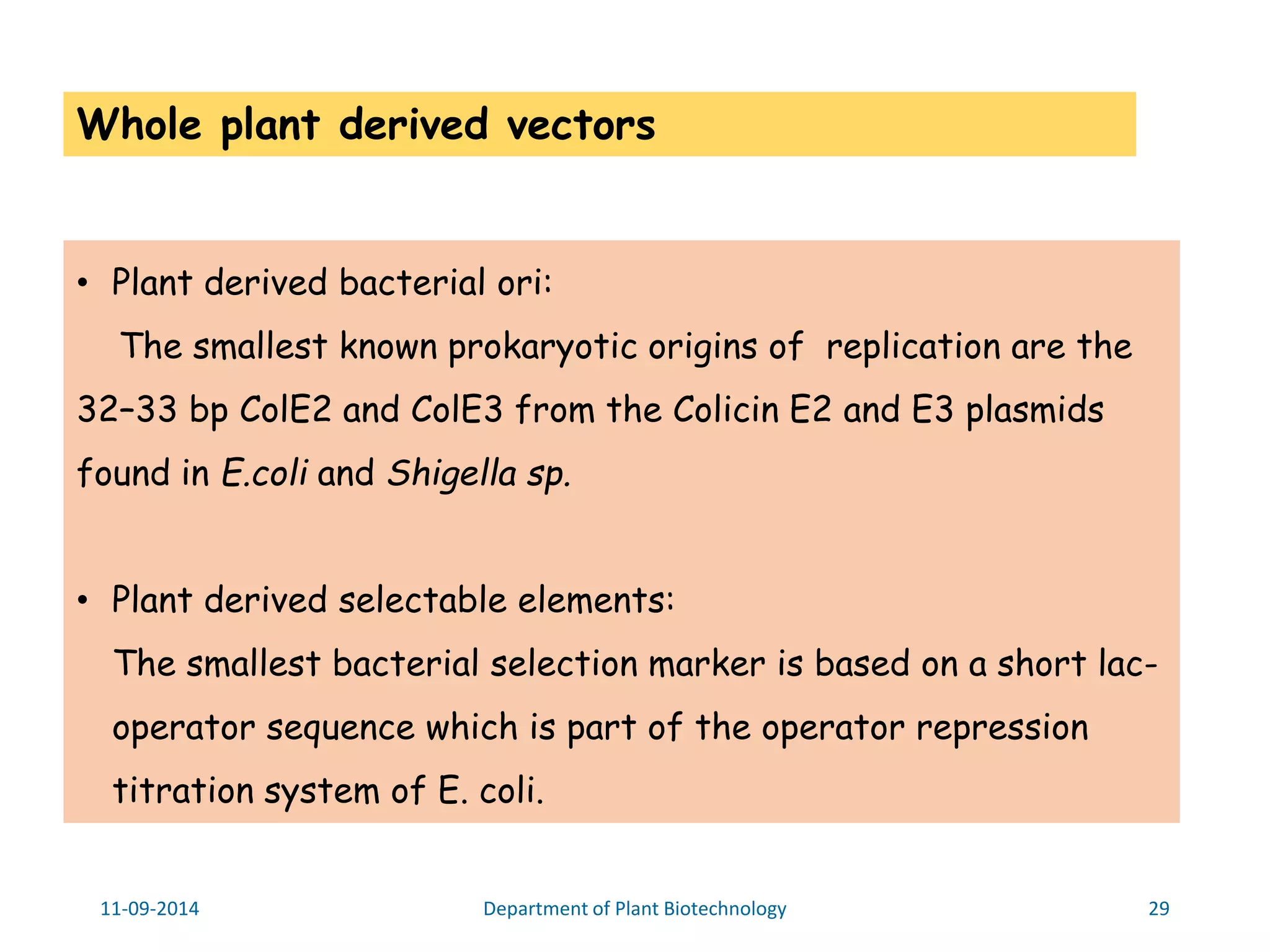

29. Whole plant derived vectors
• Plant derived bacterial ori:
The smallest known prokaryotic origins of replication are the
32–33 bp ColE2 and ColE3 from the Colicin E2 and E3 plasmids
found in E.coli and Shigella sp.
• Plant derived selectable elements:
The smallest bacterial selection marker is based on a short lac-operator
sequence which is part of the operator repression
titration system of E. coli.
11-09-2014 Department of Plant Biotechnology 29

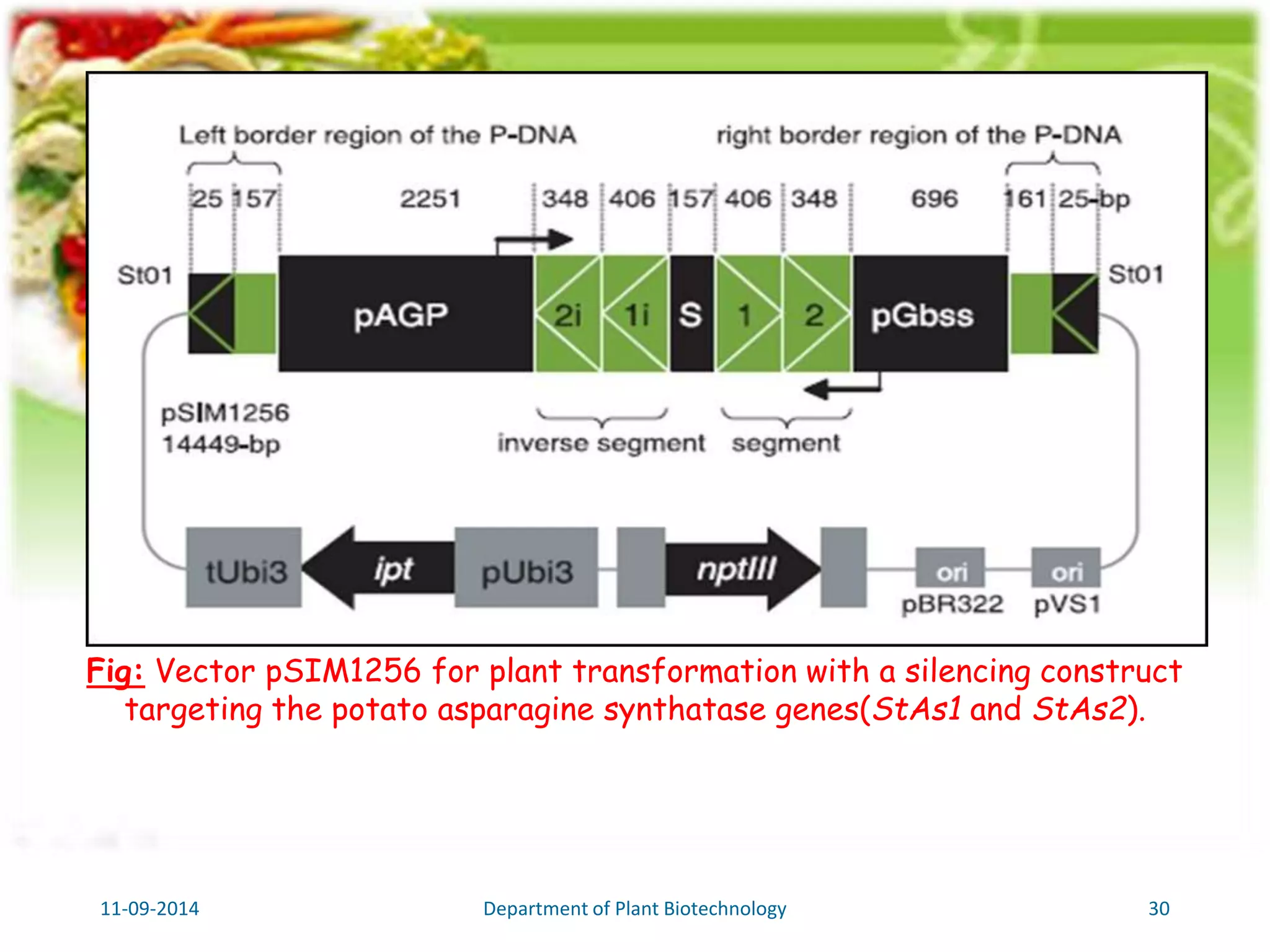

30. Fig: Vector pSIM1256 for plant transformation with a silencing construct
targeting the potato asparagine synthatase genes(StAs1 and StAs2).
11-09-2014 Department of Plant Biotechnology 30

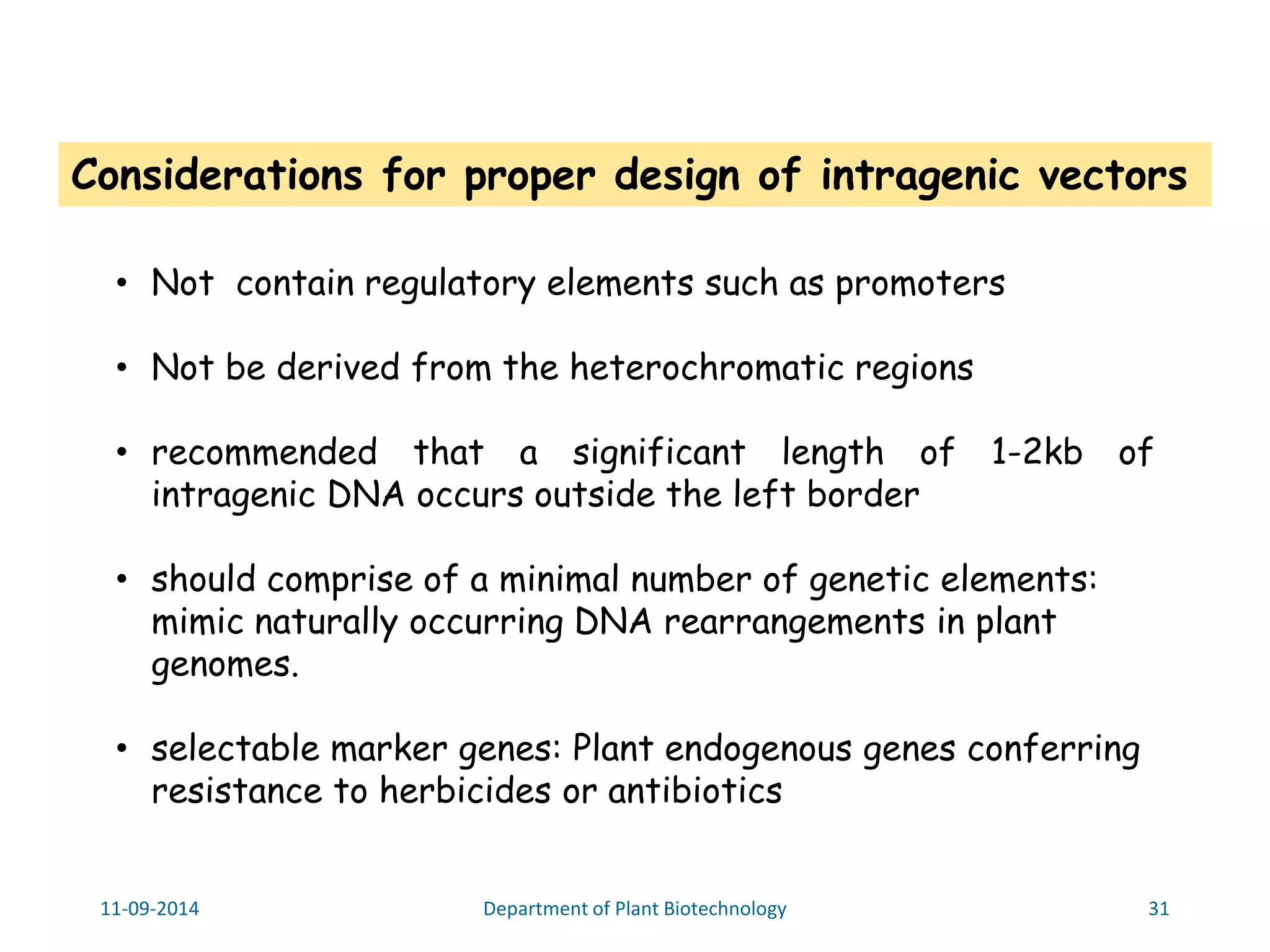

31. Considerations for proper design of intragenic vectors
• Not contain regulatory elements such as promoters
• Not be derived from the heterochromatic regions
• recommended that a significant length of 1-2kb of
intragenic DNA occurs outside the left border
• should comprise of a minimal number of genetic elements:
mimic naturally occurring DNA rearrangements in plant
genomes.
• selectable marker genes: Plant endogenous genes conferring
resistance to herbicides or antibiotics
11-09-2014 Department of Plant Biotechnology 31

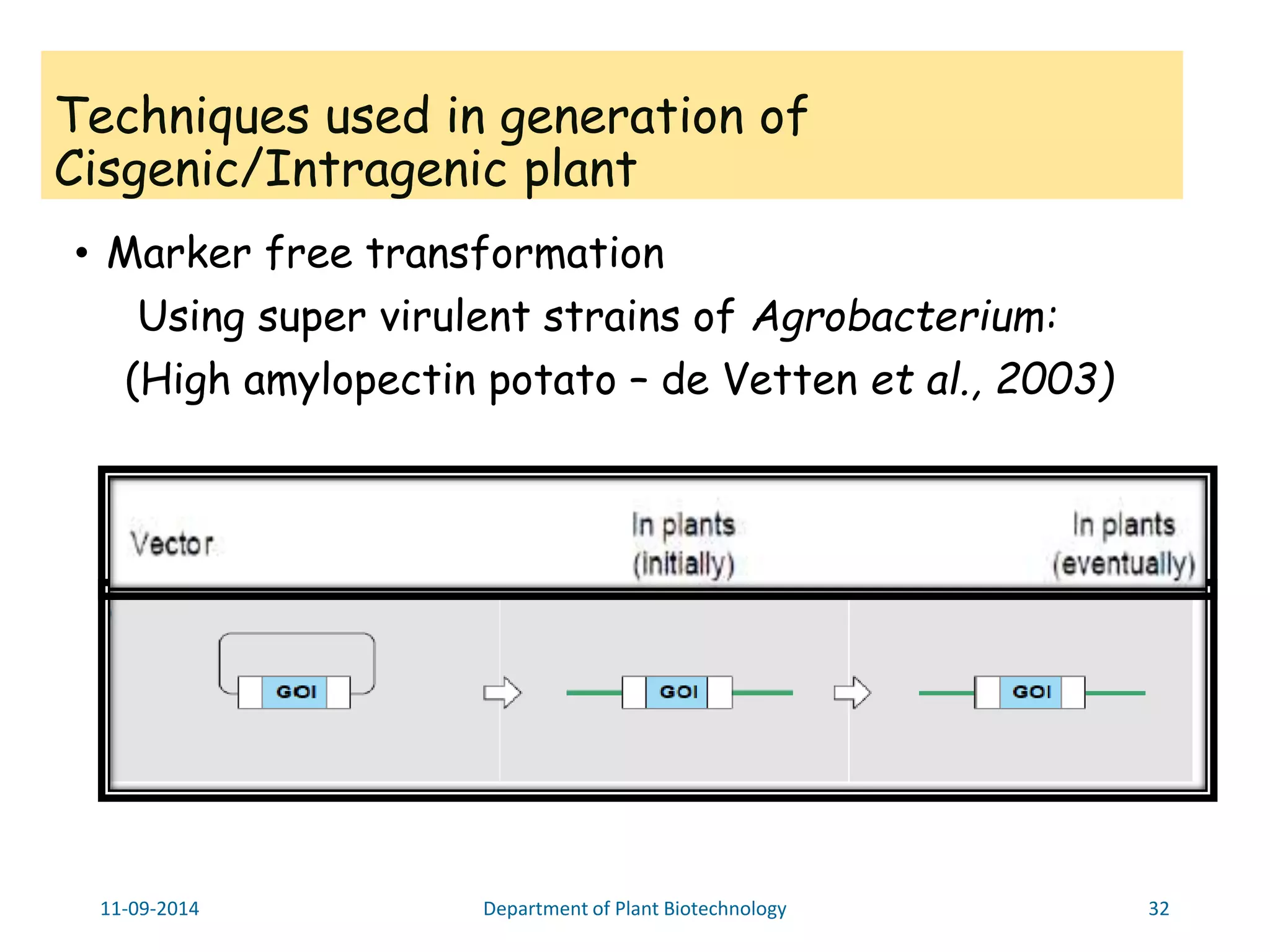

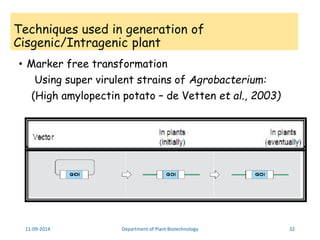

32. Techniques used in generation of
Cisgenic/Intragenic plant
• Marker free transformation
Using super virulent strains of Agrobacterium:
(High amylopectin potato – de Vetten et al., 2003)
11-09-2014 Department of Plant Biotechnology 32

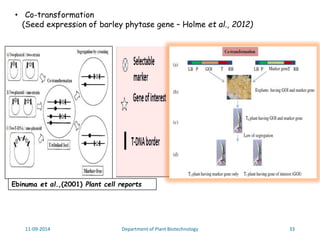

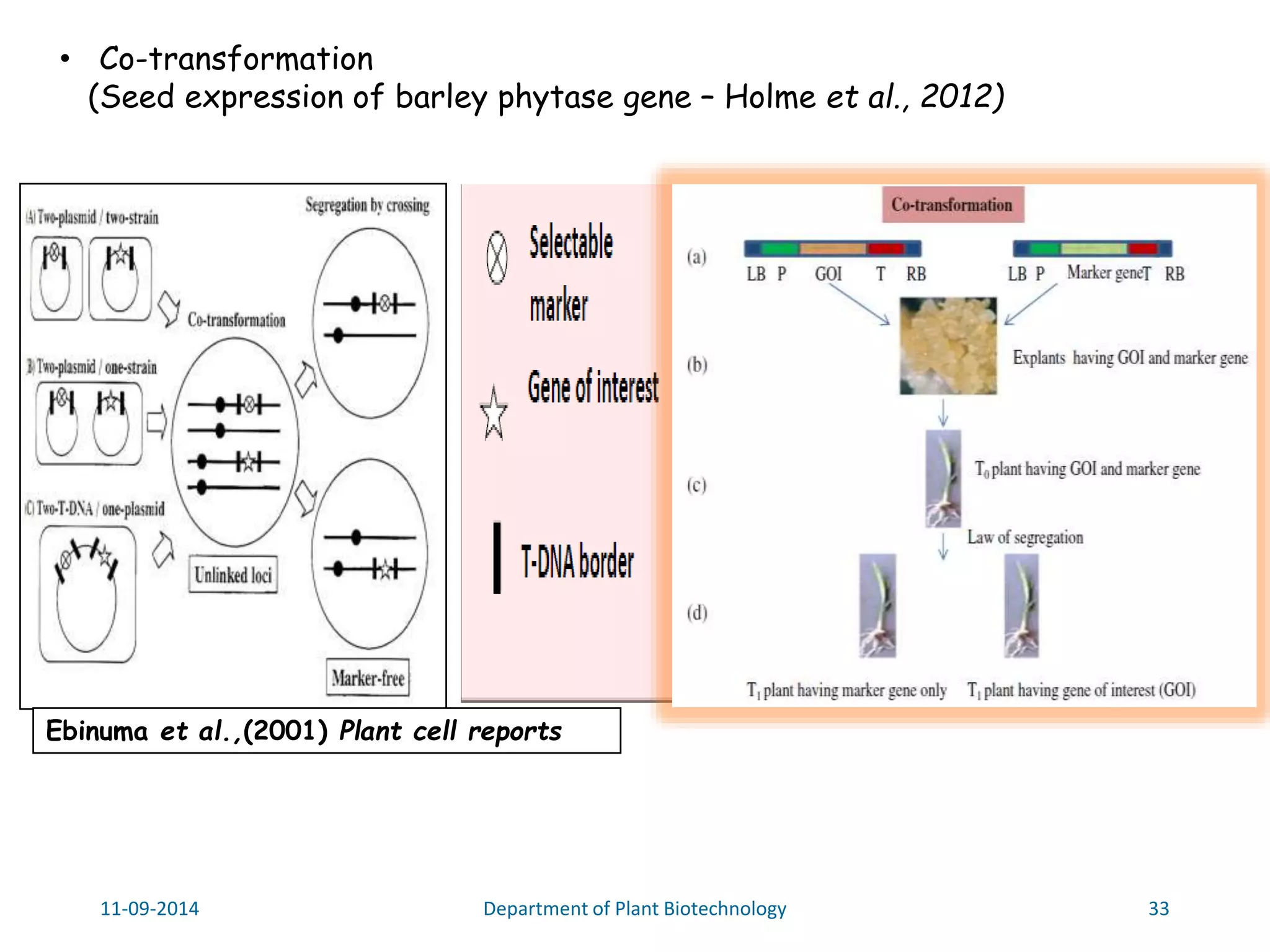

33. • Co-transformation
(Seed expression of barley phytase gene – Holme et al., 2012)
Ebinuma et al.,(2001) Plant cell reports
11-09-2014 Department of Plant Biotechnology 33

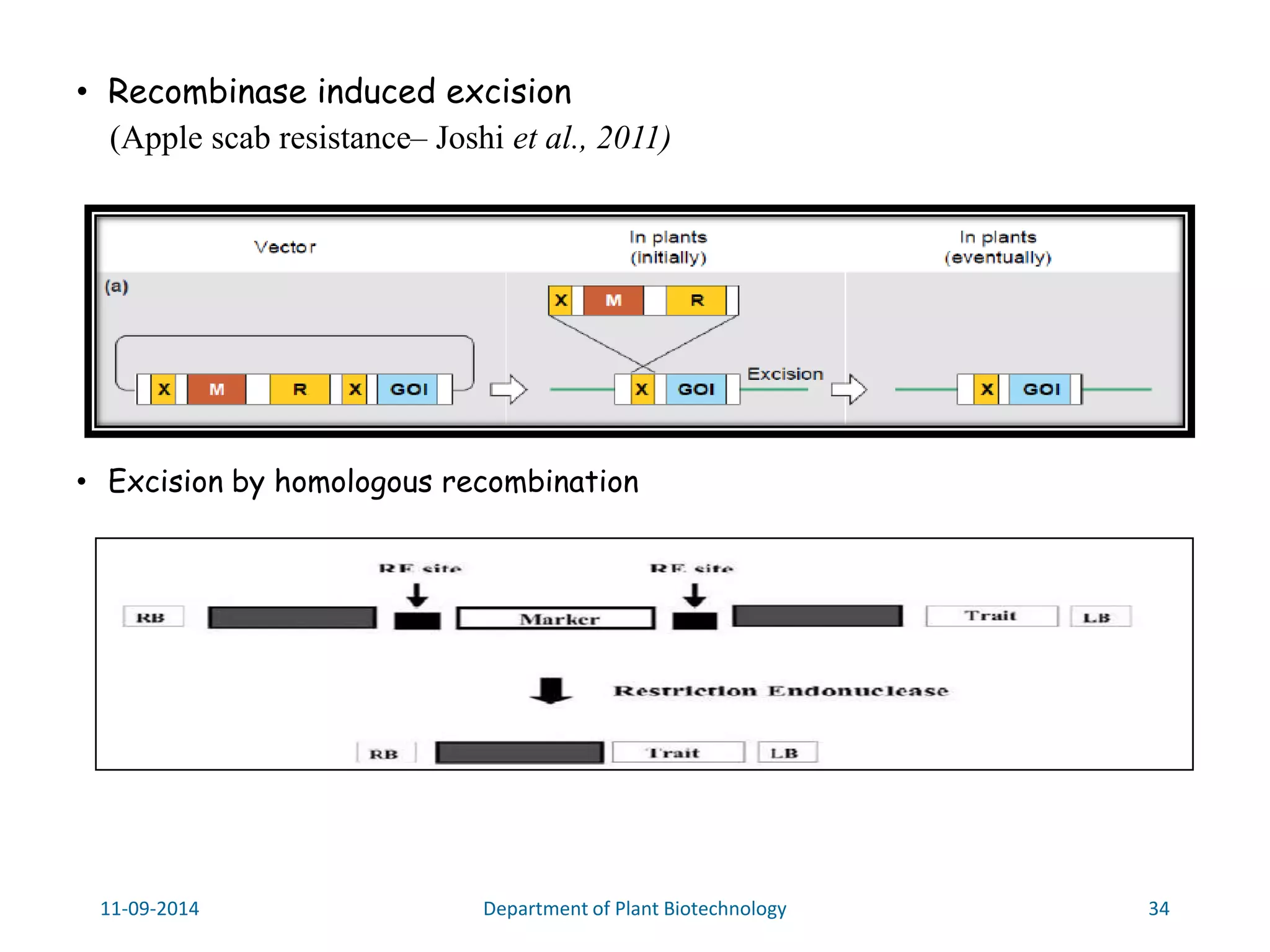

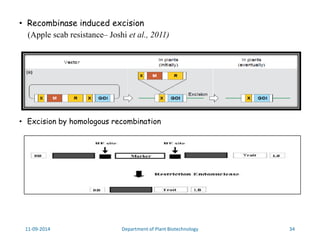

34. • Recombinase induced excision
(Apple scab resistance– Joshi et al., 2011)
• Excision by homologous recombination
11-09-2014 Department of Plant Biotechnology 34

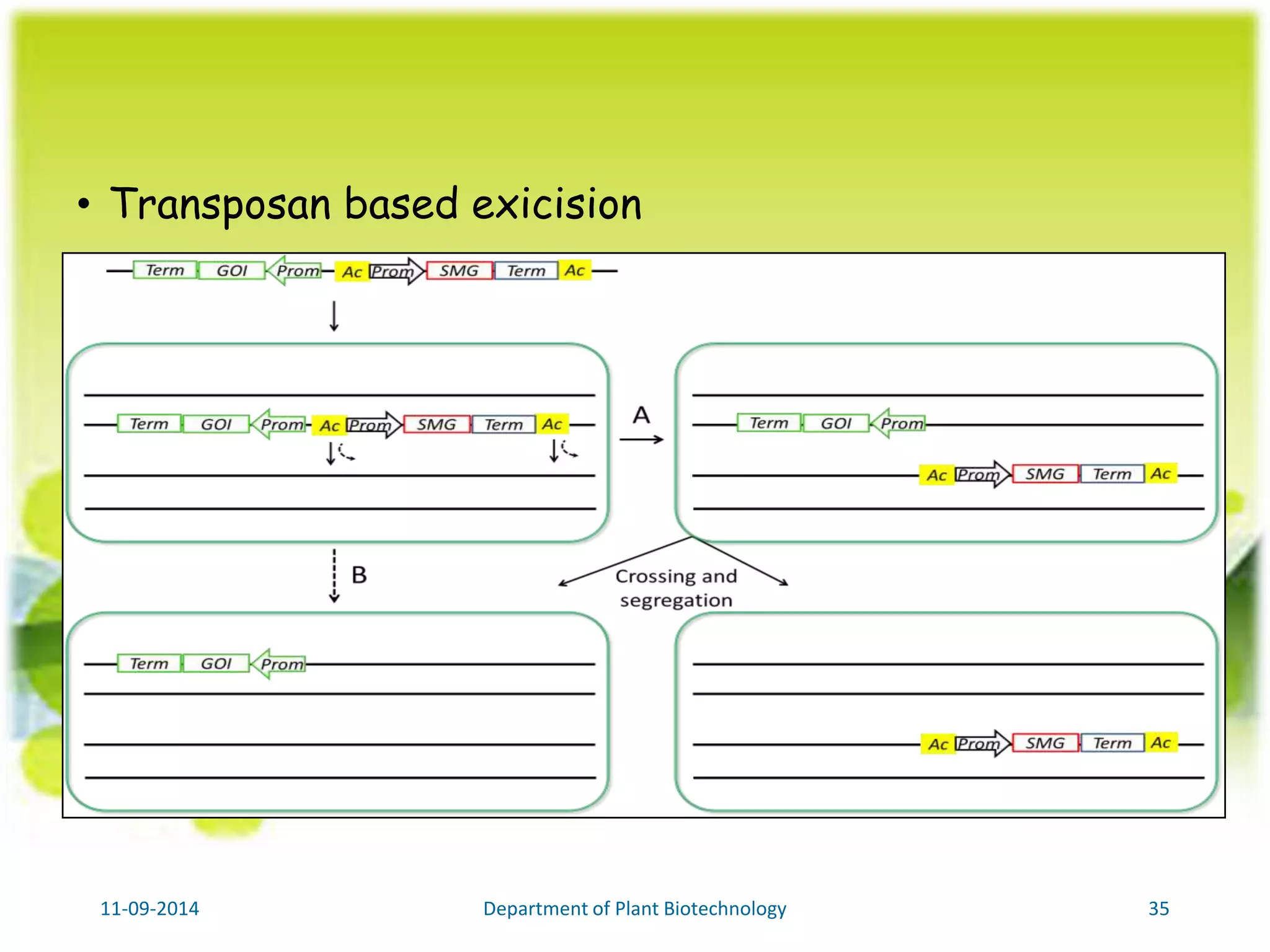

35. • Transposan based exicision
11-09-2014 Department of Plant Biotechnology 35

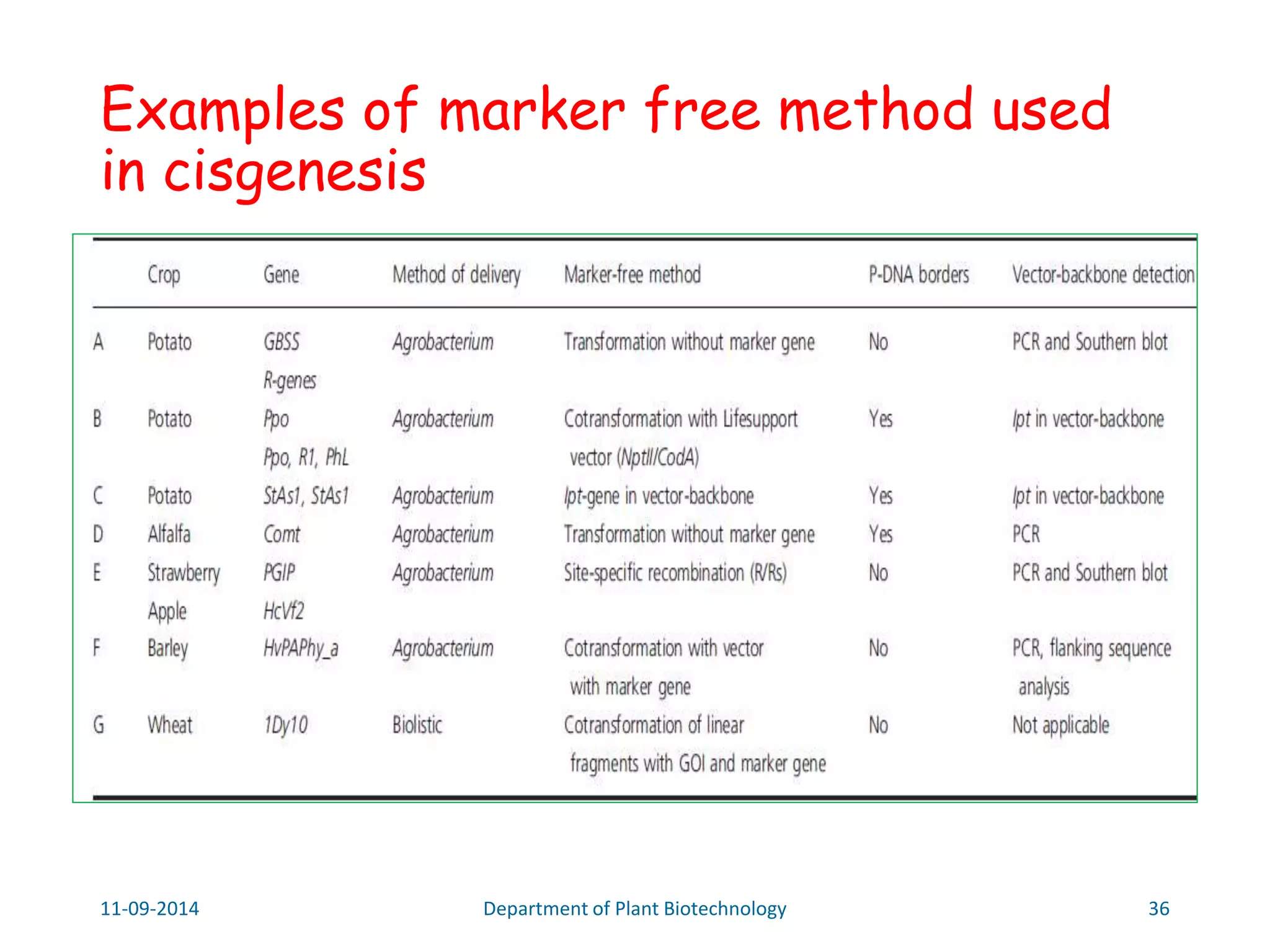

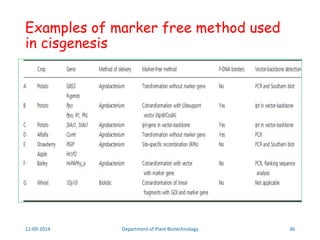

36. Examples of marker free method used
in cisgenesis
11-09-2014 Department of Plant Biotechnology 36

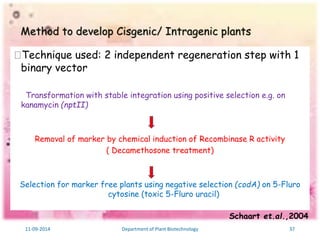

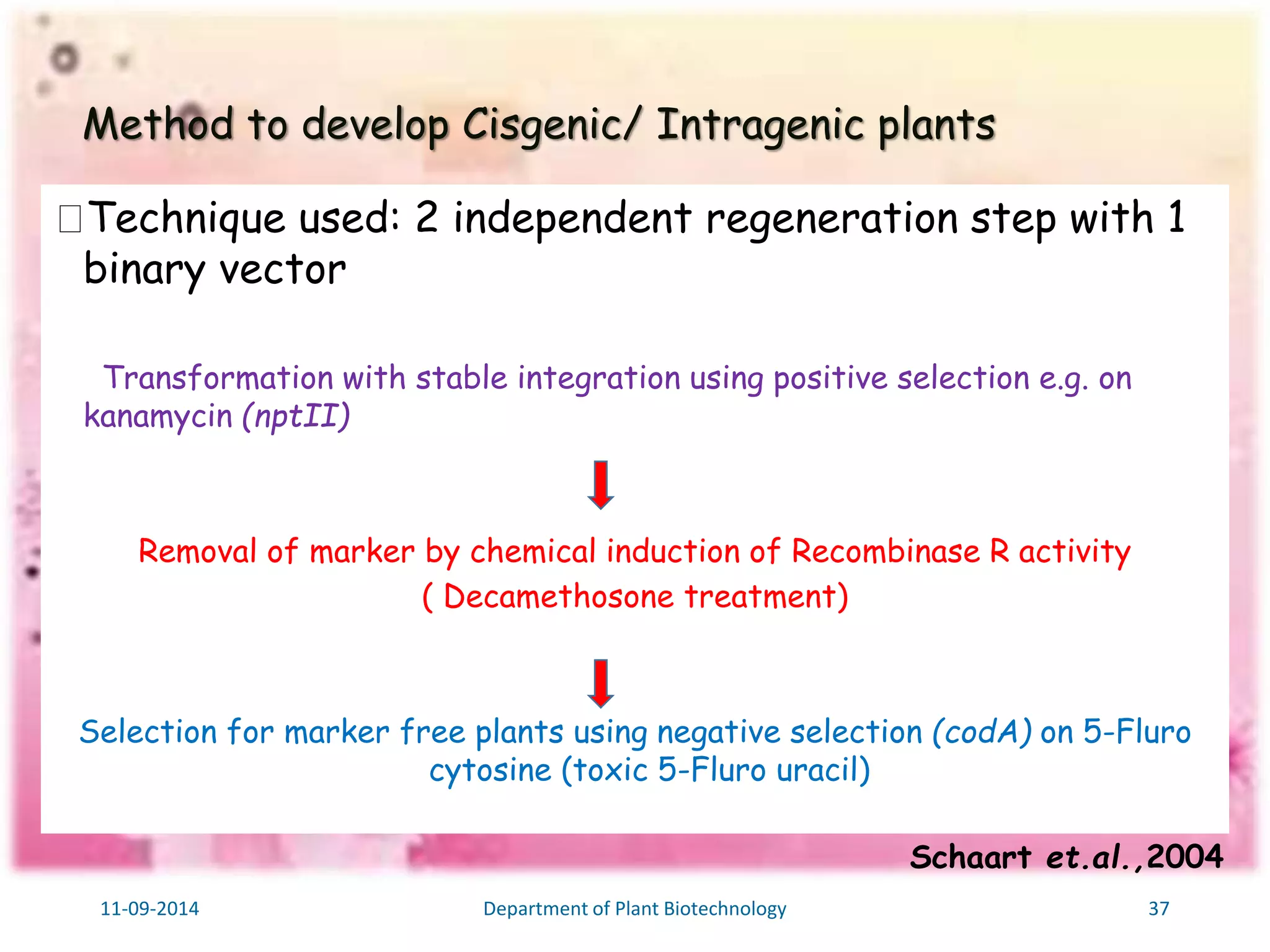

37. Method to develop Cisgenic/ Intragenic plants
Technique used: 2 independent regeneration step with 1
binary vector
Transformation with stable integration using positive selection e.g. on
kanamycin (nptII)
Removal of marker by chemical induction of Recombinase R activity
( Decamethosone treatment)
Selection for marker free plants using negative selection (codA) on 5-Fluro
cytosine (toxic 5-Fluro uracil)
Schaart et.al.,2004
11-09-2014 Department of Plant Biotechnology 37

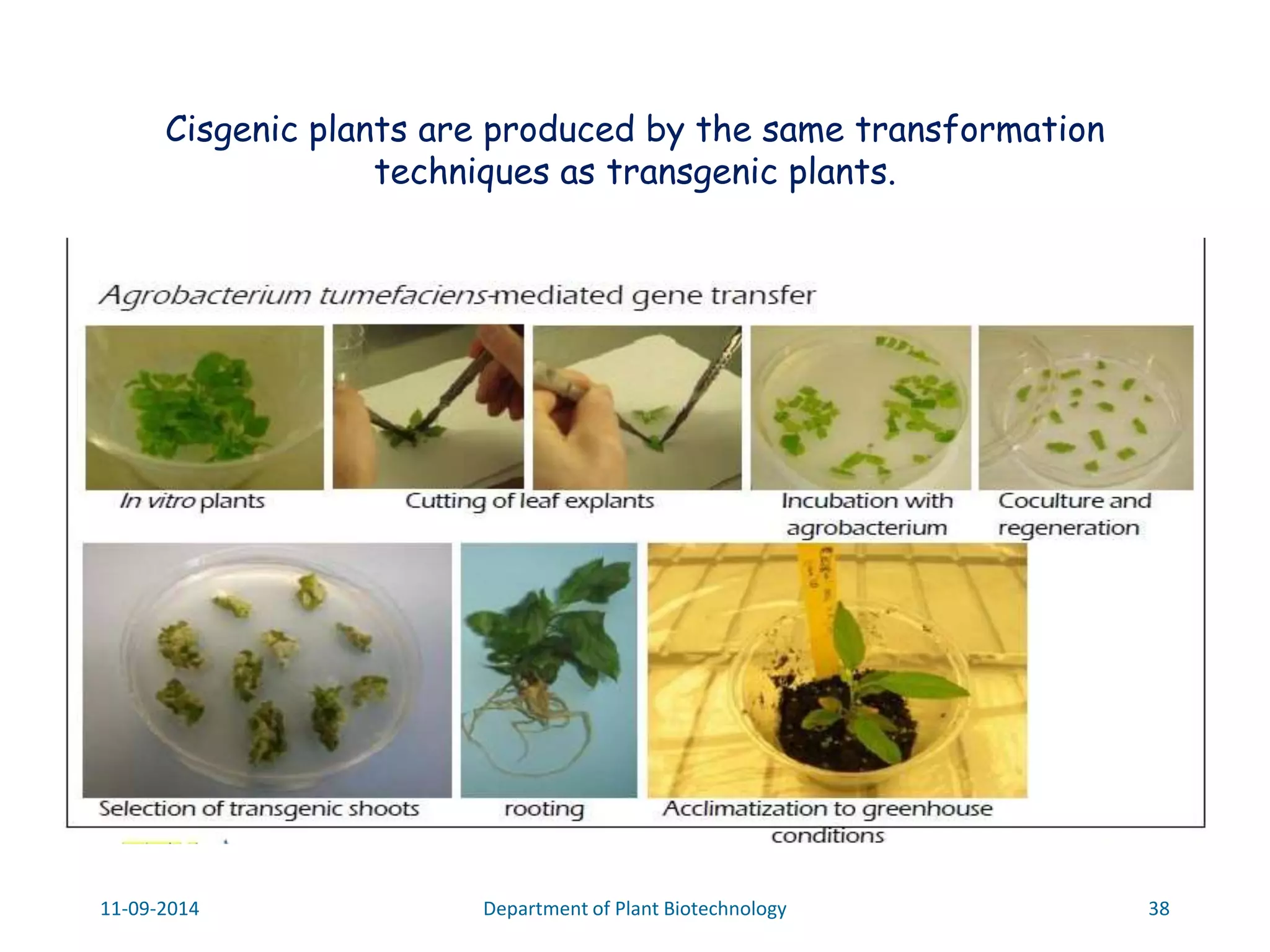

38. Cisgenic plants are produced by the same transformation
techniques as transgenic plants.
11-09-2014 Department of Plant Biotechnology 38

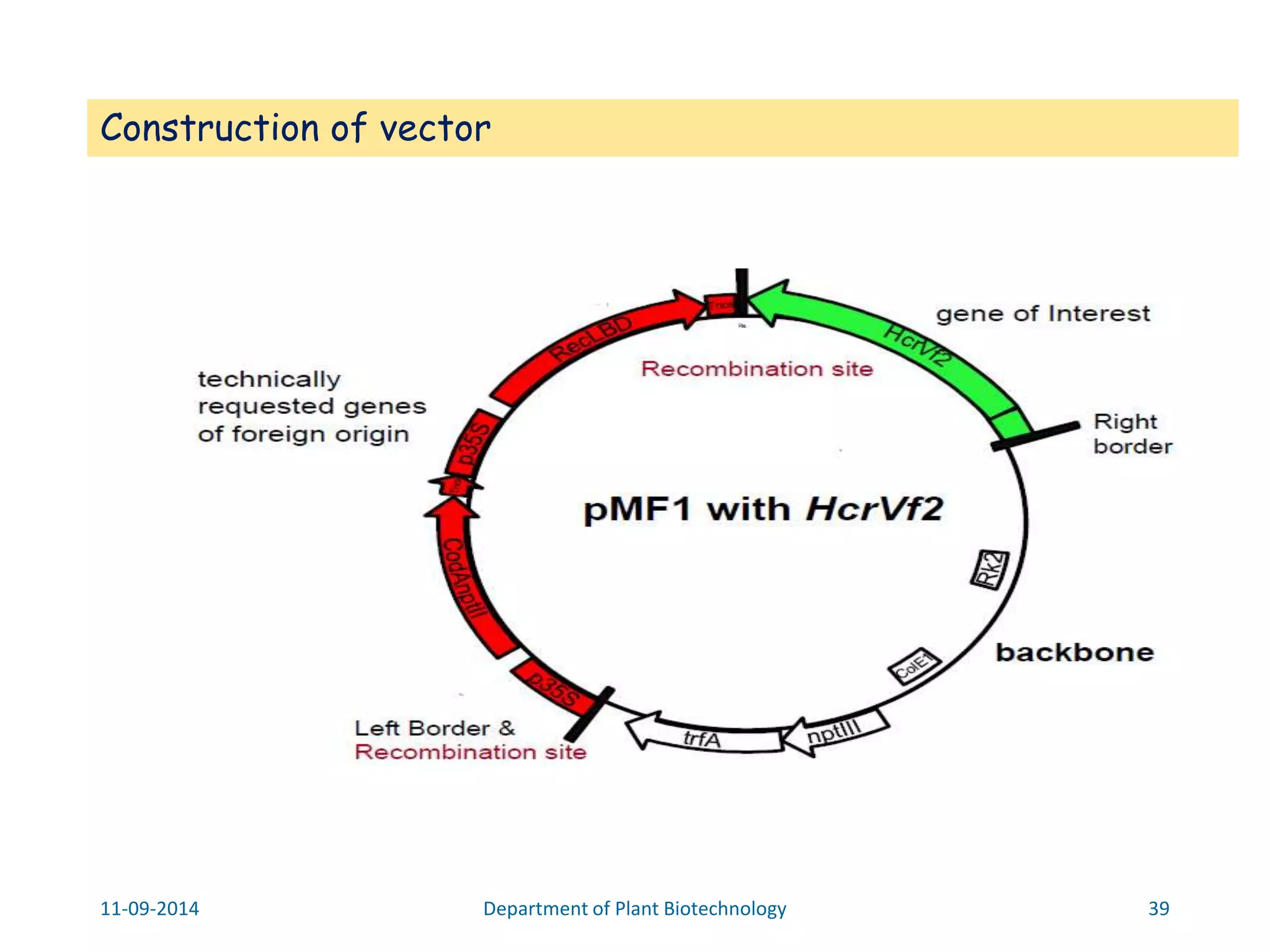

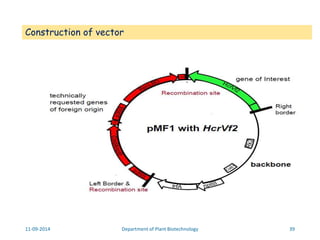

39. Construction of vector
11-09-2014 Department of Plant Biotechnology 39

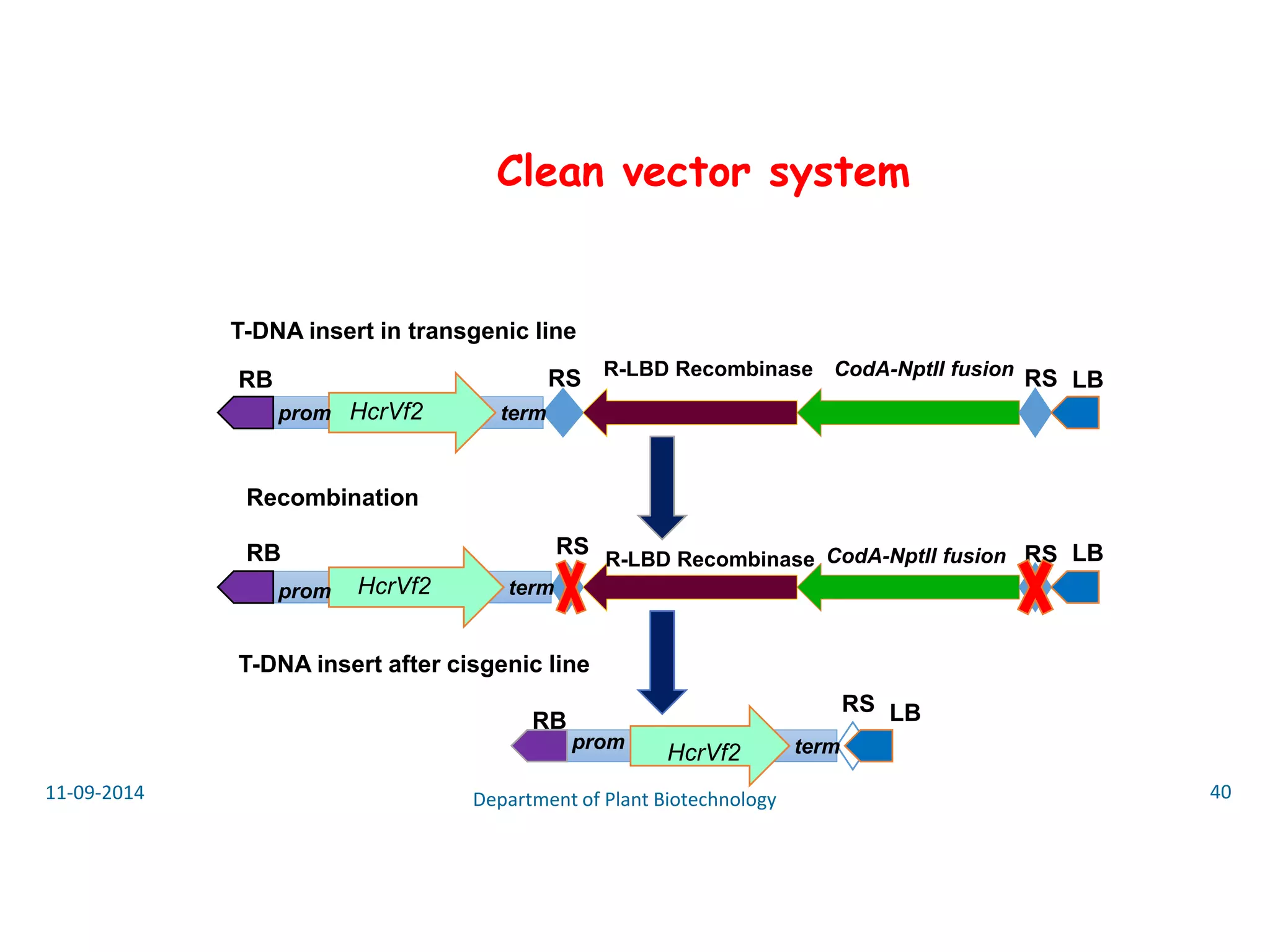

40. Clean vector system
T-DNA insert in transgenic line
RB
RS
RS
term
term
T-DNA insert after cisgenic line
RB
prom
Recombination
RB
LB
LB
CodA-NptII fusion
CodA-NptII fusion
LB
HcrVf2
R-LBD Recombinase
R-LBD Recombinase
HcrVf2
HcrVf2
RS
RS
RS
prom
prom
term
11-09-2014 40
Department of Plant Biotechnology 40

41. Crops and traits currently modified by the
Cisgenesis/Intragenesis
11-09-2014 Department of Plant Biotechnology 41

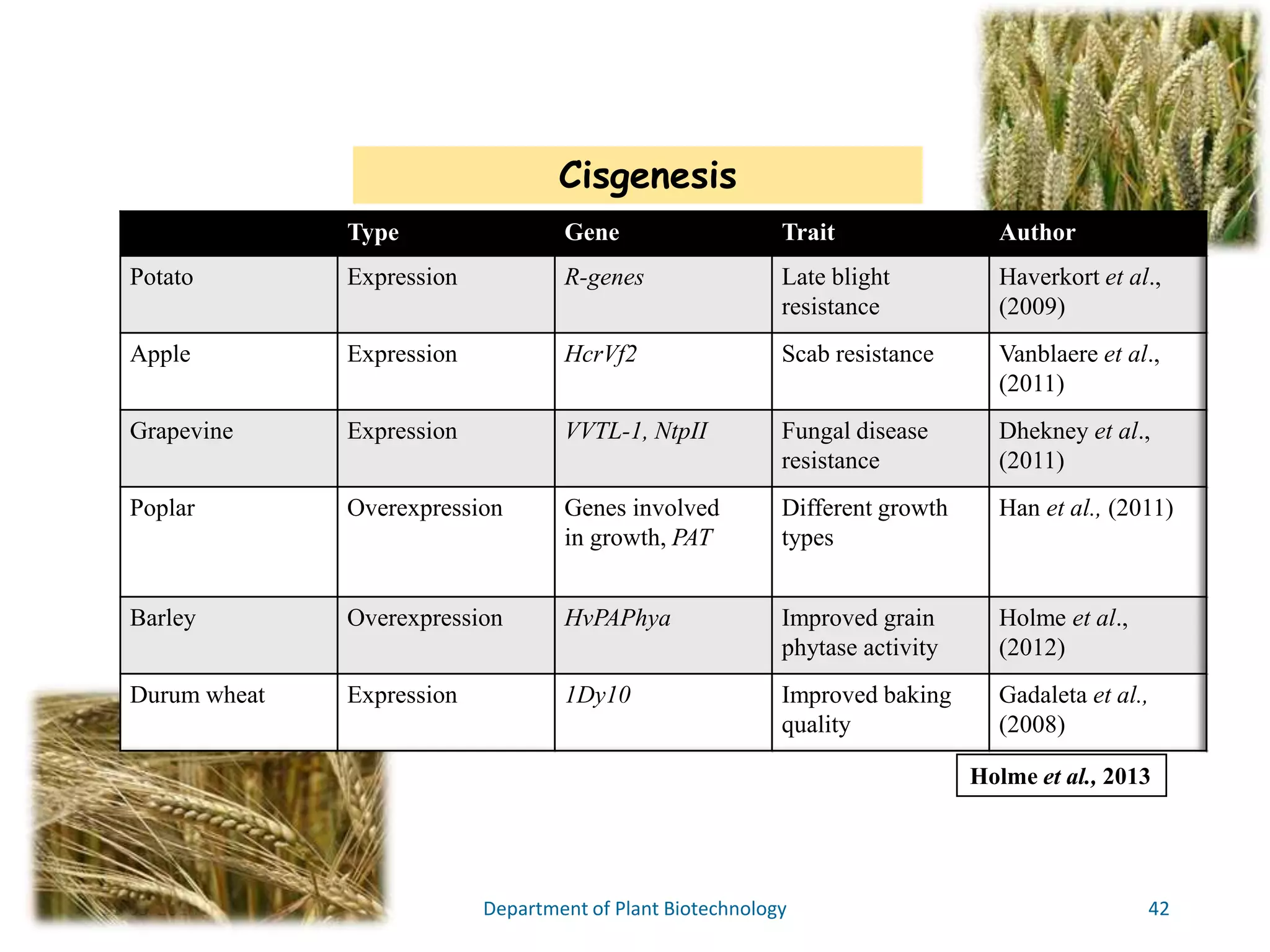

42. Cisgenesis
Type Gene Trait Author
Potato Expression R-genes Late blight
resistance
Haverkort et al.,
(2009)
Apple Expression HcrVf2 Scab resistance Vanblaere et al.,
(2011)
Grapevine Expression VVTL-1, NtpII Fungal disease
resistance
Dhekney et al.,
(2011)
Poplar Overexpression Genes involved
in growth, PAT
Different growth
types
Han et al., (2011)
Barley Overexpression HvPAPhya Improved grain
phytase activity
Holme et al.,
(2012)
Durum wheat Expression 1Dy10 Improved baking
quality
Gadaleta et al.,
(2008)
Holme et al., 2013
11-09-2014 Department of Plant Biotechnology 42

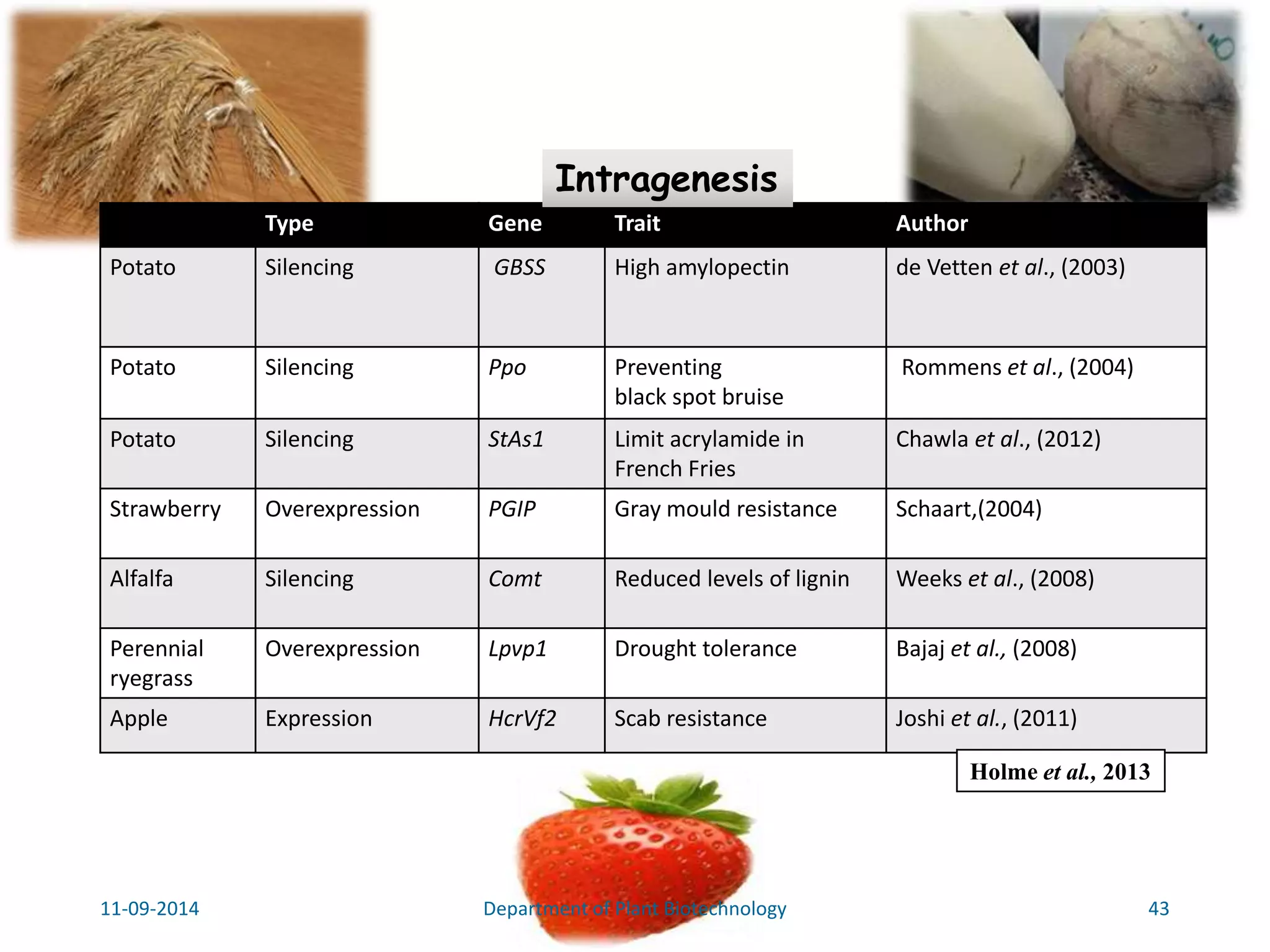

43. Intragenesis
Type Gene Trait Author
Potato Silencing GBSS High amylopectin de Vetten et al., (2003)
Potato Silencing Ppo Preventing
black spot bruise
Rommens et al., (2004)
Potato Silencing StAs1 Limit acrylamide in
French Fries
Chawla et al., (2012)
Strawberry Overexpression PGIP Gray mould resistance Schaart,(2004)
Alfalfa Silencing Comt Reduced levels of lignin Weeks et al., (2008)
Perennial
ryegrass
Overexpression Lpvp1 Drought tolerance Bajaj et al., (2008)
Apple Expression HcrVf2 Scab resistance Joshi et al., (2011)
Holme et al., 2013
11-09-2014 Department of Plant Biotechnology 43

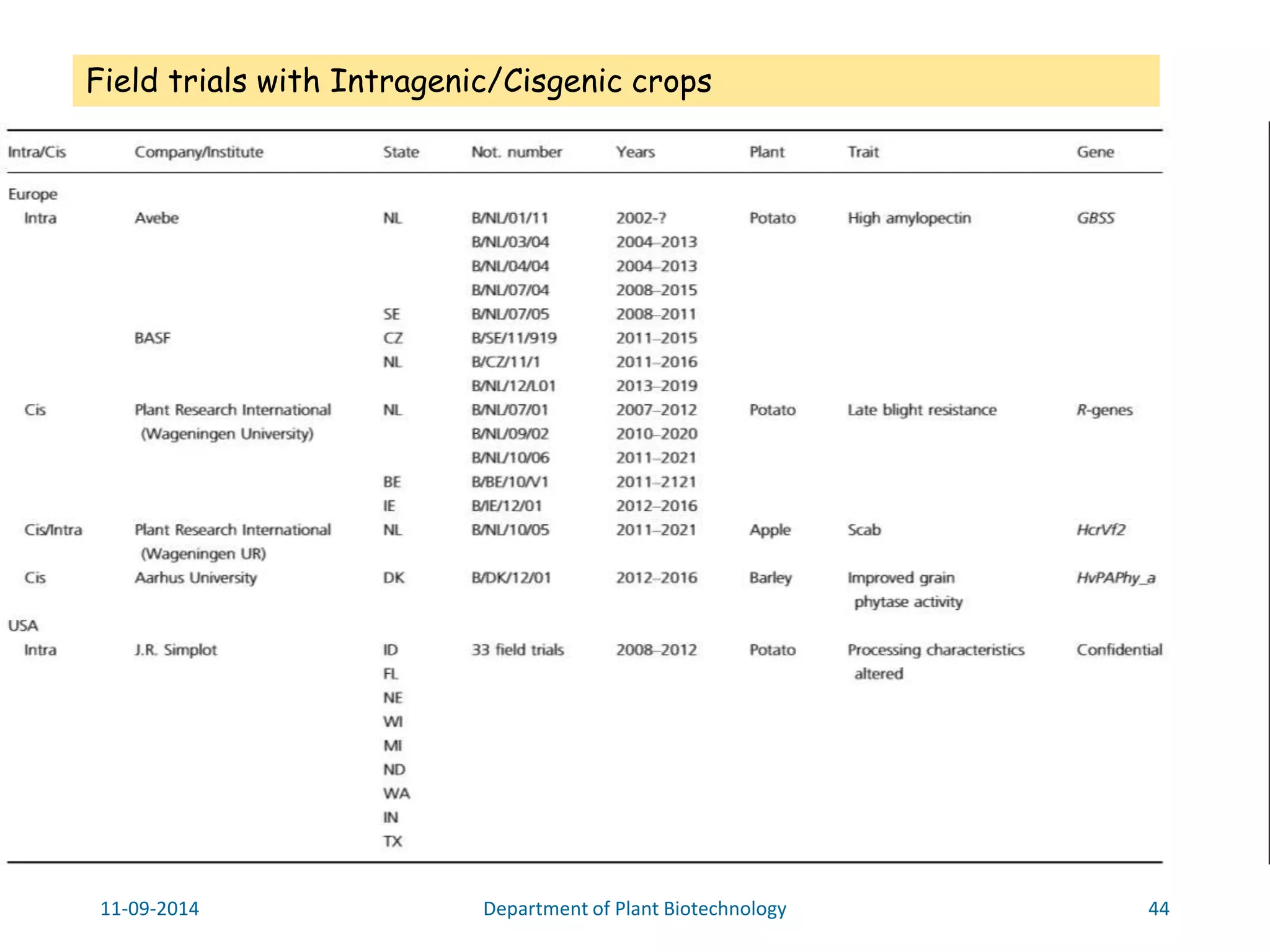

44. Field trials with Intragenic/Cisgenic crops
11-09-2014 Department of Plant Biotechnology 44

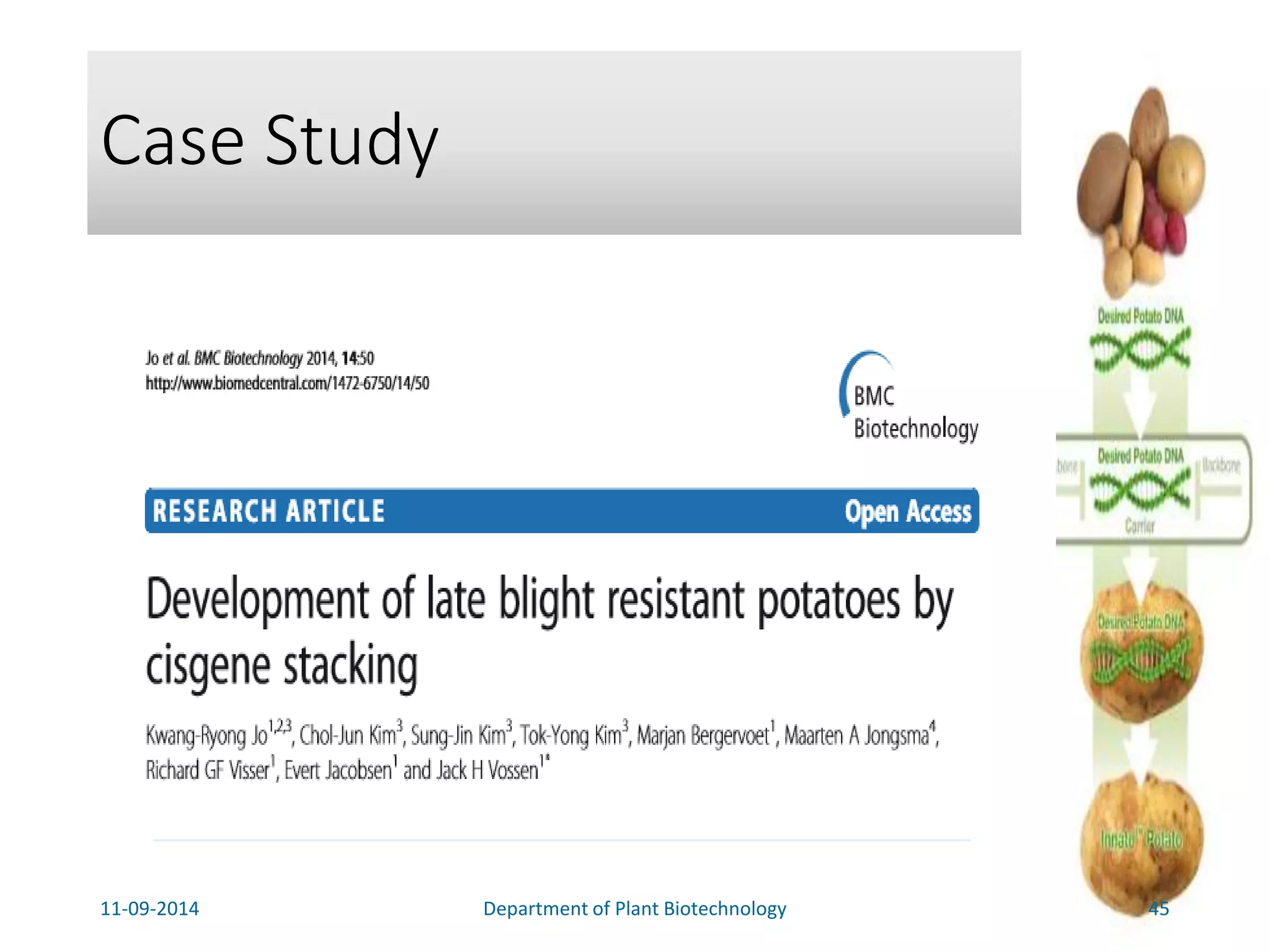

45. Case Study
11-09-2014 Department of Plant Biotechnology 45

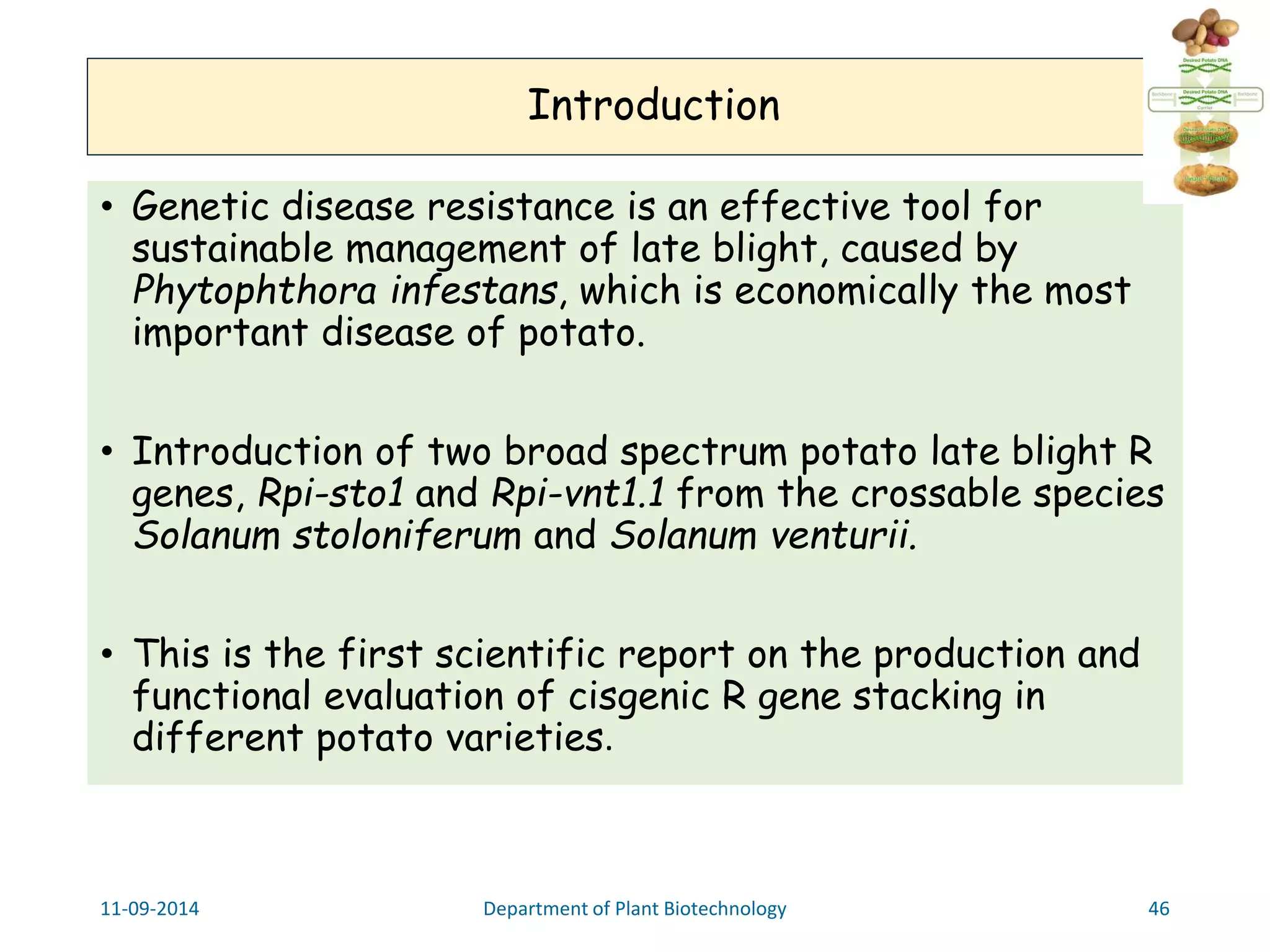

46. Introduction
• Genetic disease resistance is an effective tool for
sustainable management of late blight, caused by
Phytophthora infestans, which is economically the most
important disease of potato.
• Introduction of two broad spectrum potato late blight R
genes, Rpi-sto1 and Rpi-vnt1.1 from the crossable species
Solanum stoloniferum and Solanum venturii.
• This is the first scientific report on the production and
functional evaluation of cisgenic R gene stacking in
different potato varieties.
11-09-2014 Department of Plant Biotechnology 46

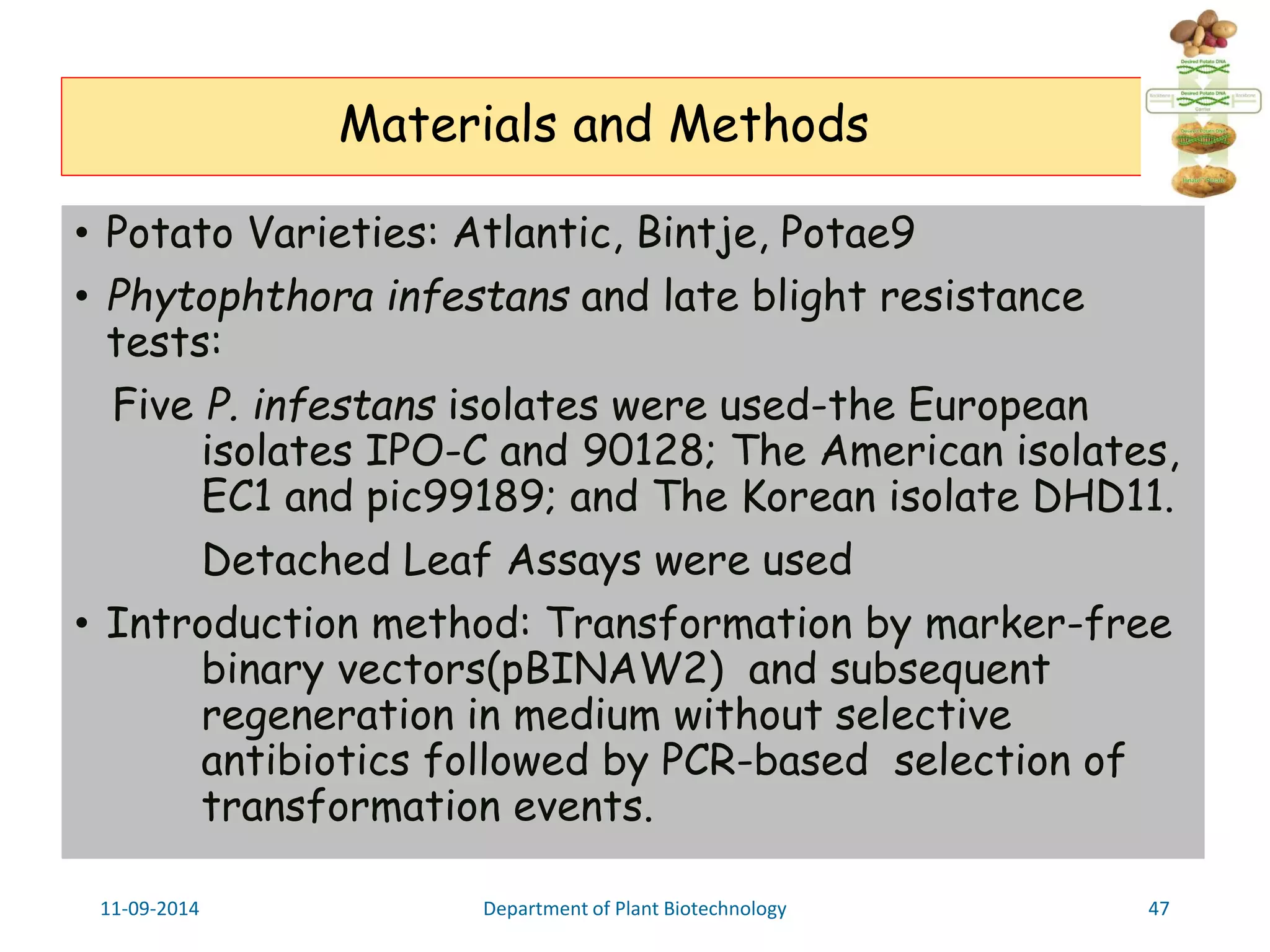

47. Materials and Methods
• Potato Varieties: Atlantic, Bintje, Potae9
• Phytophthora infestans and late blight resistance
tests:
Five P. infestans isolates were used-the European
isolates IPO-C and 90128; The American isolates,
EC1 and pic99189; and The Korean isolate DHD11.
Detached Leaf Assays were used
• Introduction method: Transformation by marker-free
binary vectors(pBINAW2) and subsequent
regeneration in medium without selective
antibiotics followed by PCR-based selection of
transformation events.
11-09-2014 Department of Plant Biotechnology 47

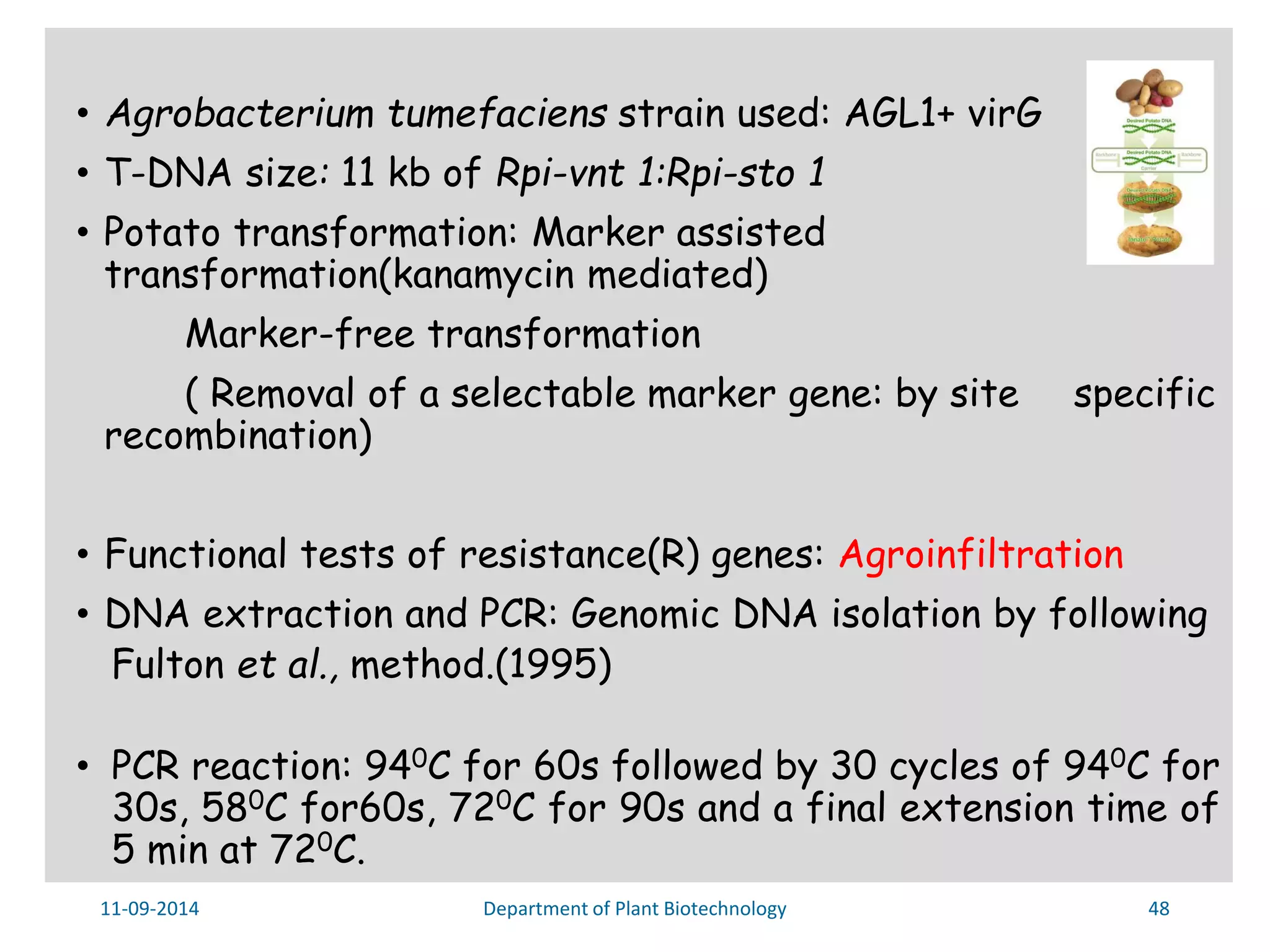

48. • Agrobacterium tumefaciens strain used: AGL1+ virG
• T-DNA size: 11 kb of Rpi-vnt 1:Rpi-sto 1
• Potato transformation: Marker assisted
transformation(kanamycin mediated)
Marker-free transformation
( Removal of a selectable marker gene: by site specific
recombination)
• Functional tests of resistance(R) genes: Agroinfiltration
• DNA extraction and PCR: Genomic DNA isolation by following
Fulton et al., method.(1995)
• PCR reaction: 940C for 60s followed by 30 cycles of 940C for
30s, 580C for60s, 720C for 90s and a final extension time of
5 min at 720C.
11-09-2014 Department of Plant Biotechnology 48

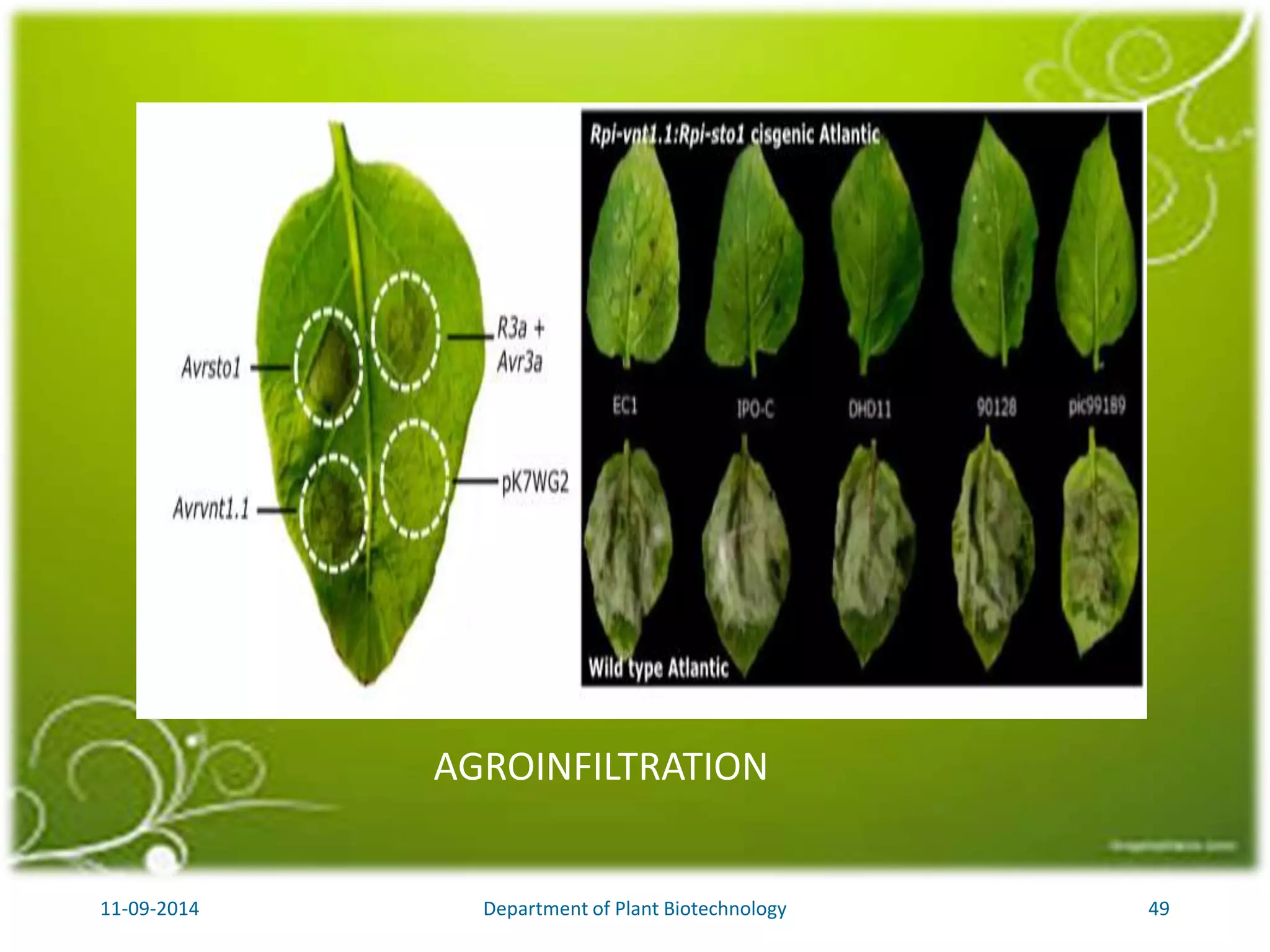

49. AGROINFILTRATION
11-09-2014 Department of Plant Biotechnology 49

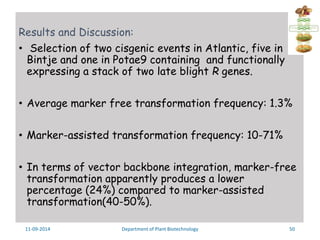

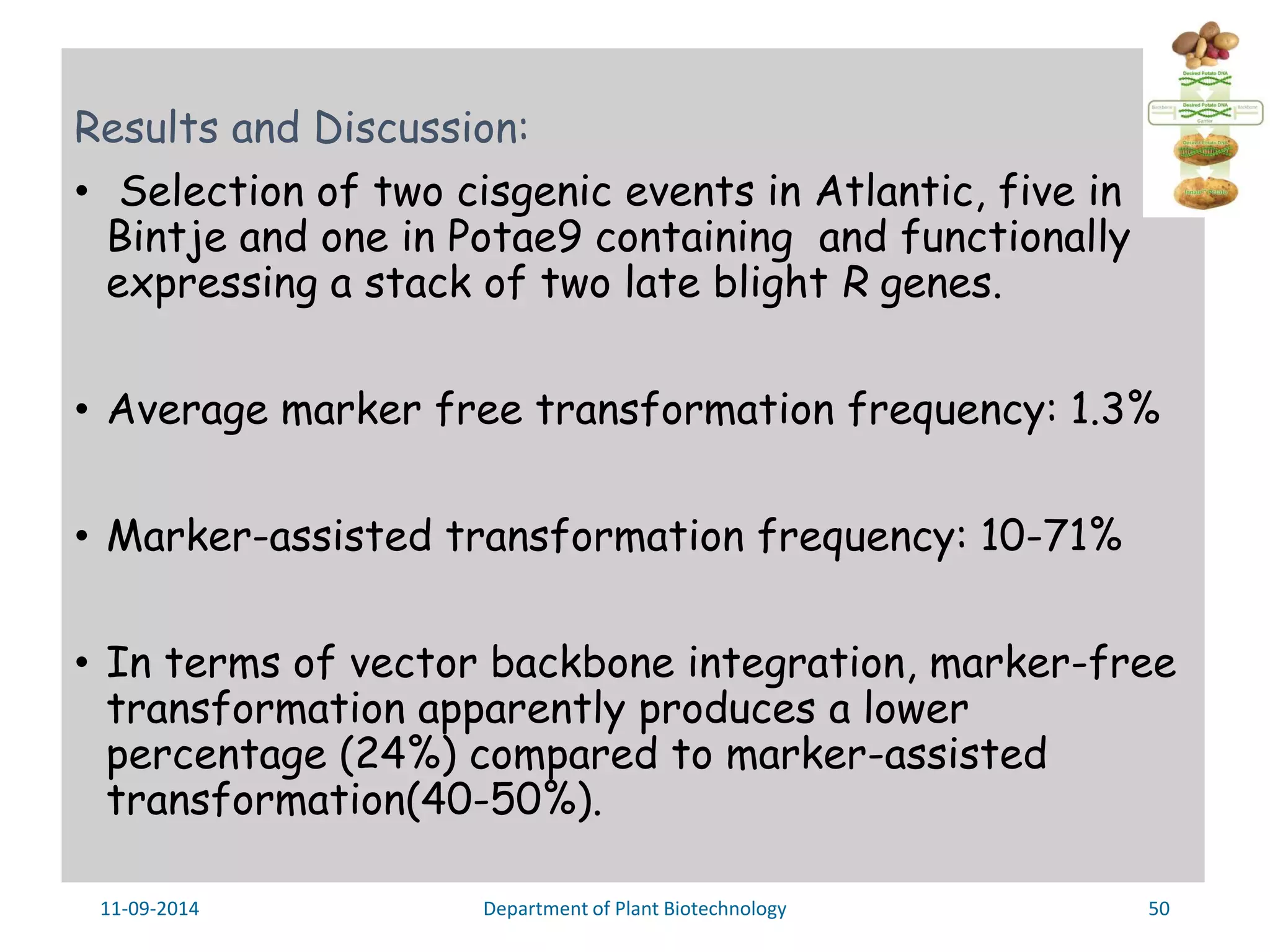

50. Results and Discussion:
• Selection of two cisgenic events in Atlantic, five in
Bintje and one in Potae9 containing and functionally
expressing a stack of two late blight R genes.
• Average marker free transformation frequency: 1.3%
• Marker-assisted transformation frequency: 10-71%
• In terms of vector backbone integration, marker-free
transformation apparently produces a lower
percentage (24%) compared to marker-assisted
transformation(40-50%).
11-09-2014 Department of Plant Biotechnology 50

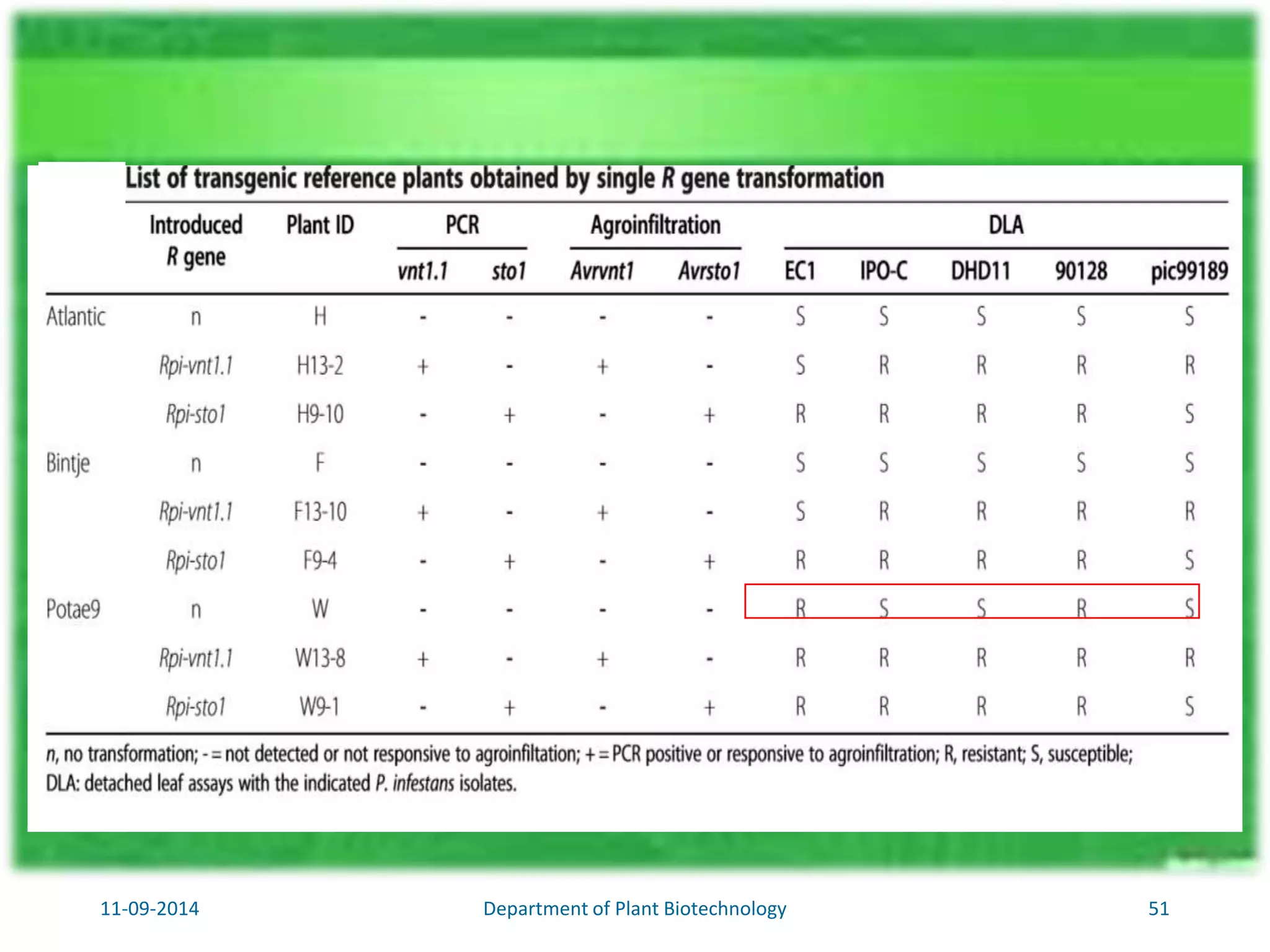

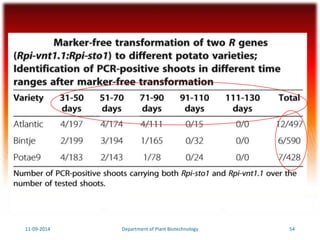

51. 11-09-2014 Department of Plant Biotechnology 51

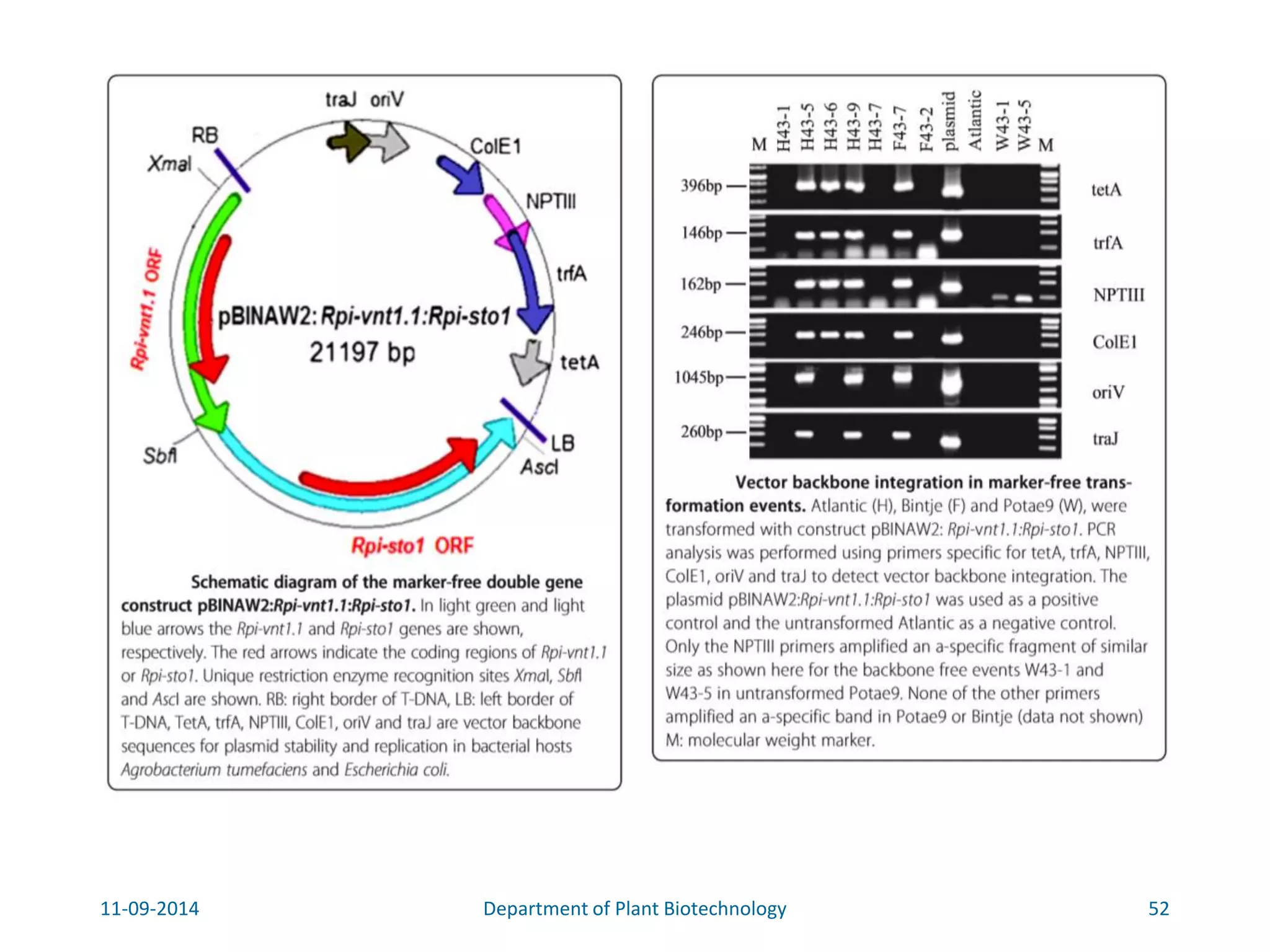

52. 11-09-2014 Department of Plant Biotechnology 52

53. 11-09-2014 Department of Plant Biotechnology 53

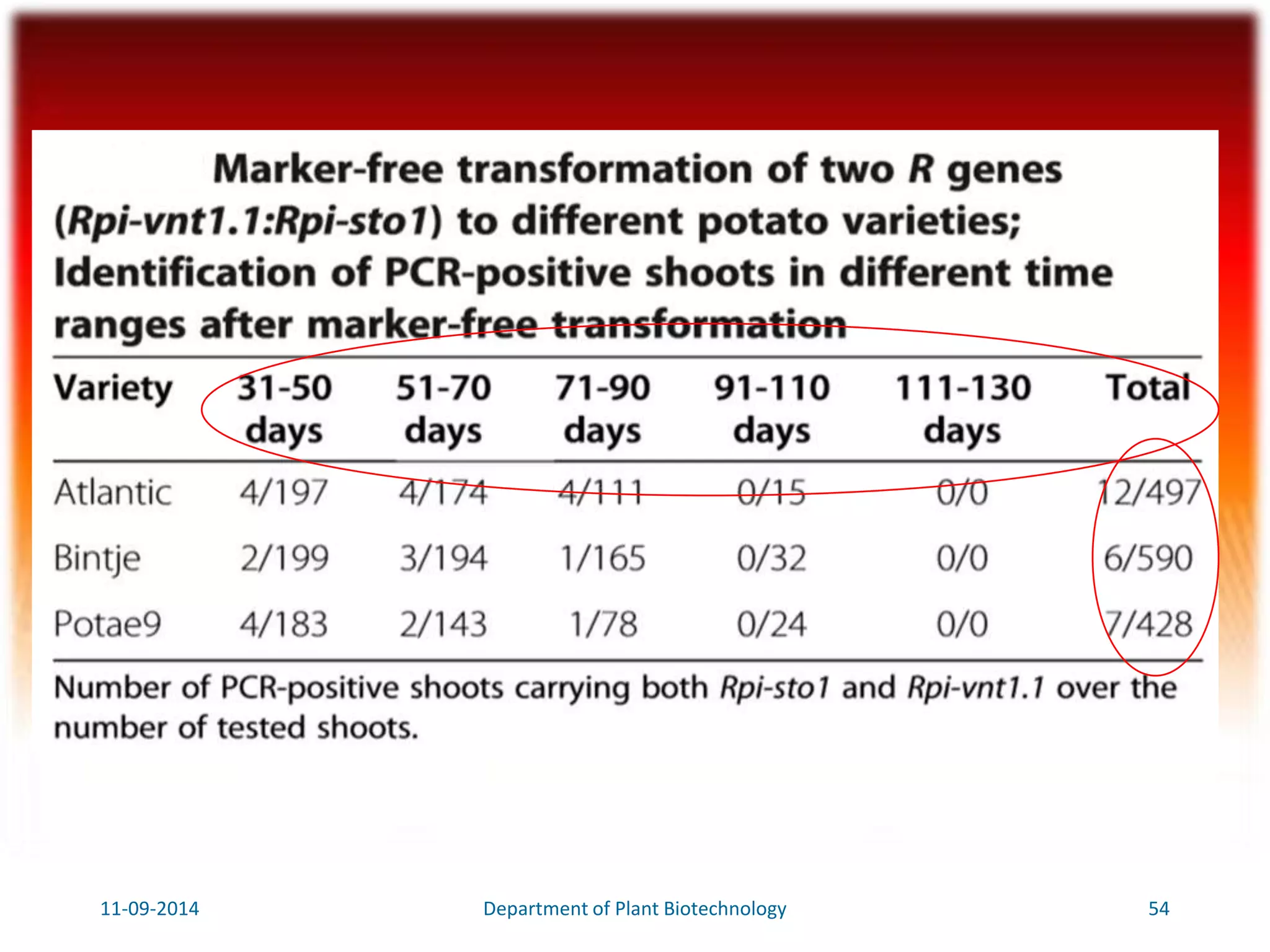

54. 11-09-2014 Department of Plant Biotechnology 54

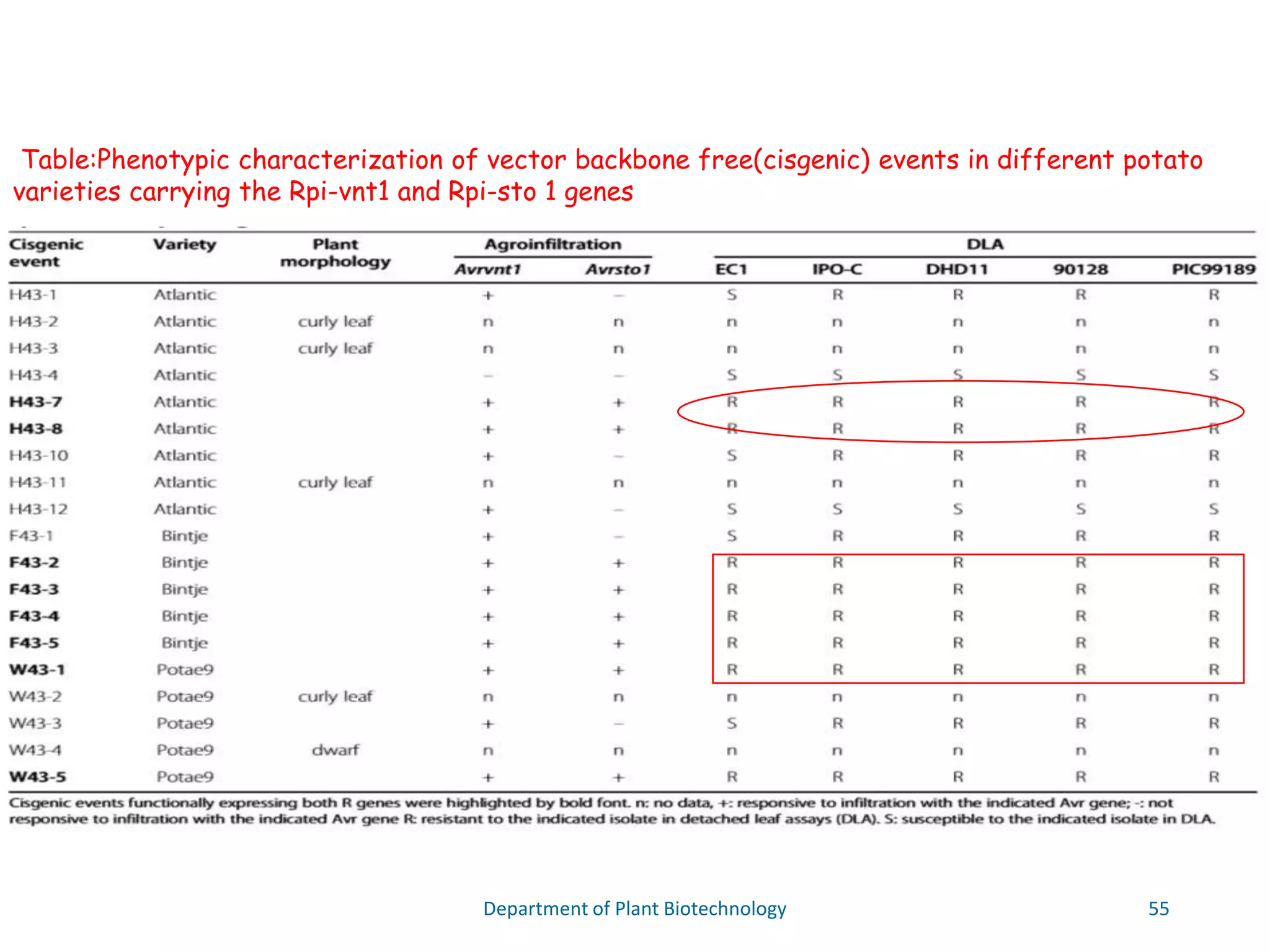

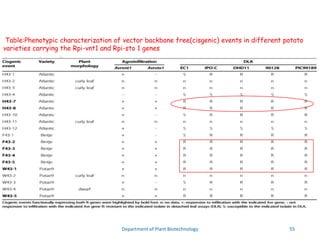

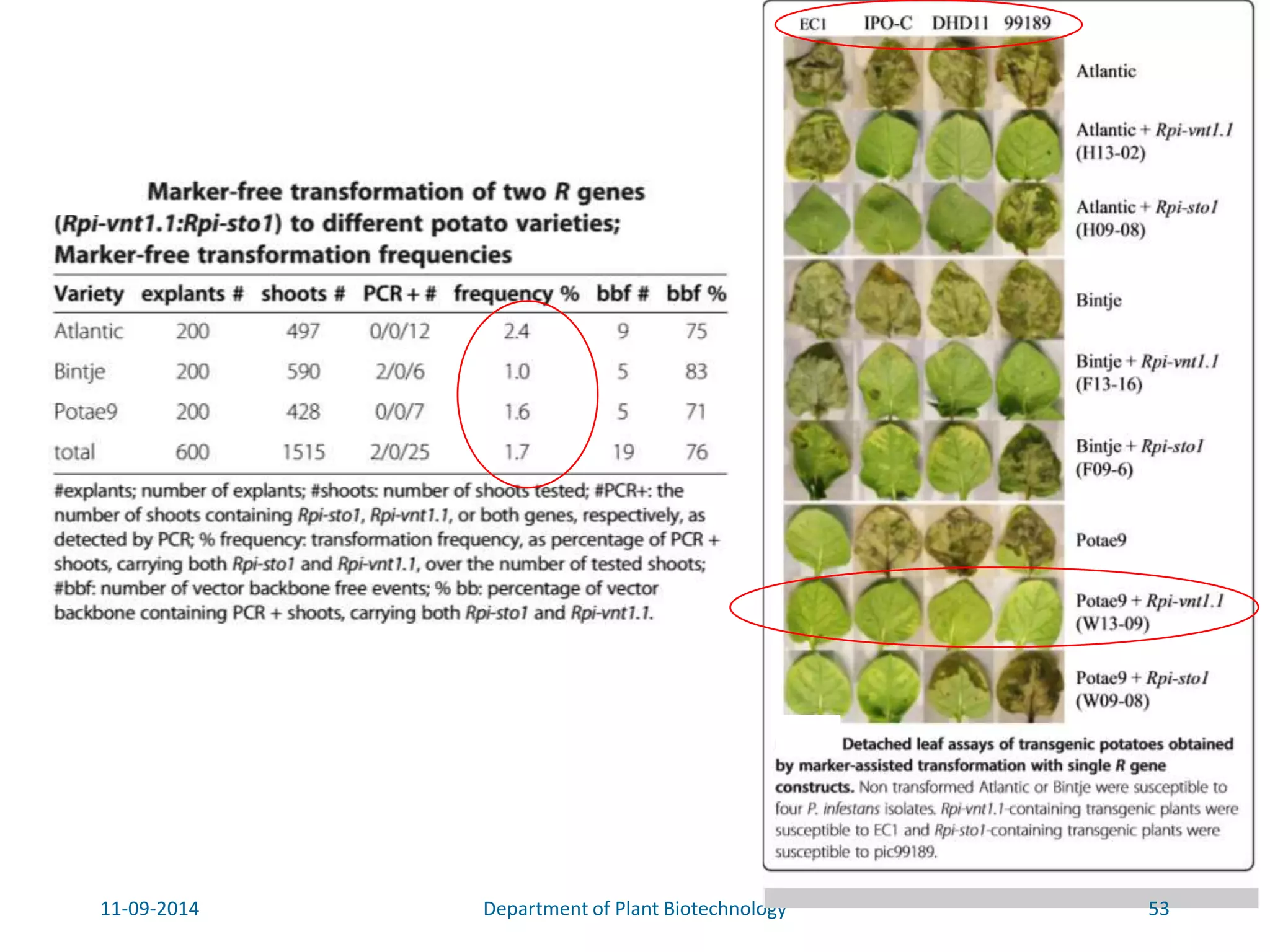

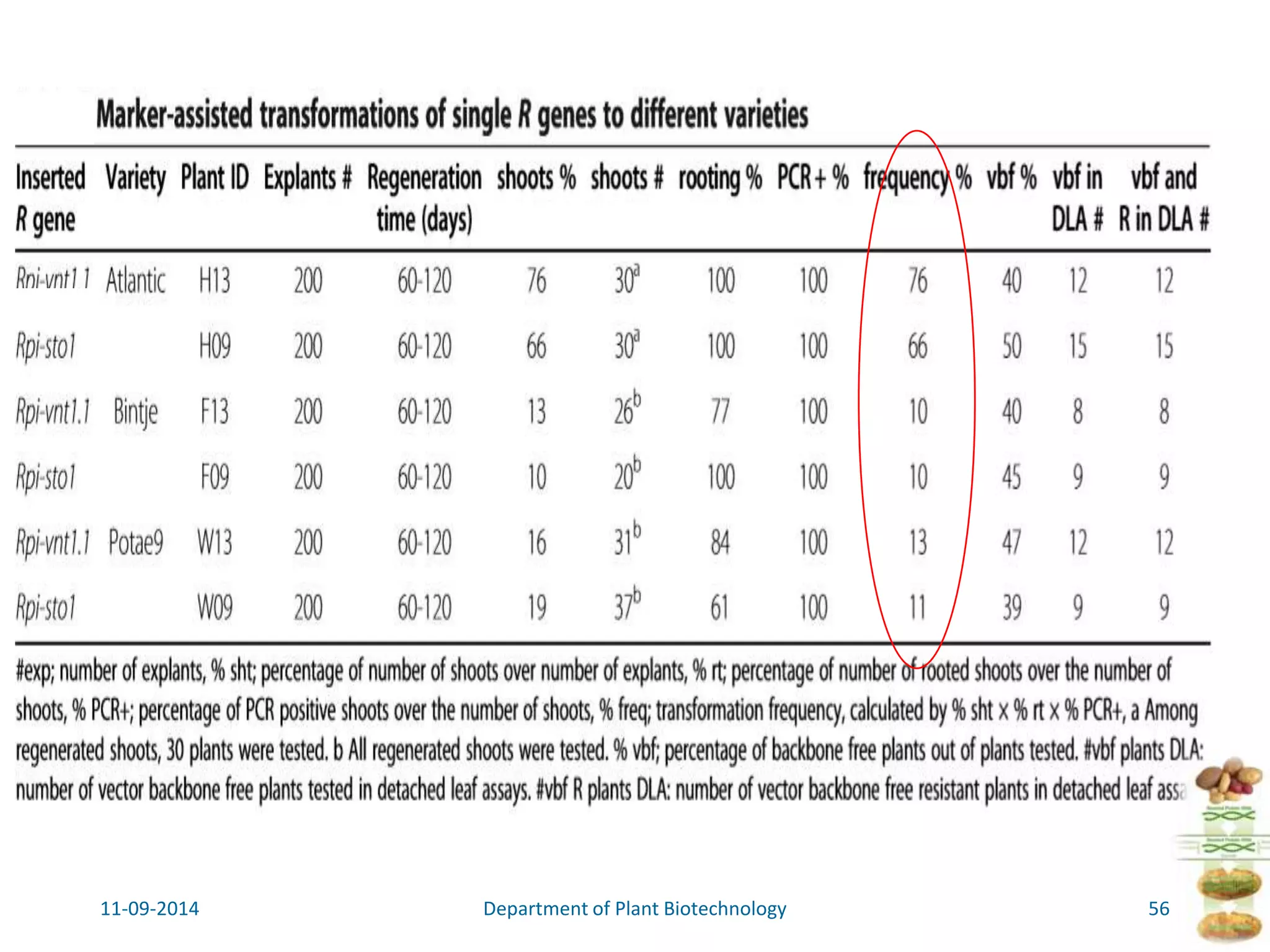

55. Table:Phenotypic characterization of vector backbone free(cisgenic) events in different potato
varieties carrying the Rpi-vnt1 and Rpi-sto 1 genes
11-09-2014
Department of Plant Biotechnology 55

56. 11-09-2014 Department of Plant Biotechnology 56

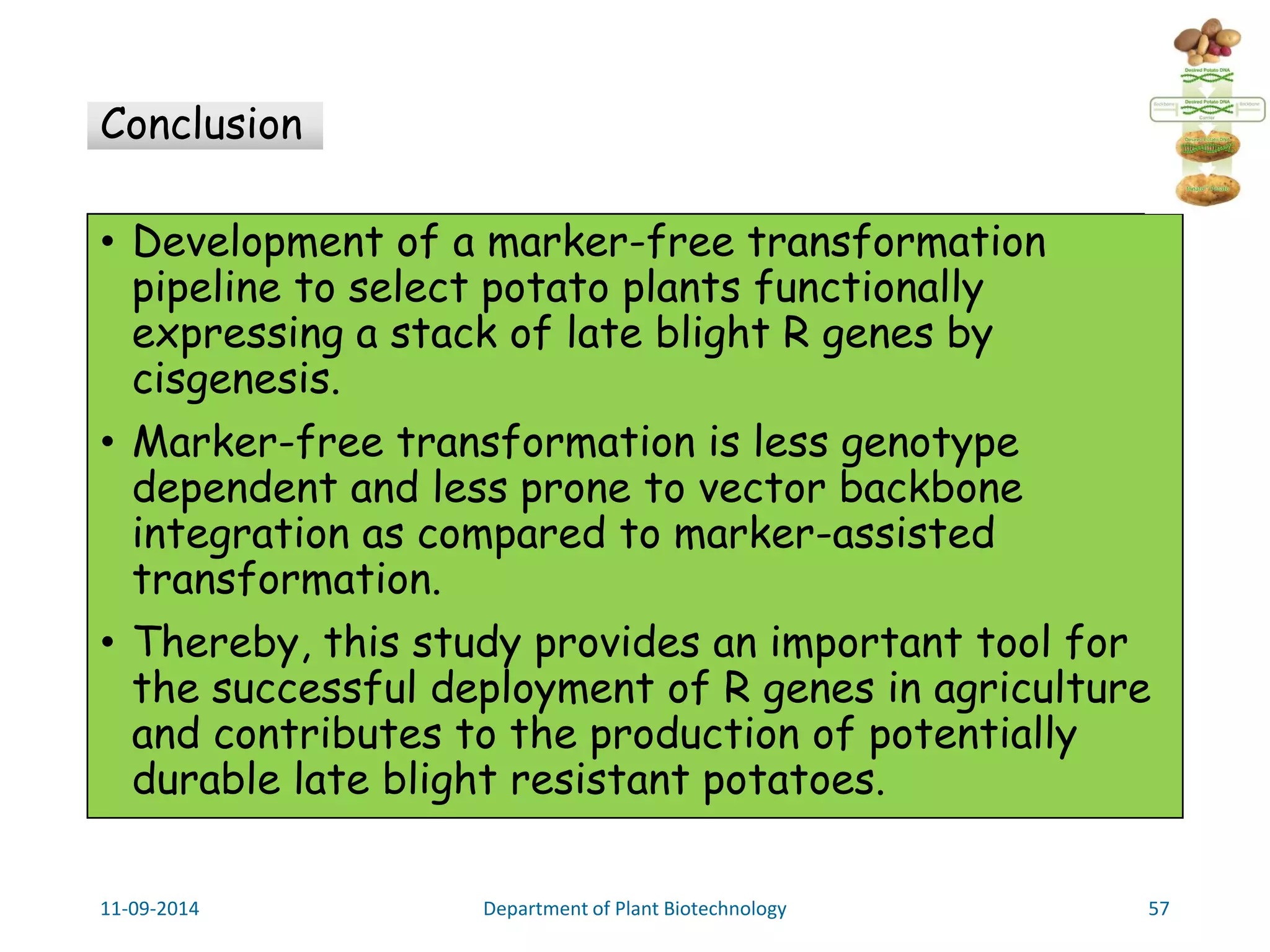

57. Conclusion
• Development of a marker-free transformation
pipeline to select potato plants functionally
expressing a stack of late blight R genes by
cisgenesis.
• Marker-free transformation is less genotype
dependent and less prone to vector backbone
integration as compared to marker-assisted
transformation.
• Thereby, this study provides an important tool for
the successful deployment of R genes in agriculture
and contributes to the production of potentially
durable late blight resistant potatoes.
11-09-2014 Department of Plant Biotechnology 57

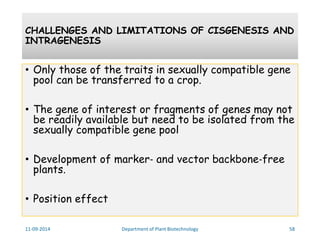

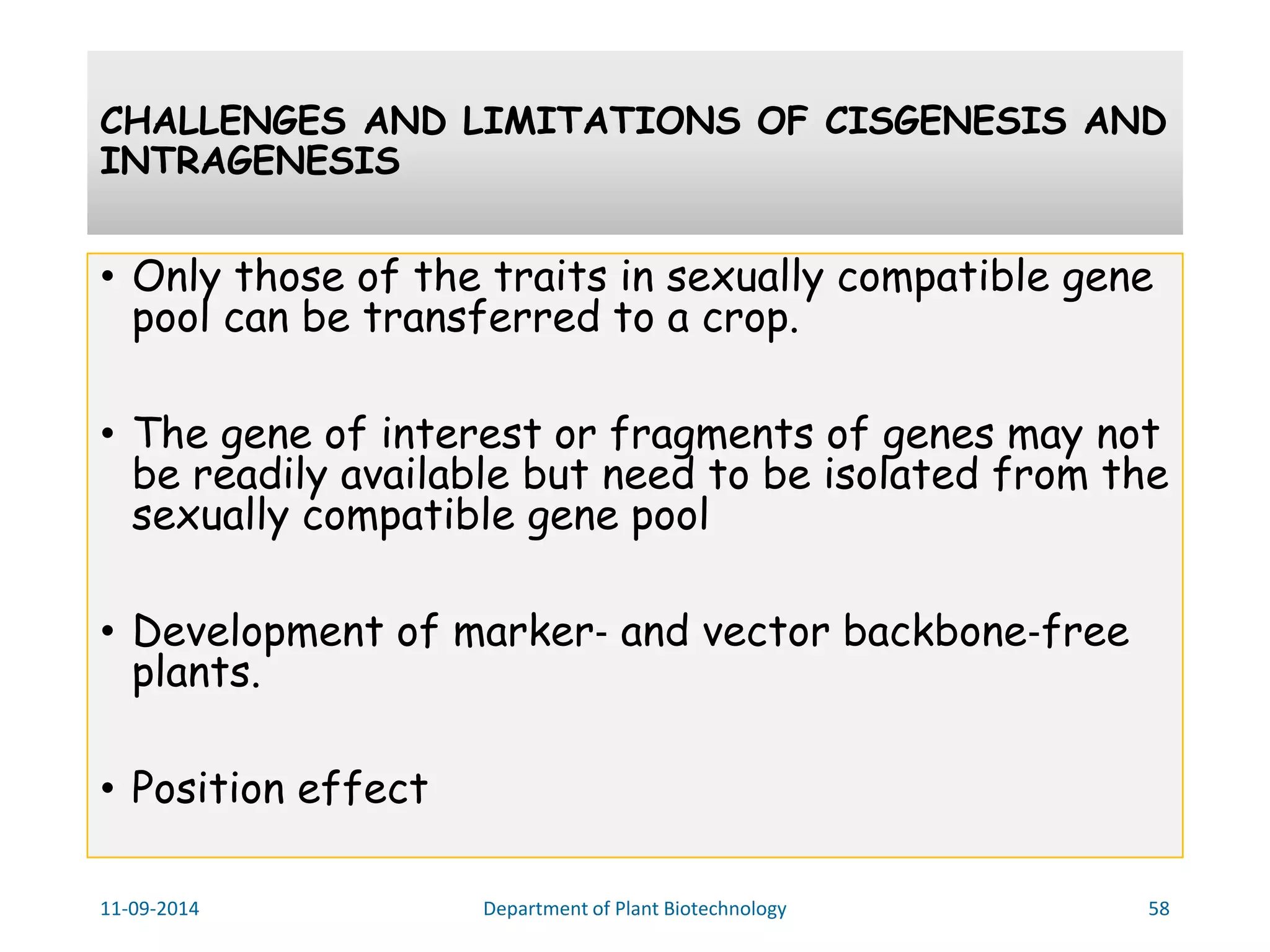

58. CHALLENGES AND LIMITATIONS OF CISGENESIS AND
INTRAGENESIS
• Only those of the traits in sexually compatible gene
pool can be transferred to a crop.
• The gene of interest or fragments of genes may not
be readily available but need to be isolated from the
sexually compatible gene pool
• Development of marker‐ and vector backbone‐free
plants.
• Position effect
11-09-2014 Department of Plant Biotechnology 58

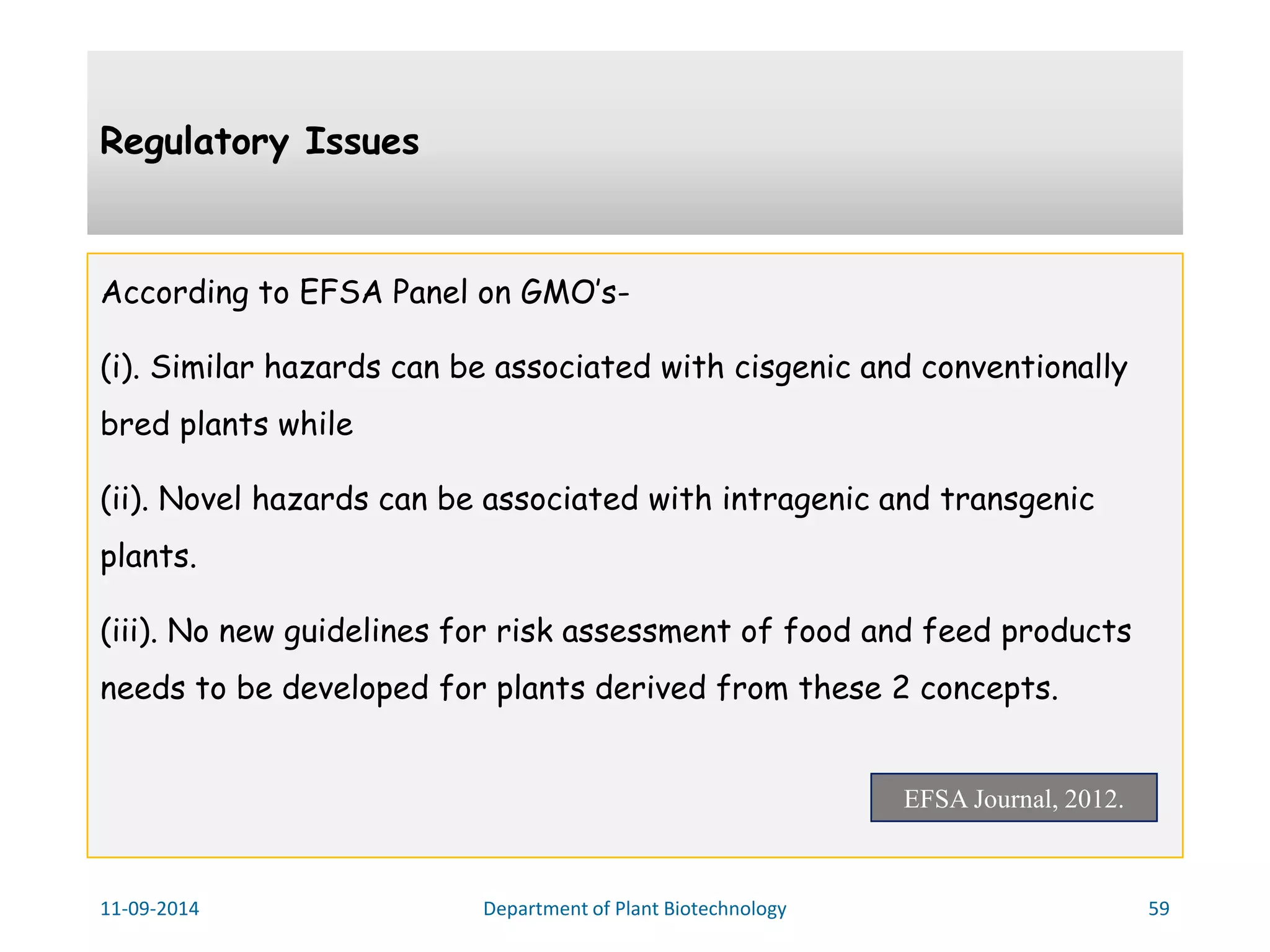

59. Regulatory Issues
According to EFSA Panel on GMO’s-
(i). Similar hazards can be associated with cisgenic and conventionally
bred plants while
(ii). Novel hazards can be associated with intragenic and transgenic
plants.
(iii). No new guidelines for risk assessment of food and feed products
needs to be developed for plants derived from these 2 concepts.
EFSA Journal, 2012.
11-09-2014 Department of Plant Biotechnology 59

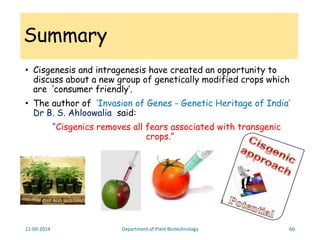

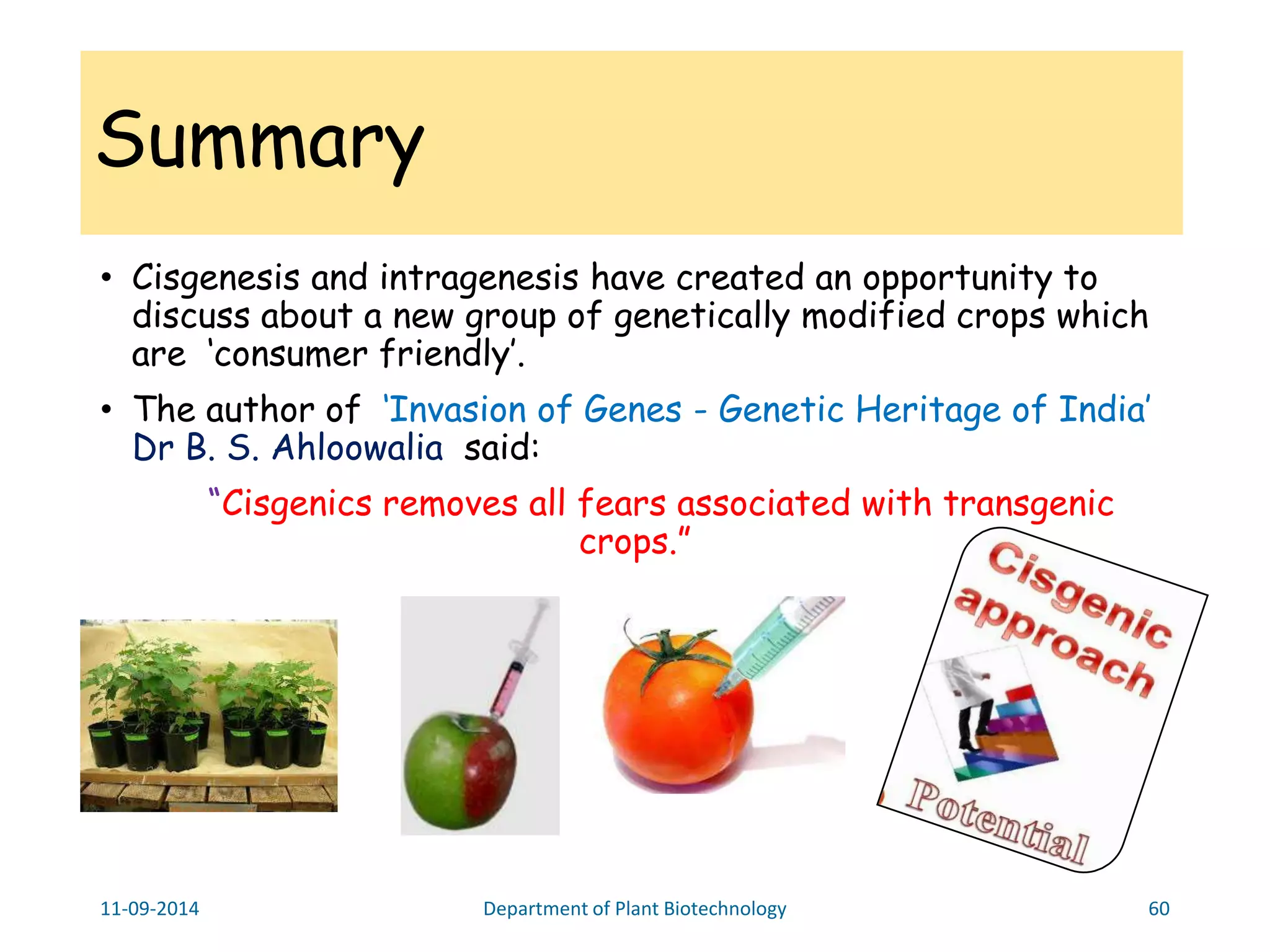

60. Summary
• Cisgenesis and intragenesis have created an opportunity to
discuss about a new group of genetically modified crops which
are ‘consumer friendly’.
• The author of ‘Invasion of Genes - Genetic Heritage of India’
Dr B. S. Ahloowalia said:
“Cisgenics removes all fears associated with transgenic
crops.”
11-09-2014 Department of Plant Biotechnology 60

61. Thank you
11-09-2014 Department of Plant Biotechnology 61
