The Future of CICS is Closer than
You Might Think…abridged
CICS - S102
Ian Mitchell
CTO Runtimes on
zSystems
Nick Garrod
CICS Market
Enablement

© 2015 IBM Corporation
The Future of CICS is closer than you think - S102

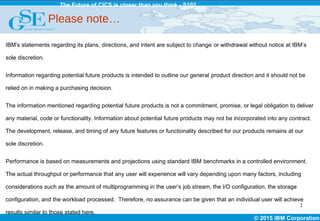

IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s
sole discretion.
Information regarding potential future products is intended to outline our general product direction and it should not be
relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may not be incorporated into any contract.
The development, release, and timing of any future features or functionality described for our products remains at our
sole discretion.
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment.
The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.
Please note…
2

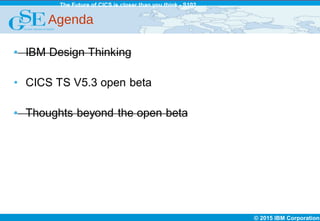

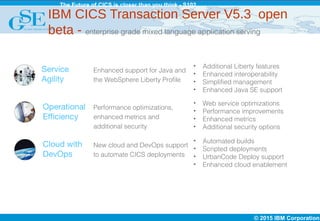

Agenda

IBM CICS Transaction Server V5.3 open
beta - enterprise grade mixed language application serving
Service
Agility
Enhanced support for Java and
the WebSphere Liberty Profile
Cloud with
DevOps
Operational
Efficiency
Performance optimizations,
enhanced metrics and
additional security
New cloud and DevOps support
to automate CICS deployments
• Additional Liberty features
• Enhanced interoperability
• Simplified management
• Enhanced Java SE support
• Web service optimizations
• Performance improvements
• Enhanced metrics
• Additional security options
• Automated builds
• Scripted deployments
• UrbanCode Deploy support
• Enhanced cloud enablement

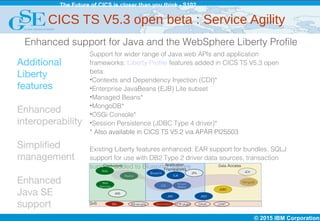

CICS TS V5.3 open beta : Service Agility
Enhanced support for Java and the WebSphere Liberty Profile
Additional
Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced
Java SE
support
Support for wider range of Java web APIs and application
frameworks: Liberty Profile features added in CICS TS V5.3 open
beta:
•Contexts and Dependency Injection (CDI)*
•Enterprise JavaBeans (EJB) Lite subset
•Managed Beans*
•MongoDB*
•OSGi Console*
•Session Persistence (JDBC Type 4 driver)*
* Also available in CICS TS V5.2 via APAR PI25503
Existing Liberty features enhanced: EAR support for bundles, SQLJ
support for use with DB2 Type 2 driver data sources, transaction
support added to Blueprint featureConnectors Application
Frameworks
Data Access
Web
Restful
JMS
Web
Services
Blueprint JPA
EJB
JNDI
JCA
JDBC
MongodbManaged
BeansCDI
JMX
QoS SSL WS-security Session persistence HTTP plugin OAuth LDAP

Additional
Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced
Java SE
support

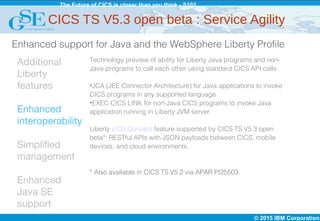

Technology preview of ability for Liberty Java programs and non-
Java programs to call each other using standard CICS API calls:
•JCA (JEE Connector Architecture) for Java applications to invoke
CICS programs in any supported language
•EXEC CICS LINK for non-Java CICS programs to invoke Java
application running in Liberty JVM server
Liberty z/OS Connect feature supported by CICS TS V5.3 open
beta*: RESTful APIs with JSON payloads between CICS, mobile
devices, and cloud environments.
* Also available in CICS TS V5.2 via APAR PI25503.

7
Additional
Liberty features
Enhanced
interoperability
Simplified
management
Enhanced Java
SE support

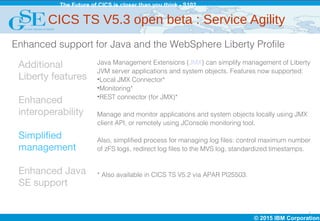

Java Management Extensions (JMX) can simplify management of Liberty
JVM server applications and system objects. Features now supported:
•Local JMX Connector*
•Monitoring*
•REST connector (for JMX)*
Manage and monitor applications and system objects locally using JMX
client API, or remotely using JConsole monitoring tool.
Also, simplified process for managing log files: control maximum number
of zFS logs, redirect log files to the MVS log, standardized timestamps.
* Also available in CICS TS V5.2 via APAR PI25503.

8
Additional
Liberty features
Enhanced
interoperability
Simplified
management
Enhanced Java
SE support

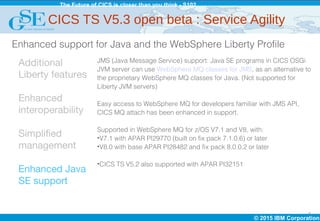

JMS (Java Message Service) support: Java SE programs in CICS OSGi
JVM server can use WebSphere MQ classes for JMS, as an alternative to
the proprietary WebSphere MQ classes for Java. (Not supported for
Liberty JVM servers)
Easy access to WebSphere MQ for developers familiar with JMS API,
CICS MQ attach has been enhanced in support.
Supported in WebSphere MQ for z/OS V7.1 and V8, with:
•V7.1 with APAR PI29770 (built on fix pack 7.1.0.6) or later
•V8.0 with base APAR PI28482 and fix pack 8.0.0.2 or later
•CICS TS V5.2 also supported with APAR PI32151

9

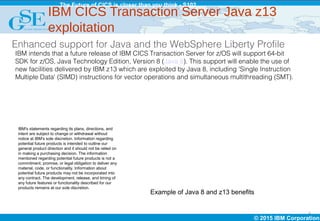

IBM intends that a future release of IBM CICS Transaction Server for z/OS will support 64-bit
SDK for z/OS, Java Technology Edition, Version 8 (Java 8). This support will enable the use of
new facilities delivered by IBM z13 which are exploited by Java 8, including 'Single Instruction
Multiple Data' (SIMD) instructions for vector operations and simultaneous multithreading (SMT).
IBM's statements regarding its plans, directions, and
intent are subject to change or withdrawal without
notice at IBM's sole discretion. Information regarding
potential future products is intended to outline our
general product direction and it should not be relied on
in making a purchasing decision. The information
mentioned regarding potential future products is not a
commitment, promise, or legal obligation to deliver any
material, code, or functionality. Information about
potential future products may not be incorporated into
any contract. The development, release, and timing of
any future features or functionality described for our
products remains at our sole discretion.
Example of Java 8 and z13 benefits
IBM CICS Transaction Server Java z13
exploitation

10
Web service
optimizations
Performance
improvements
Enhanced
metrics
Additional
security options
CICS TS V5.3 open beta : Operational
Efficiency
Performance optimizations, enhanced metrics, and additional security
CICS TS V5.3 open beta delivers optimizations to the CICS Web service
infrastructure
Pipeline processing of HTTP requests has been improved, removing the
need for an intermediate web attach task (CWXN transaction) for most
types of SOAP and JSON based HTTP CICS Web services, reducing
CPU and memory overhead
The optimization can also be used for inbound HTTPS requests using
AT-TLS for SSL support (by configuring TCPIPSERVICEs as AT-TLS
aware)
Even for HTTPS using CICS-provided SSL, improvements have been
made by removing a number of TCB switches

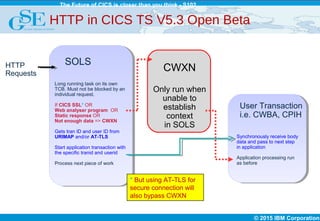

HTTP in CICS TS V5.3 Open Beta
HTTP
Requests
Long running task on its own
TCB. Must not be blocked by an
individual request.
If CICS SSL* OR
Web analyser program OR
Static response OR
Not enough data => CWXN
Gets tran ID and user ID from
URIMAP and/or AT-TLS
Start application transaction with
the specific tranid and userid
Process next piece of work
SOLS
Synchronously receive body
data and pass to next step
in application
Application processing run
as before
CWXN
Only run when
unable to
establish
context
in SOLS
User Transaction
i.e. CWBA, CPIH
* But using AT-TLS for
secure connection will
also bypass CWXN

12
Web service
optimizations
Performance
improvements
Enhanced
Metrics
Additional
security options
CICS TS V5.3 open beta: Operational
Efficiency

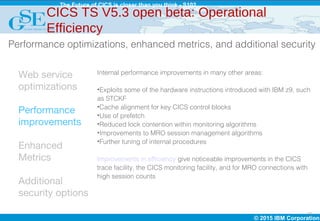

Internal performance improvements in many other areas:
•Exploits some of the hardware instructions introduced with IBM z9, such
as STCKF
•Cache alignment for key CICS control blocks
•Use of prefetch
•Reduced lock contention within monitoring algorithms
•Improvements to MRO session management algorithms
•Further tuning of internal procedures
Improvements in efficiency give noticeable improvements in the CICS
trace facility, the CICS monitoring facility, and for MRO connections with
high session counts

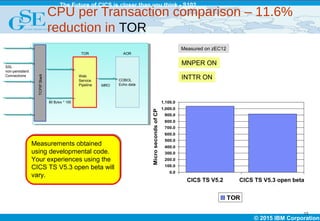

SSL
non-persistent
Connections
TOR AOR
Web
Service
Pipeline
COBOL
Echo dataMRO
Measured on zEC12
CPU per Transaction comparison – 11.6%
reduction in TOR
13
INTTR ON
MNPER ON
Measurements obtained
using developmental code.
Your experiences using the
CICS TS V5.3 open beta will
vary.
Measurements obtained
using developmental code.
Your experiences using the
CICS TS V5.3 open beta will
vary.
0.0
100.0
200.0
300.0
400.0
500.0
600.0
700.0
800.0
900.0
1,000.0
1,100.0
CTS5.2 CTS5.3 Open Beta
MicrosecondsofCPU
TOR
CICS TS V5.2 CICS TS V5.3 open beta

14
Web service
optimizations
Performance
improvements
Enhanced
metrics
Additional
security options
Transaction tracking identifies
relationships between application tasks
as they flow across CICS systems, and has
been extended to transactions started by the CICS-WebSphere MQ
bridge. This expands the scope of transactions that can use transaction
tracking, to help with problem determination, reporting and auditing
Metrics have been added to global CICS statistics, including transaction
CPU time measurements captured without needing CICS monitoring to
be active - allows greater insight into CPU resource usage of CICS TS
V5.3 open beta regions without the overhead of collecting and
processing SMF 110 monitoring records
Efficiency

15
Web service
optimizations
Performance
improvements
Enhanced
metrics
Additional
security options
New and enhanced security options:
•Support for the Enhanced Password Algorithm implemented in RACF
APAR OA43999 – for stronger encryption
•Enhanced support for Kerberos via EXEC CICS SIGNON TOKEN
command: avoids need to flow a password – applications can validate a
Kerberos security token and associate a new user ID with the terminal
•New EXEC CICS REQUEST PASSTICKET API can be used for outbound
requests from the current task where basic authentication is required –
requests an external security manager, such as RACF, to build a
PassTicket
Further off-load of authentication requests to open TCBs – reduces
contention on RO TCB
Efficiency

16
Automated
builds
Scripted
deployments
UrbanCode
Deploy support
Enhanced cloud
enablement
CICS TS V5.3 open beta:Cloud with DevOps
Cloud applications and bundles: a
convenient way to package and
manage components, resources,
and dependencies in CICS
CICS TS V5.3 open beta introduces the CICS Build Toolkit
– provides a command-line interface for automating the
building of CICS projects created using CICS Explorer.
CICS cloud applications and bundles, as well as OSGi
Java components, can be automatically built from source
code
Could be called as part of a script to automatically rebuild
an application when a developer makes updates
CICS build toolkit supported on z/OS, Linux and Microsoft
Windows; supports CICS TS V4.1 and later
New cloud and DevOps support to automate CICS deployments

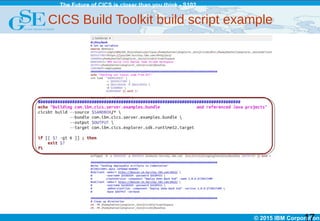

CICS Build Toolkit build script example
17

18

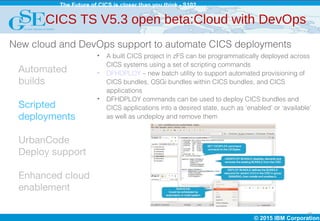

Automated
builds
Scripted
deployments
UrbanCode
Deploy support
Enhanced cloud
enablement
• A built CICS project in zFS can be programmatically deployed across
CICS systems using a set of scripting commands
• DFHDPLOY – new batch utility to support automated provisioning of
CICS bundles, OSGi bundles within CICS bundles, and CICS
applications
• DFHDPLOY commands can be used to deploy CICS bundles and
CICS applications into a desired state, such as ‘enabled’ or ‘available’
as well as undeploy and remove them

19
Automated
builds
Scripted
deployments
UrbanCode
Deploy support
Enhanced cloud
enablement
• IBM UrbanCode Deploy
orchestrates and
automates deployment
of applications,
middleware
configurations, and
database changes. CICS TS
beta plug-in for UrbanCode Deploy
supports the deployment of CICS
applications as part of these
orchestrations
• CICS TS beta plug-in provides functions
for installing and removing resources,
NEWCOPY and PHASEIN for programs,
and performing a pipeline scan
• Updated UrbanCode Deploy plug-in for
CICS TS V4.1 and later at
• https://developer.ibm.com/urbancode/plugin/cics-ts/

20
Automated
builds
Scripted
deployments
UrbanCode
Deploy support
Enhanced cloud
enablement

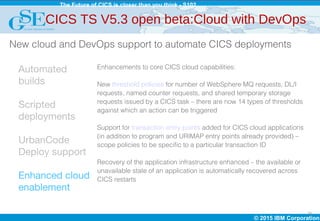

Enhancements to core CICS cloud capabilities:
New threshold policies for number of WebSphere MQ requests, DL/I
requests, named counter requests, and shared temporary storage
requests issued by a CICS task – there are now 14 types of thresholds
against which an action can be triggered
Support for transaction entry points added for CICS cloud applications
(in addition to program and URIMAP entry points already provided) –
scope policies to be specific to a particular transaction ID
Recovery of the application infrastructure enhanced – the available or
unavailable state of an application is automatically recovered across
CICS restarts

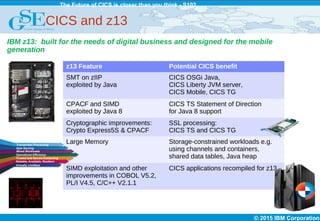

CICS and z13
z13 Feature Potential CICS benefit
SMT on zIIP
exploited by Java
CICS OSGi Java,
CICS Liberty JVM server,
CICS Mobile, CICS TG
CPACF and SIMD
exploited by Java 8
CICS TS Statement of Direction
for Java 8 support
Cryptographic improvements:
Crypto Express5S & CPACF
SSL processing:
CICS TS and CICS TG
Large Memory Storage-constrained workloads e.g.
using channels and containers,
shared data tables, Java heap
SIMD exploitation and other
improvements in COBOL V5.2,
PL/I V4.5, C/C++ V2.1.1
CICS applications recompiled for z13
IBM z13: built for the needs of digital business and designed for the mobile
generation
Transaction Processing
Data Serving
Mixed Workloads
Operational Efficiency
Trusted and Secure Computing
Reliable, Available, Resilient
Virtually Limitless
Scale

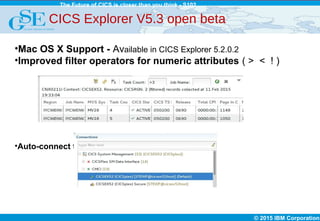

CICS Explorer V5.3 open beta
•Mac OS X Support - Available in CICS Explorer 5.2.0.2
•Improved filter operators for numeric attributes ( > < ! )
•Auto-connect to default connections

23
Types of CICS Early Programs Available

24
Submit and Track your Requirements Online

25
Next Steps…
Please contact…
Francis Burgess
CICS Early Programs Manager
francis_burgess@uk.ibm.com
Sara Wilson
CICS Design Associate & Sponsor User Lead
sara.wilson@uk.ibm.com

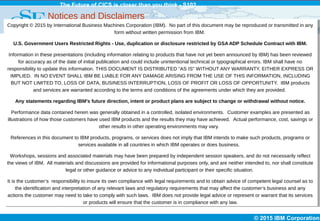

Notices and Disclaimers
Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any
form without written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed
for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no
responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR
IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF THIS INFORMATION, INCLUDING
BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY. IBM products
and services are warranted according to the terms and conditions of the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as
illustrations of how those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or
other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or
services available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect
the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute
legal or other guidance or advice to any individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to
the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any
actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services
or products will ensure that the customer is in compliance with any law.

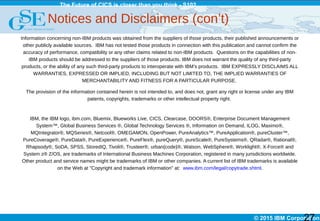

Notices and Disclaimers (con’t)
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or
other publicly available sources. IBM has not tested those products in connection with this publication and cannot confirm the
accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-
IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party
products, or the ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM
patents, copyrights, trademarks or other intellectual property right.
IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document Management
System™, Global Business Services ®, Global Technology Services ®, Information on Demand, ILOG, Maximo®,
MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™,
PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®,
Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and
System z® Z/OS, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide.
Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available
on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.
27

Questions

S102 cics the future is closer abridged

More Related Content

What's hot

Viewers also liked

Similar to S102 cics the future is closer abridged

More from nick_garrod

Recently uploaded

S102 cics the future is closer abridged

Editor's Notes
