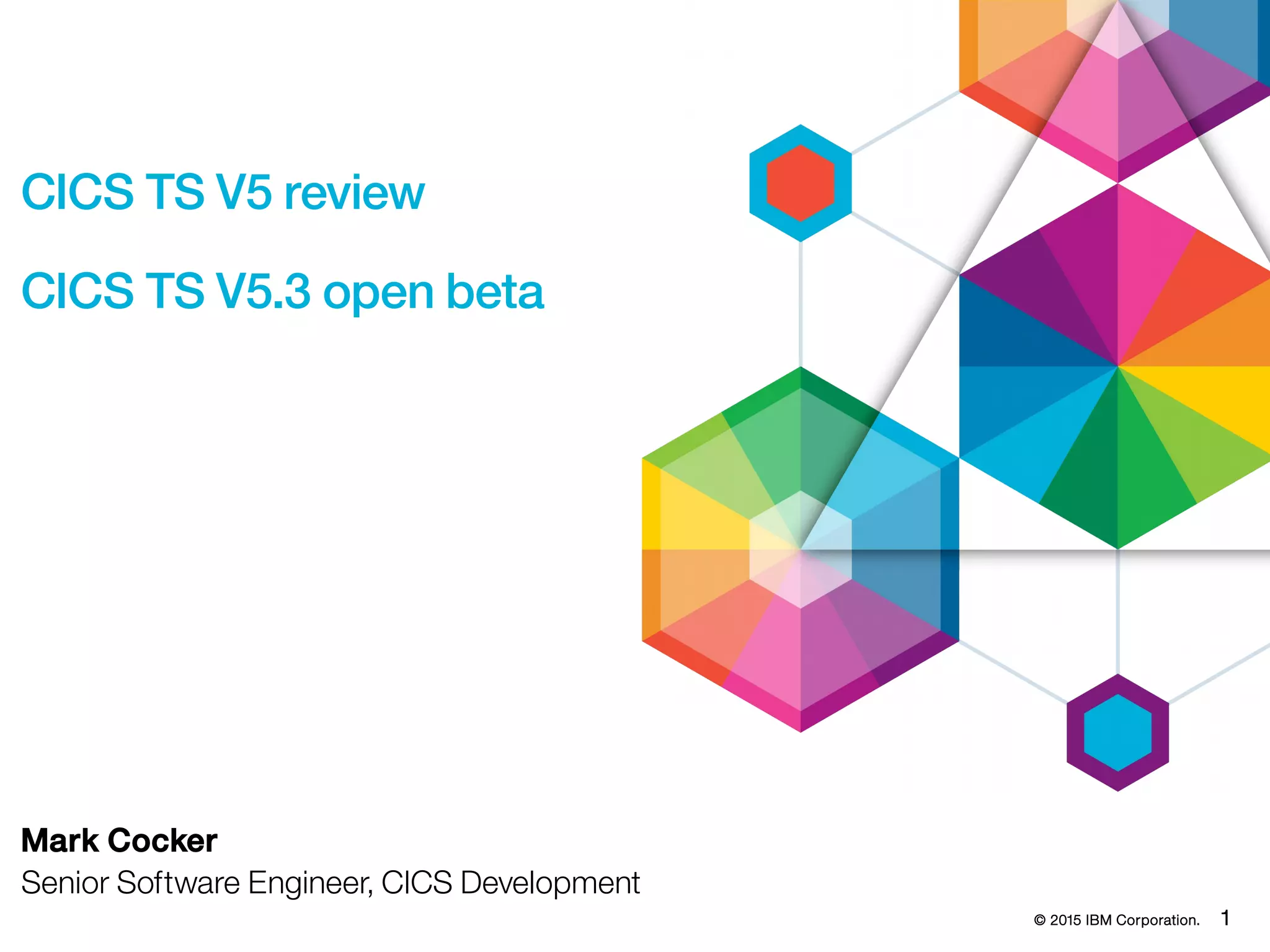

CICS TS V4 and V5 recap, and the new V5.3 open beta

© 2015 IBM Corporation. 1
CICS TS V5 review
CICS TS V5.3 open beta
Mark Cocker
Senior Software Engineer, CICS Development

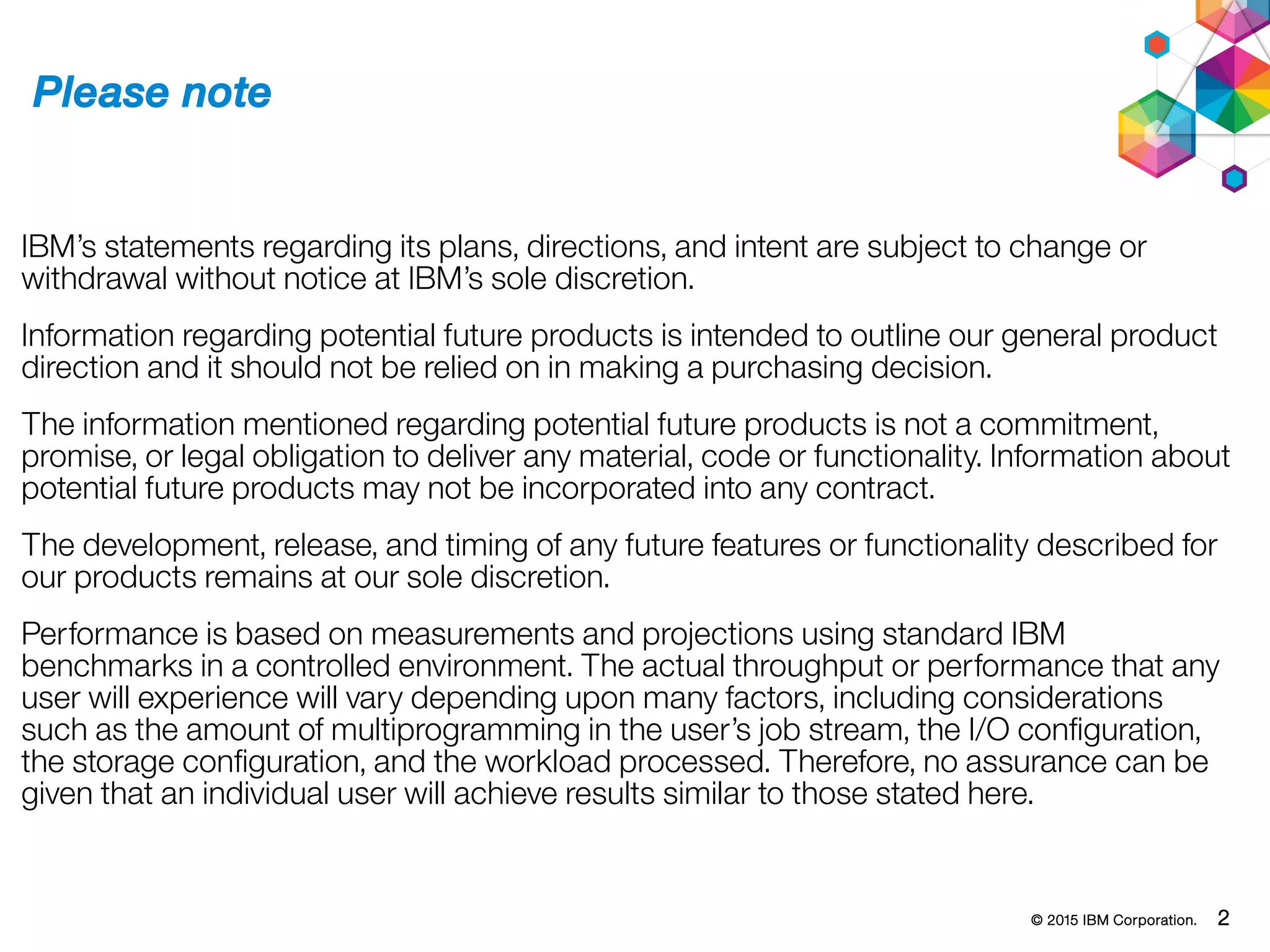

Please note
IBM’s statements regarding its plans, directions, and intent are subject to change or
withdrawal without notice at IBM’s sole discretion.
Information regarding potential future products is intended to outline our general product
direction and it should not be relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment,
promise, or legal obligation to deliver any material, code or functionality. Information about
potential future products may not be incorporated into any contract.
The development, release, and timing of any future features or functionality described for
our products remains at our sole discretion.
Performance is based on measurements and projections using standard IBM
benchmarks in a controlled environment. The actual throughput or performance that any
user will experience will vary depending upon many factors, including considerations
such as the amount of multiprogramming in the user’s job stream, the I/O configuration,
the storage configuration, and the workload processed. Therefore, no assurance can be
given that an individual user will achieve results similar to those stated here.

CICS TS V5

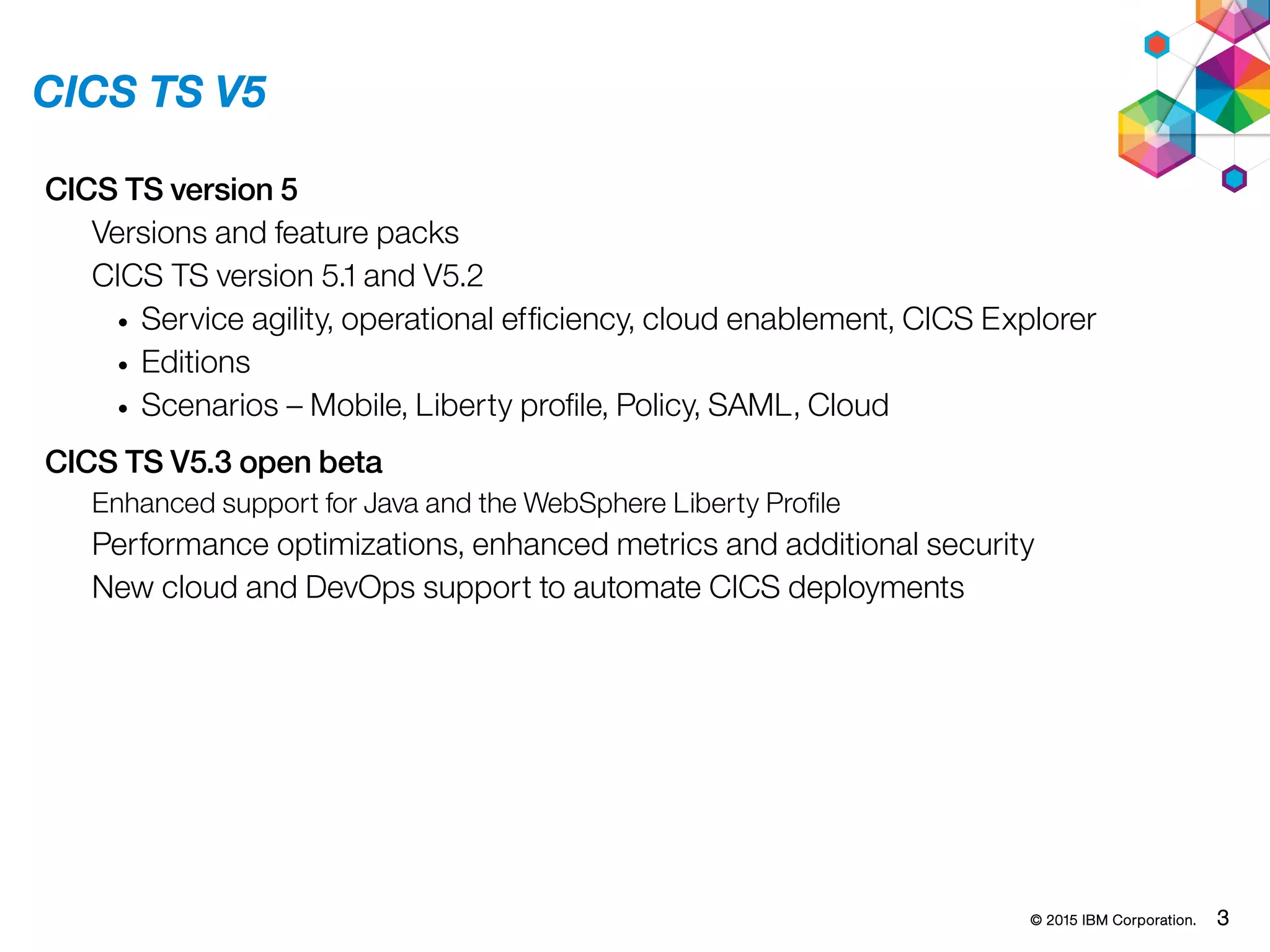

CICS TS version 5
Versions and feature packs
CICS TS version 5.1 and V5.2
• Service agility, operational efficiency, cloud enablement, CICS Explorer
• Editions
• Scenarios – Mobile, Liberty profile, Policy, SAML, Cloud

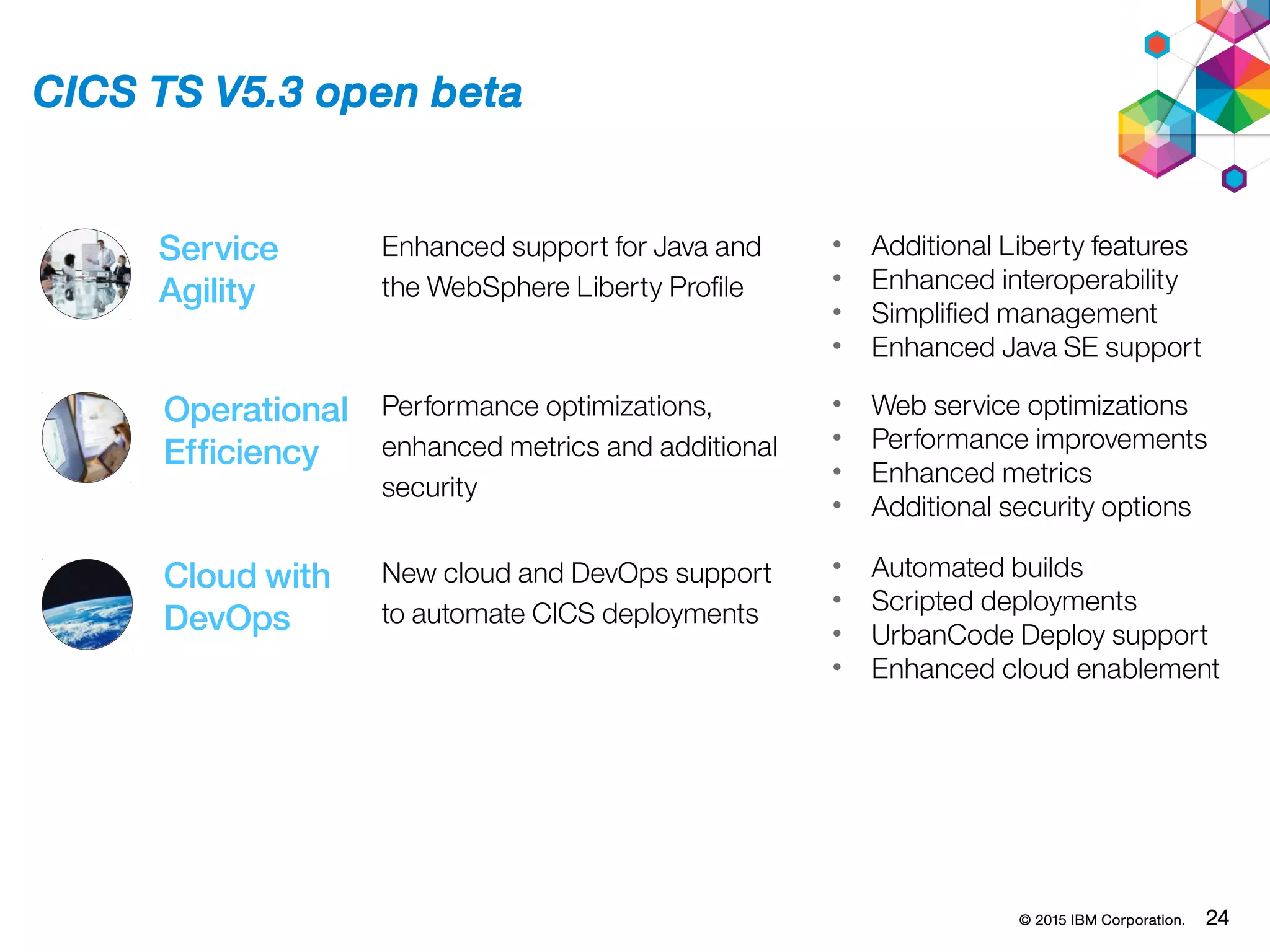

Enhanced support for Java and the WebSphere Liberty Profile

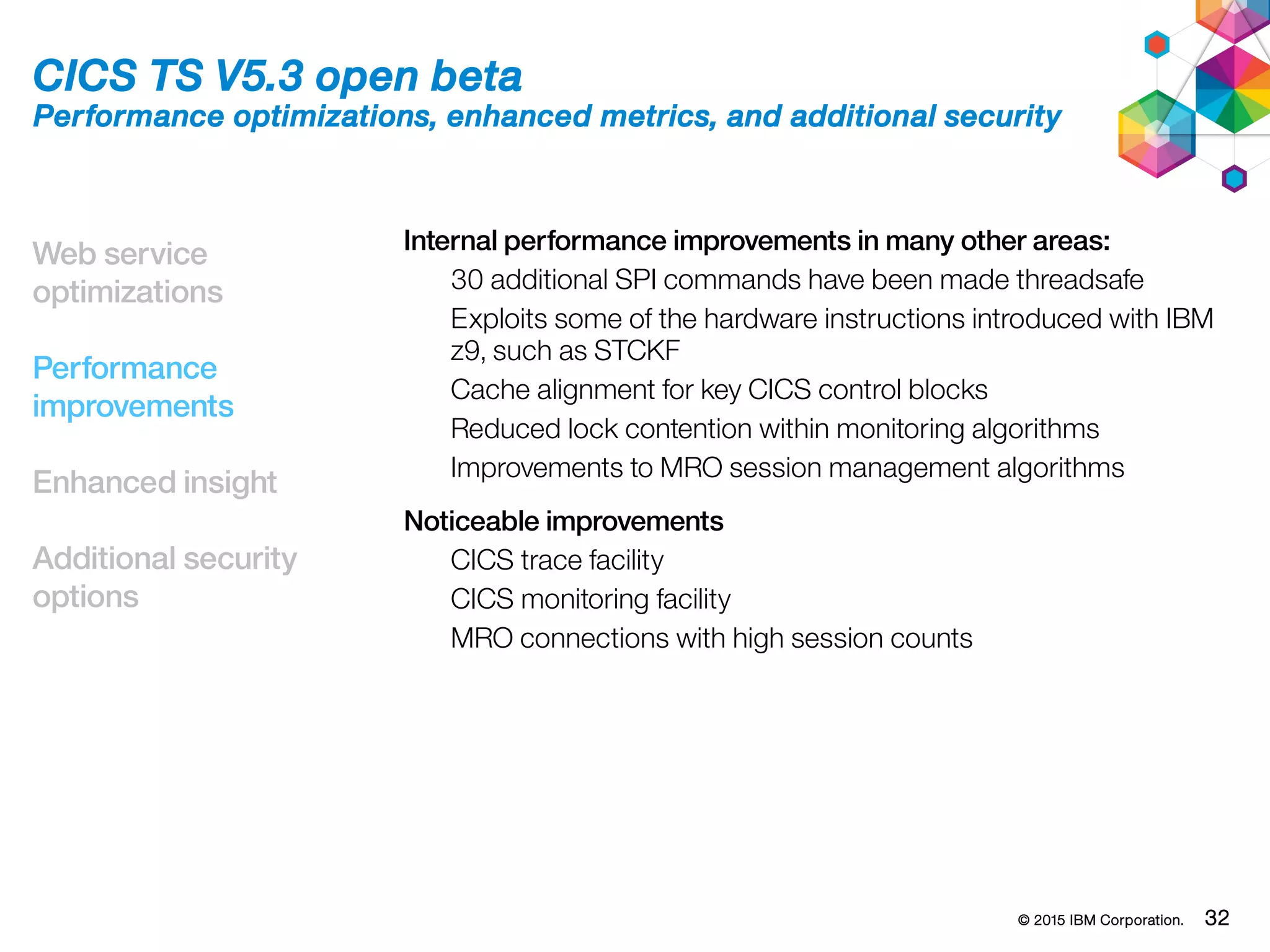

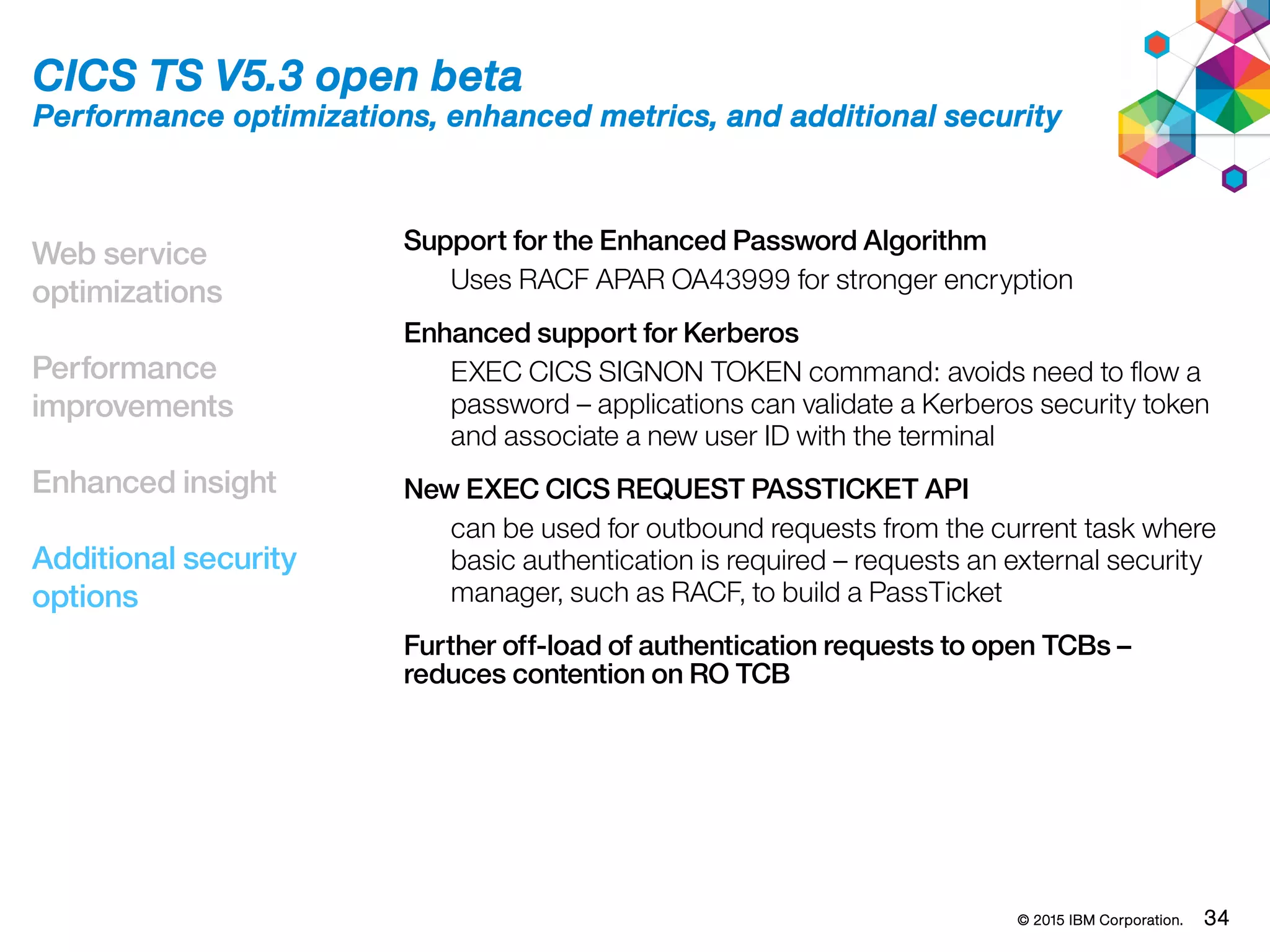

Performance optimizations, enhanced metrics and additional security
New cloud and DevOps support to automate CICS deployments

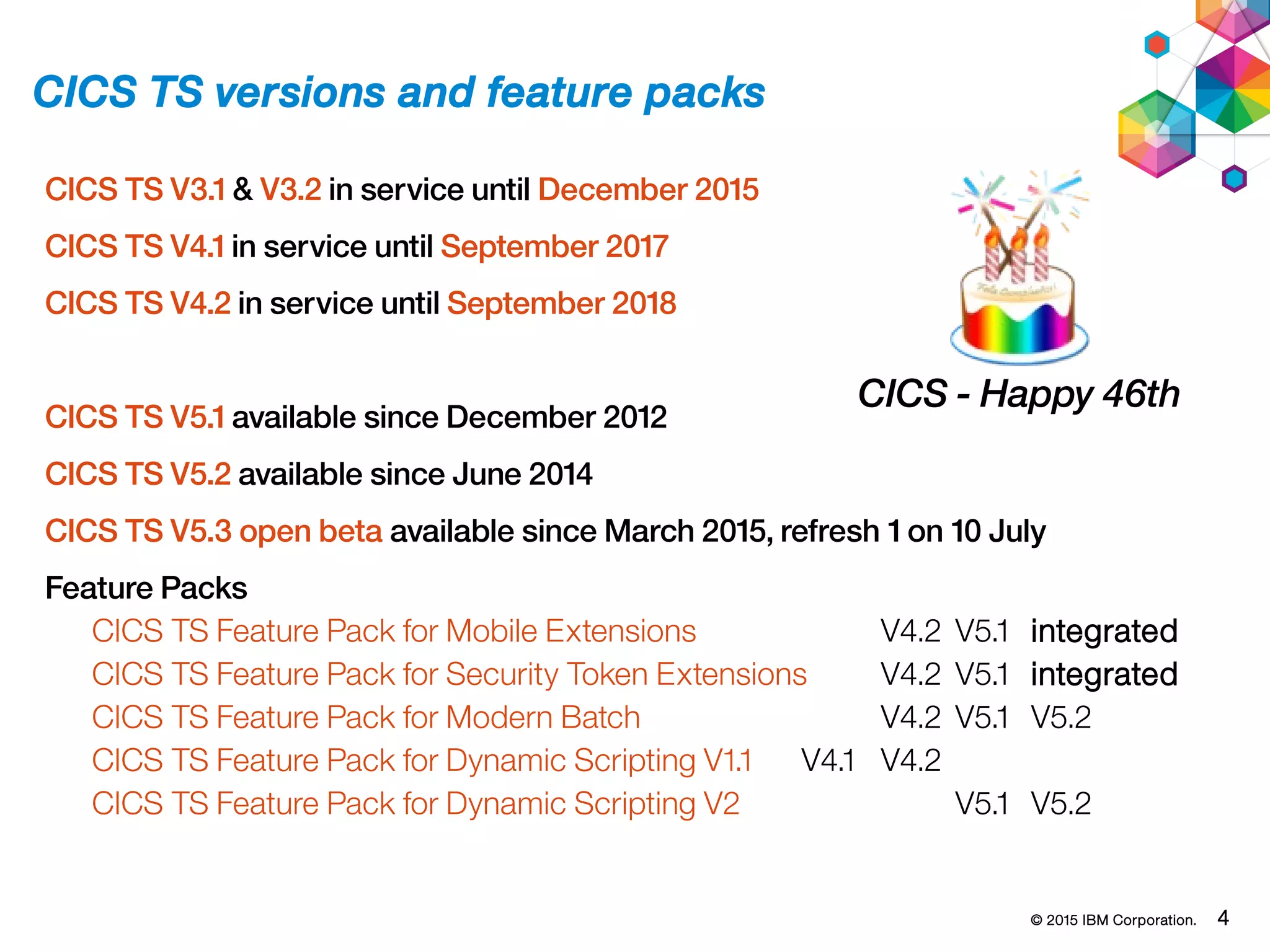

CICS TS versions and feature packs
CICS TS V3.1 & V3.2 in service until December 2015
CICS TS V4.1 in service until September 2017
CICS TS V4.2 in service until September 2018
CICS TS V5.1 available since December 2012
CICS TS V5.2 available since June 2014
CICS TS V5.3 open beta available since March 2015, refresh 1 on 10 July
Feature Packs
CICS TS Feature Pack for Mobile Extensions V4.2 V5.1 integrated
CICS TS Feature Pack for Security Token Extensions V4.2 V5.1 integrated
CICS TS Feature Pack for Modern Batch V4.2 V5.1 V5.2
CICS TS Feature Pack for Dynamic Scripting V1.1 V4.1 V4.2
CICS TS Feature Pack for Dynamic Scripting V2 V5.1 V5.2
CICS - Happy 46th

CICS TS version 5

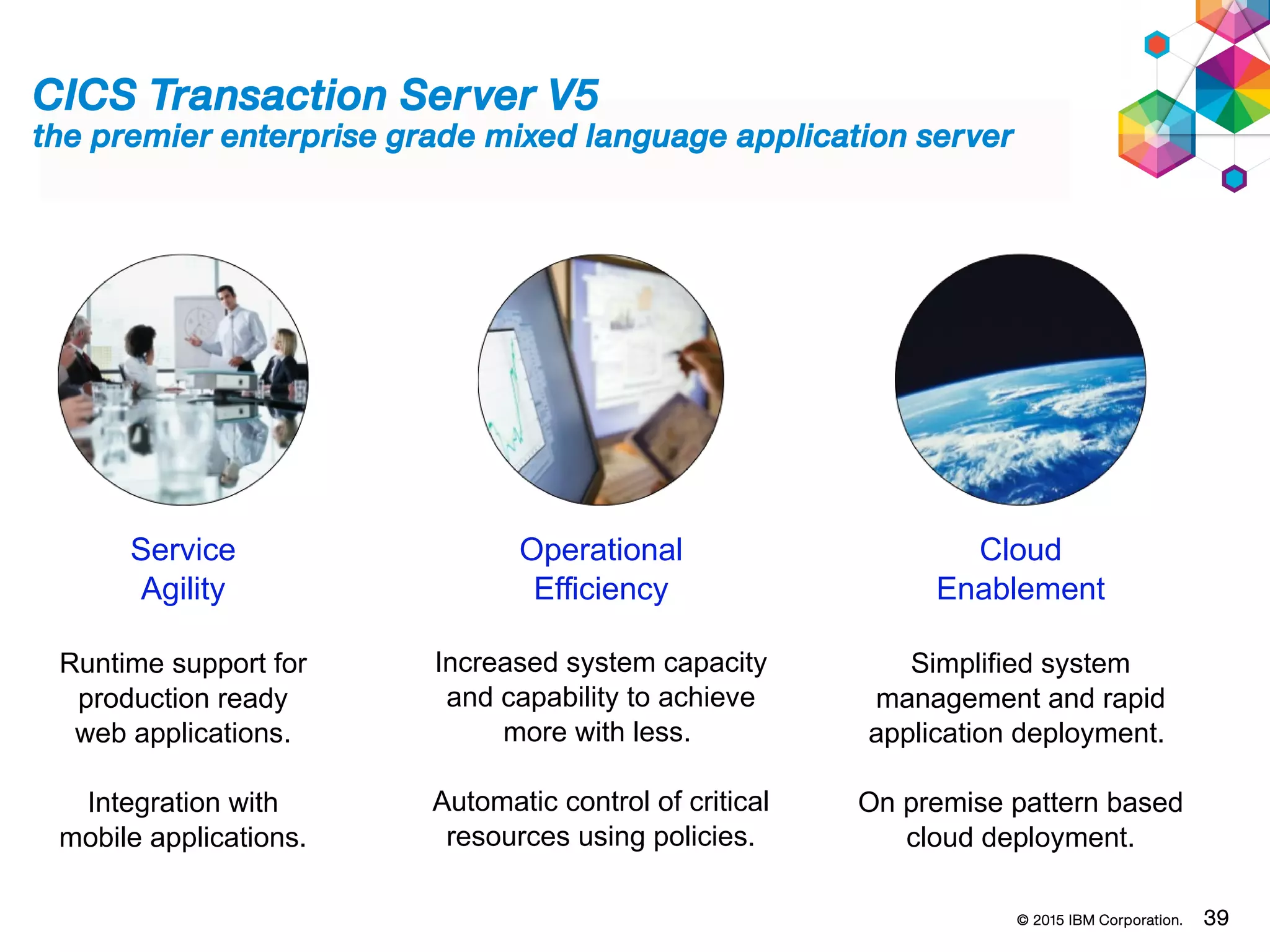

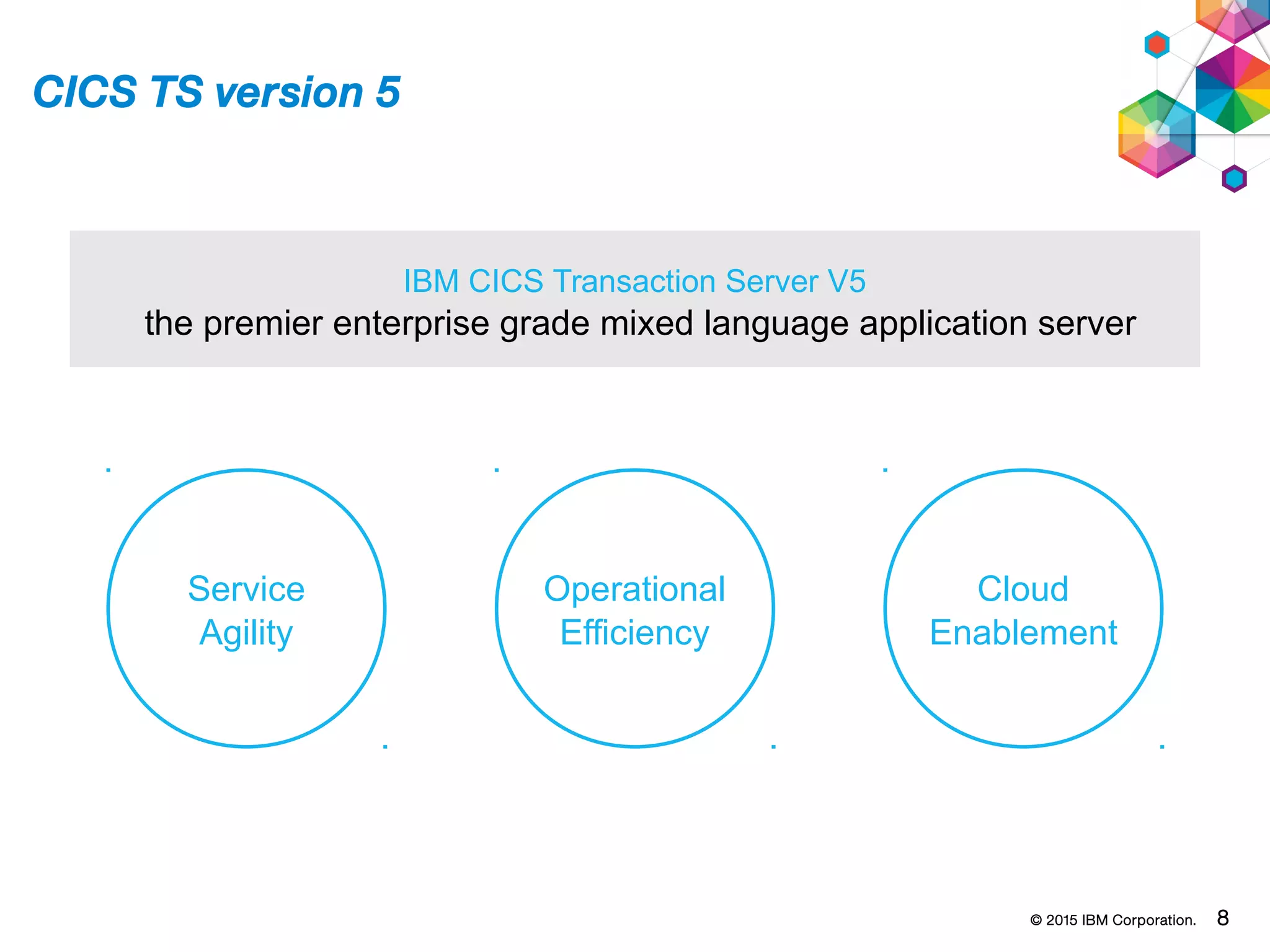

IBM CICS Transaction Server V5
the premier enterprise grade mixed language application server
Service
Agility
Operational
Efficiency
Cloud
Enablement

CICS TS version 5

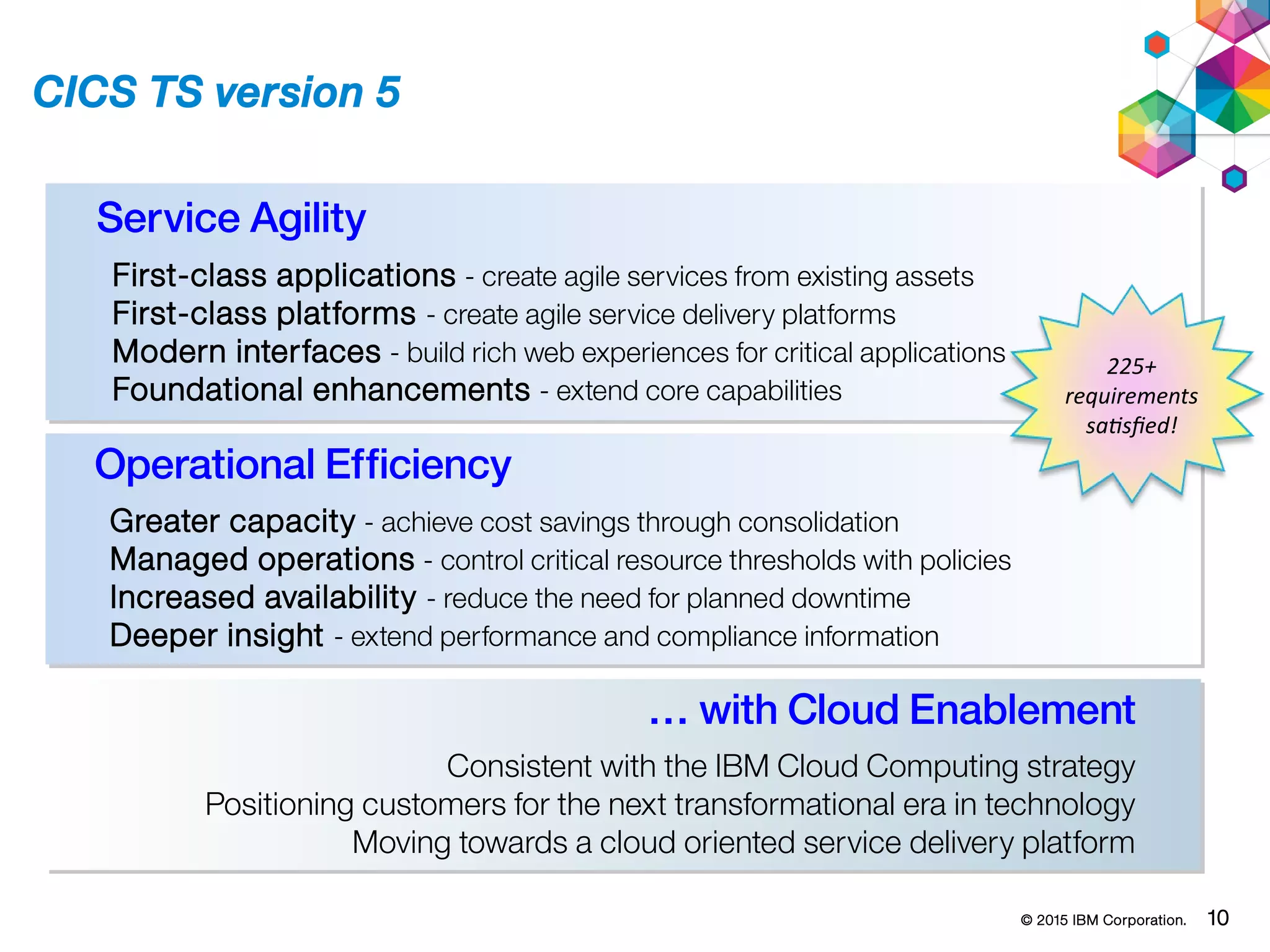

Operational Efficiency
Greater capacity - achieve cost savings through consolidation
Managed operations - control critical resource thresholds with policies
Increased availability - reduce the need for planned downtime
Deeper insight - extend performance and compliance information
Service Agility
First-class applications - create agile services from existing assets
First-class platforms - create agile service delivery platforms
Modern interfaces - build rich web experiences for critical applications
Foundational enhancements - extend core capabilities
225+
requirements
satisfied!
… with Cloud Enablement
Consistent with the IBM Cloud Computing strategy
Positioning customers for the next transformational era in technology
Moving towards a cloud oriented service delivery platform

CICS TS V5.1 and 5.2
• Manage disparate resources as a single entity
• Rapidly move through the application lifecycle
• Automate dependency management
• Ensure rigorous yet flexible provisioning
• Multi-version applications
• Measure entire application resource usage
• Dynamically manage applications with policies
• Manage disparate resources as a single entity
• Rapidly move through the application lifecycle
• Automate dependency management
• Ensure rigorous yet flexible provisioning
• Multi-version applications
• Measure entire application resource usage
• Dynamically manage applications with policies

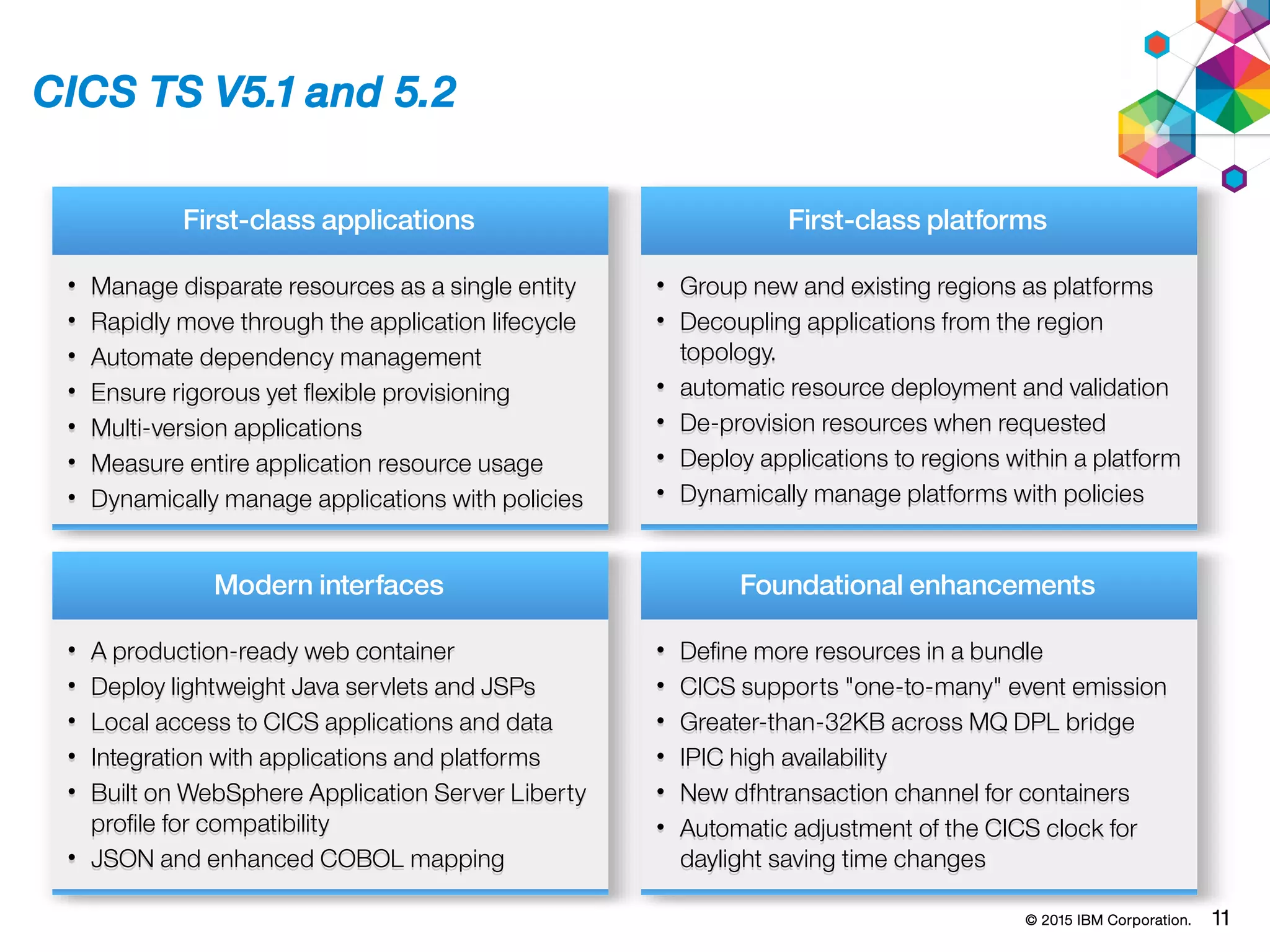

First-class applications
• Group new and existing regions as platforms
• Decoupling applications from the region
topology.
• automatic resource deployment and validation
• De-provision resources when requested
• Deploy applications to regions within a platform
• Dynamically manage platforms with policies
• Group new and existing regions as platforms
• Decoupling applications from the region
topology.
• automatic resource deployment and validation
• De-provision resources when requested
• Deploy applications to regions within a platform
• Dynamically manage platforms with policies
First-class platforms
• A production-ready web container
• Deploy lightweight Java servlets and JSPs
• Local access to CICS applications and data
• Integration with applications and platforms
• Built on WebSphere Application Server Liberty
profile for compatibility
• JSON and enhanced COBOL mapping
• A production-ready web container
• Deploy lightweight Java servlets and JSPs
• Local access to CICS applications and data
• Integration with applications and platforms
• Built on WebSphere Application Server Liberty
profile for compatibility
• JSON and enhanced COBOL mapping
Modern interfaces
• Define more resources in a bundle
• CICS supports "one-to-many" event emission
• Greater-than-32KB across MQ DPL bridge
• IPIC high availability
• New dfhtransaction channel for containers
• Automatic adjustment of the CICS clock for
daylight saving time changes
• Define more resources in a bundle
• CICS supports "one-to-many" event emission
• Greater-than-32KB across MQ DPL bridge
• IPIC high availability
• New dfhtransaction channel for containers
• Automatic adjustment of the CICS clock for
daylight saving time changes
Foundational enhancements

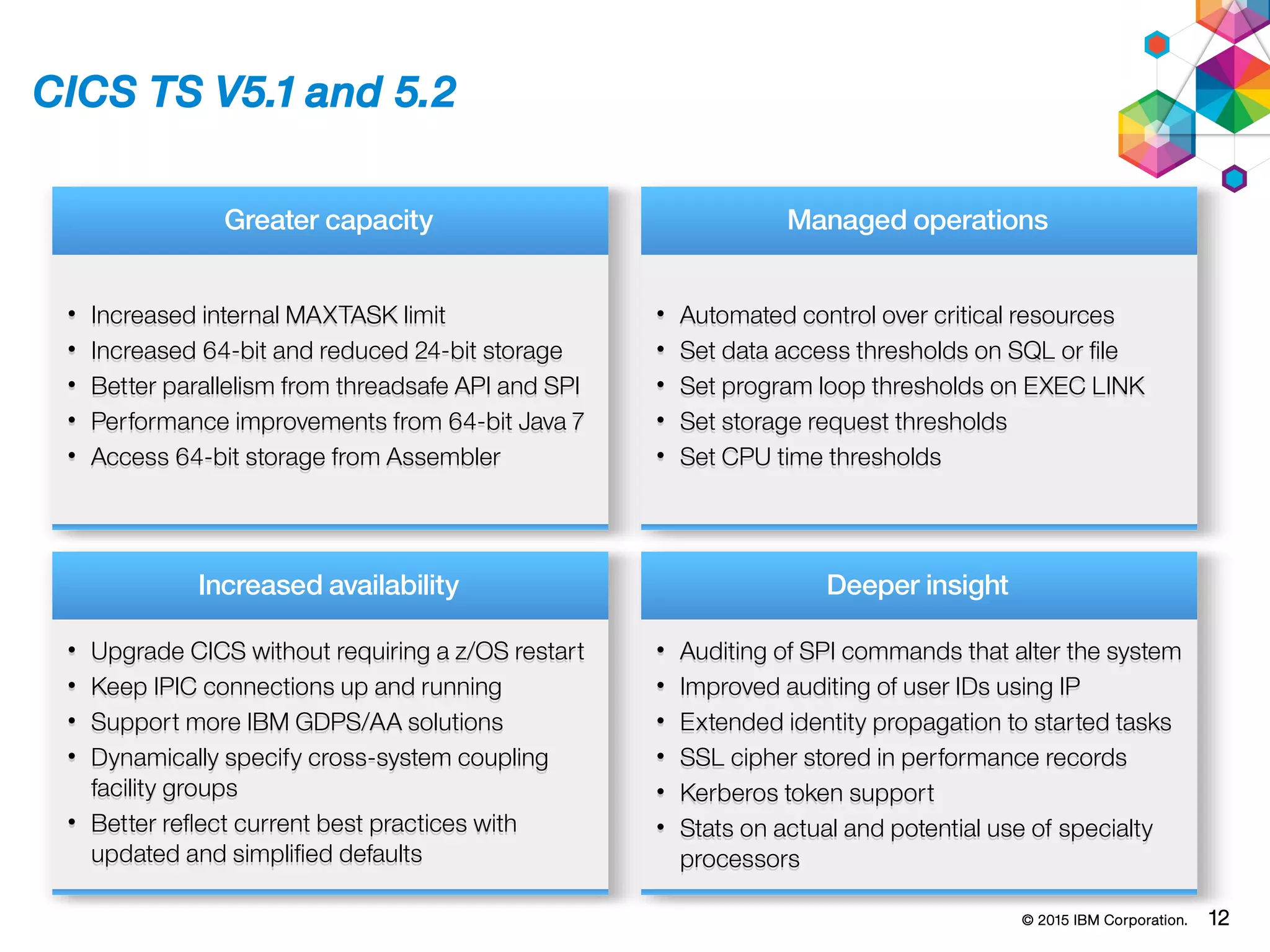

CICS TS V5.1 and 5.2
• Increased internal MAXTASK limit
• Increased 64-bit and reduced 24-bit storage
• Better parallelism from threadsafe API and SPI
• Performance improvements from 64-bit Java 7
• Access 64-bit storage from Assembler
• Increased internal MAXTASK limit
• Increased 64-bit and reduced 24-bit storage
• Better parallelism from threadsafe API and SPI
• Performance improvements from 64-bit Java 7
• Access 64-bit storage from Assembler
Greater capacity
• Automated control over critical resources
• Set data access thresholds on SQL or file
• Set program loop thresholds on EXEC LINK
• Set storage request thresholds
• Set CPU time thresholds
• Automated control over critical resources
• Set data access thresholds on SQL or file
• Set program loop thresholds on EXEC LINK
• Set storage request thresholds
• Set CPU time thresholds
Managed operations
• Upgrade CICS without requiring a z/OS restart
• Keep IPIC connections up and running
• Support more IBM GDPS/AA solutions
• Dynamically specify cross-system coupling
facility groups
• Better reflect current best practices with
updated and simplified defaults
• Upgrade CICS without requiring a z/OS restart
• Keep IPIC connections up and running
• Support more IBM GDPS/AA solutions
• Dynamically specify cross-system coupling
facility groups
• Better reflect current best practices with
updated and simplified defaults
Increased availability
• Auditing of SPI commands that alter the system
• Improved auditing of user IDs using IP
• Extended identity propagation to started tasks
• SSL cipher stored in performance records
• Kerberos token support
• Stats on actual and potential use of specialty
processors
• Auditing of SPI commands that alter the system
• Improved auditing of user IDs using IP
• Extended identity propagation to started tasks
• SSL cipher stored in performance records
• Kerberos token support
• Stats on actual and potential use of specialty
processors
Deeper insight

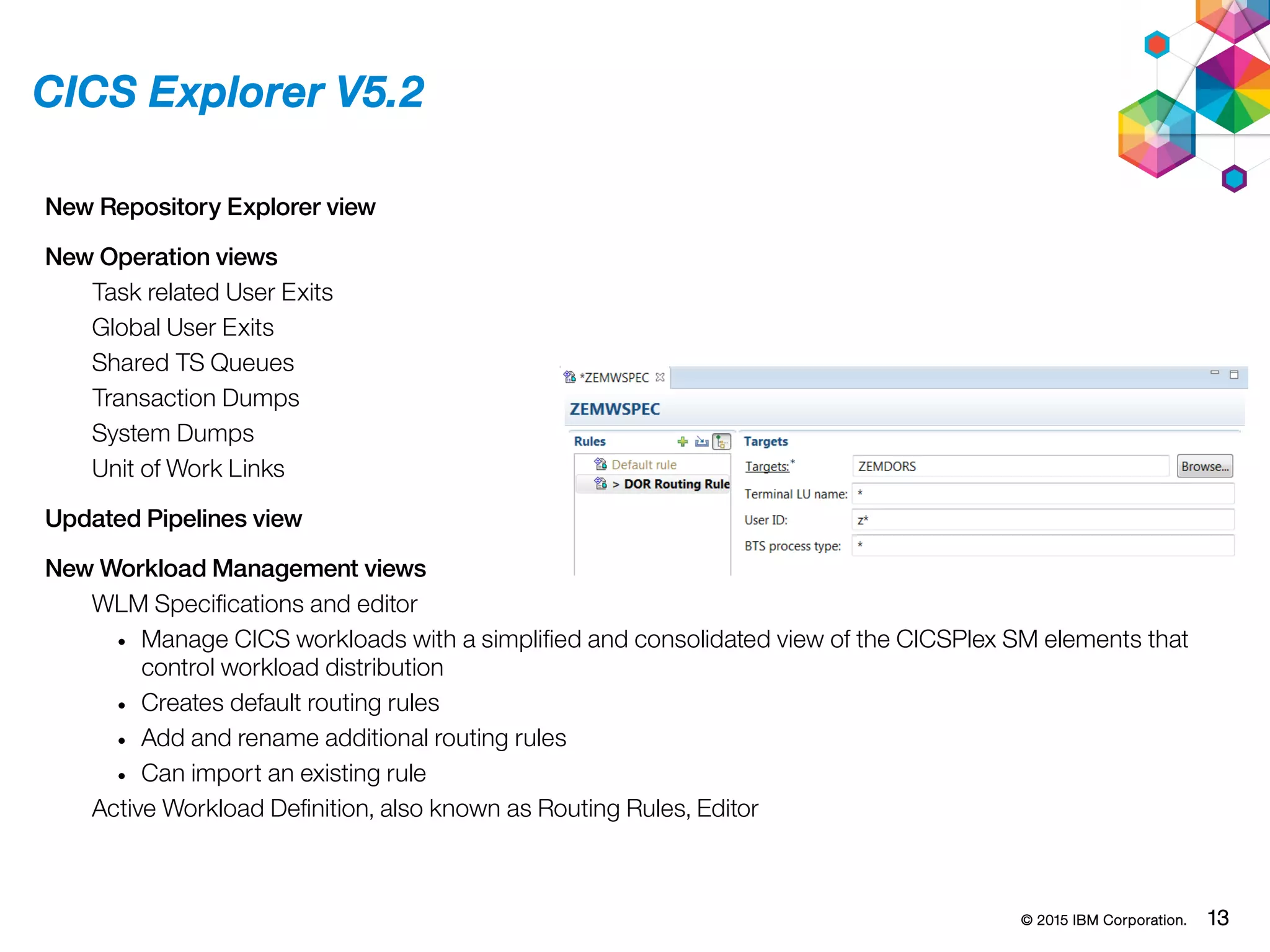

CICS Explorer V5.2
New Repository Explorer view
New Operation views
Task related User Exits
Global User Exits
Shared TS Queues
Transaction Dumps
System Dumps
Unit of Work Links
Updated Pipelines view
New Workload Management views
WLM Specifications and editor
• Manage CICS workloads with a simplified and consolidated view of the CICSPlex SM elements that
control workload distribution
• Creates default routing rules
• Add and rename additional routing rules
• Can import an existing rule
Active Workload Definition, also known as Routing Rules, Editor

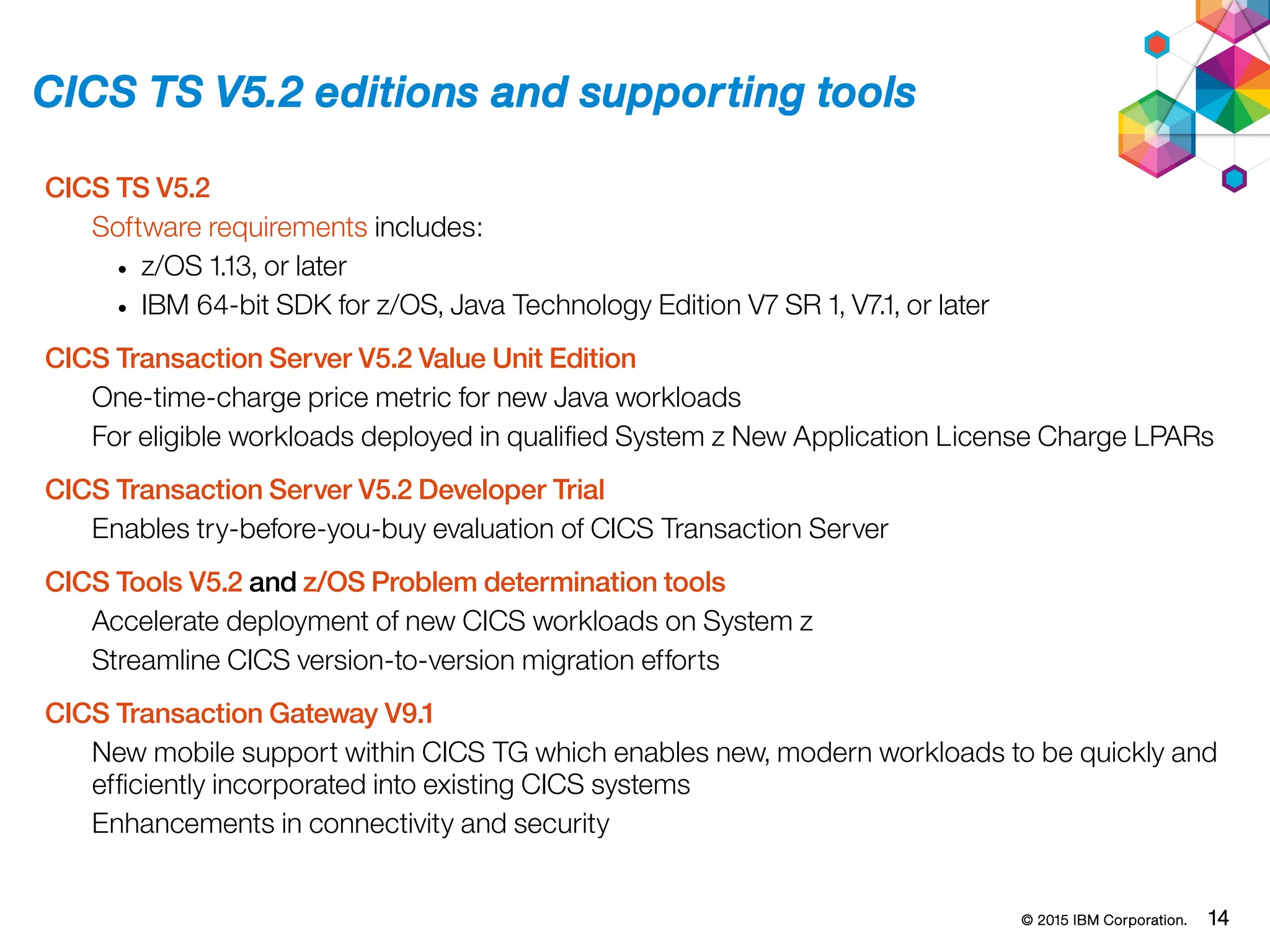

CICS TS V5.2 editions and supporting tools
CICS TS V5.2
Software requirements includes:
• z/OS 1.13, or later
• IBM 64-bit SDK for z/OS, Java Technology Edition V7 SR 1, V7.1, or later
CICS Transaction Server V5.2 Value Unit Edition
One-time-charge price metric for new Java workloads
For eligible workloads deployed in qualified System z New Application License Charge LPARs
CICS Transaction Server V5.2 Developer Trial
Enables try-before-you-buy evaluation of CICS Transaction Server
CICS Tools V5.2 and z/OS Problem determination tools
Accelerate deployment of new CICS workloads on System z
Streamline CICS version-to-version migration efforts
CICS Transaction Gateway V9.1
New mobile support within CICS TG which enables new, modern workloads to be quickly and
efficiently incorporated into existing CICS systems
Enhancements in connectivity and security

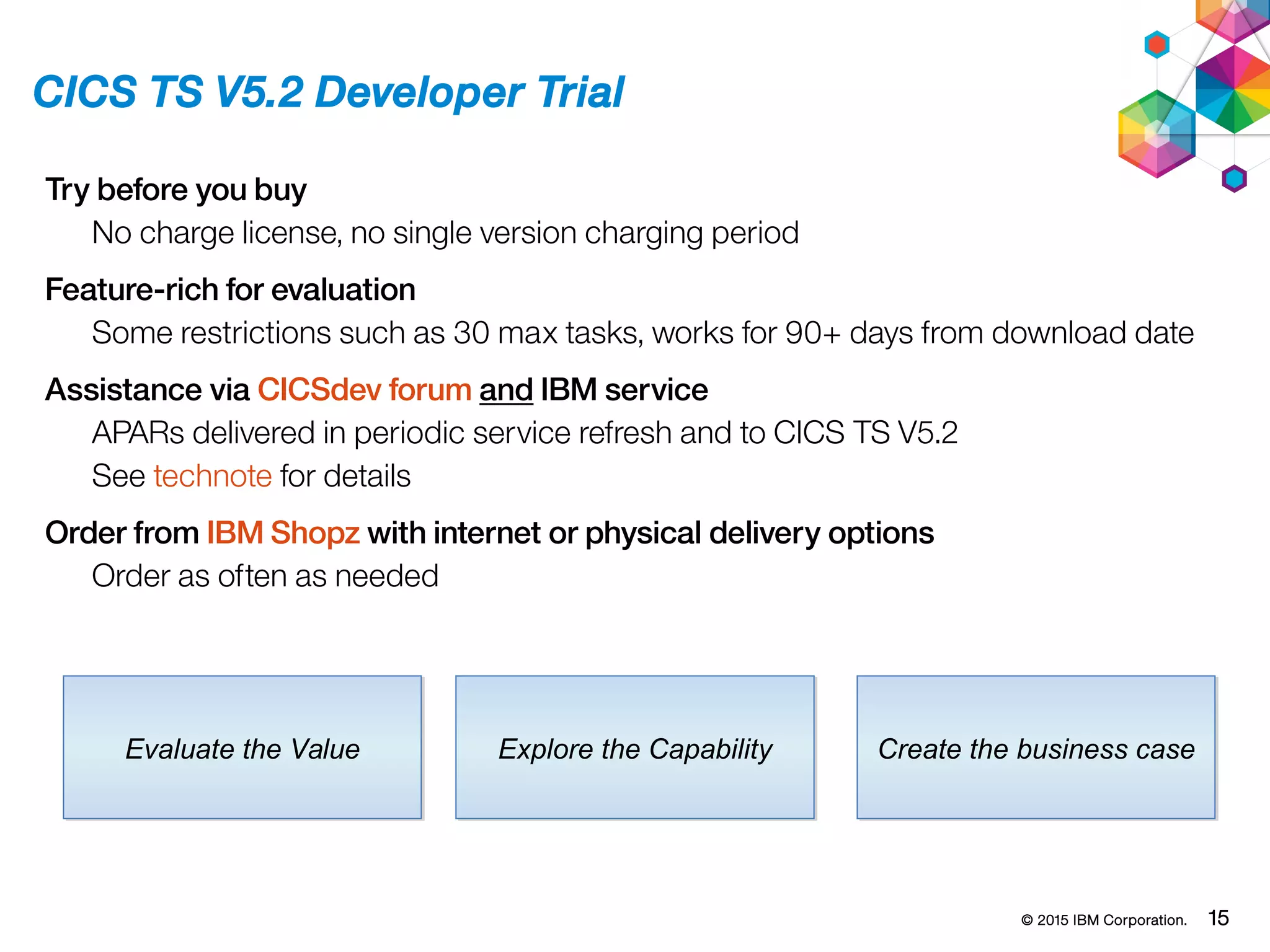

CICS TS V5.2 Developer Trial
Evaluate the ValueEvaluate the Value Explore the CapabilityExplore the Capability Create the business caseCreate the business case
Try before you buy
No charge license, no single version charging period
Feature-rich for evaluation
Some restrictions such as 30 max tasks, works for 90+ days from download date
Assistance via CICSdev forum and IBM service
APARs delivered in periodic service refresh and to CICS TS V5.2
See technote for details
Order from IBM Shopz with internet or physical delivery options
Order as often as needed

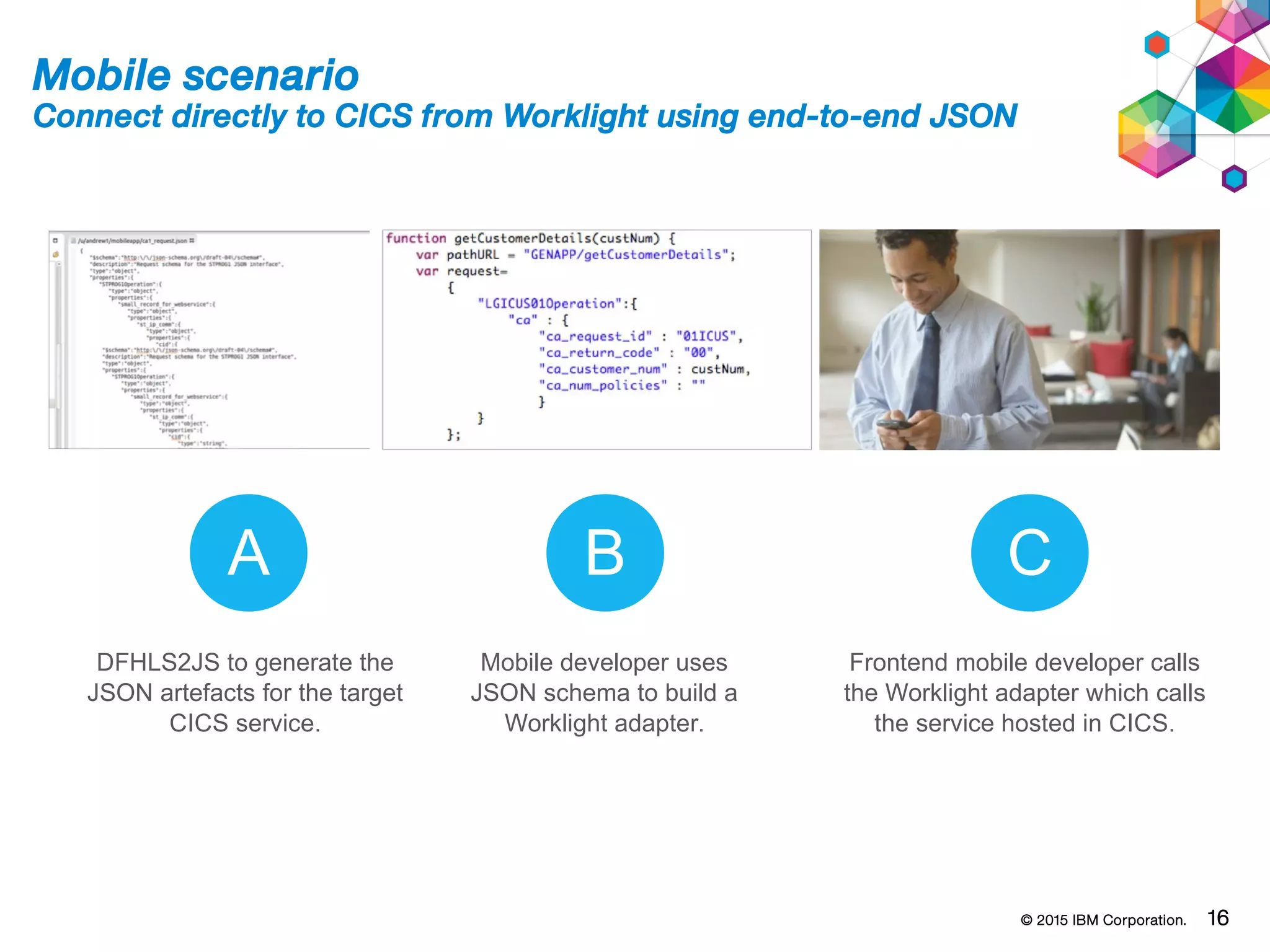

Mobile scenario
Connect directly to CICS from Worklight using end-to-end JSON
A B C
DFHLS2JS to generate the
JSON artefacts for the target
CICS service.
Mobile developer uses
JSON schema to build a
Worklight adapter.
Frontend mobile developer calls
the Worklight adapter which calls
the service hosted in CICS.

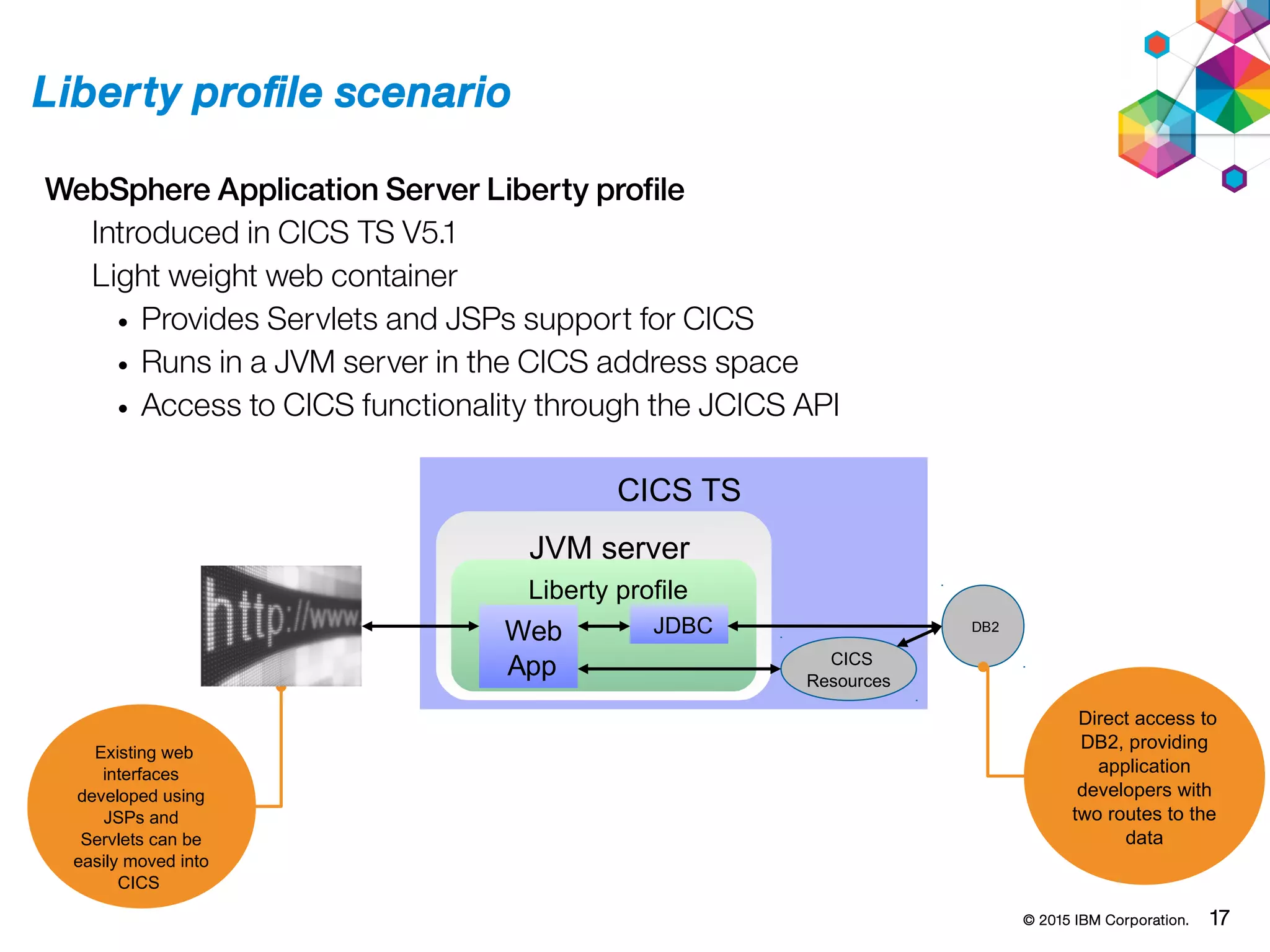

Liberty profile scenario
WebSphere Application Server Liberty profile
Introduced in CICS TS V5.1
Light weight web container
• Provides Servlets and JSPs support for CICS
• Runs in a JVM server in the CICS address space
• Access to CICS functionality through the JCICS API
Existing web
interfaces
developed using
JSPs and
Servlets can be
easily moved into
CICS
Direct access to
DB2, providing
application
developers with
two routes to the
data
CICS TS
JVM server
Liberty profile
Web
App
JDBC DB2
CICS
Resources

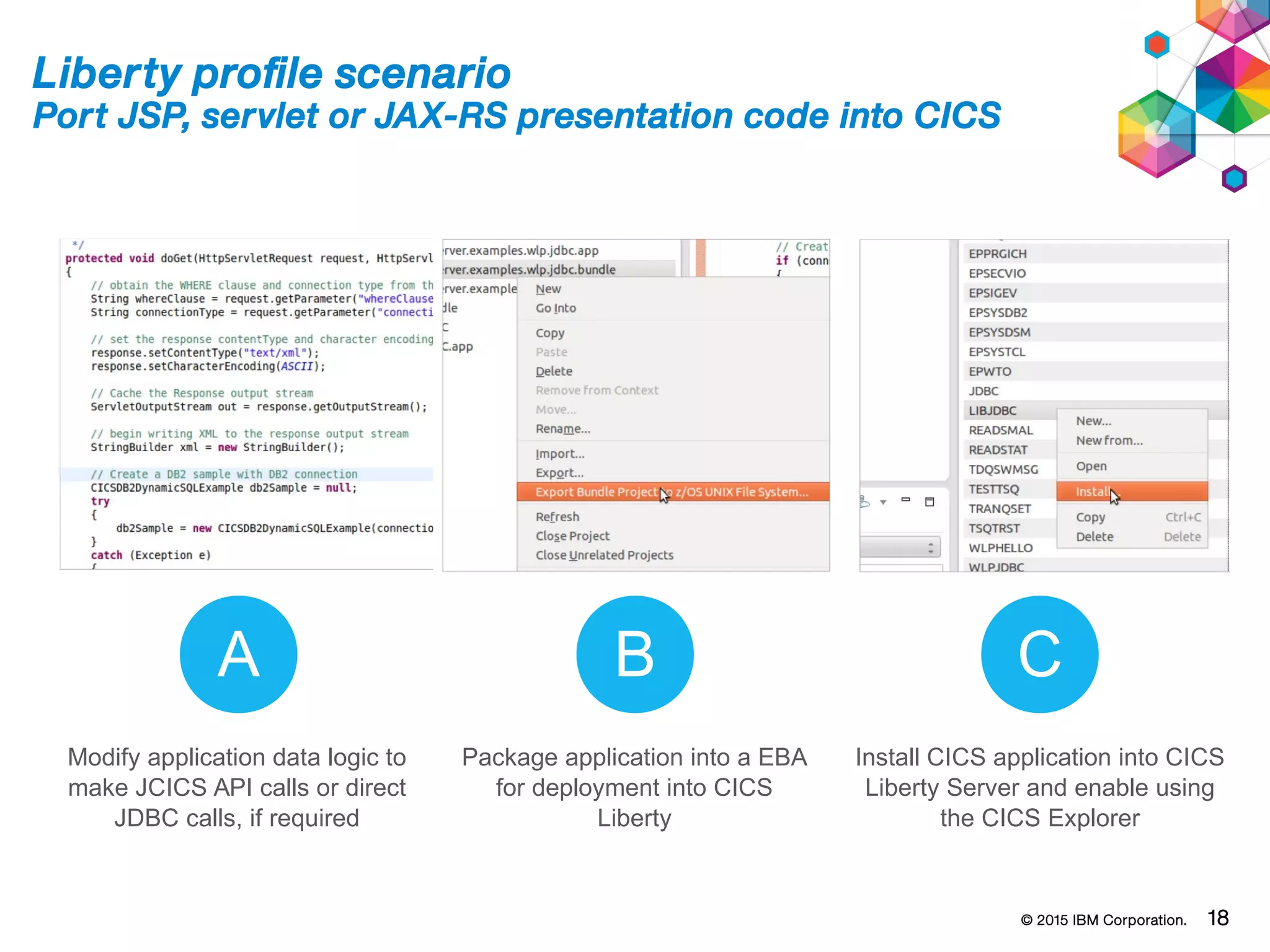

Liberty profile scenario
Port JSP, servlet or JAX-RS presentation code into CICS
A B C
Modify application data logic to
make JCICS API calls or direct
JDBC calls, if required
Package application into a EBA
for deployment into CICS
Liberty
Install CICS application into CICS
Liberty Server and enable using
the CICS Explorer

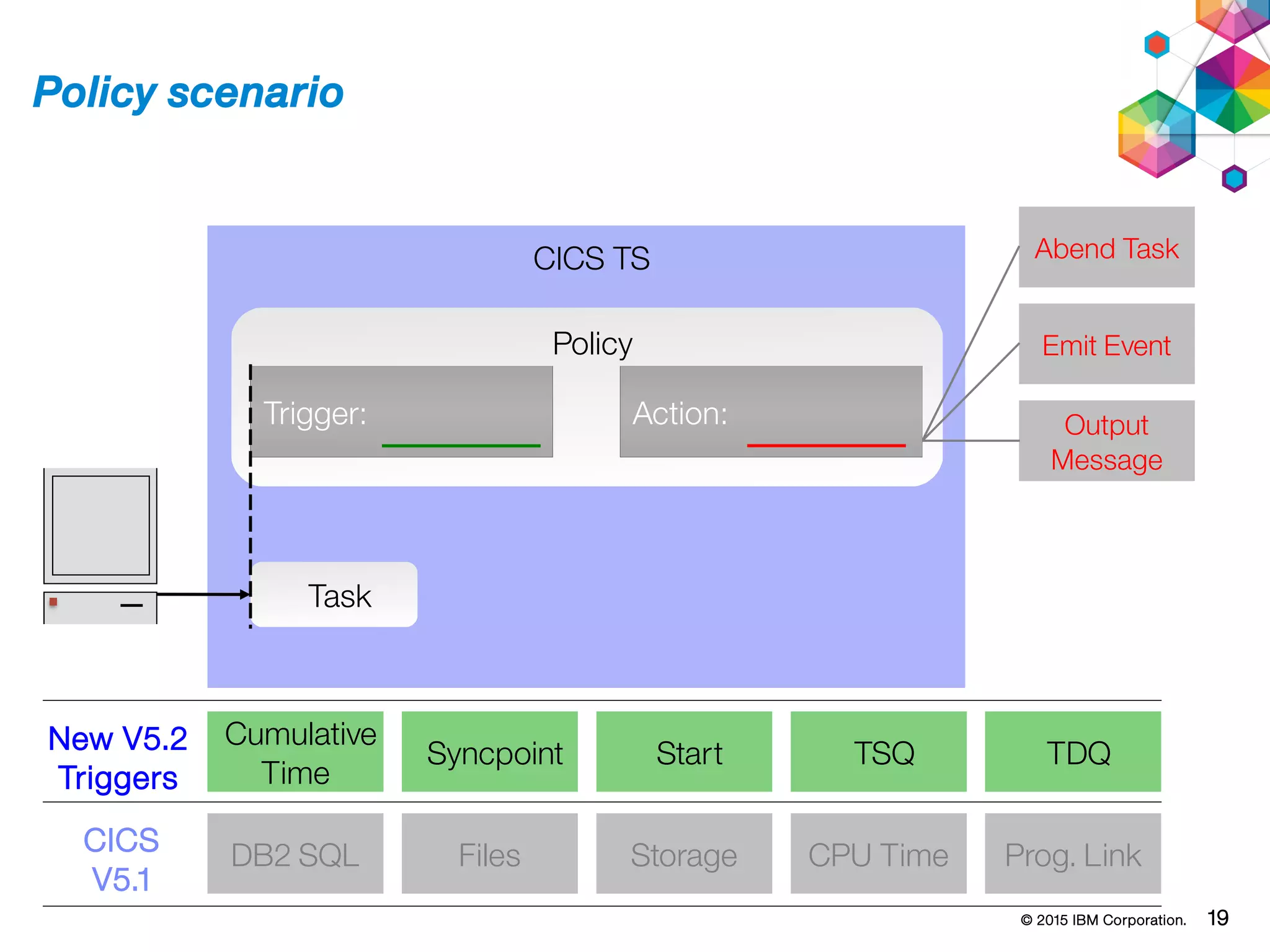

Policy scenario
CICS TS
Cumulative
Time
Syncpoint Start TSQ
DB2 SQL Files Storage CPU Time
Policy
Task
Abend Task
Emit Event
Output
Message
New V5.2
Triggers
CICS
V5.1
Trigger: Action:
TDQ
Prog. Link

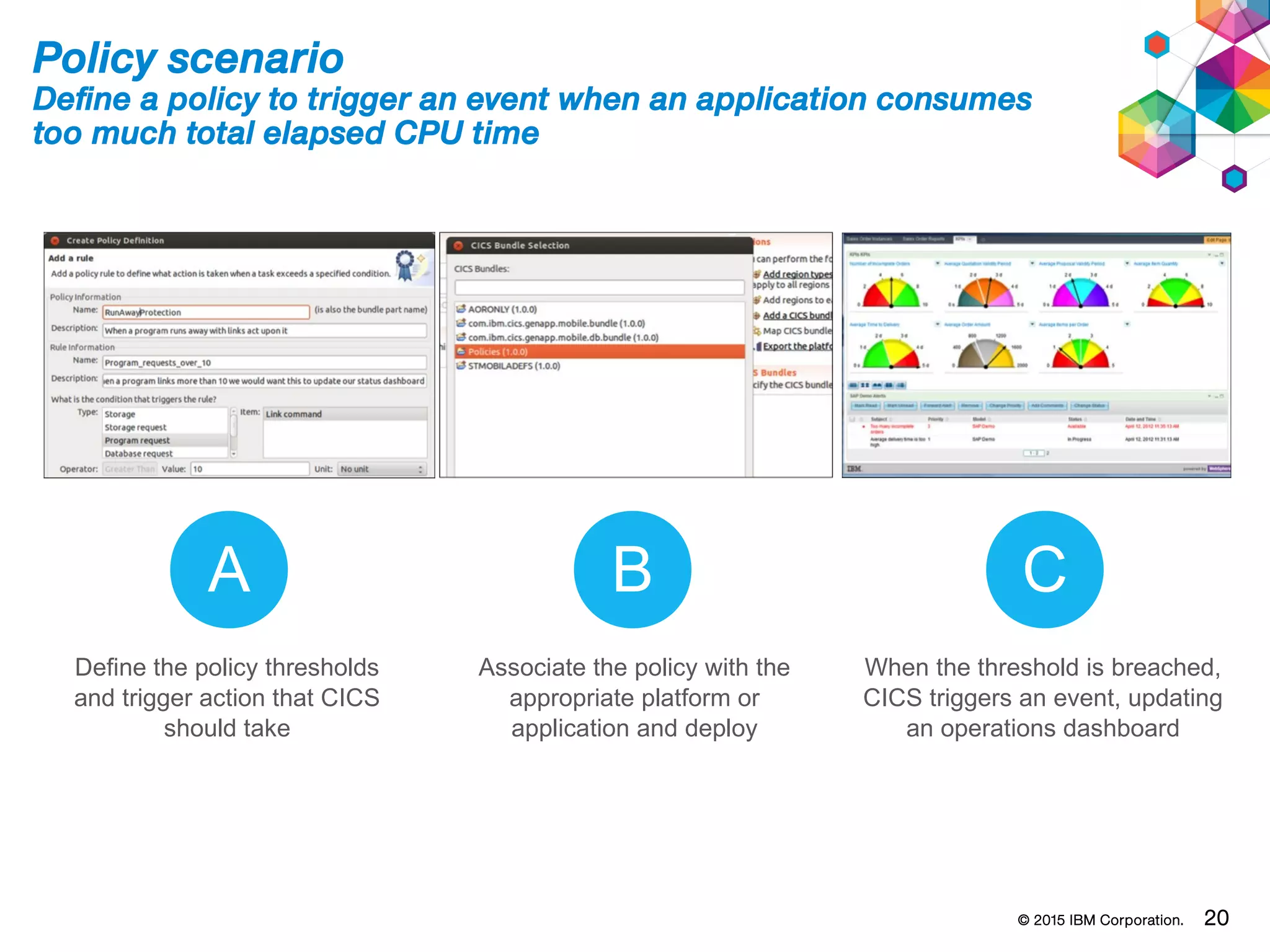

Policy scenario
Define a policy to trigger an event when an application consumes
too much total elapsed CPU time
A B C
Define the policy thresholds
and trigger action that CICS
should take
Associate the policy with the
appropriate platform or
application and deploy
When the threshold is breached,
CICS triggers an event, updating
an operations dashboard

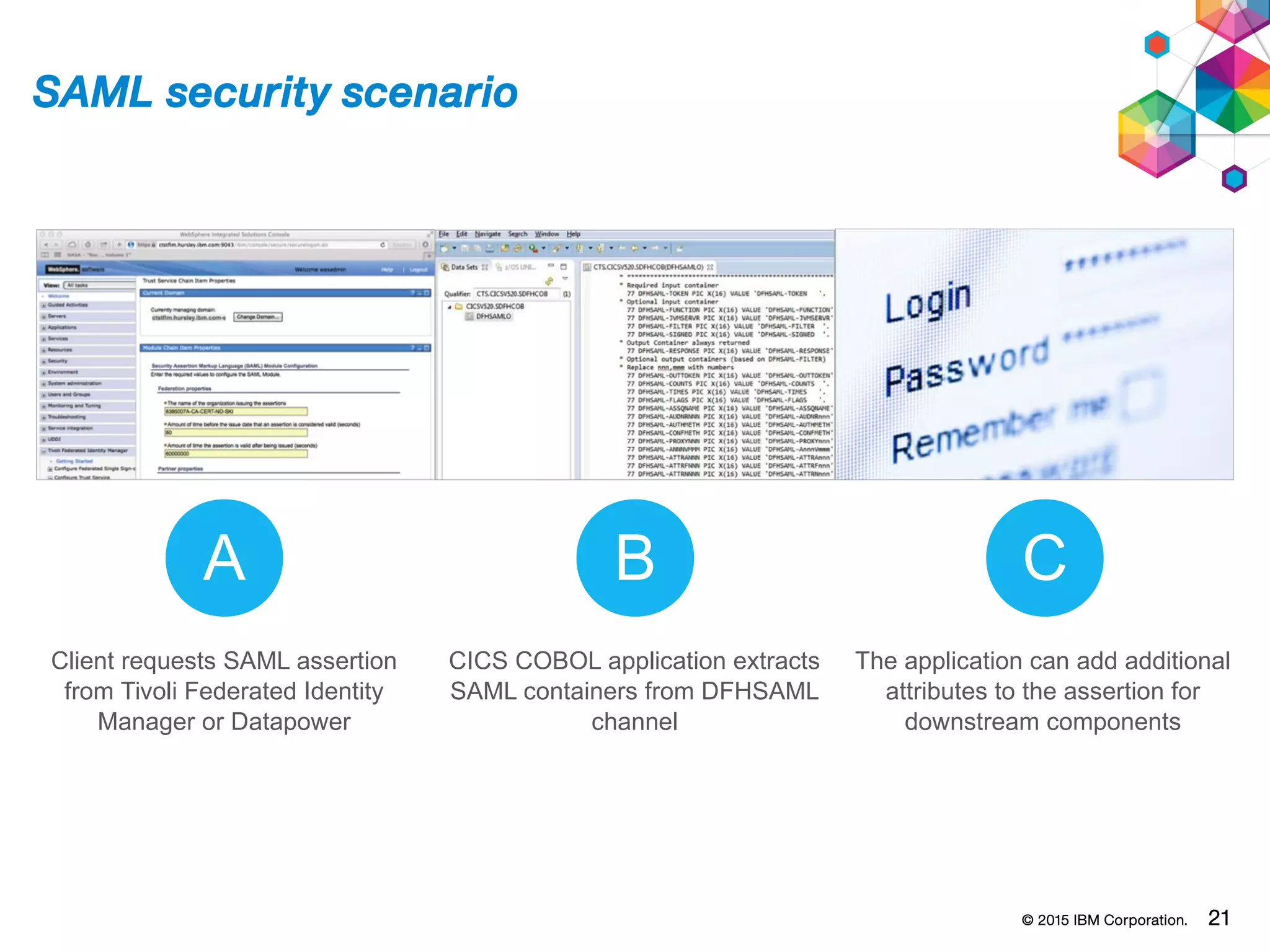

SAML security scenario
A B C
Client requests SAML assertion
from Tivoli Federated Identity
Manager or Datapower
CICS COBOL application extracts
SAML containers from DFHSAML
channel
The application can add additional
attributes to the assertion for
downstream components

CICS TS

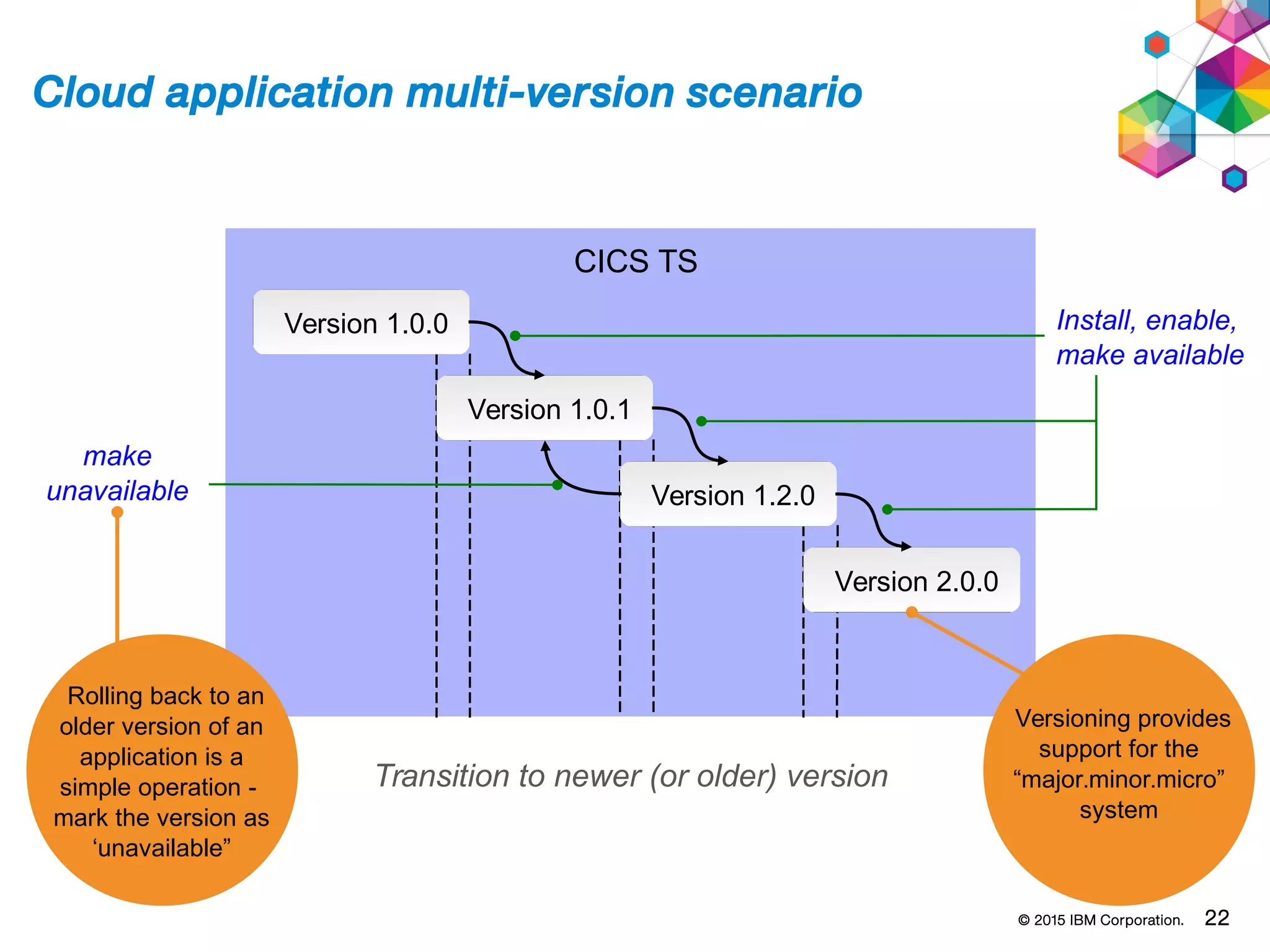

Cloud application multi-version scenario
Rolling back to an
older version of an
application is a
simple operation -
mark the version as
‘unavailable”
Versioning provides
support for the
“major.minor.micro”
system
Transition to newer (or older) version
Version 1.0.0
Version 1.0.1
Version 1.2.0
Version 2.0.0
Install, enable,
make available
make
unavailable

Cloud application multi-version scenario

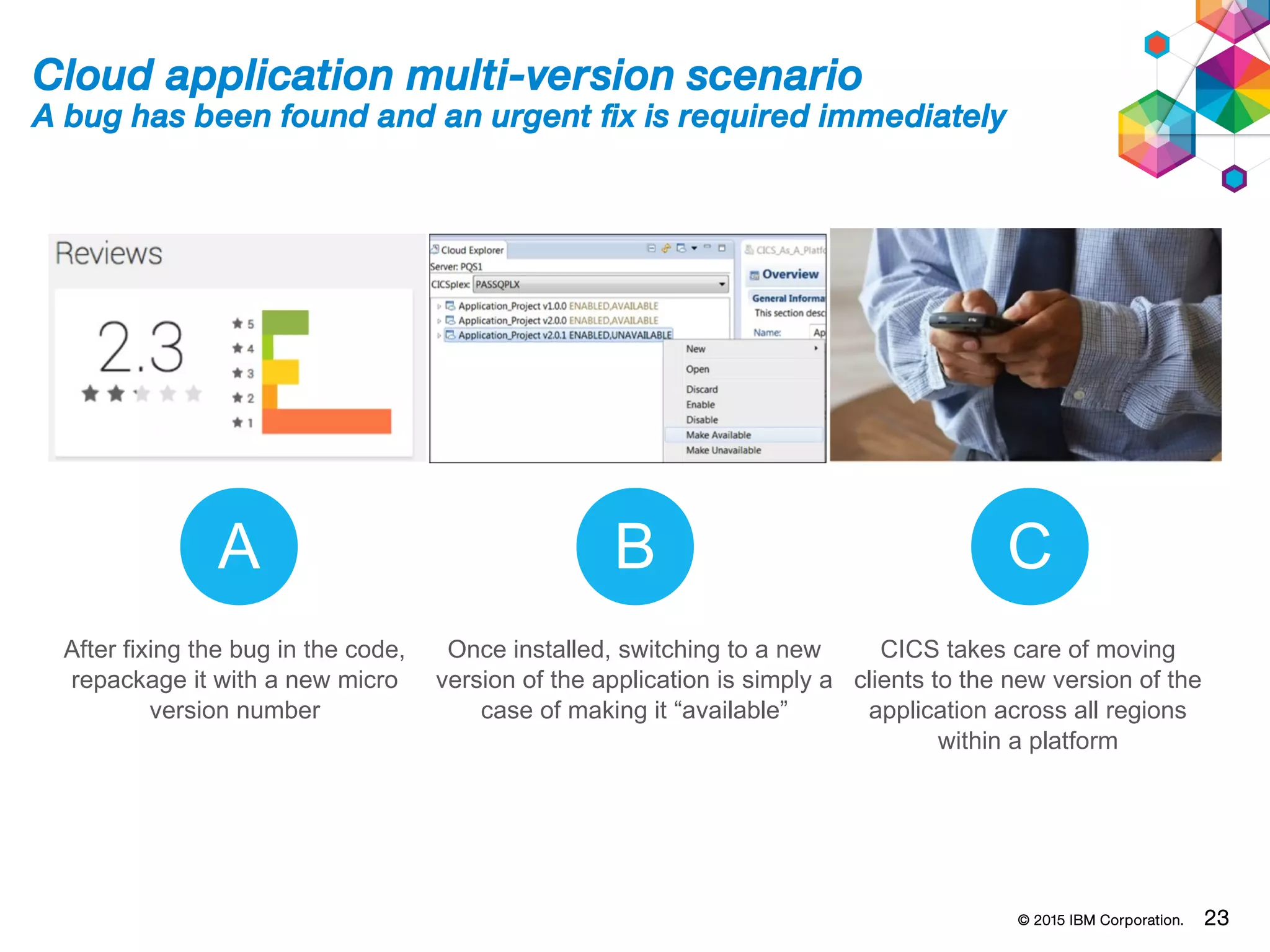

A bug has been found and an urgent fix is required immediately
A B C
After fixing the bug in the code,
repackage it with a new micro
version number
Once installed, switching to a new
version of the application is simply a
case of making it “available”
CICS takes care of moving
clients to the new version of the
application across all regions
within a platform

Service
Agility
Enhanced support for Java and
the WebSphere Liberty Profile
Cloud with
DevOps
Operational
Efficiency
Performance optimizations,
enhanced metrics and additional
security
New cloud and DevOps support
to automate CICS deployments
• Additional Liberty features
• Enhanced interoperability
• Simplified management
• Enhanced Java SE support
• Web service optimizations
• Performance improvements
• Enhanced metrics
• Additional security options
• Automated builds
• Scripted deployments
• UrbanCode Deploy support
• Enhanced cloud enablement

Additional Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced Java SE
support
Connectors Application
Frameworks
Data Access
Web
Restful
JMS
Web
Services
Blueprint JPA
EJB
JNDI
JCA
JDBC
MongodbManaged
BeansCDI
JMX
QoS SSL WS-security Session persistence
HTTP
plugin
OAuth LDAP

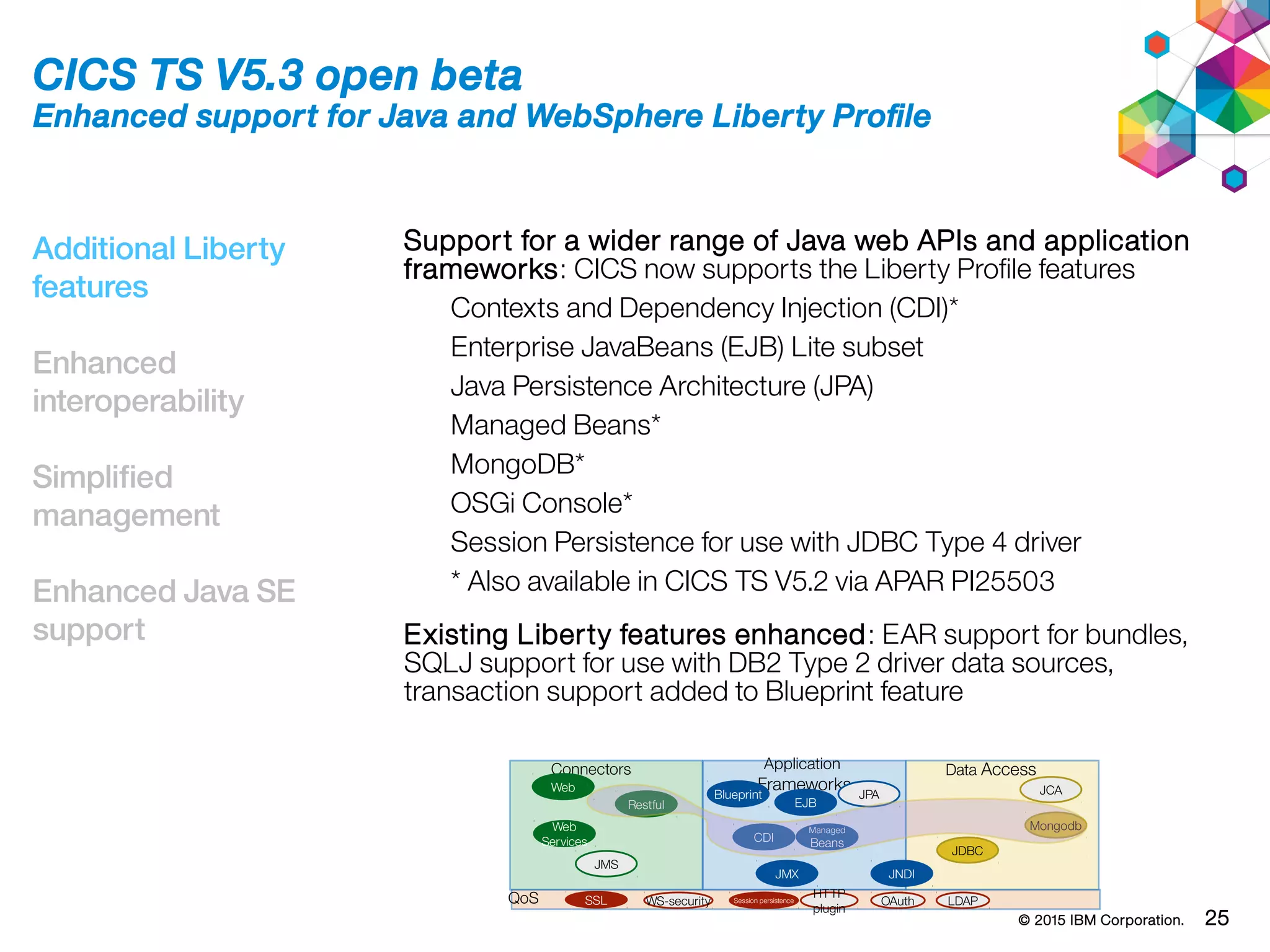

Enhanced support for Java and WebSphere Liberty Profile
Support for a wider range of Java web APIs and application
frameworks: CICS now supports the Liberty Profile features
Contexts and Dependency Injection (CDI)*
Enterprise JavaBeans (EJB) Lite subset
Java Persistence Architecture (JPA)
Managed Beans*
MongoDB*
OSGi Console*
Session Persistence for use with JDBC Type 4 driver
* Also available in CICS TS V5.2 via APAR PI25503
Existing Liberty features enhanced: EAR support for bundles,
SQLJ support for use with DB2 Type 2 driver data sources,
transaction support added to Blueprint feature

Additional Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced Java SE
support

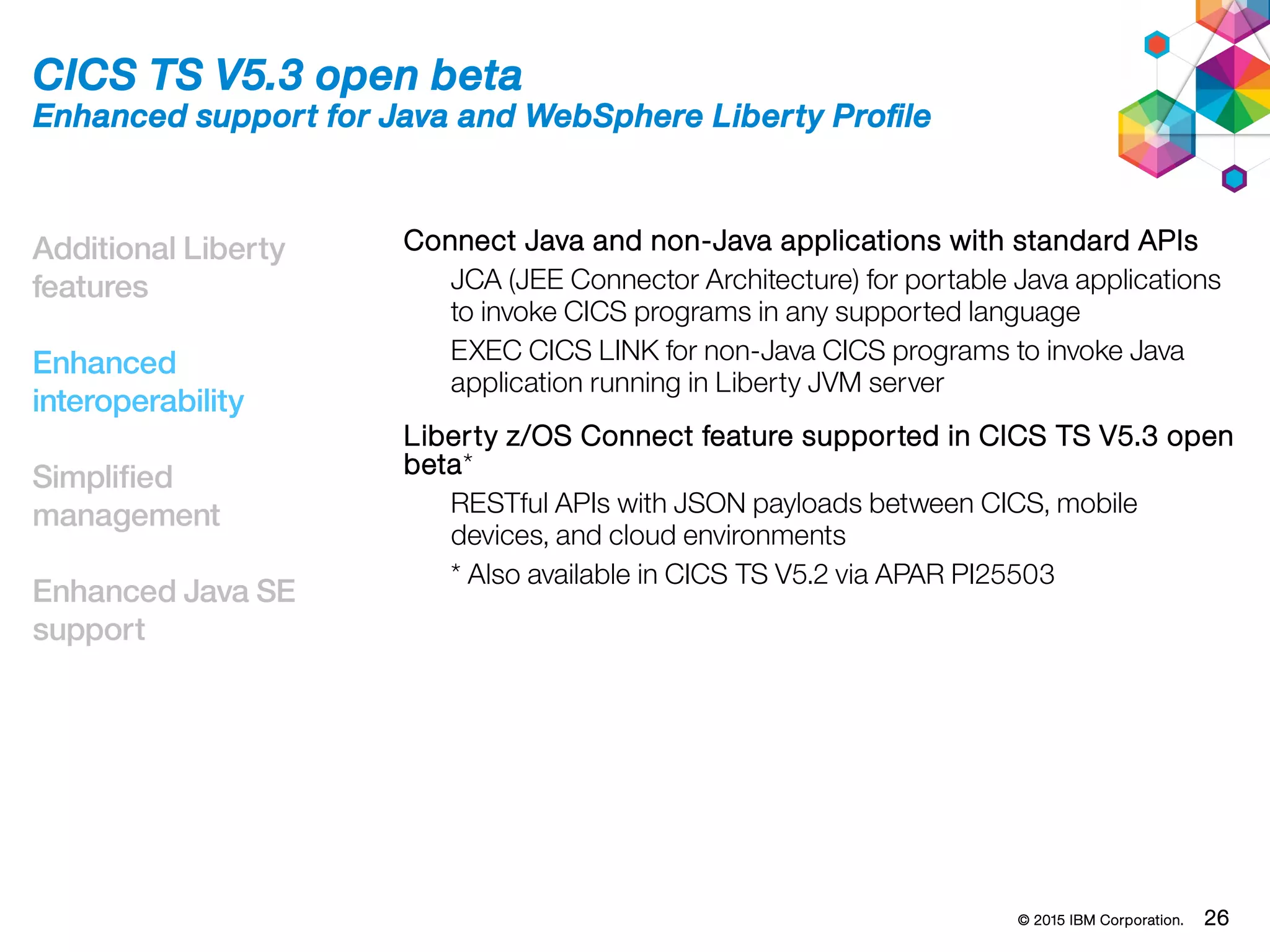

Connect Java and non-Java applications with standard APIs
JCA (JEE Connector Architecture) for portable Java applications
to invoke CICS programs in any supported language
EXEC CICS LINK for non-Java CICS programs to invoke Java
application running in Liberty JVM server
Liberty z/OS Connect feature supported in CICS TS V5.3 open
beta*
RESTful APIs with JSON payloads between CICS, mobile
devices, and cloud environments
* Also available in CICS TS V5.2 via APAR PI25503

Additional Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced Java SE
support

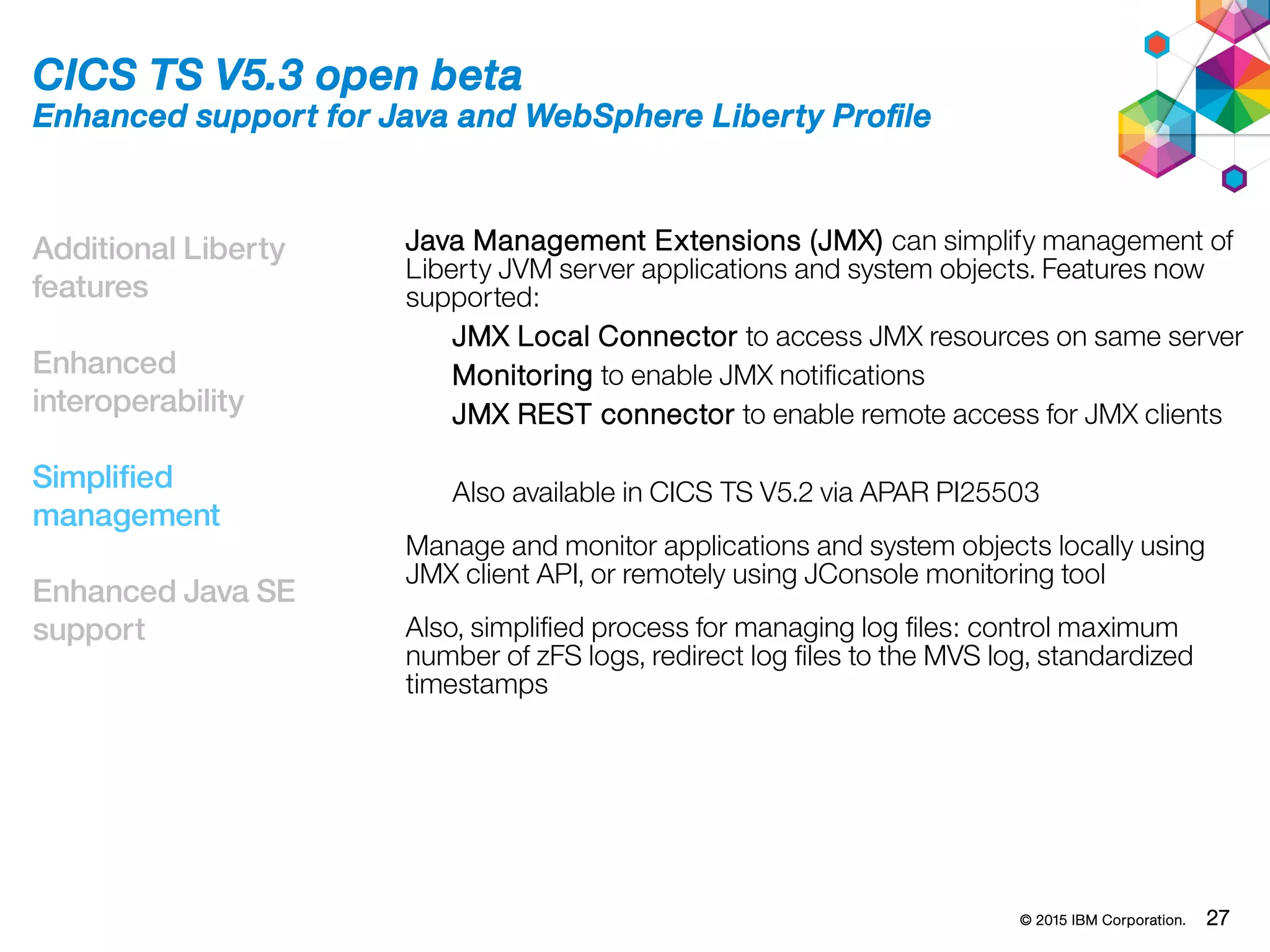

Java Management Extensions (JMX) can simplify management of
Liberty JVM server applications and system objects. Features now
supported:
JMX Local Connector to access JMX resources on same server
Monitoring to enable JMX notifications
JMX REST connector to enable remote access for JMX clients
Also available in CICS TS V5.2 via APAR PI25503
Manage and monitor applications and system objects locally using
JMX client API, or remotely using JConsole monitoring tool
Also, simplified process for managing log files: control maximum
number of zFS logs, redirect log files to the MVS log, standardized
timestamps

Additional Liberty
features
Enhanced
interoperability
Simplified
management
Enhanced Java SE
support

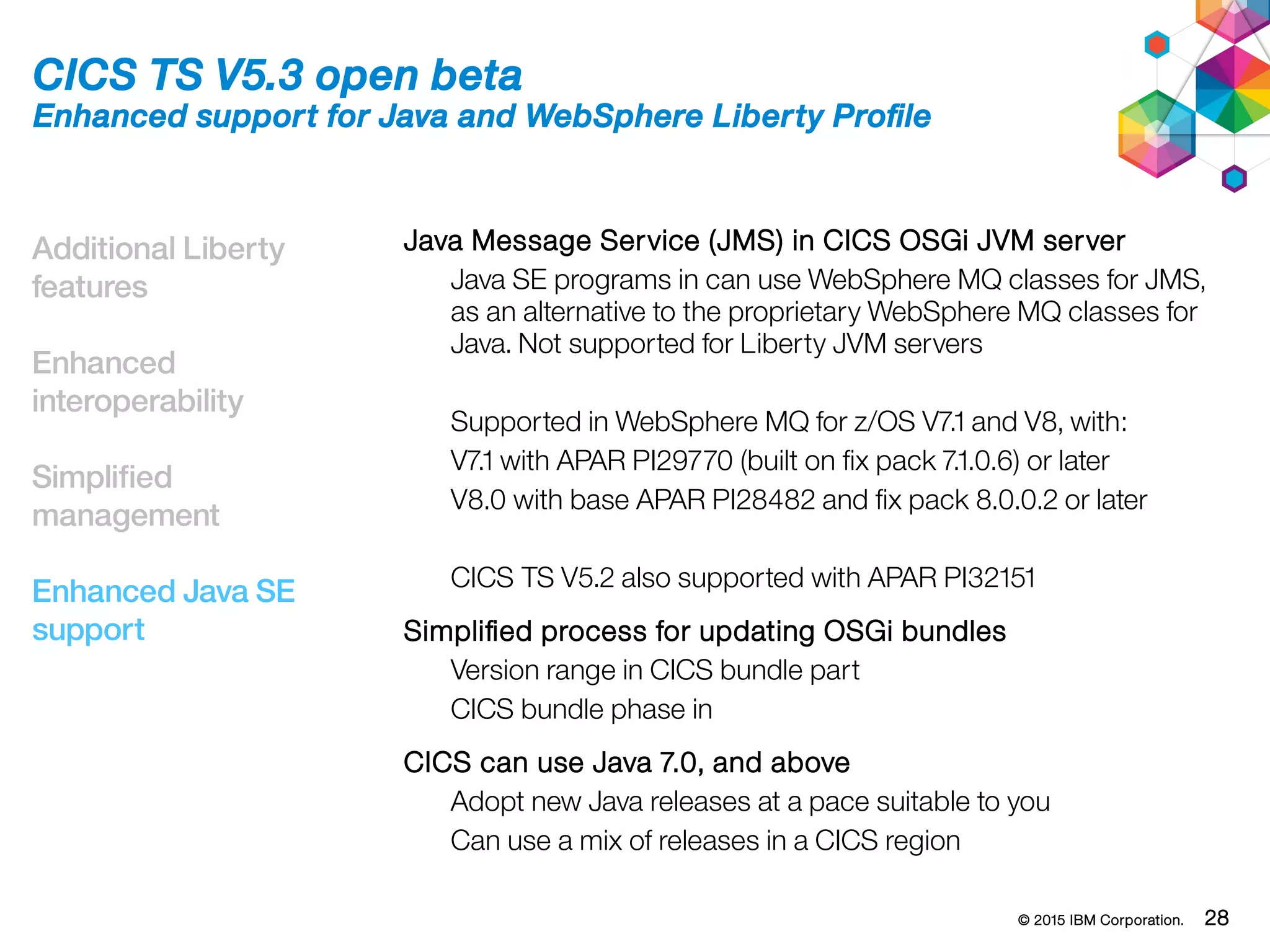

Java Message Service (JMS) in CICS OSGi JVM server
Java SE programs in can use WebSphere MQ classes for JMS,
as an alternative to the proprietary WebSphere MQ classes for
Java. Not supported for Liberty JVM servers
Supported in WebSphere MQ for z/OS V7.1 and V8, with:
V7.1 with APAR PI29770 (built on fix pack 7.1.0.6) or later
V8.0 with base APAR PI28482 and fix pack 8.0.0.2 or later
CICS TS V5.2 also supported with APAR PI32151
Simplified process for updating OSGi bundles
Version range in CICS bundle part
CICS bundle phase in
CICS can use Java 7.0, and above
Adopt new Java releases at a pace suitable to you
Can use a mix of releases in a CICS region

IBM's statements regarding its plans, directions, and
intent are subject to change or withdrawal without
notice at IBM's sole discretion. Information
regarding potential future products is intended to
outline our general product direction and it should
not be relied on in making a purchasing decision.
The information mentioned regarding potential
future products is not a commitment, promise, or
legal obligation to deliver any material, code, or
functionality. Information about potential future
products may not be incorporated into any contract.
The development, release, and timing of any future
features or functionality described for our products
remains at our sole discretion.

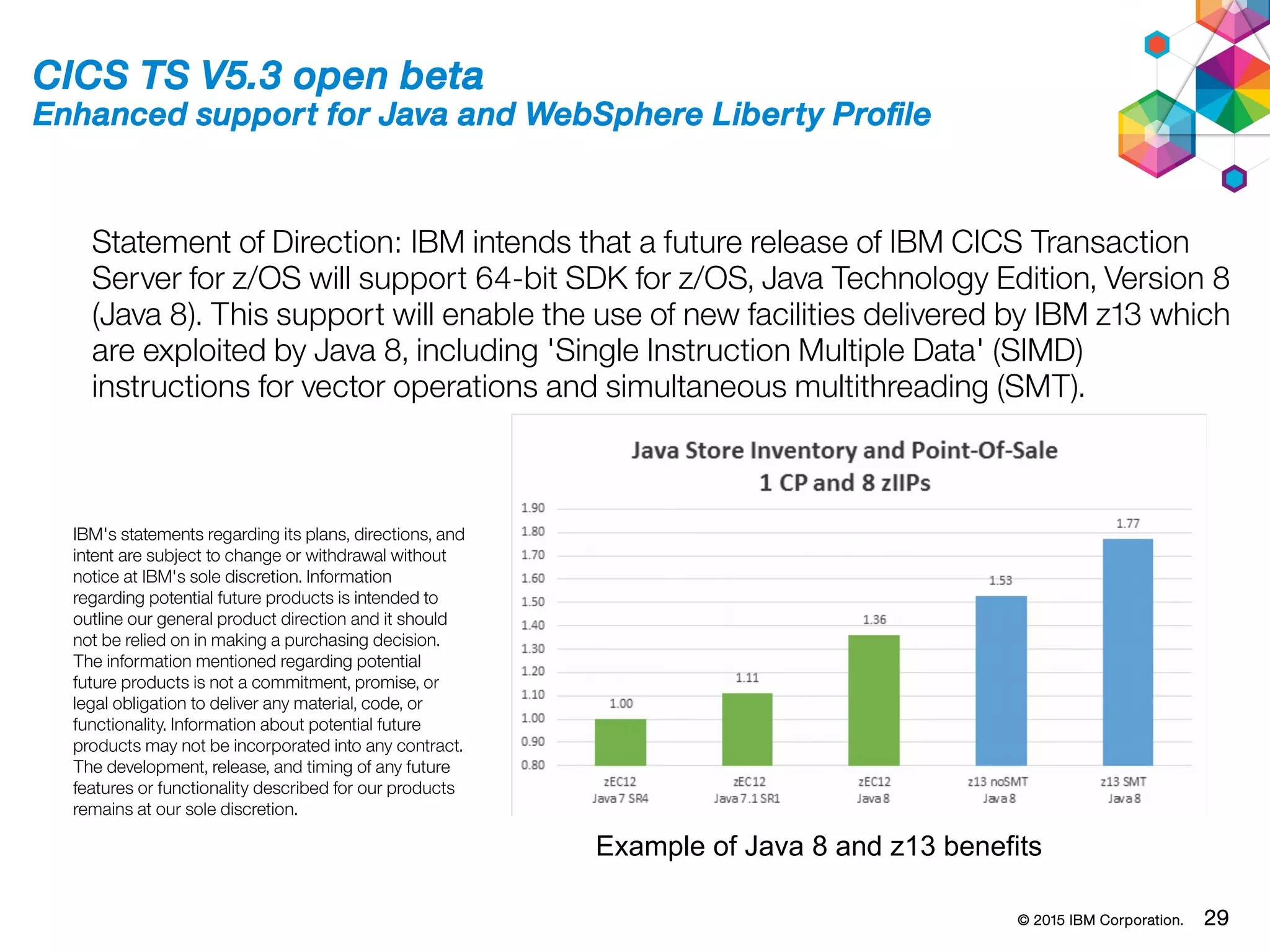

Example of Java 8 and z13 benefits
Statement of Direction: IBM intends that a future release of IBM CICS Transaction
Server for z/OS will support 64-bit SDK for z/OS, Java Technology Edition, Version 8
(Java 8). This support will enable the use of new facilities delivered by IBM z13 which
are exploited by Java 8, including 'Single Instruction Multiple Data' (SIMD)
instructions for vector operations and simultaneous multithreading (SMT).

Web service
optimizations
Performance
improvements
Enhanced insight
Additional security
options

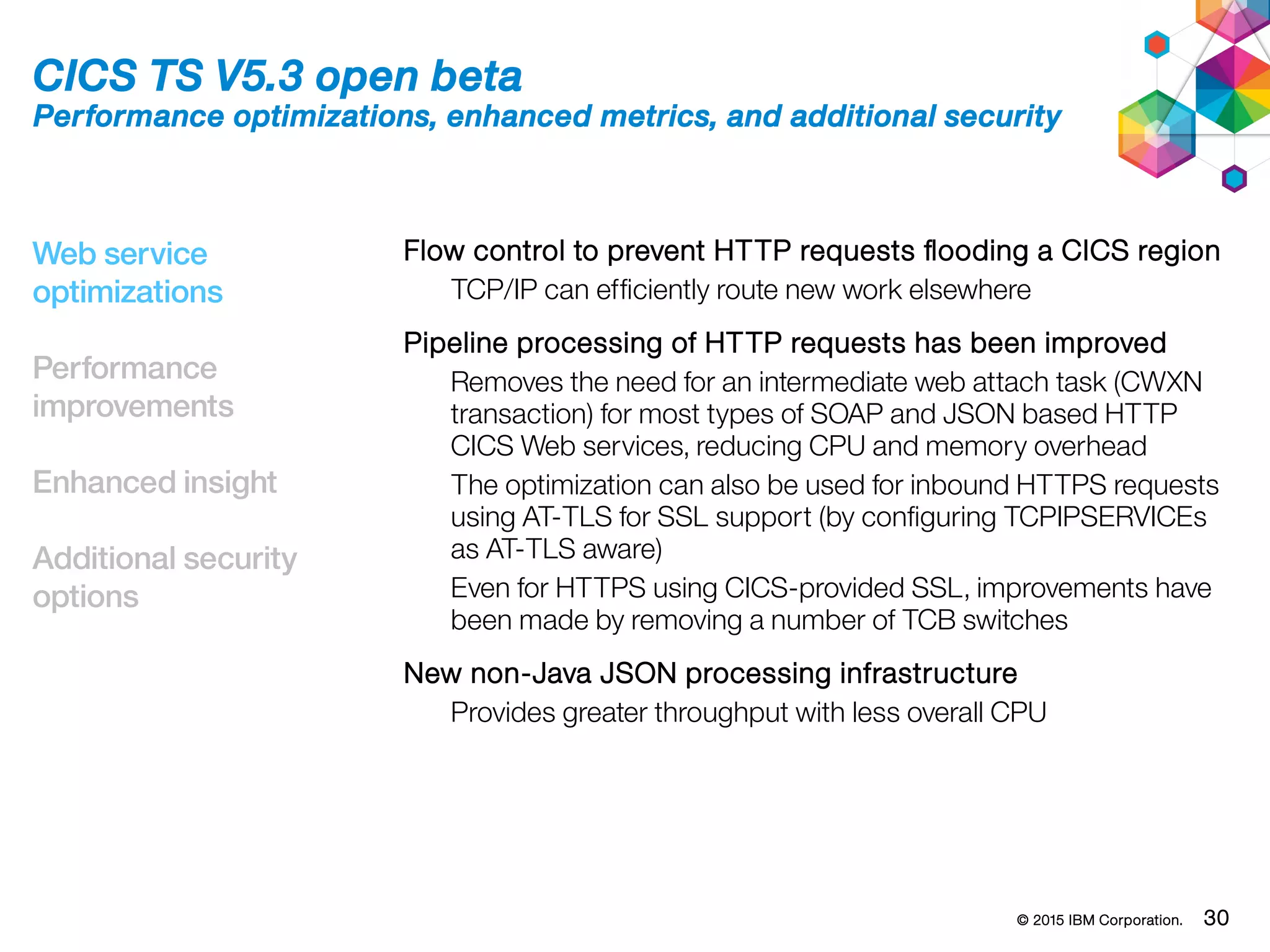

Performance optimizations, enhanced metrics, and additional security
Flow control to prevent HTTP requests flooding a CICS region
TCP/IP can efficiently route new work elsewhere
Pipeline processing of HTTP requests has been improved
Removes the need for an intermediate web attach task (CWXN
transaction) for most types of SOAP and JSON based HTTP
CICS Web services, reducing CPU and memory overhead
The optimization can also be used for inbound HTTPS requests
using AT-TLS for SSL support (by configuring TCPIPSERVICEs
as AT-TLS aware)
Even for HTTPS using CICS-provided SSL, improvements have
been made by removing a number of TCB switches
New non-Java JSON processing infrastructure
Provides greater throughput with less overall CPU

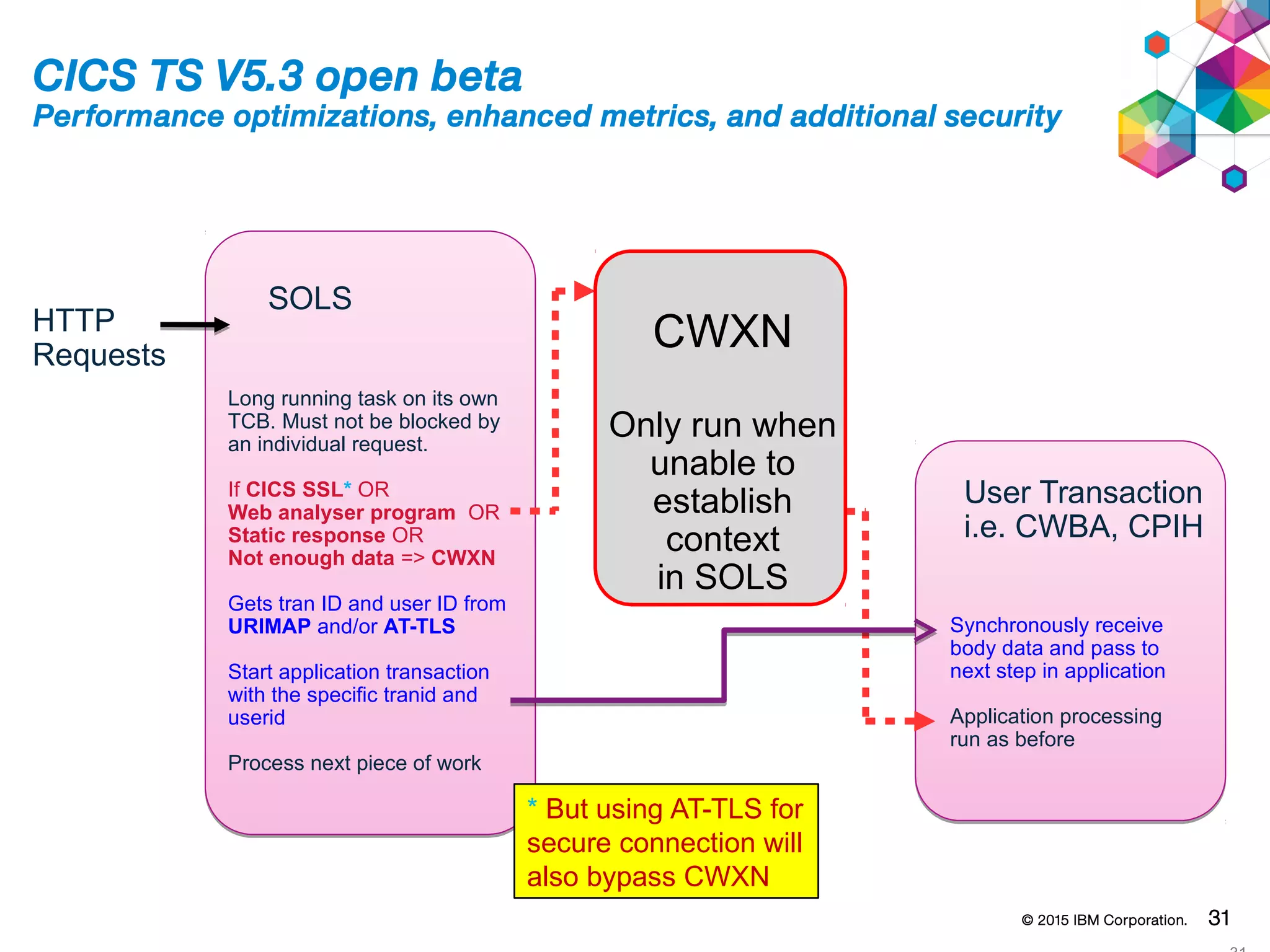

HTTP
Requests
Long running task on its own
TCB. Must not be blocked by
an individual request.
If CICS SSL* OR
Web analyser program OR
Static response OR
Not enough data => CWXN
Gets tran ID and user ID from
URIMAP and/or AT-TLS
Start application transaction
with the specific tranid and
userid
Process next piece of work
SOLS
Synchronously receive
body data and pass to
next step in application
Application processing
run as before
CWXN
Only run when
unable to
establish
context
in SOLS
User Transaction
i.e. CWBA, CPIH
* But using AT-TLS for
secure connection will
also bypass CWXN

Web service
optimizations
Performance
improvements
Enhanced insight
Additional security
options
Internal performance improvements in many other areas:
30 additional SPI commands have been made threadsafe
Exploits some of the hardware instructions introduced with IBM
z9, such as STCKF
Cache alignment for key CICS control blocks
Reduced lock contention within monitoring algorithms
Improvements to MRO session management algorithms
Noticeable improvements
CICS trace facility
CICS monitoring facility
MRO connections with high session counts

Web service
optimizations
Performance
improvements
Enhanced insight
Additional security
options

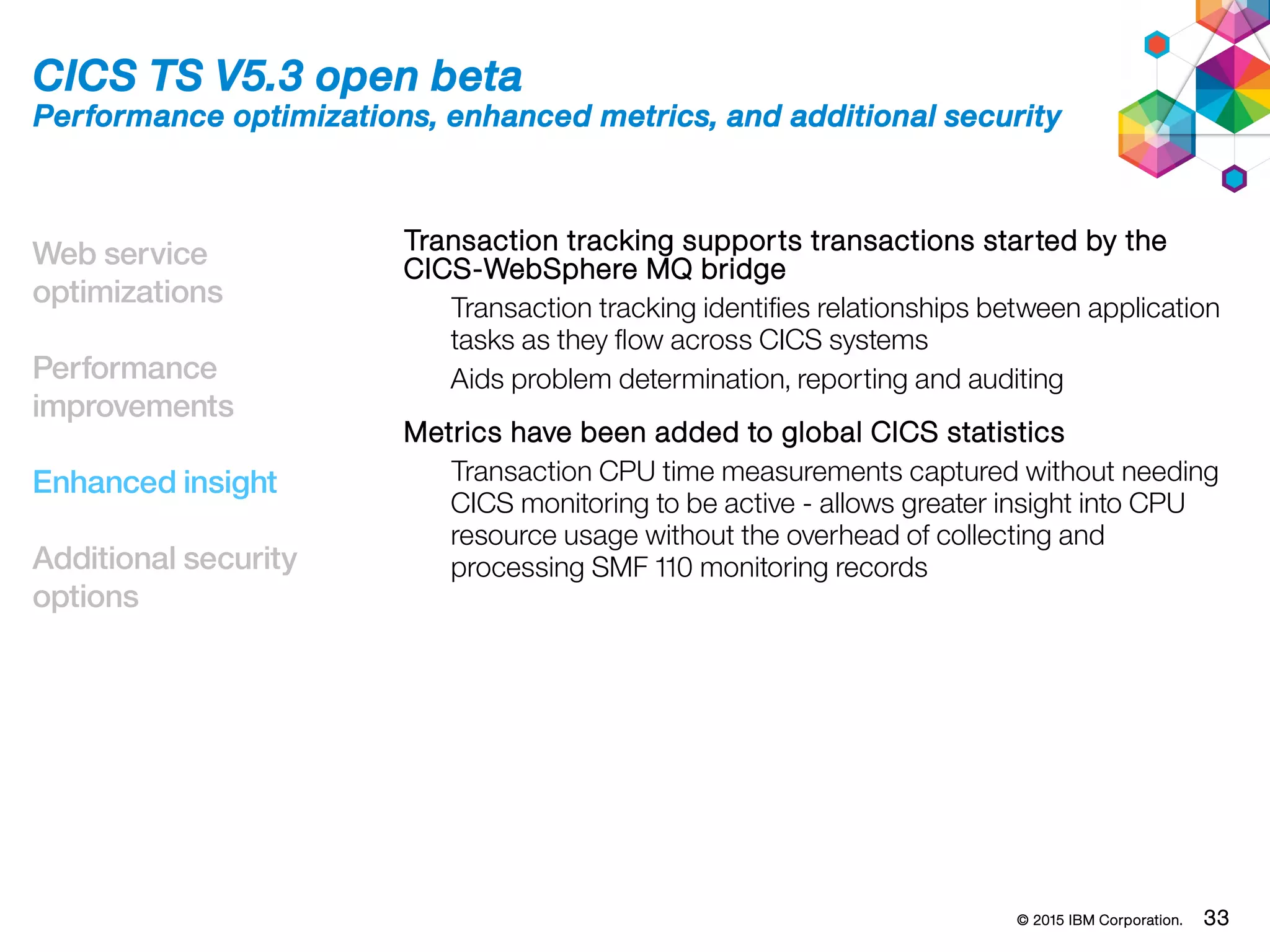

Transaction tracking supports transactions started by the
CICS-WebSphere MQ bridge
Transaction tracking identifies relationships between application
tasks as they flow across CICS systems
Aids problem determination, reporting and auditing
Metrics have been added to global CICS statistics
Transaction CPU time measurements captured without needing
CICS monitoring to be active - allows greater insight into CPU
resource usage without the overhead of collecting and
processing SMF 110 monitoring records

Web service
optimizations
Performance
improvements
Enhanced insight
Additional security
options
Support for the Enhanced Password Algorithm
Uses RACF APAR OA43999 for stronger encryption
Enhanced support for Kerberos
EXEC CICS SIGNON TOKEN command: avoids need to flow a
password – applications can validate a Kerberos security token
and associate a new user ID with the terminal
New EXEC CICS REQUEST PASSTICKET API
can be used for outbound requests from the current task where
basic authentication is required – requests an external security
manager, such as RACF, to build a PassTicket
Further off-load of authentication requests to open TCBs –
reduces contention on RO TCB

Automated builds
Scripted
deployments
UrbanCode Deploy
support
Enhanced cloud
enablement

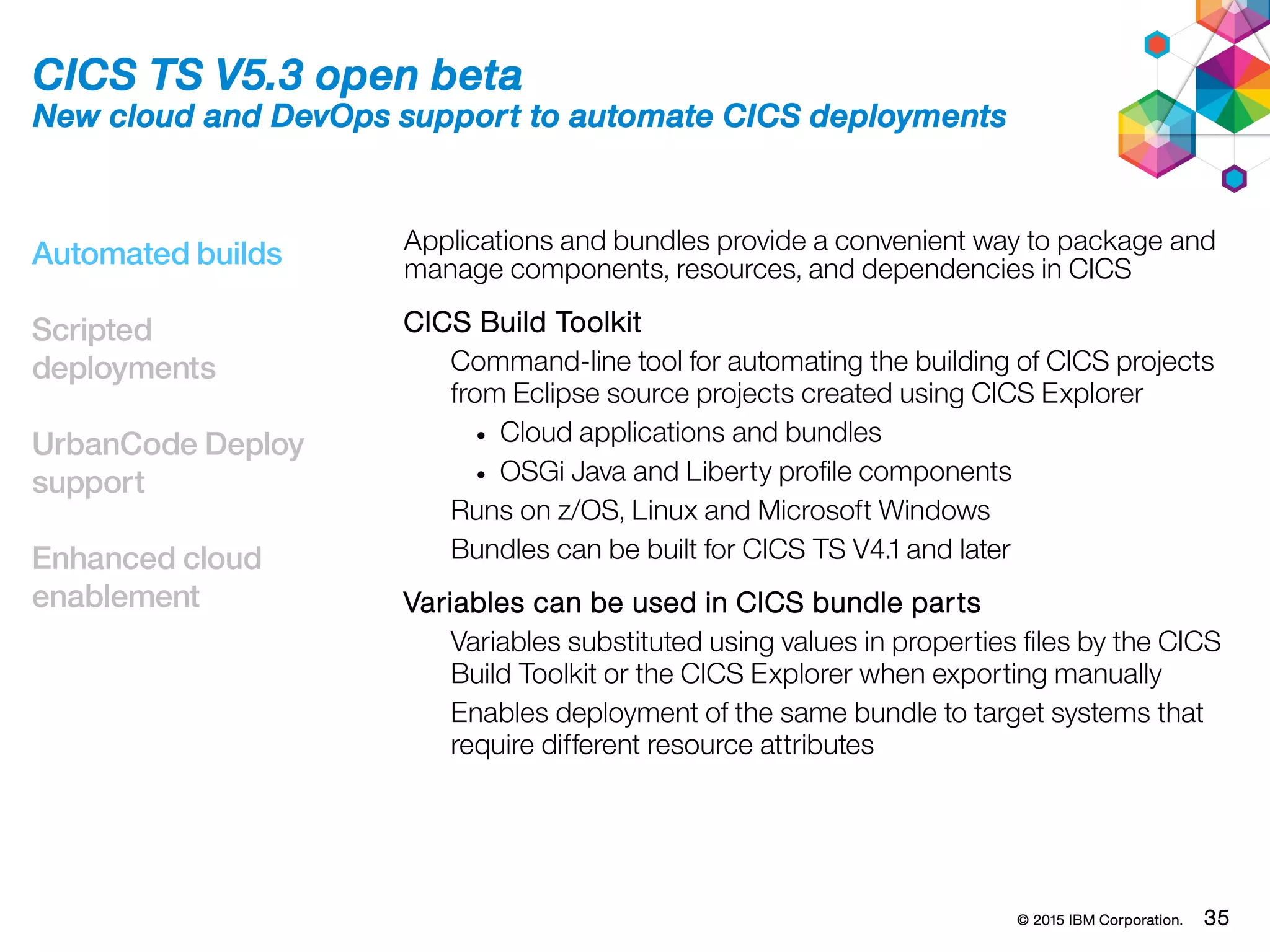

Applications and bundles provide a convenient way to package and
manage components, resources, and dependencies in CICS
CICS Build Toolkit
Command-line tool for automating the building of CICS projects
from Eclipse source projects created using CICS Explorer
• Cloud applications and bundles
• OSGi Java and Liberty profile components
Runs on z/OS, Linux and Microsoft Windows
Bundles can be built for CICS TS V4.1 and later
Variables can be used in CICS bundle parts
Variables substituted using values in properties files by the CICS
Build Toolkit or the CICS Explorer when exporting manually
Enables deployment of the same bundle to target systems that
require different resource attributes

Automated builds
Scripted
deployments
UrbanCode Deploy
support
Enhanced cloud
enablement

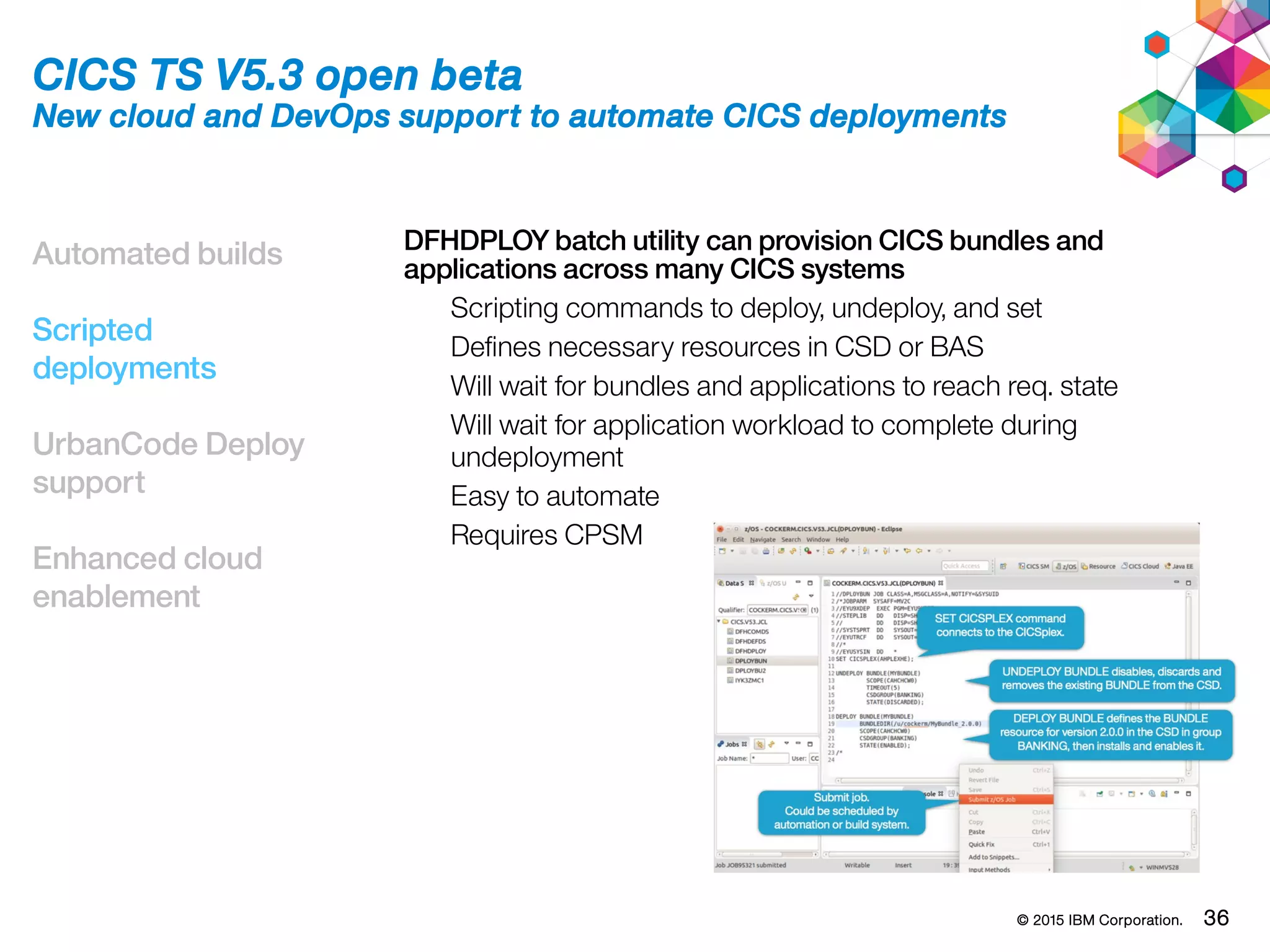

DFHDPLOY batch utility can provision CICS bundles and
applications across many CICS systems
Scripting commands to deploy, undeploy, and set
Defines necessary resources in CSD or BAS
Will wait for bundles and applications to reach req. state
Will wait for application workload to complete during
undeployment
Easy to automate
Requires CPSM

Automated builds
Scripted
deployments
UrbanCode Deploy
support
Enhanced cloud
enablement

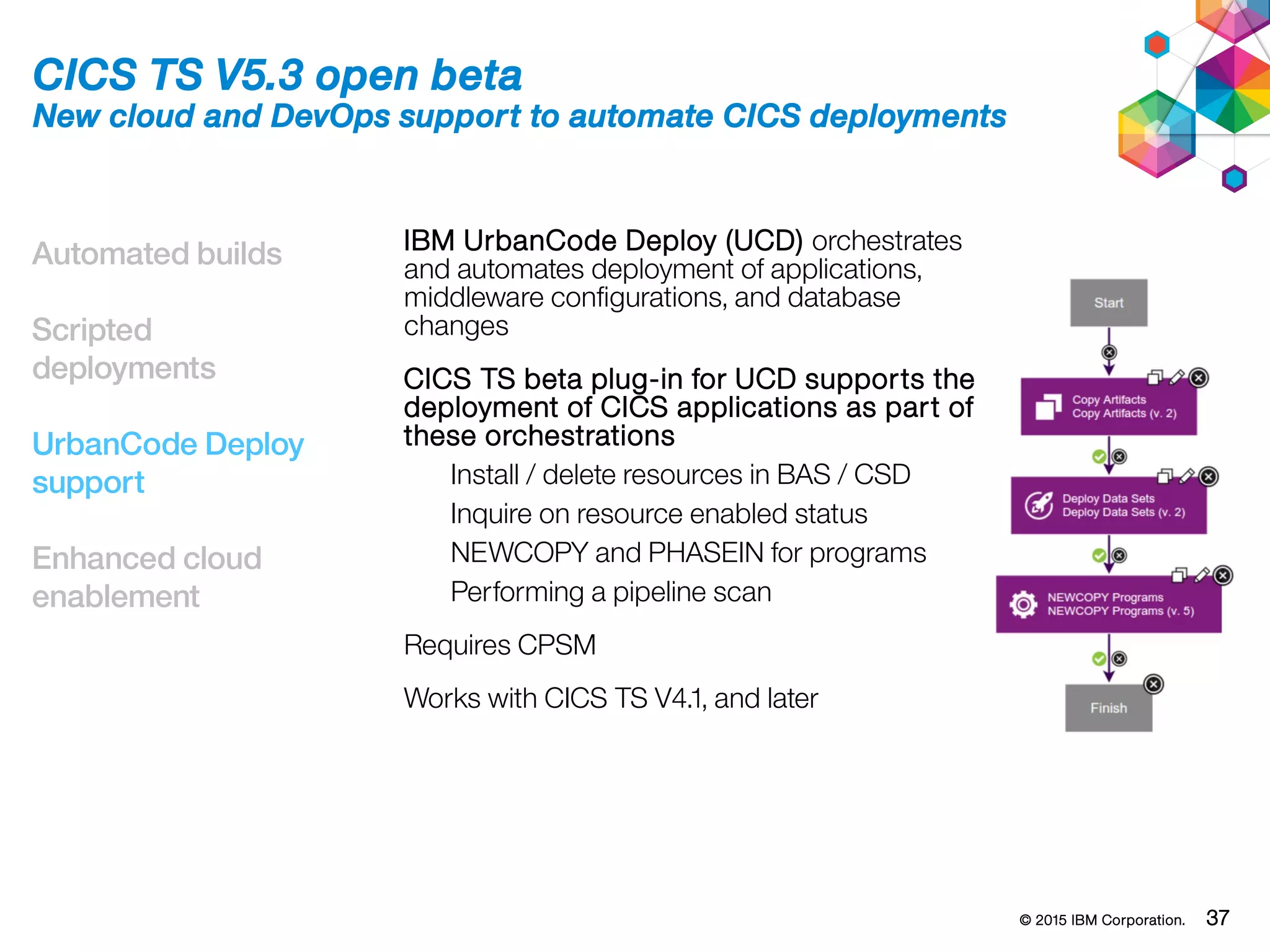

IBM UrbanCode Deploy (UCD) orchestrates
and automates deployment of applications,
middleware configurations, and database
changes
CICS TS beta plug-in for UCD supports the
deployment of CICS applications as part of
these orchestrations
Install / delete resources in BAS / CSD
Inquire on resource enabled status
NEWCOPY and PHASEIN for programs
Performing a pipeline scan
Requires CPSM
Works with CICS TS V4.1, and later

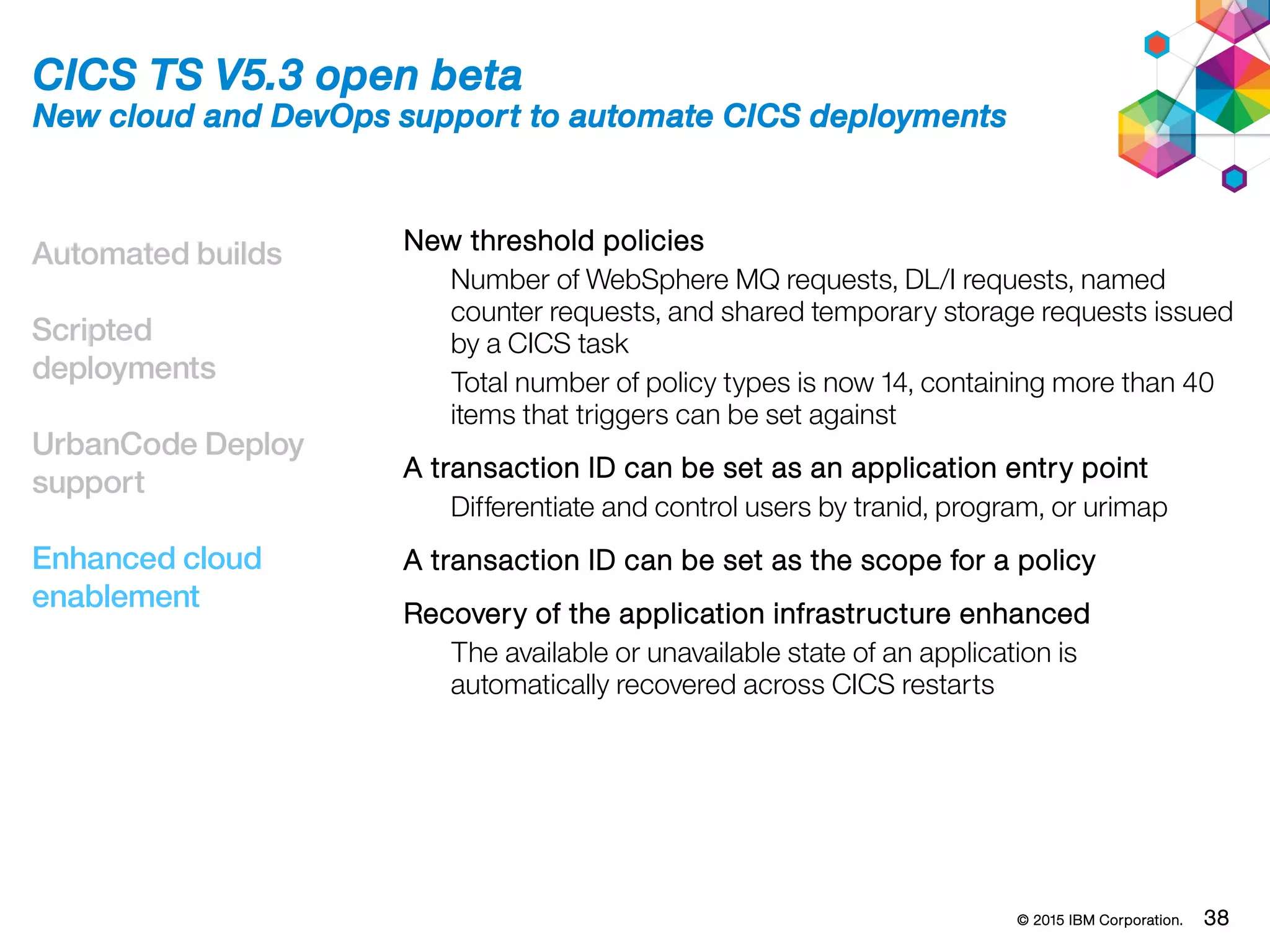

Automated builds
Scripted
deployments
UrbanCode Deploy
support
Enhanced cloud
enablement
New threshold policies
Number of WebSphere MQ requests, DL/I requests, named
counter requests, and shared temporary storage requests issued
by a CICS task
Total number of policy types is now 14, containing more than 40
items that triggers can be set against
A transaction ID can be set as an application entry point
Differentiate and control users by tranid, program, or urimap
A transaction ID can be set as the scope for a policy
Recovery of the application infrastructure enhanced
The available or unavailable state of an application is
automatically recovered across CICS restarts

Runtime support for
production ready
web applications.
Integration with
mobile applications.
Service
Agility
Increased system capacity
and capability to achieve
more with less.
Automatic control of critical
resources using policies.
Operational
Efficiency
Simplified system
management and rapid
application deployment.
On premise pattern based
cloud deployment.
Cloud
Enablement
CICS Transaction Server V5
the premier enterprise grade mixed language application server

CICS TS V4 and V5 recap, and the new V5.3 open beta

More Related Content

What's hot

Viewers also liked

Similar to CICS TS V4 and V5 recap, and the new V5.3 open beta

Recently uploaded

CICS TS V4 and V5 recap, and the new V5.3 open beta
