IBM DataPower Gateway What's New in V7.1

© 2015 IBM Corporation
What’s New in
IBM DataPower Gateway
Ozair Sheikh, Senior Product Manager
IBM DataPower Gateways
Arif Siddiqui, Principal Product Manager
IBM DataPower Gateways & API Economy

2

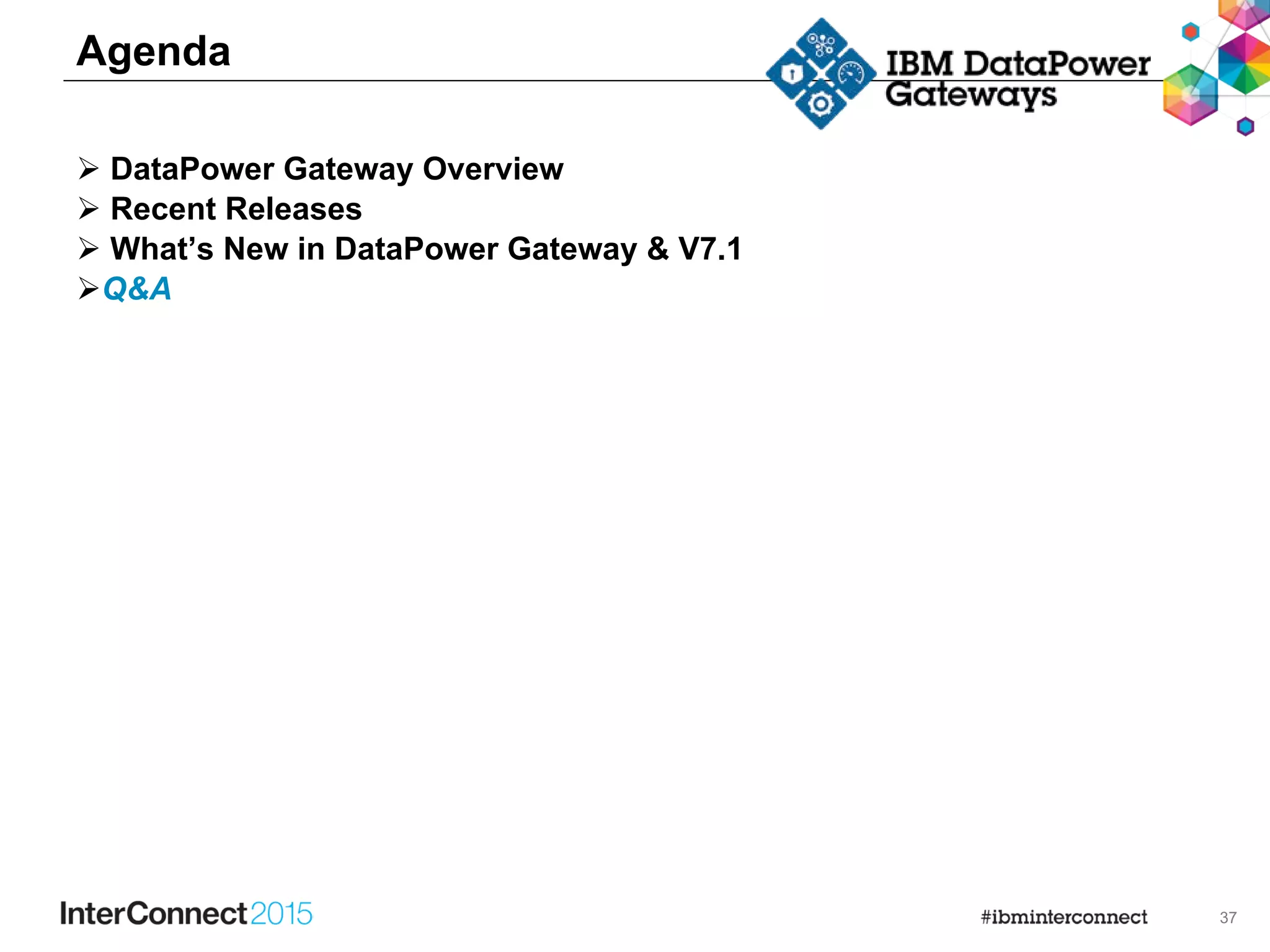

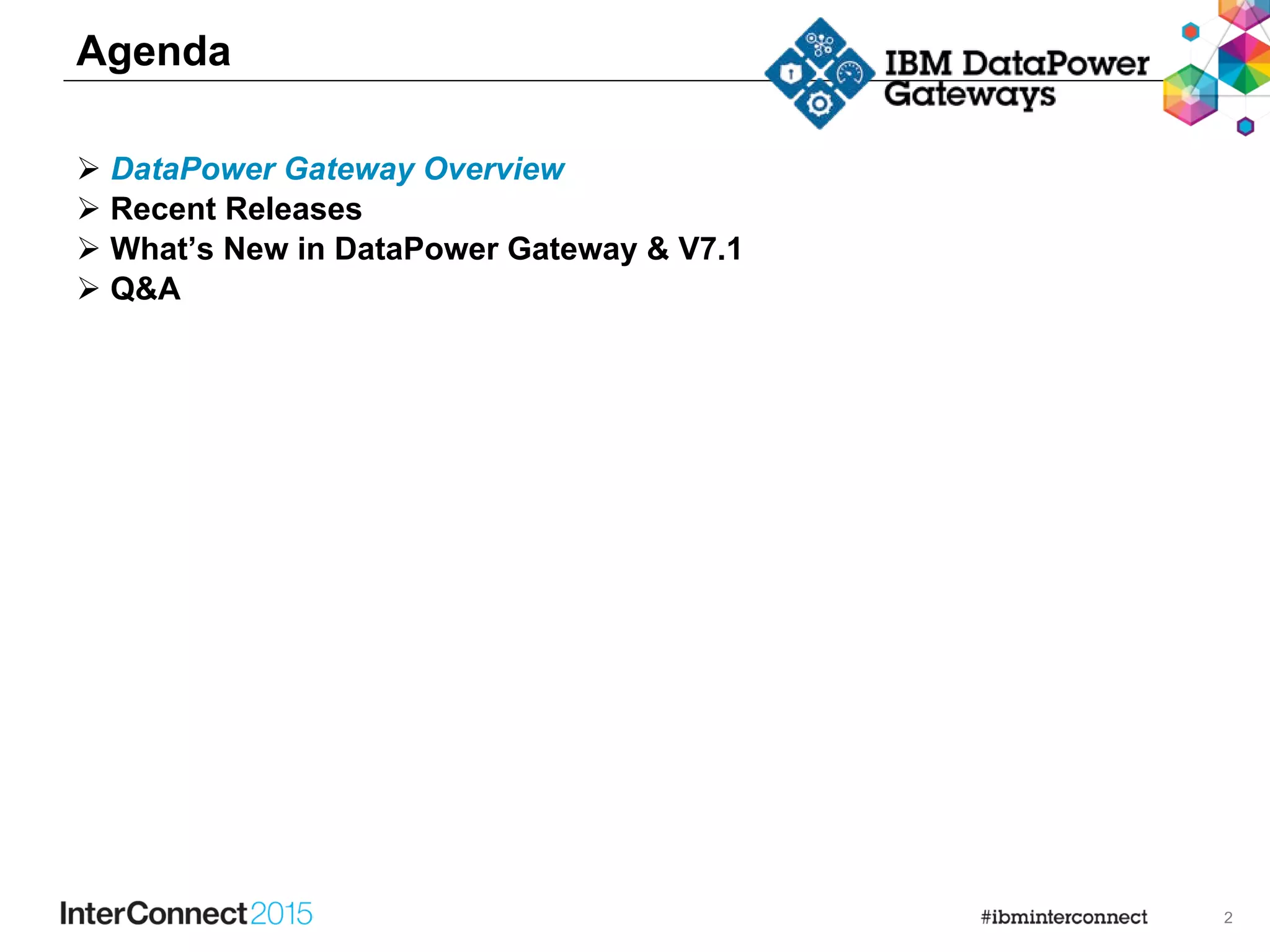

Agenda
 DataPower Gateway Overview
 Recent Releases
 What’s New in DataPower Gateway & V7.1
 Q&A

33

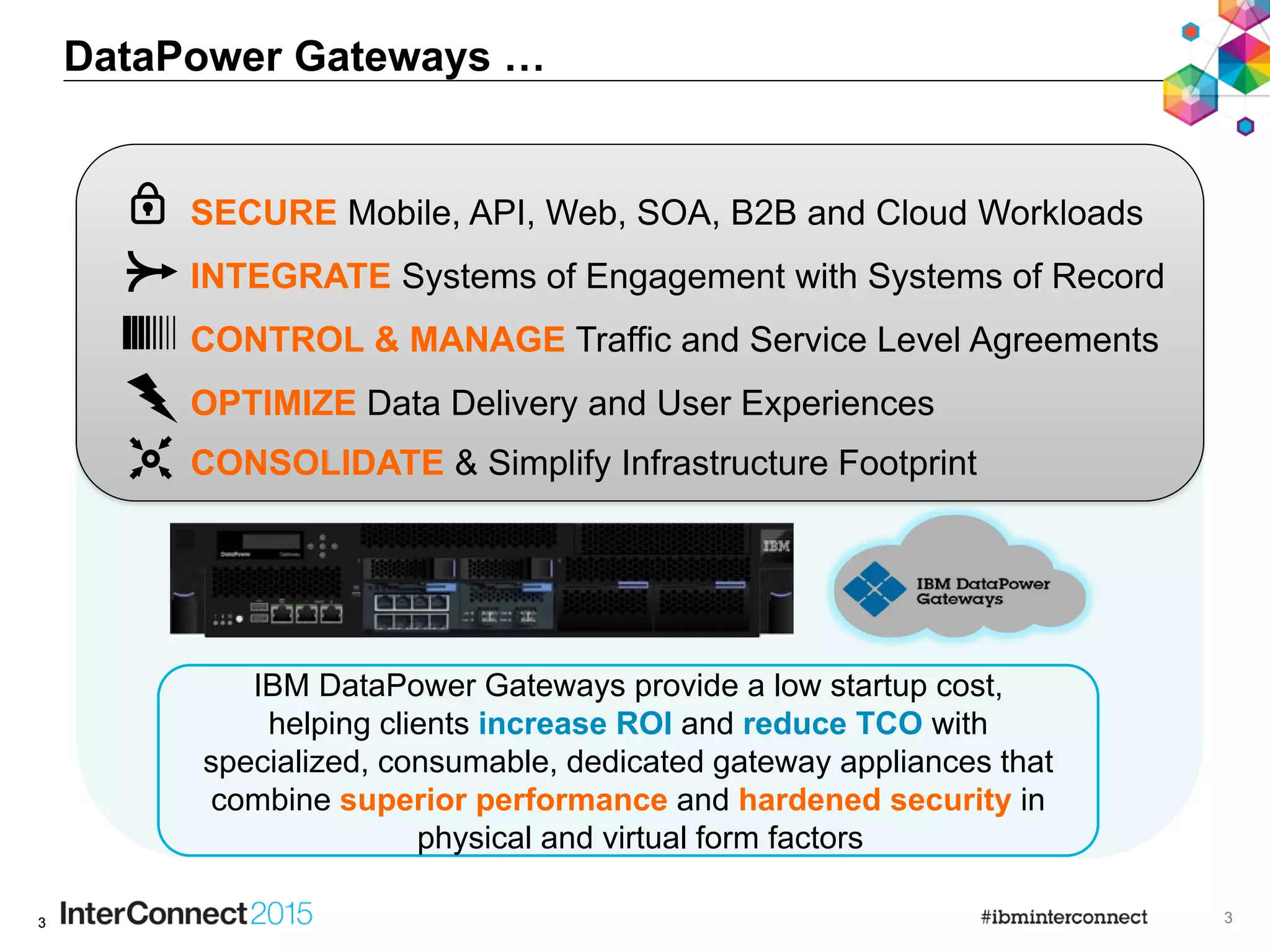

DataPower Gateways …
3
IBM DataPower Gateways provide a low startup cost,
helping clients increase ROI and reduce TCO with
specialized, consumable, dedicated gateway appliances that
combine superior performance and hardened security in
physical and virtual form factors
INTEGRATE Systems of Engagement with Systems of Record
CONTROL & MANAGE Traffic and Service Level Agreements
SECURE Mobile, API, Web, SOA, B2B and Cloud Workloads
OPTIMIZE Data Delivery and User Experiences
CONSOLIDATE & Simplify Infrastructure Footprint

4

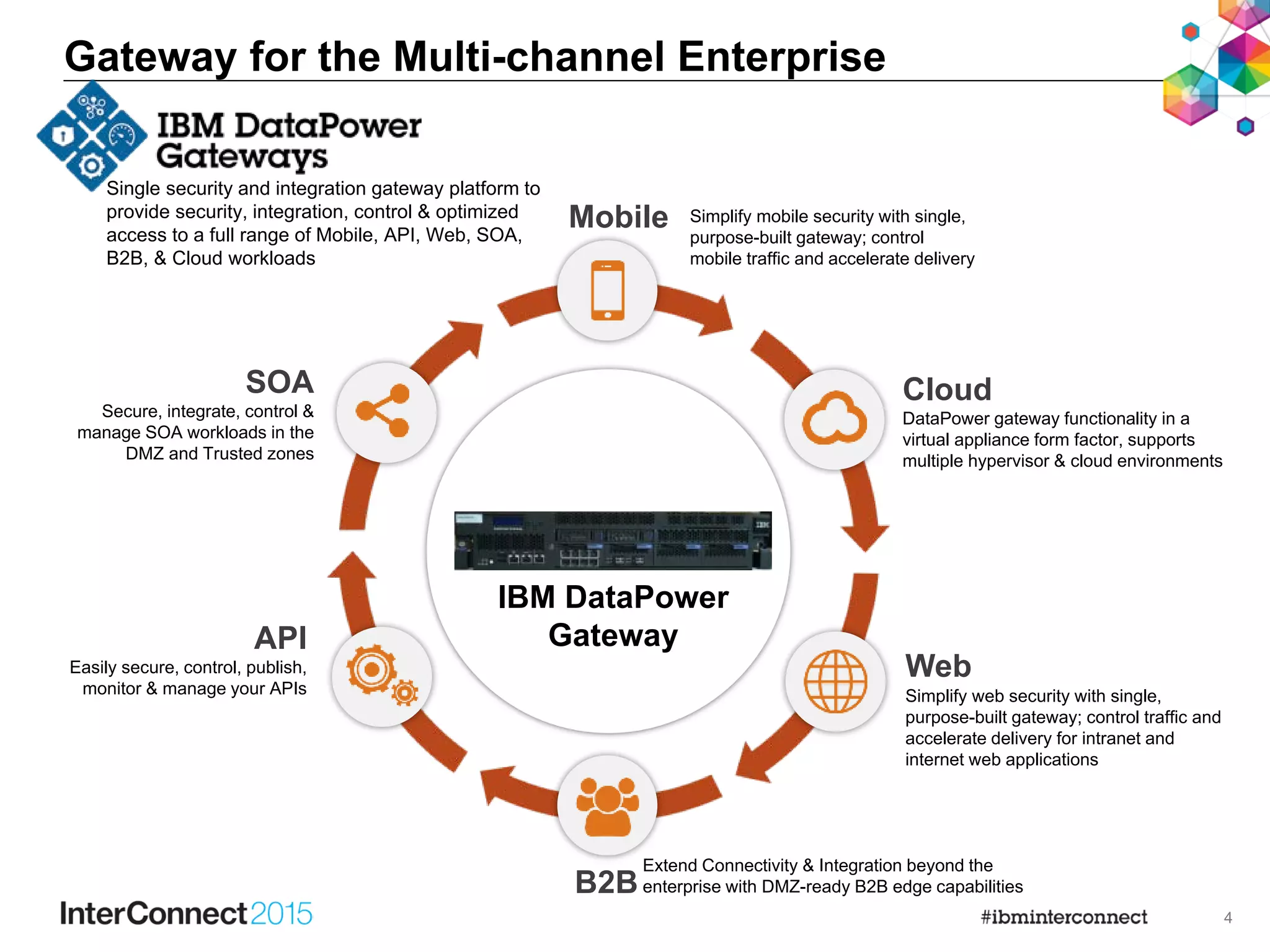

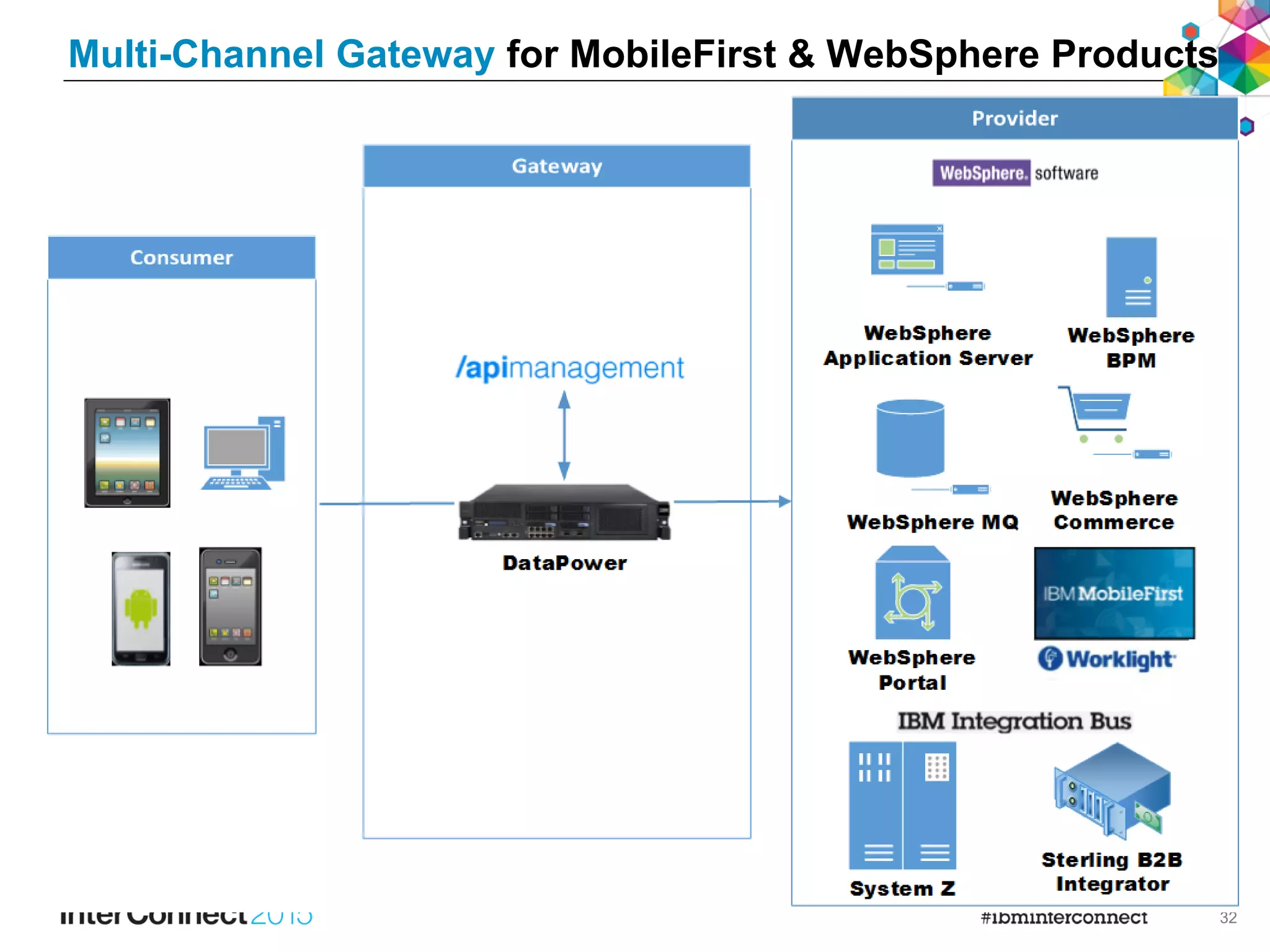

Gateway for the Multi-channel Enterprise
Single security and integration gateway platform to
provide security, integration, control & optimized
access to a full range of Mobile, API, Web, SOA,
B2B, & Cloud workloads
B2B
Simplify mobile security with single,
purpose-built gateway; control
mobile traffic and accelerate delivery
Web
Simplify web security with single,
purpose-built gateway; control traffic and
accelerate delivery for intranet and
internet web applications
Cloud
DataPower gateway functionality in a
virtual appliance form factor, supports
multiple hypervisor & cloud environments
IBM DataPower
GatewayAPI
Easily secure, control, publish,
monitor & manage your APIs
SOA
Secure, integrate, control &
manage SOA workloads in the
DMZ and Trusted zones
Extend Connectivity & Integration beyond the
enterprise with DMZ-ready B2B edge capabilities
Mobile

5
IBM DataPower Gateway Appliances are the industry-leading
Security & Integration gateways that help provide security, integration, control
and optimized access to a full range of
Mobile, Web, API, SOA, B2B, & Cloud workloads

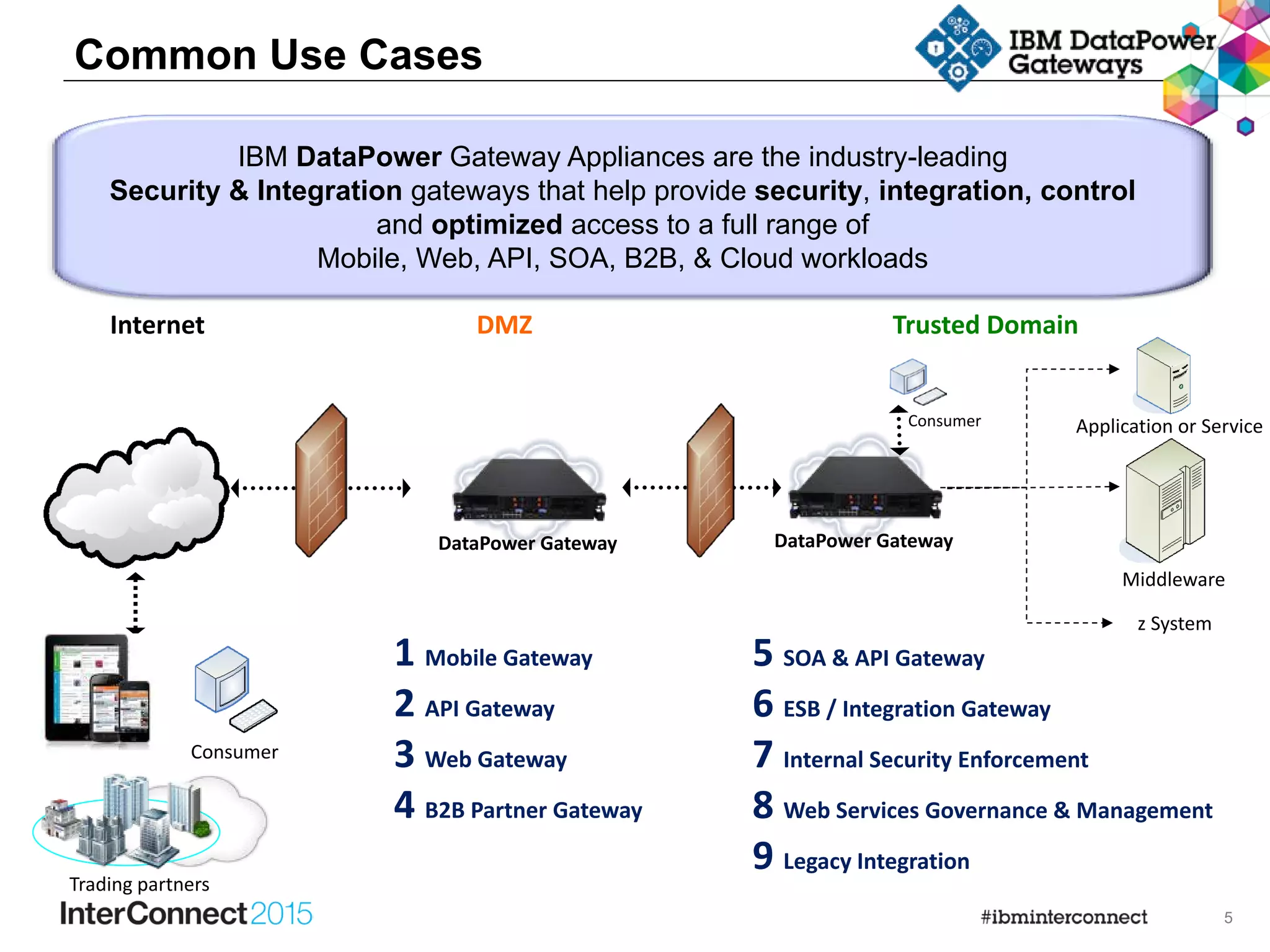

Common Use Cases
Internet Trusted Domain
Consumer
Application or Service
DMZ
Trading partners
1 Mobile Gateway
2 API Gateway
3 Web Gateway
4 B2B Partner Gateway
5 SOA & API Gateway
6 ESB / Integration Gateway
7 Internal Security Enforcement
8 Web Services Governance & Management
9 Legacy Integration
Consumer
Middleware
z System
DataPower Gateway DataPower Gateway

6

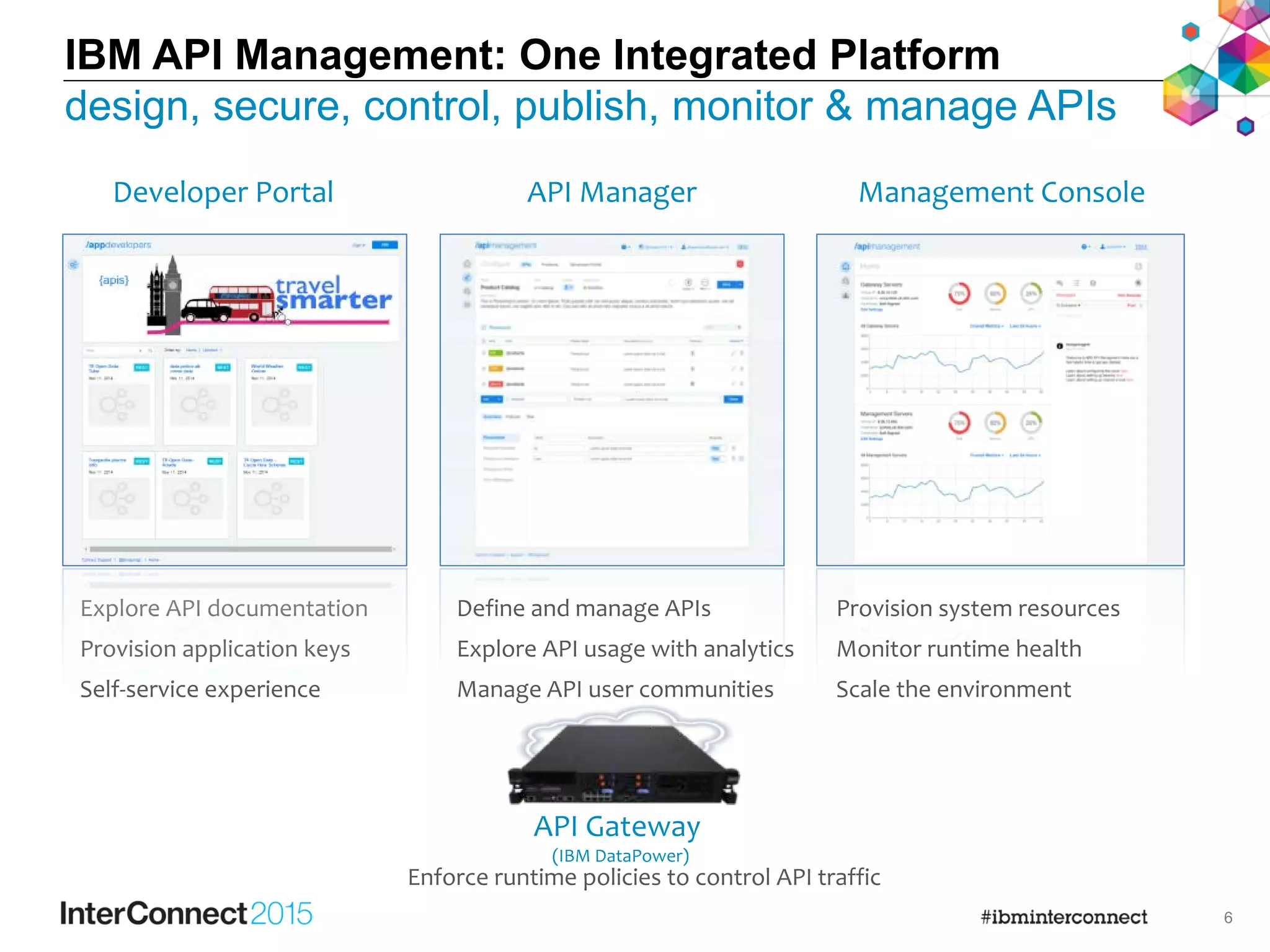

IBM API Management: One Integrated Platform
design, secure, control, publish, monitor & manage APIs
Explore API documentation
Provision application keys
Self-service experience
Developer Portal API Manager Management Console
Define and manage APIs
Explore API usage with analytics
Manage API user communities
Provision system resources
Monitor runtime health
Scale the environment
API Gateway
(IBM DataPower)
Enforce runtime policies to control API traffic

7

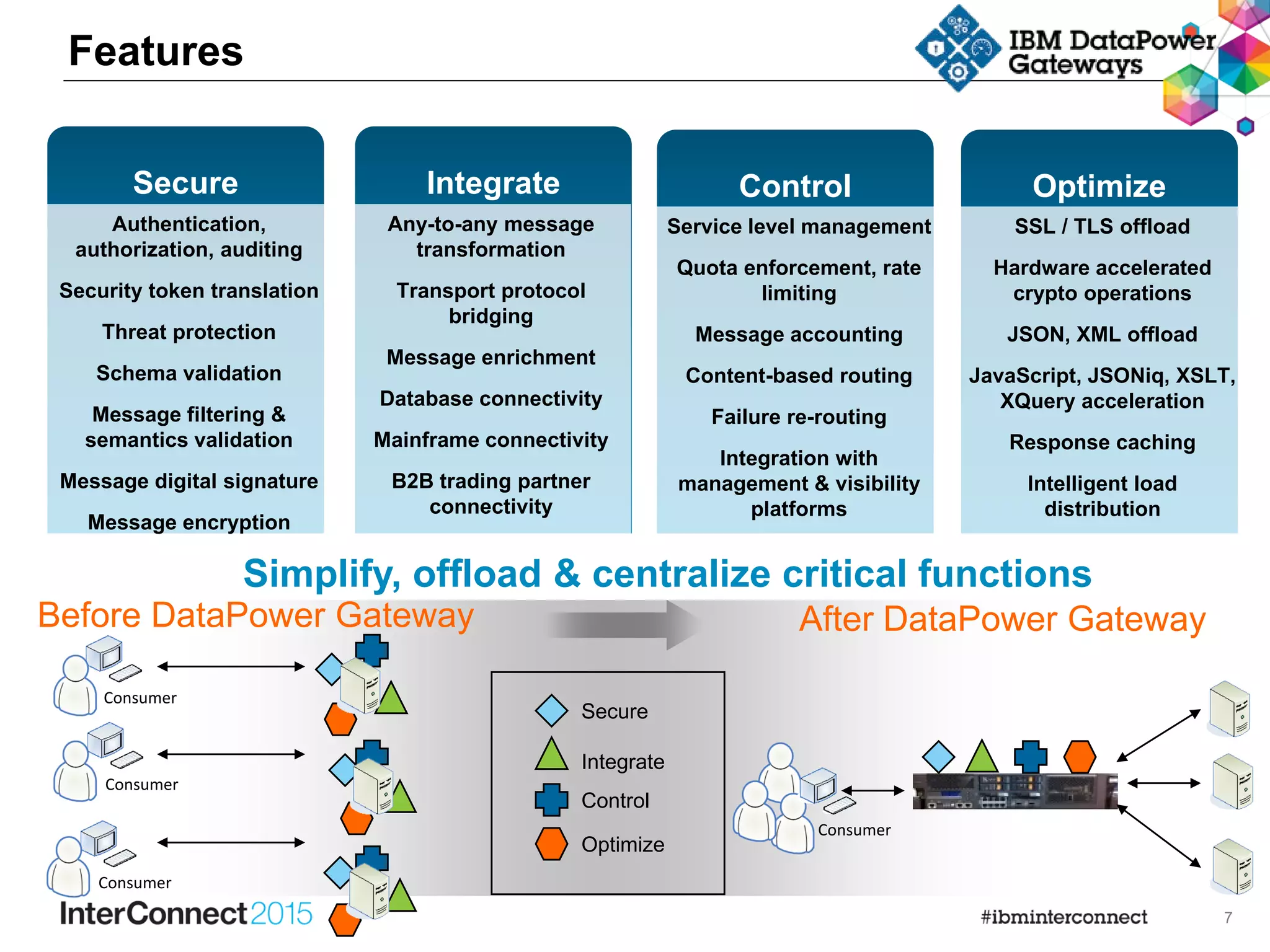

Features
Before DataPower Gateway After DataPower Gateway
Control
Integrate
Optimize
Secure
Consumer
Consumer
Consumer
Consumer
Simplify, offload & centralize critical functions
Integrate
Any-to-any message
transformation
Transport protocol
bridging
Message enrichment
Database connectivity
Mainframe connectivity
B2B trading partner
connectivity
Control OptimizeSecure
SSL / TLS offload
Hardware accelerated
crypto operations
JSON, XML offload
JavaScript, JSONiq, XSLT,
XQuery acceleration
Response caching
Intelligent load
distribution
Service level management
Quota enforcement, rate
limiting
Message accounting
Content-based routing
Failure re-routing
Integration with
management & visibility
platforms
Authentication,
authorization, auditing
Security token translation
Threat protection
Schema validation
Message filtering &
semantics validation
Message digital signature
Message encryption

8

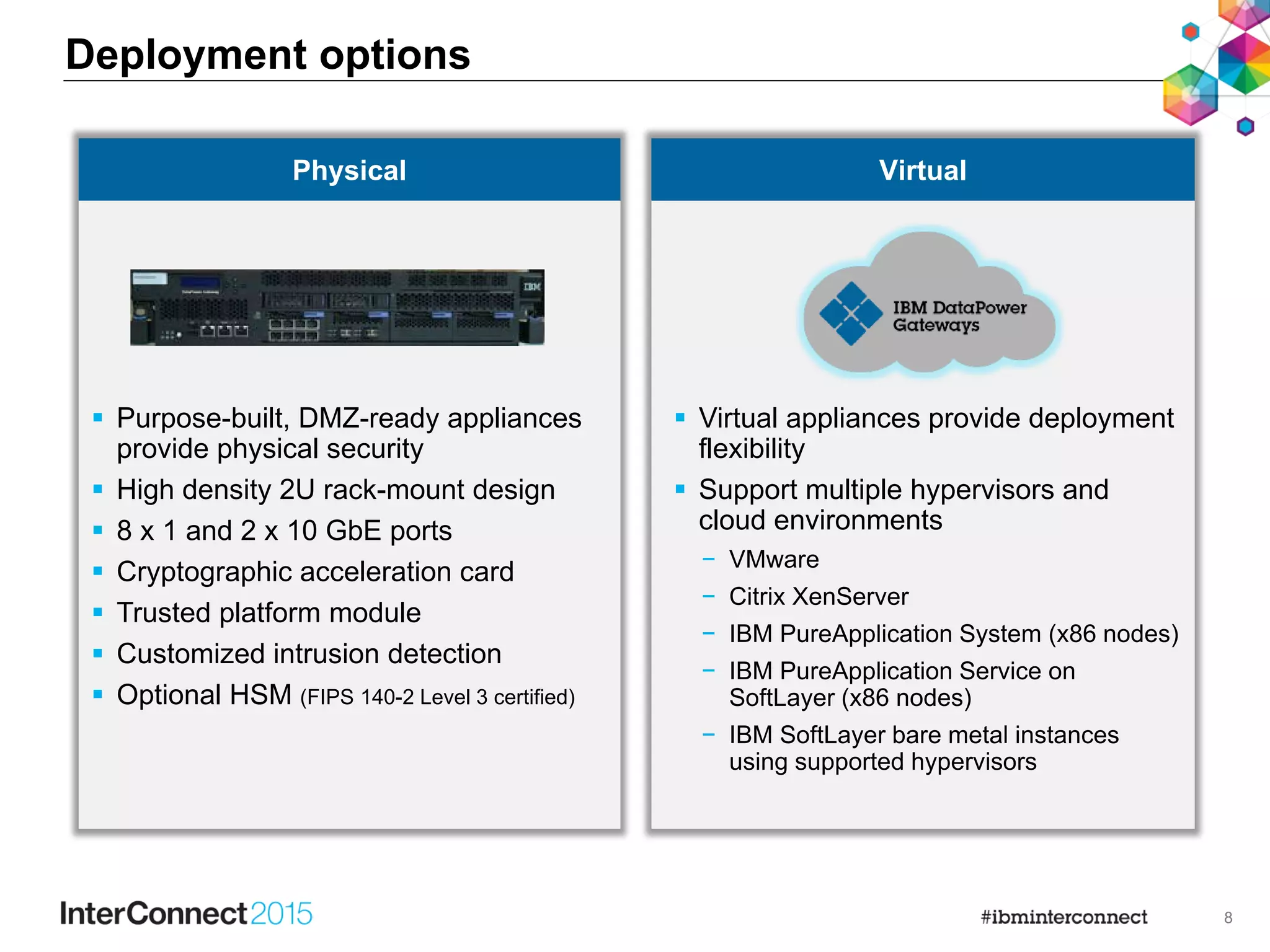

Deployment options
 Purpose-built, DMZ-ready appliances
provide physical security
 High density 2U rack-mount design
 8 x 1 and 2 x 10 GbE ports
 Cryptographic acceleration card
 Trusted platform module
 Customized intrusion detection
 Optional HSM (FIPS 140-2 Level 3 certified)
 Virtual appliances provide deployment
flexibility
 Support multiple hypervisors and
cloud environments
− VMware
− Citrix XenServer
− IBM PureApplication System (x86 nodes)
− IBM PureApplication Service on
SoftLayer (x86 nodes)
− IBM SoftLayer bare metal instances
using supported hypervisors
VirtualPhysical

9

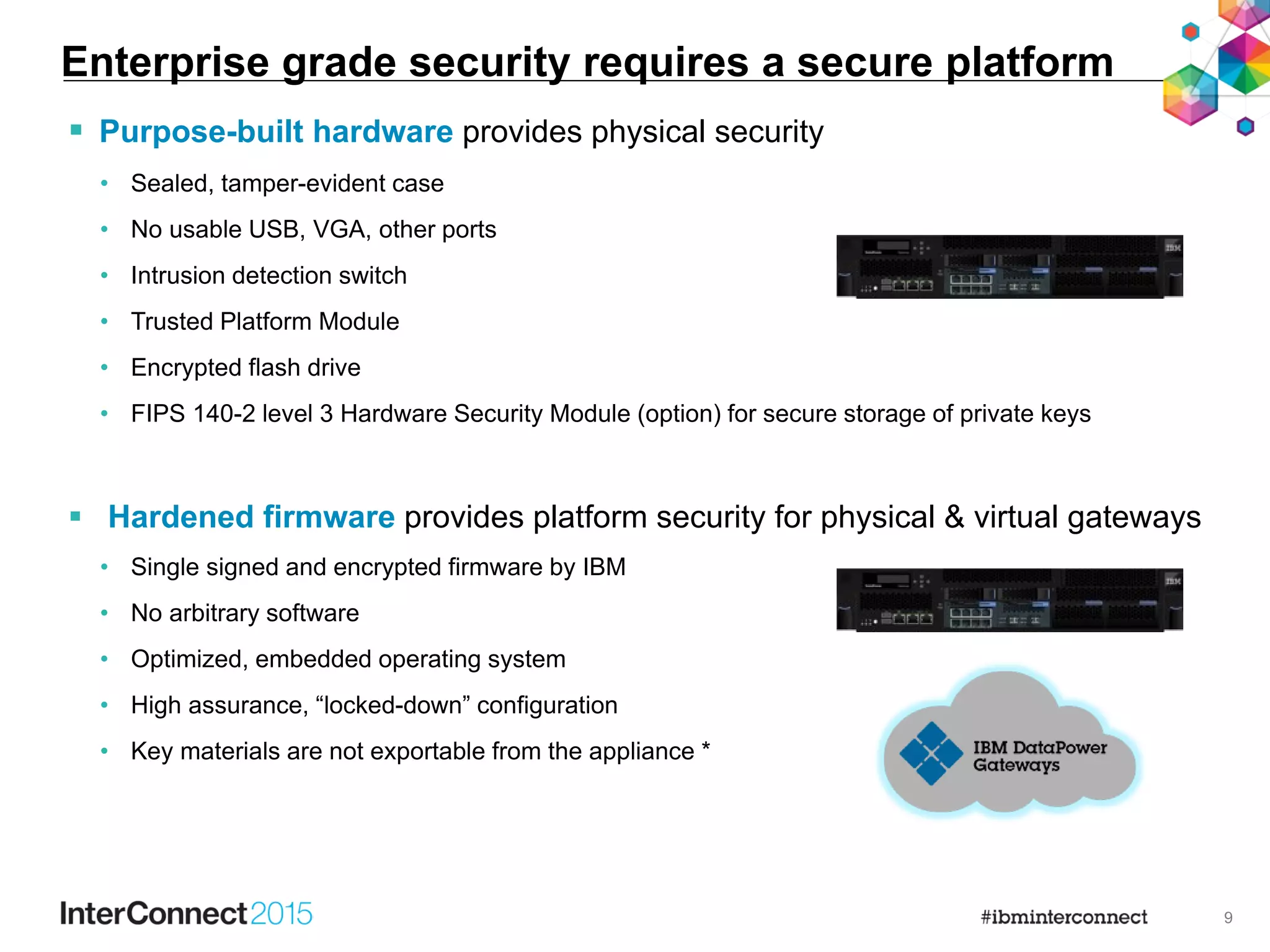

 Purpose-built hardware provides physical security
• Sealed, tamper-evident case
• No usable USB, VGA, other ports
• Intrusion detection switch
• Trusted Platform Module
• Encrypted flash drive
• FIPS 140-2 level 3 Hardware Security Module (option) for secure storage of private keys
 Hardened firmware provides platform security for physical & virtual gateways
• Single signed and encrypted firmware by IBM
• No arbitrary software
• Optimized, embedded operating system
• High assurance, “locked-down” configuration
• Key materials are not exportable from the appliance *
Enterprise grade security requires a secure platform

10

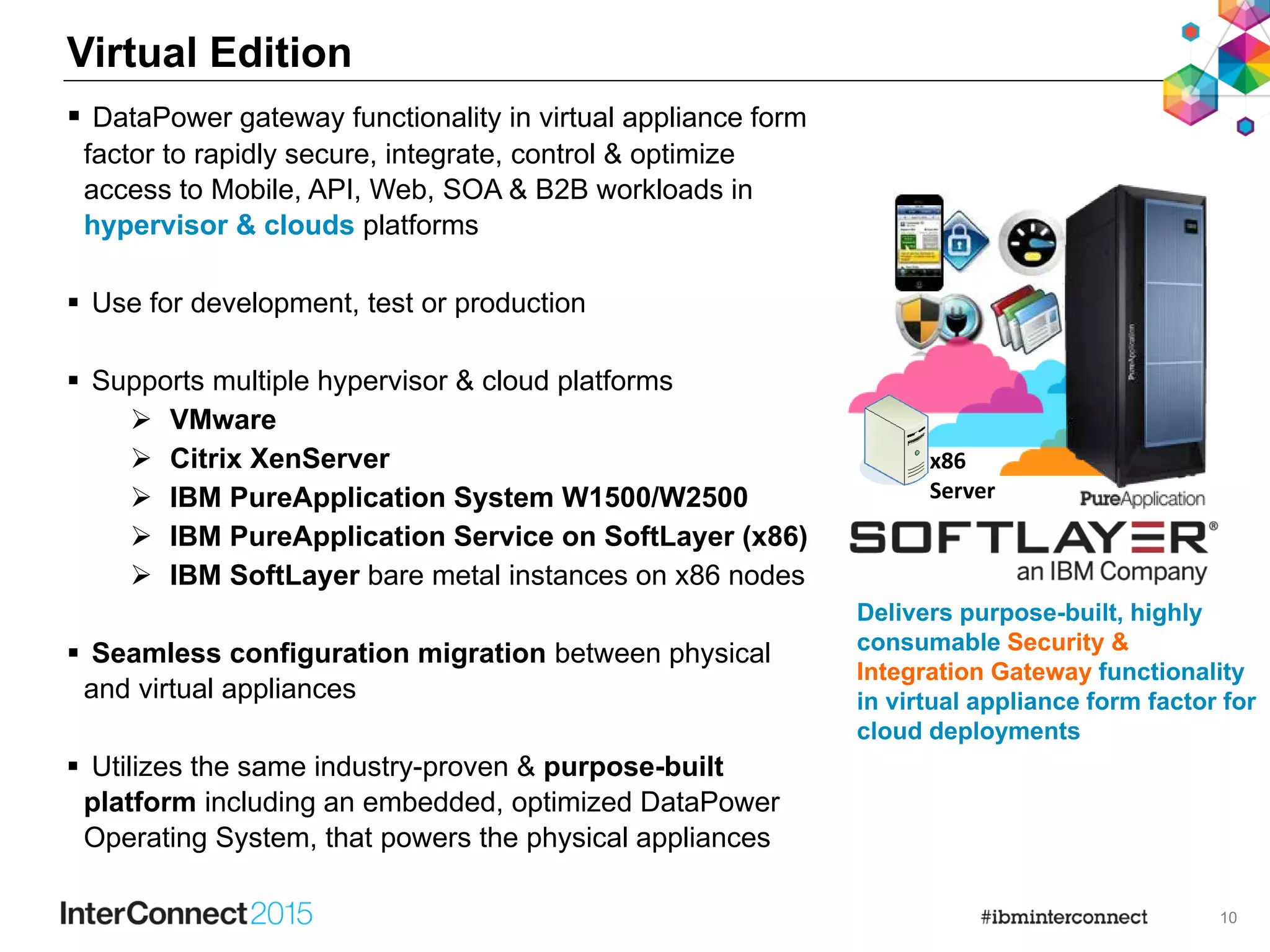

Virtual Edition
 DataPower gateway functionality in virtual appliance form
factor to rapidly secure, integrate, control & optimize
access to Mobile, API, Web, SOA & B2B workloads in
hypervisor & clouds platforms
 Use for development, test or production
 Supports multiple hypervisor & cloud platforms
 VMware
 Citrix XenServer
 IBM PureApplication System W1500/W2500
 IBM PureApplication Service on SoftLayer (x86)
 IBM SoftLayer bare metal instances on x86 nodes
 Seamless configuration migration between physical
and virtual appliances
 Utilizes the same industry-proven & purpose-built
platform including an embedded, optimized DataPower
Operating System, that powers the physical appliances
x86
Server
Delivers purpose-built, highly
consumable Security &
Integration Gateway functionality
in virtual appliance form factor for
cloud deployments

11

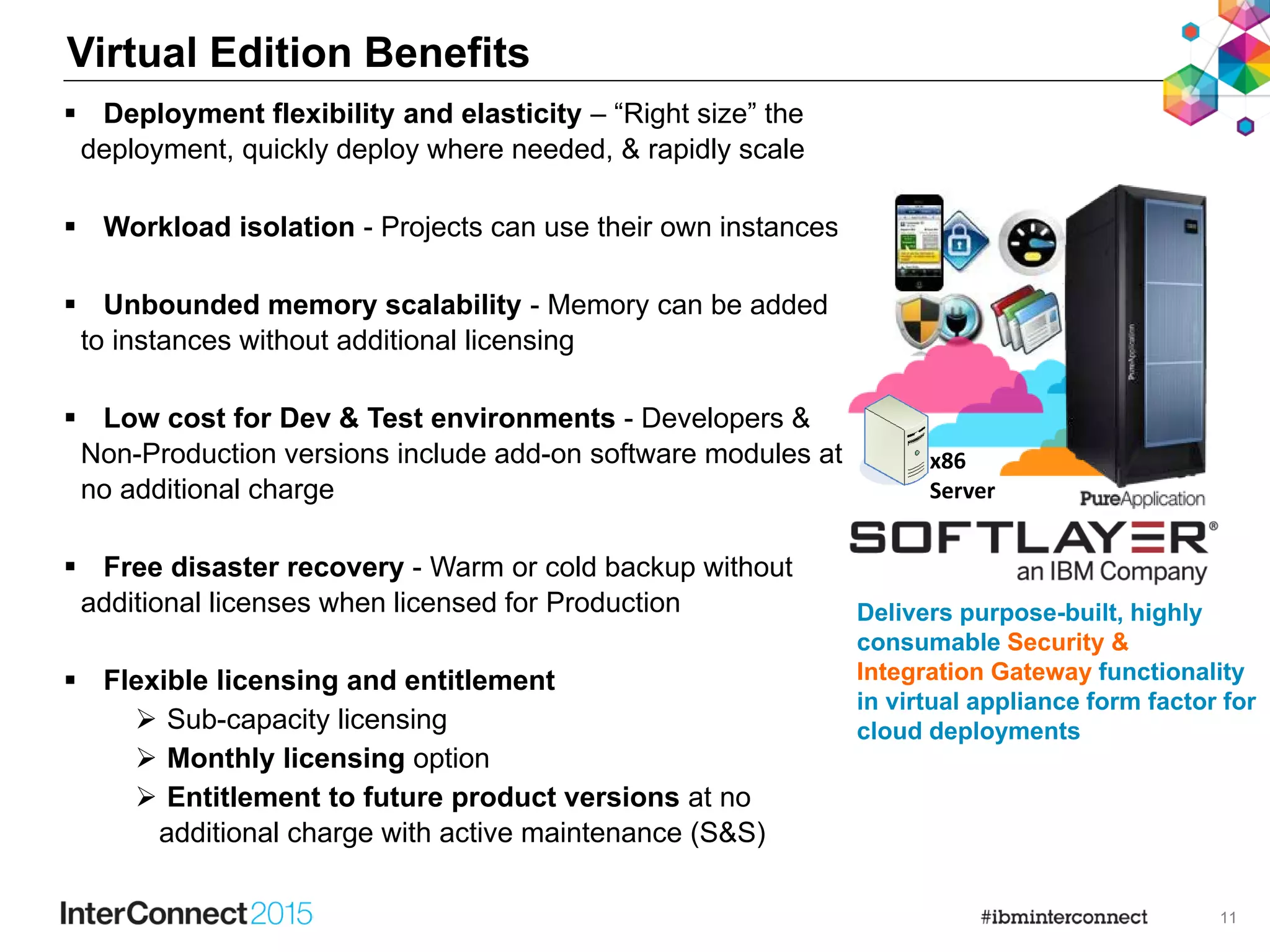

Virtual Edition Benefits
 Deployment flexibility and elasticity – “Right size” the
deployment, quickly deploy where needed, & rapidly scale
 Workload isolation - Projects can use their own instances
 Unbounded memory scalability - Memory can be added
to instances without additional licensing
 Low cost for Dev & Test environments - Developers &
Non-Production versions include add-on software modules at
no additional charge
 Free disaster recovery - Warm or cold backup without
additional licenses when licensed for Production
 Flexible licensing and entitlement
 Sub-capacity licensing
 Monthly licensing option
 Entitlement to future product versions at no
additional charge with active maintenance (S&S)
x86
Server
Delivers purpose-built, highly
consumable Security &
Integration Gateway functionality
in virtual appliance form factor for
cloud deployments

12

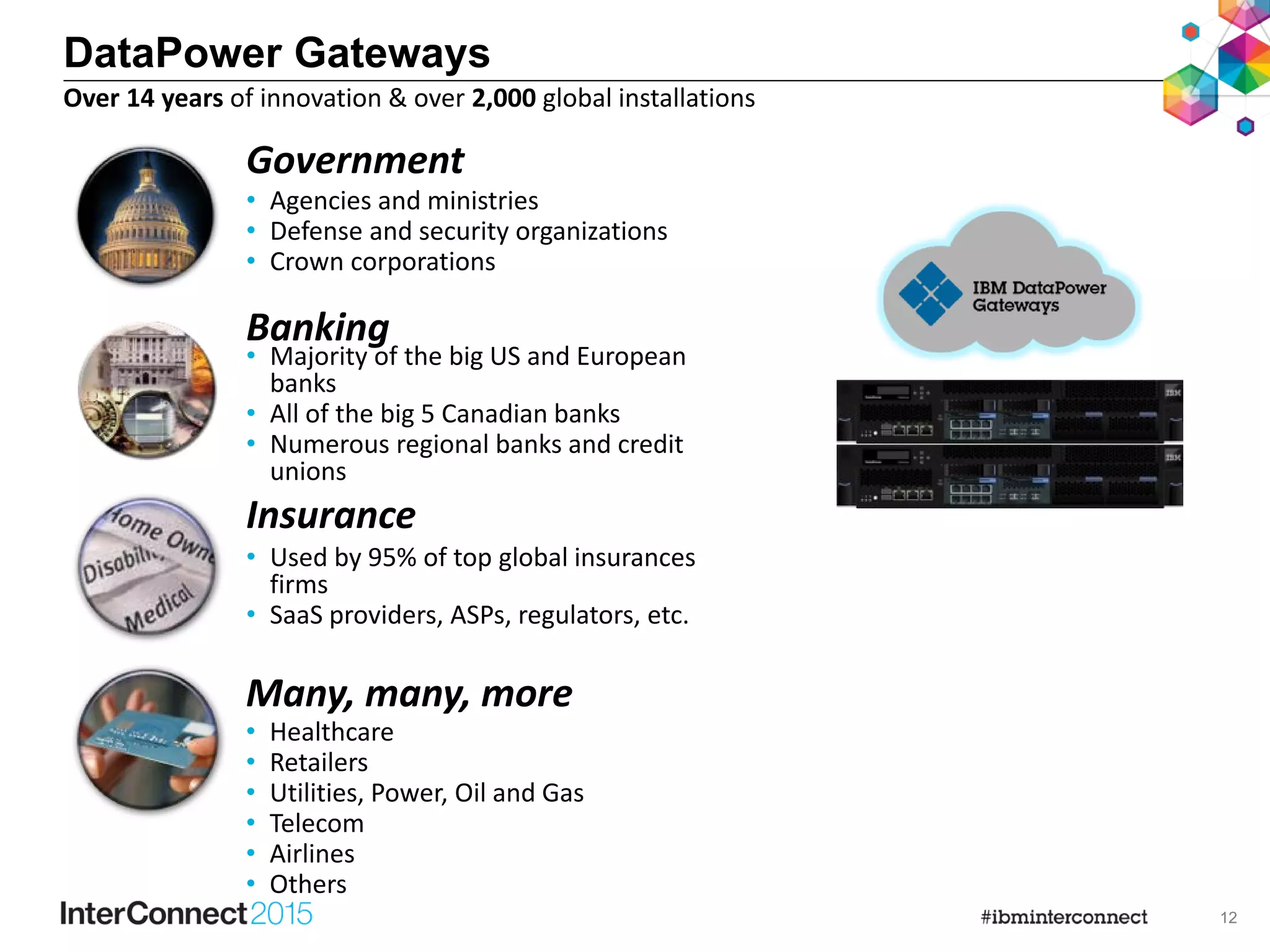

• Used by 95% of top global insurances
firms
• SaaS providers, ASPs, regulators, etc.
• Agencies and ministries
• Defense and security organizations
• Crown corporations
Insurance
Government
Banking
• Healthcare
• Retailers
• Utilities, Power, Oil and Gas
• Telecom
• Airlines
• Others
Many, many, more
• Majority of the big US and European
banks
• All of the big 5 Canadian banks
• Numerous regional banks and credit
unions
DataPower Gateways
Over 14 years of innovation & over 2,000 global installations

13

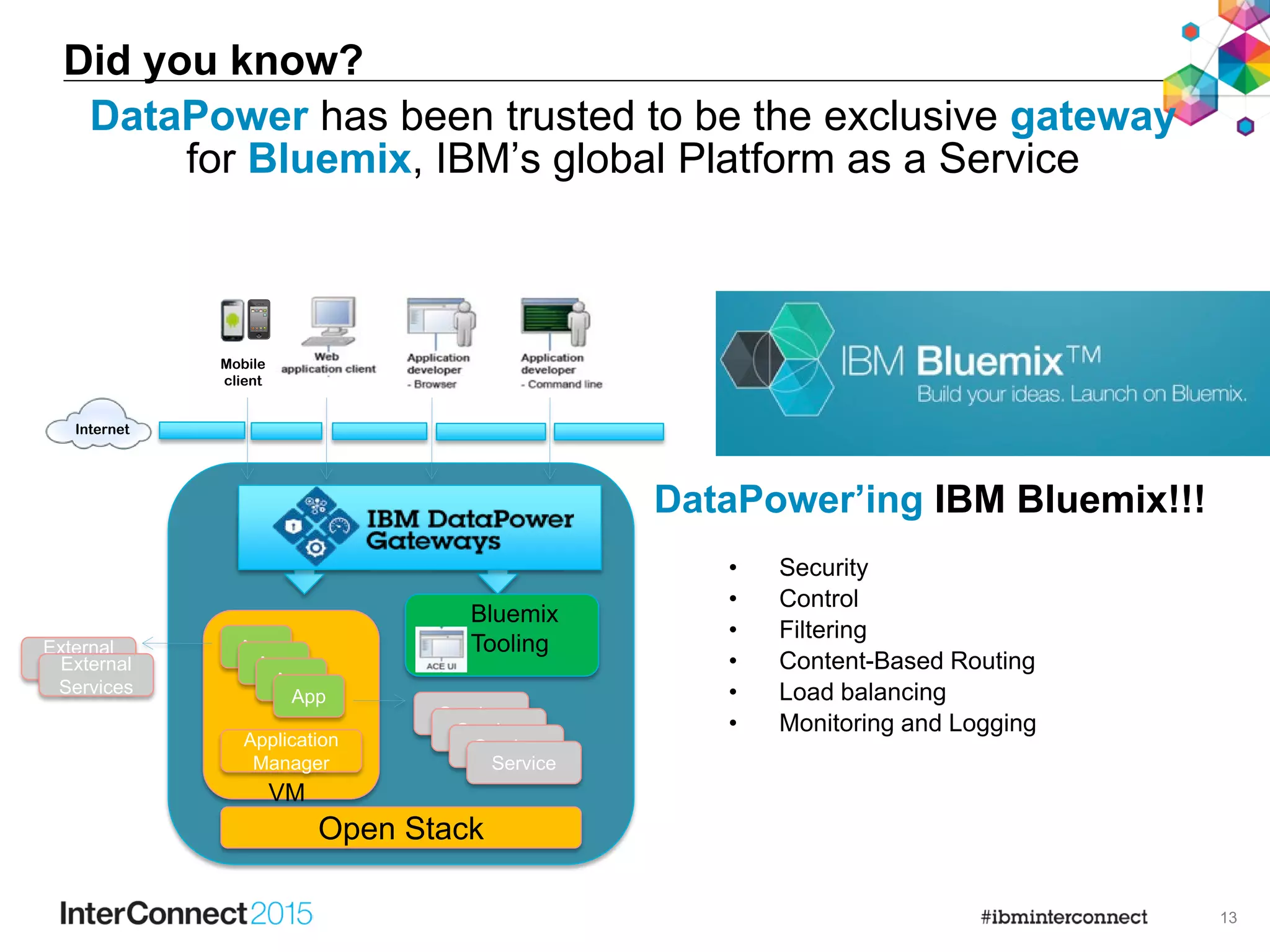

DataPower’ing IBM Bluemix!!!
• Security
• Control
• Filtering
• Content-Based Routing
• Load balancing
• Monitoring and Logging
Mobile
client
Bluemix
Tooling
VM
Application
Manager
App
App
App
App
Service
Service
Service
Service
Open Stack
External
ServiceExternal
Services
Internet
Did you know?
DataPower has been trusted to be the exclusive gateway
for Bluemix, IBM’s global Platform as a Service

14
Agenda
 Recent Releases
 Q&A

15

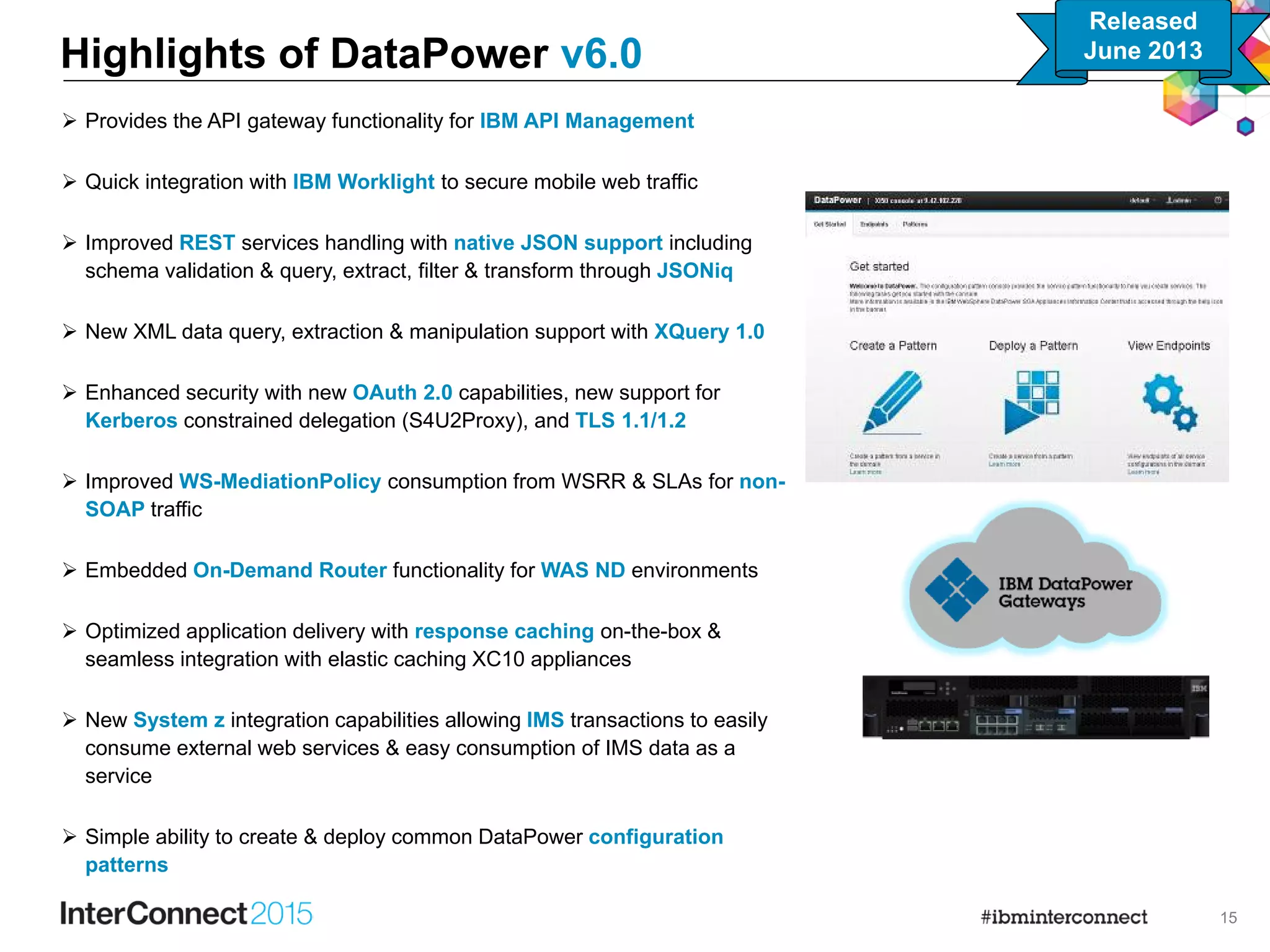

 Provides the API gateway functionality for IBM API Management
 Quick integration with IBM Worklight to secure mobile web traffic
 Improved REST services handling with native JSON support including
schema validation & query, extract, filter & transform through JSONiq
 New XML data query, extraction & manipulation support with XQuery 1.0
 Enhanced security with new OAuth 2.0 capabilities, new support for
Kerberos constrained delegation (S4U2Proxy), and TLS 1.1/1.2
 Improved WS-MediationPolicy consumption from WSRR & SLAs for non-
SOAP traffic
 Embedded On-Demand Router functionality for WAS ND environments
 Optimized application delivery with response caching on-the-box &
seamless integration with elastic caching XC10 appliances
 New System z integration capabilities allowing IMS transactions to easily
consume external web services & easy consumption of IMS data as a
service
 Simple ability to create & deploy common DataPower configuration
patterns
Highlights of DataPower v6.0
Released
June 2013

16

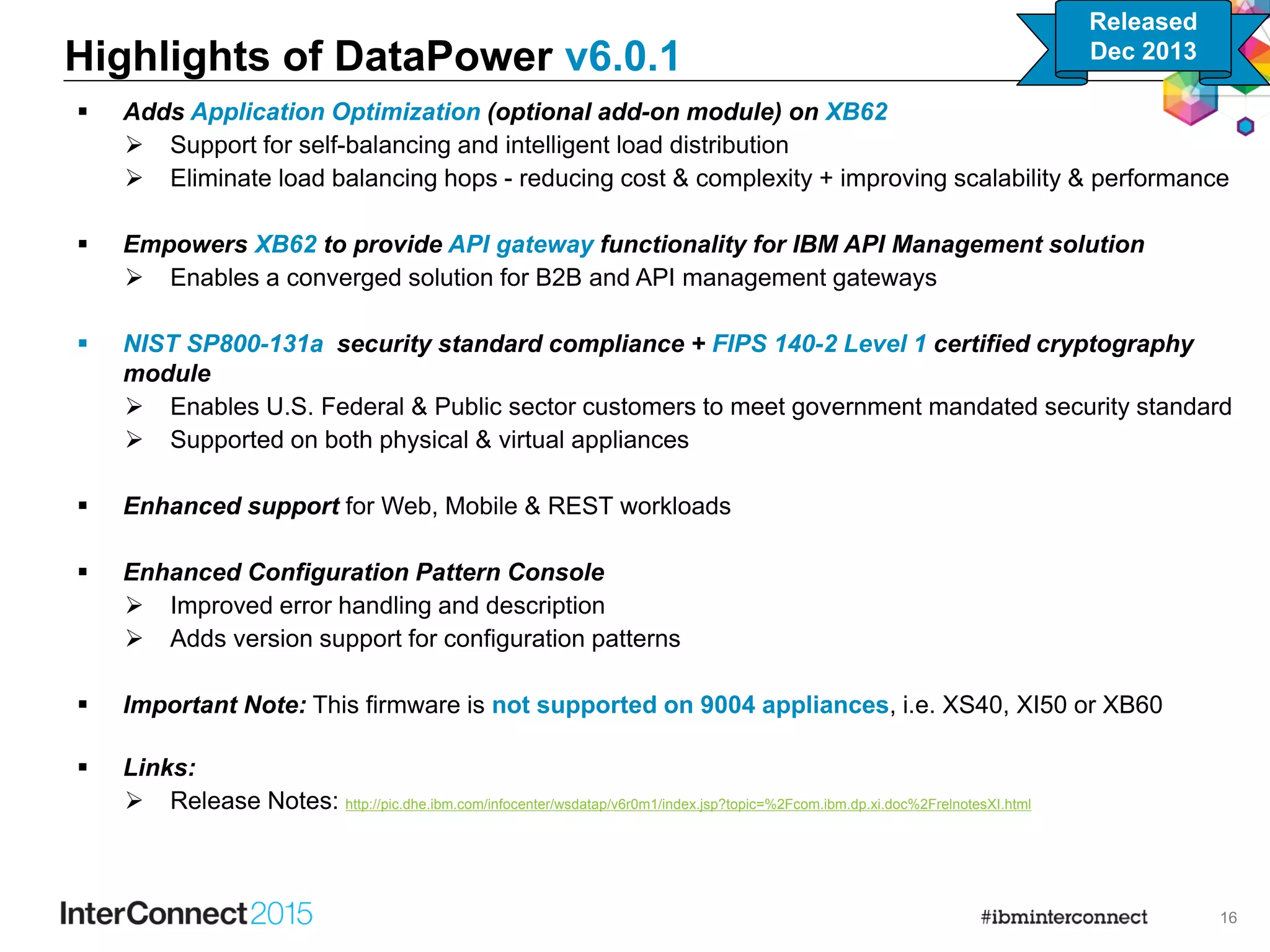

 Adds Application Optimization (optional add-on module) on XB62
 Support for self-balancing and intelligent load distribution
 Eliminate load balancing hops - reducing cost & complexity + improving scalability & performance
 Empowers XB62 to provide API gateway functionality for IBM API Management solution
 Enables a converged solution for B2B and API management gateways
 NIST SP800-131a security standard compliance + FIPS 140-2 Level 1 certified cryptography
module
 Enables U.S. Federal & Public sector customers to meet government mandated security standard
 Supported on both physical & virtual appliances
 Enhanced support for Web, Mobile & REST workloads
 Enhanced Configuration Pattern Console
 Improved error handling and description
 Adds version support for configuration patterns
 Important Note: This firmware is not supported on 9004 appliances, i.e. XS40, XI50 or XB60
 Links:
 Release Notes: http://pic.dhe.ibm.com/infocenter/wsdatap/v6r0m1/index.jsp?topic=%2Fcom.ibm.dp.xi.doc%2FrelnotesXI.html
Highlights of DataPower v6.0.1
Released
Dec 2013

17

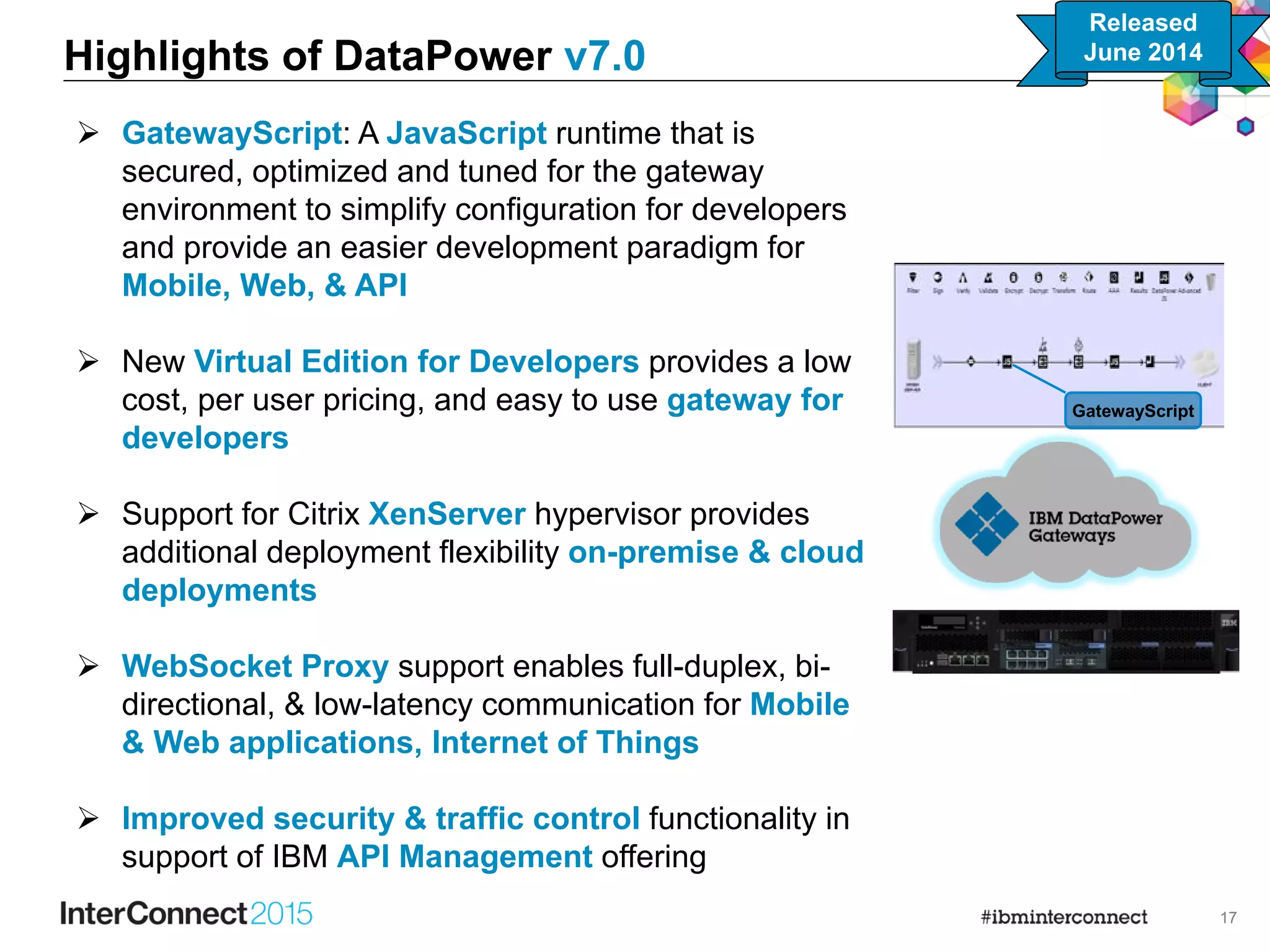

 GatewayScript: A JavaScript runtime that is
secured, optimized and tuned for the gateway
environment to simplify configuration for developers
and provide an easier development paradigm for
Mobile, Web, & API
 New Virtual Edition for Developers provides a low
cost, per user pricing, and easy to use gateway for
developers
 Support for Citrix XenServer hypervisor provides
additional deployment flexibility on-premise & cloud
deployments
 WebSocket Proxy support enables full-duplex, bi-
directional, & low-latency communication for Mobile
& Web applications, Internet of Things
 Improved security & traffic control functionality in
support of IBM API Management offering
Highlights of DataPower v7.0
GatewayScript
Released
June 2014

18

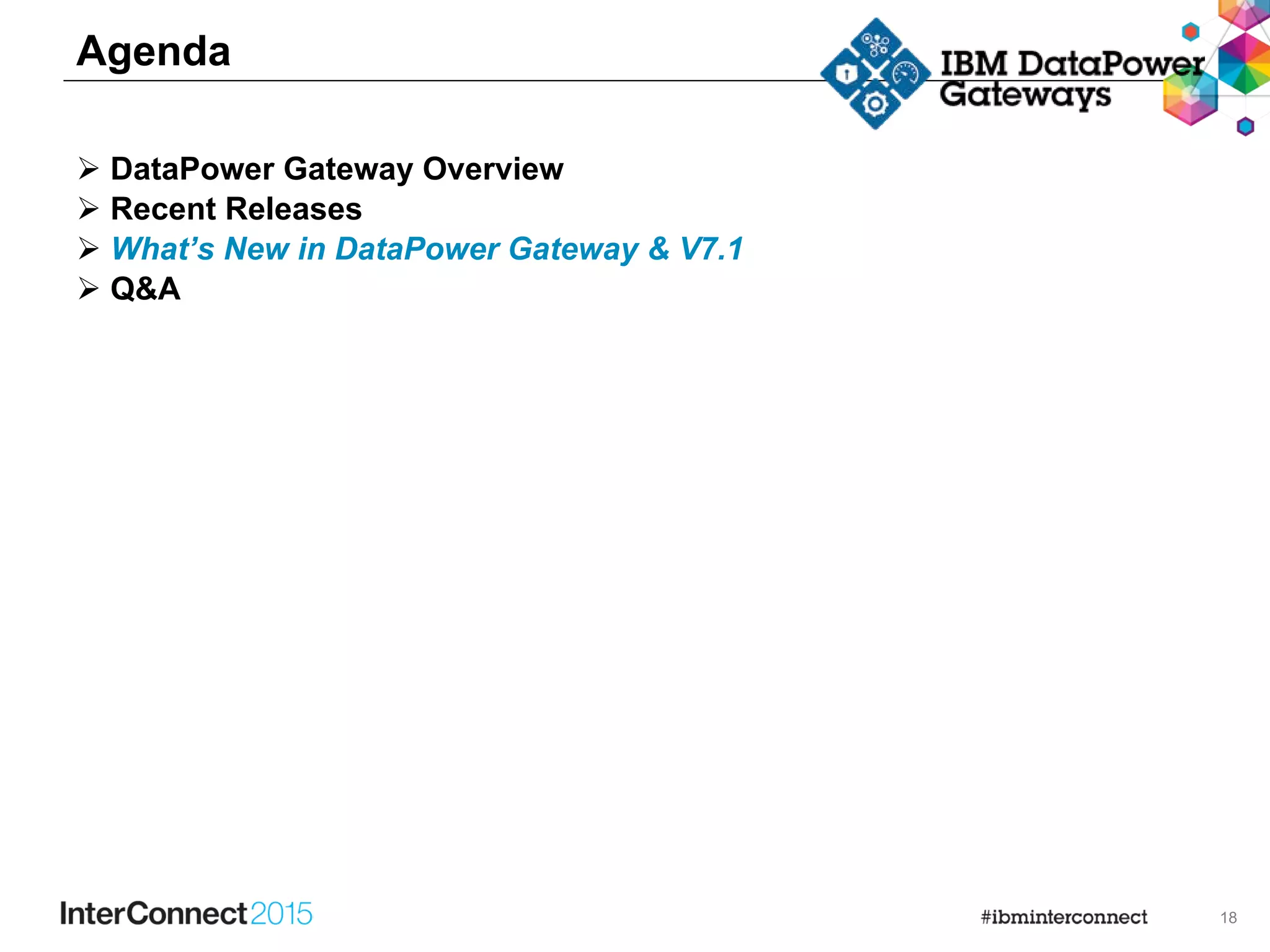

Agenda
 Recent Releases
 Q&A

19

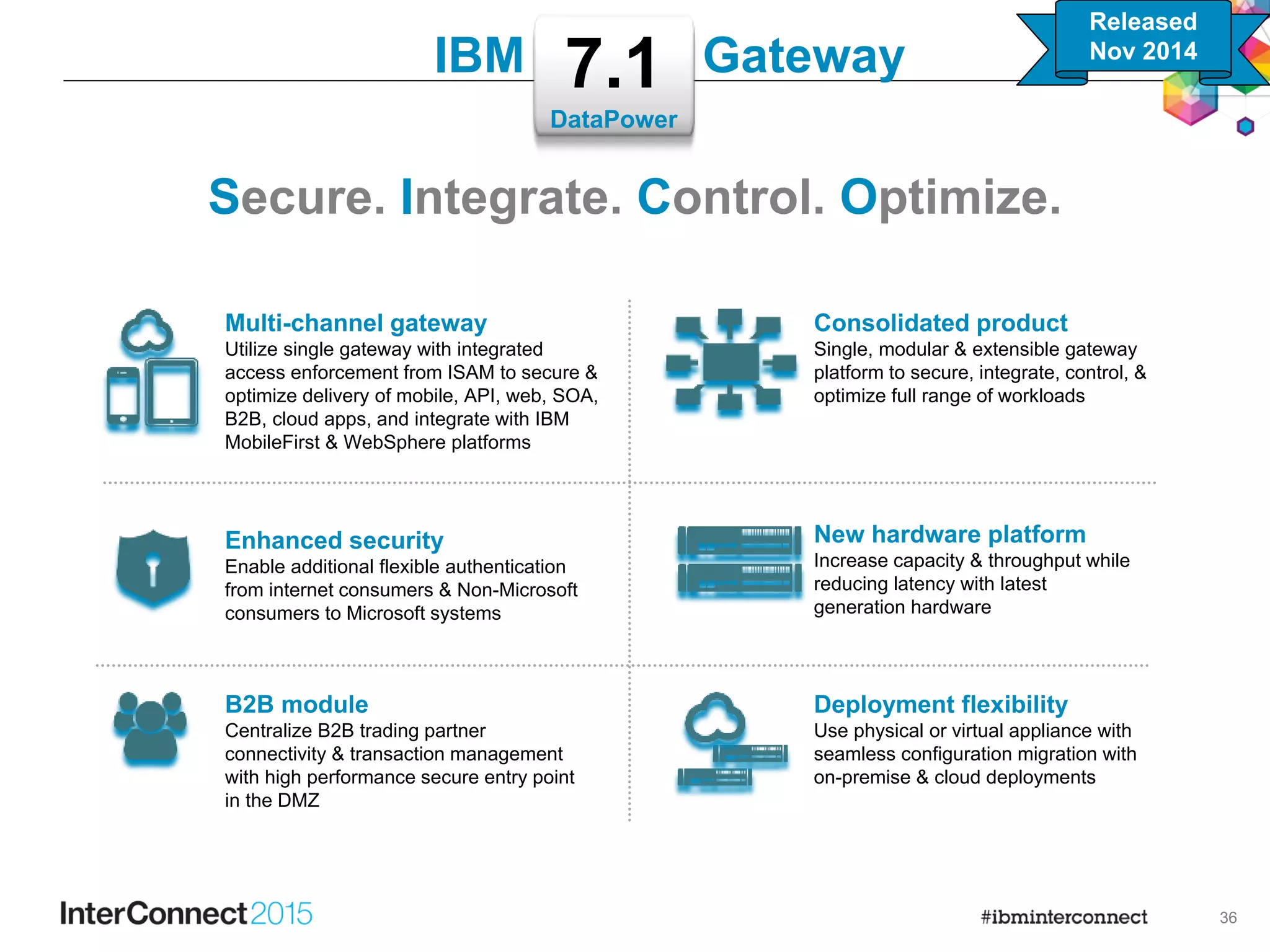

Secure. Integrate. Control. Optimize.
7.1
DataPower
IBM Gateway
Released
Nov 2014
Consolidated product
Single, modular & extensible gateway
platform to secure, integrate, control, &
optimize full range of workloads
New hardware platform
Increase capacity & throughput while
reducing latency with latest
generation hardware
Deployment flexibility
Use physical or virtual appliance with
seamless configuration migration with
on-premise & cloud deployments
B2B module
Centralize B2B trading partner
connectivity & transaction management
with high performance secure entry point
in the DMZ
Multi-channel gateway
Utilize single gateway with integrated
access enforcement from ISAM to secure &
optimize delivery of mobile, API, web, SOA,
B2B, cloud apps, and integrate with IBM
MobileFirst & WebSphere platforms
Enhanced security
Enable additional flexible authentication
from internet consumers & Non-Microsoft
consumers to Microsoft systems

20

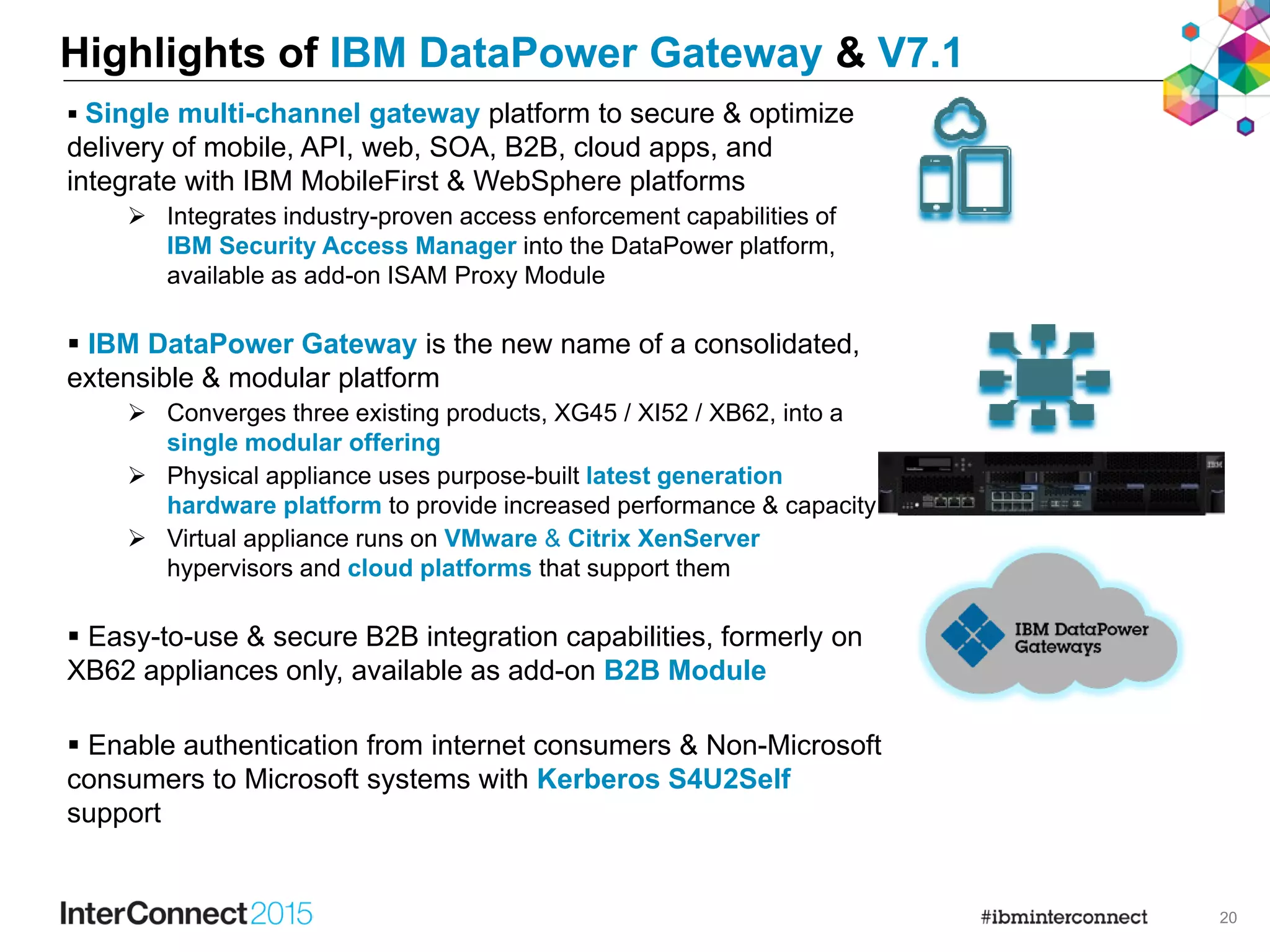

Highlights of IBM DataPower Gateway & V7.1
 Single multi-channel gateway platform to secure & optimize
delivery of mobile, API, web, SOA, B2B, cloud apps, and
integrate with IBM MobileFirst & WebSphere platforms
 Integrates industry-proven access enforcement capabilities of
IBM Security Access Manager into the DataPower platform,
available as add-on ISAM Proxy Module
 IBM DataPower Gateway is the new name of a consolidated,
extensible & modular platform
 Converges three existing products, XG45 / XI52 / XB62, into a
single modular offering
 Physical appliance uses purpose-built latest generation
hardware platform to provide increased performance & capacity
 Virtual appliance runs on VMware & Citrix XenServer
hypervisors and cloud platforms that support them
 Easy-to-use & secure B2B integration capabilities, formerly on
XB62 appliances only, available as add-on B2B Module
 Enable authentication from internet consumers & Non-Microsoft
consumers to Microsoft systems with Kerberos S4U2Self
support

21

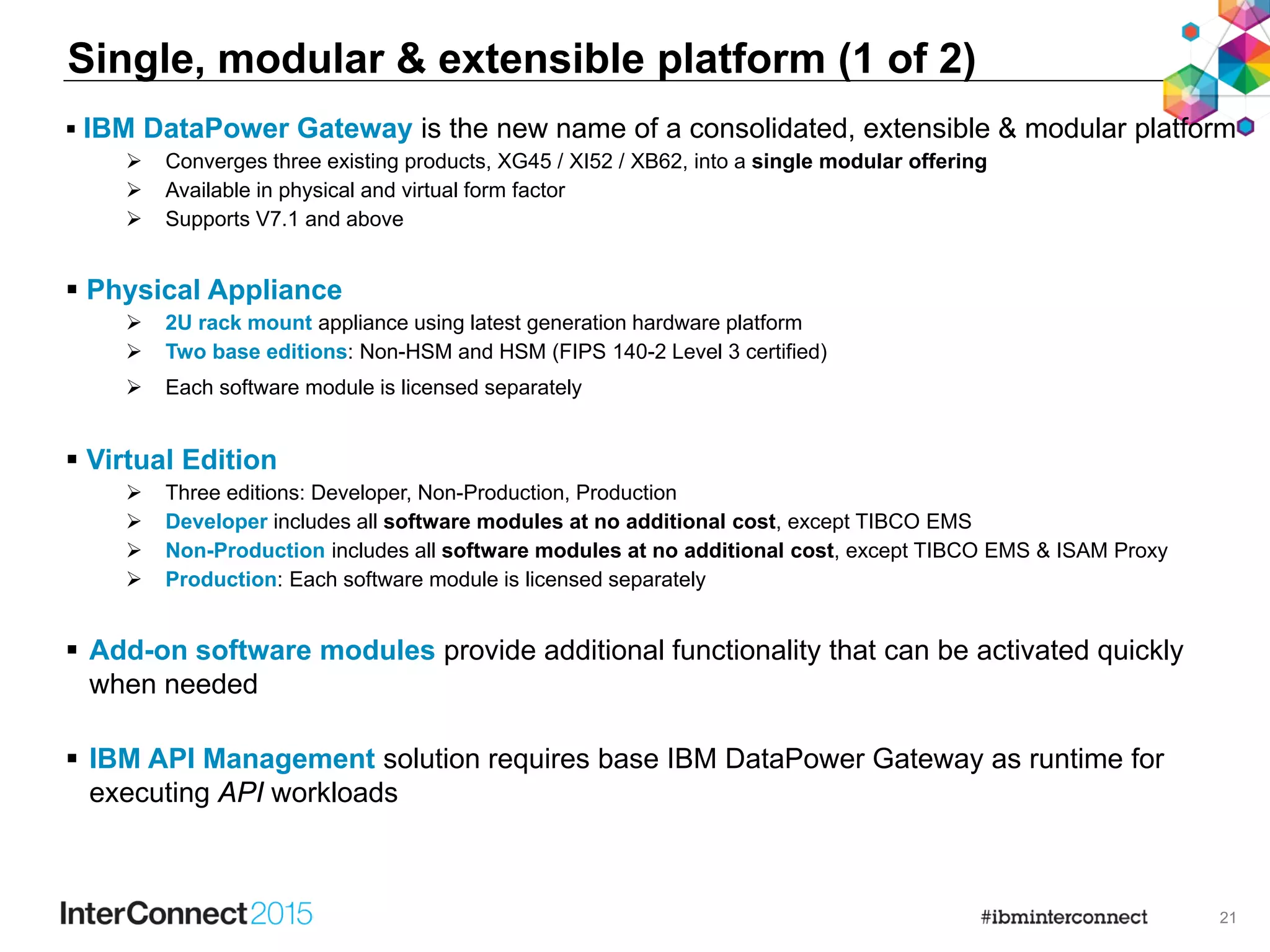

 IBM DataPower Gateway is the new name of a consolidated, extensible & modular platform
 Converges three existing products, XG45 / XI52 / XB62, into a single modular offering
 Available in physical and virtual form factor
 Supports V7.1 and above
 Physical Appliance
 2U rack mount appliance using latest generation hardware platform
 Two base editions: Non-HSM and HSM (FIPS 140-2 Level 3 certified)
 Each software module is licensed separately
 Virtual Edition
 Three editions: Developer, Non-Production, Production
 Developer includes all software modules at no additional cost, except TIBCO EMS
 Non-Production includes all software modules at no additional cost, except TIBCO EMS & ISAM Proxy
 Production: Each software module is licensed separately
 Add-on software modules provide additional functionality that can be activated quickly
when needed
 IBM API Management solution requires base IBM DataPower Gateway as runtime for
executing API workloads
Single, modular & extensible platform (1 of 2)

22
Modules
ISAM Proxy Module
 User access control, session
management, web SSO enforcement
 Advanced mobile security: mobile
SSO, context-based access, one-
time password, multi-factor authn
 Integration with ISAM for Mobile
Application Optimization
Module
 Frontend self-balancing
 Backend intelligent load distribution
 Session affinity
 z Sysplex Distributor integration
Integration
Module
 Any-to-Any message transformation
 Database connectivity
 Mainframe IMS connectivity
B2B Module
 B2B DMZ gateway
 EDIINT AS1,AS2,AS3,ebXML
 Partner profile management
 B2B transaction viewer
 Any-to-Any message transformation
 Database connectivity
TIBCO EMS
Module
 Integrate with TIBCO EMS
messaging middleware
 Support for queues & topics
 Load balancing & fault-tolerance
IBM DataPower Gateway (Base)
Secure
 Authentication, authorization
 Security token translation
 Service / API virtualization
 Threat protection
 Message validation
 Message filtering
 Message digital signature
 Message encryption
 AV scanning integration
Integrate
 Transport protocol bridging
 Message enrichment
 Message transformation &
processing using JavaScript,
JSONiq, XQuery, XSLT
 Mainframe integration &
enablement
 Flexible pipeline message
processing engine
Control & Manage
 Service level management
 Quota & rate enforcement
 Content-based routing
 Message accounting
 Integration w/ management &
visibility platforms including
IBM API Management &
WSRR for policy enforcement
Optimize & Offload
 SSL / TLS offload
 Hardware accelerated crypto*
 JSON, XML offload
 JavaScript, JSONiq, XSLT,
XQuery acceleration
 Local response caching
 Distributed caching with WXS
or XC10
 Backend load balancing
2U Physical or Virtual Edition
Single, modular & extensible platform (2 of 2)

23
Latest Generation Hardware Platform
 Trusted Platform Module
 Customized intrusion detection
 Cryptographic Acceleration Card
 Hardware Security Module (Optional, FIPS 140-2 Level 3 certified)
 Runtime Hardware Diagnostic
 Intelligent Platform Management Interface
 Supercapacitor Powered Flash-backed RAID Cache
 Multiple Replaceable Units
– Customer Replaceable Units (CRU)
• Fan, Power Supply, HDD, Network Module
– Field Replaceable Units (FRU)
• Appliance, CPU, Memory, Flash Drive, Coin
Battery, Supercapacitor for RAID
• Cryptographic Acceleration Card, HSM
Card, RAID Card
 Purpose-built, high density 2U rack mount design
 Increased capacity
‒ Higher performance CPU & memory
‒ Faster cryptographic acceleration card
‒ New RAID controller w/ large write cache
 192 GB memory
 Two 1.2 TB high speed hard drives
 Three management traffic ports
 1 RJ45 serial port
 2 x 1 GbE ports
 Ten application traffic ports
‒ 8 x 1 GbE ports
‒ 2 x 10 GbE ports
2 10-Gigabit
Ethernet NICs
8 1-Gigabit
Ethernet NICs
RAID mirroring across two drives

24

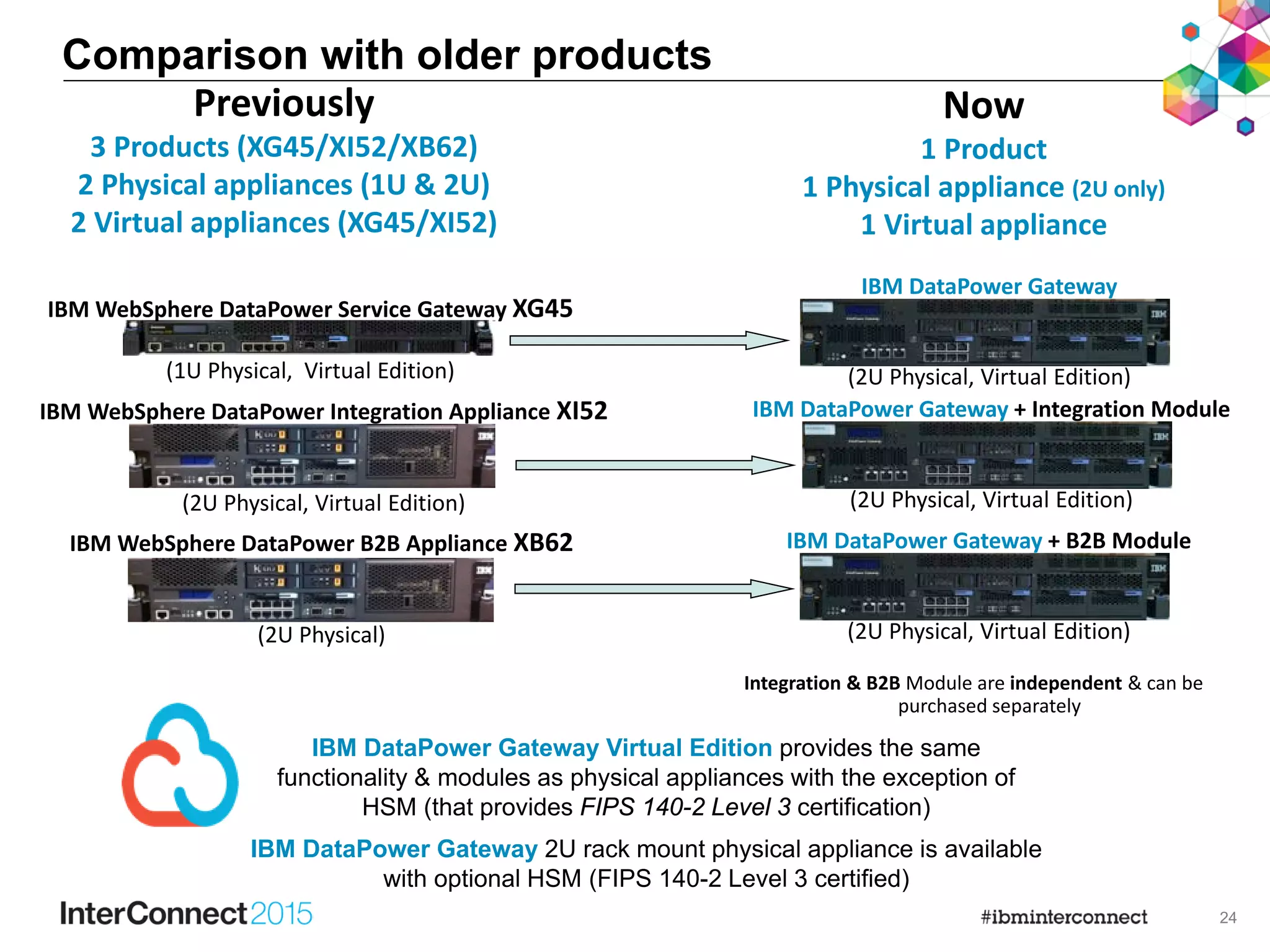

Comparison with older products
IBM WebSphere DataPower Service Gateway XG45
(1U Physical, Virtual Edition)
IBM WebSphere DataPower Integration Appliance XI52
Previously
3 Products (XG45/XI52/XB62)
2 Physical appliances (1U & 2U)
2 Virtual appliances (XG45/XI52)
Now
1 Product
1 Physical appliance (2U only)
1 Virtual appliance
IBM DataPower Gateway Virtual Edition provides the same
functionality & modules as physical appliances with the exception of
HSM (that provides FIPS 140-2 Level 3 certification)
Integration & B2B Module are independent & can be
purchased separately
IBM DataPower Gateway + Integration Module
IBM WebSphere DataPower B2B Appliance XB62
(2U Physical)
IBM DataPower Gateway + B2B Module
IBM DataPower Gateway 2U rack mount physical appliance is available
with optional HSM (FIPS 140-2 Level 3 certified)

25

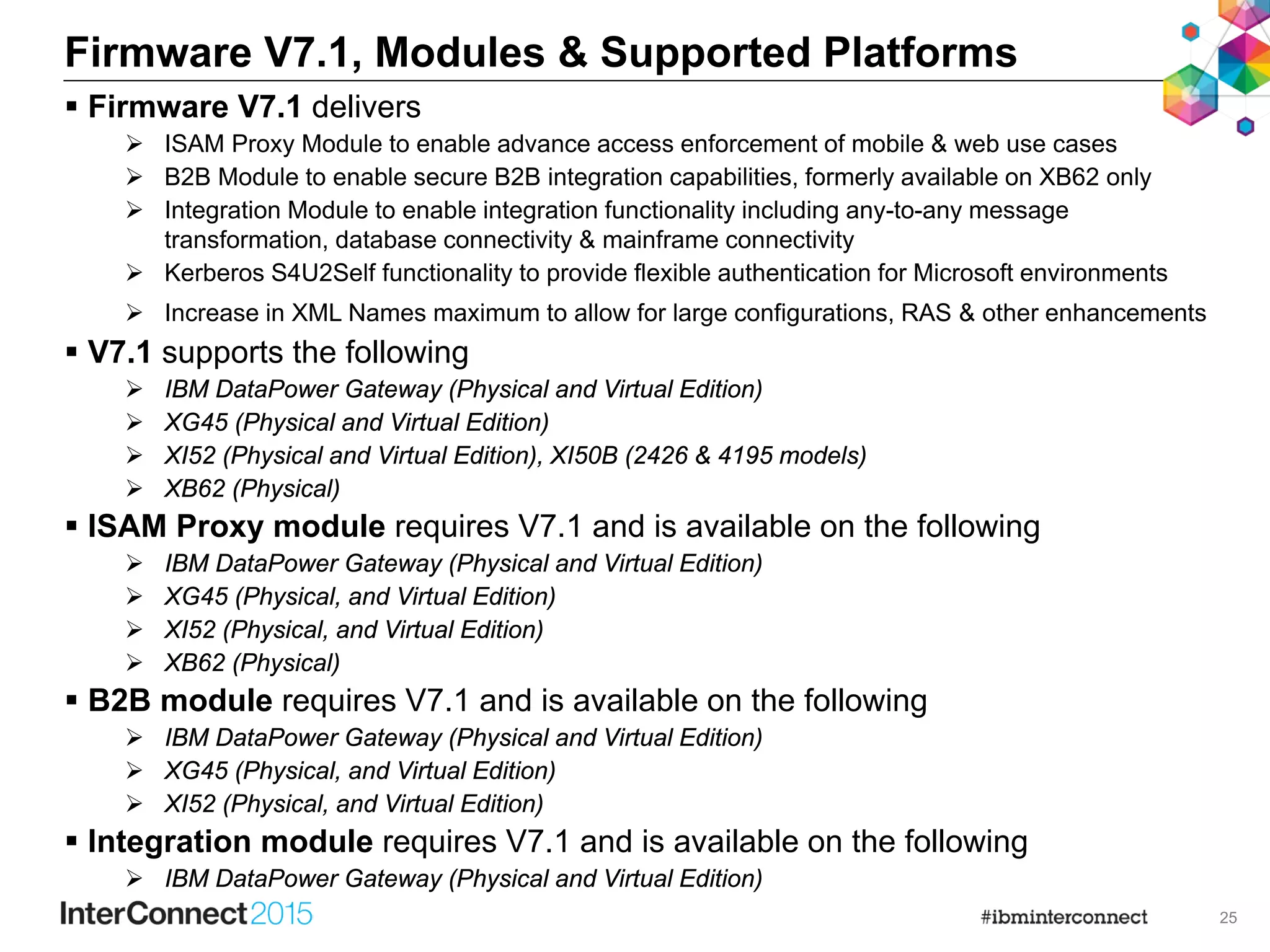

Firmware V7.1, Modules & Supported Platforms
 Firmware V7.1 delivers
 ISAM Proxy Module to enable advance access enforcement of mobile & web use cases
 B2B Module to enable secure B2B integration capabilities, formerly available on XB62 only
 Integration Module to enable integration functionality including any-to-any message
transformation, database connectivity & mainframe connectivity
 Kerberos S4U2Self functionality to provide flexible authentication for Microsoft environments
 Increase in XML Names maximum to allow for large configurations, RAS & other enhancements
 V7.1 supports the following
 IBM DataPower Gateway (Physical and Virtual Edition)
 XG45 (Physical and Virtual Edition)
 XI52 (Physical and Virtual Edition), XI50B (2426 & 4195 models)
 XB62 (Physical)
 ISAM Proxy module requires V7.1 and is available on the following
 XG45 (Physical, and Virtual Edition)
 XI52 (Physical, and Virtual Edition)
 XB62 (Physical)
 B2B module requires V7.1 and is available on the following
 XG45 (Physical, and Virtual Edition)
 XI52 (Physical, and Virtual Edition)
 Integration module requires V7.1 and is available on the following

26

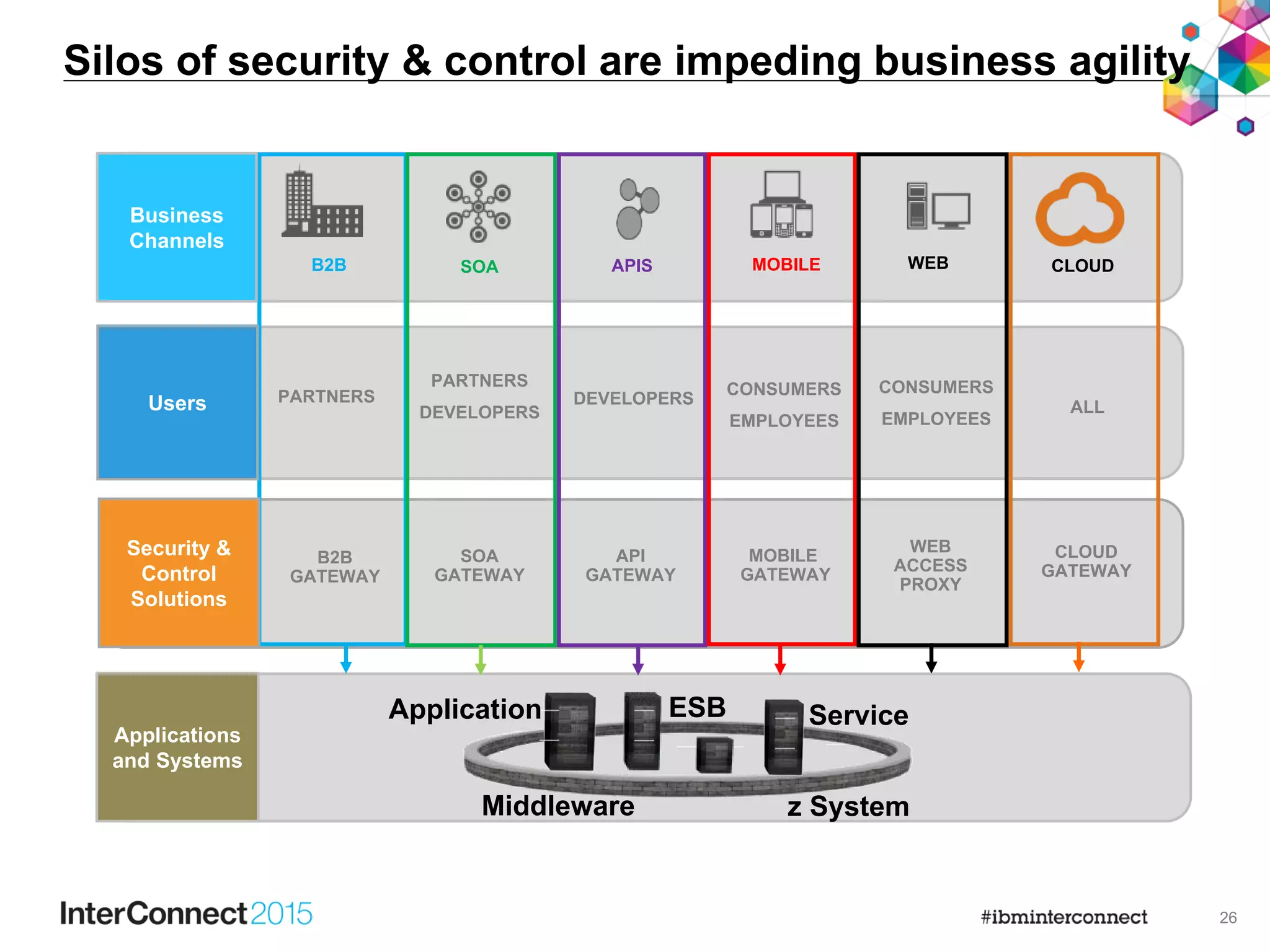

Applications
and Systems
Silos of security & control are impeding business agility
DEVELOPERSPARTNERS CONSUMERS
EMPLOYEES
WEBMOBILEB2B SOA APIS
PARTNERS
DEVELOPERS
API
GATEWAY
B2B
GATEWAY
SOA
GATEWAY
WEB
ACCESS
PROXY
MOBILE
GATEWAY
Business
Channels
Users
Security &
Control
Solutions
CLOUD
ALL
CLOUD
GATEWAY
CONSUMERS
EMPLOYEES
z SystemMiddleware
ESBApplication Service

27
Applications
and Systems
DEVELOPERSPARTNERS CONSUMERS
EMPLOYEES
WEBMOBILEB2B SOA APIS
PARTNERS
DEVELOPERS
Business
Channels
Users
Security &
Control
Solutions
CLOUD
ALL
CONSUMERS
EMPLOYEES

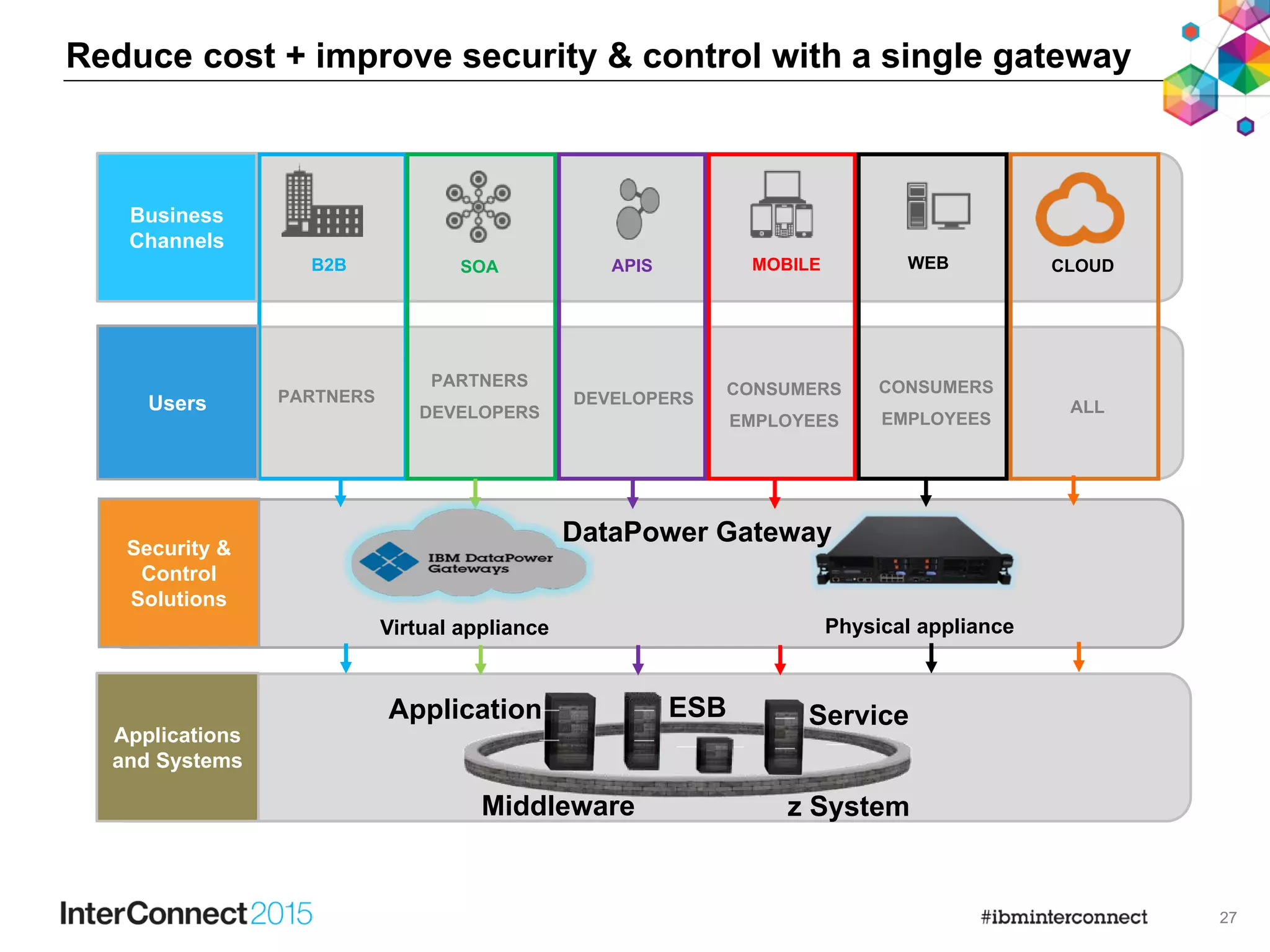

Reduce cost + improve security & control with a single gateway
z SystemMiddleware
ESBApplication Service
Virtual appliance Physical appliance
DataPower Gateway

28

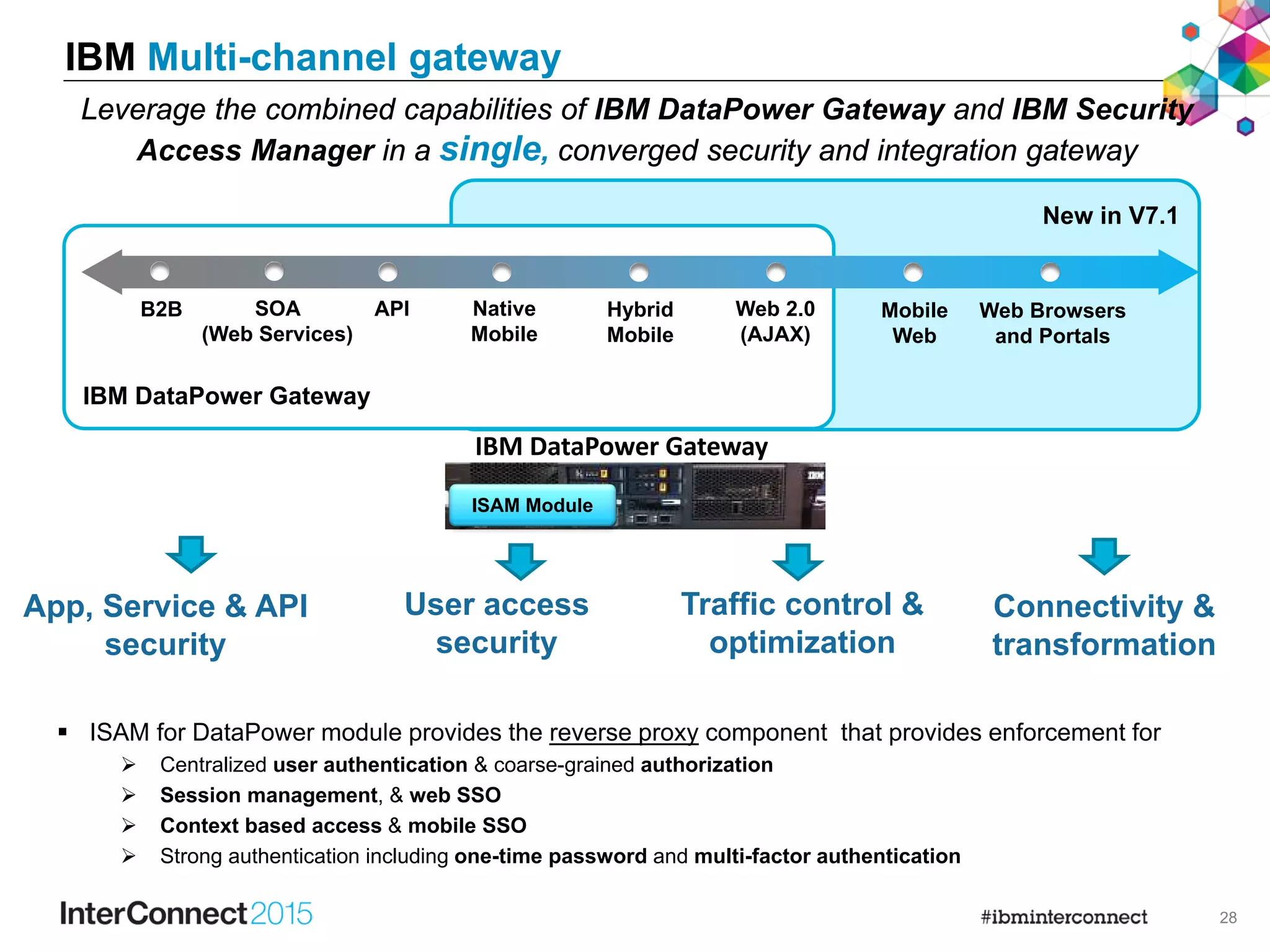

IBM Multi-channel gateway
 ISAM for DataPower module provides the reverse proxy component that provides enforcement for
 Centralized user authentication & coarse-grained authorization
 Session management, & web SSO
 Context based access & mobile SSO
 Strong authentication including one-time password and multi-factor authentication
Leverage the combined capabilities of IBM DataPower Gateway and IBM Security
Access Manager in a single, converged security and integration gateway
New in V7.1
Web Browsers
and Portals
Mobile
Web
Web 2.0
(AJAX)
Native
Mobile
B2B Hybrid
Mobile
APISOA
(Web Services)
App, Service & API
security
ISAM Module
User access
security
Traffic control &
optimization
Connectivity &
transformation

29

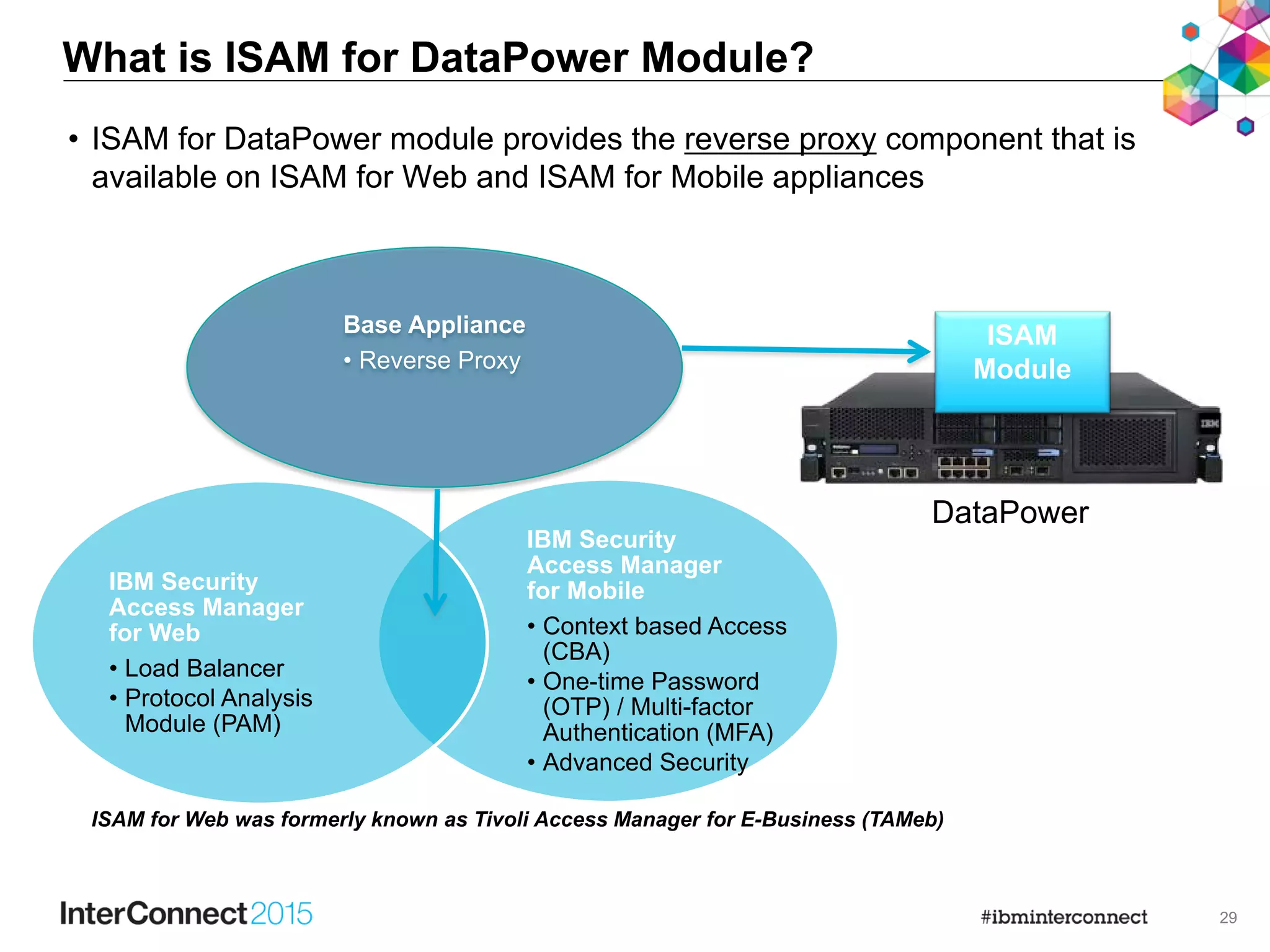

What is ISAM for DataPower Module?
• ISAM for DataPower module provides the reverse proxy component that is
available on ISAM for Web and ISAM for Mobile appliances
ISAM
Module
DataPower
Base Appliance
• Reverse Proxy
IBM Security
Access Manager
for Mobile
• Context based Access
(CBA)
• One-time Password
(OTP) / Multi-factor
Authentication (MFA)
• Advanced Security
IBM Security
Access Manager
for Web
• Load Balancer
• Protocol Analysis
Module (PAM)
ISAM for Web was formerly known as Tivoli Access Manager for E-Business (TAMeb)

30
SSL Offload
Threat Protection
Rate Limiting / SLA Enforcement
Validation, Filtering
Authentication
Authorization
Context-based Access
Mobile SS0
Security Token Translation
Message Transformation
Content-Based Routing
Intelligent Load Distribution
Response Caching
Middleware / ESB,
Legacy Apps
Apps, Services
Rapidly Connect Mobile Apps with Enterprise Services
Securely expose enterprise data & APIs to Mobile Apps while optimizing delivery
ISAM Module
/apimanagement
Native, Hybrid,
Mobile Web

31

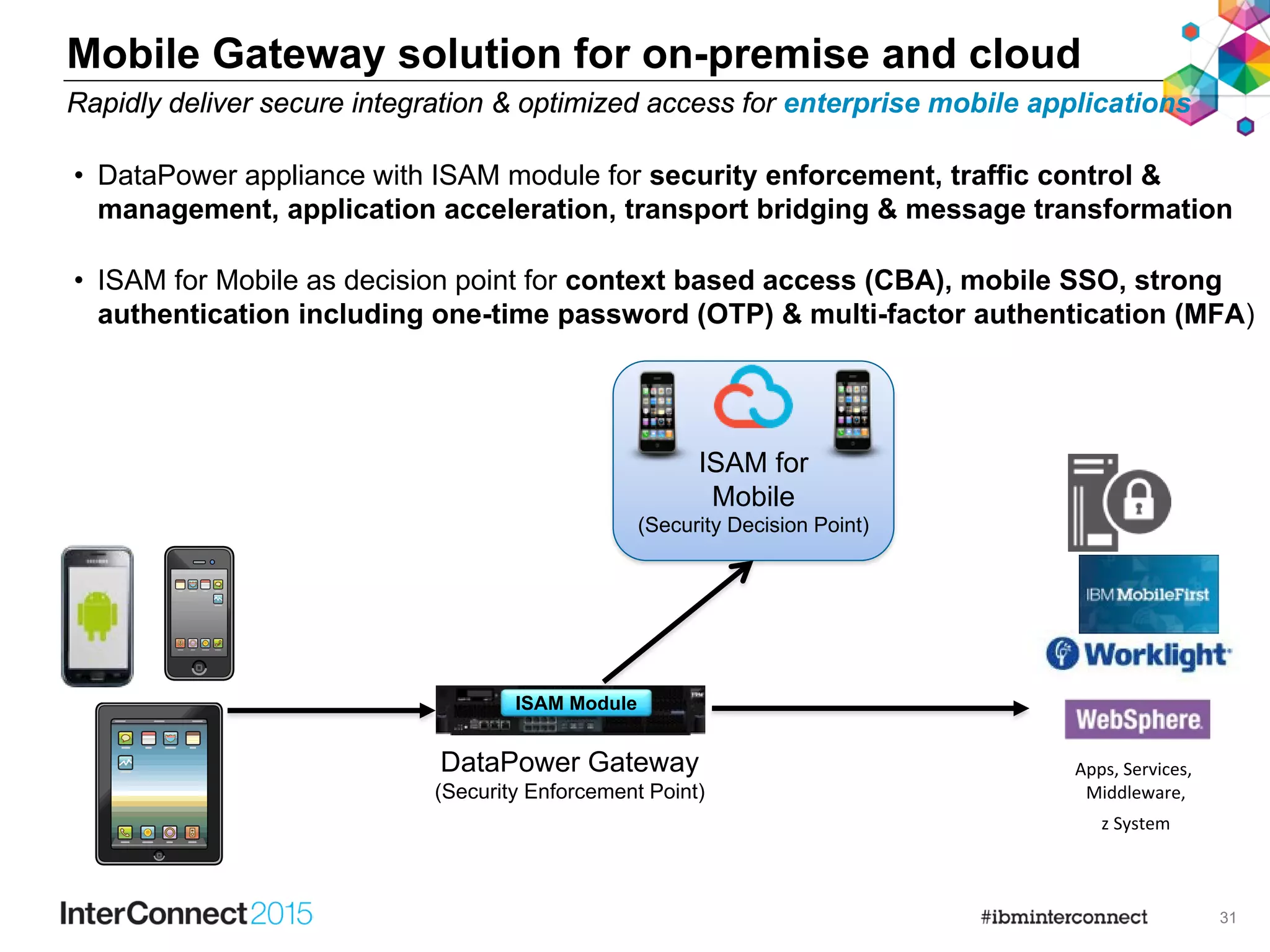

• DataPower appliance with ISAM module for security enforcement, traffic control &
management, application acceleration, transport bridging & message transformation
• ISAM for Mobile as decision point for context based access (CBA), mobile SSO, strong
authentication including one-time password (OTP) & multi-factor authentication (MFA)
Mobile Gateway solution for on-premise and cloud
ISAM for
Mobile
Rapidly deliver secure integration & optimized access for enterprise mobile applications
DataPower Gateway
(Security Enforcement Point)
ISAM Module
Apps, Services,
Middleware,
(Security Decision Point)
z System

32
Multi-Channel Gateway for MobileFirst & WebSphere Products

33
REST
1
5
3
2 4
Client
Provider
Improve
Response
Time
ImprovedLoad
DataPower
Large Response Time
WebSphere Extreme Scale (WXS)
http://www-01.ibm.com/support/docview.wss?uid=swg21697033
1. Client submits application request.
2. DataPower parses request and
queries WXS. On a hit, skip to step
5.
3. On a miss, DataPower forwards
request to target Provider.
4. DataPower adds application
response to WXS.
5. Client receives response from
DataPower.
Response Caching Integration with WXS
In addition to support for XC10

34
 Enhance security intelligence and compliance through integration with
QRadar security information and event management (SIEM) platform
 Device Support Module (DSM) for DataPower Gateways available to
parse event information

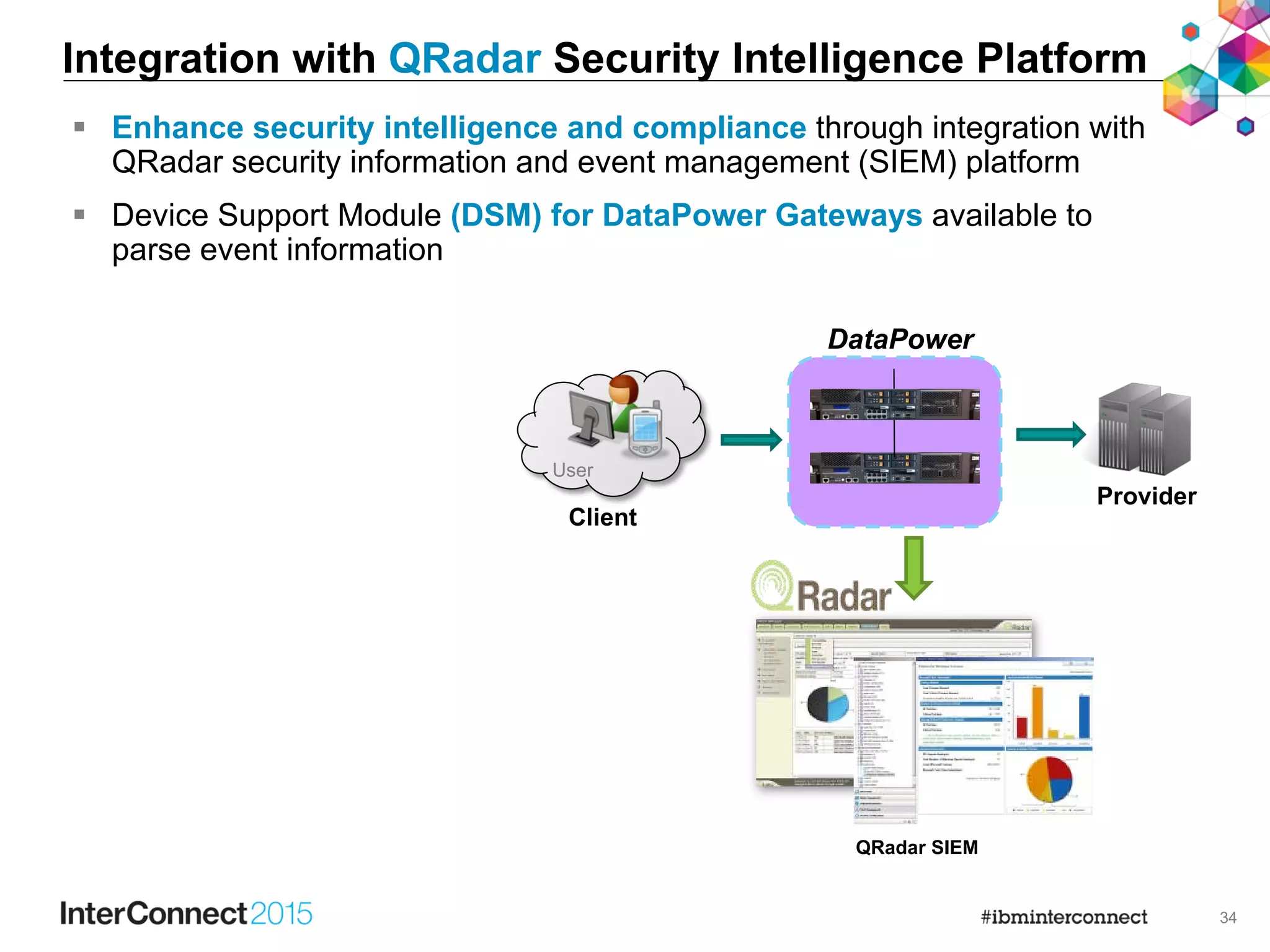

Integration with QRadar Security Intelligence Platform
QRadar SIEM
User
Client
Provider
DataPower

35

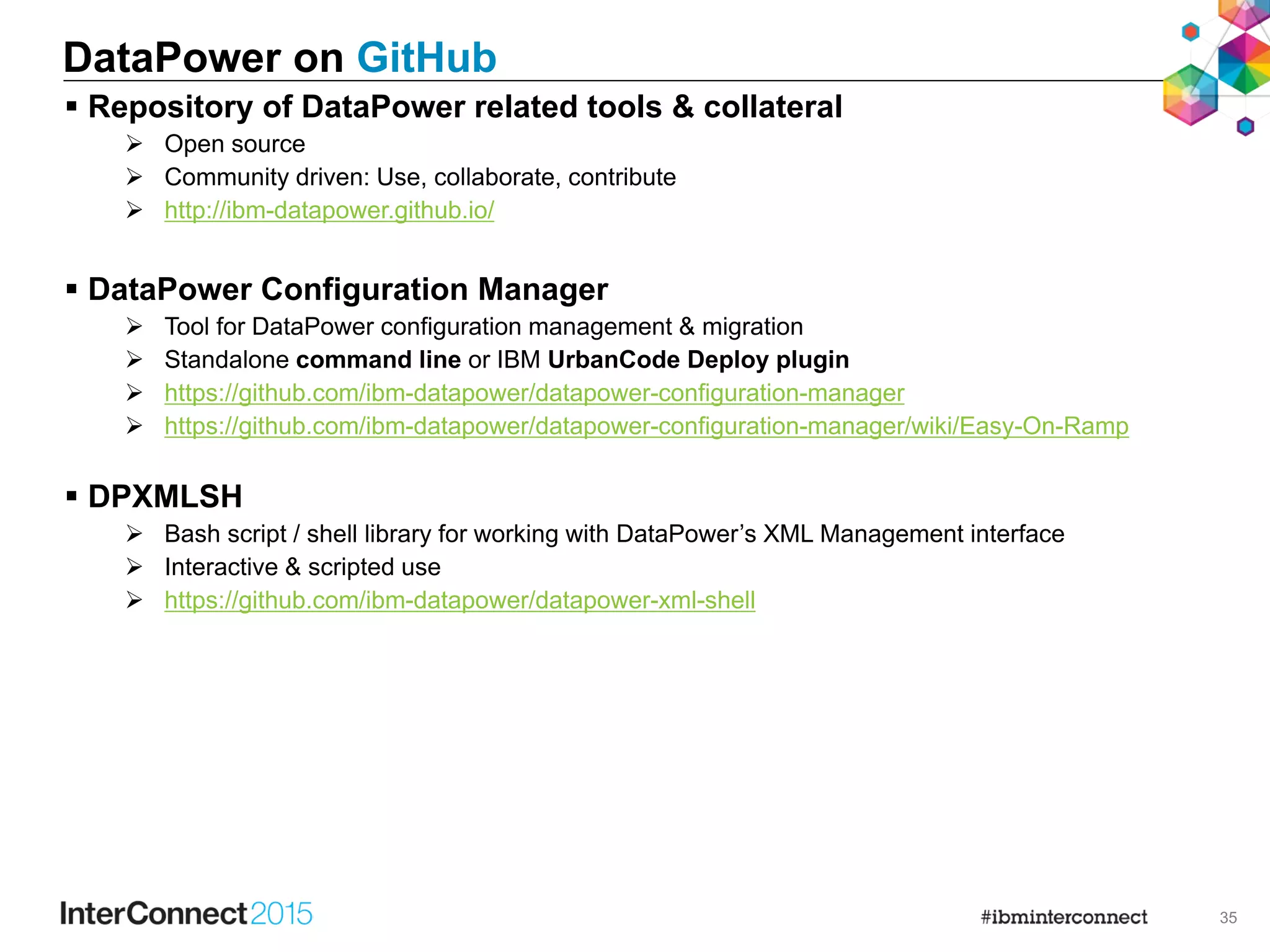

DataPower on GitHub
 Repository of DataPower related tools & collateral
 Open source
 Community driven: Use, collaborate, contribute
 http://ibm-datapower.github.io/
 DataPower Configuration Manager
 Tool for DataPower configuration management & migration
 Standalone command line or IBM UrbanCode Deploy plugin
 https://github.com/ibm-datapower/datapower-configuration-manager
 https://github.com/ibm-datapower/datapower-configuration-manager/wiki/Easy-On-Ramp
 DPXMLSH
 Bash script / shell library for working with DataPower’s XML Management interface
 Interactive & scripted use
 https://github.com/ibm-datapower/datapower-xml-shell

36
Secure. Integrate. Control. Optimize.
7.1
DataPower
IBM Gateway
Released
Nov 2014
Consolidated product
Single, modular & extensible gateway
platform to secure, integrate, control, &
optimize full range of workloads
New hardware platform
Increase capacity & throughput while
reducing latency with latest
generation hardware
Deployment flexibility
Use physical or virtual appliance with
seamless configuration migration with
on-premise & cloud deployments
B2B module
Centralize B2B trading partner
connectivity & transaction management
with high performance secure entry point
in the DMZ
Multi-channel gateway
Utilize single gateway with integrated
access enforcement from ISAM to secure &
optimize delivery of mobile, API, web, SOA,
B2B, cloud apps, and integrate with IBM
MobileFirst & WebSphere platforms
Enhanced security
Enable additional flexible authentication
from internet consumers & Non-Microsoft
consumers to Microsoft systems

37
Agenda
 Recent Releases
Q&A

38

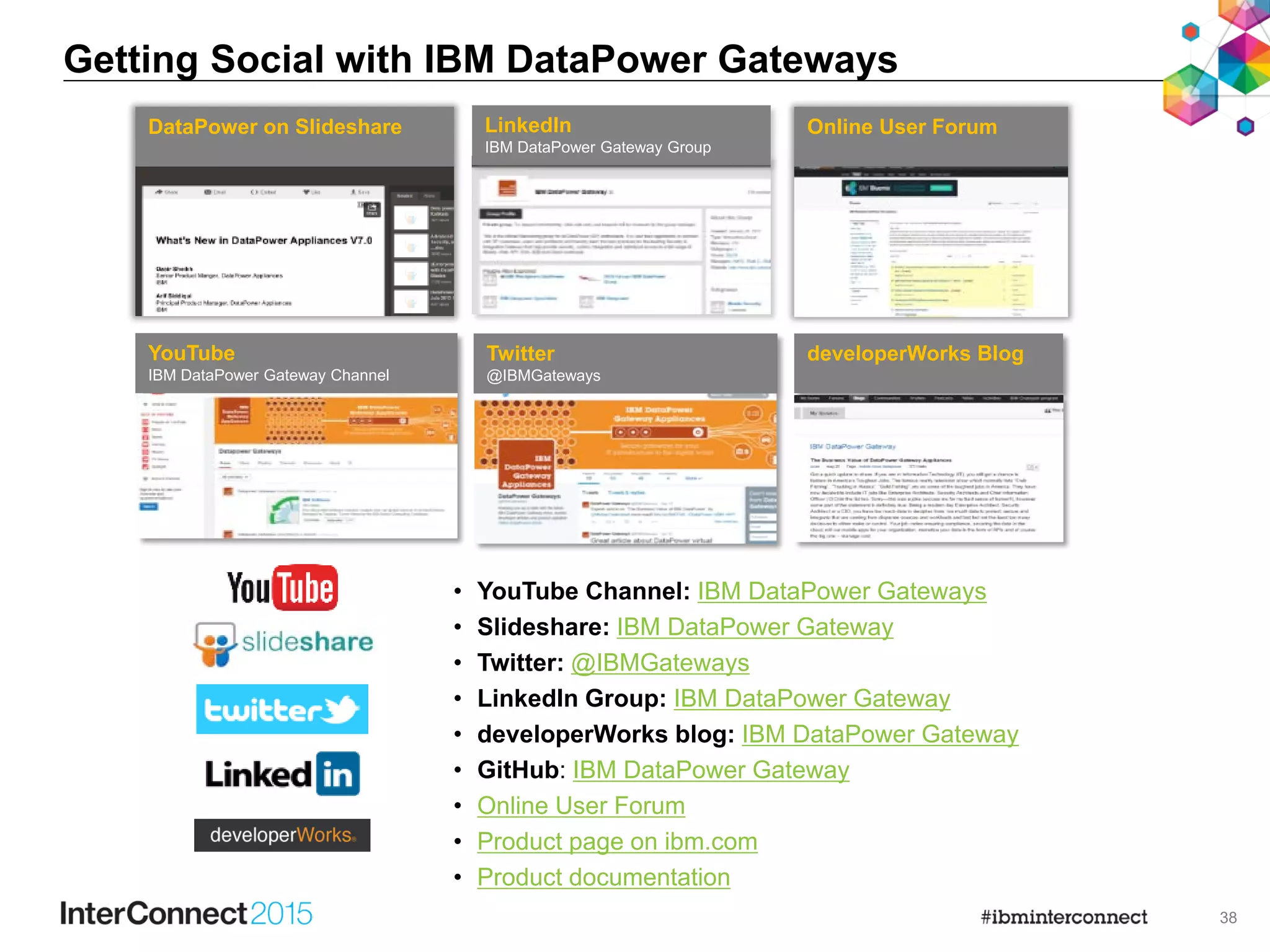

Getting Social with IBM DataPower Gateways
DataPower on Slideshare LinkedIn
IBM DataPower Gateway Group
developerWorks BlogYouTube
IBM DataPower Gateway Channel
Twitter
@IBMGateways
Online User Forum
• YouTube Channel: IBM DataPower Gateways
• Slideshare: IBM DataPower Gateway
• Twitter: @IBMGateways
• LinkedIn Group: IBM DataPower Gateway
• developerWorks blog: IBM DataPower Gateway
• GitHub: IBM DataPower Gateway
• Online User Forum
• Product page on ibm.com
• Product documentation

39

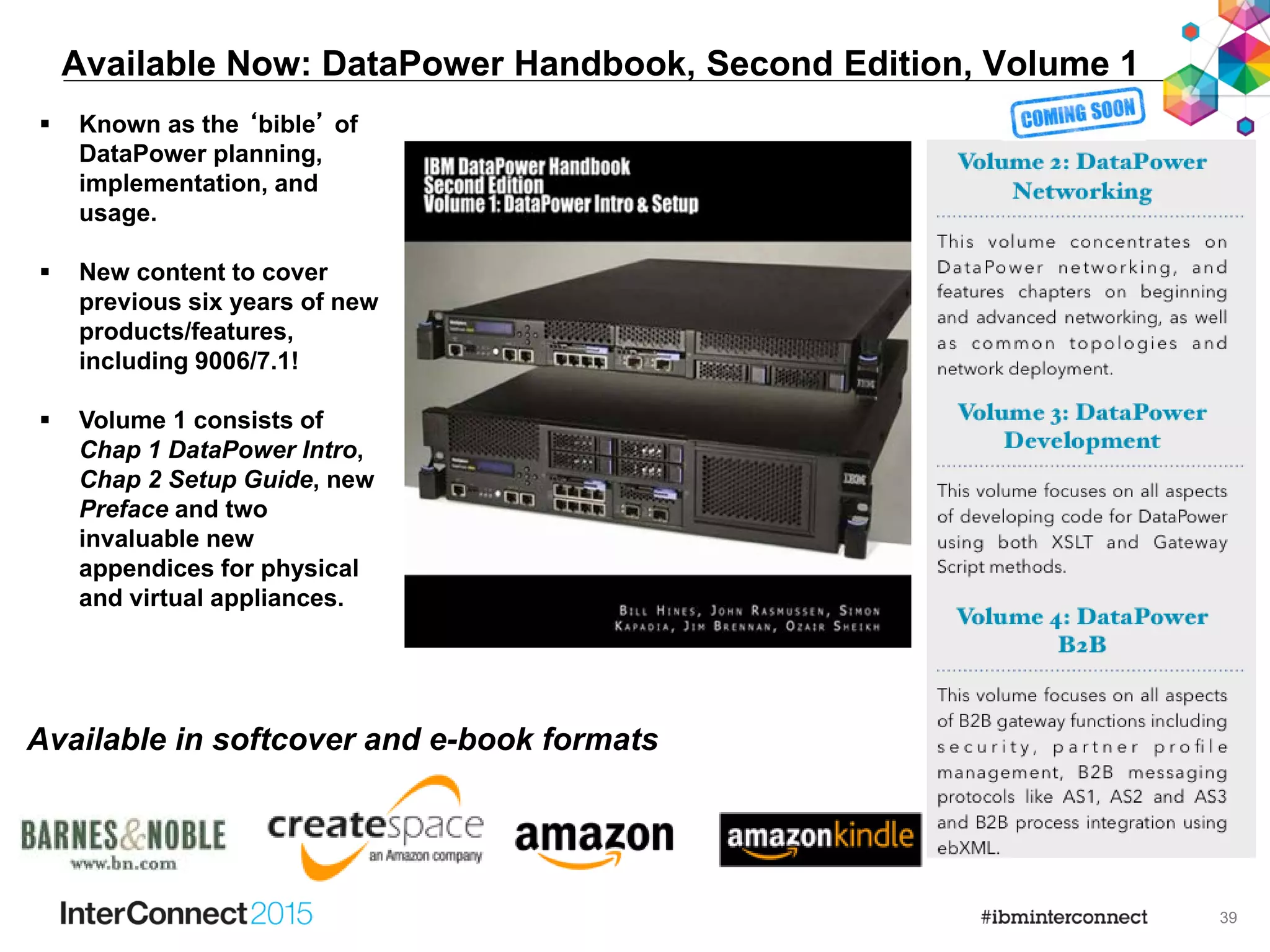

Available Now: DataPower Handbook, Second Edition, Volume 1
 Known as the ‘bible’ of
DataPower planning,
implementation, and
usage.
 New content to cover
previous six years of new
products/features,
including 9006/7.1!
 Volume 1 consists of
Chap 1 DataPower Intro,
Chap 2 Setup Guide, new
Preface and two
invaluable new
appendices for physical
and virtual appliances.
Available in softcover and e-book formats

41
• Data format & language
– JavaScript
‒ JSON
‒ JSON Schema
‒ JSONiq
‒ REST
‒ SOAP 1.1, 1.2
‒ WSDL 1.1
‒ XML 1.0
‒ XML Schema 1.0
‒ XPath 1.0
‒ XPath 2.0 (XQuery only)
‒ XSLT 1.0
‒ XQuery 1.0
• Security policy enforcement
‒ OAuth 2.0
‒ SAML 1.0, 1.1 and 2.0, SAML Token
Profile, SAML queries
‒ XACML 2.0
‒ Kerberos (including S4U2Self, S4U2Proxy)
‒ SPNEGO
‒ RADIUS
‒ RSA SecurID OTP using RADIUS
‒ LDAP versions 2 and 3
‒ Lightweight Third-Party Authentication
‒ Microsoft Active Directory
‒ FIPS 140-2 Level 3 (w/ optional HSM)
‒ FIPS 140-2 Level 1 (w/ certified crypto module)
‒ SAF & IBM RACF® integration with z/OS
‒ Internet Content Adaptation Protocol
‒ W3C XML Encryption
‒ W3C XML Signature
‒ S/MIME encryption and digital signature
‒ WS-Security 1.0, 1.1
‒ WS-I Basic Security Profile 1.0, 1.1
‒ WS-SecurityPolicy
‒ WS-SecureConversation 1.3

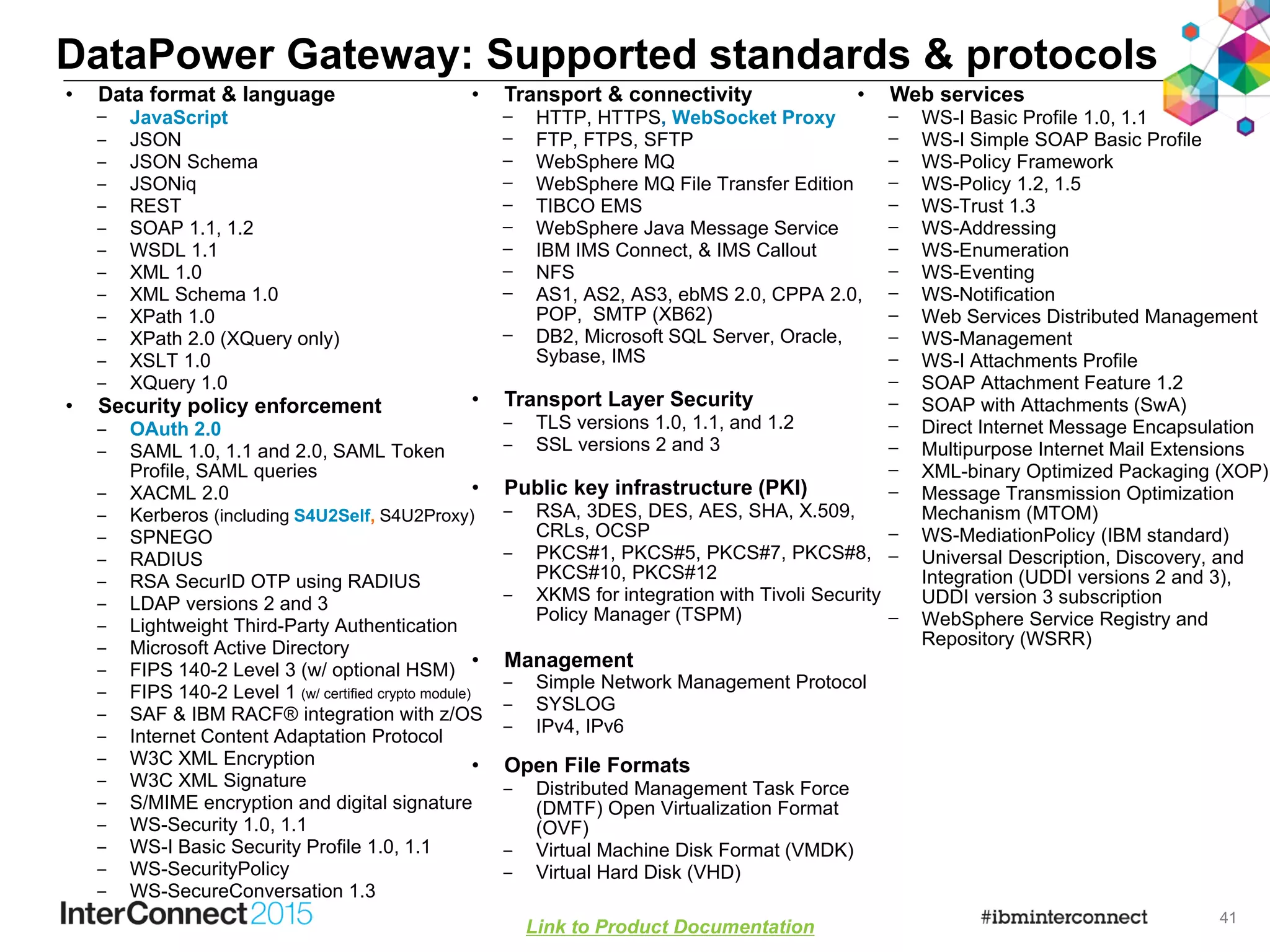

DataPower Gateway: Supported standards & protocols
• Transport & connectivity
– HTTP, HTTPS, WebSocket Proxy
– FTP, FTPS, SFTP
– WebSphere MQ
– WebSphere MQ File Transfer Edition
– TIBCO EMS
– WebSphere Java Message Service
– IBM IMS Connect, & IMS Callout
– NFS
– AS1, AS2, AS3, ebMS 2.0, CPPA 2.0,
POP, SMTP (XB62)
– DB2, Microsoft SQL Server, Oracle,
Sybase, IMS
• Transport Layer Security
‒ TLS versions 1.0, 1.1, and 1.2
‒ SSL versions 2 and 3
• Public key infrastructure (PKI)
‒ RSA, 3DES, DES, AES, SHA, X.509,
CRLs, OCSP
‒ PKCS#1, PKCS#5, PKCS#7, PKCS#8,
PKCS#10, PKCS#12
‒ XKMS for integration with Tivoli Security
Policy Manager (TSPM)
• Management
‒ Simple Network Management Protocol
‒ SYSLOG
‒ IPv4, IPv6
• Open File Formats
‒ Distributed Management Task Force
(DMTF) Open Virtualization Format
(OVF)
‒ Virtual Machine Disk Format (VMDK)
‒ Virtual Hard Disk (VHD)
Link to Product Documentation
• Web services
– WS-I Basic Profile 1.0, 1.1
– WS-I Simple SOAP Basic Profile
– WS-Policy Framework
– WS-Policy 1.2, 1.5
– WS-Trust 1.3
– WS-Addressing
– WS-Enumeration
– WS-Eventing
– WS-Notification
– Web Services Distributed Management
– WS-Management
– WS-I Attachments Profile
– SOAP Attachment Feature 1.2
– SOAP with Attachments (SwA)
– Direct Internet Message Encapsulation
– Multipurpose Internet Mail Extensions
– XML-binary Optimized Packaging (XOP)
– Message Transmission Optimization
Mechanism (MTOM)
– WS-MediationPolicy (IBM standard)
– Universal Description, Discovery, and
Integration (UDDI versions 2 and 3),
UDDI version 3 subscription
– WebSphere Service Registry and
Repository (WSRR)

42

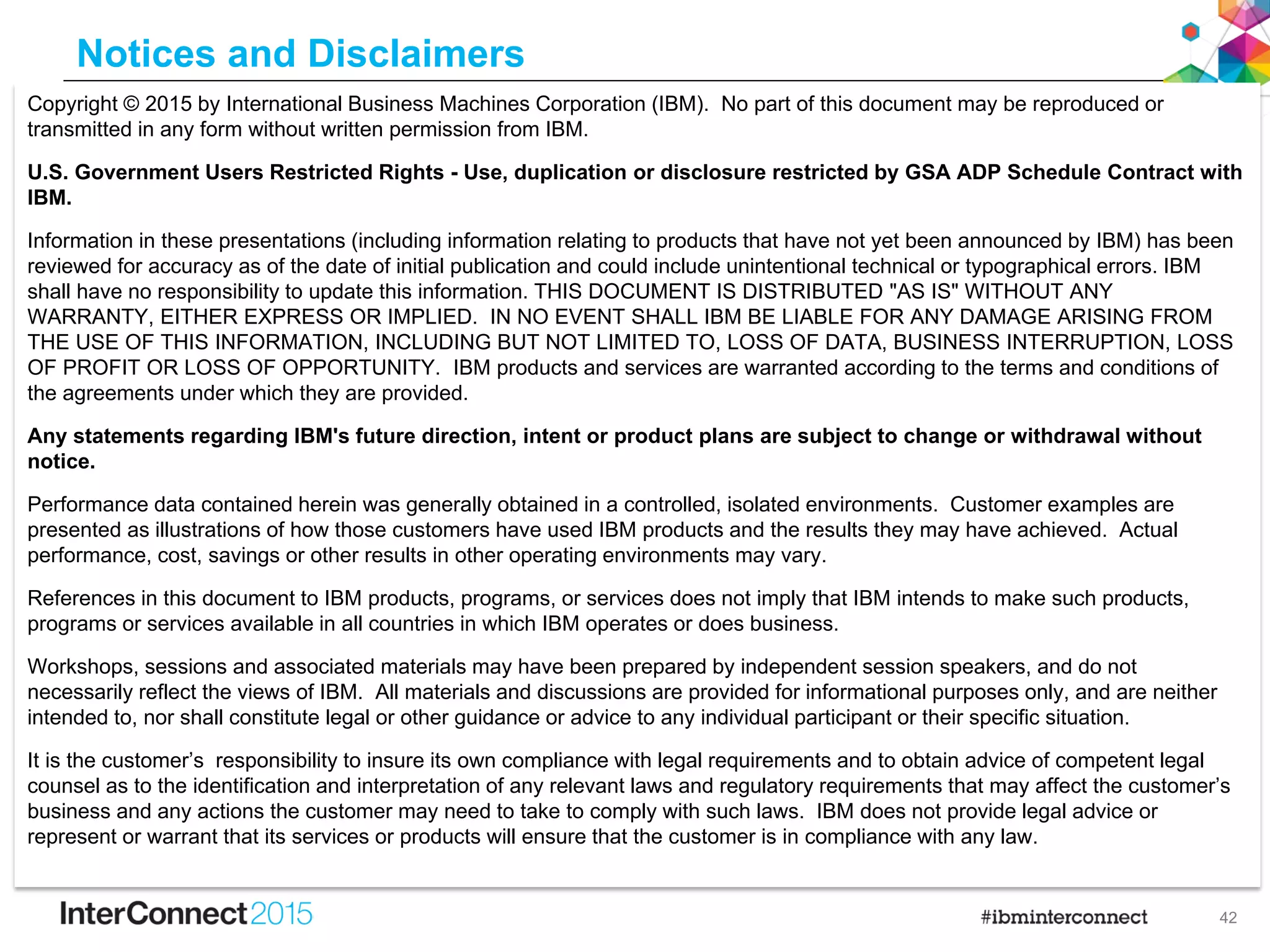

Notices and Disclaimers
Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or
transmitted in any form without written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been
reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM
shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY
WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM
THE USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS
OF PROFIT OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of
the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without
notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are
presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual
performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products,
programs or services available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not
necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither
intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal
counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s
business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or
represent or warrant that its services or products will ensure that the customer is in compliance with any law.

43

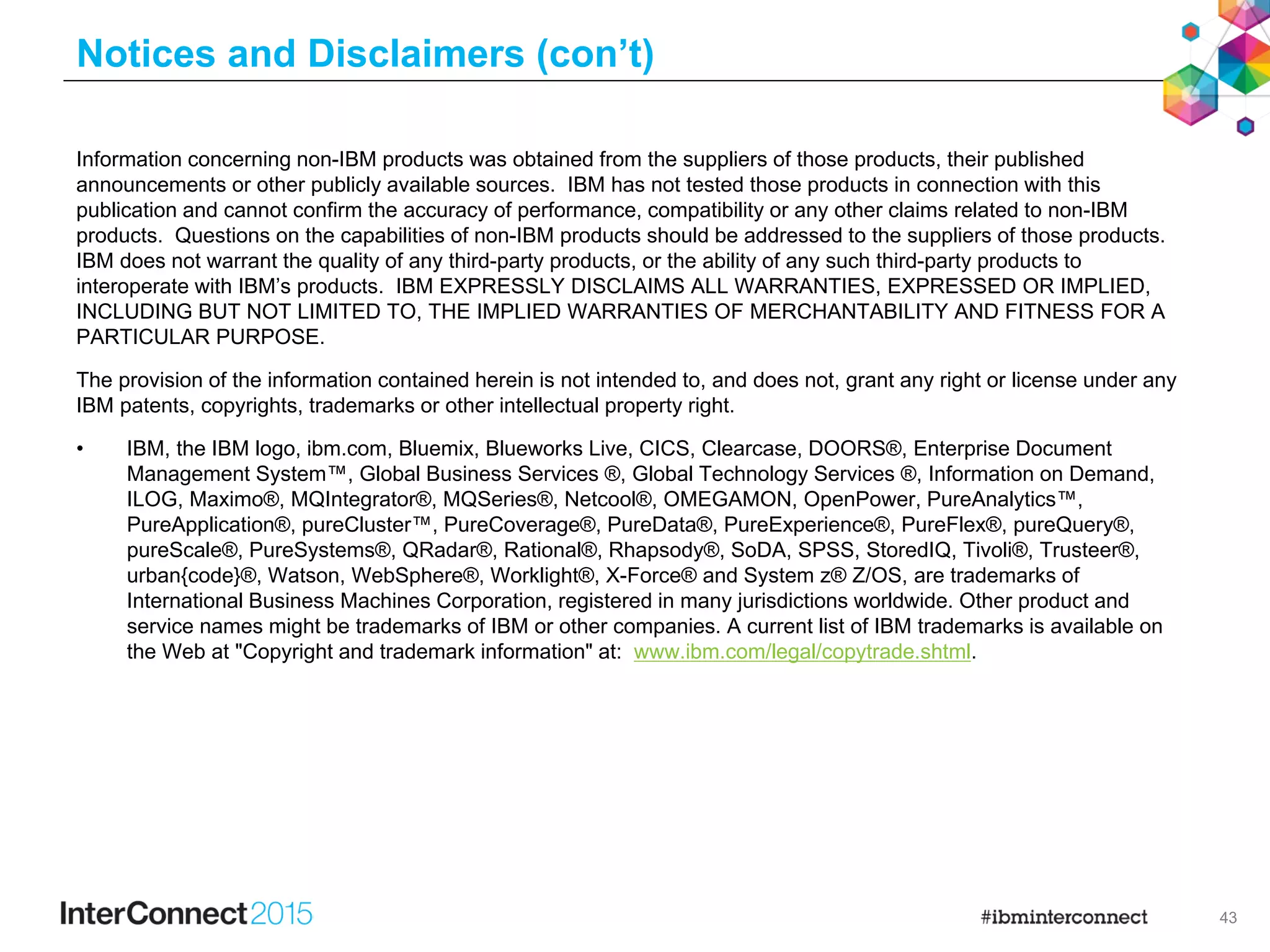

Notices and Disclaimers (con’t)
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products in connection with this
publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM
products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.
IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to
interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any
IBM patents, copyrights, trademarks or other intellectual property right.
• IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document
Management System™, Global Business Services ®, Global Technology Services ®, Information on Demand,
ILOG, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™,
PureApplication®, pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®,
pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®,
urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of
International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and
service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on
the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.

Thank You
Your Feedback is
Important!
Access the InterConnect 2015
Conference CONNECT Attendee
Portal to complete your session
surveys from your smartphone,
laptop or conference kiosk.

IBM DataPower Gateway What's New in V7.1

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (19)

Similar to IBM DataPower Gateway What's New in V7.1

Similar to IBM DataPower Gateway What's New in V7.1 (20)

More from sflynn073

More from sflynn073 (20)

IBM DataPower Gateway What's New in V7.1
