This document discusses real-time systems and operating systems. It defines real-time systems as those that must complete work and deliver services on time. Hard real-time systems have fatal consequences for missed deadlines, while soft real-time systems have degraded performance. Real-time operating systems use scheduling algorithms like priority scheduling to deterministically allocate CPUs and resources. They also address issues like priority inversion and interrupt handling to ensure timing constraints are always met.

1. 1.Real Time Systems

2. Presentation Outline
Definitions
Types
Features of Real Time Operating
Systems
 Scheduling
 Resource Allocation
 Other Issues

3. Real Time System
A system is said to be Real Time if
it is required to complete it’s work
& deliver it’s services on time.
Example – Flight Control System
 All tasks in that system must execute
on time.

4. Hard and Soft Real Time Systems
Hard Real Time System
 Failure to meet deadlines is fatal
 example : Flight Control System
Soft Real Time System
 Late completion of jobs is undesirable but not
fatal.
 System performance degrades as more & more
jobs miss deadlines
 Online Databases, Multimedia System,Video
Streaming System

5. Some Definitions
Timing constraint: constraint imposed on timing
behavior of a job: hard or soft.
Release Time: Instant of time job becomes
available for execution. If all jobs are released when
the system begins execution, then there is said to be
no release time
Deadline: Instant of time a job's execution is
required to be completed. If deadline is infinity, then
job has no deadline. Absolute deadline is equal to
release time plus relative deadline
Response time: Length of time from release time to
instant job completes.

6. Tasks and Jobs: Definitions
A task is like a process or thread in an
OS.
Task─ term used for the process in the
RTOSes for the embedded systems.
For example, VxWorks and μCOS-II
are the RTOSes, which use the term
task.
Job (Jij): Unit of work, scheduled and
executed by system.

7. Features of RTOS’s
Scheduling.
Resource Allocation.
Interrupt Handling.
Other issues like kernel size.

8. Other Features Of RTOS’s
1. Real-Time Operations i.e. Perform
immediate operations when needed
2. Low Power Consumption, i.e. no
power consumption when not doing any
work
3. RTOS usually has the basic and
common features of OS to eliminate
complexity.
4. Simple device interface.

9. Scheduling in RTOS
More information about the tasks are known
 No of tasks
 Resource Requirements
 Release Time
 Execution time
 Deadlines
Being a more deterministic system better
scheduling algorithms can be devised.

10. Scheduling Algorithms in RTOS
Clock Driven Scheduling
Weighted Round Robin Scheduling
Priority Scheduling
(Greedy / List / Event Driven)

11. Scheduling Algorithms in RTOS (contd)
Clock Driven
 All parameters about jobs (release time/
execution time/deadline) known in
advance.
 Schedule can be computed offline or at
some regular time instances.
 Minimal runtime overhead.
 Not suitable for many applications.

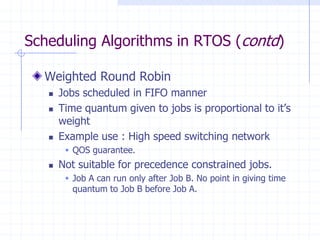

12. Scheduling Algorithms in RTOS (contd)
Weighted Round Robin
 Jobs scheduled in FIFO manner
 Time quantum given to jobs is proportional to it’s
weight
 Example use : High speed switching network
 QOS guarantee.
 Not suitable for precedence constrained jobs.
 Job A can run only after Job B. No point in giving time
quantum to Job B before Job A.

13. Scheduling Algorithms in RTOS (contd)
Priority Scheduling
(Greedy/List/Event Driven)
 Processor never left idle when there are
ready tasks
 Processor allocated to processes according
to priorities
 Priorities
 static - at design time
 Dynamic - at runtime

14. Priority Scheduling
Earliest Deadline First (EDF)
 Process with earliest deadline given highest priority
Least Slack Time First (LSF):-Least Slack Time (LST)
scheduling is a scheduling algorithm. It assigns priority based
on the slack time of a process. Slack time is the amount of time
left after a job if the job was started now.
 slack = relative deadline – execution left
Rate Monotonic Scheduling (RMS):-In computer science, rate-
monotonic scheduling (RMS) is a scheduling algorithm used
in real-time operating systems with a static-priority scheduling
class. The static priorities are assigned on the basis of the cycle
duration of the job: the shorter the cycle duration is, the higher
is the job's priority.

15. Resource Allocation in RTOS
Resource Allocation
 The issues with scheduling applicable here.
 Resources can be allocated based on
 Weighted Round Robin
 Priority Based
Some resources are non preemptible
 Example : semaphores
Priority Inversion if priority scheduling is used

16. Priority inversion
priority inversion is a problematic
scenario in scheduling in which a high
priority task is indirectly preempted by a
medium priority task effectively
"inverting" the relative priorities of the
two tasks.

17. Solutions to Priority Inversion
Non Blocking Critical Section
 Higher priority Thread may get blocked by
unrelated low priority thread
Priority Ceiling
 Each resource has an assigned priority
 Priority of thread is the highest of all priorities of
the resources it’s holding
Priority Inheritance
 The thread holding a resource inherits the priority
of the thread blocked on that resource

18. Other RTOS issues
Interrupt Latency should be very small
 Kernel has to respond to real time events
 Interrupts should be disabled for minimum
possible time
For embedded applications Kernel Size
should be small
 Should fit in ROM
