The document describes the design and functioning of a robotic arm that can be controlled through hand gestures. The robotic arm has several degrees of freedom and uses sensors like accelerometers and flex sensors to capture hand movements. The analog sensor signals are processed by a microcontroller to generate PWM signals that control servo motors for joint movement. A DC motor is used for the gripper part to pick and place objects. The robotic arm has applications in industrial automation and medical procedures.

1. ROBOTICS ARM
BY
JOVIN RICHARD
Ichardsrobotics.blogspot.com

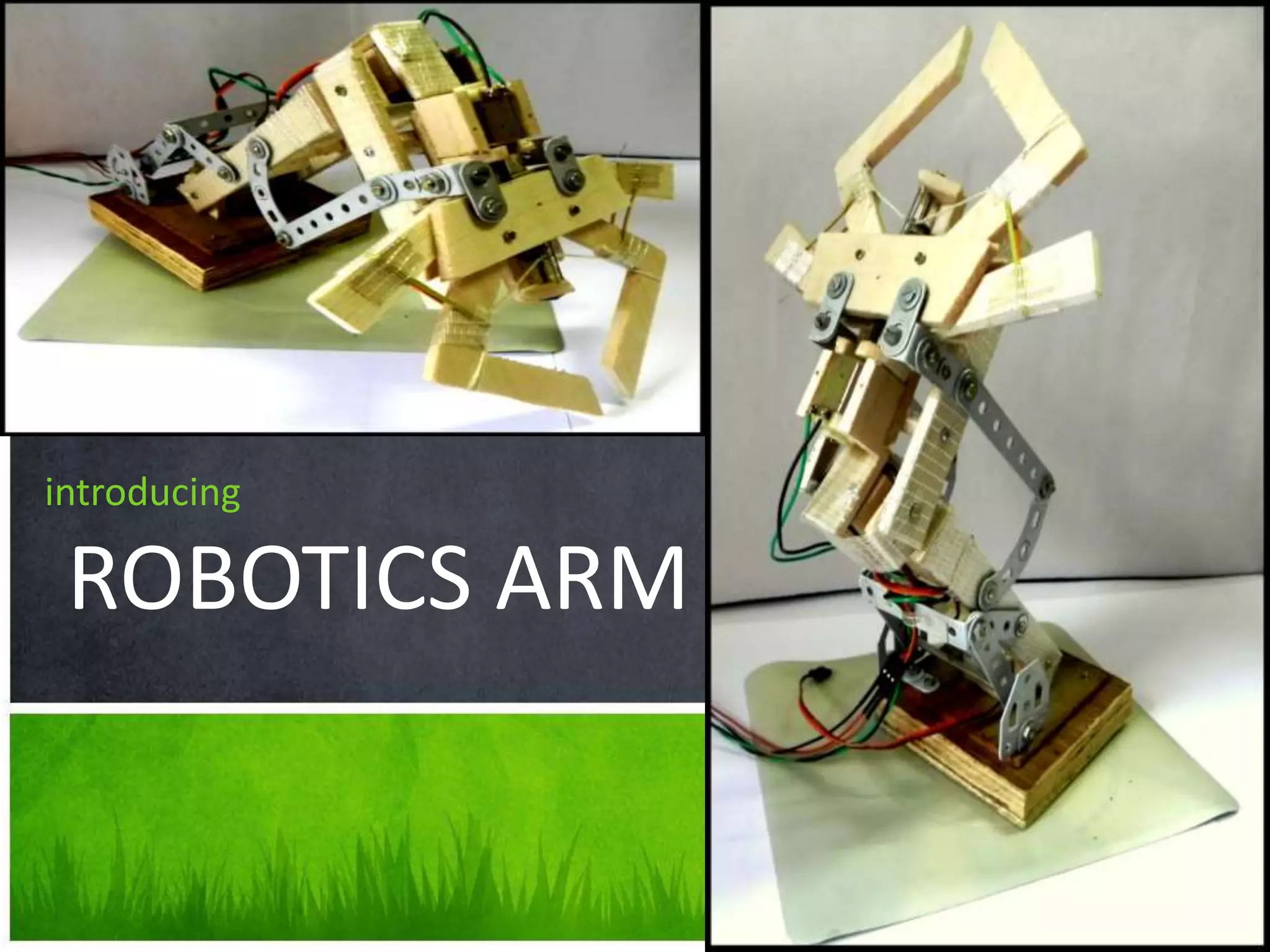

2. introducing
ROBOTICS ARM
a tour of new features

3. AIM OF THE PROJECT
• The main aim of our project is to build a
robotic arm that can grip or pick things
• We have implemented the robotic arm that
can be controlled by gesture commands. We
have proposed a simple algorithm for hand
gesture recognition.

4. What is a
ROBOTICS ARM???

5. ROBO ARM & DEGREE OF FREEDOM
• A robotic arm is a
robotic manipulator,
usually programmable,
with similar functions to
a human arm.
• It has about the same
number of degree of
freedom as in human
arm.

6. MAKING OF ROBOTICS ARM AT A GLANCE
 The movement of the human arm is sensed by accelerometer
 The accelerometer generates an analog voltage accordingly.
 The movement of fingers is sensed by flex sensors which causes a
change in the resistance
 An impedance follower is used to convert the resistance to
voltage.
 The analog voltages are then digitized using an A/D converter .
 It is then sent to the microcontroller.
 Microcontroller differentiates all data of X-axis, Y-axis & Z-axis.
 These data are used to generate PWM signal for corresponding
servo motors.
 The data from flex sensor are used to drive a motor driver
 This motor driver drives the DC motor of the gripper part

7. To build a gestures control robotics arm
We have technical details for every step of the way
Sensors
Module
Logical
Module
Execution
Module

8. SENSORS Module
Capture and Organize

9. HOW THE GESTURES CAN BE
CAPTURED?
Analog output
voltage
Accelerometer
& Flex Sensors
Movement of
human arm

10. ACCELEROMETER
• The movement of the human arm is
sensed by accelerometer.
• The accelerometer generates an
analog voltage accordingly.
• Analog voltage passes through a
lowpass filter

11. Mode of operation
 The 3-axis accelerometer
attached
to the right arm is used
to recognize gestures
and postures.
 The robot moves along the X,
Y and Z axes separately.
 To move
the robot in the X direction,
the user should move the
accelerometer along the X axis,
keeping it in the horizontal.

12. Recognition of gestures
and postures
When the arm is moved in the
positive X direction (X+) initially
the value of acceleration x a
increases because the arm begins
to move and then, when the arm
begins to slow the positive value
of x a is converted to a negative
value. This point ( a 0 x = ) marks
the point of maximum speed. The
acceleration a y remains near to
zero and z a remains near to one
because the accelerometer is held
horizontally (acceleration due to
gravity).

13. LOGICAL Module
Analysis, Calculate and Making decision

14. HUMAN TO MCU INTERFACE
• The analog
voltage is then
digitized using an
A/D converter .
• It is then sent to
the
microcontroller
where it
generates a
unique 8 bit digit
code for different
axis and different
voltages.
Analog
data enter
to ADC
MCU
8 bit
binary
data

15. Atmega8(L)-FEW FEATURES
The microcontroller used for the
project is Atmega8(L).
ADC7..6 (TQFP andQFN/MLF
Package Only)-In the TQFP and
QFN/MLF package, ADC7..6 serve as
analog inputs to the A/D
converter.These pins are powered
from the analog supply and serve as
10-bit ADC channels.
The ATmega8 on the board comes
pre-loaded with a bootloader
program, which can be used to burn
your project’s HEX files on the
microcontroller directly via the USB
connector without any separate
programmer.

16. Activating the accelerometer:
•Accelerometer
first remains at
sleep mode.
•A positive high
signal sent to SL
pin of
accelerometer
through PB4 pin of
MCU to activate
the accelerometer.

17. MCU TO MECHANICAL PART INTERFACE
• The 8 bit data is then
sent to be compared
with registers of Timer1.
• Content of OCR1A &
OCR1B are compared
with ICR1 and PWM
signals are generated.

18. EXECUTION Module
Collect data and Follow instructions

19. WORKING OF MECHANICAL PART
Movement
of
ROBOTICS
ARM
Motors
Motor
driver

20. MOTORS
• Motors are used for joint
rotation.
• The base consists of a servo
motor allowing
forward/backward
movement.
• The elbow consists of a
servo motor allowing
up/down movement of the
arm.
• The grip consists of a d.c.
motor allowing to grip a
object.

21. What makes a Servo
Servo motors are constructed out of basic DC
motors, by adding:
• some gear reduction
• a position sensor for the motor shaft
• an electronic circuit that controls the
motor's operation

22. Feed-back loop
It is a
closed servomechanism that
uses position feedback to
control its motion and final
position.
 The input to its control is
some signal, either analogue
or digital, representing the
position commanded for the
output shaft.
The motor is paired with
some type of encoder to
provide position and speed
feedback.

23. How do servo
motors work ?
Servos are controlled by sending an
electrical pulse of variable width, or pulse
width modulation (PWM), through the
control wire.
 There is a minimum pulse, a maximum
pulse, and a repetition rate.
 Servo motors can usually only turn 90
degrees in either direction for a total of 180
degree movement.
The PWM sent to the motor determines
position of the shaft, and based on the
duration of the pulse sent via the control
wire; the rotor will turn to the desired
position.
 The servo motor expects to see a pulse
every 20 milliseconds (ms) and the length of
the pulse will determine how far the motor
turns. For example, a 1.5ms pulse will make
the motor turn to the 90-degree position.
Shorter than 1.5ms moves it to 0 degrees,
and any longer than 1.5ms will turn the
servo to 180 degrees,

24. GRIP
 Dc motor which is driven by a motor driver
(L293D) is used for the gripper part.
The L293D is designed to provide bidirectional
drive currents of up to 600-mA at voltages from 4.5
V to 36 V.

25. gg The bent in fingers
is indicated by the
change in resistance
which in turn drives
the dc motor
attached to the
gripper.
 As the motor
rotates the gripper
closes in thus
grabbing the object
in between.

26. D.C.MOTOR
SERVO MOTOR
SERVO MOTOR
BASE
The arm is made with
balsa wood. The wood
pieces are carefully cut
according to the
measurements and then
they are put together to
form the structure of the
arm.

27. ?But wait…
There’s More!
Why we need ROBOTICS ARM???

28. . The robotic arm can be designed to perform any desired task
such as welding, gripping, spinning etc.
. The space shuttle Remote Manipulator System have multi
degree of freedom robotic arms
. In various industrial or home applications
. In medical science: soft tissue manipulation, needle insertion,
suturing, and cauterization.
SOME APPLICATIONS

29. FUTURE SCOPE
 MECHANICAL DESIGN-more
efficient, reliable, improved power
UNIVERSAL GRIPPER-capable
of doing multiple tasks
MOBILITY & NAVIGATION-
mobile able to move under their
own power & navigation systems
SENSOR CAPABILITIES-3
accelerometers used for shoulder,
elbow & wrist movement allowing
circular & angular movements
TELE PRESENCE-communicate
information about its environment
back to a remote “safe” location
INTELLIGENCE-Capable of
making decisions about the task it
performs.

30. CONCLUSION
Robots help people with tasks that would be
difficult, unsafe, or boring for a real person to do
alone. To conclude, robotic arm, is probably the
most mathematically complex robotic part one
could ever build.

31. THANK YOU
