This document describes a project to build a voice-operated wheelchair for physically disabled persons. The objective is to design hardware for voice recognition and corresponding wheelchair actions. Group members include Mandar Jadhav, Mayuresh Todkar and Dayanand Patil, guided by Dr. V. Jayashree. The system is aimed to help those paralyzed below the neck or with quadriplegia. It will allow independent wheelchair movement through voice commands without need for personal assistance. The design uses a microphone, voice recognition IC, microcontroller, motor drivers and batteries to power DC motors for forward, reverse, left and right wheelchair movement.
it is a smart wheelchair which uses voice and bluetooth commands . Also consists of temperature and heartbeat sensors for continuous monitoring by the doctor.
It consisting Mobile app, Arduino, Bluetooth Receiver module, L293D ic etc. The movement of robot is controlled by the voice which catch by the microphone inside the mobile.
it is a smart wheelchair which uses voice and bluetooth commands . Also consists of temperature and heartbeat sensors for continuous monitoring by the doctor.
It consisting Mobile app, Arduino, Bluetooth Receiver module, L293D ic etc. The movement of robot is controlled by the voice which catch by the microphone inside the mobile.
Project report on Vehicle accident and Alcohol sensing alert with Engine Lock...Hitesh Kumar Singh
The main purpose behind this project is “Drunk driving detection”. Now a days, many accidents are happening because of the alcohol consumption of the driver or the person who is driving the vehicle. Thus, Drunk driving is a major reason of accidents in almost all the countries in the world. Alcohol Detector in Car project is designed for the safety of the people seating inside the car. This project should be fitted / installed inside the vehicle. If any Accident occurs then engine goes off and Alarm goes on. If there is no alcohol / no accident, then the Engine remains on and Alarm remains off. Even, if the Alcohol is detected, the engine goes off Alarm starts beeping.
This robotic wheelchair operated by human speech commands. The system operates with the use of a android device which is transmits voice commands to an 8051 microcontroller to achieve this functionally. The transmitter consists of the Bluetooth devices . The voice commands recognized by the module are transmitted by through the Bluetooth transmitter . This commands are detected by the robotic wheelchair in order to move it in left , right ,backward and front direction
In this project we will be controlling the speed of Dc motor using Arduino controller. Dc motor is drive by using PWM technique and then using encoder to sense the rpm of DC motor. Encoder produces pulses in the output, which is feed into Arduino and Arduino controls the speed of DC motor. So we have implemented the feedback system which controls the speed of DC motor.
Patients having injuries and physical disabilities and with good mental health face a lot of difficulty when using the conventional hand powered wheelchair. This project enables an economic assembly in any existing wheelchair that enables a smart system for automated motion which can be controlled by any Smartphone. The concept particularly mentions ‘Smartphone’ which covers devices like any Android powered mobile phone which have inbuilt 3 axis accelerometer and Bluetooth Wireless technology. The functionality can be extended to other mobile devices using a suitable application. The other end of the system has a micro controller powers the DC motor for linear motion of the wheelchair. The DC motor connected to the rear wheels enables linear motion.
This is an android based automated wheelchair that can be used by differently able.
• It uses android based Smartphone’s which have inbuilt axis accelerator sensors and Bluetooth wireless technology.
• The proposed concept exploits these features of the smart phones to use at as a transmitter and control device.
• This is an android based automated wheelchair that can be used by differently able.
• It uses android based Smartphone’s which have inbuilt axis accelerator sensors and Bluetooth wireless technology.
• The proposed concept exploits these features of the smart phones to use at as a transmitter and control device.
Project report on Vehicle accident and Alcohol sensing alert with Engine Lock...Hitesh Kumar Singh
The main purpose behind this project is “Drunk driving detection”. Now a days, many accidents are happening because of the alcohol consumption of the driver or the person who is driving the vehicle. Thus, Drunk driving is a major reason of accidents in almost all the countries in the world. Alcohol Detector in Car project is designed for the safety of the people seating inside the car. This project should be fitted / installed inside the vehicle. If any Accident occurs then engine goes off and Alarm goes on. If there is no alcohol / no accident, then the Engine remains on and Alarm remains off. Even, if the Alcohol is detected, the engine goes off Alarm starts beeping.
This robotic wheelchair operated by human speech commands. The system operates with the use of a android device which is transmits voice commands to an 8051 microcontroller to achieve this functionally. The transmitter consists of the Bluetooth devices . The voice commands recognized by the module are transmitted by through the Bluetooth transmitter . This commands are detected by the robotic wheelchair in order to move it in left , right ,backward and front direction
In this project we will be controlling the speed of Dc motor using Arduino controller. Dc motor is drive by using PWM technique and then using encoder to sense the rpm of DC motor. Encoder produces pulses in the output, which is feed into Arduino and Arduino controls the speed of DC motor. So we have implemented the feedback system which controls the speed of DC motor.
Patients having injuries and physical disabilities and with good mental health face a lot of difficulty when using the conventional hand powered wheelchair. This project enables an economic assembly in any existing wheelchair that enables a smart system for automated motion which can be controlled by any Smartphone. The concept particularly mentions ‘Smartphone’ which covers devices like any Android powered mobile phone which have inbuilt 3 axis accelerometer and Bluetooth Wireless technology. The functionality can be extended to other mobile devices using a suitable application. The other end of the system has a micro controller powers the DC motor for linear motion of the wheelchair. The DC motor connected to the rear wheels enables linear motion.
This is an android based automated wheelchair that can be used by differently able.
• It uses android based Smartphone’s which have inbuilt axis accelerator sensors and Bluetooth wireless technology.
• The proposed concept exploits these features of the smart phones to use at as a transmitter and control device.
• This is an android based automated wheelchair that can be used by differently able.
• It uses android based Smartphone’s which have inbuilt axis accelerator sensors and Bluetooth wireless technology.
• The proposed concept exploits these features of the smart phones to use at as a transmitter and control device.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
This project is to develop a wheel chair for physically disabled people
The wheel chair is controlled by hand movement/hand gestures
The gestures are recognized by an accelerometer sensor
An ultrasonic sensor is used to detect the obstacles in front of the chair
The signals from the sensors are processed, and the wheel chair is controlled by Atmega-328 micro controller
Wheelchair is truly is mobility orthosis.
A properly prescribed wheelchair can be useful device in reintegrating a person with a disability into the community.
Eye Movement based Human Computer Interaction TechniqueJobin George
Eye movement-based interaction is one of several areas of current research in human computer interaction in which a new interface style seems to be emerging. In the non-command style, the computer passively monitors the user and responds as appropriate, rather than waiting for the user to issue specific commands. In describing eye movement-based human-computer interaction we can see two distinctions, one is in the nature of the user’s eye movements and the other, in the nature of the responses. In the world created by an eye movement based interface, users could move their eyes to scan the scene, just as they would a real world scene, unaffected by the presence of eye tracking equipment movement, on the eye movement axis. The alternative is to instruct users of the eye movement based interface to move their eyes in particular ways. On the response axis, objects could respond to a user’s eye movements in a natural way that is, the object responds to the user’s looking in the same way real objects do. The alternative is unnatural response, where objects respond in ways not experienced in the real world.
Now a days Eye tracking technology is applied in many fields like automotive defense and medical industries. The fields of advertising, entertainment, packaging and web design have all benefited significantly from studying the visual behavior of the consumer. Every day, as eye tracking is used in creative new ways, the list of applications grows.
The aim of this project is to controlling a wheel chair and electrical devices by using MEMS accelerometer sensor (Micro Electro-Mechanical Systems) technology. MEMS accelerometer sensor is a Micro Electro Mechanical Sensor which is a highly sensitive sensor and capable of detecting the tilt. This sensor finds the tilt and makes use of the accelerometer to change the direction of the wheel chair depending on tilt. For example if the tilt is to the right side then the wheel chair moves in right direction or if the tilt is to the left side then the wheel chair moves in left direction. Wheel chair movement can be controlled in Forward, Reverse, and Left and Right direction.
The objective of this project was to design a power wheelchair with a novel control system for quadriplegics with head or hand mobility. The control system translates the position of the user's hand into speed and directional control of the wheelchair. Hand movement was measured using accelerometer sensor-based motion- tracking of an sensor array on the back of the user's hand.

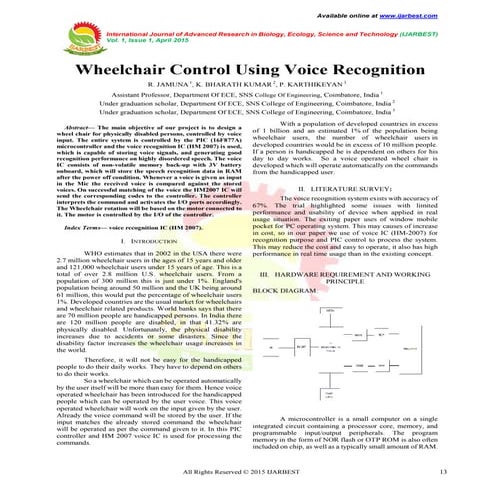

Wheelchair Control Using Voice Recognition R. Jamuna - Assistant Professor,
K. Bharath Kumar - UG Scholar,
P. Karthikeyan - UG Scholar,
Department Of ECE,
SNS College of Engineering, Coimbatore, India
Automatic Control of Instruments Using Efficient Speech Recognition AlgorithmIJEEE
Matlab straight forward programming interface make it an ideal tool for Hindi Key word Recognition. For the extraction of the feature, Hindi Key word database has been designed by using the Matlab 7.5. The database consists of the eight key words.
Voice Recognition Wireless Home Automation System Based On ZigbeeIOSR Journals
Abstract : In the recent years, the Home Automation systems has seen a rapid changes due to introduction of various wireless technologies The explosion in the wireless technology has seen the emergence of many standards, especially in the industrial, scientific and medical (ISM) radio band. ZigBee is an IEEE 802.15.4 standard for data communications with business and consumer devices. Zigbee is targeted at applications that requires low data rate, long battery life, and secure networking. Zigbee has a defined rate of 250 kbits/s, best suited for periodic or intermittent data or a single signal transmission from a sensor or input device. The wireless home Automation systems is supposed to be implemented in existing home environments, without any changes in the infrastructure. The automation centers on recognition of voice commands and uses low-power ZigBee wireless communication modules along with microcontroller. This system is most suitable for the elderly and the disabled persons especially those who live alone and since recognize voice so it is secure. The home automation system is intended to control all lights and electrical appliances in a home or office using voice commands. So in this paperwork our aim is to designed a voice recognition wireless ZigBee based home automation system. Keywords - Home automation, Microcontroller , Voice Recognition, ZigBee, Power Supply.
Voice Recognition Wireless Home Automation System Based On ZigbeeIOSR Journals
In the recent years, the Home Automation systems has seen a rapid changes due to introduction of
various wireless technologies The explosion in the wireless technology has seen the emergence of many
standards, especially in the industrial, scientific and medical (ISM) radio band. ZigBee is an IEEE 802.15.4
standard for data communications with business and consumer devices. Zigbee is targeted at applications that
requires low data rate, long battery life, and secure networking. Zigbee has a defined rate of 250 kbits/s, best
suited for periodic or intermittent data or a single signal transmission from a sensor or input device. The
wireless home Automation systems is supposed to be implemented in existing home environments, without any
changes in the infrastructure. The automation centers on recognition of voice commands and uses low-power
ZigBee wireless communication modules along with microcontroller. This system is most suitable for the elderly
and the disabled persons especially those who live alone and since recognize voice so it is secure. The home
automation system is intended to control all lights and electrical appliances in a home or office using voice
commands. So in this paperwork our aim is to designed a voice recognition wireless ZigBee based home
automation system
Voice Recognition Wireless Home Automation System Based On ZigbeeIOSR Journals
Abstract : In the recent years, the Home Automation systems has seen a rapid changes due to introduction of various wireless technologies The explosion in the wireless technology has seen the emergence of many standards, especially in the industrial, scientific and medical (ISM) radio band. ZigBee is an IEEE 802.15.4 standard for data communications with business and consumer devices. Zigbee is targeted at applications that requires low data rate, long battery life, and secure networking. Zigbee has a defined rate of 250 kbits/s, best suited for periodic or intermittent data or a single signal transmission from a sensor or input device. The wireless home Automation systems is supposed to be implemented in existing home environments, without any changes in the infrastructure. The automation centers on recognition of voice commands and uses low-power ZigBee wireless communication modules along with microcontroller. This system is most suitable for the elderly and the disabled persons especially those who live alone and since recognize voice so it is secure. The home automation system is intended to control all lights and electrical appliances in a home or office using voice commands. So in this paperwork our aim is to designed a voice recognition wireless ZigBee based home automation system. Keywords - Home automation, Microcontroller , Voice Recognition, ZigBee, Power Supply.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Voice enabled speed control of ac motoreSAT Journals
Abstract Communication plays a major role in day today’s life and can be used as a better tool in control systems. It deals with wire communication and is used to control the motor speed. Out of all mechanisms, microcontroller hardware description language proves to be efficient than al other mechanisms. Digital means of controlling gives accurate results compared to the approximation of analog systems. Embedded technology is a key role in integrating the different functions connected with it. This proposal generally reduces the manpower, operates efficiently and saves time without human involvement. With the advancements in technology, the existing systems are developed to have in built intelligence. Due to the technological development whether it is DC or AC machines the speed of the machine can be controlled by various methods. By means of the voice process the machine can be controlled depending upon the application wired or in order to transmit the signal the wireless communication can be used. By this way electrical technology is combined with communication technology and computer science. Now a day it is very important thing to reduce the manual error and manual operation. Index Terms—voice recognition, PWM, shaded pole induction motor
Voice recognition based advance patients room automationeSAT Journals
Abstract This is a unique and most useful system for totally or partially handicapped patients who are unable do basic tasks. Patients who are unable do anything have to totally depend on nurses. Hospitals have to provide a round-the-clock 24 Hour an attendant for these patients and hence total fees of hospitals gets increased. The device that we proposed here can actually help these patients and hospitals without requiring 24 hour attendant. With this system, patient can call nurse or any attendant at any time whenever required by simply voice controlled commands. This system listen voice commands and can call nurse by simply ringing bell. It can also control basic switching on/off tasks of fan, light and any device by patient voice. Keywords Automation, hospital automation, nursing, voice recognition, Atmega328 applications, Easy VR.
BRAIN Computer Interface (BCI) is a technique that
provides direct interface between the human brain and the
computer. BCI techniques are broadly classified into
invasive and non-invasive techniques. Non-invasive
techniques are becoming more popular and more research is
being done on this topic. There are various non-invasive BCI
techniques such as EEG, Electro-Oculography. EEG technique
deploys an electrode cap that is placed on the user’s scalp for
the acquisition of the EEG signal, which relates the scalp
potential differences to various complex actions. Classification
of the EEG signal has been made into several bands like alpha,
beta, delta, theta and mu suppression, each corresponding to
various states of being like relaxing, ranging over 8-14 Hz;
concentrating, ranging over 13-30 Hz; deep sleep, from 0-4
Hz; meditating from 4-8 Hz; moving your hands or legs or just
by imagining these motor actions respectively. As it is being
non-invasive in nature, it has an advantage over traditional
BMI, not being hazardous to health. With the advent of
technology the EEG acquisition devices are made more
compact, handy and wireless. Using the above mentioned
technique, a simple thought controlled wheelchair system has
been proposed in this paper. A section that briefly explains the
various blocks included in the system is also added in this
paper
EEG Acquisition Device to Control Wheelchair Using ThoughtsVivek chan
With the advancements in technology and health-care facilities, the number of senior citizens has increased and thus the number of elderly who find it difficult to walk. Hence there is a need for designing a wheelchair that is user friendly and involves fewer complexities. In this context, we propose a thought controlled wheelchair, which uses the captured signals from the brain and process it to control the wheelchair. This wheelchair can also be used by the physically challenged who depend on others for locomotion. Rehabilitation centers at hospitals can also make use of this wheelchair. In this paper, we explain the design and analysis of the thought-controlled wheelchair. In addition, we present some of the experiments that were carried out and the corresponding results in this paper.
http://www.vivek-chan.in
1. Group Members:
Mandar jadhav 11EXTC20
Mayuresh Todkar 11EXTC48
Dayanand Patil 11EXTC55
Project Guide: Dr(Mrs) V. Jayashree
Sr. Lecturer
Dept. of Electronics & telecommunication

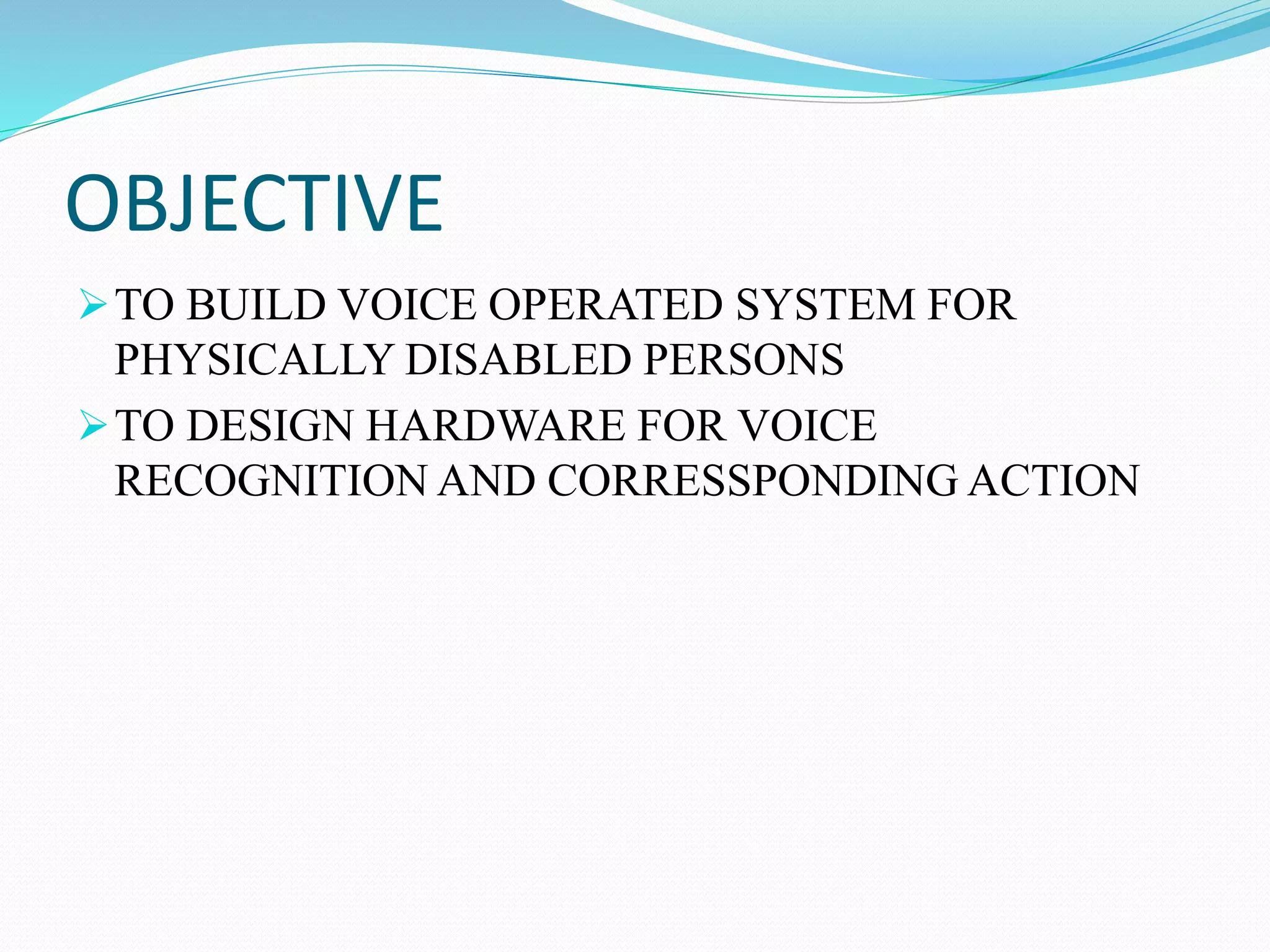

2. OBJECTIVE
TO BUILD VOICE OPERATED SYSTEM FOR
PHYSICALLY DISABLED PERSONS
TO DESIGN HARDWARE FOR VOICE
RECOGNITION AND CORRESSPONDING ACTION

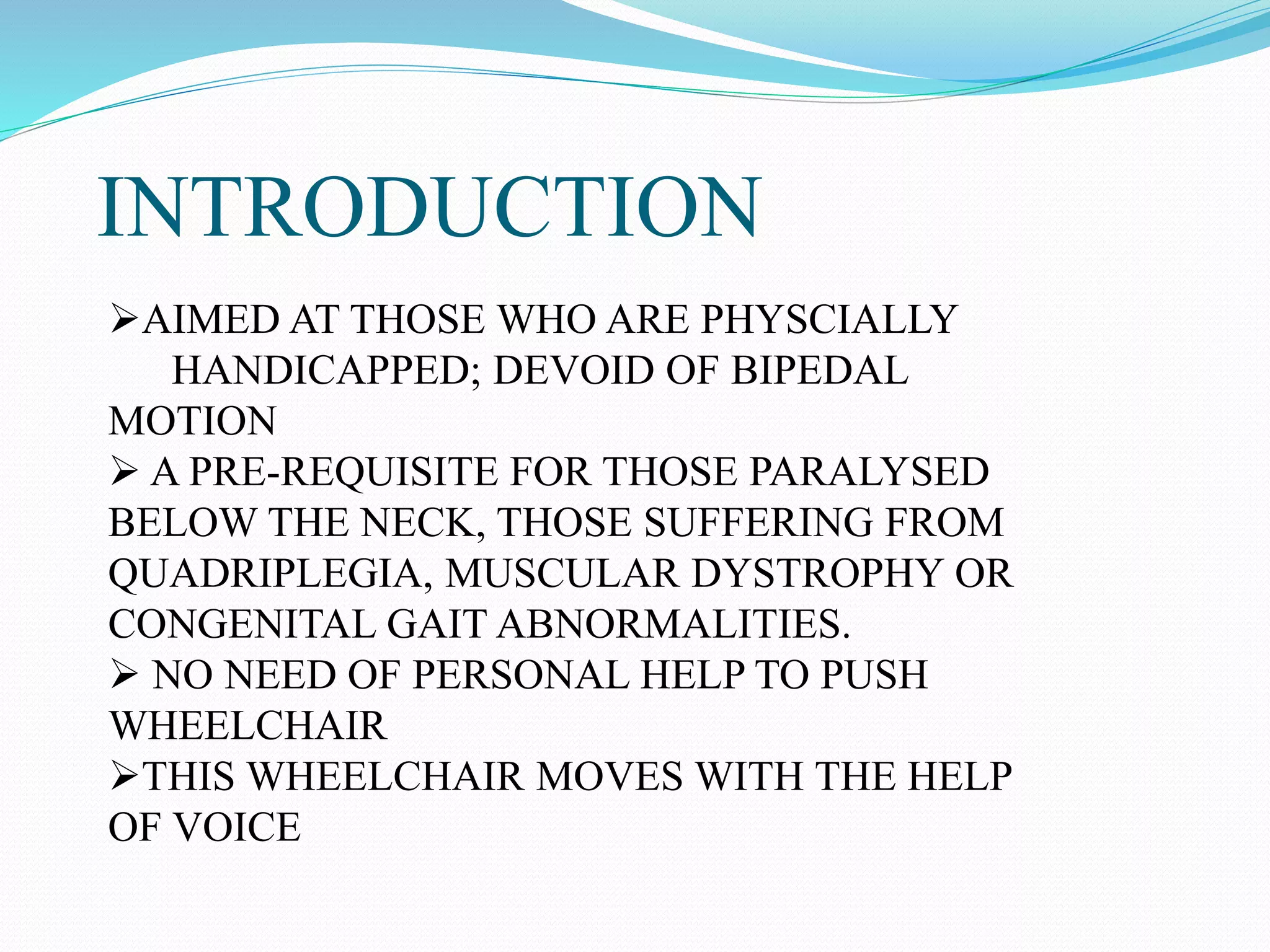

3. INTRODUCTION
AIMED AT THOSE WHO ARE PHYSCIALLY
HANDICAPPED; DEVOID OF BIPEDAL
MOTION
A PRE-REQUISITE FOR THOSE PARALYSED
BELOW THE NECK, THOSE SUFFERING FROM
QUADRIPLEGIA, MUSCULAR DYSTROPHY OR
CONGENITAL GAIT ABNORMALITIES.
NO NEED OF PERSONAL HELP TO PUSH
WHEELCHAIR
THIS WHEELCHAIR MOVES WITH THE HELP
OF VOICE

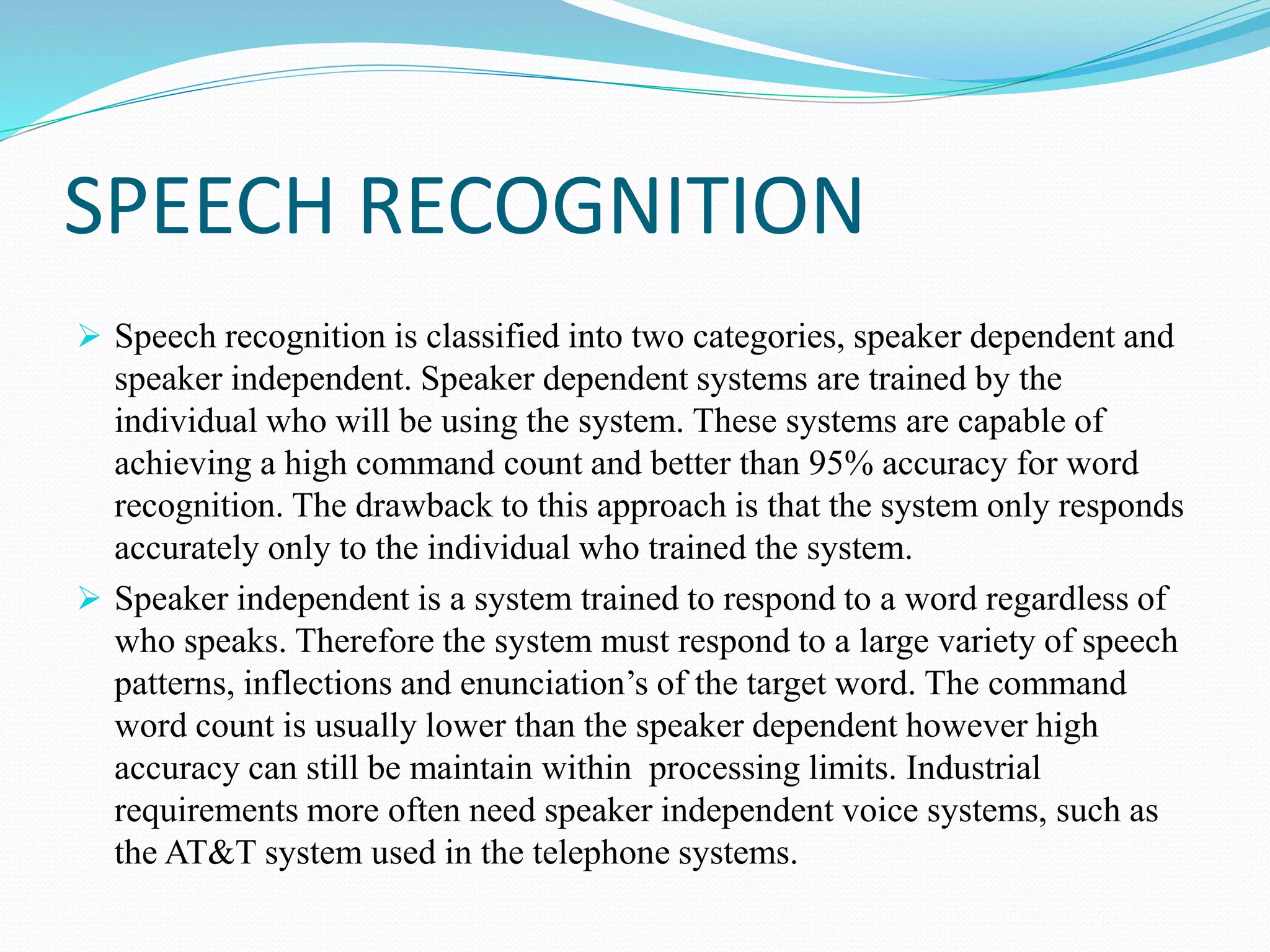

4. SPEECH RECOGNITION
Speech recognition is classified into two categories, speaker dependent and
speaker independent. Speaker dependent systems are trained by the
individual who will be using the system. These systems are capable of
achieving a high command count and better than 95% accuracy for word
recognition. The drawback to this approach is that the system only responds
accurately only to the individual who trained the system.
Speaker independent is a system trained to respond to a word regardless of
who speaks. Therefore the system must respond to a large variety of speech
patterns, inflections and enunciation’s of the target word. The command
word count is usually lower than the speaker dependent however high
accuracy can still be maintain within processing limits. Industrial
requirements more often need speaker independent voice systems, such as
the AT&T system used in the telephone systems.

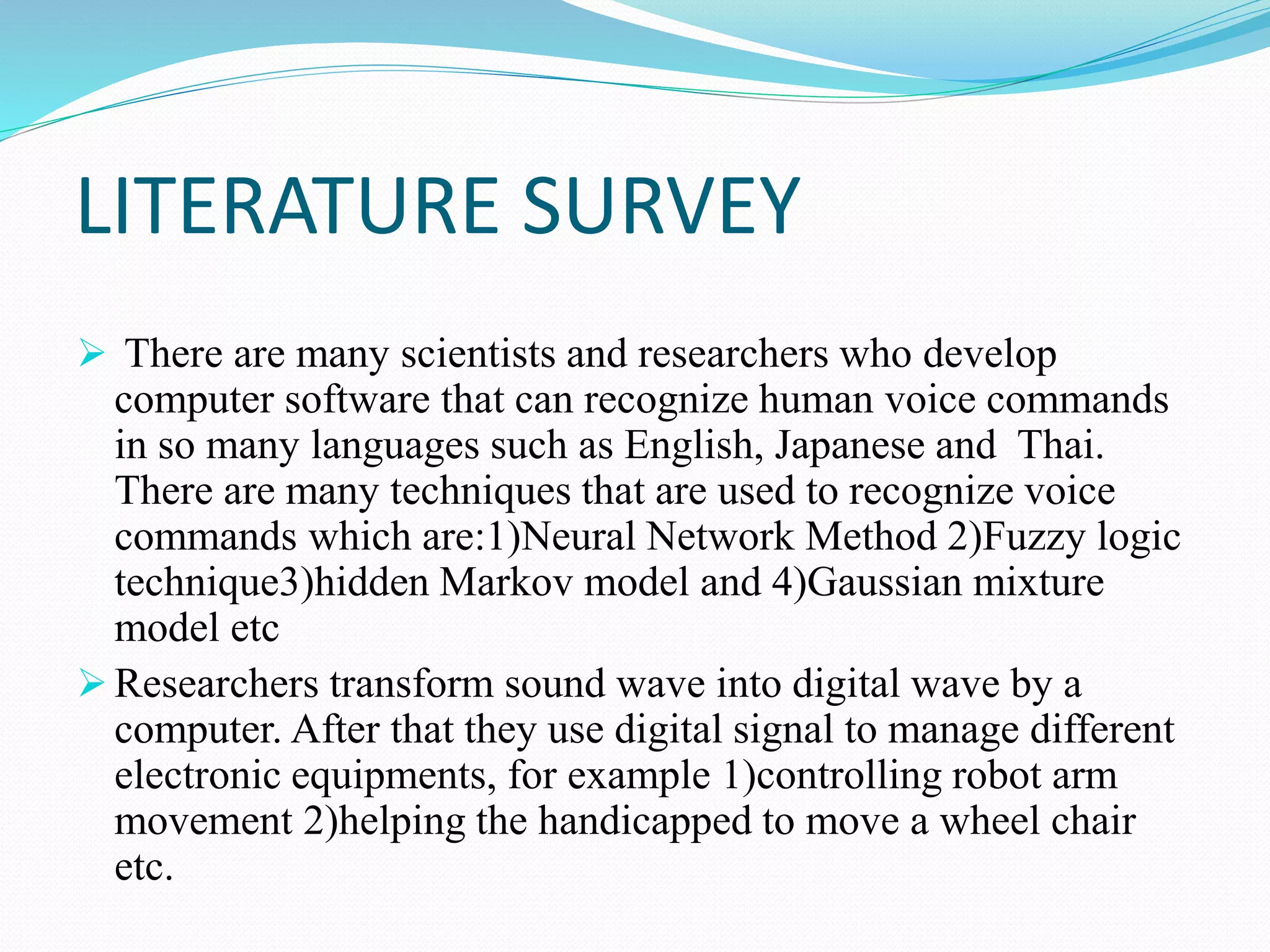

5. LITERATURE SURVEY
There are many scientists and researchers who develop
computer software that can recognize human voice commands
in so many languages such as English, Japanese and Thai.
There are many techniques that are used to recognize voice
commands which are:1)Neural Network Method 2)Fuzzy logic
technique3)hidden Markov model and 4)Gaussian mixture
model etc
Researchers transform sound wave into digital wave by a
computer. After that they use digital signal to manage different
electronic equipments, for example 1)controlling robot arm
movement 2)helping the handicapped to move a wheel chair
etc.

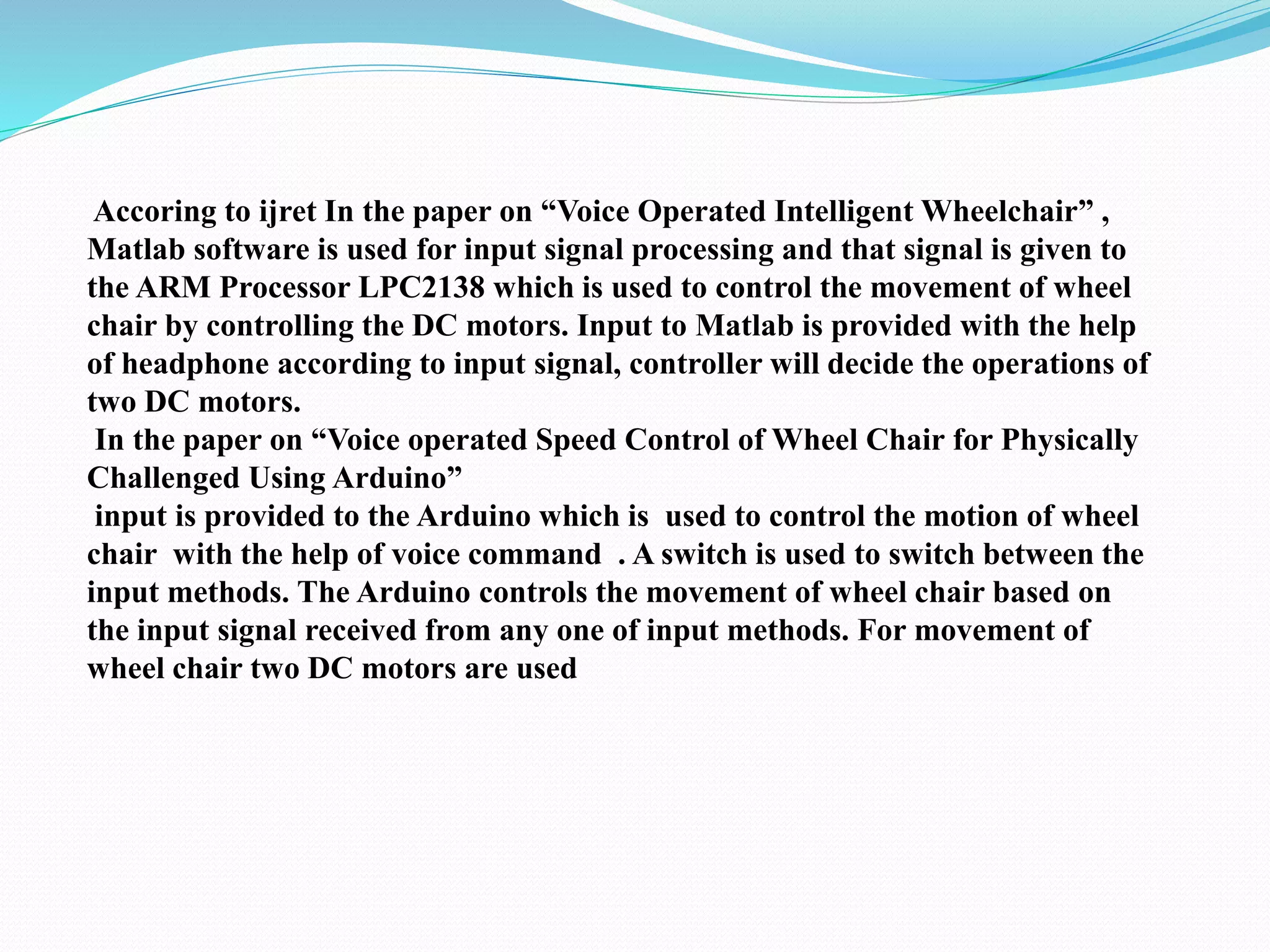

6. Accoring to ijret In the paper on “Voice Operated Intelligent Wheelchair” ,
Matlab software is used for input signal processing and that signal is given to
the ARM Processor LPC2138 which is used to control the movement of wheel
chair by controlling the DC motors. Input to Matlab is provided with the help
of headphone according to input signal, controller will decide the operations of
two DC motors.
In the paper on “Voice operated Speed Control of Wheel Chair for Physically
Challenged Using Arduino”
input is provided to the Arduino which is used to control the motion of wheel
chair with the help of voice command . A switch is used to switch between the
input methods. The Arduino controls the movement of wheel chair based on
the input signal received from any one of input methods. For movement of
wheel chair two DC motors are used

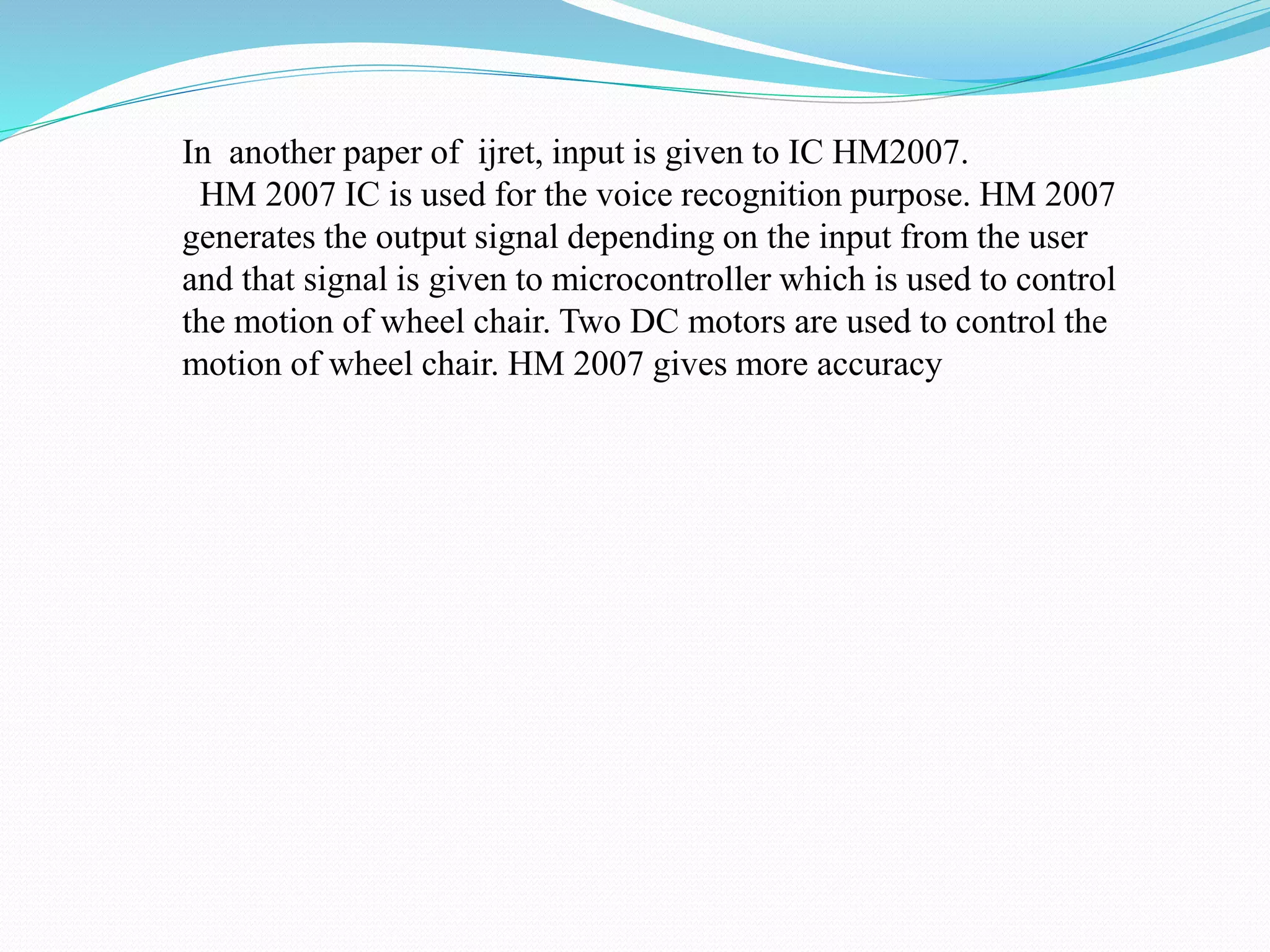

7. In another paper of ijret, input is given to IC HM2007.
HM 2007 IC is used for the voice recognition purpose. HM 2007
generates the output signal depending on the input from the user
and that signal is given to microcontroller which is used to control
the motion of wheel chair. Two DC motors are used to control the
motion of wheel chair. HM 2007 gives more accuracy

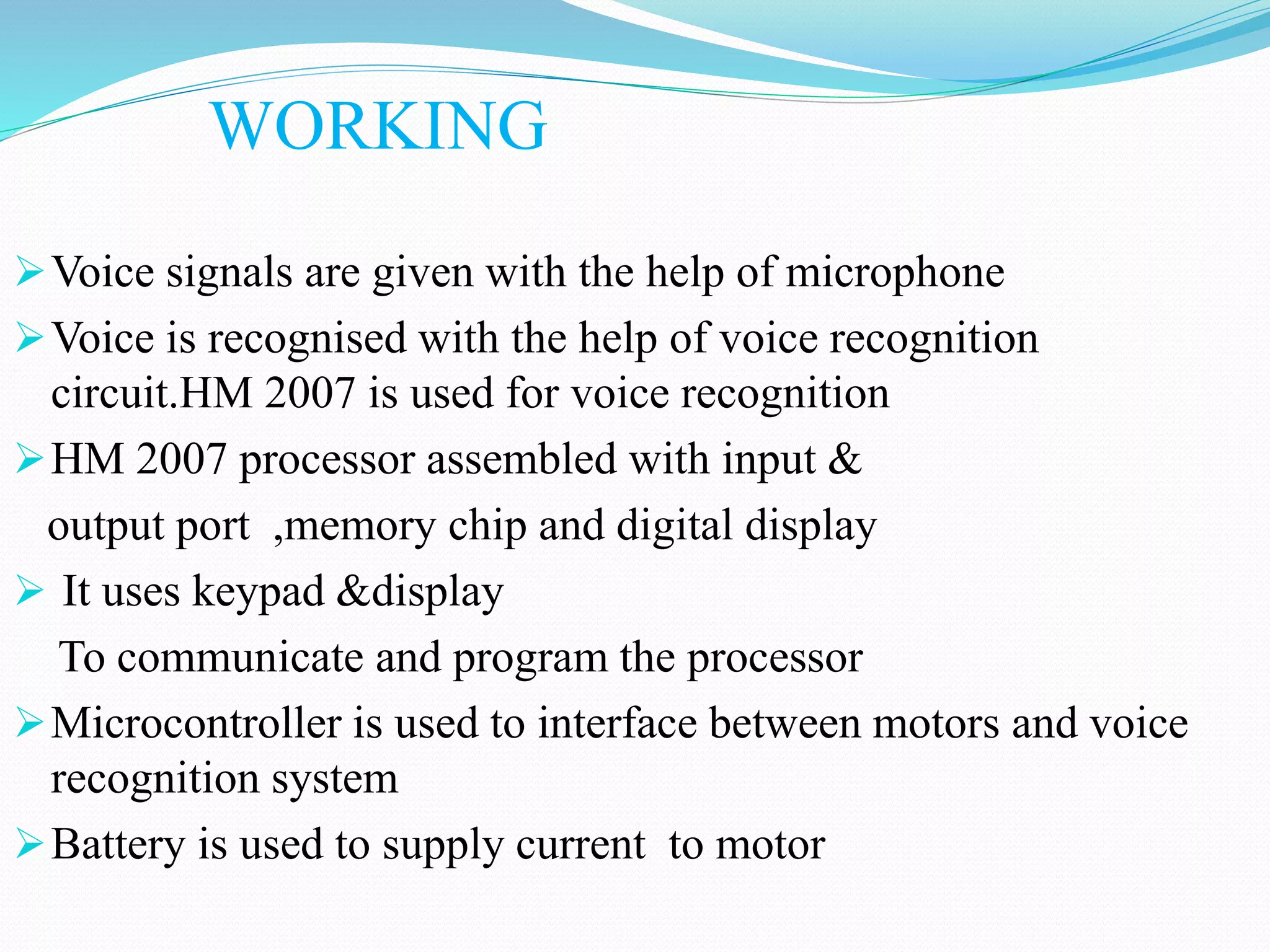

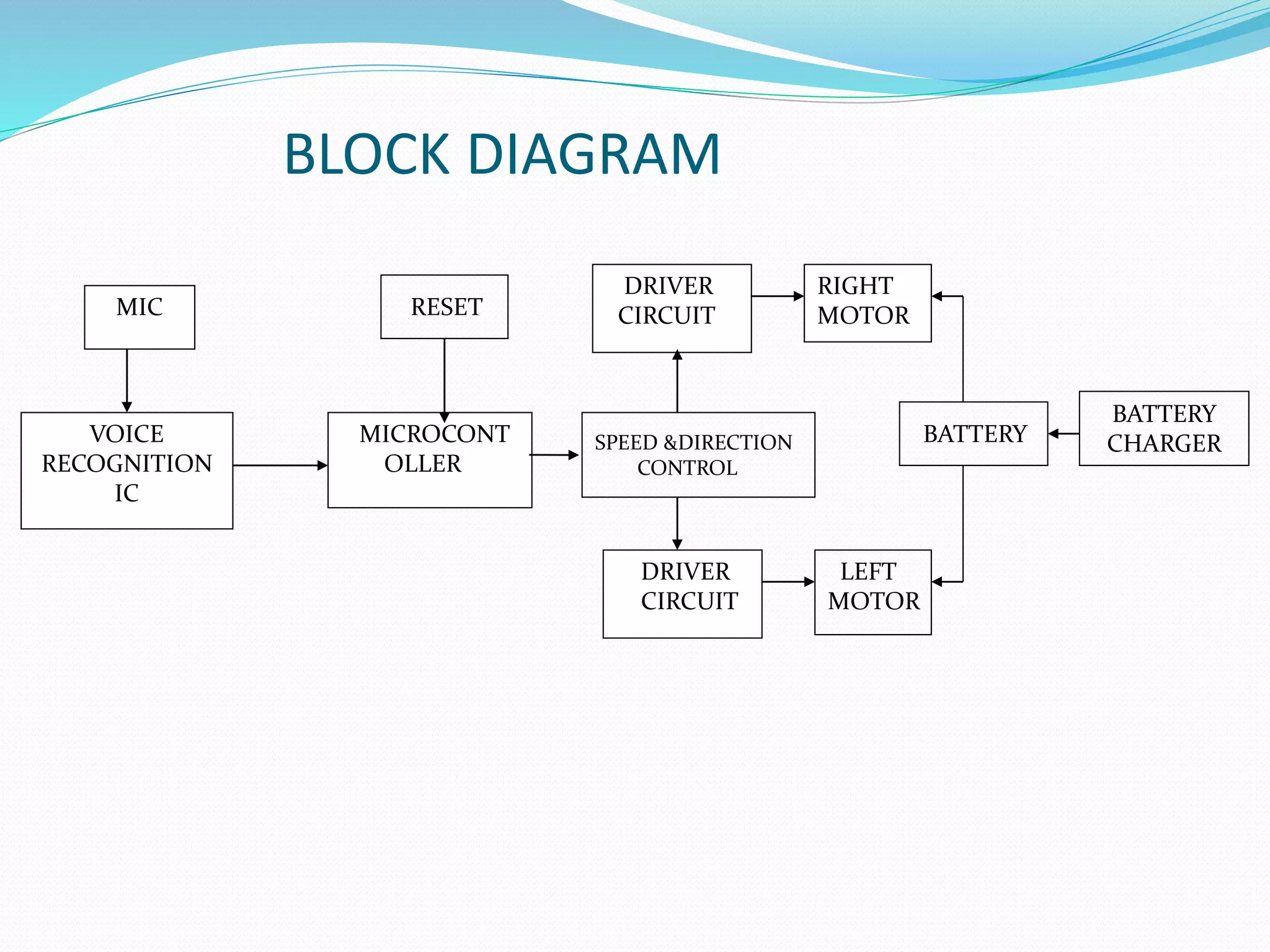

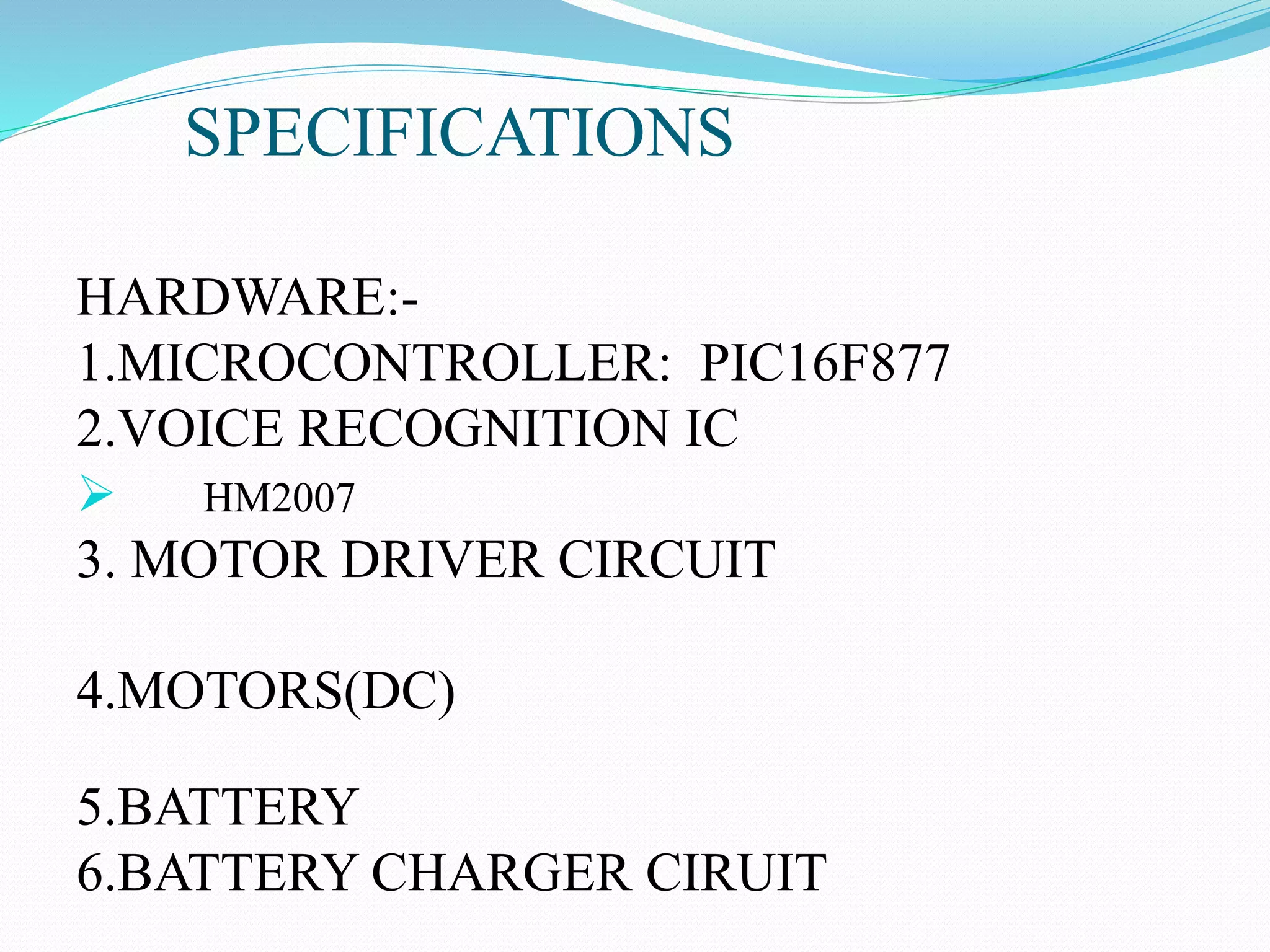

9. WORKING
Voice signals are given with the help of microphone
Voice is recognised with the help of voice recognition
circuit.HM 2007 is used for voice recognition
HM 2007 processor assembled with input &
output port ,memory chip and digital display
It uses keypad &display
To communicate and program the processor
Microcontroller is used to interface between motors and voice
recognition system
Battery is used to supply current to motor

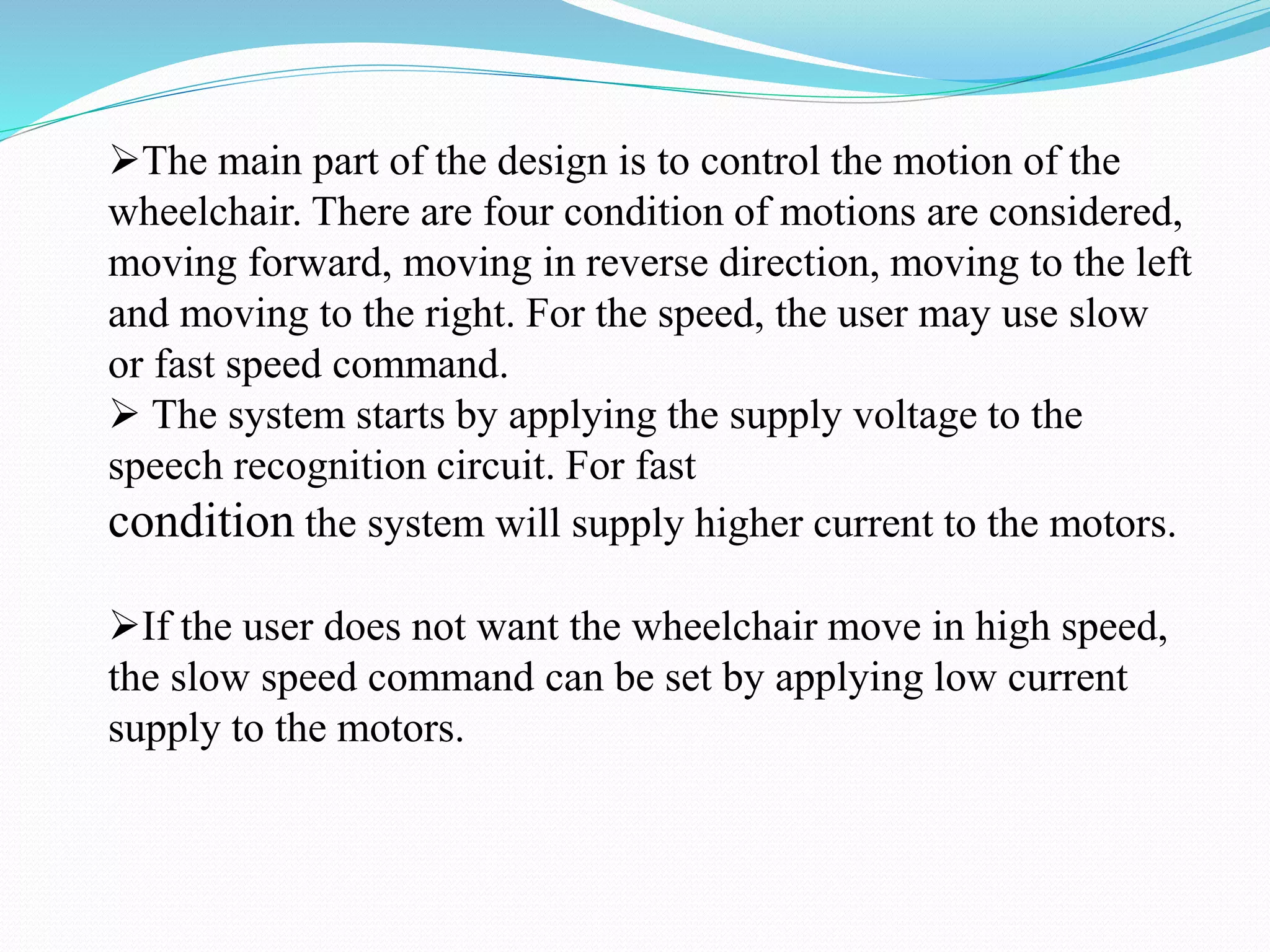

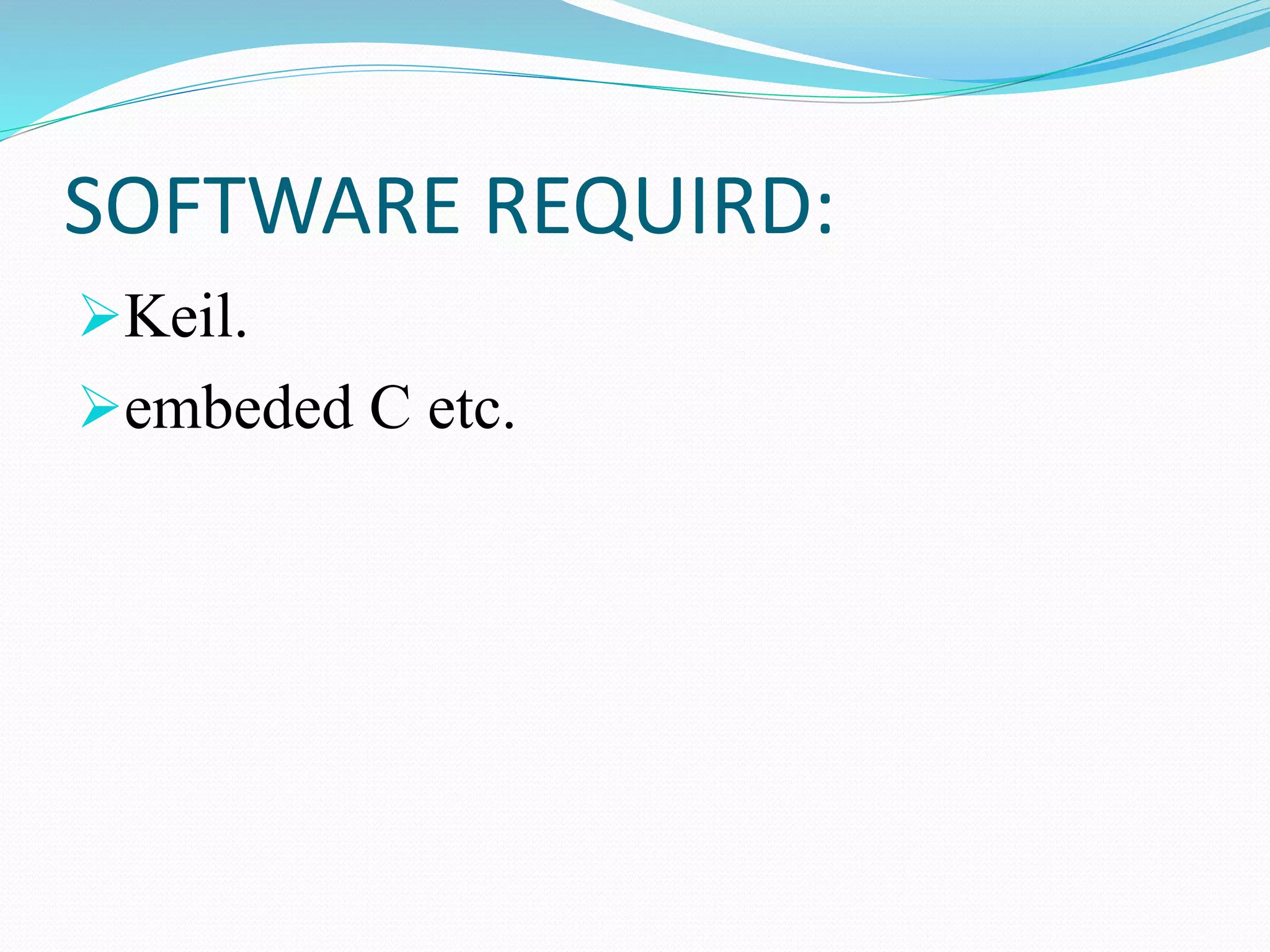

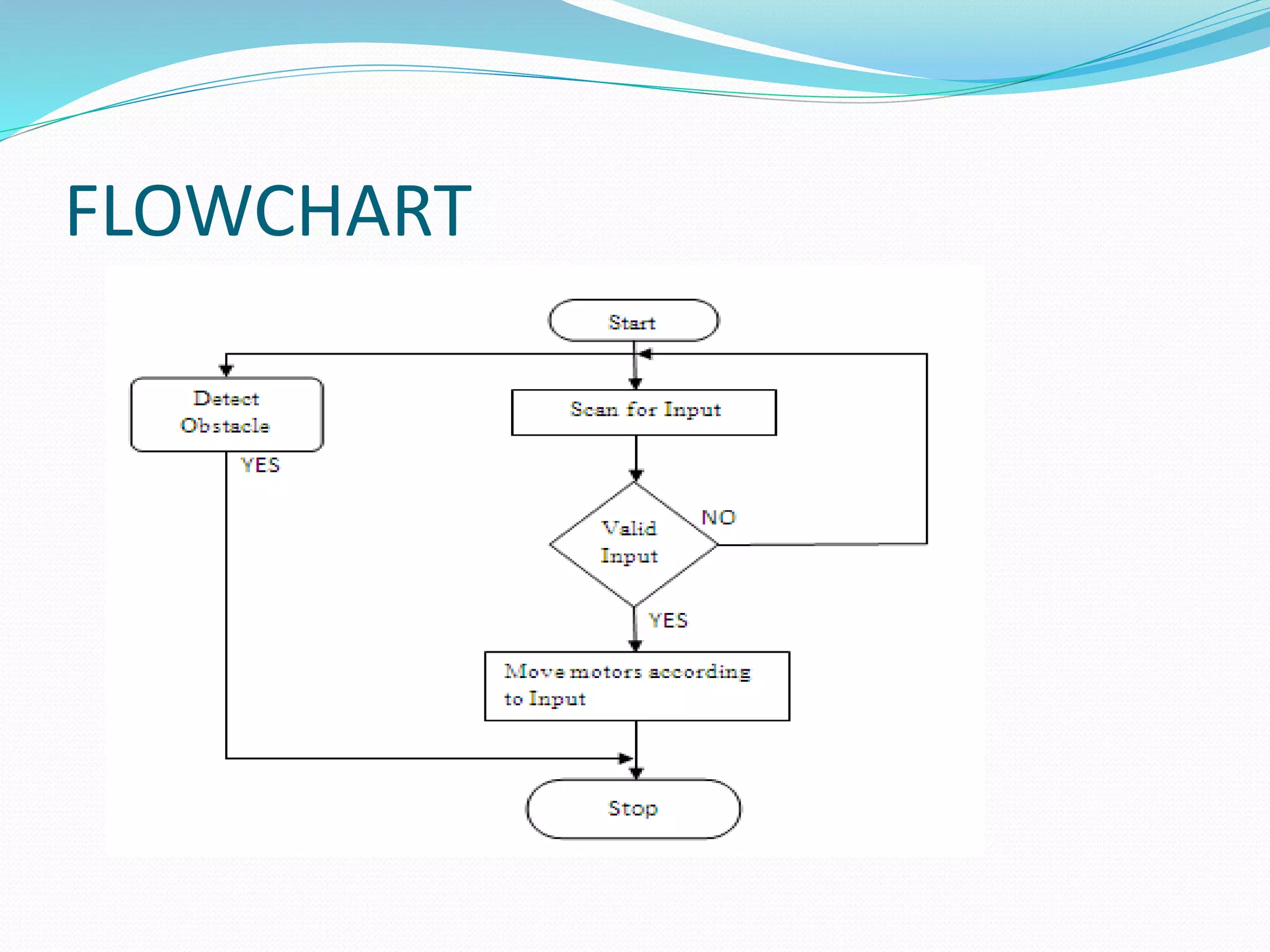

13. The main part of the design is to control the motion of the
wheelchair. There are four condition of motions are considered,
moving forward, moving in reverse direction, moving to the left
and moving to the right. For the speed, the user may use slow
or fast speed command.
The system starts by applying the supply voltage to the
speech recognition circuit. For fast
condition the system will supply higher current to the motors.
If the user does not want the wheelchair move in high speed,
the slow speed command can be set by applying low current
supply to the motors.

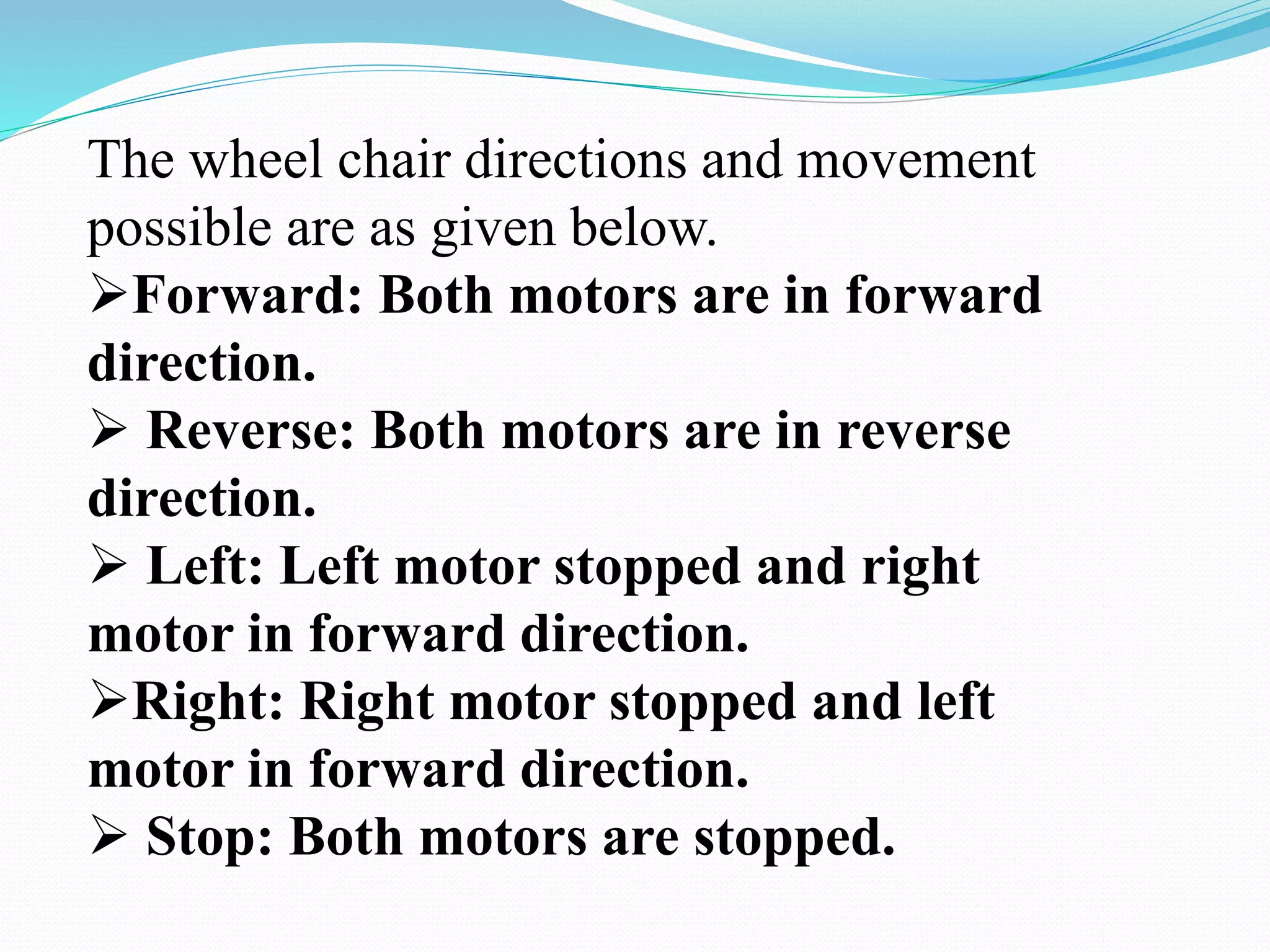

14. The wheel chair directions and movement
possible are as given below.
Forward: Both motors are in forward
direction.
Reverse: Both motors are in reverse
direction.
Left: Left motor stopped and right
motor in forward direction.
Right: Right motor stopped and left
motor in forward direction.
Stop: Both motors are stopped.

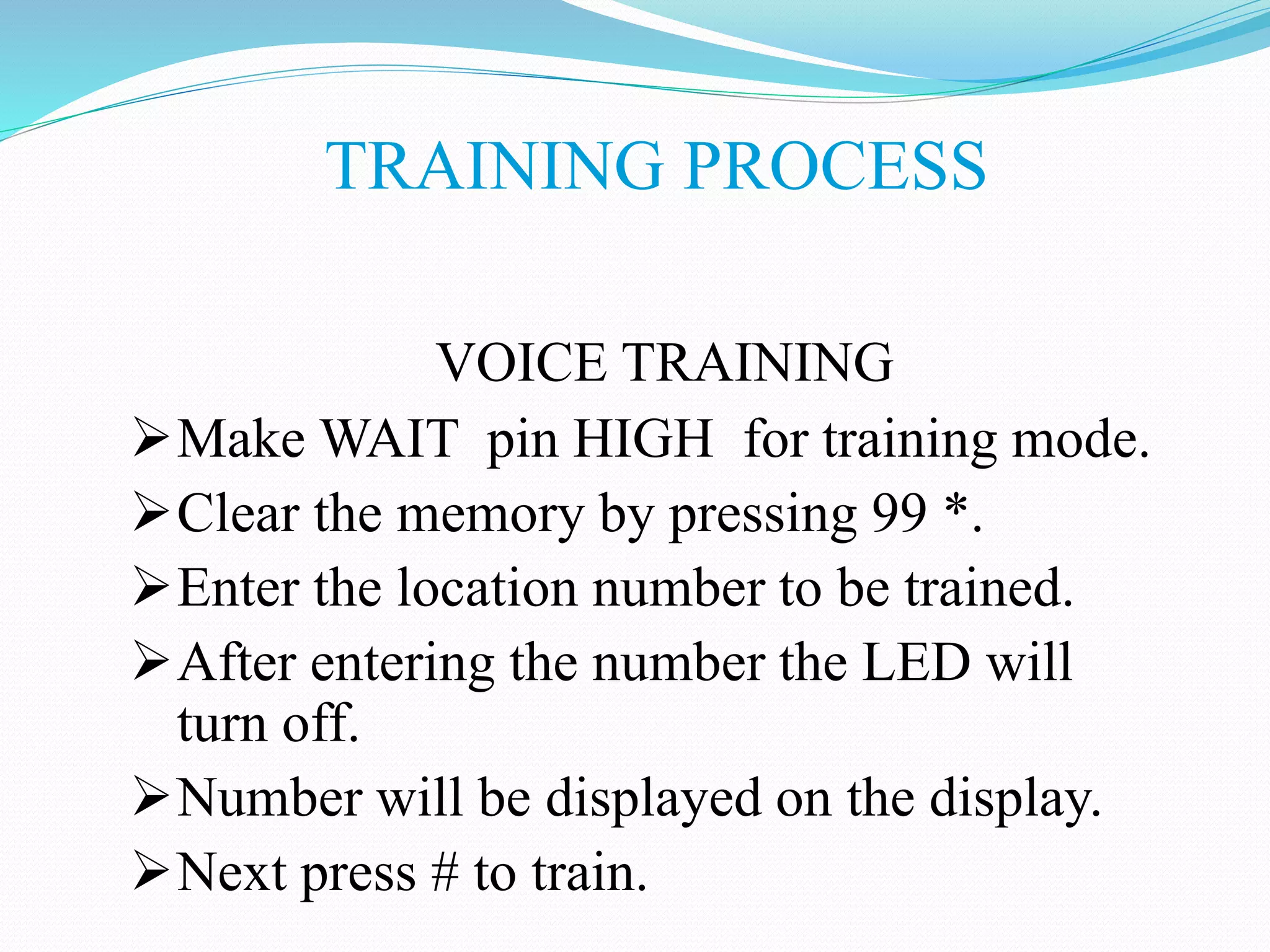

15. TRAINING PROCESS
VOICE TRAINING
Make WAIT pin HIGH for training mode.
Clear the memory by pressing 99 *.
Enter the location number to be trained.
After entering the number the LED will
turn off.
Number will be displayed on the display.
Next press # to train.
16. FEATURES OF HM2007
It is a 48 pin DIP IC.
Speaker independent mode was used.
Maximum of 40 words can be recognized
In 1.92 seconds
Microphone can be connected directly to the
analog input.
Two control mode is supported:-Manual mode
and CPU mode

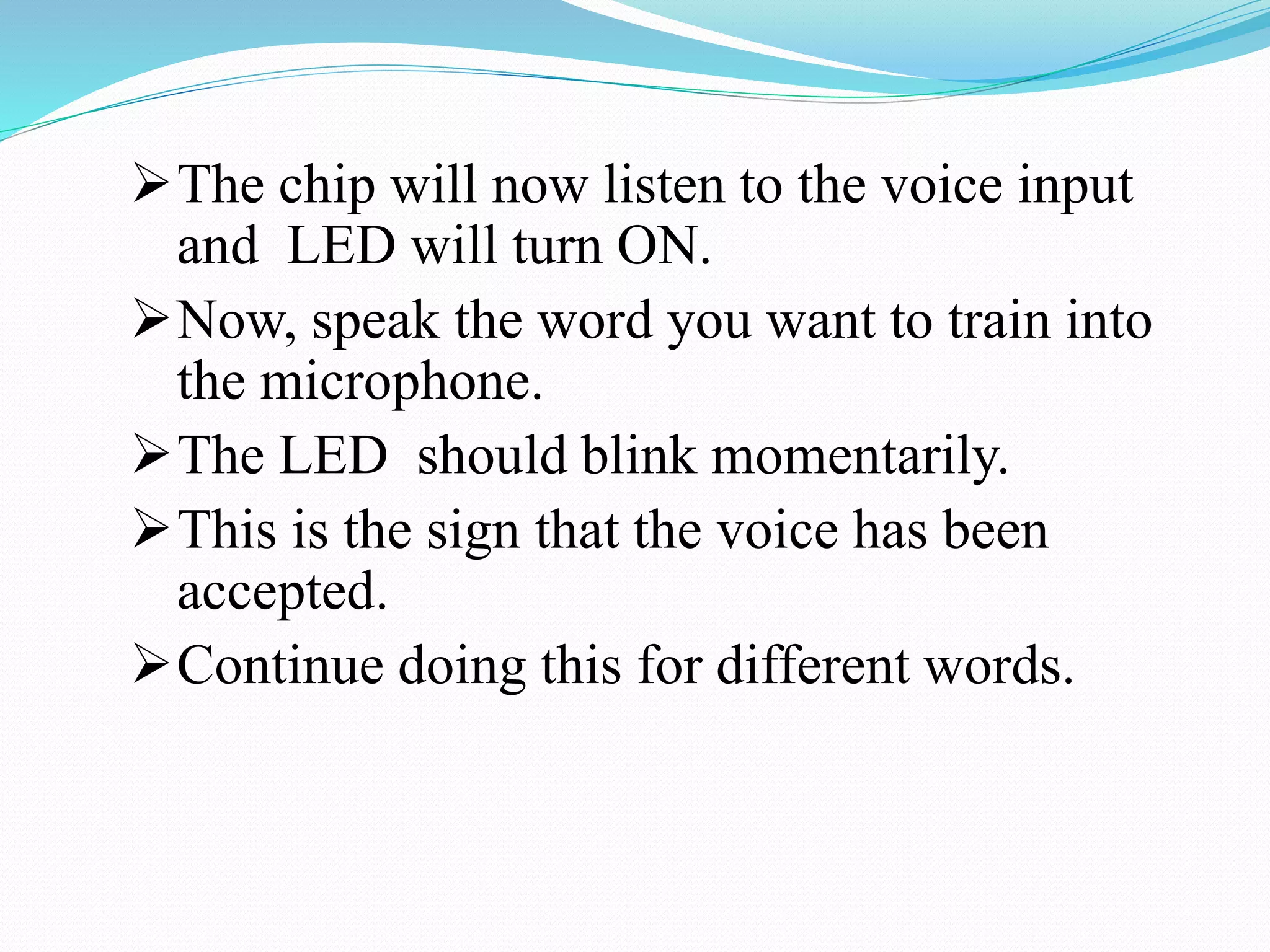

17. The chip will now listen to the voice input
and LED will turn ON.
Now, speak the word you want to train into
the microphone.
The LED should blink momentarily.
This is the sign that the voice has been
accepted.
Continue doing this for different words.

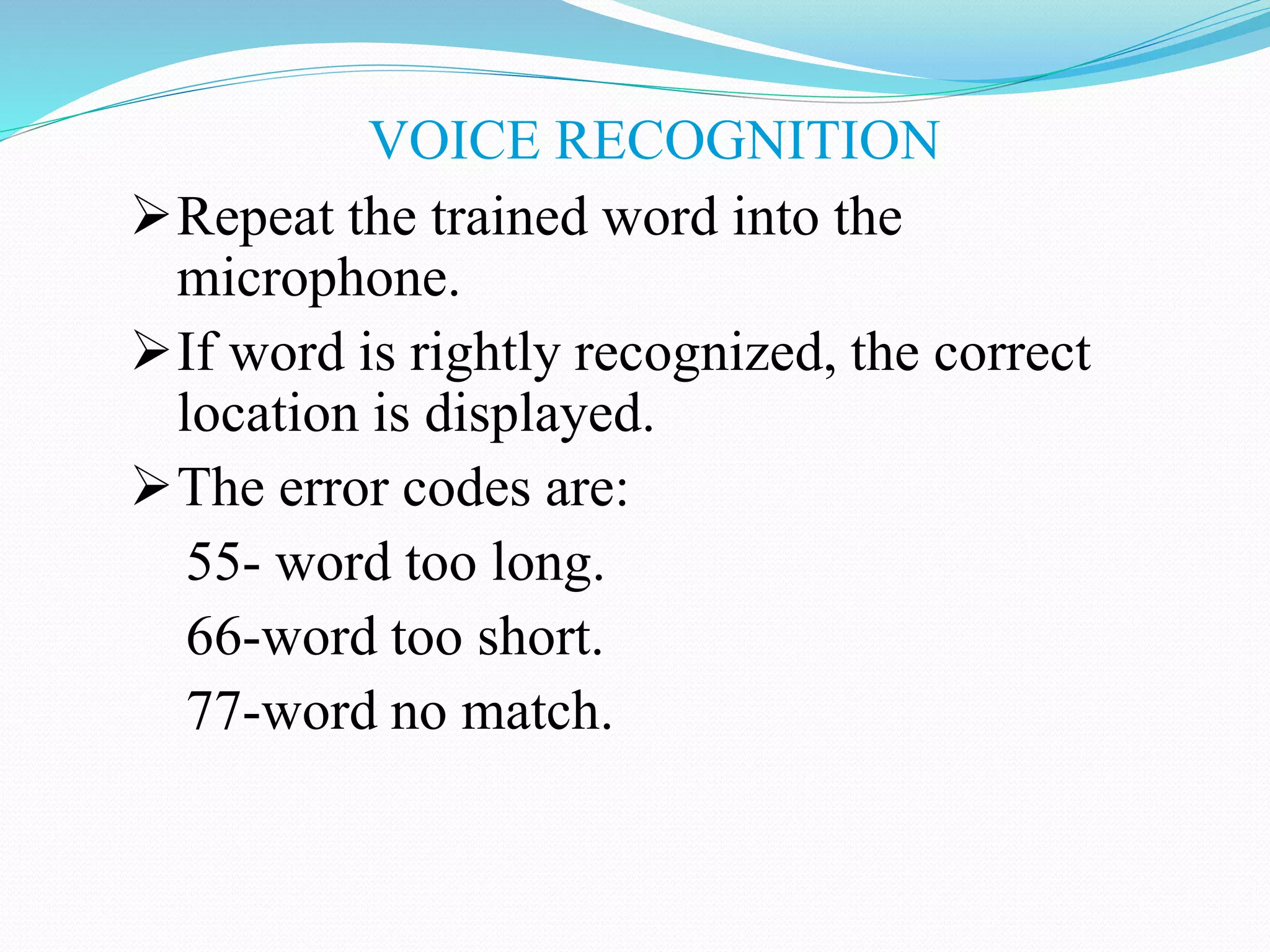

18. VOICE RECOGNITION
Repeat the trained word into the
microphone.
If word is rightly recognized, the correct
location is displayed.
The error codes are:
55- word too long.
66-word too short.
77-word no match.

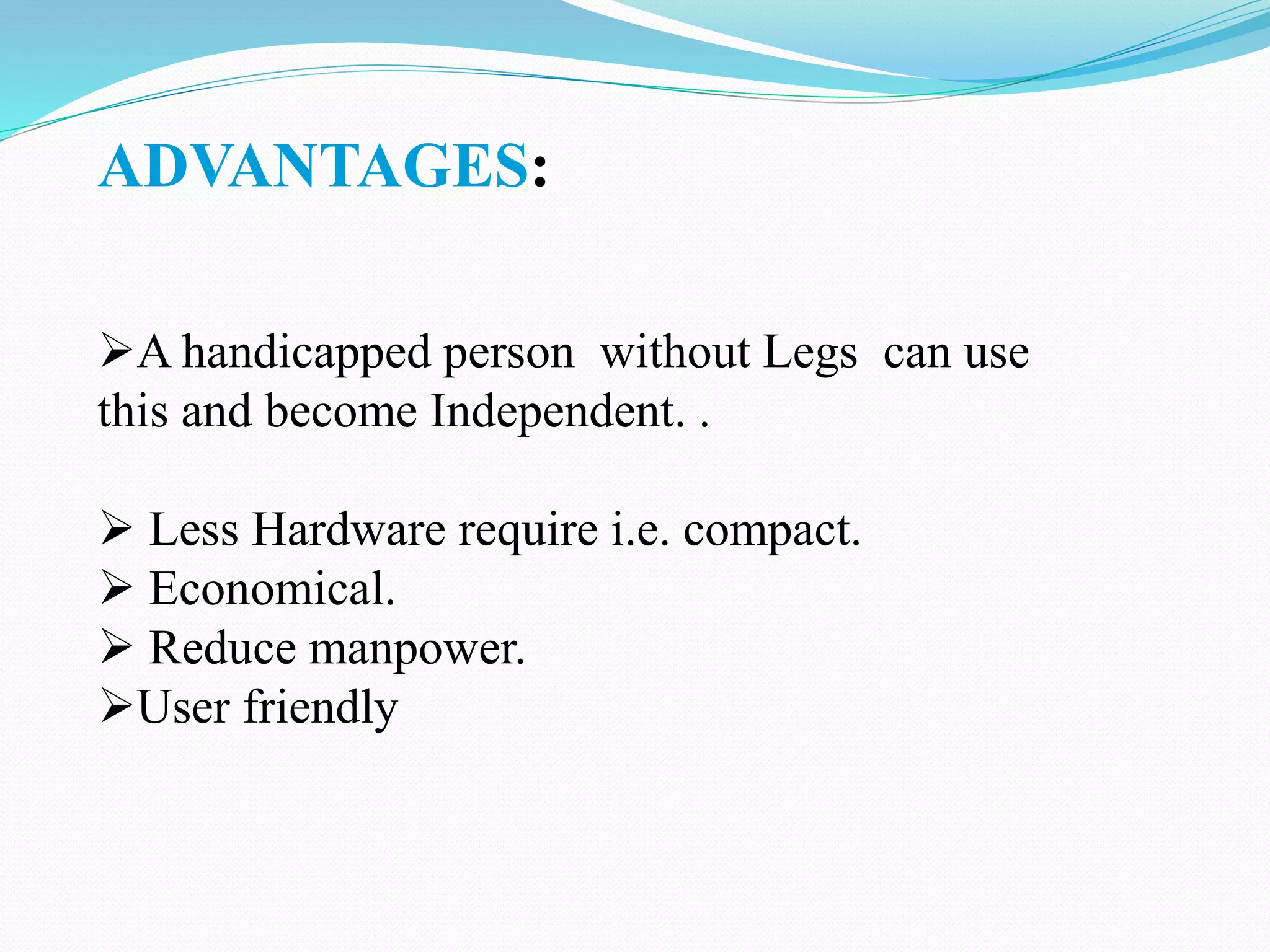

19. ADVANTAGES:
A handicapped person without Legs can use
this and become Independent. .
Less Hardware require i.e. compact.
Economical.
Reduce manpower.
User friendly

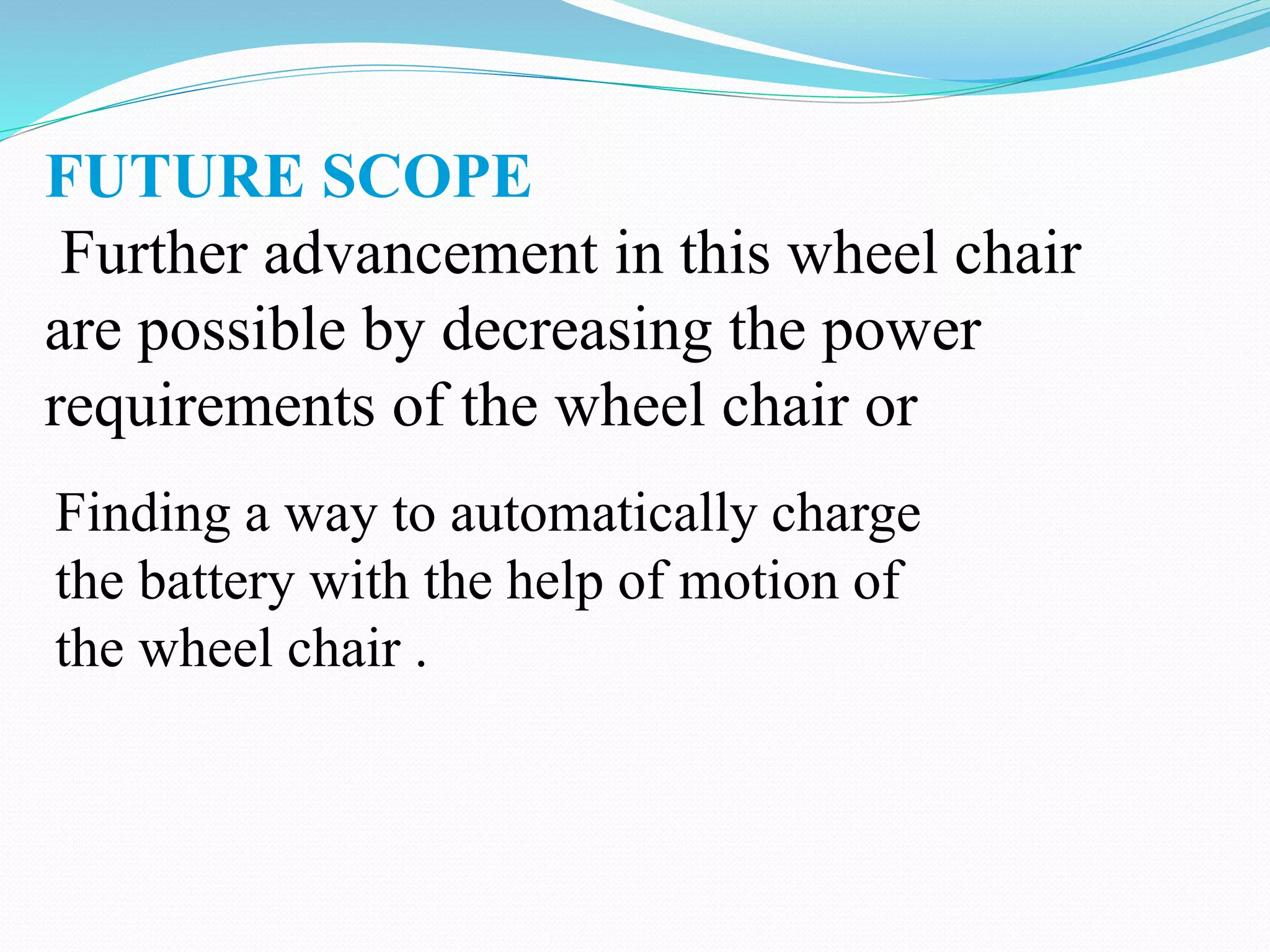

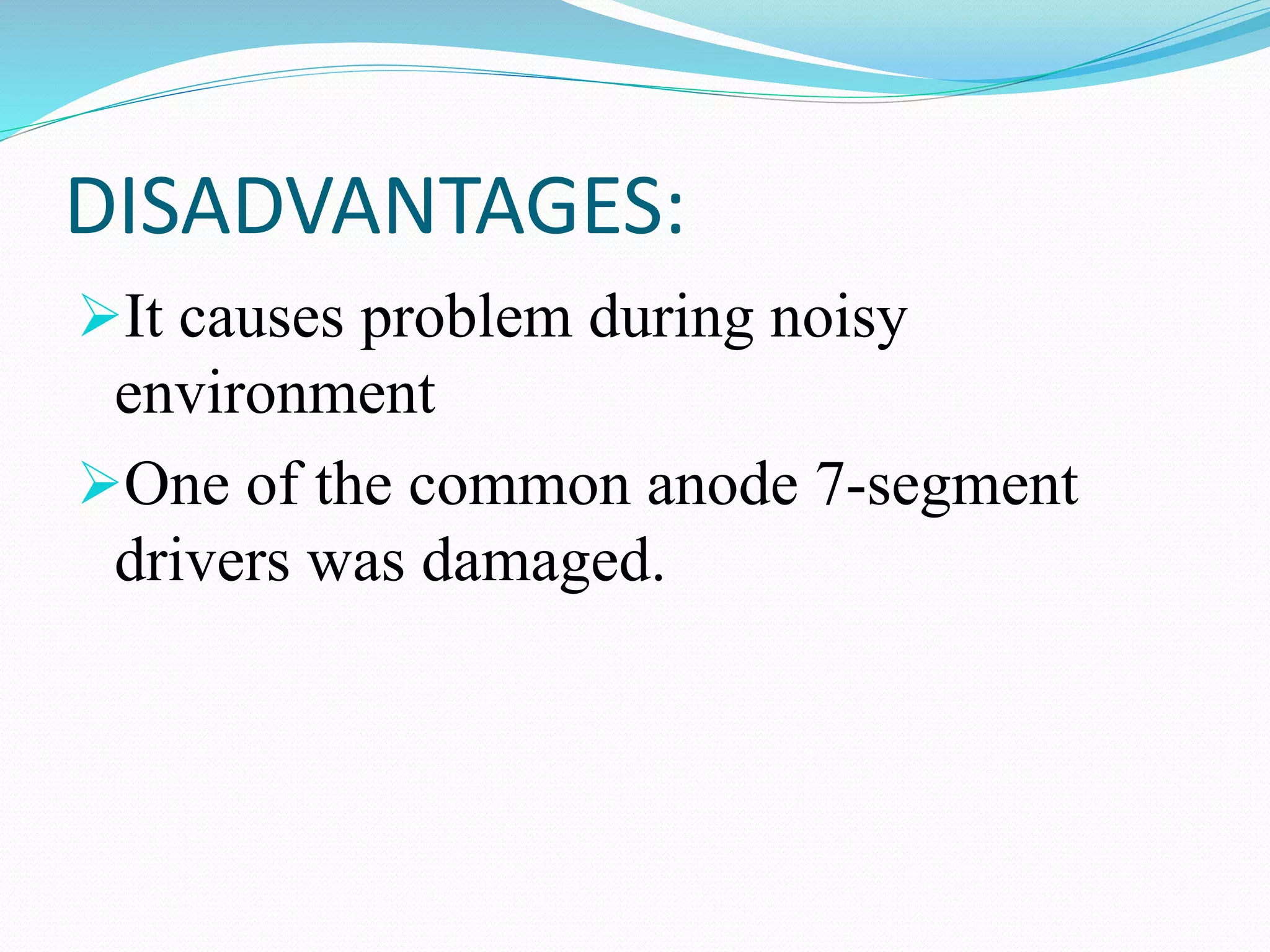

21. FUTURE SCOPE
Further advancement in this wheel chair
are possible by decreasing the power
requirements of the wheel chair or
Finding a way to automatically charge
the battery with the help of motion of
the wheel chair .

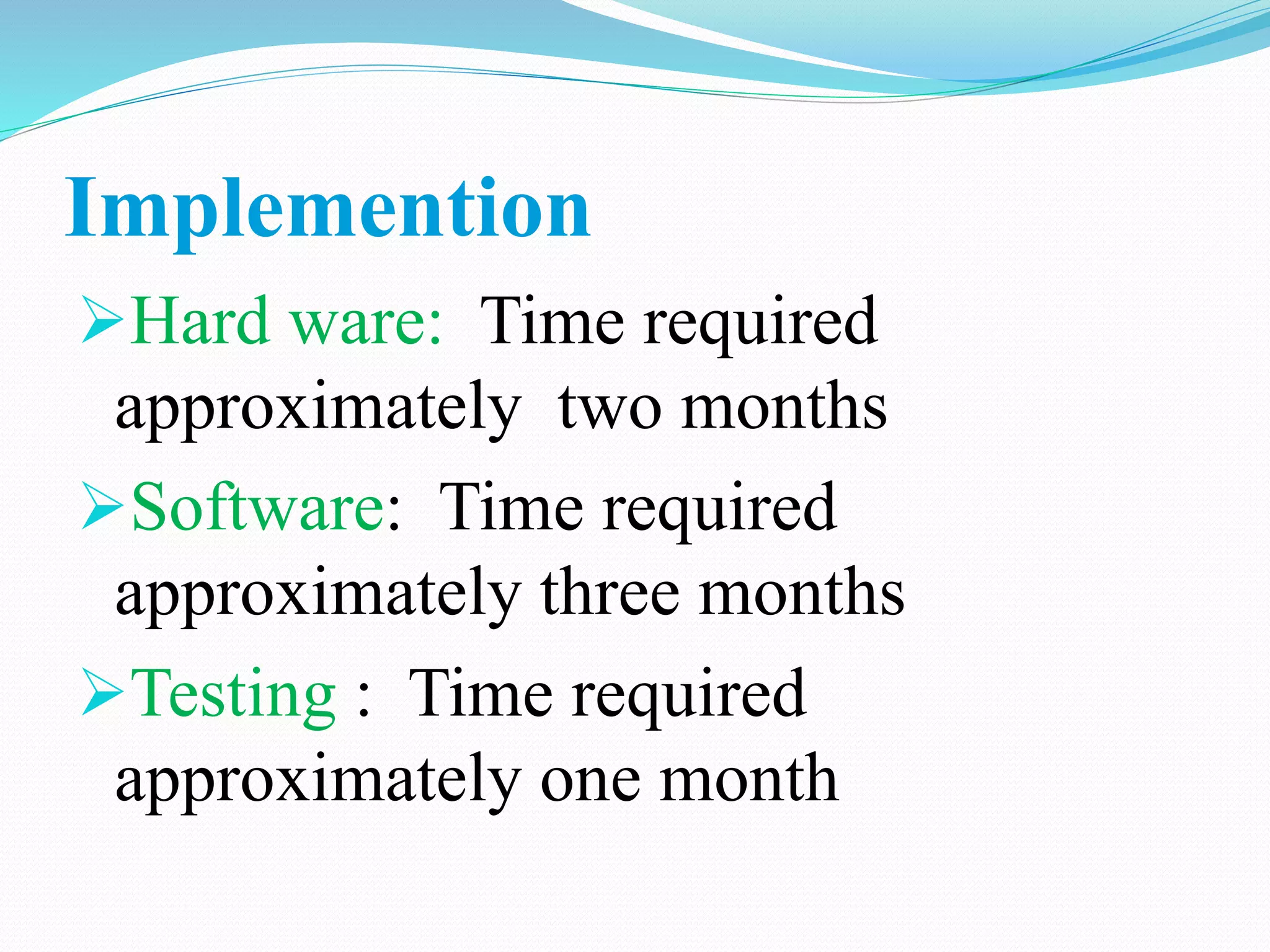

22. Implemention
Hard ware: Time required
approximately two months
Software: Time required
approximately three months
Testing : Time required
approximately one month

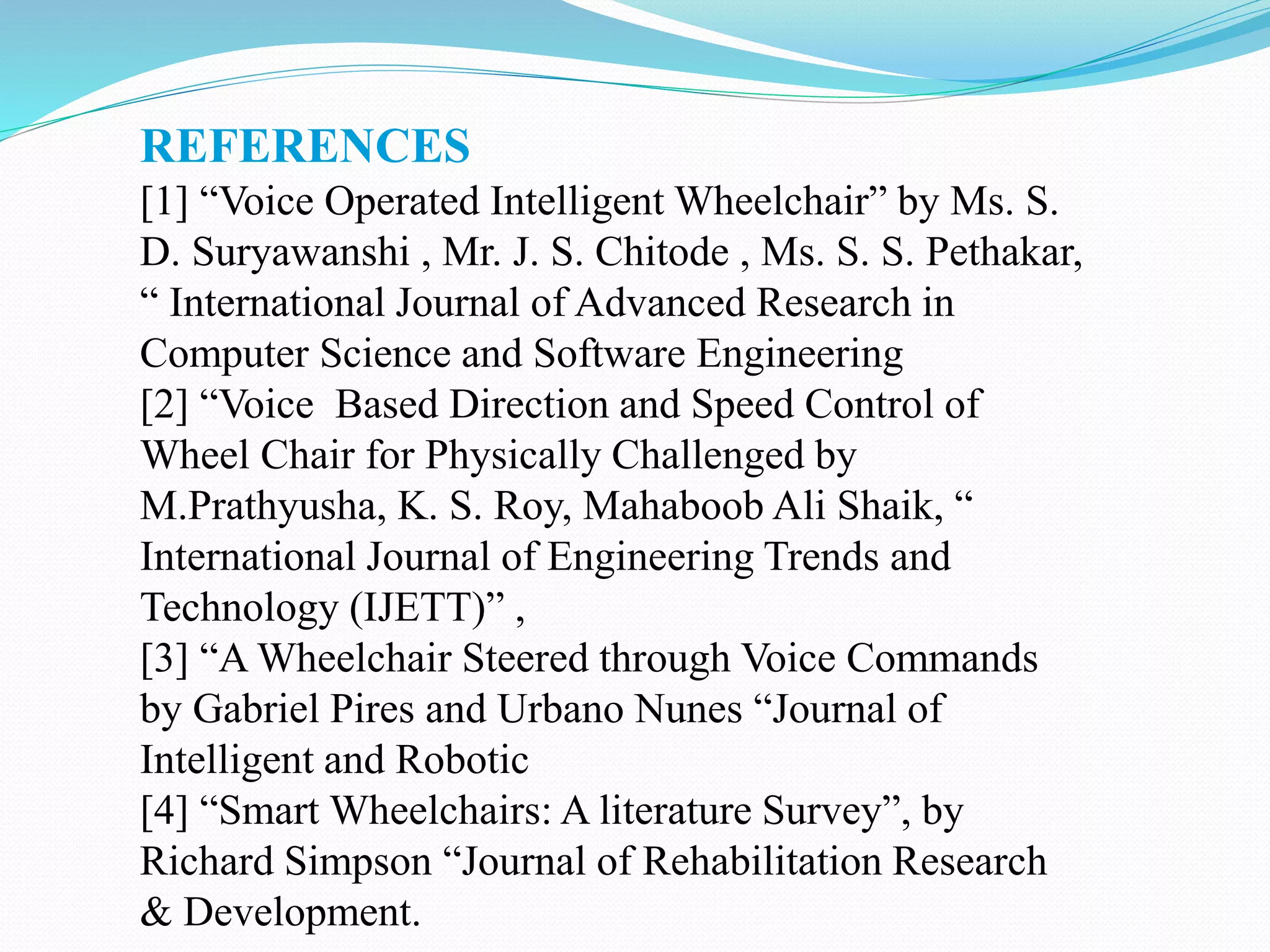

23. REFERENCES
[1] “Voice Operated Intelligent Wheelchair” by Ms. S.
D. Suryawanshi , Mr. J. S. Chitode , Ms. S. S. Pethakar,
“ International Journal of Advanced Research in
Computer Science and Software Engineering
[2] “Voice Based Direction and Speed Control of
Wheel Chair for Physically Challenged by
M.Prathyusha, K. S. Roy, Mahaboob Ali Shaik, “
International Journal of Engineering Trends and
Technology (IJETT)” ,
[3] “A Wheelchair Steered through Voice Commands
by Gabriel Pires and Urbano Nunes “Journal of
Intelligent and Robotic
[4] “Smart Wheelchairs: A literature Survey”, by
Richard Simpson “Journal of Rehabilitation Research
& Development.
