1. Relining and rebasing
Ayam Chhatkuli
Chitwan medical college

2. Content
• Introduction
• Indication and contraindication
• Preparatory phase
• Relining techniques
• Direct method
• Open mouth technique
• Closed mouth technique
• Functional impression
• Laboratory procedure
• Conclusion
• Questions and answer

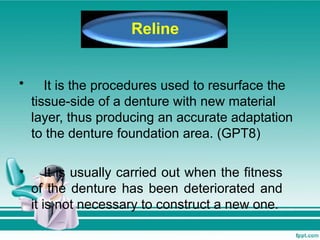

3. • It is the procedures used to resurface the
tissue-side of a denture with new material
layer, thus producing an accurate adaptation
to the denture foundation area. (GPT8)
• It is usually carried out when the fitness
of the denture has been deteriorated and
it is not necessary to construct a new one.
Reline

4. • It is the laboratory process of replacing
the entire denture base material on an
existing prosthesis, without changing the
dental arch, and the occlusal relationship.
(GPT8)
• It is perfomed for extensive tissue changes
and the entire denture base is changed
following impression procedure
Rebase

5. Indication for Relining
• Poor adaptation of denture base to the
ridge
• Patient with complaint of looseness or
instability of dentures following a long
standing history of comfort and satisfaction
with the denture
• 3-6 month after construction of immediate
denture
• For geriatric or chronically ill patient
Indications

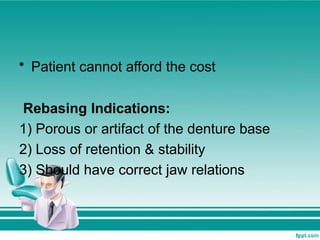

6. • Patient cannot afford the cost
Rebasing Indications:
1) Porous or artifact of the denture base
2) Loss of retention & stability
3) Should have correct jaw relations

7. • Excessive ridge resorption
• Presence of abused soft tissue
• Temporomandibular joint problem
• Dentures with poor aesthetics
• Dentures with major speech problems
• Presence of severe osseous undercuts
Contraindicati
on

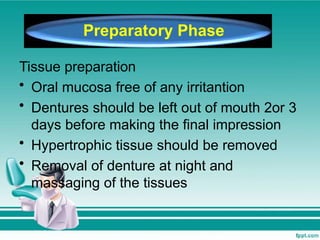

8. Tissue preparation
• Oral mucosa free of any irritantion
• Dentures should be left out of mouth 2or 3
days before making the final impression
• Hypertrophic tissue should be removed
• Removal of denture at night and
massaging of the tissues
Preparatory Phase

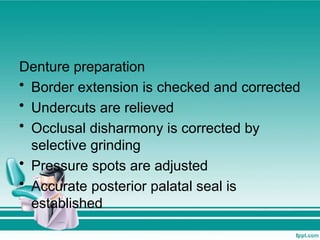

9. Denture preparation
• Border extension is checked and corrected
• Undercuts are relieved
• Occlusal disharmony is corrected by
selective grinding
• Pressure spots are adjusted
• Accurate posterior palatal seal is
established

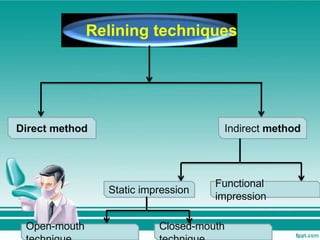

10. Relining techniques
Direct method Indirect method
Static impression
Functional
impression
Open-mouth Closed-mouth

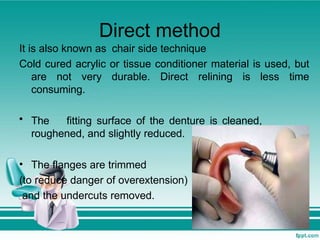

11. Direct method
It is also known as chair side technique
Cold cured acrylic or tissue conditioner material is used, but
are not very durable. Direct relining is less time
consuming.
• The fitting surface of the denture is cleaned,
roughened, and slightly reduced.
• The flanges are trimmed
(to reduce danger of overextension)
and the undercuts removed.

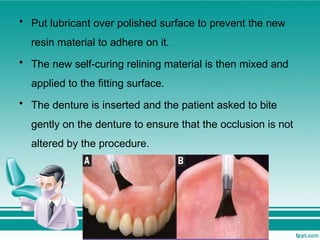

12. • Put lubricant over polished surface to prevent the new
resin material to adhere on it.
• The new self-curing relining material is then mixed and
applied to the fitting surface.
• The denture is inserted and the patient asked to bite
gently on the denture to ensure that the occlusion is not
altered by the procedure.

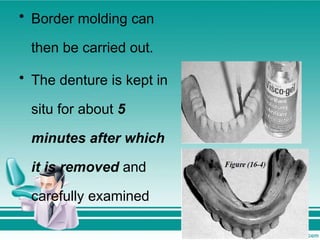

13. • Border molding can
then be carried out.
• The denture is kept in
situ for about 5
minutes after which
it is removed and
carefully examined

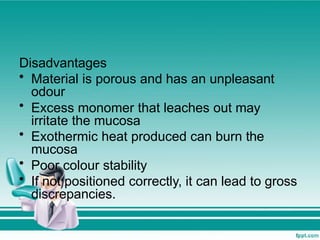

14. Disadvantages
• Material is porous and has an unpleasant
odour
• Excess monomer that leaches out may
irritate the mucosa
• Exothermic heat produced can burn the
mucosa
• Poor colour stability
• If not positioned correctly, it can lead to gross
discrepancies.

15. eth
e
• Dentures are used as special try
for making the final impression
• Tissue stops are prepared in the
denture using low-fusing
compound to maintain vertical
dimension, occlusal plane and
esthetic position of anterior te
• Tissue surface and borders ar
trimmed by 1mm

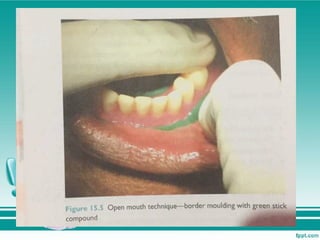

• Borders are moulded with low-
fusing green stick compound
Open- mouth technique

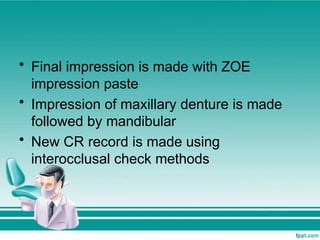

16. • Final impression is made with ZOE
impression paste
• Impression of maxillary denture is made
followed by mandibular
• New CR record is made using
interocclusal check methods

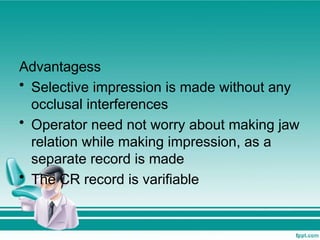

18. Advantagess
• Selective impression is made without any
occlusal interferences
• Operator need not worry about making jaw
relation while making impression, as a
separate record is made
• The CR record is varifiable

19. Disadvantages
• Chances of increase in vertical dimension
even though tissue stops are provided
• High possibility of denture moving
forward
• Demanding and laborious technique
• Requires more clinical and laboratory
time

20. Closed mouth technique
• Dentures use the special tray for making
the final impression
• The tissue surface and borders of the
denture are trimmed by 1-2 mm expect for
the posterior border of the maxillary
denture
• Borders are moulded with low fusing green
stick compound
• Final impression is made with ZOE
impression paste

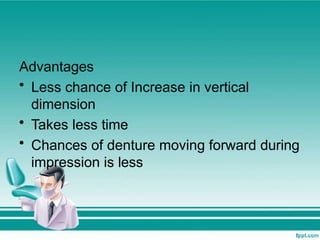

22. Advantages
• Less chance of Increase in vertical
dimension
• Takes less time
• Chances of denture moving forward during
impression is less

23. Disadvantages
• Existing errors in centric occlusion can
produce pressure points and inaccurate
impresion
• Hydrostatic pressure in palate during
impression making and packing of acrylic,
can still cause increase in vertical
dimension

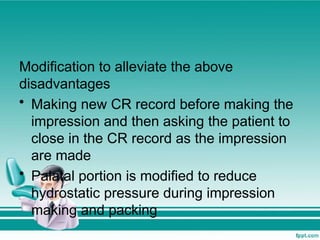

24. Modification to alleviate the above
disadvantages
• Making new CR record before making the
impression and then asking the patient to
close in the CR record as the impression
are made
• Palatal portion is modified to reduce
hydrostatic pressure during impression
making and packing

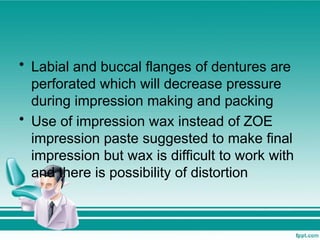

25. • Labial and buccal flanges of dentures are
perforated which will decrease pressure
during impression making and packing
• Use of impression wax instead of ZOE
impression paste suggested to make final
impression but wax is difficult to work with
and there is possibility of distortion

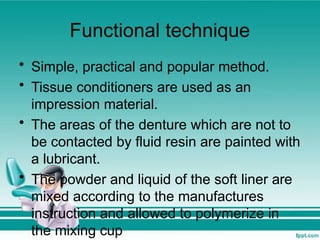

26. Functional technique
• Simple, practical and popular method.
• Tissue conditioners are used as an
impression material.
• The areas of the denture which are not to
be contacted by fluid resin are painted with
a lubricant.
• The powder and liquid of the soft liner are
mixed according to the manufactures
instruction and allowed to polymerize in
the mixing cup

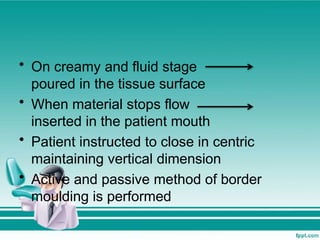

27. • On creamy and fluid stage
poured in the tissue surface
• When material stops flow
inserted in the patient mouth
• Patient instructed to close in centric
maintaining vertical dimension
• Active and passive method of border
moulding is performed

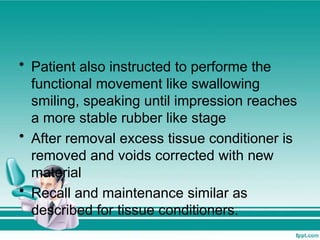

28. • Patient also instructed to performe the
functional movement like swallowing
smiling, speaking until impression reaches
a more stable rubber like stage
• After removal excess tissue conditioner is
removed and voids corrected with new
material
• Recall and maintenance similar as
described for tissue conditioners.

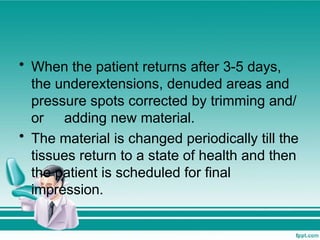

29. • When the patient returns after 3-5 days,
the underextensions, denuded areas and
pressure spots corrected by trimming and/
or adding new material.
• The material is changed periodically till the
tissues return to a state of health and then
the patient is scheduled for final
impression.

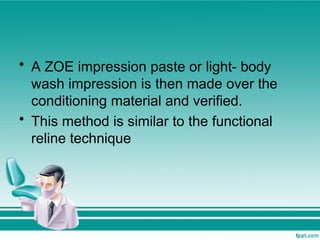

30. • A ZOE impression paste or light- body
wash impression is then made over the
conditioning material and verified.
• This method is similar to the functional
reline technique

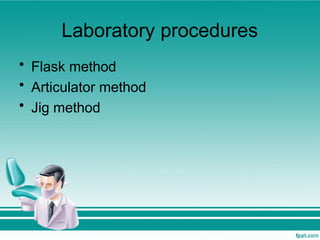

31. Laboratory procedures
• Flask method
• Articulator method
• Jig method

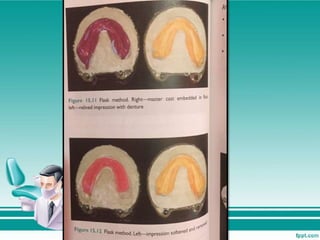

32. Flask method
• The relined impression is poured with
dental stone
• Master cast is poured around the
impression similar to the original master
cast by beading and boxing
• The cast provides the surface against
which the denture is relined by invading it
in a processing flask

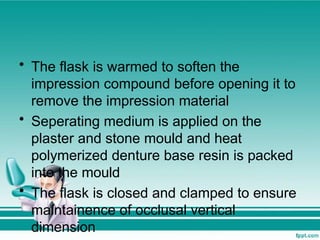

34. • The flask is warmed to soften the
impression compound before opening it to
remove the impression material
• Seperating medium is applied on the
plaster and stone mould and heat
polymerized denture base resin is packed
into the mould
• The flask is closed and clamped to ensure
maintainence of occlusal vertical
dimension

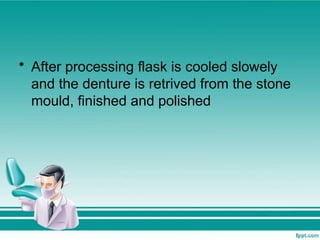

35. • After processing flask is cooled slowely
and the denture is retrived from the stone
mould, finished and polished

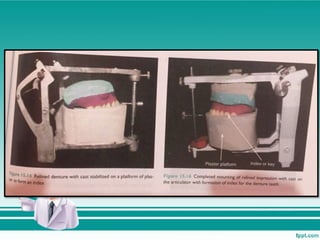

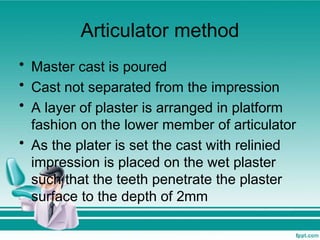

36. Articulator method
• Master cast is poured
• Cast not separated from the impression
• A layer of plaster is arranged in platform
fashion on the lower member of articulator
• As the plater is set the cast with relinied
impression is placed on the wet plaster
such that the teeth penetrate the plaster
surface to the depth of 2mm

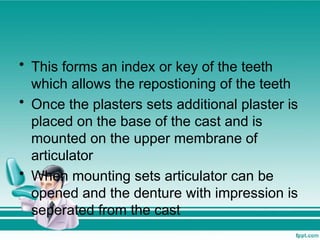

38. • This forms an index or key of the teeth
which allows the repostioning of the teeth
• Once the plasters sets additional plaster is
placed on the base of the cast and is
mounted on the upper membrane of
articulator
• When mounting sets articulator can be
opened and the denture with impression is
seperated from the cast

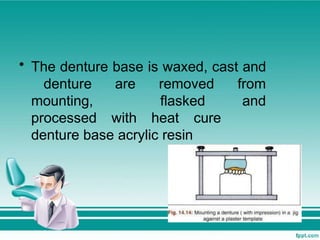

39. • The denture base is waxed, cast and
denture are removed from
mounting, flasked and
processed with heat cure
denture base acrylic resin

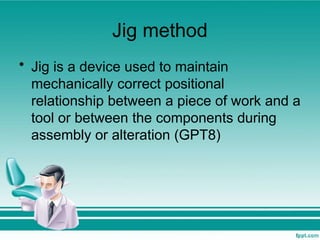

40. Jig method
• Jig is a device used to maintain
mechanically correct positional
relationship between a piece of work and a
tool or between the components during
assembly or alteration (GPT8)

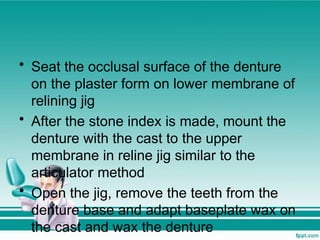

41. • Seat the occlusal surface of the denture
on the plaster form on lower membrane of
relining jig
• After the stone index is made, mount the
denture with the cast to the upper
membrane in reline jig similar to the
articulator method
• Open the jig, remove the teeth from the
denture base and adapt baseplate wax on
the cast and wax the denture

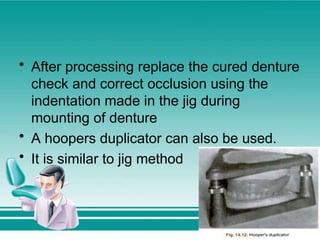

42. • After processing replace the cured denture
check and correct occlusion using the
indentation made in the jig during
mounting of denture
• A hoopers duplicator can also be used.
• It is similar to jig method

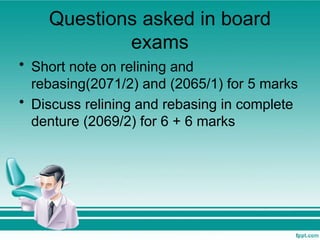

43. Questions asked in board
exams
• Short note on relining and
rebasing(2071/2) and (2065/1) for 5 marks
• Discuss relining and rebasing in complete
denture (2069/2) for 6 + 6 marks
