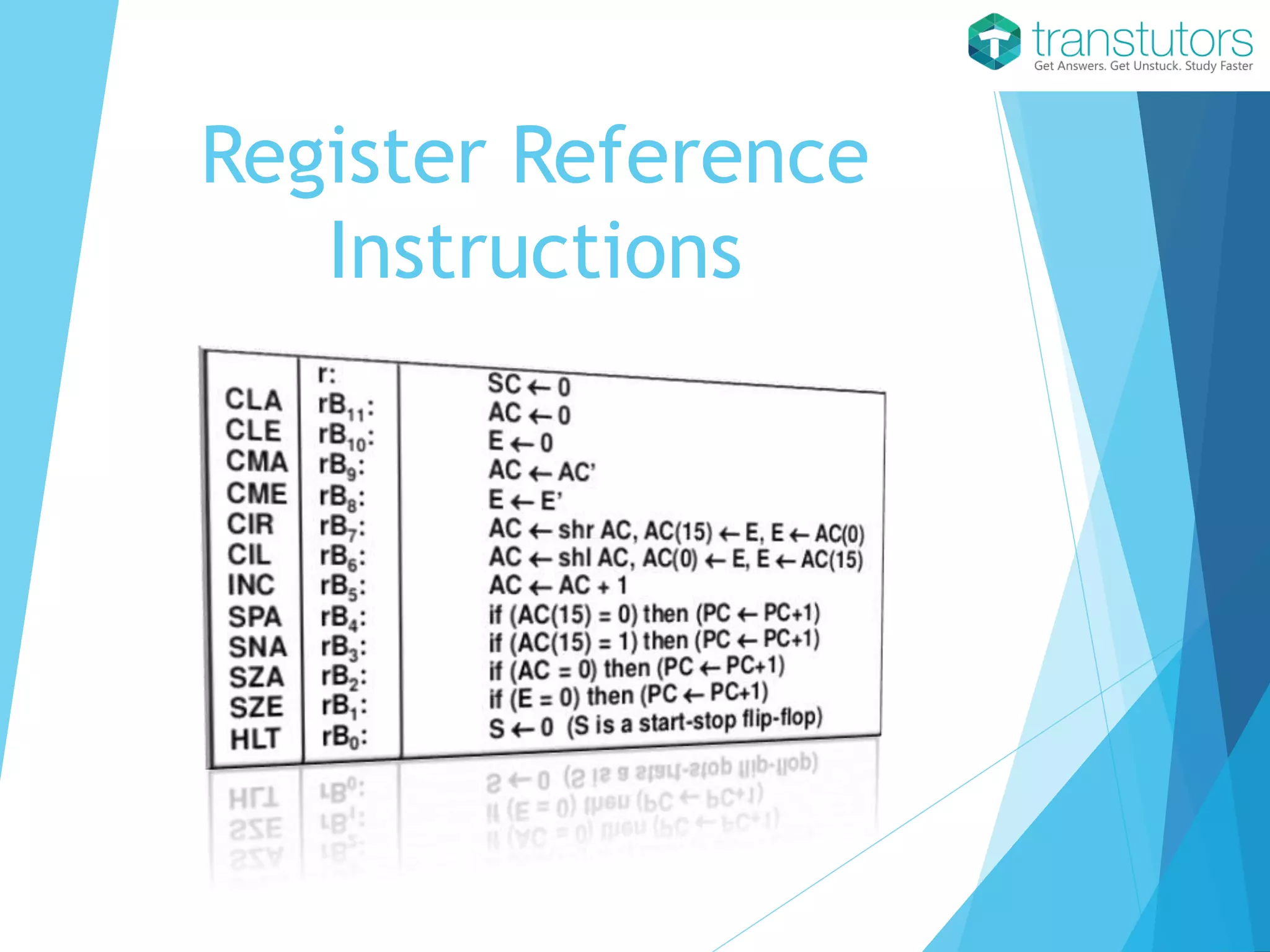

1. Register Reference
Instructions

2. Definition of Register Reference Instructions
 Register Reference Instructions are those which refer
registers instead of some memory address or memory
location for data to operate on

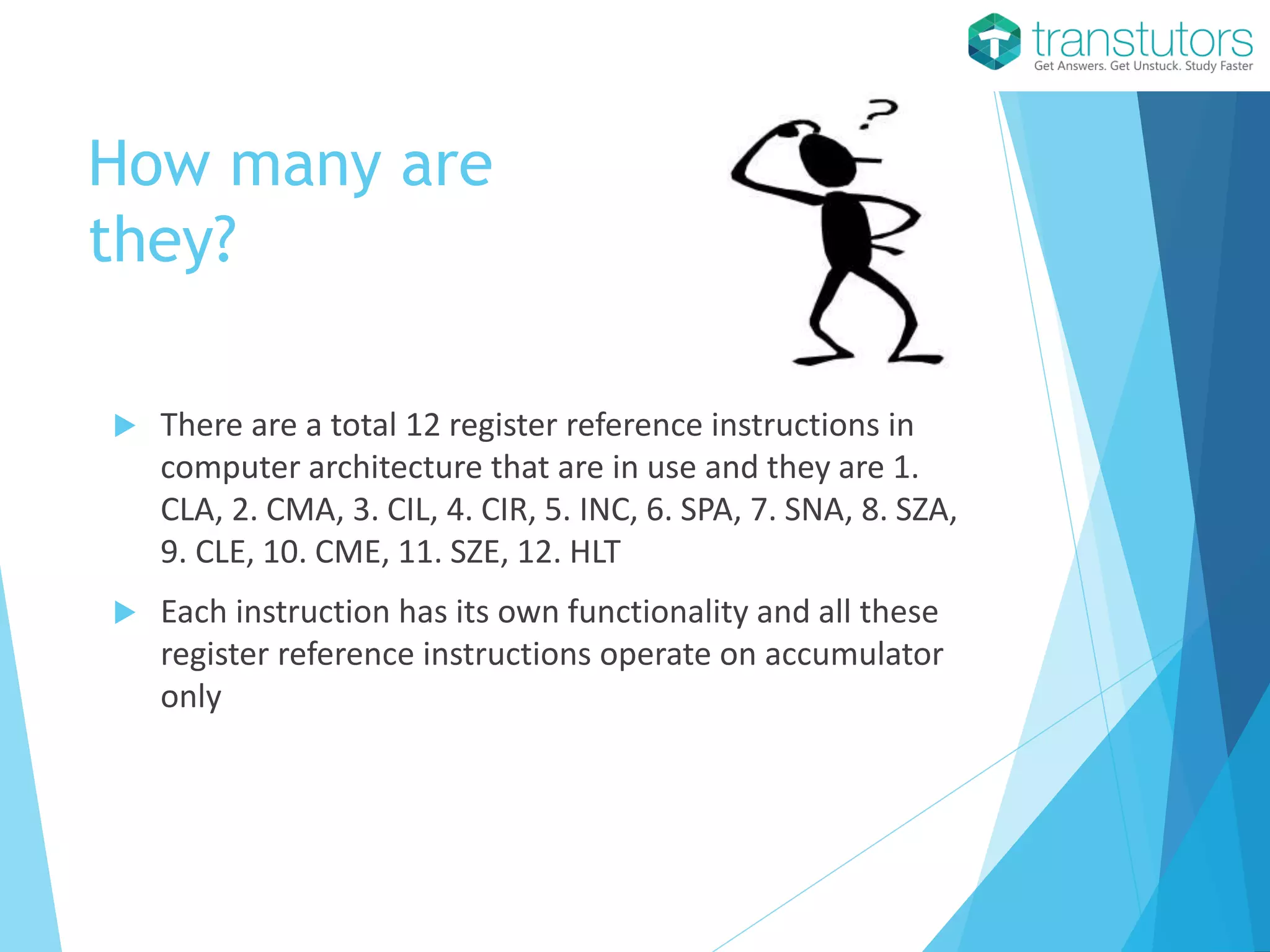

3. How many are
they?
 There are a total 12 register reference instructions in
computer architecture that are in use and they are 1.
CLA, 2. CMA, 3. CIL, 4. CIR, 5. INC, 6. SPA, 7. SNA, 8. SZA,
9. CLE, 10. CME, 11. SZE, 12. HLT
 Each instruction has its own functionality and all these
register reference instructions operate on accumulator
only

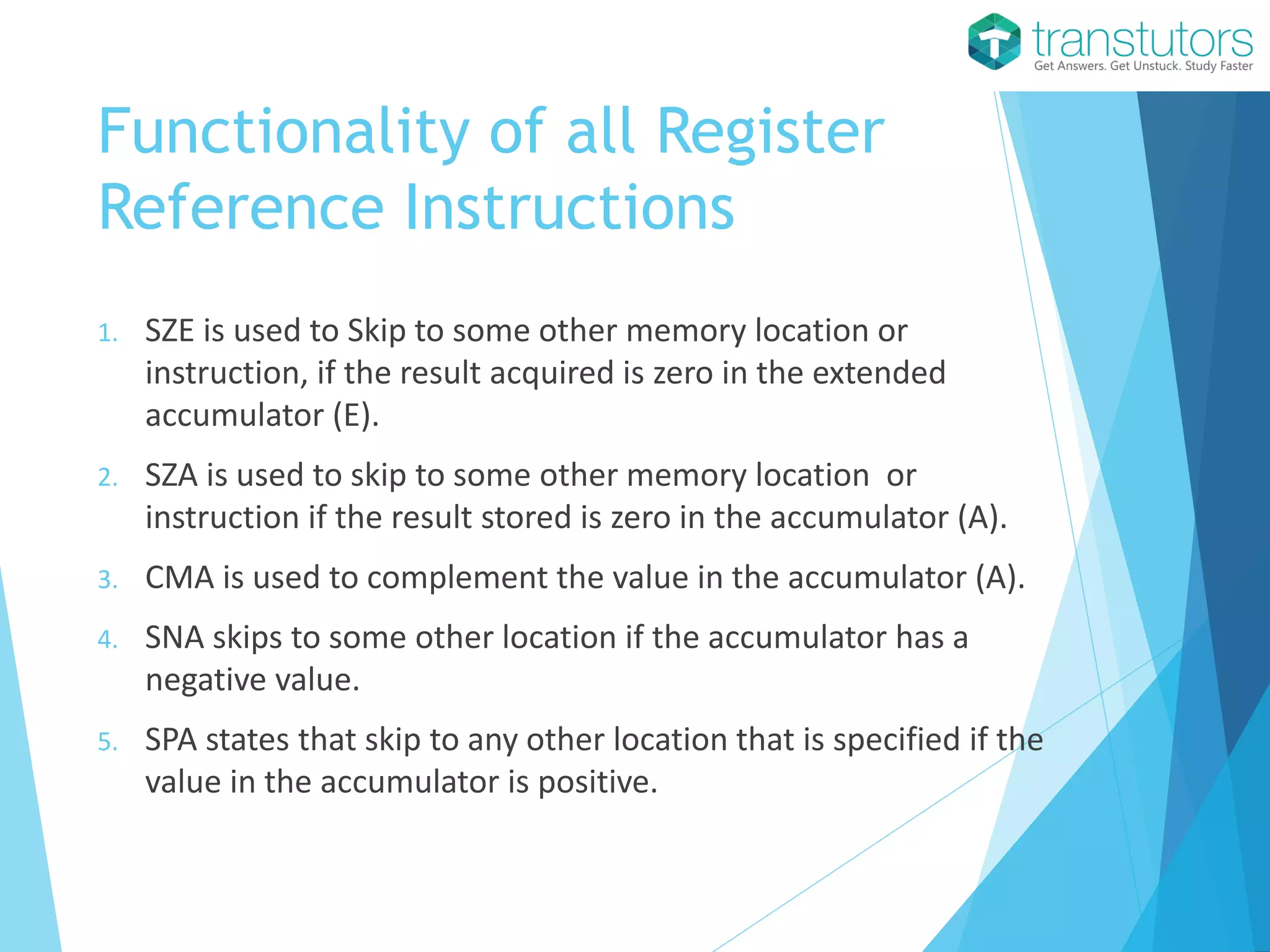

4. Functionality of all Register
Reference Instructions
1. SZE is used to Skip to some other memory location or
instruction, if the result acquired is zero in the extended
accumulator (E).
2. SZA is used to skip to some other memory location or
instruction if the result stored is zero in the accumulator (A).
3. CMA is used to complement the value in the accumulator (A).
4. SNA skips to some other location if the accumulator has a
negative value.
5. SPA states that skip to any other location that is specified if the
value in the accumulator is positive.

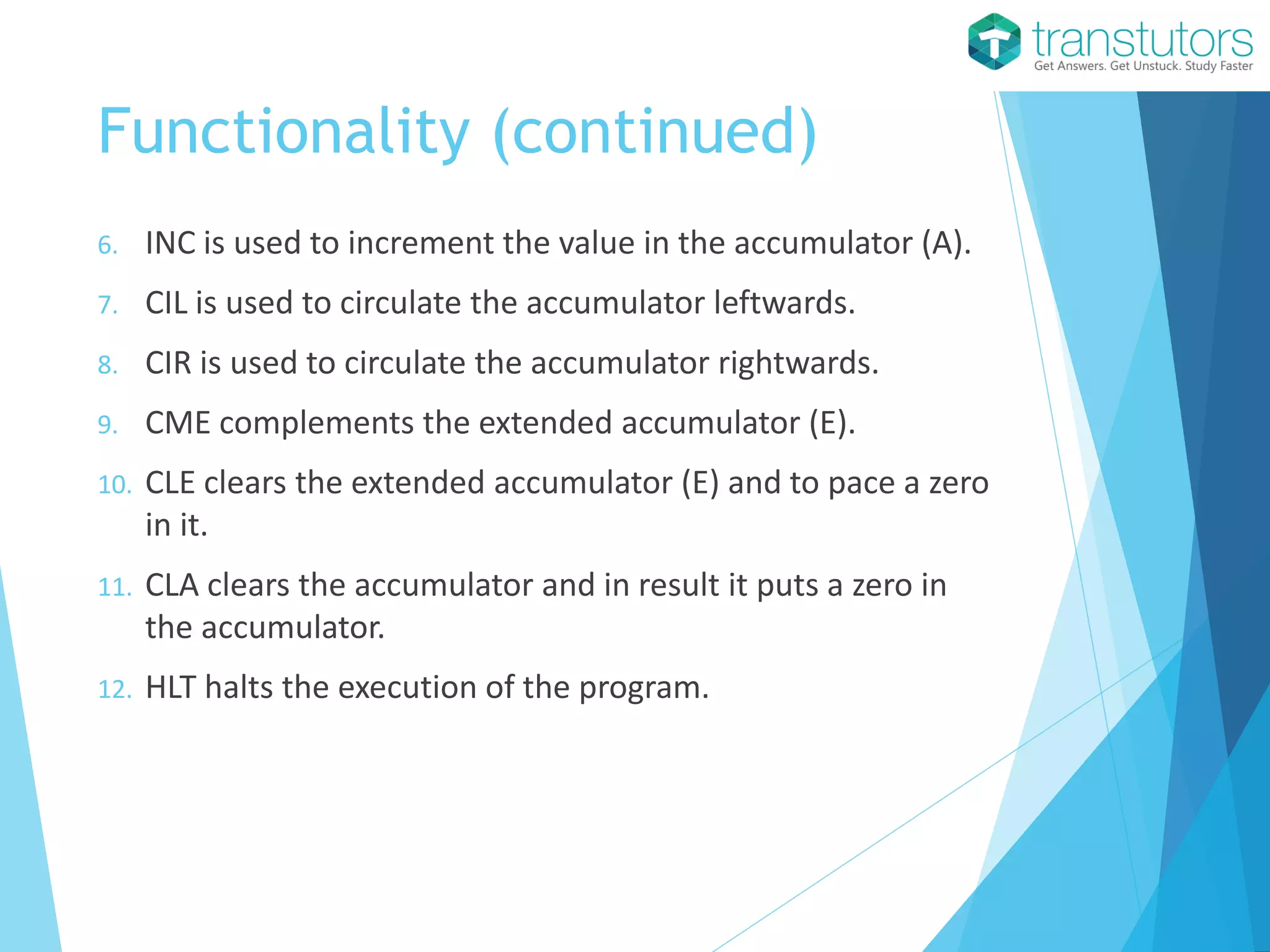

5. Functionality (continued)
6. INC is used to increment the value in the accumulator (A).
7. CIL is used to circulate the accumulator leftwards.
8. CIR is used to circulate the accumulator rightwards.
9. CME complements the extended accumulator (E).
10. CLE clears the extended accumulator (E) and to pace a zero
in it.
11. CLA clears the accumulator and in result it puts a zero in
the accumulator.
12. HLT halts the execution of the program.

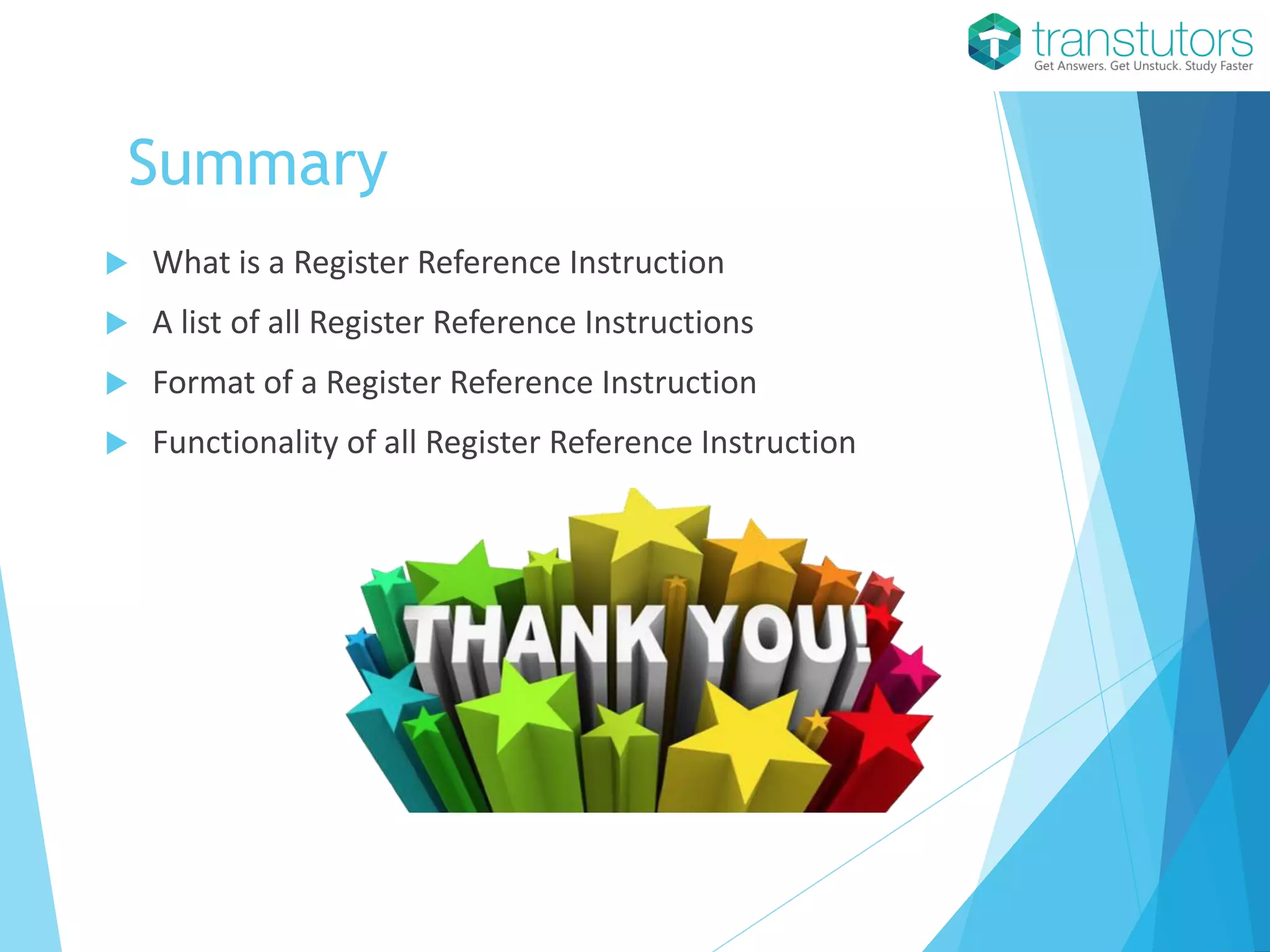

6. Summary
 What is a Register Reference Instruction
 A list of all Register Reference Instructions
 Format of a Register Reference Instruction
 Functionality of all Register Reference Instruction

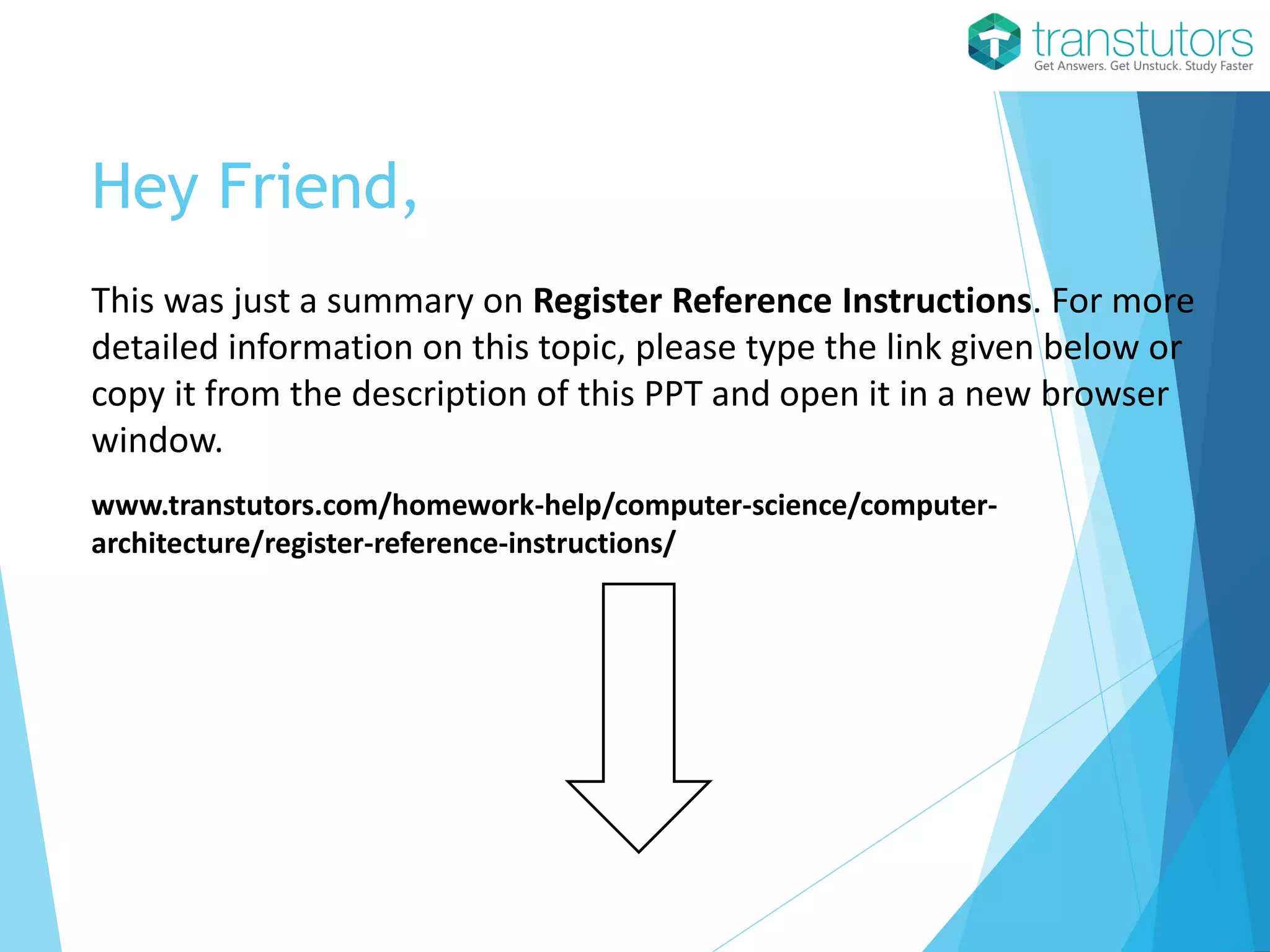

7. Hey Friend,
