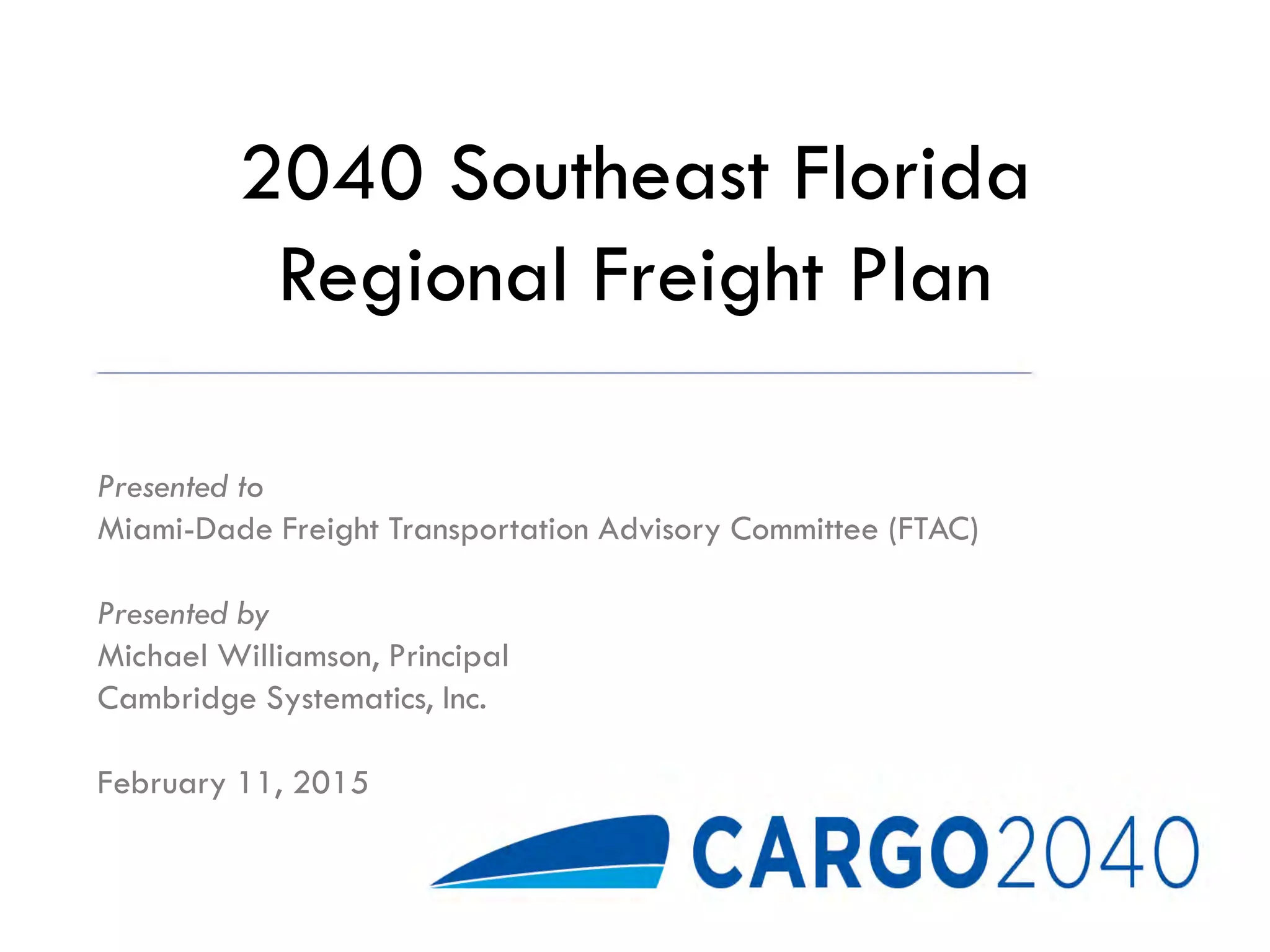

1. 2040 Southeast Florida
Regional Freight Plan
Presented to
Miami-Dade Freight Transportation Advisory Committee (FTAC)
Presented by
Michael Williamson, Principal
Cambridge Systematics, Inc.
February 11, 2015

2. Our 2014 Southeast Regional Freight Plan
Update is Positioning Us for Continued Growth
• Screens regional highway network
for key freight bottlenecks
• Reviews capital needs for our airports,
seaports and railroads
• Provides updated list of prioritized
freight needs
• Estimates economic impacts
generated by the freight industry
• Summarizes and incorporates key freight and logistics initiatives to help
position the region as a global logistics hub
• Tells our freight story
2

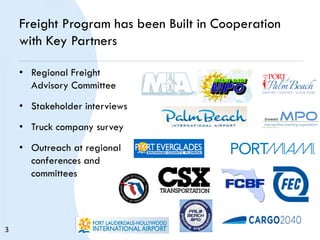

3. Freight Program has been Built in Cooperation
with Key Partners
• Regional Freight
Advisory Committee
• Stakeholder interviews
• Truck company survey
• Outreach at regional
conferences and
committees
3

4. Southeast Florida Has Made

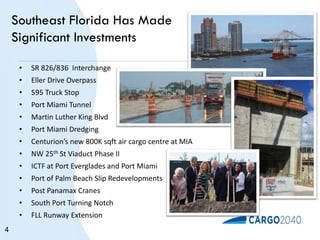

Significant Investments
• SR 826/836 Interchange
• Eller Drive Overpass
• 595 Truck Stop
• Port Miami Tunnel
• Martin Luther King Blvd
• Port Miami Dredging
• Centurion’s new 800K sqft air cargo centre at MIA
• NW 25th St Viaduct Phase II
• ICTF at Port Everglades and Port Miami
• Port of Palm Beach Slip Redevelopments
• Post Panamax Cranes
• South Port Turning Notch
• FLL Runway Extension
4

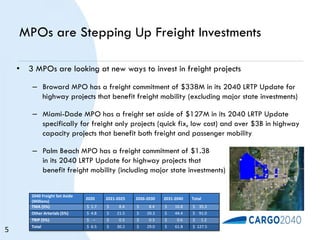

5. MPOs are Stepping Up Freight Investments
• 3 MPOs are looking at new ways to invest in freight projects
– Broward MPO has a freight commitment of $338M in its 2040 LRTP Update for
highway projects that benefit freight mobility (excluding major state investments)
– Miami-Dade MPO has a freight set aside of $127M in its 2040 LRTP Update
specifically for freight only projects (quick fix, low cost) and over $3B in highway
capacity projects that benefit both freight and passenger mobility
– Palm Beach MPO has a freight commitment of $1.3B
in its 2040 LRTP Update for highway projects that
benefit freight mobility (including major state investments)
2040 Freight Set Aside
(Millions)
2020 2021-2025 2026-2030 2031-2040 Total
TMA (5%) $ 1.7 $ 8.4 $ 8.4 $ 16.8 $ 35.3
Other Arterials (5%) $ 4.8 $ 21.5 $ 20.3 $ 44.4 $ 91.0
TRIP (5%) $ – $ 0.3 $ 0.3 $ 0.6 $ 1.2
Total $ 6.5 $ 30.2 $ 29.0 $ 61.8 $ 127.5
5

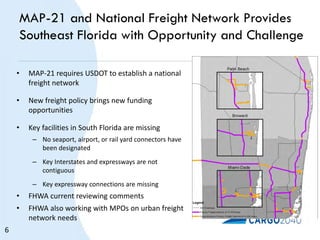

6. MAP-21 and National Freight Network Provides
Southeast Florida with Opportunity and Challenge
• MAP-21 requires USDOT to establish a national
freight network
• New freight policy brings new funding
opportunities
• Key facilities in South Florida are missing
– No seaport, airport, or rail yard connectors have
been designated
– Key Interstates and expressways are not
contiguous
– Key expressway connections are missing
• FHWA current reviewing comments
• FHWA also working with MPOs on urban freight
network needs
6

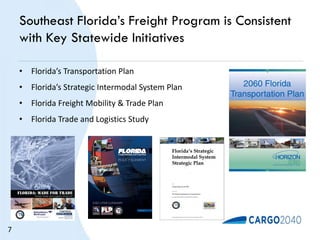

7. Southeast Florida’s Freight Program is Consistent
with Key Statewide Initiatives
• Florida’s Transportation Plan
• Florida’s Strategic Intermodal System Plan
• Florida Freight Mobility & Trade Plan
• Florida Trade and Logistics Study
7

8. Southeast Florida’s

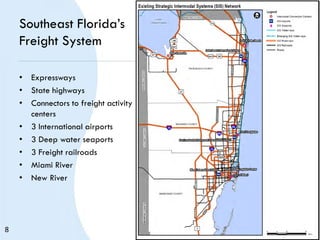

Freight System
• Expressways
• State highways
• Connectors to freight activity
centers
• 3 International airports
• 3 Deep water seaports
• 3 Freight railroads
• Miami River
• New River
8

9. Truck Percent

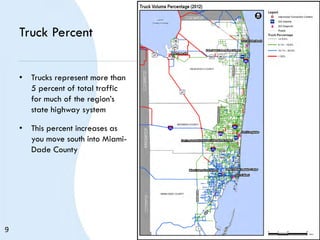

• Trucks represent more than
5 percent of total traffic
for much of the region’s
state highway system
• This percent increases as
you move south into Miami-
Dade County
9

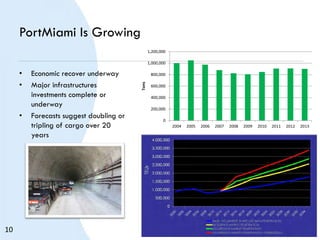

10. PortMiami Is Growing
0
200,000
400,000
600,000
800,000
1,000,000
1,200,000
2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
Tons
• Economic recover underway
• Major infrastructures
investments complete or
underway
• Forecasts suggest doubling or
tripling of cargo over 20
years
10

11. Port Everglades is Growing

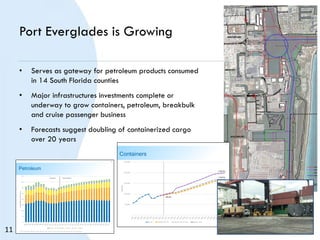

9
Petroleum
0
50
100
150
200
250
300
350
400
ThousandsofBarrelsPerDay
Gasoline Jet & Kerosene Diesel Fuel Oil Other
Source: Port Everglades (2000-2012),USACE, DOE, IHS Estimates Note 2013 utilizes fiscal year 2013 data to April provided by Port Everglades
Historic Forecasted
5
Containers
1,631,967
1,710,612
949,262
1,987,953
-
500,000
1,000,000
1,500,000
2,000,000
2,500,000
TotalTEUs
Actual Baseline @ 2.7% Baseline Plus @ 3.0% High @ 3.7%
• Serves as gateway for petroleum products consumed
in 14 South Florida counties
• Major infrastructures investments complete or
underway to grow containers, petroleum, breakbulk
and cruise passenger business
• Forecasts suggest doubling of containerized cargo
over 20 years
11

12. Port of Palm Beach is Growing

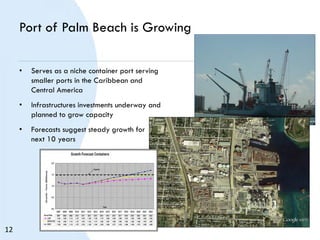

• Serves as a niche container port serving
smaller ports in the Caribbean and
Central America
• Infrastructures investments underway and
planned to grow capacity
• Forecasts suggest steady growth for
next 10 years
12

13. Southeast Florida
Rail System

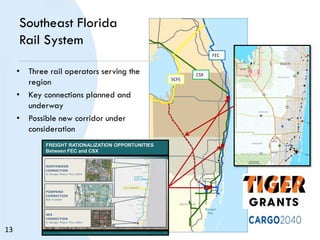

• Three rail operators serving the
region
• Key connections planned and
underway
• Possible new corridor under
consideration
3
FREIGHT RATIONALIZATION OPPORTUNITIES
Between FEC and CSX
NORTHWOOD
CONNECTION
In Design Phase Thru 2014
POMPANO
CONNECTION
Not Funded
IRIS
CONNECTION
In Design Phase Thru 2014
FEC CORRIDOR
CSX
SCFE
CSX
FEC
13

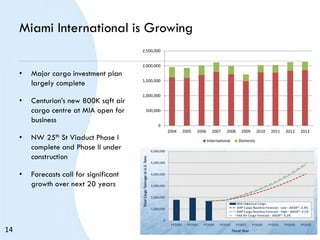

14. Miami International is Growing
• Major cargo investment plan
largely complete
• Centurion’s new 800K sqft air
cargo centre at MIA open for
business
• NW 25th St Viaduct Phase I
complete and Phase II under
construction
• Forecasts call for significant
growth over next 20 years
0
500,000
1,000,000
1,500,000
2,000,000
2,500,000
2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
International Domestic
14

15. Miami River is Growing with Expanded

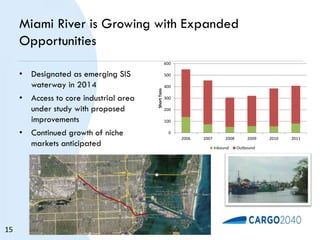

Opportunities
• Designated as emerging SIS
waterway in 2014
• Access to core industrial area
under study with proposed
improvements
• Continued growth of niche
markets anticipated
0
100
200
300
400
500
600
2006 2007 2008 2009 2010 2011
ShortTons
Inbound Outbound
15

16. Truck Parking Remains a Key Consideration

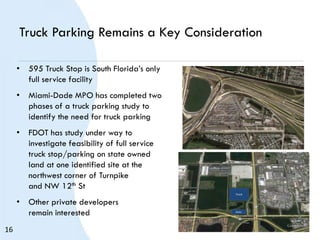

• 595 Truck Stop is South Florida’s only
full service facility
• Miami-Dade MPO has completed two
phases of a truck parking study to
identify the need for truck parking
• FDOT has study under way to
investigate feasibility of full service
truck stop/parking on state owned
land at one identified site at the
northwest corner of Turnpike
and NW 12th St
• Other private developers
remain interested Auto
Truck
16

17. Investments in Intermodal Logistics Centers is
Expanding Our Supply Chain Capacity
• FDOT ILC Grant Program
– $5 Million a year to support ILC
development
• Existing and Proposed ILCs
– FECI’s South Florida Logistics Center (underway)
– Key Master Planned ILCs in Palm Beach, St. Lucie, Glades, and
Hendry Counties
17

18. South Bay/Belle Glade Opportunities Include a

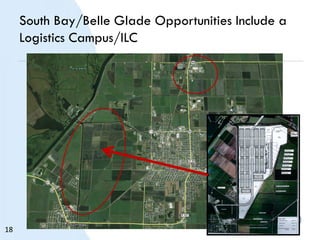

Logistics Campus/ILC
18

19. Creation of the Florida Perishables Trade Coalition
has Opened New Markets to Southeast Florida
• Many perishable goods are imported through Pennsylvania and trucked to
Florida due to medfly concerns
• Cold treating products properly eliminates this risk
• FPTC formed to increase trade in perishable
products through Florida’s airports and seaports
• Phase I of a pilot program successfully completed
allowing grapes and blueberries from Peru and Uruguay
• Phase II will allow more products through more approved ports
• Phase III will allow for cold treatment to occur in Florida for any shipments
which may fail
19

20. Top 25 Prioritized Highway Needs
20
RANK Facility From To Project Type Description
Total
Points
1 SR 826/Palmetto Expressway NW 87th Avenue on I-75 SR 836 Freeway Capacity Improvements Add managed lanes 86
1 SR 826/SR 836 NW 25th Street to SW 8th Street
NW 87th Avenue to 57th
Avenue Freeway Capacity Improvements Interchange/Add lanes - DT2495811 86
3 I-95 Managed Lanes System South Palm Beach County Line Linton Blvd Freeway Capacity Improvements 4 Managed Lanes/widening I-95 85
4 I-95 Managed Lanes I-595 Palm Beach County Line Freeway Capacity Improvements 4 Managed Lanes/widening I-95 82
5 SR 826/Palmetto Expressway US 27/Okeechobee Road SR 874 Freeway Capacity Improvements Interchange improvements 81
6 NW 12th Street NW 107th Avenue SR 826 Arterial Capacity Improvements
Widen from 4 lanes to 6 lanes, improve signal
coordination 79
6 NW 20th Street NW 27th Avenue I-95 Arterial Capacity Improvements Roadway infrastructure improvements 79
6 SR 826/Palmetto Expressway Golden Glades Dadeland
Freeway Capacity Improvements
(Unfunded)
Create separate barriered truck lane with
manageable entry/exit 79
6 Florida's Turnpike HEFT Griffin Road Freeway Capacity Improvements Widen from 6 to 8 lanes 79
10
Medley Bridge/Canal
Improvement Program
NW 121st Way, NW 116th Way,
NW 105th Way, NW 79th Avenue Corridor Traffic Ops. Improvements
Improve the connections between Okeechobee
Rd and Medley through a combination of bridge
widening and canal improvements (NW 121 Way,
NW 116 Way, NW 105 Way, NW 79 Ave) 78
10 NW 25th Street NW 89th Court SR 826 Arterial Capacity Improvements Widen from 4 to 6 lanes 78
10 NW South River Drive NW 107th Avenue NW 74th Avenue Arterial Capacity Improvements
Widen North River Drive to include shoulders and
improved access management 78
10 SR 25/Okeechobee Road/US 27 Krome Avenue NW 79th Avenue Arterial Capacity Improvements
Expressway Conversion - Construct Grade
Separated Overpasses at Major Intersections.
New Interchange at NW 79th Avenue, Krome
Avenue / SR-997, NW 103rd Street / NW 87th
Avenue 78
10 SR 25/Okeechobee Road/US 27 Krome Avenue SR 826 Arterial Capacity Improvements Conversion to limited access toll facility 78
10 SR 821/HEFT Kendall Drive I-75 Freeway Capacity Improvements Widen from 6/8 lanes to 10 lanes 78
10 SR 821/HEFT Eureka Drive Kendall Drive Freeway Capacity Improvements Widen to 8-, 10-, 12-lanes plus auxiliary lanes 78
10 SR 821/HEFT SW 216th Street Eureka Drive
Freeway Capacity Improvements
(Unfunded) Widen from 6 to 10 lanes 78
10 Florida's Turnpike Griffin Road Palm Beach County Line ITS Improvements Implement Open Road Tolling 78
19 I-95 South Broward County Line
North Broward County
Line ITS Improvements ITS - Freeway Management 77
19 I-95
All I-95 interchanges in Broward
County Freeway Capacity Improvements
Interchange Improvements as recommended in I-
95 IMP 77
19 I-95 South Palm Beach County Line
North Palm Beach County
Line ITS Improvements ITS - Freeway Management 77
19 I-95 South Palm Beach County Line
North Palm Beach County
Line ITS Improvements ITS - Severe Incident Response Vehicle 77
23 NW 25th Street Viaduct NW 87th Court SR 826 Arterial Capacity Improvements
Phase 2 - construction of Viaduct from SR 826 to
NW 87th Court 76
23
SR 826/Palmetto Expressway
(NB) Okeechobee Road NW 103rd Street Freeway Traffic Ops. Improvements Add 1 NB auxiliary lane 76
25
NW 21st Street/NW 32nd
Avenue NW 37th Avenue NW 28th Street
Arterial Capacity Improvements
(Unfunded) Construct high level bridge 75

21. Top 25 Prioritized Seaport Needs

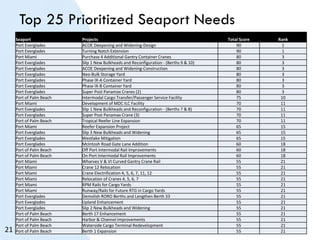

Seaport Projects Total Score Rank
Port Everglades ACOE Deepening and Widening-Design 90 1
Port Everglades Turning Notch Extension 90 1
Port Miami Purchase 4 Additional Gantry Container Cranes 80 3
Port Everglades Slip 1 New Bulkheads and Reconfiguration - (Berths 9 & 10) 80 3
Port Everglades ACOE Deepening and Widening-Construction 80 3
Port Everglades Neo-Bulk Storage Yard 80 3
Port Everglades Phase IX-A Container Yard 80 3
Port Everglades Phase IX-B Container Yard 80 3
Port Everglades Super Post Panamax Cranes (2) 80 3
Port of Palm Beach Intermodal Cargo Transfer/Passenger Service Facility 75 10
Port Miami Development of MDC ILC Facility 70 11
Port Everglades Slip 1 New Bulkheads and Reconfiguration - (Berths 7 & 8) 70 11
Port Everglades Super Post Panamax Crane (3) 70 11
Port of Palm Beach Tropical Reefer Line Expansion 70 11
Port Miami Reefer Expansion Project 65 15
Port Everglades Slip 3 New Bulkheads and Widening 65 15
Port Everglades Westlake Mitigation 65 15
Port Everglades McIntosh Road Gate Lane Addition 60 18
Port of Palm Beach Off Port Intermodal Rail Improvements 60 18
Port of Palm Beach On Port Intermodal Rail Improvements 60 18
Port Miami Wharves V & VI Curved Gantry Crane Rail 55 21
Port Miami Crane 12 Relocation 55 21
Port Miami Crane Electrification 4, 5, 6, 7, 11, 12 55 21
Port Miami Relocation of Cranes 4, 5, 6, 7 55 21
Port Miami RPM Rails for Cargo Yards 55 21
Port Miami Runway/Rails for Future RTG in Cargo Yards 55 21
Port Everglades Demolish RORO Berths and Lengthen Berth 33 55 21
Port Everglades Upland Enhancement 55 21
Port Everglades Slip 2 New Bulkheads and Widening 55 21
Port of Palm Beach Berth 17 Enhancement 55 21
Port of Palm Beach Harbor & Channel Improvements 55 21
Port of Palm Beach Waterside Cargo Terminal Redevelopment 55 21
Port of Palm Beach Berth 1 Expansion 55 2121

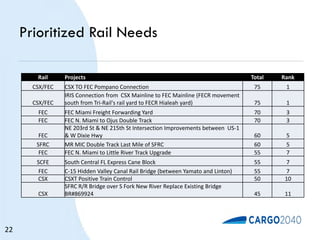

22. Prioritized Rail Needs
22
Rail Projects Total Rank
CSX/FEC CSX TO FEC Pompano Connection 75 1
CSX/FEC
IRIS Connection from CSX Mainline to FEC Mainline (FECR movement
south from Tri-Rail's rail yard to FECR Hialeah yard) 75 1
FEC FEC Miami Freight Forwarding Yard 70 3
FEC FEC N. Miami to Ojus Double Track 70 3
FEC
NE 203rd St & NE 215th St Intersection Improvements between US-1
& W Dixie Hwy 60 5
SFRC MR MIC Double Track Last Mile of SFRC 60 5
FEC FEC N. Miami to Little River Track Upgrade 55 7
SCFE South Central FL Express Cane Block 55 7
FEC C-15 Hidden Valley Canal Rail Bridge (between Yamato and Linton) 55 7
CSX CSXT Positive Train Control 50 10
CSX
SFRC R/R Bridge over S Fork New River Replace Existing Bridge
BR#869924 45 11

23. Prioritized Airport Needs
Airport Project Total Score Rank
MIA Additional Air Cargo Apron 100 1
PBI Palm Beach International Cargo Facilities Access 75 2
FLL Runway 9R/27L Extension (8,000’ x 150’) 65 3
MIA Fuel Tanker Parking Facility 55 4
MIA Perimeter Road Widening & Realignment 55 4
MIA Miami-Dade Aviation GPS Landing System 55 4
FLL ILS for Runway 9R-27L 55 4
FLL Cross-field taxiways from 9R-27L 55 4
FXE Construct Customs Building And Apron 55 4
FXE Construct Eastern Perimeter Road 55 4
MIA Northeast Apron And Drainage Improvements 50 11
MIA Acquisition Of FODequipment 50 11
MIA Taxiway S Rehabilitation 50 11
MIA Taxiway T Rehabilitation 50 11
Opa-Locka Rehab Aprons 50 11
Opa-Locka Opf Taxiway Repair 50 11
FXE Taxiway C, E, F, S Rehab 50 11
FXE Runway 8/26 & 13/31 Pavement Rehab 50 11
FXE Rehab Airfield Lighting 50 11
PBI Taxiway C Rehab 50 11
LNA Rehab Itinerant Apron 50 11
23

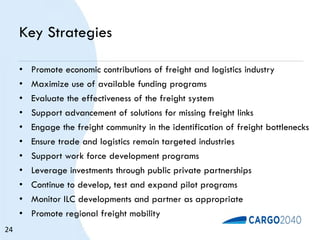

24. Key Strategies
• Promote economic contributions of freight and logistics industry
• Maximize use of available funding programs
• Evaluate the effectiveness of the freight system
• Support advancement of solutions for missing freight links
• Engage the freight community in the identification of freight bottlenecks
• Ensure trade and logistics remain targeted industries
• Support work force development programs
• Leverage investments through public private partnerships
• Continue to develop, test and expand pilot programs
• Monitor ILC developments and partner as appropriate
• Promote regional freight mobility
24

25. Our Ability to Incorporate Freight Priorities into
Our Regional Plan is Critical to Our Future
• South Florida is home to as well established,
globally competitive logistics industry
• Billions of dollars have been invested over
last several years to ensure we remain
competitive
• We are well positioned to for significant
growth as global trade patterns continue
to shift
• Our economic prosperity and the sustainability
of our communities will be strengthened and
driven by our successful as a global logistics hub
OPEN
FOR BUSINESS
25

26. Questions?
Paul Flavien
Broward MPO
flavienp@browardmpo.org
Michael Williamson
Cambridge Systematics, Inc.
mwilliamson@camsys.com
26
