1. Miami-Dade TPO
Bicycle Pedestrian
Advisory Committee (BPAC)
Virtual Workshop
Tuesday, March 9, 2021

2. MIAMI-DADE TPO BPAC VIRTUAL WORKSHOP MARCH 9, 2021
GUIDELINES 2
Guidelines
• This workshop is being held virtually and is being recorded.
• If you experience technical difficulties, please contact Lisa Juan at 954-716-8823 or at lisa.juan@kimley-horn.com so that a
member of our technical support team may assist you.
• All Attendees will remain muted throughout the duration of this workshop. If you wish to provide a comment, please use the
“Raise Hand” button. The Chair will first acknowledge you then your microphone will be unmuted. Please proceed by first
providing your full name, agency represented, and then your comment. Your microphone will remain unmuted until the
comment has been fully addressed.
• In compliance with all applicable rules and regulations, no actions or motions shall be permitted.
• Discussions shall be limited to matters listed in the published workshop agenda.
• Permissible discussions include:
• Presentations
• Questions and answers
• Comments related to the presentation(s)
• Any committee member deviating from these guidelines will be reminded as to the limitations on any such discussion.
• Please hold comments until presentations are concluded.

3. BPAC Agenda
Informational Items
I. Department of Transportation & Public Works Update
II. FDOT D6 – Project Update Report (March)
Next Workshop
Tuesday, April 13, 2021

4. 4
MIAMI-DADE TPO BPAC VIRTUAL WORKSHOP MARCH 9, 2021
Informational Items
INFORMATIONAL ITEMS

5. 5
MIAMI-DADE TPO BPAC VIRTUAL WORKSHOP MARCH 9, 2021
Department of Transportation &
Public Works Update
I.
INFORMATIONAL ITEMS

6. MIAMI-DADE COUNTY-DTPW
PROJECTS
BPAC – March 9, 2021

7. West Dixie Highway from NE 164 Street to NE 173 Street

8. Old Cutler at SW 152 Street Roundabout

9. Old Cutler at SW 184 Street Roundabout

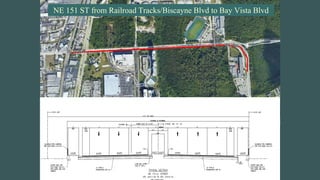

10. NE 151 ST from Railroad Tracks/Biscayne Blvd to Bay Vista Blvd

11. SW 157 Avenue from SW 26 Street to SW 8 Street

12. SW 157 Avenue from SW 42 Street to SW 26 Street

13. PROJECT LIST

14. PROJECT LIST

15. THANK YOU!

16. 16
MIAMI-DADE TPO BPAC VIRTUAL WORKSHOP MARCH 9, 2021
FDOT D6 – Project Update
Report (March)
II.
INFORMATIONAL ITEMS

17. PLANNING OFFICE,
DISTRICT SIX
March 2021 (as of March 1, 2021)
Tiffany Gehrke
District Bicycle/Pedestrian/ADA Coordinator
FDOT PROJECTS REVIEW
MONTHLY SUMMARY

18. 18
PROJECTS REVIEWED P o t e n t i a l N e t w o r k A d d i t i o n
ID FM No. Project Name
Project
Phase
Comment
Due Date
Project Type Existing Improving/Adding?
1
423251-3-
52-01
SR 25/OKEECHOBEE RDFROM EAST OF NW 87
AVE TO NW 79 AVE (CONCRETE) IV (100%) 2/1/2021
(5-7 ft) Bike lanes on frontage
roads, wide shoulders on
Okeechobee, adding sidewalk on
north side of frontage road; 98
St east to 79 Ave
2
431635-5-
32-01
TWO #33 SR 933 100% S&PM Plans Group:
PRELIMINARY ENGINEERING (NW 36 St & NW 12
Ave) IV (100%) 2/3/2021Safety
Crosswalks; ped signals; ada
curb ramps
High Emphasis Crosswalks,
Turning Vehicle Yield to Ped
Signs, add crossing time
3
250629-5-
32-01
Safety Improvements along SR 916 / Opa-Locka
Boulevard from NW 17th Avenue to NW 19th
Avenue IV (100%) 2/19/2021Safety
unbuffered bike lanes;
sidewalks; 25 mph; 3 travel lanes
(westbound)
Wrong-way driving mitigation-
signs & warning flashers; Speed
feedback signs w/25 mph speed
sign
4 444444-2-
52-01
SR-90/US HWY-41/TAMIAMI TRAIL FROM
STRUCTURES-333 TO STRUCTURE S-334 II (60%) 2/19/2021Bridge
Wetland Restoration through
elevating the roadway to a
bridge
5
250629-5-
32-01
TWO No. 38 (Locations 3 & 4) - Pedestrian
Improvements along SR 5 / Biscayne Boulevard
and SE 2nd Avenue IV (100%) 2/25/2021Safety
Signalize SE 2nd Ave & I-95 on
ramp for safe pedestrian
crossing, eliminate island for
shorter crossing distance

19. 19
PROJECTS REVIEWED P o t e n t i a l N e t w o r k A d d i t i o n
ID FM No. Project Name
Project
Phase
Comment
Due Date
Project Type Existing Improving/Adding?
6
436609-1-58-01
CITY OF MIAMI - METROMOVER STATION
ACCESS IMPROVEMENTS IV (100%) 2/26/2021LAP
Adding or enhancing midblock
crosswalks near select
metromover stations to include
high emphasis markings and ADA
curb ramps with proper signage
7
250629-4-32-01
TWO#70 SR 825 / SW 137TH AVENUE AND SW
100TH STREET IV (100%) 3/1/2021Safety 40 mph Installing Speed feedback sign
8
446064-1-58-01
CITY OF DORAL - CITYWIDE SIDEWALK, CURB
RAMP & CROSSWLK IMPROVEMENTS
IV (100% Plans) 3/5/2021LAP Project
sidewalks missing on one or both
sides of the roadway
6 ft sidewalks on NW 89th Ct;
NW 87 Ct; NW 26 St; and west
side of NW 84th Ave; and 5-6 ft
sidewalks on NW 102nd Ave;6 ft
sidewalks on NW 27th Ave
9
443980-1-52-01
SR-932/NW 103 ST. FROM NW 80 CT. TO NW 77
AVE II (60%) 3/5/2021Safety 15 mph school zone
School zone signs, flashing
beacons, and pavement
markings
10
440668-1-52-01
SW 312 STREET/CAMPBELL DRIVE FROM SR
997/KROME AVENUE TO SR 5/US-1 IV (100%) 3/10/2021Landscape
11
420917-2-58-01
OVERTOWN GREENWAY ALONG NW 11 ST FROM
NW 7 AVE TO E OF NW 12 AVE IV (100%) 3/12/2021LAP 5'+ sidewalk
8’+ wide concrete path along
NW 11st St from NW 12th Ave to
NW 7th Ave
12
438034-1-52-01
SR 997/KROME AVENUEFROM SW 296 STREET
TO SW 232 STREET III (90%) 3/19/2021Landscape

20. 20
Project Description Existing Conditions Proposed Improvements
ID Project Type FM No.
Project Facility
(Roadway)
From/At To Phase
Posted
Speed
Functional
Class
Context
Class
No. of Lanes
or
No. of
Intersection
Approaches
AADT
Existing Bicycle
Infrastructure
D6
Implementation
Tool Priority
Bicycle
Infrastructure
Pedestrian
Infrastructure
Ped Crossing
Improvements
Connects/On
Existing/Proposed
Bike Network
1 RRR 423251-3-52-01
SR 25/OKEECHOBEE
RDFROM EAST OF NW
87 AVE TO NW 79 AVE
(CONCRETE)
NW 87 Ave NW 79 Ave 100% Plans 30 MPH
5-7 ft bike lane
on frontage rd
Adding
sidewalk
11 LAP Project 420917-2-58-01
OVERTOWN
GREENWAY ALONG
NW 11 ST FROM NW 7
AVE TO E OF NW 12
AVE
NW 12th
Ave NW 7th
Ave 100% Plans 8-10 ft shared-use path
POTENTIAL NETWORK ADDITIONS

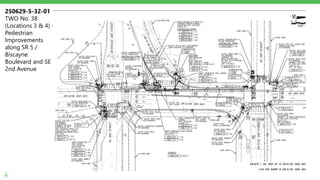

21. 250629-5-32-01
TWO No. 38
(Locations 3 & 4) -
Pedestrian
Improvements
along SR 5 /
Biscayne
Boulevard and SE
2nd Avenue

22. 436609-1-58-01
CITY OF MIAMI - METROMOVER STATION ACCESS IMPROVEMENTS

23. 436609-1-58-01
CITY OF MIAMI - METROMOVER STATION ACCESS IMPROVEMENTS

24. 436609-1-58-01
CITY OF MIAMI - METROMOVER STATION ACCESS IMPROVEMENTS

25. 420917-2-58-
01
OVERTOWN
GREENWAY
ALONG NW
11 ST FROM
NW 7 AVE TO
E OF NW 12
AVE

26. NETWORK
ANALYSIS
26
ONGOING - FDOT BIKE/PED EFFORTS
D6
DISCOVERY ACTION PLAN
COORDINATION
• Literature Review
• Existing & Planned Network
• Geometry and Operational Data
• Implementation Tool Review
• Land Use and Neighborhood Features
• Gap Analysis
• Coverage Analysis
• Level of Traffic Stress (LTS) Analysis
• Issues, Opportunities, and Ease of
Implementation
• Greenways/Trails/SUPs and LTS 1
Facilities Prioritization
• Prioritized Project Bank
• Project Descriptions and Relation
to Existing/Planned Network
• Project Specific Steps to Follow
for Implementation
• Summary Document
• Interagency Coordination
• Stakeholder Workshops
Bicycle Network
Connectivity Assessment
MAY 2020

28. 28
MIAMI-DADE TPO BPAC VIRTUAL WORKSHOP MARCH 9, 2021
Next Workshop
April 13, 2021
NEXT MEETING
