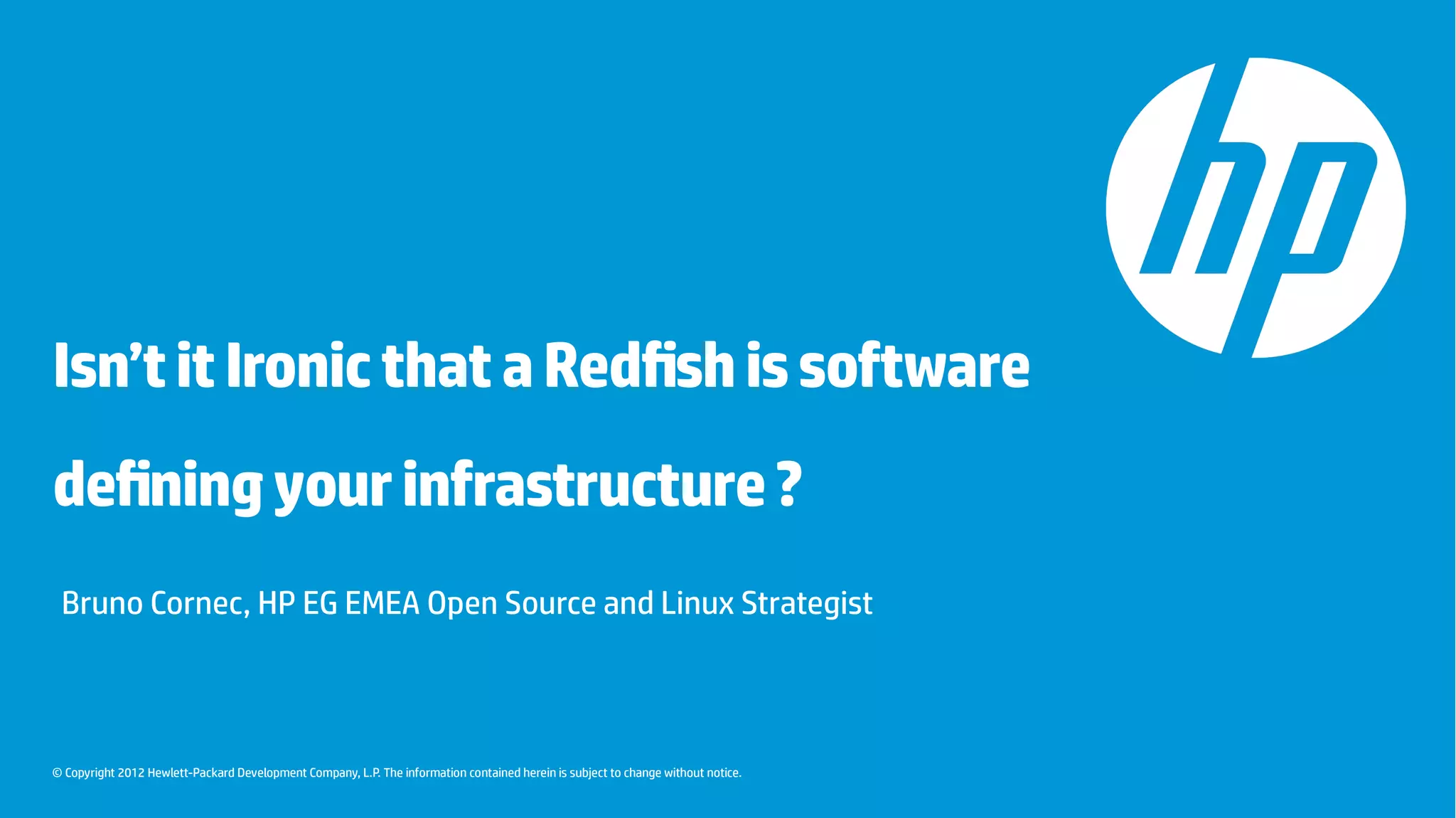

Isn’titIronicthataRedfishissoftware
definingyourinfrastructure?
Bruno Cornec, HP EG EMEA Open Source and Linux Strategist

2. 2
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

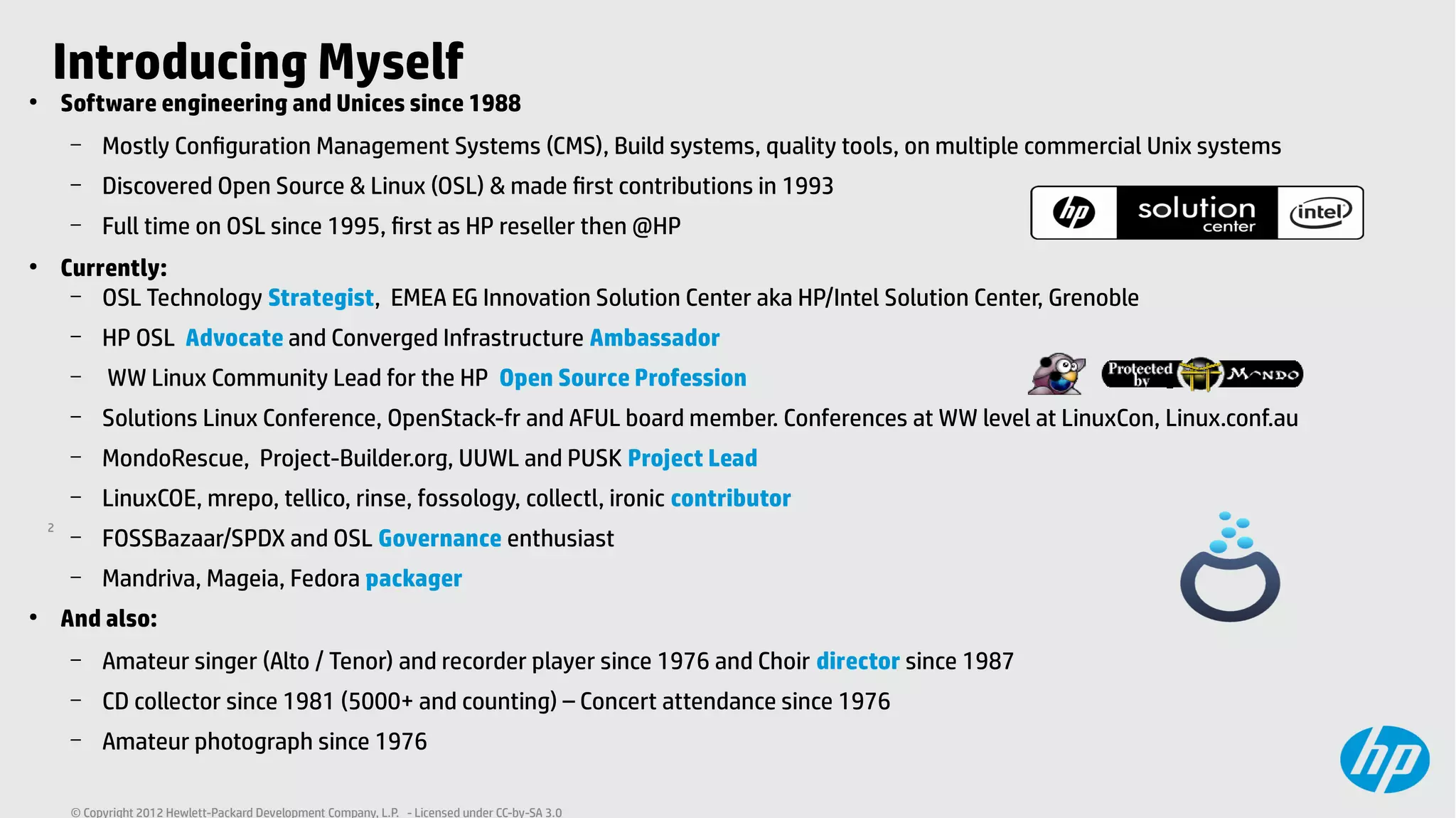

Introducing Myself
●
Software engineering and Unices since 1988
– Mostly Configuration Management Systems (CMS), Build systems, quality tools, on multiple commercial Unix systems
– Discovered Open Source & Linux (OSL) & made first contributions in 1993
– Full time on OSL since 1995, first as HP reseller then @HP
●
Currently:
– OSL Technology Strategist, EMEA EG Innovation Solution Center aka HP/Intel Solution Center, Grenoble
– HP OSL Advocate and Converged Infrastructure Ambassador
– WW Linux Community Lead for the HP Open Source Profession
– Solutions Linux Conference, OpenStack-fr and AFUL board member. Conferences at WW level at LinuxCon, Linux.conf.au
– MondoRescue, Project-Builder.org, UUWL and PUSK Project Lead
– LinuxCOE, mrepo, tellico, rinse, fossology, collectl, ironic contributor
– FOSSBazaar/SPDX and OSL Governance enthusiast
– Mandriva, Mageia, Fedora packager
●
And also:
– Amateur singer (Alto / Tenor) and recorder player since 1976 and Choir director since 1987
– CD collector since 1981 (5000+ and counting) – Concert attendance since 1976
– Amateur photograph since 1976

3. 3
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0
Operating System (OS)
Container A
Env. A
App. A
Container B
Env. B
App. B
VM B
Env. B
App. B
OS B
VM A
Env. A
App. A
OS A
Hypervisor
HW VirtualizationOS Virtualization
Single Kernel - Enhanced
chroot - Direct access to I/O
devices - Isolation
Flexibility (multi OS)
Requires HW support
Kernel module
Hardware
Operating System (OS)
App. A App. B
OS Resource Control
Single Kernel – Rresources
cont.: shared cpu, memory,
blkio, dedicated cpusets
% CPU
% RAM
% CPU
% RAM
CPU bind CPU bind
Hardware Hardware
performance good best good
Isolation & security normal good best
runtime flexibility best good normal
maintenance best normal normal
HW VirtOS VirtShare Dedicate
cgroups NUMA LXC / Docker
KVM

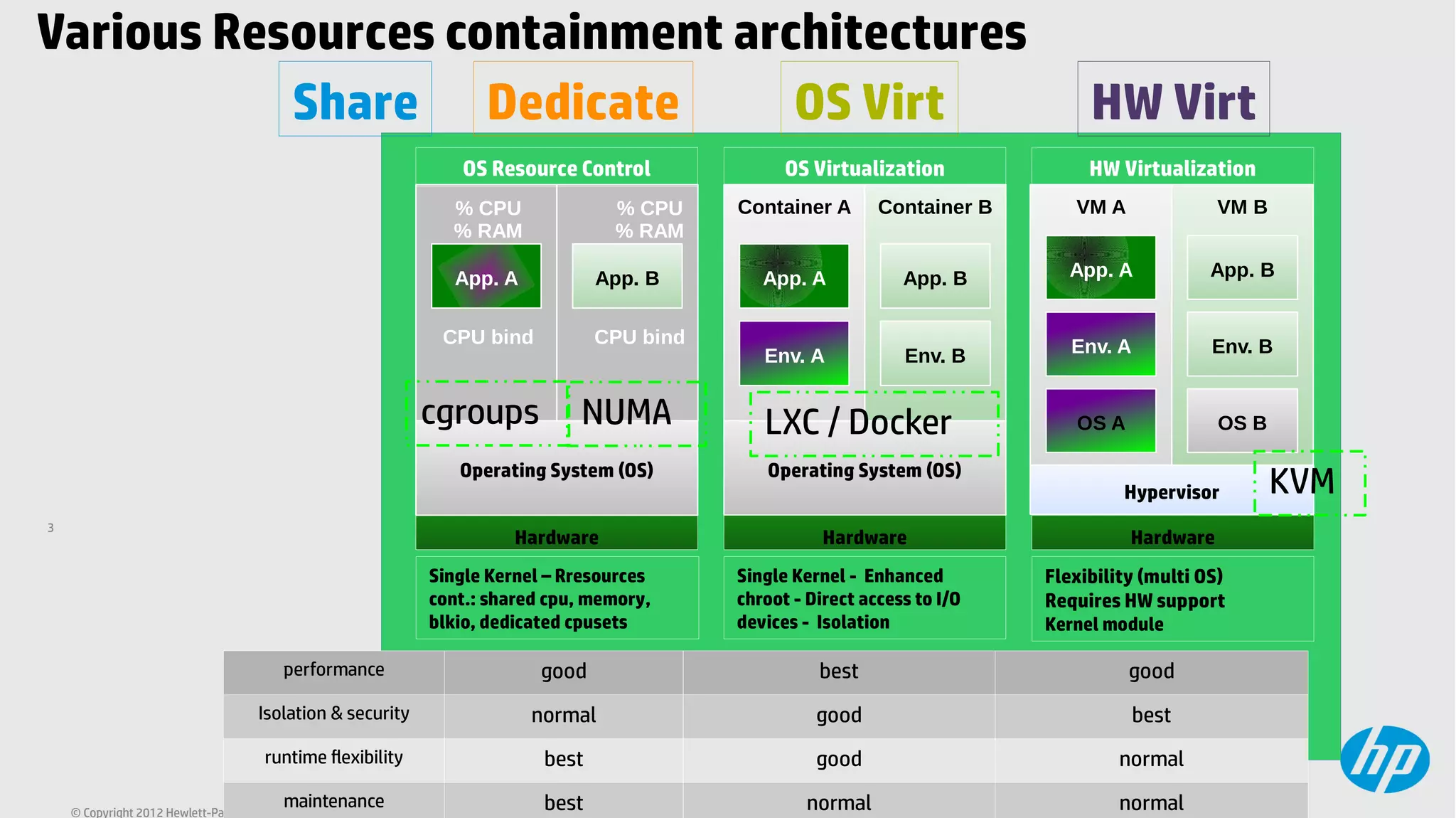

Various Resources containment architectures

4. 4
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0
Operating System (OS)
Container A
Env. A
App. A
Container B
Env. B
App. B
VM B
Env. B
App. B
OS B
VM A
Env. A
App. A
OS A
Hypervisor
HW VirtualizationOS Virtualization
Single Kernel - Enhanced
chroot - Direct access to I/O
devices - Isolation
Flexibility (multi OS)
Requires HW support
Kernel module
Hardware
Operating System (OS)
App. A App. B
OS Resource Control
Single Kernel – Rresources
cont.: shared cpu, memory,
blkio, dedicated cpusets
% CPU
% RAM
% CPU
% RAM
CPU bind CPU bind
Hardware Hardware
performance good best good
Isolation & security normal good best
runtime flexibility best good normal
maintenance best normal normal
HW VirtOS VirtShare Dedicate
cgroups NUMA LXC / Docker
KVM

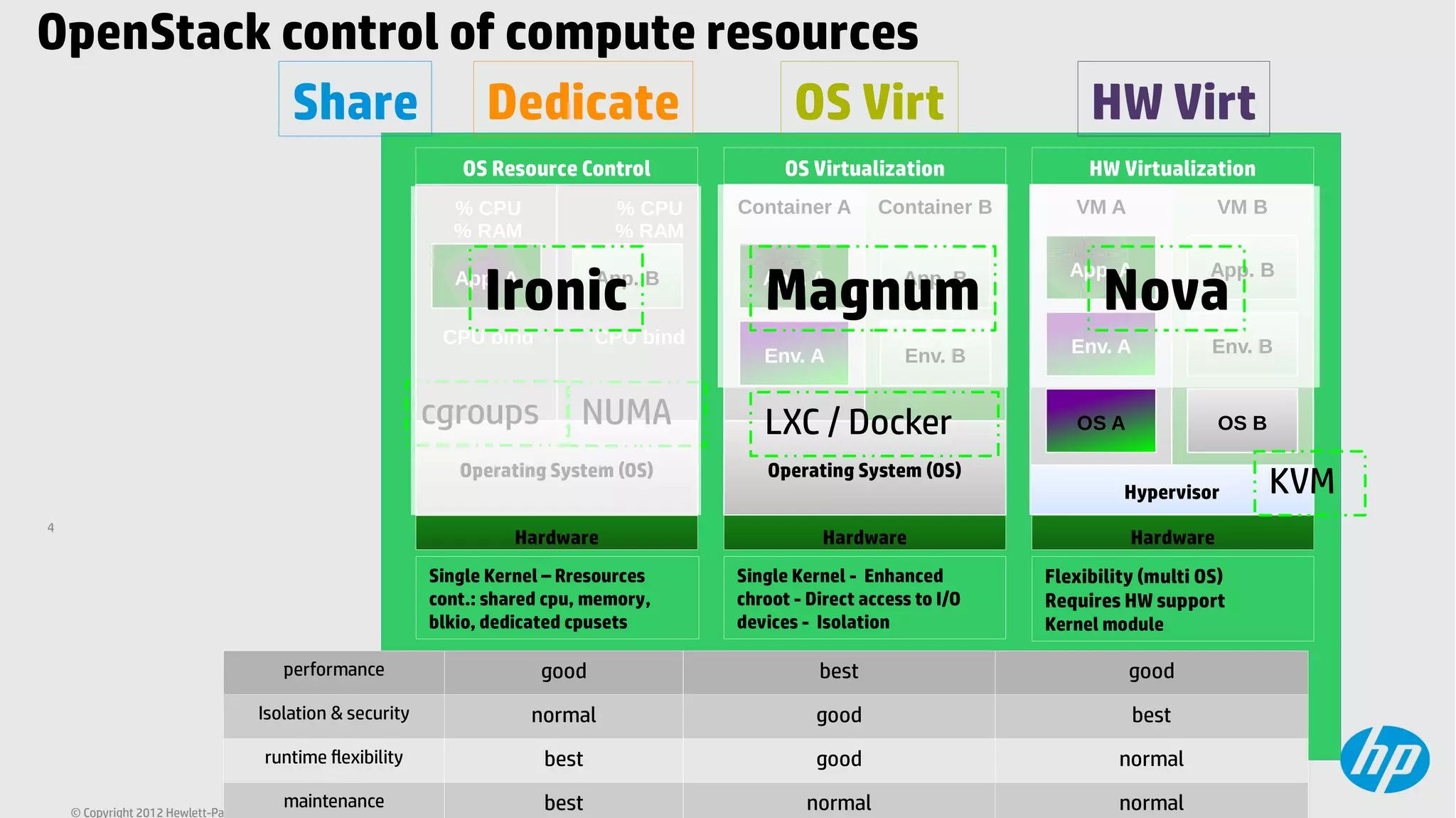

OpenStack control of compute resources
Ironic Magnum Nova

5. 5
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

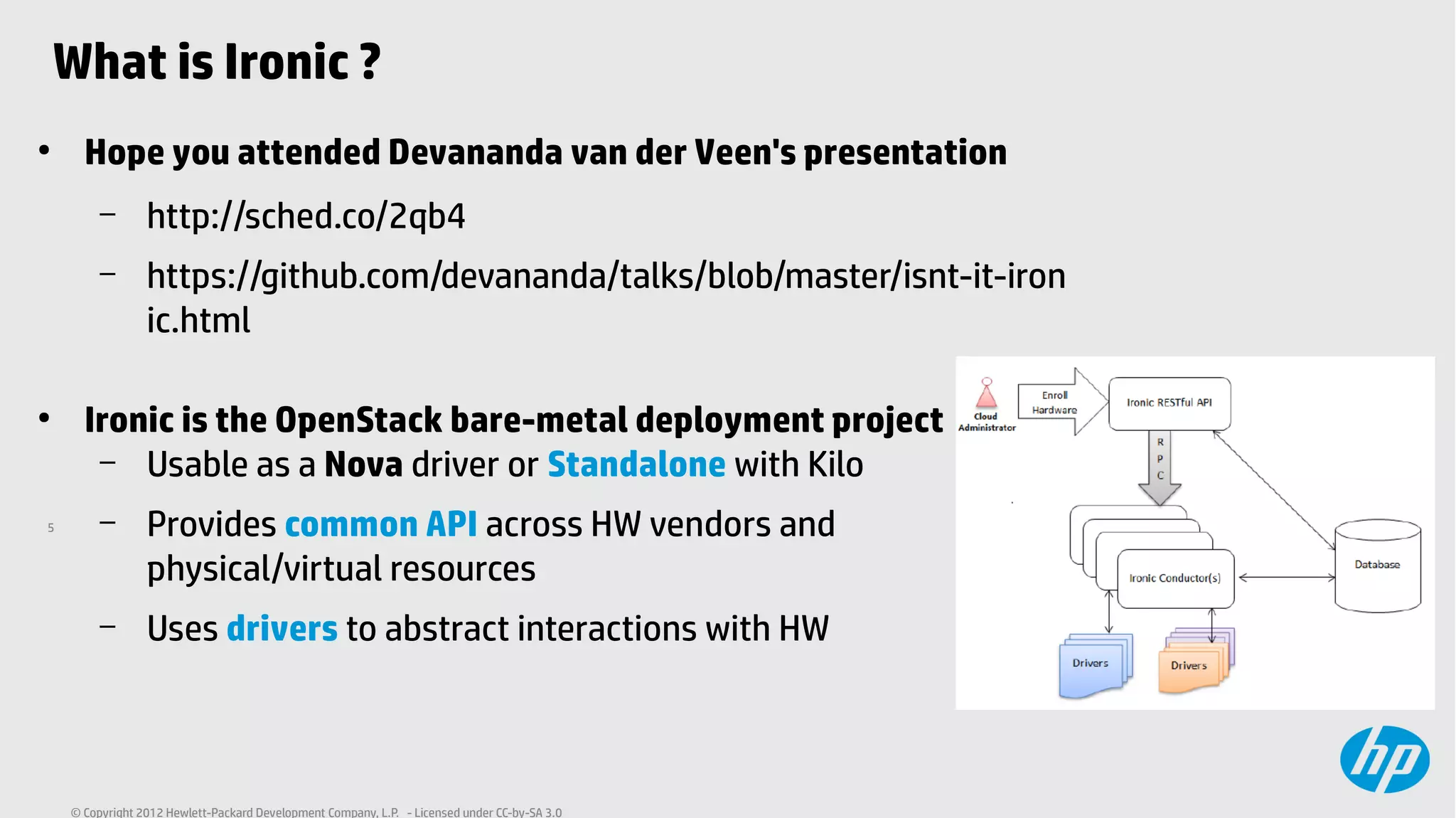

What is Ironic ?
●
Hope you attended Devananda van der Veen's presentation
– http://sched.co/2qb4
– https://github.com/devananda/talks/blob/master/isnt-it-iron
ic.html
●
Ironic is the OpenStack bare-metal deployment project
– Usable as a Nova driver or Standalone with Kilo
– Provides common API across HW vendors and
physical/virtual resources
– Uses drivers to abstract interactions with HW

6. 6
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

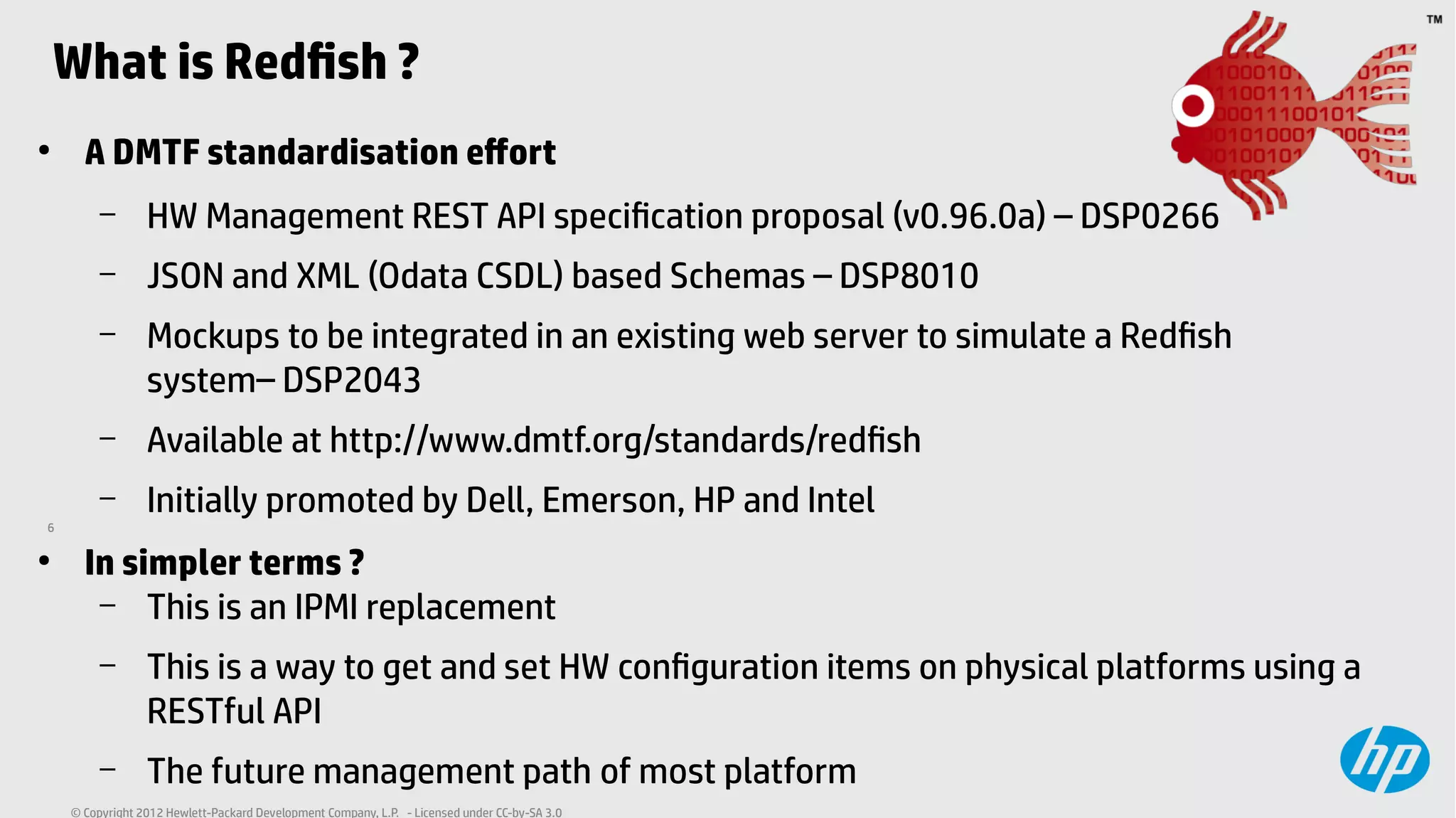

What is Redfish ?
●
A DMTF standardisation effort
– HW Management REST API specification proposal (v0.96.0a) – DSP0266
– JSON and XML (Odata CSDL) based Schemas – DSP8010
– Mockups to be integrated in an existing web server to simulate a Redfish
system– DSP2043
– Available at http://www.dmtf.org/standards/redfish
– Initially promoted by Dell, Emerson, HP and Intel
●
In simpler terms ?
– This is an IPMI replacement
– This is a way to get and set HW configuration items on physical platforms using a
RESTful API
– The future management path of most platform

7. 7
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

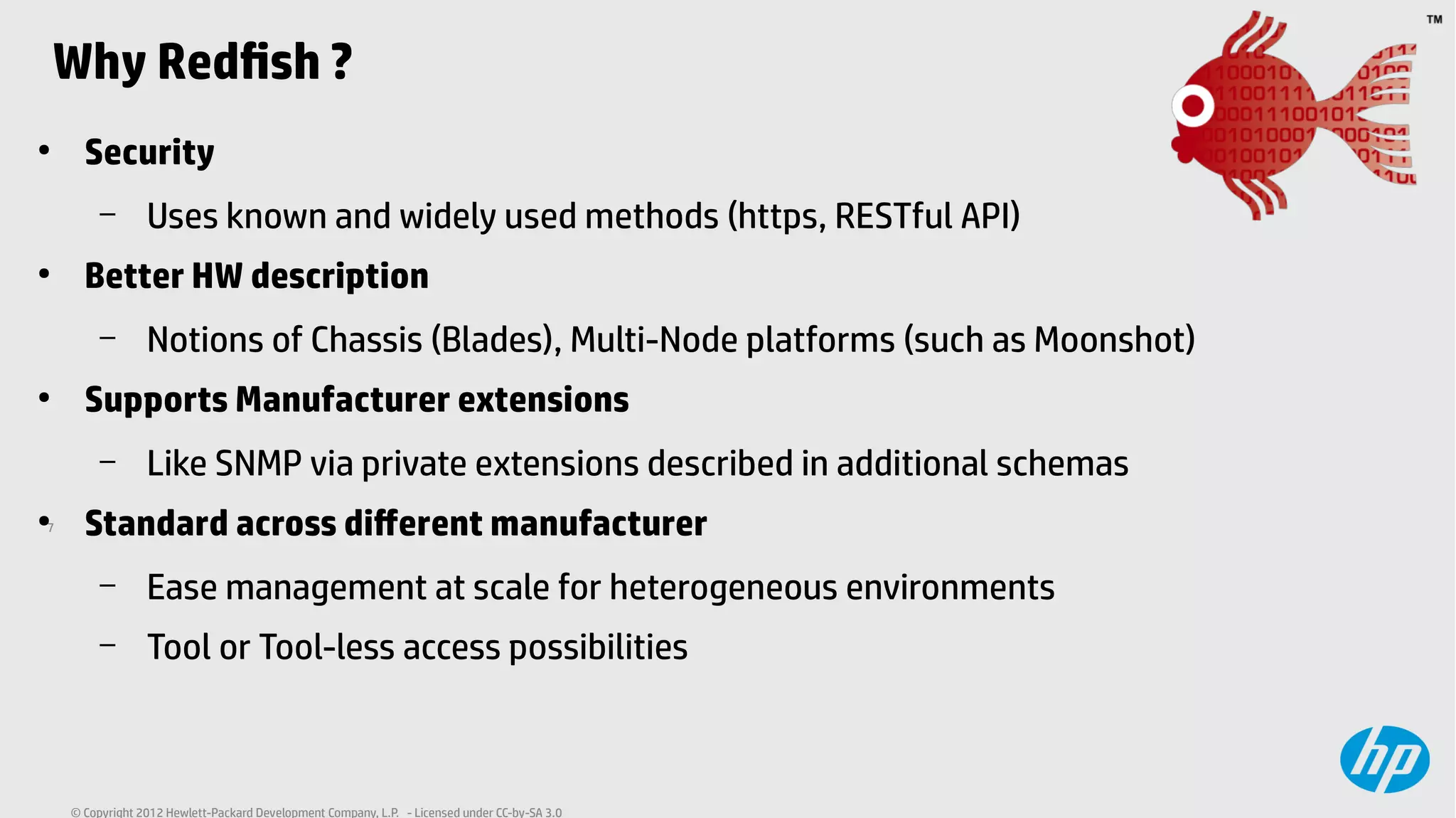

Why Redfish ?
●
Security
– Uses known and widely used methods (https, RESTful API)
●
Better HW description
– Notions of Chassis (Blades), Multi-Node platforms (such as Moonshot)
●
Supports Manufacturer extensions
– Like SNMP via private extensions described in additional schemas
●
Standard across different manufacturer
– Ease management at scale for heterogeneous environments
– Tool or Tool-less access possibilities

8. 8
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

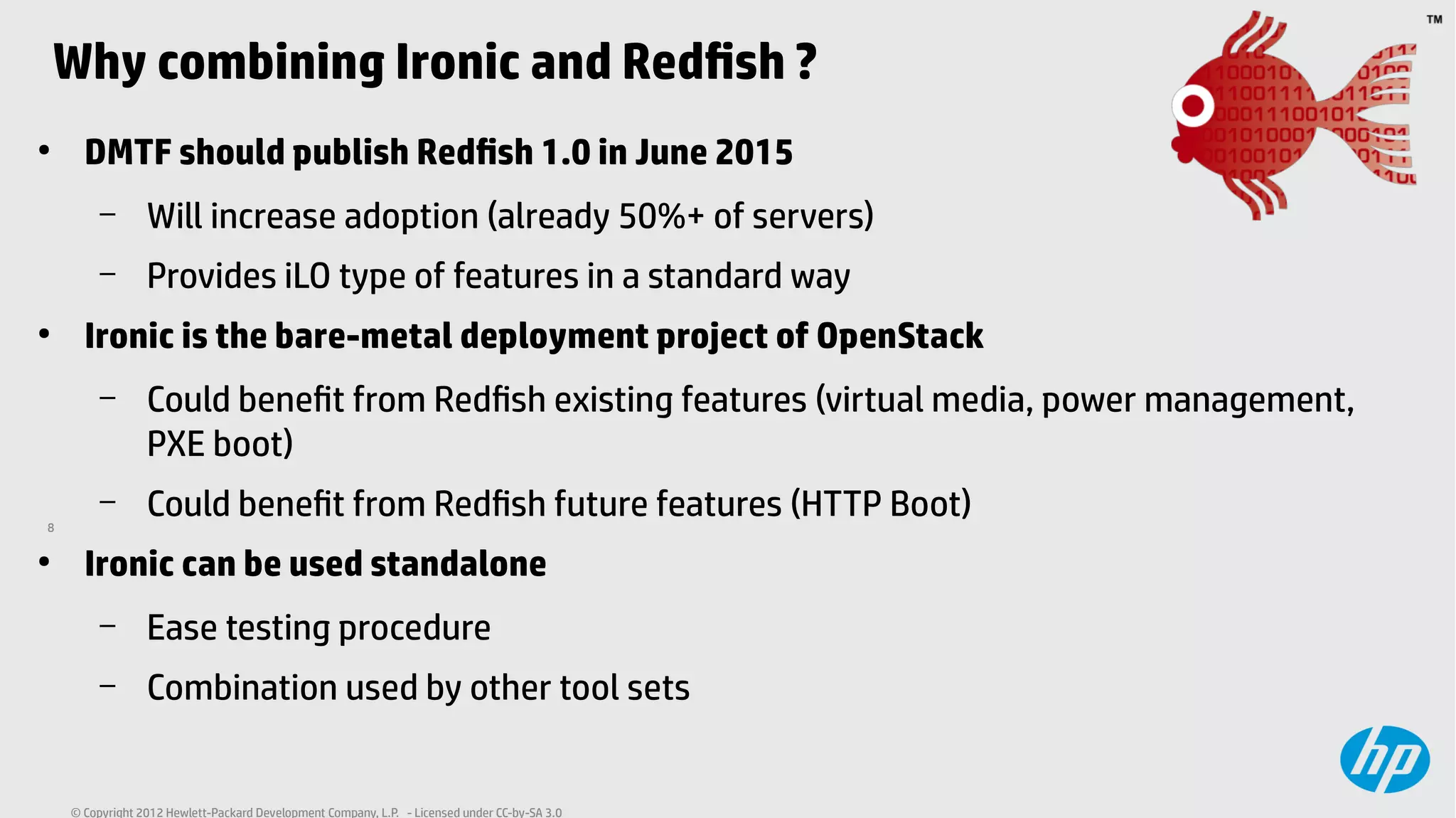

Why combining Ironic and Redfish ?
●
DMTF should publish Redfish 1.0 in June 2015
– Will increase adoption (already 50%+ of servers)
– Provides iLO type of features in a standard way
●
Ironic is the bare-metal deployment project of OpenStack
– Could benefit from Redfish existing features (virtual media, power management,
PXE boot)
– Could benefit from Redfish future features (HTTP Boot)
●
Ironic can be used standalone
– Ease testing procedure
– Combination used by other tool sets

9. 9
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

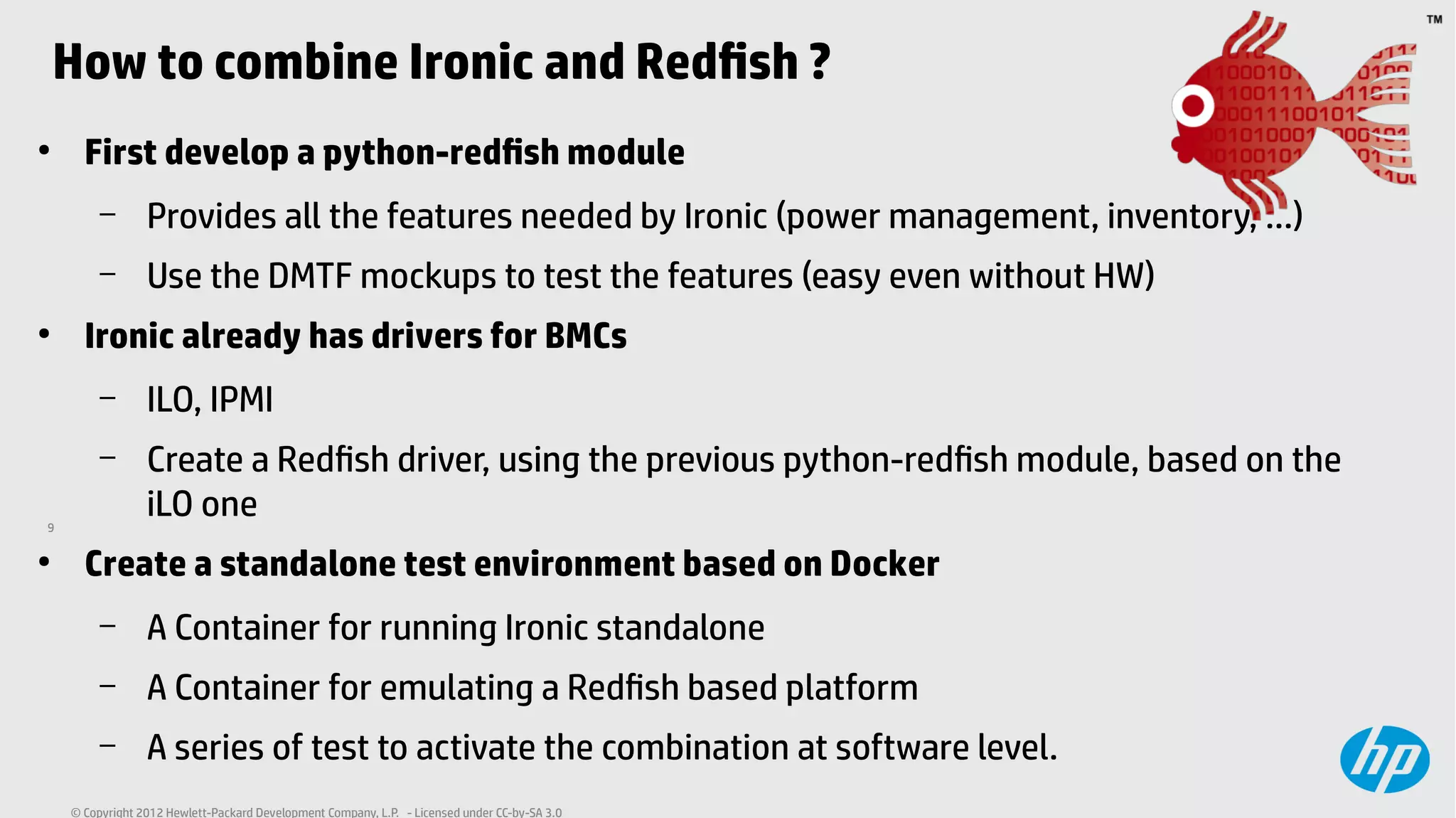

How to combine Ironic and Redfish ?
●
First develop a python-redfish module
– Provides all the features needed by Ironic (power management, inventory, ...)
– Use the DMTF mockups to test the features (easy even without HW)
●
Ironic already has drivers for BMCs
– ILO, IPMI
– Create a Redfish driver, using the previous python-redfish module, based on the
iLO one
●
Create a standalone test environment based on Docker
– A Container for running Ironic standalone
– A Container for emulating a Redfish based platform
– A series of test to activate the combination at software level.

10. 10
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

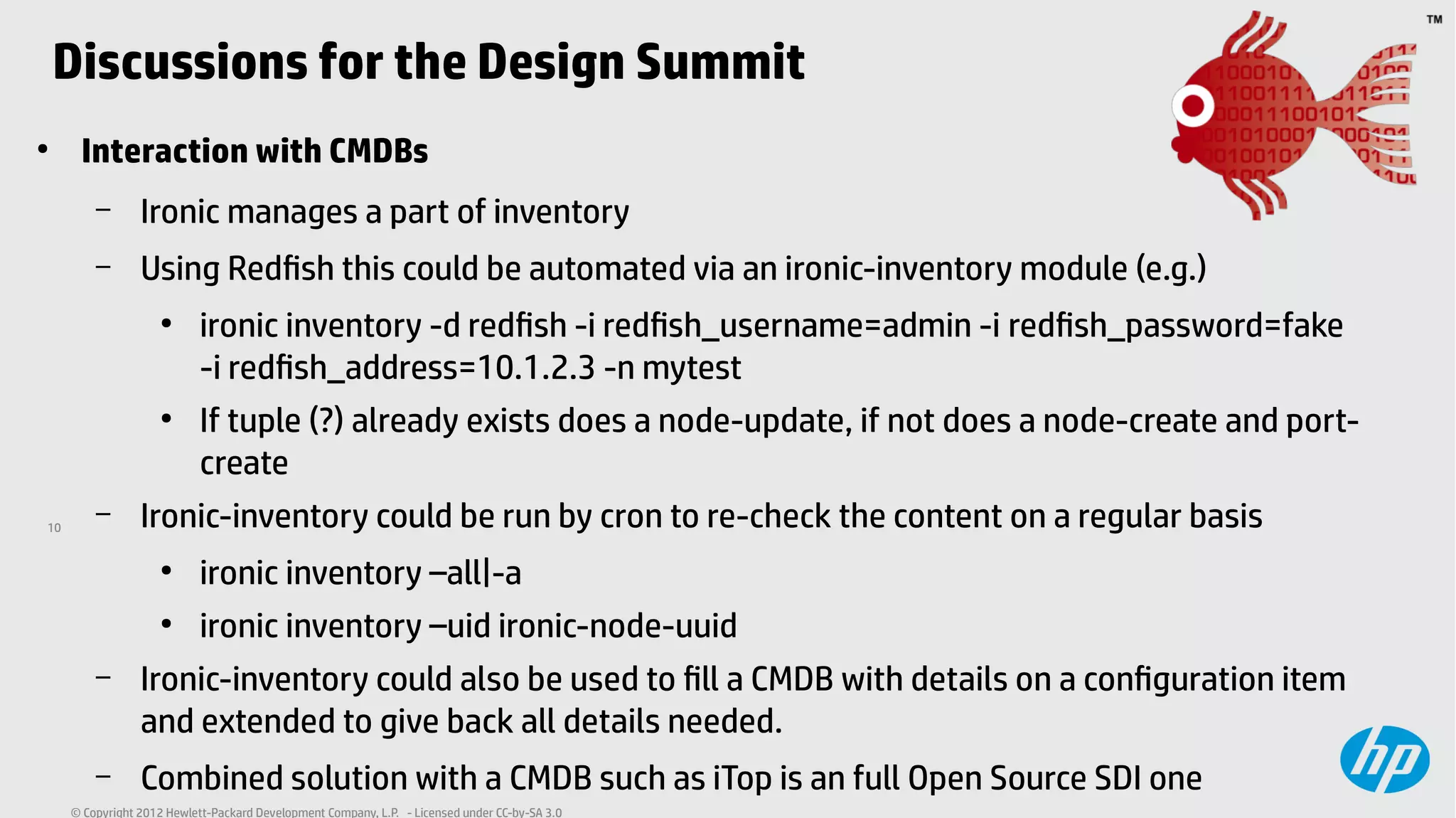

Discussions for the Design Summit
●
Interaction with CMDBs
– Ironic manages a part of inventory
– Using Redfish this could be automated via an ironic-inventory module (e.g.)
●
ironic inventory -d redfish -i redfish_username=admin -i redfish_password=fake
-i redfish_address=10.1.2.3 -n mytest
●
If tuple (?) already exists does a node-update, if not does a node-create and port-
create
– Ironic-inventory could be run by cron to re-check the content on a regular basis
●
ironic inventory –all|-a
●
ironic inventory –uid ironic-node-uuid
– Ironic-inventory could also be used to fill a CMDB with details on a configuration item
and extended to give back all details needed.
– Combined solution with a CMDB such as iTop is an full Open Source SDI one

11. 12
© Copyright 2012 Hewlett-Packard Development Company, L.P. - Licensed under CC-by-SA 3.0

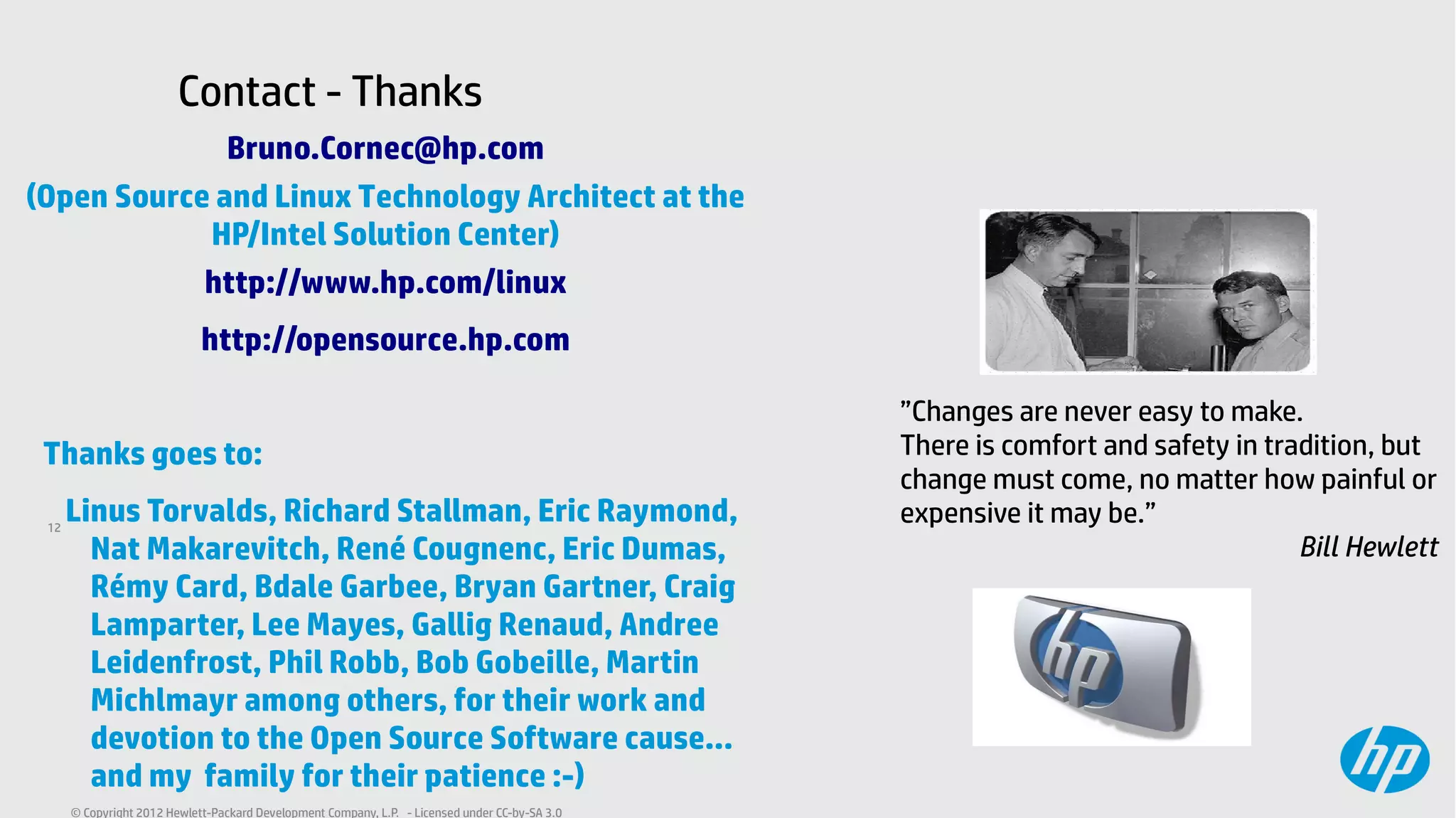

”Changes are never easy to make.
