TRANSFORMING NETWORKING INFRASTRUCTURE
Monitoring
# monitor groups of cores together (aggregate statistics):
# cores 0 to 7 – group 1
# cores 8 to 11 – group 2
# cores 12 to 15 – group 3
# groups can represent applications or VM’s
-bash-4.3$ sudo pqos –m “all:[0-7][8-11][12-15]”
# cores 0 to 11 – group 1 [all events]
# cores 12-14 – group 2 [LLC occupancy]
# cores 15,17 and 20 – group 3 [Local memory BW]
# groups can represent applications or VM’s
-bash-4.3$ sudo pqos -m "all:[0-11];llc:[12,13,14];mbl:[15-17,20]"
Note: Use ctrl-c to stop monitoring
6/20/17](https://image.slidesharecdn.com/intelrdthands-onidz-170620213946/85/Intel-RDT-Hands-on-Lab-20-320.jpg)
![31
TRANSFORMING NETWORKING INFRASTRUCTURE
Perf CMT and MBM Implementation
• RMID recycling
• Cache monitoring and Memory Bandwidth monitoring per Pid/tid based
# tools/perf/perf list | grep intel_cqm
intel_cqm/llc_occupancy/ [Kernel PMU event]
intel_cqm/local_bytes/ [Kernel PMU event]
intel_cqm/total_bytes/ [Kernel PMU event]
Command: #tools/perf/perf stat -e intel_cqm/llc_occupancy/ -e intel_cqm/local_bytes/ -e
intel_cqm/total_bytes/ -p <#pid>
• CMT and MBM support in applications to track pid/tid.
• Libvirt enables CMT event for monitoring VM’s using perf_event_open sys
call.
int perf_event_open(struct perf_event_attr *attr, pid_t pid, int cpu, int
group_fd, unsigned long flags);
(Please refer lib/perf.c for detailed implementation)](https://image.slidesharecdn.com/intelrdthands-onidz-170620213946/85/Intel-RDT-Hands-on-Lab-31-320.jpg)
More Related Content
Similar to Intel® RDT Hands-on Lab
Intel® RDT Hands-on Lab
- 1. Priya Autee Harpreet Sindhu June’17 Intel® RDT Hands-on Lab
- 2. 2 TRANSFORMING NETWORKING INFRASTRUCTURE CacheMonitoring Tech (CMT) § Per-thread L3 Occupancy Monitoring § 4 Resource Monitoring ID’s per logical thread LPHP Memory BW Monitoring (MBM) § Per-thread Memory Bandwidth Monitoring § Leverages RMID infrastructure IMC? Cache Allocation Tech (CAT) § Per-thread L3 Occupancy Control § Code and Data Prioritization (CDP) § Intel® Xeon® processor E5 v4 introduces 16 Classes of Service Cache LPHP Supplement existing Telemetry: • Counters; Perfmon; • Intel® Node Manager • Snap (open source project); • Utilities in Kernel & VMM; etc… Intel® Resource Director Technology (Intel® RDT) Building on a rich and growing portfolio of technologies embedded in Intel silicon 8
- 3. 3 TRANSFORMING NETWORKING INFRASTRUCTURE • 3 Levels of cache (SNB, IVB, HSW,BDW processors) • L1 cache – 32KB data and 32KB instruction caches • L2 cache – 256KB – unified (holds code & data) • L3 cache (LLC) – 25MB (IVB) , 30MB (HSW) common cache for all cores in CPU socket. • L1 cache is smallest, and fastest. • CPU tries to access data – not in L1 cache? • Try L2 cache - not in L2 cache? • Try L3 cache – not in L3 cache? • Cache miss - need to access system memory (DRAM). • L1 & L2 cache is per physical core (shared per logical core) • L3 cache is shared (per CPU socket) Caching on IA

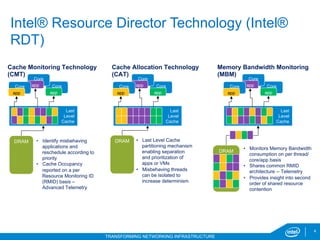

- 4. 4 TRANSFORMING NETWORKING INFRASTRUCTURE Intel®Resource Director Technology (Intel® RDT) Core app Core app Last Level Cache Core DRAM app • Identify misbehaving applications and reschedule according to priority • Cache Occupancy reported on a per Resource Monitoring ID (RMID) basis – Advanced Telemetry Cache Monitoring Technology (CMT) Core app Core app Last Level Cache Core DRAM app Cache Allocation Technology (CAT) • Last Level Cache partitioning mechanism enabling separation and prioritization of apps or VMs • Misbehaving threads can be isolated to increase determinism Core app Core app Last Level Cache Core app Memory Bandwidth Monitoring (MBM) • Monitors Memory Bandwidth consumption on per thread/ core/app basis • Shares common RMID architecture -- Telemetry • Provides insight into second order of shared resource contention DRAM 9

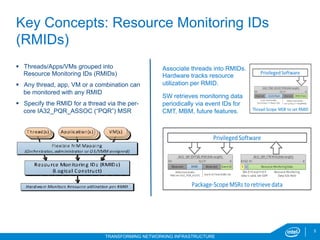

- 5. 5 TRANSFORMING NETWORKING INFRASTRUCTURE KeyConcepts: Resource Monitoring IDs (RMIDs) § Threads/Apps/VMs grouped into Resource Monitoring IDs (RMIDs) § Any thread, app, VM or a combination can be monitored with any RMID § Specify the RMID for a thread via the per- core IA32_PQR_ASSOC (“PQR”) MSR Associate threads into RMIDs. Hardware tracks resource utilization per RMID. SW retrieves monitoring data periodically via event IDs for CMT, MBM, future features.

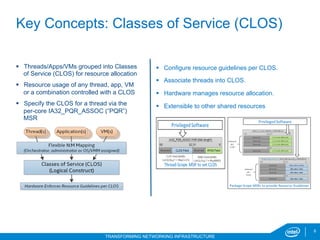

- 6. 6 TRANSFORMING NETWORKING INFRASTRUCTURE KeyConcepts: Classes of Service (CLOS) § Threads/Apps/VMs grouped into Classes of Service (CLOS) for resource allocation § Resource usage of any thread, app, VM or a combination controlled with a CLOS § Specify the CLOS for a thread via the per-core IA32_PQR_ASSOC (“PQR”) MSR § Configure resource guidelines per CLOS. § Associate threads into CLOS. § Hardware manages resource allocation. § Extensible to other shared resources
- 7. 7 TRANSFORMING NETWORKING INFRASTRUCTURE PQoSKernel Implementation Threads resctrl fs /sys/fs/resctrl perf User interface Cache alloc Cache, mem bw monitoring Kernel QOS support Intel Xeon Intel® RDT support Shared L3 Cache User Space Kernel Space Hardware MSR Driver Configure bitmask per CLOS Set CLOS/ RMID for thread During ctx switch Allocation configuration Read Event counter Read Monitored data Standalone PQoS library
- 8. 8 TRANSFORMING NETWORKING INFRASTRUCTURE PQoSLibrary and Utility PQoS static library (Intel IP, BSD Lic. 01.org, github) - Provides applications a simple C API - Requires C & pthreads libraries (GNU C library on Linux implements both) - Uses MSR and CPUID Linux kernel drivers through standard file I/O API PQoS utility: - Links to PQoS static library - Simple and easy to use command line interface - Enable customers for evaluation of CMT, MBM, CAT and CDP PQoS Utility PQoS library Linux User Space Linux Kernel Space MSR Driver CPUID Driver Software Package Standard Linux Kernel Modules File I/O

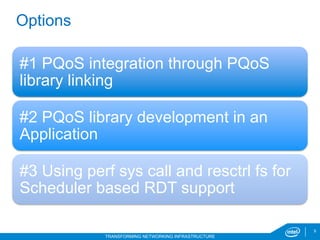

- 9. 9 TRANSFORMING NETWORKING INFRASTRUCTURE Options #1PQoS integration through PQoS library linking #2 PQoS library development in an Application #3 Using perf sys call and resctrl fs for Scheduler based RDT support
- 10. 10 TRANSFORMING NETWORKING INFRASTRUCTURE Download& Installation • Download v0.1.5 & unpack wget https://github.com/01org/intel-cmt-cat/archive/v0.1.5.tar.gz tar xzf v0.1.5.tar.gz note: tip of the master branch is available as zip here at https://github.com/01org/intel-cmt-cat/archive/master.zip • Compile & Install cd intel-cmt-cat-0.1.5 make sudo make install • Uninstall with “sudo make uninstall” 6/20/17
- 11. 11 TRANSFORMING NETWORKING INFRASTRUCTURE OtherDownload & Installation Options • Ubuntu / Debian based sudo apt-get install intel-cmt-cat • Fedora / RedHat based sudo yum install intel-cmt-cat sudo dnf install intel-cmt-cat Note: OS packages are typically bit behind github code. For latest features refer to github.com/01org/intel-cmt-cat 6/20/17

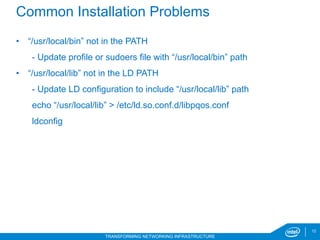

- 12. 12 TRANSFORMING NETWORKING INFRASTRUCTURE CommonInstallation Problems • “/usr/local/bin” not in the PATH - Update profile or sudoers file with “/usr/local/bin” path • “/usr/local/lib” not in the LD PATH - Update LD configuration to include “/usr/local/lib” path echo “/usr/local/lib” > /etc/ld.so.conf.d/libpqos.conf ldconfig 6/20/17
- 13. 13 TRANSFORMING NETWORKING INFRASTRUCTURE PackageDetails • ‘libpqos’ shared library • Provides API’s to: • detect & enumerate Intel® RDT features on the platform • monitor resources on hardware thread basis • manage resources on hardware thread basis • ‘pqos’ tool • Detect & show intel® RDT configuration • Monitors resources • Manages resources • ‘rdtset’ tool • Aims to simplify Intel® RDT resource management • Same as ‘taskset’ pins application to cores • Then configures classes to satisfy command line requirements 6/20/17

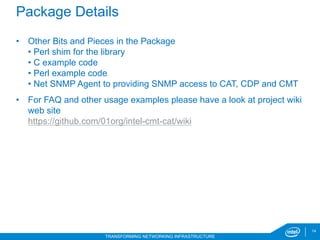

- 14. 14 TRANSFORMING NETWORKING INFRASTRUCTURE PackageDetails • Other Bits and Pieces in the Package • Perl shim for the library • C example code • Perl example code • Net SNMP Agent to providing SNMP access to CAT, CDP and CMT • For FAQ and other usage examples please have a look at project wiki web site https://github.com/01org/intel-cmt-cat/wiki 6/20/17
- 15. 15 TRANSFORMING NETWORKING INFRASTRUCTURE • Total Cache size: 55 MB • Number of ways: 20 Calculations: Formula for Bitmask: Total Cache Size/Number of Ways For our lab systems: 55MB/20 = 2.75MB Example: Mask: 0x00001 means 2.75 MB ( One cache way) Mask: 0x00003 means 5.5 MB ( Two cache ways) Mask: 0x00007 means 8.25 MB ( Three cache ways) Mask: 0x0000F means 11 MB ( Four cache ways) Bitmask/Capacity Calculation

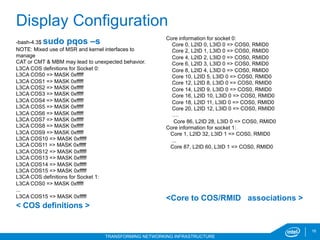

- 16. 16 TRANSFORMING NETWORKING INFRASTRUCTURE DisplayConfiguration -bash-4.3$ sudo pqos –s NOTE: Mixed use of MSR and kernel interfaces to manage CAT or CMT & MBM may lead to unexpected behavior. L3CA COS definitions for Socket 0: L3CA COS0 => MASK 0xfffff L3CA COS1 => MASK 0xfffff L3CA COS2 => MASK 0xfffff L3CA COS3 => MASK 0xfffff L3CA COS4 => MASK 0xfffff L3CA COS5 => MASK 0xfffff L3CA COS6 => MASK 0xfffff L3CA COS7 => MASK 0xfffff L3CA COS8 => MASK 0xfffff L3CA COS9 => MASK 0xfffff L3CA COS10 => MASK 0xfffff L3CA COS11 => MASK 0xfffff L3CA COS12 => MASK 0xfffff L3CA COS13 => MASK 0xfffff L3CA COS14 => MASK 0xfffff L3CA COS15 => MASK 0xfffff L3CA COS definitions for Socket 1: L3CA COS0 => MASK 0xfffff ... L3CA COS15 => MASK 0xfffff < COS definitions > Core information for socket 0: Core 0, L2ID 0, L3ID 0 => COS0, RMID0 Core 2, L2ID 1, L3ID 0 => COS0, RMID0 Core 4, L2ID 2, L3ID 0 => COS0, RMID0 Core 6, L2ID 3, L3ID 0 => COS0, RMID0 Core 8, L2ID 4, L3ID 0 => COS0, RMID0 Core 10, L2ID 5, L3ID 0 => COS0, RMID0 Core 12, L2ID 8, L3ID 0 => COS0, RMID0 Core 14, L2ID 9, L3ID 0 => COS0, RMID0 Core 16, L2ID 10, L3ID 0 => COS0, RMID0 Core 18, L2ID 11, L3ID 0 => COS0, RMID0 Core 20, L2ID 12, L3ID 0 => COS0, RMID0 …. Core 86, L2ID 28, L3ID 0 => COS0, RMID0 Core information for socket 1: Core 1, L2ID 32, L3ID 1 => COS0, RMID0 ... Core 87, L2ID 60, L3ID 1 => COS0, RMID0 <Core to COS/RMID associations >
- 17. 17 TRANSFORMING NETWORKING INFRASTRUCTURE -bash-4.3$sudo pqos –s –v NOTE: Mixed use of MSR and kernel interfaces to manage CAT or CMT & MBM may lead to unexpected behavior. INFO: CACHE: type 1, level 1, max id sharing this cache 2 (1 bits) INFO: CACHE: type 2, level 1, max id sharing this cache 2 (1 bits) INFO: CACHE: type 3, level 2, max id sharing this cache 2 (1 bits) INFO: CACHE: type 3, level 3, max id sharing this cache 64 (6 bits) INFO: Monitoring capability detected INFO: CPUID.0x7.0: L3 CAT supported INFO: CDP is disabled INFO: L3 CAT details: CDP support=1, CDP on=0, #COS=16, #ways=20, ways contention bit-mask 0xc0000 INFO: L3 CAT details: cache size 57671680 bytes, way size 2883584 bytes INFO: L3CA capability detected INFO: CPUID 0x10.0: L2 CAT not supported! INFO: L2CA capability not detected INFO: CPUID 0x10.0: MBA not supported! INFO: MBA capability not detected INFO: resctrl not detected. Kernel version 4.10 or higher required INFO: OS support for CMT detected INFO: OS support for L3 CAT not detected ... RDT enumeration
- 18. 18 TRANSFORMING NETWORKING INFRASTRUCTURE • LLC • Represents LLC Occupancy ( CMT) • MBL • Represents local memory bandwidth (MBM) • MBR • Represents remote memory bandwidth (MBM) • IPC • Represents instructions per cycle (PMU architectural event) • LLC Misses • Represents LLC misses (PMU architectural event) Monitoring Data (events)
- 19. 19 TRANSFORMING NETWORKING INFRASTRUCTURE Monitoring(CMT, MBM) # monitor all cores and all events -bash-4.3$ sudo pqos # monitor cores 0 to 11 and all events -bash-4.3$ sudo pqos –m all:0-11 # monitor LLC occupancy on cores 0, 1, 4 and 6, local memory bandwidth on cores 8 to 11 and remote memory bandwidth on cores 12-14 -bash-4.3$ sudo pqos –m “llc:0,1,4,6” –m “mbl:8-11” –m “mbr: 12-14” # reset monitoring infrastructure ; Reclaims in-use RMID's. -bash-4.3$ sudo pqos -r Note: Use ctrl-c to stop monitoring 6/20/17
- 20. 20 TRANSFORMING NETWORKING INFRASTRUCTURE Monitoring #monitor groups of cores together (aggregate statistics): # cores 0 to 7 – group 1 # cores 8 to 11 – group 2 # cores 12 to 15 – group 3 # groups can represent applications or VM’s -bash-4.3$ sudo pqos –m “all:[0-7][8-11][12-15]” # cores 0 to 11 – group 1 [all events] # cores 12-14 – group 2 [LLC occupancy] # cores 15,17 and 20 – group 3 [Local memory BW] # groups can represent applications or VM’s -bash-4.3$ sudo pqos -m "all:[0-11];llc:[12,13,14];mbl:[15-17,20]" Note: Use ctrl-c to stop monitoring 6/20/17

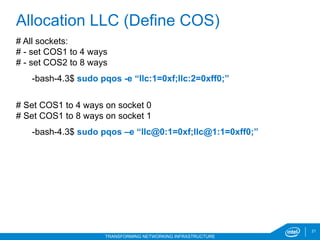

- 21. 21 TRANSFORMING NETWORKING INFRASTRUCTURE #All sockets: # - set COS1 to 4 ways # - set COS2 to 8 ways -bash-4.3$ sudo pqos -e “llc:1=0xf;llc:2=0xff0;” # Set COS1 to 4 ways on socket 0 # Set COS1 to 8 ways on socket 1 -bash-4.3$ sudo pqos –e “llc@0:1=0xf;llc@1:1=0xff0;” Allocation LLC (Define COS)

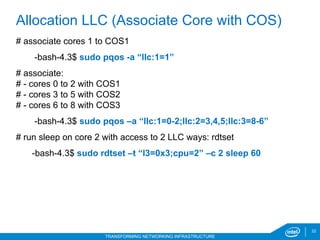

- 22. 22 TRANSFORMING NETWORKING INFRASTRUCTURE #associate cores 1 to COS1 -bash-4.3$ sudo pqos -a “llc:1=1” # associate: # - cores 0 to 2 with COS1 # - cores 3 to 5 with COS2 # - cores 6 to 8 with COS3 -bash-4.3$ sudo pqos –a “llc:1=0-2;llc:2=3,4,5;llc:3=8-6” # run sleep on core 2 with access to 2 LLC ways: rdtset -bash-4.3$ sudo rdtset –t “l3=0x3;cpu=2” –c 2 sleep 60 Allocation LLC (Associate Core with COS)

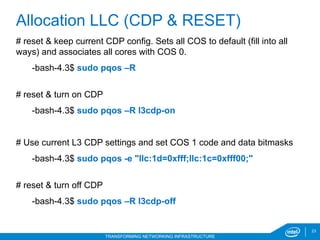

- 23. 23 TRANSFORMING NETWORKING INFRASTRUCTURE #reset & keep current CDP config. Sets all COS to default (fill into all ways) and associates all cores with COS 0. -bash-4.3$ sudo pqos –R # reset & turn on CDP -bash-4.3$ sudo pqos –R l3cdp-on # Use current L3 CDP settings and set COS 1 code and data bitmasks -bash-4.3$ sudo pqos -e "llc:1d=0xfff;llc:1c=0xfff00;" # reset & turn off CDP -bash-4.3$ sudo pqos –R l3cdp-off Allocation LLC (CDP & RESET)
- 24. 24 TRANSFORMING NETWORKING INFRASTRUCTURE OrchestrationProposal for RDT in the Datacenter: OpenStack Integration (CMT Example) 24 Ceilometer Data store AODH (AlarmEngine) Host-C CMT Host-B (w/o CMT) Host-A CMT VM1 VM2 VM3 Cache Allocations Nova (Scheduler, Orchestrator) Congress (Policy Engine) Cache-Usage CPU-Usage X-Usage VM9 CPU-Usage X-Usage Cache-Usage CPU-Usage X-Usage Ceilometer agent Ceilometer agent Ceilometer agent Ceilometer agent collectd PQoS Lib perf MSR if Linux sched integrated Vision: Per-node resource controls directed by a datacenter-level orchestration framework

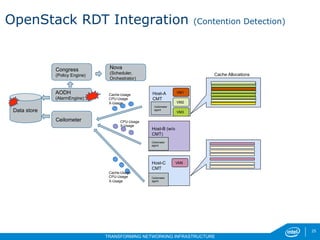

- 25. 25 TRANSFORMING NETWORKING INFRASTRUCTURE 25 Ceilometer Datastore AODH (AlarmEngine) Host-C CMT Host-B (w/o CMT) Host-A CMT VM1 VM2 VM3 Cache Allocations Nova (Scheduler, Orchestrator) Congress (Policy Engine) Cache-Usage CPU-Usage X-Usage VM9 CPU-Usage X-Usage Cache-Usage CPU-Usage X-Usage Ceilometer agent Ceilometer agent Ceilometer agent OpenStack RDT Integration (Contention Detection)

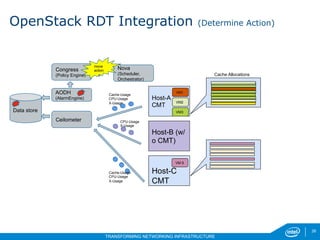

- 26. 26 TRANSFORMING NETWORKING INFRASTRUCTURE 26 Ceilometer Datastore AODH (AlarmEngine) Host-C CMT Host-B (w/ o CMT) Host-A CMT VM1 VM2 VM3 Cache Allocations Nova (Scheduler, Orchestrator) Congress (Policy Engine) Cache-Usage CPU-Usage X-Usage VM 9 CPU-Usage X-Usage Cache-Usage CPU-Usage X-Usage move action OpenStack RDT Integration (Determine Action)

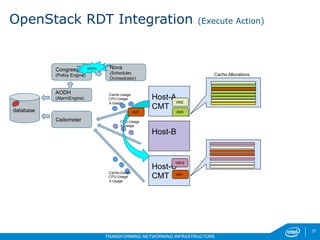

- 27. 27 TRANSFORMING NETWORKING INFRASTRUCTURE 27 Ceilometer database AODH (AlarmEngine) Host-C CMT Host-B Host-A CMT VM1 VM2 VM3 CacheAllocations Nova (Scheduler, Orchestrator) Congress (Policy Engine) Cache-Usage CPU-Usage X-Usage VM-9 CPU-Usage X-Usage Cache-Usage CPU-Usage X-Usage action VM1 OpenStack RDT Integration (Execute Action)
- 28.
- 29. 29 TRANSFORMING NETWORKING INFRASTRUCTURE Intel®Resource Director Technology (Intel® RDT) Collateral • Intel Resource Director Technology landing page • http://www.intel.com/content/www/us/en/architecture-and-technology/resource-director- technology.html • Includes links to blogs and many other resources • Intel Software Developer’s Manual • http://www.intel.com/content/www/us/en/processors/architectures-software-developer-manuals.html (Vol 3b, Chapter 17.15 and 17.16, covers CMT, CAT, MBM and CDP) • NPG Product Literature • http://www.intel.com/content/www/us/en/communications/nfv-packet-processing-brief.html • Academic Research Papers • Numerous prior works are available from multiple researchers and organizations 229
- 30. 30 TRANSFORMING NETWORKING INFRASTRUCTURE Intel®Resource Director Technology Collateral – Software Enabling • Software Enabling: Non Operating System integrated options • Standalone tool to monitor and control allocation functionality https://01.org/packet-processing/cache-monitoring- allocation-technology • Software Enabling: Operating System Scheduler enabled options • Linux* Perf patches for Monitoring (mainstream since kernel v4.1, v4.6) h"ps://lkml.kernel.org/r/1422038748-21397-1- git-send-email-ma"@codeblueprint.co.uk • Linux resctrl for allocation support v4.10 • Introduc)on to CMT: h"ps://soBware.intel.com/en-us/blogs/2014/06/18/benefit-of-cache-monitoring • Discussion of RMIDs and CMT So6ware Interfaces: h"ps://soBware.intel.com/en-us/blogs/2014/12/11/intel-s- cache-monitoring-technology-soBware-visible-interfaces • Use Models and Example Data: h"ps://soBware.intel.com/en-us/blogs/2014/12/11/intels-cache-monitoring- technology-use-models-and-data • So6ware Supports and Tools: Intel's Cache Monitoring Technology: SoBware Support and Tools: h"ps://soBware.intel.com/en-us/blogs/2014/12/11/intels-cache-monitoring-technology-soBware-support-and- tools 25
- 31. 31 TRANSFORMING NETWORKING INFRASTRUCTURE PerfCMT and MBM Implementation • RMID recycling • Cache monitoring and Memory Bandwidth monitoring per Pid/tid based # tools/perf/perf list | grep intel_cqm intel_cqm/llc_occupancy/ [Kernel PMU event] intel_cqm/local_bytes/ [Kernel PMU event] intel_cqm/total_bytes/ [Kernel PMU event] Command: #tools/perf/perf stat -e intel_cqm/llc_occupancy/ -e intel_cqm/local_bytes/ -e intel_cqm/total_bytes/ -p <#pid> • CMT and MBM support in applications to track pid/tid. • Libvirt enables CMT event for monitoring VM’s using perf_event_open sys call. int perf_event_open(struct perf_event_attr *attr, pid_t pid, int cpu, int group_fd, unsigned long flags); (Please refer lib/perf.c for detailed implementation)
- 32. 32 TRANSFORMING NETWORKING INFRASTRUCTURE LibvirtCMT support Libvirt enabling Commands: • To Enable/Disable CMT perf event for domain: $virsh perf <domain> --enable <event_name> For Example: $virsh perf guest01 --enable cmt • To get the perf events list: § $virsh perf <domain> • To print statistics for the perf events: § $ virsh domstats domain Patches Available: https://www.redhat.com/archives/libvir-list/ 2016-January/msg01264.html
