Simple Virtualization Overview
- 1. PowerVM Virtualization plainand simple Richard Bassemir Senior Software Engineer ISV Business Strategy and Enablement

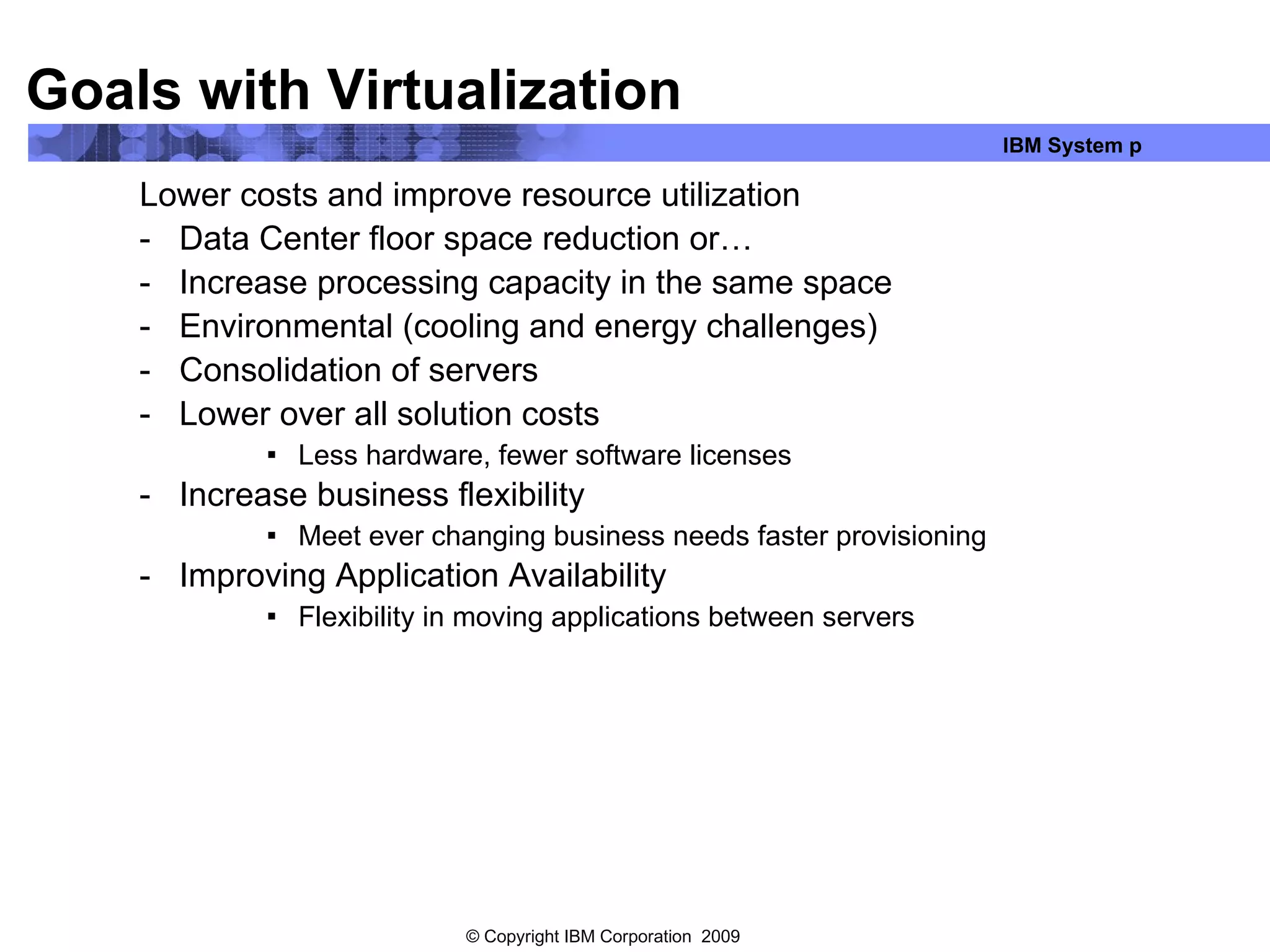

- 2. Goals with VirtualizationLower costs and improve resource utilization Data Center floor space reduction or… Increase processing capacity in the same space Environmental (cooling and energy challenges) Consolidation of servers Lower over all solution costs Less hardware, fewer software licenses Increase business flexibility Meet ever changing business needs faster provisioning Improving Application Availability Flexibility in moving applications between servers

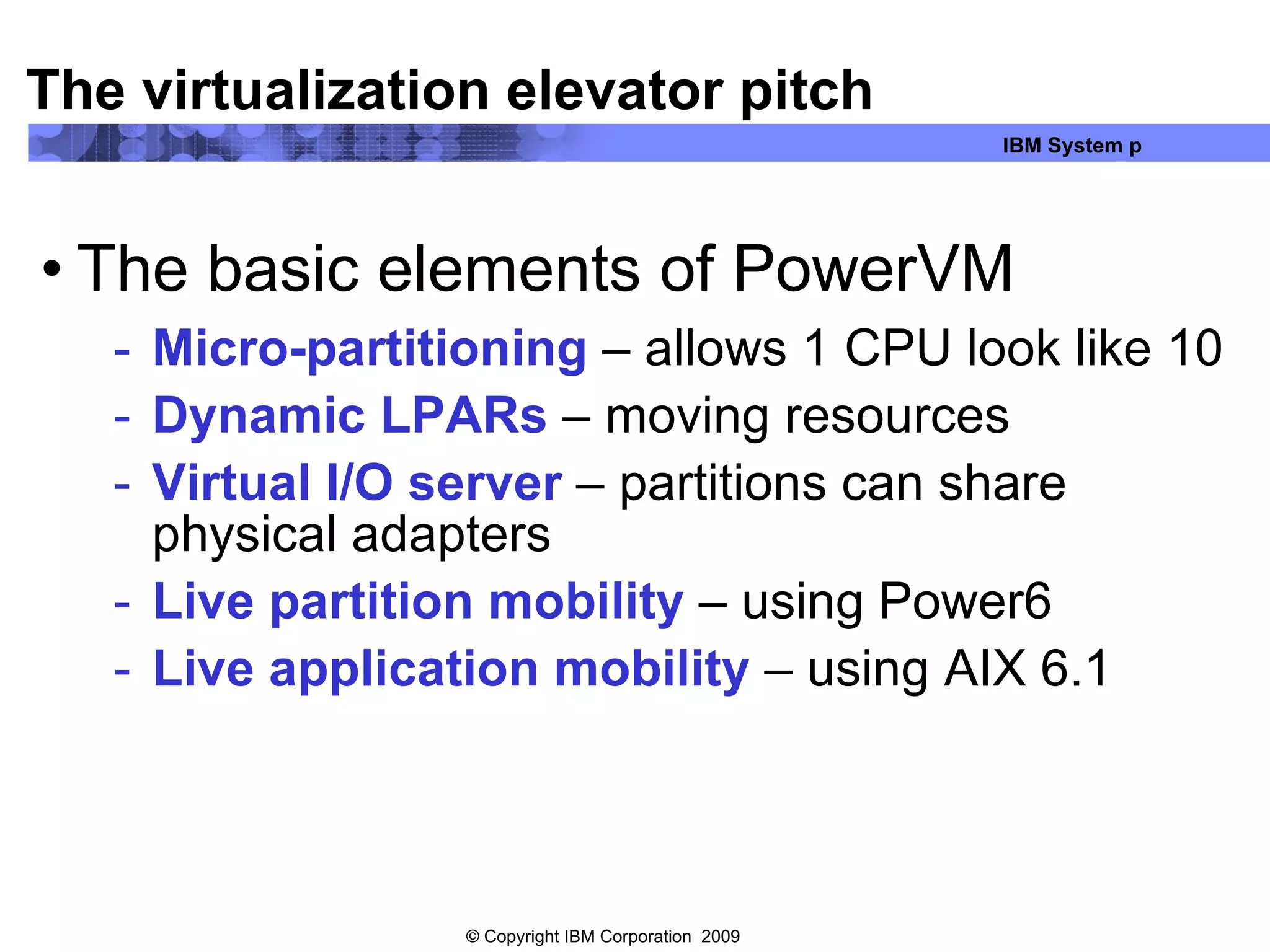

- 3. The virtualization elevatorpitch The basic elements of PowerVM Micro-partitioning – allows 1 CPU look like 10 Dynamic LPARs – moving resources Virtual I/O server – partitions can share physical adapters Live partition mobility – using Power6 Live application mobility – using AIX 6.1

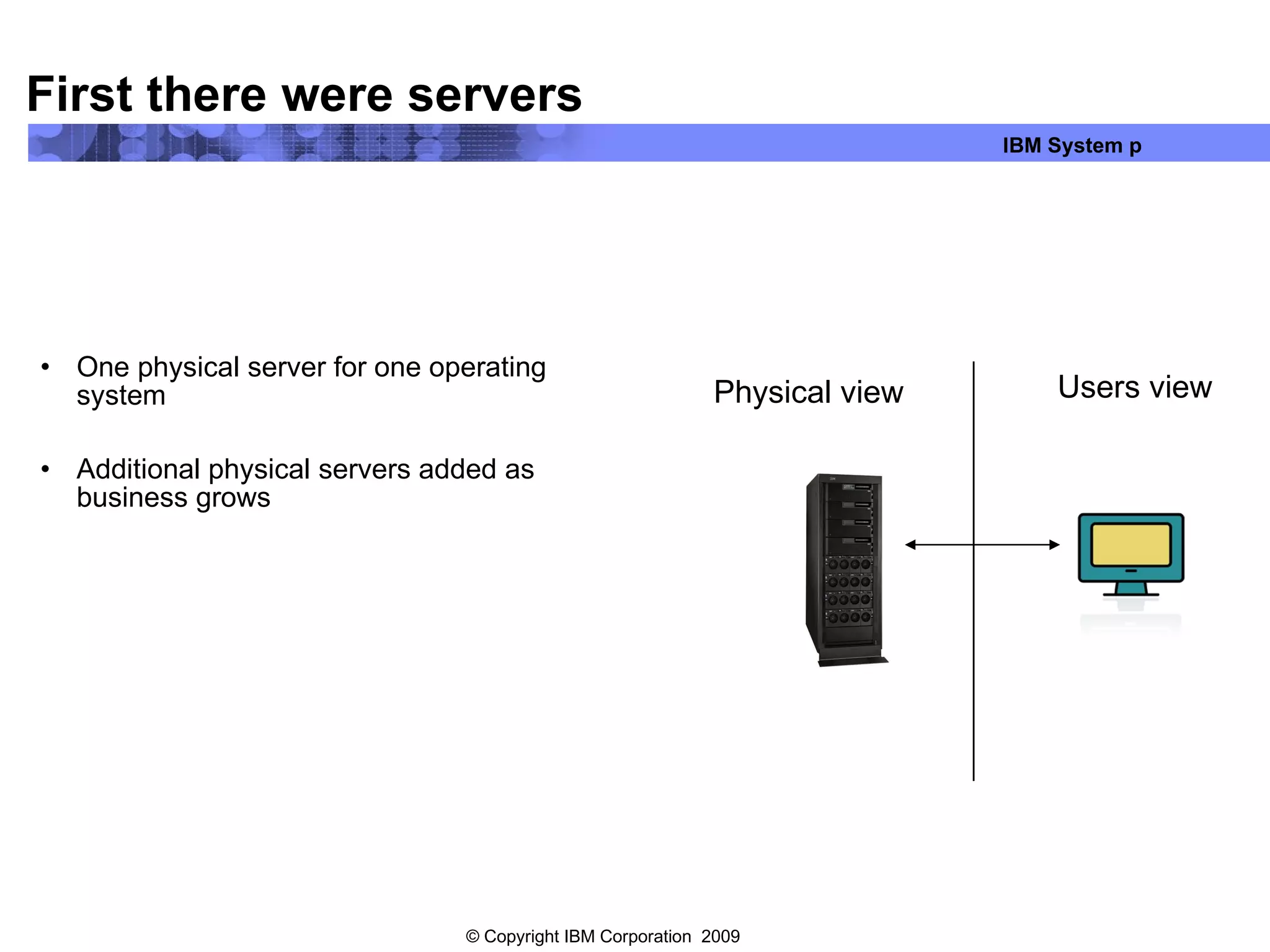

- 4. First there wereservers One physical server for one operating system Additional physical servers added as business grows Physical view Users view

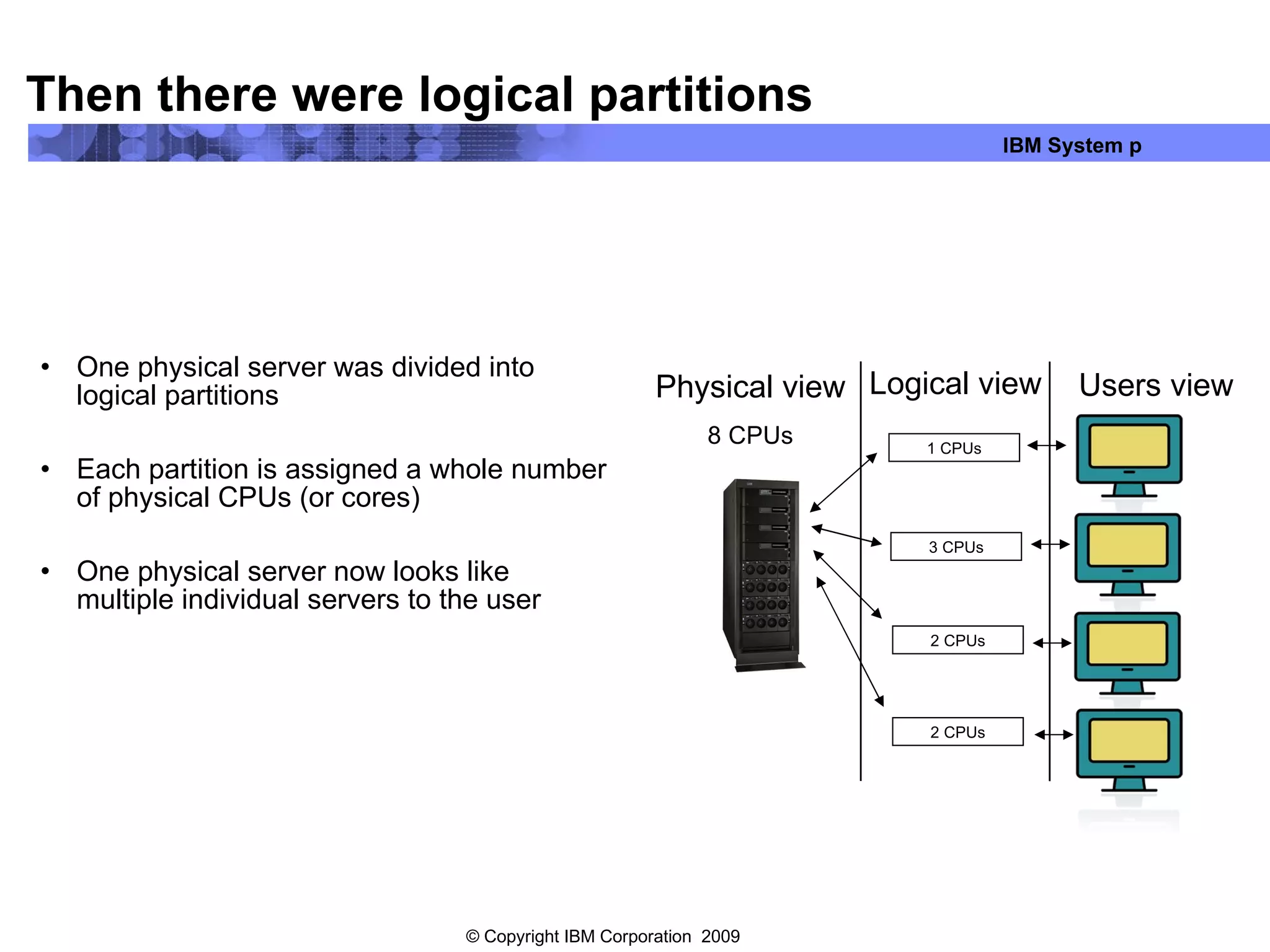

- 5. Then there werelogical partitions One physical server was divided into logical partitions Each partition is assigned a whole number of physical CPUs (or cores) One physical server now looks like multiple individual servers to the user Physical view 8 CPUs Users view Logical view 1 CPUs 3 CPUs 2 CPUs 2 CPUs

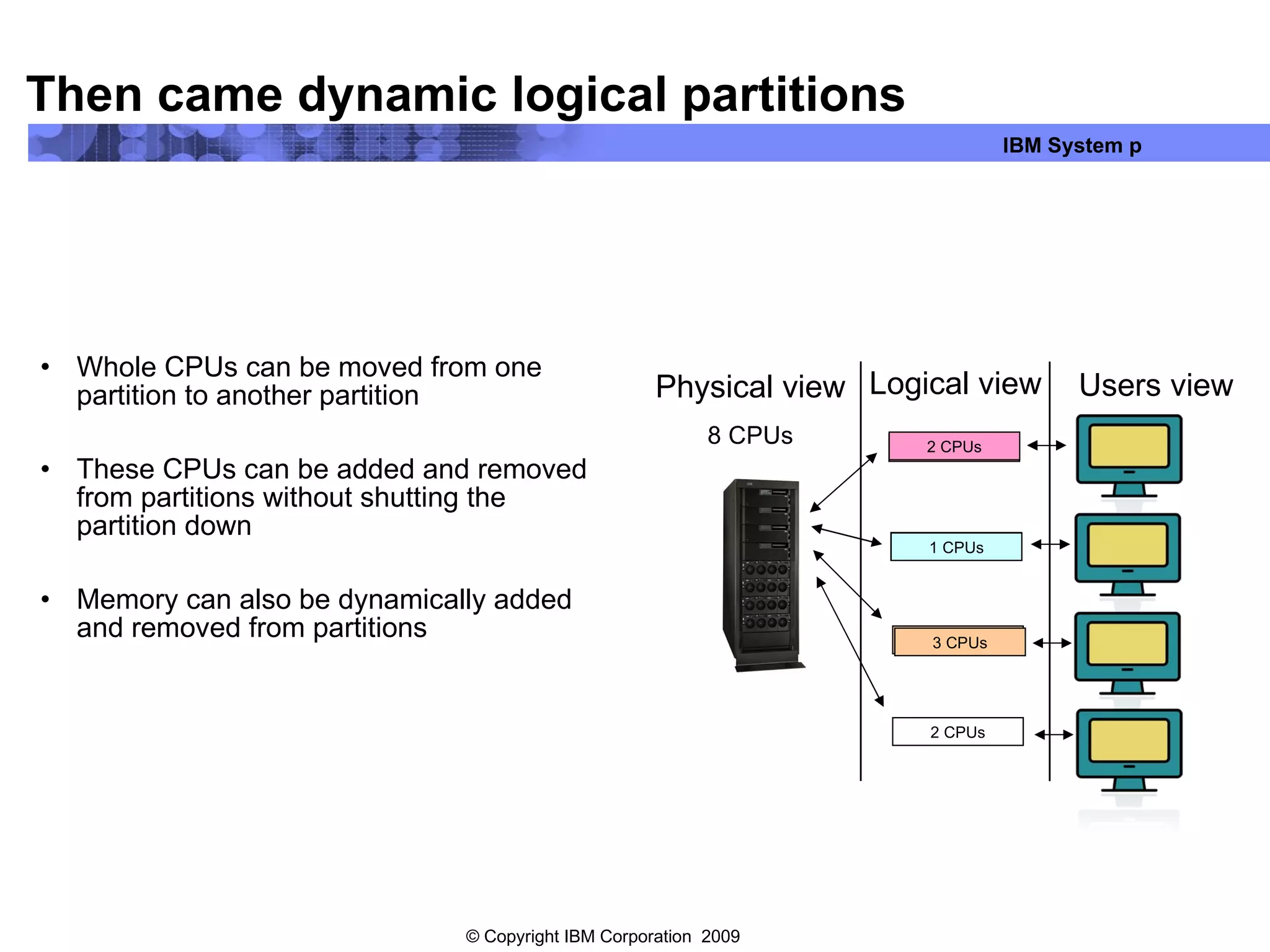

- 6. Then came dynamiclogical partitions Whole CPUs can be moved from one partition to another partition These CPUs can be added and removed from partitions without shutting the partition down Memory can also be dynamically added and removed from partitions Physical view 8 CPUs Users view Logical view 1 CPUs 3 CPUs 2 CPUs 2 CPUs 1 CPUs 3 CPUs 2 CPUs

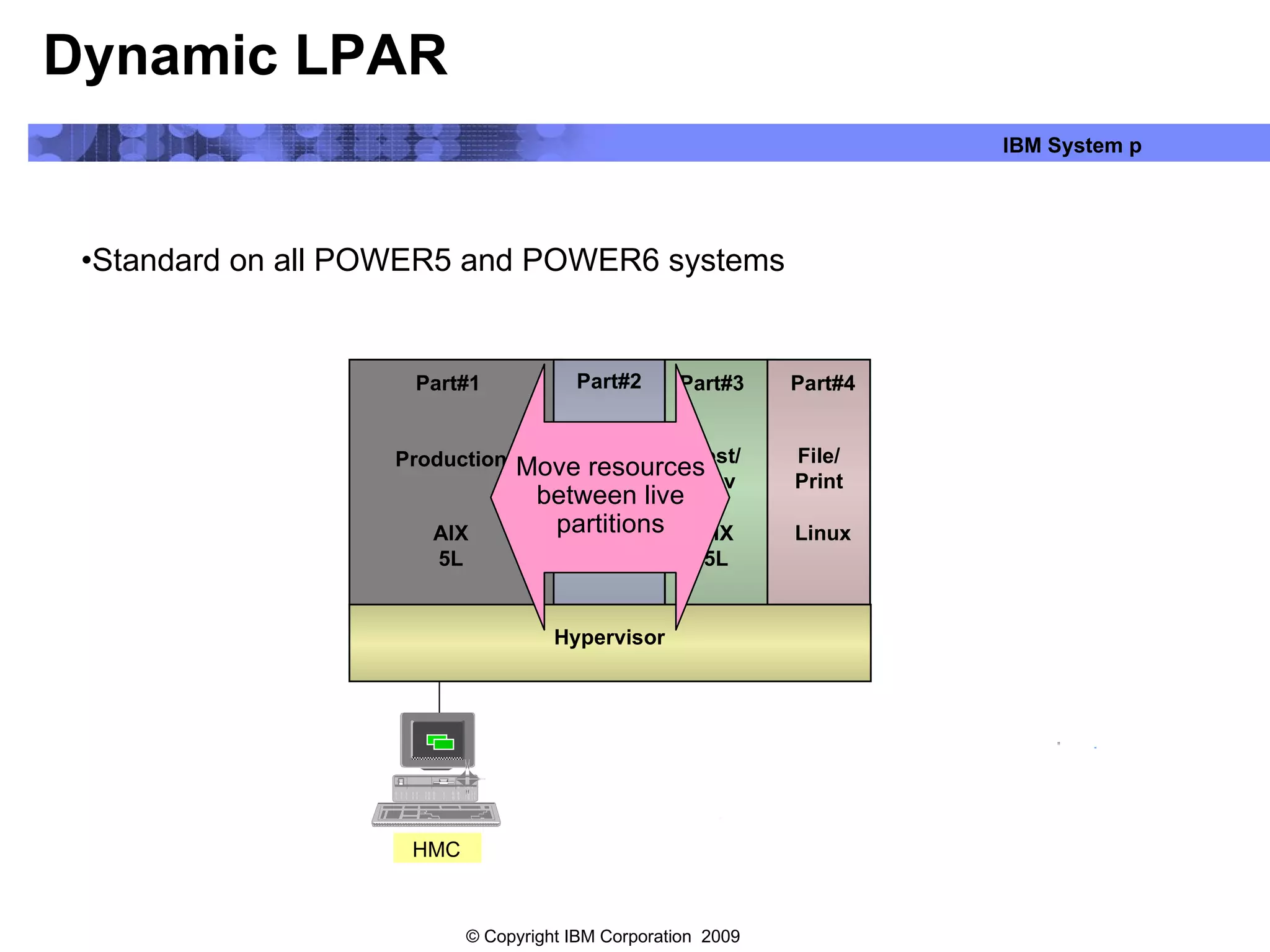

- 7. Dynamic LPAR Standardon all POWER5 and POWER6 systems HMC AIX 5L Linux Hypervisor Part#1 Production Part#2 Part#3 Part#4 Legacy Apps Test/ Dev File/ Print AIX 5L AIX 5L Move resources between live partitions

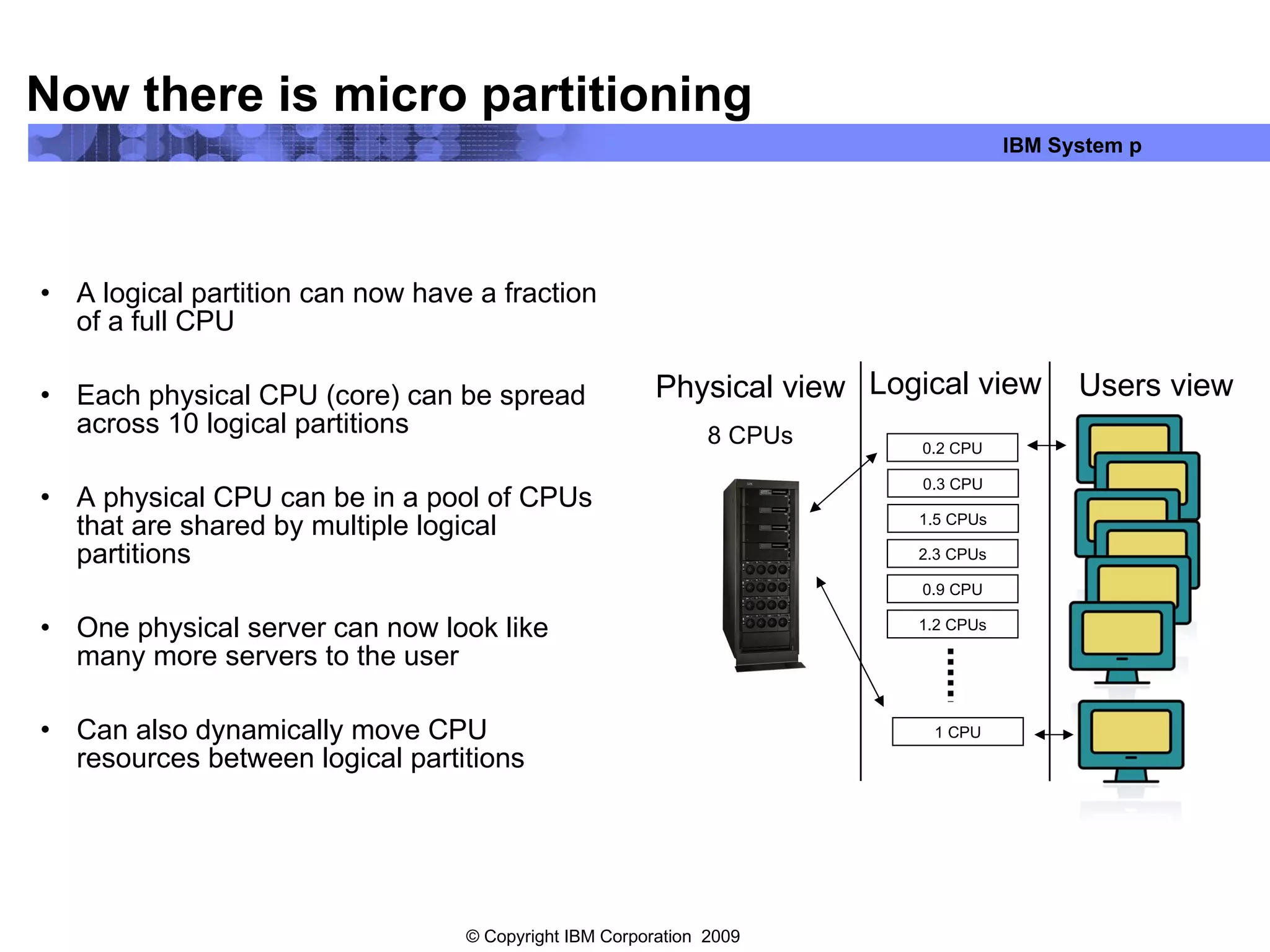

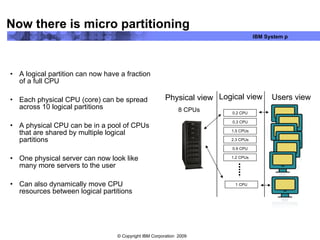

- 8. Now there ismicro partitioning A logical partition can now have a fraction of a full CPU Each physical CPU (core) can be spread across 10 logical partitions A physical CPU can be in a pool of CPUs that are shared by multiple logical partitions One physical server can now look like many more servers to the user Can also dynamically move CPU resources between logical partitions Physical view 8 CPUs Users view Logical view 0.2 CPU 2.3 CPUs 1.2 CPUs 1 CPU 0.3 CPU 1.5 CPUs 0.9 CPU

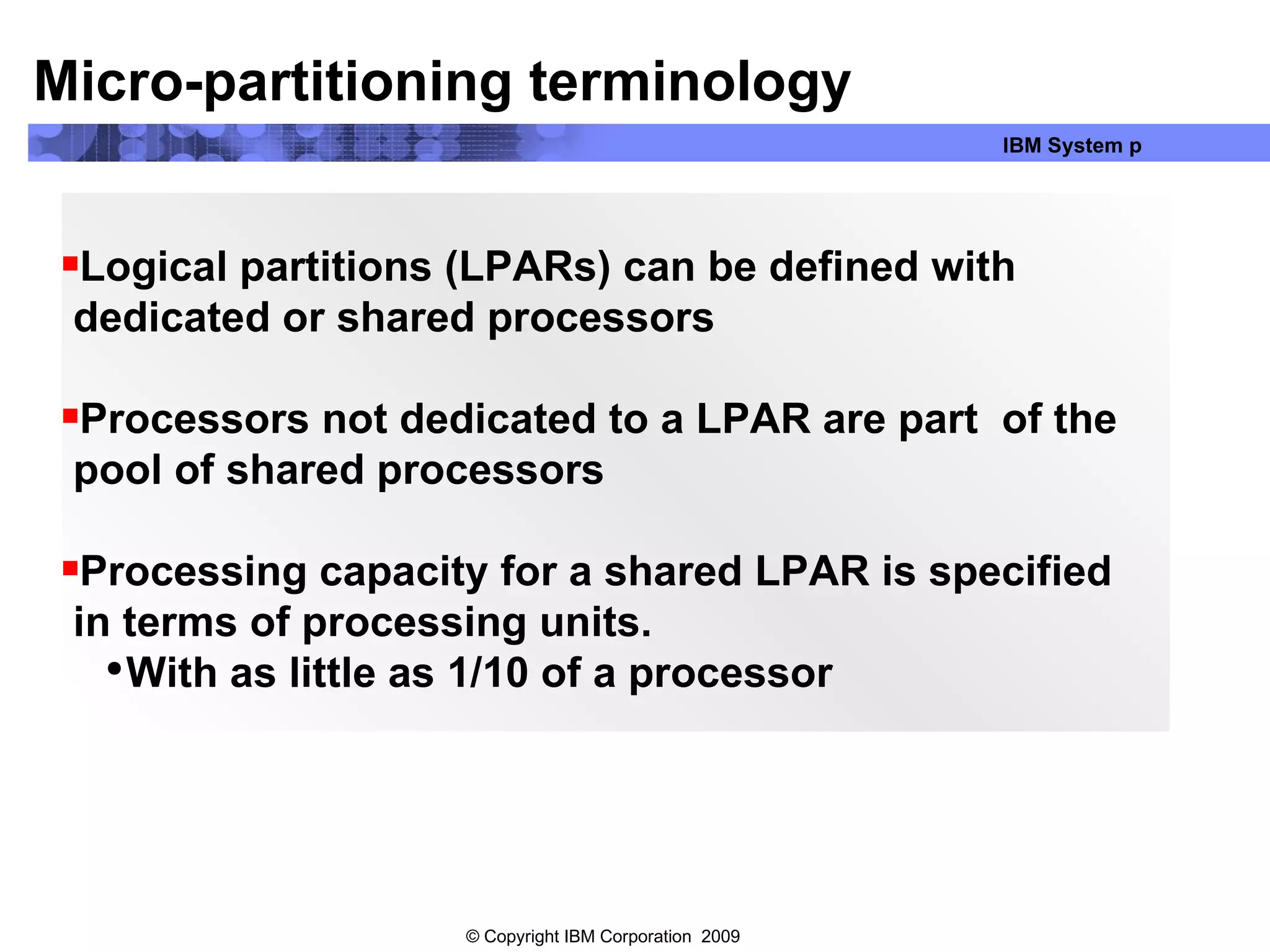

- 9. Logical partitions (LPARs)can be defined with dedicated or shared processors Processors not dedicated to a LPAR are part of the pool of shared processors Processing capacity for a shared LPAR is specified in terms of processing units. With as little as 1/10 of a processor Micro-partitioning terminology

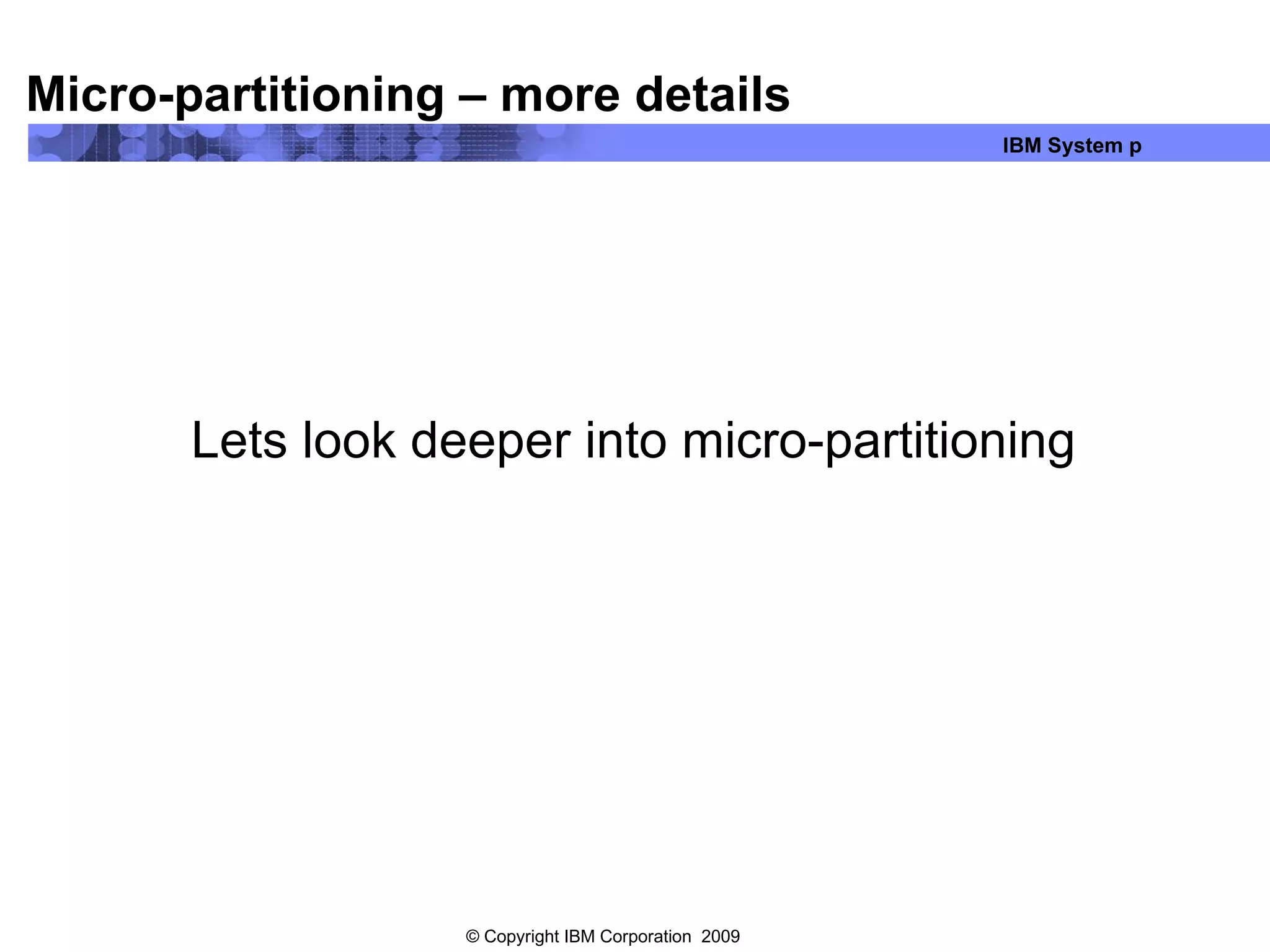

- 10. Micro-partitioning – moredetails Lets look deeper into micro-partitioning

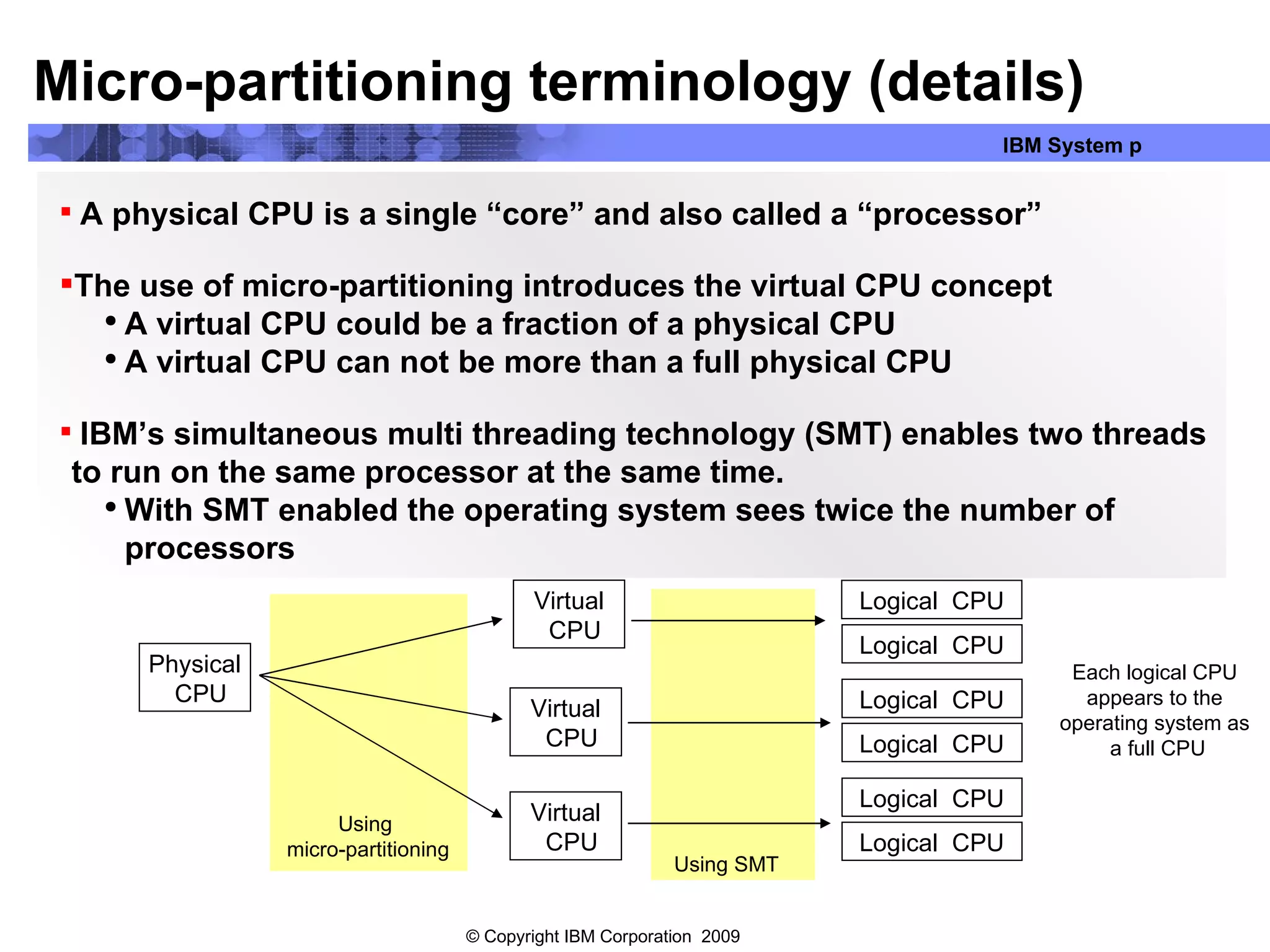

- 11. A physical CPUis a single “core” and also called a “processor” The use of micro-partitioning introduces the virtual CPU concept A virtual CPU could be a fraction of a physical CPU A virtual CPU can not be more than a full physical CPU IBM’s simultaneous multi threading technology (SMT) enables two threads to run on the same processor at the same time. With SMT enabled the operating system sees twice the number of processors Micro-partitioning terminology (details) Physical CPU Virtual CPU Virtual CPU Virtual CPU Logical CPU Logical CPU Logical CPU Logical CPU Logical CPU Logical CPU Using SMT Using micro-partitioning Each logical CPU appears to the operating system as a full CPU

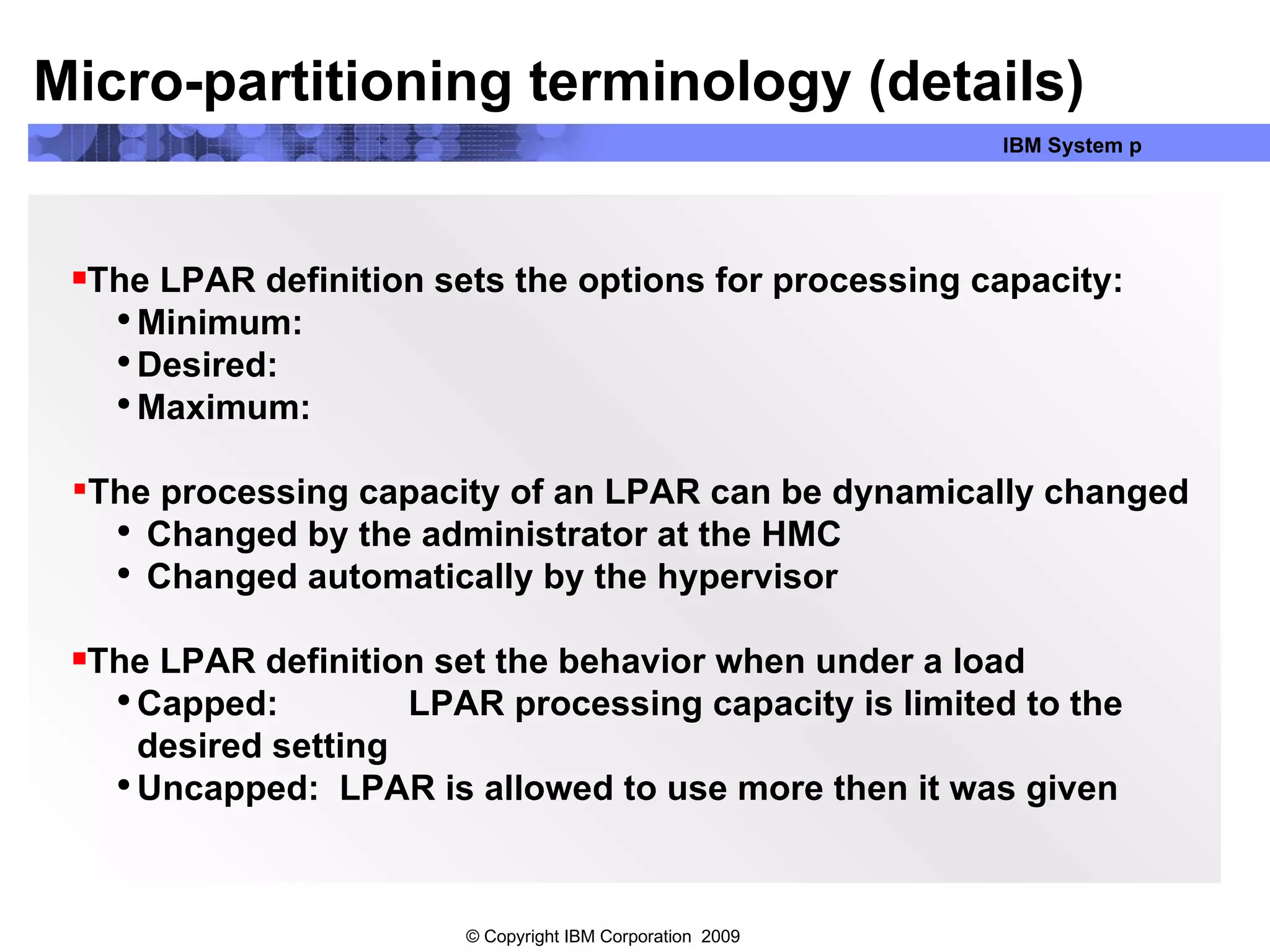

- 12. The LPAR definitionsets the options for processing capacity: Minimum: Desired: Maximum: The processing capacity of an LPAR can be dynamically changed Changed by the administrator at the HMC Changed automatically by the hypervisor The LPAR definition set the behavior when under a load Capped: LPAR processing capacity is limited to the desired setting Uncapped: LPAR is allowed to use more then it was given Micro-partitioning terminology (details)

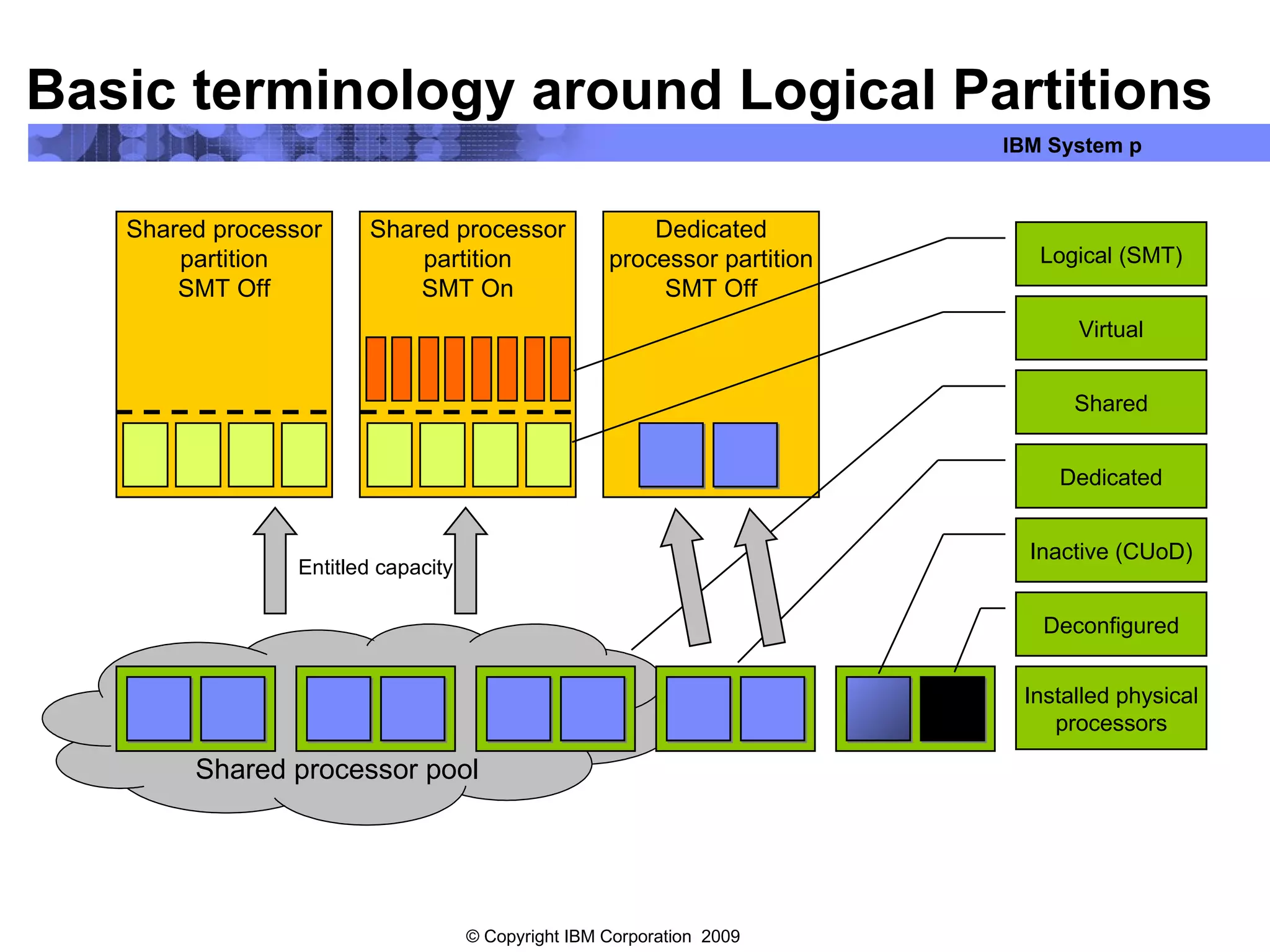

- 13. Basic terminology aroundLogical Partitions Shared processor pool Shared processor partition SMT Off Shared processor partition SMT On Dedicated processor partition SMT Off Deconfigured Inactive (CUoD) Dedicated Shared Virtual Logical (SMT) Installed physical processors Entitled capacity

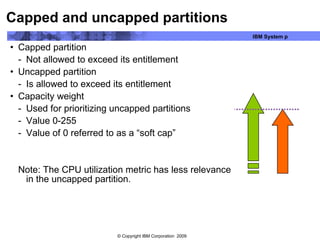

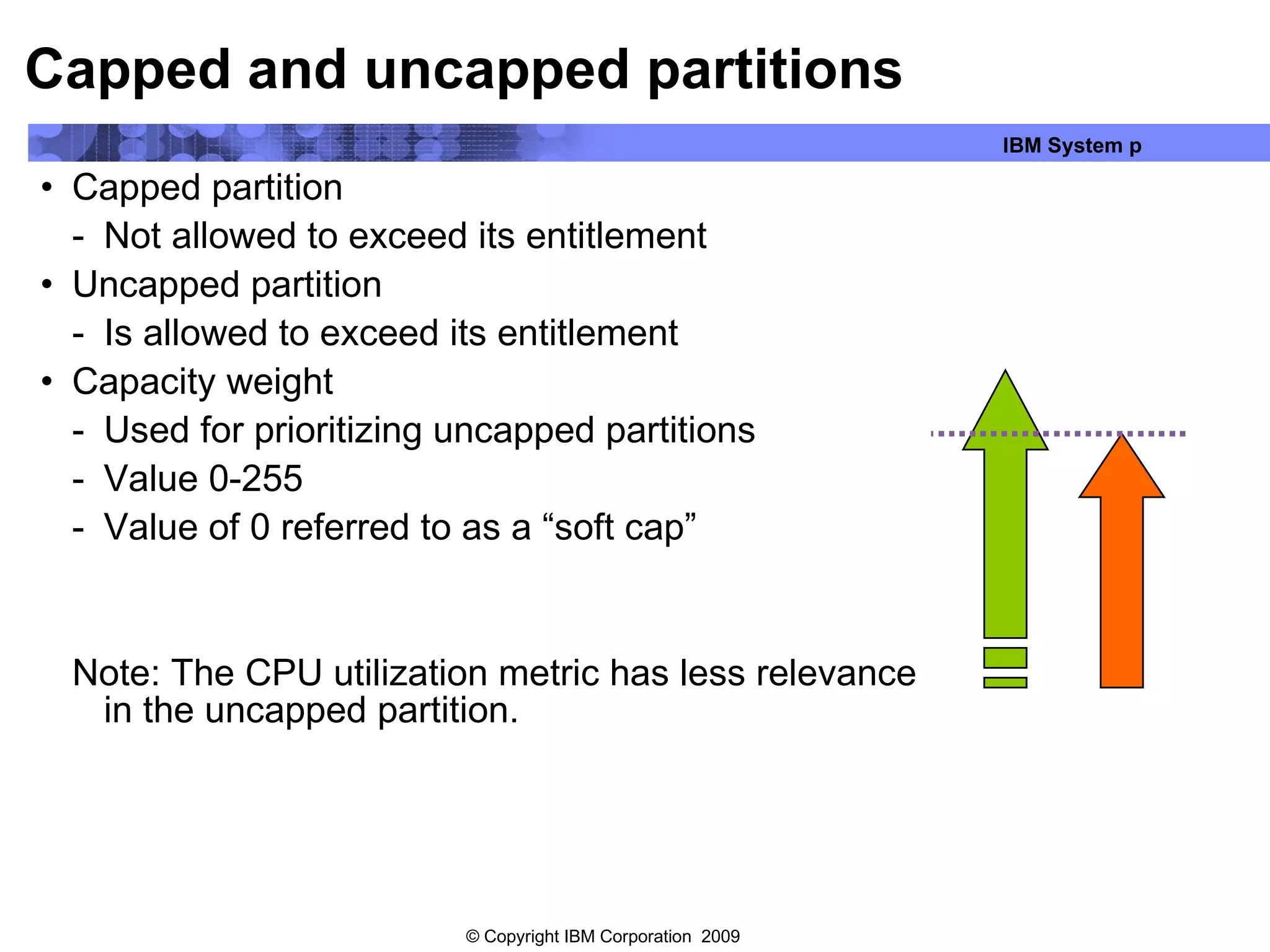

- 14. Capped and uncappedpartitions Capped partition Not allowed to exceed its entitlement Uncapped partition Is allowed to exceed its entitlement Capacity weight Used for prioritizing uncapped partitions Value 0-255 Value of 0 referred to as a “soft cap” Note: The CPU utilization metric has less relevance in the uncapped partition.

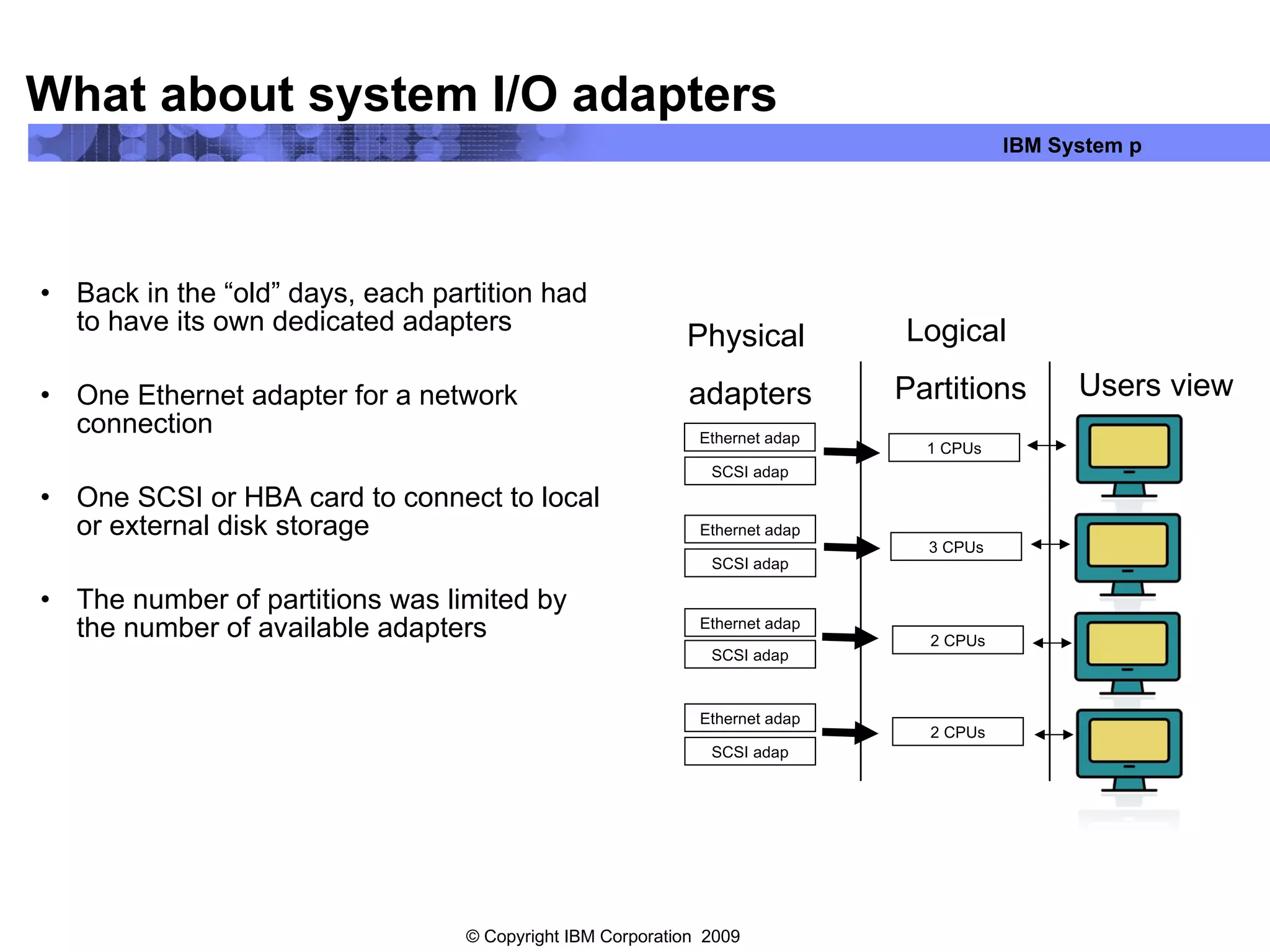

- 15. What about systemI/O adapters Back in the “old” days, each partition had to have its own dedicated adapters One Ethernet adapter for a network connection One SCSI or HBA card to connect to local or external disk storage The number of partitions was limited by the number of available adapters Physical adapters Users view Logical Partitions 1 CPUs 3 CPUs 2 CPUs 2 CPUs Ethernet adap Ethernet adap Ethernet adap Ethernet adap SCSI adap SCSI adap SCSI adap SCSI adap

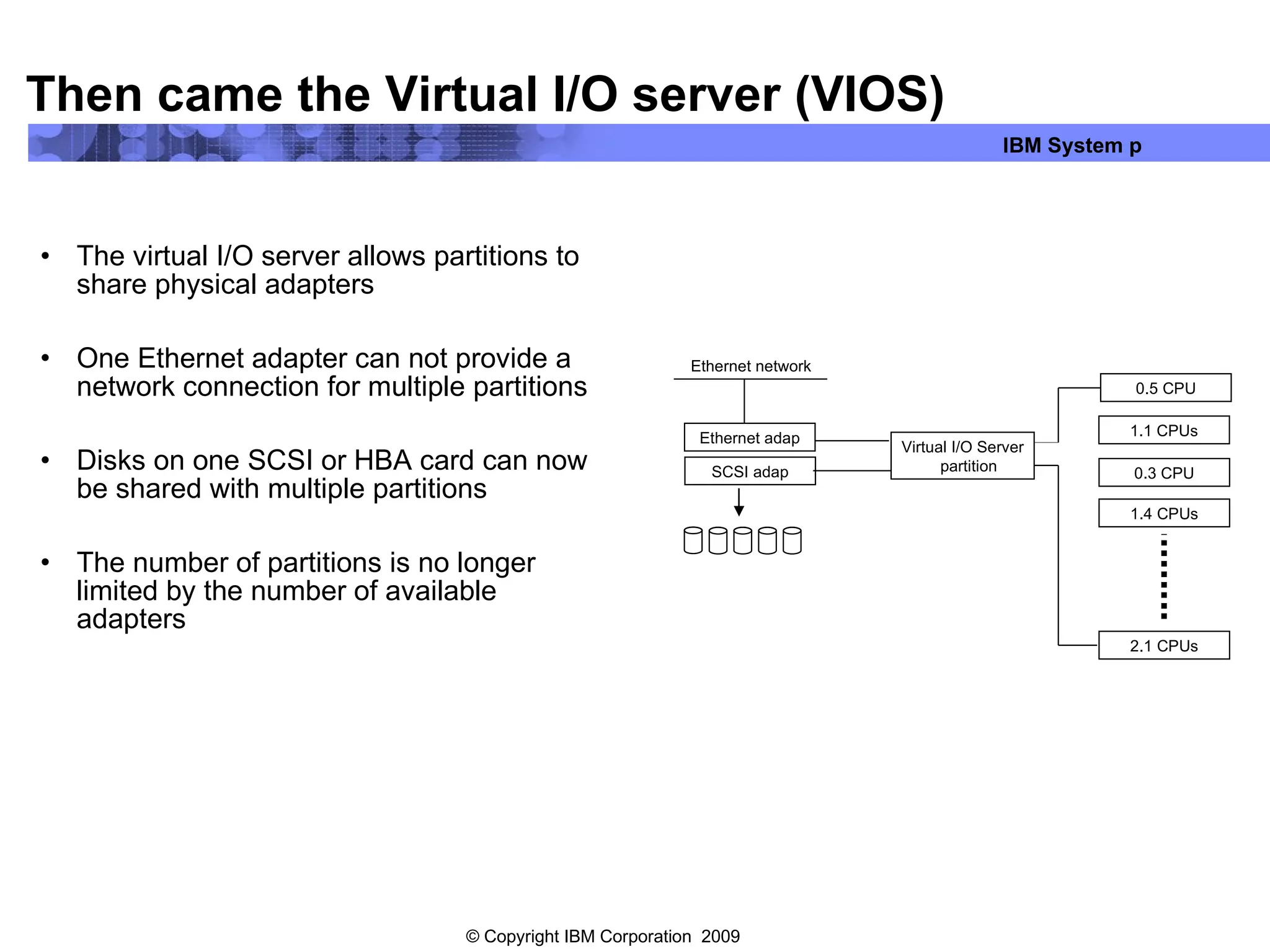

- 16. Then came theVirtual I/O server (VIOS) The virtual I/O server allows partitions to share physical adapters One Ethernet adapter can not provide a network connection for multiple partitions Disks on one SCSI or HBA card can now be shared with multiple partitions The number of partitions is no longer limited by the number of available adapters Ethernet adap SCSI adap Virtual I/O Server partition 0.5 CPU 1.1 CPUs 0.3 CPU 1.4 CPUs 2.1 CPUs Ethernet network

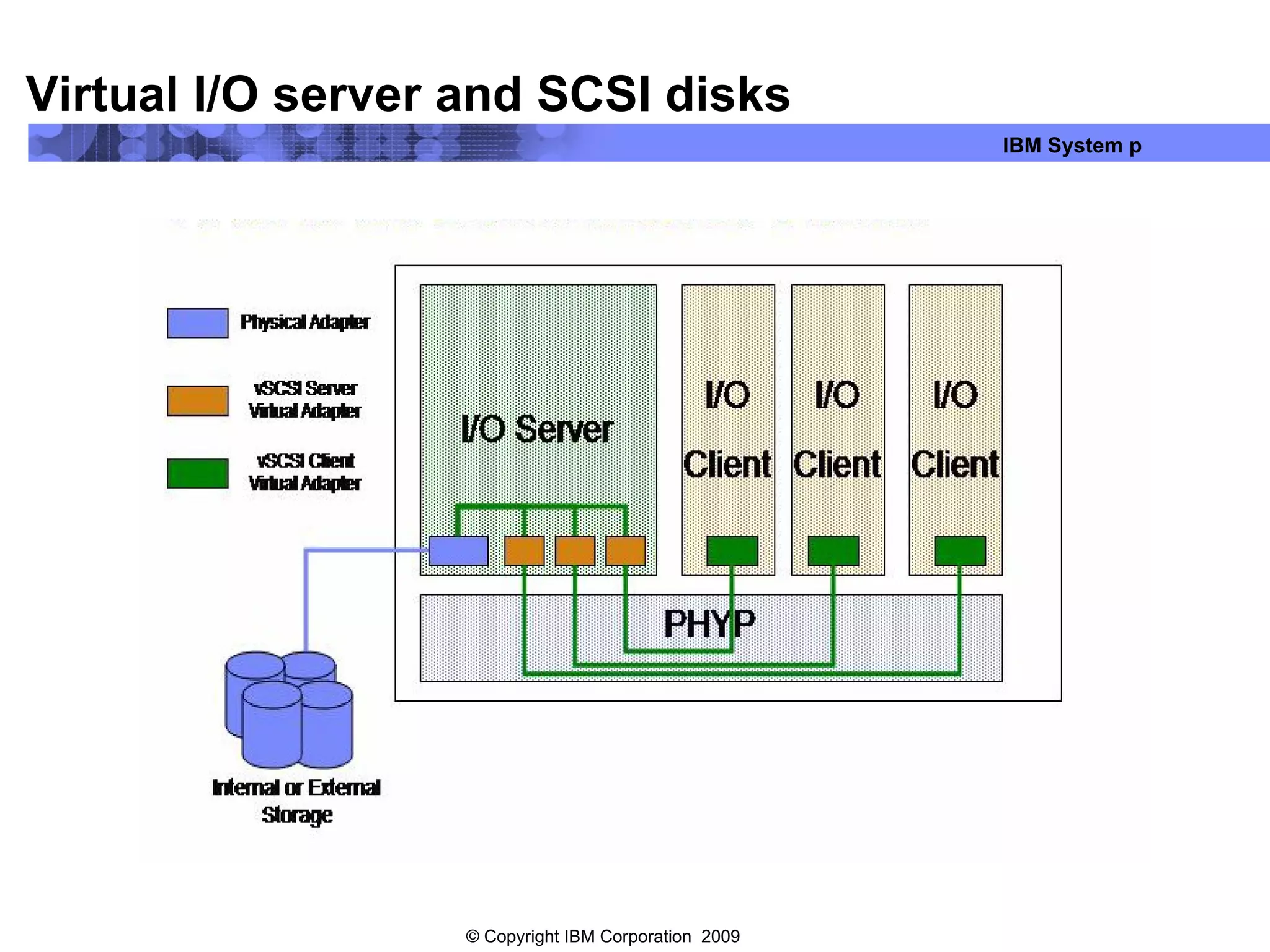

- 17. Virtual I/O serverand SCSI disks

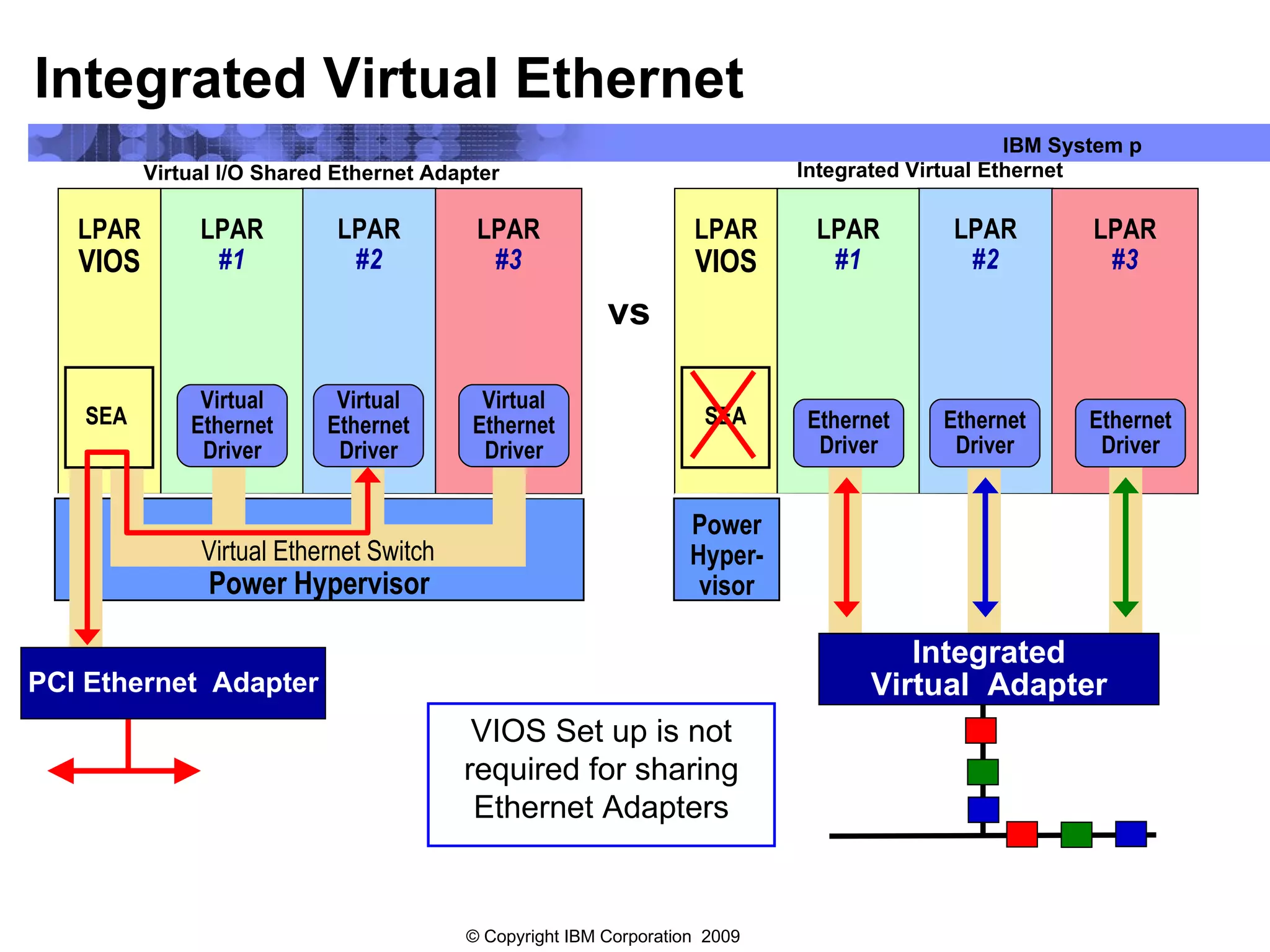

- 18. Integrated Virtual EthernetLPAR #2 LPAR VIOS LPAR #3 LPAR #1 Power Hypervisor SEA Virtual Ethernet Switch Virtual Ethernet Driver Virtual Ethernet Driver Virtual Ethernet Driver LPAR #2 LPAR VIOS LPAR #3 LPAR #1 Power Hyper- visor SEA Ethernet Driver Ethernet Driver Ethernet Driver Integrated Virtual Adapter VIOS Set up is not required for sharing Ethernet Adapters PCI Ethernet Adapter Virtual I/O Shared Ethernet Adapter Integrated Virtual Ethernet vs

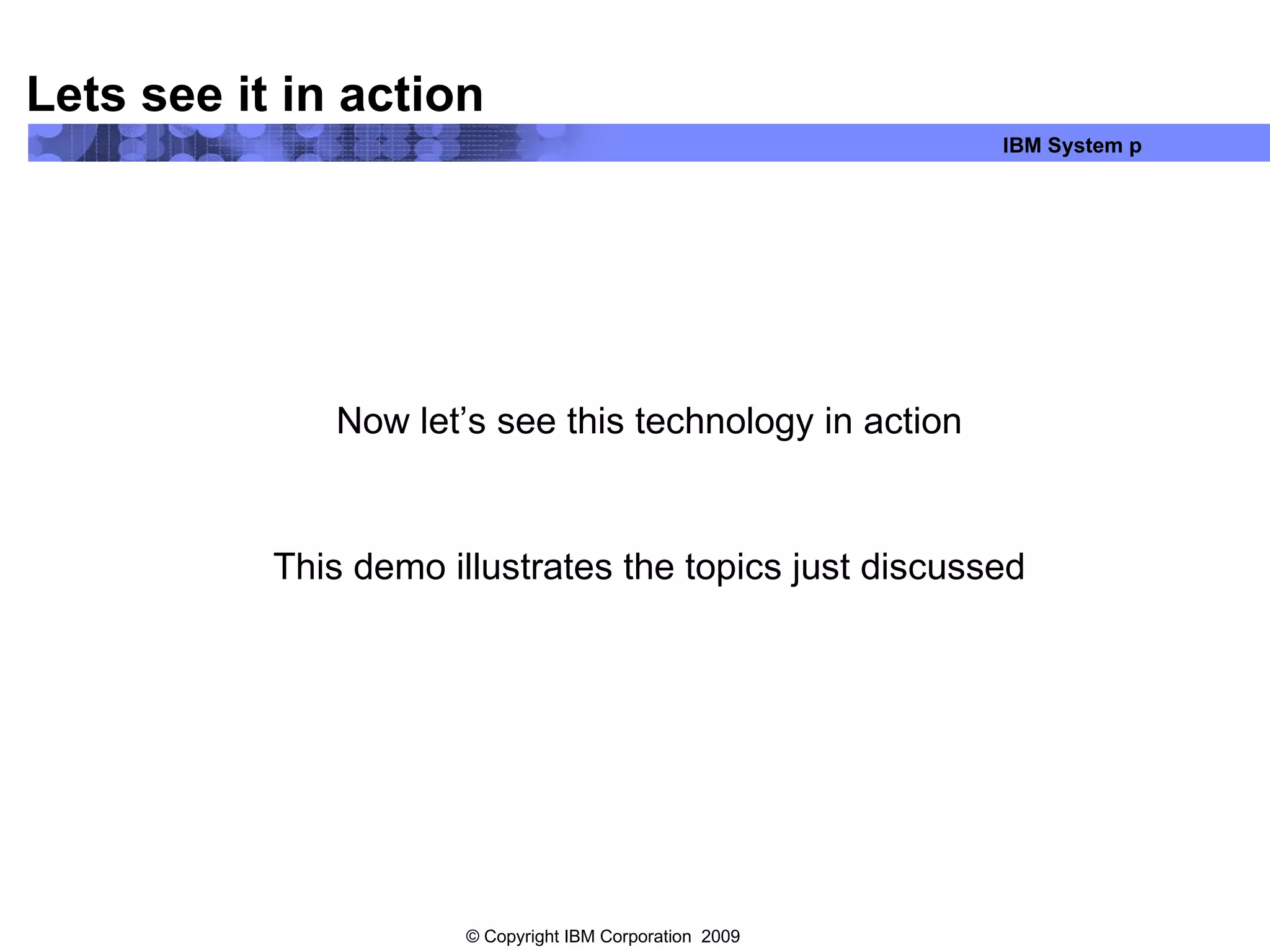

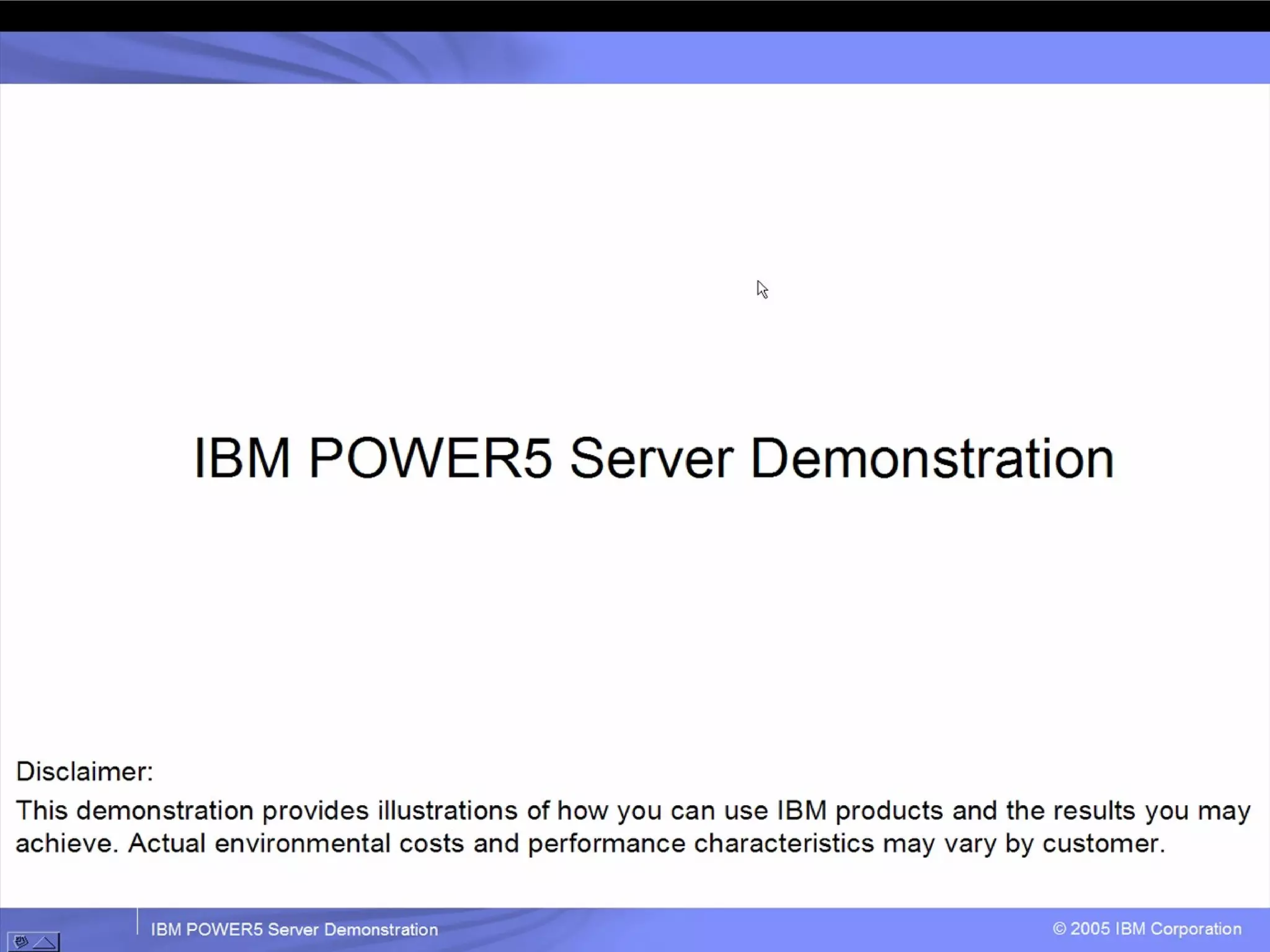

- 19. Lets see itin action Now let’s see this technology in action This demo illustrates the topics just discussed
- 20.

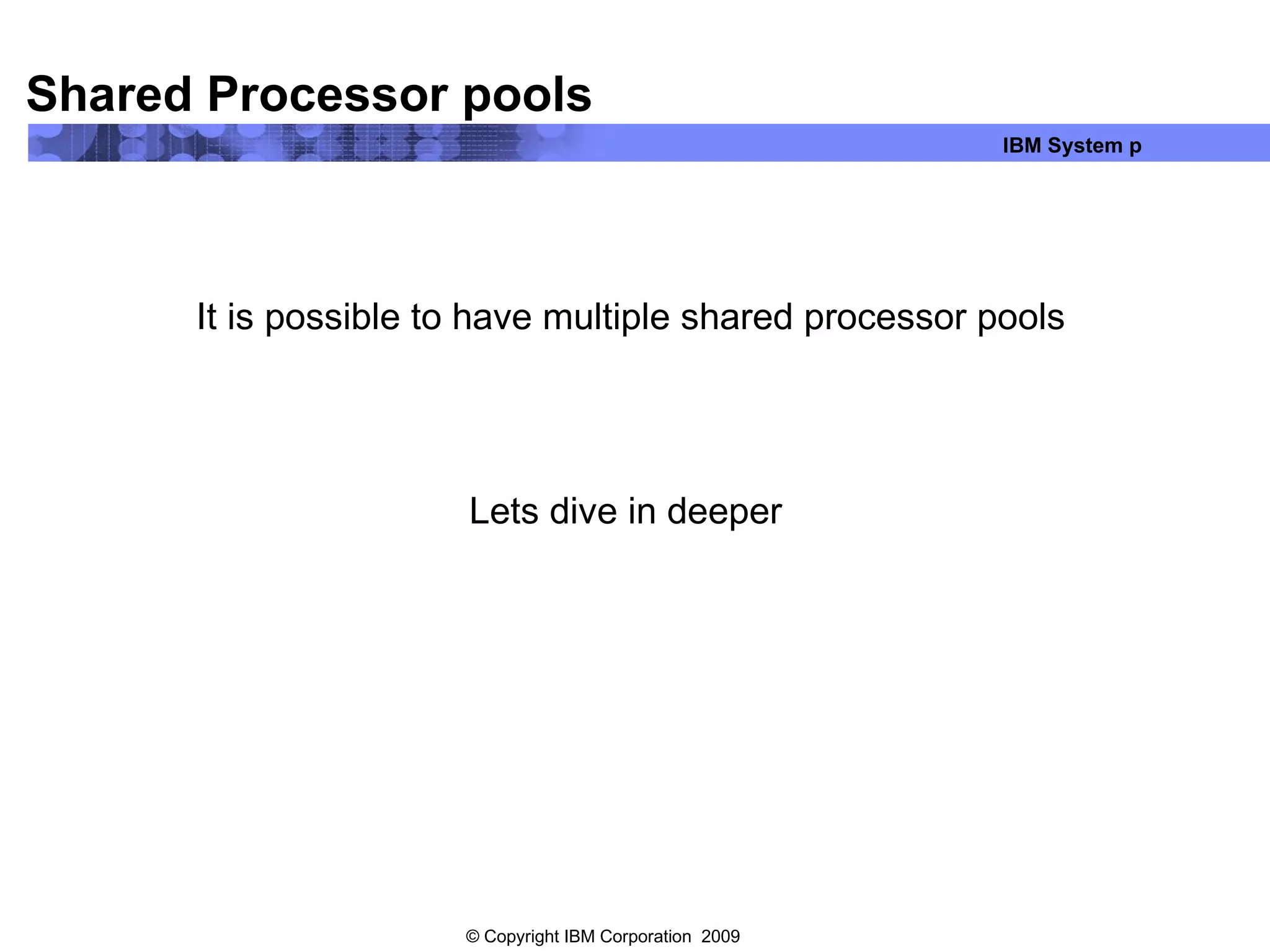

- 21. Shared Processor poolsIt is possible to have multiple shared processor pools Lets dive in deeper

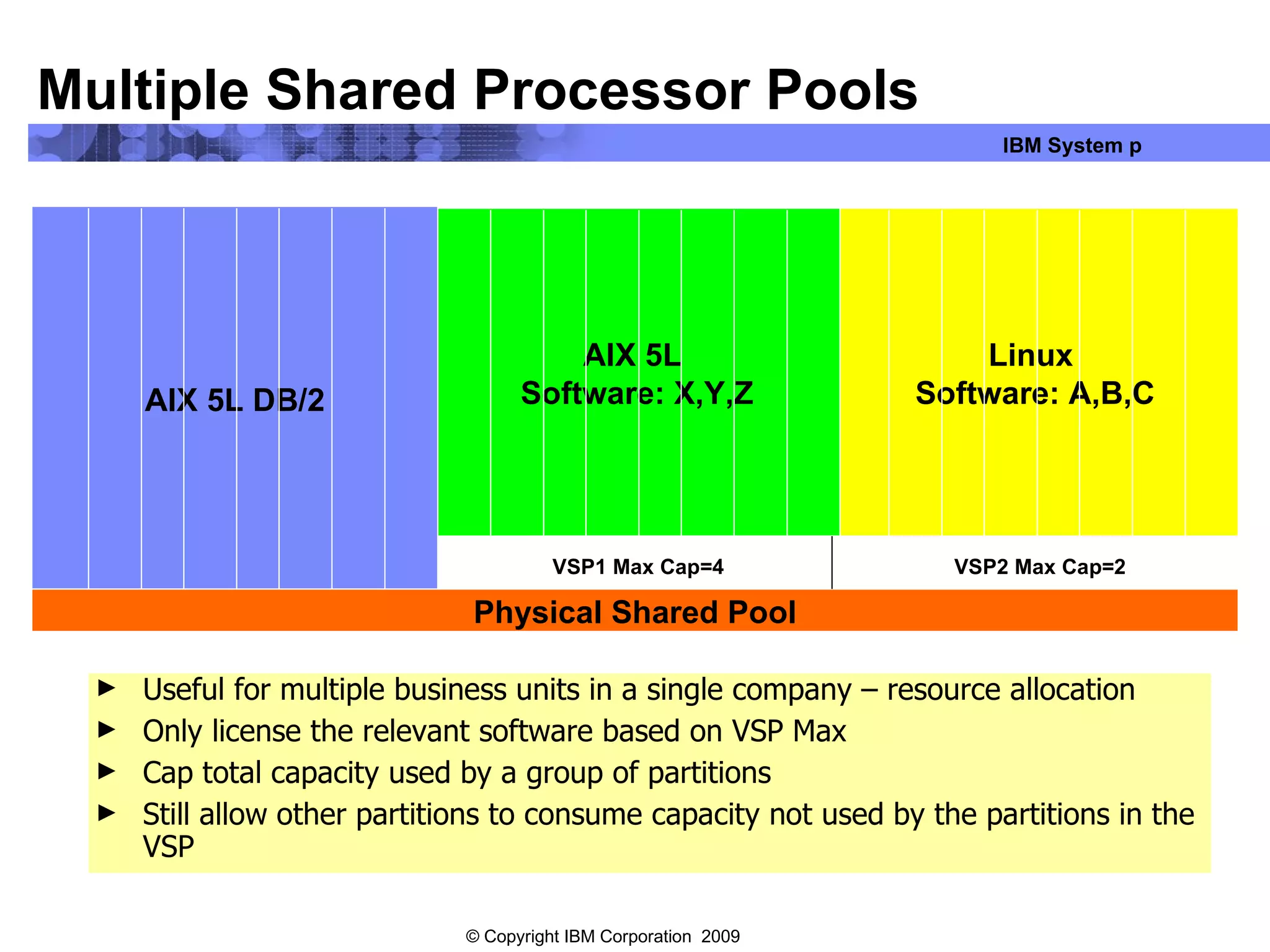

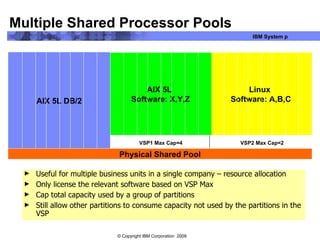

- 22. Multiple Shared ProcessorPools AIX 5L Software: X,Y,Z VSP2 Max Cap=2 VSP1 Max Cap=4 Physical Shared Pool Useful for multiple business units in a single company – resource allocation Only license the relevant software based on VSP Max Cap total capacity used by a group of partitions Still allow other partitions to consume capacity not used by the partitions in the VSP Linux Software: A,B,C AIX 5L DB/2

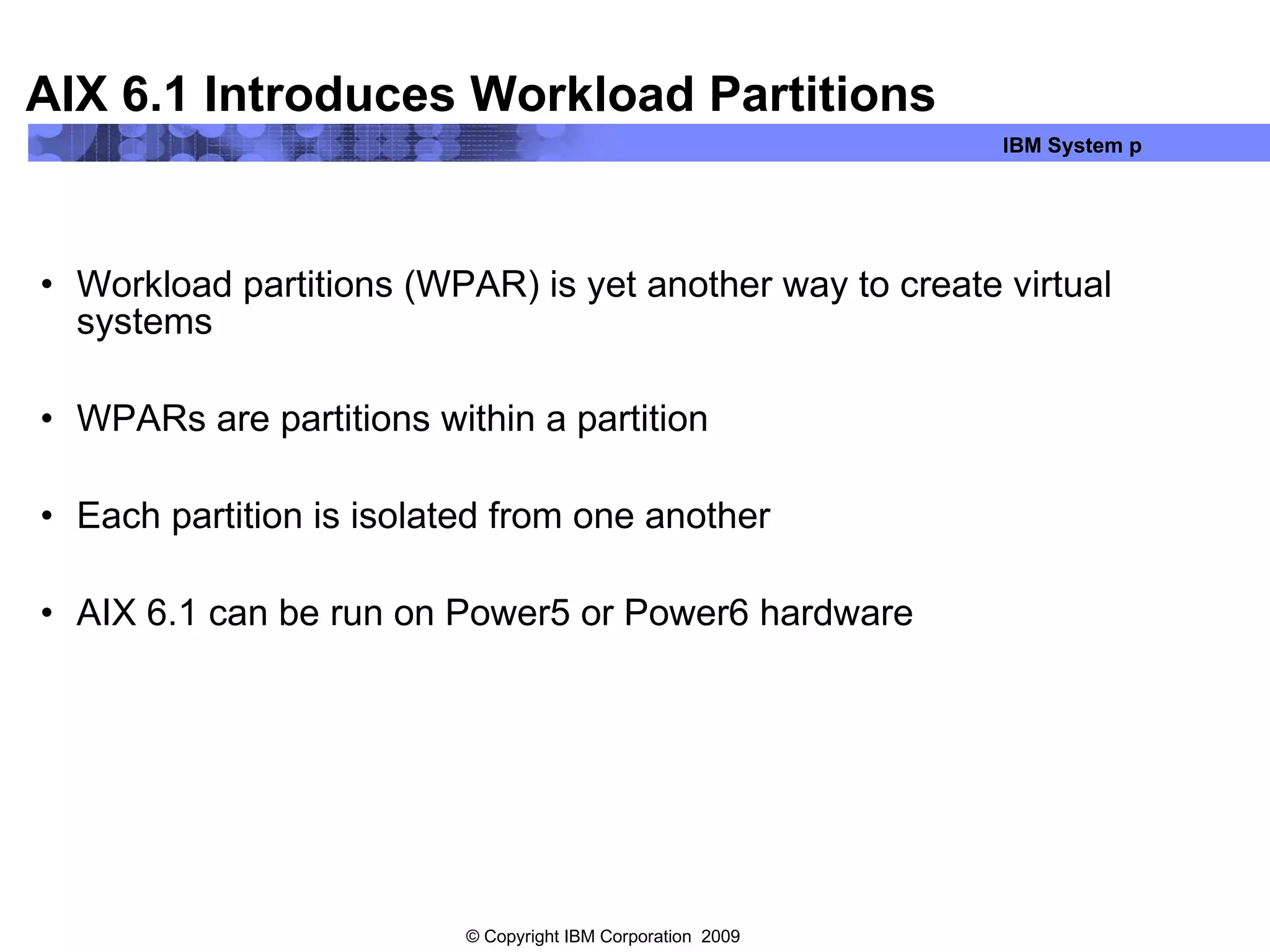

- 23. AIX 6.1 IntroducesWorkload Partitions Workload partitions (WPAR) is yet another way to create virtual systems WPARs are partitions within a partition Each partition is isolated from one another AIX 6.1 can be run on Power5 or Power6 hardware

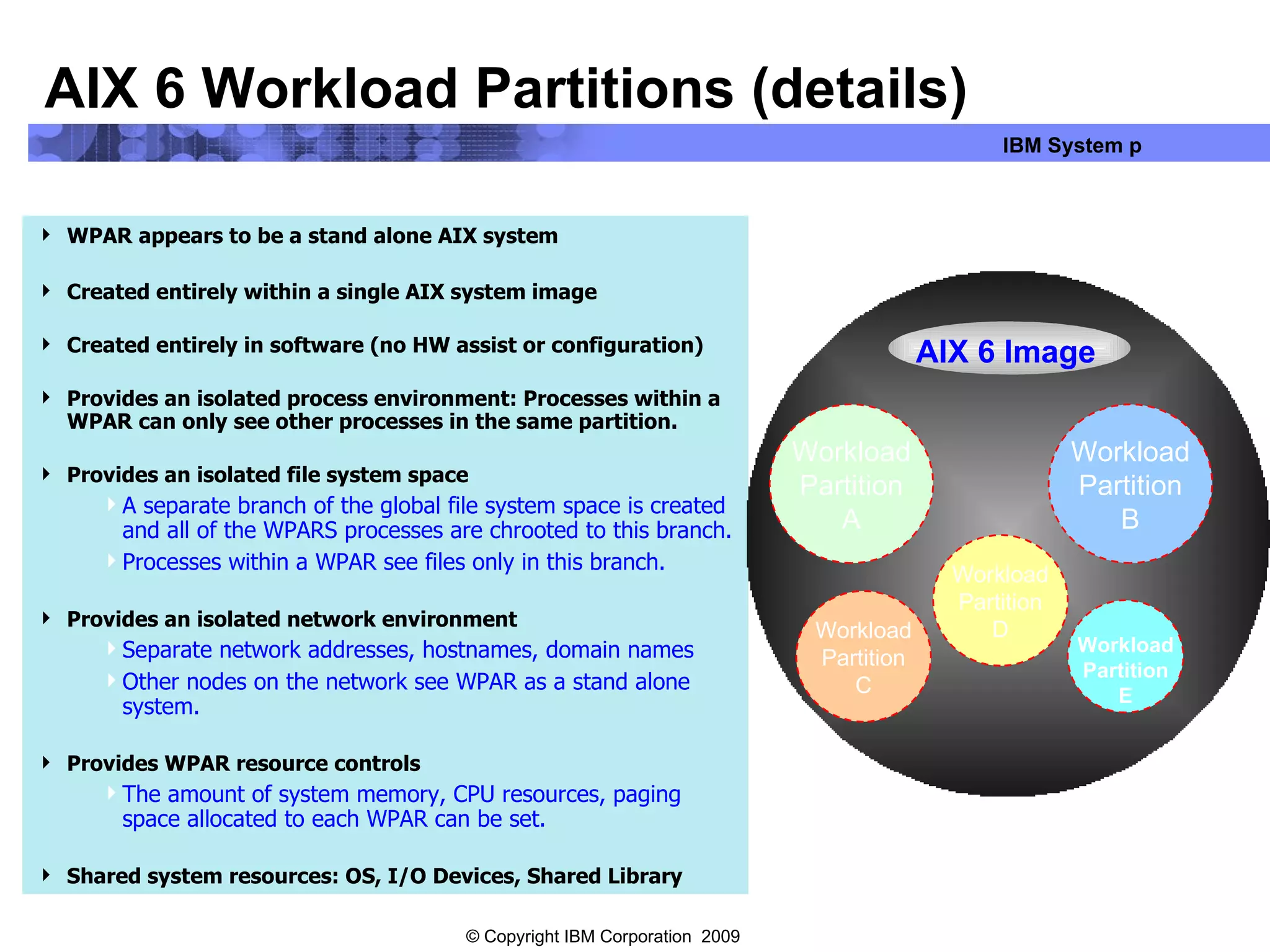

- 24. AIX 6 WorkloadPartitions (details) WPAR appears to be a stand alone AIX system Created entirely within a single AIX system image Created entirely in software (no HW assist or configuration) Provides an isolated process environment: Processes within a WPAR can only see other processes in the same partition. Provides an isolated file system space A separate branch of the global file system space is created and all of the WPARS processes are chrooted to this branch. Processes within a WPAR see files only in this branch. Provides an isolated network environment Separate network addresses, hostnames, domain names Other nodes on the network see WPAR as a stand alone system. Provides WPAR resource controls The amount of system memory, CPU resources, paging space allocated to each WPAR can be set. Shared system resources: OS, I/O Devices, Shared Library Workload Partition A Workload Partition C Workload Partition B Workload Partition D Workload Partition E AIX 6 Image
- 25.

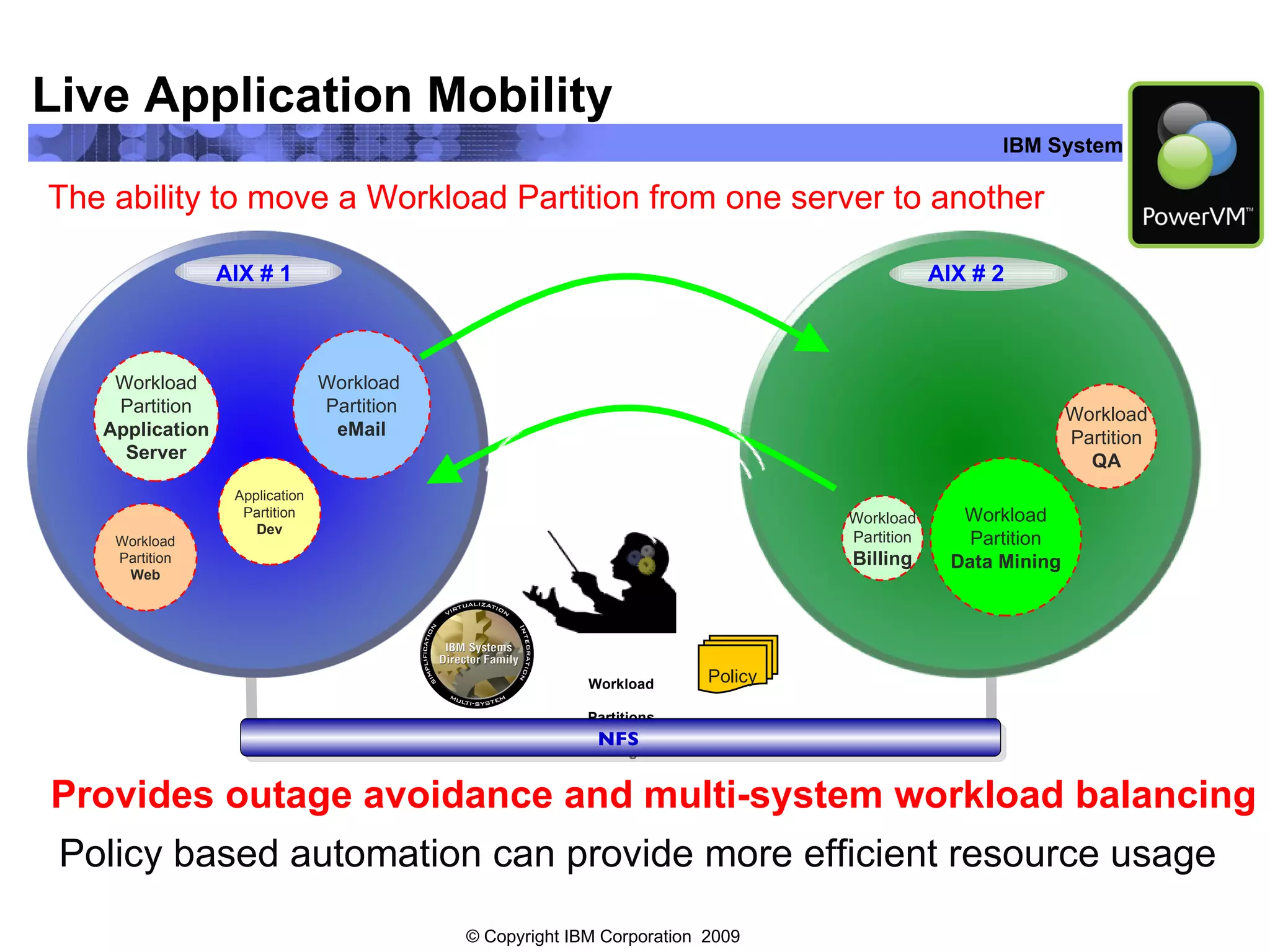

- 26. Live Application MobilityWorkload Partition Billing Workload Partition QA AIX # 2 Workload Partition Data Mining Workload Partition Application Server Workload Partition Web AIX # 1 Application Partition Dev The ability to move a Workload Partition from one server to another Provides outage avoidance and multi-system workload balancing Workload Partition eMail Policy based automation can provide more efficient resource usage Policy NFS Workload Partitions Manager

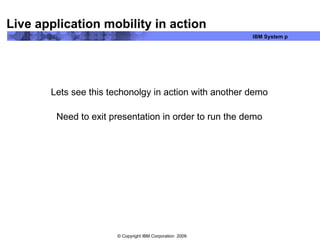

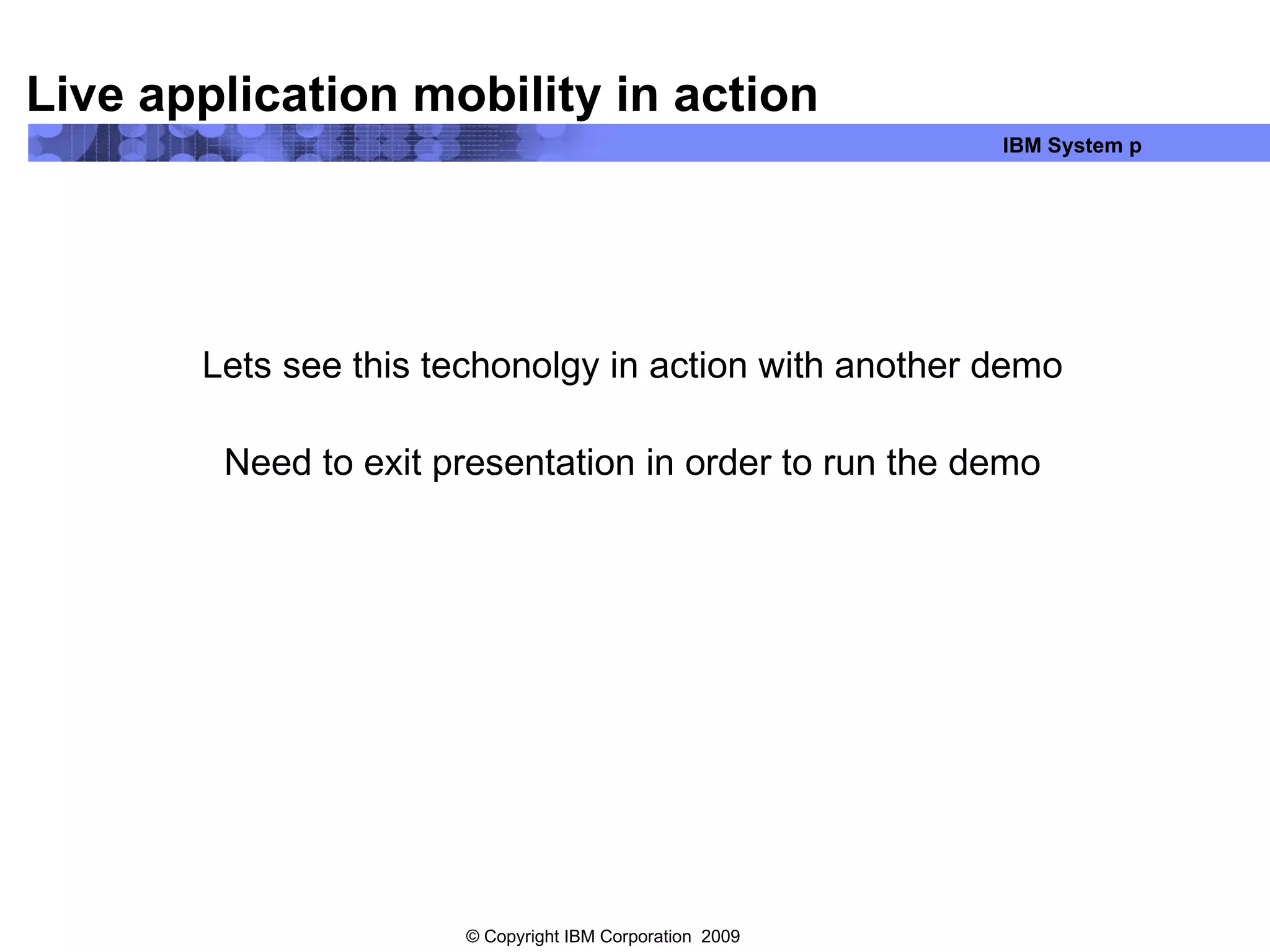

- 27. Live application mobilityin action Lets see this techonolgy in action with another demo Need to exit presentation in order to run the demo

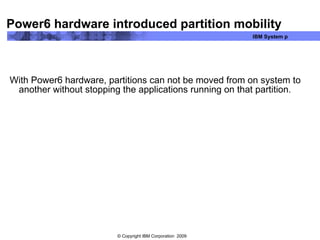

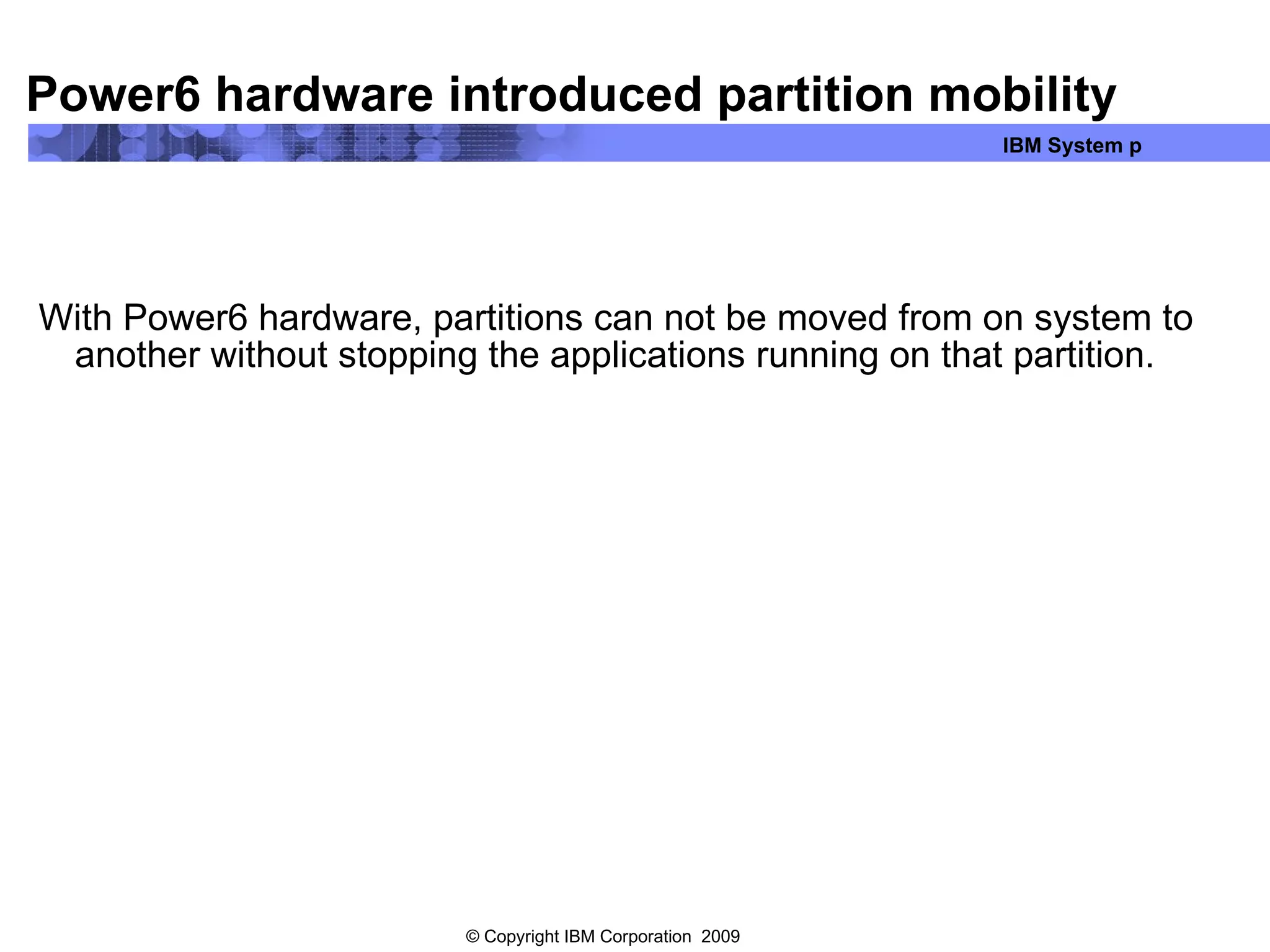

- 28. Power6 hardware introducedpartition mobility With Power6 hardware, partitions can not be moved from on system to another without stopping the applications running on that partition.

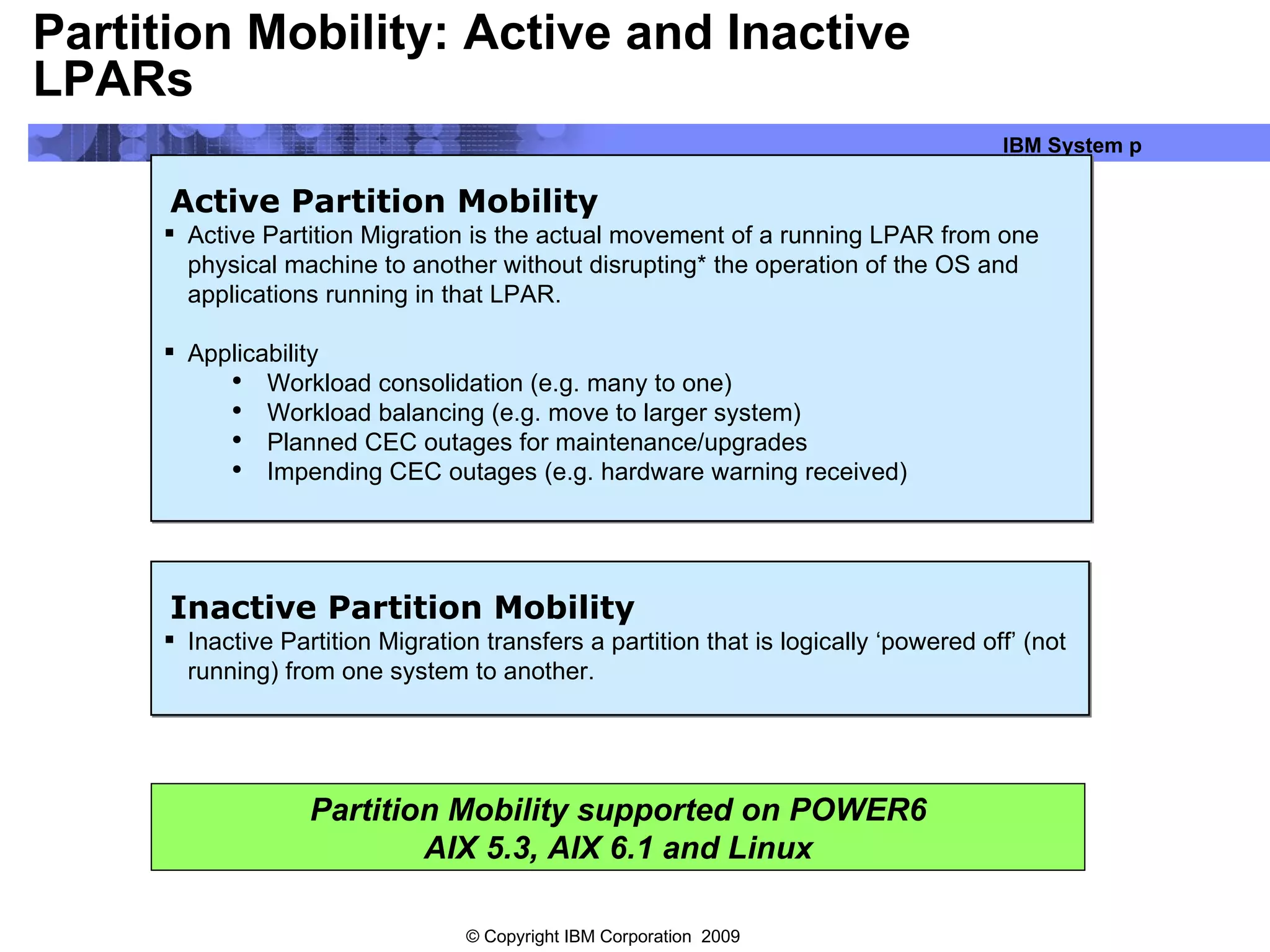

- 29. Partition Mobility: Activeand Inactive LPARs Active Partition Mobility Active Partition Migration is the actual movement of a running LPAR from one physical machine to another without disrupting* the operation of the OS and applications running in that LPAR. Applicability Workload consolidation (e.g. many to one) Workload balancing (e.g. move to larger system) Planned CEC outages for maintenance/upgrades Impending CEC outages (e.g. hardware warning received) Inactive Partition Mobility Inactive Partition Migration transfers a partition that is logically ‘powered off’ (not running) from one system to another. Partition Mobility supported on POWER6 AIX 5.3, AIX 6.1 and Linux

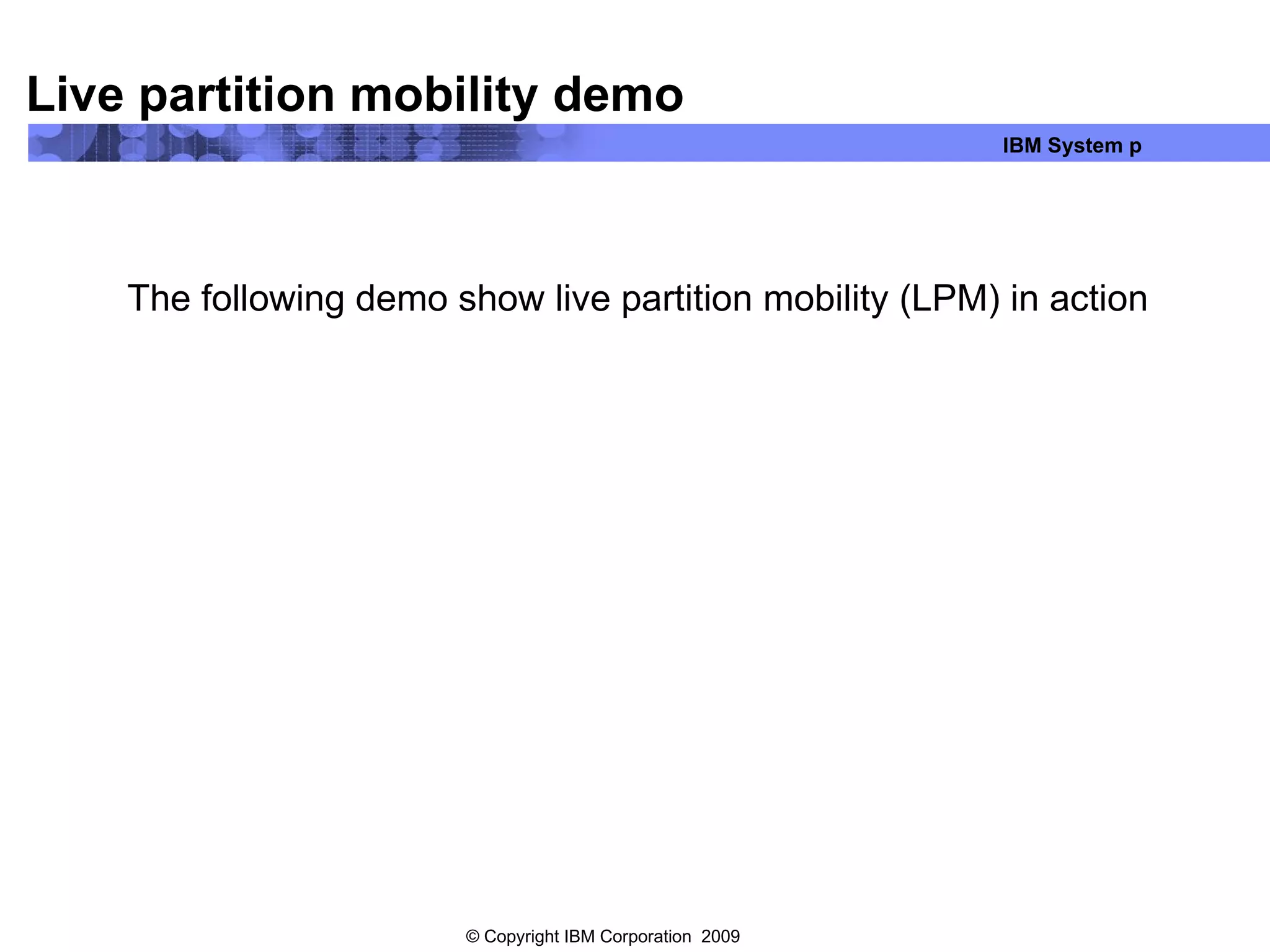

- 30. Live partition mobilitydemo The following demo show live partition mobility (LPM) in action

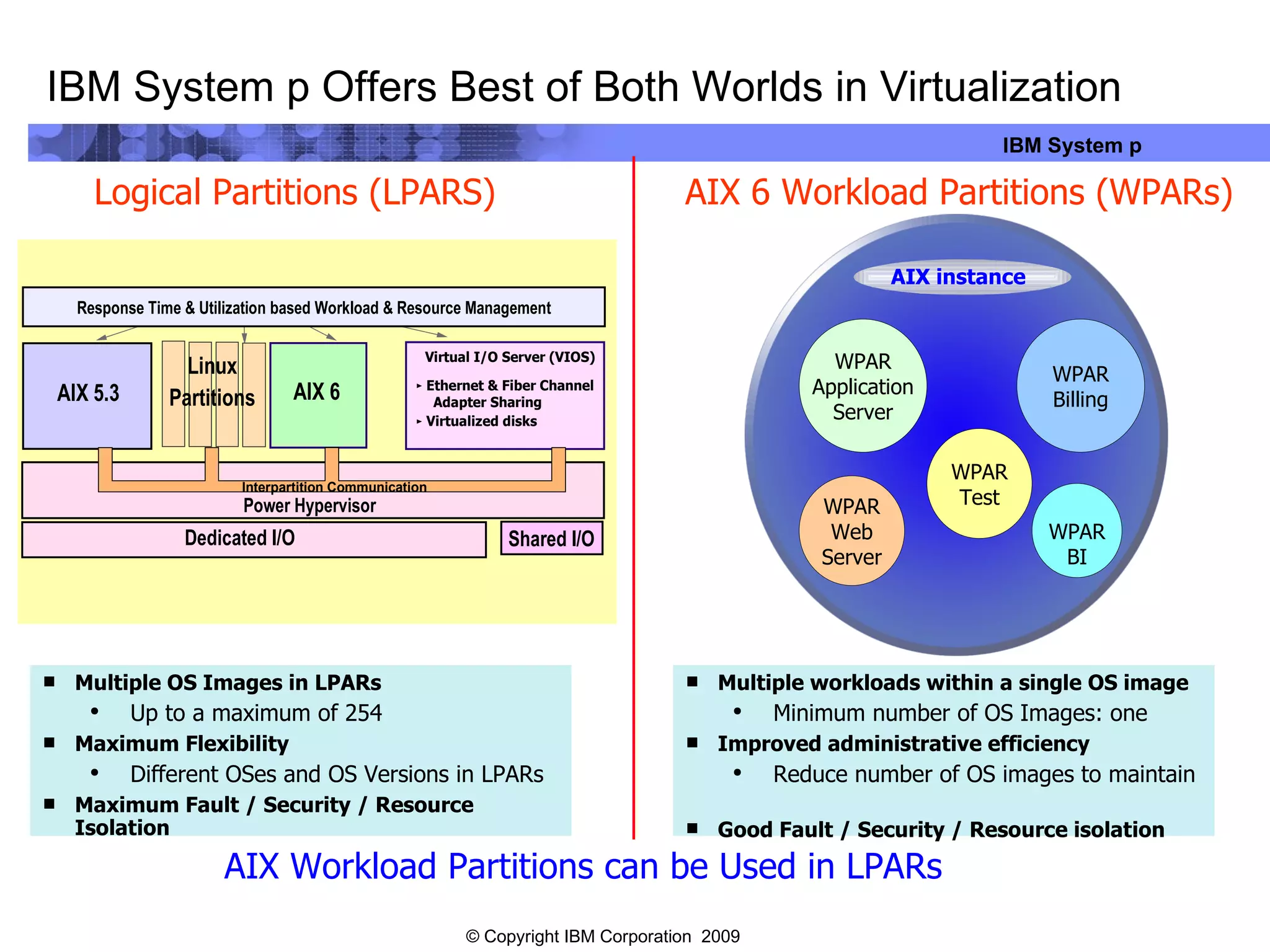

- 31. IBM System pOffers Best of Both Worlds in Virtualization WPAR Application Server WPAR Web Server WPAR Billing AIX instance WPAR Test WPAR BI Logical Partitions (LPARS) AIX 6 Workload Partitions (WPARs) Multiple OS Images in LPARs Up to a maximum of 254 Maximum Flexibility Different OSes and OS Versions in LPARs Maximum Fault / Security / Resource Isolation Multiple workloads within a single OS image Minimum number of OS Images: one Improved administrative efficiency Reduce number of OS images to maintain Good Fault / Security / Resource isolation AIX Workload Partitions can be Used in LPARs

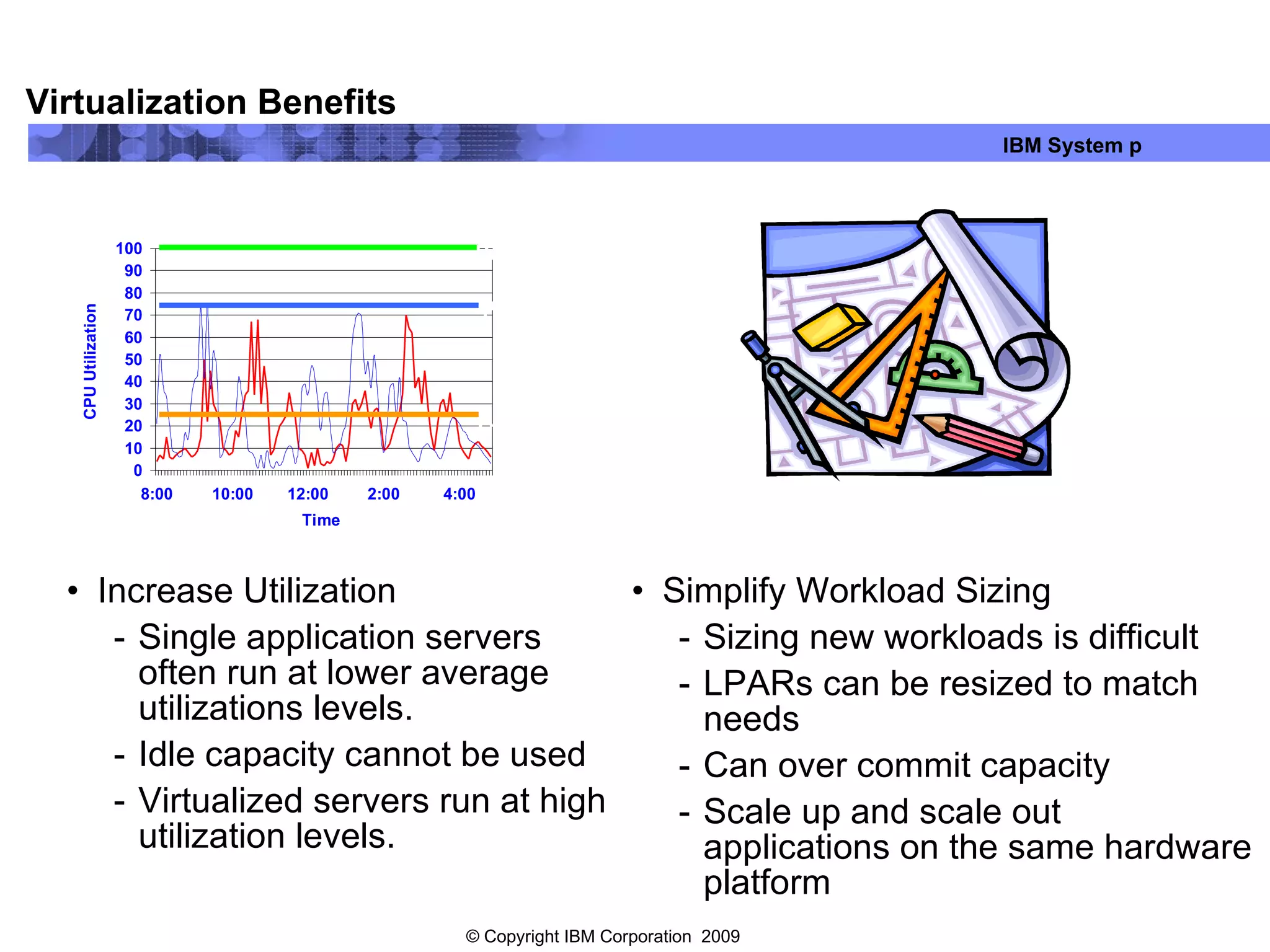

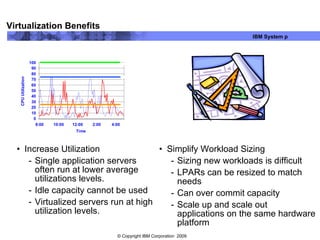

- 32. Virtualization Benefits IncreaseUtilization Single application servers often run at lower average utilizations levels. Idle capacity cannot be used Virtualized servers run at high utilization levels. Simplify Workload Sizing Sizing new workloads is difficult LPARs can be resized to match needs Can over commit capacity Scale up and scale out applications on the same hardware platform Purchased Peak Average

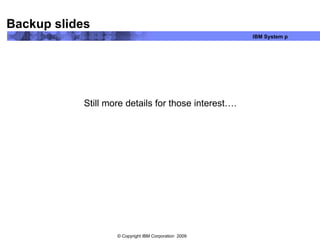

- 33. Backup slides Stillmore details for those interest….

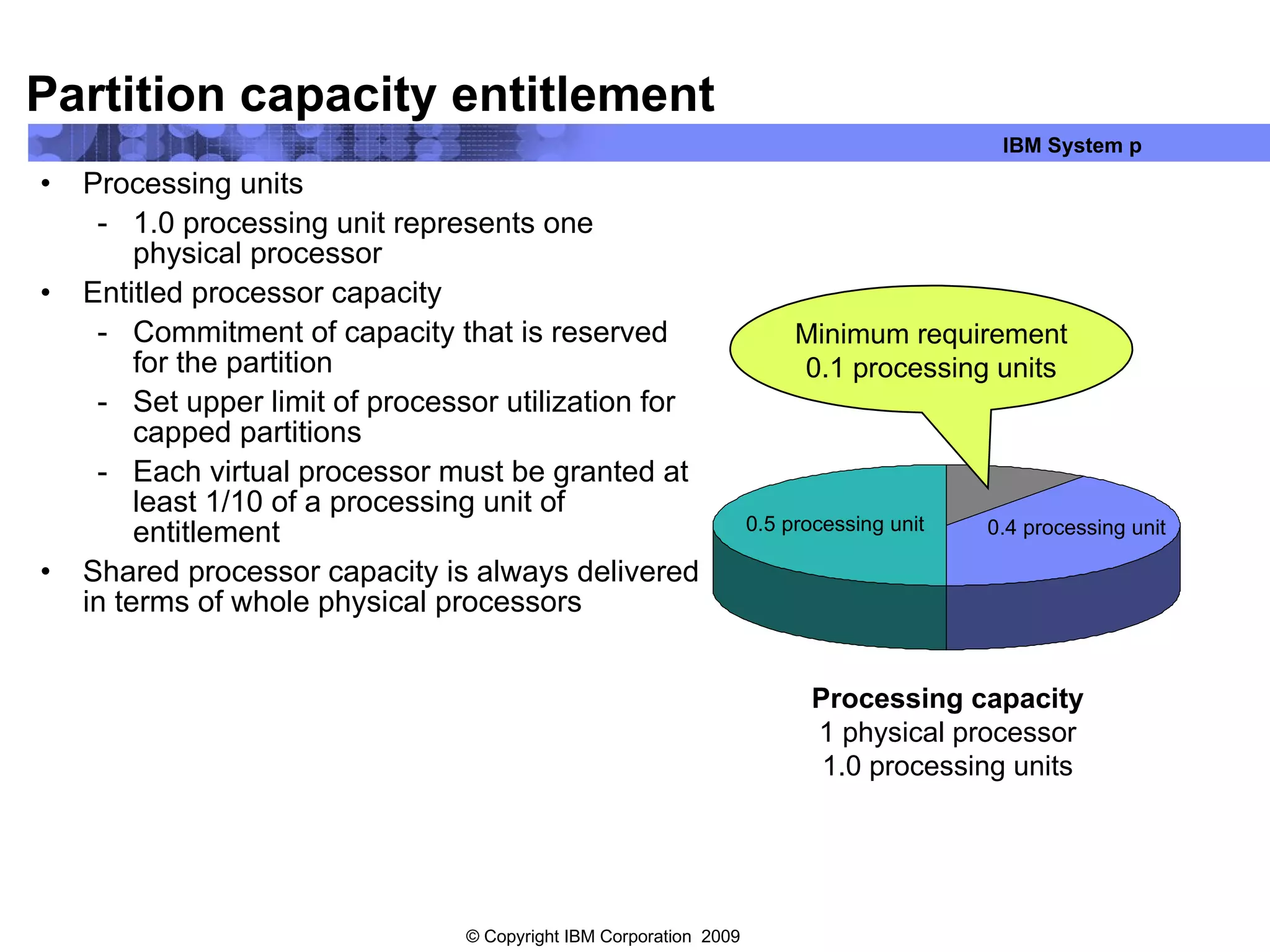

- 34. Partition capacity entitlementProcessing units 1.0 processing unit represents one physical processor Entitled processor capacity Commitment of capacity that is reserved for the partition Set upper limit of processor utilization for capped partitions Each virtual processor must be granted at least 1/10 of a processing unit of entitlement Shared processor capacity is always delivered in terms of whole physical processors Processing capacity 1 physical processor 1.0 processing units 0.5 processing unit 0.4 processing unit Minimum requirement 0.1 processing units

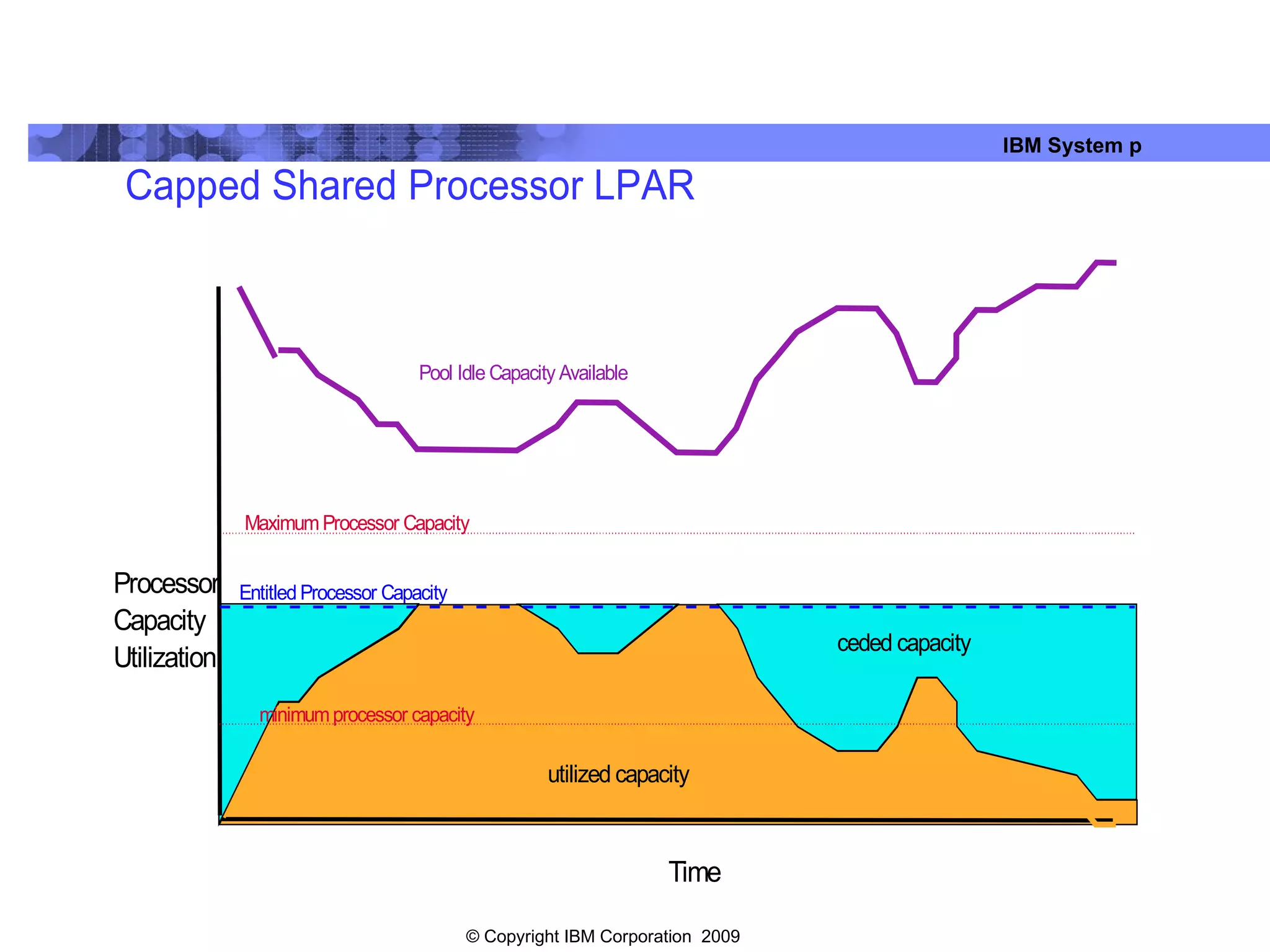

- 35.
- 36.

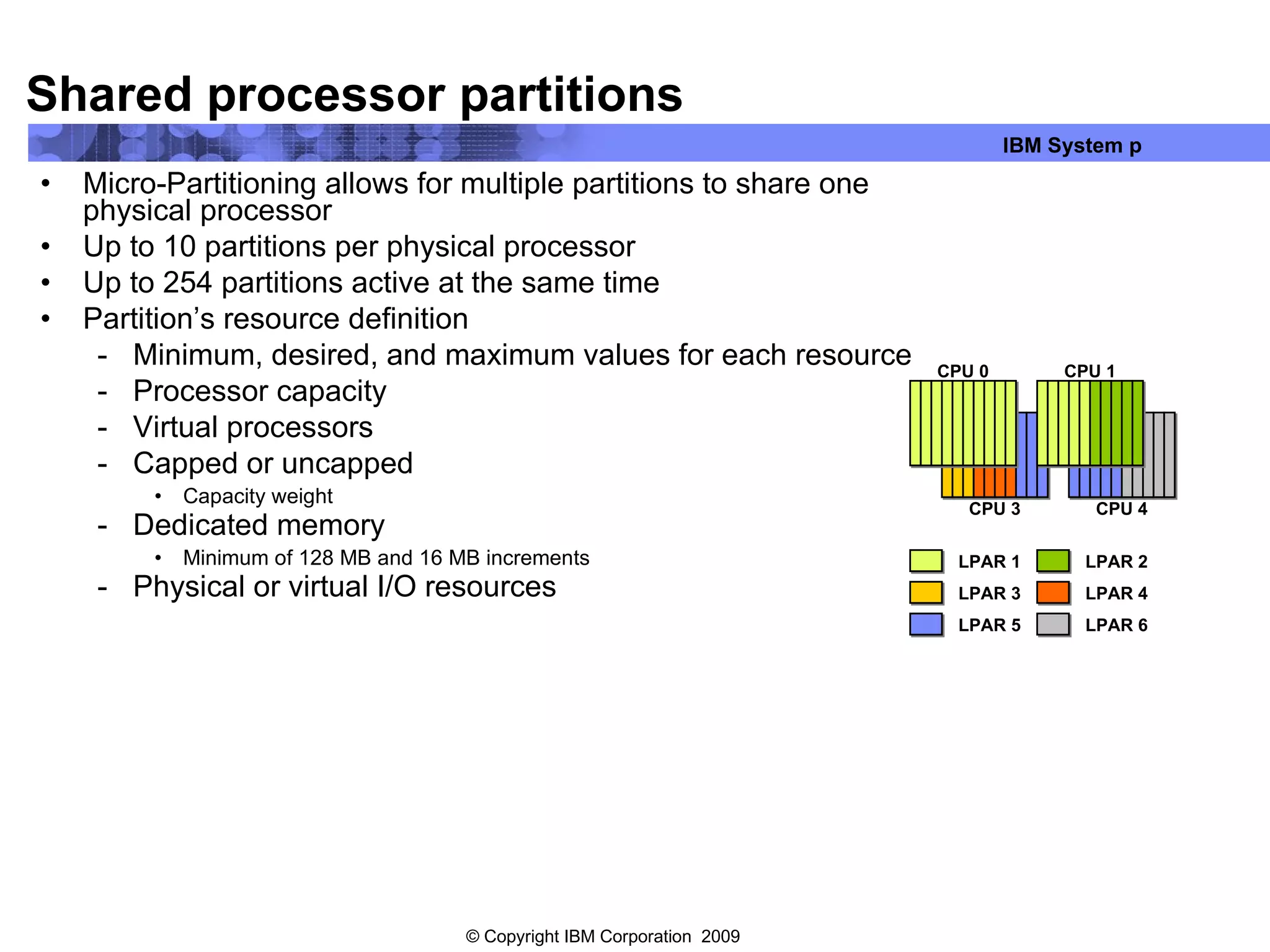

- 37. Shared processor partitionsMicro-Partitioning allows for multiple partitions to share one physical processor Up to 10 partitions per physical processor Up to 254 partitions active at the same time Partition’s resource definition Minimum, desired, and maximum values for each resource Processor capacity Virtual processors Capped or uncapped Capacity weight Dedicated memory Minimum of 128 MB and 16 MB increments Physical or virtual I/O resources CPU 0 CPU 1 CPU 3 CPU 4 LPAR 1 LPAR 2 LPAR 5 LPAR 6 LPAR 4 LPAR 3

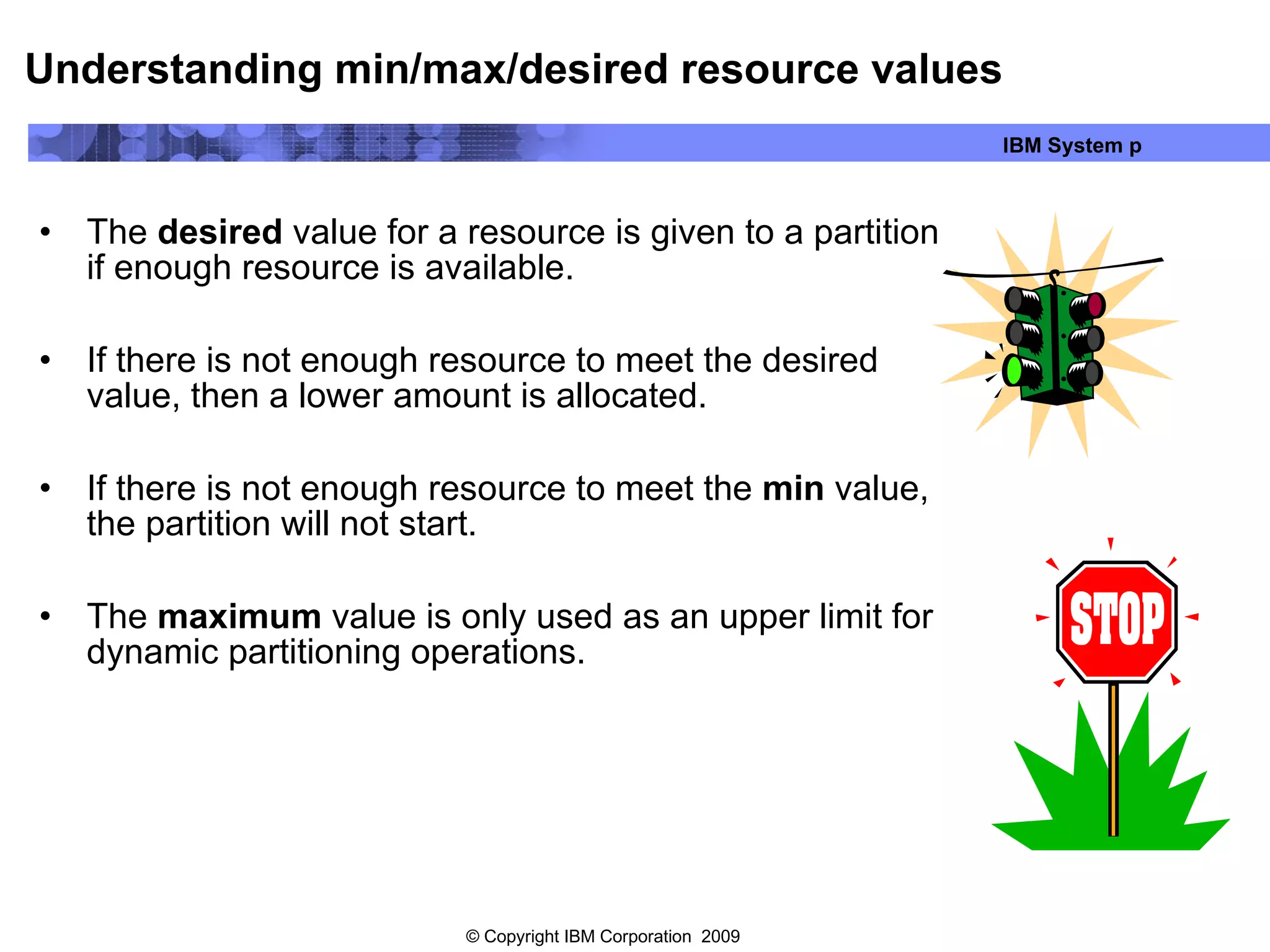

- 38. Understanding min/max/desired resourcevalues The desired value for a resource is given to a partition if enough resource is available. If there is not enough resource to meet the desired value, then a lower amount is allocated. If there is not enough resource to meet the min value, the partition will not start. The maximum value is only used as an upper limit for dynamic partitioning operations.

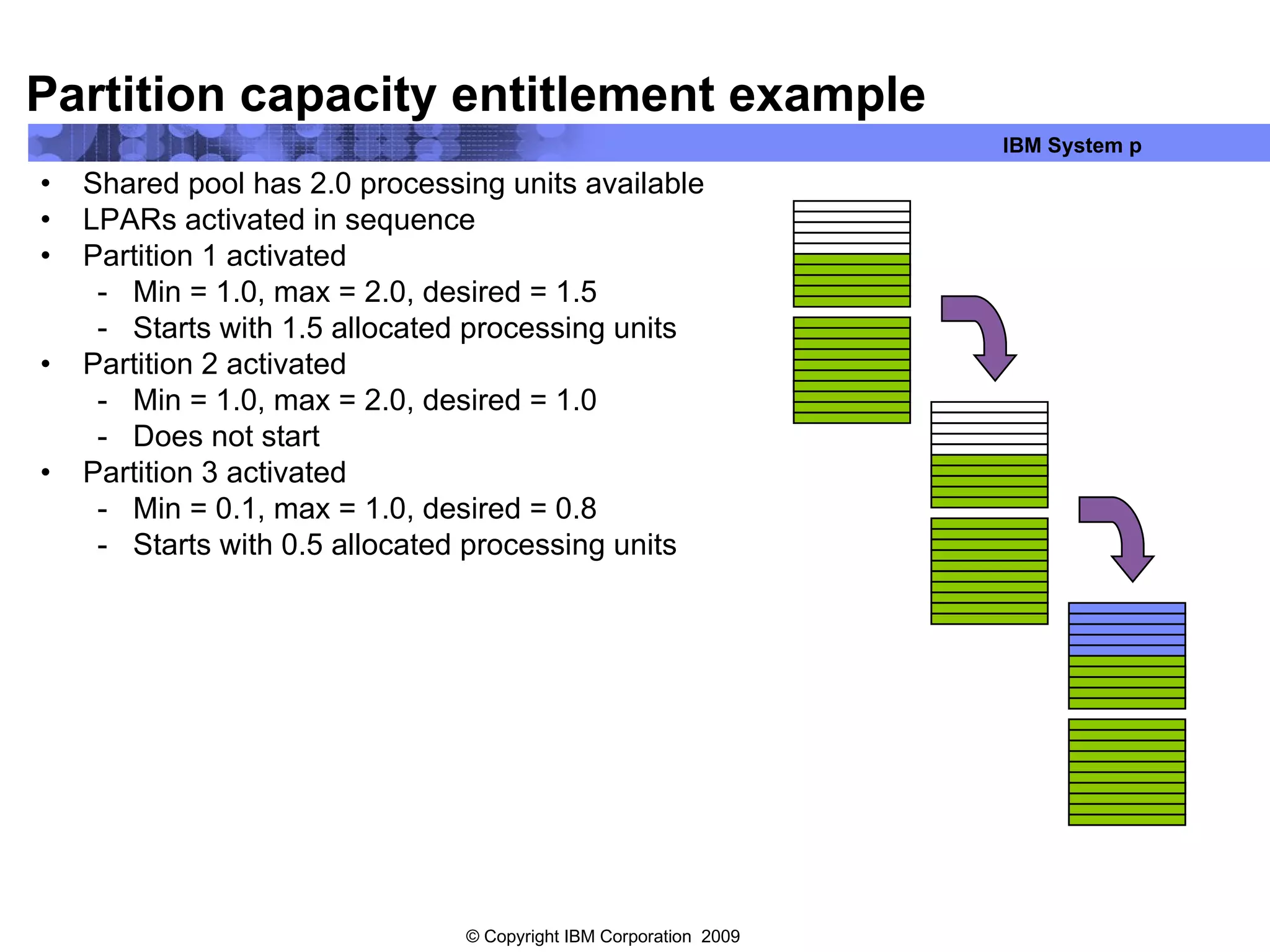

- 39. Partition capacity entitlementexample Shared pool has 2.0 processing units available LPARs activated in sequence Partition 1 activated Min = 1.0, max = 2.0, desired = 1.5 Starts with 1.5 allocated processing units Partition 2 activated Min = 1.0, max = 2.0, desired = 1.0 Does not start Partition 3 activated Min = 0.1, max = 1.0, desired = 0.8 Starts with 0.5 allocated processing units

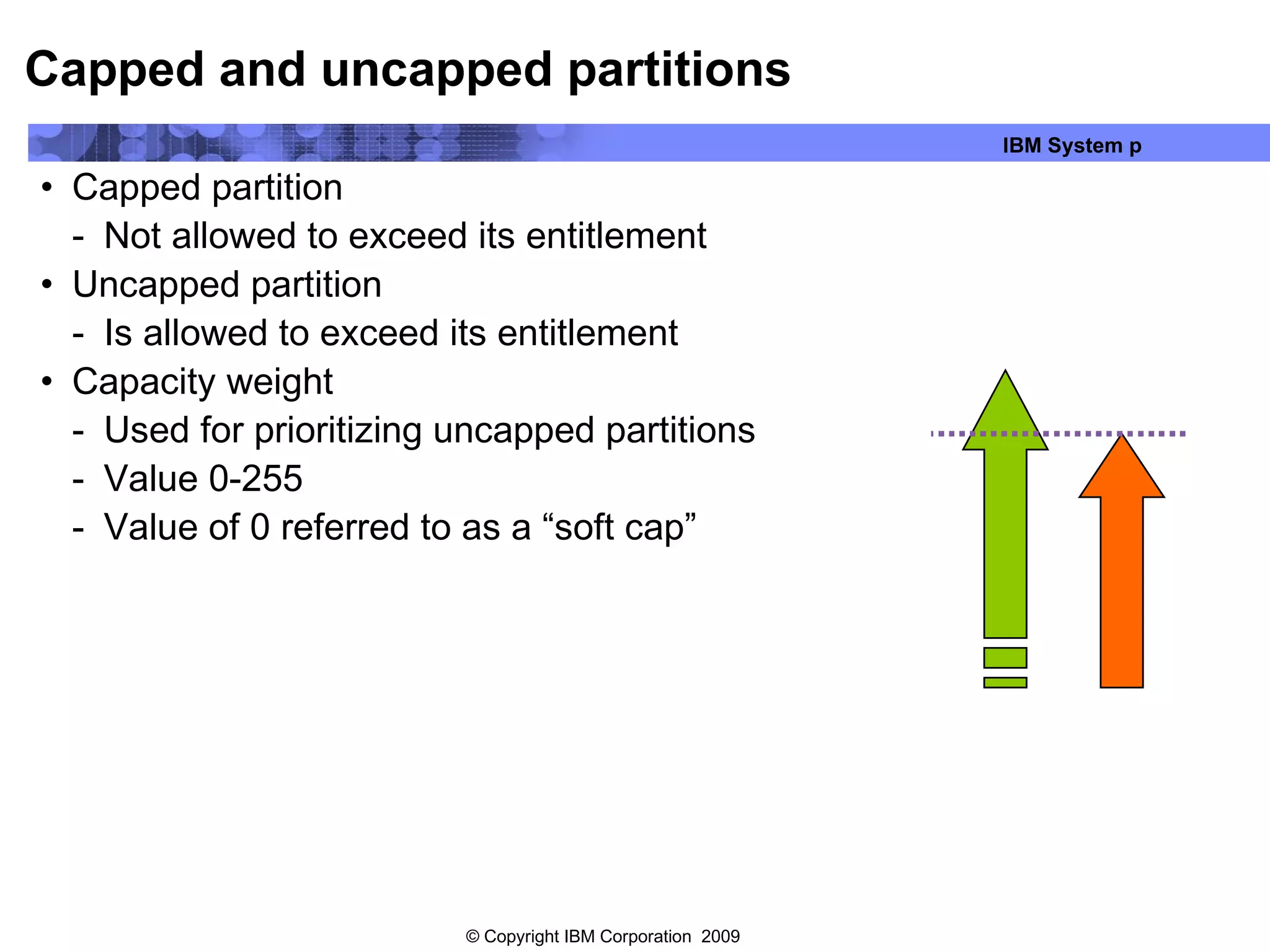

- 40. Capped and uncappedpartitions Capped partition Not allowed to exceed its entitlement Uncapped partition Is allowed to exceed its entitlement Capacity weight Used for prioritizing uncapped partitions Value 0-255 Value of 0 referred to as a “soft cap”

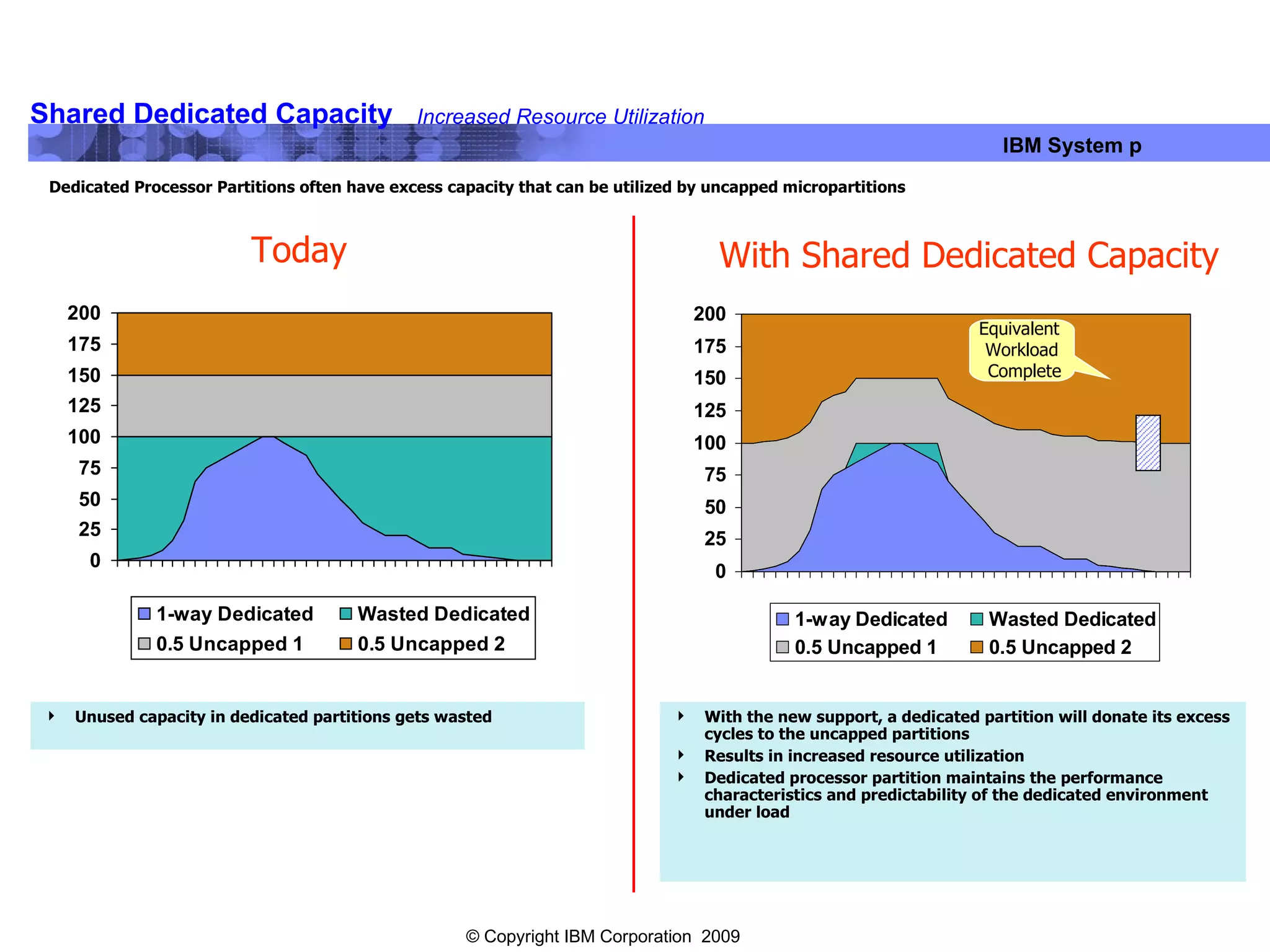

- 41. Shared Dedicated CapacityDedicated Processor Partitions often have excess capacity that can be utilized by uncapped micropartitions Increased Resource Utilization Today Unused capacity in dedicated partitions gets wasted With the new support, a dedicated partition will donate its excess cycles to the uncapped partitions Results in increased resource utilization Dedicated processor partition maintains the performance characteristics and predictability of the dedicated environment under load With Shared Dedicated Capacity Equivalent Workload Complete

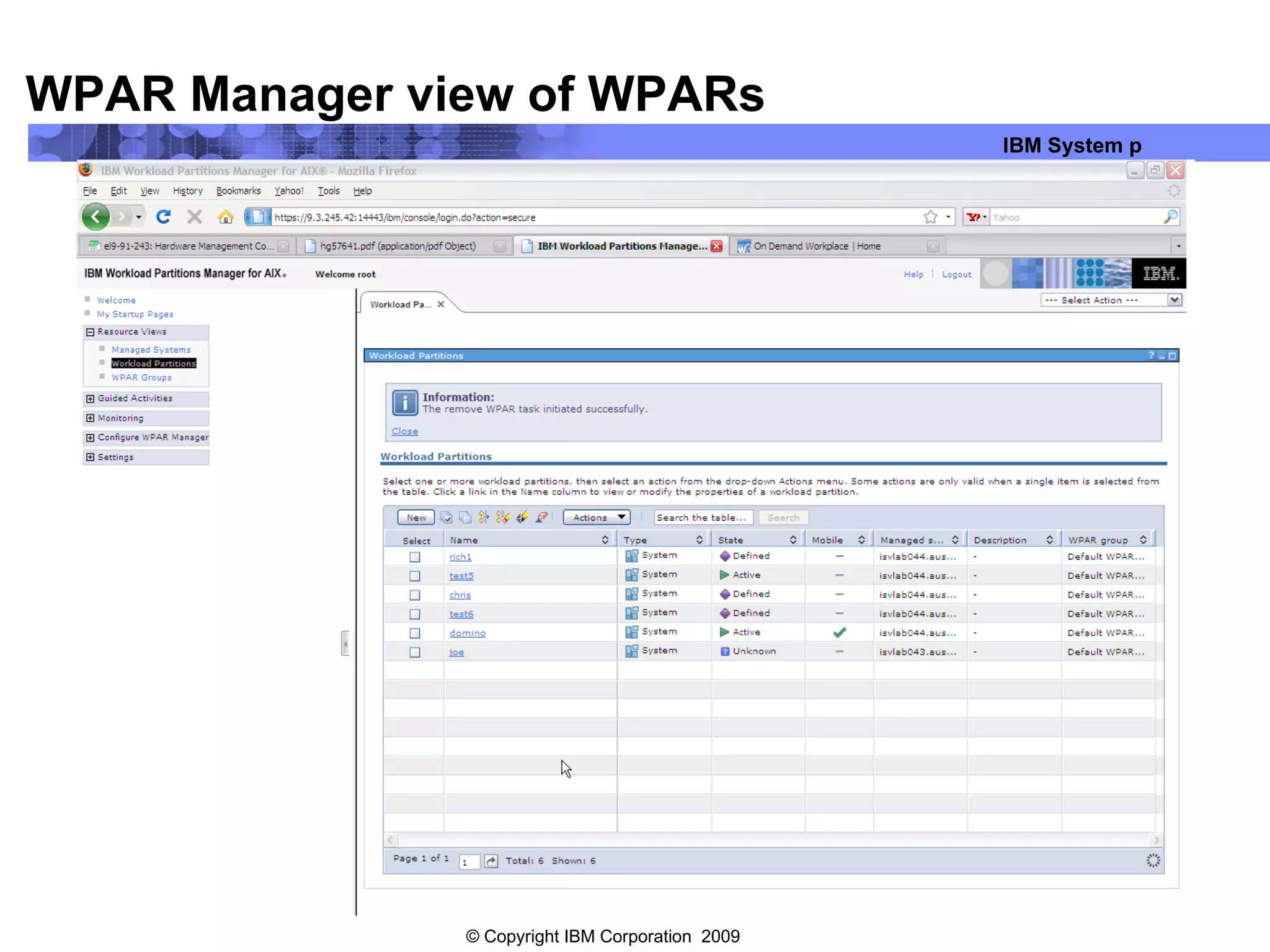

- 42. WPAR Manager viewof WPARs

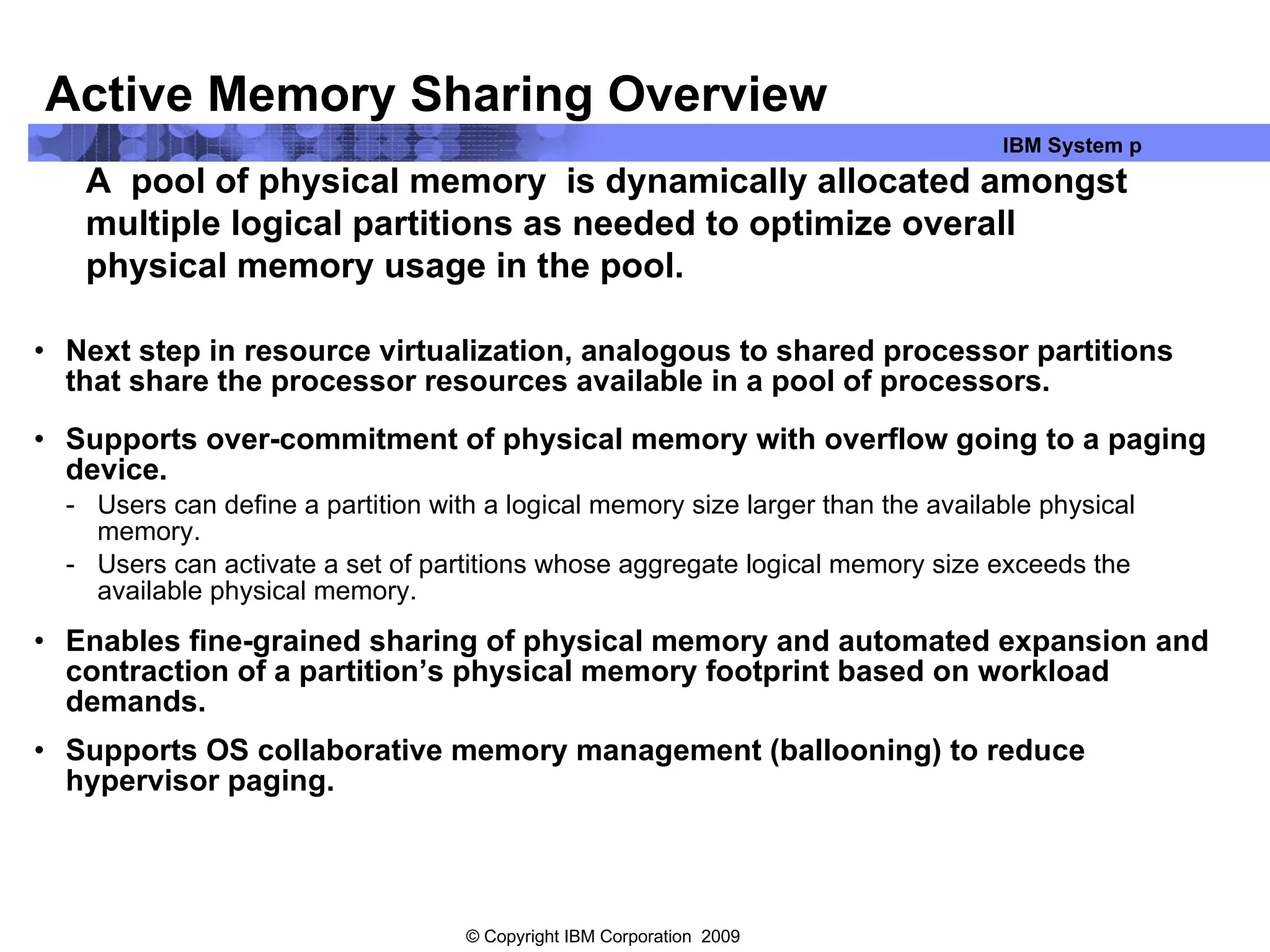

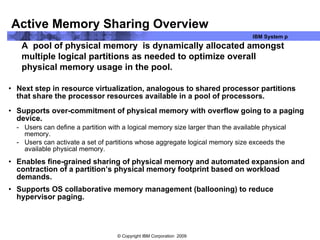

- 43. Active Memory SharingOverview Next step in resource virtualization, analogous to shared processor partitions that share the processor resources available in a pool of processors. Supports over-commitment of physical memory with overflow going to a paging device. Users can define a partition with a logical memory size larger than the available physical memory. Users can activate a set of partitions whose aggregate logical memory size exceeds the available physical memory. Enables fine-grained sharing of physical memory and automated expansion and contraction of a partition’s physical memory footprint based on workload demands. Supports OS collaborative memory management (ballooning) to reduce hypervisor paging. A pool of physical memory is dynamically allocated amongst multiple logical partitions as needed to optimize overall physical memory usage in the pool.
Editor's Notes
- #2 This presentation is targeted to for a less technical audience with the objective of explaining the power of IBM’s virtualization technologies
- #3 One or all of these topics are good reasons to do Virtualization. Some will say you can even lower your overall cost in head count. That is some what true but you need to have highly skilled UNIX talent for this. If you look at what a UNIX admin can support for physical servers maybe 50 systems and that is a lot. Compared to two UNIX admin who are trained and skilled with Virtualization. The pair can easily mange 4 595 class systems with a range of 350 to 400 LPARs on these systems, increasing the over all effectiveness of FTE (full time employee) staff.
- #8 Allocate processors, memory and I/O to create virtual servers Minimum 128 MB memory, one CPU, one PCI-X adapter slot All resources can be allocated independently Resources can be moved between live partitions Applications notified of configuration changes Movement can be automated using Partition Load Manager Works with AIX 5.2+ or Linux 2.4+
- #9 Micro partitioning allows for many more logical partitions to be created since you are no longer required to assign a full processor to a logical partition. Partitions can now more effectively be assigned enough CPU resources to do its workload allowing other partitions to use remaining CPU resources.
- #10 Here is the basic terminology.
- #11 The next few slides go into a little more detail. Use if audience is interested in knowing more.
- #12 Talk about the relationship between the physical CPU, the virtual CPU and the logical CPU.
- #13 Explain the concept of min, desired (or entitled) and maximum. Explain how the behavior of the hypervisor is controlled by the lpar definition
- #14 The diagram in this chart shows the relationship and new concepts regarding Micro-Partitioning processor terminology used in this presentation. Virtual processors These are the whole number of concurrent operations that the operating system can use on a partition. The processing power can be conceptualized as being spread equally across these virtual processors. Selecting the optimal number of virtual processors depends on the workload in the partition. Some partitions benefit from greater concurrence, where other partitions require greater power. The maximum number of virtual processors per partition is 64. Dedicated processors Dedicated processors are whole processors that are assigned to a single partition. If you choose to assign dedicated processors to a logical partition, you must assign at least one processor to that partition. By default, a powered-off logical partition using dedicated processors will have its processors available to the shared processing pool. When the processors are in the shared processing pool, an uncapped partition that needs more processing power can use the idle processing resources. However, when you power on the dedicated partition while the uncapped partition is using the processors, the activated partition will regain all of its processing resources. If you want to prevent dedicated processors from being used in the shared processing pool, you can disable this function using the logical partition profile properties panels on the Hardware Management Console. Shared processor pool The POWER Hypervisor schedules shared processor partitions from a set of physical processors that is called the shared processor pool. By definition, these processors are not associated with dedicated partitions. Deconfigured processor This is a failing processor left outside the system’s configuration after a dynamic processor deallocation has occurred.

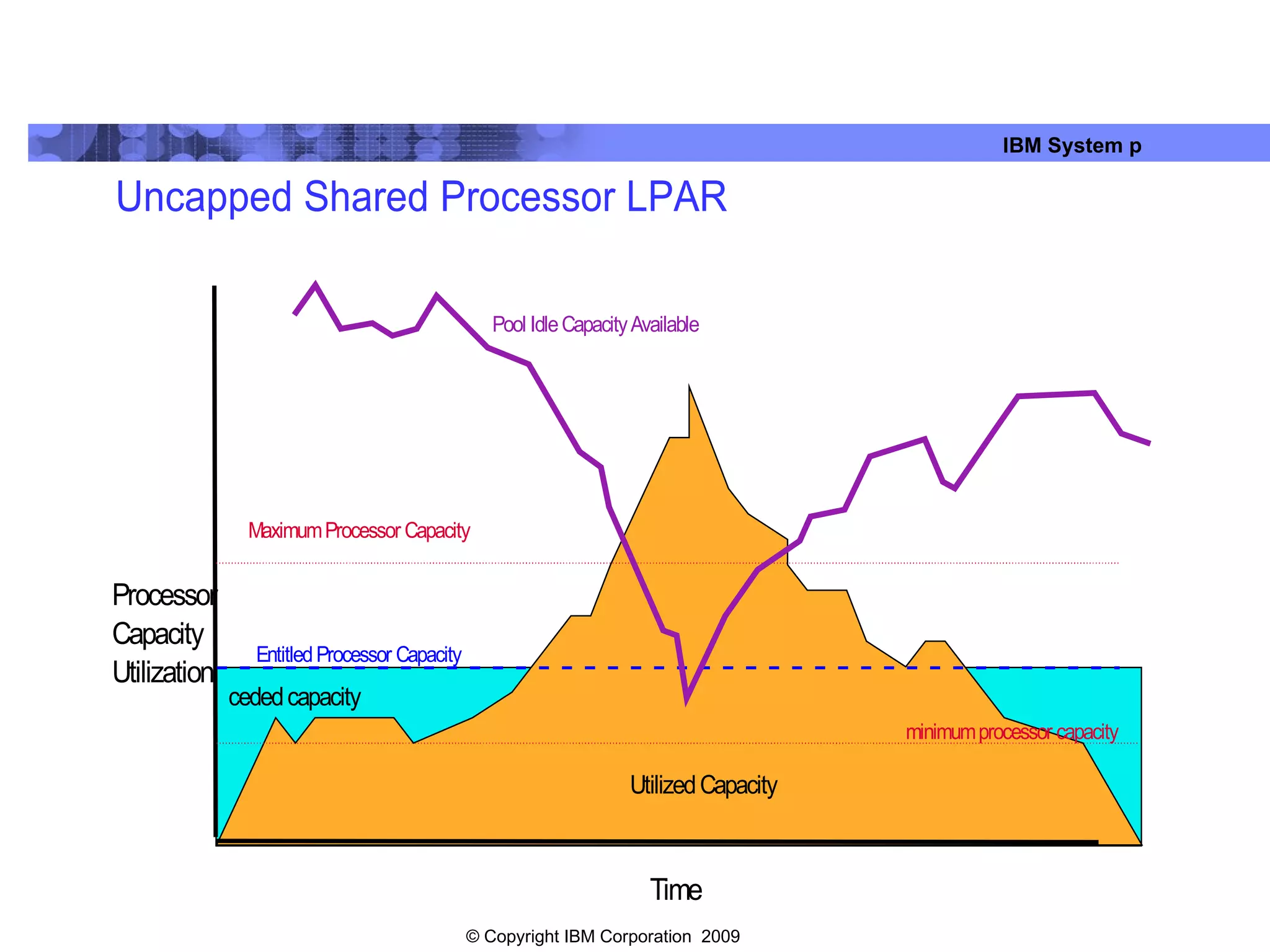

- #15 A capped partition is not allowed to exceed it capacity entitlement, while an uncapped partition is. In fact, it may exceed its maximum processor capacity. An uncapped partition is only limited in its ability to consume cycles by the lack of online virtual processors and its variable capacity weight attribute. The variable capacity weight attribute is a number between 0–255, which represents the relative share of extra capacity that the partition is eligible to receive. This parameter applies only to uncapped partitions. A partition’s share is computed by dividing its variable capacity weight by the sum of the variable capacity weights for all uncapped partitions. Therefore, a value of 0 may be used to prevent a partition from receiving extra capacity. This is sometimes referred to as a “soft cap”. There is overhead associated with the maintenance of online virtual processors, so clients should carefully consider their capacity requirements before choosing values for these attributes. In general, the value of the minimum, desired, and maximum virtual processor attributes should parallel those of the minimum, desired, and maximum capacity attributes in some fashion. A special allowance should be made for uncapped partitions, since they are allowed to consume more than their entitlement. If the partition is uncapped, then the administrator may want to define the desired and maximum virtual processor attributes x% above the corresponding entitlement attributes. The exact percentage is installation specific, but 25-50% seems like a reasonable number.
- #16 Explain how partitions were limited by the number of physical adapters in the system
- #19 The Integrated Virtual Ethernet adapter is a standard feature of every POWER6 processor-based server. You can select from different offerings according to the specific IBM System p server. At the time of writing, the IBM System p 570 is the first server to offer this feature. The IVE consists of a physical Ethernet adapter that is connected directly to the GX+ bus of a POWER6 processor-based server instead of being connected to a PCIe or PCI-X bus, either as an optional or integrated PCI adapter. This provides IVE with the high throughput and low latency of a bus imbedded in the I/O controller. IVE also includes special hardware features that provide logical Ethernet adapters. These adapters can communicate directly to logical partitions (LPARs), reducing the interaction with the POWER Hypervisor™ (PHYP). In addition to 10 Gbps speeds, the IVE can provide familiar 1 Gbps Ethernet connectivity common on POWER5 and POWER5+™ processor-based servers. Prior to IVE, virtual Ethernet provided a connection between LPARs. The use of an SEA and the Virtual I/O Server allowed connection to an external network. The IVE replaces the need for both the virtual Ethernet and the SEA. It provides most of the function of each. Therefore, this eliminates the need to move packets (using virtual Ethernet) between partitions and then through a shared Ethernet adapter (SEA) to an Ethernet port. LPARs can share IVE ports with improved performance.
- #25 A System WPAR presents an environment most similar to a standalone AIX 5L system. This WPAR type runs most of the system services that would be found in a standalone system and does not share writeable file systems with any other WPAR or the global system. An Application WPAR has all the process isolation that a system WPAR provides, except that it shares file system name space with the global system and any other application WPAR defined within the system. Other than the application itself, a typical Application WPAR only runs an additional light weight init process within the WPAR.

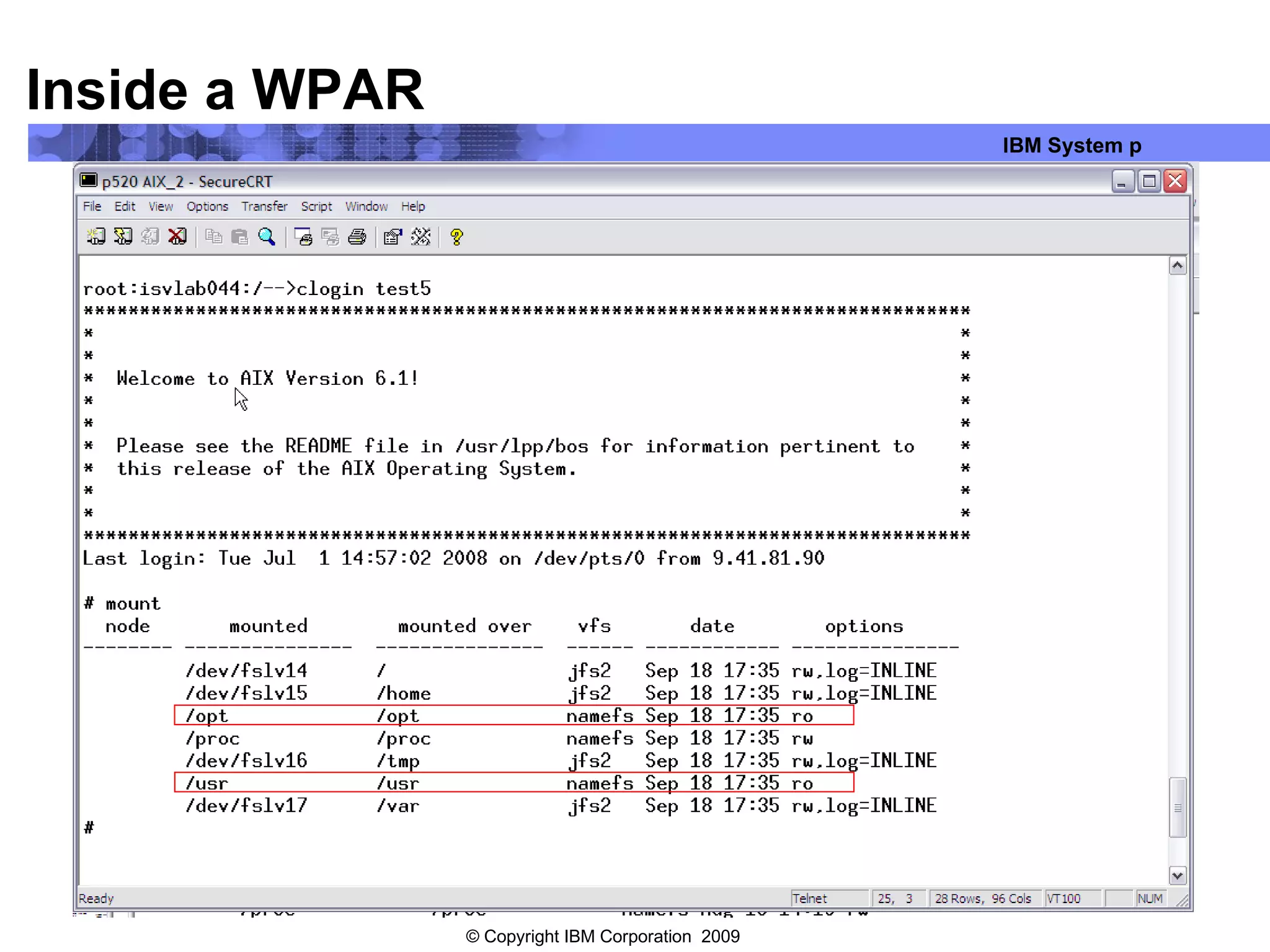

- #26 Note that the read only directories are the file systems provided by the global environment.
- #27 Application Mobility is an optional capability that will allow an administrator to move a running WPAR from one system to another using advanced checkpoint restart capabilities that will make the movement transparent to the end user.
- #28 The demo is a flash file viewed by using a browser that can not be started from within the presentation. Unzip the LAM_DB2_SAP_demo.zip file and open the html file to start the demo
- #31 Again it is necessary to leave the presentation to run the demo. Two choices, LPM with DB2 and network attached storage use the LPM_DB2_NAS_demo.zip or for LPM with DB2 and SAP use the LPM_DB2_SAP_demo.zip file. Either case, unzip the file locally and open the html file to start the demo.
- #35 Processor capacity attributes are specified in terms of processing units. 1.0 processing unit represents one physical processor. 1.5 processing units is equivalent to one and a half physical processors. For example, a shared processor partition with 2.2 processing units has the equivalent power of 2.2 physical processors. Processor units are also used; they represent the processor percentage allocated to a partition. One processor unit represents one percent of one physical processor. One hundred processor units is equivalent to one physical processor. Shared processor partitions may be defined with a processor capacity as small as 1/10 of a physical processor. A maximum of 10 partitions may be started for each physical processor in the platform. A maximum of 254 partitions may be active at the same time. When a partition is started, the system chooses the partition’s entitled processor capacity from the specified capacity range. The value that is chosen represents a commitment of capacity that is reserved for the partition. This capacity cannot be used to start another shared partition; otherwise, capacity could be overcommitted. Preference is given to the desired value, but these values cannot always be used, because there may not be enough unassigned capacity in the system. In that event, a different value is chosen, which must be greater than or equal to the minimum capacity attribute. Otherwise, the partition cannot be started. The same basic process applies for selecting the number of online virtual processors with the extra restriction that each virtual processor must be granted at least 1/10 of a processing unit of entitlement. In this way, the entitled processor capacity may affect the number of virtual processors that are automatically brought online by the system during boot. The maximum number of virtual processors per partition is 64. The POWER Hypervisor saves and restores all necessary processor states, when preempting or dispatching virtual processors, which for simultaneous multi-threading-enabled processors means two active thread contexts. The result for shared processors is that two of the logical CPUs will always be scheduled in a physical sense together. These sibling threads are always scheduled in the same partition.
- #38 Micro-partitioning allows for multiple partitions to share one physical processor. A partition may be defined with a processor capacity as small as 10 processor units. This represents 1/10 of a physical processor. Each processor can be shared by up to 10 shared processor partitions. The shared processor partitions are dispatched and time-sliced on the physical processors under control of the POWER Hypervisor. Micro-partitioning is supported across the entire POWER5 product line from the entry to the high-end systems. Shared processor partitions still need dedicated memory, but the partitions I/O requirements can be supported through Virtual Ethernet and Virtual SCSI Server. Utilizing all virtualization features support for up to 254 shared processor partitions is possible. The shared processor partitions are created and managed by the HMC. When you start creating a partition, you have to choose between a shared processor partition and a dedicated processor partition. When setting up a partition, you have to define the resources that belong to the partition like memory and IO resources. For shared processor partitions, you have to specify the following partition attributes that are used to define the dimensions and performance characteristics of shared partitions: Minimum, desired, and maximum processor capacity Minimum, desired, and maximum number of virtual processors Capped or uncapped Variable capacity weight
- #41 A capped partition is not allowed to exceed it capacity entitlement, while an uncapped partition is. In fact, it may exceed its maximum processor capacity. An uncapped partition is only limited in its ability to consume cycles by the lack of online virtual processors and its variable capacity weight attribute. The variable capacity weight attribute is a number between 0–255, which represents the relative share of extra capacity that the partition is eligible to receive. This parameter applies only to uncapped partitions. A partition’s share is computed by dividing its variable capacity weight by the sum of the variable capacity weights for all uncapped partitions. Therefore, a value of 0 may be used to prevent a partition from receiving extra capacity. This is sometimes referred to as a “soft cap”. There is overhead associated with the maintenance of online virtual processors, so clients should carefully consider their capacity requirements before choosing values for these attributes. In general, the value of the minimum, desired, and maximum virtual processor attributes should parallel those of the minimum, desired, and maximum capacity attributes in some fashion. A special allowance should be made for uncapped partitions, since they are allowed to consume more than their entitlement. If the partition is uncapped, then the administrator may want to define the desired and maximum virtual processor attributes x% above the corresponding entitlement attributes. The exact percentage is installation specific, but 25-50% seems like a reasonable number.
- #44 Virtual real memory provides on capable Power Systems servers the ability to overcommit system’s memory, enabling better memory utilization and dynamic memory allocation across partitions in response to the partitions workload. Virtual real memory helps users reduce costs because they don’t have to dedicate memory to a particular logical partition. In doing so, they can reduce the total amount of memory in the system. It also allows users to “right-size” memory to their needs. Virtual Real Memory is the next step in resource virtualization evolution on POWER systems. The experiences gained in processor virtualization are applied to the virtualization of real memory to enable better memory utilization across partitions. The hypervisor manages a Virtual Real Memory Pool, which is just a portion of physical memory set aside to meet the memory residency requirements of a set of partitions defined as “shared memory partitions”. The hypervisor move page frames in and out of the system to a paging device as required to support overcommitment of physical memory. The OS collaborates with the hypervisor to reduce hypervisor paging. The most important aspect of the VRM function is the ability to overcommit the system’s memory. The virtualization of “real” main storage enables better memory utilization and dynamic memory allocation across partitions in response to partitions workload. The hypervisor distributes the physical memory in the pool among these partitions based on partition configuration parameters and dynamically changes a partition’s physical memory footprint based on workload demands. The hypervisor also coalesces common pages shared across shared memory partitions to reduce a partition’s cache foot print and free page frames.
