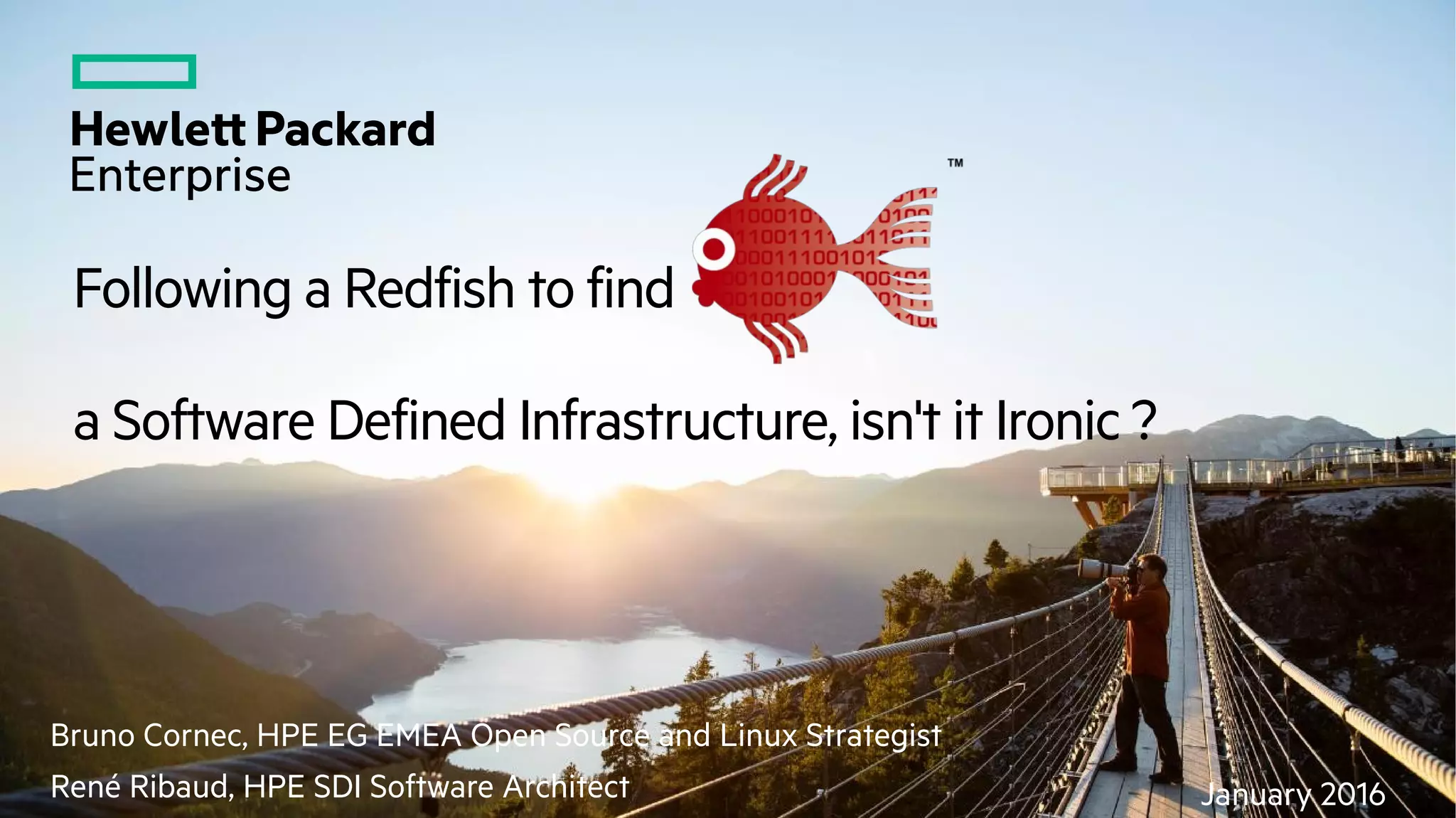

1. Following a Redfish to find
a Software Defined Infrastructure, isn't it Ironic ?
January 2016
Bruno Cornec, HPE EG EMEA Open Source and Linux Strategist
René Ribaud, HPE SDI Software Architect

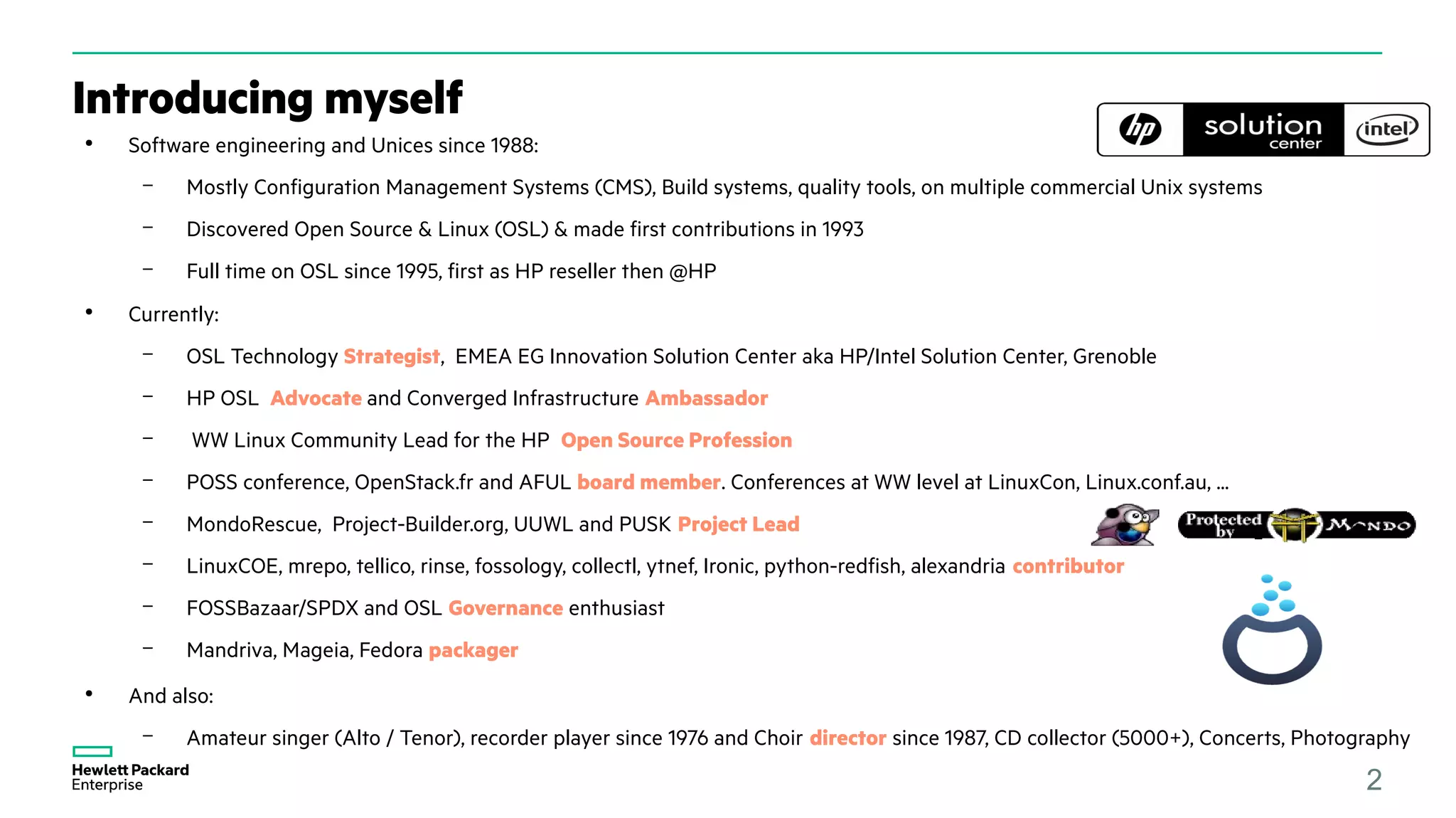

2. Introducing myself
2
●
Software engineering and Unices since 1988:
– Mostly Configuration Management Systems (CMS), Build systems, quality tools, on multiple commercial Unix systems
– Discovered Open Source & Linux (OSL) & made first contributions in 1993
– Full time on OSL since 1995, first as HP reseller then @HP
●
Currently:
– OSL Technology Strategist, EMEA EG Innovation Solution Center aka HP/Intel Solution Center, Grenoble
– HP OSL Advocate and Converged Infrastructure Ambassador
– WW Linux Community Lead for the HP Open Source Profession
– POSS conference, OpenStack.fr and AFUL board member. Conferences at WW level at LinuxCon, Linux.conf.au, ...
– MondoRescue, Project-Builder.org, UUWL and PUSK Project Lead
– LinuxCOE, mrepo, tellico, rinse, fossology, collectl, ytnef, Ironic, python-redfish, alexandria contributor
– FOSSBazaar/SPDX and OSL Governance enthusiast
– Mandriva, Mageia, Fedora packager
●
And also:
– Amateur singer (Alto / Tenor), recorder player since 1976 and Choir director since 1987, CD collector (5000+), Concerts, Photography

3. Introducing René
3
●
HPE employee since 1998:
– Mostly Unix System (HP-UX, Linux) & Storage administration
– Software development skills
– Part of HPE ES ITO EMEA
●
Currently SDI Solution Architect, EMEA EG Innovation Solution Center aka HP/Intel Solution Center, Grenoble
– Detached from ES to the Solution Center for a mission
– Contributor to python-redfish and alexandria

4. Making the new style of IT a reality
» 14+ years of success, world wide programs, including Cloud Center of Excellence,
Big Data/IoT Center of Excellence, Open Source Solutions Initiative, SDI aka
Software Defined Infrastructure, NVF Center of Excellence, EMEA Networking
Customer Visit Center and more
» Complete IT (400+ systems, 3000+ network ports, 500+ TB storage)
» Portfolio of 40+ ready to demo solutions with access to our ecosystem of Partners
» Complete test & validation environment
» Strategic partnership with Intel, 14-year long standing collaboration
» Strategic partnership with Red Hat 7-year collaboration (OSSI)
» A unique proof point in the industry with a proven service offering
Grenoble
Mission: Accelerate the adoption of new and² innovative solutions by creating simple and
rewarding end-to-end customer experiences that benefit our customers and partners, in a
compelling and engaging collaborative environment.
…more information available at http://www.hpintelco.net
EMEA SolutionInnovation Center
WorkshopPoCLivedemoCoE

5. Operating System (OS)
Container A
Env. A
App. A
Container B
Env. B
App. B
VM B
Env. B
App. B
OS B
VM A
Env. A
App. A
OS A
Hypervisor
HW VirtualizationOS Virtualization
Single Kernel - Enhanced chroot
- Direct access to I/O devices -
Isolation
Flexibility (multi OS)
Requires HW support
Kernel module
Hardware
Operating System (OS)
App. A App. B
OS Resource Control
Single Kernel – Rresources cont.:
shared cpu, memory, blkio,
dedicated cpusets
% CPU
% RAM
% CPU
% RAM
CPU bind CPU bind
Hardware Hardware
performance good best good
Isolation & security normal good best
runtime flexibility best good normal
maintenance best normal normal
HW VirtOS VirtShare Dedicate
cgroups NUMA LXC / Docker
KVM
Various
resources
containment
architectures

6. Operating System (OS)
Container A
Env. A
App. A
Container B
Env. B
App. B
VM B
Env. B
App. B
OS B
VM A
Env. A
App. A
OS A
Hypervisor
HW VirtualizationOS Virtualization
Single Kernel - Enhanced chroot
- Direct access to I/O devices -
Isolation
Flexibility (multi OS)
Requires HW support
Kernel module
Hardware
Operating System (OS)
App. A App. B
OS Resource Control
Single Kernel – Rresources cont.:
shared cpu, memory, blkio,
dedicated cpusets
% CPU
% RAM
% CPU
% RAM
CPU bind CPU bind
Hardware Hardware
performance good best good
Isolation & security normal good best
runtime flexibility best good normal
maintenance best normal normal
HW VirtOS VirtShare Dedicate
cgroups NUMA LXC / Docker
KVM
OpenStack
control of
compute
resources
Ironic Magnum Nova

7. What is Ironic ?
●
Ironic is the OpenStack bare-metal deployment project
– Usable as a Nova driver or Standalone since Kilo
– Provides common API across HW vendors and physical/virtual resources
– Uses drivers to abstract interactions with HW

8. What is Redfish ?
●
A DMTF standardisation effort
– HW Management REST API specification proposal (v1.00a) – DSP0266
– JSON and XML (Odata CSDL) based Schemas – DSP8010
– Mockup to be integrated in an existing web server to simulate a Redfish system–
DSP2043
– Available at http://www.dmtf.org/standards/redfish
– Initially promoted by Dell, Emerson, HPE and Intel
●
In simpler terms ?
– This is an IPMI replacement (easier, more complete, more secure)
– This is a way to get and set HW configuration items on physical platforms using a
RESTful API => easy and reliable automation
– The future management path of most platform

9. Why Redfish ?
●
Security
– Uses known and widely used methods (https, RESTful API)
●
Better HW description
– Notions of Chassis (Blades), Multi-Node platforms (such as Moonshot)
●
Supports Manufacturer extensions
– Like SNMP via private extensions described in additional schemas
●
Standard across different manufacturers
– Ease management at scale for heterogeneous environments
– Tool or Tool-less access possibilities

10. Redfish Timeline
●
DMTF published Redfish 1.0 the 4th of August 2015
– Will increase adoption (already 50%+ of servers)
– Provides iLO type of features in a standard way
– JSON/Odata based schemas to describe resources
– Mockup to allow developers to test wrt Redfish
– Documentation, white papers, FAQ
– Available online at https://www.dmtf.org/standards/redfish
●
Available in HPE Servers equiped with:
– ILO 4 (FW v2.30+)
– Moonshot Chassis Manager
Founding members
Additional sponsors

11. ● A python library to manage Redfish compliant systems
– Open Source project under the Apache License v2.0
– Initiated the 25th March 2015 during the 7th HPE TES in Grenoble.
– Available at:
● https://github.com/devananda/python-redfish (official upstream)
● https://github.com/bcornec/python-redfish (Bruno's version)
● https://github.com/uggla/python-redfish (René's version)
– Discussions on python-redfish@mondorescue.org
– Python dependencies: python-requests & python-tortilla
● Easy integration of Redfish support into python based applications
● Potential consumers:
– a Redfish client tool based on that library (preliminary work done as part of the project)
– Used by OpenStack Ironic to provide Redfish support
– Used by python scripts for Lab setup, SDI demos
– Used by Alexandria (CMDB as a Service)
– Future usages with cobbler, anaconda, ...
python-redfish description
Kick-off at TES (left to right): Bruno Cornec, Samer El-
Haj Mahmoud, Devananda van der Veen, Scott Hinchley,
René Ribaud, Vincent Misson (not on screen)

12. ● Status:
– Project still in infancy (v0.2)
– Core library ready:
● Bios info,
● Power management
●
Demos scripts available
– Client tool in progress
– Docker file for testing with DMTF mockup container
– Tests performed with:
● DMTF mockup (0.95 & 1.0)
● ProLiant servers (0.95 & 1.0)
● Moonshot chassis Managers (0.95)
– Python dependencies already available in Mageia and Fedora
– Packages built with project-builder.org (rpm, deb to come)
● Roadmap:
– v0.3: package build with project-builder.org, NICs collection, first client version, improved debug
– Work on Ironic needed interfaces (virtual media, PXE boot, HTTP boot, power management)
– Work on Alexandria needed interfaces (inventory)
python-redfish Status & Roadmap

13. Combining Ironic & Redfish
●
Ironic is the bare-metal deployment project of OpenStack
●
Ironic can be used standalone (Redfish deployment server) or with OpenStack
●
Ironic already has drivers for BMCs
– iLO, IPMI
– Integration == a Redfish driver, based on python-redfish, derived from the iLO one
●
Create a standalone test environment based on Docker
– A Container for running Ironic standalone
– A Container for emulating a Redfish based platform (done)
– A series of test to activate the combination at software level.
+

14. Redfish in SDI
●
Demonstrations of Redfish in the SDI CoE
– Proposed at EG EMEA SDI Program Management
– Proposed as a central component for Hybrid-IT demos to EMEA Hybrid-IT VP
●
Need a link with a CMDB to offer a fully integrated SDI solution...
+

15. Infrastructure Assets
Software
3Par IPMI iLORedfish
Docker IMC Ironic
API
HLM
Alexandria is a software that will help interconnect everything… and maybe automate a datacenter!
CMDB iTop
Combining Redfish & Alexandria
iTop
Alexandria
https://github.com/uggla/alexandria
Alexandria
Drivers
Endpoint

16. Combining Redfish & Alexandria
●
Use case: manage a new server just installed in the DC
– Connect to power and BMC network at least
– Collect BMC credentials and network conf
– Create manually an entry for this new server in the CMDB with these params
– Use Redfish to connect to BMC and collect all other info needed by the CMDB
– Use Redfish to provide info to Ironic to deploy the machine
– Use cron to regularly maintain info in CMDB and Ironic up to date
●
Working first on a solution with iTop as the CMDB, Redfish for inventory, to have a full
Open Source SDI one
