CQ Maven Methods
This document outlines best practices for using Maven, Git, and archetypes to standardize the process of building and deploying Adobe Experience Manager (AEM) sites. It recommends using the Maven simple content package or CQ Blueprints multi-module archetypes to generate new AEM projects. The projects can then be version controlled with Git and built/deployed to different environments via Maven profiles and the FileVault tool. This standardized approach aims to make the development process easier and more reproducible.
More Related Content
CQ Maven Methods
- 1.
- 2.
- 3. Joined Adobe inNovember 2012
- 4.
- 5. Background in OpenSource, Content Management, Mobile
- 6. Talking today aboutwhat I learned so far...
- 7. FORK ME! If youfound this talk useful, or spotted mistakes: github.com/savs/CQCon_2013_CQ_Maven_Methods
- 8.
- 9.
- 12. LET'S BUILD ACQ SITE ... uh, where to begin?

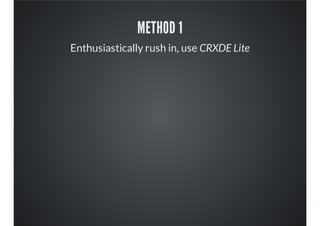

- 13. METHOD 1 Enthusiastically rushin, use CRXDE Lite

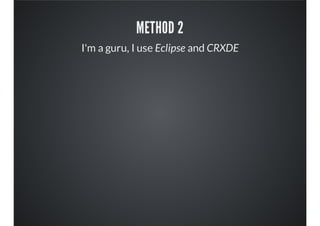

- 14. METHOD 2 I'm aguru, I use Eclipse and CRXDE
- 15. METHOD 3 I'm aninja, I use emacs and vlt
- 16. METHOD 4 I'm aguru ninja, I use vi and curl
- 17. METHOD 5 See also:http://xkcd.com/378/ – Real Programmers

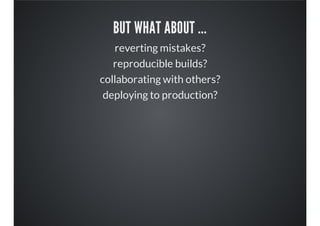

- 18. BUT WHAT ABOUT... reverting mistakes? reproducible builds? collaborating with others? deploying to production?

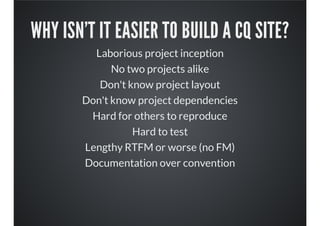

- 19. WHY ISN'T ITEASIER TO BUILD A CQ SITE? Laborious project inception No two projects alike Don't know project layout Don't know project dependencies Hard for others to reproduce Hard to test Lengthy RTFM or worse (no FM) Documentation over convention
- 20.
- 21.
- 22.

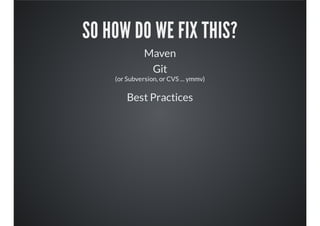

- 23. SO HOW DOWE FIX THIS? Maven Git (or Subversion, or CVS ... ymmv) Best Practices
- 24. MAVEN “Maven is asoftware project management and comprehension tool. Based on the concept of a project object model (POM), Maven can manage a project's build, reporting and documentation from a central piece of information.”

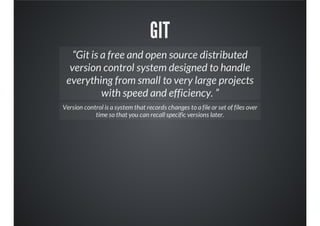

- 25. GIT “Git is afree and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency. ” Version control is a system that records changes to a file or set of files over time so that you can recall specific versions later.
- 26. BEST PRACTICES “A bestpractice is a method or technique that has consistently shown results superior to those achieved with other means.” In addition, a "best" practice can evolve to become better as improvements are discovered.
- 27. WHAT DO WEWANT? Minimal customisation Standardised way to create a project Standardised way to build a project Standardised way to deploy a project Standardised way to test a project Standardised way to share a project

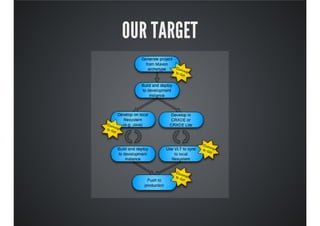

- 28.
- 29. Success criteria: IT'S EASYTO BUILD A CQ SITE!

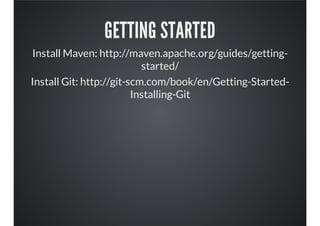

- 30. GETTING STARTED Install Maven:http://maven.apache.org/guides/getting- started/ Install Git: http://git-scm.com/book/en/Getting-Started- Installing-Git

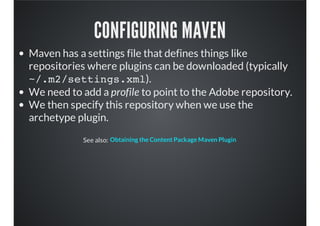

- 31. CONFIGURING MAVEN Maven hasa settings file that defines things like repositories where plugins can be downloaded (typically ~/.m2/settings.xml). We need to add a profile to point to the Adobe repository. We then specify this repository when we use the archetype plugin. See also: Obtaining the Content Package Maven Plugin
- 32. CONFIGURING MAVEN <profile> <id>adobe-public</id> <activation> <activeByDefault>false</activeByDefault> </activation> <properties> <releaseRepository-Id>adobe-public-releases</releaseRepository-Id> <releaseRepository-Name>Adobe PublicReleases</releaseRepository-Name> <releaseRepository-URL>http://repo.adobe.com/nexus/content/groups/public</releaseRepository-URL> </properties> <repositories> <repository> <id>adobe-public-releases</id> <name>Adobe Basel Public Repository</name> <url>http://repo.adobe.com/nexus/content/groups/public</url> <releases> <enabled>true</enabled> <updatePolicy>never</updatePolicy> </releases> <snapshots> <enabled>false</enabled> </snapshots> </repository> </repositories> <pluginRepositories> <pluginRepository> <id>adobe-public-releases</id> <name>Adobe Basel Public Repository</name> <url>http://repo.adobe.com/nexus/content/groups/public</url> <releases> <enabled>true</enabled> <updatePolicy>never</updatePolicy> </releases> <snapshots> <enabled>false</enabled> </snapshots> </pluginRepository> </pluginRepositories> </profile>
- 33. CONFIGURING MAVEN Enable therepository: Or use the -P option to activate profile(s): <activeProfiles> <activeProfile>adobe-public</activeProfile> </activeProfiles> mvn -P adobe-public [...]
- 34.
- 35. STARTING A NEWPROJECT ... ... can sometimes feel like reinventing the wheel.
- 36.

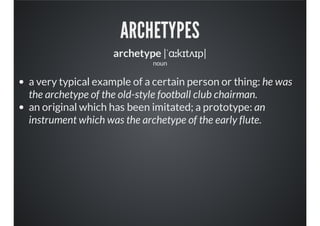

- 37. ARCHETYPES archetype |ˈɑːkɪtʌɪp| noun a verytypical example of a certain person or thing: he was the archetype of the old-style football club chairman. an original which has been imitated; a prototype: an instrument which was the archetype of the early flute.

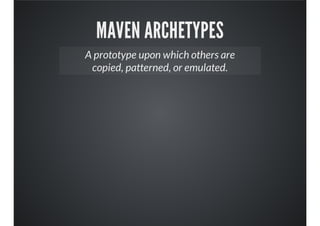

- 38. MAVEN ARCHETYPES A prototypeupon which others are copied, patterned, or emulated.

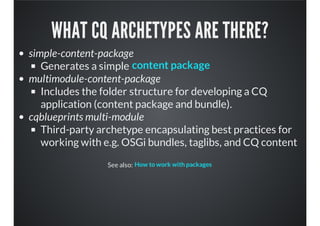

- 39. WHAT CQ ARCHETYPESARE THERE? simple-content-package Generates a simple multimodule-content-package Includes the folder structure for developing a CQ application (content package and bundle). cqblueprints multi-module Third-party archetype encapsulating best practices for working with e.g. OSGi bundles, taglibs, and CQ content See also: content package How to work with packages
- 40. ON PACKAGES Packages enablethe importing and exporting of repository content. They are used to install new functionality, transfer content between instances, or back up the repository A package is a zip file in file system (vault) serialization format Packages include meta information - filter definitions, import configuration, package properties Packages are often managed through the CQ Package Manager

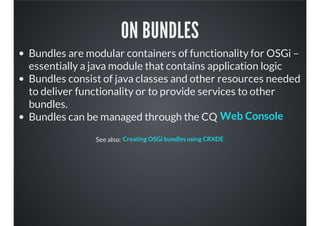

- 41. ON BUNDLES Bundles aremodular containers of functionality for OSGi – essentially a java module that contains application logic Bundles consist of java classes and other resources needed to deliver functionality or to provide services to other bundles. Bundles can be managed through the CQ See also: Web Console Creating OSGi bundles using CRXDE
- 42. HOW TO USEAN ARCHETYPE archetypeGroupId: identifies the archetype project uniquely across all projects archetypeArtifactId: the name of the archetype jar without a version number archetypeRepository: where to get the archetype from (based on pluginRepository in settings.xml) See also: and mvn archetype:generate -DarchetypeGroupId=foo -DarchetypeArtifactId=bar -DarchetypeVersion=1.0.0 -DarchetypeRepository=baz Maven: Introduction to Archetypes Maven: Naming conventions

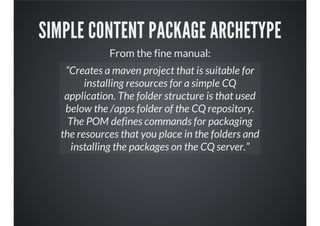

- 43. SIMPLE CONTENT PACKAGEARCHETYPE From the fine manual: “Creates a maven project that is suitable for installing resources for a simple CQ application. The folder structure is that used below the /apps folder of the CQ repository. The POM defines commands for packaging the resources that you place in the folders and installing the packages on the CQ server.”

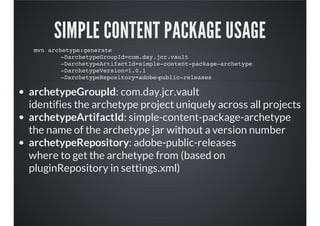

- 44. SIMPLE CONTENT PACKAGEUSAGE archetypeGroupId: com.day.jcr.vault identifies the archetype project uniquely across all projects archetypeArtifactId: simple-content-package-archetype the name of the archetype jar without a version number archetypeRepository: adobe-public-releases where to get the archetype from (based on pluginRepository in settings.xml) mvn archetype:generate -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=simple-content-package-archetype -DarchetypeVersion=1.0.1 -DarchetypeRepository=adobe-public-releases
- 45. SIMPLE CONTENT PACKAGEIN ACTION
- 46. SIMPLE CONTENT PACKAGEPARAMETERS groupId: Like a package name, e.g. com.yourcompany.myproject artifactId: name of the jar without the version, e.g. myproject version: accept the default package: not used in simple-content-package appsFolderName: name of /apps/myproject, e.g. myproject artifactName: Description in Package Manager packageGroup: Group in Package Manager See also: Maven: Naming conventions
- 47. SIMPLE CONTENT PACKAGEOUTPUT Template directories pom.xml file Instructions for compiling, creating bundles, deploying to CQ in packages FileVault configuration files

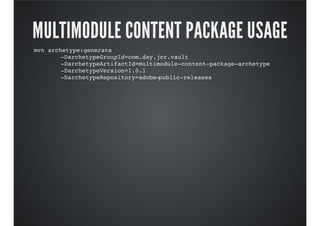

- 48. MULTIMODULE CONTENT PACKAGEUSAGE mvn archetype:generate -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.1 -DarchetypeRepository=adobe-public-releases
- 49. MULTIMODULE CONTENT PACKAGEOUTPUT ${artifactId} |- pom.xml |- bundle |- pom.xml |- src |- main |- java |- ${groupId} |- SimpleDSComponent.java |- test |- java |- ${groupId} |- SimpleUnitTest.java |- content |- pom.xml |- src |- main |- content |- jcr_root |- apps |- ${appsFolderName} |- config |- install |- META-INF |- vault |- config.xml
- 50. |- filter.xml |- nodetypes.cnd |-properties.xml |- definition |- .content.xml
- 51. CQBLUEPRINTS MULTI-MODULE USAGE Firstadd the CQ Blueprints Maven Repository to Maven's settings.xml, then: archetypeGroupID: com.cqblueprints.archetypes archetypeArtifactId: multi-module archetypeVersion: 1.0.5 archetypeRepository: cqblueprints.plugins.releases See also: and mvn -P cqblueprints archetype:generate -DarchetypeGroupId=com.cqblueprints.archetypes -DarchetypeArtifactId=multi-module -DarchetypeVersion=1.0.5 -DarchetypeRepository=cqblueprints.plugins.releases Connecting to the CQ Blueprints Repository The CQ Project Maven Archetype
- 52. CQBLUEPRINTS MULTI-MODULE OUTPUT ${artifactId} |-README |- pom.xml |- ${artifactId}-all |- pom.xml |- ${artifactId}-config |- ${artifactId}-content |- ${artifactId}-services |- ${artifactId}-taglib |- ${artifactId}-view
- 53. WHY USE CQBLUEPRINTSMULTI-MODULE? The cqblueprint multi-module archetype is developed by “The things we wanted to consider with our archetype is to address concerns of larger teams” headwire.com
- 54. CQBLUEPRINTS MULTIMODULE DESIGN foo-viewsubproject: where css/html/js developers (frontend) do their work foo-taglib foo-services: where java developers (backend) do their work foo-config: where the configuration (runmode configs stored) foo-content: how we get initial content and site structure onto the developer's box quickly foo-all: how we hand off builds to the next environment
- 55.
- 56. WHY GIT? Local safetynet "The internet is my backup" It's good to share Enlightened self-interest
- 57.

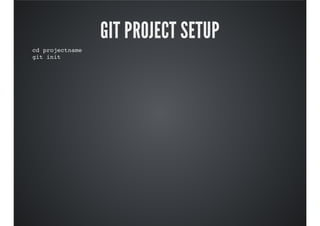

- 58. GIT PROJECT SETUP cdprojectname git init

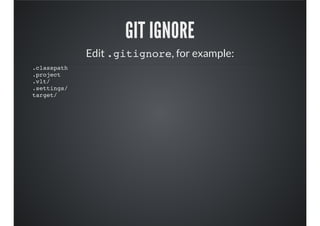

- 59. GIT IGNORE Edit .gitignore,for example: .classpath .project .vlt/ .settings/ target/
- 60. GET IT INGIT git add * git commit -m 'Initial project version'
- 61. GET IT INGITHUB (OPTIONAL) hub-new-repo is a shortcut for creating a repository on github and pushing your local repo into it See also: See also: cd project git hub-new-repo CLI remote github repo creation github
- 62.
- 63.
- 64. COMMIT PROJECT git addfilenames git commit -m "meaningful message" git push origin master
- 65.
- 66.
- 67. “the three greatvirtues of a programmer: laziness, impatience, and hubris”
- 69.

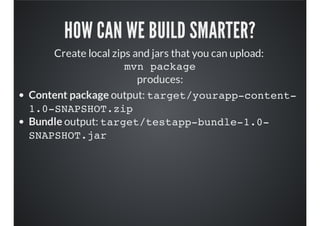

- 70. HOW CAN WEBUILD SMARTER? Create local zips and jars that you can upload: mvn package produces: Content package output: target/yourapp-content- 1.0-SNAPSHOT.zip Bundle output: target/testapp-bundle-1.0- SNAPSHOT.jar
- 71.

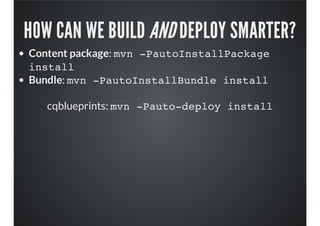

- 72. HOW CAN WEBUILD AND DEPLOY SMARTER? Content package: mvn -PautoInstallPackage install Bundle: mvn -PautoInstallBundle install cqblueprints: mvn -Pauto-deploy install
- 73.
- 74.
- 75.
- 76. How do wedevelop in a world of maven builds and deploys and git saves?
- 77. THE FILEVAULT TOOL Youcan use the FileVault tool (vlt) to check in, check out, update and sync local content with the repository. Install: extract crx- quickstart/opt/filevault/filevault. [tgz|zip] and add to your path Usage: vlt --credentials admin:admin co -- force http://localhost:4502/crx See also: How to use the VLT Tool
- 78. SAMPLE DEVELOPMENT WORKFLOW Usemaven to build and deploy Initialise vlt Create components, templates with CRXDE Lite Use vlt to copy back into local filesystem Change locally Use vlt to copy back into the repository Add to git
- 79.
- 80.

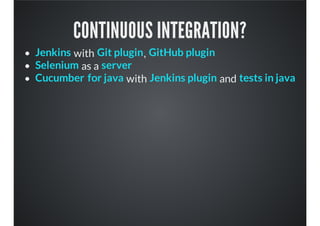

- 81. CONTINUOUS INTEGRATION? with , asa with and Jenkins Git plugin GitHub plugin Selenium server Cucumber for java Jenkins plugin tests in java
- 82. INTEGRATION TESTING FRAMEWORK ...see Lydia's talk
- 83.

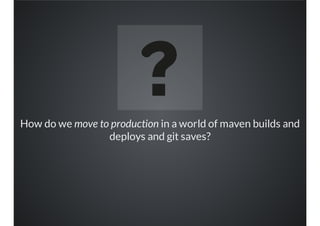

- 84. How do wemove to production in a world of maven builds and deploys and git saves?
- 85.
- 86. MAVEN PROFILE FORPRODUCTION Add this to pom.xml: Deploy using this profile: Or one-time override: mvn - Dcrx.host=another.host,crx.port=4504 - PautoInstallPackage install See also: <profile> <id>auto-deploy-prod</id> <properties> <crx.host>production.server.hostname</crx.host> <crx.port>4502</crx.port> </properties> </profile> mvn -PautoInstallPackage,auto-deploy-prod install Introduction to build profiles
- 87. DEPLOYMENT TESTING ... seeBertrand's talk
- 88. PUTTING IT ALLTOGETHER
- 89. 0-60 IN 5PSEUDO LINES mvn archetype:generate git init; git add *; git commit -m "Initial project" mvn -PautoInstallPackage install vlt checkout ; vlt update ; vlt commit git add; git commit; git push
- 91.
