Six Dimensions and 6D-Labs are pleased to distribute its 2nd CQ webinar "CQ5 Development Setup: Maven Build and Deployment" This webinar covers best practices in building and deploying CQ5 applications.

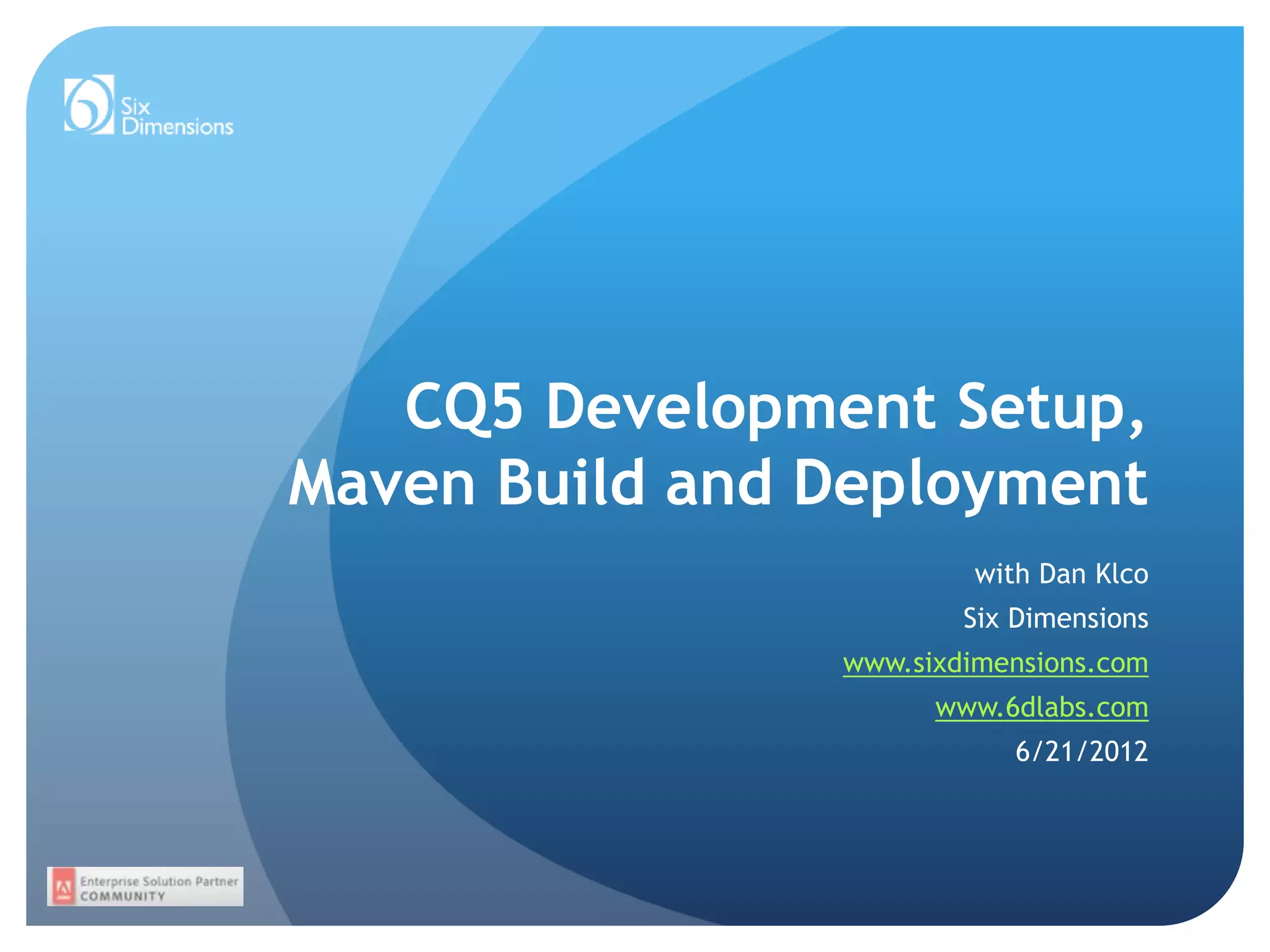

1. CQ5 Development Setup,
Maven Build and Deployment
with Dan Klco
Six Dimensions
www.sixdimensions.com
www.6dlabs.com
6/21/2012

2. 2

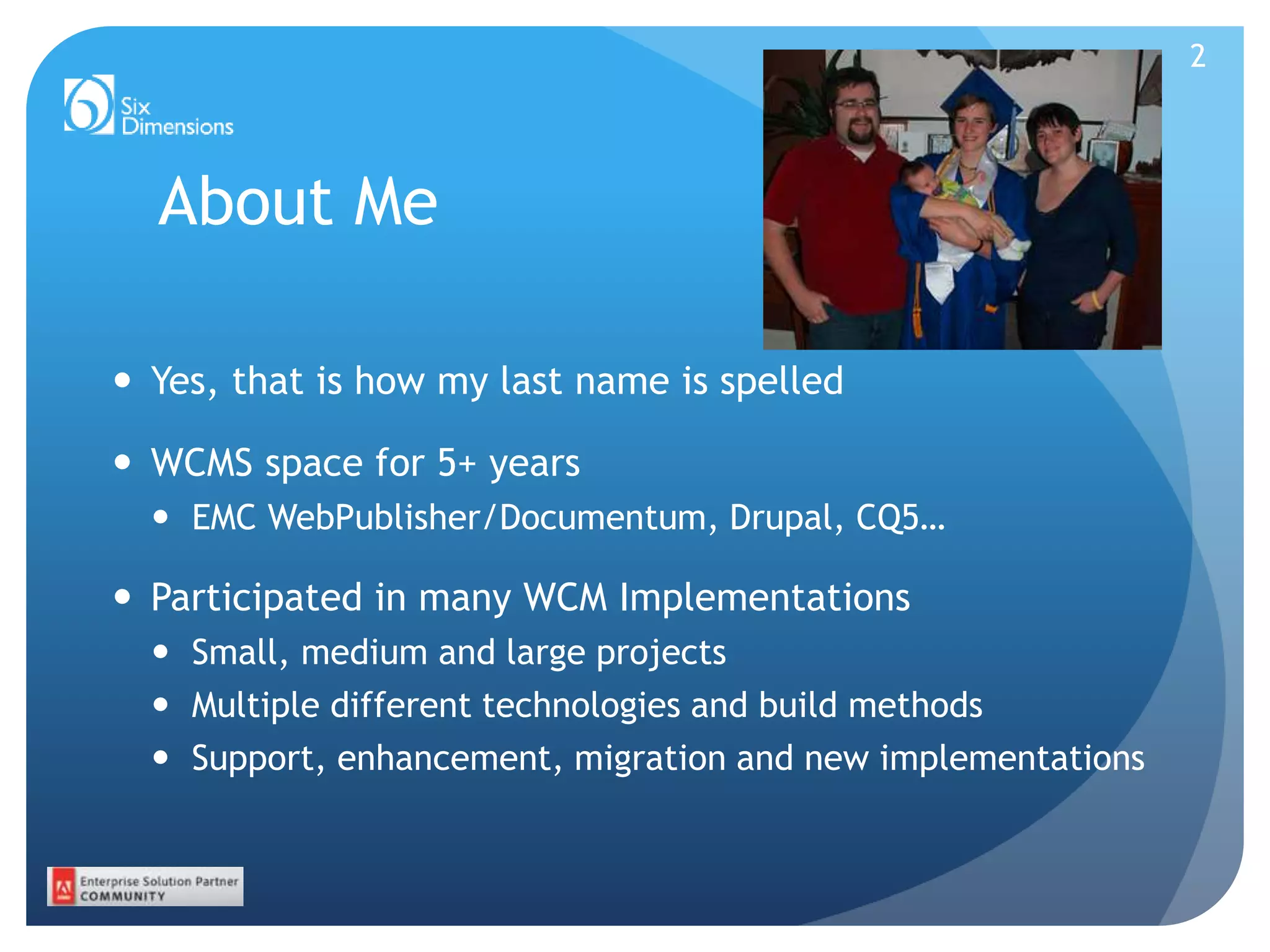

About Me
 Yes, that is how my last name is spelled
 WCMS space for 5+ years
 EMC WebPublisher/Documentum, Drupal, CQ5…
 Participated in many WCM Implementations
 Small, medium and large projects
 Multiple different technologies and build methods
 Support, enhancement, migration and new implementations

3. 3
Purpose
 What is the purpose of this webinar?
 To understand why your project structure, build process and
deploy process are important
 To explore methods of building and deploying CQ5 projects
 To learn about current best practices and industry-leading
tools

4. 4
Why is my build process
important?
“Oh, I just wish I understood why. Why I should care.” – Zap
Brannigan

5. 5
Bad build process results in…
 Chaos
 Not sharing complete code base
 No code/application versioning
 No single version of the ‘truth’
 Slow build process
 Increased testing turnaround
 Slower developer progress
 Difficult release process

6. 6
Build Processes - Manual
 Build from CRXDE & Packages
 Advantages: Easy, works out of the box
 Disadvantages: chaos, code versioning difficult
 Build from CRXDE & SVN
 Advantages: share code, easy, works out of the box
 Disadvantages: more complicated builds, SVN integration
awkward

7. 7
Build Processes - Automatic
 Build from IDE & ANT
 Advantages: Very customizable, automatic, any SCM
supported
 Disadvantages: lots of extra development, mostly not out of
the box
 Build from IDE & Maven
 Advantages: customizable, automatic, any SCM supported,
most tasks available as plugins, integrated dependency
management
 Disadvantages: not out of the box

8. 8
Klco’s Hierarchy of Build Needs

9. 9
Implementing Maven Builds
I preferred the notion of convention over configuration. I
wanted a project's infrastructure to look the same and work the
same…
-Jason van Zyl

10. 10
Maven Build Rules
 IDE/platform agnostic
 Perform all operations
 Properties should be centralized

11. 11
Project Structure
 Maven reactor, manages
building of sub-modules
 Major code functionality
separated into different
projects
 All code built into a single
package by the package
project
/Root
/Core
/Services
/Taglib
/Servlets
/Vault
/Package

12. 12
Resolving Dependencies
 Hosted Maven Repository -
http://archiva.apache.org/docs/1.3.5/quick-start.html
 Advantages: most control, deploy custom artifacts
 Disadvantages: setup, hosting cost, requires internet access
 Local Maven Repository -
http://dev.day.com/content/kb/home/cq5/Development/maven/HowToUseCQ5AsMavenRepository.html
 Advantages: easy, always available
 Disadvantages: not shared with team
 Adobe Maven Repository -
http://repo.adobe.com/nexus/content/groups/public
 Advantages: latest code, can browse repo
 Disadvantages: cannot deploy artifacts, requires internet access

13. 13
Developer Tools
 m2e – Maven Plugin for Eclipse
 Run Maven Builds inside Eclipse
 Import and configure Maven projects from any SCM
 VaultClipse - Import/Export Tool
 Quick Push/Pull from CQ Repositories
 J2EE Eclipse
 Includes JSP, CSS & XML Editors

14. 14
Required Maven Plugins
Bundle Plugin for Maven
http://felix.apache.org/site/apache-felix-maven-bundle-plugin-
bnd.html
Used to enable Maven to create OSGi Bundles.
Apache Felix Maven SCR Plugin
http://felix.apache.org/site/apache-felix-maven-scr-
plugin.html
Generates SCR descriptors based on Apache Felix SCR
Annotations.

15. 15
Deployment Options
 CQ Deploy Plugin
http://cq-deploy-plugin.6dlabs.com/
 Advantages: deploys bundles, legacy API, easy use, maven
central
 Disadvantages: not as full-featured
 Content Package Maven Plugin
http://dev.day.com/docs/en/cq/current/core/how_to/how_to_use_the_vlttool/vlt-mavenplugin.html
 Advantages: feature rich, easy use
 Disadvantages: does not deploy bundles
 Groovy/cURL Scripts
 Advantages: completely custom
 Disadvantages: more to maintain, not future-proof

16. 16
Continuous Integration
Integrate Early and Often
-Gerard Meszaros

17. 17
What is Continuous Integration
 Dedicated server or application
 Continuously builds and deploys code
 Runs automatically – can also be kicked off manually

18. 18
Benefits of CI
 Integrate early and often
 Constant and frequent builds
 Automated deployments
 Early warnings of broken/conflicting code
 Automatic Unit Test & Code Quality checks
 Blame!

19. 19
CI Best Practices
 Any CI Maven-capable Server will work
 CI Server should install to DEV
 Author and Publish
 Manual release process to QA & Prod
 Run at least daily
 Ideally every hour or two or when code is updated
 Same build process as Local Developers and releases

20. 20
Code LifeCycle

21. 21
Problems & Pitfalls
 CSS & designer Integration
 Large Team Sharing/Duplication
 Naming Conflicts
 Misalignment Between Teams (Integration Hell)

22. 22
Thank You!
 6D Labs & Six Dimensions
 For more information please contact:
 TJ Iaciofano: tj.iaciofano@sixdimensions.com
 www.6dlabs.com
 www.sixdimensions.com
