1. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

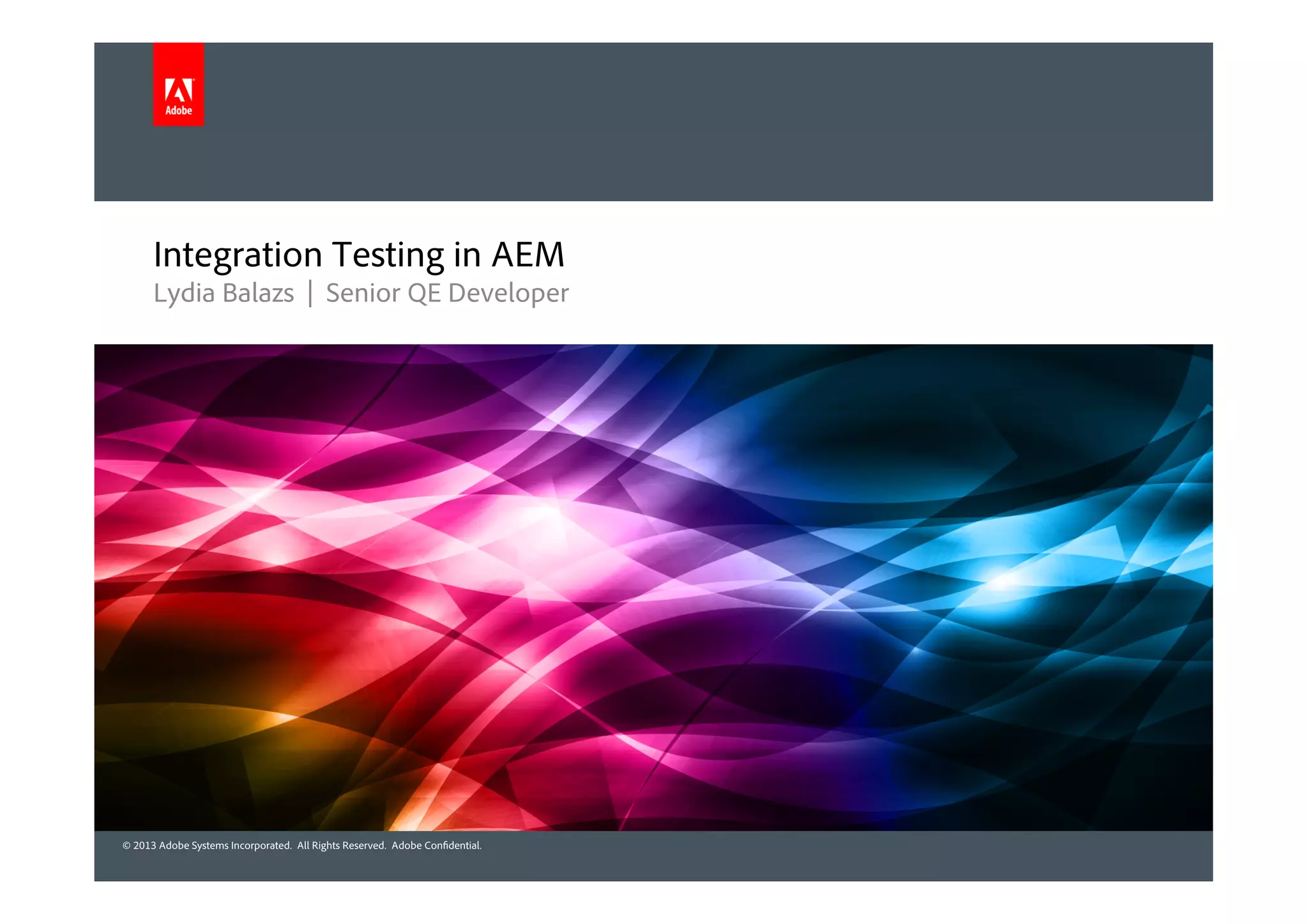

Integration Testing in AEM
Lydia Balazs | Senior QE Developer

2. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

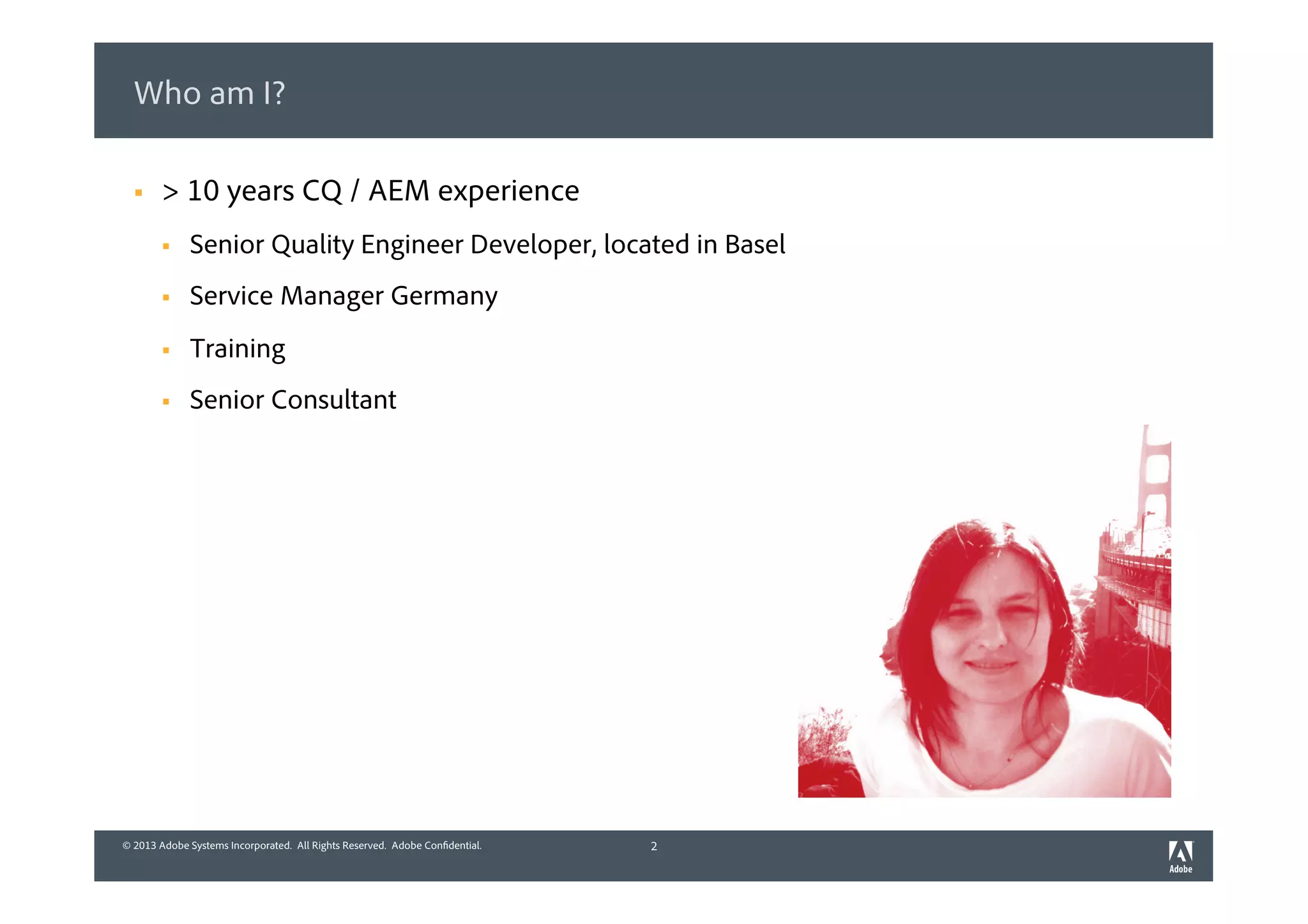

Who am I?
2
§ > 10 years CQ / AEM experience
§ Senior Quality Engineer Developer, located in Basel
§ Service Manager Germany
§ Training
§ Senior Consultant

3. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

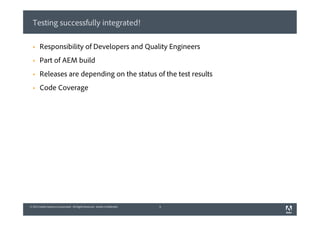

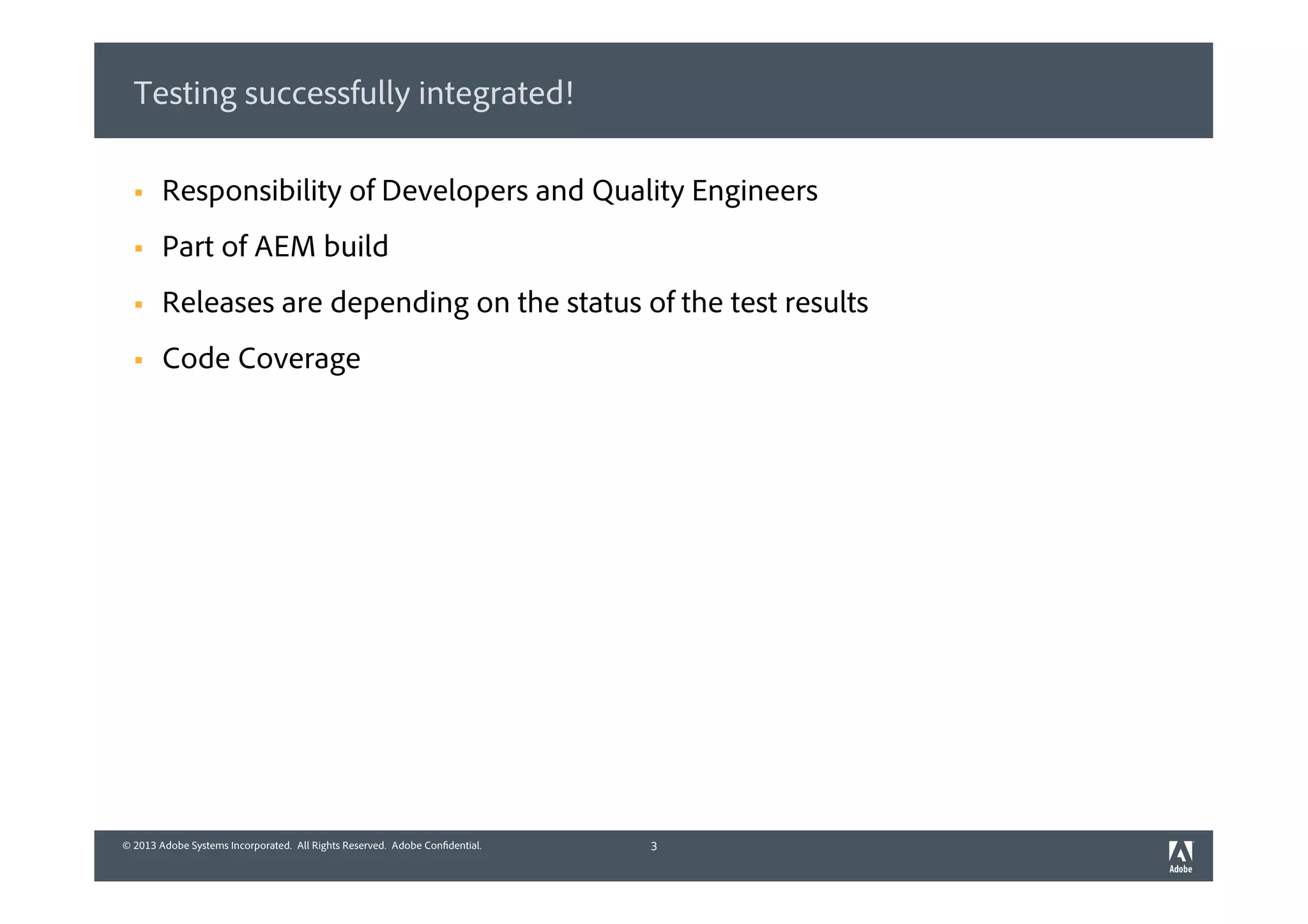

Testing successfully integrated!
3
§ Responsibility of Developers and Quality Engineers
§ Part of AEM build
§ Releases are depending on the status of the test results
§ Code Coverage

4. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

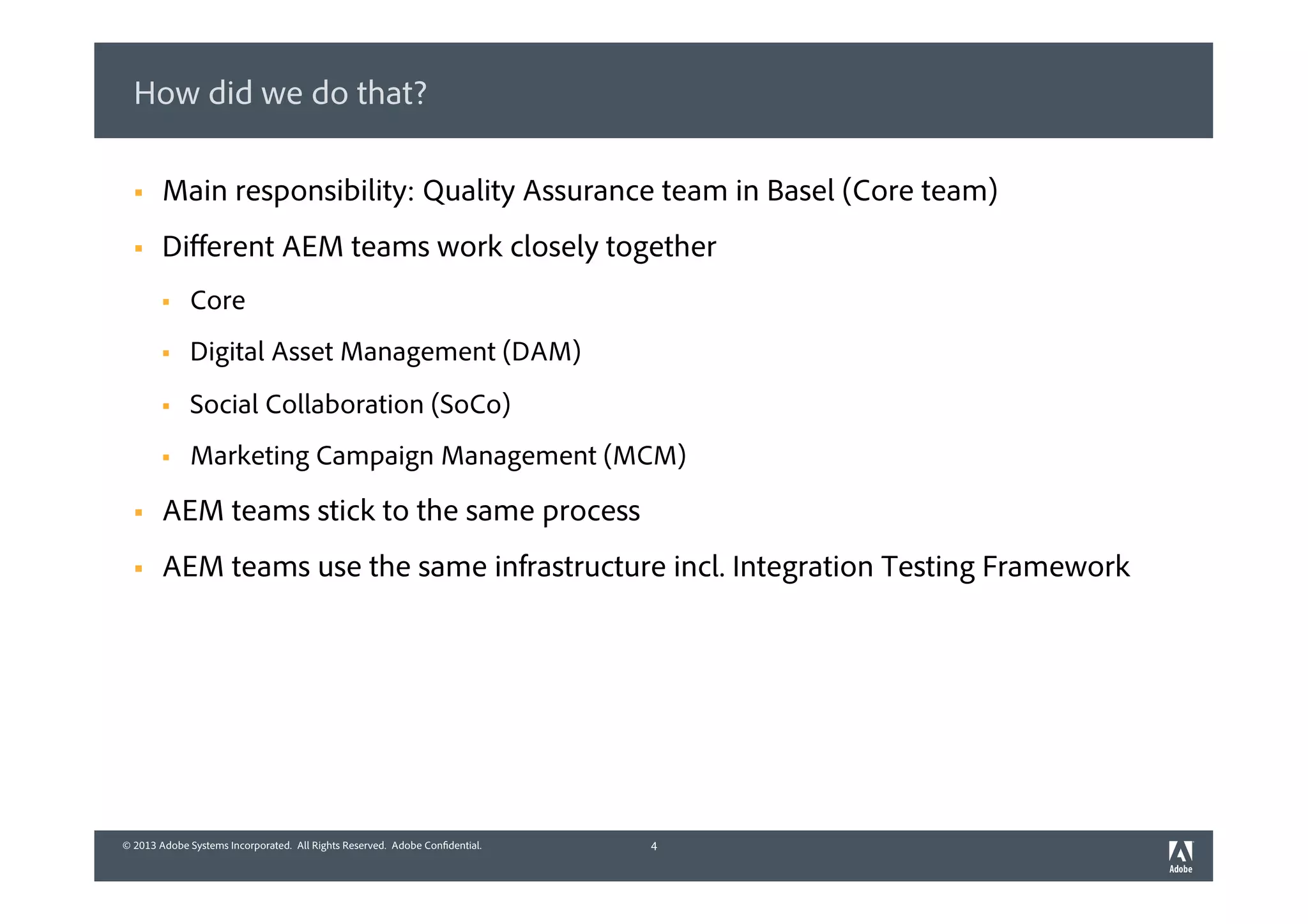

How did we do that?
4
§ Main responsibility: Quality Assurance team in Basel (Core team)
§ Different AEM teams work closely together
§ Core
§ Digital Asset Management (DAM)
§ Social Collaboration (SoCo)
§ Marketing Campaign Management (MCM)
§ AEM teams stick to the same process
§ AEM teams use the same infrastructure incl. Integration Testing Framework

5. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

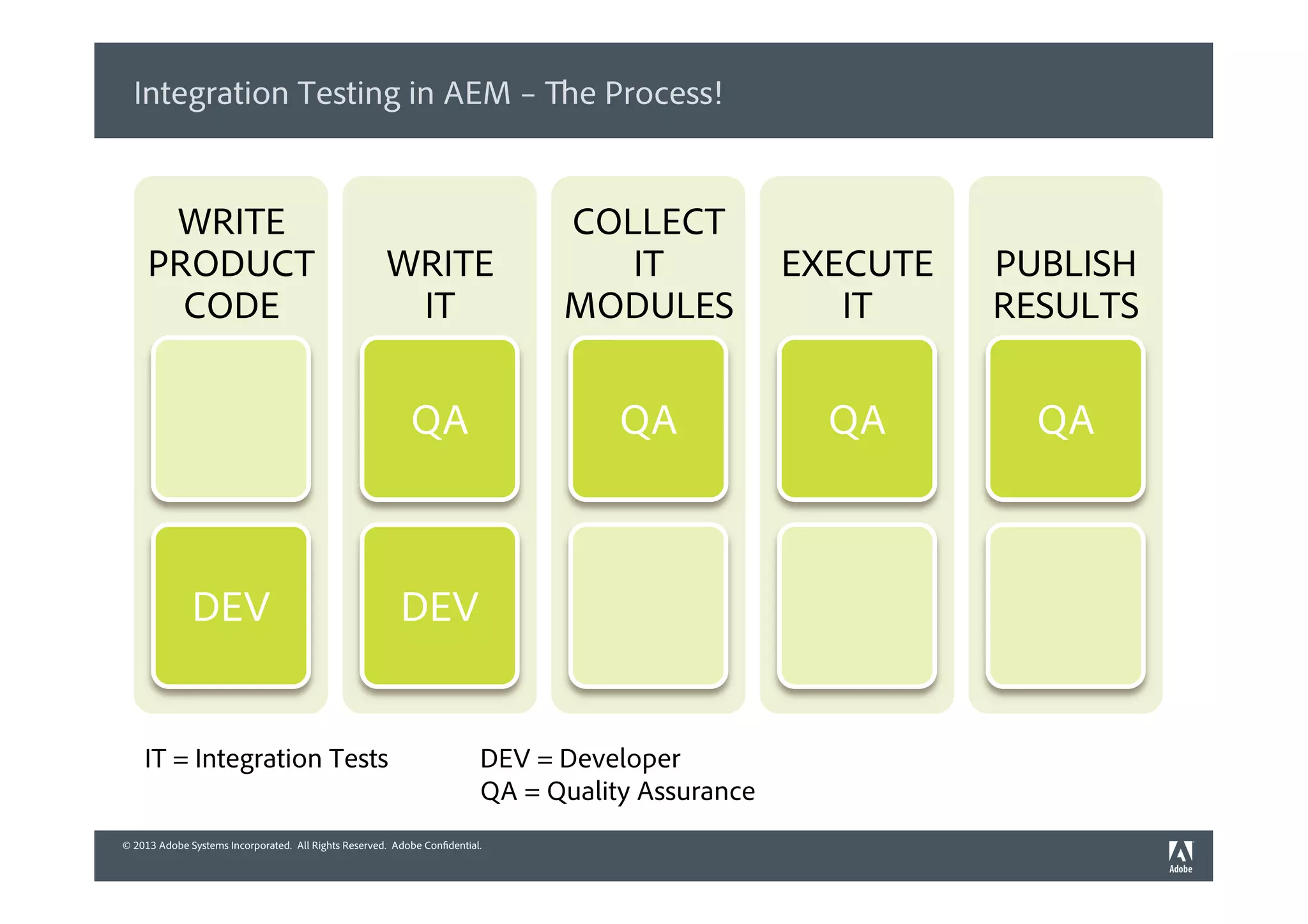

Integration Testing in AEM – The Process!
5
WRITE
PRODUCT
CODE
DEV
WRITE
IT
QA
DEV
COLLECT
IT
MODULES
QA
EXECUTE
IT
QA
PUBLISH
RESULTS
QA
IT = Integration Tests DEV = Developer
QA = Quality Assurance

6. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

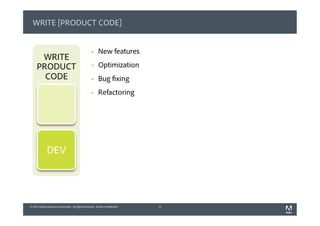

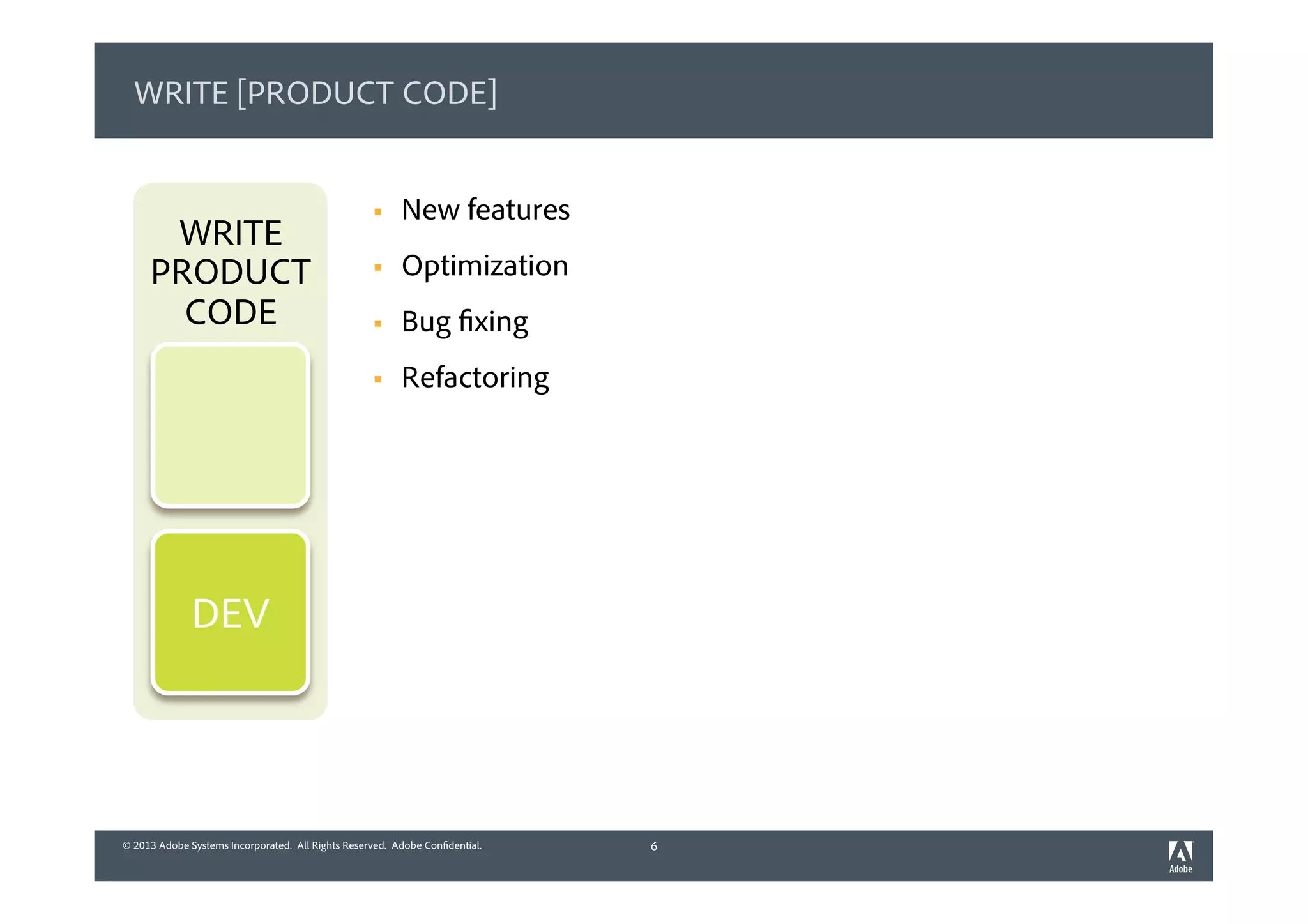

WRITE [PRODUCT CODE]
§ New features
§ Optimization
§ Bug fixing
§ Refactoring
6
WRITE
PRODUCT
CODE
DEV

7. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

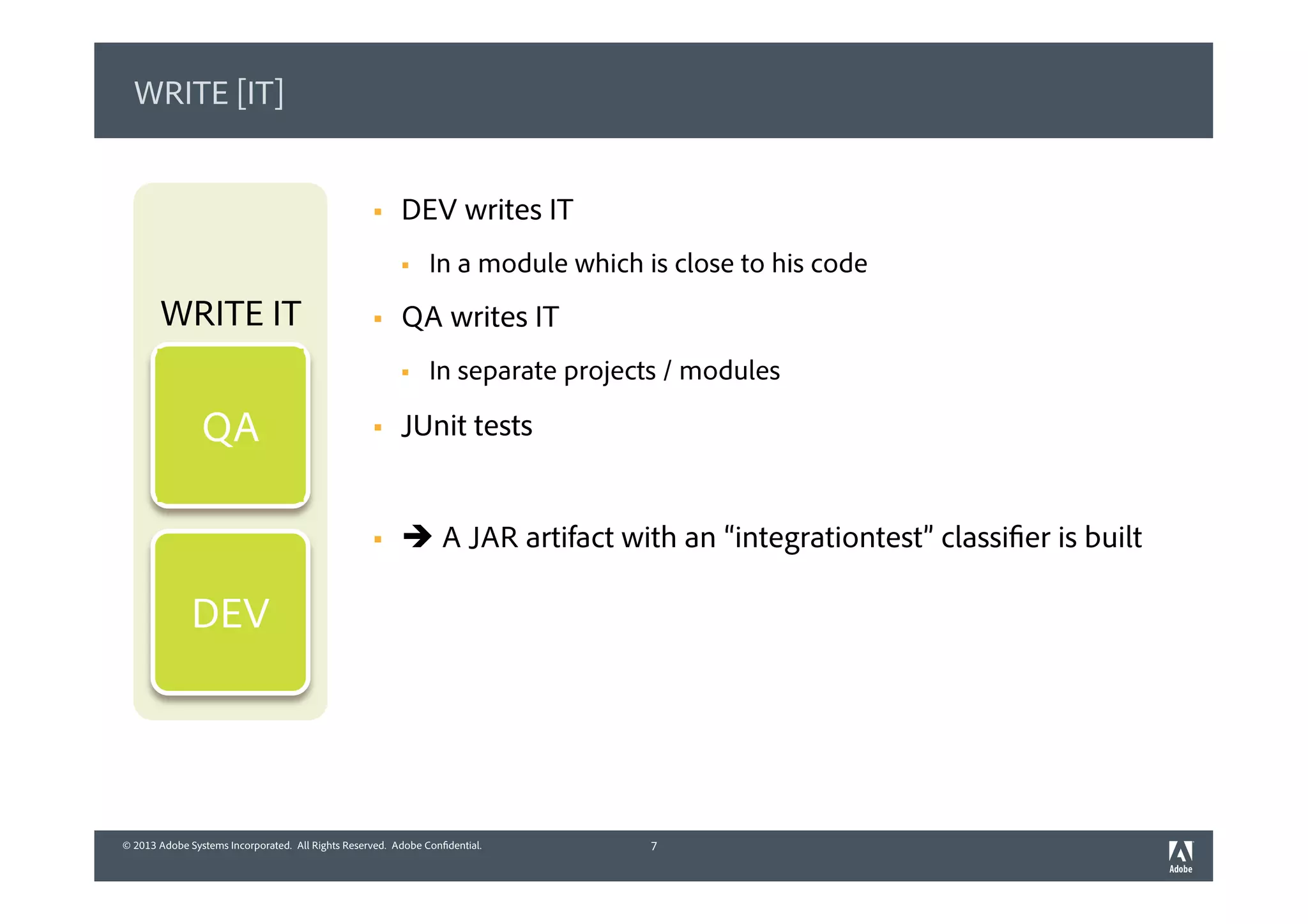

WRITE [IT]
§ DEV writes IT
§ In a module which is close to his code
§ QA writes IT
§ In separate projects / modules
§ JUnit tests
§ è A JAR artifact with an “integrationtest” classifier is built
7
WRITE IT
DEV
QA

8. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

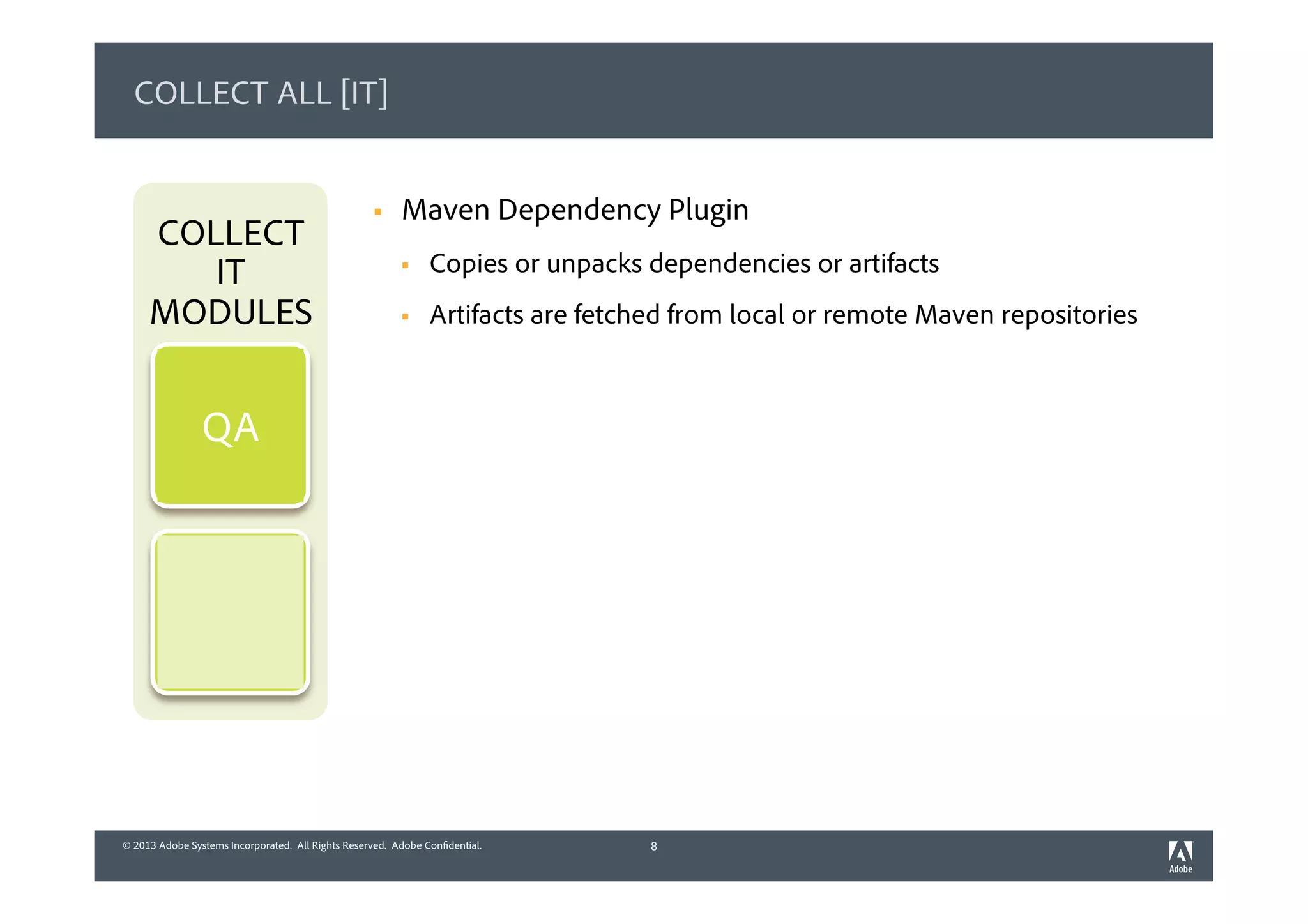

COLLECT ALL [IT]
§ Maven Dependency Plugin
§ Copies or unpacks dependencies or artifacts
§ Artifacts are fetched from local or remote Maven repositories
8
COLLECT
IT
MODULES
QA

9. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

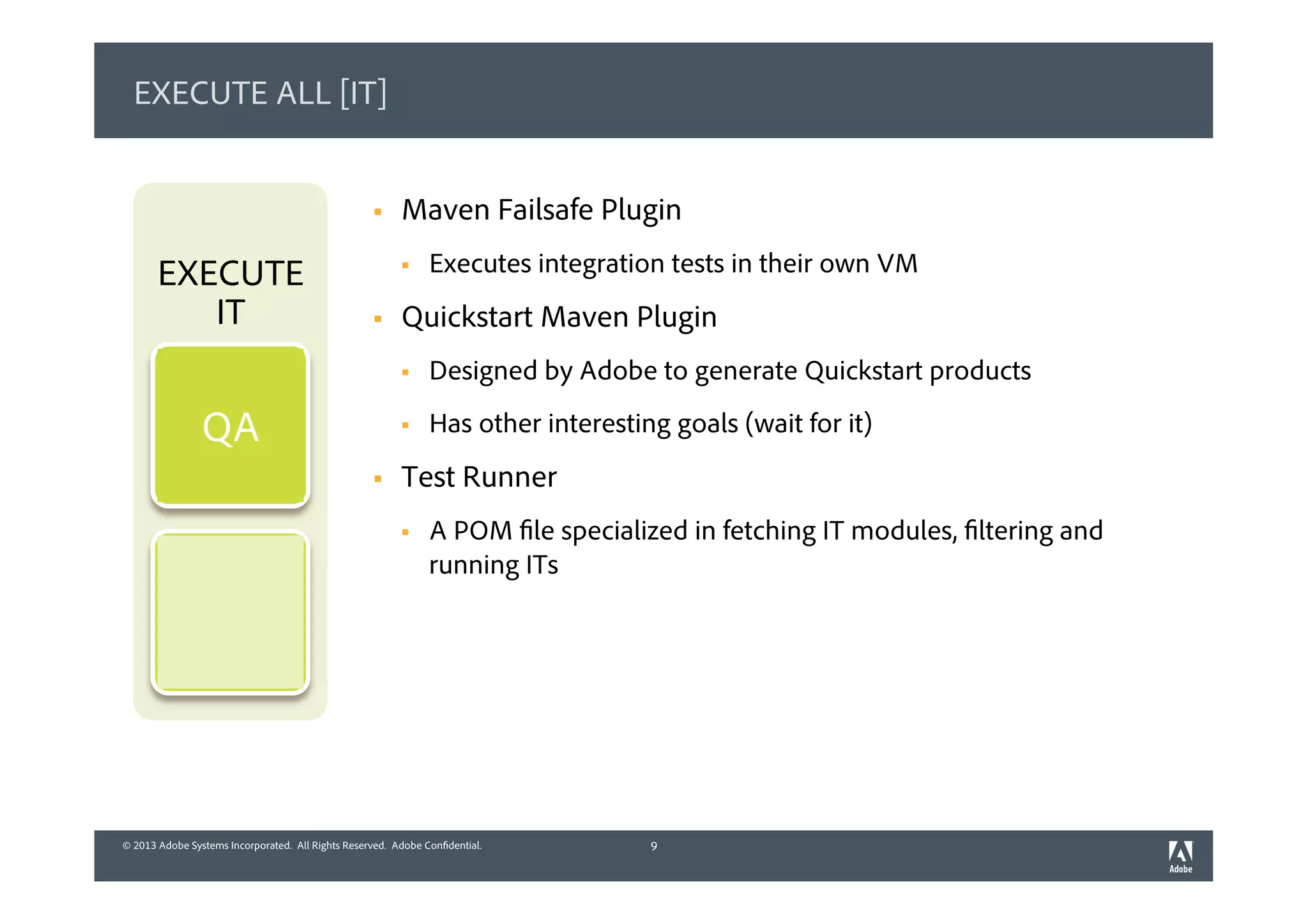

EXECUTE ALL [IT]
§ Maven Failsafe Plugin
§ Executes integration tests in their own VM
§ Quickstart Maven Plugin
§ Designed by Adobe to generate Quickstart products
§ Has other interesting goals (wait for it)
§ Test Runner
§ A POM file specialized in fetching IT modules, filtering and
running ITs
9
EXECUTE
IT
QA

10. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

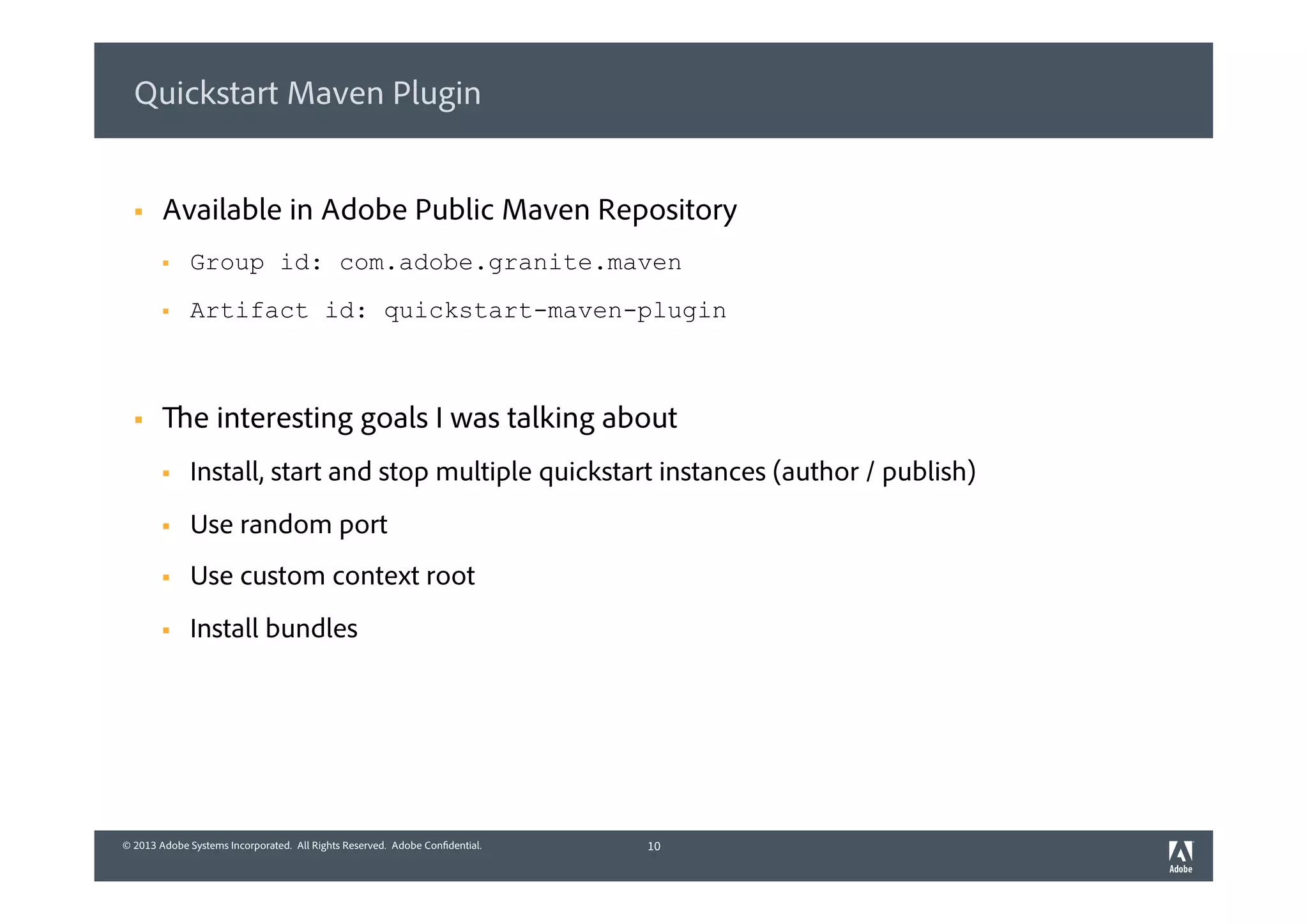

Quickstart Maven Plugin
§ Available in Adobe Public Maven Repository
§ Group id: com.adobe.granite.maven
§ Artifact id: quickstart-maven-plugin
§ The interesting goals I was talking about
§ Install, start and stop multiple quickstart instances (author / publish)
§ Use random port
§ Use custom context root
§ Install bundles
10

11. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

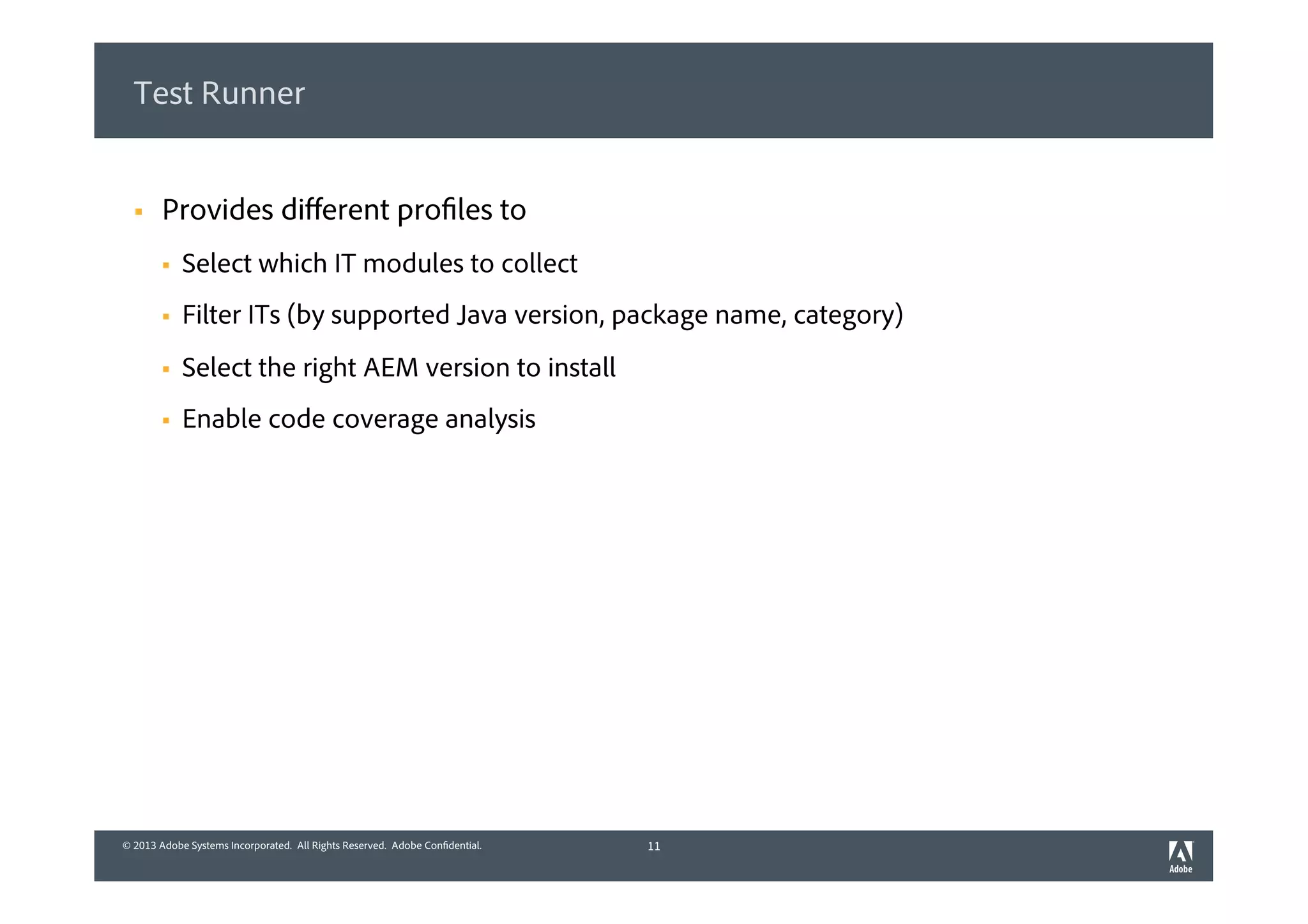

Test Runner
§ Provides different profiles to
§ Select which IT modules to collect
§ Filter ITs (by supported Java version, package name, category)
§ Select the right AEM version to install
§ Enable code coverage analysis
11

12. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

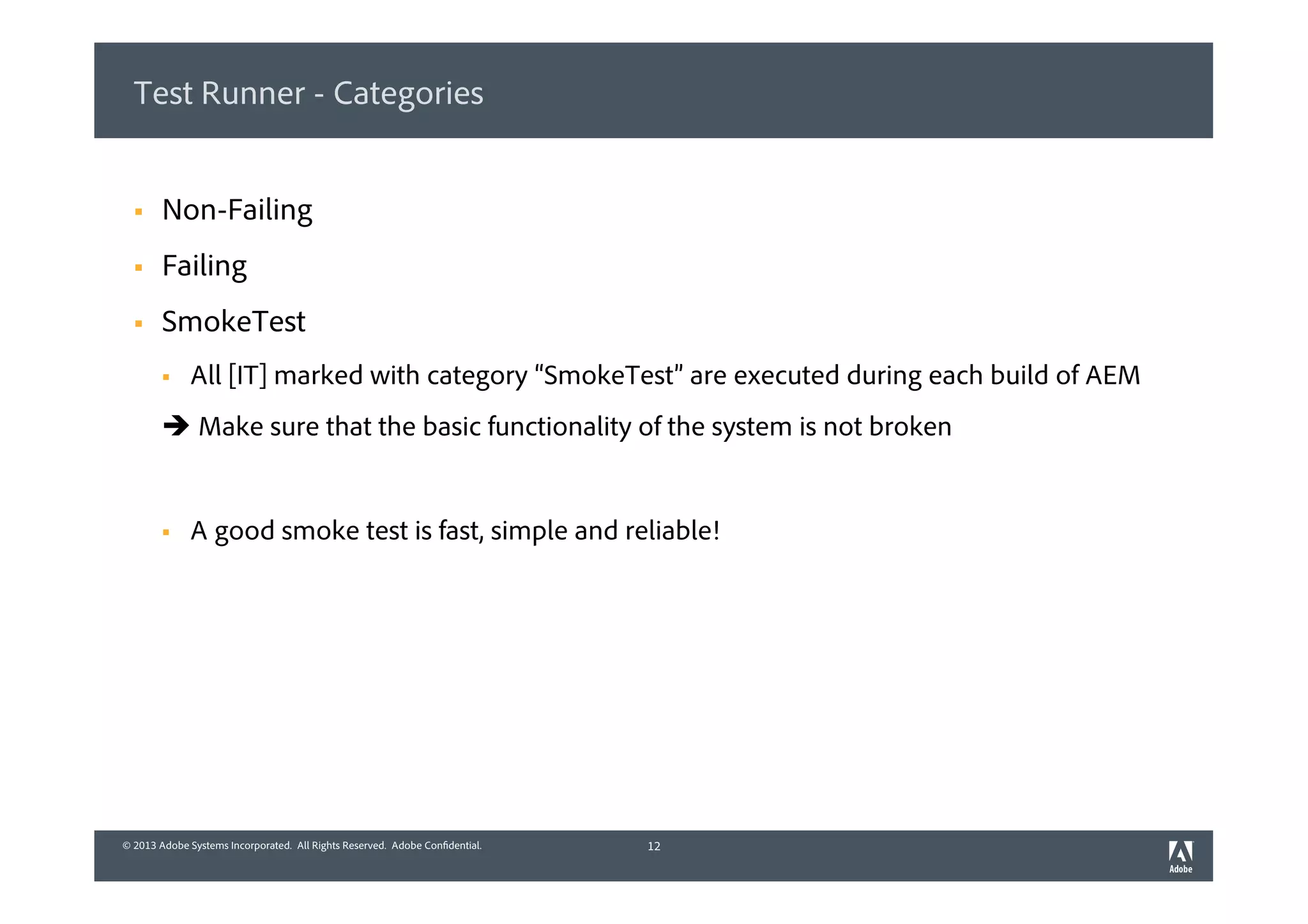

Test Runner - Categories
§ Non-Failing
§ Failing
§ SmokeTest
§ All [IT] marked with category “SmokeTest” are executed during each build of AEM
è Make sure that the basic functionality of the system is not broken
§ A good smoke test is fast, simple and reliable!
12

13. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

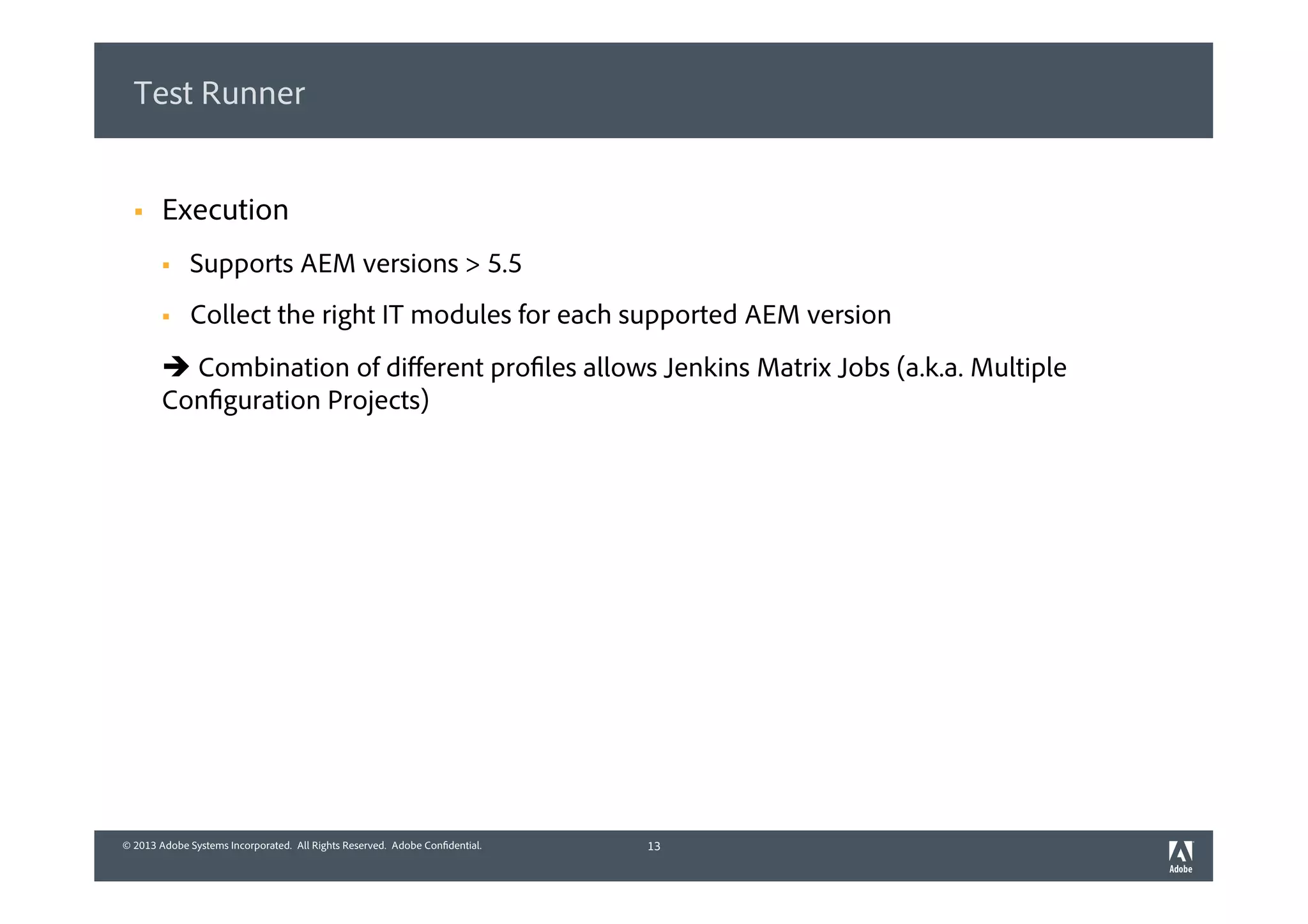

Test Runner
§ Execution
§ Supports AEM versions > 5.5
§ Collect the right IT modules for each supported AEM version
è Combination of different profiles allows Jenkins Matrix Jobs (a.k.a. Multiple
Configuration Projects)
13

14. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

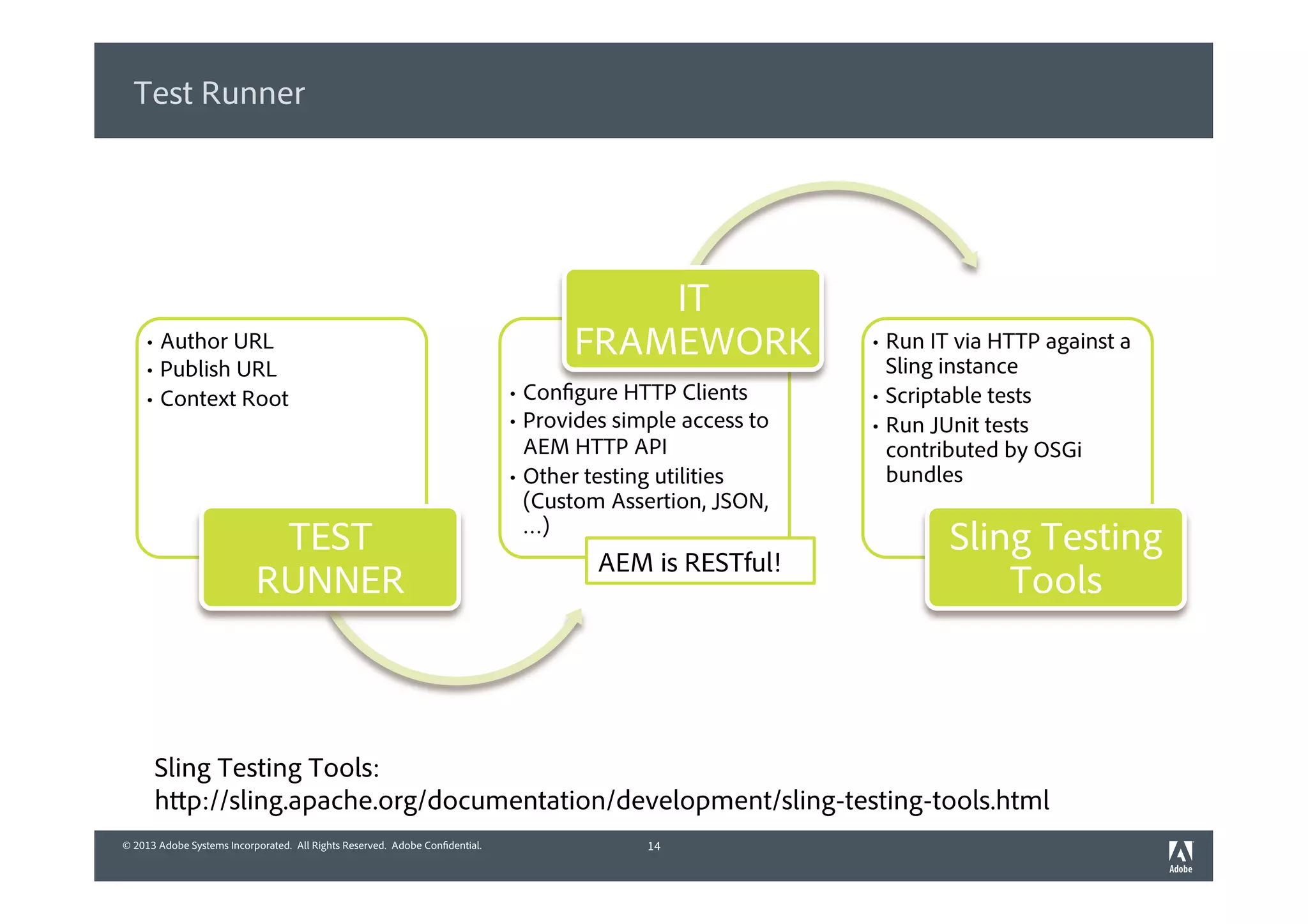

Test Runner
14
• Author URL
• Publish URL
• Context Root
TEST
RUNNER
• Configure HTTP Clients
• Provides simple access to
AEM HTTP API
• Other testing utilities
(Custom Assertion, JSON,
…)
IT
FRAMEWORK • Run IT via HTTP against a
Sling instance
• Scriptable tests
• Run JUnit tests
contributed by OSGi
bundles
Sling Testing
Tools
Sling Testing Tools:
http://sling.apache.org/documentation/development/sling-testing-tools.html
AEM is RESTful!

15. © 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2013 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

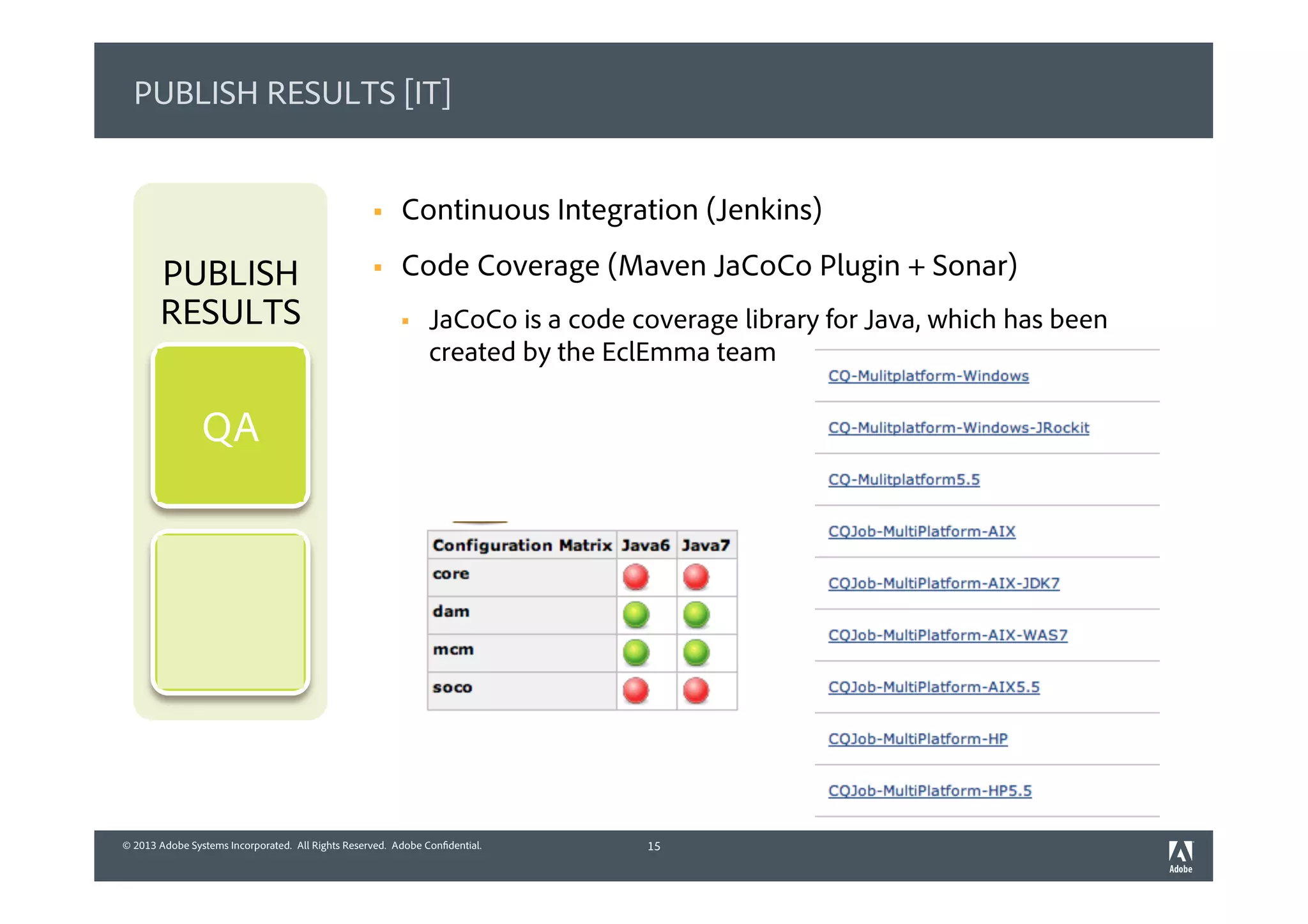

PUBLISH RESULTS [IT]
§ Continuous Integration (Jenkins)
§ Code Coverage (Maven JaCoCo Plugin + Sonar)
§ JaCoCo is a code coverage library for Java, which has been
created by the EclEmma team
15
PUBLISH
RESULTS
QA
