1. Dimitri Gielis
APEX Security 101 (mobile)
www.apexRnD.be
dgielis.blogspot.com
@dgielis
dgielis@apexRnD.be

2. Dimitri Gielis
❖ Founder & CEO of APEX R&D
❖ 17+ years of Oracle Experience (OCP & APEX Certified)
❖ Oracle ACE Director
❖ “APEX Developer of the year 2009” by Oracle Magazine
❖ Presenter at Oracle Conferences (OOW, ODTUG, OGh, UKOUG, …)

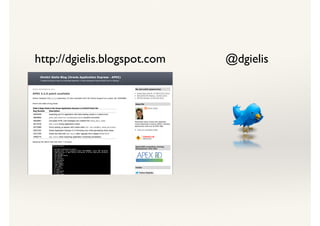

3. http://dgielis.blogspot.com @dgielis

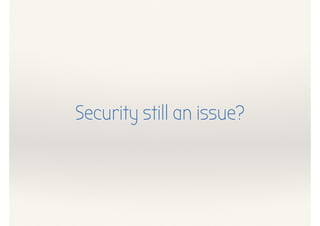

5. Security still an issue?

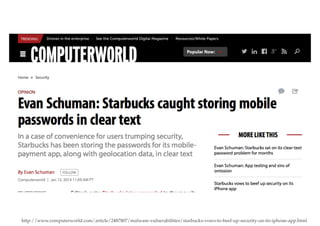

6. http://www.computerworld.com/article/2487807/malware-vulnerabilities/starbucks-vows-to-beef-up-security-on-its-iphone-app.html

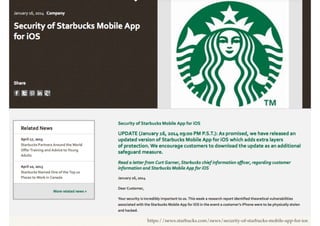

7. https://news.starbucks.com/news/security-of-starbucks-mobile-app-for-ios

8. http://securityaffairs.co/wordpress/33059/hacking/ios-outlook-app-issues.html

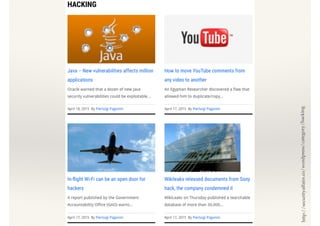

9. http://securityaffairs.co/wordpress/category/hacking

10. Smartphone stolen?
Connected to public network?
Data saved on Device?
Already authenticated?

12. Now what?

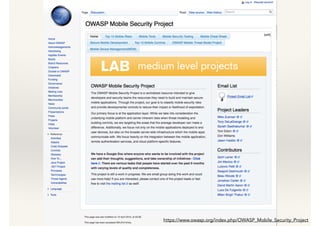

14. https://www.owasp.org/index.php/OWASP_Mobile_Security_Project

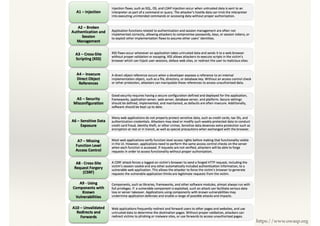

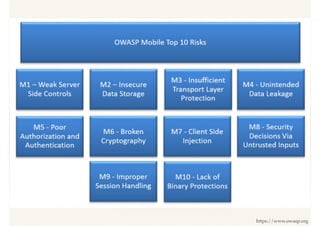

15. https://www.owasp.org

16. https://www.owasp.org

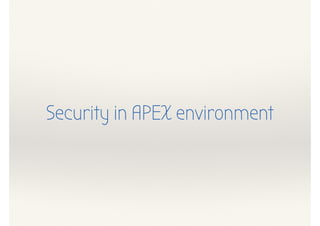

17. Security in APEX environment

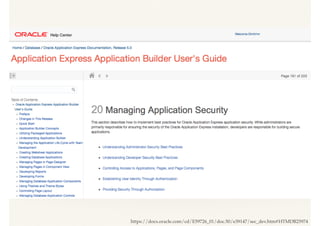

18. https://docs.oracle.com/cd/E59726_01/doc.50/e39147/sec_dev.htm#HTMDB25974

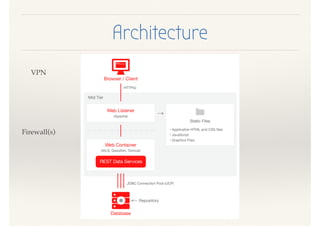

19. Architecture
VPN
Firewall(s)

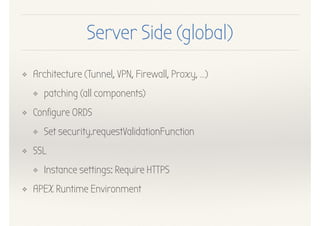

20. Server Side (global)
❖ Architecture (Tunnel, VPN, Firewall, Proxy, …)
❖ patching (all components)
❖ Configure ORDS
❖ Set security.requestValidationFunction
❖ SSL
❖ Instance settings: Require HTTPS
❖ APEX Runtime Environment

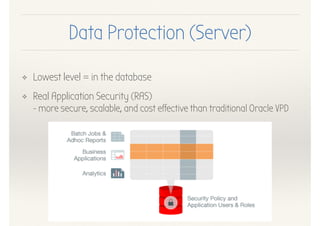

21. Data Protection (Server)
❖ Lowest level = in the database
❖ Real Application Security (RAS)
- more secure, scalable, and cost effective than traditional Oracle VPD

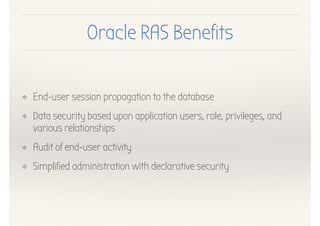

22. Oracle RAS Benefits
❖ End-user session propagation to the database
❖ Data security based upon application users, role, privileges, and
various relationships
❖ Audit of end-user activity
❖ Simplified administration with declarative security

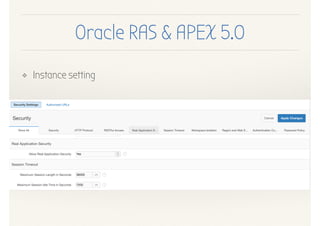

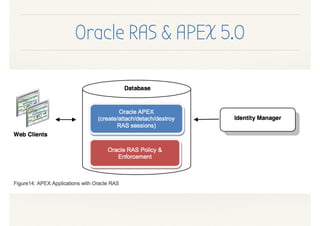

23. Oracle RAS & APEX 5.0

24. Oracle RAS & APEX 5.0
❖ Instance setting

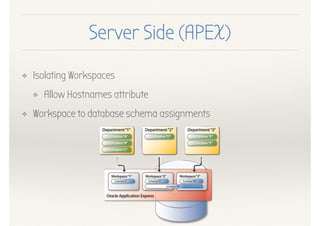

25. Server Side (APEX)
❖ Isolating Workspaces
❖ Allow Hostnames attribute
❖ Workspace to database schema assignments

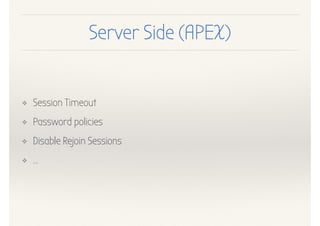

26. Server Side (APEX)
❖ Session Timeout
❖ Password policies
❖ Disable Rejoin Sessions
❖ …

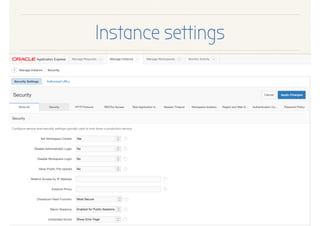

27. Instance settings

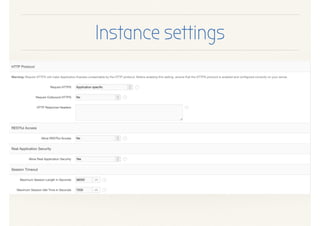

28. Instance settings

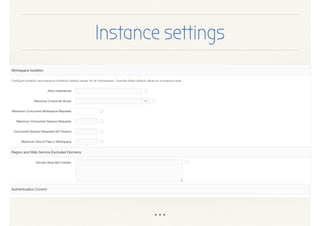

29. Instance settings
…

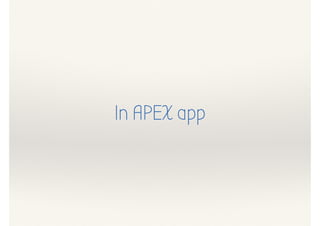

30. In APEX app

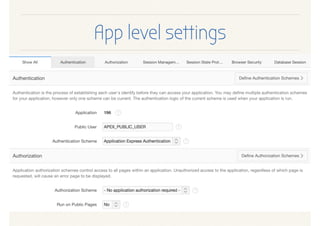

31. App level settings

32. App level settings

33. App level settings

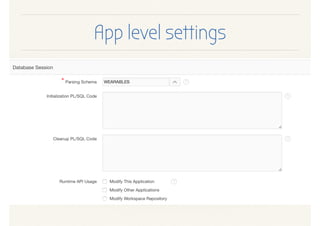

34. App level settings

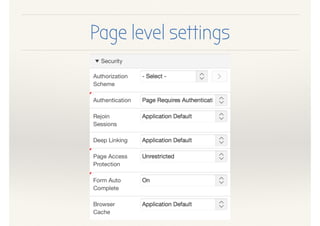

35. Page level settings

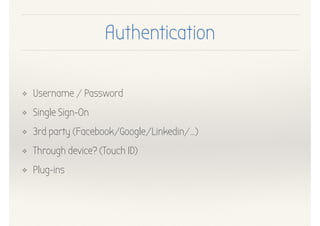

36. Authentication
❖ Username / Password
❖ Single Sign-On
❖ 3rd party (Facebook/Google/Linkedin/…)
❖ Through device? (Touch ID)
❖ Plug-ins

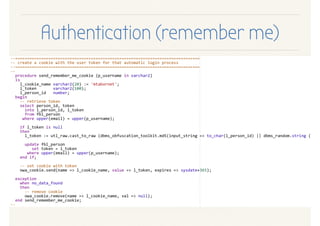

37. Authentication (remember me)

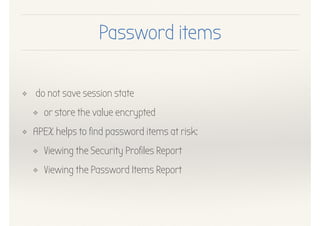

38. Password items
❖ do not save session state
❖ or store the value encrypted
❖ APEX helps to find password items at risk:
❖ Viewing the Security Profiles Report
❖ Viewing the Password Items Report

39. Authorization
❖ Once in, limit what people can see and do

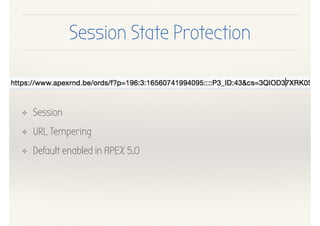

40. Session State Protection
❖ Session
❖ URL Tempering
❖ Default enabled in APEX 5.0

41. SQL injection
❖ Incorrectly filtered user input used in an SQL operation leading to
unintended side-effects

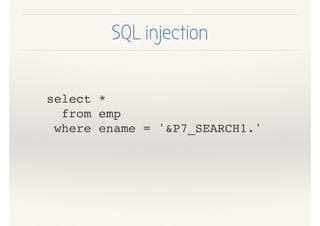

42. SQL injection
select *
from emp
where ename = '&P7_SEARCH1.'

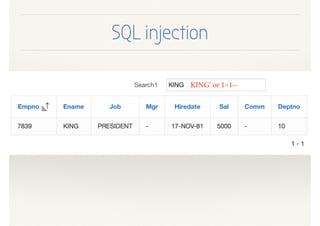

43. SQL injection
KING' or 1=1--

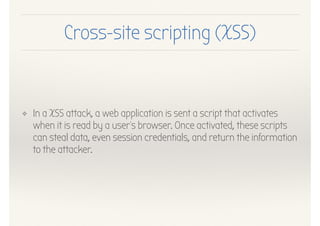

44. Cross-site scripting (XSS)
❖ In a XSS attack, a web application is sent a script that activates
when it is read by a user's browser. Once activated, these scripts
can steal data, even session credentials, and return the information
to the attacker.

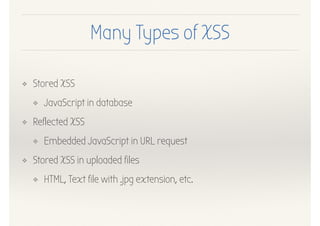

45. Many Types of XSS
❖ Stored XSS
❖ JavaScript in database
❖ Reflected XSS
❖ Embedded JavaScript in URL request
❖ Stored XSS in uploaded files
❖ HTML, Text file with .jpg extension, etc.

46. Escaping substitution strings
❖ apex_escape.html()
❖ Escape special characters attribute: YES

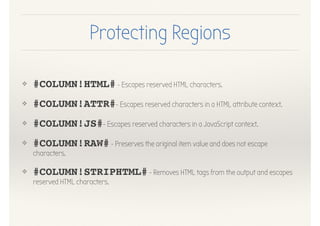

47. Protecting Regions
❖ #COLUMN!HTML#- Escapes reserved HTML characters.
❖ #COLUMN!ATTR#- Escapes reserved characters in a HTML attribute context.
❖ #COLUMN!JS#- Escapes reserved characters in a JavaScript context.
❖ #COLUMN!RAW#- Preserves the original item value and does not escape
characters.
❖ #COLUMN!STRIPHTML#- Removes HTML tags from the output and escapes
reserved HTML characters.

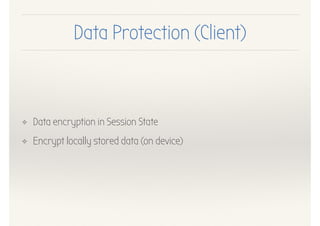

48. Data Protection (Client)
❖ Data encryption in Session State
❖ Encrypt locally stored data (on device)

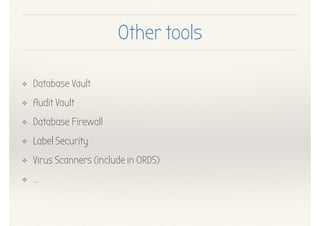

49. Other tools
❖ Database Vault
❖ Audit Vault
❖ Database Firewall
❖ Label Security
❖ Virus Scanners (include in ORDS)
❖ …

50. Q&A
www.apexRnD.be
dgielis.blogspot.com
@dgielis
dgielis@apexRnD.be

51. ❖ Looking for consulting, training and development in Oracle
Application Express (APEX)?
❖ Contact : www.apexRnD.be
❖ Mail : info@apexRnD.be
Consulting, Development, Training
