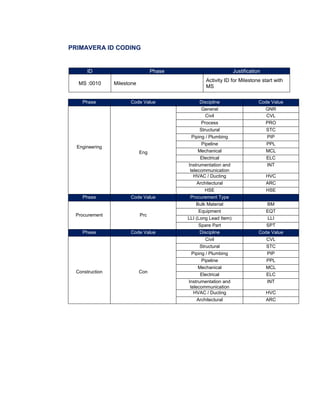

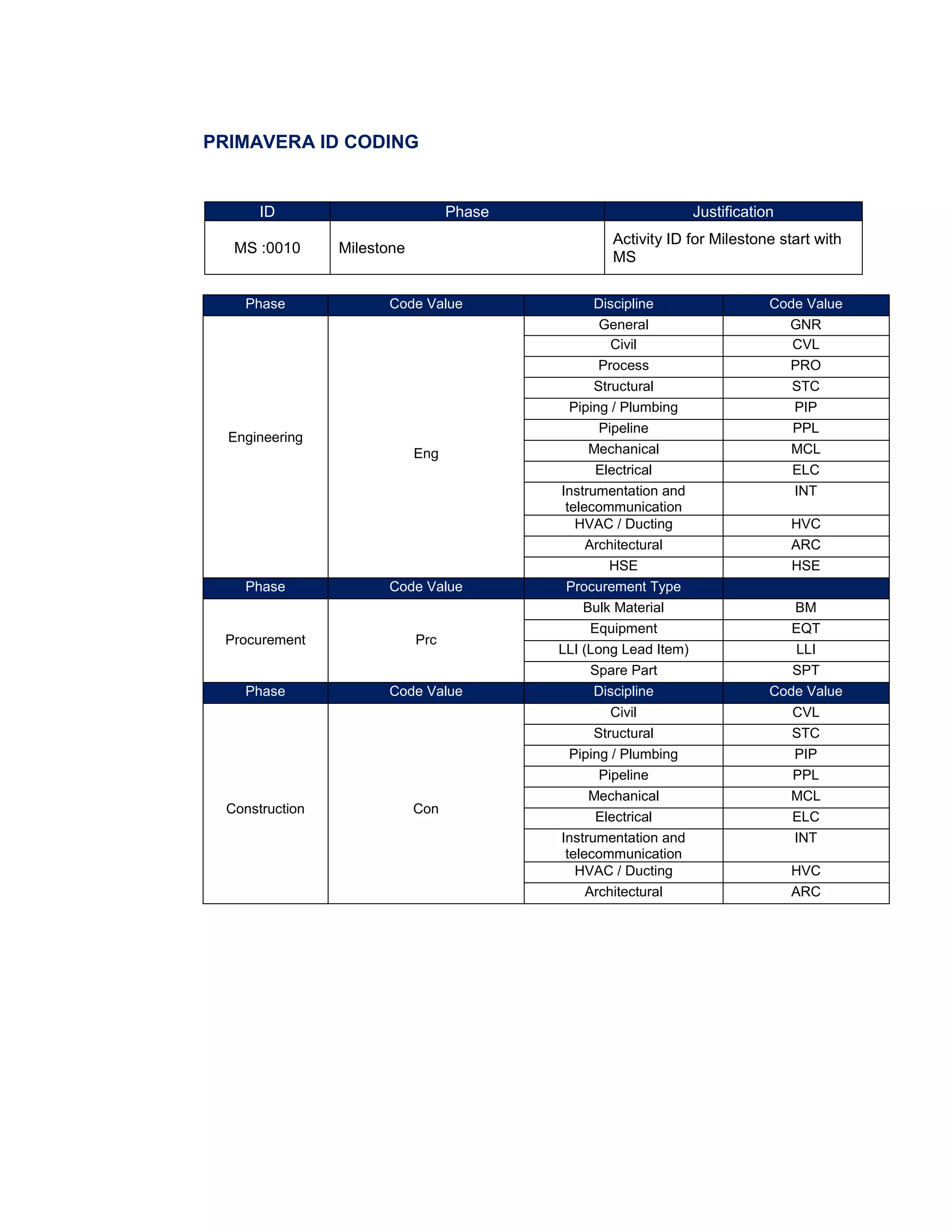

PRIMAVERA ID CODING
Phase Code Value Discipline Code Value
Engineering
Eng
General GNR
Civil CVL
Process PRO
Structural STC
Piping / Plumbing PIP
Pipeline PPL
Mechanical MCL
Electrical ELC
Instrumentation and
telecommunication
INT
HVAC / Ducting HVC
Architectural ARC
HSE HSE
Phase Code Value Procurement Type
Procurement Prc
Bulk Material BM
Equipment EQT
LLI (Long Lead Item) LLI
Spare Part SPT
Phase Code Value Discipline Code Value
Construction Con
Civil CVL
Structural STC
Piping / Plumbing PIP
Pipeline PPL
Mechanical MCL
Electrical ELC
Instrumentation and
telecommunication
INT
HVAC / Ducting HVC
Architectural ARC
ID Phase Justification
MS :0010 Milestone
Activity ID for Milestone start with
MS
Main Facility Code Value
Refinery REF
Steam Cracker Complex SCC
Petrochemical Complex PCM
Gas Processing Platform GPP
Re-gasification Terminal RGT
Co-generation Plant CGP
Metering Station MRS
Gas Compressor Station GCS
Gas Transmission Pipeline GTP
Offshore Well OSW
Central Process Platform CPP
Well Head Platform WHP
Living Quarter Platform LQP
Riser Platform RSP
Vent Platform VTP
Mobile Offshore Production Unit MOP
Floating Storage & Offloading FSO
LNG Plant LNP
Floating Production Storage &
Offloading
FPO
Floating LNG FLG
Sub-Sea Facilities SSF
Pipeline Manifold PLM
Offshore Pipeline OEP
Oil Receiving Facility ORF
Gas Receiving Facility GRF
Production Plant PRP
Water Alternating Gas WAG
Crude Oil Terminal COT
AREA Code Value
Flare FLR
Process PRS
Utility UTY
Storage STR
Off Site OFT
Jacket JKT
Topside TPS
Tripod TRP
Bridge BRG
Package Code Value
Mono-Ethylene Glycol MEG
Tri Ethylene Glycol TEG
Turbine Generator TUG
HP Compressor HPC
LP Compressor LPC
Waste Heat Recovery WHR
Cooling Water Expansion Tank CWET
Fuel Gas Heat Exchanger FGHE
Flare Tower FT
Produced Water Filter Skid PWFS
Pigging Oil Heat Exchanger POHE
Fuel Gas Scrubber FGSc
Steam Separator STS
Blowdown Separator BDS
Generator Fuel Gas
Superheater
GFGS
Cooling Tower Heat Exchanger CTHE
Seawater Strainer SWS
Cooling Tower Makeup Skid CTMS
Diesel Fuel Tank DFT
Flare KO Drum FKOD
Boiler Boil
Gas Dehydration GDHY
Primavera Activity ID coding
Example 1:
Let say we are in Procurement Phase and the package is MEG which is part of Long Lead Item
Proposed Activity ID: Proc.LLI.Meg.00010
Example 2:
Let say we are in Engineering Phase and the deliverables is for electrical
Proposed Activity ID: Eng.Elc.00010
Here are few more examples for you to enhance your Primavera ID but my
suggestion is to make use of activity code.
DETAILS ACTIVITY CODE
Engineering ENG
Procurement PRC
Construction CONS
Testing and Commissioning TNC
Installation INS
Mechanical Completion MC
Tie -in TI
Shut-Down SD
Process PROC
Piping PIPE
Mechanical MECH
Electrical ELC
Instrumentation INSTR
Civil and Structure CNS
Datasheet DS
Drawing DWG
Calculation CALC
Material Take-Off MTO
30% Model Review 30% MR
60% Model Review 60% MR
90% Model Review 90% MR
1st Deck 1DCK
2nd Deck 2DCK
3rd Deck 3DCK
Isometrics ISOM
.
