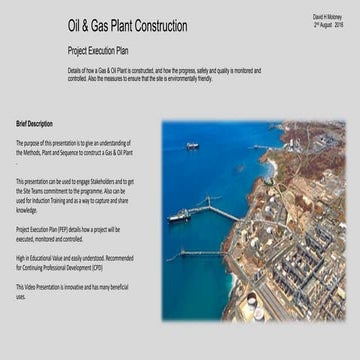

Details of how a Gas & Oil Plant is constructed, and how the progress, safety and quality is monitored and controlled. Also the measures to ensure that the site is environmentally friendly.
Piping Design Course is very Important today. Basically, Piping is the work of Providing and Maintaining the Water Supply, Replacing Pipes and Pipe Work. SEA has trained & certified more than 3000 Engineers & Individuals in last five ( 5 ) years in different engineering disciplines and various sectors which include Oil and Gas , Petrochemicals , Refineries , Power Plant , Aeronautics & Construction projects etc. SEA certification / qualification is accepted and recognized by major National & International companies in the world including India , Saudi Arabia , UAE , Kuwait , Qatar , Bahrain , Oman , Jordan , Iraq , Iran , Yemen , Nigeria , Sudan , Libya , Turkey ,Portugal, Cameroon, Congo & other countries. Our SEA certified Engineers are already working in the above said countries.
Second edition epc project rule of credit and progress measurement promoignitetribes

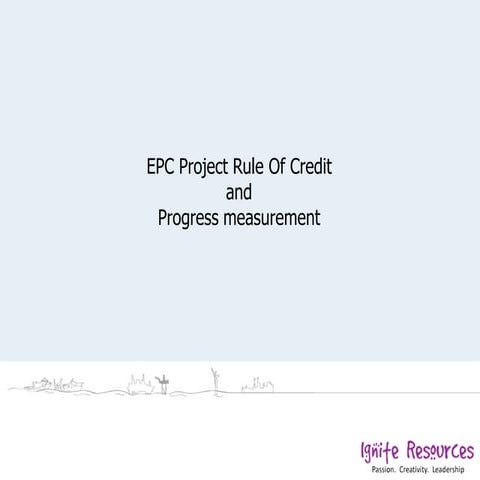

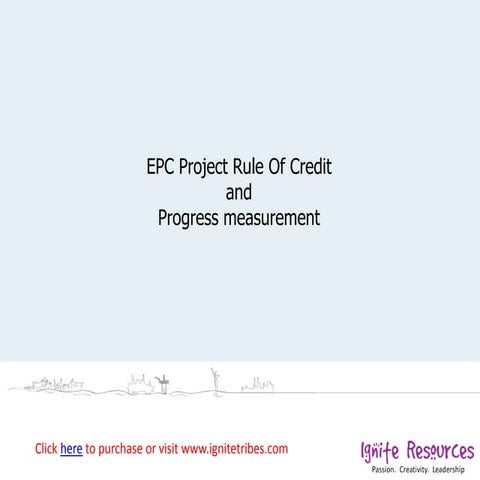

This is the second edition for project rule of credit and progress measurement which covers for Upstream,Downstream, General Construction, Skid fabrication and many more.
Oil & Gas Plant Construction, Project Execution PlanDavid H Moloney
Details of how a Gas & Oil Plant is constructed, and how the progress, safety and quality is monitored and controlled. Also the measures to ensure that the site is environmentally friendly.
Piping Design Course is very Important today. Basically, Piping is the work of Providing and Maintaining the Water Supply, Replacing Pipes and Pipe Work. SEA has trained & certified more than 3000 Engineers & Individuals in last five ( 5 ) years in different engineering disciplines and various sectors which include Oil and Gas , Petrochemicals , Refineries , Power Plant , Aeronautics & Construction projects etc. SEA certification / qualification is accepted and recognized by major National & International companies in the world including India , Saudi Arabia , UAE , Kuwait , Qatar , Bahrain , Oman , Jordan , Iraq , Iran , Yemen , Nigeria , Sudan , Libya , Turkey ,Portugal, Cameroon, Congo & other countries. Our SEA certified Engineers are already working in the above said countries.
Second edition epc project rule of credit and progress measurement promoignitetribes
This is the second edition for project rule of credit and progress measurement which covers for Upstream,Downstream, General Construction, Skid fabrication and many more.
Misalignment is probably the most common cause of machinery malfunction. A poorly aligned machine can cost a factory 20% to 30% in machine down time, replacement parts, inventory, and energy consumption. The payback from aligning machinery to extend the operating life and optimize process conditions is very large. At first glance it seems that aligning two mating shafts should be a simple process. In the real world, however, there are many complicating factors. For example, either one or both shafts may be locked or have limited rotation. One or both shafts may float axially. The machine may have a soft or sprung foot at one or more locations along with a soft and/or warped baseplate. The alignment positions may become bolt bound. Keeping in mind that acceptable final alignment is typically less than 2 mils, maintenance professionals often find it very challenging to attain proper alignments.
The Ultimate Tool for Teaching Shaft Alignment

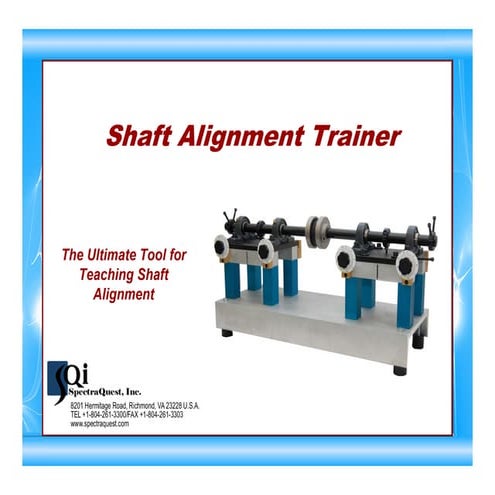

SpectraQuest’s Shaft Alignment Trainer (SAT) is the most comprehensive device on the market for shaft alignment training. It is designed for studying a wide variety of problems that can arise when two shafts are misaligned. It is a hands-on trainer for maintenance professionals. It provides a unique mechanism for studying soft and sprung foot. It is a realistic simulator with a one inch diameter shaft that fits standard couplings. Its modular design facilitates simulation of multiple element drive trains. The SAT is available in a two train and in a three train configuration. Each SAT incorporates two fully adjustable modular units featuring horizontal jack bolts, calibrated and reference dials, and replaceable feet. The three train SAT adds a fixed module which simulates a non-adjustable machine, but, the shaft can be offset and axially floated.

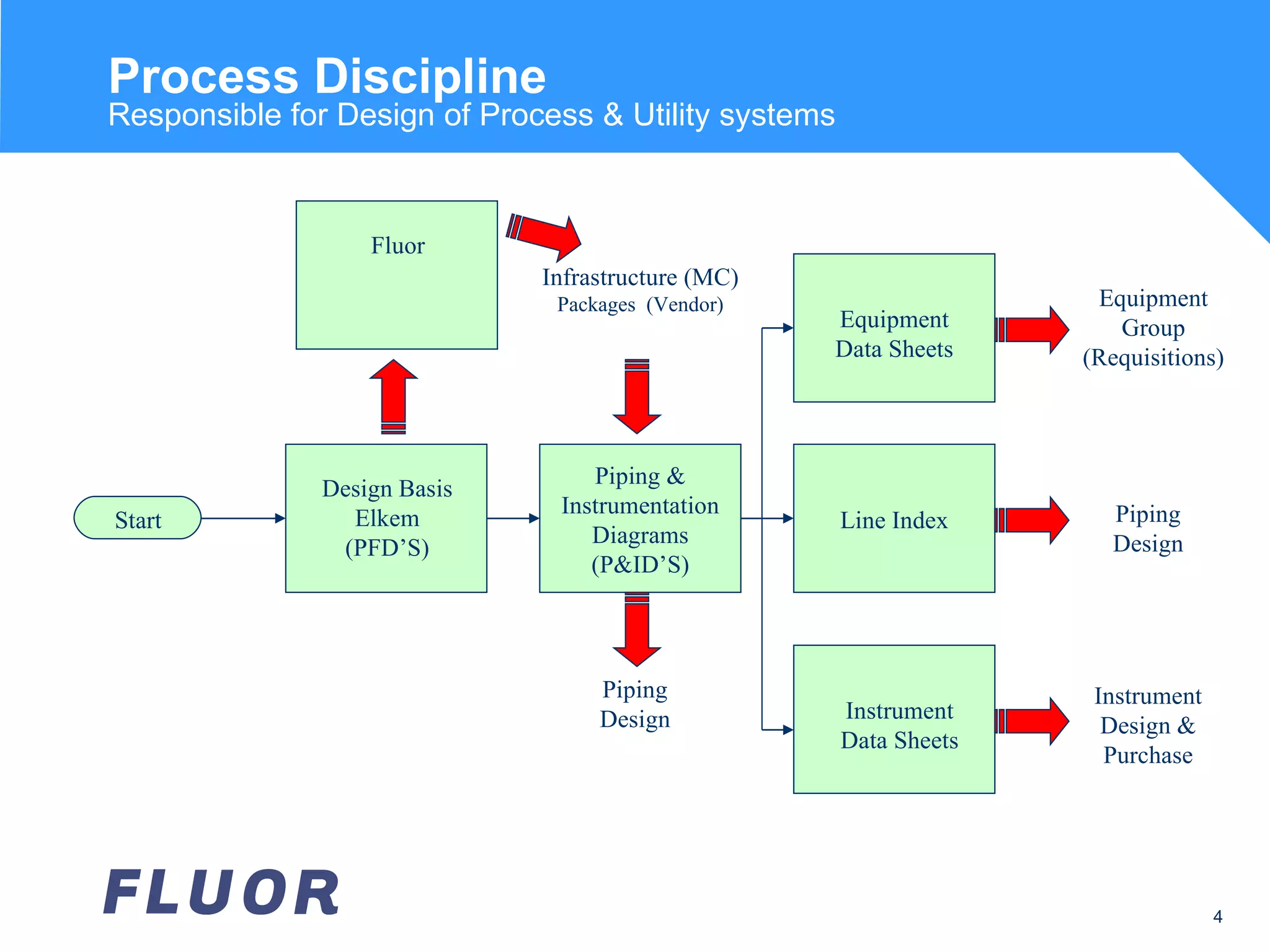

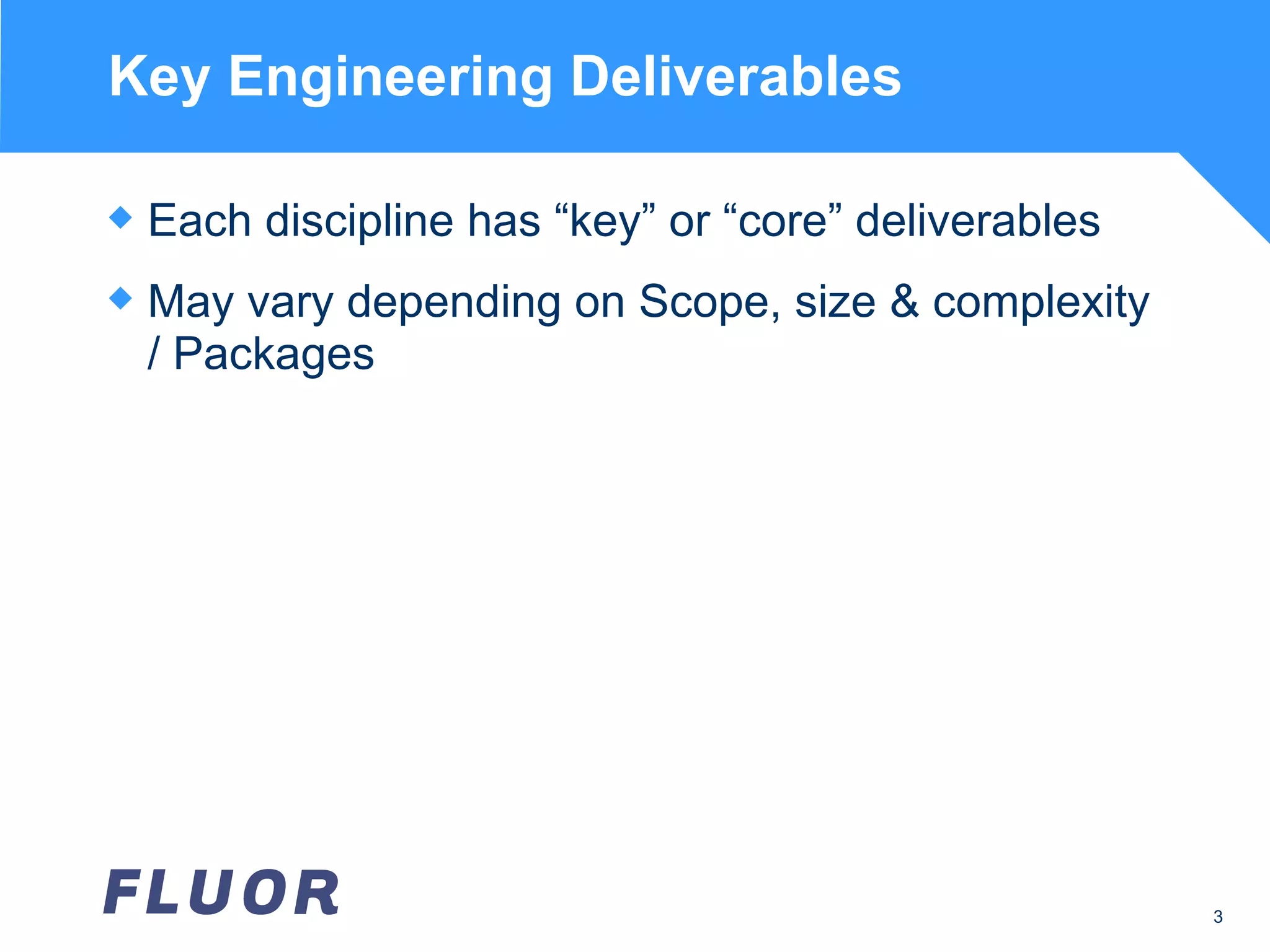

4. Process Discipline Responsible for Design of Process & Utility systems Piping Design Equipment Group (Requisitions) Piping Design Instrument Design & Purchase Infrastructure (MC) Packages (Vendor) Design Basis Elkem (PFD’S) Start Piping & Instrumentation Diagrams (P&ID’S) Line Index Instrument Data Sheets Equipment Data Sheets Fluor

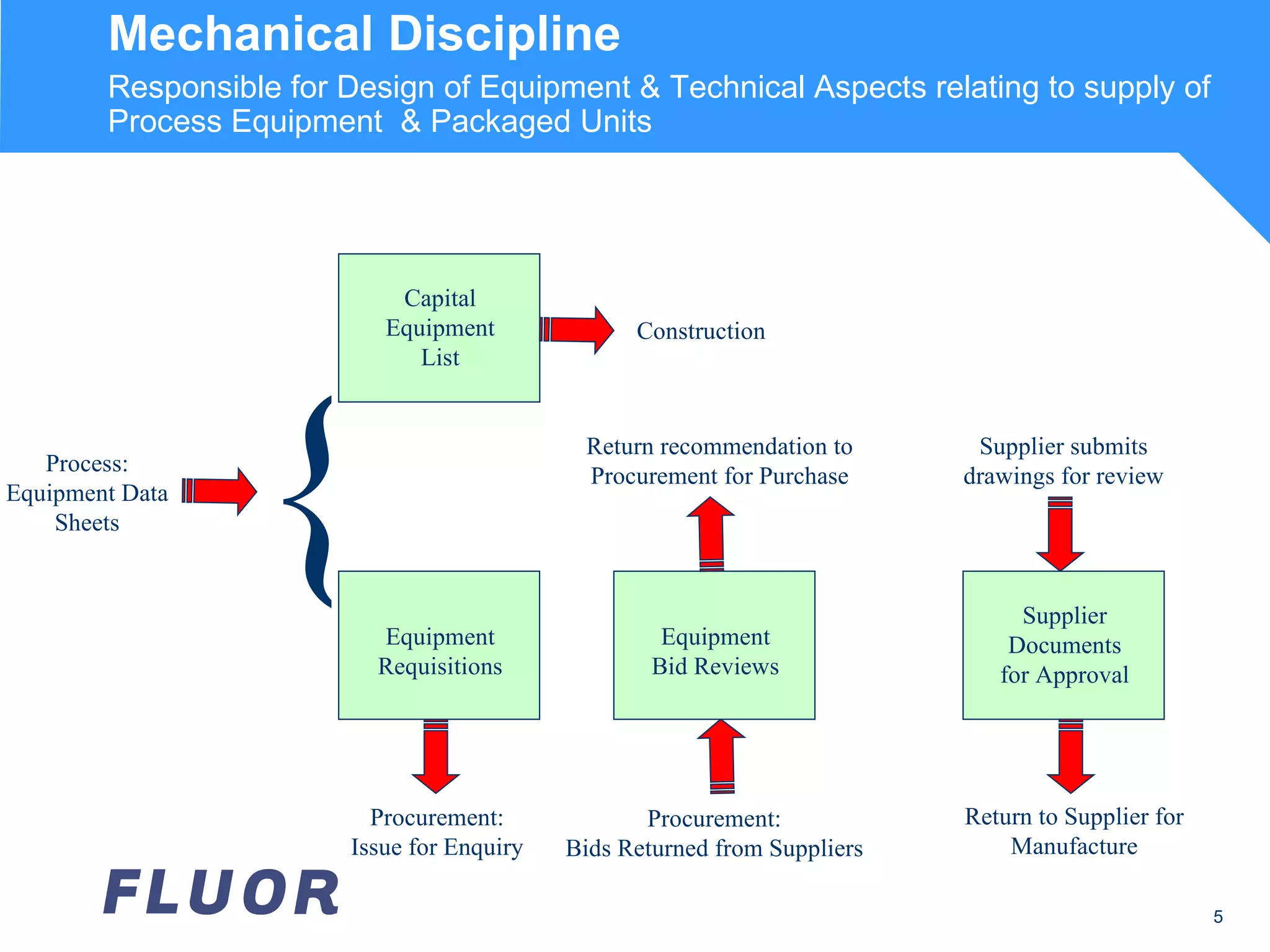

5. Mechanical Discipline Responsible for Design of Equipment & Technical Aspects relating to supply of Process Equipment & Packaged Units Process: Equipment Data Sheets { Procurement: Issue for Enquiry Procurement: Bids Returned from Suppliers Return recommendation to Procurement for Purchase Return to Supplier for Manufacture Supplier submits drawings for review Construction Capital Equipment List Equipment Requisitions Equipment Bid Reviews Supplier Documents for Approval

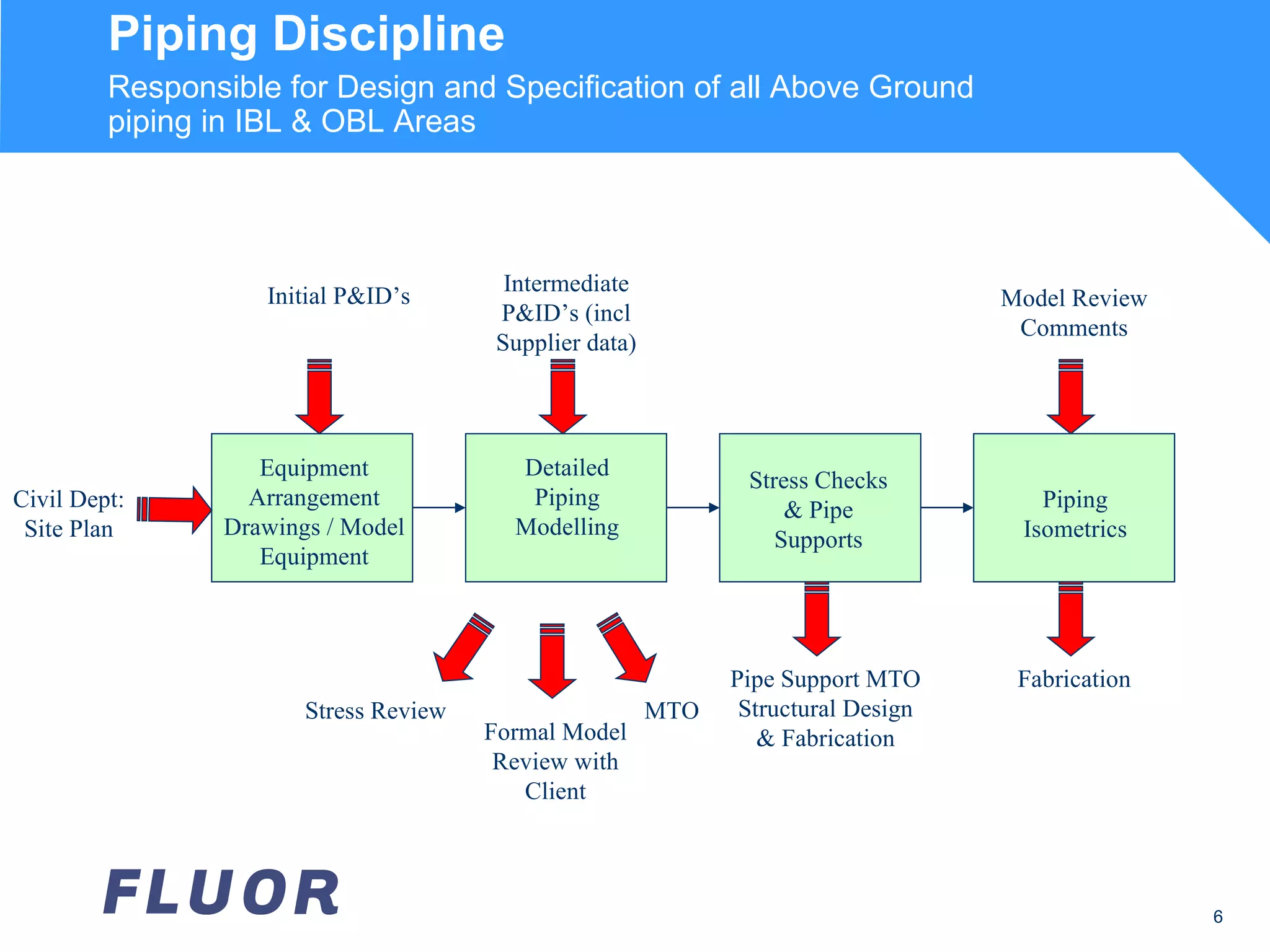

6. Piping Discipline Responsible for Design and Specification of all Above Ground piping in IBL & OBL Areas Civil Dept: Site Plan Intermediate P&ID’s (incl Supplier data) Initial P&ID’s Formal Model Review with Client Model Review Comments Stress Review Fabrication MTO Pipe Support MTO Structural Design & Fabrication Equipment Arrangement Drawings / Model Equipment Detailed Piping Modelling Piping Isometrics Stress Checks & Pipe Supports

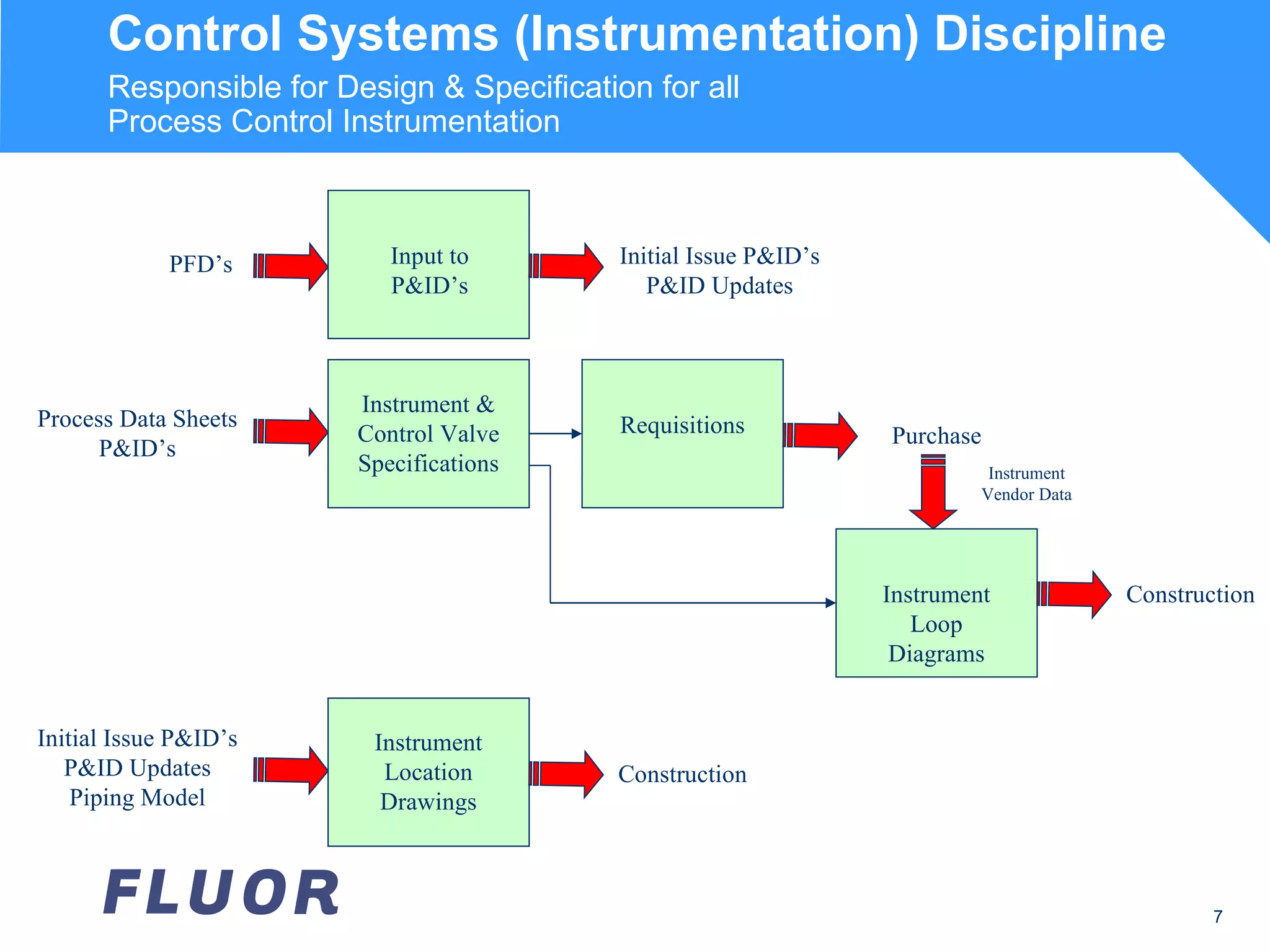

7. Control Systems (Instrumentation) Discipline Responsible for Design & Specification for all Process Control Instrumentation PFD’s Initial Issue P&ID’s P&ID Updates Construction Purchase Initial Issue P&ID’s P&ID Updates Piping Model Process Data Sheets P&ID’s Instrument Vendor Data Construction Instrument Location Drawings Input to P&ID’s Instrument & Control Valve Specifications Requisitions Instrument Loop Diagrams

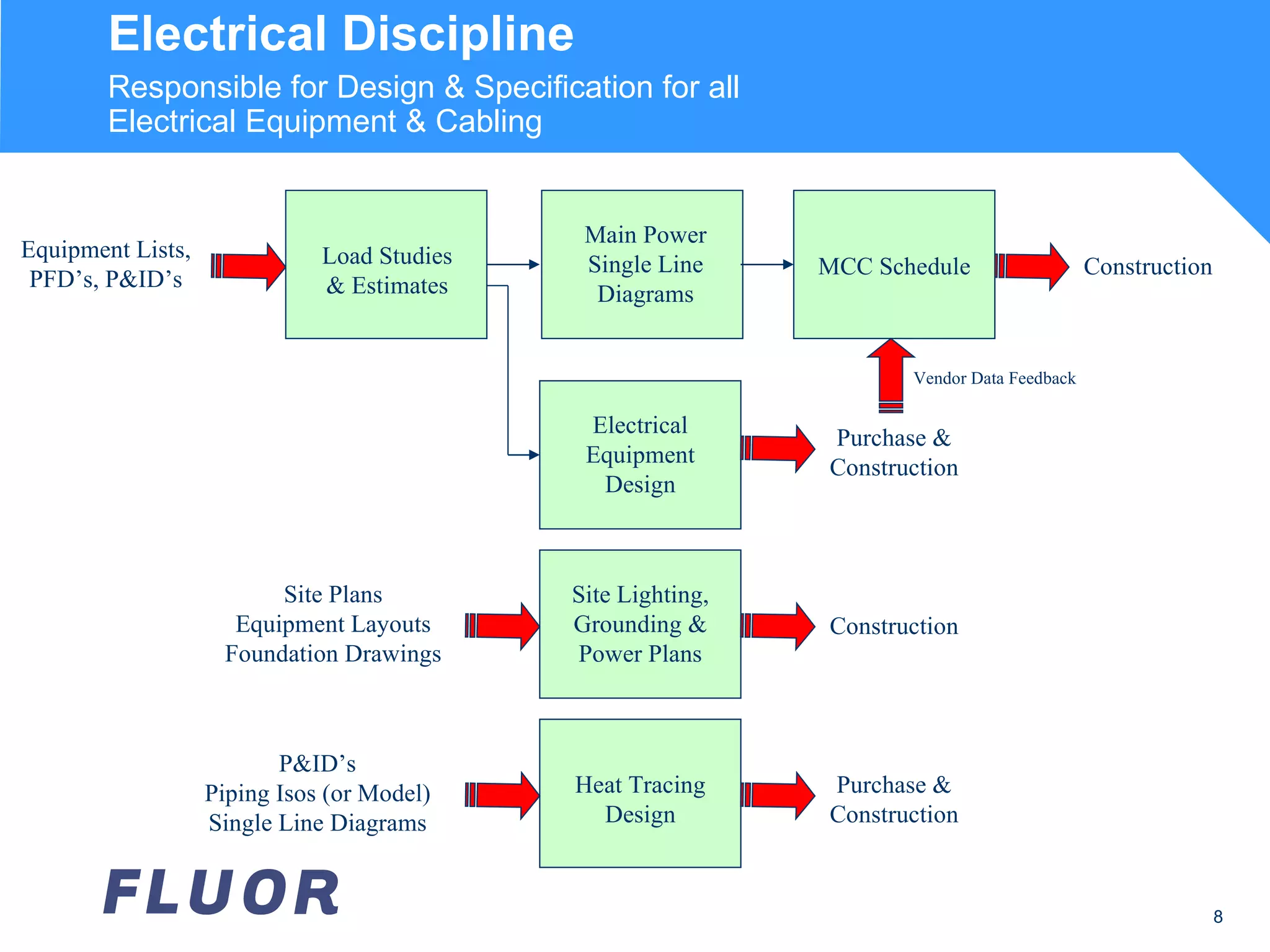

8. Electrical Discipline Responsible for Design & Specification for all Electrical Equipment & Cabling Equipment Lists, PFD’s, P&ID’s Purchase & Construction Construction Site Plans Equipment Layouts Foundation Drawings Construction Purchase & Construction P&ID’s Piping Isos (or Model) Single Line Diagrams Vendor Data Feedback Electrical Equipment Design Load Studies & Estimates Main Power Single Line Diagrams MCC Schedule Site Lighting, Grounding & Power Plans Heat Tracing Design

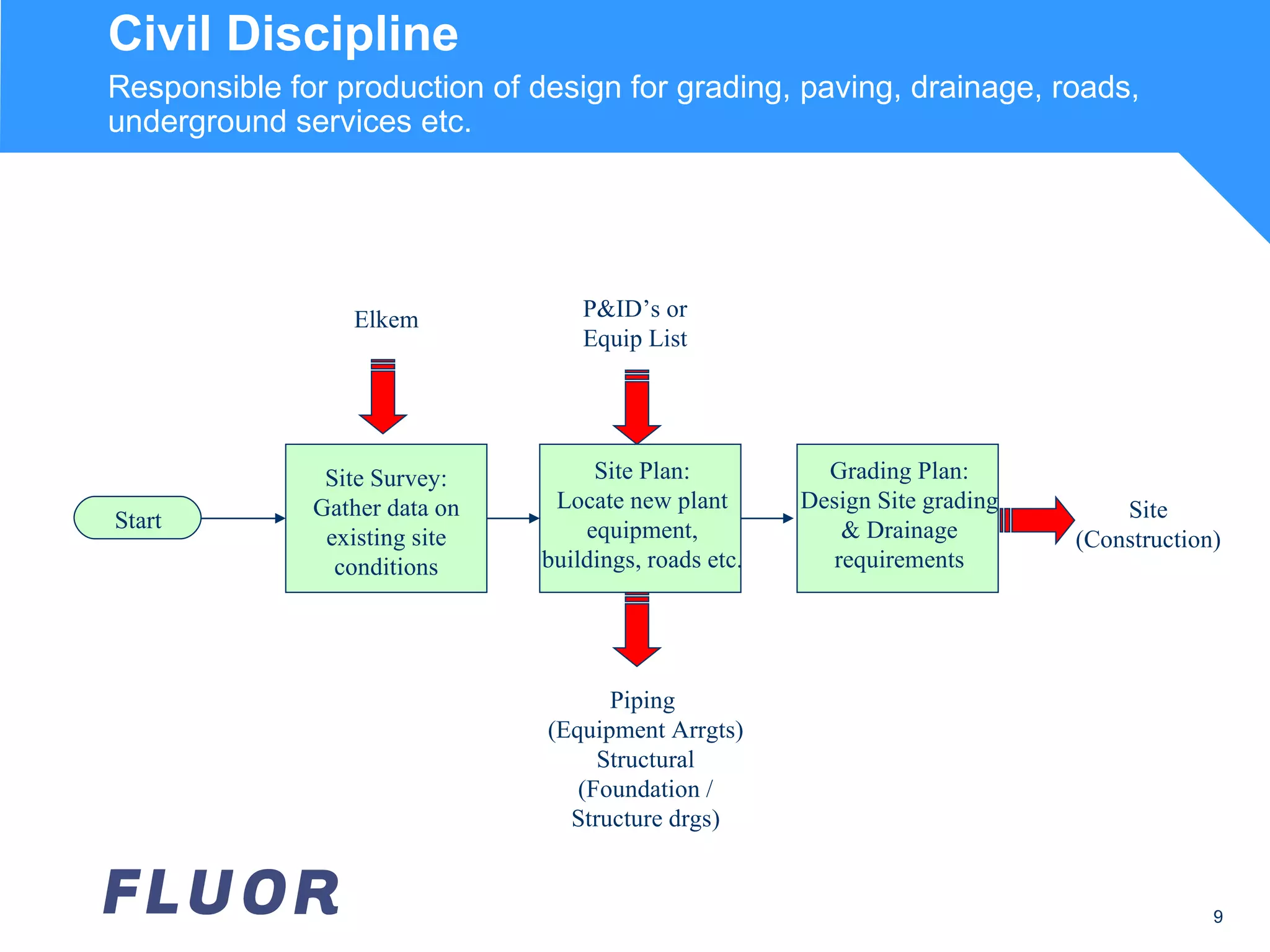

9. Civil Discipline Responsible for production of design for grading, paving, drainage, roads, underground services etc. P&ID’s or Equip List Site (Construction) Piping (Equipment Arrgts) Structural (Foundation / Structure drgs) Elkem Site Survey: Gather data on existing site conditions Start Site Plan: Locate new plant equipment, buildings, roads etc. Grading Plan: Design Site grading & Drainage requirements

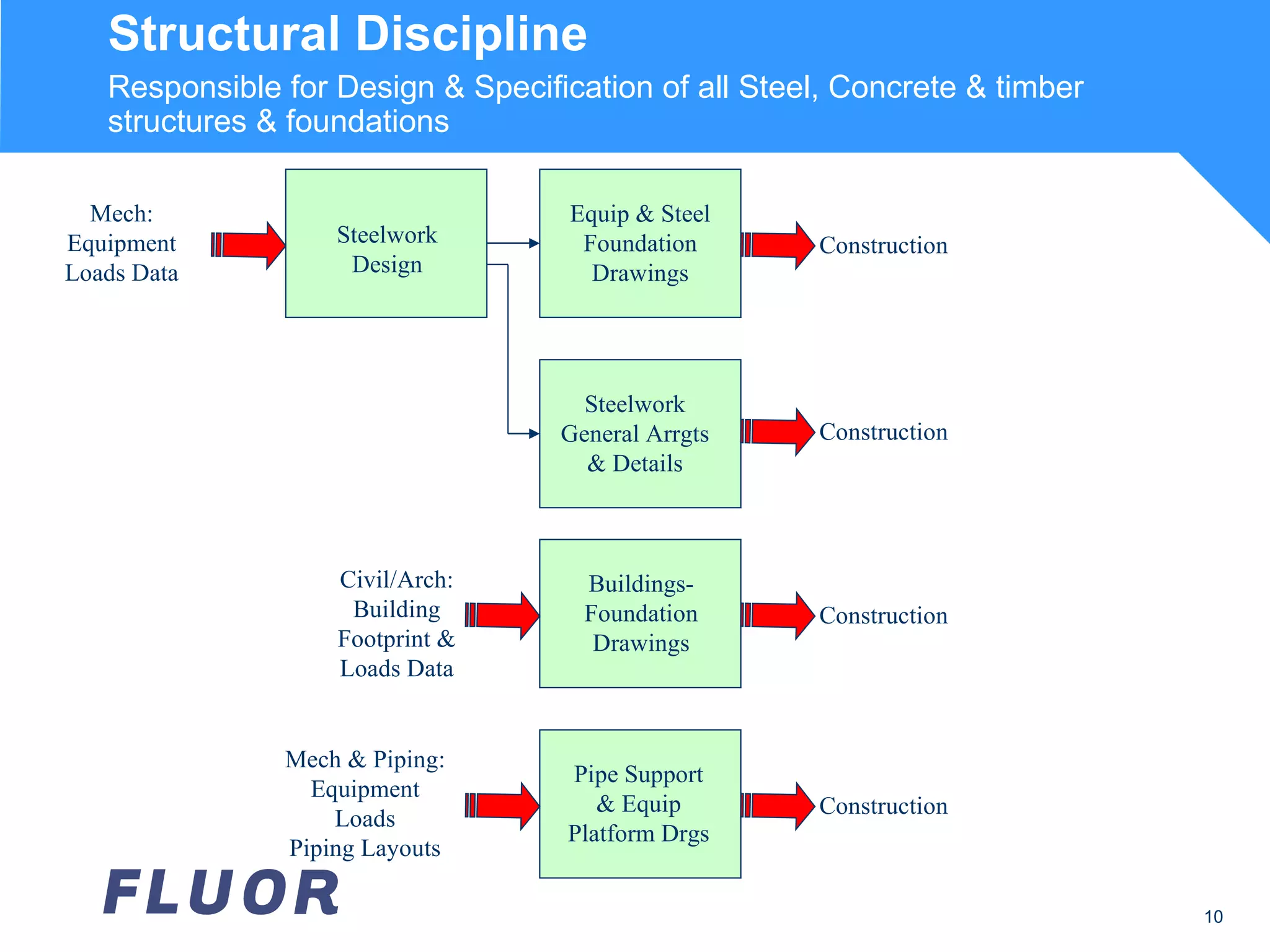

10. Structural Discipline Responsible for Design & Specification of all Steel, Concrete & timber structures & foundations Mech: Equipment Loads Data Construction Civil/Arch: Building Footprint & Loads Data Construction Construction Mech & Piping: Equipment Loads Piping Layouts Construction Buildings- Foundation Drawings Equip & Steel Foundation Drawings Steelwork Design Steelwork General Arrgts & Details Pipe Support & Equip Platform Drgs
