Preventing Drupal Headaches: Establishing Flexible File Paths From The Start
This document discusses best practices for managing file paths in Drupal to prevent performance issues and headaches down the road. It recommends using date-based file paths from the start to facilitate maintenance and migrations. It covers Drupal's default file handling, optimizing file upload settings, using private file directories, and future-proof modules like Media that can provide more flexible file management. The key message is that following good file path conventions early on can save significant headaches later.
More Related Content
Similar to Preventing Drupal Headaches: Establishing Flexible File Paths From The Start
Preventing Drupal Headaches: Establishing Flexible File Paths From The Start
- 1. Prevent Drupal Headaches FLEXIBLEFILE PATHS FROM THE START Wednesday, January 15, 14

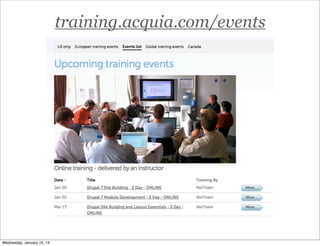

- 2.
- 3. Who is thisfor? • • New to Drupal? • Inherited a new Drupal site and want to know more about configuration Starting a new Drupal site! Wednesday, January 15, 14
- 4. In this demo • Howfile path patterns affect maintenance and migrations • File upload management • Future friendly path patterns Wednesday, January 15, 14
- 5. Source of thepain? • Drupal default file field upload pops ALL files into the same directory • Often overlooked by developers • Significant performance impact • • Easy to prevent! ...not easy to fix! Wednesday, January 15, 14

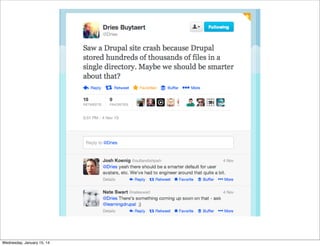

- 6.

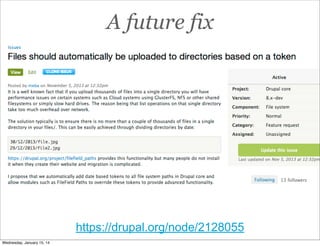

- 7. A future fix https://drupal.org/node/2128055 Wednesday,January 15, 14

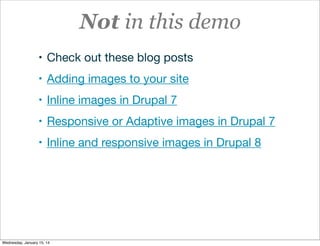

- 8. Not in thisdemo • Check out these blog posts • Adding images to your site • Inline images in Drupal 7 • Responsive or Adaptive images in Drupal 7 • Inline and responsive images in Drupal 8 Wednesday, January 15, 14

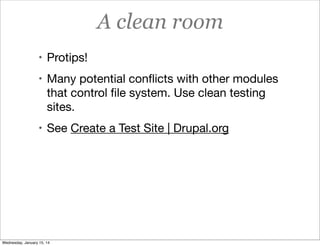

- 9. A clean room •Protips! • Many potential conflicts with other modules that control file system. Use clean testing sites. • See Create a Test Site | Drupal.org Wednesday, January 15, 14
- 10. Getting to gripwith the basics Out of the box file handling Wednesday, January 15, 14
- 11. Basic settings • Global settings • • • Displayoptions Upload destination Per content type settings • • • • • • • • Required? Help text Allowed extensions File directory Upload size Description field Progress indicator Number of values Wednesday, January 15, 14

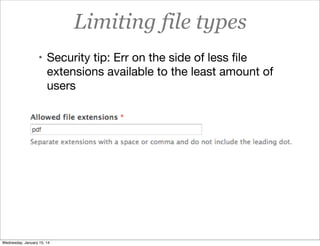

- 12. Limiting file types •Security tip: Err on the side of less file extensions available to the least amount of users Wednesday, January 15, 14

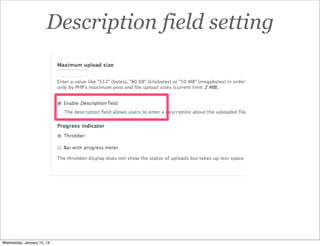

- 13. Description field setting Wednesday,January 15, 14

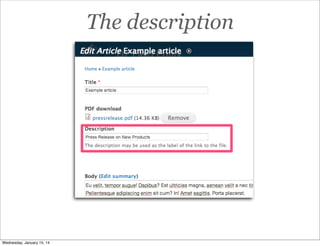

- 14.

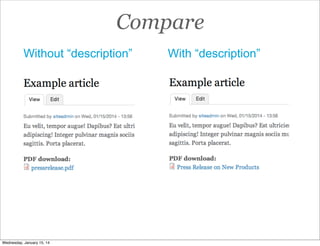

- 15. Compare Without “description” Wednesday, January15, 14 With “description”
- 16. The “display” option Displayenabled Wednesday, January 15, 14 Display disabled
- 17. Manage field display Wednesday,January 15, 14

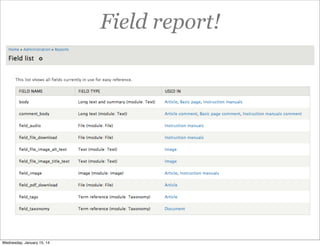

- 18.

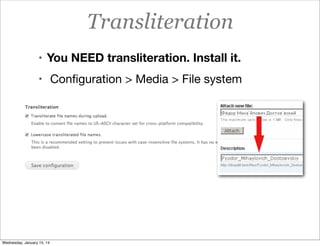

- 19. Transliteration • You NEEDtransliteration. Install it. • Configuration > Media > File system • Wednesday, January 15, 14

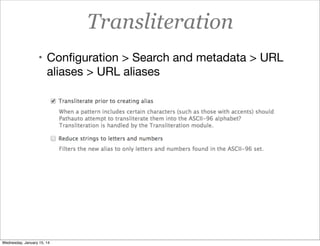

- 20. Transliteration • Configuration >Search and metadata > URL aliases > URL aliases Wednesday, January 15, 14

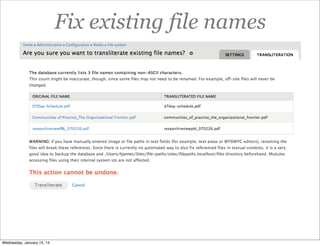

- 21. Fix existing filenames Wednesday, January 15, 14

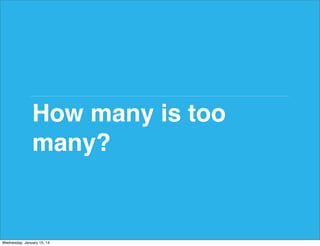

- 22. How many istoo many? Wednesday, January 15, 14

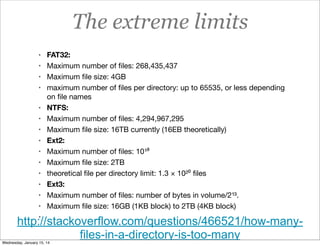

- 23. The extreme limits •FAT32: • Maximum number of files: 268,435,437 • Maximum file size: 4GB • maximum number of files per directory: up to 65535, or less depending • • • • • • • • • • on file names NTFS: Maximum number of files: 4,294,967,295 Maximum file size: 16TB currently (16EB theoretically) Ext2: Maximum number of files: 10¹⁸ Maximum file size: 2TB theoretical file per directory limit: 1.3 × 10²⁰ files Ext3: Maximum number of files: number of bytes in volume/2¹³. Maximum file size: 16GB (1KB block) to 2TB (4KB block) • http://stackoverflow.com/questions/466521/how-manyfiles-in-a-directory-is-too-many Wednesday, January 15, 14

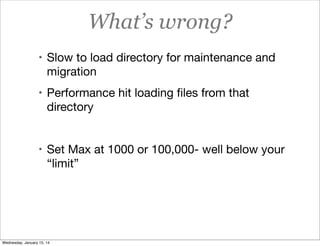

- 24. What’s wrong? • Slowto load directory for maintenance and migration • Performance hit loading files from that directory • Set Max at 1000 or 100,000- well below your “limit” Wednesday, January 15, 14
- 25. File path patterns Wednesday,January 15, 14

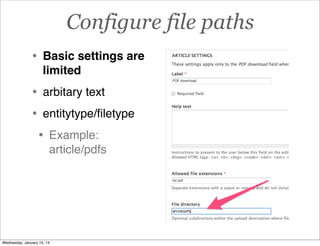

- 26. Configure file paths • Basicsettings are limited • • arbitary text entitytype/filetype • Example: article/pdfs Wednesday, January 15, 14

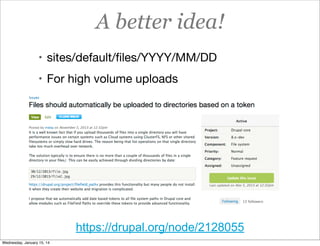

- 27. A better idea! •sites/default/files/YYYY/MM/DD • For high volume uploads https://drupal.org/node/2128055 Wednesday, January 15, 14
- 28. Token for filedirectory! • Set to date Wednesday, January 15, 14

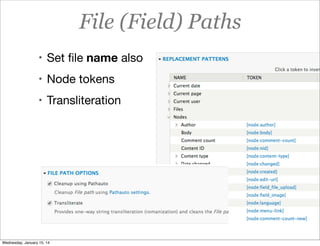

- 29. File (Field) Paths •Set file name also • Node tokens • Transliteration Wednesday, January 15, 14

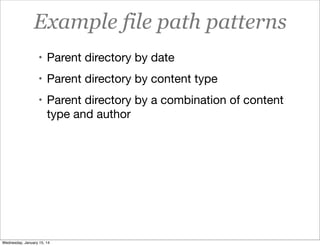

- 30. Example file pathpatterns • Parent directory by date • Parent directory by content type • Parent directory by a combination of content type and author Wednesday, January 15, 14

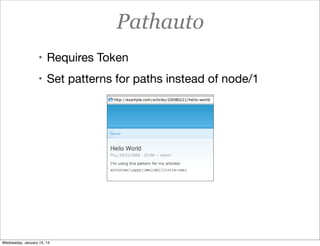

- 31. Pathauto • Requires Token •Set patterns for paths instead of node/1 Wednesday, January 15, 14
- 32. Private and public files Wednesday,January 15, 14

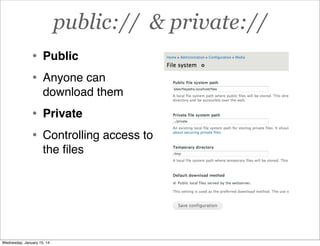

- 33. public:// & private:// • • Public • • Private Anyonecan download them Controlling access to the files Wednesday, January 15, 14

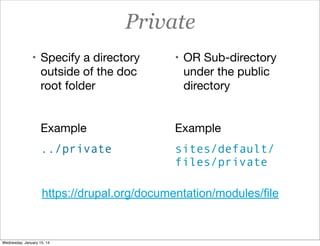

- 34. Private • Specify adirectory • OR Sub-directory outside of the doc root folder under the public directory Example Example ../private sites/default/ files/private https://drupal.org/documentation/modules/file Wednesday, January 15, 14
- 35. Private directory • Createthe private directory at same level as root folder • Configuration > Media > File system • Set file system path • System creates .htaccess file Wednesday, January 15, 14
- 36. Choose default option •Configuration > Media > File system • Choose default method Wednesday, January 15, 14

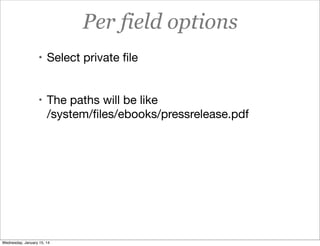

- 37. Per field options •Select private file • The paths will be like /system/files/ebooks/pressrelease.pdf Wednesday, January 15, 14

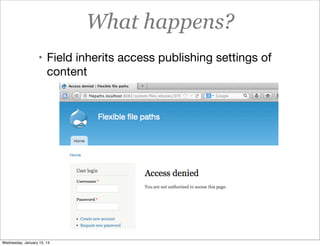

- 38. What happens? • Fieldinherits access publishing settings of content Wednesday, January 15, 14

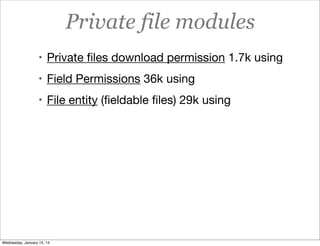

- 39. Private file modules •Private files download permission 1.7k using • Field Permissions 36k using • File entity (fieldable files) 29k using Wednesday, January 15, 14
- 40. More complex file handlingneeded? Wednesday, January 15, 14

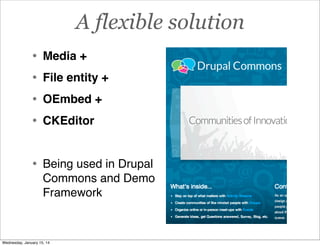

- 41. A flexible solution • • • • Media+ • Being used in Drupal Commons and Demo Framework File entity + OEmbed + CKEditor Wednesday, January 15, 14
- 42. Demo Framework • Agood example of media configuration • http://drupal.org/project/df Wednesday, January 15, 14
- 43.

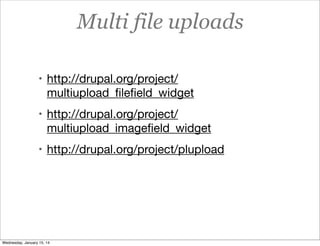

- 44. Multi file uploads •http://drupal.org/project/ multiupload_filefield_widget • http://drupal.org/project/ multiupload_imagefield_widget • http://drupal.org/project/plupload Wednesday, January 15, 14
- 45.

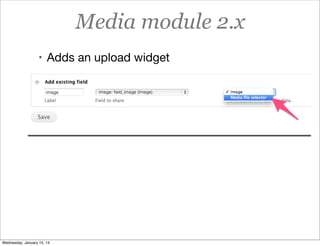

- 46. Media module 2.x •Adds an upload widget Wednesday, January 15, 14
- 47. File entity • Fileentity (fieldable files) • Add fields to files, group, add display modes, use Token • Working on getting this into D8 • Documentation at drupal.org/node/1591498 Wednesday, January 15, 14

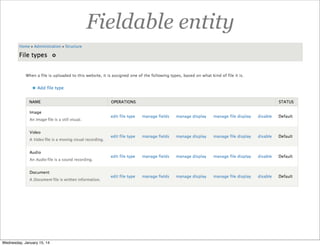

- 48.

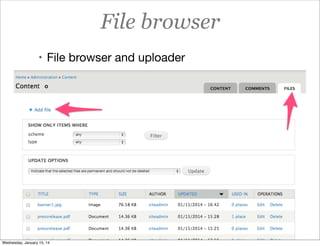

- 49. File browser • Filebrowser and uploader Wednesday, January 15, 14

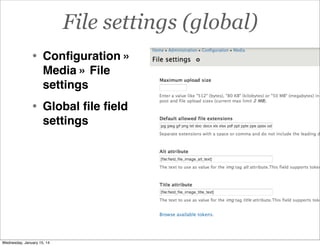

- 50. File settings (global) • Configuration» Media » File settings • Global file field settings Wednesday, January 15, 14

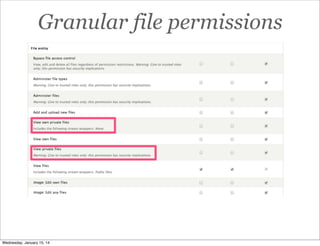

- 51. Granular file permissions Wednesday,January 15, 14

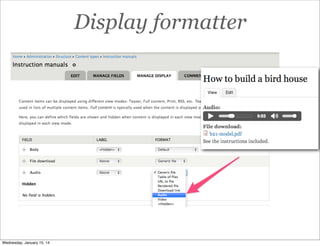

- 52.

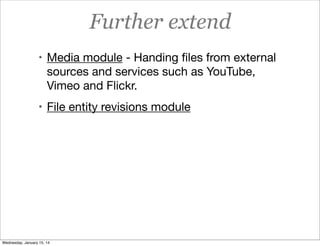

- 53. Further extend • Mediamodule - Handing files from external sources and services such as YouTube, Vimeo and Flickr. • File entity revisions module Wednesday, January 15, 14

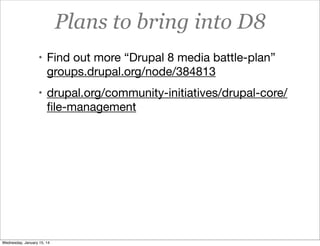

- 54. Plans to bringinto D8 • Find out more “Drupal 8 media battle-plan” groups.drupal.org/node/384813 • drupal.org/community-initiatives/drupal-core/ file-management Wednesday, January 15, 14

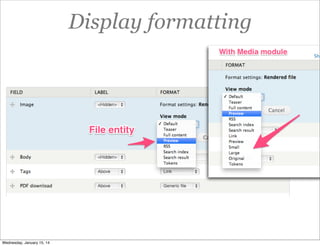

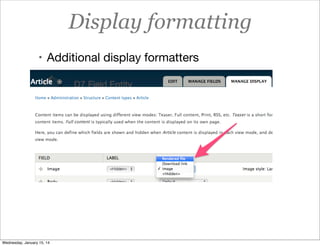

- 55. Display formatting • Additionaldisplay formatters Wednesday, January 15, 14
- 56.

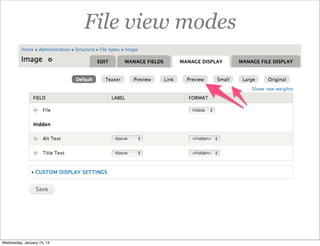

- 57. File view modes Wednesday,January 15, 14
- 58. Fix it? HALP! Wednesday,January 15, 14
- 59. Remediation • Move filesto new directories • Recreate all the files using your new tokens • If you embed “inline” files/images, you’d have to write a script to find and replace. • Public files are easier. • Drupal handled files are easier. • Example: Media is embedding a file ID. Wednesday, January 15, 14

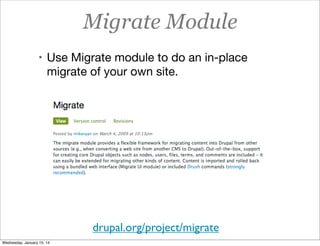

- 60. Migrate Module • UseMigrate module to do an in-place migrate of your own site. drupal.org/project/migrate Wednesday, January 15, 14

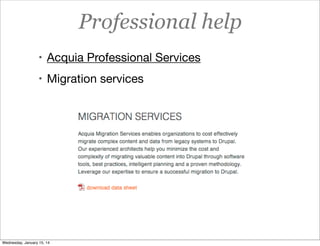

- 61. Professional help • AcquiaProfessional Services • Migration services Wednesday, January 15, 14
