Bootstrap4 x pages
This document provides an introduction and overview of the Bootstrap4XPages project, which brings the popular Bootstrap front-end framework to XPages applications. It discusses consuming the library by enabling the required libraries and themes. Contributors can extend the project by writing custom renderers, themes, and components. The goals of the project are to make Bootstrap easily consumable in XPages with minimal work, provide a ready-made responsive design template, and foster an active community around the library.
![[DanNotes] XPages - Beyound the Basics](https://cdn.slidesharecdn.com/ss_thumbnails/dannotes052012-beyondthebasics-120430052622-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Bootstrap4 x pages
- 1. 1 Bootstrap4XPages Bring the Bootstraplibrary to XPages

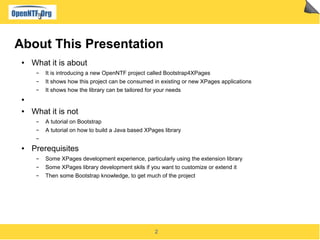

- 2. 2 About This Presentation ●What it is about ▬ It is introducing a new OpenNTF project called Bootstrap4XPages ▬ It shows how this project can be consumed in existing or new XPages applications ▬ It shows how the library can be tailored for your needs ● ● What it is not ▬ A tutorial on Bootstrap ▬ A tutorial on how to build a Java based XPages library ▬ ● Prerequisites ▬ Some XPages development experience, particularly using the extension library ▬ Some XPages library development skils if you want to customize or extend it ▬ Then some Bootstrap knowledge, to get much of the project

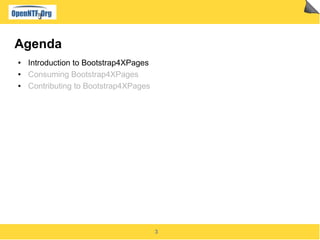

- 3. 3 Agenda ● Introduction toBootstrap4XPages ● Consuming Bootstrap4XPages ● Contributing to Bootstrap4XPages
- 4. 4 What is Bootstrap? ●It is a set of user interface elements available to web applications ▬ User interface elements ▬ Carefully crafted CSS styles for typography, navigation, common controls (buttons, edit boxes...) ▬ Layouts, Grids ▬ Responsive design, providing the best viewing experience across devices of various sizes ▬ JavaScript components (set of jQuery plug-ins for user interaction) ▬ Tabs, dialog boxes, tooltips, drop down buttons/menus... ▬ ● Very, very, very popular in the web developers community ▬ ● Empowering front-end developers to kickstart projects more efficiently and effectively ▬ Ready to use for great looking applications ▬ Features many add-ons, available freely or for a fee, providing highly customized UI ▬ ● Available for free here: http://getbootstrap.com/

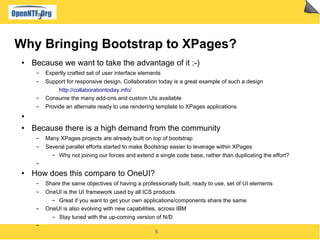

- 5. 5 Why Bringing Bootstrapto XPages? ● Because we want to take the advantage of it :-) ▬ Expertly crafted set of user interface elements ▬ Support for responsive design, Collaboration today is a great example of such a design http://collaborationtoday.info/ ▬ Consume the many add-ons and custom UIs available ▬ Provide an alternate ready to use rendering template to XPages applications ● ● Because there is a high demand from the community ▬ Many XPages projects are already built on top of bootstrap ▬ Several parallel efforts started to make Bootstrap easier to leverage within XPages ▬ Why not joining our forces and extend a single code base, rather than duplicating the effort? ▬ ● How does this compare to OneUI? ▬ Share the same objectives of having a professionally built, ready to use, set of UI elements ▬ OneUI is the UI framework used by all ICS products ▬ Great if you want to get your own applications/components share the same ▬ OneUI is also evolving with new capabilities, across IBM ▬ Stay tuned with the up-coming version of N/D ▬

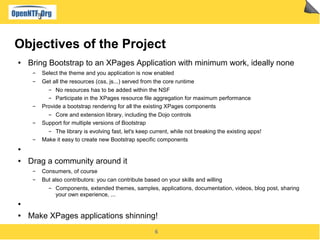

- 6. 6 Objectives of theProject ● Bring Bootstrap to an XPages Application with minimum work, ideally none ▬ Select the theme and you application is now enabled ▬ Get all the resources (css, js...) served from the core runtime ▬ No resources has to be added within the NSF ▬ Participate in the XPages resource file aggregation for maximum performance ▬ Provide a bootstrap rendering for all the existing XPages components ▬ Core and extension library, including the Dojo controls ▬ Support for multiple versions of Bootstrap ▬ The library is evolving fast, let's keep current, while not breaking the existing apps! ▬ Make it easy to create new Bootstrap specific components ● ● Drag a community around it ▬ Consumers, of course ▬ But also contributors: you can contribute based on your skills and willing ▬ Components, extended themes, samples, applications, documentation, videos, blog post, sharing your own experience, ... ● ● Make XPages applications shinning!

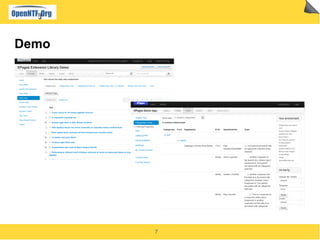

- 7.

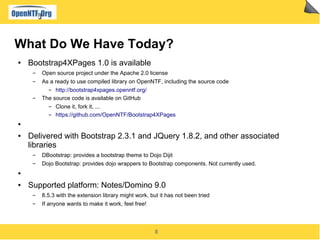

- 8. 8 What Do WeHave Today? ● Bootstrap4XPages 1.0 is available ▬ Open source project under the Apache 2.0 license ▬ As a ready to use compiled library on OpenNTF, including the source code ▬ http://bootstrap4xpages.openntf.org/ ▬ The source code is available on GitHub ▬ Clone it, fork it, ... ▬ https://github.com/OpenNTF/Bootstrap4XPages ● ● Delivered with Bootstrap 2.3.1 and JQuery 1.8.2, and other associated libraries ▬ DBootstrap: provides a bootstrap theme to Dojo Dijit ▬ Dojo Bootstrap: provides dojo wrappers to Bootstrap components. Not currently used. ● ● Supported platform: Notes/Domino 9.0 ▬ 8.5.3 with the extension library might work, but it has not been tried ▬ If anyone wants to make it work, feel free!
- 9. 9 Agenda ● Introduction toBootstrap4XPages ● Consuming Bootstrap4XPages ● Contributing to Bootstrap4XPages

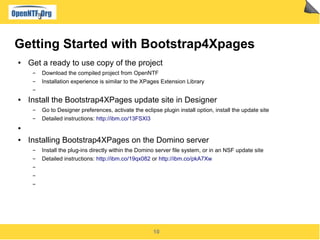

- 10. 10 Getting Started withBootstrap4Xpages ● Get a ready to use copy of the project ▬ Download the compiled project from OpenNTF ▬ Installation experience is similar to the XPages Extension Library ▬ ● Install the Bootstrap4XPages update site in Designer ▬ Go to Designer preferences, activate the eclipse plugin install option, install the update site ▬ Detailed instructions: http://ibm.co/13FSXl3 ● ● Installing Bootstrap4XPages on the Domino server ▬ Install the plug-ins directly within the Domino server file system, or in an NSF update site ▬ Detailed instructions: http://ibm.co/19qx082 or http://ibm.co/pkA7Xw ▬ ▬ ▬

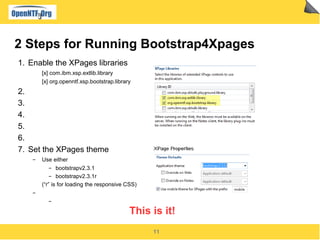

- 11. 11 2 Steps forRunning Bootstrap4Xpages 1. Enable the XPages libraries [x] com.ibm.xsp.extlib.library [x] org.openntf.xsp.bootstrap.library 2. 3. 4. 5. 6. 7. Set the XPages theme ▬ Use either ▬ bootstrapv2.3.1 ▬ bootstrapv2.3.1r (“r” is for loading the responsive CSS) ▬ ▬ This is it!

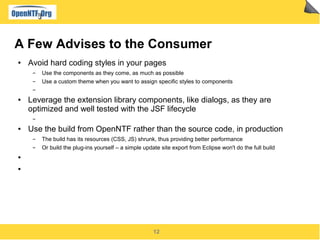

- 12. 12 A Few Advisesto the Consumer ● Avoid hard coding styles in your pages ▬ Use the components as they come, as much as possible ▬ Use a custom theme when you want to assign specific styles to components ▬ ● Leverage the extension library components, like dialogs, as they are optimized and well tested with the JSF lifecycle ▬ ● Use the build from OpenNTF rather than the source code, in production ▬ The build has its resources (CSS, JS) shrunk, thus providing better performance ▬ Or build the plug-ins yourself – a simple update site export from Eclipse won't do the full build ● ●

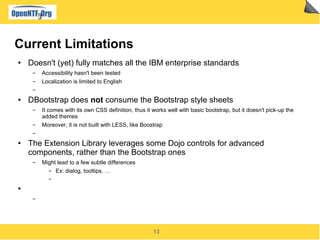

- 13. 13 Current Limitations ● Doesn't(yet) fully matches all the IBM enterprise standards ▬ Accessibility hasn't been tested ▬ Localization is limited to English ▬ ● DBootstrap does not consume the Bootstrap style sheets ▬ It comes with its own CSS definition, thus it works well with basic bootstrap, but it doesn't pick-up the added themes ▬ Moreover, it is not built with LESS, like Boostrap ▬ ● The Extension Library leverages some Dojo controls for advanced components, rather than the Bootstrap ones ▬ Might lead to a few subtle differences ▬ Ex: dialog, tooltips, … ▬ ● ▬

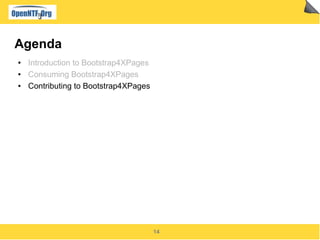

- 14. 14 Agenda ● Introduction toBootstrap4XPages ● Consuming Bootstrap4XPages ● Contributing to Bootstrap4XPages

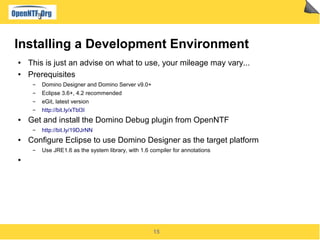

- 15. 15 Installing a DevelopmentEnvironment ● This is just an advise on what to use, your mileage may vary... ● Prerequisites ▬ Domino Designer and Domino Server v9.0+ ▬ Eclipse 3.6+, 4.2 recommended ▬ eGit, latest version ▬ http://bit.ly/xTbl3I ● Get and install the Domino Debug plugin from OpenNTF ▬ http://bit.ly/19DJrNN ● Configure Eclipse to use Domino Designer as the target platform ▬ Use JRE1.6 as the system library, with 1.6 compiler for annotations ●

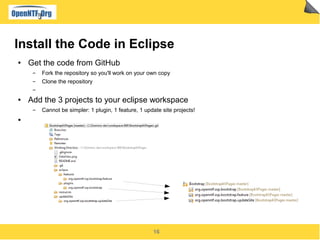

- 16. 16 Install the Codein Eclipse ● Get the code from GitHub ▬ Fork the repository so you'll work on your own copy ▬ Clone the repository ▬ ● Add the 3 projects to your eclipse workspace ▬ Cannot be simpler: 1 plugin, 1 feature, 1 update site projects! ●

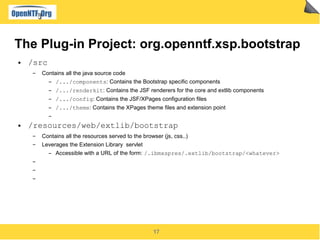

- 17. 17 The Plug-in Project:org.openntf.xsp.bootstrap ● /src ▬ Contains all the java source code ▬ /.../components: Contains the Bootstrap specific components ▬ /.../renderkit: Contains the JSF renderers for the core and extlib components ▬ /.../config: Contains the JSF/XPages configuration files ▬ /.../theme: Contains the XPages theme files and extension point ▬ ● /resources/web/extlib/bootstrap ▬ Contains all the resources served to the browser (js, css..) ▬ Leverages the Extension Library servlet ▬ Accessible with a URL of the form: /.ibmxspres/.extlib/bootstrap/<whatever> ▬ ▬ ▬

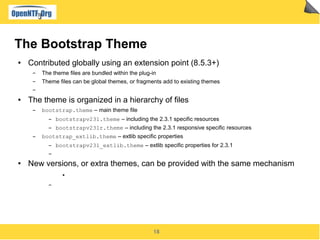

- 18. 18 The Bootstrap Theme ●Contributed globally using an extension point (8.5.3+) ▬ The theme files are bundled within the plug-in ▬ Theme files can be global themes, or fragments add to existing themes ▬ ● The theme is organized in a hierarchy of files ▬ bootstrap.theme – main theme file ▬ bootstrapv231.theme – including the 2.3.1 specific resources ▬ bootstrapv231r.theme – including the 2.3.1 responsive specific resources ▬ bootstrap_extlib.theme – extlib specific properties ▬ bootstrapv231_extlib.theme – extlib specific properties for 2.3.1 ▬ ● New versions, or extra themes, can be provided with the same mechanism ● ▬
- 19. 19 How the Themeis Being Used ● The theme files are used to: ▬ Define the resources to be loaded with the page ▬ Bootstrap CSS files ▬ JavaScript files, like JQuery... ▬ Set the default value of some component properties, like styleClass ▬ Forcing the document type to HTML 5 ▬ View component style classes ▬ ... ▬ Defining specific components themes ▬ Bootstrap buttons (Button.Submit, Button.Cancel...) ▬ ... ● ▬

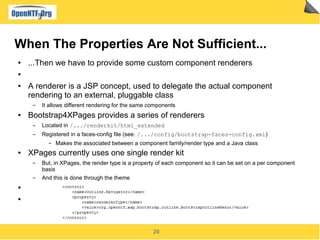

- 20. 20 When The PropertiesAre Not Sufficient... ● ...Then we have to provide some custom component renderers ● ● A renderer is a JSP concept, used to delegate the actual component rendering to an external, pluggable class ▬ It allows different rendering for the same components ● Bootstrap4XPages provides a series of renderers ▬ Located in /.../renderkit/html_extended ▬ Registered in a faces-config file (see: /.../config/bootstrap-faces-config.xml) ▬ Makes the associated between a component family/render type and a Java class ● XPages currently uses one single render kit ▬ But, in XPages, the render type is a property of each component so it can be set on a per component basis ▬ And this is done through the theme ● ●
- 21. 21 Writing a Renderer ●XPages comes with many base classes that can be used as a starting point ▬ Input controls, table/views, menus, ... ● The renderers from the Extension Library had been designed to be extended ▬ Bootstrap4XPages often inherit from them ▬ ● Don't reinvent the wheel, try to inherit from existing renderers, or at least copy/paste their code from the extlib

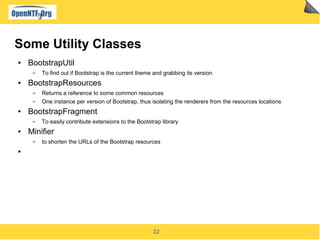

- 22. 22 Some Utility Classes ●BootstrapUtil ▬ To find out if Bootstrap is the current theme and grabbing its version ● BootstrapResources ▬ Returns a reference to some common resources ▬ One instance per version of Bootstrap, thus isolating the renderers from the resources locations ● BootstrapFragment ▬ To easily contribute extensions to the Bootstrap library ● Minifier ▬ to shorten the URLs of the Bootstrap resources ●

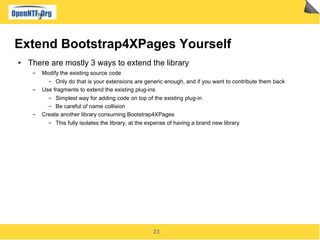

- 23. 23 Extend Bootstrap4XPages Yourself ●There are mostly 3 ways to extend the library ▬ Modify the existing source code ▬ Only do that is your extensions are generic enough, and if you want to contribute them back ▬ Use fragments to extend the existing plug-ins ▬ Simplest way for adding code on top of the existing plug-in ▬ Be careful of name collision ▬ Create another library consuming Bootstrap4XPages ▬ This fully isolates the library, at the expense of having a brand new library

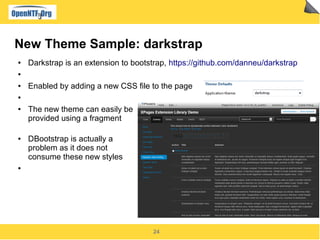

- 24. 24 New Theme Sample:darkstrap ● Darkstrap is an extension to bootstrap, https://github.com/danneu/darkstrap ● ● Enabled by adding a new CSS file to the page ● ● The new theme can easily be provided using a fragment ● DBootstrap is actually a problem as it does not consume these new styles ●

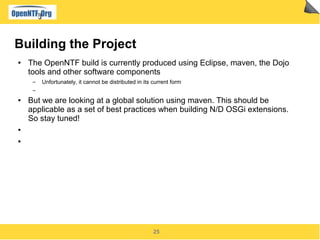

- 25. 25 Building the Project ●The OpenNTF build is currently produced using Eclipse, maven, the Dojo tools and other software components ▬ Unfortunately, it cannot be distributed in its current form ▬ ● But we are looking at a global solution using maven. This should be applicable as a set of best practices when building N/D OSGi extensions. So stay tuned! ● ●

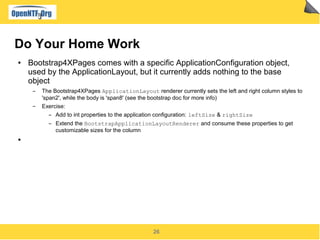

- 26. 26 Do Your HomeWork ● Bootstrap4XPages comes with a specific ApplicationConfiguration object, used by the ApplicationLayout, but it currently adds nothing to the base object ▬ The Bootstrap4XPages ApplicationLayout renderer currently sets the left and right column styles to 'span2', while the body is 'span8' (see the bootstrap doc for more info) ▬ Exercise: ▬ Add to int properties to the application configuration: leftSize & rightSize ▬ Extend the BootstrapApplicationLayoutRenderer and consume these properties to get customizable sizes for the column ●

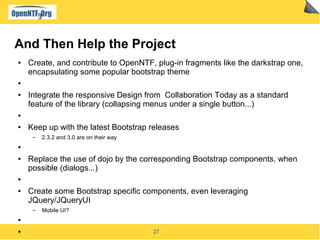

- 27. 27 And Then Helpthe Project ● Create, and contribute to OpenNTF, plug-in fragments like the darkstrap one, encapsulating some popular bootstrap theme ● ● Integrate the responsive Design from Collaboration Today as a standard feature of the library (collapsing menus under a single button...) ● ● Keep up with the latest Bootstrap releases ▬ 2.3.2 and 3.0 are on their way ● ● Replace the use of dojo by the corresponding Bootstrap components, when possible (dialogs...) ● ● Create some Bootstrap specific components, even leveraging JQuery/JQueryUI ▬ Mobile UI? ● ●
- 28. 28 Many Thanks To ●Niklas Heidloff, for promoting the project and helping a lot, as ever ● ● Peter Tanner, for handling all the legal issues ● ● The XPages community ▬ Mark Leusink, Kathy Brown, Oliver Busse, Slobodan Lohja, Steve Zavocki, Patrick Kwinten … and many others (sorry for the missing names), for all their work bringing Bootstrap to XPages! ▬
- 29. 29 Door is openedfor Q&A
