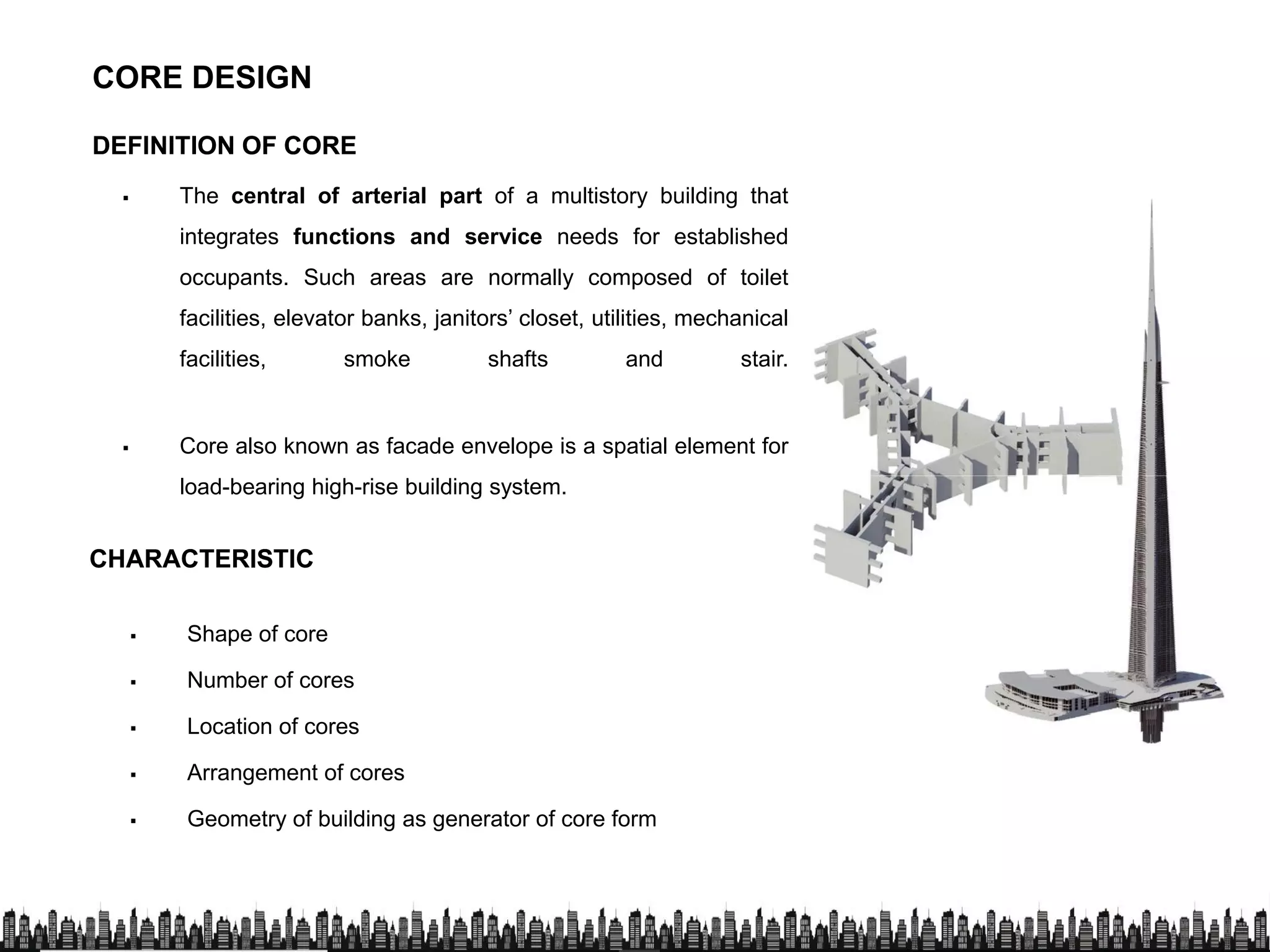

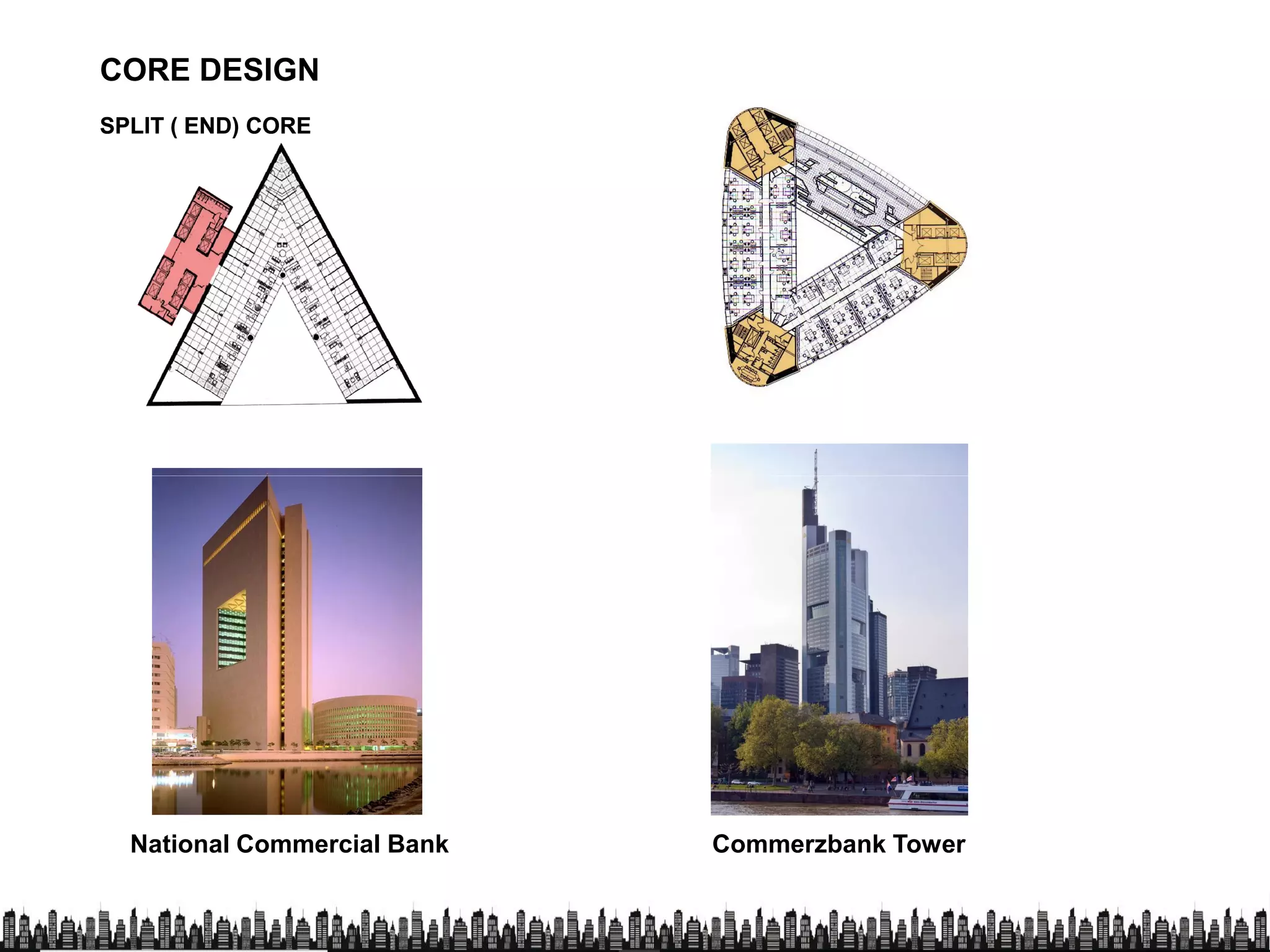

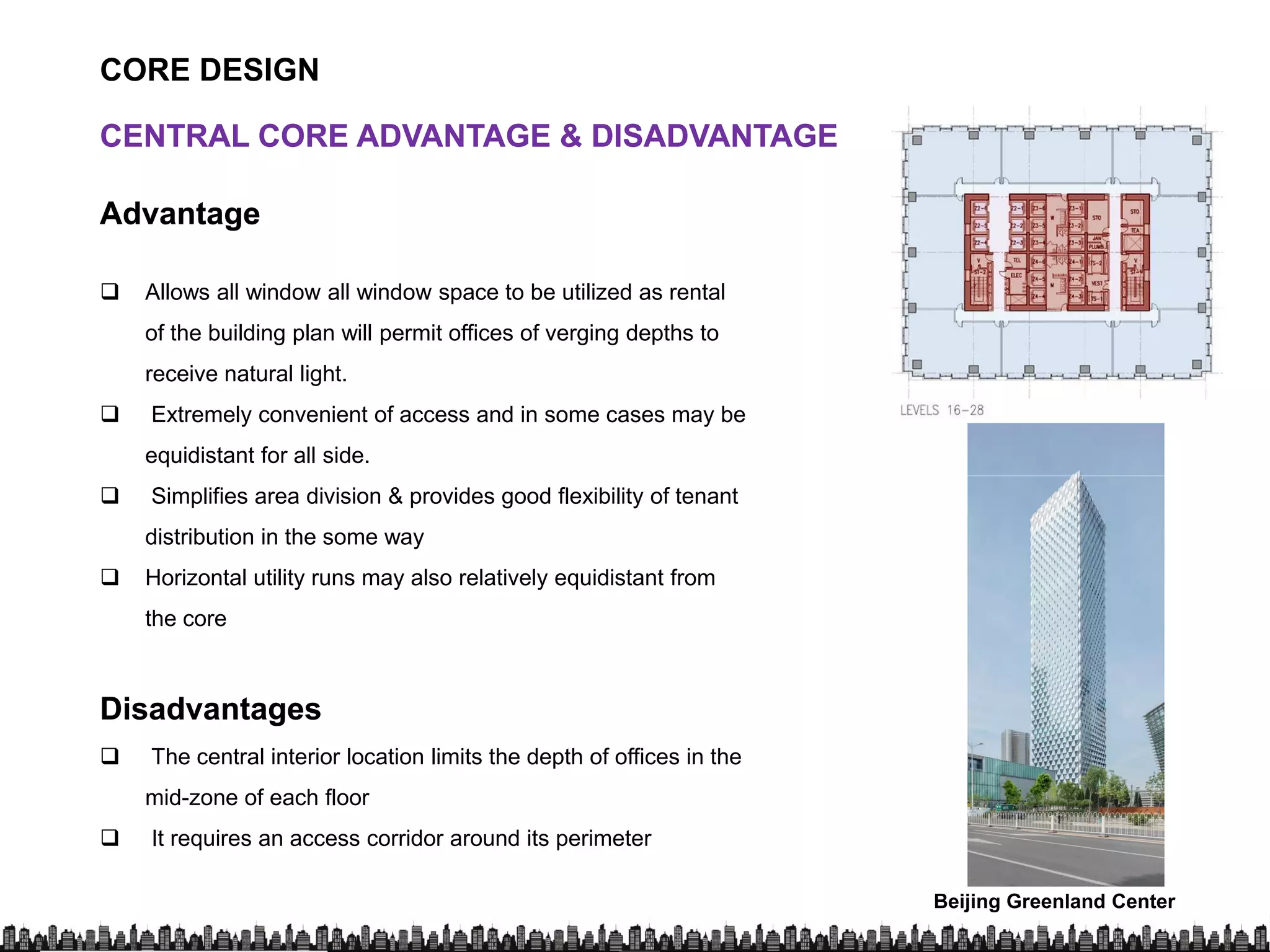

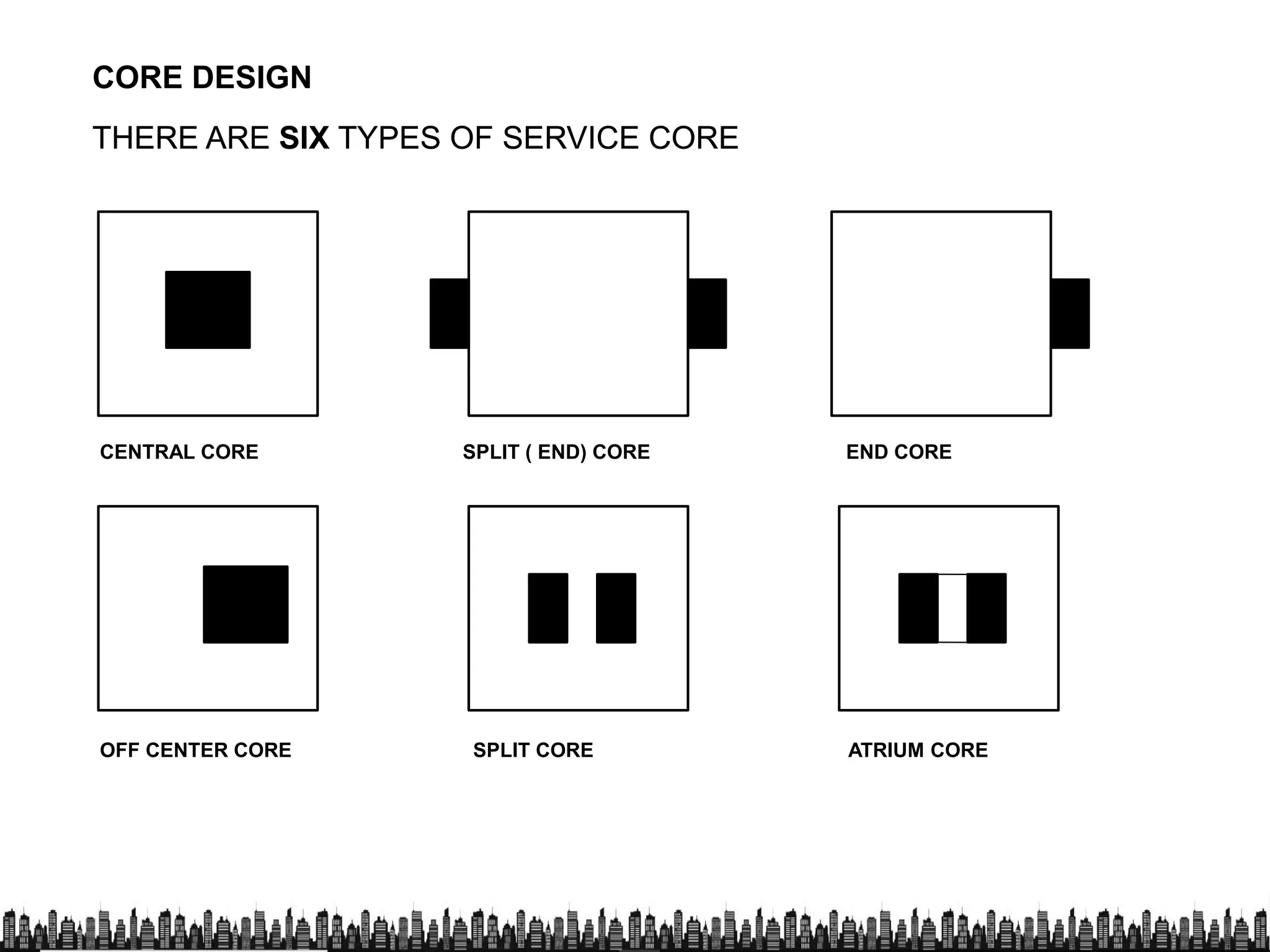

- Core designs with details on central, split, and other core types.

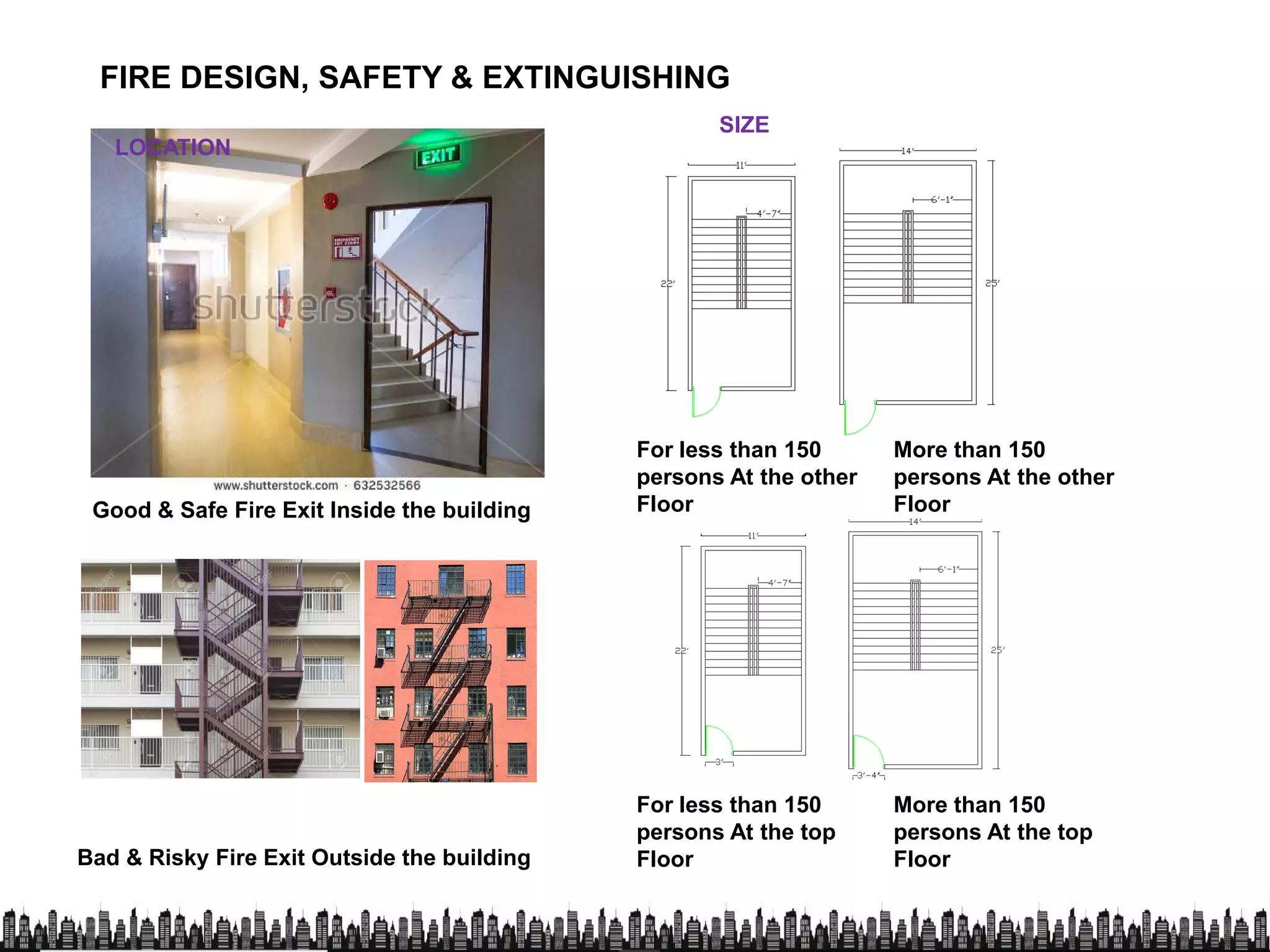

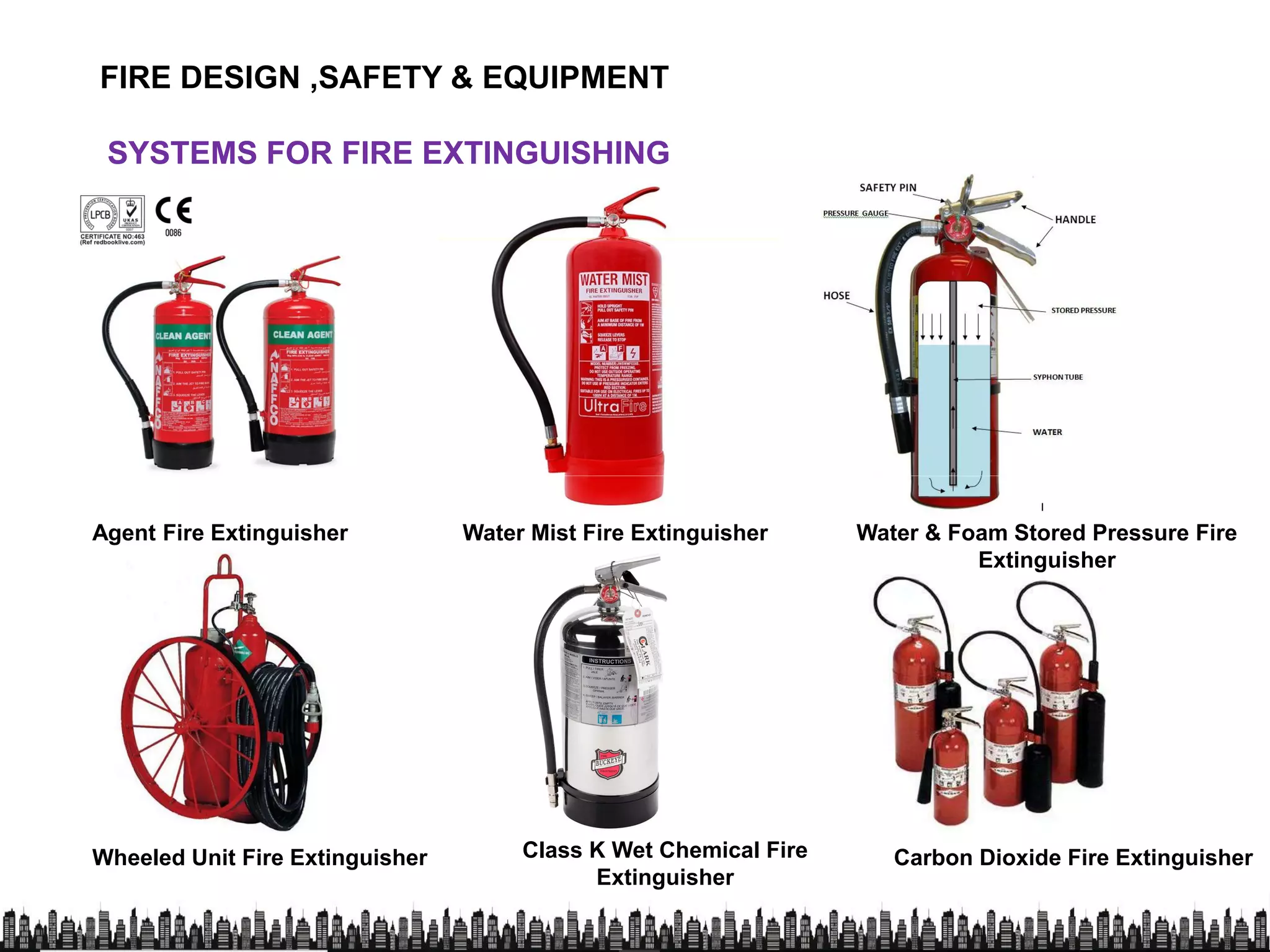

- Electrical, mechanical and fire protection facilities required for high-rises such as sprinkler systems, standpipes, signage, and more.

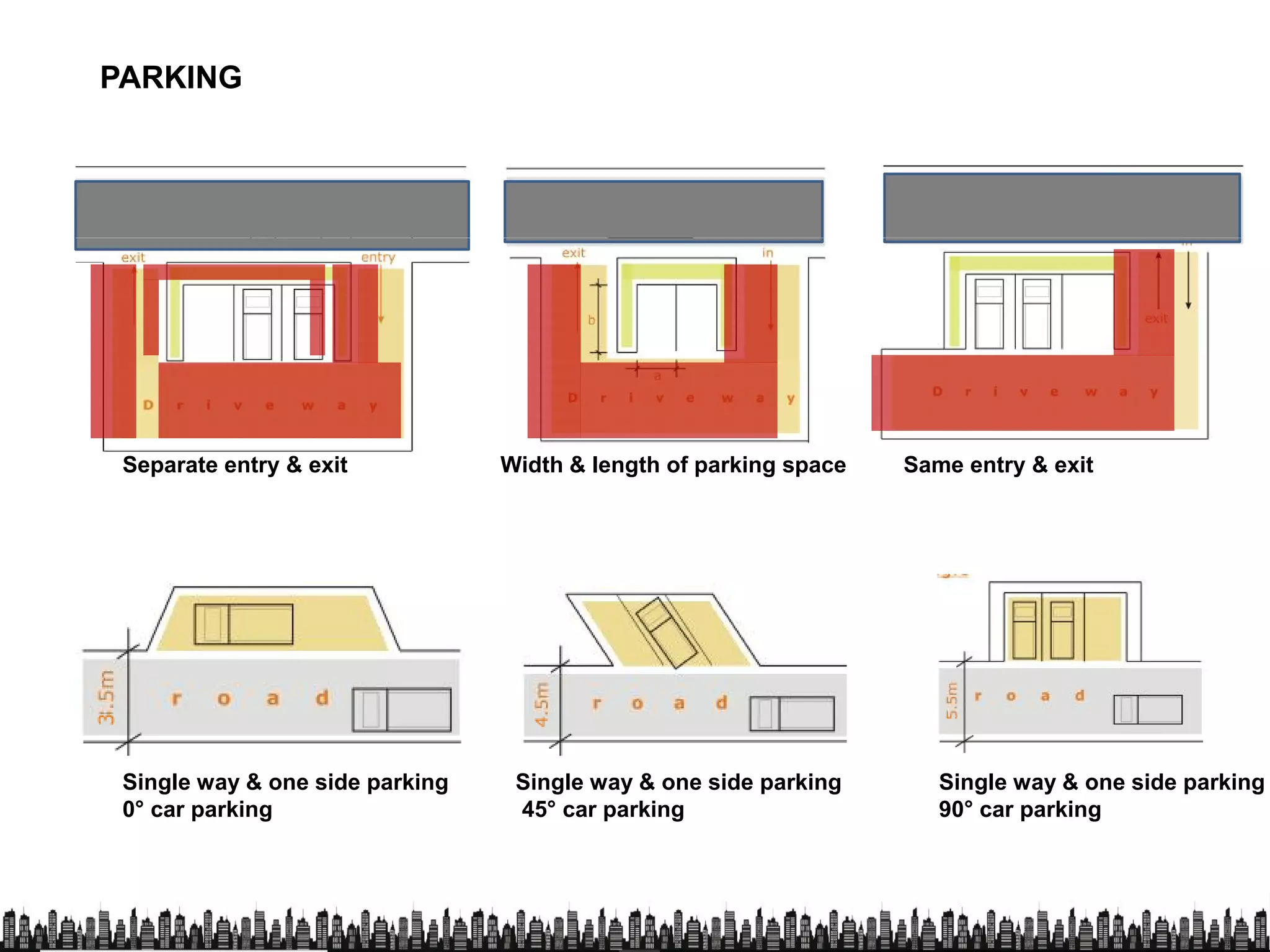

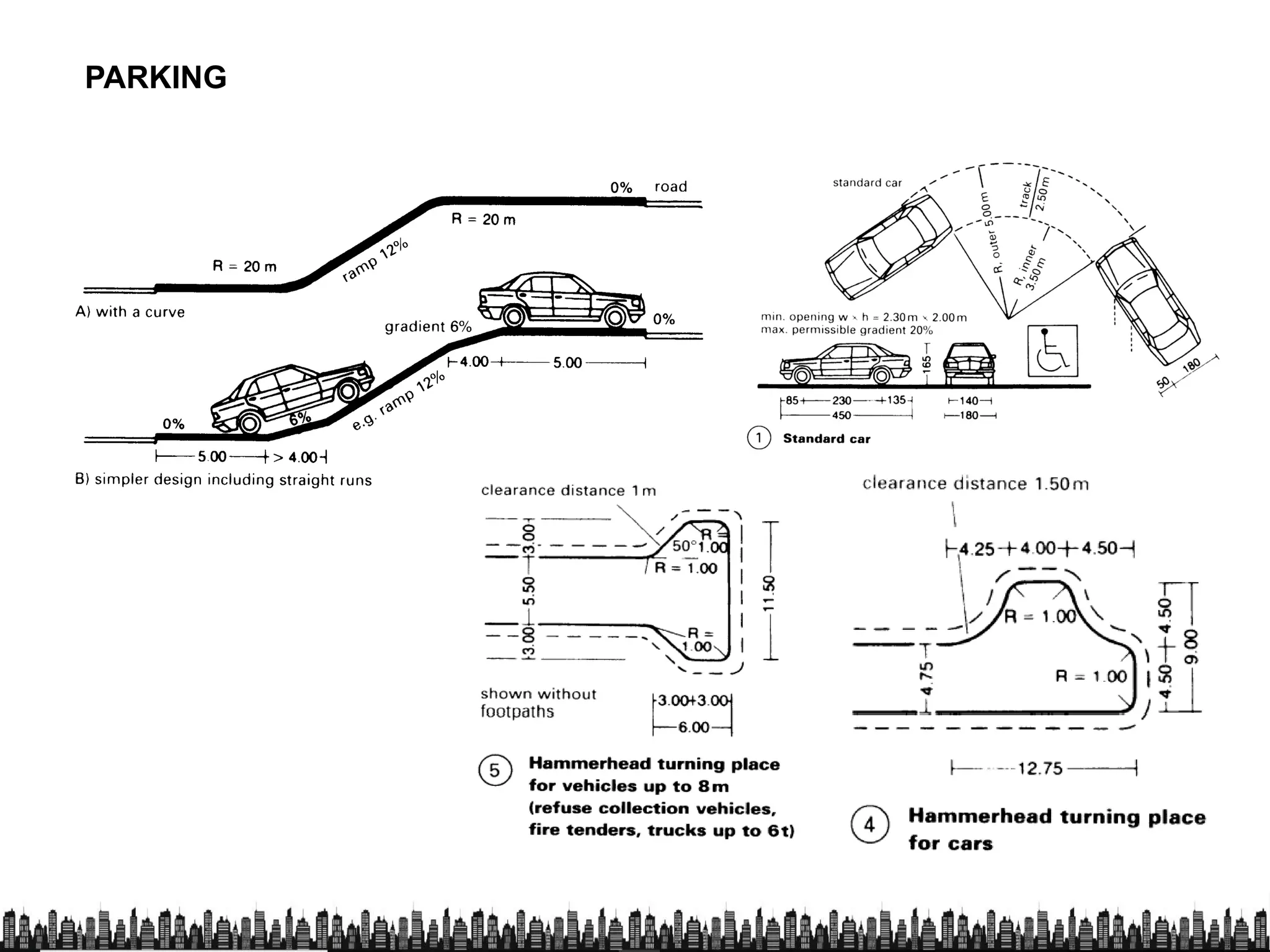

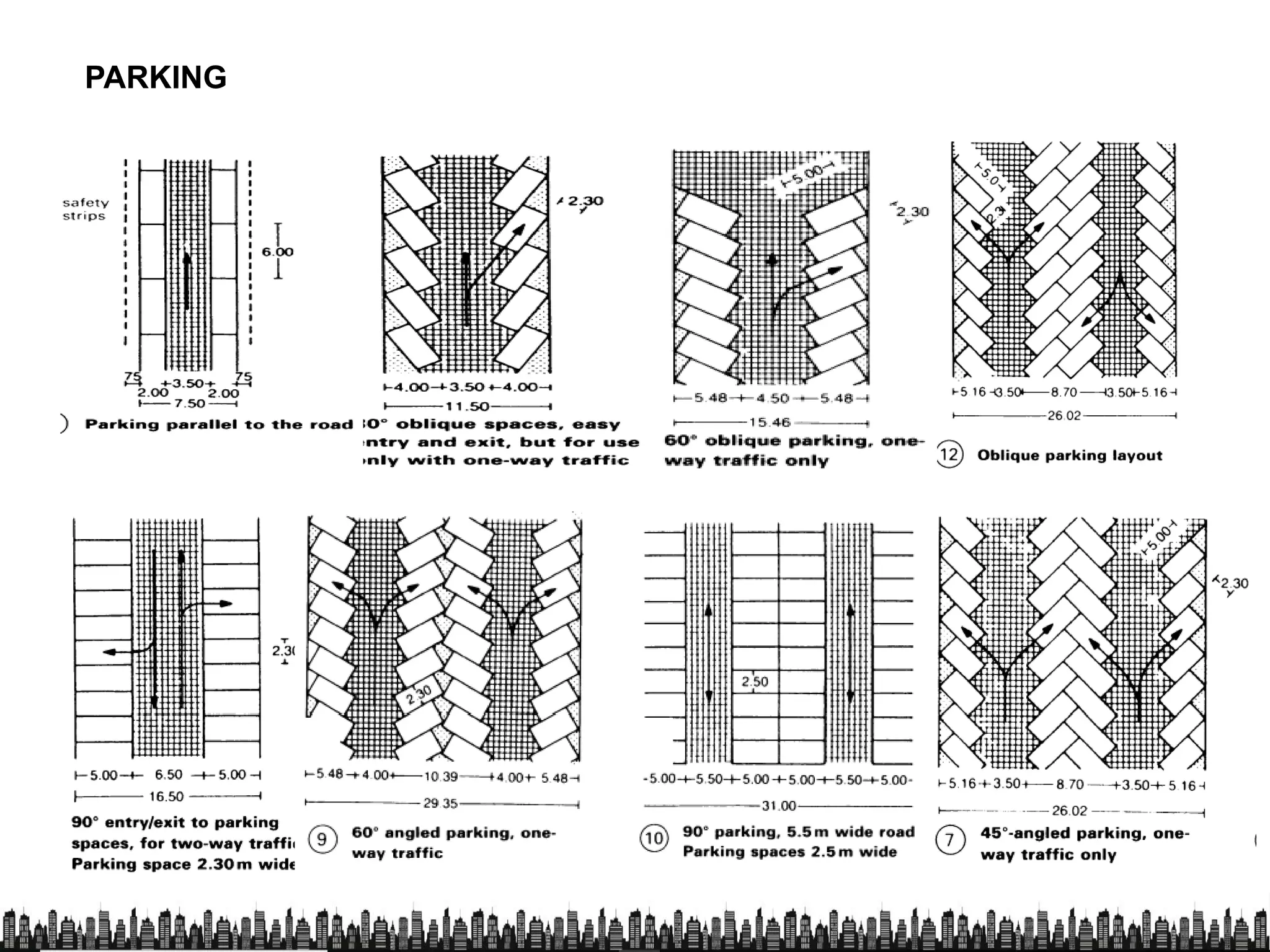

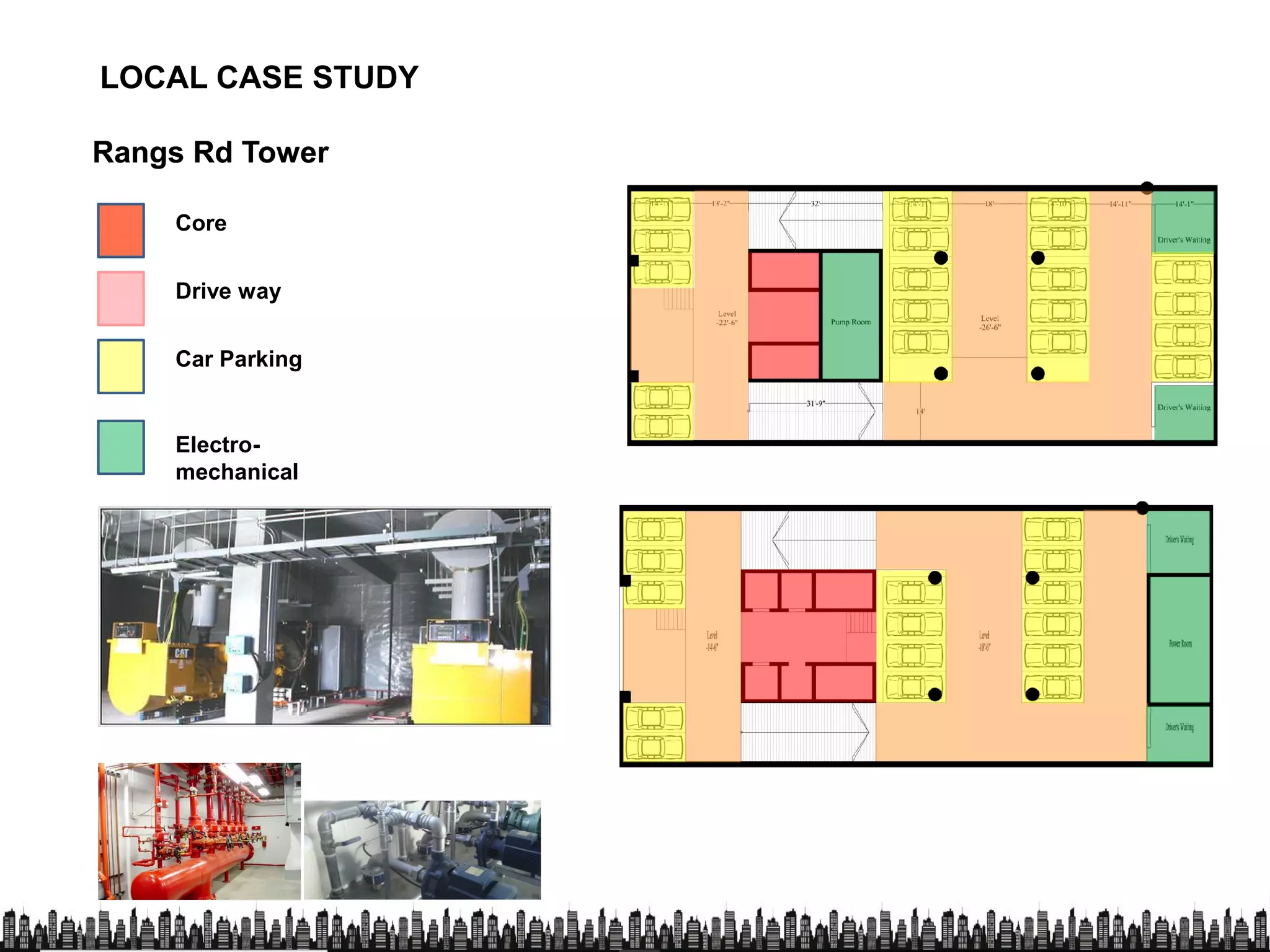

- Parking configurations including single way, 45 degree, and perpendicular parking options.
A short and elaborate Case Study on High Rise Buildings for the course of Advanced Building Construction from students of 8th Semester Architecture at VNIT, Nagpur (January- April 2017)
A short and elaborate Case Study on High Rise Buildings for the course of Advanced Building Construction from students of 8th Semester Architecture at VNIT, Nagpur (January- April 2017)
As for high rise buildings, these are generally above six floors or stories in height. Also, most high rise buildings are 100 meters in height. (These should not be confused with “skyscrapers,” which are generally much taller, as little or as much, as 200 meters in height.
A high-rise building is a tall building, as opposed to a low-rise building and is defined differently in terms of height depending on the jurisdiction. It is used as a residential, office building, or other functions including hotel, retail, or with multiple purposes combined.
A presentation that explains the various systems and techniques of employing steel and concrete to support long span structures. The range varies from conventional beams, to trusses and portal frames.
Long span structures case study (LINK IN DESCRIPTION FOR DOWNLOAD)Dimple Poddar
Case study on types of Long span structures which are constructed using Trusses, Arches, Beams And portal frames.
LINK TO DOWNLOAD: https://dimpstrail.gumroad.com/l/ceqjk
As for high rise buildings, these are generally above six floors or stories in height. Also, most high rise buildings are 100 meters in height. (These should not be confused with “skyscrapers,” which are generally much taller, as little or as much, as 200 meters in height.
A high-rise building is a tall building, as opposed to a low-rise building and is defined differently in terms of height depending on the jurisdiction. It is used as a residential, office building, or other functions including hotel, retail, or with multiple purposes combined.
A presentation that explains the various systems and techniques of employing steel and concrete to support long span structures. The range varies from conventional beams, to trusses and portal frames.
Long span structures case study (LINK IN DESCRIPTION FOR DOWNLOAD)Dimple Poddar
Case study on types of Long span structures which are constructed using Trusses, Arches, Beams And portal frames.
LINK TO DOWNLOAD: https://dimpstrail.gumroad.com/l/ceqjk
Video Lecture: https://youtu.be/zoj6DYMvg2I
Structural System in High Rise building or Tall Building
Emporis standards-
“A multi-story structure between 35-100 meters tall, or a building of unknown
height from 12-39 floors is termed as high rise.
The International Conference on Fire Safety –
"any structure where the height can have a serious impact on evacuation“
Massachusetts, United States General Laws –
A high-rise is being higher than 70 feet (21 m).
Buildings higher than 100m is termed as skyscraper according to emporis.
Buildings 300m or higher is termed as super tall and buildings 600m or taller is termed as mega-tall.
Skyscrapers are one of the most glorified products of civil engineering and contain an interesting history of progress and development. Students learn about the history of the world's tallest free standing structures and the basic design principles behind their success.
civil building construction
building & civil engineering contractors
civil & building north america
pre engineered steel building details
metal building contractors near me
building civil engineering
civil construction work
civil construction plans
interesting civil engineering topics
civil engineering topics for presentation
civil seminar topics ppt
civil engineering seminar topics 2018
seminar topics pdf
best seminar topics for civil engineering
seminar topics for mechanical engineers
latest civil engineering seminar topics
This is a report on all the basics of designing a High-Rise or simply you can say a Towerblock.
This a great pleasure for us to be able to thank both of our Design teachers, Ar. Tanjima Siddika And Ar. Azima Tabassum for their valuable suggestions and information which helped us in completing our report on High Rise Building.
For this purpose we went to Dhaka to survey the high rise building physically to enrich our knowledge in this issue. we visited the Shadhinota Tower, IDB Bhaban & Brac Center.
We would like to thank the authority of these towers who gave us permission to survey those buildings to understand high rise and its properties.
Lastly thanks to all of our classmates and group members of Arch-15th batch for their sincere efforts that completed this report.
This slide explains different structural systems used in high rise buildings.what is the true meaning of high rise building ?
aims of high rise? objectives of high rise?
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
The Art Pastor's Guide to Sabbath | Steve ThomasonSteve Thomason
What is the purpose of the Sabbath Law in the Torah. It is interesting to compare how the context of the law shifts from Exodus to Deuteronomy. Who gets to rest, and why?
How to Create Map Views in the Odoo 17 ERPCeline George
The map views are useful for providing a geographical representation of data. They allow users to visualize and analyze the data in a more intuitive manner.
Ethnobotany and Ethnopharmacology:
Ethnobotany in herbal drug evaluation,
Impact of Ethnobotany in traditional medicine,
New development in herbals,
Bio-prospecting tools for drug discovery,
Role of Ethnopharmacology in drug evaluation,
Reverse Pharmacology.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
The Roman Empire A Historical Colossus.pdfkaushalkr1407
The Roman Empire, a vast and enduring power, stands as one of history's most remarkable civilizations, leaving an indelible imprint on the world. It emerged from the Roman Republic, transitioning into an imperial powerhouse under the leadership of Augustus Caesar in 27 BCE. This transformation marked the beginning of an era defined by unprecedented territorial expansion, architectural marvels, and profound cultural influence.
The empire's roots lie in the city of Rome, founded, according to legend, by Romulus in 753 BCE. Over centuries, Rome evolved from a small settlement to a formidable republic, characterized by a complex political system with elected officials and checks on power. However, internal strife, class conflicts, and military ambitions paved the way for the end of the Republic. Julius Caesar’s dictatorship and subsequent assassination in 44 BCE created a power vacuum, leading to a civil war. Octavian, later Augustus, emerged victorious, heralding the Roman Empire’s birth.
Under Augustus, the empire experienced the Pax Romana, a 200-year period of relative peace and stability. Augustus reformed the military, established efficient administrative systems, and initiated grand construction projects. The empire's borders expanded, encompassing territories from Britain to Egypt and from Spain to the Euphrates. Roman legions, renowned for their discipline and engineering prowess, secured and maintained these vast territories, building roads, fortifications, and cities that facilitated control and integration.
The Roman Empire’s society was hierarchical, with a rigid class system. At the top were the patricians, wealthy elites who held significant political power. Below them were the plebeians, free citizens with limited political influence, and the vast numbers of slaves who formed the backbone of the economy. The family unit was central, governed by the paterfamilias, the male head who held absolute authority.
Culturally, the Romans were eclectic, absorbing and adapting elements from the civilizations they encountered, particularly the Greeks. Roman art, literature, and philosophy reflected this synthesis, creating a rich cultural tapestry. Latin, the Roman language, became the lingua franca of the Western world, influencing numerous modern languages.
Roman architecture and engineering achievements were monumental. They perfected the arch, vault, and dome, constructing enduring structures like the Colosseum, Pantheon, and aqueducts. These engineering marvels not only showcased Roman ingenuity but also served practical purposes, from public entertainment to water supply.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.

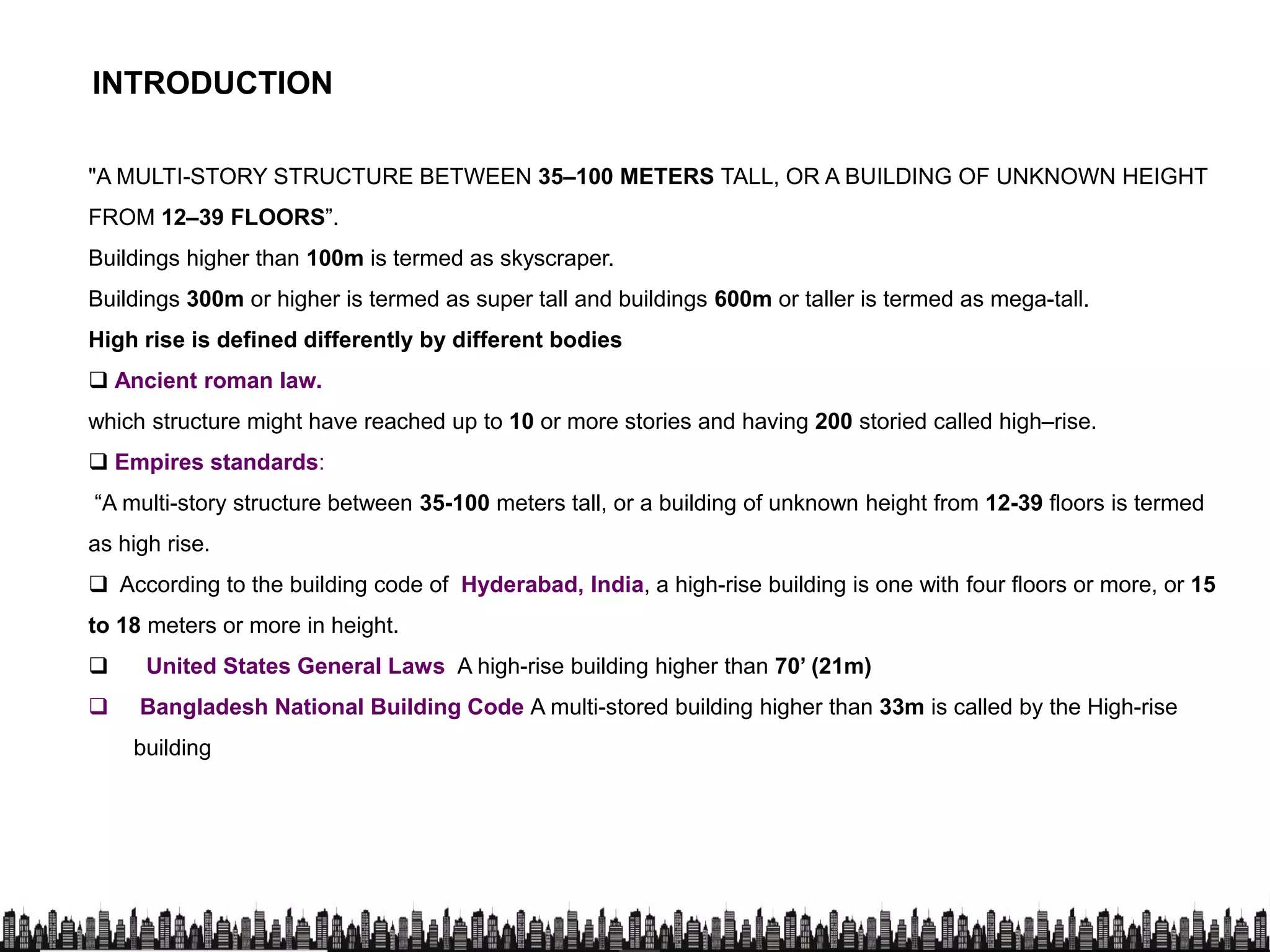

4. "A MULTI-STORY STRUCTURE BETWEEN 35–100 METERS TALL, OR A BUILDING OF UNKNOWN HEIGHT
FROM 12–39 FLOORS”.
INTRODUCTION
Buildings higher than 100m is termed as skyscraper.
Buildings 300m or higher is termed as super tall and buildings 600m or taller is termed as mega-tall.
High rise is defined differently by different bodies
Ancient roman law.
which structure might have reached up to 10 or more stories and having 200 storied called high–rise.
Empires standards:
“A multi-story structure between 35-100 meters tall, or a building of unknown height from 12-39 floors is termed
as high rise.
According to the building code of Hyderabad, India, a high-rise building is one with four floors or more, or 15
to 18 meters or more in height.
United States General Laws A high-rise building higher than 70’ (21m)
Bangladesh National Building Code A multi-stored building higher than 33m is called by the High-rise Bangladesh National Building Code A multi-stored building higher than 33m is called by the High-rise
building

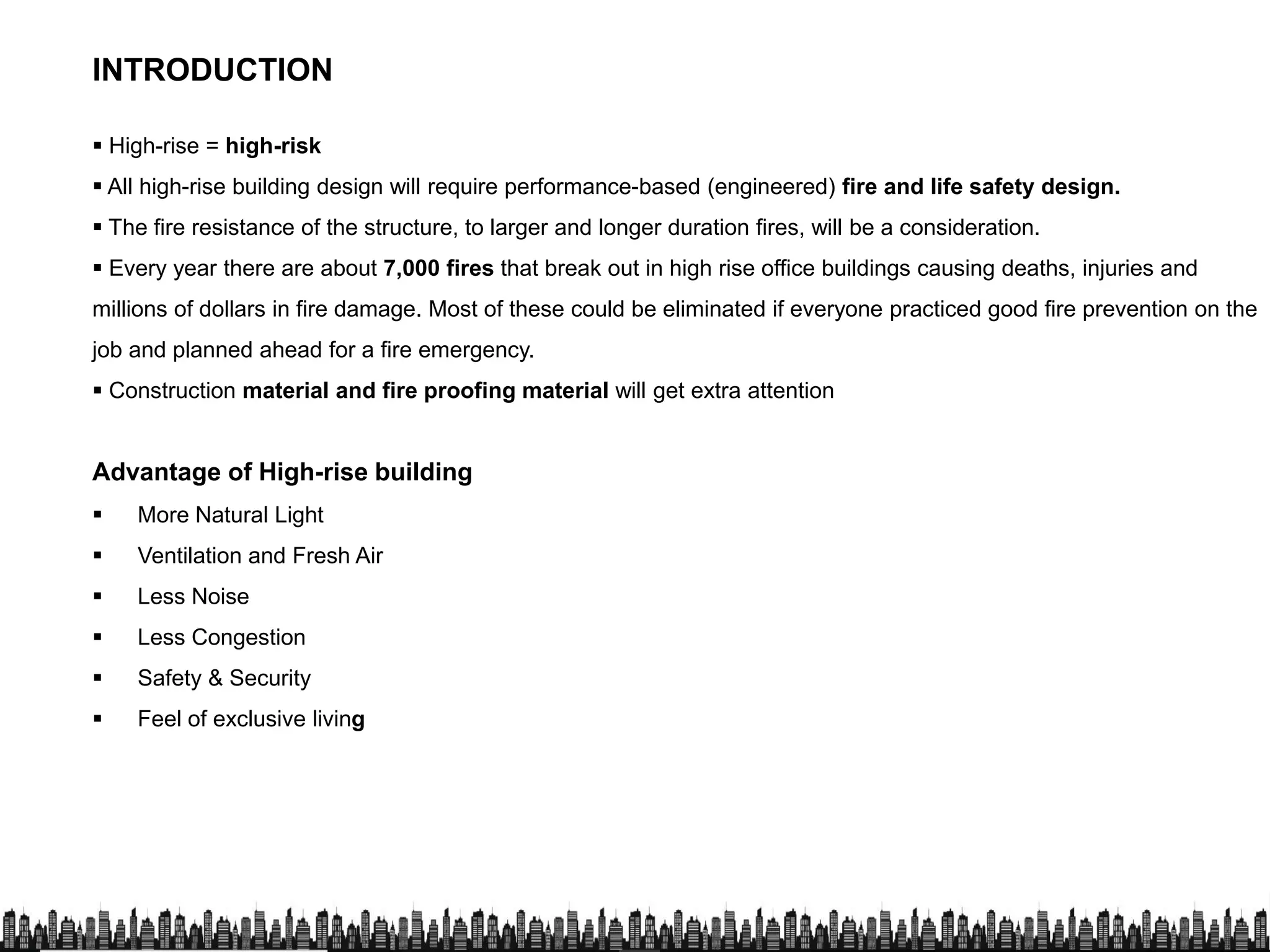

5. INTRODUCTION
High-rise = high-risk
All high-rise building design will require performance-based (engineered) fire and life safety design.
The fire resistance of the structure, to larger and longer duration fires, will be a consideration.
Advantage of High-rise building
The fire resistance of the structure, to larger and longer duration fires, will be a consideration.
Every year there are about 7,000 fires that break out in high rise office buildings causing deaths, injuries and
millions of dollars in fire damage. Most of these could be eliminated if everyone practiced good fire prevention on the
job and planned ahead for a fire emergency.
Construction material and fire proofing material will get extra attention
Advantage of High-rise building
More Natural Light
Ventilation and Fresh Air
Less Noise
Less Congestion
Safety & Security
Feel of exclusive living Feel of exclusive living

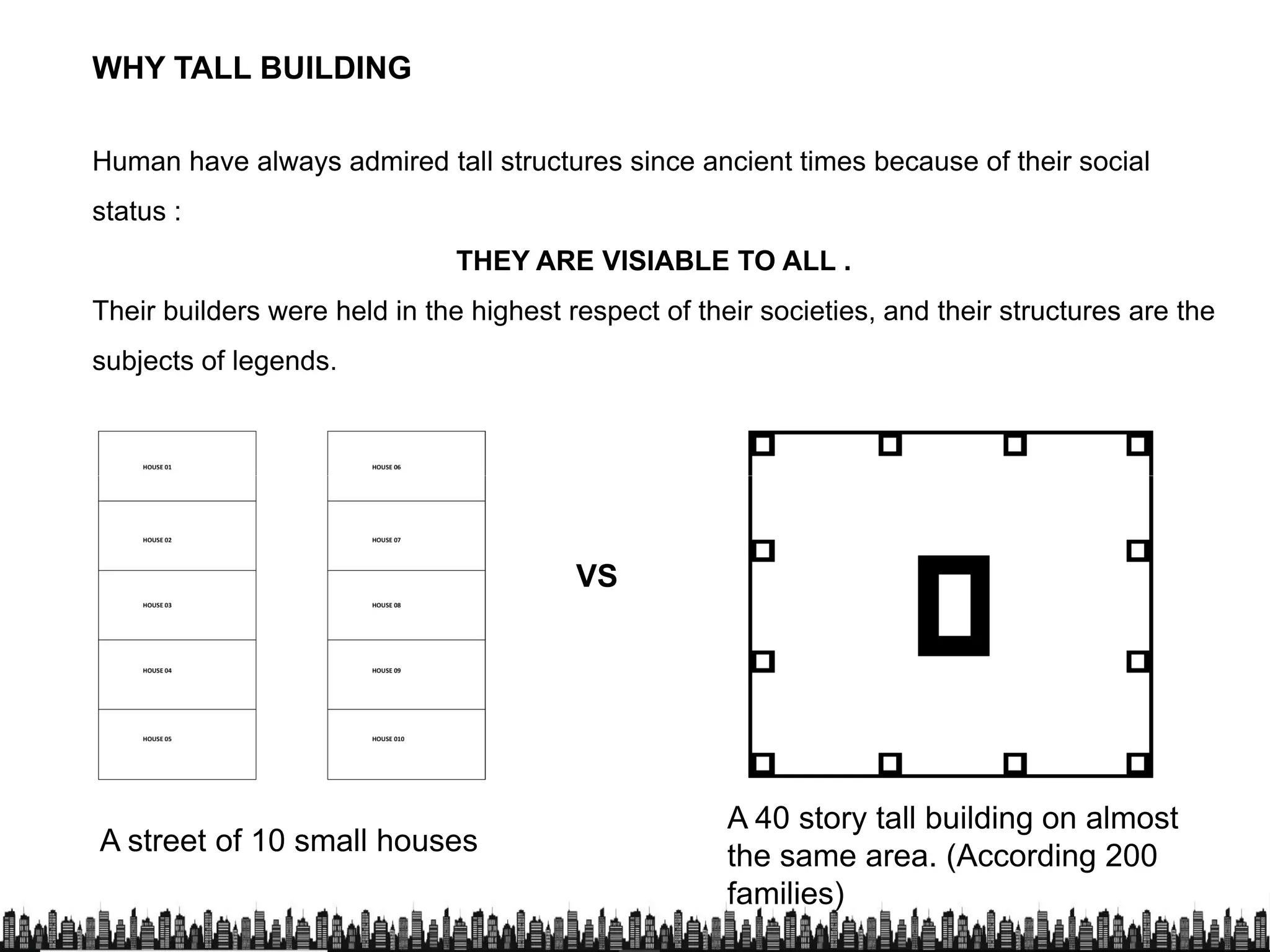

6. Human have always admired tall structures since ancient times because of their social
status :
WHY TALL BUILDING
THEY ARE VISIABLE TO ALL .
Their builders were held in the highest respect of their societies, and their structures are the
subjects of legends.
VS
A street of 10 small houses
A 40 story tall building on almost
the same area. (According 200
families)

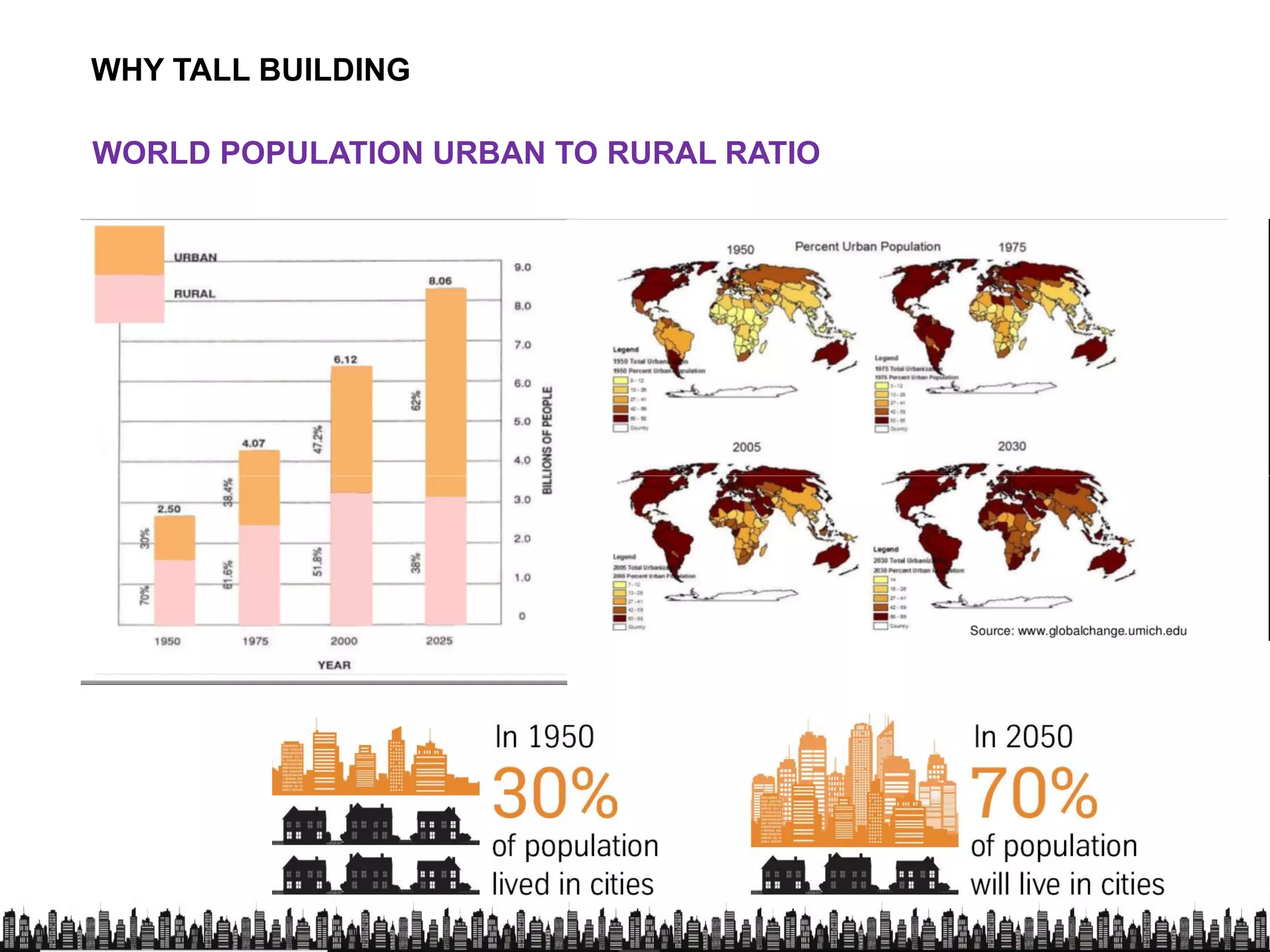

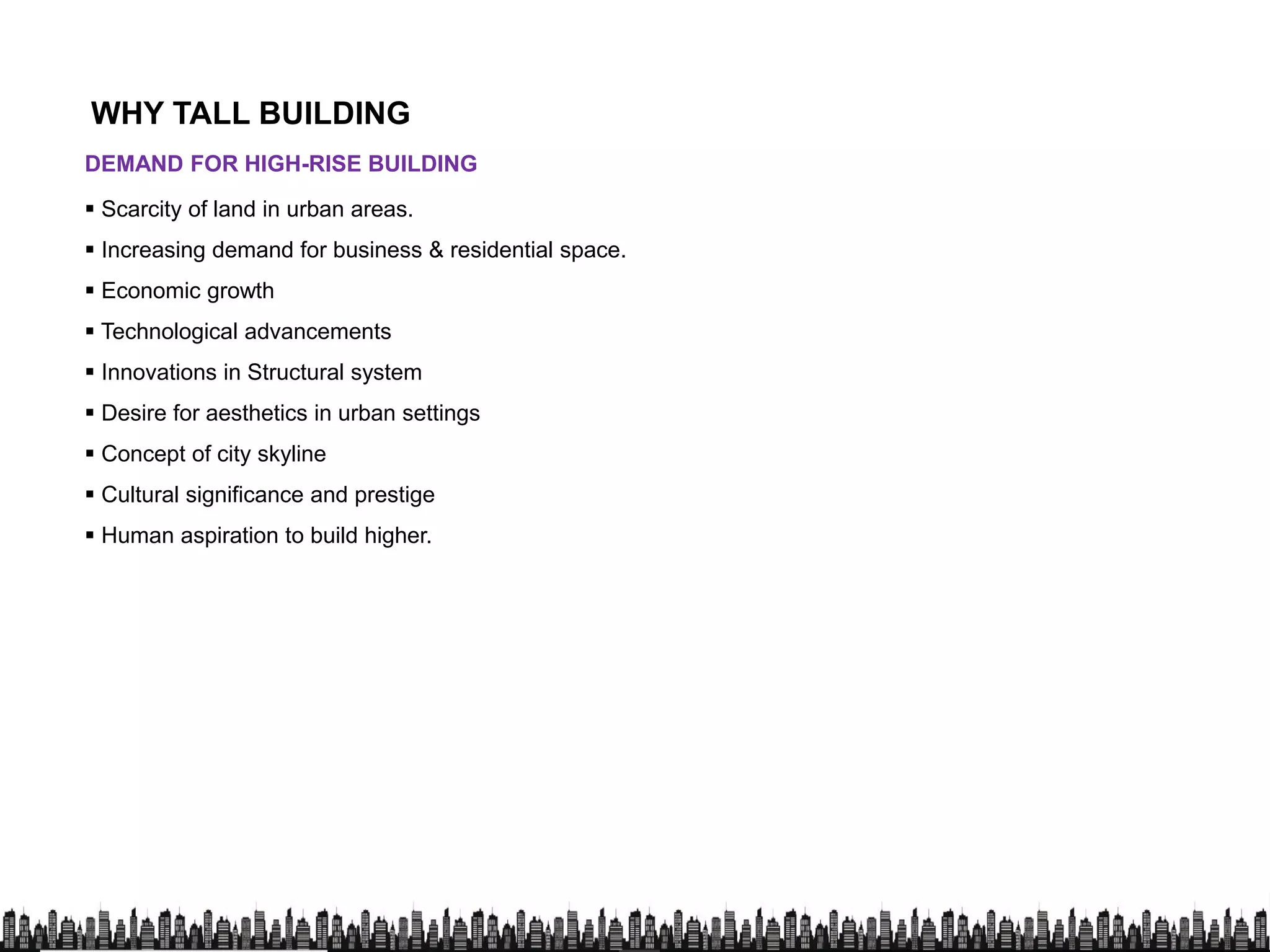

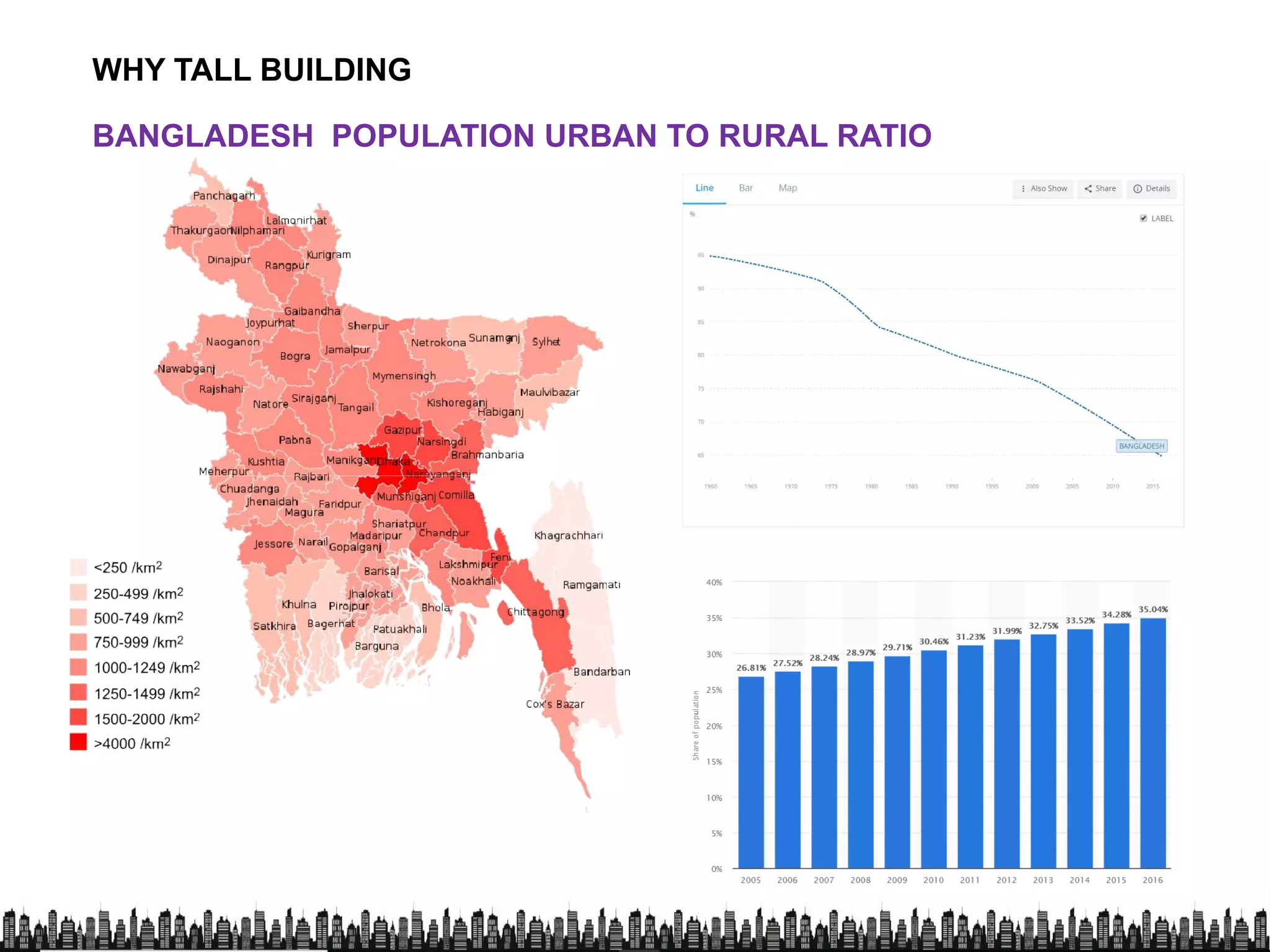

9. DEMAND FOR HIGH-RISE BUILDING
Scarcity of land in urban areas.
Increasing demand for business & residential space.
WHY TALL BUILDING
Increasing demand for business & residential space.
Economic growth
Technological advancements
Innovations in Structural system
Desire for aesthetics in urban settings
Concept of city skyline
Cultural significance and prestige
Human aspiration to build higher.

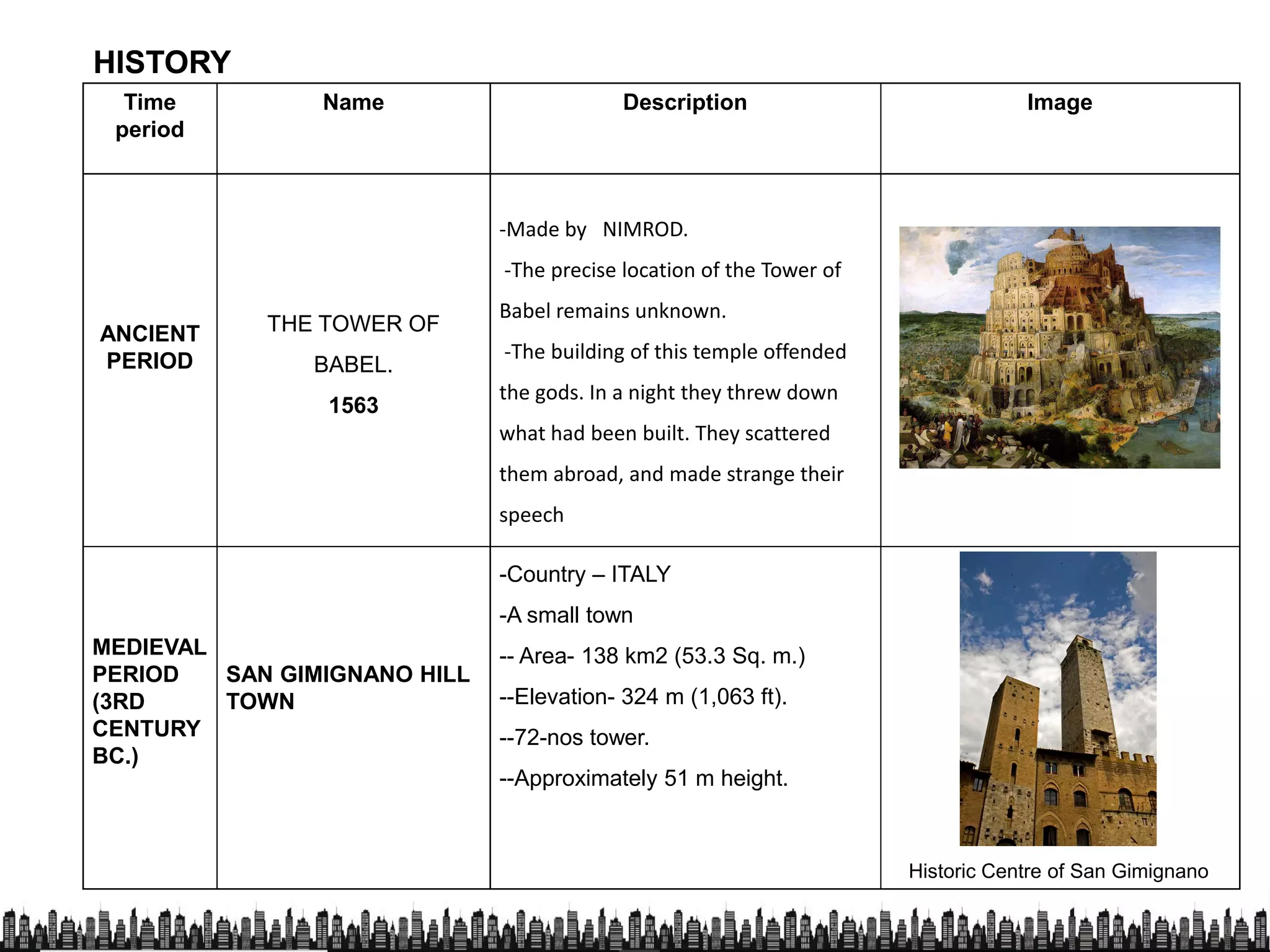

10. Time
period
Name Description Image
-Made by NIMROD.
HISTORYHISTORY
ANCIENT
PERIOD
THE TOWER OF
BABEL.
1563
-Made by NIMROD.
-The precise location of the Tower of
Babel remains unknown.
-The building of this temple offended
the gods. In a night they threw down
what had been built. They scattered
them abroad, and made strange theirthem abroad, and made strange their
speech
MEDIEVAL
PERIOD
(3RD
SAN GIMIGNANO HILL
TOWN
-Country – ITALY
-A small town
-- Area- 138 km2 (53.3 Sq. m.)
--Elevation- 324 m (1,063 ft).(3RD
CENTURY
BC.)
TOWN
--72-nos tower.
--Approximately 51 m height.
Historic Centre of San Gimignano

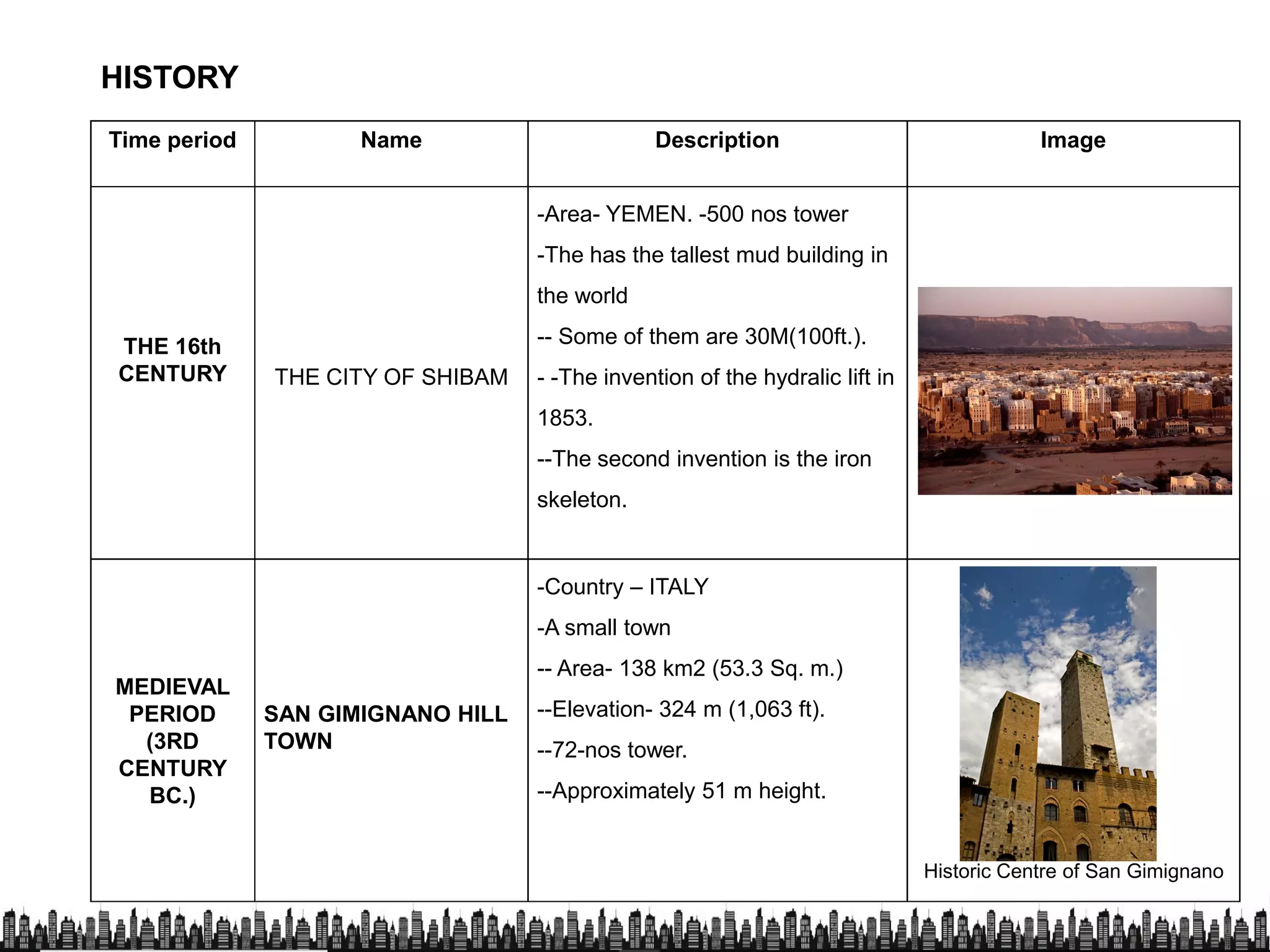

11. Time period Name Description Image
-Area- YEMEN. -500 nos tower
HISTORYHISTORY
THE 16th
CENTURY THE CITY OF SHIBAM
-The has the tallest mud building in
the world
-- Some of them are 30M(100ft.).
- -The invention of the hydralic lift in
1853.
--The second invention is the iron
skeleton.
MEDIEVAL
PERIOD SAN GIMIGNANO HILL
-Country – ITALY
-A small town
-- Area- 138 km2 (53.3 Sq. m.)
--Elevation- 324 m (1,063 ft).PERIOD
(3RD
CENTURY
BC.)
SAN GIMIGNANO HILL
TOWN
--Elevation- 324 m (1,063 ft).
--72-nos tower.
--Approximately 51 m height.
Historic Centre of San Gimignano

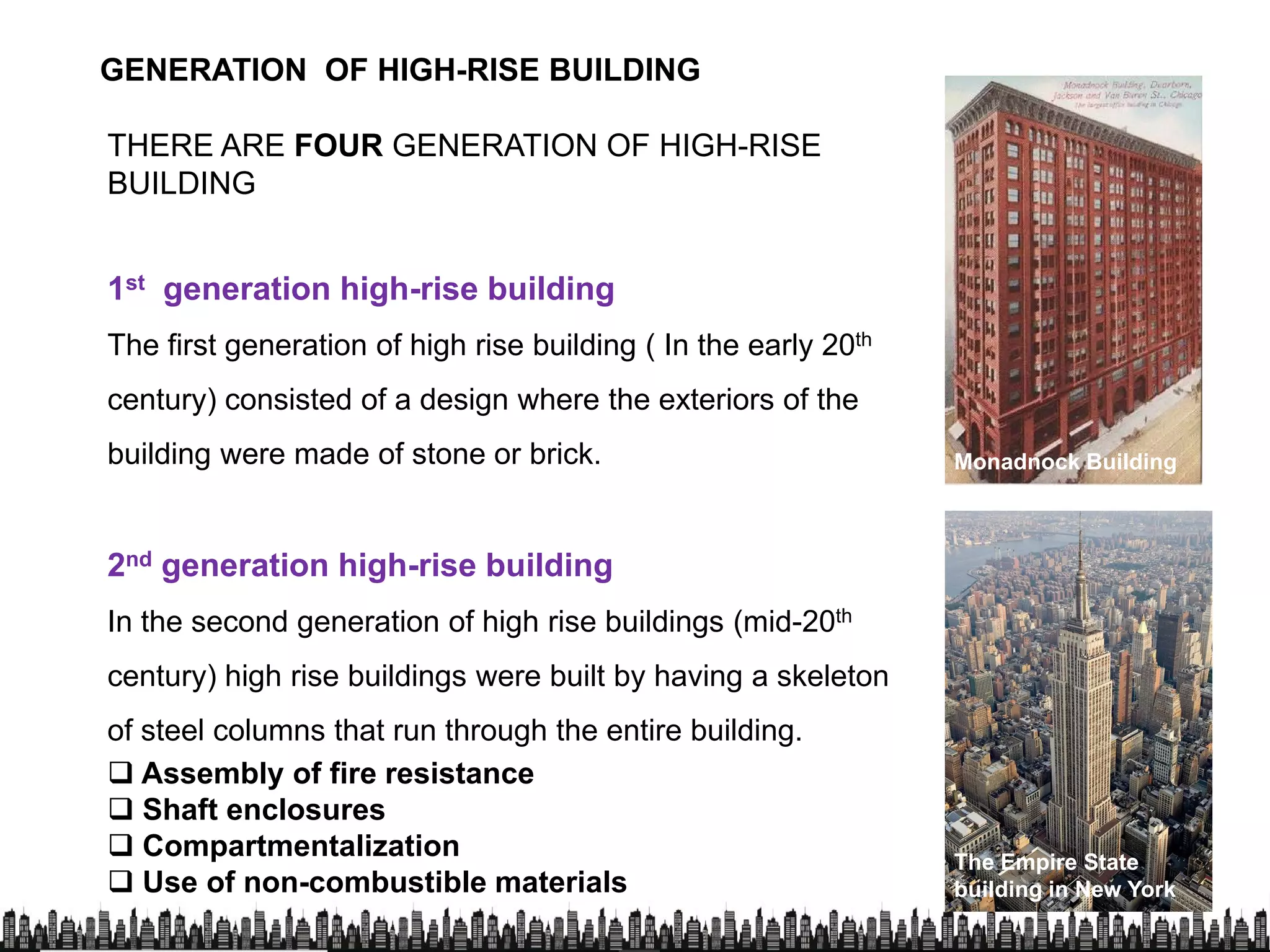

12. THERE ARE FOUR GENERATION OF HIGH-RISE
BUILDING
GENERATION OF HIGH-RISE BUILDING
1st generation high-rise building
The first generation of high rise building ( In the early 20th
century) consisted of a design where the exteriors of the
building were made of stone or brick. Monadnock Building
2nd generation high-rise building
In the second generation of high rise buildings (mid-20th
century) high rise buildings were built by having a skeleton
of steel columns that run through the entire building.of steel columns that run through the entire building.
Assembly of fire resistance
Shaft enclosures
Compartmentalization
Use of non-combustible materials
The Empire State
building in New York

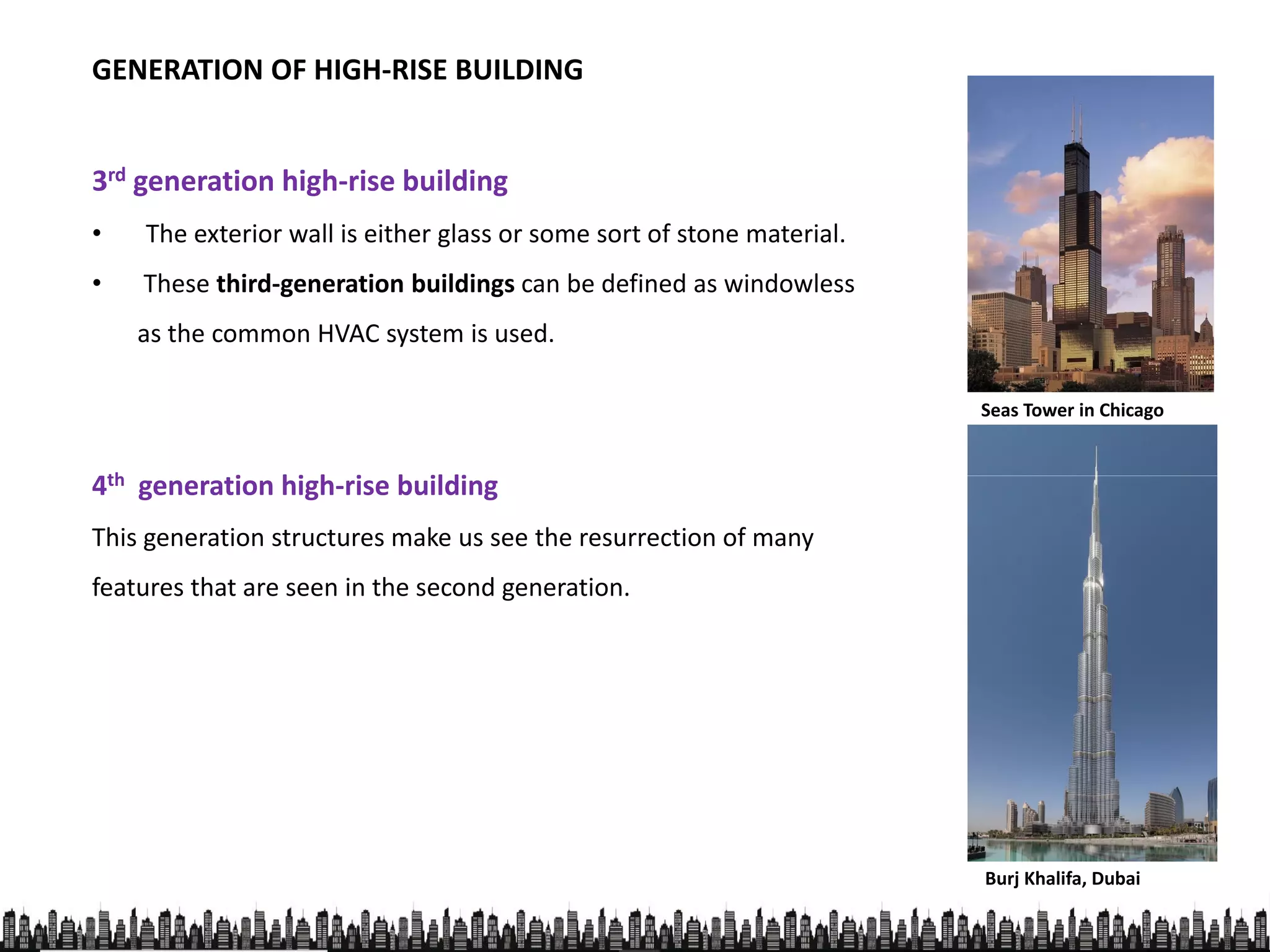

13. 3rd generation high-rise building
• The exterior wall is either glass or some sort of stone material.
GENERATION OF HIGH-RISE BUILDING
• The exterior wall is either glass or some sort of stone material.
• These third-generation buildings can be defined as windowless
as the common HVAC system is used.
4th generation high-rise building
Seas Tower in Chicago
4th generation high-rise building
This generation structures make us see the resurrection of many
features that are seen in the second generation.
Burj Khalifa, Dubai

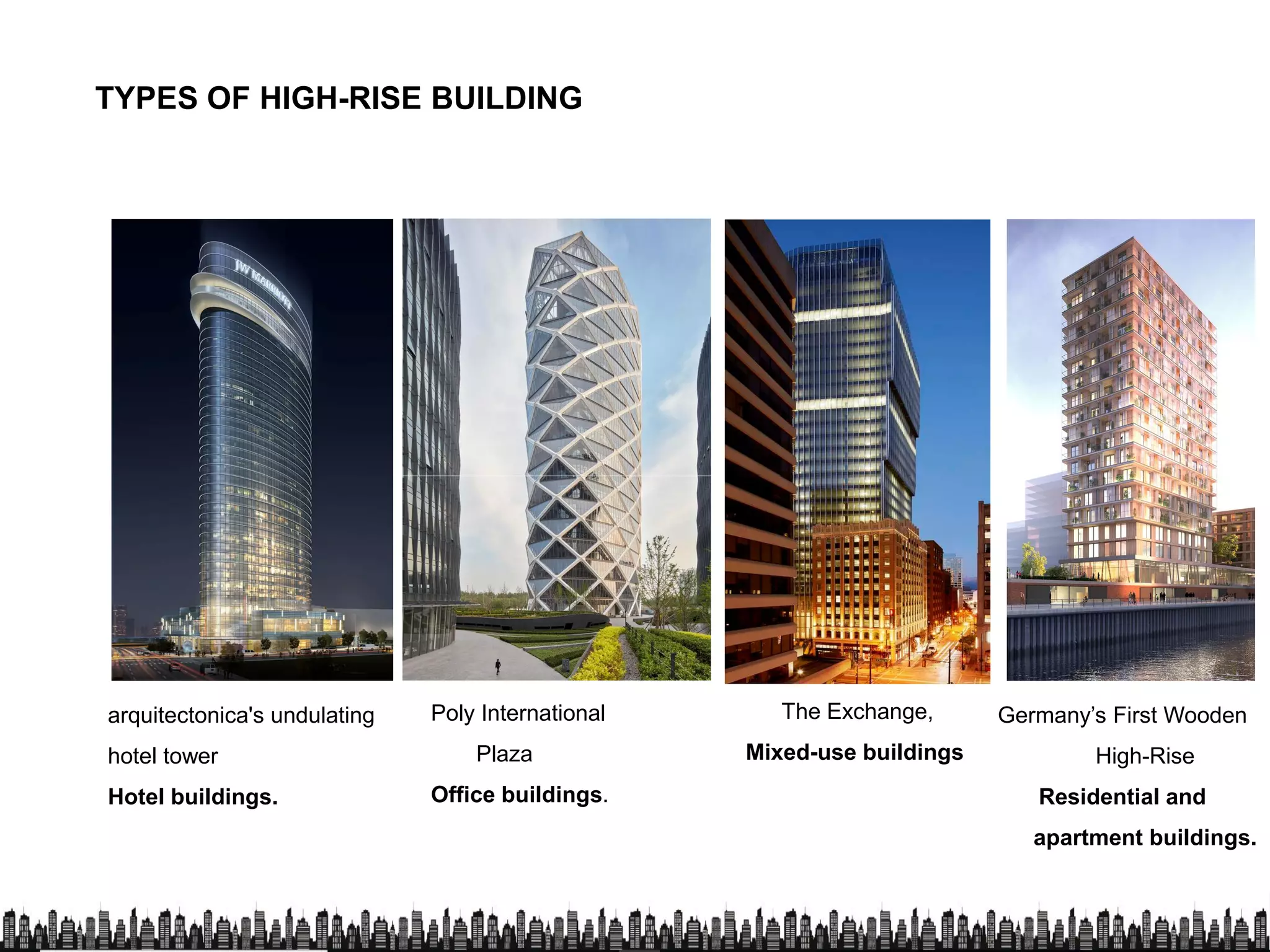

14. TYPES OF HIGH-RISE BUILDING
Germany’s First WoodenThe Exchange,Poly Internationalarquitectonica's undulating Germany’s First Wooden
High-Rise
Residential and
apartment buildings.
The Exchange,
Mixed-use buildings
Poly International
Plaza
Office buildings.
arquitectonica's undulating
hotel tower
Hotel buildings.

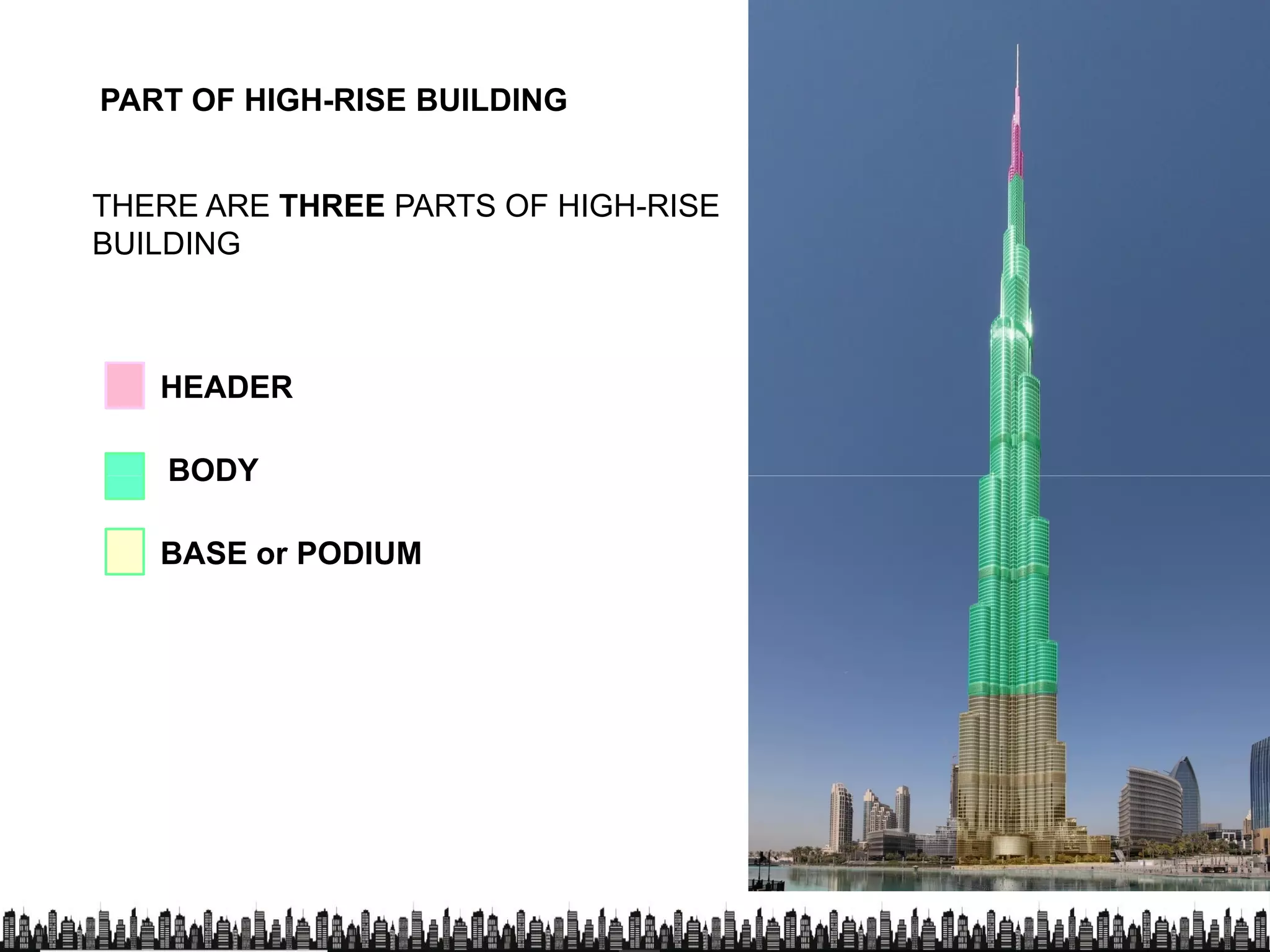

15. THERE ARE THREE PARTS OF HIGH-RISE
BUILDING
PART OF HIGH-RISE BUILDING
BUILDING
BODY
HEADER
BASE or PODIUM
BODY

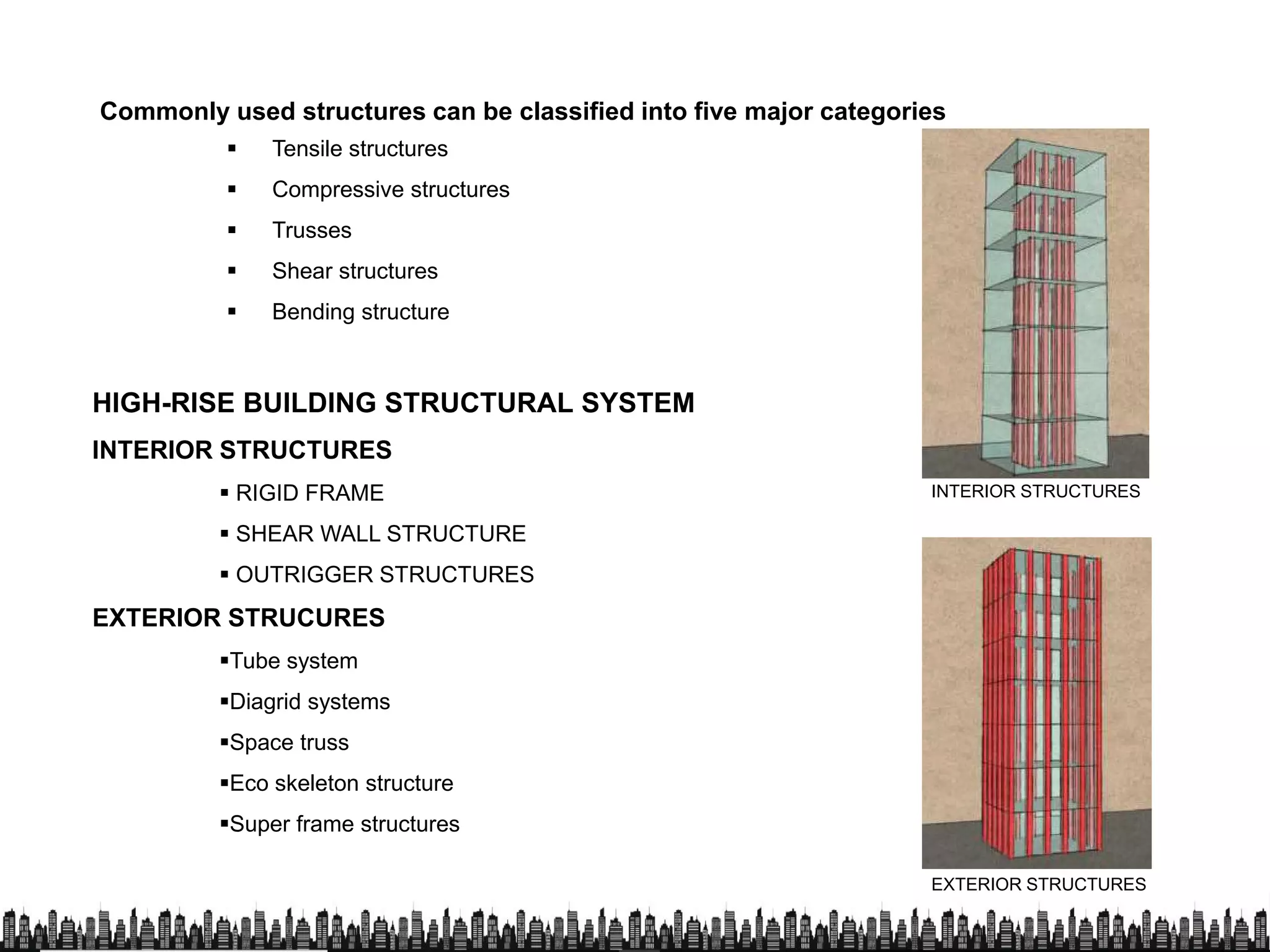

16. Commonly used structures can be classified into five major categories
Tensile structures
Compressive structures
Trusses
HIGH-RISE BUILDING STRUCTURAL SYSTEM
INTERIOR STRUCTURES
Trusses
Shear structures
Bending structure
RIGID FRAME
SHEAR WALL STRUCTURE
OUTRIGGER STRUCTURES
EXTERIOR STRUCURES
Tube system

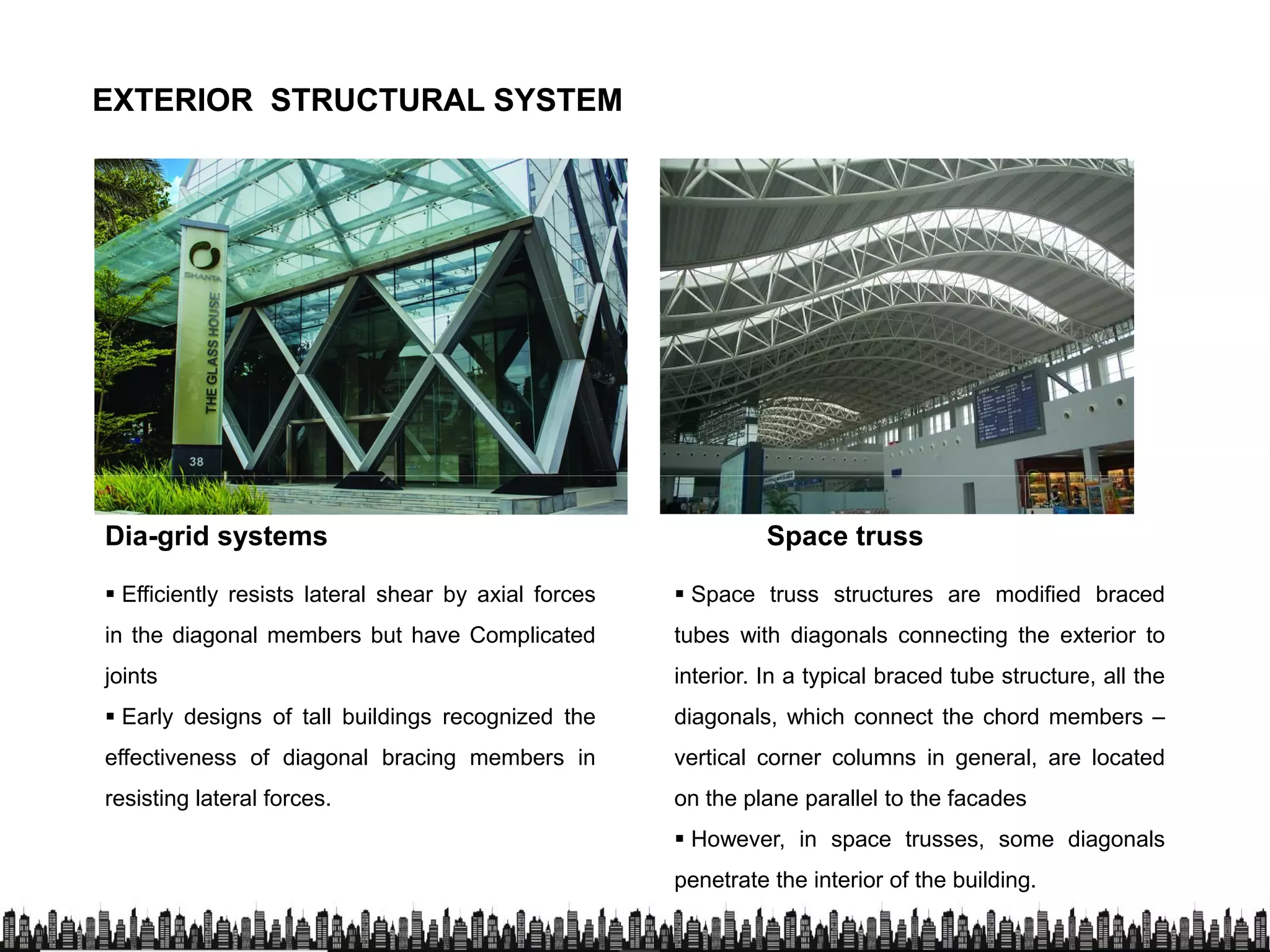

Diagrid systems
INTERIOR STRUCTURES
Diagrid systems
Space truss
Eco skeleton structure
Super frame structures
EXTERIOR STRUCTURES

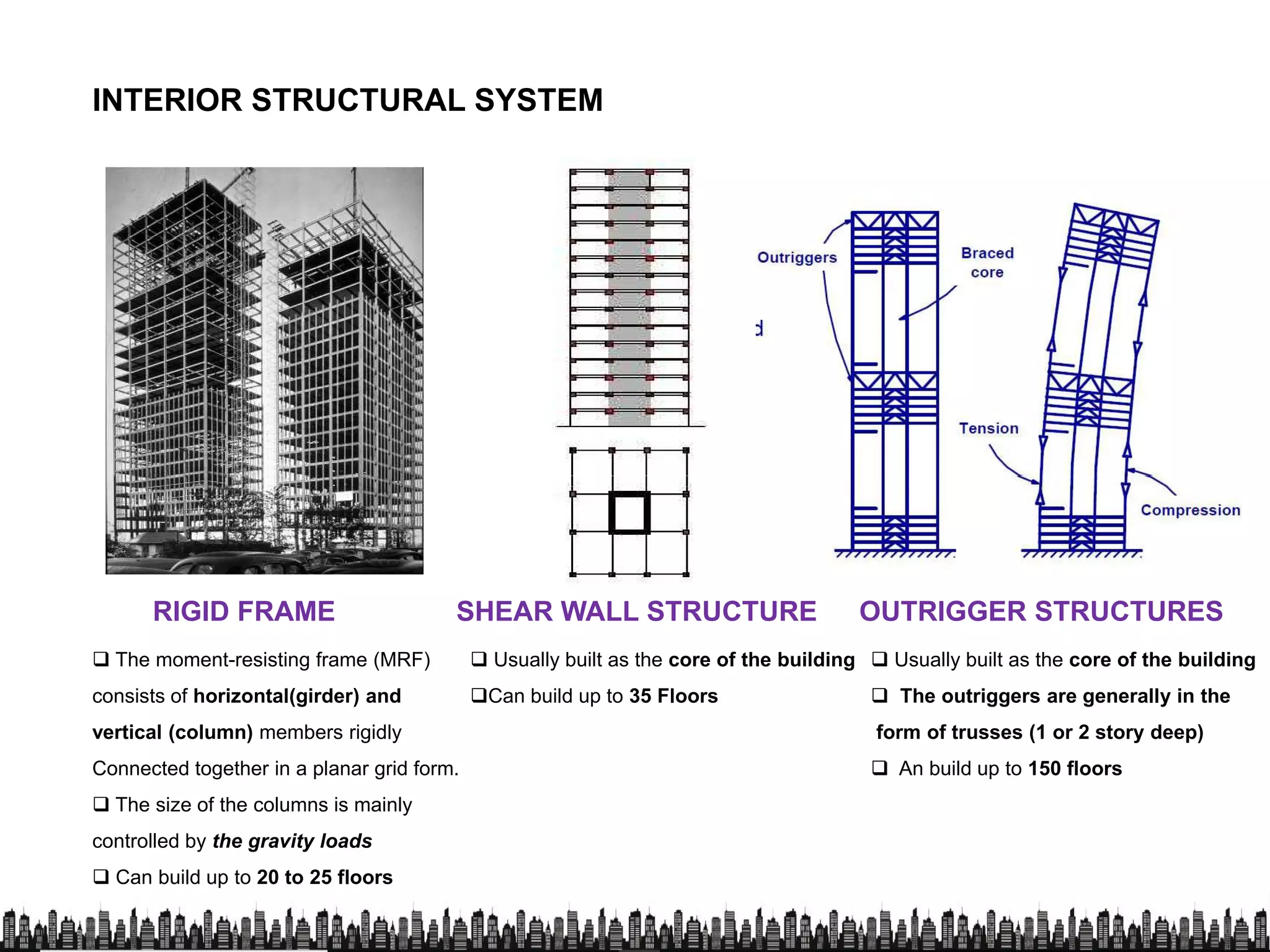

17. INTERIOR STRUCTURAL SYSTEM
RIGID FRAME SHEAR WALL STRUCTURE OUTRIGGER STRUCTURES
The moment-resisting frame (MRF)
consists of horizontal(girder) and
Usually built as the core of the building
Can build up to 35 Floors
Usually built as the core of the building
The outriggers are generally in the
vertical (column) members rigidly
Connected together in a planar grid form.
The size of the columns is mainly
controlled by the gravity loads
Can build up to 20 to 25 floors
form of trusses (1 or 2 story deep)
An build up to 150 floors

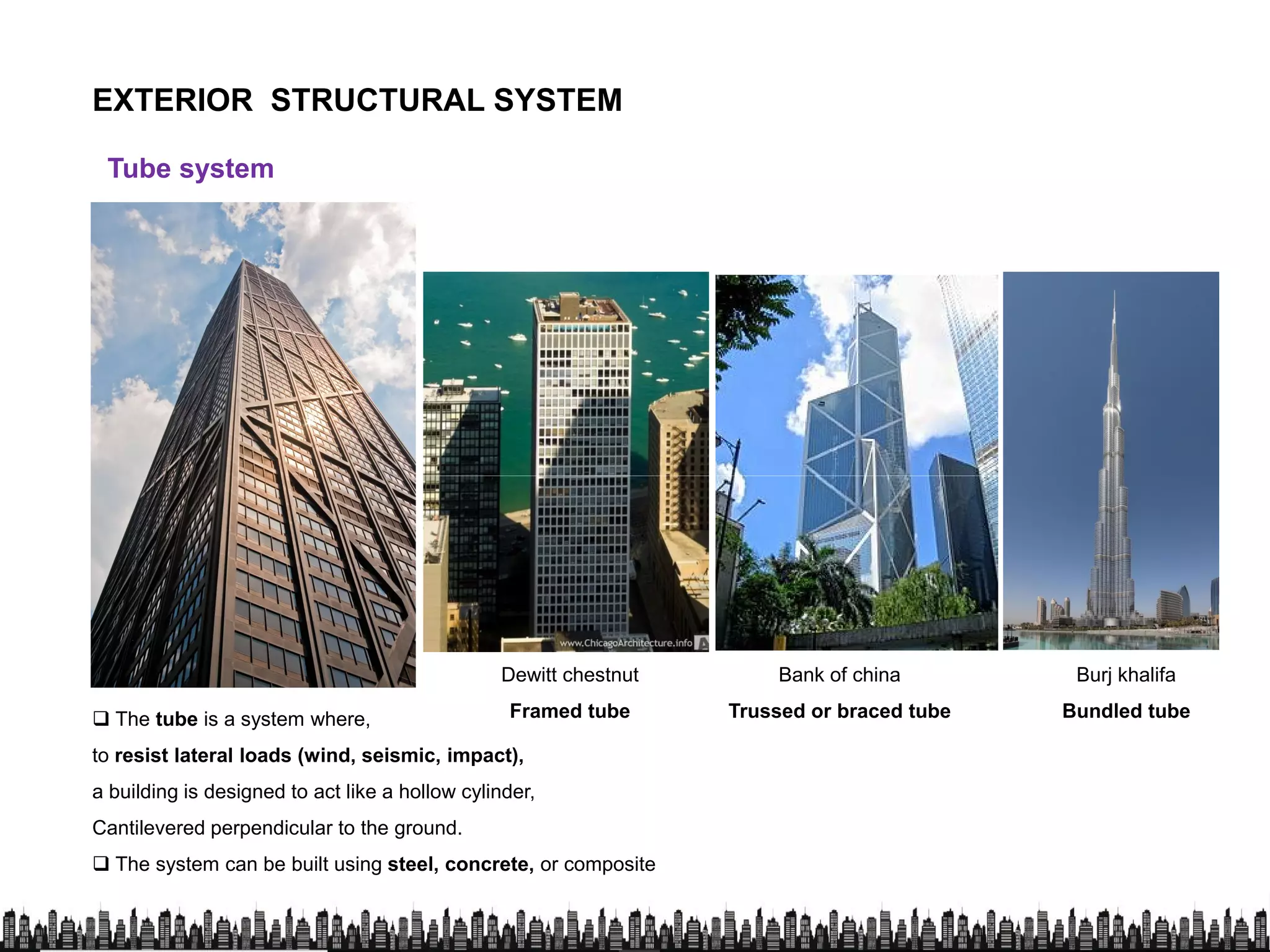

18. EXTERIOR STRUCTURAL SYSTEM
Tube system
The tube is a system where,
Dewitt chestnut
Framed tube
Bank of china
Trussed or braced tube
Burj khalifa
Bundled tube The tube is a system where,
to resist lateral loads (wind, seismic, impact),
a building is designed to act like a hollow cylinder,
Cantilevered perpendicular to the ground.
The system can be built using steel, concrete, or composite
Construction
Framed tube Trussed or braced tube Bundled tube
19. EXTERIOR STRUCTURAL SYSTEMEXTERIOR STRUCTURAL SYSTEM
Dia-grid systems Space truss
Efficiently resists lateral shear by axial forces
in the diagonal members but have Complicated
joints
Early designs of tall buildings recognized the
Space truss structures are modified braced
tubes with diagonals connecting the exterior to
interior. In a typical braced tube structure, all the
diagonals, which connect the chord members – Early designs of tall buildings recognized the
effectiveness of diagonal bracing members in
resisting lateral forces.
diagonals, which connect the chord members –
vertical corner columns in general, are located
on the plane parallel to the facades
However, in space trusses, some diagonals
penetrate the interior of the building.

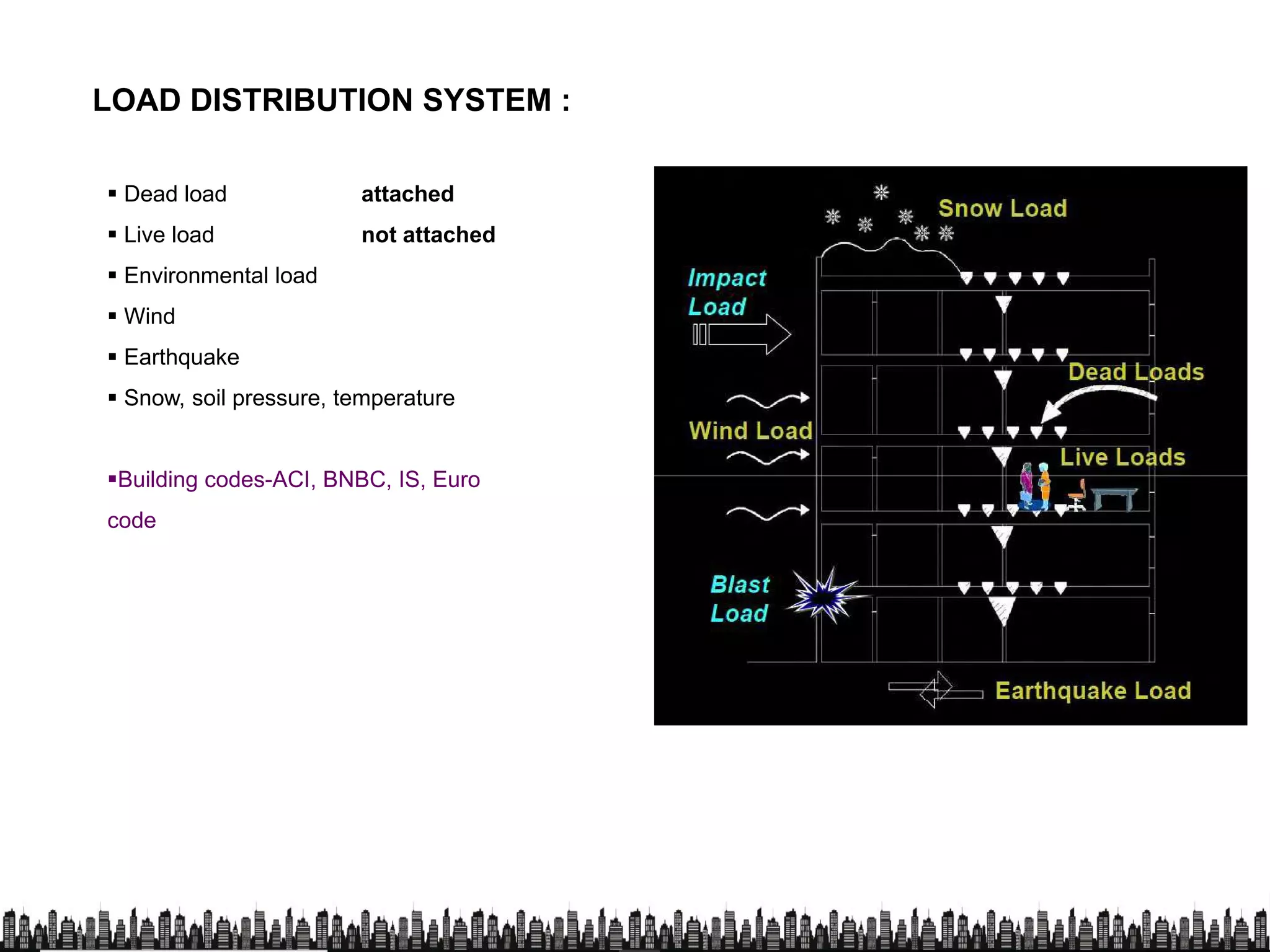

20. Dead load attached
Live load not attached
LOAD DISTRIBUTION SYSTEM :
Live load not attached
Environmental load
Wind
Earthquake
Snow, soil pressure, temperature
Building codes-ACI, BNBC, IS, EuroBuilding codes-ACI, BNBC, IS, Euro
code
21. DEFINITION OF COREDEFINITION OF CORE
The central of arterial part of a multistory building that
integrates functions and service needs for established
CORE DESIGN
integrates functions and service needs for established
occupants. Such areas are normally composed of toilet
facilities, elevator banks, janitors’ closet, utilities, mechanical
facilities, smoke shafts and stair.
Core also known as facade envelope is a spatial element for
load-bearing high-rise building system.load-bearing high-rise building system.
CHARACTERISTICCHARACTERISTIC
Shape of core
Number of cores
Location of cores Location of cores
Arrangement of cores
Geometry of building as generator of core form
22. THERE ARETHERE ARE SIXSIX TYPES OF SERVICE CORETYPES OF SERVICE CORE
CORE DESIGN
CENTRAL CORE SPLIT ( END) CORE END CORE
OFF CENTER CORE SPLIT CORE ATRIUM CORE
23. CORE DESIGN
CENTRAL CORE ADVANTAGE & DISADVANTAGECENTRAL CORE ADVANTAGE & DISADVANTAGE
AdvantageAdvantage
Allows all window all window space to be utilized as rental
of the building plan will permit offices of verging depths to
receive natural light.
Extremely convenient of access and in some cases may be
equidistant for all side.
Simplifies area division & provides good flexibility of tenant
distribution in the some way
Horizontal utility runs may also relatively equidistant from
the core
DisadvantagesDisadvantagesDisadvantagesDisadvantages
The central interior location limits the depth of offices in the
mid-zone of each floor
It requires an access corridor around its perimeter
Beijing Greenland Center
Pedersen
24. CORE DESIGN
SPLIT ( END) CORESPLIT ( END) CORE
National Commercial Bank Commerzbank Tower

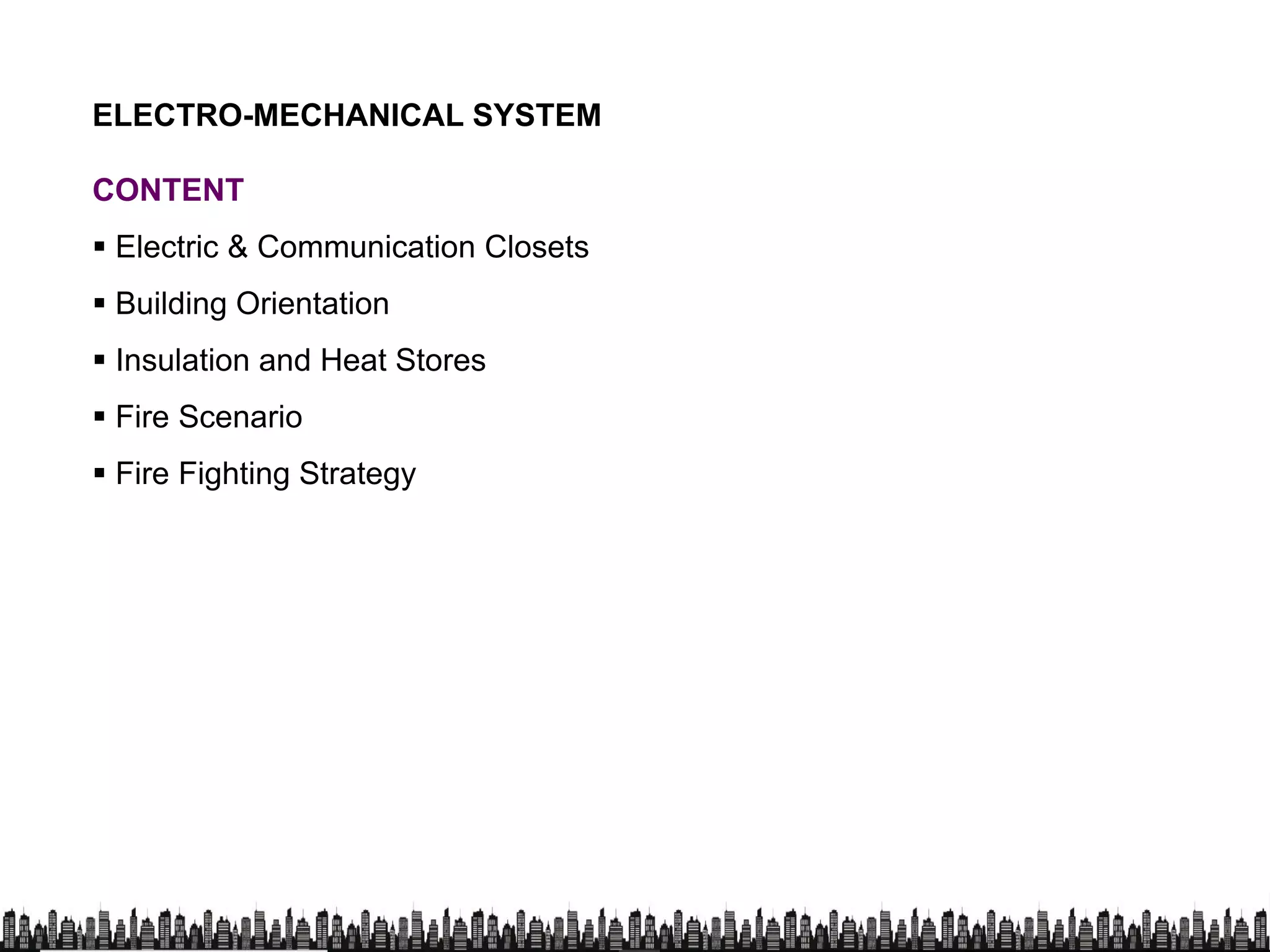

25. CONTENT
Electric & Communication Closets
ELECTRO-MECHANICAL SYSTEM
Electric & Communication Closets
Building Orientation
Insulation and Heat Stores
Fire Scenario
Fire Fighting Strategy Fire Fighting Strategy

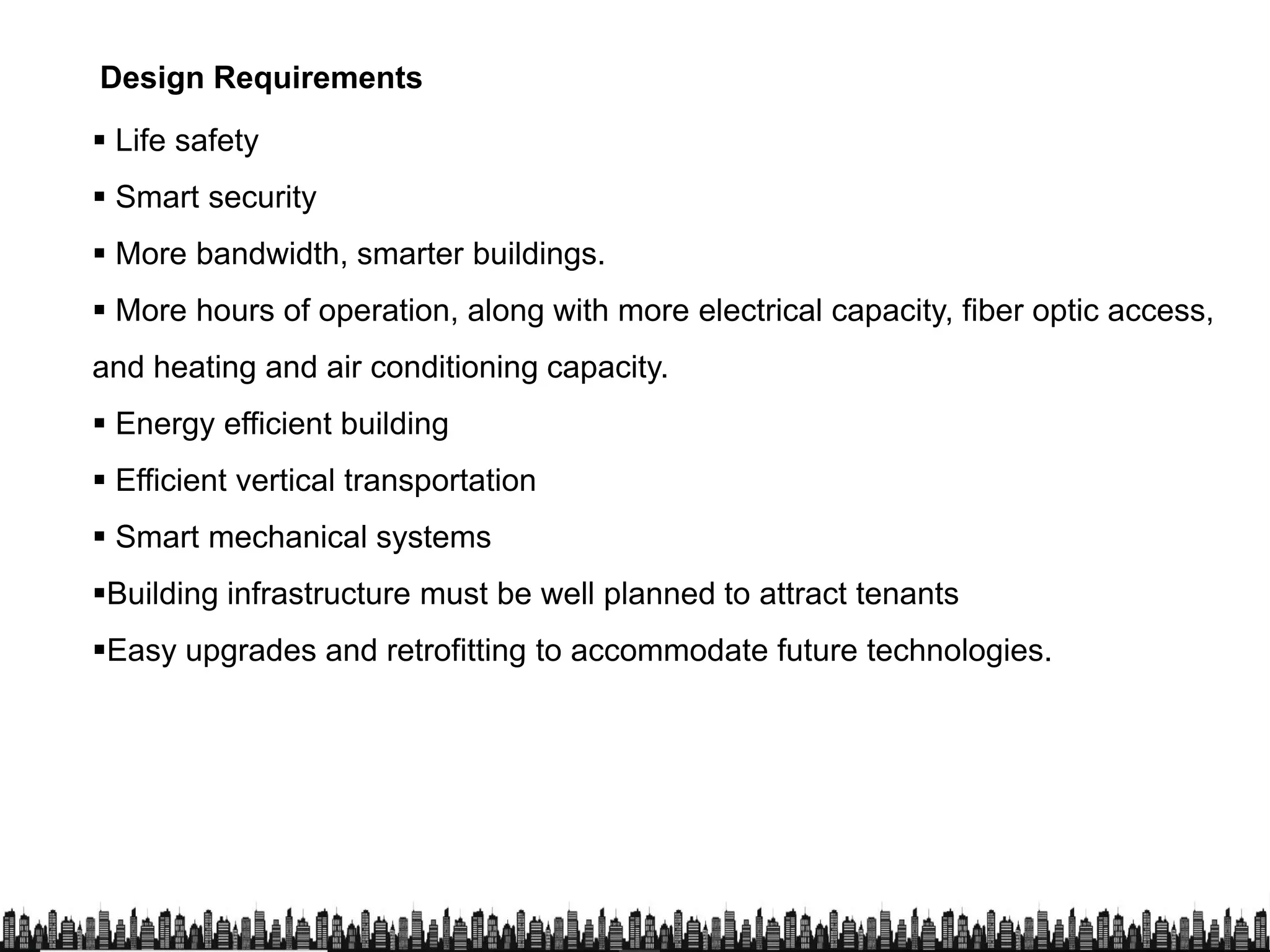

26. Life safety
Smart security
More bandwidth, smarter buildings.
Design Requirements
More bandwidth, smarter buildings.
More hours of operation, along with more electrical capacity, fiber optic access,
and heating and air conditioning capacity.
Energy efficient building
Efficient vertical transportation Efficient vertical transportation
Smart mechanical systems
Building infrastructure must be well planned to attract tenants
Easy upgrades and retrofitting to accommodate future technologies.

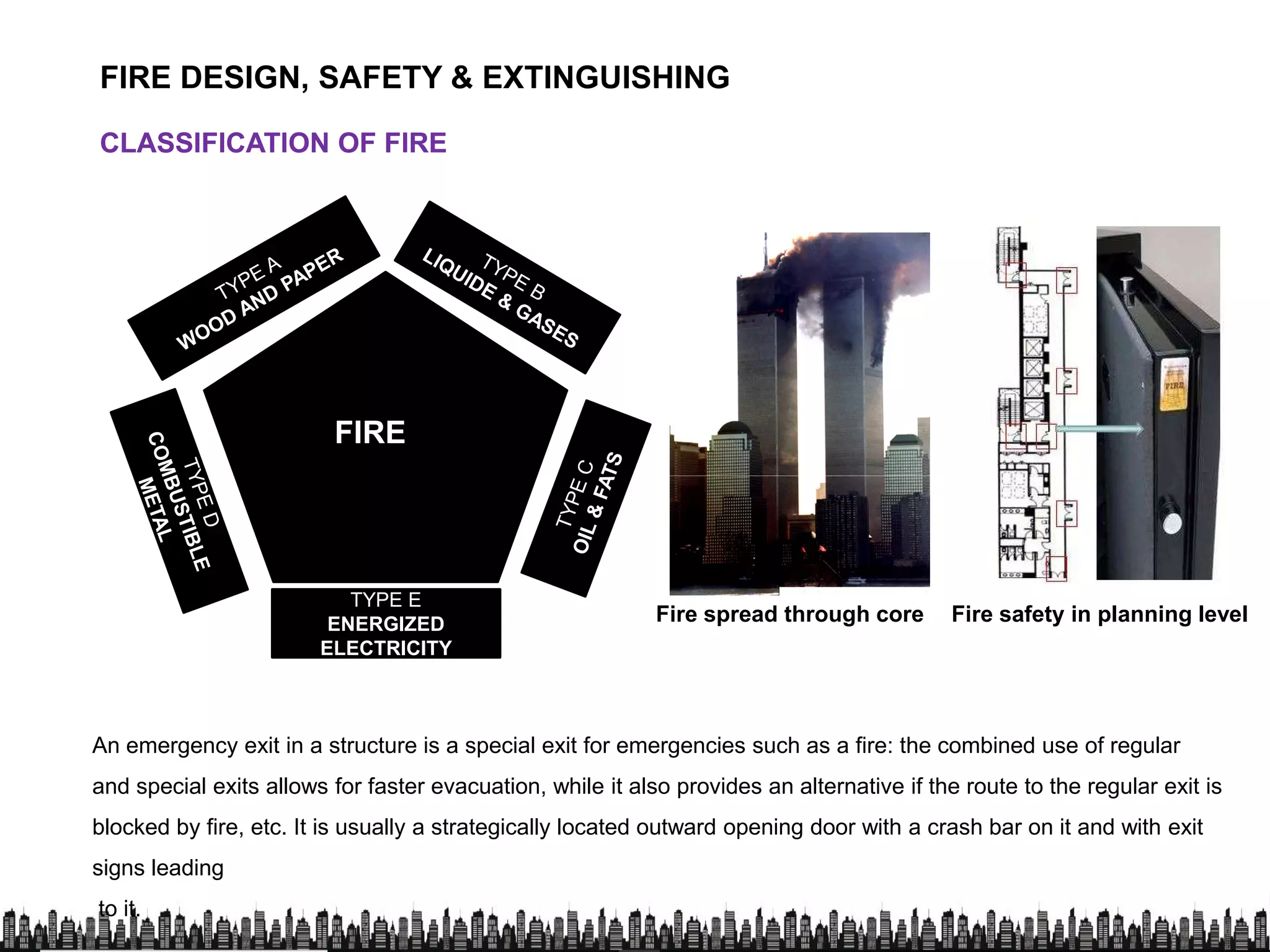

27. FIRE DESIGN, SAFETY & EXTINGUISHING
CLASSIFICATION OF FIRECLASSIFICATION OF FIRE
FIRE
Fire spread through core Fire safety in planning level
TYPE E
ENERGIZED
ELECTRICITY
An emergency exit in a structure is a special exit for emergencies such as a fire: the combined use of regular
and special exits allows for faster evacuation, while it also provides an alternative if the route to the regular exit is
blocked by fire, etc. It is usually a strategically located outward opening door with a crash bar on it and with exit
signs leading
to it.
28. FIRE DESIGN, SAFETY & EXTINGUISHING
LOCATION
SIZE
For less than 150
persons At the other
More than 150
persons At the other
Good & Safe Fire Exit Inside the building
persons At the other
Floor
persons At the other
Floor
Bad & Risky Fire Exit Outside the building
For less than 150
persons At the top
Floor
More than 150
persons At the top
Floor

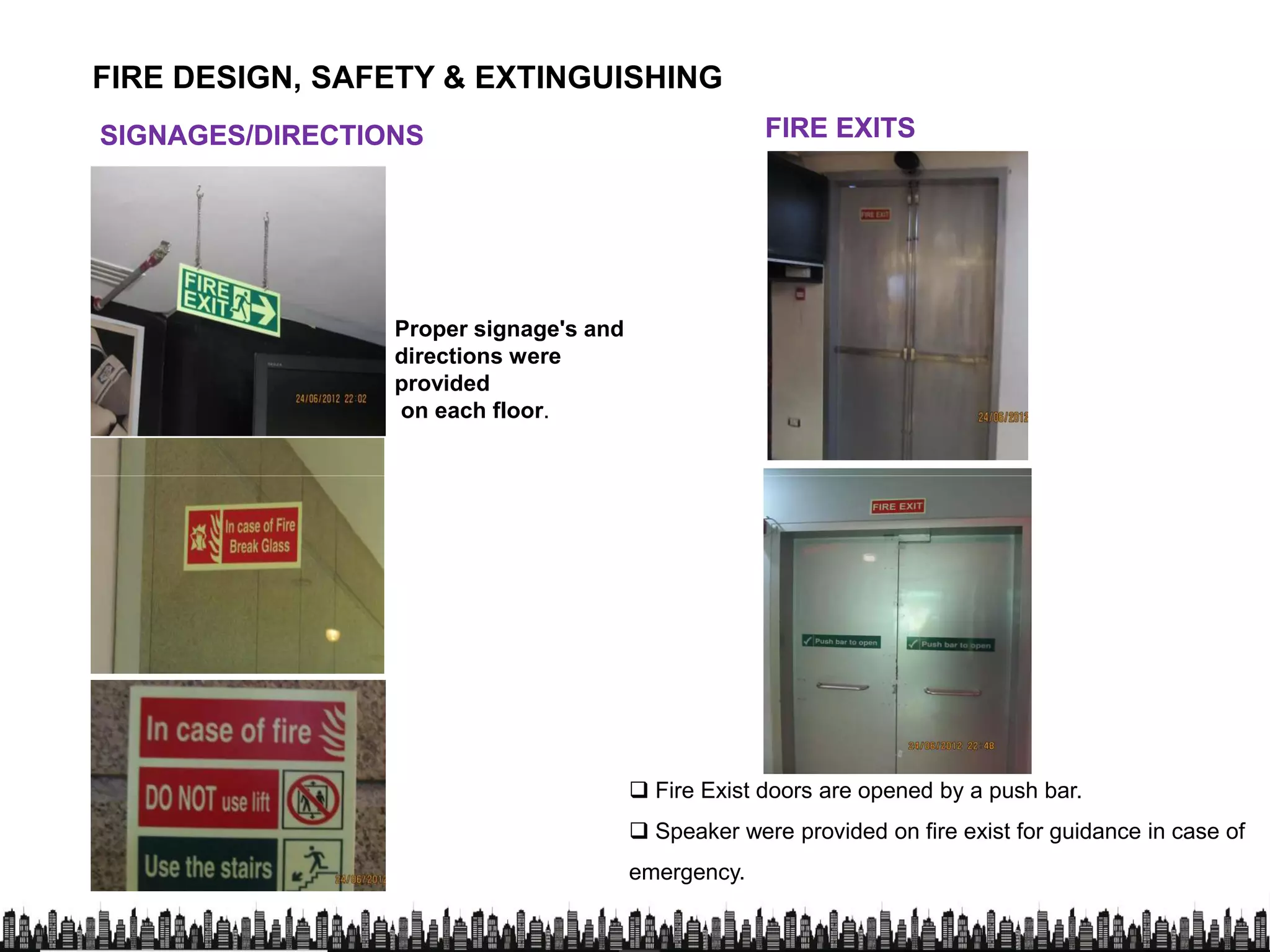

29. FIRE DESIGN, SAFETY & EXTINGUISHING
SIGNAGES/DIRECTIONSSIGNAGES/DIRECTIONS FIRE EXITSFIRE EXITS
Proper signage's and
directions were
provided
on each floor.
Fire Exist doors are opened by a push bar.
Speaker were provided on fire exist for guidance in case of
emergency.

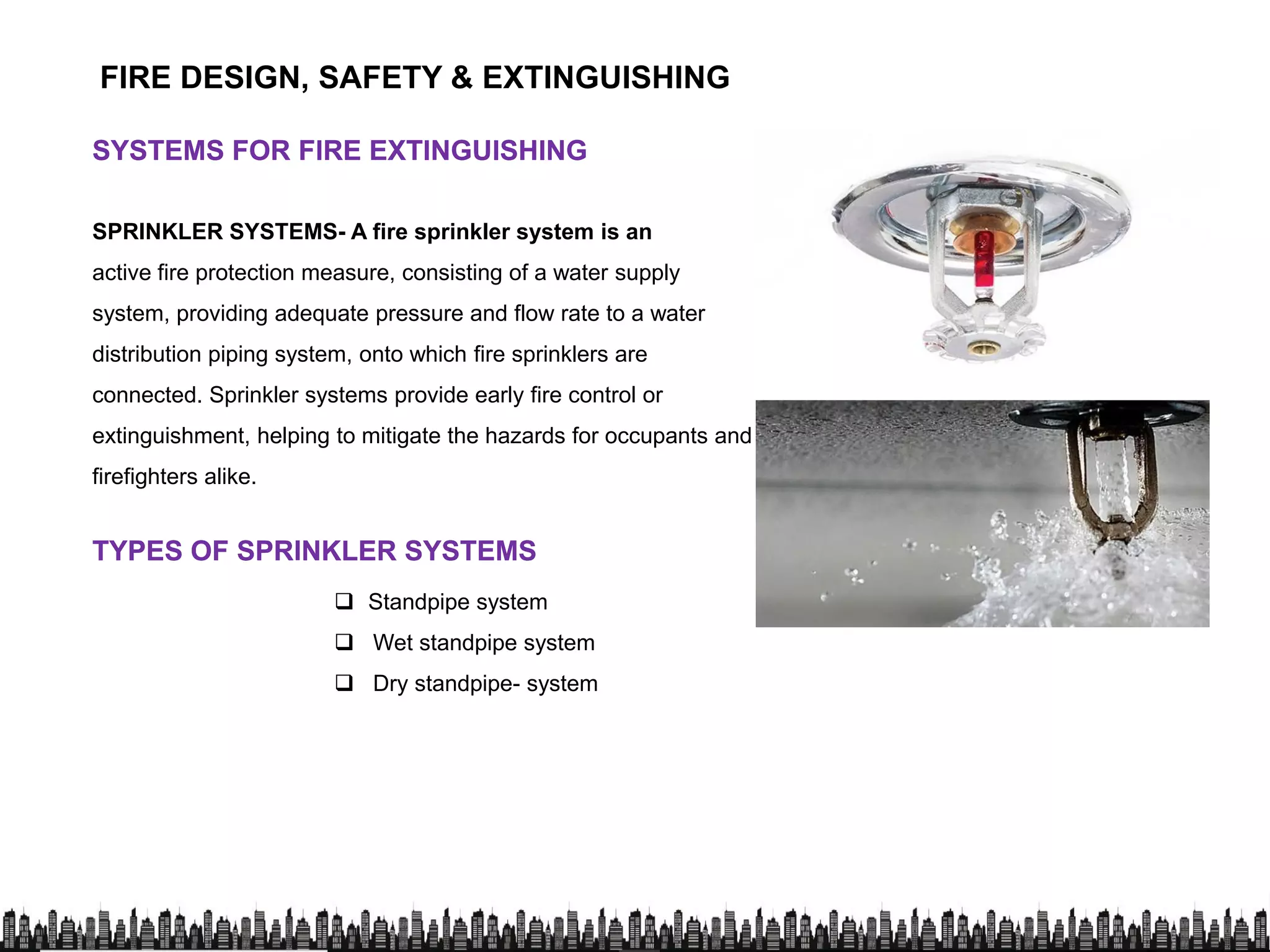

30. FIRE DESIGN, SAFETY & EXTINGUISHING
SYSTEMS FOR FIRE EXTINGUISHINGSYSTEMS FOR FIRE EXTINGUISHING
SPRINKLER SYSTEMS- A fire sprinkler system is anSPRINKLER SYSTEMS- A fire sprinkler system is an
active fire protection measure, consisting of a water supply
system, providing adequate pressure and flow rate to a water
distribution piping system, onto which fire sprinklers are
connected. Sprinkler systems provide early fire control or
extinguishment, helping to mitigate the hazards for occupants and
firefighters alike.firefighters alike.
TYPES OF SPRINKLER SYSTEMSTYPES OF SPRINKLER SYSTEMS
Standpipe system
Wet standpipe system
Dry standpipe- system

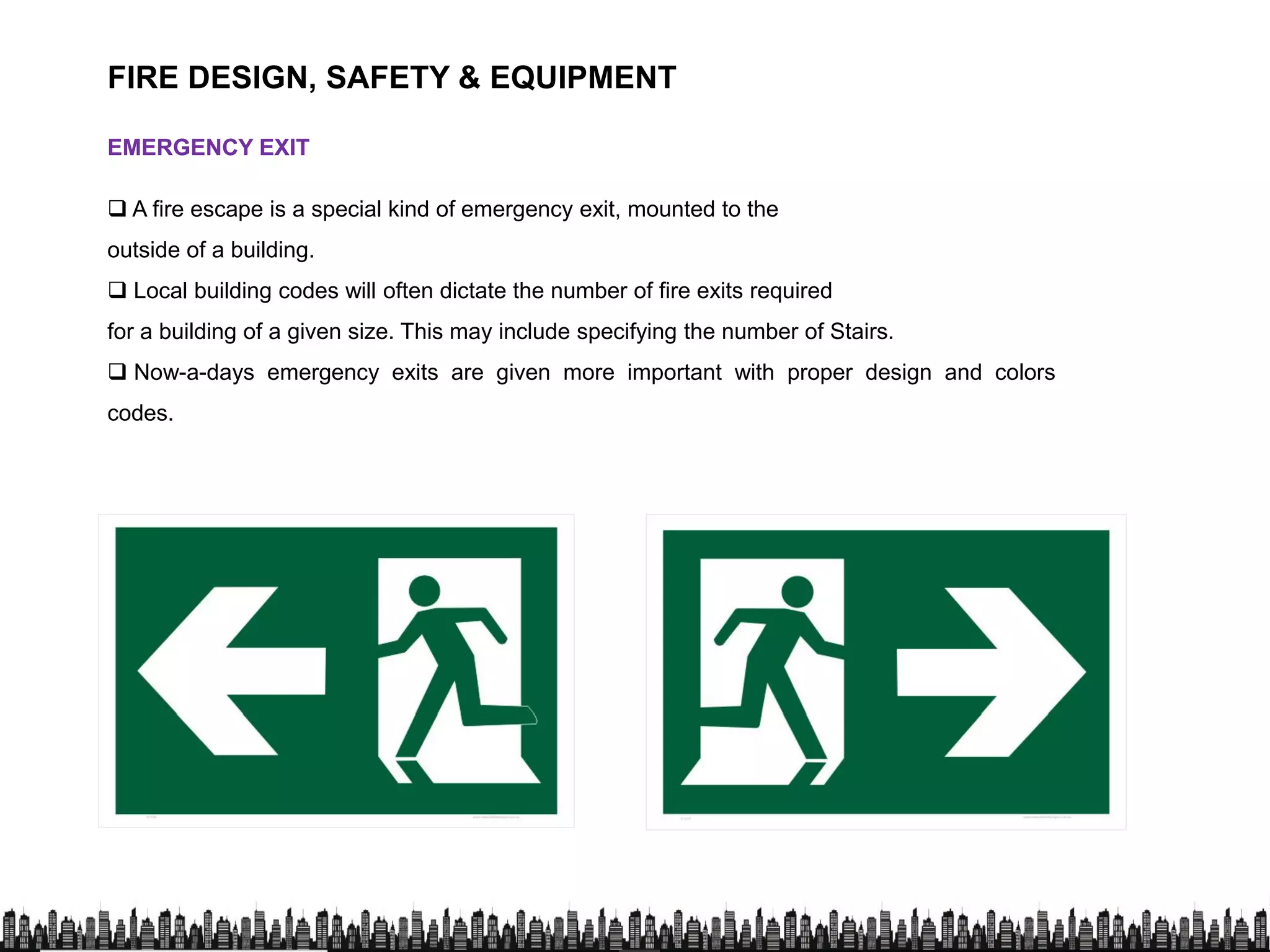

31. FIRE DESIGN, SAFETY & EQUIPMENT
EMERGENCY EXITEMERGENCY EXIT
A fire escape is a special kind of emergency exit, mounted to the
outside of a building.outside of a building.
Local building codes will often dictate the number of fire exits required
for a building of a given size. This may include specifying the number of Stairs.
Now-a-days emergency exits are given more important with proper design and colors
codes.
32. FIRE DESIGN ,SAFETY & EQUIPMENT
SYSTEMS FOR FIRE EXTINGUISHINGSYSTEMS FOR FIRE EXTINGUISHING
Agent Fire Extinguisher Water Mist Fire Extinguisher Water & Foam Stored Pressure Fire
Extinguisher
Wheeled Unit Fire Extinguisher Class K Wet Chemical Fire
Extinguisher
Carbon Dioxide Fire Extinguisher

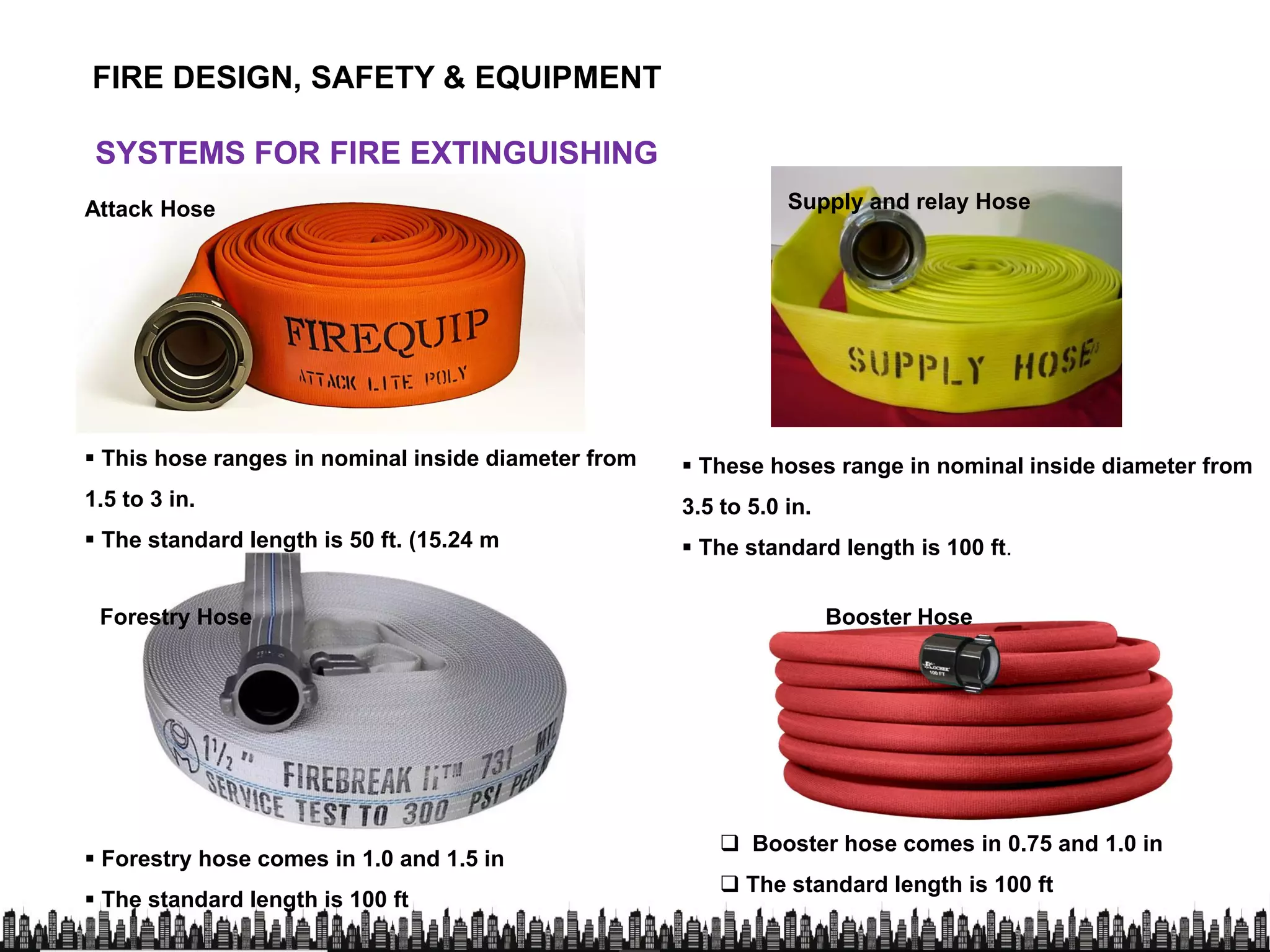

33. FIRE DESIGN, SAFETY & EQUIPMENT
SYSTEMS FOR FIRE EXTINGUISHINGSYSTEMS FOR FIRE EXTINGUISHING
Attack Hose Supply and relay Hose
This hose ranges in nominal inside diameter from These hoses range in nominal inside diameter from
1.5 to 3 in.
The standard length is 50 ft. (15.24 m
These hoses range in nominal inside diameter from
3.5 to 5.0 in.
The standard length is 100 ft.
Forestry Hose Booster Hose
Forestry hose comes in 1.0 and 1.5 in
The standard length is 100 ft
Booster hose comes in 0.75 and 1.0 in
The standard length is 100 ft
34. PARKING
Same entry & exitSeparate entry & exit Width & length of parking space Same entry & exitSeparate entry & exit Width & length of parking space
Single way & one side parking
0° car parking
Single way & one side parking
45° car parking
Single way & one side parking
90° car parking

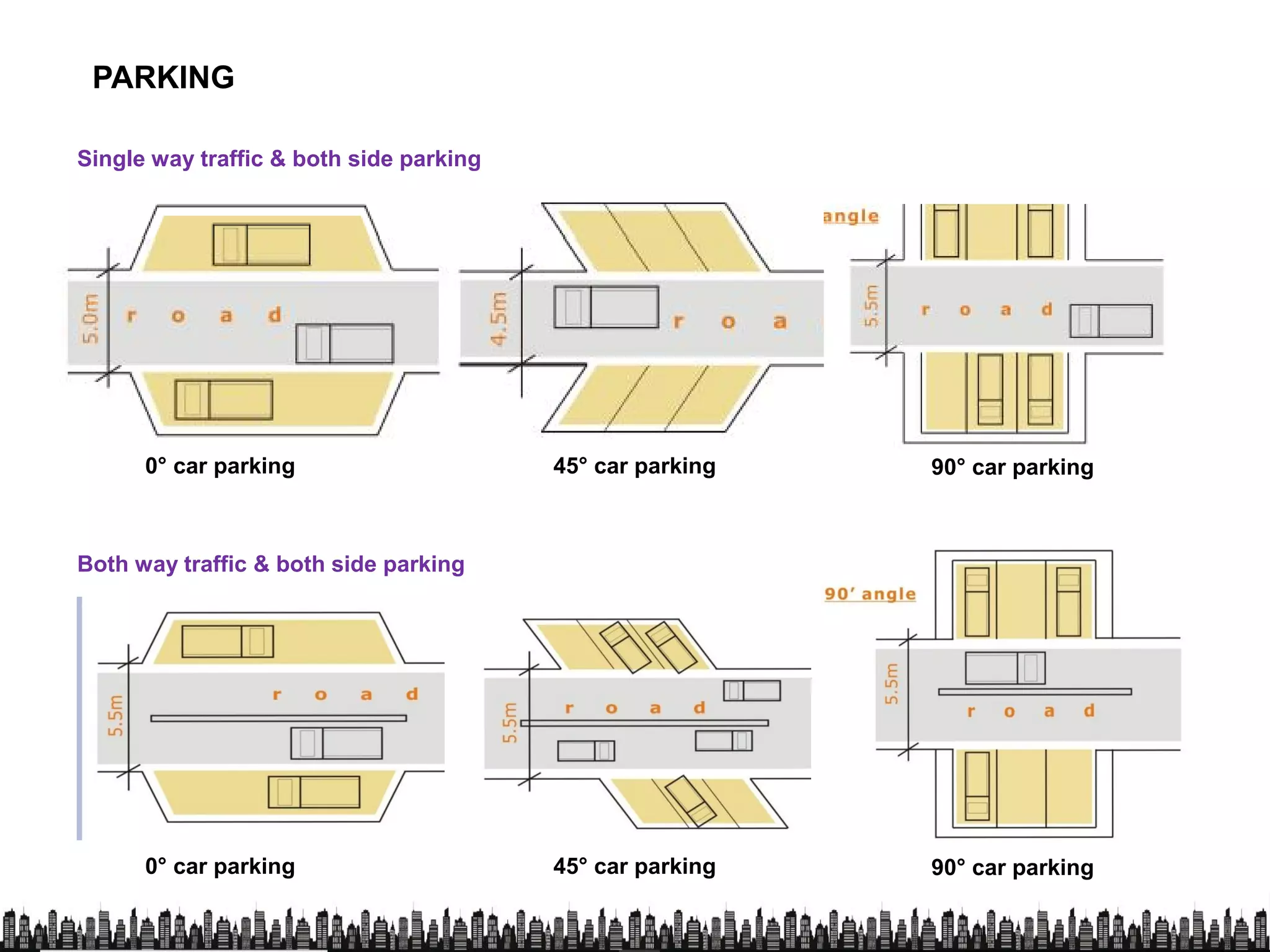

35. PARKING
Single way traffic & both side parking
0° car parking 45° car parking 90° car parking0° car parking 45° car parking 90° car parking
Both way traffic & both side parking
0° car parking 45° car parking 90° car parking

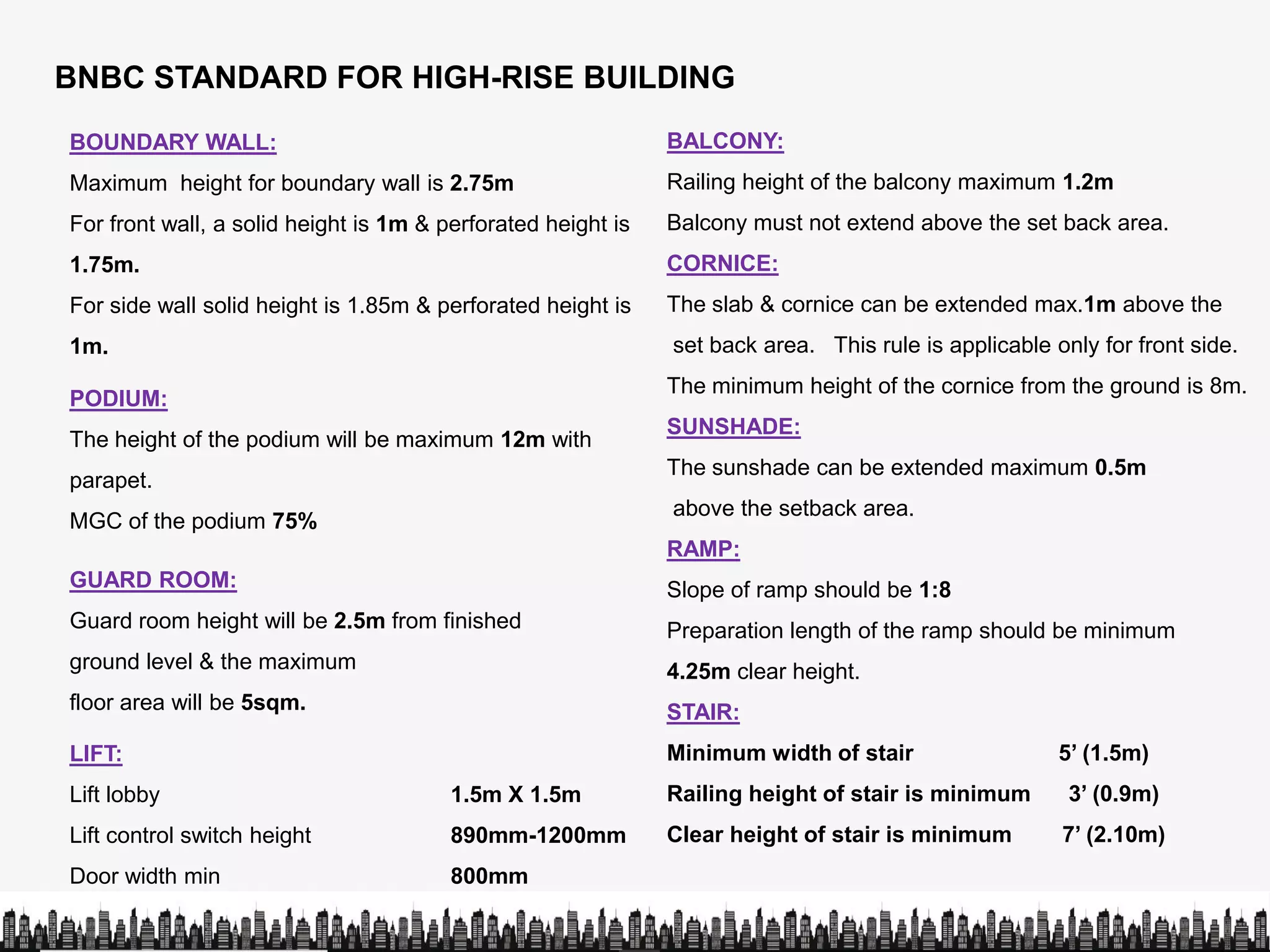

38. BNBC STANDARD FOR HIGH-RISE BUILDING
BOUNDARY WALL:
Maximum height for boundary wall is 2.75m
For front wall, a solid height is 1m & perforated height is
BALCONY:
Railing height of the balcony maximum 1.2m
Balcony must not extend above the set back area.
1.75m.
For side wall solid height is 1.85m & perforated height is
1m.
PODIUM:
The height of the podium will be maximum 12m with
parapet.
CORNICE:
The slab & cornice can be extended max.1m above the
set back area. This rule is applicable only for front side.
The minimum height of the cornice from the ground is 8m.
SUNSHADE:
The sunshade can be extended maximum 0.5m
parapet.
MGC of the podium 75%
GUARD ROOM:
Guard room height will be 2.5m from finished
ground level & the maximum
floor area will be 5sqm.
The sunshade can be extended maximum 0.5m
above the setback area.
RAMP:
Slope of ramp should be 1:8
Preparation length of the ramp should be minimum
4.25m clear height.
STAIR:floor area will be 5sqm.
LIFT:
Lift lobby 1.5m X 1.5m
Lift control switch height 890mm-1200mm
Door width min 800mm
STAIR:
Minimum width of stair 5’ (1.5m)
Railing height of stair is minimum 3’ (0.9m)
Clear height of stair is minimum 7’ (2.10m)

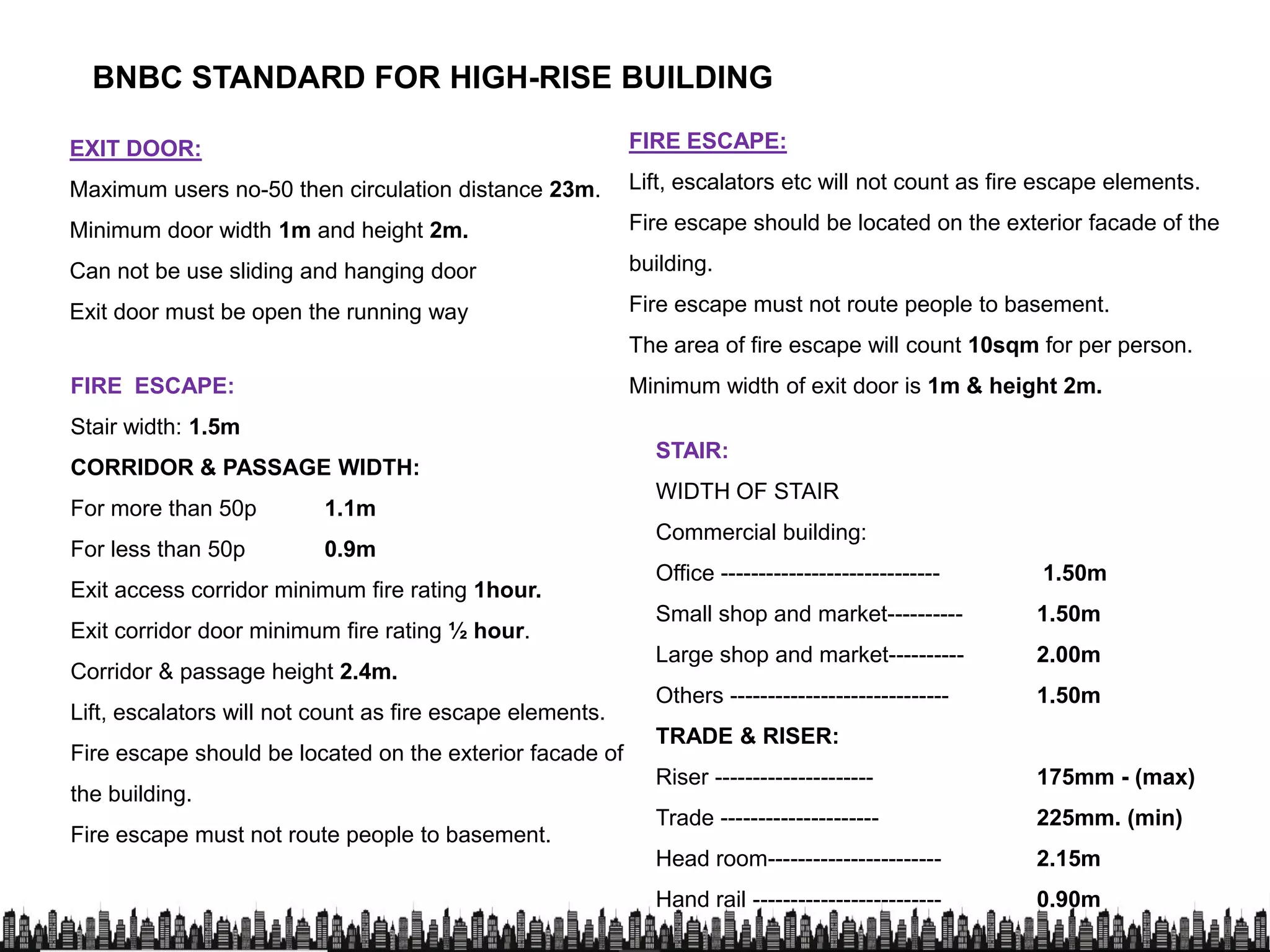

39. BNBC STANDARD FOR HIGH-RISE BUILDING
EXIT DOOR:
Maximum users no-50 then circulation distance 23m.
Minimum door width 1m and height 2m.
FIRE ESCAPE:
Lift, escalators etc will not count as fire escape elements.
Fire escape should be located on the exterior facade of theMinimum door width 1m and height 2m.
Can not be use sliding and hanging door
Exit door must be open the running way
building.
Fire escape must not route people to basement.
The area of fire escape will count 10sqm for per person.
Minimum width of exit door is 1m & height 2m.FIRE ESCAPE:
Stair width: 1.5m
CORRIDOR & PASSAGE WIDTH:
STAIR:
CORRIDOR & PASSAGE WIDTH:
For more than 50p 1.1m
For less than 50p 0.9m
Exit access corridor minimum fire rating 1hour.
Exit corridor door minimum fire rating ½ hour.
Corridor & passage height 2.4m.
Lift, escalators will not count as fire escape elements.
WIDTH OF STAIR
Commercial building:
Office ----------------------------- 1.50m
Small shop and market---------- 1.50m
Large shop and market---------- 2.00m
Others ----------------------------- 1.50m
Lift, escalators will not count as fire escape elements.
Fire escape should be located on the exterior facade of
the building.
Fire escape must not route people to basement.
TRADE & RISER:
Riser --------------------- 175mm - (max)
Trade --------------------- 225mm. (min)
Head room----------------------- 2.15m
Hand rail ------------------------- 0.90m

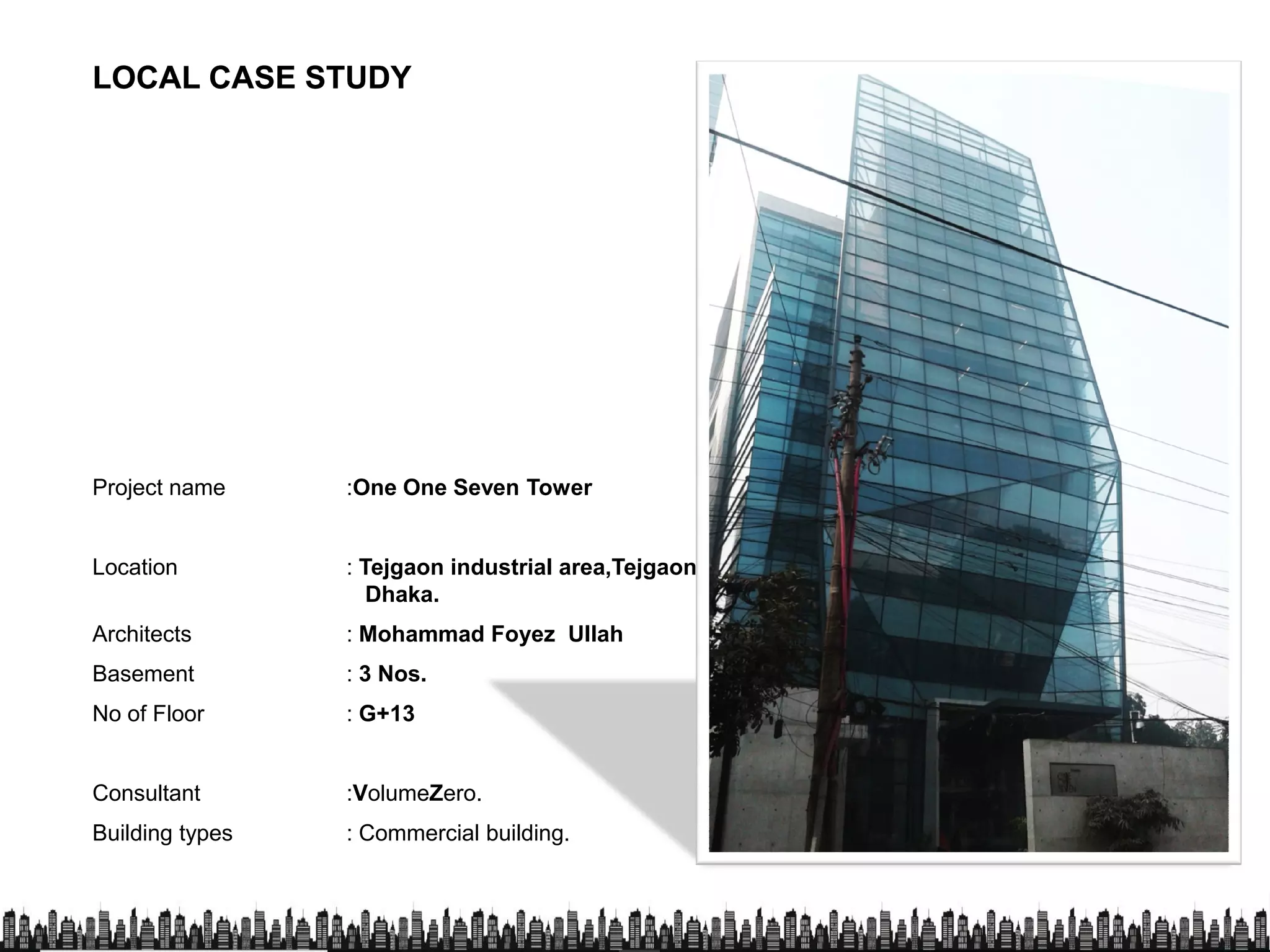

40. LOCAL CASE STUDYLOCAL CASE STUDY
Project name :One One Seven TowerProject name :One One Seven Tower
Location : Tejgaon industrial area,Tejgaon,
Dhaka.
Architects : Mohammad Foyez Ullah
Basement : 3 Nos.
No of Floor : G+13No of Floor : G+13
Consultant :VolumeZero.
Building types : Commercial building.

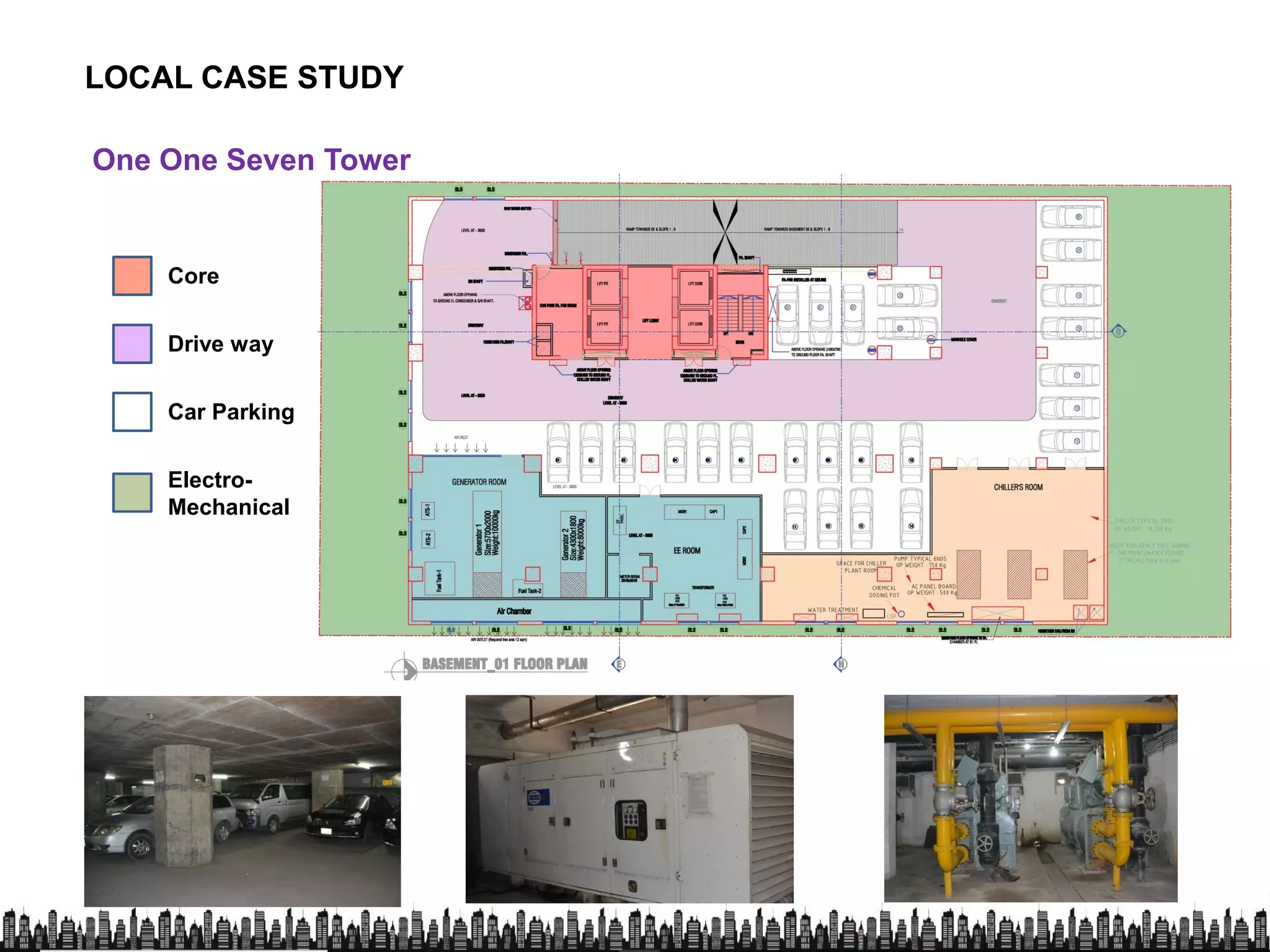

41. LOCAL CASE STUDYLOCAL CASE STUDY
One One Seven Tower
Core
Drive way
Car Parking
Electro-Electro-
Mechanical

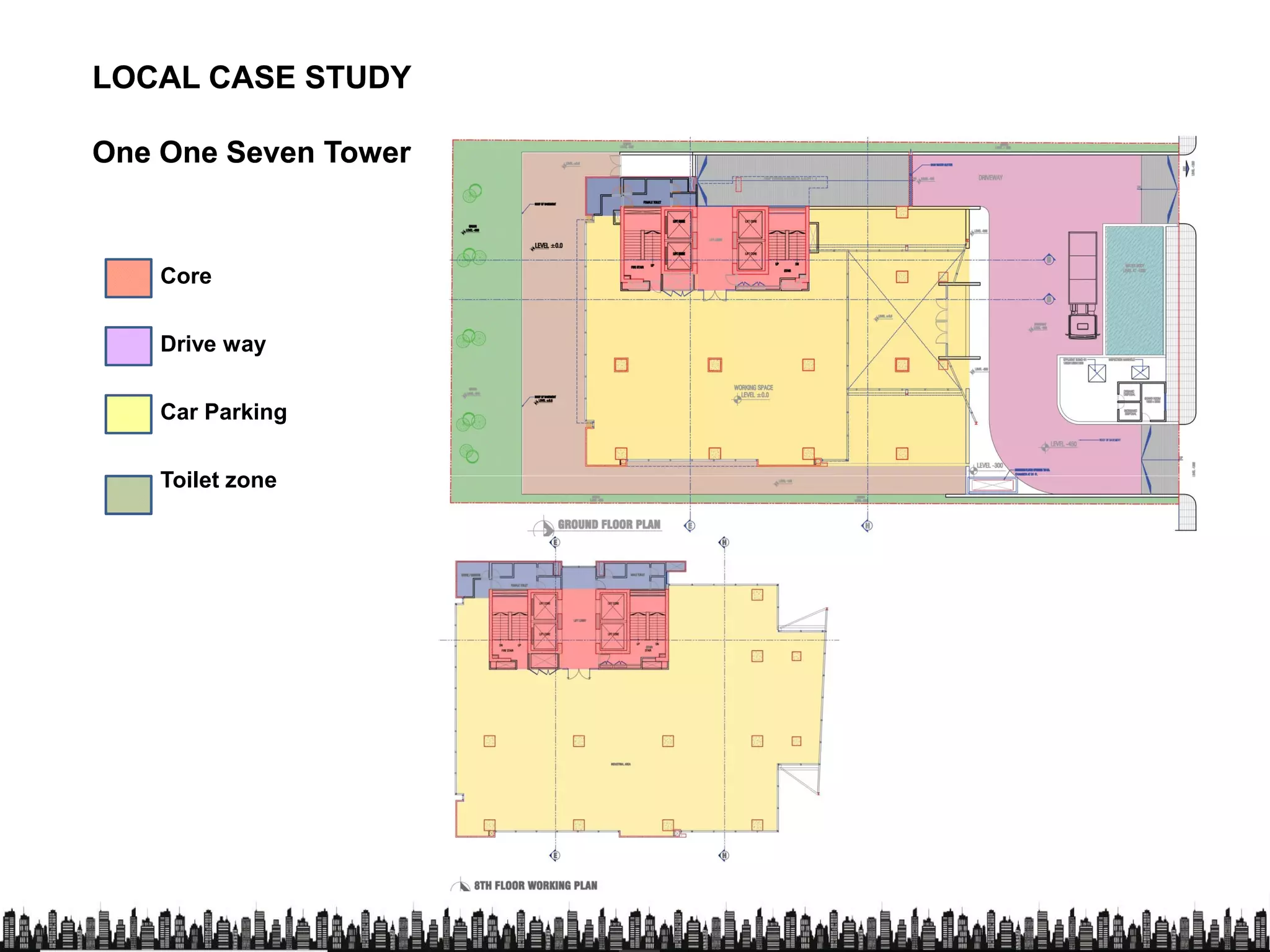

42. LOCAL CASE STUDYLOCAL CASE STUDY
OneOne OneOne Seven TowerSeven Tower
Core
Drive way
Car Parking
Toilet zoneToilet zone

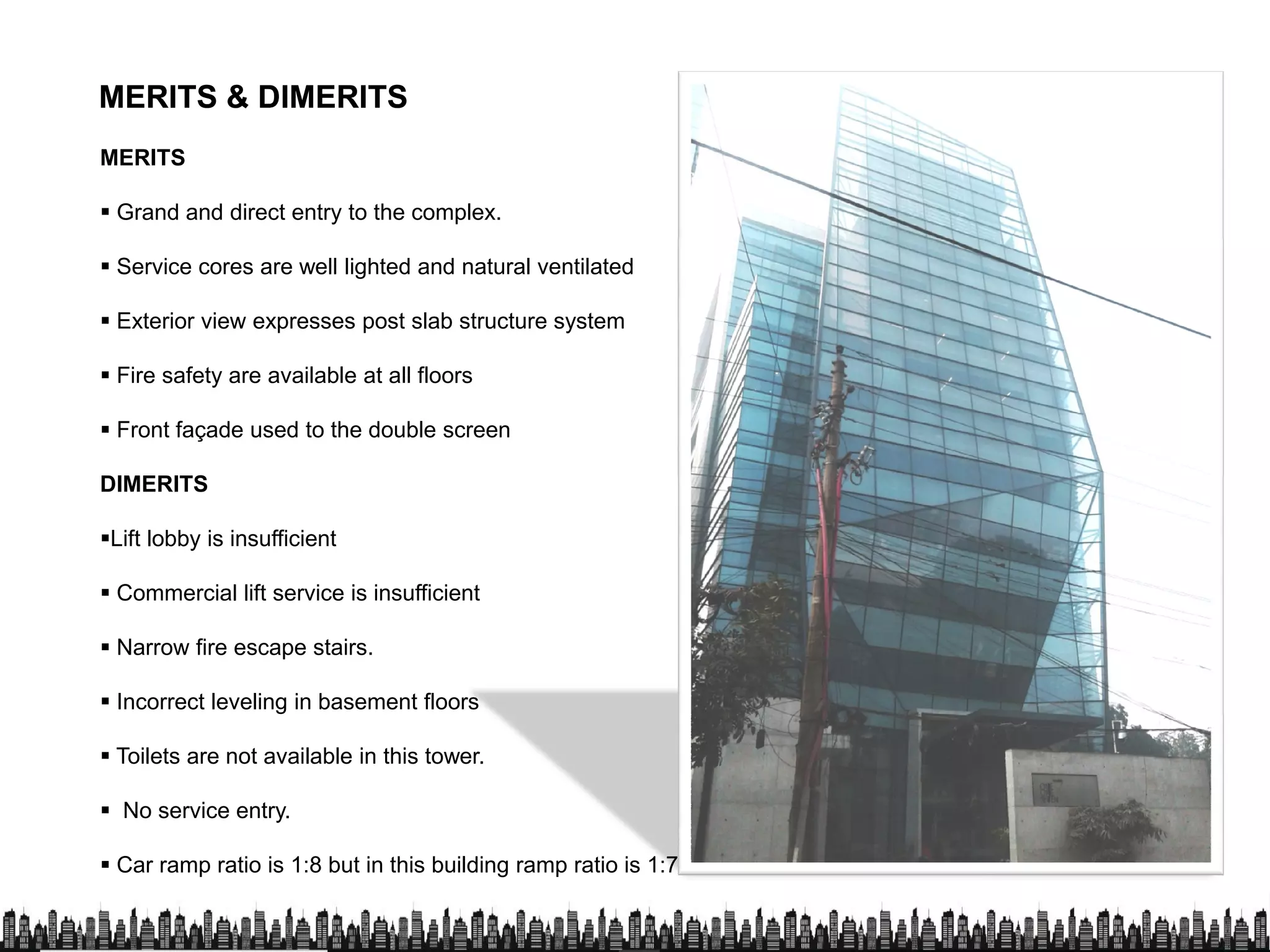

43. MERITS & DIMERITSMERITS & DIMERITS
MERITS
Grand and direct entry to the complex.
Service cores are well lighted and natural ventilated
Exterior view expresses post slab structure system
Fire safety are available at all floors
Front façade used to the double screen
DIMERITSDIMERITS
Lift lobby is insufficient
Commercial lift service is insufficient
Narrow fire escape stairs.
Incorrect leveling in basement floors Incorrect leveling in basement floors
Toilets are not available in this tower.
No service entry.
Car ramp ratio is 1:8 but in this building ramp ratio is 1:7

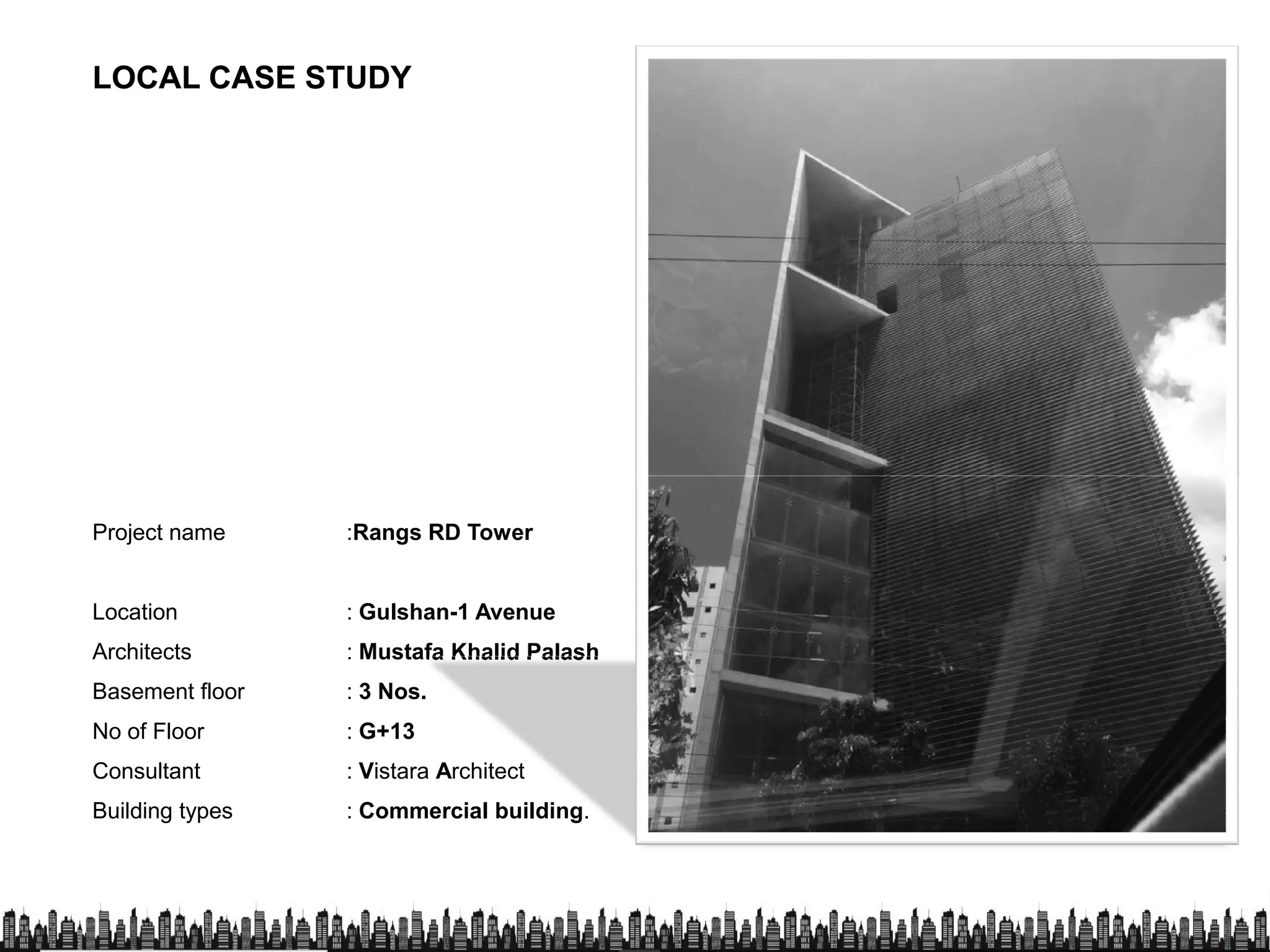

44. LOCAL CASE STUDYLOCAL CASE STUDY

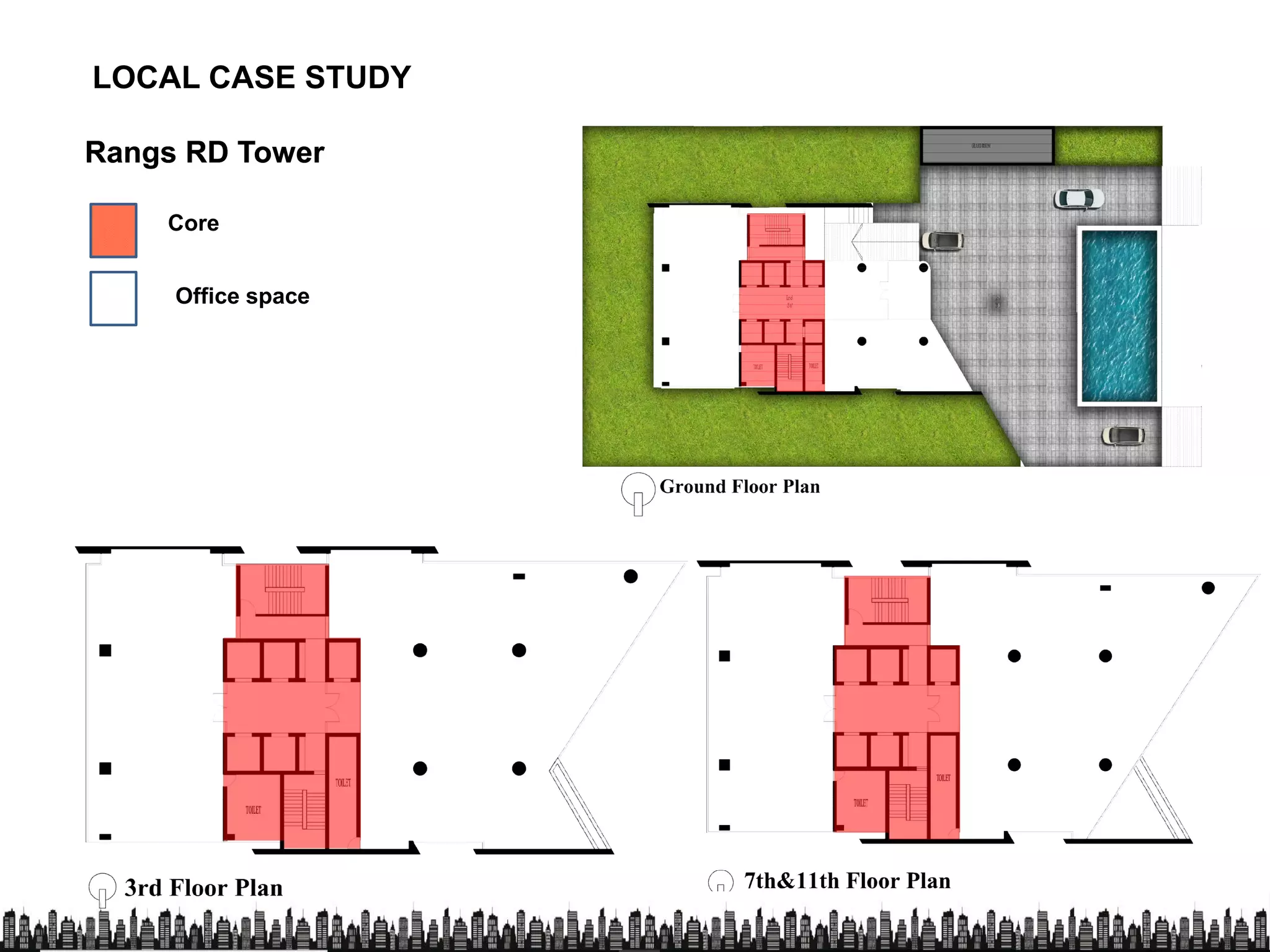

Project name :Rangs RD Tower
Location : Gulshan-1 Avenue
Architects : Mustafa Khalid Palash
Basement floor : 3 Nos.
No of Floor : G+13
Consultant : Vistara Architect
Building types : Commercial building.

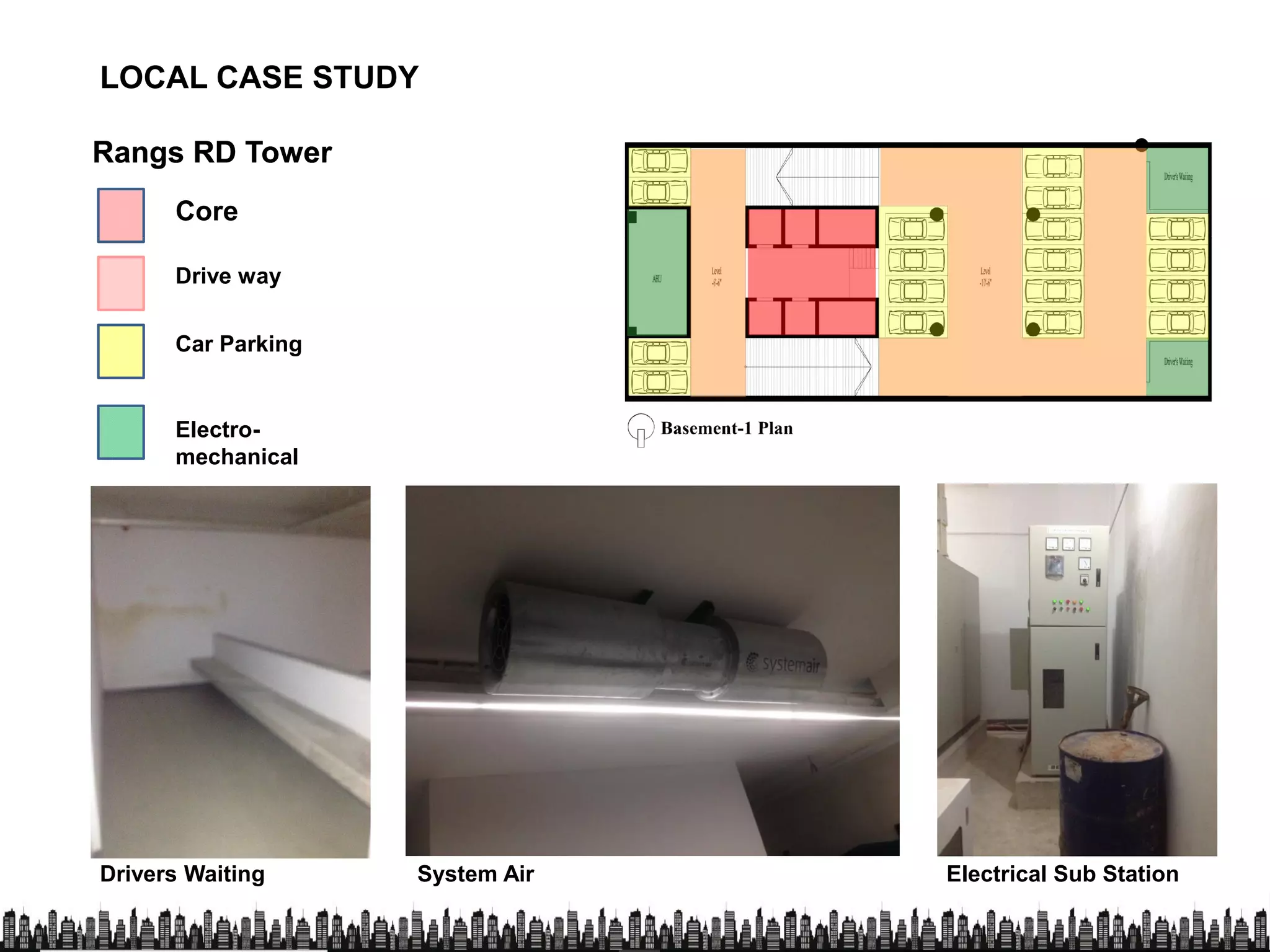

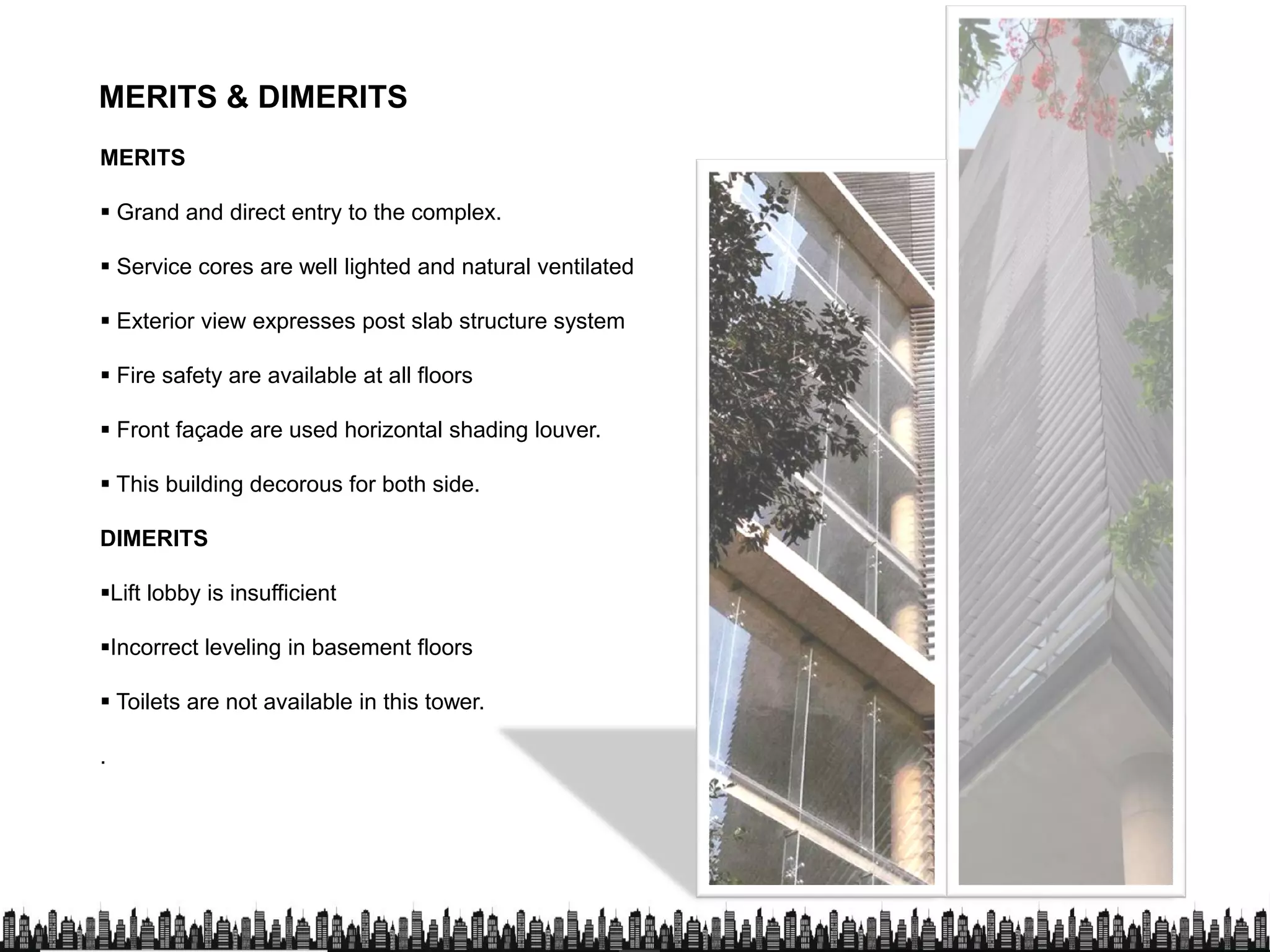

48. MERITS & DIMERITS
MERITS
Grand and direct entry to the complex.
Service cores are well lighted and natural ventilated
Exterior view expresses post slab structure system
Fire safety are available at all floors
Front façade are used horizontal shading louver.
This building decorous for both side. This building decorous for both side.
DIMERITS
Lift lobby is insufficient
Incorrect leveling in basement floors
Toilets are not available in this tower. Toilets are not available in this tower.
.

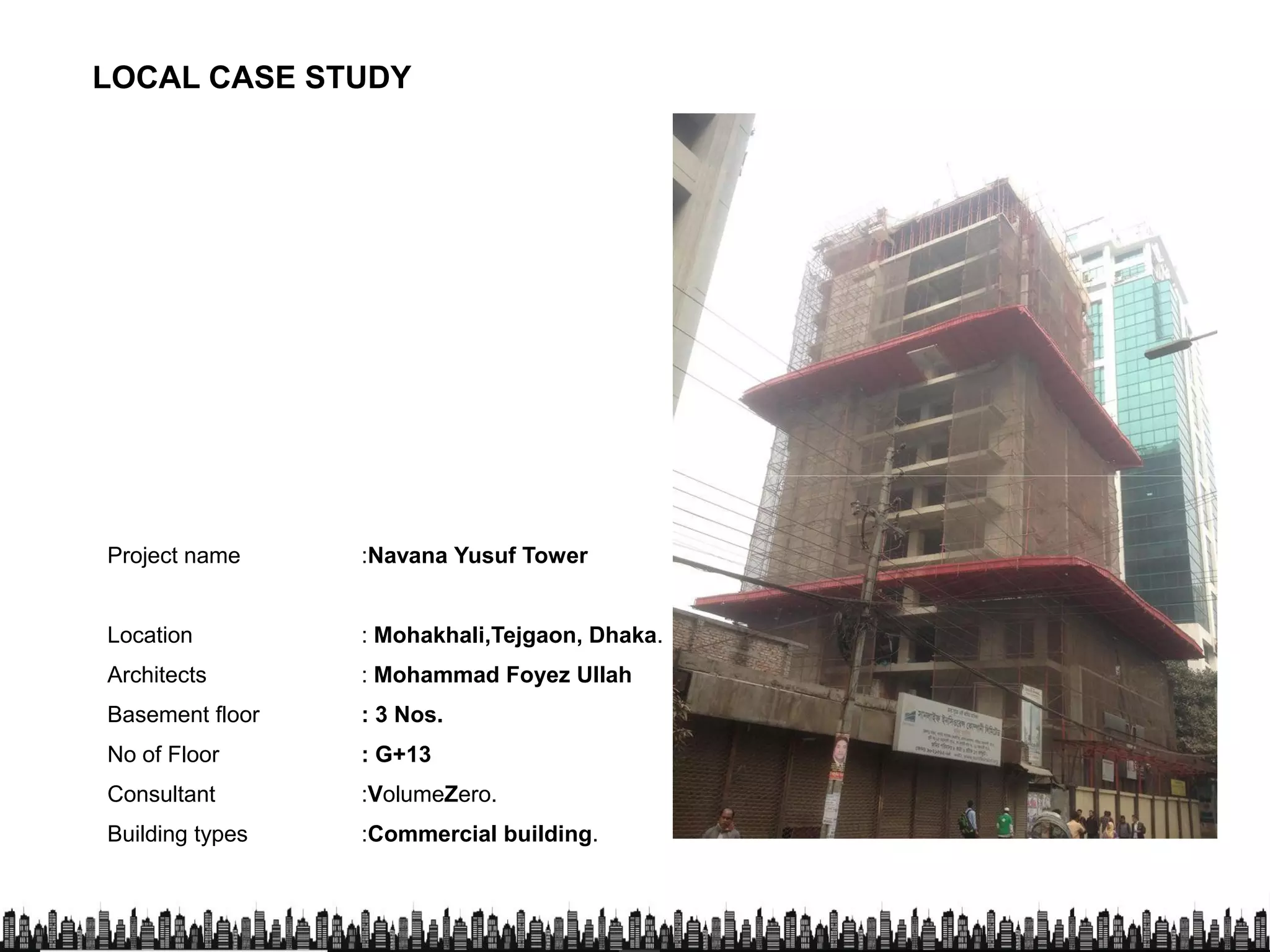

49. LOCAL CASE STUDY
Project name :Navana Yusuf Tower
Location : Mohakhali,Tejgaon, Dhaka.
Architects : Mohammad Foyez Ullah
Basement floor : 3 Nos.Basement floor : 3 Nos.
No of Floor : G+13
Consultant :VolumeZero.
Building types :Commercial building.

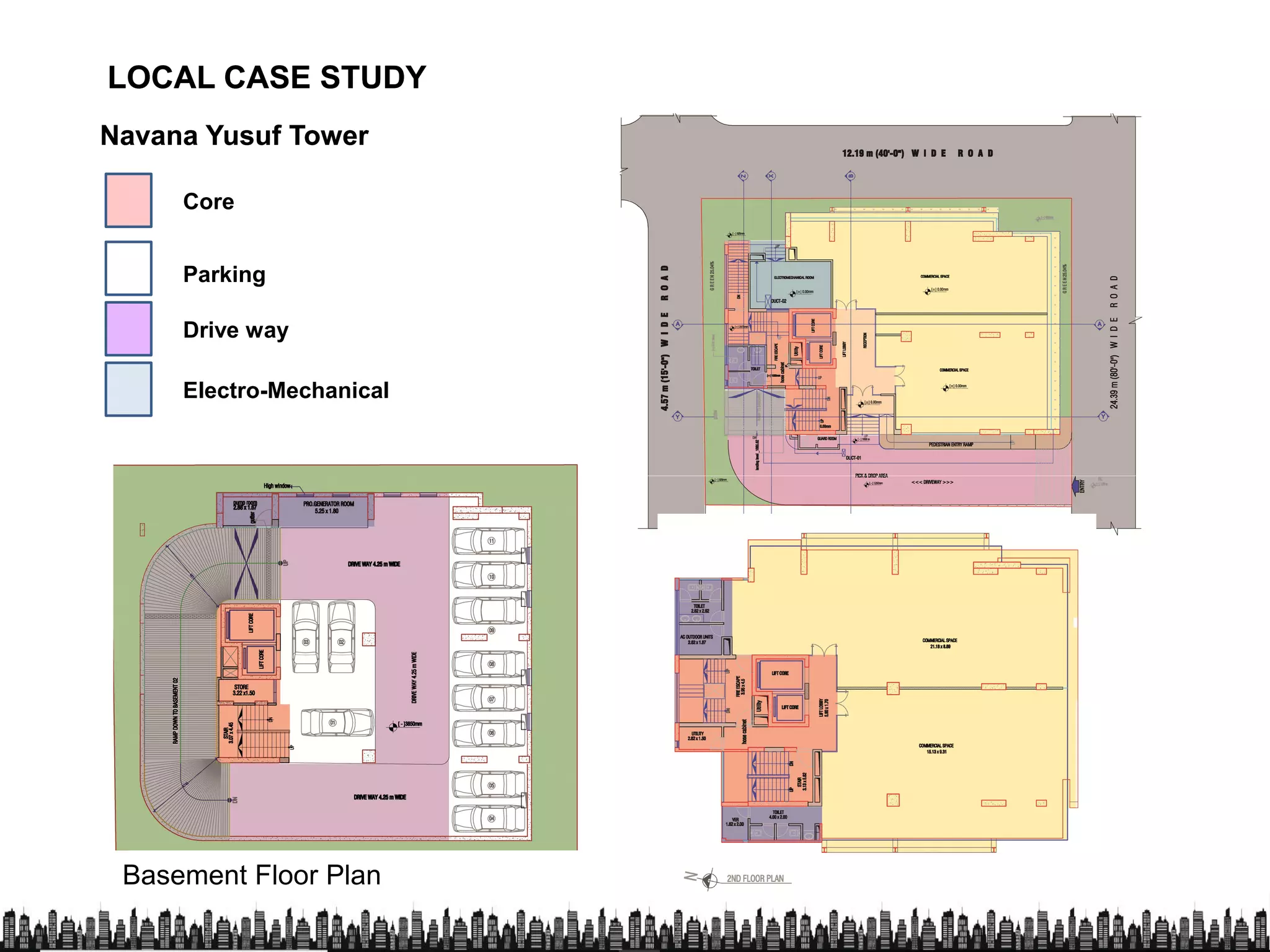

50. LOCAL CASE STUDYLOCAL CASE STUDY
NavanaNavana Yusuf TowerYusuf Tower
Core
Parking
Drive way
Electro-Mechanical
Basement Floor Plan
51. LOCAL CASE STUDYLOCAL CASE STUDY

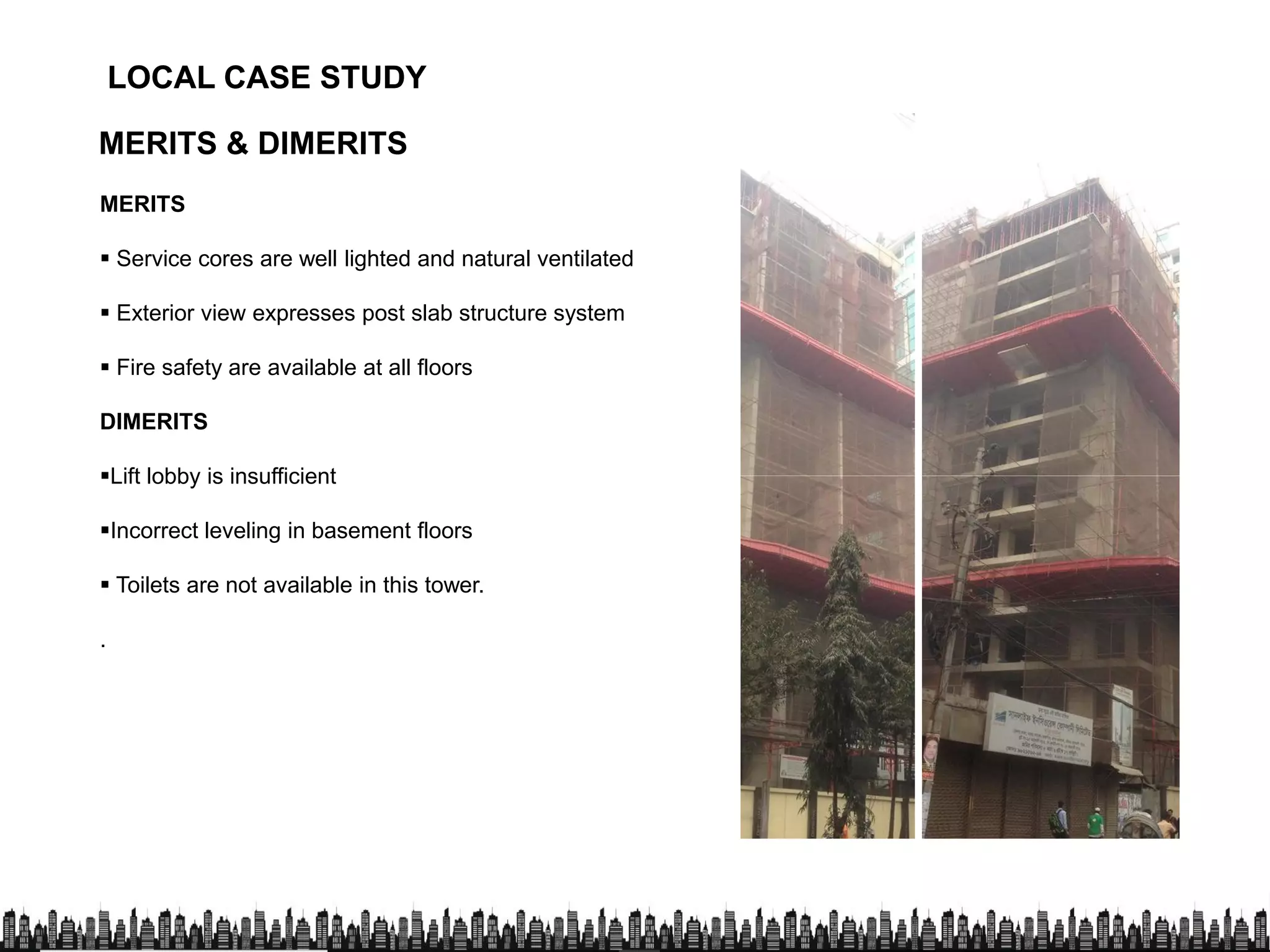

MERITS & DIMERITS
MERITS
Service cores are well lighted and natural ventilated
Exterior view expresses post slab structure system
Fire safety are available at all floors
DIMERITS
Lift lobby is insufficientLift lobby is insufficient
Incorrect leveling in basement floors
Toilets are not available in this tower.
.

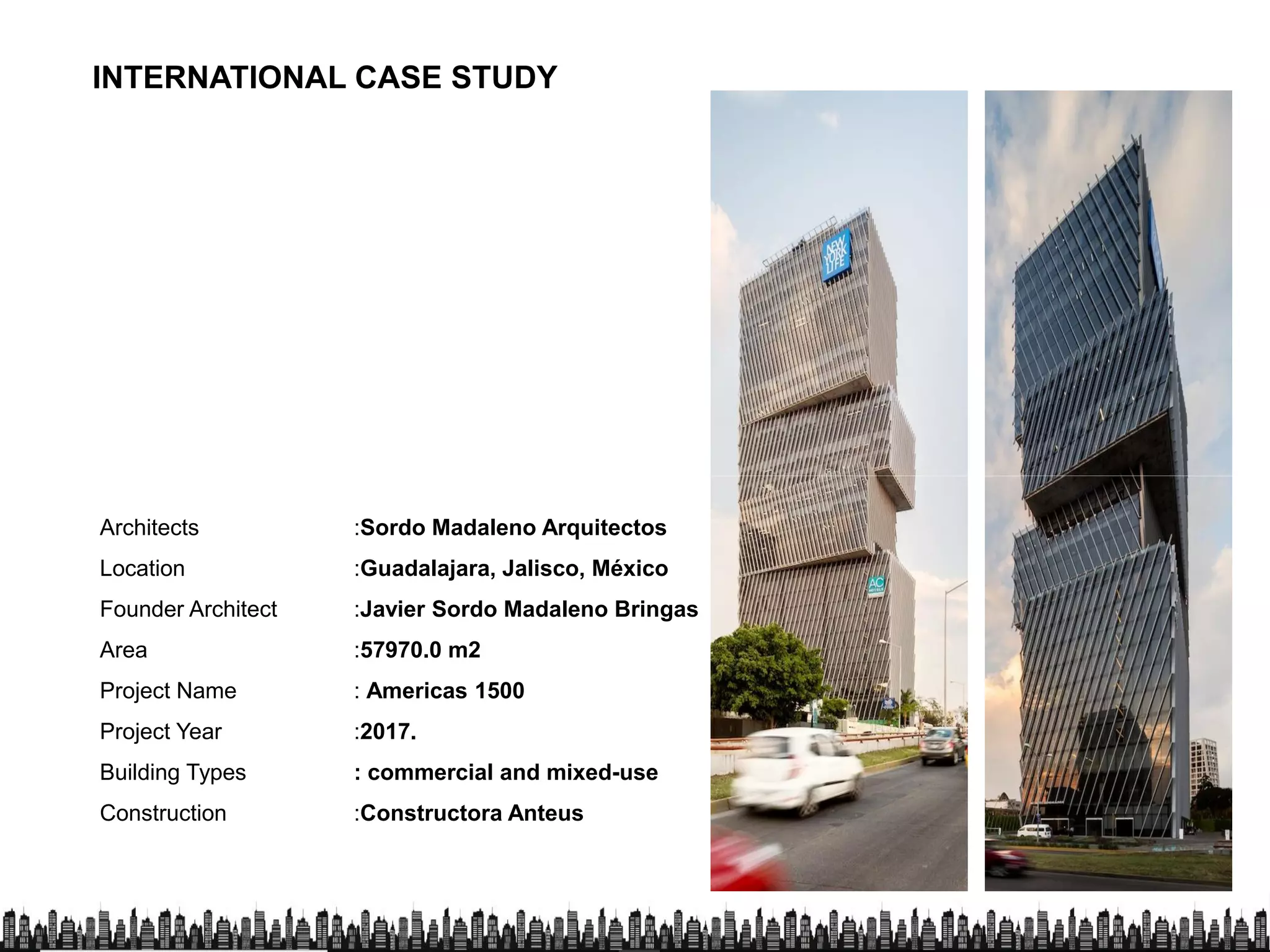

53. INTERNATIONAL CASE STUDY
Architects :Sordo Madaleno Arquitectos
Location :Guadalajara, Jalisco, México
Founder Architect :Javier Sordo Madaleno Bringas
Area :57970.0 m2
Project Name : Americas 1500
Project Year :2017.
Building Types : commercial and mixed-use
Construction :Constructora Anteus

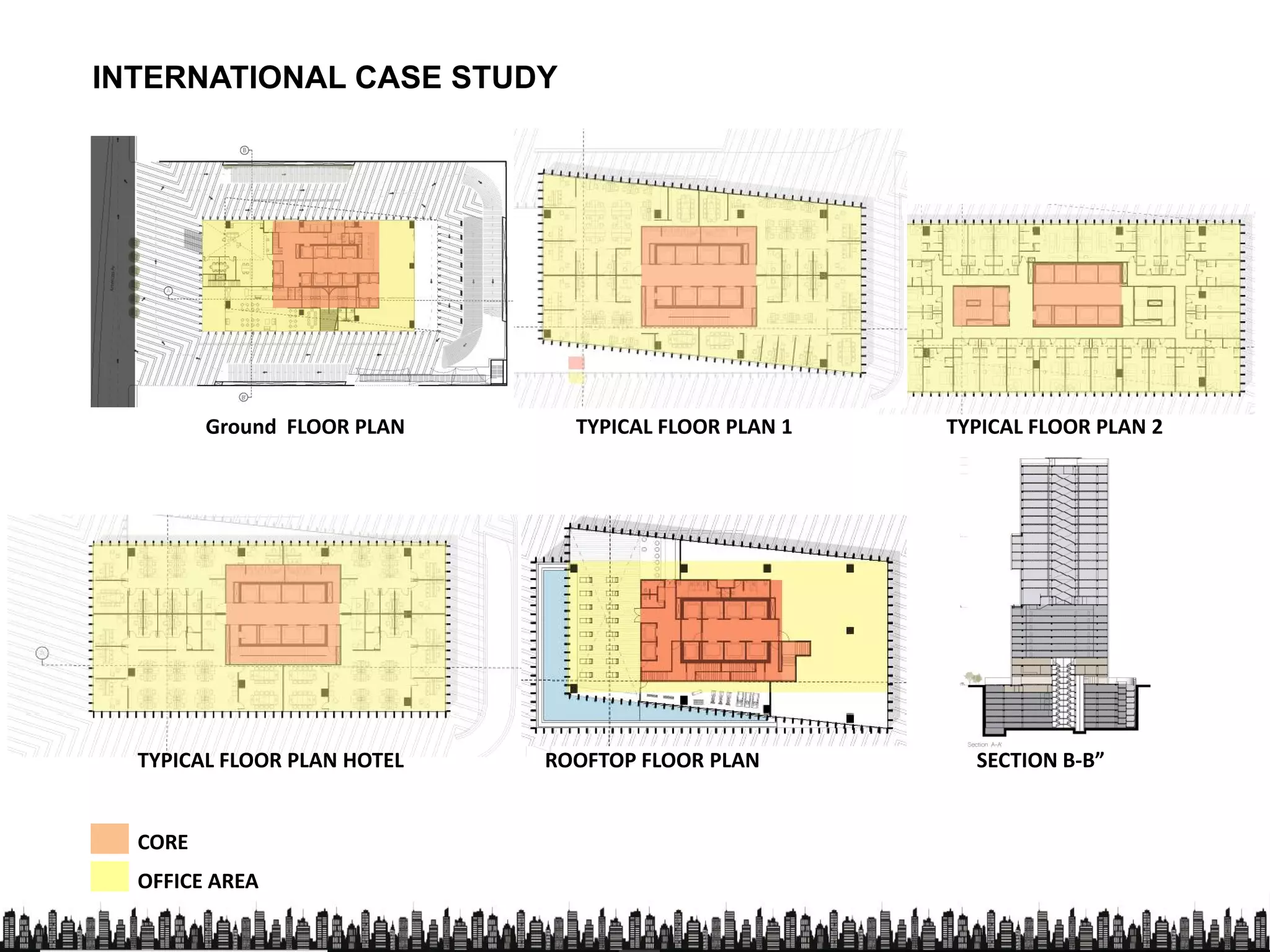

54. INTERNATIONAL CASE STUDY
TYPICAL FLOOR PLAN 1Ground FLOOR PLAN TYPICAL FLOOR PLAN 2
TYPICAL FLOOR PLAN HOTEL ROOFTOP FLOOR PLAN SECTION B-B”
CORE
OFFICE AREA

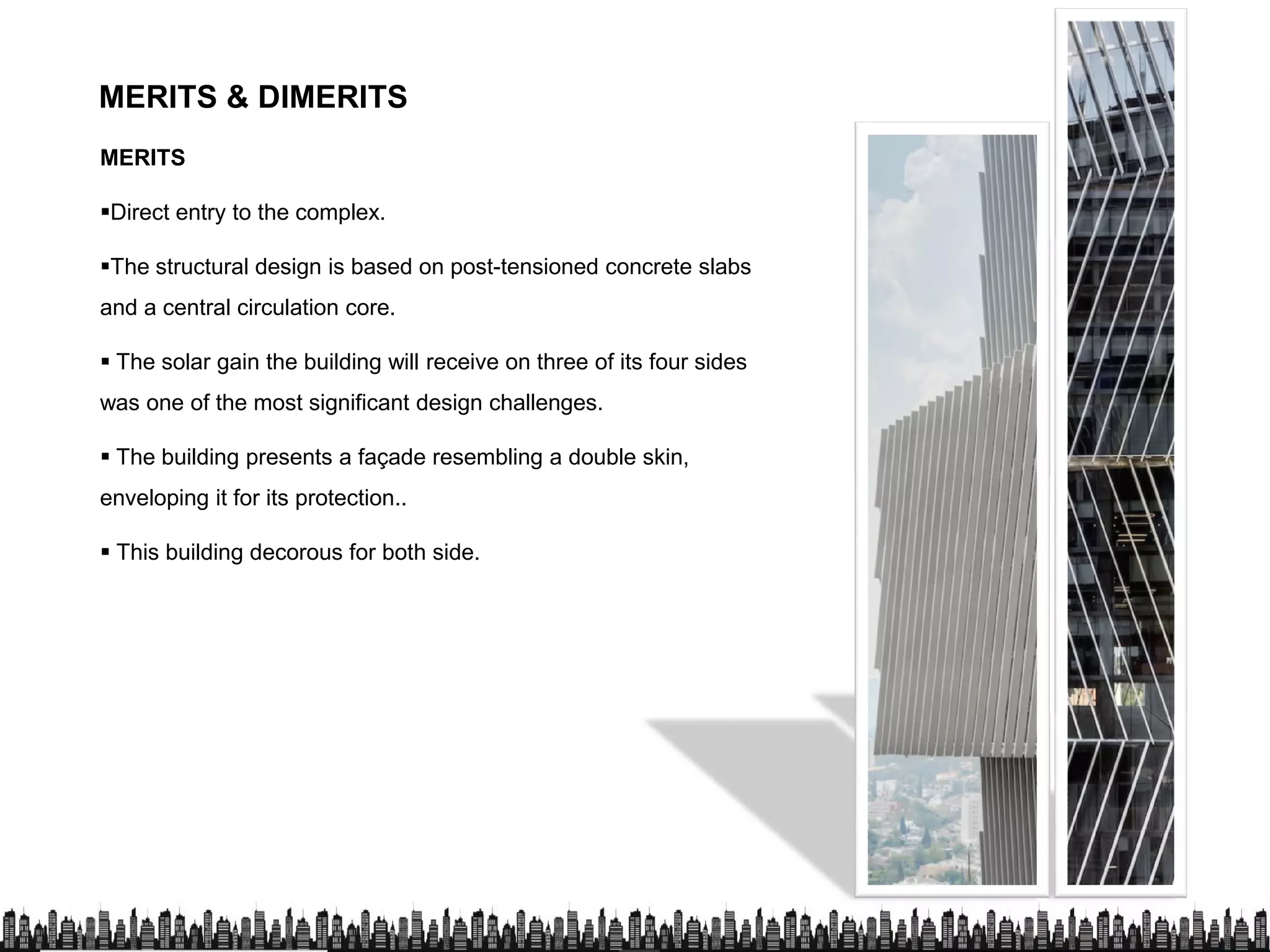

55. MERITS & DIMERITS
MERITS
Direct entry to the complex.
The structural design is based on post-tensioned concrete slabs
and a central circulation core.
The solar gain the building will receive on three of its four sides
was one of the most significant design challenges.
The building presents a façade resembling a double skin,
enveloping it for its protection..
This building decorous for both side.

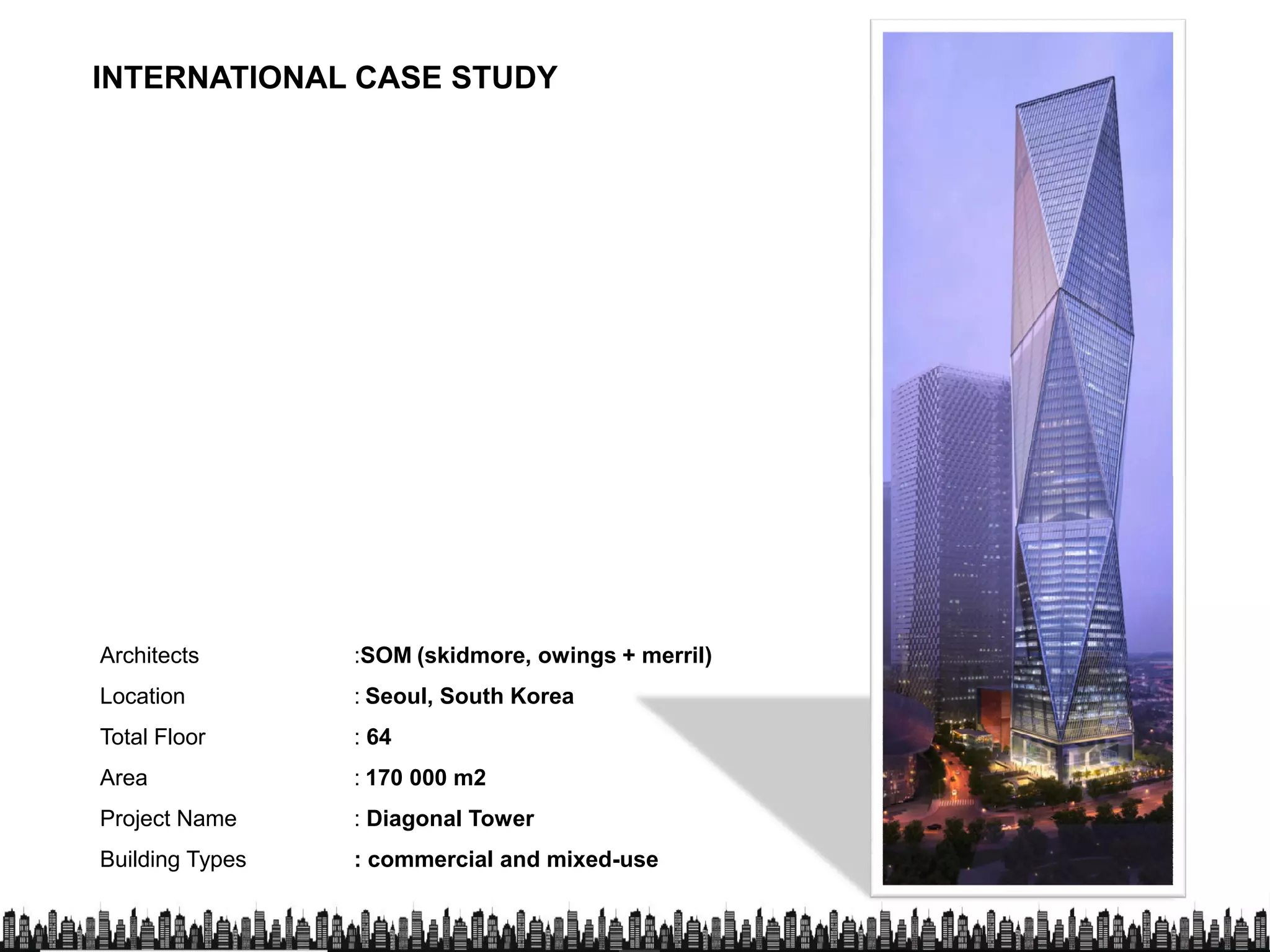

56. INTERNATIONAL CASE STUDY
Architects :SOM (skidmore, owings + merril)
Location : Seoul, South Korea
Total Floor : 64
Area : 170 000 m2
Project Name : Diagonal Tower
Building Types : commercial and mixed-use

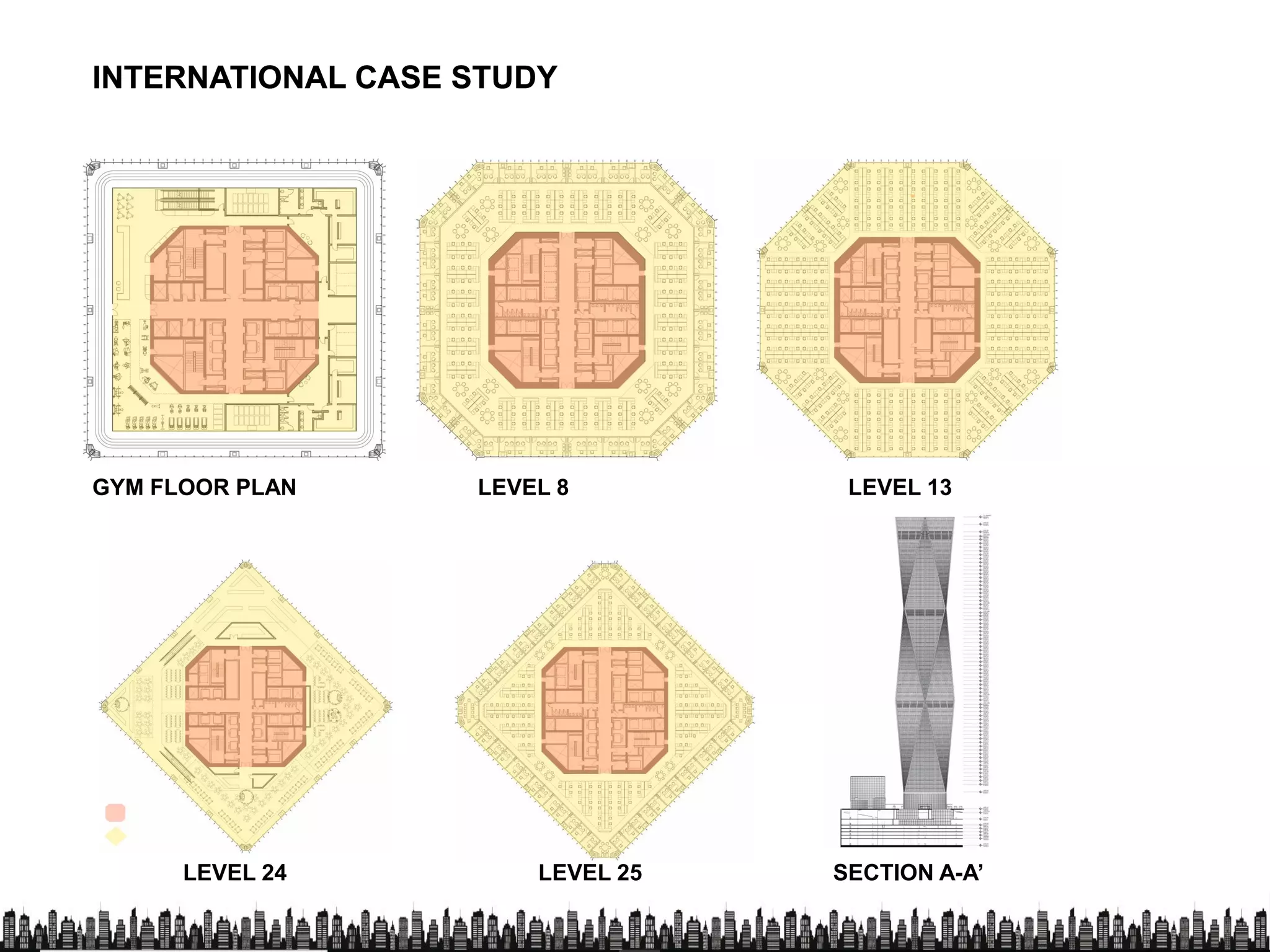

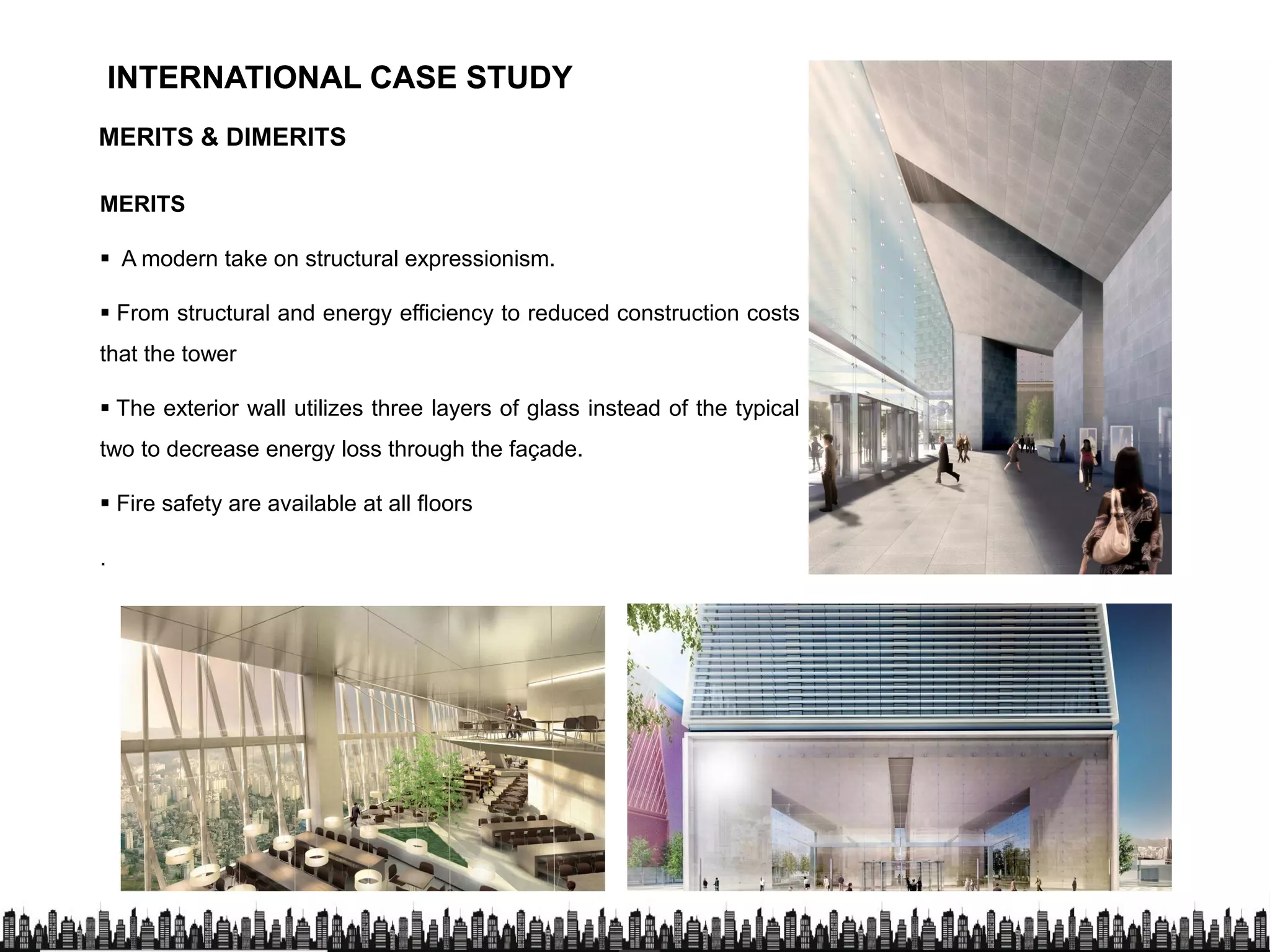

58. INTERNATIONAL CASE STUDYINTERNATIONAL CASE STUDY
MERITS & DIMERITS
MERITS
A modern take on structural expressionism.
From structural and energy efficiency to reduced construction costs
that the tower
The exterior wall utilizes three layers of glass instead of the typical
two to decrease energy loss through the façade.
Fire safety are available at all floors
.

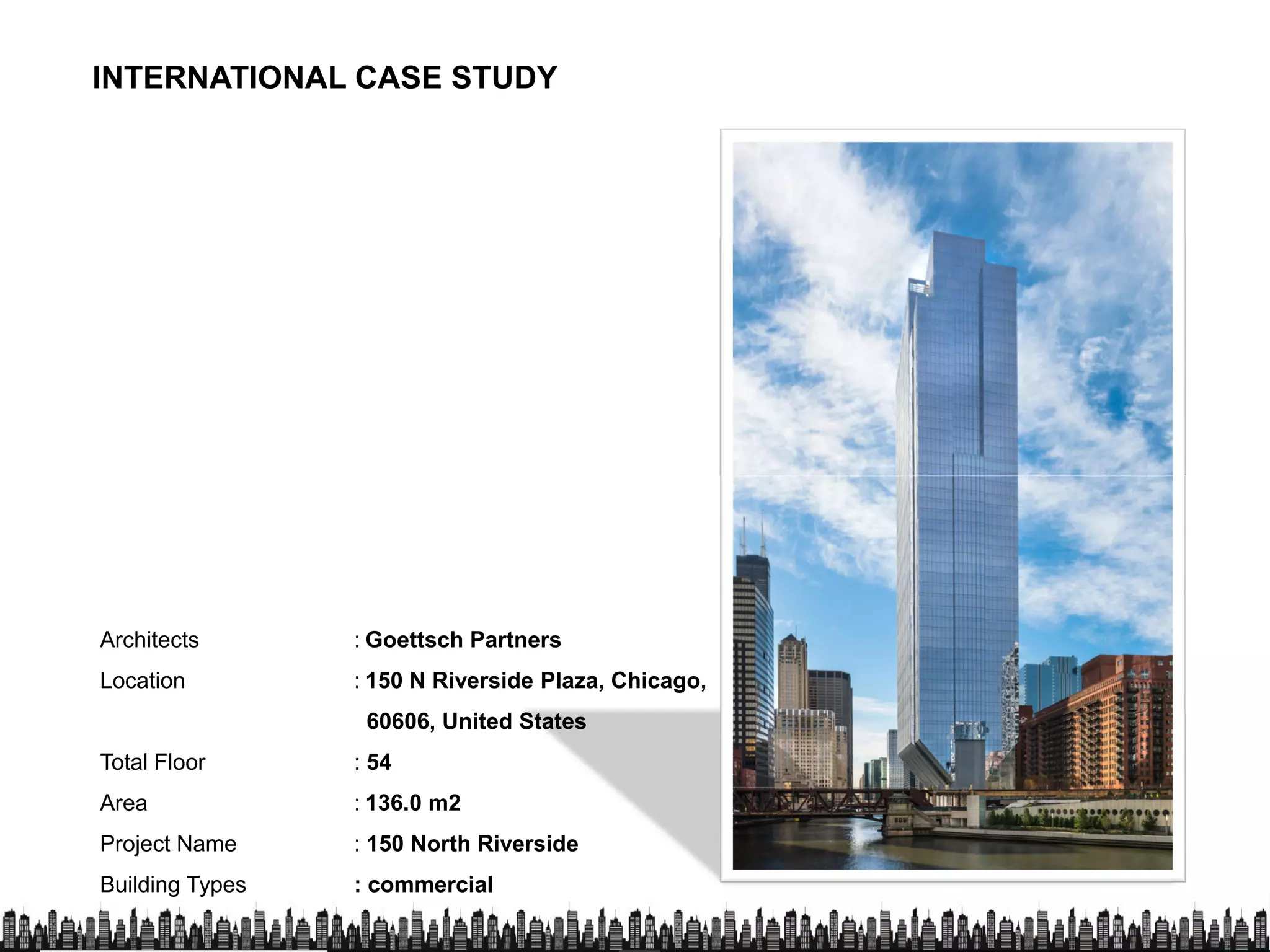

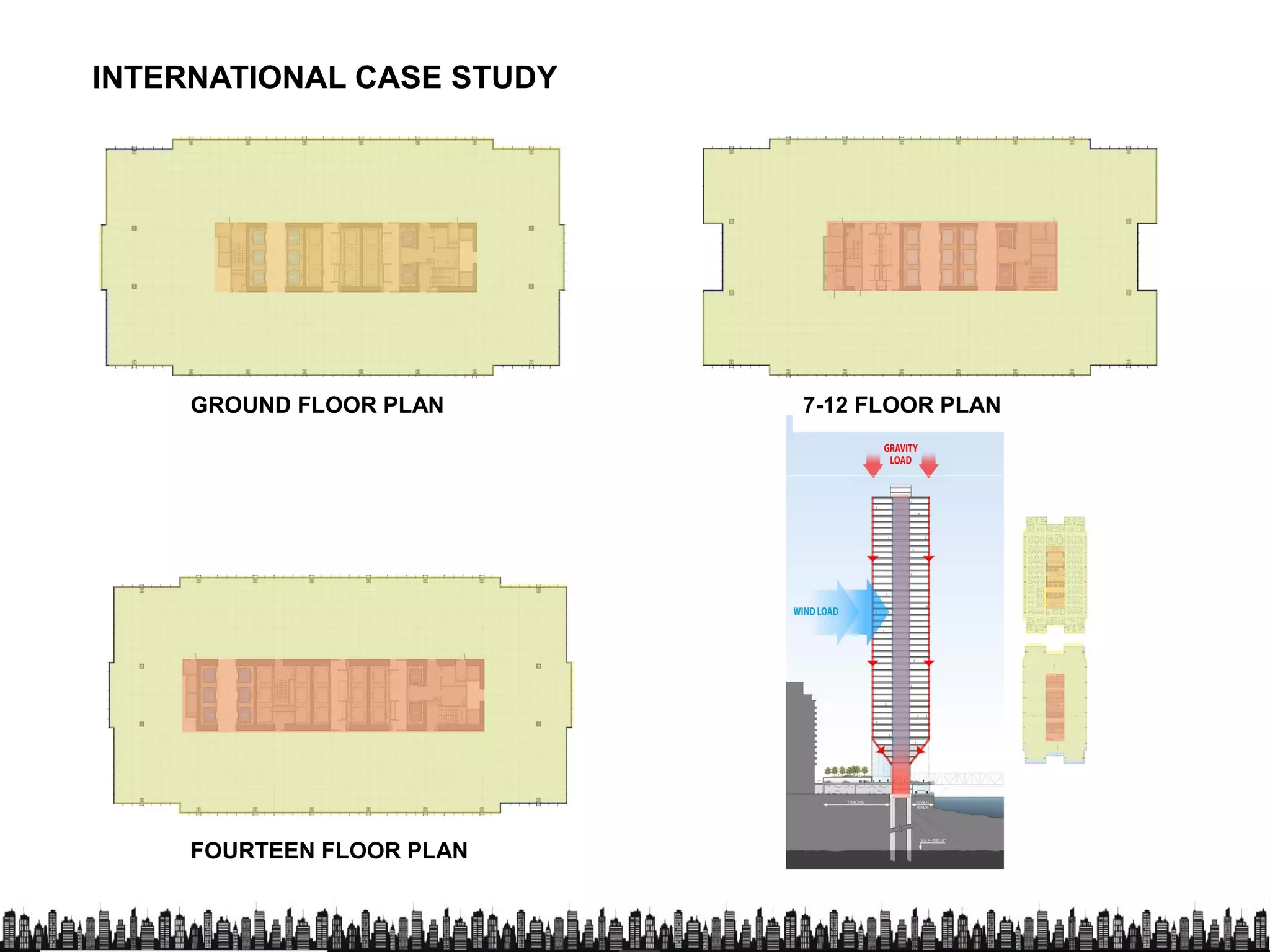

59. INTERNATIONAL CASE STUDY
Architects : Goettsch Partners
Location : 150 N Riverside Plaza, Chicago,
60606, United States60606, United States
Total Floor : 54
Area : 136.0 m2
Project Name : 150 North Riverside
Building Types : commercial

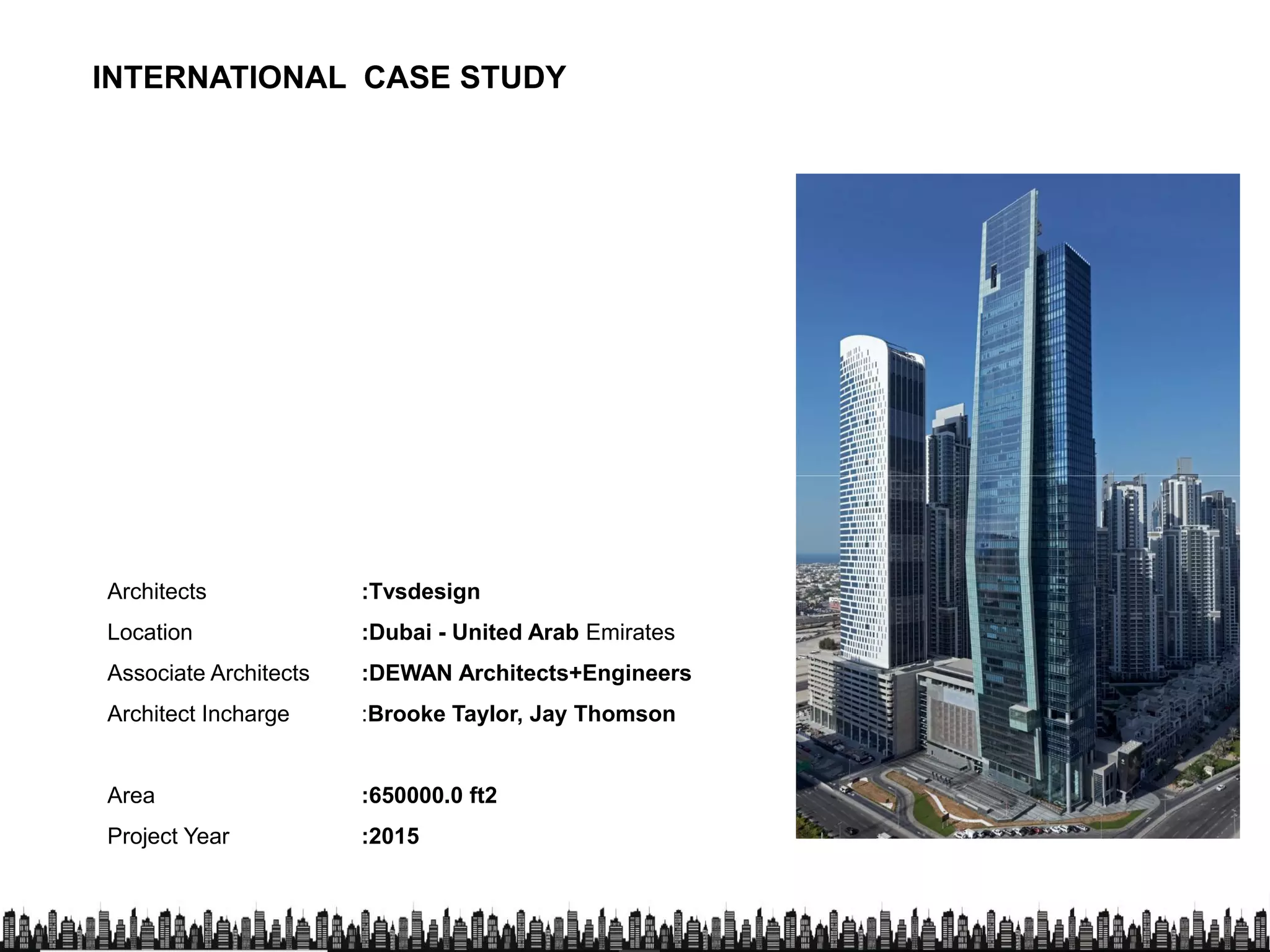

61. INTERNATIONAL CASE STUDY
Architects :Tvsdesign
Location :Dubai - United Arab Emirates
Associate Architects :DEWAN Architects+Engineers
Architect Incharge :Brooke Taylor, Jay ThomsonArchitect Incharge :Brooke Taylor, Jay Thomson
Area :650000.0 ft2
Project Year :2015

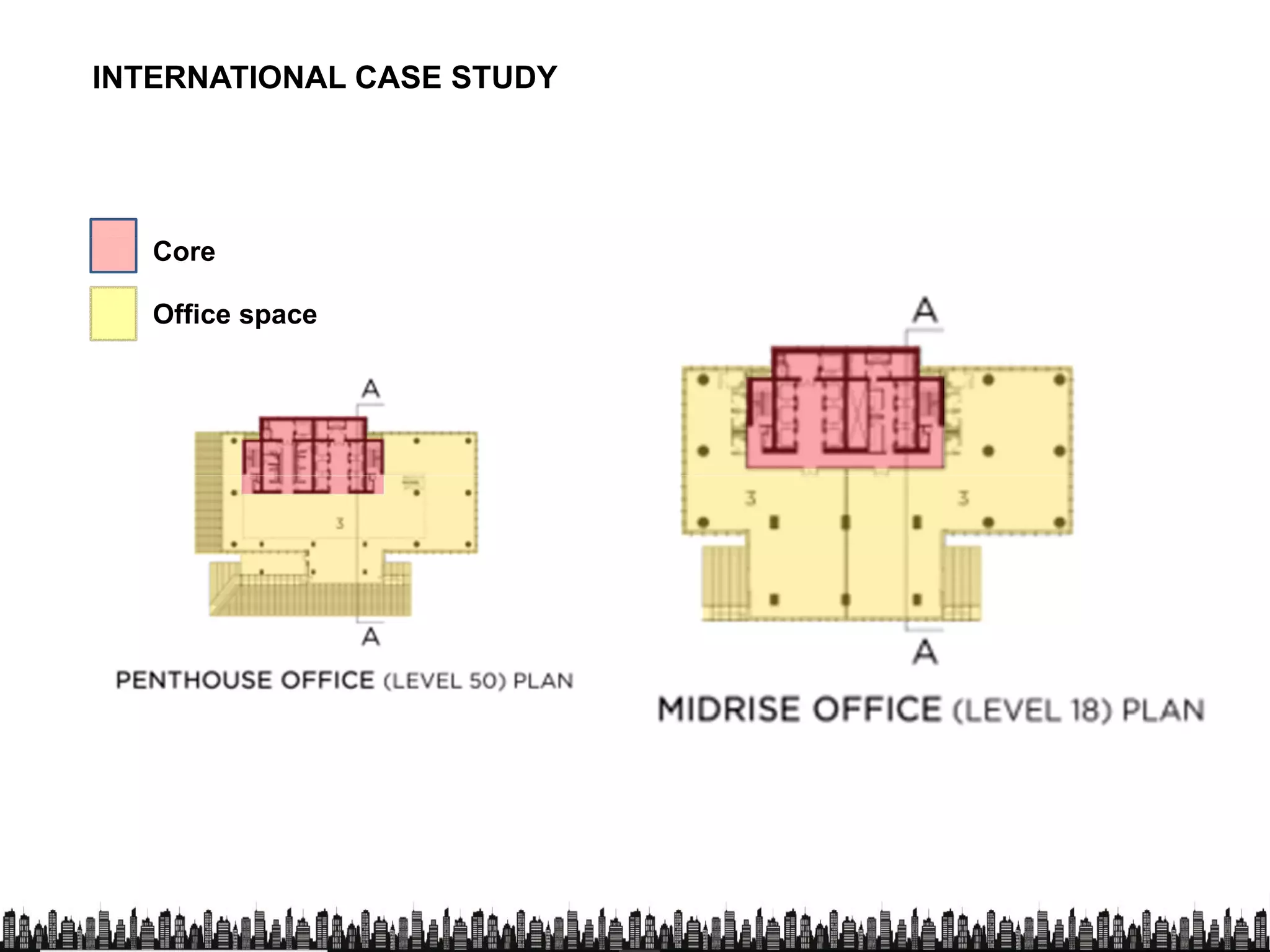

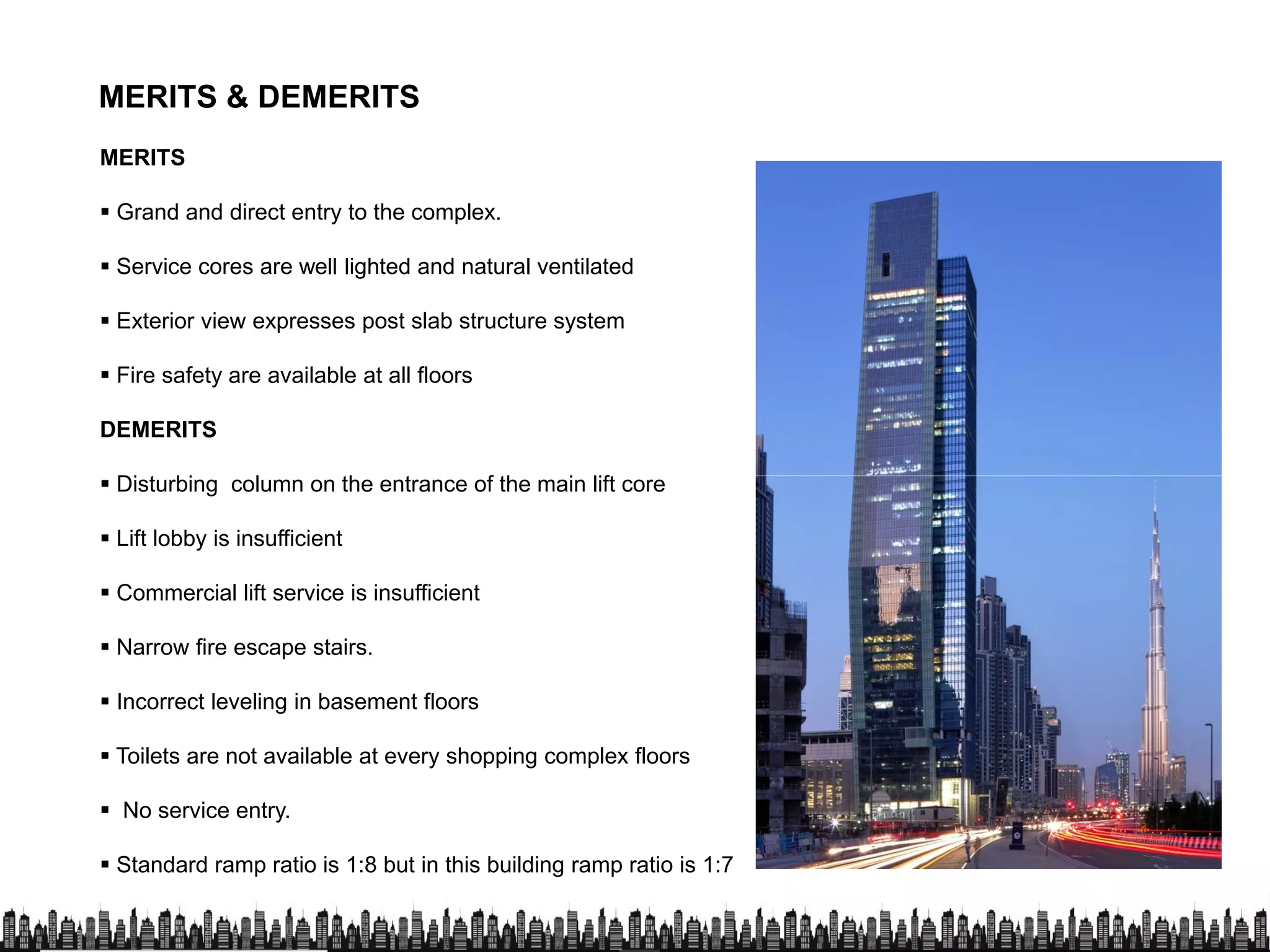

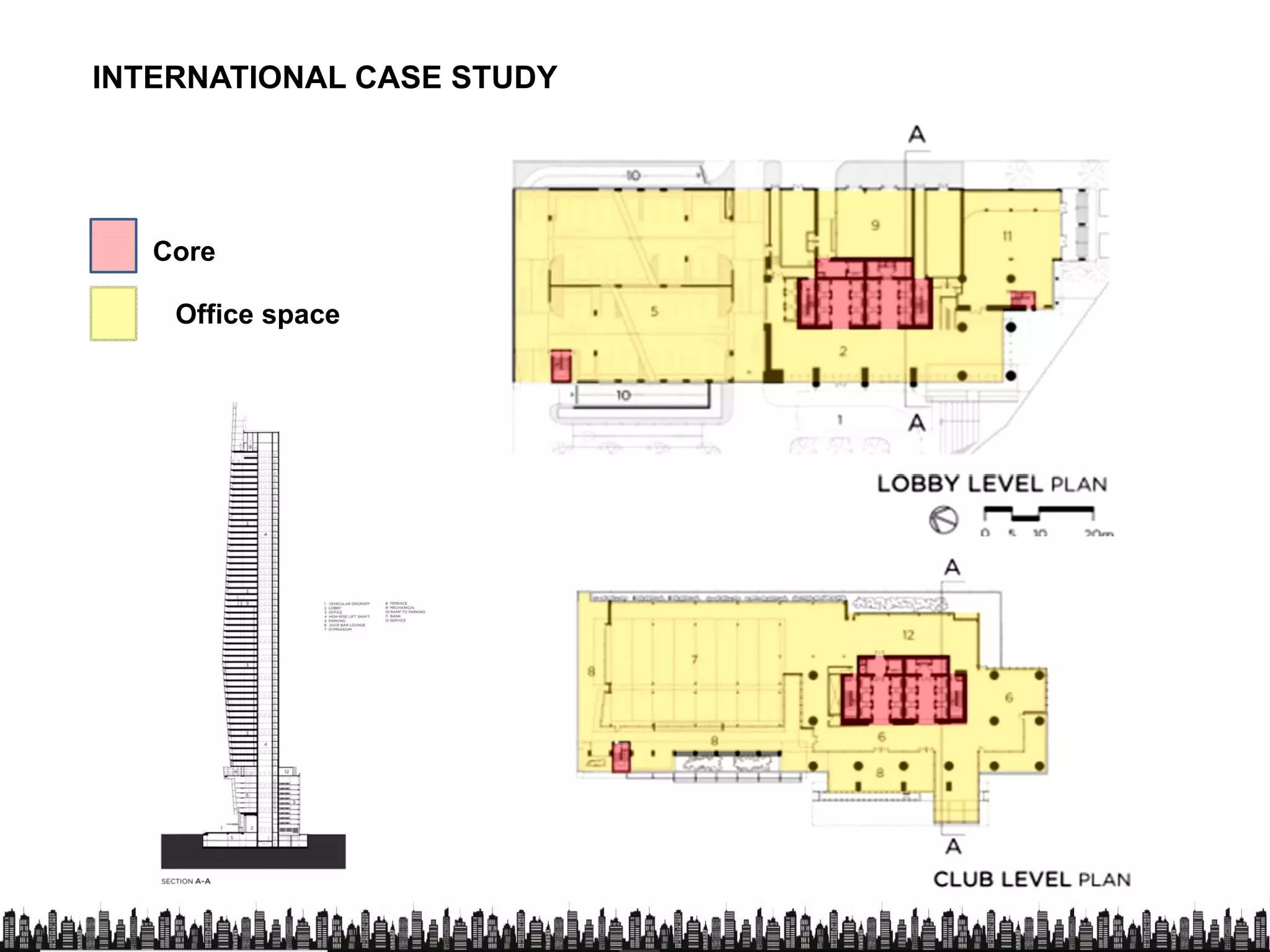

64. MERITS & DEMERITS
MERITS
Grand and direct entry to the complex.
Service cores are well lighted and natural ventilated
Exterior view expresses post slab structure system
Fire safety are available at all floors
DEMERITS
Disturbing column on the entrance of the main lift core Disturbing column on the entrance of the main lift core
Lift lobby is insufficient
Commercial lift service is insufficient
Narrow fire escape stairs.
Incorrect leveling in basement floorsIncorrect leveling in basement floors
Toilets are not available at every shopping complex floors
No service entry.
Standard ramp ratio is 1:8 but in this building ramp ratio is 1:7
65. CONCULATIONCONCULATION
With the present technology and known materials , it is possible to build more higher and
faster.faster.
It is now possible to build skyscrapers so fast using pre- fabricated units that it can lead
to environmental problems, stress on resources and overcrowding if not controlled.
To build higher the base of the building will have to be made wider. The bundled tube
system was a great innovation and was able to span great heights during it's time , tosystem was a great innovation and was able to span great heights during it's time , to
attain the height of burj khalifa the bundled tube system will need a bigger base when
compared with the buttressed core system.
New improved structural systems and new materials in the future can lead us to even
greater heights and more stable buildings. It’s not technology holding buildings back. It’s
money.
