1. Seminar on,
Recent Trends in Pharmaceutical Sciences
(Research Paper Title: Uptake and transport of furanodiene in Caco-2 cell
monolayers: a comparison study between furanodiene and furanodiene
loaded PLGA nanoparticles)
BY:
Nitin P. Kanwale
Roll no. 06
M. Pharm. Sem III
Dept. QAT
UNDER GUIDANCE OF:
Dr. Mrudula H. Bele
(Pharmaceutics department)
MVP Samaj's college of Pharmacy, Nashik
MVP Samaj’s College of
Pharmacy, Nashik05-11-2015 1

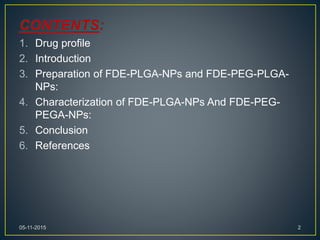

2. 1. Drug profile
2. Introduction
3. Preparation of FDE-PLGA-NPs and FDE-PEG-PLGA-
NPs:
4. Characterization of FDE-PLGA-NPs And FDE-PEG-
PEGA-NPs:
5. Conclusion
6. References
05-11-2015 2

3. 3

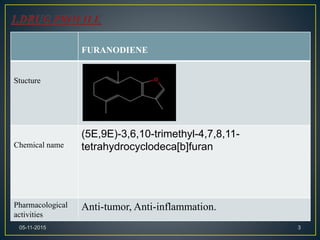

FURANODIENE
Stucture
Chemical name
(5E,9E)-3,6,10-trimethyl-4,7,8,11-
tetrahydrocyclodeca[b]furan
Pharmacological
activities
Anti-tumor, Anti-inflammation.
05-11-2015

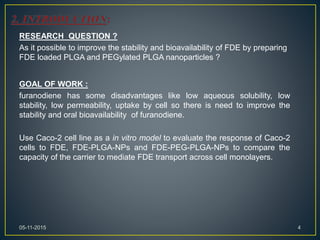

4. RESEARCH QUESTION ?
As it possible to improve the stability and bioavailability of FDE by preparing
FDE loaded PLGA and PEGylated PLGA nanoparticles ?
GOAL OF WORK :
furanodiene has some disadvantages like low aqueous solubility, low
stability, low permeability, uptake by cell so there is need to improve the
stability and oral bioavailability of furanodiene.
Use Caco-2 cell line as a in vitro model to evaluate the response of Caco-2
cells to FDE, FDE-PLGA-NPs and FDE-PEG-PLGA-NPs to compare the
capacity of the carrier to mediate FDE transport across cell monolayers.
405-11-2015

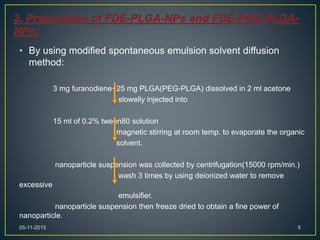

5. • By using modified spontaneous emulsion solvent diffusion
method:
3 mg furanodiene+25 mg PLGA(PEG-PLGA) dissolved in 2 ml acetone
slowelly injected into
15 ml of 0.2% tween80 solution
magnetic stirring at room temp. to evaporate the organic
solvent.
nanoparticle suspension was collected by centrifugation(15000 rpm/min.)
wash 3 times by using deionized water to remove
excessive
emulsifier.
nanoparticle suspension then freeze dried to obtain a fine power of
nanoparticle.
05-11-2015 5

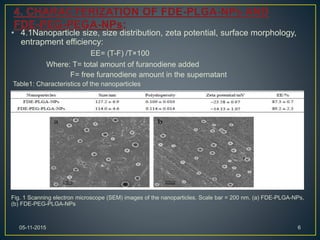

6. • 4.1Nanoparticle size, size distribution, zeta potential, surface morphology,
entrapment efficiency:
EE= (T-F) /T×100
Where: T= total amount of furanodiene added
F= free furanodiene amount in the supernatant
Table1: Characteristics of the nanoparticles
Fig. 1 Scanning electron microscope (SEM) images of the nanoparticles. Scale bar = 200 nm. (a) FDE-PLGA-NPs,
(b) FDE-PEG-PLGA-NPs
05-11-2015 6

7. 05-11-2015 7

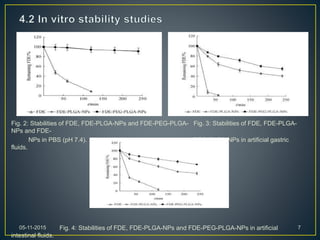

Fig. 2: Stabilities of FDE, FDE-PLGA-NPs and FDE-PEG-PLGA- Fig. 3: Stabilities of FDE, FDE-PLGA-
NPs and FDE-
NPs in PBS (pH 7.4). PEG-PLGA-NPs in artificial gastric
fluids.
Fig. 4: Stabilities of FDE, FDE-PLGA-NPs and FDE-PEG-PLGA-NPs in artificial
intestinal fluids.

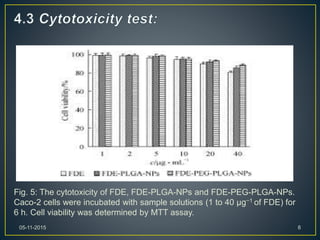

8. Fig. 5: The cytotoxicity of FDE, FDE-PLGA-NPs and FDE-PEG-PLGA-NPs.
Caco-2 cells were incubated with sample solutions (1 to 40 μg−1 of FDE) for
6 h. Cell viability was determined by MTT assay.
05-11-2015 8

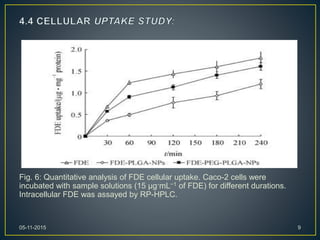

9. Fig. 6: Quantitative analysis of FDE cellular uptake. Caco-2 cells were
incubated with sample solutions (15 μg·mL−1 of FDE) for different durations.
Intracellular FDE was assayed by RP-HPLC.
05-11-2015 9

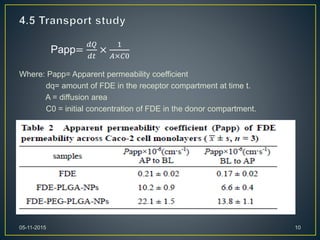

10. Where: Papp= Apparent permeability coefficient
dq= amount of FDE in the receptor compartment at time t.
A = diffusion area
C0 = initial concentration of FDE in the donor compartment.
05-11-2015 10
Papp=
𝑑𝑄
𝑑𝑡
×
1
𝐴×𝐶0

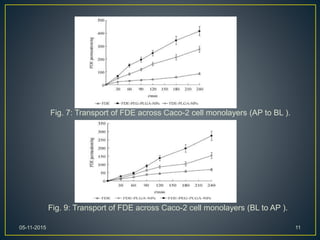

11. Fig. 7: Transport of FDE across Caco-2 cell monolayers (AP to BL ).
Fig. 9: Transport of FDE across Caco-2 cell monolayers (BL to AP ).
05-11-2015 11

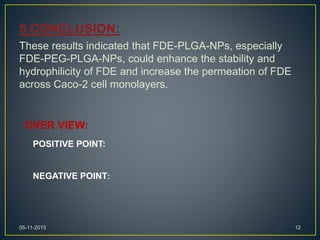

12. These results indicated that FDE-PLGA-NPs, especially
FDE-PEG-PLGA-NPs, could enhance the stability and
hydrophilicity of FDE and increase the permeation of FDE
across Caco-2 cell monolayers.
05-11-2015 12
OVER VIEW:
POSITIVE POINT:
NEGATIVE POINT:

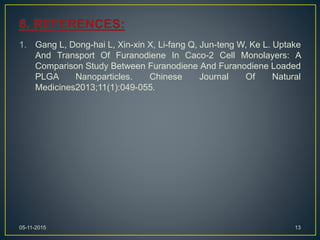

13. 1. Gang L, Dong-hai L, Xin-xin X, Li-fang Q, Jun-teng W, Ke L. Uptake
And Transport Of Furanodiene In Caco-2 Cell Monolayers: A
Comparison Study Between Furanodiene And Furanodiene Loaded
PLGA Nanoparticles. Chinese Journal Of Natural
Medicines2013;11(1):049-055.
