The document presents a project on developing a port scanner using Python, aimed at identifying open ports and potential security vulnerabilities on a network host. It details the objectives, importance, methodology, and scope of the project, along with the required system specifications and user documentation. The tool is designed to be user-friendly and will contribute to enhancing network security by providing actionable insights.

1. 1
STATE INSTITUTE OF ENGINEERING AND TECHNOLOGY
NILOKHERI
Under the guidance of
Dr. Rama Chawla
Assistant professor
Project Presentation
Dept. of Computer Engineering
State Institute Of Engineering and Technology, Nilokheri (Karnal)
(Affiliated to Kurukshetra University, Kurukshetra)

2. Port Scanning & Vulnerability
Detection using Python

3. PRESENTATION BY
3
MD ASIF ALI
B-Tech C.S.E (5TH SEM)
Roll No: 87225108
Submitted To :
Dr. Rama Chawla (Assistant
professor)

4. Content
 Introduction
 Objective
 Importance of Port scanner
 Port Scanning
 Port Scanning Tools
 Scope
 Methodology
 Flowchart
 Deliverables
 System Specification
 Scanning Function code
 GUI code
 Output
 Conclusion 4

5. Introduction
5

6. “
A Port Scanner is a computer
program that is designed to
search for open ports on
computers, servers, or network
devices.
6

7. Objectives
7

8.  To develop a basic port scanner using Python programming
language.
 To scan open ports on a particular network host.
 To identify potential security vulnerabilities and report
them.
 To provide a basic user interface for the port scanner tool.
The primary objectives of the project are:
8

9. Importance of
Port Scanner
9

10. Since Port Scanner identifies open ports and service
available on a network, it is used by security professionals
to identify any security vulnerabilities on that particular
network. While it is highly essential for network
management, it is unfortunately being used extensively by
cybercriminals as well.
10

11. Port Scanning
11

12. A port scan is a common technique hackers use to discover open
doors or weak points in a network. A port scan attack helps
cyber criminals find open ports and figure out whether they are
receiving or sending data. It can also reveal whether active
security devices like firewalls are being used by an organization.
When hackers send a message to a port, the response they
receive determines whether the port is being used and if there
are any potential weaknesses that could be exploited.
12

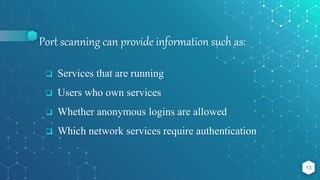

13. Port scanning can provide information such as:
 Services that are running
 Users who own services
 Whether anonymous logins are allowed
 Which network services require authentication
13

14. Port Scanning Tools
 Nmap
 Solarwinds Port Scanner
 Netcat
 Advanced Port Scanner
 NetScan Tools
14

15. Scope
15

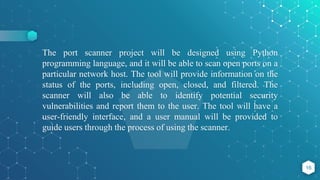

16. The port scanner project will be designed using Python
programming language, and it will be able to scan open ports on a
particular network host. The tool will provide information on the
status of the ports, including open, closed, and filtered. The
scanner will also be able to identify potential security
vulnerabilities and report them to the user. The tool will have a
user-friendly interface, and a user manual will be provided to
guide users through the process of using the scanner.
16

17. Methodology
17

18. This project works as sender and receiver based application.
Firstly, client sends request to the admin or server after that server
accepts request and connection will be established between client
and server. After that the port scanning process starts if the port is
open then file transfer process will be started else connection will
be disconnected. If file is received then acknowledgement is send
by receiver else connection will be disconnected. After the
successful file transfer process, the connection between sender
and receiver is released.
18

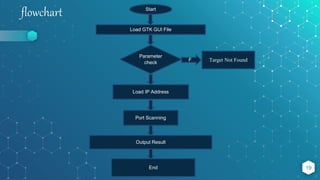

19. flowchart
19
Start
Load GTK GUI File
Parameter
check
Load IP Address
Port Scanning
Output Result
End
Target Not Found
F

20. Deliverables
20
 Technical
documentation
for the port
scanner tool.
.
 User manual
for the port
scanner tool.
The deliverables for this project include:
 Port scanner
code written in
Python
programming
language.

21. System
Specification
21

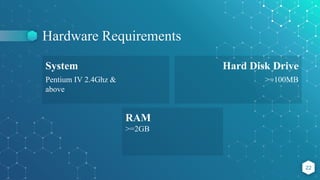

22. Hardware Requirements
22
System
Pentium IV 2.4Ghz &
above
Hard Disk Drive
>=100MB
RAM
>=2GB

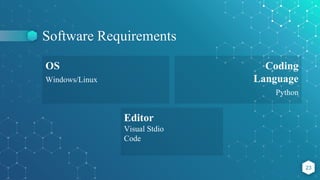

23. Software Requirements
23
OS
Windows/Linux
Coding
Language
Python
Editor
Visual Stdio
Code

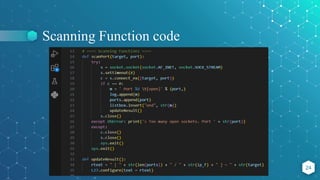

24. Scanning Function code
24

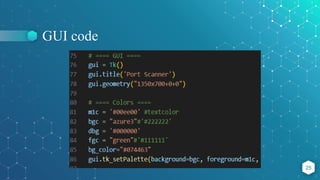

25. GUI code
25

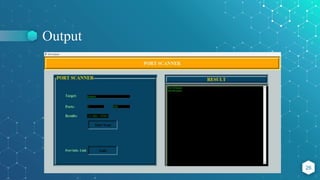

26. Output
26

27. Conclusion
27

28. The port scanner project aims to develop a basic yet effective tool
for scanning open ports on a network host. It will help users
identify potential security vulnerabilities and make their
networks more secure. The tool will be easy to use and will
provide clear documentation to guide users through the process.
With the implementation of this project, we hope to contribute to
the development of better network security solutions.
28

29. CREDITS
 Presentation template by Gamma.app.
 Photographs by Unsplash, iStock.
 Content by Veronis.com, Codemint.net.
29

30. Thanks!
30
