1. POLYGOT JAVA EE ON
THE GRAALVM
Ryan Cuprak

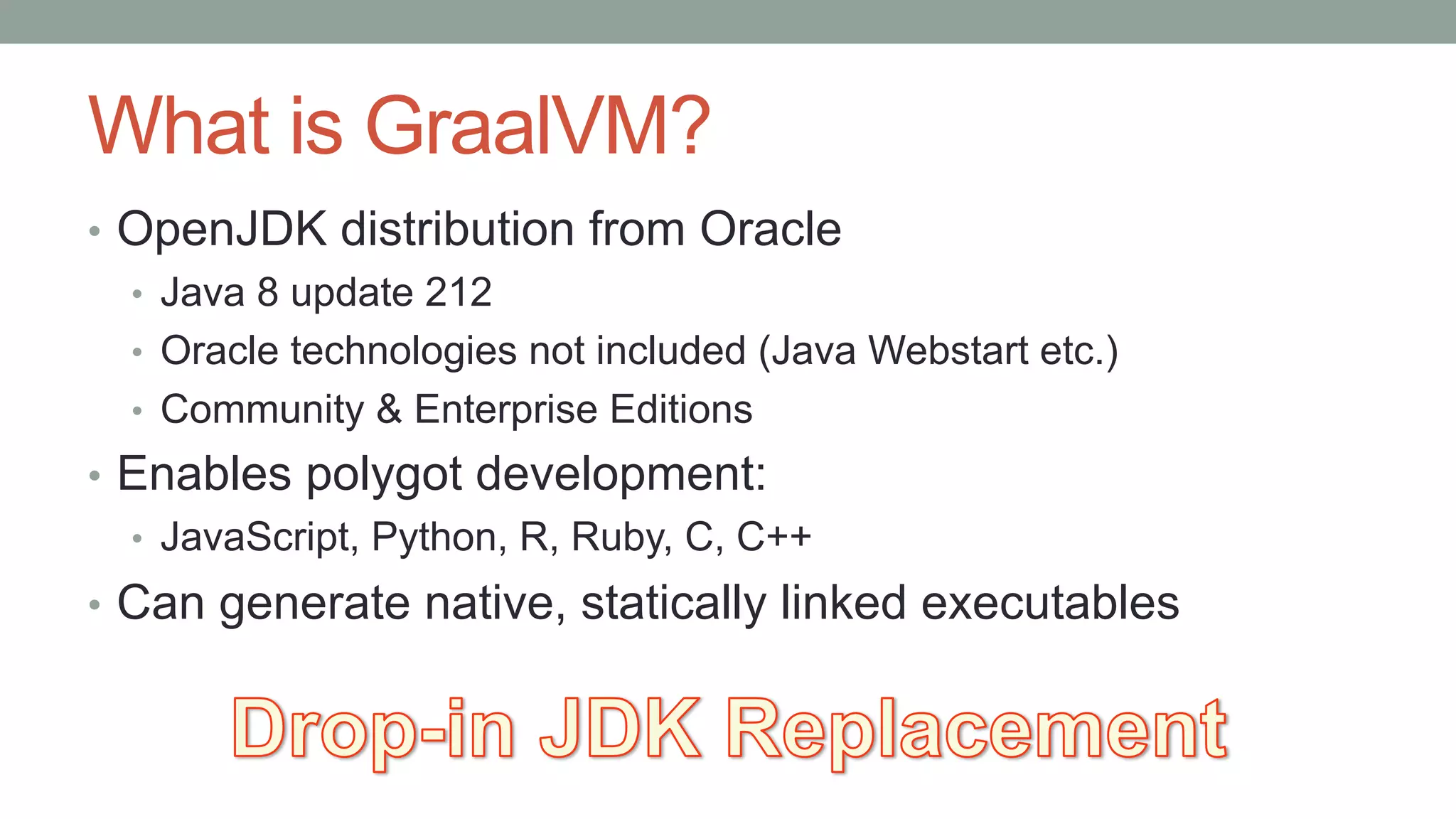

2. What is GraalVM?
• OpenJDK distribution from Oracle
• Java 8 update 212
• Oracle technologies not included (Java Webstart etc.)
• Community & Enterprise Editions
• Enables polygot development:
• JavaScript, Python, R, Ruby, C, C++
• Can generate native, statically linked executables

3. OpenJDK Distributions
Confused about distributions?

4. OpenJDK Distributions
GraalVM vs. other OpenJDK distributions:
• Additional languages (JavaScript, R, Python, Ruby etc.)
• Different JIT compiler (better performance)
• Can generate native images
• Isolates – multiple VM instances in process

5. Why GraalVM?
• Interop with other languages painful/high impact:
• JNI
• Process API painful
• Nashorn can’t keep up…
• Java can’t compete in serverless
• Startup time to long
• Image size too big
GraalVM native-image
Generates statically
linked native executable

6. GraalVM Overview
Source: https://www.graalvm.org/docs/

7. GraalVM Components
GraalVM Compiler Just-in-Time (JIT) compiler
implemented in Java (like C2 in
hotspot)
GraalVM Native Image Ahead-of-time compilation technology
that produces executable binaries of
class files.
Truffle Framework Framework for implementing
languages on top of GraalVM
Instrumentation Support Language-agnostic debugger, profiler,
heap viewer tool chain

8. GraalVM Pieces
• Substrate VM – Ahead-of-Time Compiler, turns a regular
Java application into a binary file
• https://github.com/oracle/graal/blob/master/substratevm/README.
md
• Sulong – high-performance LLVM bitcode interpreter built
on the GraalVM.
• https://github.com/oracle/graal/tree/master/sulong

9. GraalVM Pieces
• Java Hotspot VM + GraalVM compiler
• Node.js runtime + GraalVM JavaScript interpreterRuntimes
• GraalVM compiler
• JavaScript interpreter
• LLVM bytecode interpreter
• GraalVM Polygot API
Libraries
• JavaScript REPL
• LLVM bitcode interpreter
• GraalVM Updater
Utilities

10. GraalVM

11. Available Libraries
0 100000 200000 300000 400000 500000 600000 700000 800000
Java
Ruby
R
Python
Node
Non-Java
• Java packages 30%
• C/C++ Libraries not included!

12. Top Libraries

13. Why Polygot?
- Use best tool for the job -

14. GraalVM FAQ
• Can’t Java already run JavaScript, Python, Ruby via
Nashorn/Rhino, Jython, and Ruby?
• Was Nashorn killed because of GraalVM?
• Native libraries, what’s wrong with JNI?
• Is native-client related to jlink?
Yes – but with lots of limitations…
Very challenging…
- No -
- No -

15. GraalVM FAQ…
• With GraalVM can I leverage native libraries etc.?
• Does it require a commercial license for production?
• What platforms are supported?
• Do existing Java/Jakarta EE containers run on GraalVM?
- Yes -
- No -
- Mac / Linux -
- Yes -

16. GraalVM Possibilities
Invoke
Invoke
Invoke
Invoke
Invoke
Invoke

17. GraalVM Possibilities…
Invoke Invoke
Invoke Invoke
Invoke Invoke

18. GraalVM + Jakarta EE
• Polygot expands JEE ecosystem possibilities
• Unifies enterprise architecture
• No separate processes for python/Javascript
• Use same libraries server-side/client-side
• Example: Run same UI validation logic on server as client.
• No clunky language interop packages
• Improves performance (R/Ruby/Java)
• Simplifies runtime architecture and coordination

19. JEE + GraalVM
Wrap
Invoke

20. Installation https://www.graalvm.org/downloads/
Docker
containers
available.
docker pull
oracle/graalvm-ce:19.0.2

21. Installation
• tar xfz graalvm-ce.tar.gz
• MacOS X
• mv graalvm-ce-19.0.2 /Library/Java/JavaVirtualMachines/
• Jenv (http://www.jenv.be)
• jenv add <installation director>
• jenv global 1.8.0.212 (can be confusing with Oracle’s OpenJDK)
• Add GRAAL_HOME environment variable (convenience)
export GRAAL_HOME= /Library/Java/JavaVirtualMachines/graalvm-ce-
19.0.2/Contents/home
If graalvm directory own by root complicates installing
additional languages/packages.

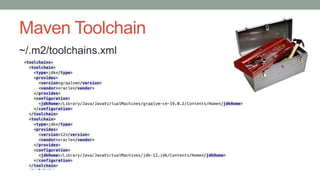

22. Maven Toolchain
~/.m2/toolchains.xml

23. Installation Check

24. JDK Differences
Removed Added
javafxpackager gu
javapackager hsdb
jmc js
lli
node
npm
polygot

25. Additional Languages
• Install optional languages:
• gu install R
• gu install python
• gu install ruby
• gu install native-image
• New additions to bin
R Rscript Bundle Bundler Gem
graalpython irb native-image native-image-configure rake
rdoc rebuild-images ri ruby truffleruby

26. Debugging

27. Project Setup - Maven
References
~/.m2/toolchains.xml

28. Maven Coordinates

29. Hello World Example

30. GraalVM API Package
Polygot (org.graalvm.polyglot)
Proxy (org.graalvm.polyglot.proxy)
IO (org.graalvm.polyglot.io)

31. Key Polygot Package Classes
• Context – context for guest language(s), evaluates code
• Engine – execution engine, enables inspection
• Source – source code unit to be evaluated
• Value – polygot value accessed via language agnostic
operations.

32. Interoperability
R
• eval.polyglot('languageId', 'code’)
• eval.polyglot(path = '/path/to/file.extension’)
• export('polyglot-value-name', rObject)
• import('exported-polyglot-value-name’)
Ruby/Python
• Polygot.eval(‘languageId’,’code’)
JavaScript
• Polygot.export/import/eval

33. Interoperability – Data Types
• JavaScript
var BigInteger = Java.type('java.math.BigInteger’);
• R
imageClass <- java.type('java.awt.image.BufferedImage’)
• Ruby
BigDecimal = Java.type('java.math.BigDecimal’)
• Python
import java
BigDecimal = java.type('java.math.BigDecimal')

34. C/C++ Interoperability
clang -g -O1 -c -emit-llvm -
I$GRAALVM_HOME/jre/languages/llvm/include hello.c
Use #include<polygot.h>

35. Nashorn Interoperability
https://github.com/graalvm/graaljs/blob/master/docs/user/
JavaInterop.md

36. Jakarta EE/GraalVM Hello World
• Jakara EE application running on Payara Micro
• Payara Micro, JEE container in a jar file (70 megs)
• Function implemented in each language that:
• Accepts a parameter
• Returns a message
• Use Warm-up bean to service requests fast
• Languages:
• R, JavaScript, Python, Ruby, C

37. Jakarta EE/GraalVM Hello World Demo

38. Express + Jakarta EE
Wrap
• Express web framework for Node.js
• Easy-to-use framework for developing web apps
• Start application in Node, then launch the application container
(Payara Micro)
• Express then calls into Payara Micro to invoke EJBs

39. Express + Jakarta EE
https://expressjs.com

40. Express + Jakarta EE

41. Express + Jakarta EE

42. Jakarta EE + Python
• Use a CDI interceptor to catch runaway scripts
• Seamlessly pass JPA entities to Python to manipulate

43. Future Opportunities!
• Jakarta EE no longer limited to Java?
• Non-Java bindings for other languages
• C++ EJB Singleton?
• Dependency Injection for non-Java objects
• Isolates instead of classloaders
• GraalVM isolates – multiple independent VM instances in JVM
• Improves security
• Limits impact crashes
• Reactive support?
• Many possibilities…

44. Challenges & Limitations
• Window distribution incomplete
• Building & packaging
• Java cannot launch Node.js
• R & Python support is experimental
• Python C API is incomplete
• Practically no packages are supported
• graalpython -m ginstall install numpy

45. Challenges & Limitations…
• Rudimentary Documentation
• On-going changes to GraalVM
• Run headless (NodeJS invoking Java)
• Lots of trial and error…

46. Best Practices
• Warm-up contexts to improve performance
@Startup @Singleton
• Limit access of untrusted scripts
• Monitor and kills runaway scripts

47. GraalVM EE Starter

48. Resources
• Gitter Community
https://gitter.im/graalvm/home
• Medium GraalVM Blog
https://medium.com/graalvm
• Wrapping SQLite
https://habr.com/ru/post/358700/

49. Q&A
Twitter: @ctjava
Email: rcuprak@gmail.com / r5k@3ds.com
Blog: cuprak.info
Linkedin: www.linkedin.com/in/rcuprak
Slides: www.slideshare.net/rcuprak/presentations
