1. Transaction Management on Cassandra
10 Sep, 2019 at ApacheCon NA 2019
Hiroyuki Yamada
CTO/CEO at Scalar, Inc.
1

2. © 2019 Scalar, inc.
Who am I ?
• Hiroyuki Yamada
– Passionate about Database Systems and Distributed Systems
– Ph.D. in Computer Science, the University of Tokyo
– IIS the University of Tokyo, Yahoo! Japan, IBM Japan
2

3. © 2019 Scalar, inc.
Agenda
• What is Scalar DB
• Transaction Management on Cassandra
• Benchmark and Verification Results
3

4. © 2019 Scalar, inc.
Maybe You Don’t Need ACID Transactions
• ACID transactions are heavy
– Especially when data is distributed
• One of other solutions:
– Make operations idempotent and retry them if atomicity is
not required
4

5. © 2019 Scalar, inc.
What is Scalar DB
• A library that makes non-ACID distributed databases ACID-compliant
– Cassandra is the first supported distributed database
5
https://github.com/scalar-labs/scalardb
Transaction management, Recovery management, Java API

6. © 2019 Scalar, inc.
System Architecture with Scalar DB and Cassandra
6
Cassandra nodes
Achieves one-copy
Serializable Transactions
Web
Applications
Client
programs
Scalar DB
DataStax
Java Driver
End Users
HTTP
Command
execution
Key key = new Key(
new TextValue(“id”, ”1”));
Result result =
db.get(new Get(key));
// do something with result
Put put = new Put(key).(…);
db.put(put)
Scalar DB

7. © 2019 Scalar, inc.
Key Characteristics
• Non-invasive approach
– Any modifications to the underlying database are not required
• High availability
– Available as long as quorum of replicas are up
– C* high availability is fully sustained by the client-coordinated
approach
• Horizontal scalability
– Throughput scales linearly
– C* high scalability is fully sustained by the client-coordinated
approach
• Strong Consistency
– Replicas updated by transactions are always consistent and up-to-date
7

8. © 2019 Scalar, inc.
Transaction Management on Cassandra - Introduction
• Based on Cherry Garcia protocol [ICDE’15]
– Requires minimum set of features such as linearizable conditional
update and the ability to store metadata
• Scalar DB is one of the applications of the protocol
– Use LWT for Linearizability
– Manage transaction metadata in user record space
• Implement enhancements
– Protocol correction
– No use of TrueTime API
– Serializable support (SI is the default isolation level)
8

9. © 2019 Scalar, inc.
Transaction Metadata Management
• WAL (Write-Ahead Logging) records are distributed
9
Application data Transaction metadata
After image Before image
Application data
(Before)
Transaction metadata
(Before)
Status Version TxID
Status
(before)
Version
(before)
TxID
(before)
TxID Status Other metadata
Status Record
in coordinator
table
User/Application
Record
in user tables
Application data
(managed by users)
Transaction metadata
(managed by Scalar DB)

10. © 2019 Scalar, inc.
Transaction Protocol - Overview
• Optimistic concurrency control
• Similar to 2 phase commit protocol
– Prepare phase: prepare records
– Commit phase 1: commit status
– This is where a transaction is regarded as committed or
aborted in normal cases
– (Commit phase 2: commit records)
• Lazy recovery
– Uncommitted records will be rollforwarded or rollbacked based on
the status of a transaction when the records are read
10

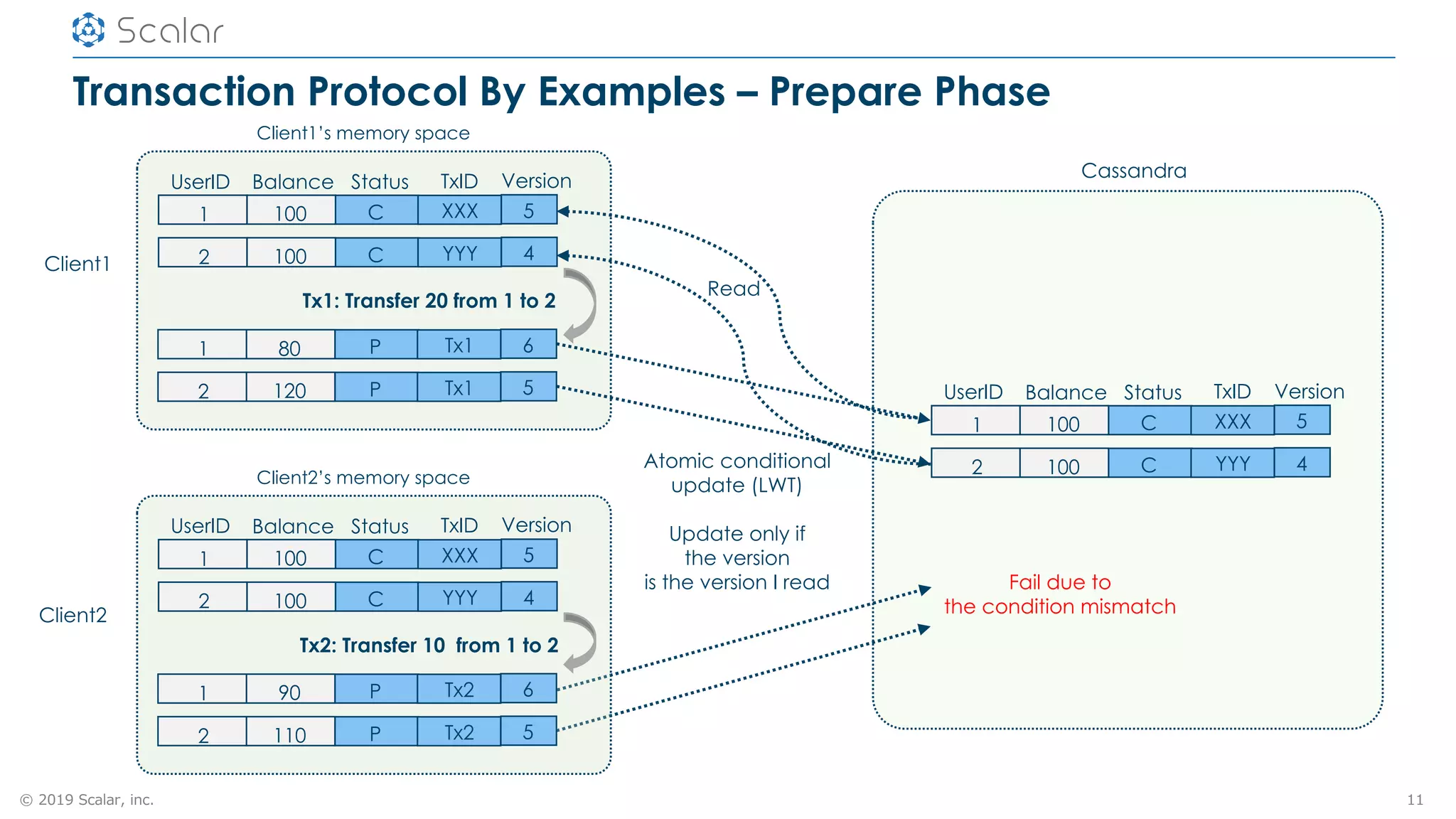

11. © 2019 Scalar, inc.
Transaction Protocol By Examples – Prepare Phase
11
Client1
Client1’s memory space
Cassandra
Read
Atomic conditional
update (LWT)
Update only if
the version
is the version I read Fail due to
the condition mismatch
UserID Balance Status Version
1 100 C 5
TxID
XXX
2 100 C 4YYY
1 80 P 6Tx1
2 120 P 5Tx1
Tx1: Transfer 20 from 1 to 2
Client2
UserID Balance Status Version
1 100 C 5
Client2’s memory space
Tx2: Transfer 10 from 1 to 2
TxID
XXX
2 100 C 4YYY
1 90 P 6Tx2
2 110 P 5Tx2
UserID Balance Status Version
1 100 C 5
TxID
XXX
2 100 C 4YYY

12. © 2019 Scalar, inc.
Transaction Protocol By Examples – Commit Phase 1
12
Cassandra
UserID Balance Status Version
1 80 P 6
TxID
Tx1
2 120 P 5Tx1
Status
C
TxID
XXX
CYYY
AZZZ
CTx1
Atomic conditional
update (LWT)
Update if
the TxID
does not exist
Client1 with
Tx1

13. © 2019 Scalar, inc.
Transaction Protocol By Examples – Commit Phase 2
13
Cassandra
UserID Balance Status Version
1 80 C 6
TxID
Tx1
2 120 C 5Tx1
Status
C
TxID
XXX
CYYY
AZZZ
CTx1
Atomic conditional
update (LWT)
Update status if
the record is
prepared by the TxID
Client1 with
Tx1

14. © 2019 Scalar, inc.
Failure Handling by Examples
• If TX1 fails before prepare phase
– Just clear the memory space for TX1
• If TX1 fails after prepare phase and before commit phase 1 (no
status is written in Status table)
– Another transaction (TX3) reads the records and notices that the records
are prepared and there is no status for it
– TX3 tries to abort TX1 (TX3 tries to write ABORTED to Status with TX1’s TXID
and rolls back the records)
– TX1 might be on it’s way to commit status, but only one can win, not both
• If TX1 fails (right) after commit phase 1
– Another transaction (TX3) tries to commit the records (rollforward) on
behalf of TX1 when TX3 reads the same records as TX1
– TX1 might be on it’s way to commit records, but only one can win, not both
14

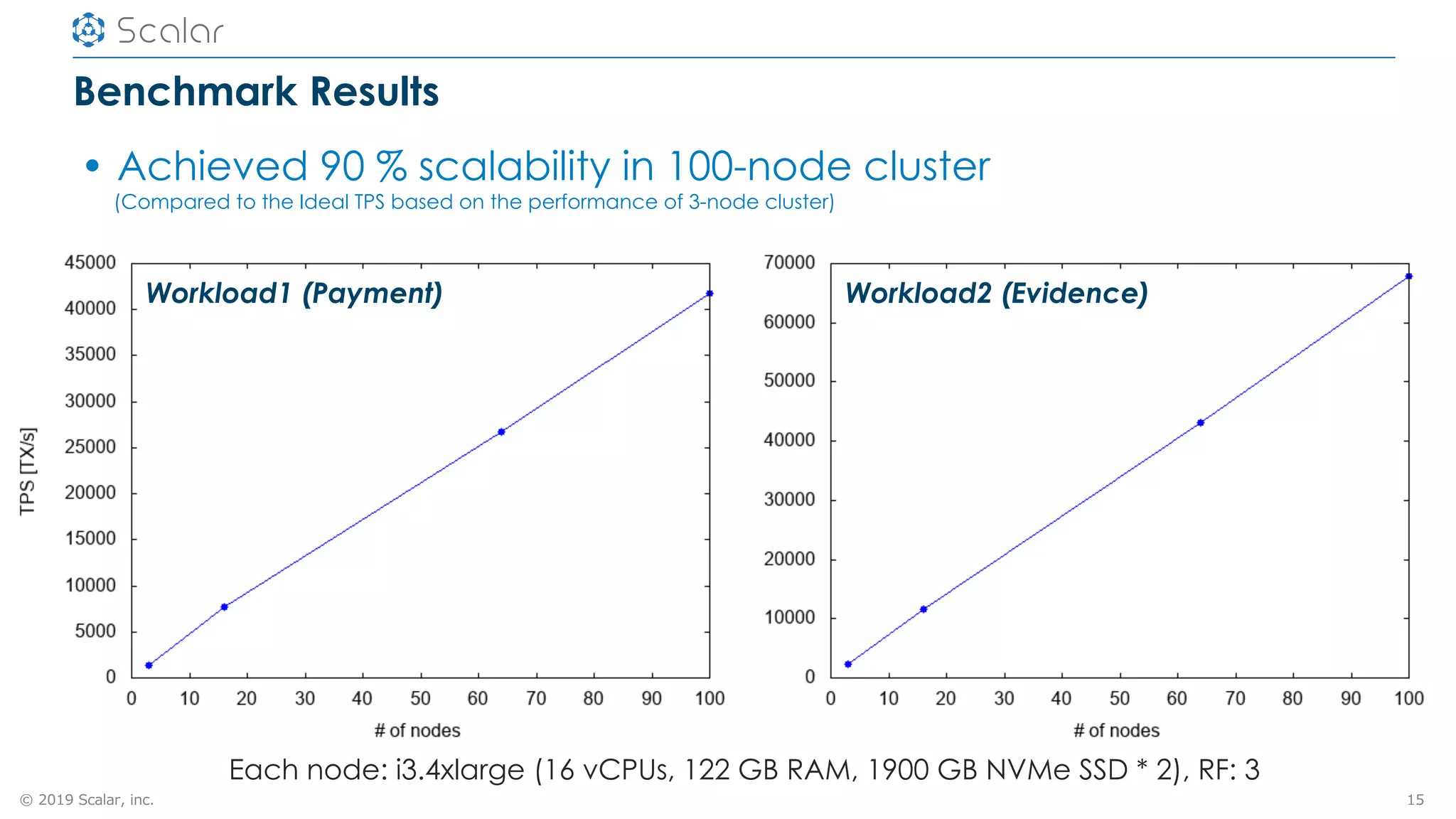

15. © 2019 Scalar, inc.
Benchmark Results
15
Workload2 (Evidence)Workload1 (Payment)
Each node: i3.4xlarge (16 vCPUs, 122 GB RAM, 1900 GB NVMe SSD * 2), RF: 3
• Achieved 90 % scalability in 100-node cluster
(Compared to the Ideal TPS based on the performance of 3-node cluster)

16. © 2019 Scalar, inc.
Verification Results
• Scalar DB has been heavily tested with Jepsen and our
destructive tools
– Note that Jepsen tests are created and conducted by Scalar
• It has passed both tests for a long time
• See https://github.com/scalar-labs/scalar-jepsen for more detail
16
Jepsen
Passed

17. © 2019 Scalar, inc.
Other Contributions for Apache Cassandra from Scalar
• GroupCommitlogService – Yuji Ito
– Group multiple commitlog writes at once
– CASSANDRA-13530
• Jepsen tests for Cassandra – Yuji Ito, Craig Pastro
– Maintain with the latest Jepsen
– Rewrite with Alia clojure driver
– https://github.com/scalar-labs/scalar-jepsen
• Cassy
– A simple and integrated backup tool
– Just released under Apache 2
– https://github.com/scalar-labs/cassy
17

18. © 2019 Scalar, inc.
Cassy: A simple and integrated backup tool
18
• Required to take a transactionally consistent backup

19. © 2019 Scalar, inc.
Future Work
• DataStax driver 4.x support
• Cassandra 4.x support
– Hopefully nothing needs to be done
• Other C* compatible databases integration
– Scylla DB (waiting for LWT)
– Cosmos DB (waiting for LWT)
• (HBase adapter)
19

20. © 2019 Scalar, inc.
Questions ?
20

21. © 2019 Scalar, inc.
Optimization
• Prepare in deterministic order
– => First prepare always wins
21
TX1: updating K1 and K2 and K3 TX2: updating K2 and K3 and K4
H: Consistent hashing
K1 K2 K3 K2 K3 K4
Always prepare in this order !!!
(otherwise, all Txs might abort.
Ex. TX1 prepares K1,K2 and TX2 prepares K4,K3 in this order)
H(K2) H(K1) H(K3) H(K4)

22. © 2019 Scalar, inc.
Snapshot Isolation
• Strong isolation level but weaker than Serializable
– Similar to “MVCC”
– Oracle’s most strict isolation level (it’s called “Serializable”)
• Read only sees a snapshot (=> non blocking reads)
• Mostly strong enough but there are still some anomalies
22

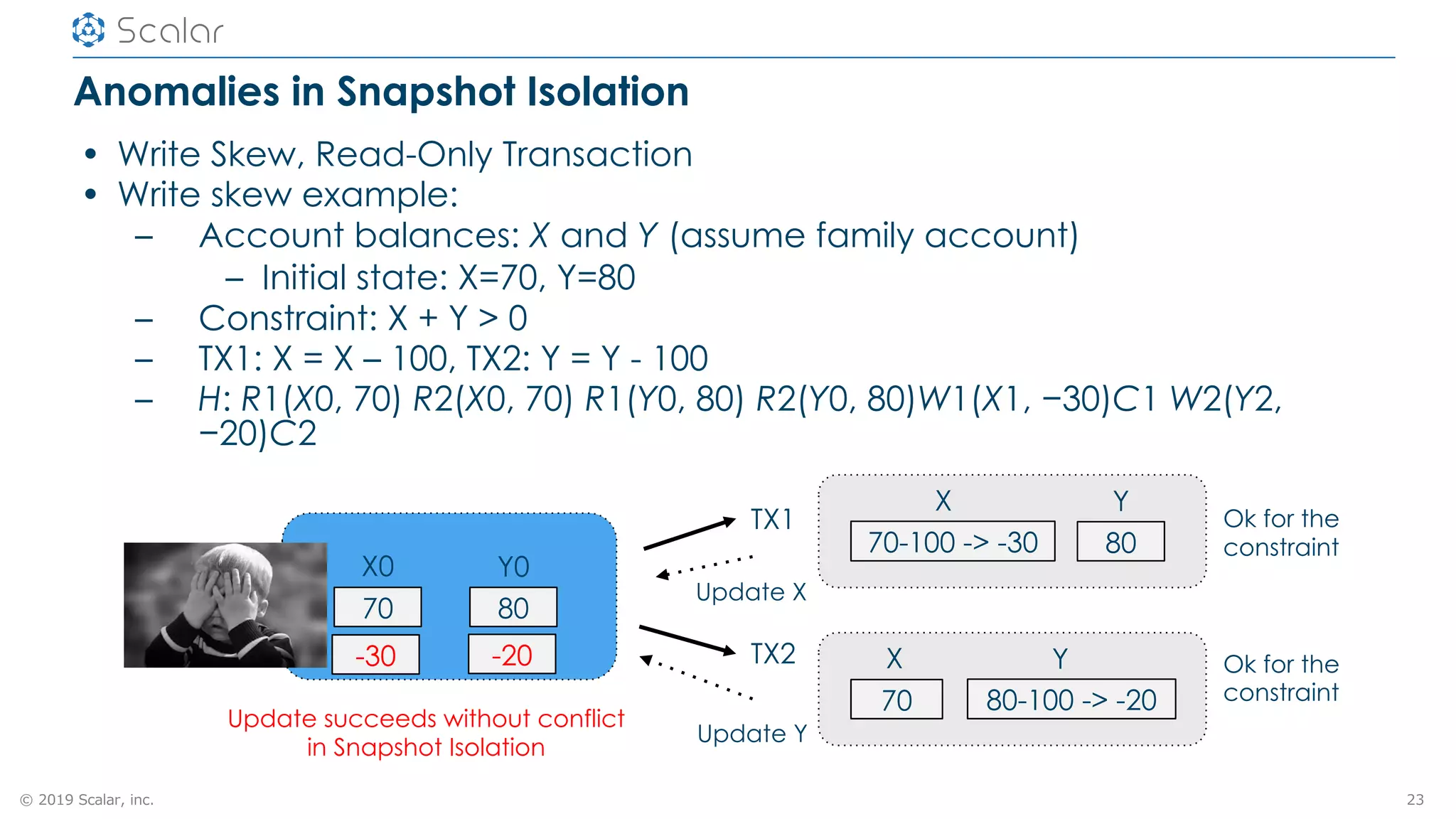

23. © 2019 Scalar, inc.
Anomalies in Snapshot Isolation
• Write Skew, Read-Only Transaction
• Write skew example:
– Account balances: X and Y (assume family account)
– Initial state: X=70, Y=80
– Constraint: X + Y > 0
– TX1: X = X – 100, TX2: Y = Y - 100
– H: R1(X0, 70) R2(X0, 70) R1(Y0, 80) R2(Y0, 80)W1(X1, −30)C1 W2(Y2,
−20)C2
23
70 80
X0 Y0
70-100 -> -30 80
X Y
TX1
70 80-100 -> -20
X YTX2
Update succeeds without conflict
in Snapshot Isolation
Ok for the
constraint
Ok for the
constraint
Update X
Update Y
-30 -20

24. © 2019 Scalar, inc.
Serializable Support
• Convert all reads into writes (writing the same value) in a
transaction
24

25. © 2019 Scalar, inc.
Protocol Correction
• Commit records by non-atomically
– => NO!!!
• Someone else have already did it and have started and
prepared a new transaction
25
TX1
TX2
Start and
Prepare A
Commit
Status
Commit A (without knowing A with TX1 is already
committed, and A is overwritten by a new TX2)
Read A and commit A
on behalf of TX1
Start and
Prepare A
Commit
Status
Commit A
