MySQL Database Architectures
Disaster Recovery Solutions
Introducing MySQL InnoDB ClusterSet








Kenny Gryp
MySQL Product Manager

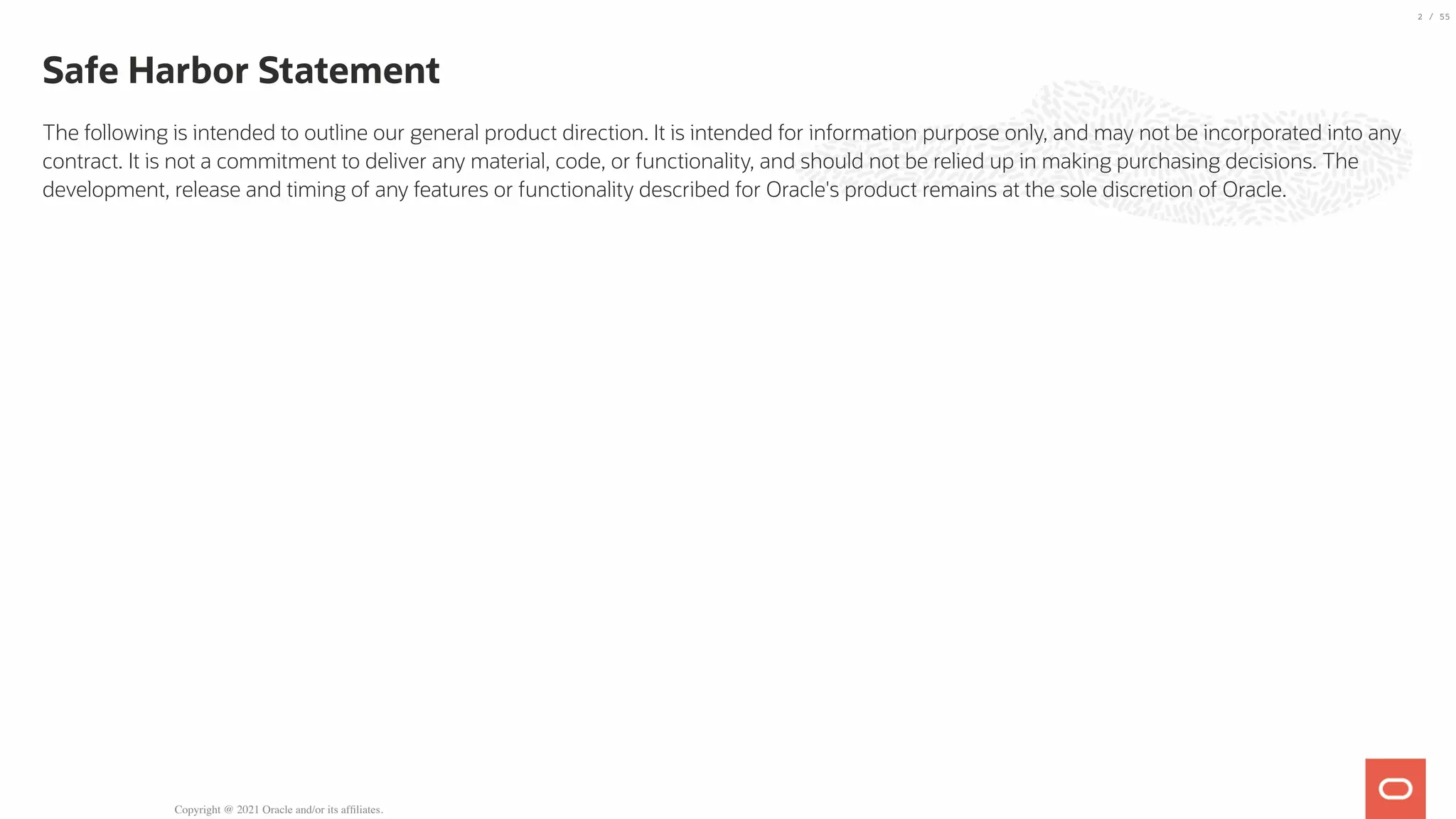

Safe Harbor Statement
The following is intended to outline our general product direction.
It is intended for information purpose only, and may not be incorporated
into any
contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied up in making purchasing decisions.
The
development, release and timing of any features or functionality described
for Oracle's product remains at the sole discretion of Oracle.
Copyright @ 2021 Oracle and/or its affiliates.
2 / 55

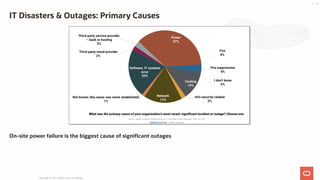

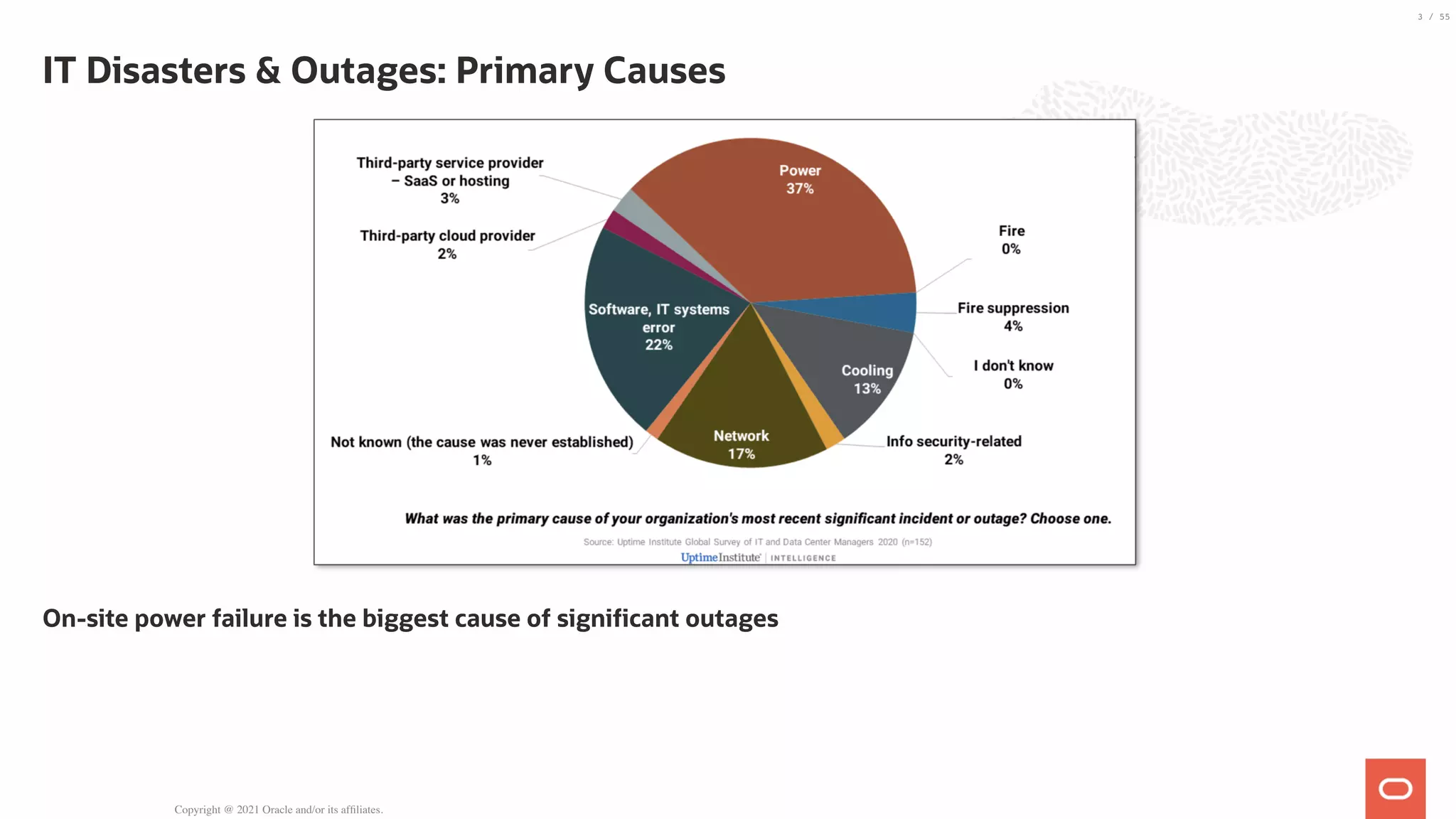

IT Disasters & Outages: Primary Causes


On-site power failure is the biggest cause of significant outages
Copyright @ 2021 Oracle and/or its affiliates.
3 / 55

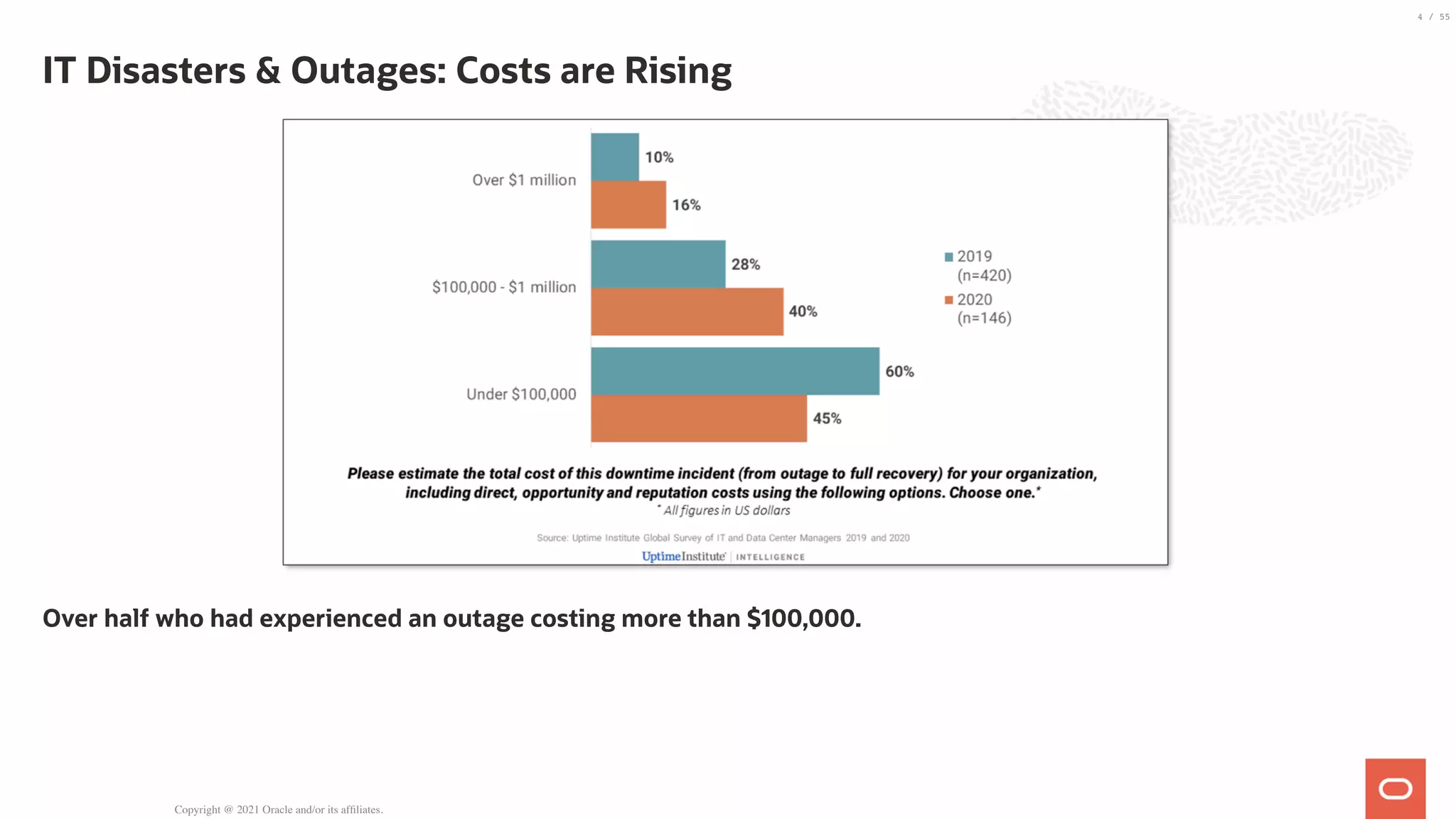

IT Disasters & Outages: Costs are Rising
Over half who had experienced an outage costing more than $100,000.
Copyright @ 2021 Oracle and/or its affiliates.
4 / 55

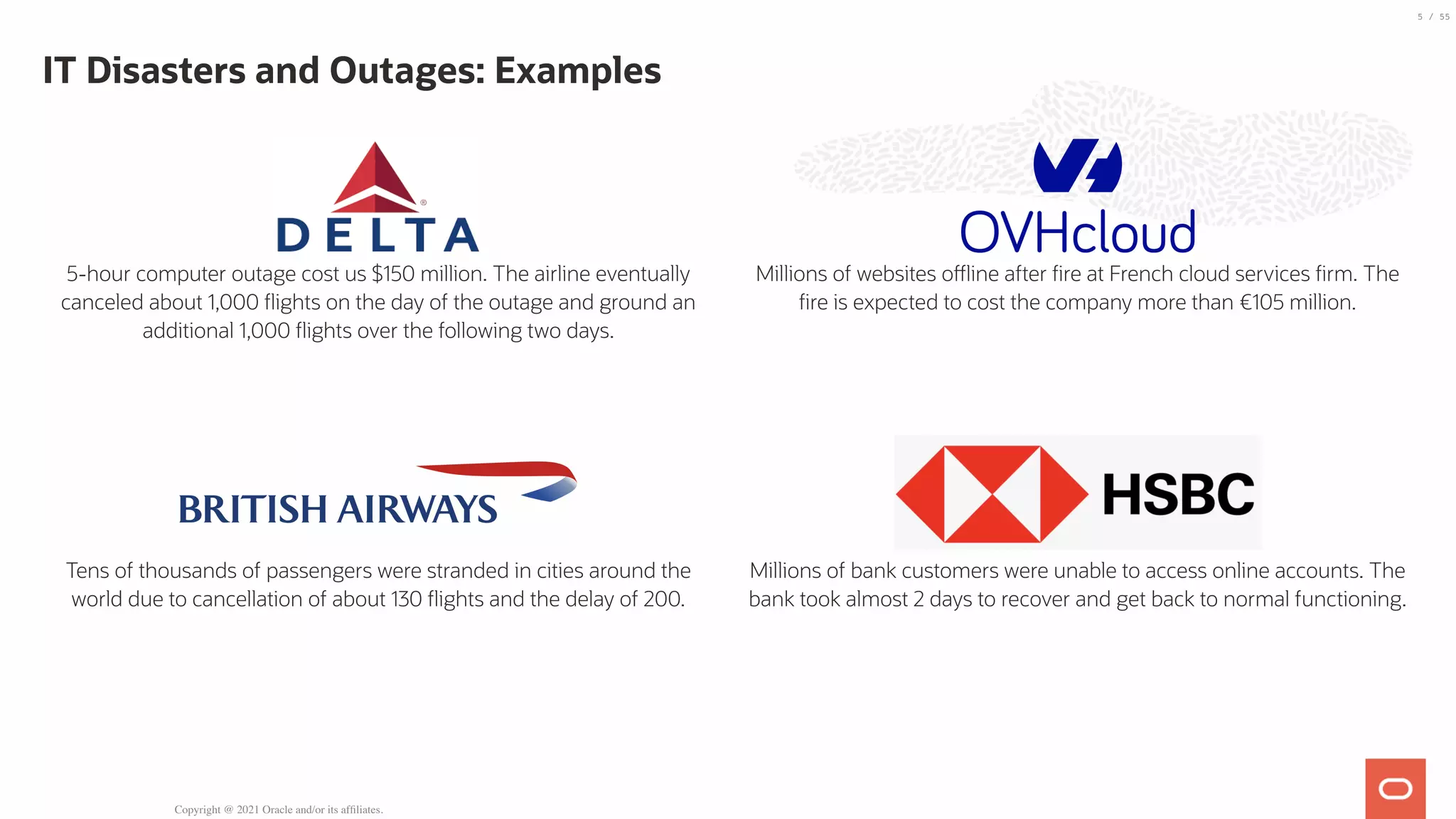

5-hour computer outage cost us $150 million. The airline eventually
canceled about 1,000 flights on the day of the outage and ground an
additional 1,000 flights over the following two days.
Millions of websites offline after fire at French cloud services firm. The
fire is expected to cost the company more than €105 million.


Tens of thousands of passengers were stranded in cities around the
world due to cancellation of about 130 flights and the delay of 200.


Millions of bank customers were unable to access online accounts. The
bank took almost 2 days to recover and get back to normal functioning.
IT Disasters and Outages: Examples


Copyright @ 2021 Oracle and/or its affiliates.
5 / 55
Past, Present & Future
Copyright @ 2021 Oracle and/or its affiliates.
6 / 55

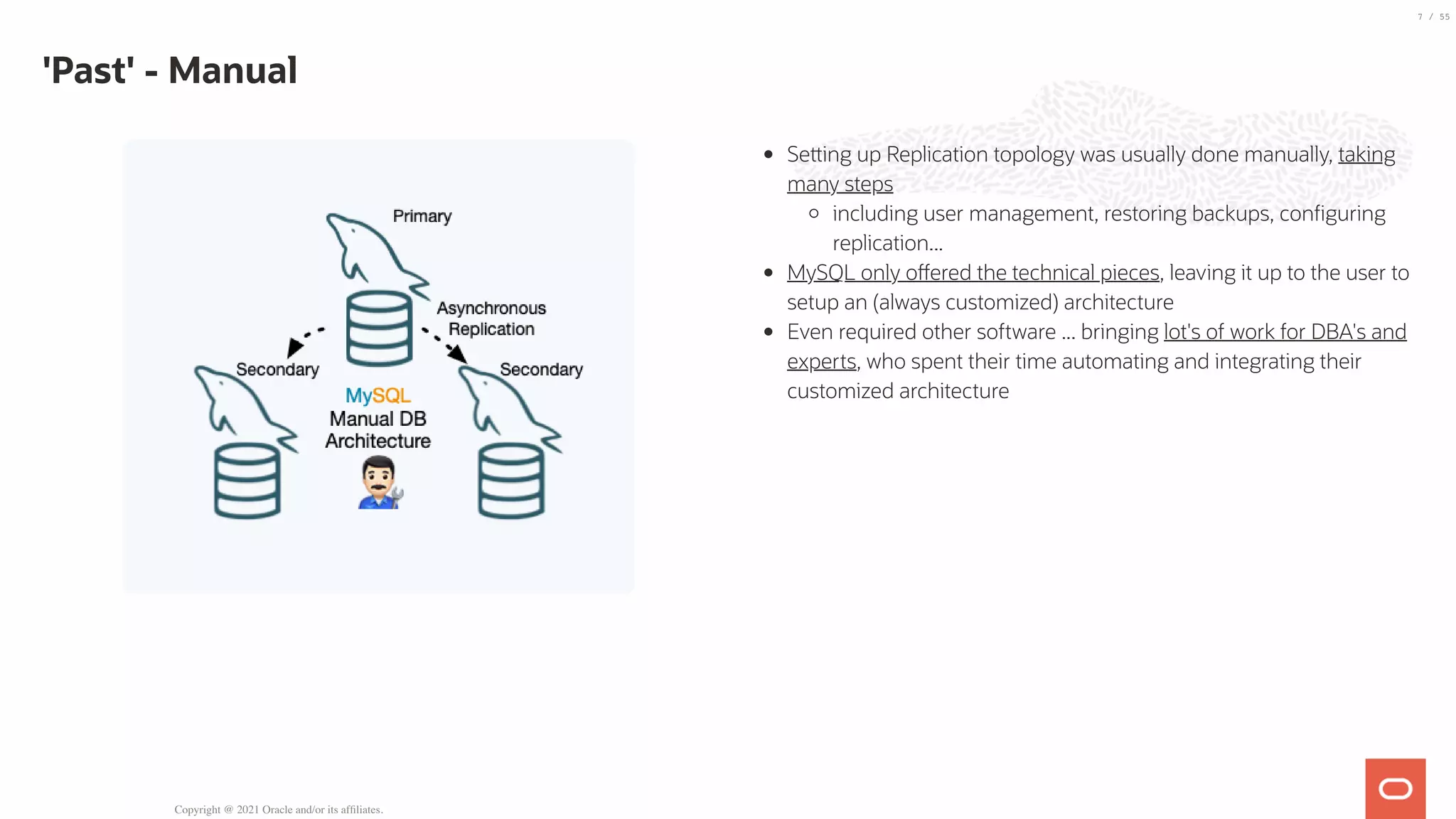

Setting up Replication topology was usually done manually, taking
many steps
including user management, restoring backups, configuring
replication...
MySQL only offered the technical pieces, leaving it up to the user to
setup an (always customized) architecture
Even required other software ... bringing lot's of work for DBA's and
experts, who spent their time automating and integrating their
customized architecture

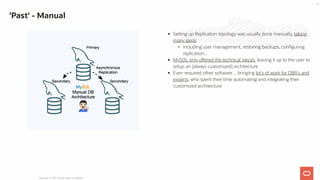

'Past' - Manual
Copyright @ 2021 Oracle and/or its affiliates.
7 / 55

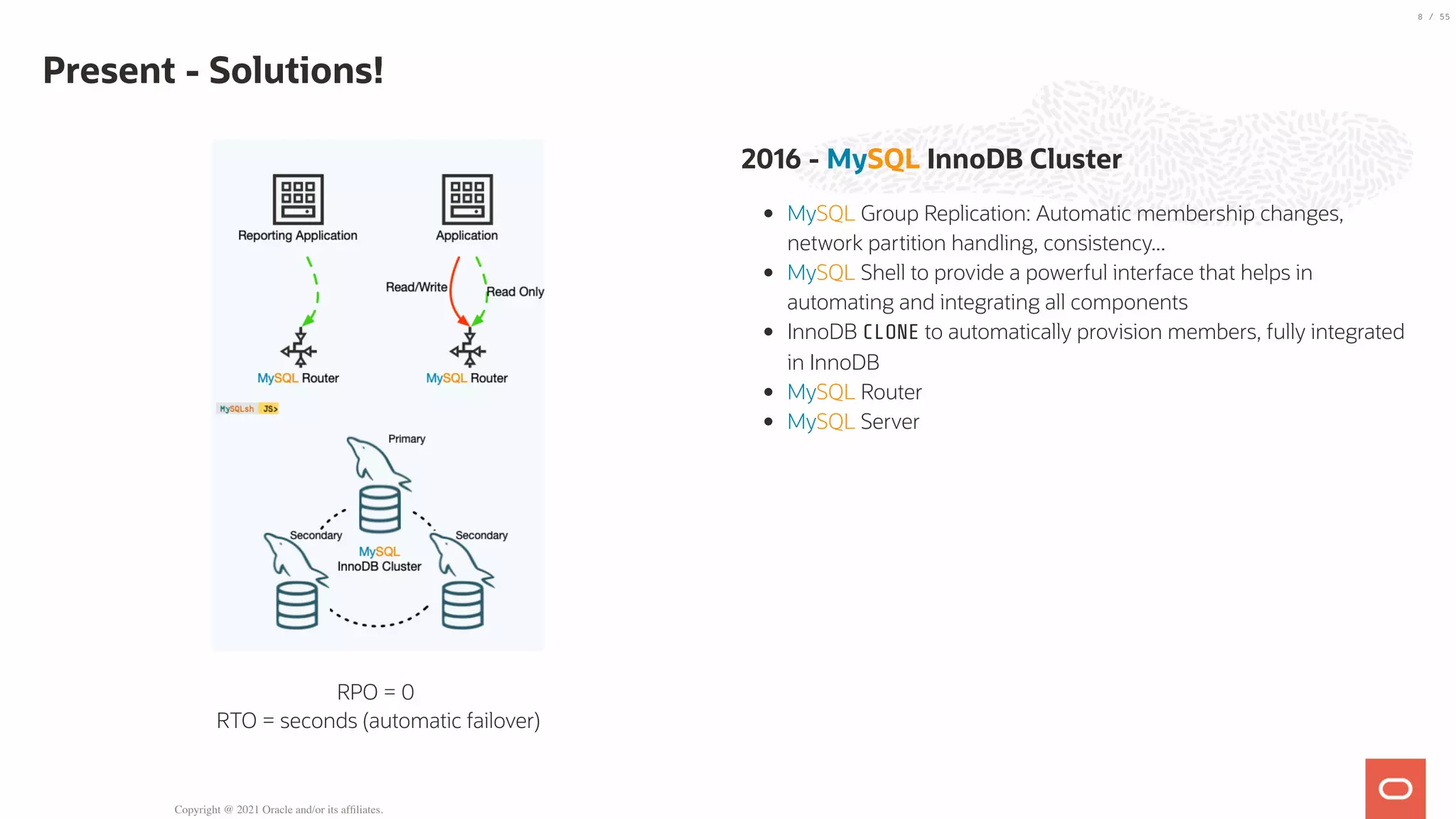

RPO = 0

RTO = seconds (automatic failover)
2016 - MySQL InnoDB Cluster
MySQL Group Replication: Automatic membership changes,
network partition handling, consistency...
MySQL Shell to provide a powerful interface that helps in
automating and integrating all components
InnoDB CLONE to automatically provision members, fully integrated
in InnoDB
MySQL Router
MySQL Server
Present - Solutions!
Copyright @ 2021 Oracle and/or its affiliates.
8 / 55

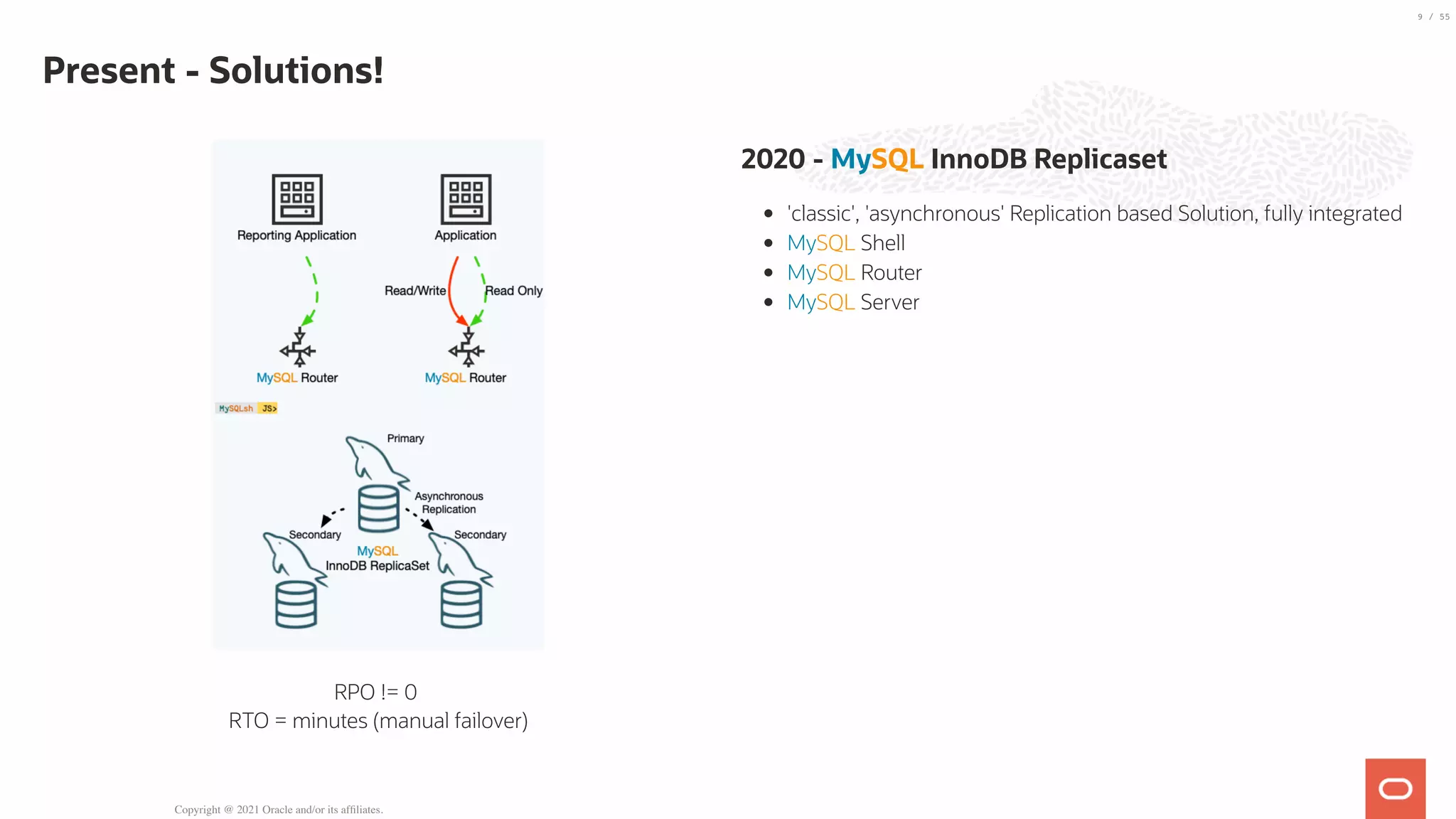

RPO != 0


RTO = minutes (manual failover)
2020 - MySQL InnoDB Replicaset
'classic', 'asynchronous' Replication based Solution, fully integrated
MySQL Shell
MySQL Router
MySQL Server
Present - Solutions!
Copyright @ 2021 Oracle and/or its affiliates.
9 / 55

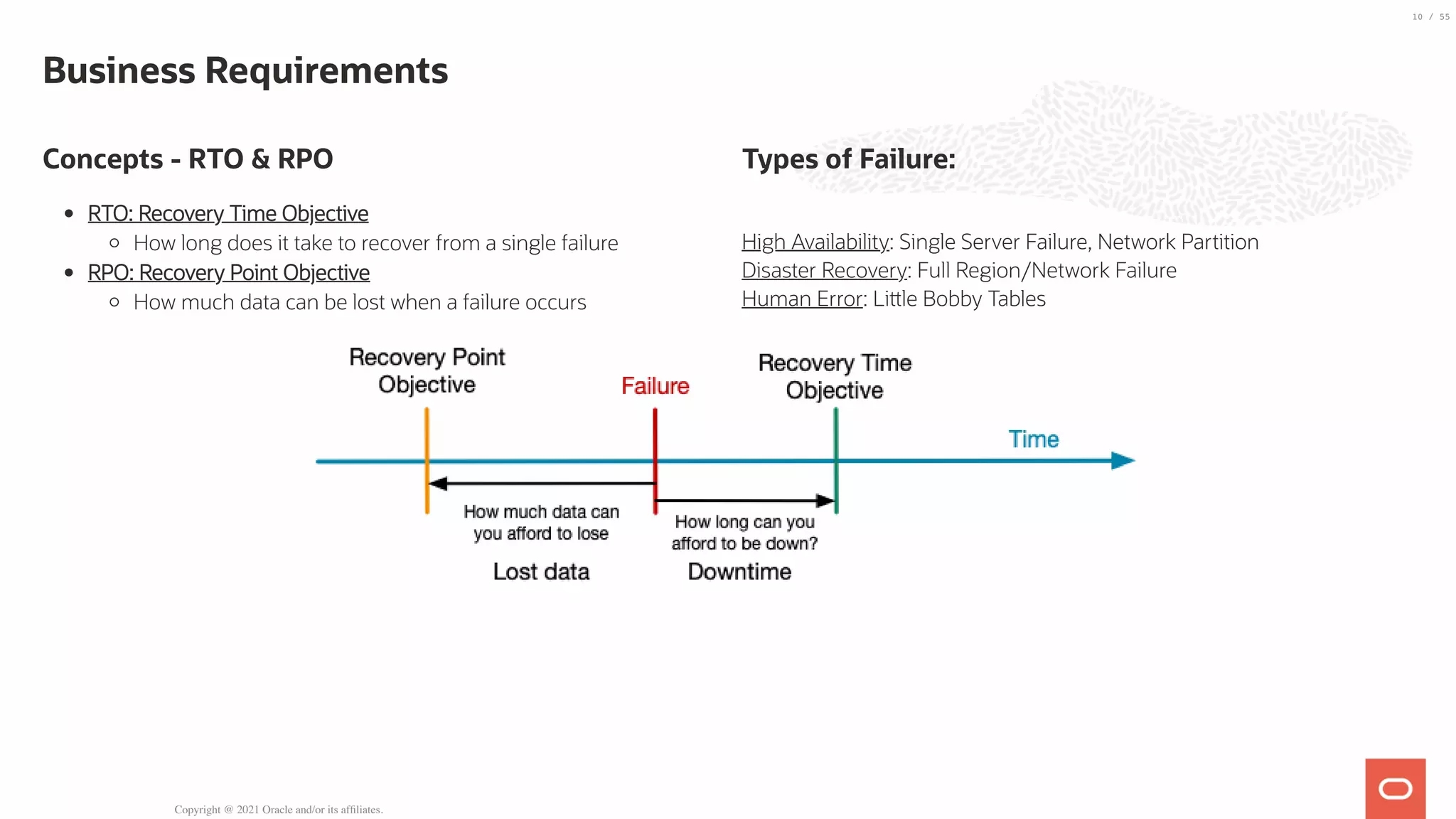

Concepts - RTO & RPO
RTO: Recovery Time Objective
How long does it take to recover from a single failure
RPO: Recovery Point Objective
How much data can be lost when a failure occurs
Types of Failure:


High Availability: Single Server Failure, Network Partition


Disaster Recovery: Full Region/Network Failure


Human Error: Little Bobby Tables
Business Requirements
Copyright @ 2021 Oracle and/or its affiliates.
10 / 55

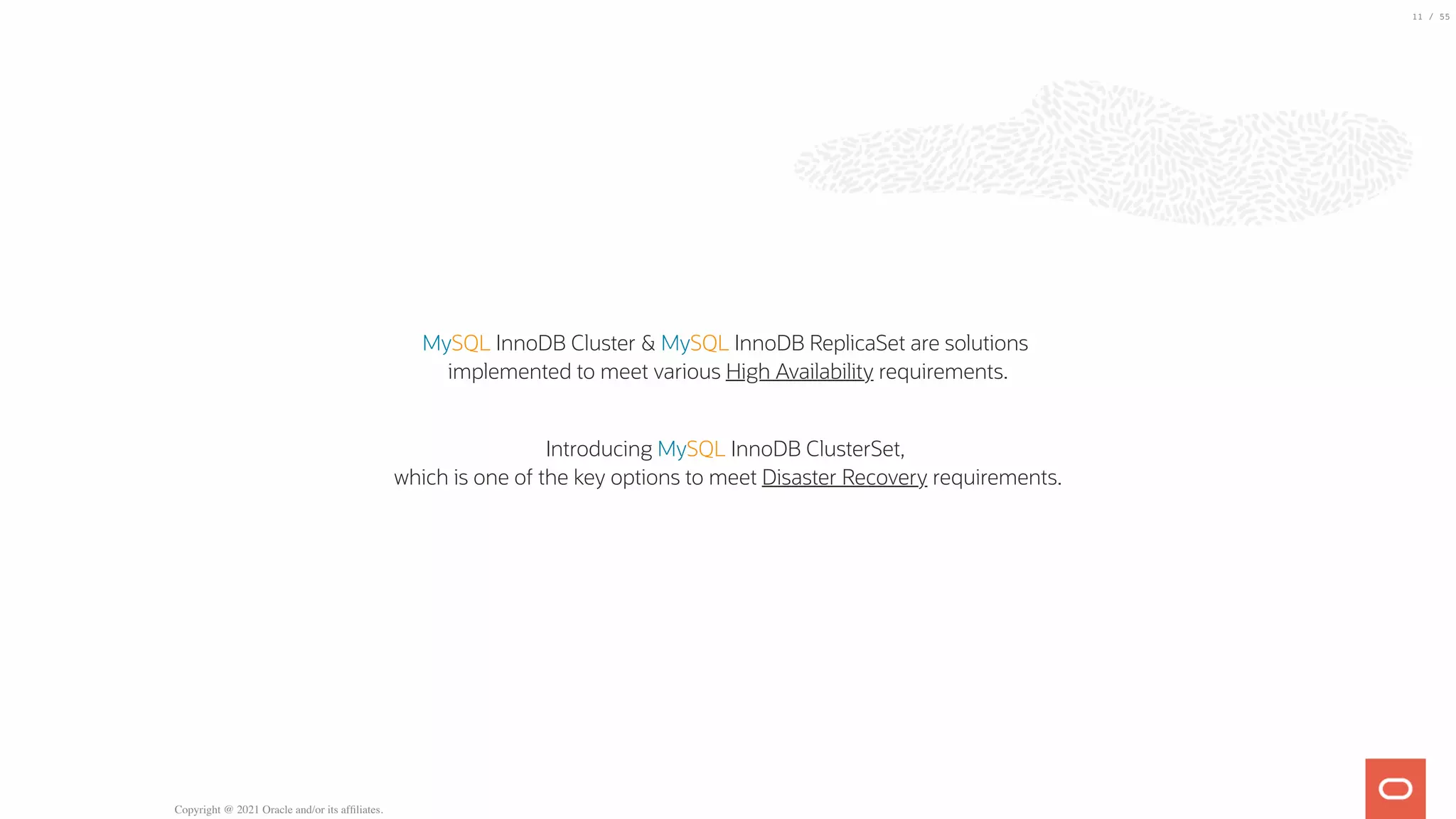

MySQL InnoDB Cluster & MySQL InnoDB ReplicaSet are solutions

implemented to meet various High Availability requirements.
Introducing MySQL InnoDB ClusterSet,
which is one of the key options to meet Disaster Recovery requirements.
Copyright @ 2021 Oracle and/or its affiliates.
11 / 55

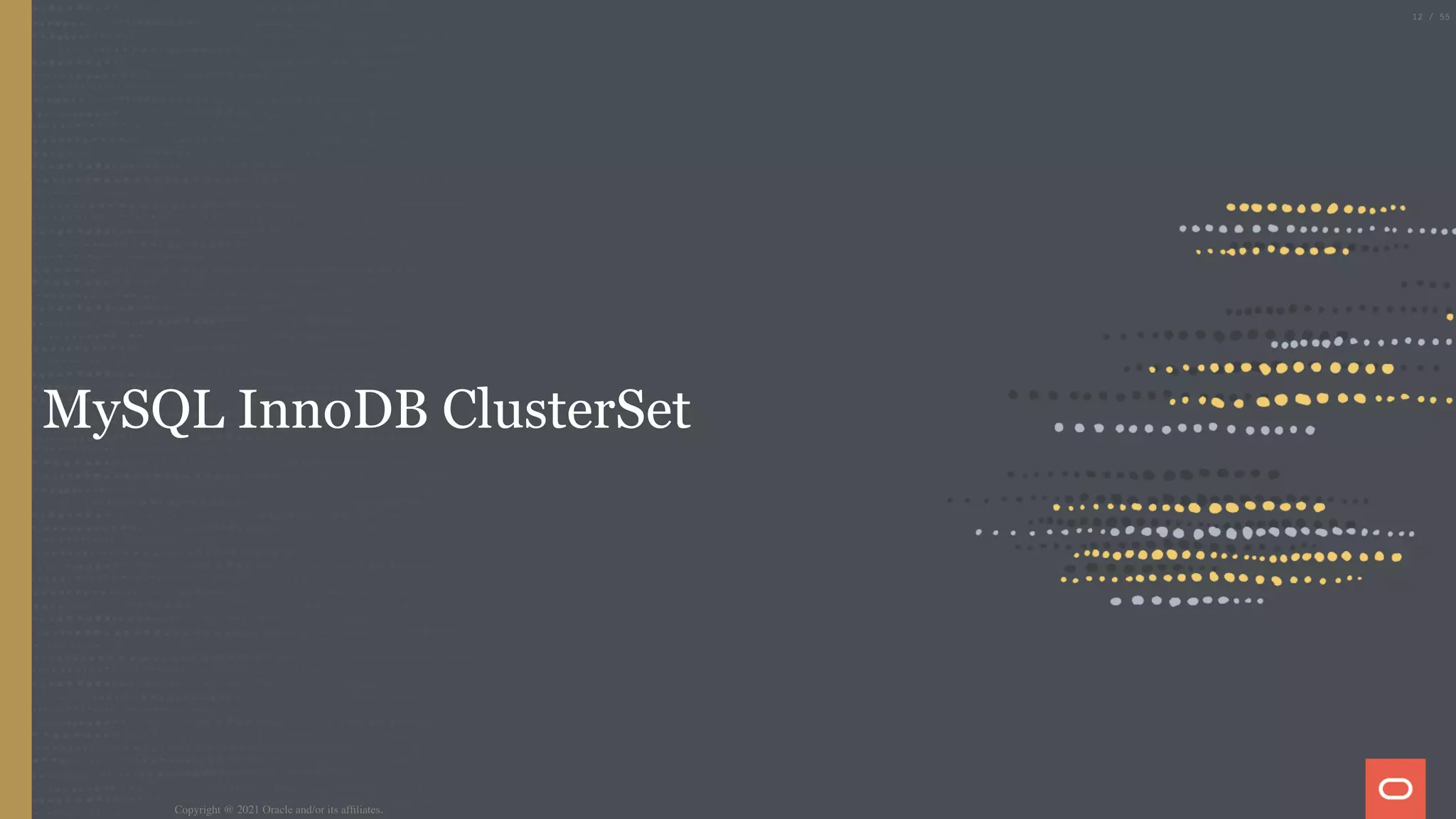

MySQL InnoDB ClusterSet
Copyright @ 2021 Oracle and/or its affiliates.
12 / 55

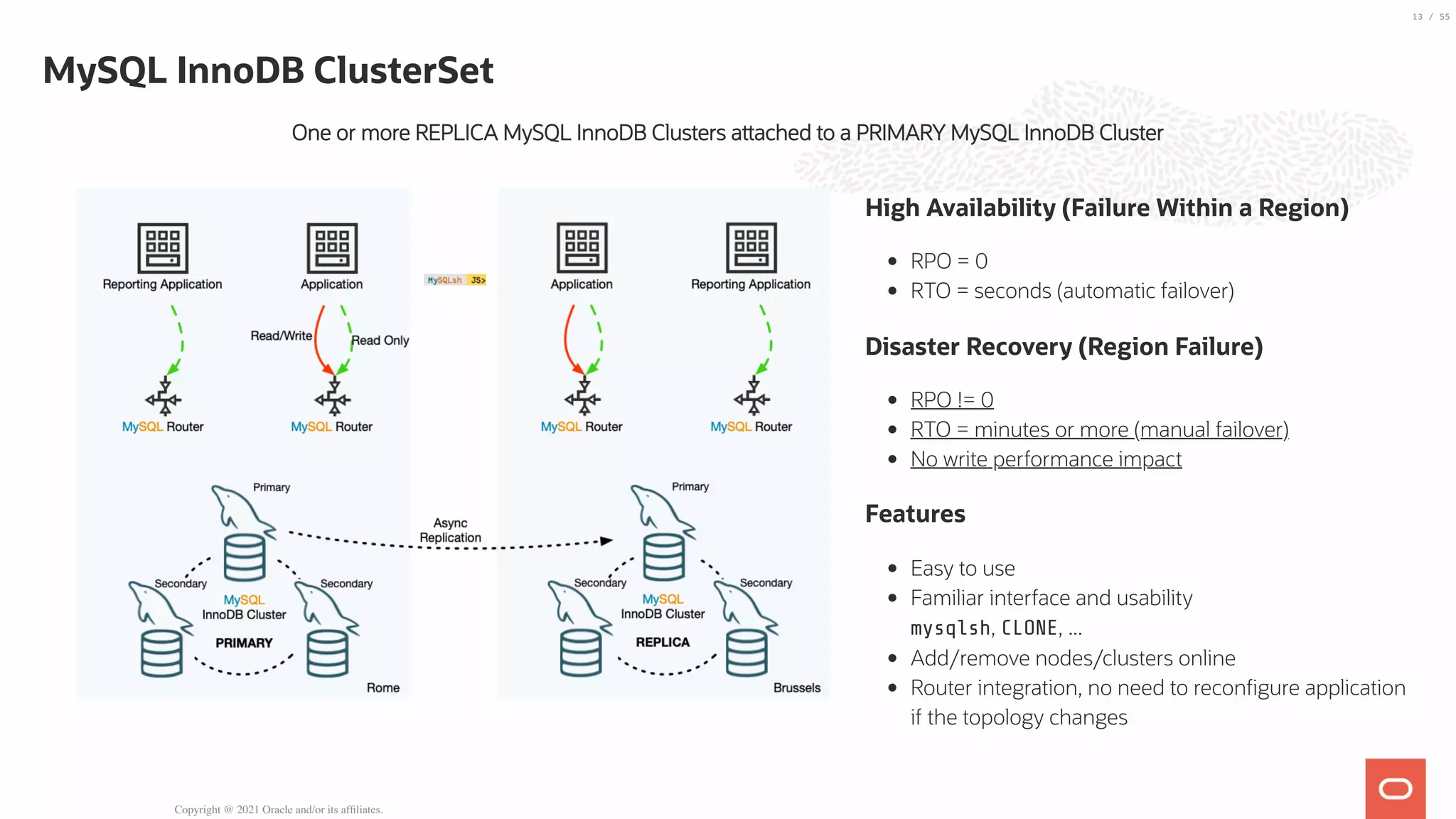

High Availability (Failure Within a Region)
RPO = 0
RTO = seconds (automatic failover)
Disaster Recovery (Region Failure)
RPO != 0
RTO = minutes or more (manual failover)
No write performance impact
Features
Easy to use
Familiar interface and usability


mysqlsh, CLONE, ...
Add/remove nodes/clusters online
Router integration, no need to reconfigure application
if the topology changes
MySQL InnoDB ClusterSet
One or more REPLICA MySQL InnoDB Clusters attached to a PRIMARY MySQL InnoDB Cluster
Copyright @ 2021 Oracle and/or its affiliates.
13 / 55

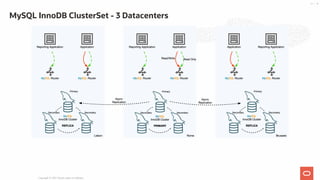

MySQL InnoDB ClusterSet - 3 Datacenters
Copyright @ 2021 Oracle and/or its affiliates.
14 / 55

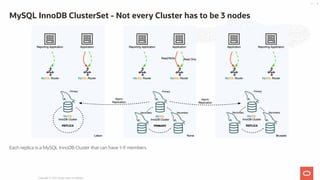

MySQL InnoDB ClusterSet - Not every Cluster has to be 3 nodes
Each replica is a MySQL InnoDB Cluster that can have 1-9 members.
Copyright @ 2021 Oracle and/or its affiliates.
15 / 55

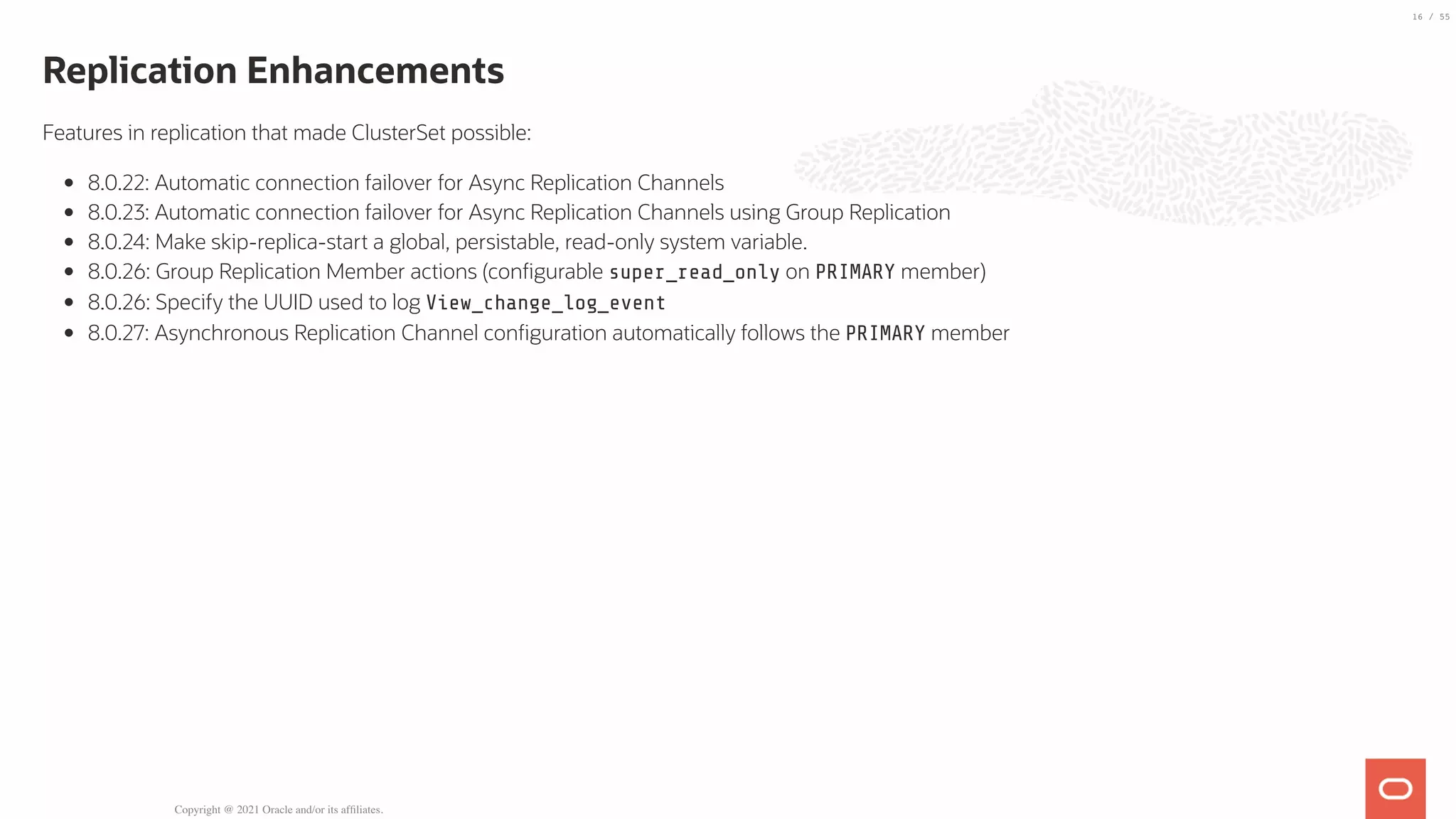

Replication Enhancements
Features in replication that made ClusterSet possible:
8.0.22: Automatic connection failover for Async Replication Channels
8.0.23: Automatic connection failover for Async Replication Channels using Group Replication
8.0.24: Make skip-replica-start a global, persistable, read-only system variable.
8.0.26: Group Replication Member actions (configurable super_read_only on PRIMARY member)
8.0.26: Specify the UUID used to log View_change_log_event
8.0.27: Asynchronous Replication Channel configuration automatically follows the PRIMARY member
Copyright @ 2021 Oracle and/or its affiliates.
16 / 55
MySQL InnoDB ClusterSet
Configuration
Commands
Copyright @ 2021 Oracle and/or its affiliates.
17 / 55

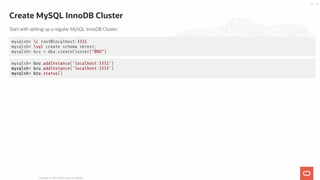

Create MySQL InnoDB Cluster
Start with setting up a regular MySQL InnoDB Cluster:
mysqlsh> c root@localhost:3331
mysqlsh> sql create schema sbtest;
mysqlsh> bru = dba.createCluster("BRU")
mysqlsh> bru.addInstance('localhost:3332')
mysqlsh> bru.addInstance('localhost:3333')
mysqlsh> bru.status()
Copyright @ 2021 Oracle and/or its affiliates.
18 / 55

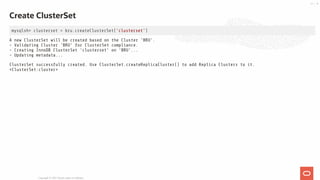

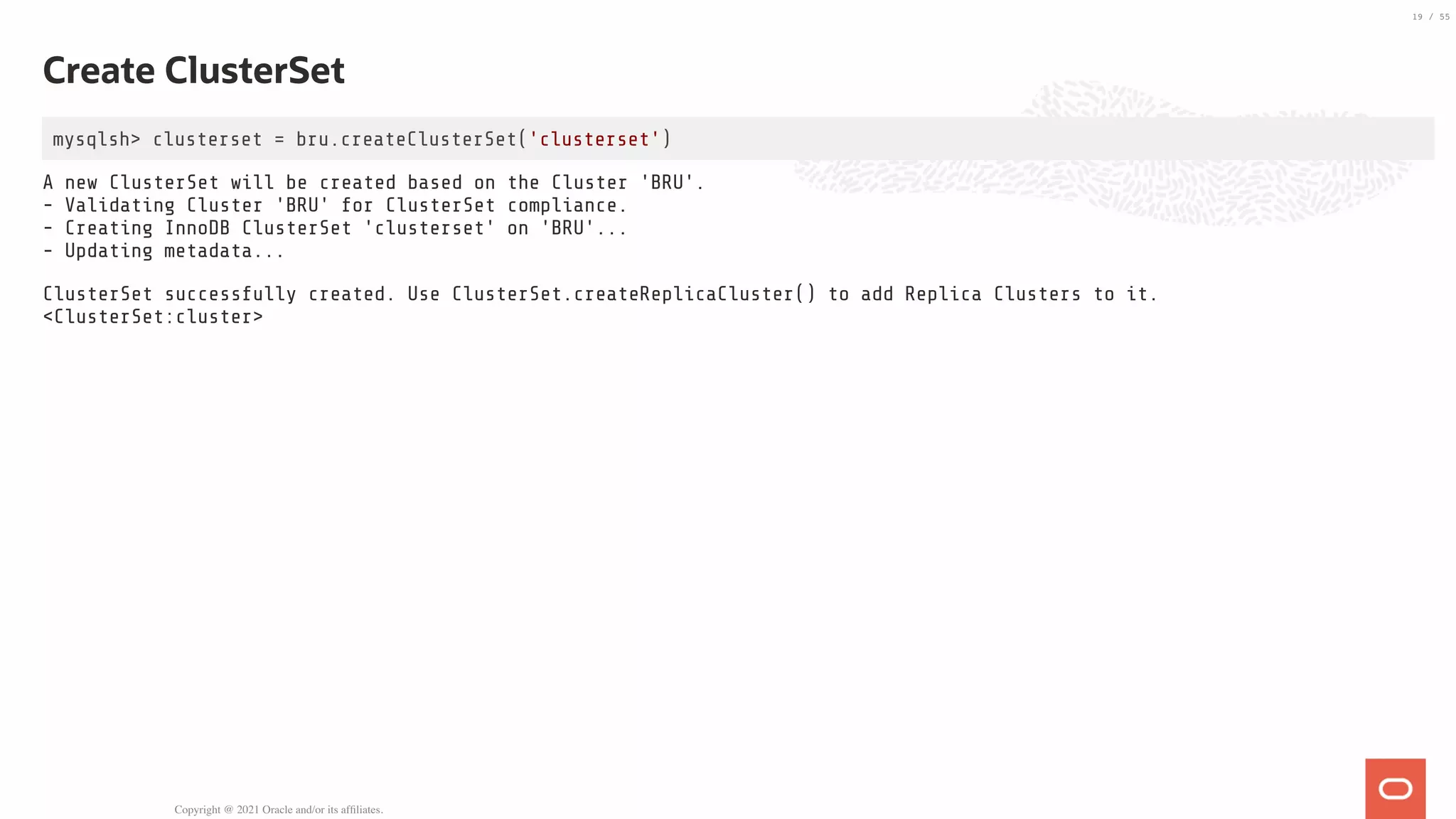

Create ClusterSet
mysqlsh> clusterset = bru.createClusterSet('clusterset')
A new ClusterSet will be created based on the Cluster 'BRU'.
- Validating Cluster 'BRU' for ClusterSet compliance.
- Creating InnoDB ClusterSet 'clusterset' on 'BRU'...
- Updating metadata...
ClusterSet successfully created. Use ClusterSet.createReplicaCluster() to add Replica Clusters to it.
<ClusterSet:cluster>
Copyright @ 2021 Oracle and/or its affiliates.
19 / 55

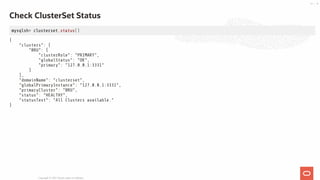

Check ClusterSet Status
mysqlsh> clusterset.status()
{
"clusters": {
"BRU": {
"clusterRole": "PRIMARY",
"globalStatus": "OK",
"primary": "127.0.0.1:3331"
}
},
"domainName": "clusterset",
"globalPrimaryInstance": "127.0.0.1:3331",
"primaryCluster": "BRU",
"status": "HEALTHY",
"statusText": "All Clusters available."
}
Copyright @ 2021 Oracle and/or its affiliates.
20 / 55

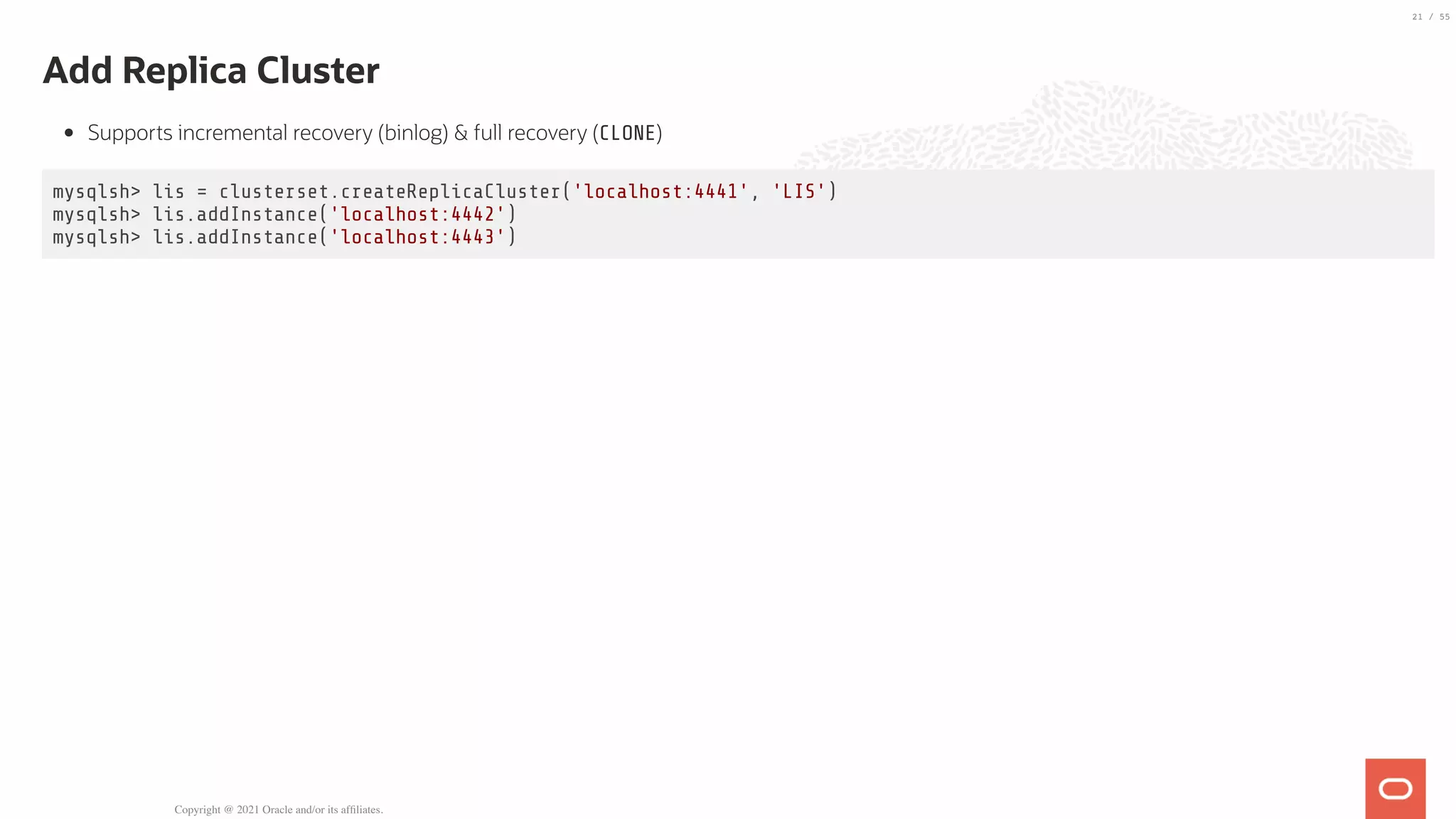

Add Replica Cluster
Supports incremental recovery (binlog) & full recovery (CLONE)
mysqlsh> lis = clusterset.createReplicaCluster('localhost:4441', 'LIS')
mysqlsh> lis.addInstance('localhost:4442')
mysqlsh> lis.addInstance('localhost:4443')
Copyright @ 2021 Oracle and/or its affiliates.
21 / 55
mysqlsh> clusterset.status()
mysqlsh> bru.status()
mysqlsh> lis.status()
{
"clusters": {
"BRU": {
"clusterRole": "PRIMARY",
"globalStatus": "OK",
"primary": "127.0.0.1:3331"
},
"LIS": {
"clusterRole": "REPLICA",
"clusterSetReplicationStatus": "OK",
"globalStatus": "OK"
}
},
"domainName": "clusterset",
"globalPrimaryInstance": "127.0.0.1:3331",
"primaryCluster": "BRU",
"status": "HEALTHY",
"statusText": "All Clusters available."
}
















Or, to get everything in one command:
mysqlsh> clusterset.status({extended:1})
Check ClusterSet Status
Copyright @ 2021 Oracle and/or its affiliates.
22 / 55

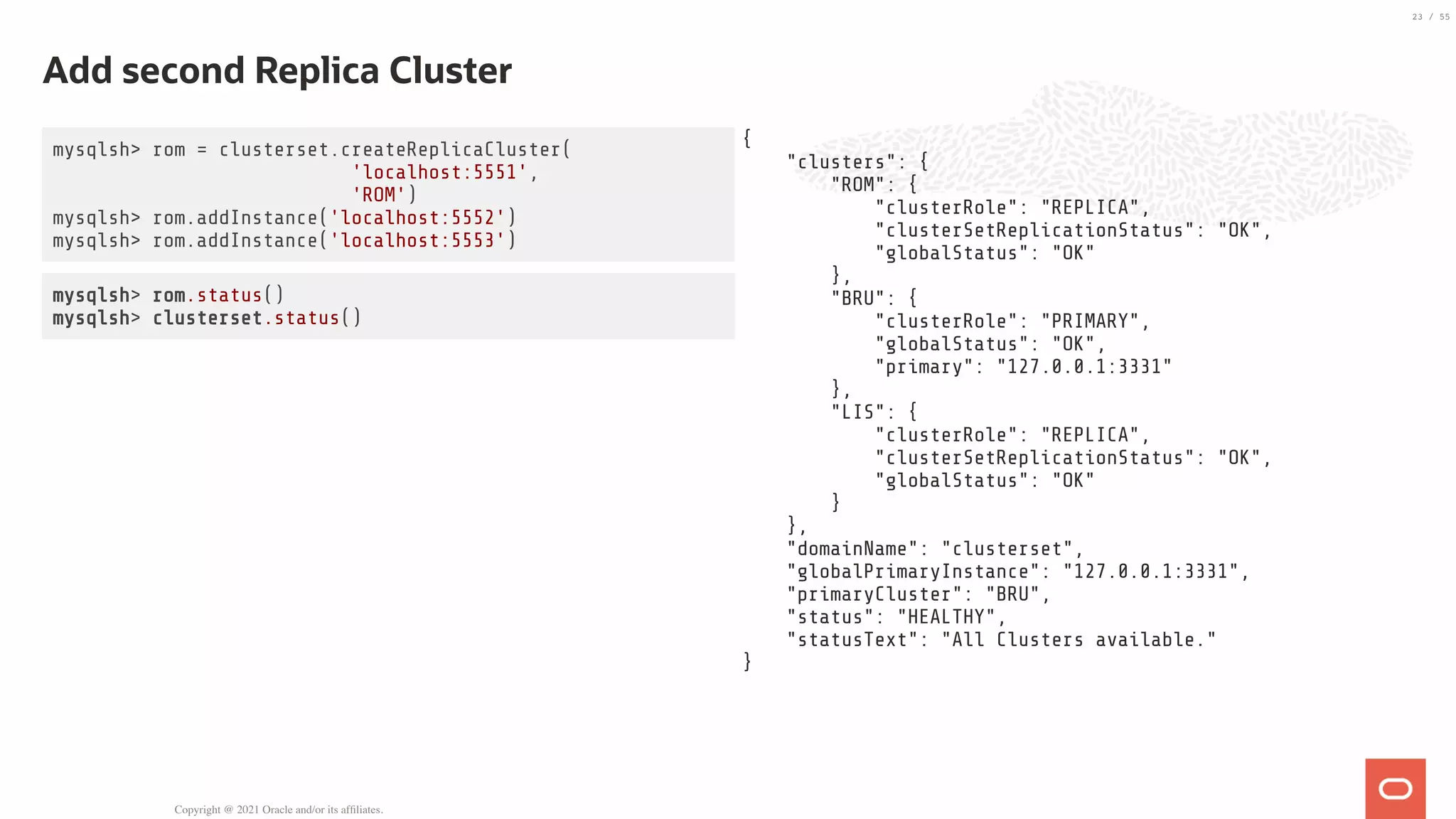

mysqlsh> rom = clusterset.createReplicaCluster(
'localhost:5551',
'ROM')
mysqlsh> rom.addInstance('localhost:5552')
mysqlsh> rom.addInstance('localhost:5553')
mysqlsh> rom.status()
mysqlsh> clusterset.status()
{
"clusters": {
"ROM": {
"clusterRole": "REPLICA",
"clusterSetReplicationStatus": "OK",
"globalStatus": "OK"
},
"BRU": {
"clusterRole": "PRIMARY",
"globalStatus": "OK",
"primary": "127.0.0.1:3331"
},
"LIS": {
"clusterRole": "REPLICA",
"clusterSetReplicationStatus": "OK",
"globalStatus": "OK"
}
},
"domainName": "clusterset",
"globalPrimaryInstance": "127.0.0.1:3331",
"primaryCluster": "BRU",
"status": "HEALTHY",
"statusText": "All Clusters available."
}
Add second Replica Cluster
Copyright @ 2021 Oracle and/or its affiliates.
23 / 55

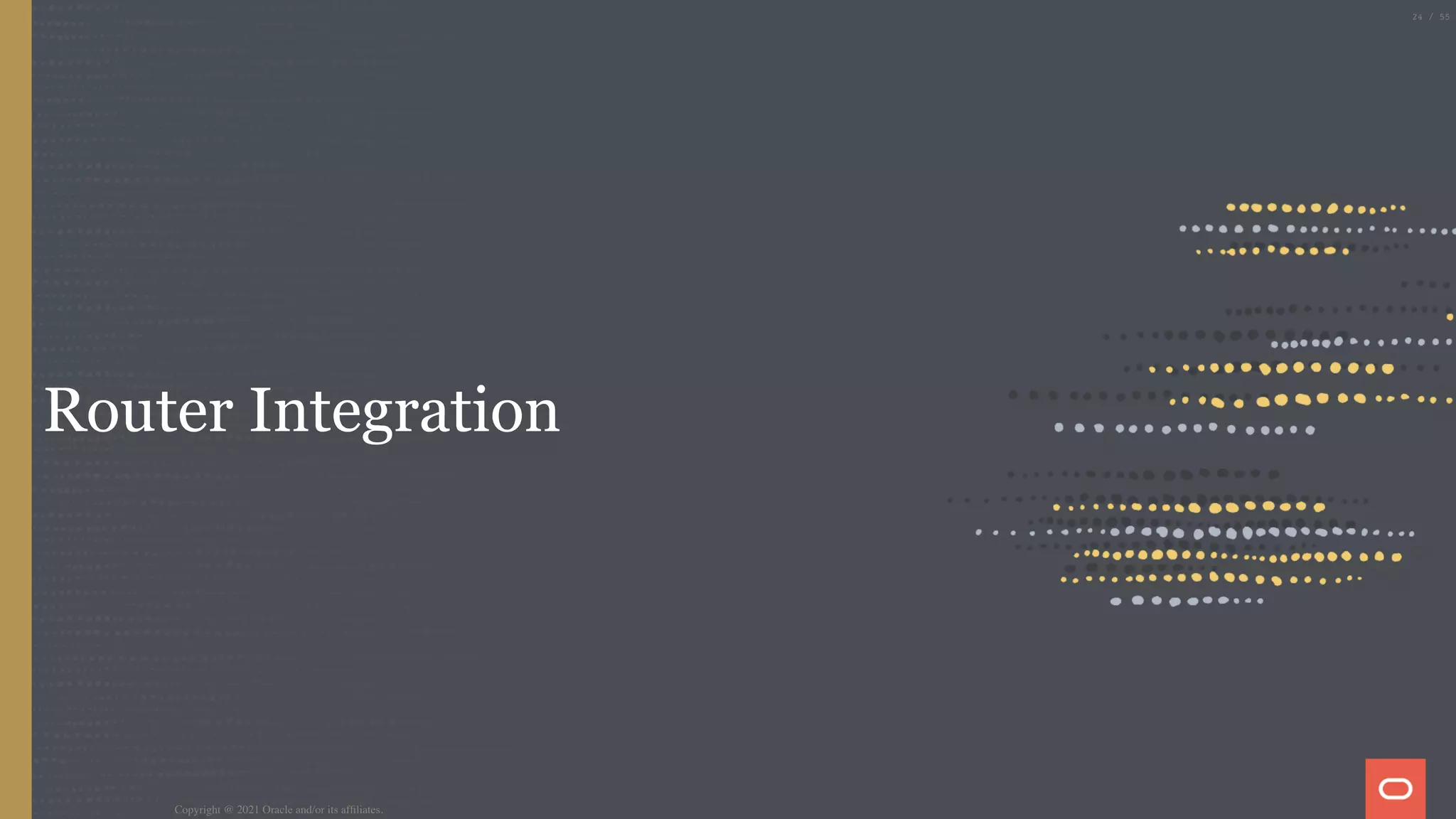

Router Integration
Copyright @ 2021 Oracle and/or its affiliates.
24 / 55

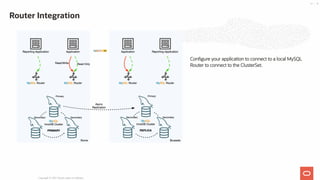

Configure your application to connect to a local MySQL
Router to connect to the ClusterSet.
Router Integration
Copyright @ 2021 Oracle and/or its affiliates.
25 / 55

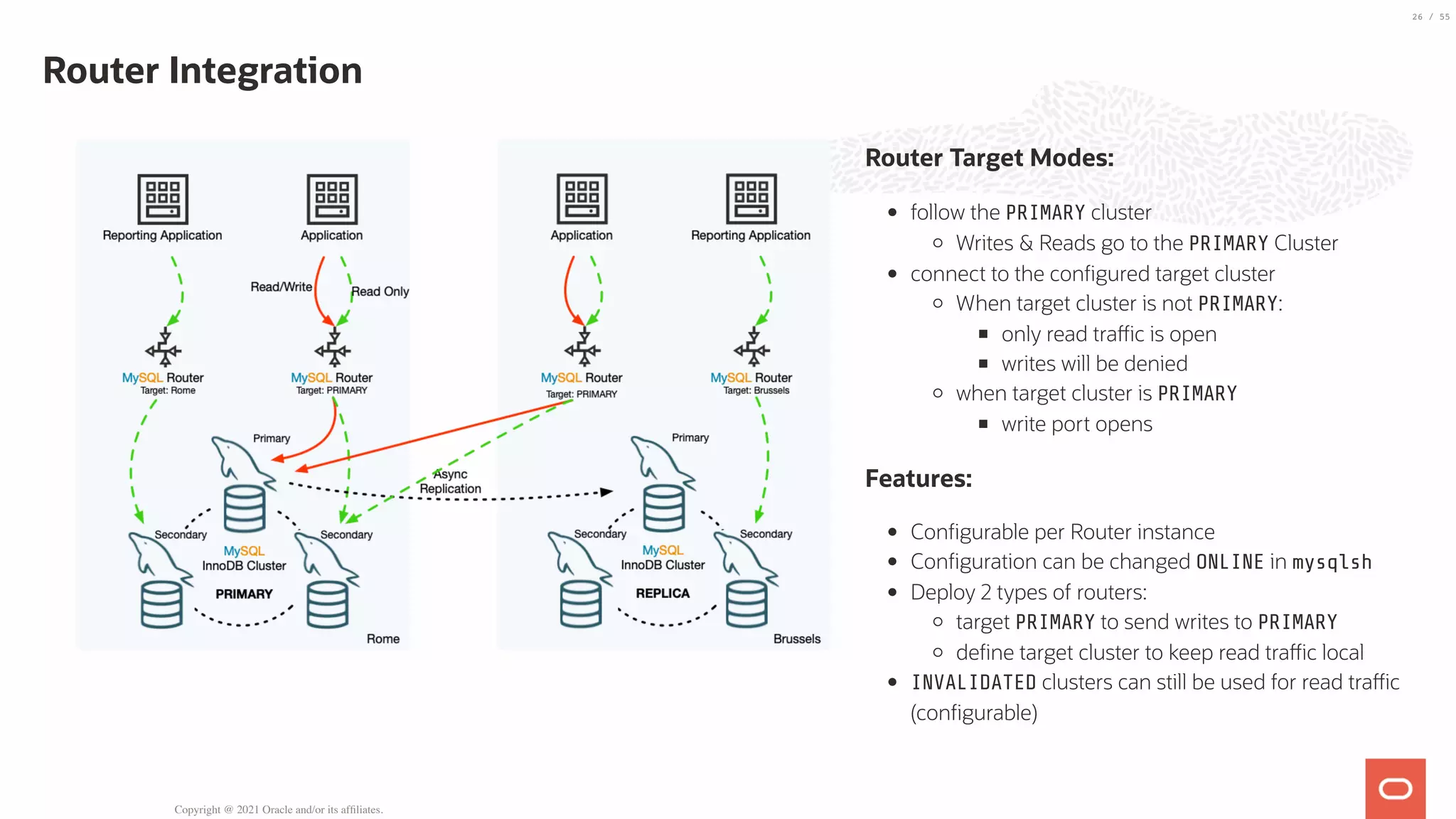

Router Target Modes:
follow the PRIMARY cluster
Writes & Reads go to the PRIMARY Cluster
connect to the configured target cluster
When target cluster is not PRIMARY:
only read traffic is open
writes will be denied
when target cluster is PRIMARY
write port opens
Features:
Configurable per Router instance
Configuration can be changed ONLINE in mysqlsh
Deploy 2 types of routers:
target PRIMARY to send writes to PRIMARY
define target cluster to keep read traffic local
INVALIDATED clusters can still be used for read traffic
(configurable)
Router Integration
Copyright @ 2021 Oracle and/or its affiliates.
26 / 55
Router Integration - 3DC


Copyright @ 2021 Oracle and/or its affiliates.
27 / 55
MySQL InnoDB ClusterSet
Router Integration
Commands
Copyright @ 2021 Oracle and/or its affiliates.
28 / 55

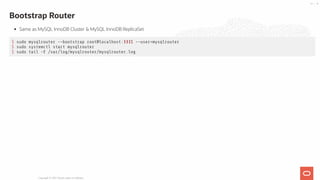

Bootstrap Router
Same as MySQL InnoDB Cluster & MySQL InnoDB ReplicaSet
$ sudo mysqlrouter --bootstrap root@localhost:3331 --user=mysqlrouter
$ sudo systemctl start mysqlrouter
$ sudo tail -f /var/log/mysqlrouter/mysqlrouter.log
Copyright @ 2021 Oracle and/or its affiliates.
29 / 55

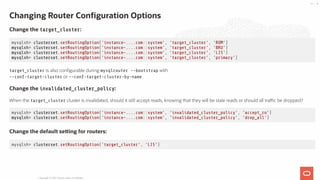

Changing Router Configuration Options
Change the target_cluster:
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'ROM')
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'BRU')
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'LIS')
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'primary')
target_cluster is also configurable during mysqlrouter --bootstrap with


--conf-target-cluster or --conf-target-cluster-by-name
Change the invalidated_cluster_policy:
When the target_cluster cluster is invalidated, should it still accept reads, knowing that they will be stale reads or should all traffic be dropped?
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'invalidated_cluster_policy', 'accept_ro')
mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'invalidated_cluster_policy', 'drop_all')
Change the default setting for routers:
mysqlsh> clusterset.setRoutingOption('target_cluster', 'LIS')
Copyright @ 2021 Oracle and/or its affiliates.
30 / 55
MySQL InnoDB ClusterSet
Managing
Commands
Copyright @ 2021 Oracle and/or its affiliates.
31 / 55

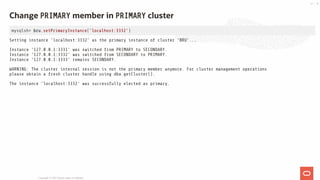

Change PRIMARY member in PRIMARY cluster
mysqlsh> bru.setPrimaryInstance('localhost:3332')
Setting instance 'localhost:3332' as the primary instance of cluster 'BRU'...
Instance '127.0.0.1:3331' was switched from PRIMARY to SECONDARY.
Instance '127.0.0.1:3332' was switched from SECONDARY to PRIMARY.
Instance '127.0.0.1:3333' remains SECONDARY.
WARNING: The cluster internal session is not the primary member anymore. For cluster management operations
please obtain a fresh cluster handle using dba.getCluster().
The instance 'localhost:3332' was successfully elected as primary.
Copyright @ 2021 Oracle and/or its affiliates.
32 / 55
Change PRIMARY member in REPLICA cluster
mysqlsh> lis.setPrimaryInstance('localhost:4442')
Setting instance 'localhost:4442' as the primary instance of cluster 'LIS'...
Instance '127.0.0.1:4442' was switched from SECONDARY to PRIMARY.
Instance '127.0.0.1:4443' remains SECONDARY.
Instance '127.0.0.1:4441' was switched from PRIMARY to SECONDARY.
WARNING: The cluster internal session is not the primary member anymore. For cluster management operations
please obtain a fresh cluster handle using dba.getCluster().
The instance 'localhost:4442' was successfully elected as primary.
Copyright @ 2021 Oracle and/or its affiliates.
33 / 55

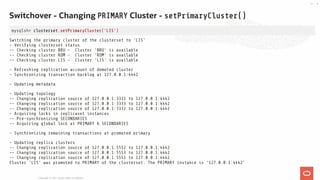

Switchover - Changing PRIMARY Cluster - setPrimaryCluster()
mysqlsh> clusterset.setPrimaryCluster('LIS')
Switching the primary cluster of the clusterset to 'LIS'
- Verifying clusterset status
-- Checking cluster BRU - Cluster 'BRU' is available
-- Checking cluster ROM - Cluster 'ROM' is available
-- Checking cluster LIS - Cluster 'LIS' is available
- Refreshing replication account of demoted cluster
- Synchronizing transaction backlog at 127.0.0.1:4442
- Updating metadata
- Updating topology
-- Changing replication source of 127.0.0.1:3331 to 127.0.0.1:4442
-- Changing replication source of 127.0.0.1:3333 to 127.0.0.1:4442
-- Changing replication source of 127.0.0.1:3332 to 127.0.0.1:4442
- Acquiring locks in replicaset instances
-- Pre-synchronizing SECONDARIES
-- Acquiring global lock at PRIMARY & SECONDARIES
- Synchronizing remaining transactions at promoted primary
- Updating replica clusters
-- Changing replication source of 127.0.0.1:5552 to 127.0.0.1:4442
-- Changing replication source of 127.0.0.1:5553 to 127.0.0.1:4442
-- Changing replication source of 127.0.0.1:5551 to 127.0.0.1:4442
Cluster 'LIS' was promoted to PRIMARY of the clusterset. The PRIMARY instance is '127.0.0.1:4442'
Copyright @ 2021 Oracle and/or its affiliates.
34 / 55

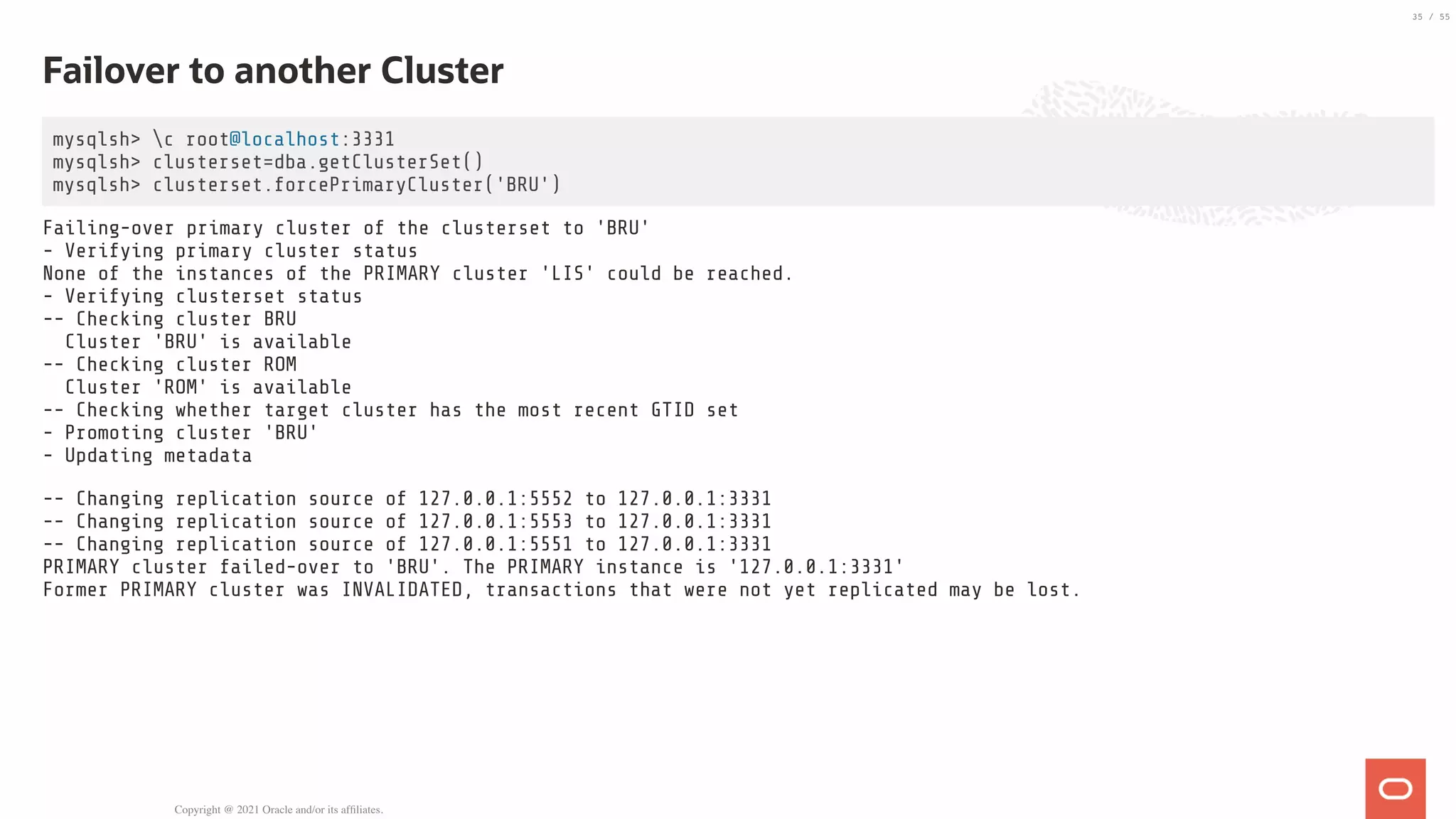

Failover to another Cluster
mysqlsh> c root@localhost:3331
mysqlsh> clusterset=dba.getClusterSet()
mysqlsh> clusterset.forcePrimaryCluster('BRU')
Failing-over primary cluster of the clusterset to 'BRU'
- Verifying primary cluster status
None of the instances of the PRIMARY cluster 'LIS' could be reached.
- Verifying clusterset status
-- Checking cluster BRU
Cluster 'BRU' is available
-- Checking cluster ROM
Cluster 'ROM' is available
-- Checking whether target cluster has the most recent GTID set
- Promoting cluster 'BRU'
- Updating metadata
-- Changing replication source of 127.0.0.1:5552 to 127.0.0.1:3331
-- Changing replication source of 127.0.0.1:5553 to 127.0.0.1:3331
-- Changing replication source of 127.0.0.1:5551 to 127.0.0.1:3331
PRIMARY cluster failed-over to 'BRU'. The PRIMARY instance is '127.0.0.1:3331'
Former PRIMARY cluster was INVALIDATED, transactions that were not yet replicated may be lost.
Copyright @ 2021 Oracle and/or its affiliates.
35 / 55

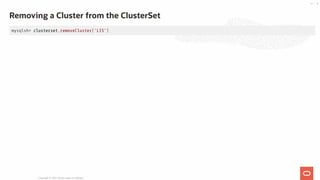

Removing a Cluster from the ClusterSet
mysqlsh> clusterset.removeCluster('LIS')
Copyright @ 2021 Oracle and/or its affiliates.
36 / 55
ClusterSet Scenarios
Copyright @ 2021 Oracle and/or its affiliates.
37 / 55
When there is newly elected PRIMARY member in a
cluster
Works on failures in PRIMARY and REPLICA clusters
Automatic Handling of InnoDB Cluster state
changes
Asynchronous replication is automatically
reconfigured after primary change
PRIMARY Cluster PRIMARY member Crash/Partition
Copyright @ 2021 Oracle and/or its affiliates.
38 / 55

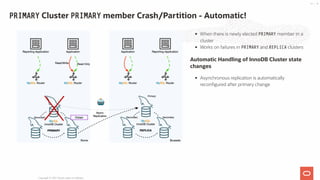

When there is newly elected PRIMARY member in a
cluster
Works on failures in PRIMARY and REPLICA clusters
Automatic Handling of InnoDB Cluster state
changes
Asynchronous replication is automatically
reconfigured after primary change
PRIMARY Cluster PRIMARY member Crash/Partition - Automatic!
Copyright @ 2021 Oracle and/or its affiliates.
39 / 55

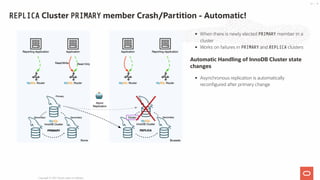

When there is newly elected PRIMARY member in a
cluster
Works on failures in PRIMARY and REPLICA clusters
Automatic Handling of InnoDB Cluster state
changes
Asynchronous replication is automatically
reconfigured after primary change
REPLICA Cluster PRIMARY member Crash/Partition - Automatic!
Copyright @ 2021 Oracle and/or its affiliates.
40 / 55

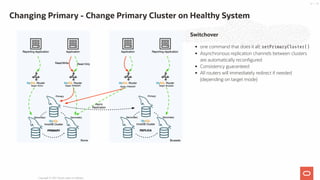

Switchover
one command that does it all: setPrimaryCluster()
Asynchronous replication channels between clusters
are automatically reconfigured
Consistency guaranteed
All routers will immediately redirect if needed
(depending on target mode)
Changing Primary - Change Primary Cluster on Healthy System
Copyright @ 2021 Oracle and/or its affiliates.
41 / 55
Switchover
one command that does it all: setPrimaryCluster()
Asynchronous replication channels between clusters
are automatically reconfigured
Consistency guaranteed
All routers will immediately redirect if needed
(depending on target mode)

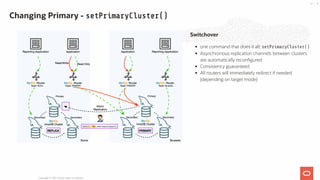

Changing Primary - setPrimaryCluster()
Copyright @ 2021 Oracle and/or its affiliates.
42 / 55
Failover to another Cluster
one command to invalidate the PRIMARY cluster and
promote a new PRIMARY cluster:
forcePrimaryCluster()
other REPLICA clusters replication will be reconfigured
Split Brain Warning
local Routers that cannot connect to other clusters will
not learn about new topology
if datacenter is network partitioned, it will continue to
operate as PRIMARY
Datacenter Crash/Partition
Copyright @ 2021 Oracle and/or its affiliates.
43 / 55

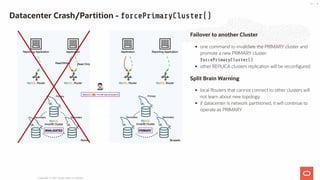

Failover to another Cluster
one command to invalidate the PRIMARY cluster and
promote a new PRIMARY cluster:
forcePrimaryCluster()
other REPLICA clusters replication will be reconfigured
Split Brain Warning
local Routers that cannot connect to other clusters will
not learn about new topology
if datacenter is network partitioned, it will continue to
operate as PRIMARY
Datacenter Crash/Partition - forcePrimaryCluster()
Copyright @ 2021 Oracle and/or its affiliates.
44 / 55

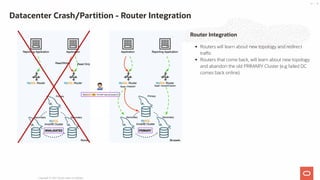

Router Integration
Routers will learn about new topology and redirect
traffic
Routers that come back, will learn about new topology
and abandon the old PRIMARY Cluster (e.g failed DC
comes back online)
Datacenter Crash/Partition - Router Integration
Copyright @ 2021 Oracle and/or its affiliates.
45 / 55

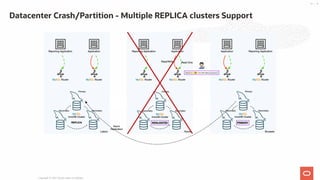

Datacenter Crash/Partition - Multiple REPLICA clusters Support


Copyright @ 2021 Oracle and/or its affiliates.
46 / 55

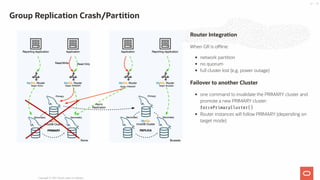

Router Integration
When GR is offline:
network partition
no quorum
full cluster lost (e.g. power outage)
Failover to another Cluster
one command to invalidate the PRIMARY cluster and
promote a new PRIMARY cluster:
forcePrimaryCluster()
Router instances will follow PRIMARY (depending on
target mode)
Group Replication Crash/Partition
Copyright @ 2021 Oracle and/or its affiliates.
47 / 55
Router Integration
When GR is offline:
network partition
no quorum
full cluster lost (e.g. power outage)
Failover to another Cluster
one command to invalidate the PRIMARY cluster and
promote a new PRIMARY cluster:
forcePrimaryCluster()
Router instances will follow PRIMARY (depending on
target mode)

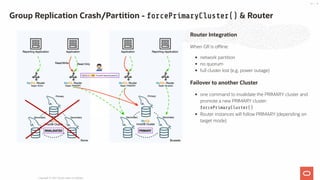

Group Replication Crash/Partition - forcePrimaryCluster() & Router
Copyright @ 2021 Oracle and/or its affiliates.
48 / 55
MySQL InnoDB ClusterSet - Restrictions
Requires Server, Router & Shell version 8.0.27 or higher
Only works with Single Primary mode in InnoDB Cluster
Asynchronous replication between clusters, not semi-sync

(use a single cluster spread across regions if RPO=0)
Copyright @ 2021 Oracle and/or its affiliates.
49 / 55
Business Requirements
Copyright @ 2021 Oracle and/or its affiliates.
50 / 55
Concepts - RTO & RPO
RTO: Recovery Time Objective
How long does it take to recover from a single failure
RPO: Recovery Point Objective
How much data can be lost when a failure occurs
Types of Failure:


High Availability: Single Server Failure, Network Partition


Disaster Recovery: Full Region/Network Failure


Human Error: Little Bobby Tables
Business Requirements
Copyright @ 2021 Oracle and/or its affiliates.
51 / 55

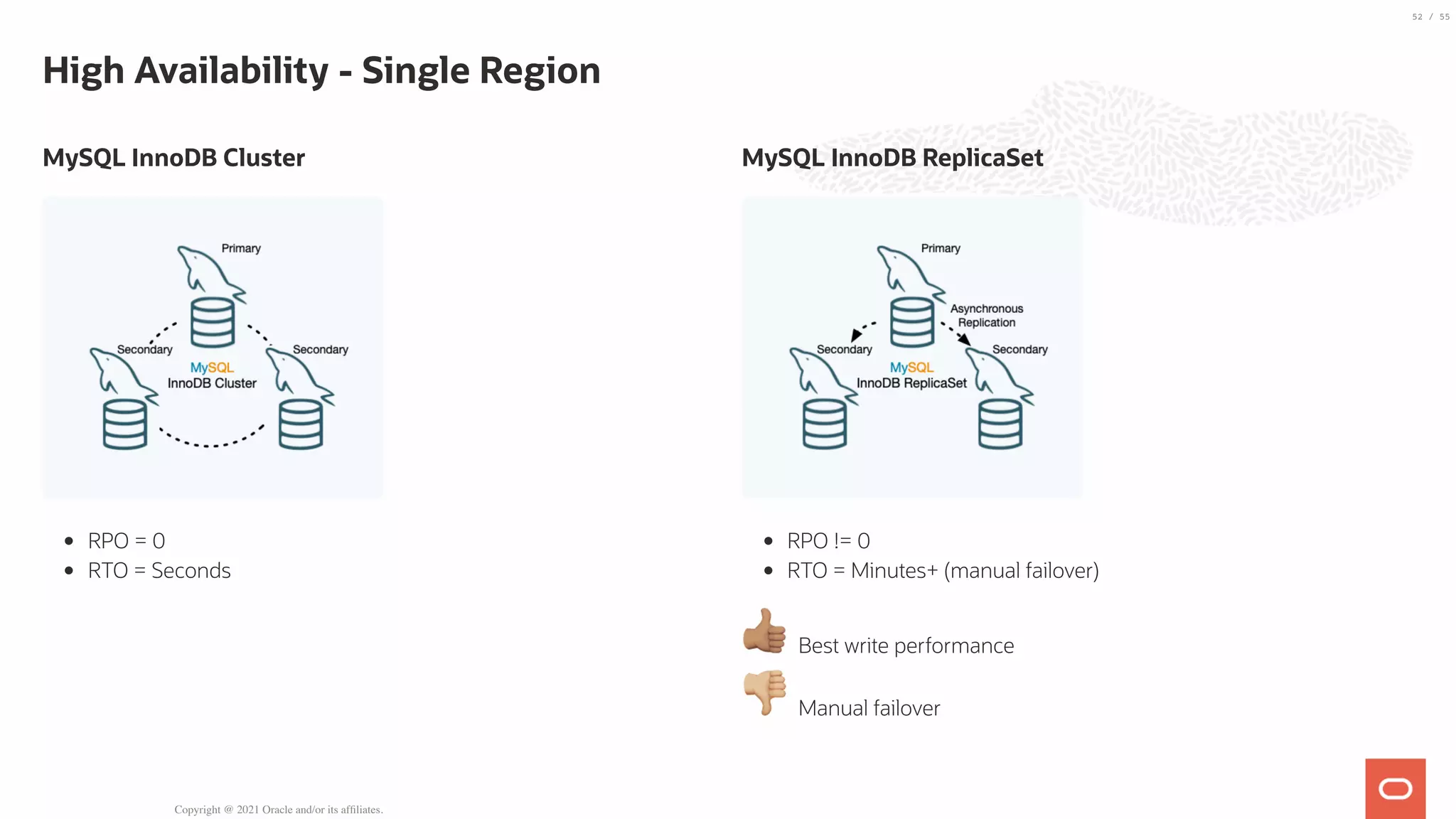

MySQL InnoDB Cluster
RPO = 0
RTO = Seconds
MySQL InnoDB ReplicaSet
RPO != 0
RTO = Minutes+ (manual failover)
👍🏽 Best write performance


👎🏼 Manual failover

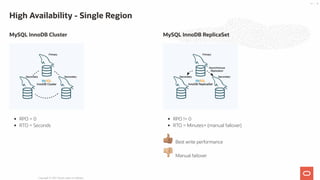

High Availability - Single Region
Copyright @ 2021 Oracle and/or its affiliates.
52 / 55

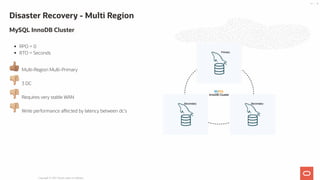

RPO = 0
RTO = Seconds
👍🏽 Multi-Region Multi-Primary


👎🏼 3 DC


👎🏼 Requires very stable WAN


👎🏼 Write performance affected by latency between dc's
Disaster Recovery - Multi Region
MySQL InnoDB Cluster
Copyright @ 2021 Oracle and/or its affiliates.
53 / 55

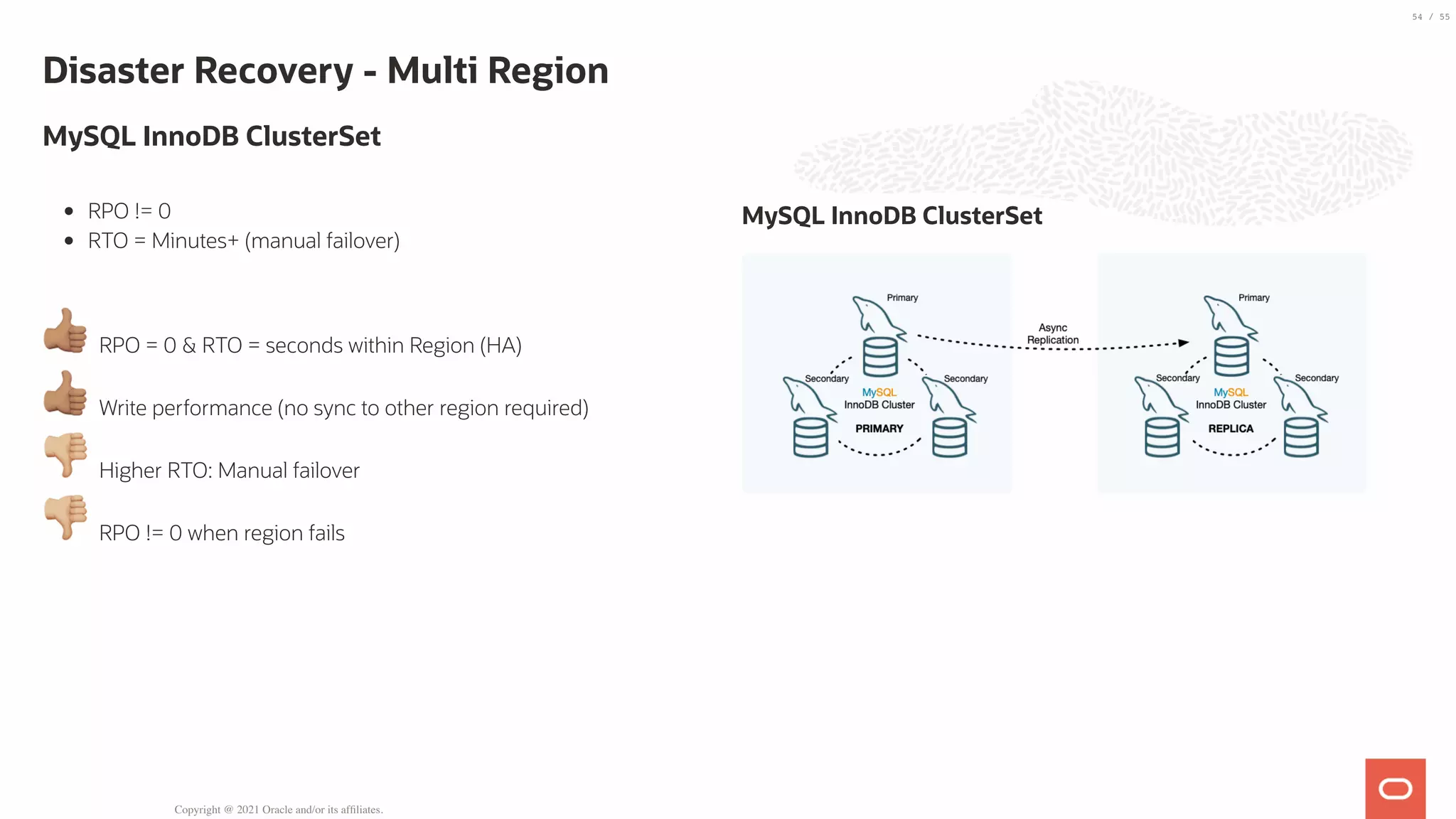

RPO != 0
RTO = Minutes+ (manual failover)


👍🏽 RPO = 0 & RTO = seconds within Region (HA)


👍🏽 Write performance (no sync to other region required)


👎🏼 Higher RTO: Manual failover


👎🏼 RPO != 0 when region fails
MySQL InnoDB ClusterSet
Disaster Recovery - Multi Region
MySQL InnoDB ClusterSet
Copyright @ 2021 Oracle and/or its affiliates.
54 / 55
MySQL InnoDB ClusterSet

More Related Content

What's hot

ProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management OverviewProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management Overview
René Cannaò

What is new in PostgreSQL 14?
What is new in PostgreSQL 14?What is new in PostgreSQL 14?
What is new in PostgreSQL 14?
Mydbops

MySQL InnoDB Cluster and Group Replication in a Nutshell: hands-on tutorial
MySQL InnoDB Cluster and Group Replication in a Nutshell:  hands-on tutorialMySQL InnoDB Cluster and Group Replication in a Nutshell:  hands-on tutorial
MySQL InnoDB Cluster and Group Replication in a Nutshell: hands-on tutorial
Frederic Descamps

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability
Mydbops

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata
Anil Nair

MySQL Replication Performance Tuning for Fun and Profit!
MySQL Replication Performance Tuning for Fun and Profit!MySQL Replication Performance Tuning for Fun and Profit!
MySQL Replication Performance Tuning for Fun and Profit!
Vitor Oliveira

New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)
New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)
New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)
Altinity Ltd

Percona Live 2022 - MySQL Architectures
Percona Live 2022 - MySQL ArchitecturesPercona Live 2022 - MySQL Architectures
Percona Live 2022 - MySQL Architectures
Frederic Descamps

MySQL Database Architectures - 2022-08
MySQL Database Architectures - 2022-08MySQL Database Architectures - 2022-08
MySQL Database Architectures - 2022-08
Kenny Gryp

MySQL 8.0 EXPLAIN ANALYZE
MySQL 8.0 EXPLAIN ANALYZEMySQL 8.0 EXPLAIN ANALYZE
MySQL 8.0 EXPLAIN ANALYZE
Norvald Ryeng

MySQL InnoDB Cluster - A complete High Availability solution for MySQL
MySQL InnoDB Cluster - A complete High Availability solution for MySQLMySQL InnoDB Cluster - A complete High Availability solution for MySQL
MySQL InnoDB Cluster - A complete High Availability solution for MySQL
Olivier DASINI

Upgrade from MySQL 5.7 to MySQL 8.0
Upgrade from MySQL 5.7 to MySQL 8.0Upgrade from MySQL 5.7 to MySQL 8.0
Upgrade from MySQL 5.7 to MySQL 8.0
Olivier DASINI

MySQL 8.0 InnoDB Cluster - Easiest Tutorial
MySQL 8.0 InnoDB Cluster - Easiest TutorialMySQL 8.0 InnoDB Cluster - Easiest Tutorial
MySQL 8.0 InnoDB Cluster - Easiest Tutorial
Frederic Descamps

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0
Mydbops

MySQL Connectors 8.0.19 & DNS SRV
MySQL Connectors 8.0.19 & DNS SRVMySQL Connectors 8.0.19 & DNS SRV
MySQL Connectors 8.0.19 & DNS SRV
Kenny Gryp

MySQL Database Architectures - 2020-10
MySQL Database Architectures -  2020-10MySQL Database Architectures -  2020-10
MySQL Database Architectures - 2020-10
Kenny Gryp

InnoDb Vs NDB Cluster
InnoDb Vs NDB ClusterInnoDb Vs NDB Cluster
InnoDb Vs NDB Cluster
Mark Swarbrick

Always on 可用性グループ 構築時のポイント
Always on 可用性グループ 構築時のポイントAlways on 可用性グループ 構築時のポイント
Always on 可用性グループ 構築時のポイント
Masayuki Ozawa

Maxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoinMaxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoin
Wagner Bianchi

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication
Ulf Wendel


What's hot (20)

ProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management OverviewProxySQL High Avalability and Configuration Management Overview
ProxySQL High Avalability and Configuration Management Overview

What is new in PostgreSQL 14?
What is new in PostgreSQL 14?What is new in PostgreSQL 14?
What is new in PostgreSQL 14?

MySQL InnoDB Cluster and Group Replication in a Nutshell: hands-on tutorial
MySQL InnoDB Cluster and Group Replication in a Nutshell:  hands-on tutorialMySQL InnoDB Cluster and Group Replication in a Nutshell:  hands-on tutorial
MySQL InnoDB Cluster and Group Replication in a Nutshell: hands-on tutorial

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability

Oracle RAC features on Exadata
Oracle RAC features on ExadataOracle RAC features on Exadata
Oracle RAC features on Exadata

MySQL Replication Performance Tuning for Fun and Profit!
MySQL Replication Performance Tuning for Fun and Profit!MySQL Replication Performance Tuning for Fun and Profit!
MySQL Replication Performance Tuning for Fun and Profit!

New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)
New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)
New features in ProxySQL 2.0 (updated to 2.0.9) by Rene Cannao (ProxySQL)

Percona Live 2022 - MySQL Architectures
Percona Live 2022 - MySQL ArchitecturesPercona Live 2022 - MySQL Architectures
Percona Live 2022 - MySQL Architectures

MySQL Database Architectures - 2022-08
MySQL Database Architectures - 2022-08MySQL Database Architectures - 2022-08
MySQL Database Architectures - 2022-08

MySQL 8.0 EXPLAIN ANALYZE
MySQL 8.0 EXPLAIN ANALYZEMySQL 8.0 EXPLAIN ANALYZE
MySQL 8.0 EXPLAIN ANALYZE

MySQL InnoDB Cluster - A complete High Availability solution for MySQL
MySQL InnoDB Cluster - A complete High Availability solution for MySQLMySQL InnoDB Cluster - A complete High Availability solution for MySQL
MySQL InnoDB Cluster - A complete High Availability solution for MySQL

Upgrade from MySQL 5.7 to MySQL 8.0
Upgrade from MySQL 5.7 to MySQL 8.0Upgrade from MySQL 5.7 to MySQL 8.0
Upgrade from MySQL 5.7 to MySQL 8.0

MySQL 8.0 InnoDB Cluster - Easiest Tutorial
MySQL 8.0 InnoDB Cluster - Easiest TutorialMySQL 8.0 InnoDB Cluster - Easiest Tutorial
MySQL 8.0 InnoDB Cluster - Easiest Tutorial

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0

MySQL Connectors 8.0.19 & DNS SRV
MySQL Connectors 8.0.19 & DNS SRVMySQL Connectors 8.0.19 & DNS SRV
MySQL Connectors 8.0.19 & DNS SRV

MySQL Database Architectures - 2020-10
MySQL Database Architectures -  2020-10MySQL Database Architectures -  2020-10
MySQL Database Architectures - 2020-10

InnoDb Vs NDB Cluster
InnoDb Vs NDB ClusterInnoDb Vs NDB Cluster
InnoDb Vs NDB Cluster

Always on 可用性グループ 構築時のポイント
Always on 可用性グループ 構築時のポイントAlways on 可用性グループ 構築時のポイント
Always on 可用性グループ 構築時のポイント

Maxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoinMaxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoin

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication


Similar to MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11

State of The Dolphin - May 2021
State of The Dolphin - May 2021State of The Dolphin - May 2021
State of The Dolphin - May 2021
Frederic Descamps

MySQL Database Architectures - High Availability and Disaster Recovery Solution
MySQL Database Architectures - High Availability and Disaster Recovery SolutionMySQL Database Architectures - High Availability and Disaster Recovery Solution
MySQL Database Architectures - High Availability and Disaster Recovery Solution
Miguel Araújo

20200613 my sql-ha-deployment
20200613 my sql-ha-deployment20200613 my sql-ha-deployment
20200613 my sql-ha-deployment
Ivan Ma

the State of the Dolphin - October 2020
the State of the Dolphin - October 2020the State of the Dolphin - October 2020
the State of the Dolphin - October 2020
Frederic Descamps

Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...
Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...
Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...
Miguel Araújo

The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...
The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...
The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...
Geir Høydalsvik

MySQL Shell for DBAs
MySQL Shell for DBAsMySQL Shell for DBAs
MySQL Shell for DBAs
Frederic Descamps

State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
Frederic Descamps

From single MySQL instance to High Availability: the journey to MySQL InnoDB ...
From single MySQL instance to High Availability: the journey to MySQL InnoDB ...From single MySQL instance to High Availability: the journey to MySQL InnoDB ...
From single MySQL instance to High Availability: the journey to MySQL InnoDB ...
Frederic Descamps

Sunshine php my sql 8.0 v2
Sunshine php my sql 8.0 v2Sunshine php my sql 8.0 v2
Sunshine php my sql 8.0 v2
Kathy Forte (Hassard)

MySQL 8.0 : High Availability Solution for Everybody
MySQL 8.0 : High Availability Solution for EverybodyMySQL 8.0 : High Availability Solution for Everybody
MySQL 8.0 : High Availability Solution for Everybody
Frederic Descamps

MySQL High Availability Solutions - Avoid loss of service by reducing the r...
MySQL High Availability Solutions  -  Avoid loss of service by reducing the r...MySQL High Availability Solutions  -  Avoid loss of service by reducing the r...
MySQL High Availability Solutions - Avoid loss of service by reducing the r...
Olivier DASINI

Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf
Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdfDeep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf
Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf
Miguel Araújo

Ohio Linux Fest -- MySQL's NoSQL
Ohio Linux Fest -- MySQL's NoSQLOhio Linux Fest -- MySQL's NoSQL
Ohio Linux Fest -- MySQL's NoSQL
Dave Stokes

20191001 bkk-secret-of inno-db_clusterv1
20191001 bkk-secret-of inno-db_clusterv120191001 bkk-secret-of inno-db_clusterv1
20191001 bkk-secret-of inno-db_clusterv1
Ivan Ma

My sql8 innodb_cluster
My sql8 innodb_clusterMy sql8 innodb_cluster
My sql8 innodb_cluster
Mysql User Camp

MySQL Innovation Day Chicago - MySQL HA So Easy : That's insane !!
MySQL Innovation Day Chicago  - MySQL HA So Easy : That's insane !!MySQL Innovation Day Chicago  - MySQL HA So Easy : That's insane !!
MySQL Innovation Day Chicago - MySQL HA So Easy : That's insane !!
Frederic Descamps

MySQL Router REST API
MySQL Router REST APIMySQL Router REST API
MySQL Router REST API
Frederic Descamps

DataOps Barcelona - MySQL HA so easy... that's insane !
DataOps Barcelona - MySQL HA so easy... that's insane !DataOps Barcelona - MySQL HA so easy... that's insane !
DataOps Barcelona - MySQL HA so easy... that's insane !
Frederic Descamps

MySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - TutorialMySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - Tutorial
Miguel Araújo


Similar to MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11 (20)

State of The Dolphin - May 2021
State of The Dolphin - May 2021State of The Dolphin - May 2021
State of The Dolphin - May 2021

MySQL Database Architectures - High Availability and Disaster Recovery Solution
MySQL Database Architectures - High Availability and Disaster Recovery SolutionMySQL Database Architectures - High Availability and Disaster Recovery Solution
MySQL Database Architectures - High Availability and Disaster Recovery Solution

20200613 my sql-ha-deployment
20200613 my sql-ha-deployment20200613 my sql-ha-deployment
20200613 my sql-ha-deployment

the State of the Dolphin - October 2020
the State of the Dolphin - October 2020the State of the Dolphin - October 2020
the State of the Dolphin - October 2020

Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...
Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...
Mastering MySQL Database Architecture: Deep Dive into MySQL Shell and MySQL R...

The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...
The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...
The State of the Dolphin, MySQL Keynote at Percona Live Europe 2019, Amsterda...

MySQL Shell for DBAs
MySQL Shell for DBAsMySQL Shell for DBAs
MySQL Shell for DBAs

State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20

From single MySQL instance to High Availability: the journey to MySQL InnoDB ...
From single MySQL instance to High Availability: the journey to MySQL InnoDB ...From single MySQL instance to High Availability: the journey to MySQL InnoDB ...
From single MySQL instance to High Availability: the journey to MySQL InnoDB ...

Sunshine php my sql 8.0 v2
Sunshine php my sql 8.0 v2Sunshine php my sql 8.0 v2
Sunshine php my sql 8.0 v2

MySQL 8.0 : High Availability Solution for Everybody
MySQL 8.0 : High Availability Solution for EverybodyMySQL 8.0 : High Availability Solution for Everybody
MySQL 8.0 : High Availability Solution for Everybody

MySQL High Availability Solutions - Avoid loss of service by reducing the r...
MySQL High Availability Solutions  -  Avoid loss of service by reducing the r...MySQL High Availability Solutions  -  Avoid loss of service by reducing the r...
MySQL High Availability Solutions - Avoid loss of service by reducing the r...

Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf
Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdfDeep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf
Deep Dive into MySQL InnoDB Cluster Read Scale-out Capabilities.pdf

Ohio Linux Fest -- MySQL's NoSQL
Ohio Linux Fest -- MySQL's NoSQLOhio Linux Fest -- MySQL's NoSQL
Ohio Linux Fest -- MySQL's NoSQL

20191001 bkk-secret-of inno-db_clusterv1
20191001 bkk-secret-of inno-db_clusterv120191001 bkk-secret-of inno-db_clusterv1
20191001 bkk-secret-of inno-db_clusterv1

My sql8 innodb_cluster
My sql8 innodb_clusterMy sql8 innodb_cluster
My sql8 innodb_cluster

MySQL Innovation Day Chicago - MySQL HA So Easy : That's insane !!
MySQL Innovation Day Chicago  - MySQL HA So Easy : That's insane !!MySQL Innovation Day Chicago  - MySQL HA So Easy : That's insane !!
MySQL Innovation Day Chicago - MySQL HA So Easy : That's insane !!

MySQL Router REST API
MySQL Router REST APIMySQL Router REST API
MySQL Router REST API

DataOps Barcelona - MySQL HA so easy... that's insane !
DataOps Barcelona - MySQL HA so easy... that's insane !DataOps Barcelona - MySQL HA so easy... that's insane !
DataOps Barcelona - MySQL HA so easy... that's insane !

MySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - TutorialMySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - Tutorial


More from Kenny Gryp

MySQL Operator for Kubernetes
MySQL Operator for KubernetesMySQL Operator for Kubernetes
MySQL Operator for Kubernetes
Kenny Gryp

MySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - TutorialMySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - Tutorial
Kenny Gryp

Reducing Risk When Upgrading MySQL
Reducing Risk When Upgrading MySQLReducing Risk When Upgrading MySQL
Reducing Risk When Upgrading MySQL
Kenny Gryp

Percona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication
Percona XtraDB Cluster vs Galera Cluster vs MySQL Group ReplicationPercona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication
Percona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication
Kenny Gryp

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication
Kenny Gryp

Multi Source Replication With MySQL 5.7 @ Verisure
Multi Source Replication With MySQL 5.7 @ VerisureMulti Source Replication With MySQL 5.7 @ Verisure
Multi Source Replication With MySQL 5.7 @ Verisure
Kenny Gryp

MySQL Group Replication - HandsOn Tutorial
MySQL Group Replication - HandsOn TutorialMySQL Group Replication - HandsOn Tutorial
MySQL Group Replication - HandsOn Tutorial
Kenny Gryp

Online MySQL Backups with Percona XtraBackup
Online MySQL Backups with Percona XtraBackupOnline MySQL Backups with Percona XtraBackup
Online MySQL Backups with Percona XtraBackup
Kenny Gryp

Advanced Percona XtraDB Cluster in a nutshell... la suite
Advanced Percona XtraDB Cluster in a nutshell... la suiteAdvanced Percona XtraDB Cluster in a nutshell... la suite
Advanced Percona XtraDB Cluster in a nutshell... la suite
Kenny Gryp

Java MySQL Connector & Connection Pool Features & Optimization
Java MySQL Connector & Connection Pool Features & OptimizationJava MySQL Connector & Connection Pool Features & Optimization
Java MySQL Connector & Connection Pool Features & Optimization
Kenny Gryp

Percona XtraDB Cluster
Percona XtraDB ClusterPercona XtraDB Cluster
Percona XtraDB Cluster
Kenny Gryp


More from Kenny Gryp (11)

MySQL Operator for Kubernetes
MySQL Operator for KubernetesMySQL Operator for Kubernetes
MySQL Operator for Kubernetes

MySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - TutorialMySQL InnoDB Cluster / ReplicaSet - Tutorial
MySQL InnoDB Cluster / ReplicaSet - Tutorial

Reducing Risk When Upgrading MySQL
Reducing Risk When Upgrading MySQLReducing Risk When Upgrading MySQL
Reducing Risk When Upgrading MySQL

Percona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication
Percona XtraDB Cluster vs Galera Cluster vs MySQL Group ReplicationPercona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication
Percona XtraDB Cluster vs Galera Cluster vs MySQL Group Replication

MySQL Group Replication
MySQL Group ReplicationMySQL Group Replication
MySQL Group Replication

Multi Source Replication With MySQL 5.7 @ Verisure
Multi Source Replication With MySQL 5.7 @ VerisureMulti Source Replication With MySQL 5.7 @ Verisure
Multi Source Replication With MySQL 5.7 @ Verisure

MySQL Group Replication - HandsOn Tutorial
MySQL Group Replication - HandsOn TutorialMySQL Group Replication - HandsOn Tutorial
MySQL Group Replication - HandsOn Tutorial

Online MySQL Backups with Percona XtraBackup
Online MySQL Backups with Percona XtraBackupOnline MySQL Backups with Percona XtraBackup
Online MySQL Backups with Percona XtraBackup

Advanced Percona XtraDB Cluster in a nutshell... la suite
Advanced Percona XtraDB Cluster in a nutshell... la suiteAdvanced Percona XtraDB Cluster in a nutshell... la suite
Advanced Percona XtraDB Cluster in a nutshell... la suite

Java MySQL Connector & Connection Pool Features & Optimization
Java MySQL Connector & Connection Pool Features & OptimizationJava MySQL Connector & Connection Pool Features & Optimization
Java MySQL Connector & Connection Pool Features & Optimization

Percona XtraDB Cluster
Percona XtraDB ClusterPercona XtraDB Cluster
Percona XtraDB Cluster


Recently uploaded

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
bellared2

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
SAI KAILASH R

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...
(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...
(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...
Priyanka Aash

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development
Baishakhi Ray

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio
Ivanti

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities
Arpan Buwa

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
janagijoythi

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10
ankush9927

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
DianaGray10

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx
BrainSell Technologies

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17
Bhajan Mehta

Mastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for SuccessMastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for Success
David Wilson

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta


Recently uploaded (20)

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...
(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...
(CISOPlatform Summit & SACON 2024) Orientation by CISO Platform_ Using CISO P...

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17

Mastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for SuccessMastering OnlyFans Clone App Development: Key Strategies for Success
Mastering OnlyFans Clone App Development: Key Strategies for Success

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx


MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11

  • 1. MySQL Database Architectures Disaster Recovery Solutions Introducing MySQL InnoDB ClusterSet Kenny Gryp MySQL Product Manager
  • 2. Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purpose only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied up in making purchasing decisions. The development, release and timing of any features or functionality described for Oracle's product remains at the sole discretion of Oracle. Copyright @ 2021 Oracle and/or its affiliates. 2 / 55
  • 3. IT Disasters & Outages: Primary Causes On-site power failure is the biggest cause of significant outages Copyright @ 2021 Oracle and/or its affiliates. 3 / 55
  • 4. IT Disasters & Outages: Costs are Rising Over half who had experienced an outage costing more than $100,000. Copyright @ 2021 Oracle and/or its affiliates. 4 / 55
  • 5. 5-hour computer outage cost us $150 million. The airline eventually canceled about 1,000 flights on the day of the outage and ground an additional 1,000 flights over the following two days. Millions of websites offline after fire at French cloud services firm. The fire is expected to cost the company more than €105 million. Tens of thousands of passengers were stranded in cities around the world due to cancellation of about 130 flights and the delay of 200. Millions of bank customers were unable to access online accounts. The bank took almost 2 days to recover and get back to normal functioning. IT Disasters and Outages: Examples Copyright @ 2021 Oracle and/or its affiliates. 5 / 55
  • 6. Past, Present & Future Copyright @ 2021 Oracle and/or its affiliates. 6 / 55
  • 7. Setting up Replication topology was usually done manually, taking many steps including user management, restoring backups, configuring replication... MySQL only offered the technical pieces, leaving it up to the user to setup an (always customized) architecture Even required other software ... bringing lot's of work for DBA's and experts, who spent their time automating and integrating their customized architecture 'Past' - Manual Copyright @ 2021 Oracle and/or its affiliates. 7 / 55
  • 8. RPO = 0 RTO = seconds (automatic failover) 2016 - MySQL InnoDB Cluster MySQL Group Replication: Automatic membership changes, network partition handling, consistency... MySQL Shell to provide a powerful interface that helps in automating and integrating all components InnoDB CLONE to automatically provision members, fully integrated in InnoDB MySQL Router MySQL Server Present - Solutions! Copyright @ 2021 Oracle and/or its affiliates. 8 / 55
  • 9. RPO != 0 RTO = minutes (manual failover) 2020 - MySQL InnoDB Replicaset 'classic', 'asynchronous' Replication based Solution, fully integrated MySQL Shell MySQL Router MySQL Server Present - Solutions! Copyright @ 2021 Oracle and/or its affiliates. 9 / 55
  • 10. Concepts - RTO & RPO RTO: Recovery Time Objective How long does it take to recover from a single failure RPO: Recovery Point Objective How much data can be lost when a failure occurs Types of Failure: High Availability: Single Server Failure, Network Partition Disaster Recovery: Full Region/Network Failure Human Error: Little Bobby Tables Business Requirements Copyright @ 2021 Oracle and/or its affiliates. 10 / 55
  • 11. MySQL InnoDB Cluster & MySQL InnoDB ReplicaSet are solutions implemented to meet various High Availability requirements. Introducing MySQL InnoDB ClusterSet, which is one of the key options to meet Disaster Recovery requirements. Copyright @ 2021 Oracle and/or its affiliates. 11 / 55
  • 12. MySQL InnoDB ClusterSet Copyright @ 2021 Oracle and/or its affiliates. 12 / 55
  • 13. High Availability (Failure Within a Region) RPO = 0 RTO = seconds (automatic failover) Disaster Recovery (Region Failure) RPO != 0 RTO = minutes or more (manual failover) No write performance impact Features Easy to use Familiar interface and usability mysqlsh, CLONE, ... Add/remove nodes/clusters online Router integration, no need to reconfigure application if the topology changes MySQL InnoDB ClusterSet One or more REPLICA MySQL InnoDB Clusters attached to a PRIMARY MySQL InnoDB Cluster Copyright @ 2021 Oracle and/or its affiliates. 13 / 55
  • 14. MySQL InnoDB ClusterSet - 3 Datacenters Copyright @ 2021 Oracle and/or its affiliates. 14 / 55
  • 15. MySQL InnoDB ClusterSet - Not every Cluster has to be 3 nodes Each replica is a MySQL InnoDB Cluster that can have 1-9 members. Copyright @ 2021 Oracle and/or its affiliates. 15 / 55
  • 16. Replication Enhancements Features in replication that made ClusterSet possible: 8.0.22: Automatic connection failover for Async Replication Channels 8.0.23: Automatic connection failover for Async Replication Channels using Group Replication 8.0.24: Make skip-replica-start a global, persistable, read-only system variable. 8.0.26: Group Replication Member actions (configurable super_read_only on PRIMARY member) 8.0.26: Specify the UUID used to log View_change_log_event 8.0.27: Asynchronous Replication Channel configuration automatically follows the PRIMARY member Copyright @ 2021 Oracle and/or its affiliates. 16 / 55
  • 17. MySQL InnoDB ClusterSet Configuration Commands Copyright @ 2021 Oracle and/or its affiliates. 17 / 55
  • 18. Create MySQL InnoDB Cluster Start with setting up a regular MySQL InnoDB Cluster: mysqlsh> c root@localhost:3331 mysqlsh> sql create schema sbtest; mysqlsh> bru = dba.createCluster("BRU") mysqlsh> bru.addInstance('localhost:3332') mysqlsh> bru.addInstance('localhost:3333') mysqlsh> bru.status() Copyright @ 2021 Oracle and/or its affiliates. 18 / 55
  • 19. Create ClusterSet mysqlsh> clusterset = bru.createClusterSet('clusterset') A new ClusterSet will be created based on the Cluster 'BRU'. - Validating Cluster 'BRU' for ClusterSet compliance. - Creating InnoDB ClusterSet 'clusterset' on 'BRU'... - Updating metadata... ClusterSet successfully created. Use ClusterSet.createReplicaCluster() to add Replica Clusters to it. <ClusterSet:cluster> Copyright @ 2021 Oracle and/or its affiliates. 19 / 55
  • 20. Check ClusterSet Status mysqlsh> clusterset.status() { "clusters": { "BRU": { "clusterRole": "PRIMARY", "globalStatus": "OK", "primary": "127.0.0.1:3331" } }, "domainName": "clusterset", "globalPrimaryInstance": "127.0.0.1:3331", "primaryCluster": "BRU", "status": "HEALTHY", "statusText": "All Clusters available." } Copyright @ 2021 Oracle and/or its affiliates. 20 / 55
  • 21. Add Replica Cluster Supports incremental recovery (binlog) & full recovery (CLONE) mysqlsh> lis = clusterset.createReplicaCluster('localhost:4441', 'LIS') mysqlsh> lis.addInstance('localhost:4442') mysqlsh> lis.addInstance('localhost:4443') Copyright @ 2021 Oracle and/or its affiliates. 21 / 55
  • 22. mysqlsh> clusterset.status() mysqlsh> bru.status() mysqlsh> lis.status() { "clusters": { "BRU": { "clusterRole": "PRIMARY", "globalStatus": "OK", "primary": "127.0.0.1:3331" }, "LIS": { "clusterRole": "REPLICA", "clusterSetReplicationStatus": "OK", "globalStatus": "OK" } }, "domainName": "clusterset", "globalPrimaryInstance": "127.0.0.1:3331", "primaryCluster": "BRU", "status": "HEALTHY", "statusText": "All Clusters available." } Or, to get everything in one command: mysqlsh> clusterset.status({extended:1}) Check ClusterSet Status Copyright @ 2021 Oracle and/or its affiliates. 22 / 55
  • 23. mysqlsh> rom = clusterset.createReplicaCluster( 'localhost:5551', 'ROM') mysqlsh> rom.addInstance('localhost:5552') mysqlsh> rom.addInstance('localhost:5553') mysqlsh> rom.status() mysqlsh> clusterset.status() { "clusters": { "ROM": { "clusterRole": "REPLICA", "clusterSetReplicationStatus": "OK", "globalStatus": "OK" }, "BRU": { "clusterRole": "PRIMARY", "globalStatus": "OK", "primary": "127.0.0.1:3331" }, "LIS": { "clusterRole": "REPLICA", "clusterSetReplicationStatus": "OK", "globalStatus": "OK" } }, "domainName": "clusterset", "globalPrimaryInstance": "127.0.0.1:3331", "primaryCluster": "BRU", "status": "HEALTHY", "statusText": "All Clusters available." } Add second Replica Cluster Copyright @ 2021 Oracle and/or its affiliates. 23 / 55
  • 24. Router Integration Copyright @ 2021 Oracle and/or its affiliates. 24 / 55
  • 25. Configure your application to connect to a local MySQL Router to connect to the ClusterSet. Router Integration Copyright @ 2021 Oracle and/or its affiliates. 25 / 55
  • 26. Router Target Modes: follow the PRIMARY cluster Writes & Reads go to the PRIMARY Cluster connect to the configured target cluster When target cluster is not PRIMARY: only read traffic is open writes will be denied when target cluster is PRIMARY write port opens Features: Configurable per Router instance Configuration can be changed ONLINE in mysqlsh Deploy 2 types of routers: target PRIMARY to send writes to PRIMARY define target cluster to keep read traffic local INVALIDATED clusters can still be used for read traffic (configurable) Router Integration Copyright @ 2021 Oracle and/or its affiliates. 26 / 55
  • 27. Router Integration - 3DC Copyright @ 2021 Oracle and/or its affiliates. 27 / 55
  • 28. MySQL InnoDB ClusterSet Router Integration Commands Copyright @ 2021 Oracle and/or its affiliates. 28 / 55
  • 29. Bootstrap Router Same as MySQL InnoDB Cluster & MySQL InnoDB ReplicaSet $ sudo mysqlrouter --bootstrap root@localhost:3331 --user=mysqlrouter $ sudo systemctl start mysqlrouter $ sudo tail -f /var/log/mysqlrouter/mysqlrouter.log Copyright @ 2021 Oracle and/or its affiliates. 29 / 55
  • 30. Changing Router Configuration Options Change the target_cluster: mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'ROM') mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'BRU') mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'LIS') mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'target_cluster', 'primary') target_cluster is also configurable during mysqlrouter --bootstrap with --conf-target-cluster or --conf-target-cluster-by-name Change the invalidated_cluster_policy: When the target_cluster cluster is invalidated, should it still accept reads, knowing that they will be stale reads or should all traffic be dropped? mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'invalidated_cluster_policy', 'accept_ro') mysqlsh> clusterset.setRoutingOption('instance-....com::system', 'invalidated_cluster_policy', 'drop_all') Change the default setting for routers: mysqlsh> clusterset.setRoutingOption('target_cluster', 'LIS') Copyright @ 2021 Oracle and/or its affiliates. 30 / 55
  • 31. MySQL InnoDB ClusterSet Managing Commands Copyright @ 2021 Oracle and/or its affiliates. 31 / 55
  • 32. Change PRIMARY member in PRIMARY cluster mysqlsh> bru.setPrimaryInstance('localhost:3332') Setting instance 'localhost:3332' as the primary instance of cluster 'BRU'... Instance '127.0.0.1:3331' was switched from PRIMARY to SECONDARY. Instance '127.0.0.1:3332' was switched from SECONDARY to PRIMARY. Instance '127.0.0.1:3333' remains SECONDARY. WARNING: The cluster internal session is not the primary member anymore. For cluster management operations please obtain a fresh cluster handle using dba.getCluster(). The instance 'localhost:3332' was successfully elected as primary. Copyright @ 2021 Oracle and/or its affiliates. 32 / 55
  • 33. Change PRIMARY member in REPLICA cluster mysqlsh> lis.setPrimaryInstance('localhost:4442') Setting instance 'localhost:4442' as the primary instance of cluster 'LIS'... Instance '127.0.0.1:4442' was switched from SECONDARY to PRIMARY. Instance '127.0.0.1:4443' remains SECONDARY. Instance '127.0.0.1:4441' was switched from PRIMARY to SECONDARY. WARNING: The cluster internal session is not the primary member anymore. For cluster management operations please obtain a fresh cluster handle using dba.getCluster(). The instance 'localhost:4442' was successfully elected as primary. Copyright @ 2021 Oracle and/or its affiliates. 33 / 55
  • 34. Switchover - Changing PRIMARY Cluster - setPrimaryCluster() mysqlsh> clusterset.setPrimaryCluster('LIS') Switching the primary cluster of the clusterset to 'LIS' - Verifying clusterset status -- Checking cluster BRU - Cluster 'BRU' is available -- Checking cluster ROM - Cluster 'ROM' is available -- Checking cluster LIS - Cluster 'LIS' is available - Refreshing replication account of demoted cluster - Synchronizing transaction backlog at 127.0.0.1:4442 - Updating metadata - Updating topology -- Changing replication source of 127.0.0.1:3331 to 127.0.0.1:4442 -- Changing replication source of 127.0.0.1:3333 to 127.0.0.1:4442 -- Changing replication source of 127.0.0.1:3332 to 127.0.0.1:4442 - Acquiring locks in replicaset instances -- Pre-synchronizing SECONDARIES -- Acquiring global lock at PRIMARY & SECONDARIES - Synchronizing remaining transactions at promoted primary - Updating replica clusters -- Changing replication source of 127.0.0.1:5552 to 127.0.0.1:4442 -- Changing replication source of 127.0.0.1:5553 to 127.0.0.1:4442 -- Changing replication source of 127.0.0.1:5551 to 127.0.0.1:4442 Cluster 'LIS' was promoted to PRIMARY of the clusterset. The PRIMARY instance is '127.0.0.1:4442' Copyright @ 2021 Oracle and/or its affiliates. 34 / 55
  • 35. Failover to another Cluster mysqlsh> c root@localhost:3331 mysqlsh> clusterset=dba.getClusterSet() mysqlsh> clusterset.forcePrimaryCluster('BRU') Failing-over primary cluster of the clusterset to 'BRU' - Verifying primary cluster status None of the instances of the PRIMARY cluster 'LIS' could be reached. - Verifying clusterset status -- Checking cluster BRU Cluster 'BRU' is available -- Checking cluster ROM Cluster 'ROM' is available -- Checking whether target cluster has the most recent GTID set - Promoting cluster 'BRU' - Updating metadata -- Changing replication source of 127.0.0.1:5552 to 127.0.0.1:3331 -- Changing replication source of 127.0.0.1:5553 to 127.0.0.1:3331 -- Changing replication source of 127.0.0.1:5551 to 127.0.0.1:3331 PRIMARY cluster failed-over to 'BRU'. The PRIMARY instance is '127.0.0.1:3331' Former PRIMARY cluster was INVALIDATED, transactions that were not yet replicated may be lost. Copyright @ 2021 Oracle and/or its affiliates. 35 / 55
  • 36. Removing a Cluster from the ClusterSet mysqlsh> clusterset.removeCluster('LIS') Copyright @ 2021 Oracle and/or its affiliates. 36 / 55
  • 37. ClusterSet Scenarios Copyright @ 2021 Oracle and/or its affiliates. 37 / 55
  • 38. When there is newly elected PRIMARY member in a cluster Works on failures in PRIMARY and REPLICA clusters Automatic Handling of InnoDB Cluster state changes Asynchronous replication is automatically reconfigured after primary change PRIMARY Cluster PRIMARY member Crash/Partition Copyright @ 2021 Oracle and/or its affiliates. 38 / 55
  • 39. When there is newly elected PRIMARY member in a cluster Works on failures in PRIMARY and REPLICA clusters Automatic Handling of InnoDB Cluster state changes Asynchronous replication is automatically reconfigured after primary change PRIMARY Cluster PRIMARY member Crash/Partition - Automatic! Copyright @ 2021 Oracle and/or its affiliates. 39 / 55
  • 40. When there is newly elected PRIMARY member in a cluster Works on failures in PRIMARY and REPLICA clusters Automatic Handling of InnoDB Cluster state changes Asynchronous replication is automatically reconfigured after primary change REPLICA Cluster PRIMARY member Crash/Partition - Automatic! Copyright @ 2021 Oracle and/or its affiliates. 40 / 55
  • 41. Switchover one command that does it all: setPrimaryCluster() Asynchronous replication channels between clusters are automatically reconfigured Consistency guaranteed All routers will immediately redirect if needed (depending on target mode) Changing Primary - Change Primary Cluster on Healthy System Copyright @ 2021 Oracle and/or its affiliates. 41 / 55
  • 42. Switchover one command that does it all: setPrimaryCluster() Asynchronous replication channels between clusters are automatically reconfigured Consistency guaranteed All routers will immediately redirect if needed (depending on target mode) Changing Primary - setPrimaryCluster() Copyright @ 2021 Oracle and/or its affiliates. 42 / 55
  • 43. Failover to another Cluster one command to invalidate the PRIMARY cluster and promote a new PRIMARY cluster: forcePrimaryCluster() other REPLICA clusters replication will be reconfigured Split Brain Warning local Routers that cannot connect to other clusters will not learn about new topology if datacenter is network partitioned, it will continue to operate as PRIMARY Datacenter Crash/Partition Copyright @ 2021 Oracle and/or its affiliates. 43 / 55
  • 44. Failover to another Cluster one command to invalidate the PRIMARY cluster and promote a new PRIMARY cluster: forcePrimaryCluster() other REPLICA clusters replication will be reconfigured Split Brain Warning local Routers that cannot connect to other clusters will not learn about new topology if datacenter is network partitioned, it will continue to operate as PRIMARY Datacenter Crash/Partition - forcePrimaryCluster() Copyright @ 2021 Oracle and/or its affiliates. 44 / 55
  • 45. Router Integration Routers will learn about new topology and redirect traffic Routers that come back, will learn about new topology and abandon the old PRIMARY Cluster (e.g failed DC comes back online) Datacenter Crash/Partition - Router Integration Copyright @ 2021 Oracle and/or its affiliates. 45 / 55
  • 46. Datacenter Crash/Partition - Multiple REPLICA clusters Support Copyright @ 2021 Oracle and/or its affiliates. 46 / 55
  • 47. Router Integration When GR is offline: network partition no quorum full cluster lost (e.g. power outage) Failover to another Cluster one command to invalidate the PRIMARY cluster and promote a new PRIMARY cluster: forcePrimaryCluster() Router instances will follow PRIMARY (depending on target mode) Group Replication Crash/Partition Copyright @ 2021 Oracle and/or its affiliates. 47 / 55
  • 48. Router Integration When GR is offline: network partition no quorum full cluster lost (e.g. power outage) Failover to another Cluster one command to invalidate the PRIMARY cluster and promote a new PRIMARY cluster: forcePrimaryCluster() Router instances will follow PRIMARY (depending on target mode) Group Replication Crash/Partition - forcePrimaryCluster() & Router Copyright @ 2021 Oracle and/or its affiliates. 48 / 55
  • 49. MySQL InnoDB ClusterSet - Restrictions Requires Server, Router & Shell version 8.0.27 or higher Only works with Single Primary mode in InnoDB Cluster Asynchronous replication between clusters, not semi-sync (use a single cluster spread across regions if RPO=0) Copyright @ 2021 Oracle and/or its affiliates. 49 / 55
  • 50. Business Requirements Copyright @ 2021 Oracle and/or its affiliates. 50 / 55
  • 51. Concepts - RTO & RPO RTO: Recovery Time Objective How long does it take to recover from a single failure RPO: Recovery Point Objective How much data can be lost when a failure occurs Types of Failure: High Availability: Single Server Failure, Network Partition Disaster Recovery: Full Region/Network Failure Human Error: Little Bobby Tables Business Requirements Copyright @ 2021 Oracle and/or its affiliates. 51 / 55
  • 52. MySQL InnoDB Cluster RPO = 0 RTO = Seconds MySQL InnoDB ReplicaSet RPO != 0 RTO = Minutes+ (manual failover) 👍🏽 Best write performance 👎🏼 Manual failover High Availability - Single Region Copyright @ 2021 Oracle and/or its affiliates. 52 / 55
  • 53. RPO = 0 RTO = Seconds 👍🏽 Multi-Region Multi-Primary 👎🏼 3 DC 👎🏼 Requires very stable WAN 👎🏼 Write performance affected by latency between dc's Disaster Recovery - Multi Region MySQL InnoDB Cluster Copyright @ 2021 Oracle and/or its affiliates. 53 / 55
  • 54. RPO != 0 RTO = Minutes+ (manual failover) 👍🏽 RPO = 0 & RTO = seconds within Region (HA) 👍🏽 Write performance (no sync to other region required) 👎🏼 Higher RTO: Manual failover 👎🏼 RPO != 0 when region fails MySQL InnoDB ClusterSet Disaster Recovery - Multi Region MySQL InnoDB ClusterSet Copyright @ 2021 Oracle and/or its affiliates. 54 / 55
