Sound waves are caused by vibrations that create regions of high and low pressure in air molecules. Longitudinal waves propagate through fluids by relying on pressure forces between molecules. The speed of sound depends on the elasticity of the medium - more elastic media allow sound to travel faster. Pitch is perceived as the frequency of a sound wave, while loudness depends on the amplitude. Timbre, which allows distinction between sounds of the same pitch and loudness, is influenced most by the harmonic content or overtones present in the sound waveform.

1. Sound Waves
What Causes Sound?
VIBRATIONS

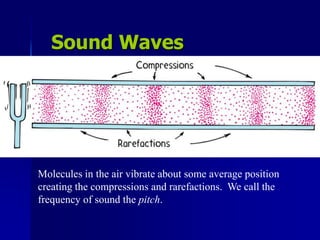

2. Sound Waves
Molecules in the air vibrate about some average position
creating the compressions and rarefactions. We call the
frequency of sound the pitch.

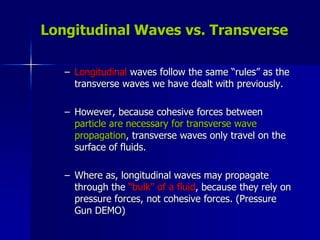

3. Longitudinal Waves vs. Transverse
– Longitudinal waves follow the same “rules” as the
transverse waves we have dealt with previously.
– However, because cohesive forces between
particle are necessary for transverse wave
propagation, transverse waves only travel on the
surface of fluids.
– Where as, longitudinal waves may propagate
through the “bulk” of a fluid, because they rely on
pressure forces, not cohesive forces. (Pressure
Gun DEMO)

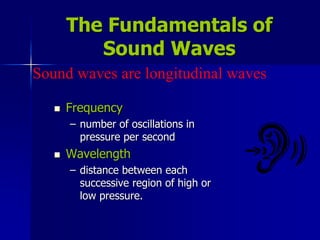

4. The Fundamentals of
Sound Waves
 Frequency
– number of oscillations in
pressure per second
 Wavelength
– distance between each
successive region of high or
low pressure.
Sound waves are longitudinal waves

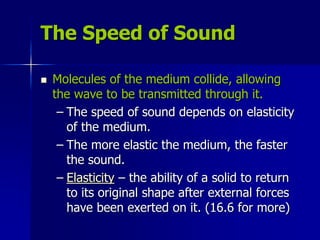

5. The Speed of Sound
 Molecules of the medium collide, allowing
the wave to be transmitted through it.
– The speed of sound depends on elasticity
of the medium.
– The more elastic the medium, the faster
the sound.
– Elasticity – the ability of a solid to return
to its original shape after external forces
have been exerted on it. (16.6 for more)

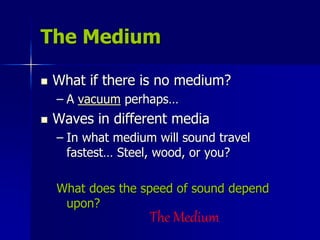

6. The Medium
 What if there is no medium?
– A vacuum perhaps…
 Waves in different media
– In what medium will sound travel
fastest… Steel, wood, or you?
What does the speed of sound depend
upon?
The Medium

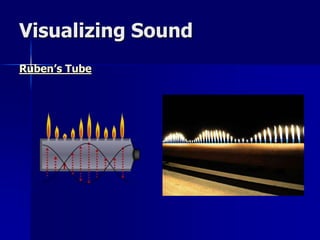

7. Visualizing Sound
Ruben’s Tube

8. 2D Pyro Board

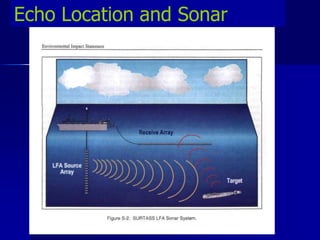

9. Echo Location and Sonar

10. Loudness
 Loudness - depends on the amplitude
of sound wave
– Again, the amplitude of a wave indicates
its energy. The greater the amplitude, the
greater the energy. (DB Mic. DEMO)
On the graphs to the right
Where is the sound loudest?

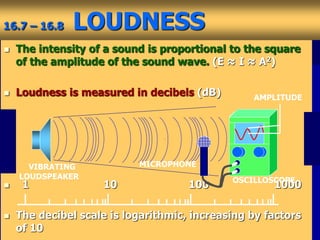

11. 16.7 – 16.8 LOUDNESS
 The intensity of a sound is proportional to the square
of the amplitude of the sound wave. (E ≈ I ≈ A2)
 Loudness is measured in decibels (dB)
 1 10 100 1000
 The decibel scale is logarithmic, increasing by factors
of 10
VIBRATING
LOUDSPEAKER
AMPLITUDE
MICROPHONE
OSCILLOSCOPE

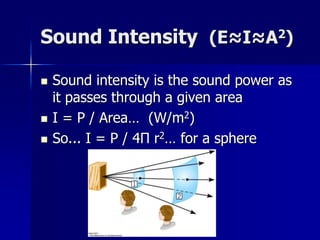

12. Sound Intensity (E≈I≈A2)
 Sound intensity is the sound power as
it passes through a given area
 I = P / Area… (W/m2)
 So... I = P / 4Π r2… for a sphere

13. Sound Intensity (E≈I≈A2)
 Sound Intensity is not the same as
Sound Intensity Level!!!
 Io = 1 x 10-12 W/m2 (threshold of hearing)
 Intensity Level, β, is a comparison of
two sound intensities (Ratio)
β = (10 dB) log10 (I / Io)

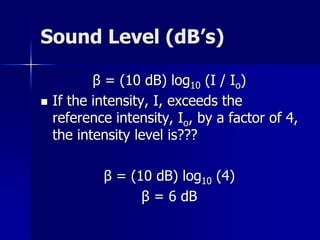

14. Sound Level (dB’s)
β = (10 dB) log10 (I / Io)
 If the intensity, I, exceeds the
reference intensity, Io, by a factor of 4,
the intensity level is???
β = (10 dB) log10 (4)
β = 6 dB

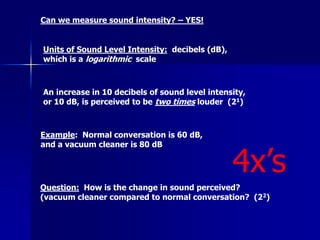

15. Can we measure sound intensity? – YES!
Units of Sound Level Intensity: decibels (dB),
which is a logarithmic scale
An increase in 10 decibels of sound level intensity,
or 10 dB, is perceived to be two times louder (21)
Example: Normal conversation is 60 dB,
and a vacuum cleaner is 80 dB
Question: How is the change in sound perceived?
(vacuum cleaner compared to normal conversation? (22)
4x’s

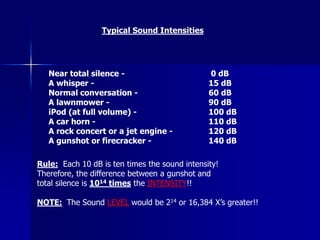

16. Near total silence - 0 dB
A whisper - 15 dB
Normal conversation - 60 dB
A lawnmower - 90 dB
iPod (at full volume) - 100 dB
A car horn - 110 dB
A rock concert or a jet engine - 120 dB
A gunshot or firecracker - 140 dB
Typical Sound Intensities
Rule: Each 10 dB is ten times the sound intensity!
Therefore, the difference between a gunshot and
total silence is 1014 times the INTENSITY!!
NOTE: The Sound LEVEL would be 214 or 16,384 X’s greater!!

17. Other notable sound intensities
85 dB - Raise your voice so that others may hear
(time for hearing protection!!!)
90 dB for eight hours: Damage to your ears
140 dB sound: Immediate damage to ears

18. 120 dB: The F/A-18 Hornet

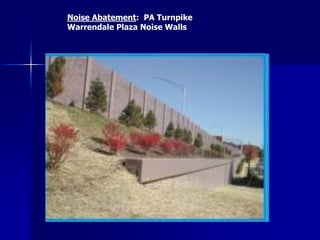

19. Noise Abatement: PA Turnpike
Warrendale Plaza Noise Walls

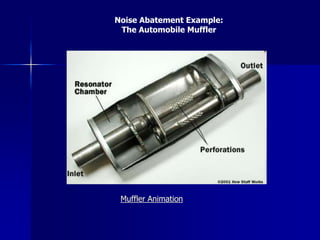

20. Noise Abatement Example:
The Automobile Muffler
Muffler Animation

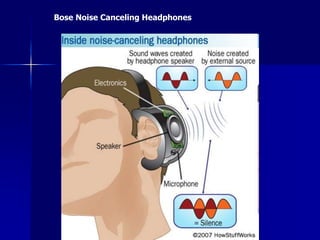

21. Bose Noise Canceling Headphones

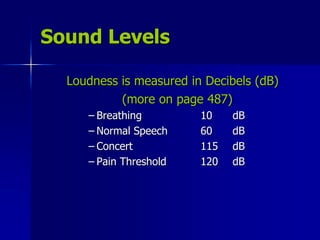

22. Sound Levels
Loudness is measured in Decibels (dB)
(more on page 487)
– Breathing 10 dB
– Normal Speech 60 dB
– Concert 115 dB
– Pain Threshold 120 dB

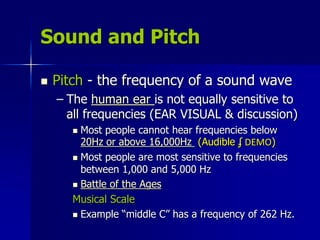

23. Sound and Pitch
 Pitch - the frequency of a sound wave
– The human ear is not equally sensitive to
all frequencies (EAR VISUAL & discussion)
 Most people cannot hear frequencies below
20Hz or above 16,000Hz (Audible ʄ DEMO)
 Most people are most sensitive to frequencies
between 1,000 and 5,000 Hz
 Battle of the Ages
Musical Scale
 Example “middle C” has a frequency of 262 Hz.

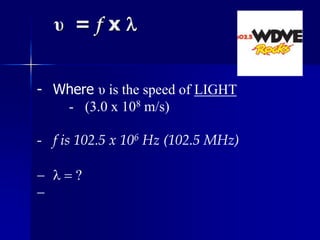

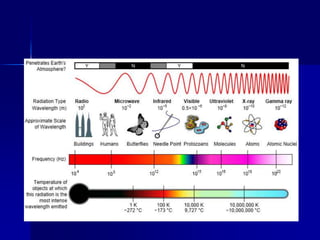

24. υ = f x 
- Where υ is the speed of LIGHT
- (3.0 x 108 m/s)
- f is 102.5 x 106 Hz (102.5 MHz)
  = ?


26. Natural Frequency &
Resonance
 Natural frequency (Singing Rod DEMO)
– An object’s own set of frequencies
– Depends primarily on elasticity and shape
vs

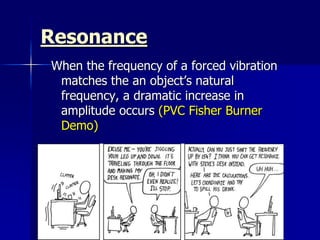

27. Resonance
When the frequency of a forced vibration
matches the an object’s natural
frequency, a dramatic increase in
amplitude occurs (PVC Fisher Burner
Demo)

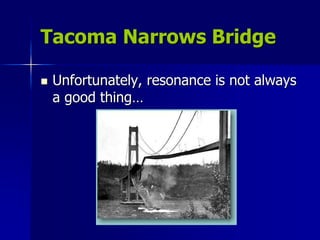

28. Tacoma Narrows Bridge
 Unfortunately, resonance is not always
a good thing…

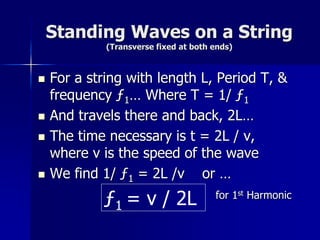

29. Standing Waves on a String
(Transverse fixed at both ends)
 For a string with length L, Period T, &
frequency ƒ1… Where T = 1/ ƒ1
 And travels there and back, 2L…
 The time necessary is t = 2L / v,
where v is the speed of the wave
 We find 1/ ƒ1 = 2L /v or …
for 1st Harmonic
ƒ1 = v / 2L

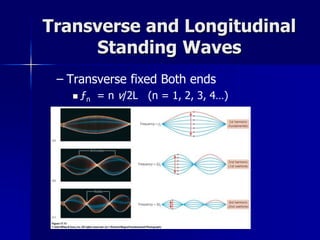

30. Transverse and Longitudinal
Standing Waves
– Transverse fixed Both ends
 ƒn = n v/2L (n = 1, 2, 3, 4…)

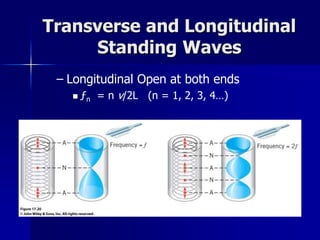

31. Transverse and Longitudinal
Standing Waves
– Longitudinal Open at both ends
 ƒn = n v/2L (n = 1, 2, 3, 4…)

32. Transverse and Longitudinal
Standing Waves
– Longitudinal Open at One end
 ƒn = n v/4L (n = 1, 3, 5, 7…)

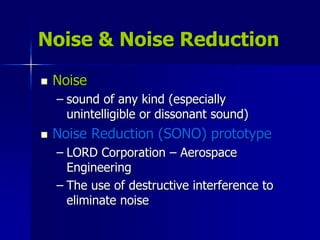

33. Noise & Noise Reduction
 Noise
– sound of any kind (especially
unintelligible or dissonant sound)
 Noise Reduction (SONO) prototype
– LORD Corporation – Aerospace
Engineering
– The use of destructive interference to
eliminate noise

34. SONO – Noise Cancellation (Prototype)

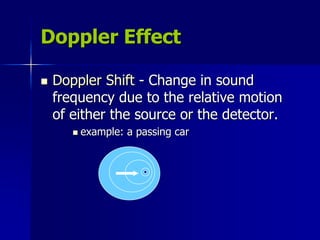

35. Doppler Effect
 Doppler Shift - Change in sound
frequency due to the relative motion
of either the source or the detector.
 example: a passing car

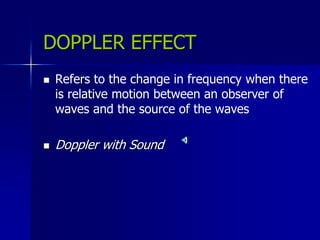

36. DOPPLER EFFECT
 Refers to the change in frequency when there
is relative motion between an observer of
waves and the source of the waves
 Doppler with Sound

37. Diffraction and Sound
 Bending of sound around a barrier

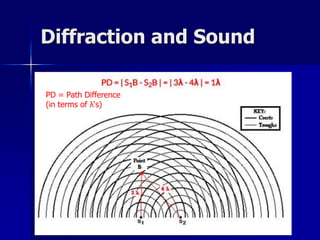

38. Diffraction and Sound
PD = Path Difference
(in terms of λ‘s)

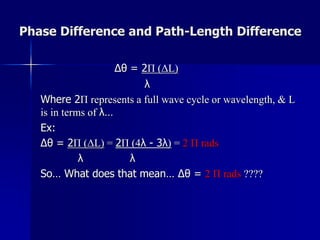

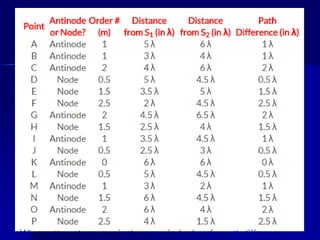

41. Phase Difference and Path-Length Difference
Δθ = 2Π (ΔL)
λ
Where 2Π represents a full wave cycle or wavelength, & L
is in terms of λ…
Ex:
Δθ = 2Π (ΔL) = 2Π (4λ - 3λ) = 2 Π rads
λ λ
So… What does that mean… Δθ = 2 Π rads ????

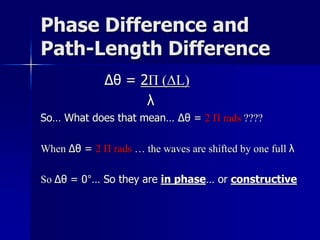

42. Phase Difference and
Path-Length Difference
Δθ = 2Π (ΔL)
λ
So… What does that mean… Δθ = 2 Π rads ????
When Δθ = 2 Π rads … the waves are shifted by one full λ
So Δθ = 0°… So they are in phase… or constructive

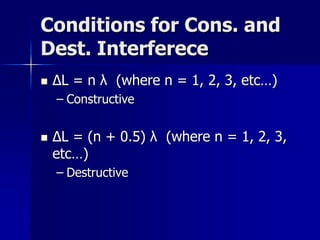

43. Conditions for Cons. and
Dest. Interferece
 ΔL = n λ (where n = 1, 2, 3, etc…)
– Constructive
 ΔL = (n + 0.5) λ (where n = 1, 2, 3,
etc…)
– Destructive

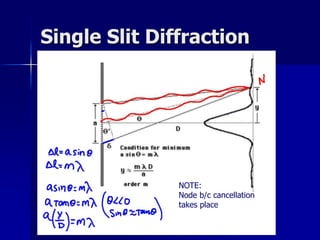

44. Single Slit Diffraction
NOTE:
Node b/c cancellation
takes place

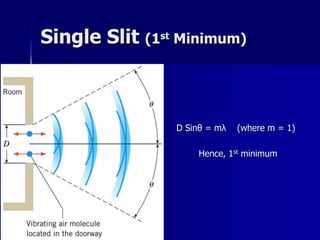

45. Single Slit (1st Minimum)

 D Sinθ = mλ (where m = 1)
 Hence, 1st minimum

46. Circular Opening (1st Minimum)
D Sinθ = 1.22 m λ

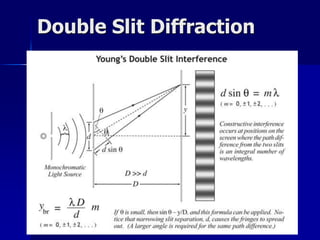

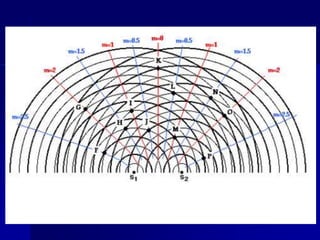

47. Double Slit Diffraction

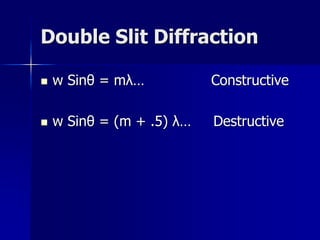

48. Double Slit Diffraction
 w Sinθ = mλ… Constructive
 w Sinθ = (m + .5) λ… Destructive

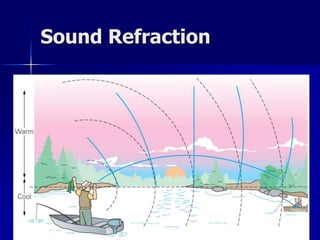

49. Sound Refraction

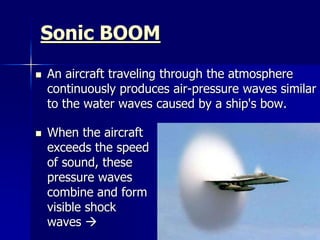

50. Sonic BOOM
 An aircraft traveling through the atmosphere
continuously produces air-pressure waves similar
to the water waves caused by a ship's bow.
 When the aircraft
exceeds the speed
of sound, these
pressure waves
combine and form
visible shock
waves 

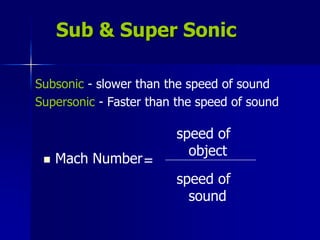

51. Subsonic - slower than the speed of sound
Supersonic - Faster than the speed of sound
Sub & Super Sonic
 Mach Number=
speed of
sound
speed of
object

52. Bow waves
V-shaped pattern made by overlapping
crest

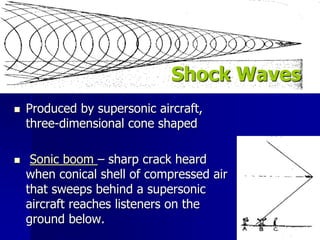

53.  Produced by supersonic aircraft,
three-dimensional cone shaped
 Sonic boom – sharp crack heard
when conical shell of compressed air
that sweeps behind a supersonic
aircraft reaches listeners on the
ground below.
Shock Waves

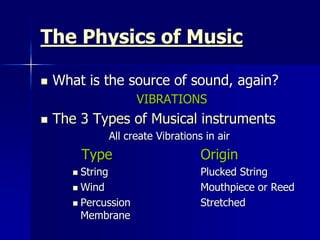

54. The Physics of Music
 What is the source of sound, again?
VIBRATIONS
 The 3 Types of Musical instruments
All create Vibrations in air
Type Origin
 String Plucked String
 Wind Mouthpiece or Reed
 Percussion Stretched
Membrane

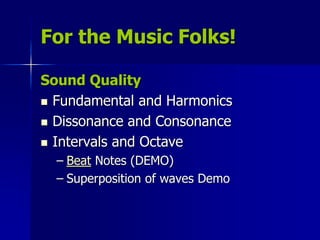

55. For the Music Folks!
Sound Quality
 Fundamental and Harmonics
 Dissonance and Consonance
 Intervals and Octave
– Beat Notes (DEMO)
– Superposition of waves Demo

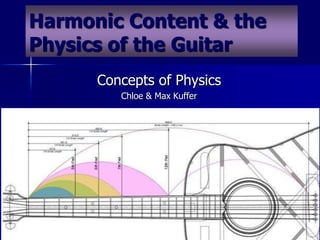

56. Harmonic Content & the
Physics of the Guitar
Concepts of Physics
Chloe & Max Kuffer

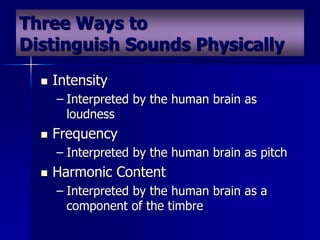

57. Three Ways to
Distinguish Sounds Physically
 Intensity
– Interpreted by the human brain as
loudness
 Frequency
– Interpreted by the human brain as pitch
 Harmonic Content
– Interpreted by the human brain as a
component of the timbre

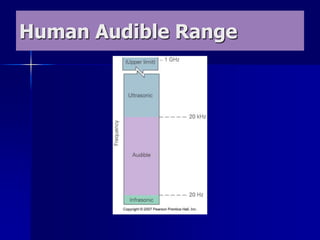

58. Human Audible Range

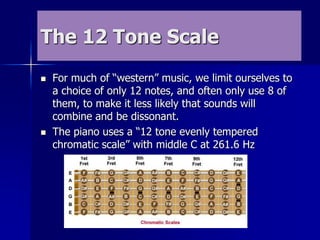

59. The 12 Tone Scale
 For much of “western” music, we limit ourselves to
a choice of only 12 notes, and often only use 8 of
them, to make it less likely that sounds will
combine and be dissonant.
 The piano uses a “12 tone evenly tempered
chromatic scale” with middle C at 261.6 Hz

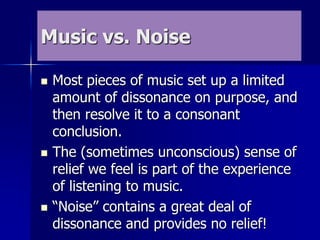

60. Music vs. Noise
 Most pieces of music set up a limited
amount of dissonance on purpose, and
then resolve it to a consonant
conclusion.
 The (sometimes unconscious) sense of
relief we feel is part of the experience
of listening to music.
 “Noise” contains a great deal of
dissonance and provides no relief!

61. Timbre: Sound Quality
 The characteristics of a sound which allow
the human to distinguish between sounds of
the same pitch and loudness
 For example why does a flute playing a “C”
sound differently from a guitar playing the
same note?
 There are three contributors to timbre...
– Attack and Decay
– Vibrato
– Harmonic Content (the most important
contributor)

62. Attack and Decay
 Describes how quickly the amplitude of the sound
reaches a maximum and how quickly it dies out
– Ex: a guitar string...quick attack, long gradual decay
– Ex: a cymbal...instant attack, very long, but
initially steep, decay

63. Attack and Decay
 How would you describe the attack and
decay of these sounds?
 What musical instruments do you think
they are?
instrument #1
instrument #2
Oboe
Piccolo

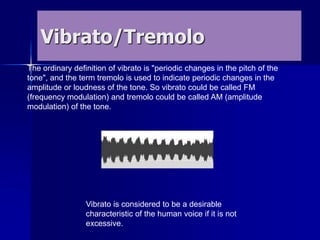

64. Vibrato/Tremolo
The ordinary definition of vibrato is "periodic changes in the pitch of the
tone", and the term tremolo is used to indicate periodic changes in the
amplitude or loudness of the tone. So vibrato could be called FM
(frequency modulation) and tremolo could be called AM (amplitude
modulation) of the tone.
Vibrato is considered to be a desirable
characteristic of the human voice if it is not
excessive.

65. Guitar Vibrato/Tremolo

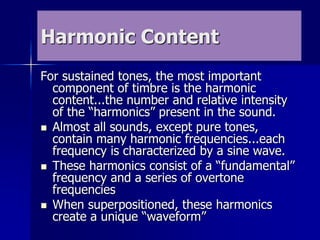

66. Harmonic Content
For sustained tones, the most important
component of timbre is the harmonic
content...the number and relative intensity
of the “harmonics” present in the sound.
 Almost all sounds, except pure tones,
contain many harmonic frequencies...each
frequency is characterized by a sine wave.
 These harmonics consist of a “fundamental”
frequency and a series of overtone
frequencies
 When superpositioned, these harmonics
create a unique “waveform”

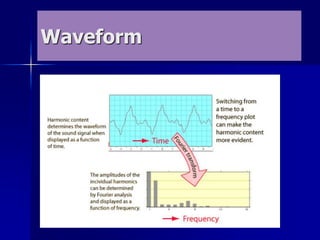

67. Waveform

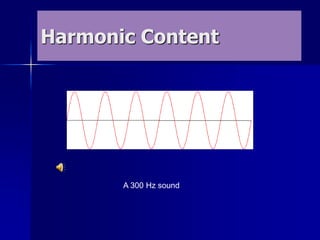

68. Harmonic Content
A 300 Hz sound

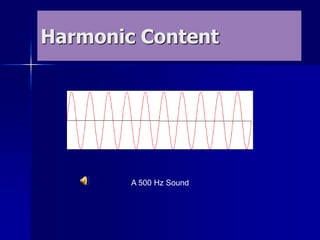

69. Harmonic Content
A 500 Hz Sound

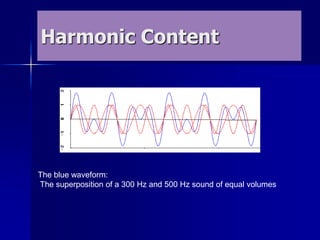

70. Harmonic Content
The blue waveform:
The superposition of a 300 Hz and 500 Hz sound of equal volumes

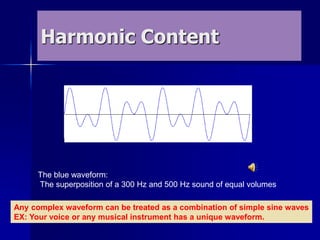

71. Harmonic Content
The blue waveform:
The superposition of a 300 Hz and 500 Hz sound of equal volumes
Any complex waveform can be treated as a combination of simple sine waves
EX: Your voice or any musical instrument has a unique waveform.

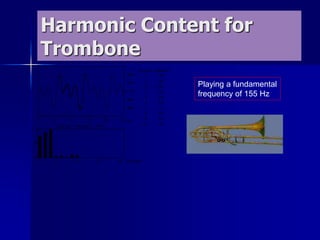

72. Harmonic Content for
Trombone
Playing a fundamental
frequency of 155 Hz

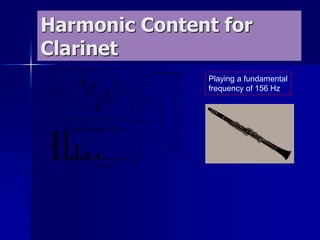

73. Harmonic Content for
Clarinet
Playing a fundamental
frequency of 156 Hz

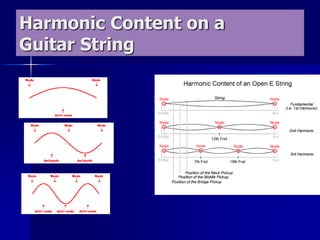

74. Harmonic Content on a
Guitar String

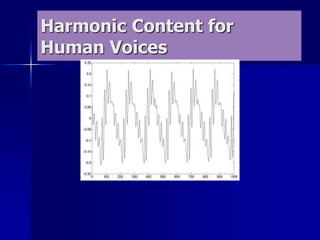

75. Harmonic Content for
Human Voices
