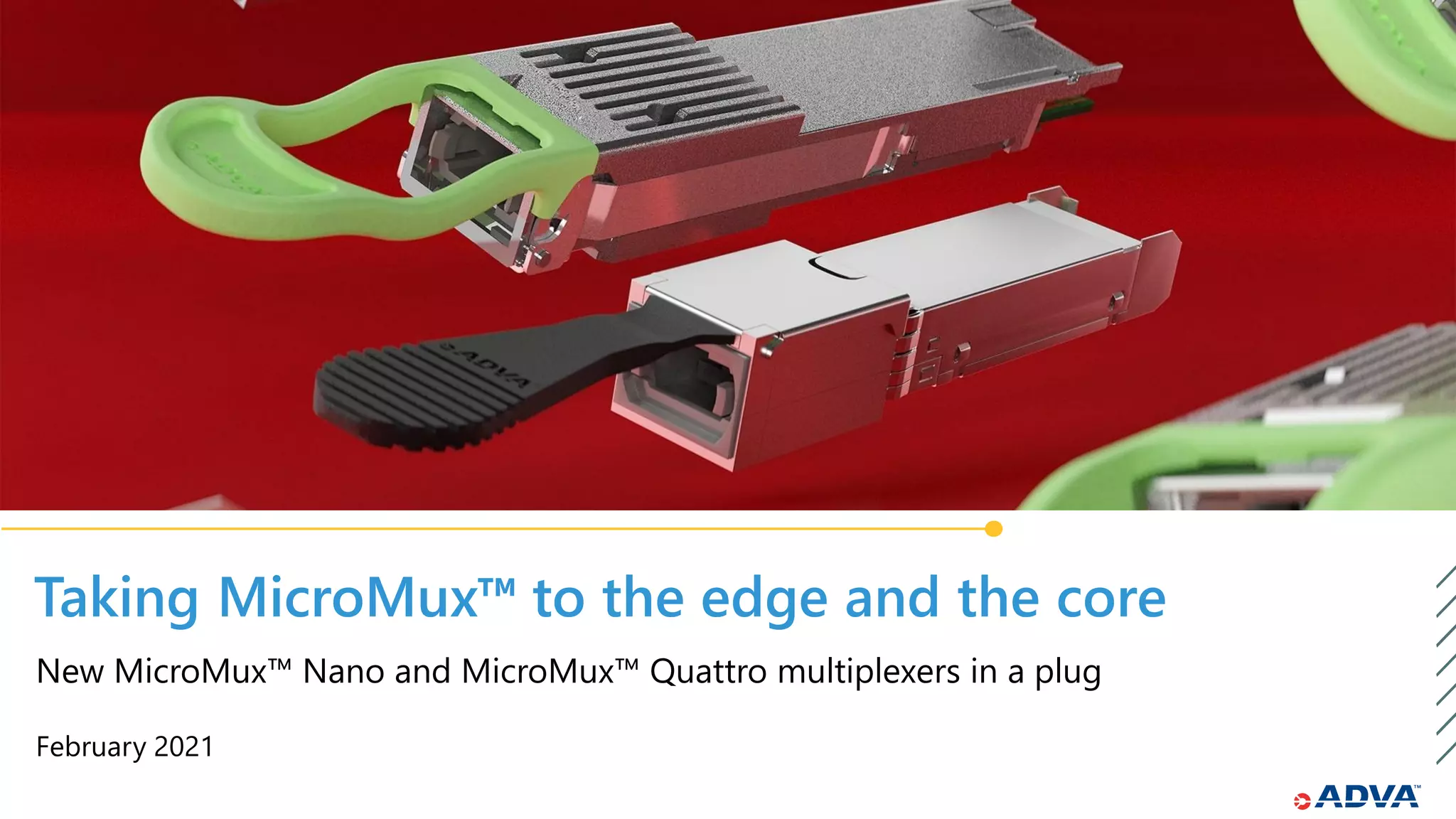

Taking MicroMux to the edge and the core
February 2021
New MicroMux™ Nano and MicroMux™ Quattro multiplexers in a plug
© 2021 ADVA. All rights reserved.

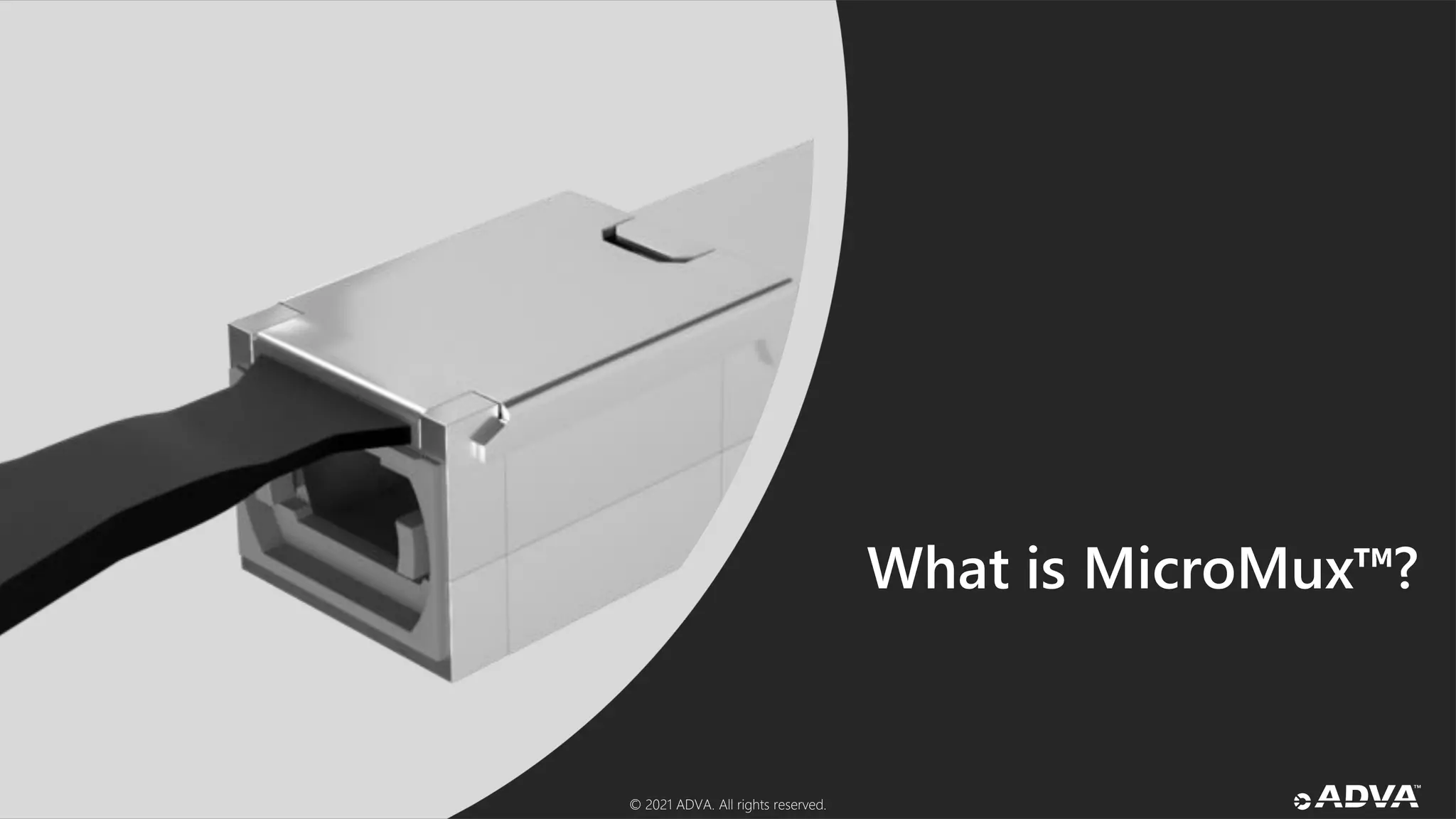

What is MicroMux ?
© 2021 ADVA. All rights reserved.
3
Market challenges
• The ever-increasing demand for higher
bandwidth is driving network operators
to install high-capacity next-generation
switches, routers or optical terminals with
high-speed interfaces
• However, there is still a large demand for
lower-speed services
• Hardware aggregation devices solve this
problem, but they also increase cost, rack
space and operational complexity
Source: Cisco VNI Global IP Traffic Forecast, 2017-2022
26% CAGR
2017-2022
© 2021 ADVA. All rights reserved.
4
A different approach
MicroMux™ is a family of plug-and-play,
small form-factor pluggable devices that
enable next-generation equipment to
support lower-speed Ethernet services on
high-speed Ethernet ports without
additional aggregation devices
© 2021 ADVA. All rights reserved.
5
MicroMux series of pluggable multiplexers
Network edge Network core
MicroMux™ Nano
Converts a 10GbE
interface into 10x 1GbE
aggregation ports
MicroMux™ Quattro
Converts a 400GbE
interface into 4x 100GbE
aggregation ports
MicroMux™
Converts a 100GbE interface into
10x 10GbE aggregation ports
NEW! NEW!
© 2021 ADVA. All rights reserved.
6
Minimize cost and operational complexity
Key benefits
Save capex
✓ Save footprint by
displacing aggregation
layer equipment
✓ Enable transition to
newer platforms while
supporting legacy
interconnects
✓ Increase lifespan of
legacy equipment
Save opex
✓ Minimize points of failure
by displacing aggregation
devices and associated
interconnecting optics
✓ Minimize operational
complexity: less
equipment to manage,
fewer truck rolls, …
✓ Save power consumption
by replacing aggregation
device with pluggables
© 2021 ADVA. All rights reserved.
New MicroMux
models
© 2021 ADVA. All rights reserved.
8
• Converts a 10GbE port into:
• 10x 1GbE 1000Base-SX
• 10x 1GbE 1000Base-LX
• Layer 2 Ethernet multiplexing with
advanced monitoring capabilities
• Transparent timing support
• Plug-and-play into standard SFP+
cages
Ten 1GbE services from a single 10GbE SFP+ slot
MicroMux Nano
10GbE ports
10x 1GbE with
MicroMux™ Nano
© 2021 ADVA. All rights reserved.
9
Bringing new levels of flexibility and efficiency to the network edge
MicroMux Nano adds value to the edge
Converts a 10GbE port
of a muxponder or
transponder into a 10x
1GbE aggregation port
Converts a 10GbE switched
interface into a 10x 1GbE
aggregation port
DWDM access networks
Packet edge and aggregation
© 2021 ADVA. All rights reserved.
10
• Converts a 400GbE interface into:
• 4x 100GbE (100GBase-SR4 / CWDM4)
• 2x 200GbE (200GBase-SR8)
• 1x 400GbE (400GBase-SR16)
(Software configurable)
• Plug-and-play into standard
QSFP-DD cages
Four 100GbE services from a single 400GbE QSFP-DD slot
MicroMux Quattro
400GbE port
4x 100GbE with
MicroMux™ Quattro
© 2021 ADVA. All rights reserved.
11
Reducing cost and complexity at the core
MicroMux Quattro adds value to the core
MicroMux™ Quattro
plug-and-play simplicity
4x 100GbE
With traditional aggregation devices With MicroMux™ Quattro
- Additional costly hardware equipment
- Additional rack space and power consumption
- Additional points of failure
- Additional operational complexity
+ Cost-efficient SFP
+ Zero footprint increase
+ Plug-and-play solution
+ Easy installation and operation
3x 400GbE
4x 100GbE
100Gbit/s
aggregation device
Device with 400Gbit/s
interfaces only
3x 400GbE Device with 400Gbit/s
interfaces only
MicroMux™ Quattro
saves rack space
© 2021 ADVA. All rights reserved.
Summary
© 2021 ADVA. All rights reserved.
13
• Makes possible pay-as-you-grow networks upgrades while still meeting legacy needs
• Enables simple link updates without the need to replace or add equipment
• Offers higher port density than traditional solutions
• Reduces operational complexity and cost
• Delivers true scale and flexibility
… with just a small form-factor plug
Boost client port density and flexibility with plug-and-play simplicity
Your benefits at a glance
Thank you
