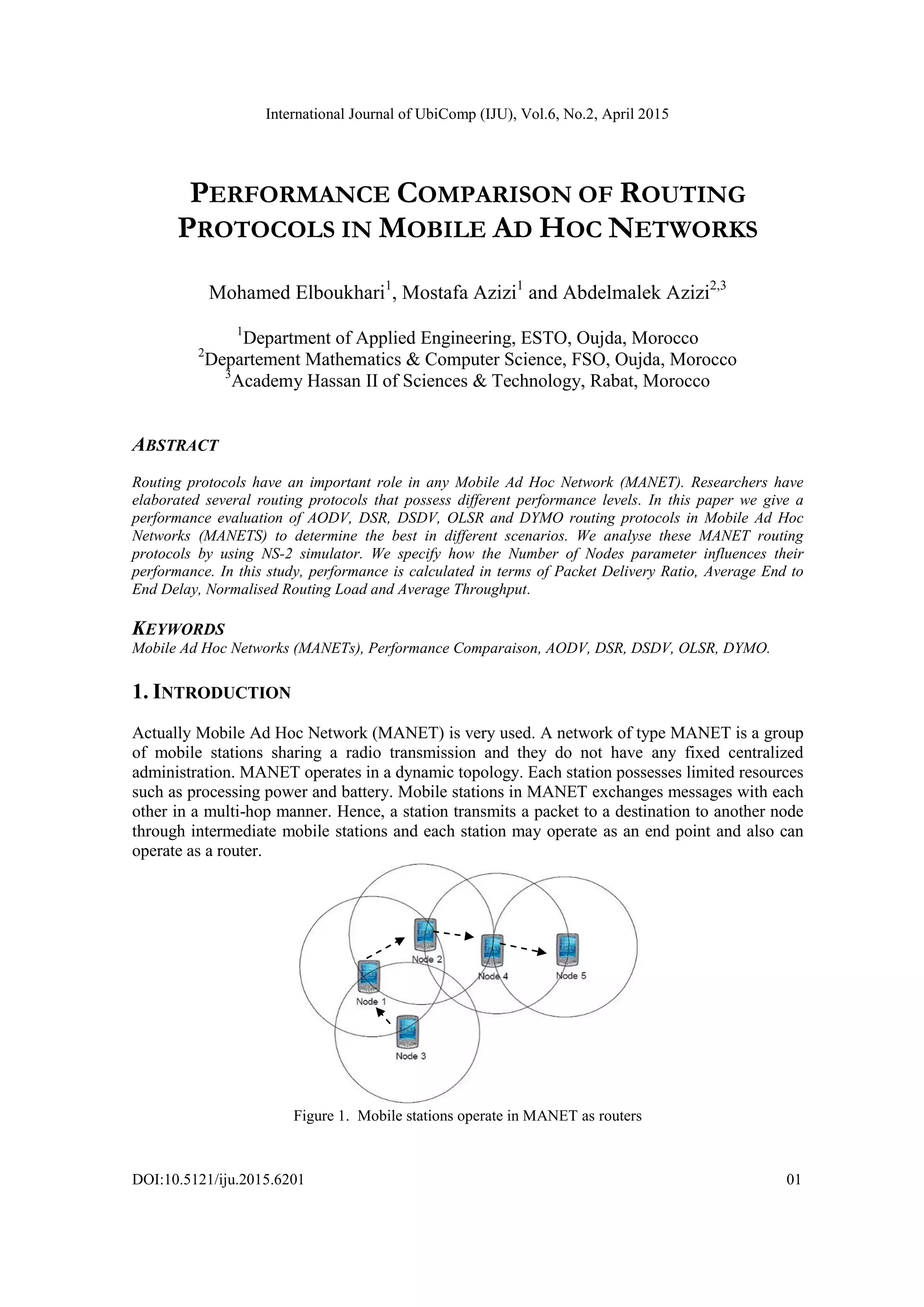

International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
DOI:10.5121/iju.2015.6201 01
PERFORMANCE COMPARISON OF ROUTING
PROTOCOLS IN MOBILE AD HOC NETWORKS
Mohamed Elboukhari1
, Mostafa Azizi1
and Abdelmalek Azizi2,3
1
Department of Applied Engineering, ESTO, Oujda, Morocco
2
Departement Mathematics & Computer Science, FSO, Oujda, Morocco
3
Academy Hassan II of Sciences & Technology, Rabat, Morocco
ABSTRACT
Routing protocols have an important role in any Mobile Ad Hoc Network (MANET). Researchers have
elaborated several routing protocols that possess different performance levels. In this paper we give a
performance evaluation of AODV, DSR, DSDV, OLSR and DYMO routing protocols in Mobile Ad Hoc
Networks (MANETS) to determine the best in different scenarios. We analyse these MANET routing
protocols by using NS-2 simulator. We specify how the Number of Nodes parameter influences their
performance. In this study, performance is calculated in terms of Packet Delivery Ratio, Average End to
End Delay, Normalised Routing Load and Average Throughput.
KEYWORDS
Mobile Ad Hoc Networks (MANETs), Performance Comparaison, AODV, DSR, DSDV, OLSR, DYMO.
1. INTRODUCTION
Actually Mobile Ad Hoc Network (MANET) is very used. A network of type MANET is a group
of mobile stations sharing a radio transmission and they do not have any fixed centralized
administration. MANET operates in a dynamic topology. Each station possesses limited resources
such as processing power and battery. Mobile stations in MANET exchanges messages with each
other in a multi-hop manner. Hence, a station transmits a packet to a destination to another node
through intermediate mobile stations and each station may operate as an end point and also can
operate as a router.
Figure 1. Mobile stations operate in MANET as routers

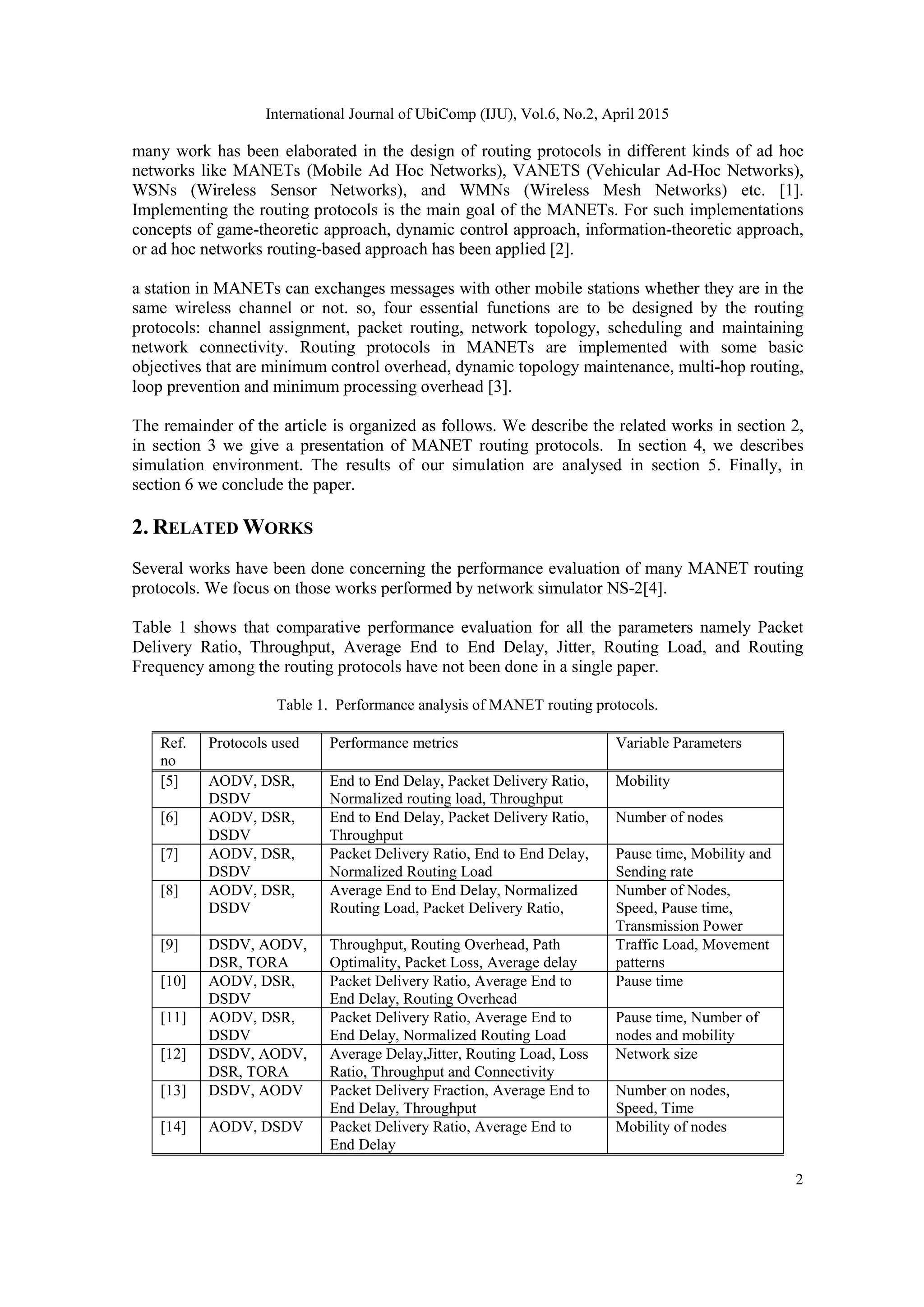

International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
2
many work has been elaborated in the design of routing protocols in different kinds of ad hoc
networks like MANETs (Mobile Ad Hoc Networks), VANETS (Vehicular Ad-Hoc Networks),
WSNs (Wireless Sensor Networks), and WMNs (Wireless Mesh Networks) etc. [1].
Implementing the routing protocols is the main goal of the MANETs. For such implementations
concepts of game-theoretic approach, dynamic control approach, information-theoretic approach,
or ad hoc networks routing-based approach has been applied [2].
a station in MANETs can exchanges messages with other mobile stations whether they are in the
same wireless channel or not. so, four essential functions are to be designed by the routing
protocols: channel assignment, packet routing, network topology, scheduling and maintaining
network connectivity. Routing protocols in MANETs are implemented with some basic
objectives that are minimum control overhead, dynamic topology maintenance, multi-hop routing,
loop prevention and minimum processing overhead [3].
The remainder of the article is organized as follows. We describe the related works in section 2,
in section 3 we give a presentation of MANET routing protocols. In section 4, we describes
simulation environment. The results of our simulation are analysed in section 5. Finally, in
section 6 we conclude the paper.
2. RELATED WORKS
Several works have been done concerning the performance evaluation of many MANET routing
protocols. We focus on those works performed by network simulator NS-2[4].
Table 1 shows that comparative performance evaluation for all the parameters namely Packet
Delivery Ratio, Throughput, Average End to End Delay, Jitter, Routing Load, and Routing
Frequency among the routing protocols have not been done in a single paper.
Table 1. Performance analysis of MANET routing protocols.
Ref.
no
Protocols used Performance metrics Variable Parameters
[5] AODV, DSR,
DSDV
End to End Delay, Packet Delivery Ratio,
Normalized routing load, Throughput
Mobility
[6] AODV, DSR,
DSDV
End to End Delay, Packet Delivery Ratio,
Throughput
Number of nodes
[7] AODV, DSR,
DSDV
Packet Delivery Ratio, End to End Delay,
Normalized Routing Load
Pause time, Mobility and
Sending rate
[8] AODV, DSR,
DSDV
Average End to End Delay, Normalized
Routing Load, Packet Delivery Ratio,
Number of Nodes,
Speed, Pause time,
Transmission Power
[9] DSDV, AODV,
DSR, TORA
Throughput, Routing Overhead, Path
Optimality, Packet Loss, Average delay
Traffic Load, Movement
patterns
[10] AODV, DSR,
DSDV
Packet Delivery Ratio, Average End to
End Delay, Routing Overhead
Pause time
[11] AODV, DSR,
DSDV
Packet Delivery Ratio, Average End to
End Delay, Normalized Routing Load
Pause time, Number of
nodes and mobility
[12] DSDV, AODV,
DSR, TORA
Average Delay,Jitter, Routing Load, Loss
Ratio, Throughput and Connectivity
Network size
[13] DSDV, AODV Packet Delivery Fraction, Average End to
End Delay, Throughput
Number on nodes,
Speed, Time
[14] AODV, DSDV Packet Delivery Ratio, Average End to
End Delay
Mobility of nodes
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
3
In our article, we will compare five MANET protocols (AODV, DSR, DSDV, OLSR, and
DYMO). There is no work in our knowledge in the literature which deals with these five MANET
routing protocols by considering the variation of Number of Nodes parameter.
3. ROUTING PROTOCOLS IN MANET
The MANET routing protocols are divided into three classifications depending to their
performance and functionality: Table-driven (Proactive) routing protocols, On-demand (Reactive)
routing protocols and Hybrid routing protocols [15].
Proactive Routing Protocols: The routing data in these MANET protocols is organised in tables
stored by each station. The tables must be updated because the network topology is changing
dynamically. These protocols are employed where the route requirements are frequent. FSR,
STAR, GSR, DSDV, OLSR, CGSR and WRP are the examples.
Reactive Routing Protocols: These routing protocols choose routes to other stations only when
they are needed. A route discovery process is lunched when a station wants to communicate with
another station for which it does not possess any route table access. AODV, DSR, LAR, TORA,
CBRP and ARA are the examples.
Hybrid Routing Protocols: These MANET protocols employ functionality of both the reactive
and proactive protocols. For illustration, proactive protocols could be employed between
networks and reactive protocols inside the networks. DST, ZRP, DDR, ZHLS are the examples.
Figure 2. Examples of MANET Routing Protocols
3.1. Ad-hoc On-Demand distance Vector routing protocol (AODV)
AODV [16, 17] is a MANET routing protocol which employs an on-demand approach to find
routes, that is, a route is discovered only when it is needed by a source statin. AODV uses
sequence numbers to make certain freshness of routes. AODV employs route request (RREQ)
packets broadcasted through the group of connections to discover the paths needed by a source
station. it allows stations to find routes very fast for new destinations, and does not need stations
to store routes to destinations which are not moving. AODV aids stations to operate in response to
an alteration in network topology and link breakages quickly and the AODV operation is loop-
free [18]. When a route to a new station is demanded, the source broadcasts a RREQ packet to
discover a route to the needed destination. A transitional station that captures a RREQ replies to it
using a route reply packet only if it has a route to the destination station whose analogous
destination sequence number is greater or equal to the one presented in the RREQ packet.
Another important point to mention is that the RREQ also contains the most recent sequence
number for the destination of which the source node is responsive. A station capturing the RREQ
packet can transmit a route reply (RREP) packet if it is either the destination station or if it
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
4
possesses a route to the destination station with equivalent sequence number greater than or equal
to that appeared in the RREQ packet. In this case, it sends (unicasts) a RREP reverse to the source
station. Otherwise, it rebroadcasts the RREQ message. Nodes store track of the RREQ‟s source IP
address and broadcast ID.
3.2. Dynamic Source Routing (DSR)
Dynamic Source Routing (DSR) [19] is a wireless mesh networks routing protocol. Its
implementation is based on a method named “source routingˮ. DSR aids the network to be
completely self-configuring and self-organizing.
The Dynamic Source Routing protocol possesses two main mechanisms route discovery and route
maintenance. In the route discovery process a source node wishing to drive a packet to a
destination node, as certain a source route to the destination. In route maintenance process a
station which wants to send a message to a destination is capable to perceive, while employing a
source route to the destination, if the network topology has changed such that it can no longer
make use of its route to destination station. In case when Route Maintenance shows a source route
is no longer work, source station can try to employ any other route, or it can lunch route
discovery mechanism again to determine a new route for subsequent packets to destination
station.
3.3. Dynamic MANET On-Demand Routing Protocol (DYMO)
DYMO [20] uses large variety of mobility patterns by finding dynamically routes on-demand. It
also manages a wide selection of traffic patterns. The fundamental functionality of DYMO are
route discovery and route maintenance.
In the route discovery, a DYMO router lunches a Route Request packet (RREQ) to find a route to
a destination station. During the hop-by-hop broadcasting mechanism, each intermediate DYMO
router receiving the RREQ packet stores a route to the originator station. When the target‟s
DYMO router captures the RREQ packet, it stores a route to the originator station and unicasts
using a Route Reply (RREP) hop-by-hop through the originating DYMO router. Each transitional
DYMO router that captures the RREP packet prepares a route to the target station, and then the
RREP packet is unicast hop-by-hop through the originator. When the originator‟s DYMO router
receives finally the RREP packet, routes have been established between the the target DYMO
router and originating DYMO router in two directions. Route maintenance is composed of two
operations. To maintain routes in use, DYMO routers increase life of route upon successfully
forwarding a packet. To operate in response to the modifications in network topology, DYMO
routers monitor traffic being forwarded. When a packet is received to be forwarded and a route
for the destination station is not determined or the route is broken down, hence the DYMO router
of the source station of the packet is notified. A Route Error (RERR) is transmitted to point out
the route to one or more disrupted destination addresses is misplaced or broken. When the
source‟s DYMO router captures the RERR packet, it considers the route as broken. Before the
DYMO router can forward a message to the same destination station, it must lunch the route
discovery again for the destination station.
3.4. Destination Sequenced Distance Vector (DSDV) Protocol
DSDV [21] is one of the examples of proactive protocol. DSDV adds a new parameter, sequence
number, to each route table at each station. Each node maintains a routing table at its own and
which aids in packet transmission.
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
5
For the transmission of packets each node stores routing table. The routing possesses the data for
the connectivity to many nodes. These nodes provide all the number of stations (hops) and the
available destinations needed to obtain each destination station in the routing table. The routing
entry is tagged with a sequence number which is originated by the destination node. Each station
sends and updates its routing table periodically. The messages being flooded between stations
show a list of accessible nodes and the number of stations needed to obtain that particular node.
Routing information is broadcast periodically by broadcasting or multicasting the packets. Each
mobile station in DSDV protocol must publish its data routing table to its neighboring nodes. As
the information in the table may change frequently, the advertisement should be done on the
continuous basis so that every station can locate its neighbors in the network. It ensures the
shortest number of nodes (hops) required from source station to a destination station.
The information flooded by each node will contain its new sequence number parameter and the
following information for each new route: the number of hops required to reach the destination,
the new sequence number and the destination address.
3.5. Opitmized Link State Routing (OLSR) Protocol
OLSR protocol [22] is a pure link state protocol. Whenever there is any modification in the
topology then information is flooded to all nodes. This causes overheads and such overheads are
decreased by Multipoint relays (MPR). Two types of control messages are employed in OLSR;
they are topology control and hello messages. There is also Multiple Interface Declaration (MID)
packets which are employed for declaring other station that the declaring station can have several
OLSR interface addresses [23]. The MID message is broadcasted throughout the network only by
MPRs. Also there is a “Host and Network Association” (HNA) packet which gives the external
routing data by providing the possibility for routing to the external addresses.
4. SIMULATION ENVIRONMENT
4.1. Mobility Model
Mobility model describes changes in the stations velocity and acceleration over time and their
movement. Basic parameters related to node movement are mobility speed, number of nodes,
sending rate, pause time, number of connections, simulation duration. Mobility models can be
categorized in two types group and entity models. The motions of mobile stations in entity
models are independent from each other, but in group models the movements of stations are
dependent on each other [24].
In our article we chose the Random Waypoint Mobility, generated by the software BonnMotion
[25]. It is an entity model. A station in this model can select any random velocity and any random
destination. The station begins moving towards the chosen destination station. After obtaining the
destination station, the station stops for a small amount of time defined by the “Pause Time”
attribute and again the station repeats the process until the simulation stops.
4.2. Simulation Parameters
We elaborate the experiments for the evaluation of the performance of ad hoc routing protocols
AODV, DSR, DSDV, OLSR and DYMO with varying Number of Nodes. We have 30
simulations run in total out of which 30 trace files has been generated for Random Waypoint
Mobility each. We studied all performance metrics in our simulation under varying Number of
Nodes (20 to 70 Nodes) and while other attributes are fixed. Table 2 presents the simulation
parameters adapted to our simulation.
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
6
Table 2. Simulations parameters
4.3. NS-2 simulator
The network simulations have been performed using network simulator NS-2. The NS-2 is
software used to simulate discrete event for networks. It simulates events such as sending,
receiving, dropping and forwarding packets. The ns-allinone-2.34 [4] integrates simulation for
MANET routing protocols as AODV, DSR and DSDV. The simulation of protocols OLSR and
DYMO are based on the work presented in [26]. NS-2 is implemented in C++ programming
language with Object Tool Common Language.
Although NS-2. 34 can be implemented on different Operating Systems, for this article, we select
a Linux platform i.e. Ubuntu LTS 12.04, as Linux provides development tools as AWK [27] that
can be employed with the simulation. To run a NS-2.34 simulation, the user must write the OTCL
simulation script. NS-2 gives a visual presentation of the network by tracing stations movements
and events and writing them in a file named as Network Animator file (or NAM file) [4]. The
performance parameters are graphically visualized in MATLAB [28].
4.4. Performance Metrics
RFC2501 [29] illustrates a number of quantitative metrics that can be used for evaluating the
performance of MANET routing protocols. To analyze routing protocols (AODV, DSR, DSDV,
OLSR and DYMO), we have focused on four performance metrics for evaluation which are
Packet Delivery Ration, Average End to End Delay, Normalized Routing Load and Average
Throughput.
4.4.1. Packet Delivery Fraction
Packet Delivery Fraction is defined as the ratio of number of received information packets
successfully at the destinations statins over the number of information packets transmitted by the
sources stations. Packet Loss Fraction is defined as 1- Packet Delivery Fraction.
4.4.2. Average End to End Delay
The Average End to end delay is the average time from the sending of a packet at a source station
until packet delivery to a destination station. It contains all possible delays generated by queuing
at the interface queue, retransmission delays, propagation, transfer times of data and packets
buffering during route discovery process.
Parameters Value
Simulator NS-2.34
Data packet size 512 byte
Simulation duration 50 sec
Environnement size 500m Ă— 500m
Number of Nodes 20, 30, 40, 50, 60, 70
Pause Time 5 sec
MAC Layer Protocol IEEE 802.11
Traffic Type CBR
Number of connections 15
Maximum Mobility 20 m/s
Mobility Model Random Waypoint
Protocols AODV, DSR, DSDV, OLSR, DYMO
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
7
4.4.3. Normalized Routing Load
The Normalized Routing Load is the ratio of all routing control packets send by all sources nodes
to number of received data packets at the destination nodes.
4.4.4. Average Throughput
Average Throughput is defined as the average number of packets successfully obtained their
destinations per unit time. This parameter is calculated as the number of bits delivered per second.
5. SIMULATION RESULTS AND ANALYSIS
The results after simulation are viewed in five figures. The performance of routing protocols
based on the varying the Number of Node is done on parameters like Packet Delivery Ratio,
Average End to End Delay, Normalized Routing Load and Average Throughput.
5.1. Packet Delivery Ratio
From Figure 3, we note that DSDV protocol has the lowest Packet Delivery Ratio compared to
other protocol (AODV, DSR, OLSR and DYMO). DSR and AODV demonstrate good
performance (height Packet Delivery Ratio), but DSR is better than AODV. In comparing on-
demand protocols, DSR shows the highest and DYMO the lowest Packet Delivery Ratio. As
table-driven protocols, OLSR outperforms DSDV in terms of Packet Delivery Ratio.
Figure 3: Packet Delivery Ratio versus Number of Nodes
5.2. Average End to End Delay
Figure 4 shows that AODV protocol has the highest value of Average End to End Delay (low
performance) compared to other protocols. This figure does not precise the behavior of the
protocols: DSR, DSDV, OLSR and DYMO. For this reason we elaborate the Figure 5. From this
figure, the performance of DSR and DYMO as on-demand protocol are approximately the same.
It seems as table-driven protocols have the lowest Average End to End Delay than on-demand
protocols when we vary the Number of Nodes. OLSR and DSDV as table-driven protocols have
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
8
routing tables and they do not need to discover the route for the same destination (low value of
Average End to End Delay).
Figure 4: Average End of End Delay versus Number of Nodes
Figure 5: Average End of End Delay versus Number of Nodes
5.3. Normalized Routing Load
We remark from Figure 6 that when the Number of Nodes increase, the Normalized Routing
Load increases. DSR has the lowest value of Normalized Routing Load (good performance) while
the OLSR has the highest value (low performance). As driven-protocols, DSDV has better
performance than OLSR in terms of Normalized Routing Load. By considering only on-demand
protocols and the value of Normalized Routing Load observed, DSR outperforms other protocols
(AODV and DYMO) and DYMO demonstrates the lowest performance.
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
9
Figure 6: Normalized Routing Load versus Number of Nodes
5.4. Average Throughput
Figure 7 shows that DSDV demonstrates the lowest Average Throughput compared to other
protocols (low performance). DSR and AODV give a good performance (highest value of
Average Throughput). OLSR outperforms the other table-driven protocol DSDV in terms of
Average Throughput. DYMO compared to the other on-demand protocols (AODV and DSR) has
the lowest value of Average Throughput (low performance).
Figure 7: Average Throughput versus Number of Nodes
6. CONCLUSIONS
We study in this article several MANET routing protocols such as AODV, DSR, DSDV, OLSR
and DYMO. With the help of NS-2 simulation we compared these protocols under different
network conditions. By varying Number of Nodes, We measure Average Throughput, the Packet
Delivery Ratio, Normalised Routing Load and Average End to End Delay as performance
matrices.
In terms of Packet Delivery Ratio, AODV, DSR have higher value than other protocols (DSDV,
OLSR and DYMO). As table-driven protocols, DSDV and OLSR show the lowest Average End
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
10
to End Delay (good performance) compared to on-demand protocols (AODV, DSR and DYMO).
DSR demonstrates the lowest Normalised Routing Load than other protocols. In almost all
scenarios, AODV and DSR outperform other protocols (DSDV, OLSR and DYMO) in terms of
Average Throughput.
Our focus in the future work is to extend the set of the experiments by taking into consideration
other simulations parameters (propagation models, MAC protocols, etc.). Our future simulation
will be elaborated in NS-3[30]
REFERENCES
[1] Rahman A, Islam S, Talevski A., “Performance measurement of various routing protocols in ad-
hoc network”, In: Proceedings of the international multiconference of engineers and computer
scientists, vol. 1. Hong Kong: IMECS; 2009.
[2] Tyagi SS, Chauhan RK., “Performance analysis of proactive and reactive routing protocols for ad
hoc networks”, Int J Comput Appl 2010;1(14).
[3] Basagni S, Conti M, Giordano S, Stojmenovic I., “Mobile ad hoc networking”, A John wiley and
sons, Inc., Publication; 2004.
[4] NS -2, the ns Manual, Available at http: //www. isi.edu/nsnam/ns/doc.
[5] AkshaiAggarwal, SavitaGandhi, NirbhayChaubey, “Performance Analysis of AODV, DSDV and
DSR in MANETs”, IJDPS, Vol.2, No.6,. November 2011.
[6] P. Manickam T. Guru Baskar, M.Girija, Dr.D.Manimegala, “Performance Comparisons of
Routing Protocols in Mobile Ad Hoc Networks”, International Journal of Wireless & Mobile
Networks (IJWMN), pp. 98-106, February 2011.
[7] Sabina Barakovic, Suad Kasapovic, Jasmina Barakovic, “Comparison of MANET Routing
Protocols in Different Traffic and Mobility Models”, Telfor Journal, Vol. 2, No. 1, 2010.
[8] Guntupalli Lakshmikant, A Gaiwak, P.D. Vyavahare, “Simulation Based Comparative
Performance Analysis of Adhoc Routing Protocols”, In proceedings of TENCON 2008.
[9] Chenna Reddy, P.; ChandraSekhar Reddy, P., “Performance Analysis of Adhoc Network Routing
Protocolsˮ, ISAUHC„06, International Symposium on Ad Hoc andUbiquitous Computing, vol.,
no., pp.186-187, 20-23 Dec. 2006.
[10] Kapang Lego, Pranav Kumar Singh, Dipankar Sutradhar, “Comparative Study of Adhoc Routing
Protocol AODV, DSR and DSDV in Mobile Adhoc NETwork”, Indian Journal of Computer
Science and Engineering Vol. 1 No. 4 364-371, 2011.
[11] Ginni Tonk, Indu Kashyap, S.S. Tyagi, “Performance Comparison of Ad-Hoc Network Routing
Protocols using NS-2”, International Journal of Innovative Technology and Exploring Engineering
(IJITEE)ISSN: 2278-3075,Volume- 1, Issue-1, June 2012.
[12] Li Layuan, Li Chunlin, Yaun Peiyan, “Performance evaluation and simulation of routing protocols
in ad hocnetworks”, Computer Communications 30 (2007) 1890- 1898.
[13] Vijayalaskhmi M. Avinash Patel, Linganagouda Kulkarni, “QoS Parameter Analysis on AODV
and DSDV Protocols in a Wireless Network”, International Journal of Communication Network
and Security, Volume-1, Issue-1, 2011.
[14] Deepak Kumar, Ashutosh Srivastava, S C Gupta, “Performance Comparison of DSDV and AODV
Routing Protocols in MANETS”, International Journal of Electronics Communication and
Computer Technology (IJECCT) Volume 2 Issue 3, May 2012.
[15] Jun-Zhao Sun, “Mobile Ad Hoc Networking: An Essential Technology for Pervasive Computing”,
Proceedings of International conference on info-tech and info-net, Vol-3, pp. 316-321, 2001.
International Journal of UbiComp (IJU), Vol.6, No.2, April 2015
11
[16] C.E. Perkins and E.M. Royer, “Ad-hoc On-Demand Distance Vector Routing”, Proceeding of 2nd
IEEE Workshop, Mobile Computing System Applications, pp:90-100, 1999
[17] Perkins, E. Belding-Royer, and S. Das, “Ad hoc On-Demand Distance Vector (AODV) Routing,
“draft-ietf-manet-aodv-13.txt, Feb. 2003
[18] S. A. Ade1& P.A.Tijare, “Performance Comparison of AODV, DSDV, OLSR and DSR Routing
Protocols in Mobile Ad Hoc Networks”, International Journal of Information Technology and
Knowledge Management July-December 2010, Volume 2, No. 2, pp. 545-548.
[19] J. Broch, D. Jhonson, and D. Maltz, “The dynamic source routing protocol for mobile adhoc
networks for IPv4”, IETF RFC 4728, Feb 2007
[20] I. Chakeres and C. Perkins, “Dynamic MANET On-Demand (DYMO) Routing”, IETF Internet-
Draft, draft-ietf-manet-dymo-23, Oct. 2012
[21] Charles E. Perkins and Pravin Bhagwat, “Highly dynamic destination-sequenced distance-vector
routing (DSDV) for mobile computers”, Technical report, IBM Research and University of
Maryland, USA, 1994.
[22] T. Clausen and P. Jacquet, “Optimized link State Routing protocol (OLSR)”, RFC-3626, IETF
Networking Group, 2003.
[23] Aleksandr Huhtonen, “Comparing AODV and OLSR routing protocols”, Helsinki University of
Technology, Telecommunication software and multimedia laboratory, 2004.
[24] Valentina Timcenko, Mirjana Stojanovic, Slavica Bostjancic Rakas (2009), “MANET Routing
Protocols vs. Mobility Models: Performance Analysis and Comparison”, Proceedings of the 9th
WSEAS International Conference on Applied Informatics and Communications (AIC '09).
[25] BonnMotion: A mobility scenario generation and analysis tool, Available at
http://sys.cs.uos.de/bonnmotion/
[26] http://masimum.inf.um.es/fjrm/development/
[27] Robins A.D, “GAWK: an effective AWK programming”, 3rd ed, April 2010.
[28] MATLAB: The language of Technical Computing, Available at http://www.mathworks.com/
[29] S.Corson and J.Macker, “Routing Protocol Performance Issues and Evaluation considerations”,
RFC2501, IETF Network Working Group, January 1999.
[30] The NS-3 reference manual, Available at http://www.nsnam.org/
Authors
Mohamed elboukhari received the DESA (diploma of high study) degree in numerical analysis, computer
science and treatment of signal in 2005 from the University of Science, Oujda, Morocco. He is currently
an assistant professor, department of Applied Engineering, ESTO, university Mohamed First, Oujda,
Morocco. His research interests include cryptography, quantum cryptography and wireless network
security, Mobile Ad Hoc Networks (MANETS).
Mostafa azizi received the diploma of engineer in automatic and computer industry in 1993 from school
Mohammadia of engineers, Rabat, Morocco and he received the Ph. D in computer science in 2001 from
the university Montreal, Canada. He is currently professor at university of Mohamed first, Oujda,
Morocco. His main interests include aspect of real time, embedded system, security and communication
and management of the computer systems in relation with process industry.
Abdelmalek azizi received the Ph. D in theory of numbers in 1993 from university Laval, Canada. He is
professor at department of mathematics in university Mohamed First, Oujda, Morocco. He is interesting
in history of mathematics in Morocco and in the application of the theory of number in cryptography.

More Related Content

What's hot

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...ijceronline

Load aware and load balancing using aomdv routing in manet
Load aware and load balancing using aomdv routing in manetLoad aware and load balancing using aomdv routing in manet
Load aware and load balancing using aomdv routing in manetijctet

Bh4103368374
Bh4103368374Bh4103368374
Bh4103368374IJERA Editor

Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...
Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...
Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...IOSR Journals

ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...
ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...
ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...ijwmn

Comparative and Behavioral Study on VANET Routing Protocols
Comparative and Behavioral Study on VANET Routing ProtocolsComparative and Behavioral Study on VANET Routing Protocols
Comparative and Behavioral Study on VANET Routing ProtocolsIOSR Journals

Analysis of FSR, LANMAR and DYMO under MANET
Analysis of FSR, LANMAR and DYMO under MANETAnalysis of FSR, LANMAR and DYMO under MANET
Analysis of FSR, LANMAR and DYMO under MANETidescitation

Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross Layer
Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross LayerDelay Sensitive Packet Scheduling Algorithm for MANETs by Cross Layer
Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross LayerAM Publications

IJCER (www.ijceronline.com) International Journal of computational Engineeri...
 IJCER (www.ijceronline.com) International Journal of computational Engineeri... IJCER (www.ijceronline.com) International Journal of computational Engineeri...
IJCER (www.ijceronline.com) International Journal of computational Engineeri...ijceronline

Rsaodv a route stability based ad hoc on demand distance vector routing prot...
Rsaodv  a route stability based ad hoc on demand distance vector routing prot...Rsaodv  a route stability based ad hoc on demand distance vector routing prot...
Rsaodv a route stability based ad hoc on demand distance vector routing prot...ijwmn


What's hot (15)

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...

Load aware and load balancing using aomdv routing in manet
Load aware and load balancing using aomdv routing in manetLoad aware and load balancing using aomdv routing in manet
Load aware and load balancing using aomdv routing in manet

E010322531
E010322531E010322531
E010322531

10.1.1.258.7234
10.1.1.258.723410.1.1.258.7234
10.1.1.258.7234

En33838844
En33838844En33838844
En33838844

Bh4103368374
Bh4103368374Bh4103368374
Bh4103368374

Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...
Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...
Improvement of QoS Contained by AODV Routing Protocol On the Basis of Varying...

ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...
ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...
ENERGY AND PERFORMANCE EVALUATION OF REACTIVE, PROACTIVE, AND HYBRID ROUTING ...

C 16
C 16C 16
C 16

Comparative and Behavioral Study on VANET Routing Protocols
Comparative and Behavioral Study on VANET Routing ProtocolsComparative and Behavioral Study on VANET Routing Protocols
Comparative and Behavioral Study on VANET Routing Protocols

Analysis of FSR, LANMAR and DYMO under MANET
Analysis of FSR, LANMAR and DYMO under MANETAnalysis of FSR, LANMAR and DYMO under MANET
Analysis of FSR, LANMAR and DYMO under MANET

IMPROVING RELIABLE DATA TRANSFER IN MOBILE ADHOC NETWORKS USING THE PRINCIPLE...
IMPROVING RELIABLE DATA TRANSFER IN MOBILE ADHOC NETWORKS USING THE PRINCIPLE...IMPROVING RELIABLE DATA TRANSFER IN MOBILE ADHOC NETWORKS USING THE PRINCIPLE...
IMPROVING RELIABLE DATA TRANSFER IN MOBILE ADHOC NETWORKS USING THE PRINCIPLE...

Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross Layer
Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross LayerDelay Sensitive Packet Scheduling Algorithm for MANETs by Cross Layer
Delay Sensitive Packet Scheduling Algorithm for MANETs by Cross Layer

IJCER (www.ijceronline.com) International Journal of computational Engineeri...
 IJCER (www.ijceronline.com) International Journal of computational Engineeri... IJCER (www.ijceronline.com) International Journal of computational Engineeri...
IJCER (www.ijceronline.com) International Journal of computational Engineeri...

Rsaodv a route stability based ad hoc on demand distance vector routing prot...
Rsaodv  a route stability based ad hoc on demand distance vector routing prot...Rsaodv  a route stability based ad hoc on demand distance vector routing prot...
Rsaodv a route stability based ad hoc on demand distance vector routing prot...


Similar to Performance comparison of routing protocols in mobile ad hoc networks

COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSCOMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSijcax

COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSCOMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSijcax

A new parameter proposed for route selection in routing protocol
A new parameter proposed for route selection in routing protocolA new parameter proposed for route selection in routing protocol
A new parameter proposed for route selection in routing protocolIAEME Publication

Progressive Routing Protocol using Hybrid Analysis for MANETs
Progressive Routing Protocol using Hybrid Analysis for MANETsProgressive Routing Protocol using Hybrid Analysis for MANETs
Progressive Routing Protocol using Hybrid Analysis for MANETsidescitation

Improvement over aodv routing protocol in vanet
Improvement over aodv routing protocol in vanetImprovement over aodv routing protocol in vanet
Improvement over aodv routing protocol in vanetIAEME Publication

EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...
EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...
EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...cscpconf

Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...ijdpsjournal

Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...ijdpsjournal

Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...
Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...
Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...pijans

Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...
Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...
Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...IOSR Journals

A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETs
A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETsA SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETs
A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETspijans

T HE I MPACT OF TCP C ONGESTION W INDOW S IZE ON THE P ERFORMANCE E VA...
T HE  I MPACT OF  TCP C ONGESTION  W INDOW  S IZE  ON THE  P ERFORMANCE  E VA...T HE  I MPACT OF  TCP C ONGESTION  W INDOW  S IZE  ON THE  P ERFORMANCE  E VA...
T HE I MPACT OF TCP C ONGESTION W INDOW S IZE ON THE P ERFORMANCE E VA...ijwmn

Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...
Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...
Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...IRJET Journal

Effect of node mobility onaomdv protocol in manet
Effect of node mobility onaomdv protocol in manetEffect of node mobility onaomdv protocol in manet
Effect of node mobility onaomdv protocol in manetijwmn

A Performance Comparison of Routing Protocols for Ad Hoc Networks
A Performance Comparison of Routing Protocols for Ad Hoc NetworksA Performance Comparison of Routing Protocols for Ad Hoc Networks
A Performance Comparison of Routing Protocols for Ad Hoc NetworksIJERA Editor

Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...
Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...
Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...ijwmn

Simulation based comparison of routing protocols in wireless multihop ad hoc ...
Simulation based comparison of routing protocols in wireless multihop ad hoc ...Simulation based comparison of routing protocols in wireless multihop ad hoc ...
Simulation based comparison of routing protocols in wireless multihop ad hoc ...IJECEIAES

Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)
Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)
Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)IJMER


Similar to Performance comparison of routing protocols in mobile ad hoc networks (20)

COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSCOMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS

COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSCOMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
COMPARATIVE ANALYSIS OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS

A new parameter proposed for route selection in routing protocol
A new parameter proposed for route selection in routing protocolA new parameter proposed for route selection in routing protocol
A new parameter proposed for route selection in routing protocol

J0935461
J0935461J0935461
J0935461

Progressive Routing Protocol using Hybrid Analysis for MANETs
Progressive Routing Protocol using Hybrid Analysis for MANETsProgressive Routing Protocol using Hybrid Analysis for MANETs
Progressive Routing Protocol using Hybrid Analysis for MANETs

Improvement over aodv routing protocol in vanet
Improvement over aodv routing protocol in vanetImprovement over aodv routing protocol in vanet
Improvement over aodv routing protocol in vanet

EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...
EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...
EVALUATION OF PROACTIVE, REACTIVE AND HYBRID AD HOC ROUTING PROTOCOL FOR IEEE...

Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...

Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...Survey comparison estimation of various routing protocols in mobile ad hoc ne...
Survey comparison estimation of various routing protocols in mobile ad hoc ne...

Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...
Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...
Performance Evaluation AODV, DYMO, OLSR and ZRPAD Hoc Routing Protocol for IE...

Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...
Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...
Analyzing the Effect of Varying CBR on AODV, DSR, IERP Routing Protocols in M...

A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETs
A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETsA SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETs
A SURVEY OF ENHANCED ROUTING PROTOCOLS FOR MANETs

T HE I MPACT OF TCP C ONGESTION W INDOW S IZE ON THE P ERFORMANCE E VA...
T HE  I MPACT OF  TCP C ONGESTION  W INDOW  S IZE  ON THE  P ERFORMANCE  E VA...T HE  I MPACT OF  TCP C ONGESTION  W INDOW  S IZE  ON THE  P ERFORMANCE  E VA...
T HE I MPACT OF TCP C ONGESTION W INDOW S IZE ON THE P ERFORMANCE E VA...

Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...
Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...
Review and Analysis of Reactive Routing Protocols: AODV, DSR, TORA and DYMO i...

Effect of node mobility onaomdv protocol in manet
Effect of node mobility onaomdv protocol in manetEffect of node mobility onaomdv protocol in manet
Effect of node mobility onaomdv protocol in manet

A Performance Comparison of Routing Protocols for Ad Hoc Networks
A Performance Comparison of Routing Protocols for Ad Hoc NetworksA Performance Comparison of Routing Protocols for Ad Hoc Networks
A Performance Comparison of Routing Protocols for Ad Hoc Networks

K017426872
K017426872K017426872
K017426872

Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...
Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...
Quality of Service Routing in Mobile Ad Hoc Networks Using Location and Energ...

Simulation based comparison of routing protocols in wireless multihop ad hoc ...
Simulation based comparison of routing protocols in wireless multihop ad hoc ...Simulation based comparison of routing protocols in wireless multihop ad hoc ...
Simulation based comparison of routing protocols in wireless multihop ad hoc ...

Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)
Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)
Experiment of Routing Protocol AODV (AdHoc On-demand Distance Vector)


More from ijujournal

Users Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIUsers Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIijujournal

Users Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIUsers Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIijujournal

October 2023-Top Cited Articles in IJU.pdf
October 2023-Top Cited Articles in IJU.pdfOctober 2023-Top Cited Articles in IJU.pdf
October 2023-Top Cited Articles in IJU.pdfijujournal

ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERS
ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERSACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERS
ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERSijujournal

A novel integrated approach for handling anomalies in RFID data
A novel integrated approach for handling anomalies in RFID dataA novel integrated approach for handling anomalies in RFID data
A novel integrated approach for handling anomalies in RFID dataijujournal

UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...
UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...
UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...ijujournal

ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIES
ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIESENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIES
ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIESijujournal

HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCE
HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCEHMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCE
HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCEijujournal

SERVICE DISCOVERY – A SURVEY AND COMPARISON
SERVICE DISCOVERY – A SURVEY AND COMPARISONSERVICE DISCOVERY – A SURVEY AND COMPARISON
SERVICE DISCOVERY – A SURVEY AND COMPARISONijujournal

SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKS
SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKSSIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKS
SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKSijujournal

International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)ijujournal

PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...
PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...
PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...ijujournal

A proposed Novel Approach for Sentiment Analysis and Opinion Mining
A proposed Novel Approach for Sentiment Analysis and Opinion MiningA proposed Novel Approach for Sentiment Analysis and Opinion Mining
A proposed Novel Approach for Sentiment Analysis and Opinion Miningijujournal

International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)ijujournal

USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...
USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...
USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...ijujournal

SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCS
SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCSSECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCS
SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCSijujournal

PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSPERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSijujournal

PERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSPERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSijujournal

PERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSPERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSijujournal

DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2R
DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2RDETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2R
DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2Rijujournal


More from ijujournal (20)

Users Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIUsers Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase II

Users Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase IIUsers Approach on Providing Feedback for Smart Home Devices – Phase II
Users Approach on Providing Feedback for Smart Home Devices – Phase II

October 2023-Top Cited Articles in IJU.pdf
October 2023-Top Cited Articles in IJU.pdfOctober 2023-Top Cited Articles in IJU.pdf
October 2023-Top Cited Articles in IJU.pdf

ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERS
ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERSACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERS
ACCELERATION DETECTION OF LARGE (PROBABLY) PRIME NUMBERS

A novel integrated approach for handling anomalies in RFID data
A novel integrated approach for handling anomalies in RFID dataA novel integrated approach for handling anomalies in RFID data
A novel integrated approach for handling anomalies in RFID data

UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...
UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...
UBIQUITOUS HEALTHCARE MONITORING SYSTEM USING INTEGRATED TRIAXIAL ACCELEROMET...

ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIES
ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIESENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIES
ENHANCING INDEPENDENT SENIOR LIVING THROUGH SMART HOME TECHNOLOGIES

HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCE
HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCEHMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCE
HMR LOG ANALYZER: ANALYZE WEB APPLICATION LOGS OVER HADOOP MAPREDUCE

SERVICE DISCOVERY – A SURVEY AND COMPARISON
SERVICE DISCOVERY – A SURVEY AND COMPARISONSERVICE DISCOVERY – A SURVEY AND COMPARISON
SERVICE DISCOVERY – A SURVEY AND COMPARISON

SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKS
SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKSSIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKS
SIX DEGREES OF SEPARATION TO IMPROVE ROUTING IN OPPORTUNISTIC NETWORKS

International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)

PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...
PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...
PERVASIVE COMPUTING APPLIED TO THE CARE OF PATIENTS WITH DEMENTIA IN HOMECARE...

A proposed Novel Approach for Sentiment Analysis and Opinion Mining
A proposed Novel Approach for Sentiment Analysis and Opinion MiningA proposed Novel Approach for Sentiment Analysis and Opinion Mining
A proposed Novel Approach for Sentiment Analysis and Opinion Mining

International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)International Journal of Ubiquitous Computing (IJU)
International Journal of Ubiquitous Computing (IJU)

USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...
USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...
USABILITY ENGINEERING OF GAMES: A COMPARATIVE ANALYSIS OF MEASURING EXCITEMEN...

SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCS
SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCSSECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCS
SECURED SMART SYSTEM DESING IN PERVASIVE COMPUTING ENVIRONMENT USING VCS

PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKSPERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS
PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS

PERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSPERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLS

PERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLSPERFORMANCE COMPARISON OF OCR TOOLS
PERFORMANCE COMPARISON OF OCR TOOLS

DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2R
DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2RDETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2R
DETERMINING THE NETWORK THROUGHPUT AND FLOW RATE USING GSR AND AAL2R


Recently uploaded

chaitra-1.pptx fake news detection using machine learning
chaitra-1.pptx  fake news detection using machine learningchaitra-1.pptx  fake news detection using machine learning
chaitra-1.pptx fake news detection using machine learningmisbanausheenparvam

Introduction and different types of Ethernet.pptx
Introduction and different types of Ethernet.pptxIntroduction and different types of Ethernet.pptx
Introduction and different types of Ethernet.pptxupamatechverse

main PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfidmain PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfidNikhilNagaraju

Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile serviceCall Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile servicerehmti665

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝soniya singh

MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINEMANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINESIVASHANKAR N

HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSHARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSRajkumarAkumalla

(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...ranjana rawat

High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escortsranjana rawat

Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxProcessing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxpranjaldaimarysona

HARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVHARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVRajaP95

(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...ranjana rawat

DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINEDJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINEslot gacor bisa pakai pulsa

Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Christo Ananth

the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxthe ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxhumanexperienceaaa

OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...
OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...
OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...Soham Mondal

Analog to Digital and Digital to Analog Converter
Analog to Digital and Digital to Analog ConverterAnalog to Digital and Digital to Analog Converter
Analog to Digital and Digital to Analog ConverterAbhinavSharma374939

Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxIntroduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxupamatechverse

Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur High Profile


Recently uploaded (20)

chaitra-1.pptx fake news detection using machine learning
chaitra-1.pptx  fake news detection using machine learningchaitra-1.pptx  fake news detection using machine learning
chaitra-1.pptx fake news detection using machine learning

Introduction and different types of Ethernet.pptx
Introduction and different types of Ethernet.pptxIntroduction and different types of Ethernet.pptx
Introduction and different types of Ethernet.pptx

main PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfidmain PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfid

Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile serviceCall Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝

MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINEMANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE

HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSHARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS

(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(SHREYA) Chakan Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...

High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts

Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxProcessing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx

HARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVHARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IV

(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...

DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINEDJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE

Roadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and RoutesRoadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and Routes

Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...

the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxthe ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx

OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...
OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...
OSVC_Meta-Data based Simulation Automation to overcome Verification Challenge...

Analog to Digital and Digital to Analog Converter
Analog to Digital and Digital to Analog ConverterAnalog to Digital and Digital to Analog Converter
Analog to Digital and Digital to Analog Converter

Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxIntroduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptx

Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts


Performance comparison of routing protocols in mobile ad hoc networks

  • 1. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 DOI:10.5121/iju.2015.6201 01 PERFORMANCE COMPARISON OF ROUTING PROTOCOLS IN MOBILE AD HOC NETWORKS Mohamed Elboukhari1 , Mostafa Azizi1 and Abdelmalek Azizi2,3 1 Department of Applied Engineering, ESTO, Oujda, Morocco 2 Departement Mathematics & Computer Science, FSO, Oujda, Morocco 3 Academy Hassan II of Sciences & Technology, Rabat, Morocco ABSTRACT Routing protocols have an important role in any Mobile Ad Hoc Network (MANET). Researchers have elaborated several routing protocols that possess different performance levels. In this paper we give a performance evaluation of AODV, DSR, DSDV, OLSR and DYMO routing protocols in Mobile Ad Hoc Networks (MANETS) to determine the best in different scenarios. We analyse these MANET routing protocols by using NS-2 simulator. We specify how the Number of Nodes parameter influences their performance. In this study, performance is calculated in terms of Packet Delivery Ratio, Average End to End Delay, Normalised Routing Load and Average Throughput. KEYWORDS Mobile Ad Hoc Networks (MANETs), Performance Comparaison, AODV, DSR, DSDV, OLSR, DYMO. 1. INTRODUCTION Actually Mobile Ad Hoc Network (MANET) is very used. A network of type MANET is a group of mobile stations sharing a radio transmission and they do not have any fixed centralized administration. MANET operates in a dynamic topology. Each station possesses limited resources such as processing power and battery. Mobile stations in MANET exchanges messages with each other in a multi-hop manner. Hence, a station transmits a packet to a destination to another node through intermediate mobile stations and each station may operate as an end point and also can operate as a router. Figure 1. Mobile stations operate in MANET as routers
  • 2. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 2 many work has been elaborated in the design of routing protocols in different kinds of ad hoc networks like MANETs (Mobile Ad Hoc Networks), VANETS (Vehicular Ad-Hoc Networks), WSNs (Wireless Sensor Networks), and WMNs (Wireless Mesh Networks) etc. [1]. Implementing the routing protocols is the main goal of the MANETs. For such implementations concepts of game-theoretic approach, dynamic control approach, information-theoretic approach, or ad hoc networks routing-based approach has been applied [2]. a station in MANETs can exchanges messages with other mobile stations whether they are in the same wireless channel or not. so, four essential functions are to be designed by the routing protocols: channel assignment, packet routing, network topology, scheduling and maintaining network connectivity. Routing protocols in MANETs are implemented with some basic objectives that are minimum control overhead, dynamic topology maintenance, multi-hop routing, loop prevention and minimum processing overhead [3]. The remainder of the article is organized as follows. We describe the related works in section 2, in section 3 we give a presentation of MANET routing protocols. In section 4, we describes simulation environment. The results of our simulation are analysed in section 5. Finally, in section 6 we conclude the paper. 2. RELATED WORKS Several works have been done concerning the performance evaluation of many MANET routing protocols. We focus on those works performed by network simulator NS-2[4]. Table 1 shows that comparative performance evaluation for all the parameters namely Packet Delivery Ratio, Throughput, Average End to End Delay, Jitter, Routing Load, and Routing Frequency among the routing protocols have not been done in a single paper. Table 1. Performance analysis of MANET routing protocols. Ref. no Protocols used Performance metrics Variable Parameters [5] AODV, DSR, DSDV End to End Delay, Packet Delivery Ratio, Normalized routing load, Throughput Mobility [6] AODV, DSR, DSDV End to End Delay, Packet Delivery Ratio, Throughput Number of nodes [7] AODV, DSR, DSDV Packet Delivery Ratio, End to End Delay, Normalized Routing Load Pause time, Mobility and Sending rate [8] AODV, DSR, DSDV Average End to End Delay, Normalized Routing Load, Packet Delivery Ratio, Number of Nodes, Speed, Pause time, Transmission Power [9] DSDV, AODV, DSR, TORA Throughput, Routing Overhead, Path Optimality, Packet Loss, Average delay Traffic Load, Movement patterns [10] AODV, DSR, DSDV Packet Delivery Ratio, Average End to End Delay, Routing Overhead Pause time [11] AODV, DSR, DSDV Packet Delivery Ratio, Average End to End Delay, Normalized Routing Load Pause time, Number of nodes and mobility [12] DSDV, AODV, DSR, TORA Average Delay,Jitter, Routing Load, Loss Ratio, Throughput and Connectivity Network size [13] DSDV, AODV Packet Delivery Fraction, Average End to End Delay, Throughput Number on nodes, Speed, Time [14] AODV, DSDV Packet Delivery Ratio, Average End to End Delay Mobility of nodes
  • 3. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 3 In our article, we will compare five MANET protocols (AODV, DSR, DSDV, OLSR, and DYMO). There is no work in our knowledge in the literature which deals with these five MANET routing protocols by considering the variation of Number of Nodes parameter. 3. ROUTING PROTOCOLS IN MANET The MANET routing protocols are divided into three classifications depending to their performance and functionality: Table-driven (Proactive) routing protocols, On-demand (Reactive) routing protocols and Hybrid routing protocols [15]. Proactive Routing Protocols: The routing data in these MANET protocols is organised in tables stored by each station. The tables must be updated because the network topology is changing dynamically. These protocols are employed where the route requirements are frequent. FSR, STAR, GSR, DSDV, OLSR, CGSR and WRP are the examples. Reactive Routing Protocols: These routing protocols choose routes to other stations only when they are needed. A route discovery process is lunched when a station wants to communicate with another station for which it does not possess any route table access. AODV, DSR, LAR, TORA, CBRP and ARA are the examples. Hybrid Routing Protocols: These MANET protocols employ functionality of both the reactive and proactive protocols. For illustration, proactive protocols could be employed between networks and reactive protocols inside the networks. DST, ZRP, DDR, ZHLS are the examples. Figure 2. Examples of MANET Routing Protocols 3.1. Ad-hoc On-Demand distance Vector routing protocol (AODV) AODV [16, 17] is a MANET routing protocol which employs an on-demand approach to find routes, that is, a route is discovered only when it is needed by a source statin. AODV uses sequence numbers to make certain freshness of routes. AODV employs route request (RREQ) packets broadcasted through the group of connections to discover the paths needed by a source station. it allows stations to find routes very fast for new destinations, and does not need stations to store routes to destinations which are not moving. AODV aids stations to operate in response to an alteration in network topology and link breakages quickly and the AODV operation is loop- free [18]. When a route to a new station is demanded, the source broadcasts a RREQ packet to discover a route to the needed destination. A transitional station that captures a RREQ replies to it using a route reply packet only if it has a route to the destination station whose analogous destination sequence number is greater or equal to the one presented in the RREQ packet. Another important point to mention is that the RREQ also contains the most recent sequence number for the destination of which the source node is responsive. A station capturing the RREQ packet can transmit a route reply (RREP) packet if it is either the destination station or if it
  • 4. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 4 possesses a route to the destination station with equivalent sequence number greater than or equal to that appeared in the RREQ packet. In this case, it sends (unicasts) a RREP reverse to the source station. Otherwise, it rebroadcasts the RREQ message. Nodes store track of the RREQ‟s source IP address and broadcast ID. 3.2. Dynamic Source Routing (DSR) Dynamic Source Routing (DSR) [19] is a wireless mesh networks routing protocol. Its implementation is based on a method named “source routingË®. DSR aids the network to be completely self-configuring and self-organizing. The Dynamic Source Routing protocol possesses two main mechanisms route discovery and route maintenance. In the route discovery process a source node wishing to drive a packet to a destination node, as certain a source route to the destination. In route maintenance process a station which wants to send a message to a destination is capable to perceive, while employing a source route to the destination, if the network topology has changed such that it can no longer make use of its route to destination station. In case when Route Maintenance shows a source route is no longer work, source station can try to employ any other route, or it can lunch route discovery mechanism again to determine a new route for subsequent packets to destination station. 3.3. Dynamic MANET On-Demand Routing Protocol (DYMO) DYMO [20] uses large variety of mobility patterns by finding dynamically routes on-demand. It also manages a wide selection of traffic patterns. The fundamental functionality of DYMO are route discovery and route maintenance. In the route discovery, a DYMO router lunches a Route Request packet (RREQ) to find a route to a destination station. During the hop-by-hop broadcasting mechanism, each intermediate DYMO router receiving the RREQ packet stores a route to the originator station. When the target‟s DYMO router captures the RREQ packet, it stores a route to the originator station and unicasts using a Route Reply (RREP) hop-by-hop through the originating DYMO router. Each transitional DYMO router that captures the RREP packet prepares a route to the target station, and then the RREP packet is unicast hop-by-hop through the originator. When the originator‟s DYMO router receives finally the RREP packet, routes have been established between the the target DYMO router and originating DYMO router in two directions. Route maintenance is composed of two operations. To maintain routes in use, DYMO routers increase life of route upon successfully forwarding a packet. To operate in response to the modifications in network topology, DYMO routers monitor traffic being forwarded. When a packet is received to be forwarded and a route for the destination station is not determined or the route is broken down, hence the DYMO router of the source station of the packet is notified. A Route Error (RERR) is transmitted to point out the route to one or more disrupted destination addresses is misplaced or broken. When the source‟s DYMO router captures the RERR packet, it considers the route as broken. Before the DYMO router can forward a message to the same destination station, it must lunch the route discovery again for the destination station. 3.4. Destination Sequenced Distance Vector (DSDV) Protocol DSDV [21] is one of the examples of proactive protocol. DSDV adds a new parameter, sequence number, to each route table at each station. Each node maintains a routing table at its own and which aids in packet transmission.
  • 5. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 5 For the transmission of packets each node stores routing table. The routing possesses the data for the connectivity to many nodes. These nodes provide all the number of stations (hops) and the available destinations needed to obtain each destination station in the routing table. The routing entry is tagged with a sequence number which is originated by the destination node. Each station sends and updates its routing table periodically. The messages being flooded between stations show a list of accessible nodes and the number of stations needed to obtain that particular node. Routing information is broadcast periodically by broadcasting or multicasting the packets. Each mobile station in DSDV protocol must publish its data routing table to its neighboring nodes. As the information in the table may change frequently, the advertisement should be done on the continuous basis so that every station can locate its neighbors in the network. It ensures the shortest number of nodes (hops) required from source station to a destination station. The information flooded by each node will contain its new sequence number parameter and the following information for each new route: the number of hops required to reach the destination, the new sequence number and the destination address. 3.5. Opitmized Link State Routing (OLSR) Protocol OLSR protocol [22] is a pure link state protocol. Whenever there is any modification in the topology then information is flooded to all nodes. This causes overheads and such overheads are decreased by Multipoint relays (MPR). Two types of control messages are employed in OLSR; they are topology control and hello messages. There is also Multiple Interface Declaration (MID) packets which are employed for declaring other station that the declaring station can have several OLSR interface addresses [23]. The MID message is broadcasted throughout the network only by MPRs. Also there is a “Host and Network Association” (HNA) packet which gives the external routing data by providing the possibility for routing to the external addresses. 4. SIMULATION ENVIRONMENT 4.1. Mobility Model Mobility model describes changes in the stations velocity and acceleration over time and their movement. Basic parameters related to node movement are mobility speed, number of nodes, sending rate, pause time, number of connections, simulation duration. Mobility models can be categorized in two types group and entity models. The motions of mobile stations in entity models are independent from each other, but in group models the movements of stations are dependent on each other [24]. In our article we chose the Random Waypoint Mobility, generated by the software BonnMotion [25]. It is an entity model. A station in this model can select any random velocity and any random destination. The station begins moving towards the chosen destination station. After obtaining the destination station, the station stops for a small amount of time defined by the “Pause Time” attribute and again the station repeats the process until the simulation stops. 4.2. Simulation Parameters We elaborate the experiments for the evaluation of the performance of ad hoc routing protocols AODV, DSR, DSDV, OLSR and DYMO with varying Number of Nodes. We have 30 simulations run in total out of which 30 trace files has been generated for Random Waypoint Mobility each. We studied all performance metrics in our simulation under varying Number of Nodes (20 to 70 Nodes) and while other attributes are fixed. Table 2 presents the simulation parameters adapted to our simulation.
  • 6. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 6 Table 2. Simulations parameters 4.3. NS-2 simulator The network simulations have been performed using network simulator NS-2. The NS-2 is software used to simulate discrete event for networks. It simulates events such as sending, receiving, dropping and forwarding packets. The ns-allinone-2.34 [4] integrates simulation for MANET routing protocols as AODV, DSR and DSDV. The simulation of protocols OLSR and DYMO are based on the work presented in [26]. NS-2 is implemented in C++ programming language with Object Tool Common Language. Although NS-2. 34 can be implemented on different Operating Systems, for this article, we select a Linux platform i.e. Ubuntu LTS 12.04, as Linux provides development tools as AWK [27] that can be employed with the simulation. To run a NS-2.34 simulation, the user must write the OTCL simulation script. NS-2 gives a visual presentation of the network by tracing stations movements and events and writing them in a file named as Network Animator file (or NAM file) [4]. The performance parameters are graphically visualized in MATLAB [28]. 4.4. Performance Metrics RFC2501 [29] illustrates a number of quantitative metrics that can be used for evaluating the performance of MANET routing protocols. To analyze routing protocols (AODV, DSR, DSDV, OLSR and DYMO), we have focused on four performance metrics for evaluation which are Packet Delivery Ration, Average End to End Delay, Normalized Routing Load and Average Throughput. 4.4.1. Packet Delivery Fraction Packet Delivery Fraction is defined as the ratio of number of received information packets successfully at the destinations statins over the number of information packets transmitted by the sources stations. Packet Loss Fraction is defined as 1- Packet Delivery Fraction. 4.4.2. Average End to End Delay The Average End to end delay is the average time from the sending of a packet at a source station until packet delivery to a destination station. It contains all possible delays generated by queuing at the interface queue, retransmission delays, propagation, transfer times of data and packets buffering during route discovery process. Parameters Value Simulator NS-2.34 Data packet size 512 byte Simulation duration 50 sec Environnement size 500m Ă— 500m Number of Nodes 20, 30, 40, 50, 60, 70 Pause Time 5 sec MAC Layer Protocol IEEE 802.11 Traffic Type CBR Number of connections 15 Maximum Mobility 20 m/s Mobility Model Random Waypoint Protocols AODV, DSR, DSDV, OLSR, DYMO
  • 7. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 7 4.4.3. Normalized Routing Load The Normalized Routing Load is the ratio of all routing control packets send by all sources nodes to number of received data packets at the destination nodes. 4.4.4. Average Throughput Average Throughput is defined as the average number of packets successfully obtained their destinations per unit time. This parameter is calculated as the number of bits delivered per second. 5. SIMULATION RESULTS AND ANALYSIS The results after simulation are viewed in five figures. The performance of routing protocols based on the varying the Number of Node is done on parameters like Packet Delivery Ratio, Average End to End Delay, Normalized Routing Load and Average Throughput. 5.1. Packet Delivery Ratio From Figure 3, we note that DSDV protocol has the lowest Packet Delivery Ratio compared to other protocol (AODV, DSR, OLSR and DYMO). DSR and AODV demonstrate good performance (height Packet Delivery Ratio), but DSR is better than AODV. In comparing on- demand protocols, DSR shows the highest and DYMO the lowest Packet Delivery Ratio. As table-driven protocols, OLSR outperforms DSDV in terms of Packet Delivery Ratio. Figure 3: Packet Delivery Ratio versus Number of Nodes 5.2. Average End to End Delay Figure 4 shows that AODV protocol has the highest value of Average End to End Delay (low performance) compared to other protocols. This figure does not precise the behavior of the protocols: DSR, DSDV, OLSR and DYMO. For this reason we elaborate the Figure 5. From this figure, the performance of DSR and DYMO as on-demand protocol are approximately the same. It seems as table-driven protocols have the lowest Average End to End Delay than on-demand protocols when we vary the Number of Nodes. OLSR and DSDV as table-driven protocols have
  • 8. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 8 routing tables and they do not need to discover the route for the same destination (low value of Average End to End Delay). Figure 4: Average End of End Delay versus Number of Nodes Figure 5: Average End of End Delay versus Number of Nodes 5.3. Normalized Routing Load We remark from Figure 6 that when the Number of Nodes increase, the Normalized Routing Load increases. DSR has the lowest value of Normalized Routing Load (good performance) while the OLSR has the highest value (low performance). As driven-protocols, DSDV has better performance than OLSR in terms of Normalized Routing Load. By considering only on-demand protocols and the value of Normalized Routing Load observed, DSR outperforms other protocols (AODV and DYMO) and DYMO demonstrates the lowest performance.
  • 9. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 9 Figure 6: Normalized Routing Load versus Number of Nodes 5.4. Average Throughput Figure 7 shows that DSDV demonstrates the lowest Average Throughput compared to other protocols (low performance). DSR and AODV give a good performance (highest value of Average Throughput). OLSR outperforms the other table-driven protocol DSDV in terms of Average Throughput. DYMO compared to the other on-demand protocols (AODV and DSR) has the lowest value of Average Throughput (low performance). Figure 7: Average Throughput versus Number of Nodes 6. CONCLUSIONS We study in this article several MANET routing protocols such as AODV, DSR, DSDV, OLSR and DYMO. With the help of NS-2 simulation we compared these protocols under different network conditions. By varying Number of Nodes, We measure Average Throughput, the Packet Delivery Ratio, Normalised Routing Load and Average End to End Delay as performance matrices. In terms of Packet Delivery Ratio, AODV, DSR have higher value than other protocols (DSDV, OLSR and DYMO). As table-driven protocols, DSDV and OLSR show the lowest Average End
  • 10. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 10 to End Delay (good performance) compared to on-demand protocols (AODV, DSR and DYMO). DSR demonstrates the lowest Normalised Routing Load than other protocols. In almost all scenarios, AODV and DSR outperform other protocols (DSDV, OLSR and DYMO) in terms of Average Throughput. Our focus in the future work is to extend the set of the experiments by taking into consideration other simulations parameters (propagation models, MAC protocols, etc.). Our future simulation will be elaborated in NS-3[30] REFERENCES [1] Rahman A, Islam S, Talevski A., “Performance measurement of various routing protocols in ad- hoc network”, In: Proceedings of the international multiconference of engineers and computer scientists, vol. 1. Hong Kong: IMECS; 2009. [2] Tyagi SS, Chauhan RK., “Performance analysis of proactive and reactive routing protocols for ad hoc networks”, Int J Comput Appl 2010;1(14). [3] Basagni S, Conti M, Giordano S, Stojmenovic I., “Mobile ad hoc networking”, A John wiley and sons, Inc., Publication; 2004. [4] NS -2, the ns Manual, Available at http: //www. isi.edu/nsnam/ns/doc. [5] AkshaiAggarwal, SavitaGandhi, NirbhayChaubey, “Performance Analysis of AODV, DSDV and DSR in MANETs”, IJDPS, Vol.2, No.6,. November 2011. [6] P. Manickam T. Guru Baskar, M.Girija, Dr.D.Manimegala, “Performance Comparisons of Routing Protocols in Mobile Ad Hoc Networks”, International Journal of Wireless & Mobile Networks (IJWMN), pp. 98-106, February 2011. [7] Sabina Barakovic, Suad Kasapovic, Jasmina Barakovic, “Comparison of MANET Routing Protocols in Different Traffic and Mobility Models”, Telfor Journal, Vol. 2, No. 1, 2010. [8] Guntupalli Lakshmikant, A Gaiwak, P.D. Vyavahare, “Simulation Based Comparative Performance Analysis of Adhoc Routing Protocols”, In proceedings of TENCON 2008. [9] Chenna Reddy, P.; ChandraSekhar Reddy, P., “Performance Analysis of Adhoc Network Routing ProtocolsË®, ISAUHC„06, International Symposium on Ad Hoc andUbiquitous Computing, vol., no., pp.186-187, 20-23 Dec. 2006. [10] Kapang Lego, Pranav Kumar Singh, Dipankar Sutradhar, “Comparative Study of Adhoc Routing Protocol AODV, DSR and DSDV in Mobile Adhoc NETwork”, Indian Journal of Computer Science and Engineering Vol. 1 No. 4 364-371, 2011. [11] Ginni Tonk, Indu Kashyap, S.S. Tyagi, “Performance Comparison of Ad-Hoc Network Routing Protocols using NS-2”, International Journal of Innovative Technology and Exploring Engineering (IJITEE)ISSN: 2278-3075,Volume- 1, Issue-1, June 2012. [12] Li Layuan, Li Chunlin, Yaun Peiyan, “Performance evaluation and simulation of routing protocols in ad hocnetworks”, Computer Communications 30 (2007) 1890- 1898. [13] Vijayalaskhmi M. Avinash Patel, Linganagouda Kulkarni, “QoS Parameter Analysis on AODV and DSDV Protocols in a Wireless Network”, International Journal of Communication Network and Security, Volume-1, Issue-1, 2011. [14] Deepak Kumar, Ashutosh Srivastava, S C Gupta, “Performance Comparison of DSDV and AODV Routing Protocols in MANETS”, International Journal of Electronics Communication and Computer Technology (IJECCT) Volume 2 Issue 3, May 2012. [15] Jun-Zhao Sun, “Mobile Ad Hoc Networking: An Essential Technology for Pervasive Computing”, Proceedings of International conference on info-tech and info-net, Vol-3, pp. 316-321, 2001.
  • 11. International Journal of UbiComp (IJU), Vol.6, No.2, April 2015 11 [16] C.E. Perkins and E.M. Royer, “Ad-hoc On-Demand Distance Vector Routing”, Proceeding of 2nd IEEE Workshop, Mobile Computing System Applications, pp:90-100, 1999 [17] Perkins, E. Belding-Royer, and S. Das, “Ad hoc On-Demand Distance Vector (AODV) Routing, “draft-ietf-manet-aodv-13.txt, Feb. 2003 [18] S. A. Ade1& P.A.Tijare, “Performance Comparison of AODV, DSDV, OLSR and DSR Routing Protocols in Mobile Ad Hoc Networks”, International Journal of Information Technology and Knowledge Management July-December 2010, Volume 2, No. 2, pp. 545-548. [19] J. Broch, D. Jhonson, and D. Maltz, “The dynamic source routing protocol for mobile adhoc networks for IPv4”, IETF RFC 4728, Feb 2007 [20] I. Chakeres and C. Perkins, “Dynamic MANET On-Demand (DYMO) Routing”, IETF Internet- Draft, draft-ietf-manet-dymo-23, Oct. 2012 [21] Charles E. Perkins and Pravin Bhagwat, “Highly dynamic destination-sequenced distance-vector routing (DSDV) for mobile computers”, Technical report, IBM Research and University of Maryland, USA, 1994. [22] T. Clausen and P. Jacquet, “Optimized link State Routing protocol (OLSR)”, RFC-3626, IETF Networking Group, 2003. [23] Aleksandr Huhtonen, “Comparing AODV and OLSR routing protocols”, Helsinki University of Technology, Telecommunication software and multimedia laboratory, 2004. [24] Valentina Timcenko, Mirjana Stojanovic, Slavica Bostjancic Rakas (2009), “MANET Routing Protocols vs. Mobility Models: Performance Analysis and Comparison”, Proceedings of the 9th WSEAS International Conference on Applied Informatics and Communications (AIC '09). [25] BonnMotion: A mobility scenario generation and analysis tool, Available at http://sys.cs.uos.de/bonnmotion/ [26] http://masimum.inf.um.es/fjrm/development/ [27] Robins A.D, “GAWK: an effective AWK programming”, 3rd ed, April 2010. [28] MATLAB: The language of Technical Computing, Available at http://www.mathworks.com/ [29] S.Corson and J.Macker, “Routing Protocol Performance Issues and Evaluation considerations”, RFC2501, IETF Network Working Group, January 1999. [30] The NS-3 reference manual, Available at http://www.nsnam.org/ Authors Mohamed elboukhari received the DESA (diploma of high study) degree in numerical analysis, computer science and treatment of signal in 2005 from the University of Science, Oujda, Morocco. He is currently an assistant professor, department of Applied Engineering, ESTO, university Mohamed First, Oujda, Morocco. His research interests include cryptography, quantum cryptography and wireless network security, Mobile Ad Hoc Networks (MANETS). Mostafa azizi received the diploma of engineer in automatic and computer industry in 1993 from school Mohammadia of engineers, Rabat, Morocco and he received the Ph. D in computer science in 2001 from the university Montreal, Canada. He is currently professor at university of Mohamed first, Oujda, Morocco. His main interests include aspect of real time, embedded system, security and communication and management of the computer systems in relation with process industry. Abdelmalek azizi received the Ph. D in theory of numbers in 1993 from university Laval, Canada. He is professor at department of mathematics in university Mohamed First, Oujda, Morocco. He is interesting in history of mathematics in Morocco and in the application of the theory of number in cryptography.
