1. HIGH VOLTAGE
ENGINEERING
PASCHEN'S
LAW
IN SIMPLE
LAUNGUAGE
LEC # 08
BREAKDOWN
IN GASES

2. INTRODUCTION OF PASCHEN’S LAW
Louis Carl Heinrich
Friedrich Paschen
 Louis Carl Heinrich Friedrich
Paschen, was a German physicist,
known for his work on electrical
discharges.
 He is also known for the Paschen
series, a series of hydrogen spectral
lines in the infrared region that he first
observed in 1908.

3. PASCHEN'S LAW
Statement

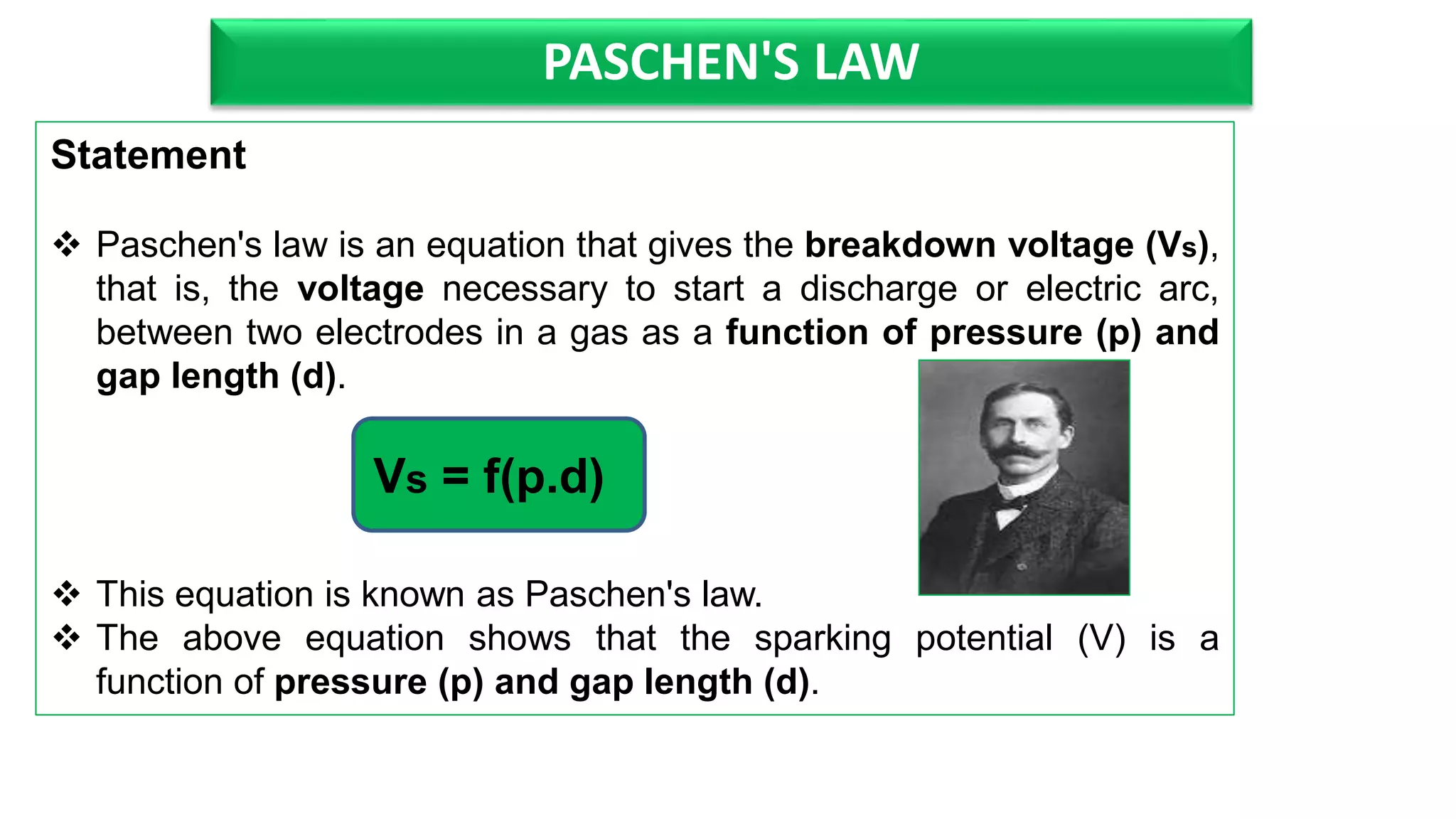

 Paschen's law is an equation that gives the breakdown voltage (Vs),
that is, the voltage necessary to start a discharge or electric arc,
between two electrodes in a gas as a function of pressure (p) and
gap length (d).
 This equation is known as Paschen's law.
 The above equation shows that the sparking potential (V) is a
function of pressure (p) and gap length (d).
Vs = f(p.d)

4. PASCHEN'S LAW CHARACTERISCTICS

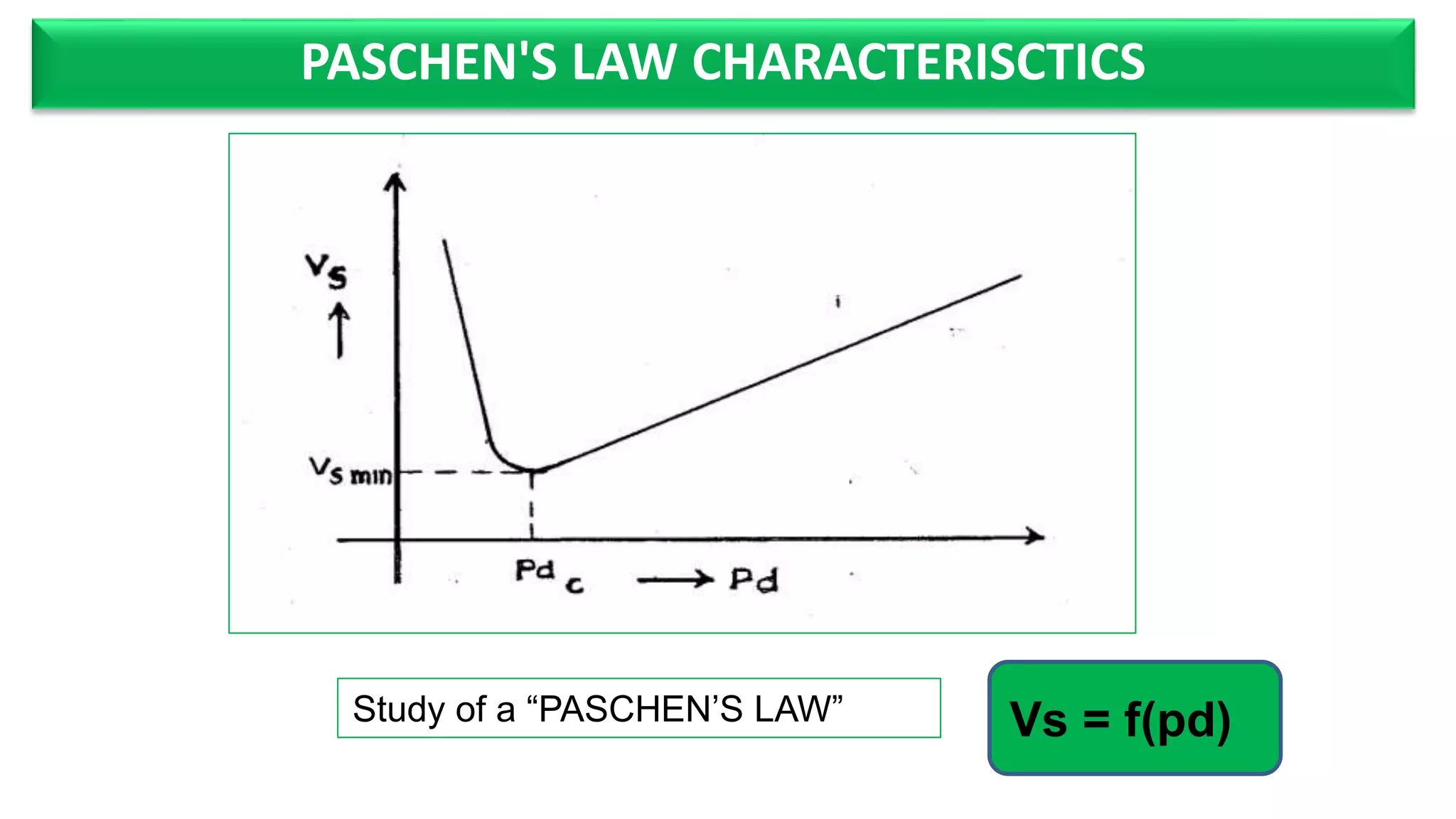

Study of a “PASCHEN’S LAW” Vs = f(pd)

5. PASCHEN'S LAW CHARACTERISCTICS

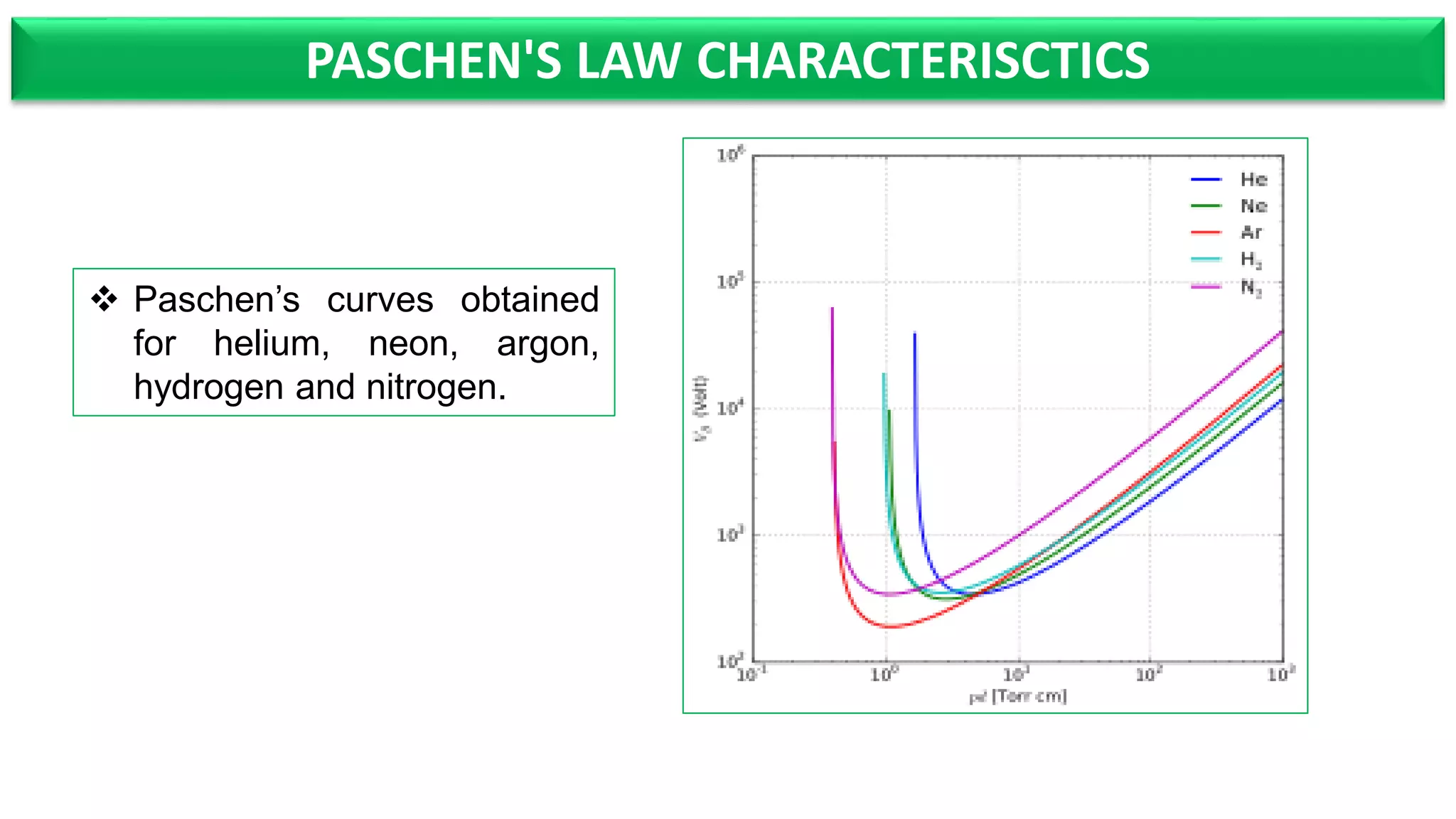

 Paschen’s curves obtained
for helium, neon, argon,
hydrogen and nitrogen.

6. LIMITATIONS OF PASCHEN’S LAW

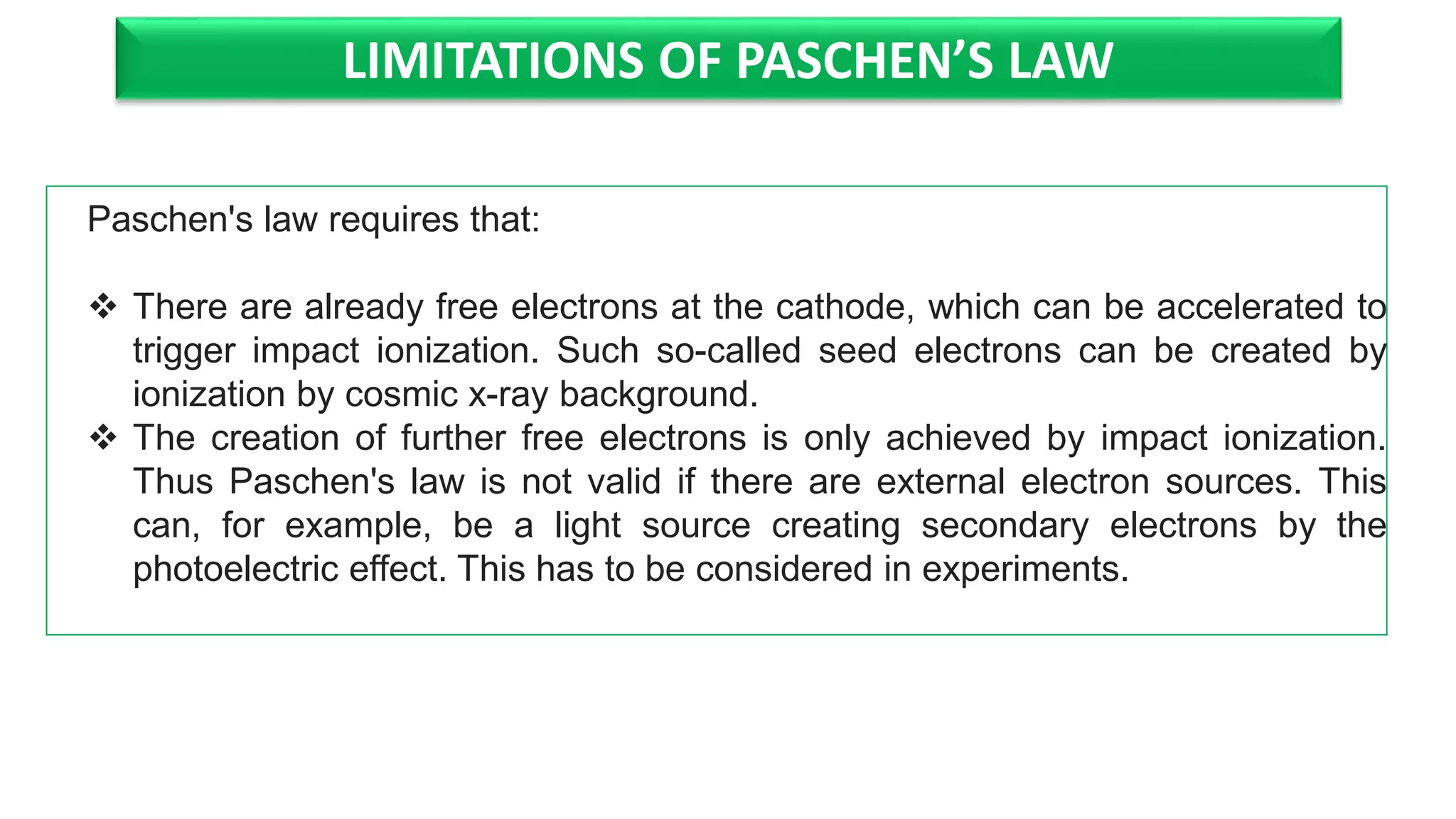

Paschen's law requires that:
 There are already free electrons at the cathode, which can be accelerated to
trigger impact ionization. Such so-called seed electrons can be created by
ionization by cosmic x-ray background.
 The creation of further free electrons is only achieved by impact ionization.
Thus Paschen's law is not valid if there are external electron sources. This
can, for example, be a light source creating secondary electrons by the
photoelectric effect. This has to be considered in experiments.
