- 1. Liquid Chromatography: University of Sindh Presentation by Partab Rai Research scholar 5 April 2013

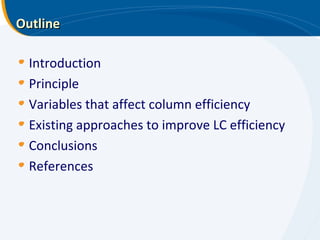

- 2. Outline Introduction Principle Variables that affect column efficiency Existing approaches to improve LC efficiency Conclusions References
- 3.

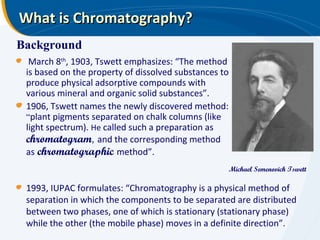

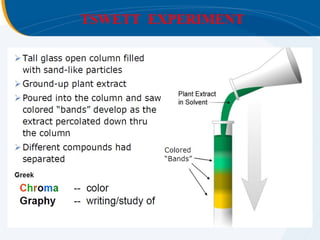

- 4. What is Chromatography? Background March 8th, 1903, Tswett emphasizes: “The method is based on the property of dissolved substances to produce physical adsorptive compounds with various mineral and organic solid substances”. 1906, Tswett names the newly discovered method: “plant pigments separated on chalk columns (like light spectrum). He called such a preparation as chromatogram, and the corresponding method as chromatographic method”. Michael Semenovich Tswett 1993, IUPAC formulates: “Chromatography is a physical method of separation in which the components to be separated are distributed between two phases, one of which is stationary (stationary phase) while the other (the mobile phase) moves in a definite direction”.
- 5.

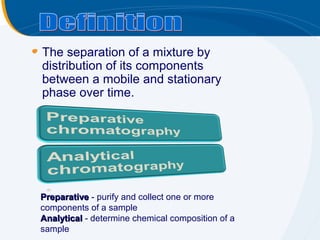

- 6. The separation ofa mixture by distribution of its components between a mobile and stationary phase over time. Preparative - purify and collect one or more components of a sample Analytical - determine chemical composition of a sample

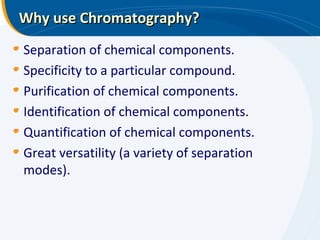

- 7. Why use Chromatography? Separationof chemical components. Specificity to a particular compound. Purification of chemical components. Identification of chemical components. Quantification of chemical components. Great versatility (a variety of separation modes).
- 8. Chromatography today Morethan sixty variants of the technique have been developed. HPLC, GC, SFC, and CE are the most frequently used. GC is preferred to HPLC for analysis of gases, however approximately 75% of all known compounds cannot be separated by GC. SFC is higher efficiency than HPLC, but it is limited to non- polar molecules when carbon dioxide is used. Capillary Electrophoresis (CE) is a rival to HPLC, nevertheless the detection sensitivity is much lower than in HPLC.

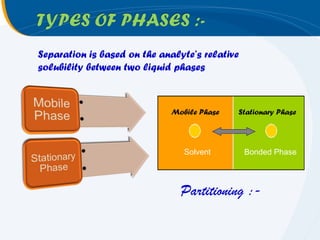

- 9. Separation is basedon the analyte’s relative solubility between two liquid phases Mobile Phase Stationary Phase Solvent Bonded Phase Partitioning :-
- 10.

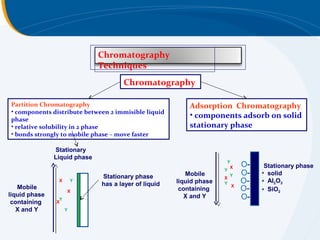

- 11. Chromatography Techniques Chromatography Partition Chromatography Adsorption Chromatography • components distribute between 2 immisible liquid phase • components adsorb on solid • relative solubility in 2 phase stationary phase • bonds strongly to mobile phase – move faster Stationary Liquid phase Y X O- Stationary phase Y Stationary phase Mobile Y O- • solid X X Y has a layer of liquid liquid phase Y O- • AI2O3 Mobile X X containing O- • SiO2 liquid phase X and Y O- Y containing X X and Y Y

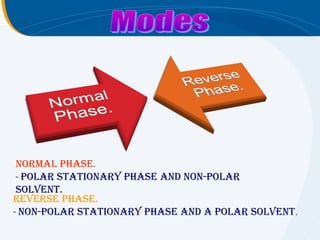

- 12. Normal Phase. -Polar statioNary Phase aNd NoN-Polar solveNt. reverse Phase. - NoN-Polar statioNary Phase aNd a Polar solveNt.

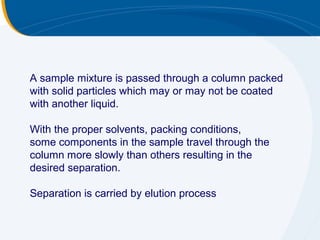

- 14. A sample mixtureis passed through a column packed with solid particles which may or may not be coated with another liquid. With the proper solvents, packing conditions, some components in the sample travel through the column more slowly than others resulting in the desired separation. Separation is carried by elution process

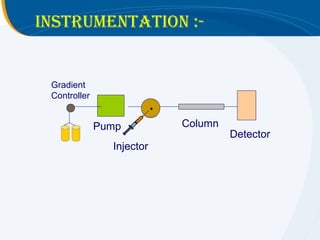

- 15. InstrumentatIon :- Gradient Controller • Pump Column Detector Injector

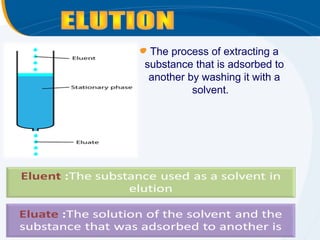

- 16. The process ofextracting a substance that is adsorbed to another by washing it with a solvent.
- 17. Elution in ColumnChromatography Stationary Mobile phase phase t0 t1 t2 t3 t4

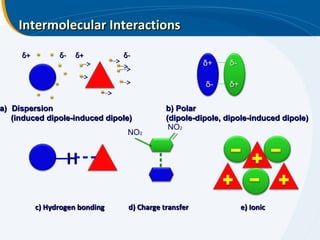

- 18. Intermolecular Interactions δ+ δ- δ+ δ- δ+ δ- δ- δ+ a) Dispersion b) Polar (induced dipole-induced dipole) (dipole-dipole, dipole-induced dipole) NO2 NO2 H c) Hydrogen bonding d) Charge transfer e) Ionic

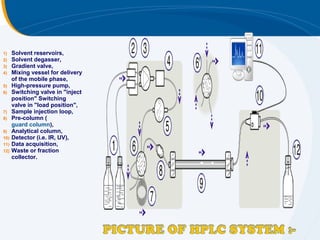

- 19. 1) Solvent reservoirs, 2) Solvent degasser, 3) Gradient valve, 4) Mixing vessel for delivery of the mobile phase, 5) High-pressure pump, 6) Switching valve in "inject position" Switching valve in "load position", 7) Sample injection loop, 8) Pre-column ( guard column), 9) Analytical column, 10) Detector (i.e. IR, UV), 11) Data acquisition, 12) Waste or fraction collector.

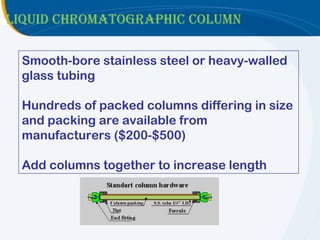

- 20. LIquId ChromatographIC CoLumn Smooth-bore stainless steel or heavy-walled glass tubing Hundreds of packed columns differing in size and packing are available from manufacturers ($200-$500) Add columns together to increase length

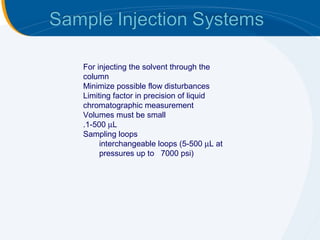

- 21. For injecting thesolvent through the column Minimize possible flow disturbances Limiting factor in precision of liquid chromatographic measurement Volumes must be small .1-500 µL Sampling loops interchangeable loops (5-500 µL at pressures up to 7000 psi)

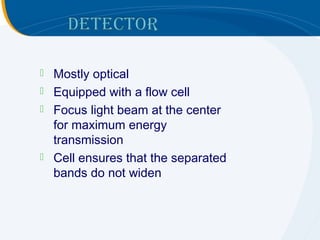

- 22. Mostly optical Equipped with a flow cell Focus light beam at the center for maximum energy transmission Cell ensures that the separated bands do not widen

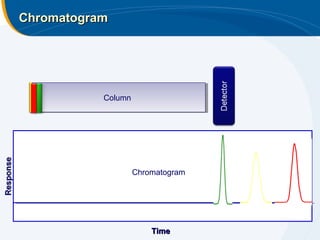

- 23. Chromatogram Column Column Chromatogram Time

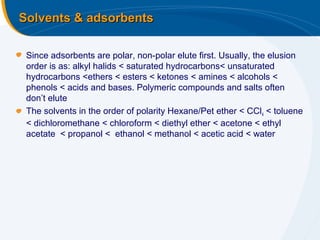

- 24. Solvents & adsorbents Since adsorbents are polar, non-polar elute first. Usually, the elusion order is as: alkyl halids < saturated hydrocarbons< unsaturated hydrocarbons <ethers < esters < ketones < amines < alcohols < phenols < acids and bases. Polymeric compounds and salts often don’t elute The solvents in the order of polarity Hexane/Pet ether < CCl 4 < toluene < dichloromethane < chloroform < diethyl ether < acetone < ethyl acetate < propanol < ethanol < methanol < acetic acid < water

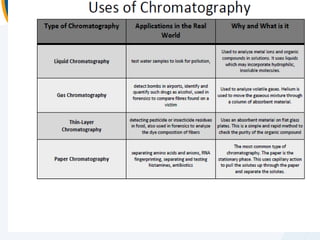

- 26.

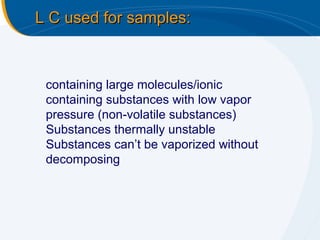

- 27. L C usedfor samples: containing large molecules/ionic containing substances with low vapor pressure (non-volatile substances) Substances thermally unstable Substances can’t be vaporized without decomposing

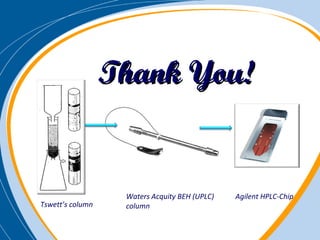

- 28. Thank You! Waters Acquity BEH (UPLC) Agilent HPLC-Chip Tswett’s column column
