IBM VisualAge Pacbase is a code-switching structured programming language that is developed and maintained by IBM. VisualAge Pacbase runs on both IBM and non-IBM mainframes and integrates with IBM WebSphere Studio Application Developer. When compiling Pacbase code it is first translated into COBOL and then compiled to binary.

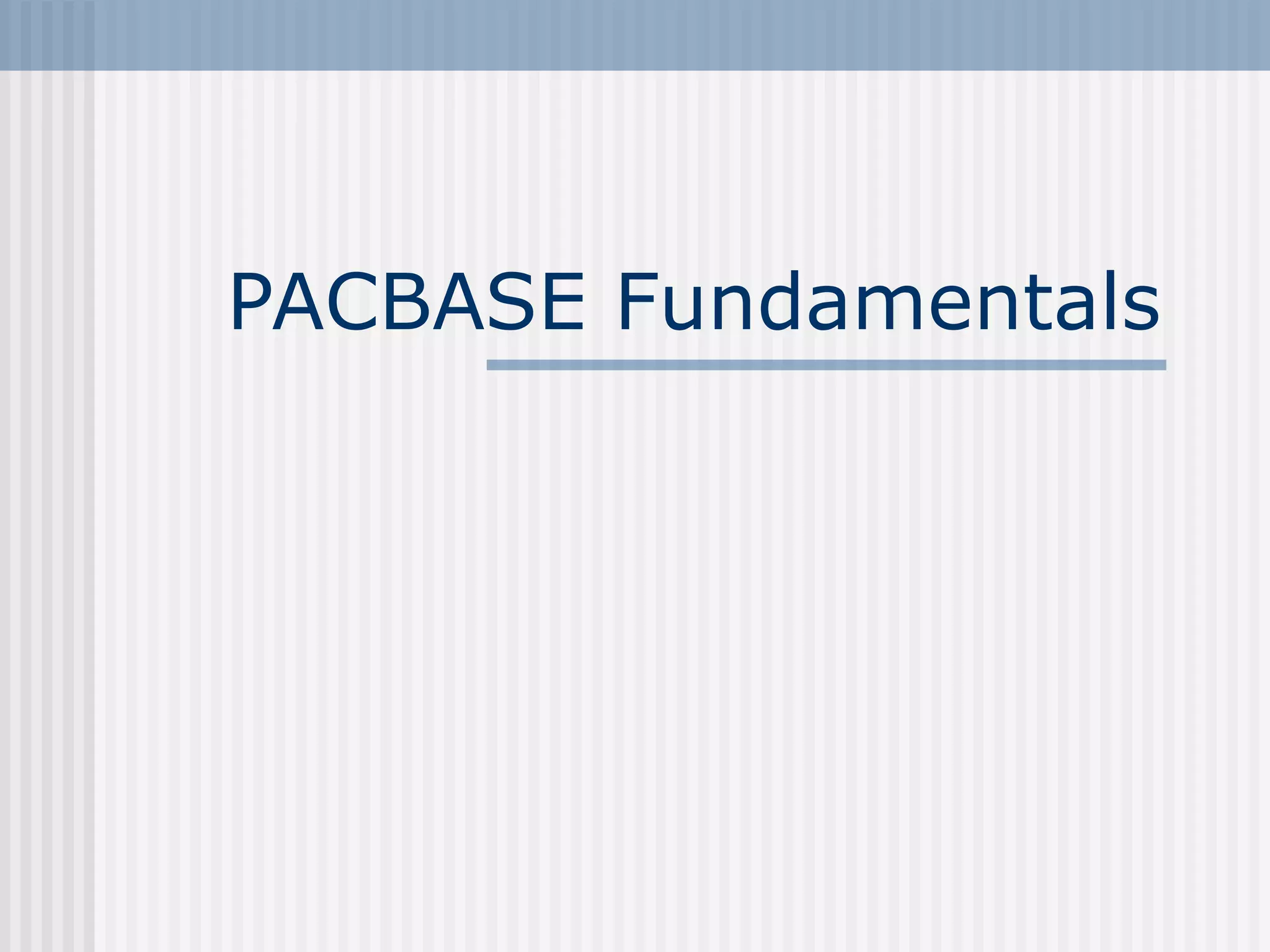

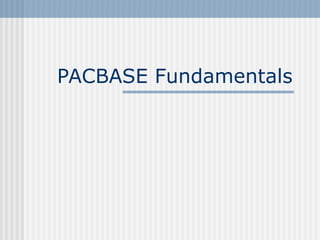

1. PACBASE Fundamentals

2. What is PACBASE ?
 PACBASE is a tool for generating
COBOL programs
 Developed by CGI Systems
 Proprietary tool of IBM

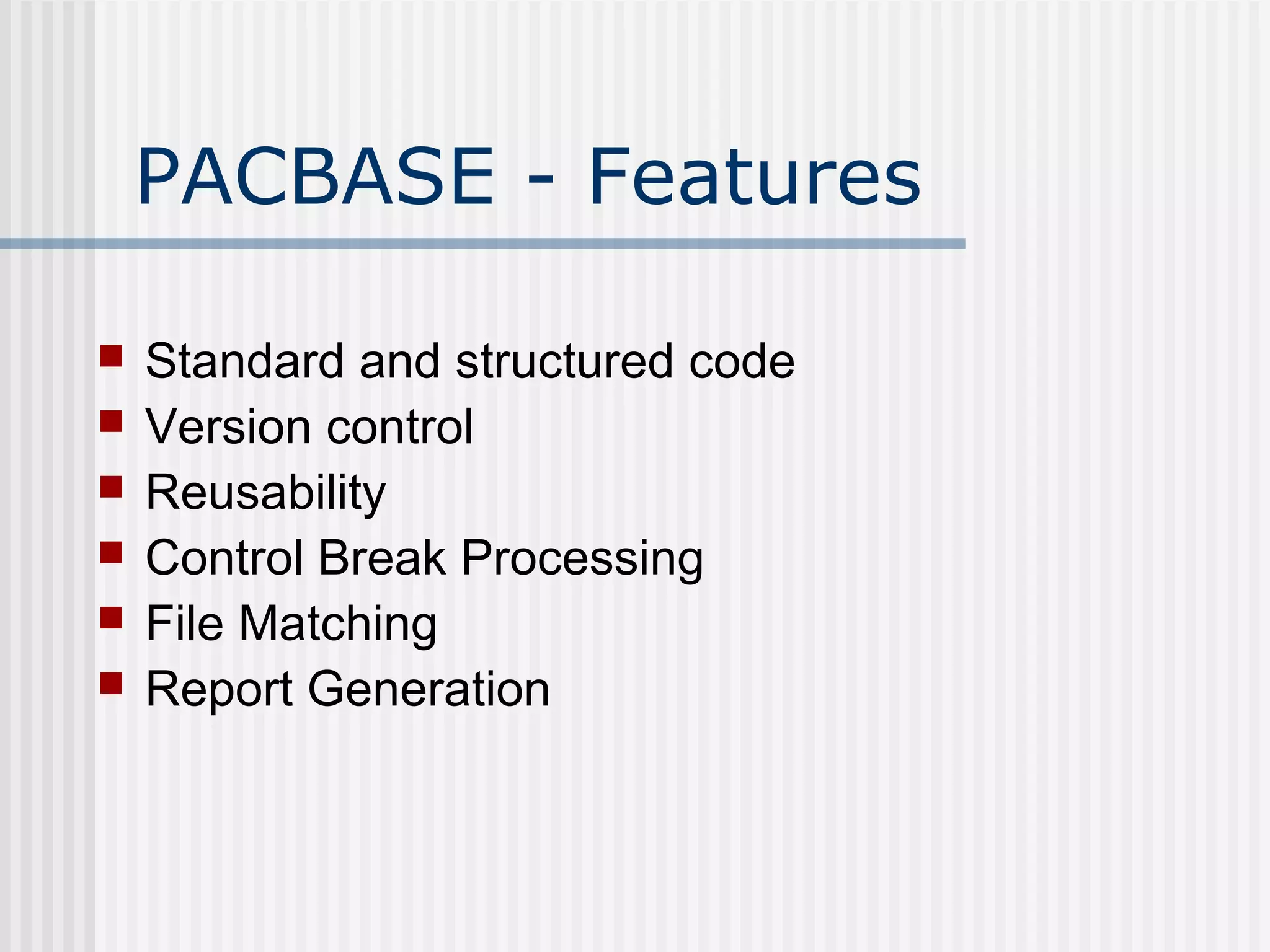

3. PACBASE - Features
 Standard and structured code
 Version control
 Reusability
 Control Break Processing
 File Matching
 Report Generation

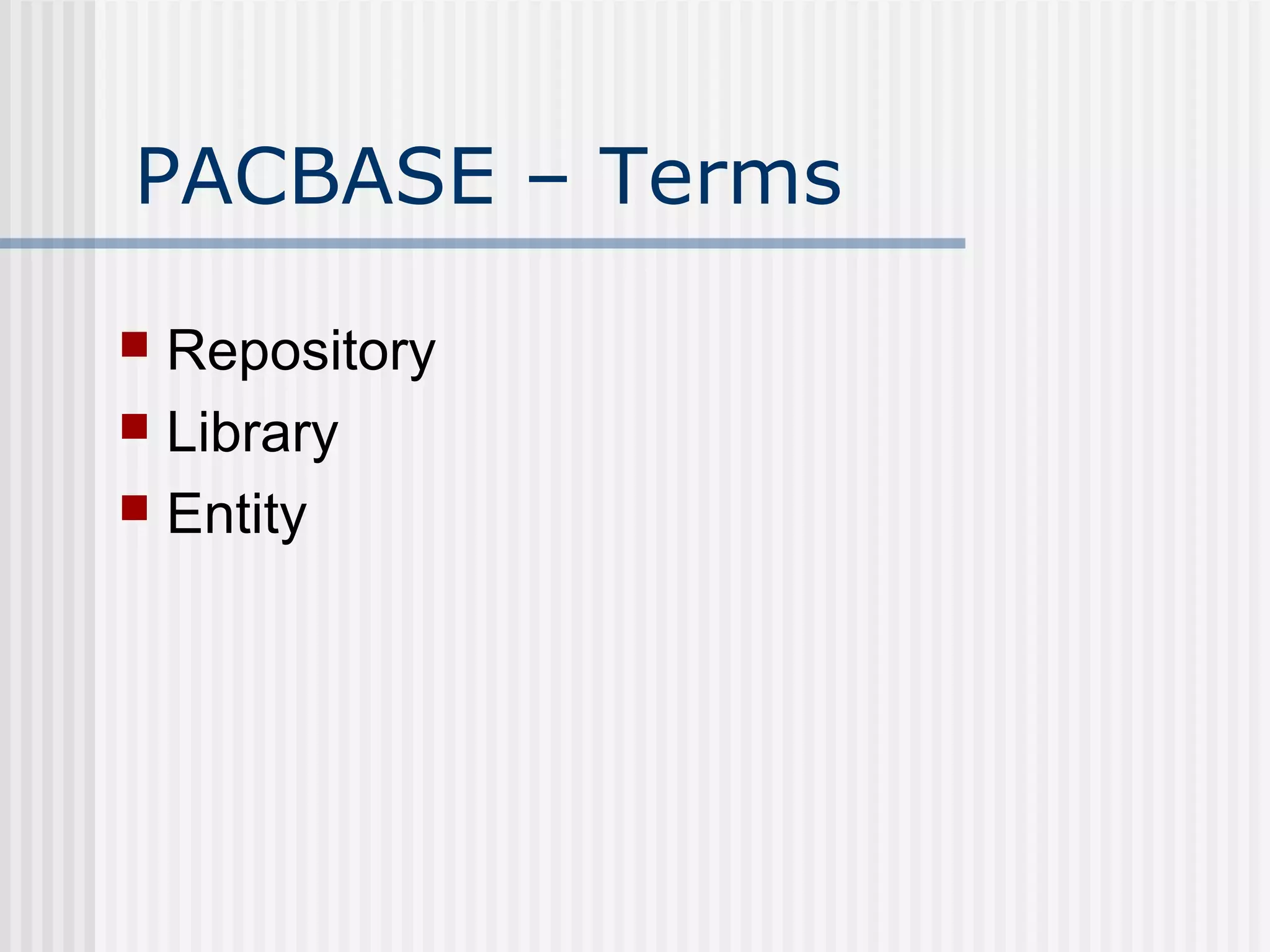

4. PACBASE – Terms
 Repository
 Library
 Entity

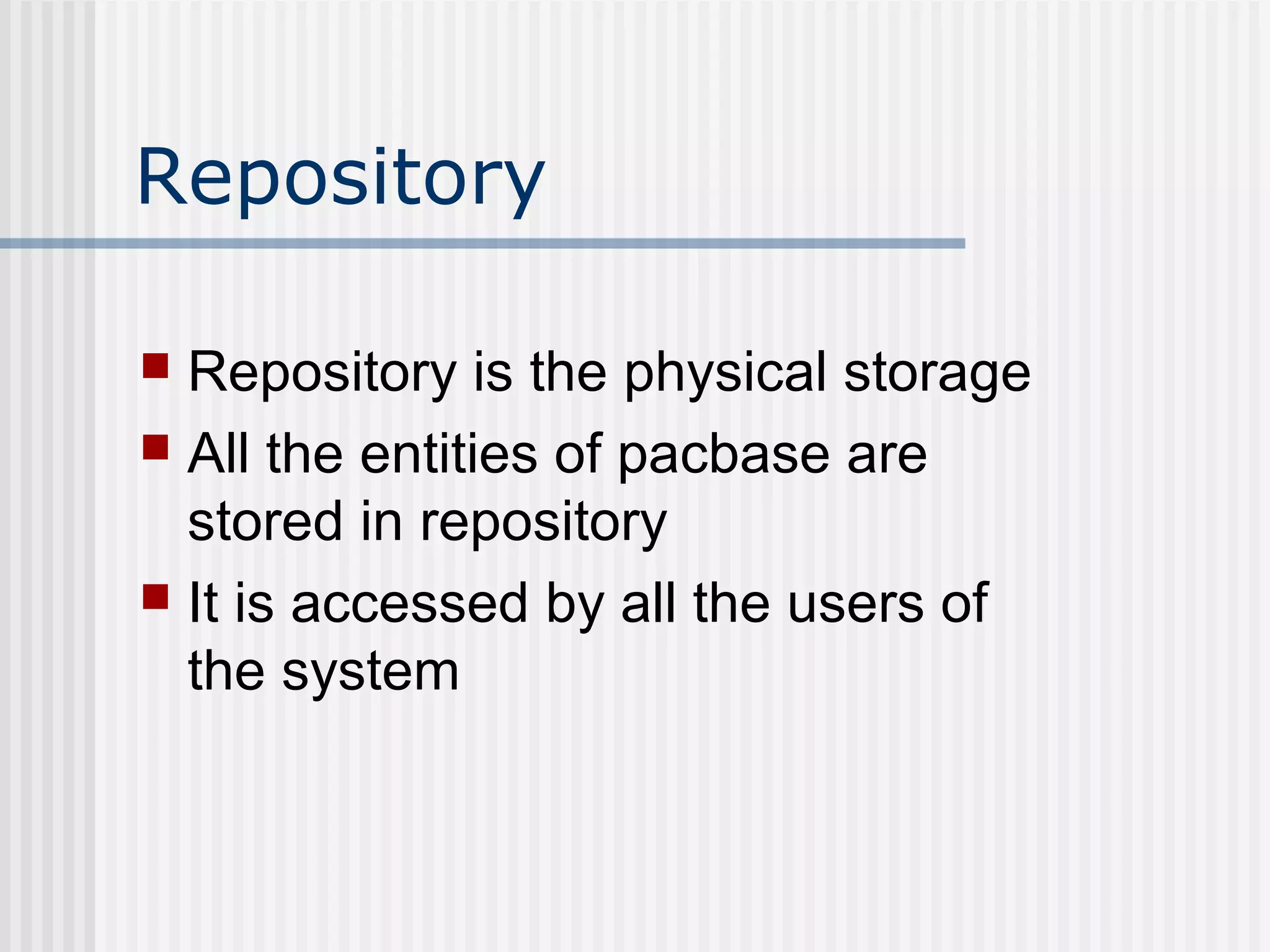

5. Repository
 Repository is the physical storage
 All the entities of pacbase are
stored in repository
 It is accessed by all the users of
the system

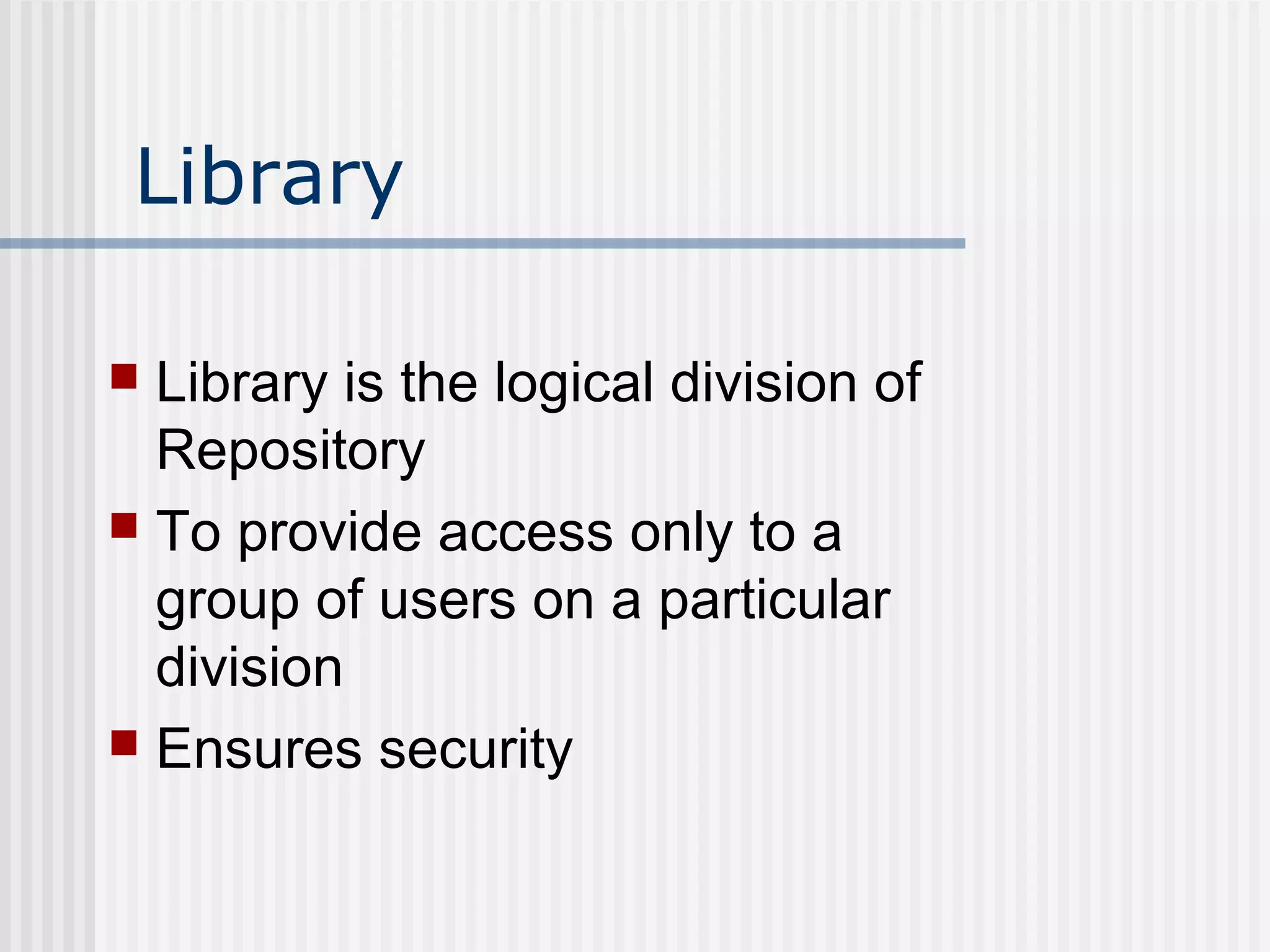

6. Library
 Library is the logical division of
Repository
 To provide access only to a
group of users on a particular
division
 Ensures security

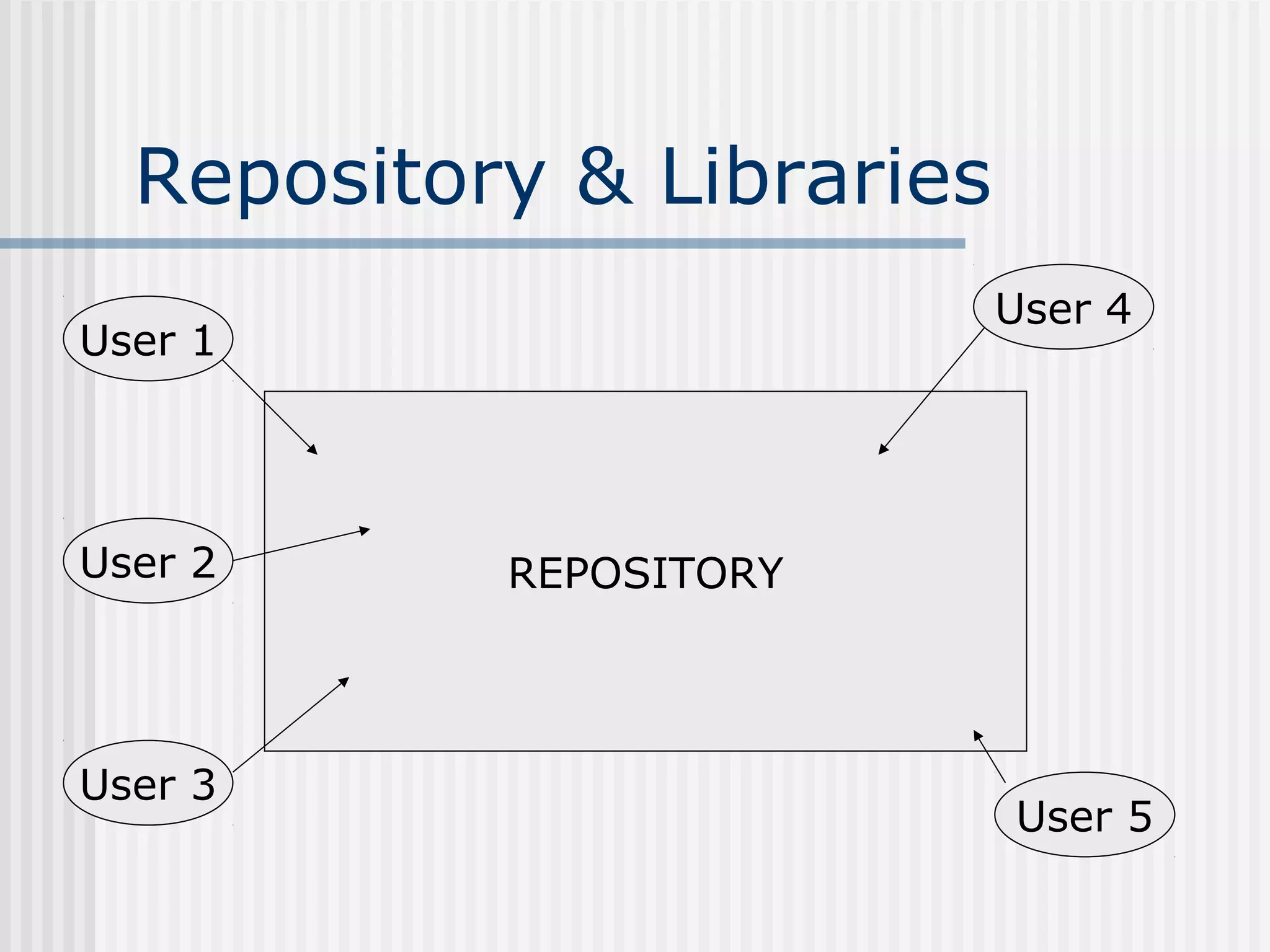

7. Repository & Libraries
REPOSITORY
User 1
User 2
User 4
User 5
User 3

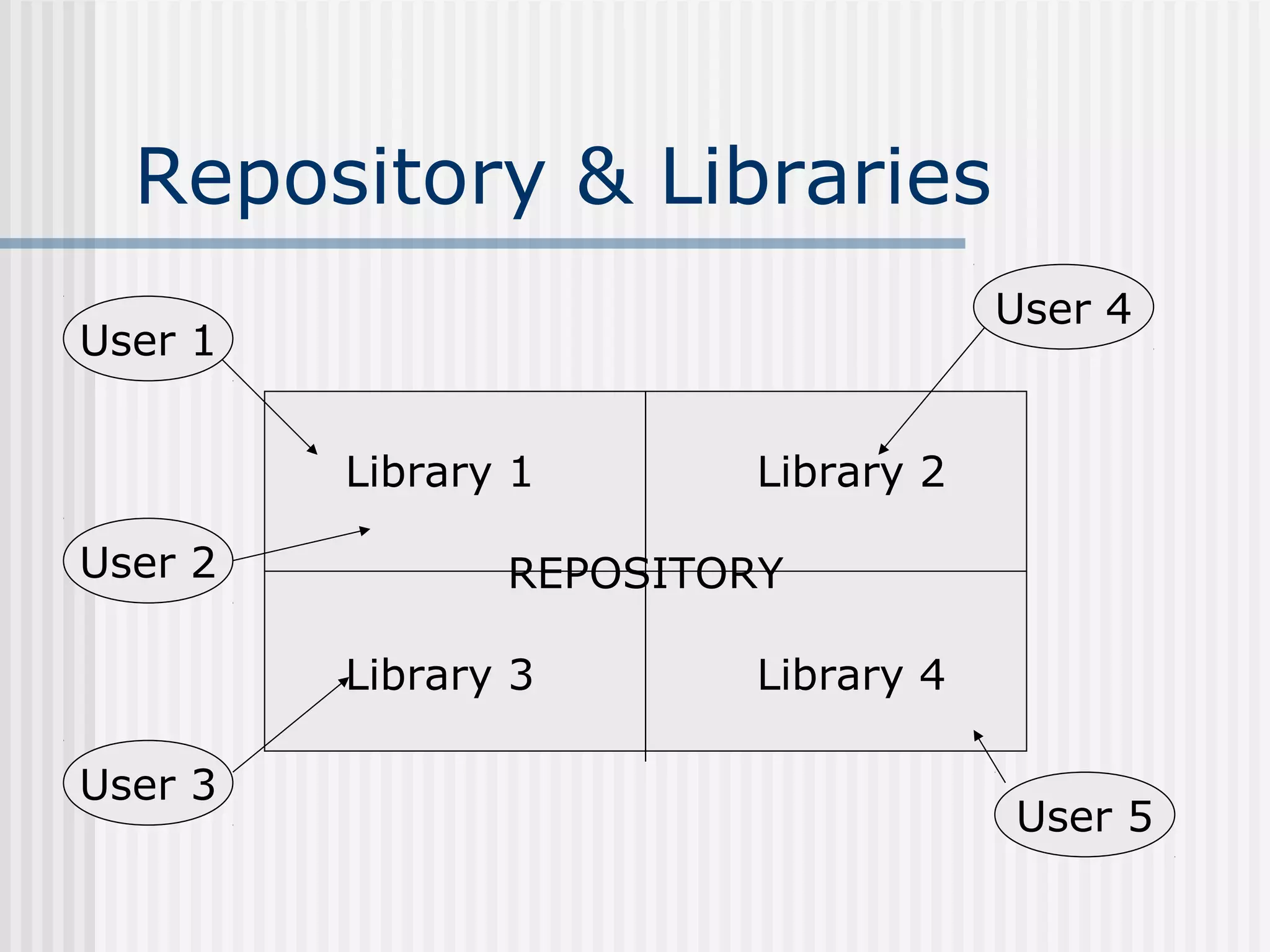

8. Repository & Libraries
Library 1 Library 2
REPOSITORY
Library 3 Library 4
User 1
User 2
User 4
User 5
User 3

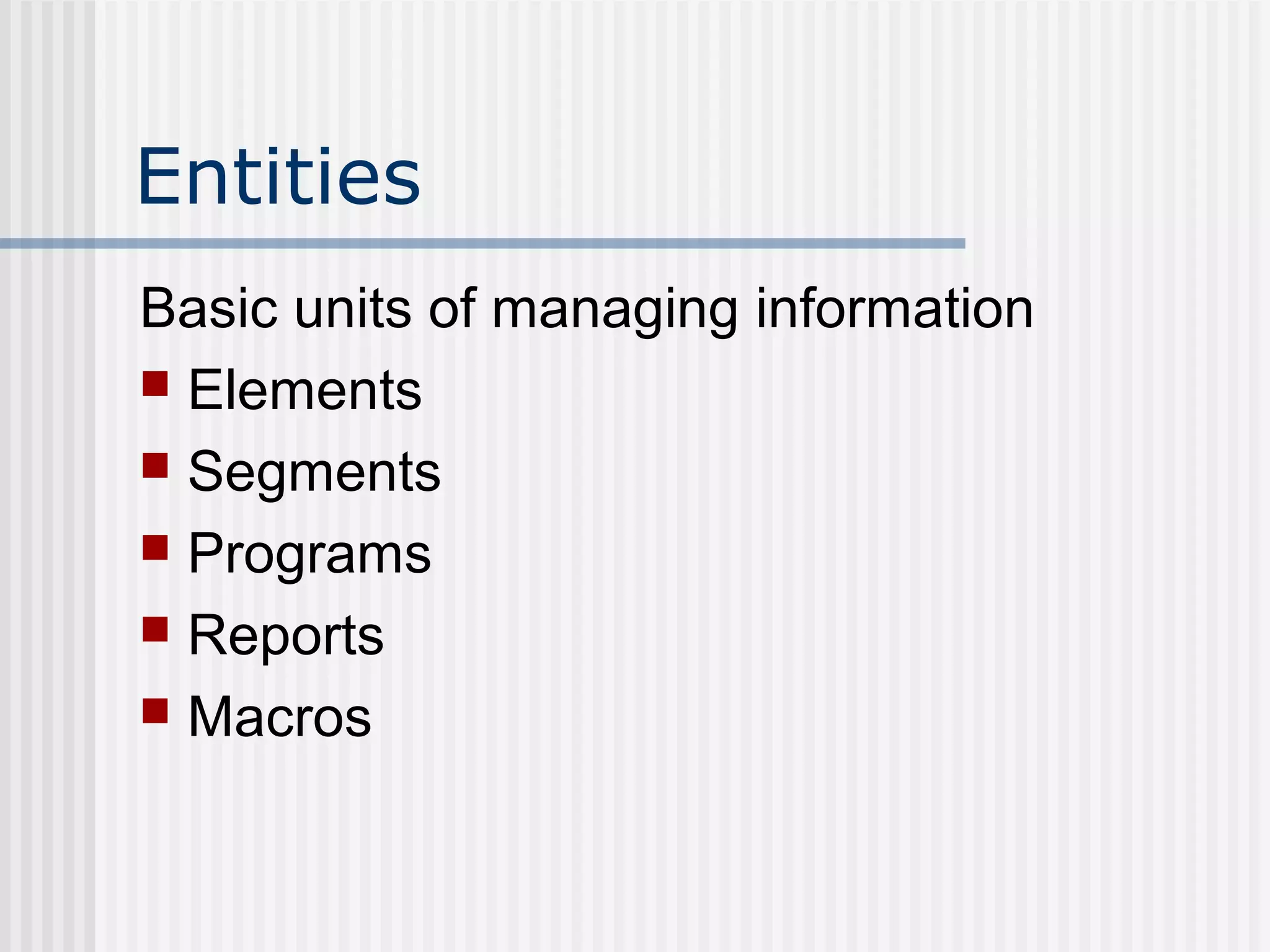

9. Entities
Basic units of managing information
 Elements
 Segments
 Programs
 Reports
 Macros

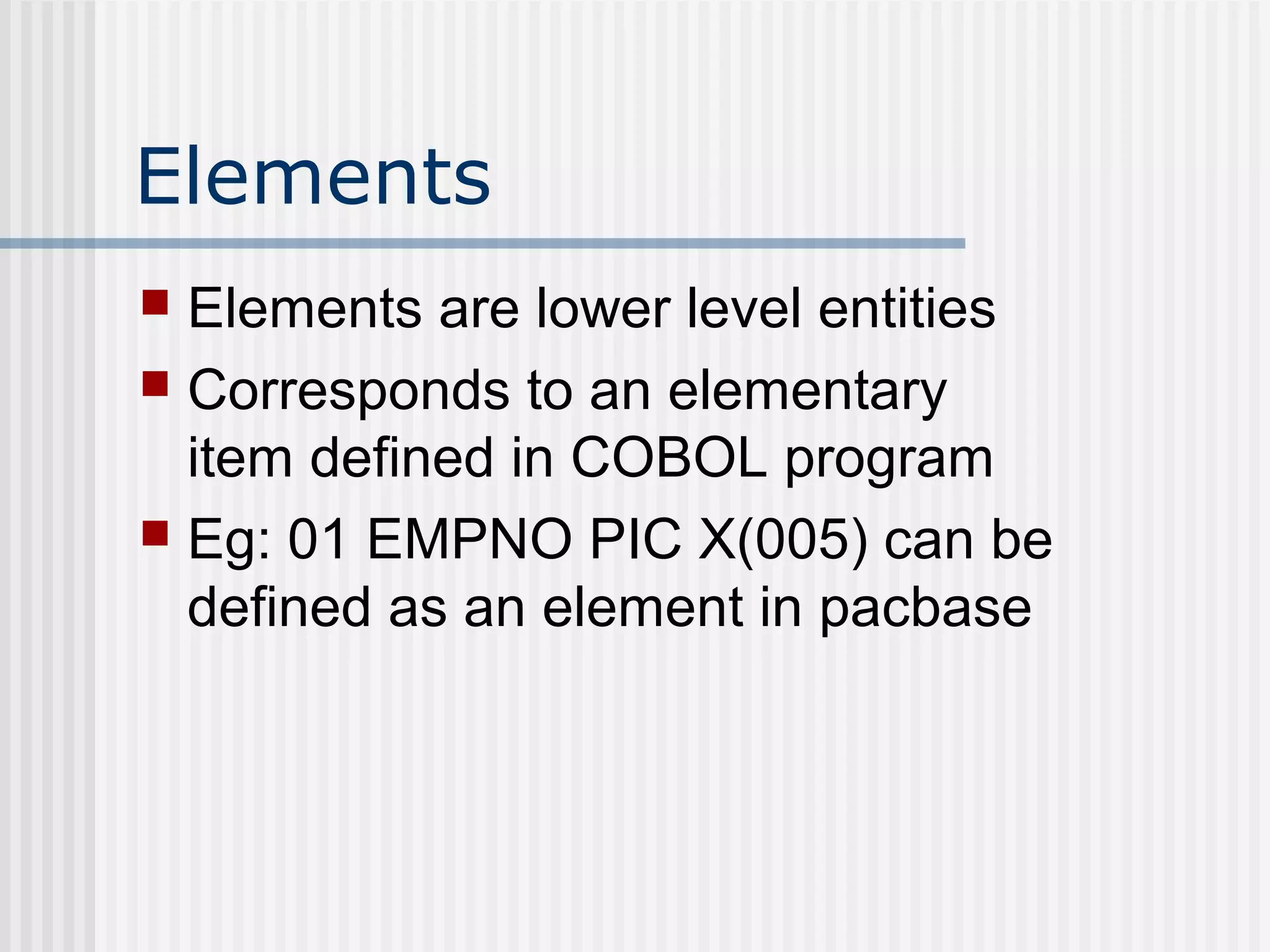

10. Elements
 Elements are lower level entities
 Corresponds to an elementary
item defined in COBOL program
 Eg: 01 EMPNO PIC X(005) can be
defined as an element in pacbase

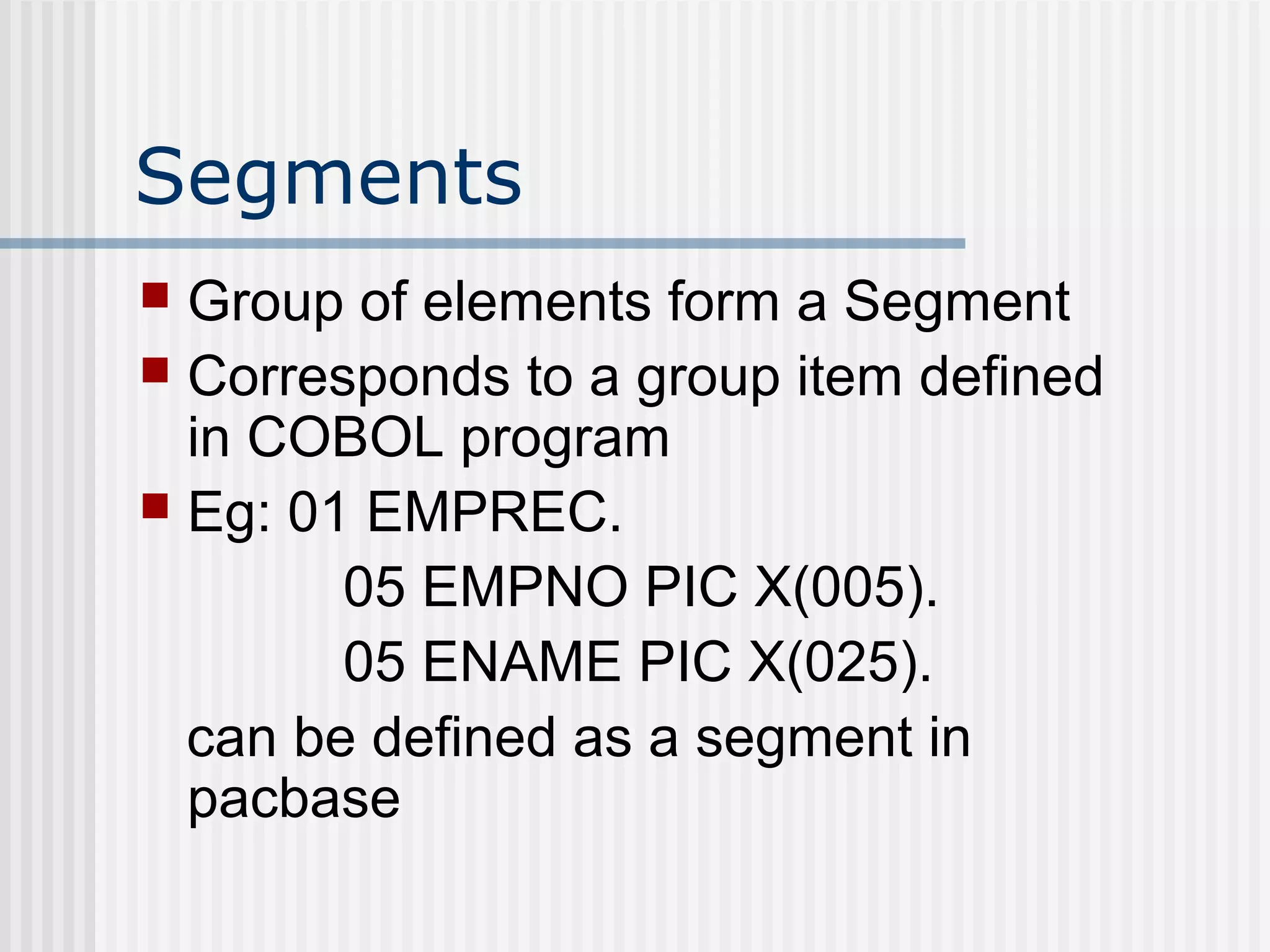

11. Segments
 Group of elements form a Segment
 Corresponds to a group item defined
in COBOL program
 Eg: 01 EMPREC.
05 EMPNO PIC X(005).
05 ENAME PIC X(025).
can be defined as a segment in
pacbase

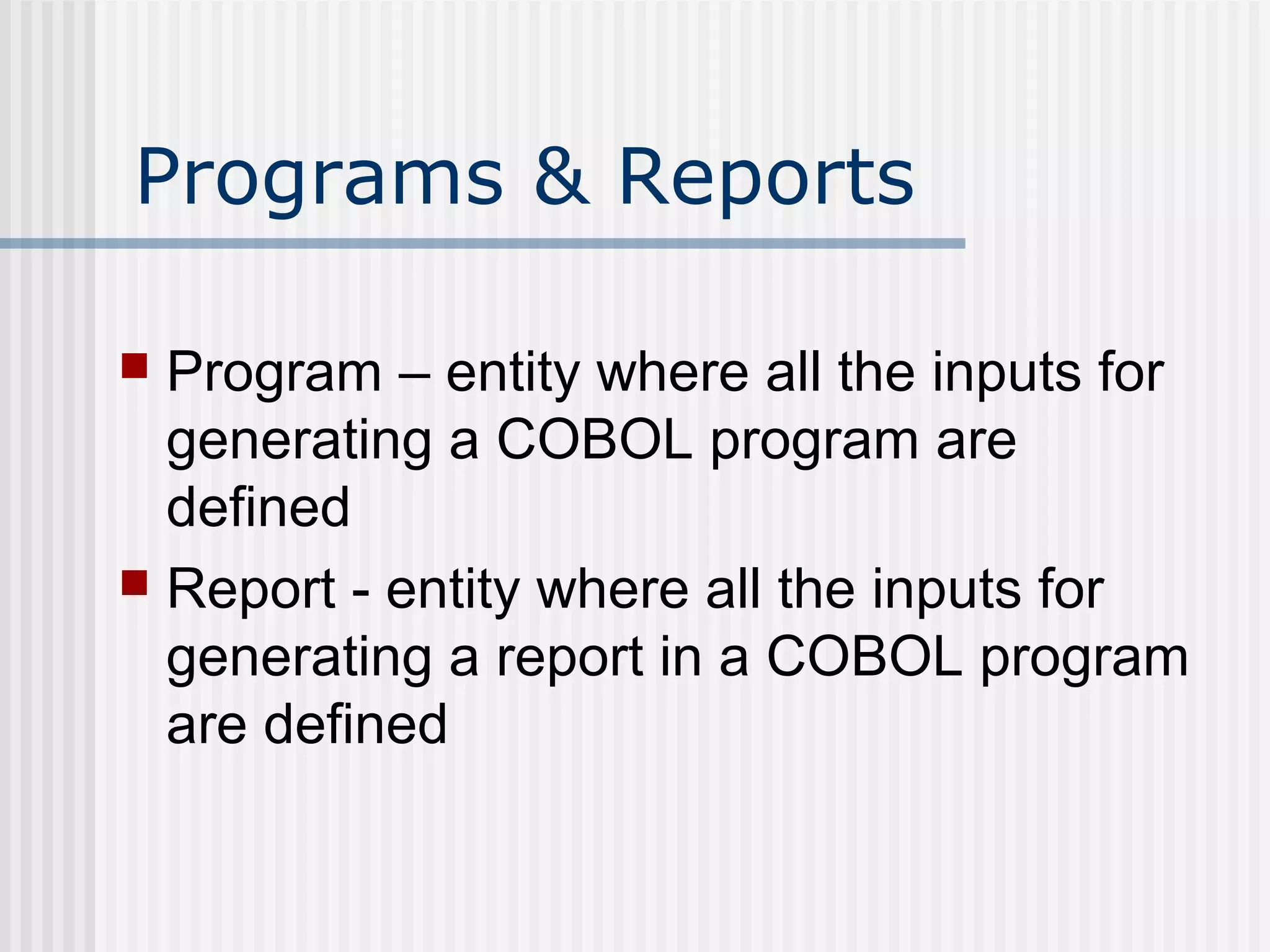

12. Programs & Reports
 Program – entity where all the inputs for
generating a COBOL program are
defined
 Report - entity where all the inputs for
generating a report in a COBOL program
are defined

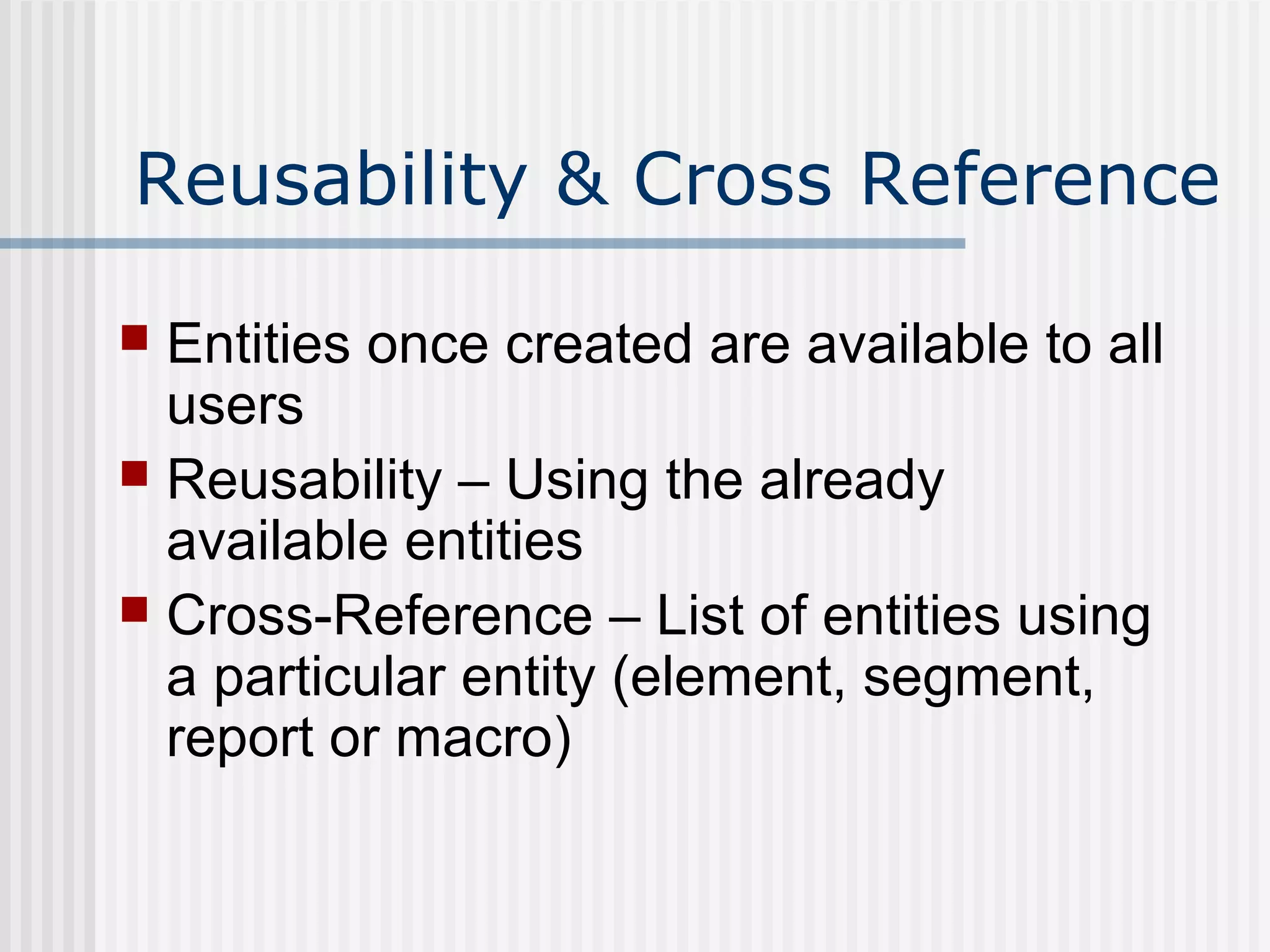

13. Reusability & Cross Reference
 Entities once created are available to all
users
 Reusability – Using the already
available entities
 Cross-Reference – List of entities using
a particular entity (element, segment,
report or macro)

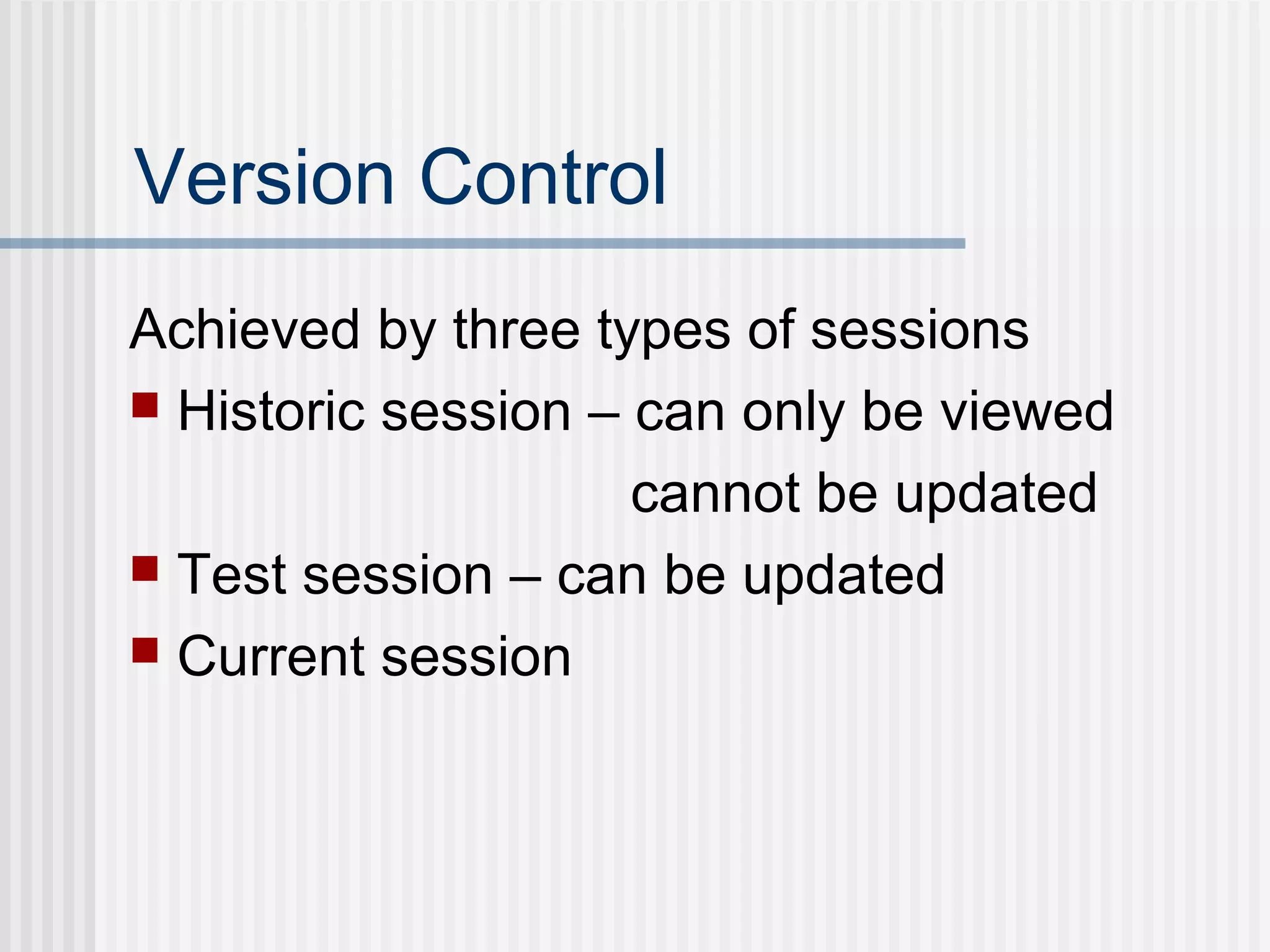

14. Version Control
Achieved by three types of sessions
 Historic session – can only be viewed
cannot be updated
 Test session – can be updated
 Current session

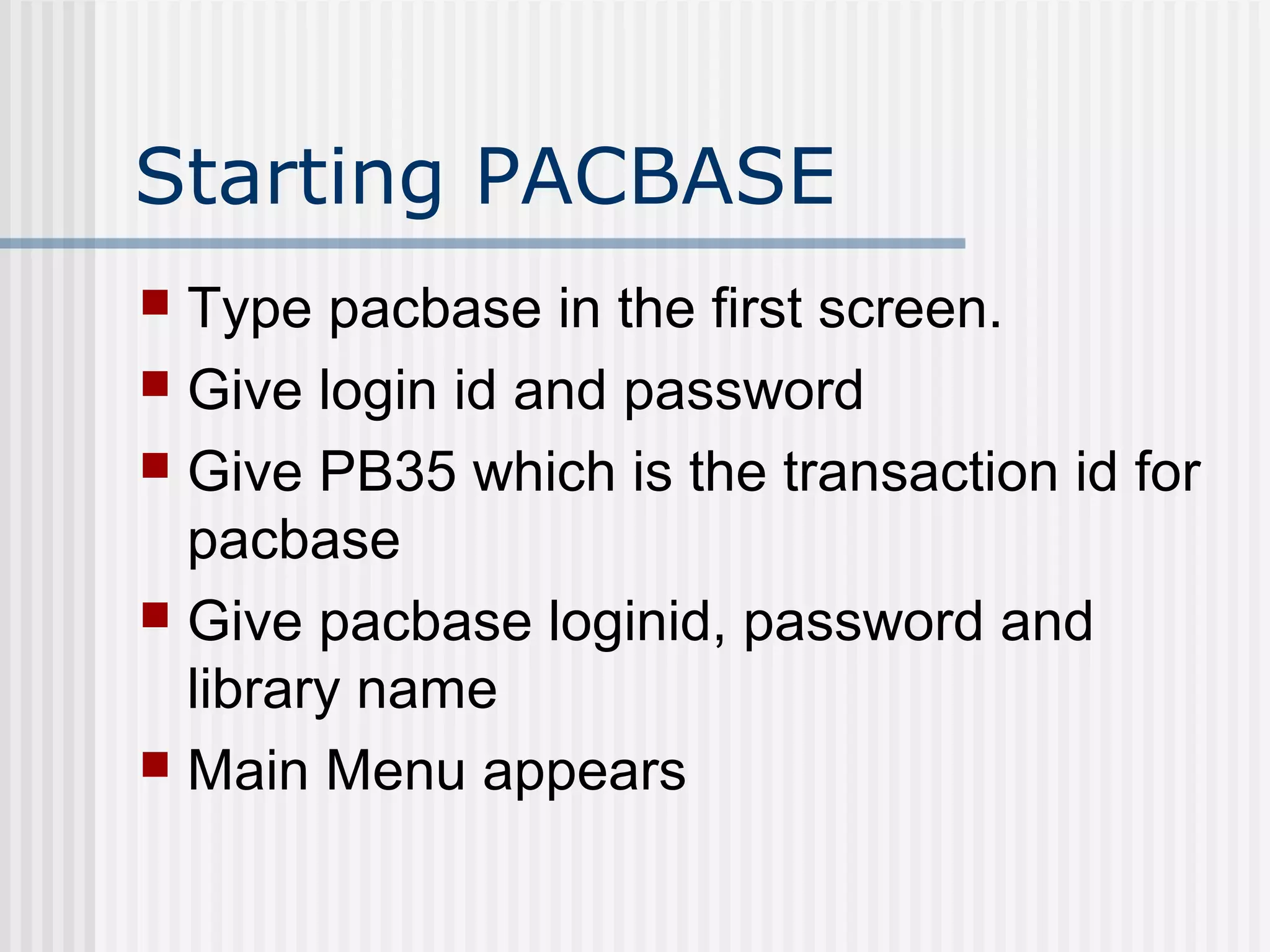

15. Starting PACBASE
 Type pacbase in the first screen.
 Give login id and password
 Give PB35 which is the transaction id for
pacbase
 Give pacbase loginid, password and
library name
 Main Menu appears

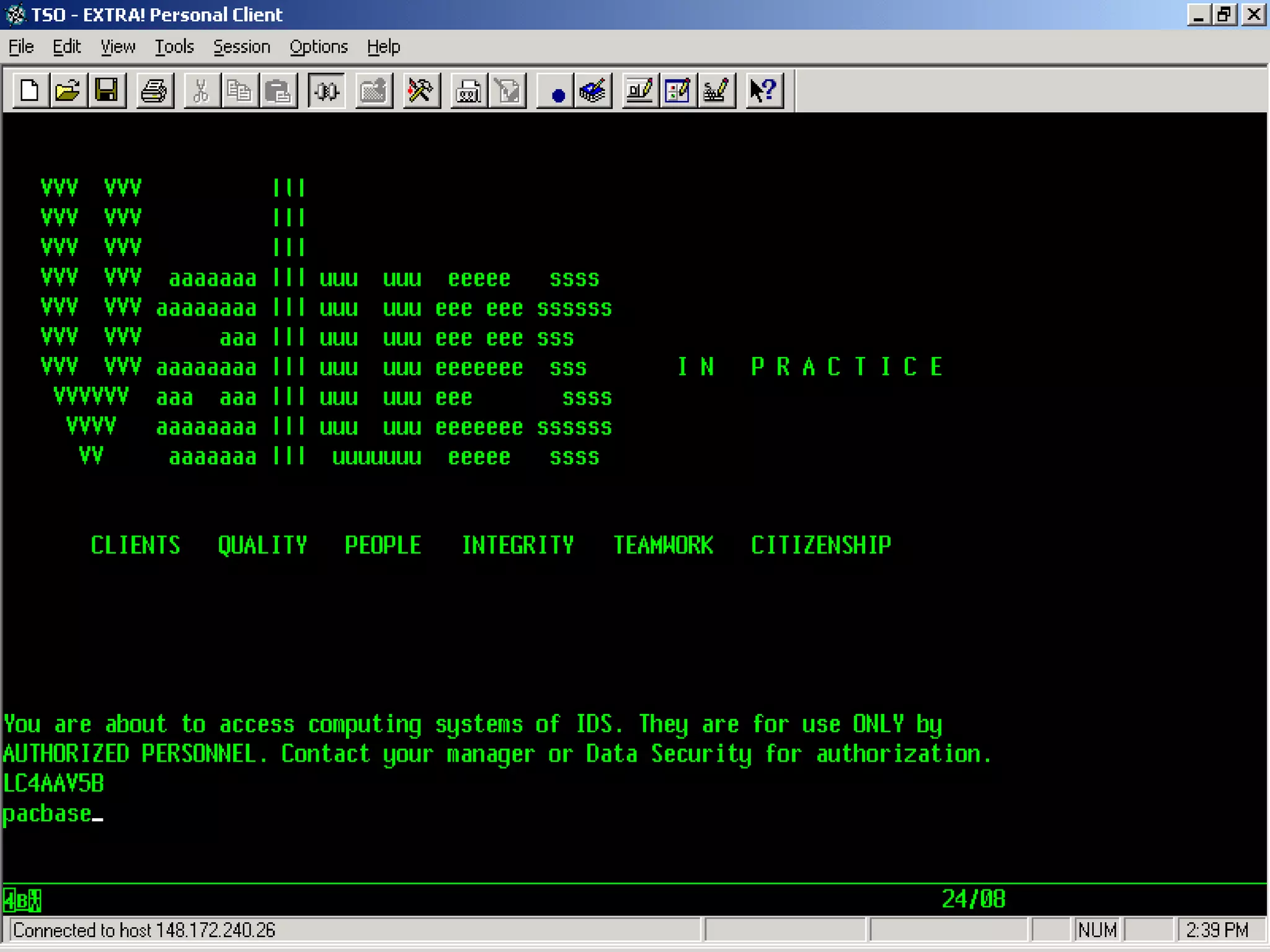

16. First Screen

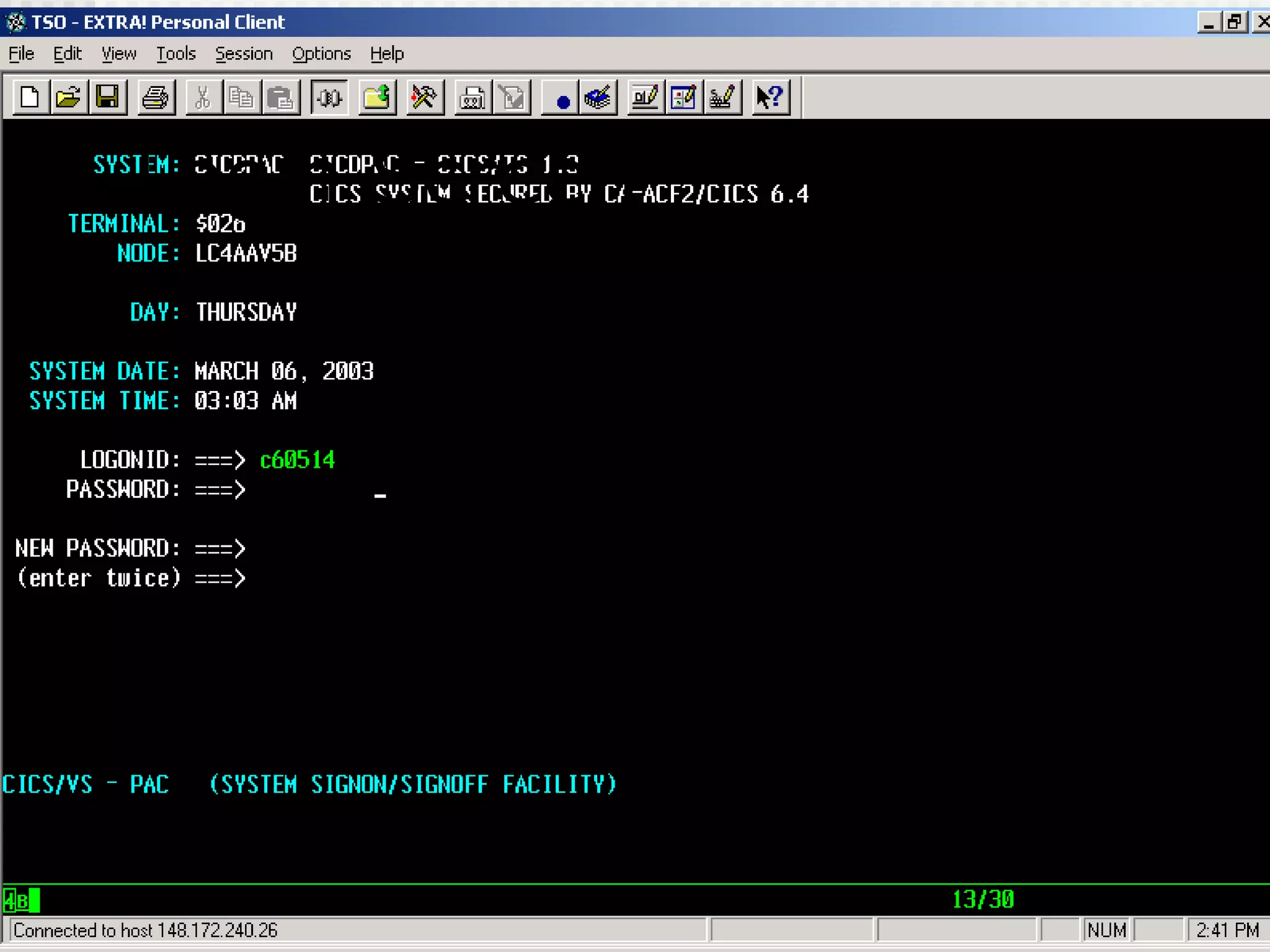

17. Login Screen

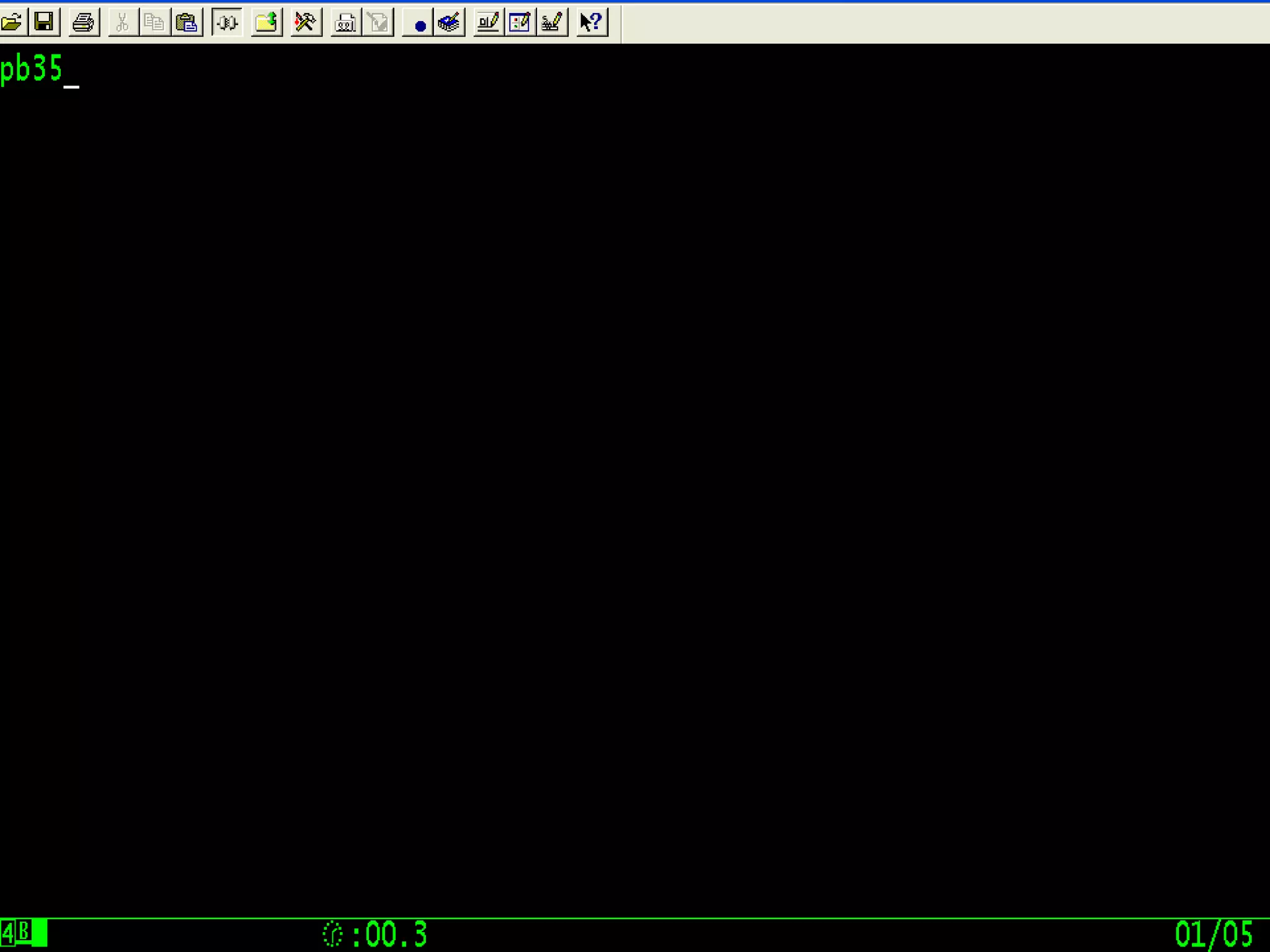

18. Transaction Screen

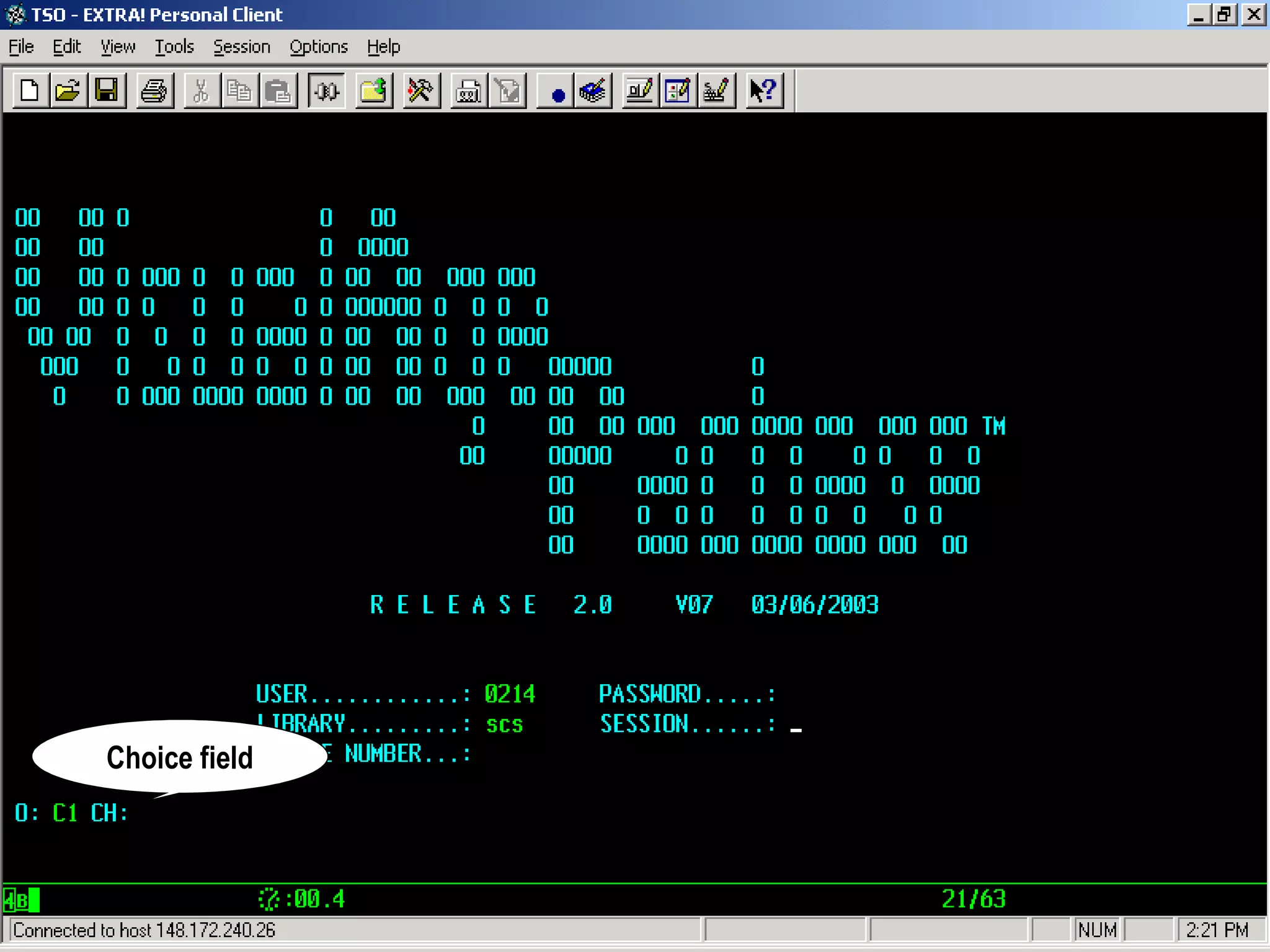

19. Choice field
Pacbase Login Screen

20. March 6, 2003 Pacbase Fundamentals 2

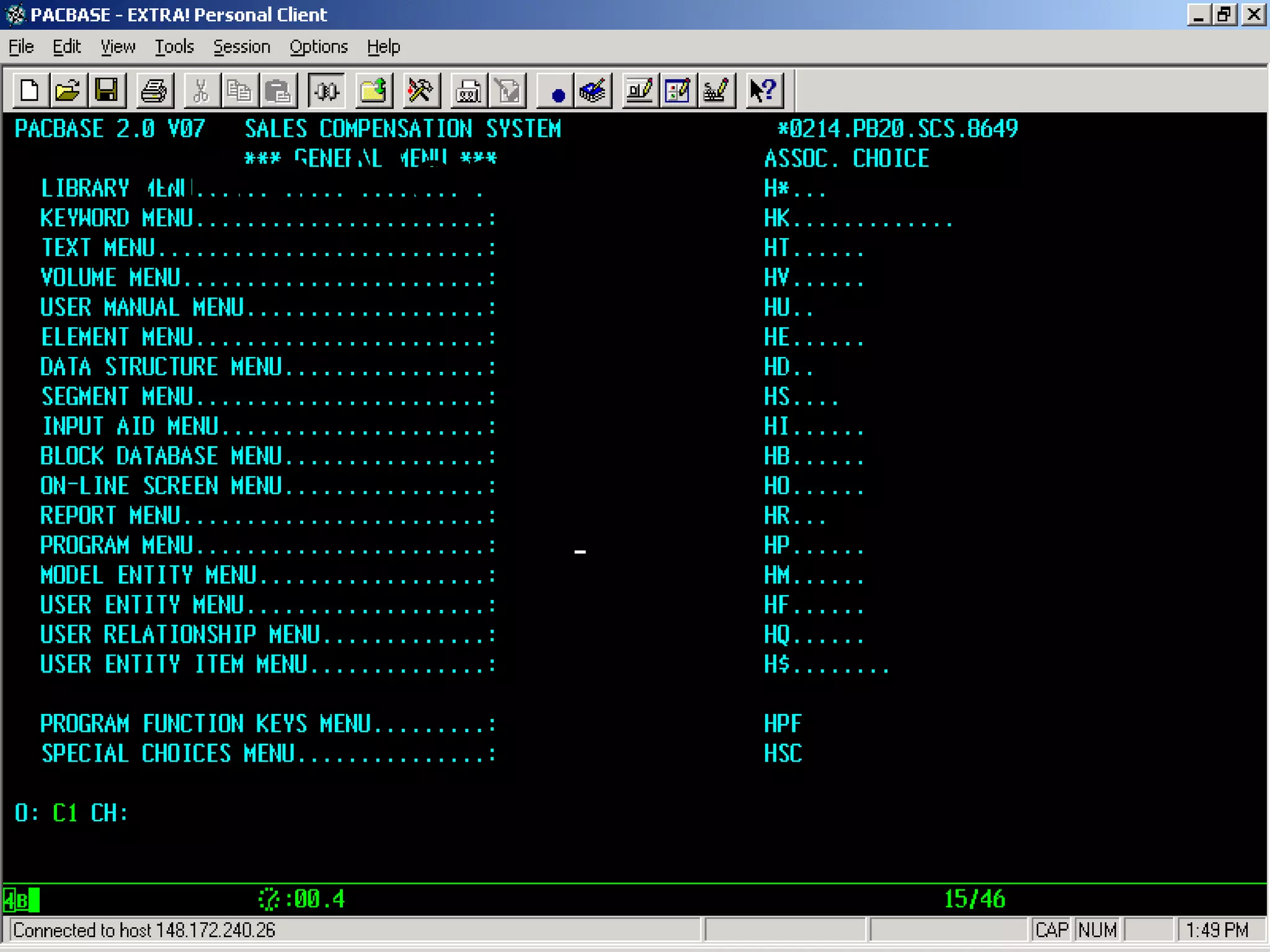

Main Menu

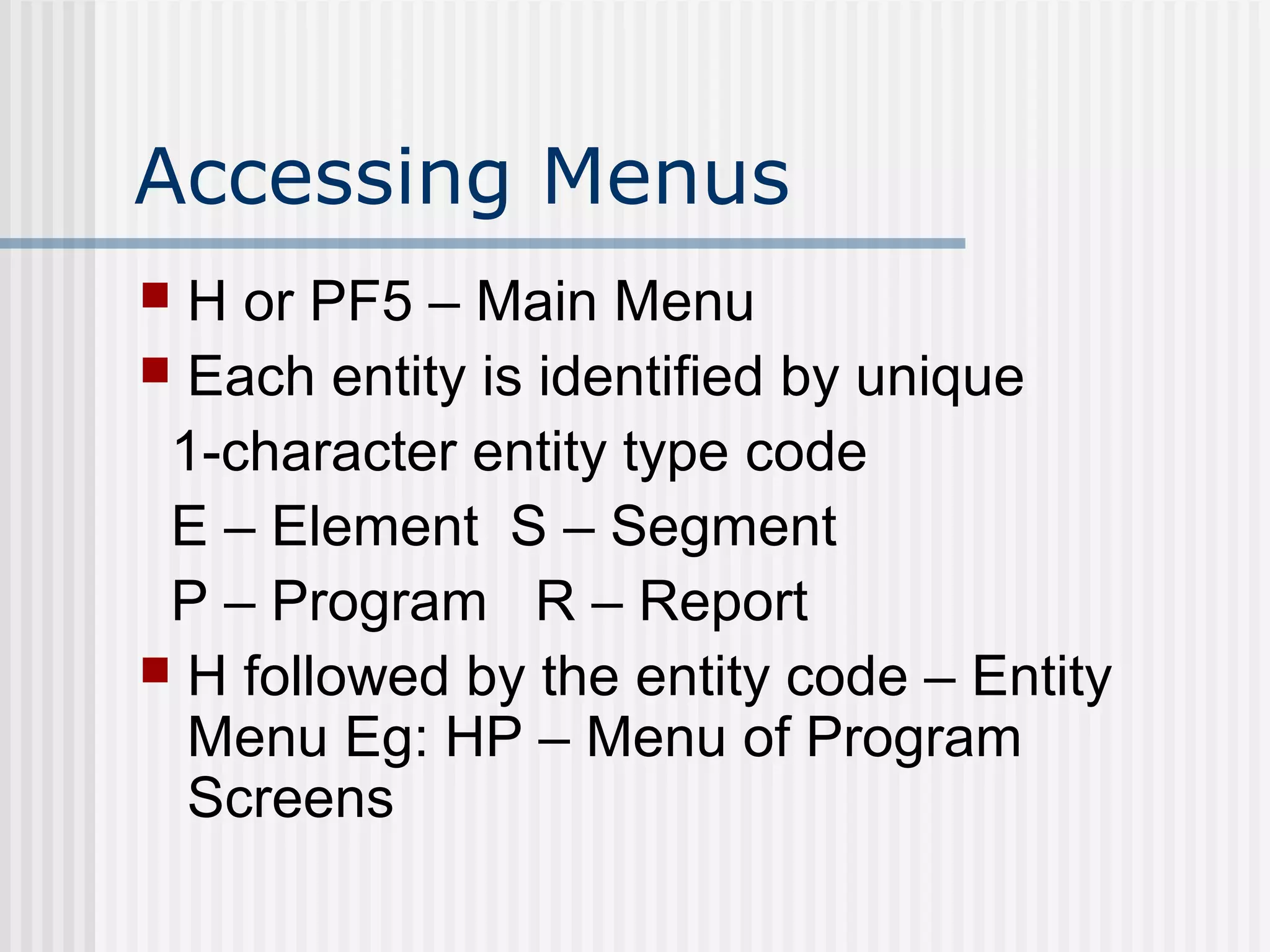

21. Accessing Menus
 H or PF5 – Main Menu
 Each entity is identified by unique
1-character entity type code
E – Element S – Segment
P – Program R – Report
 H followed by the entity code – Entity
Menu Eg: HP – Menu of Program
Screens

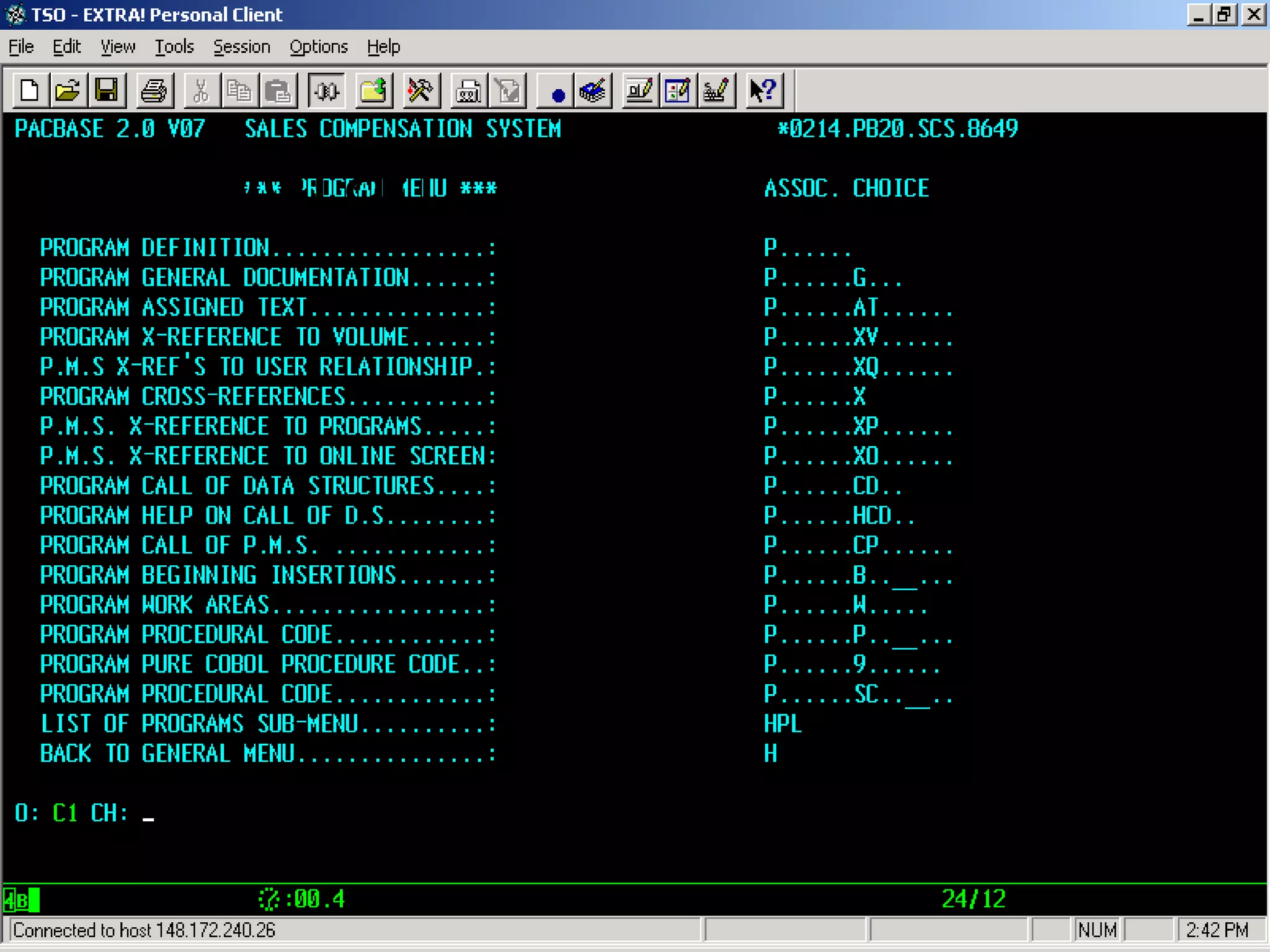

22. Program Menu

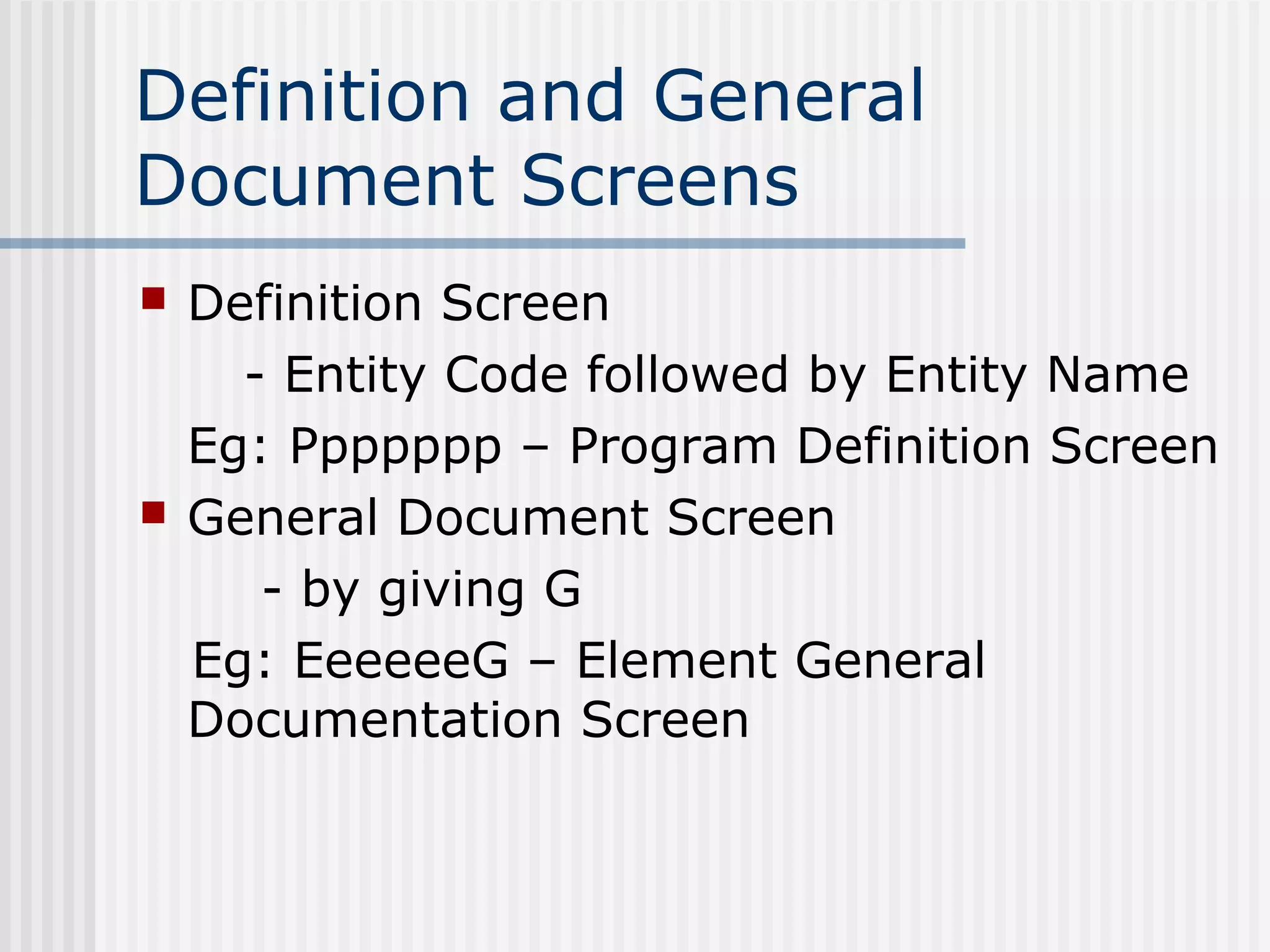

23. Definition and General
Document Screens
 Definition Screen
- Entity Code followed by Entity Name
Eg: Ppppppp – Program Definition Screen
 General Document Screen
- by giving G
Eg: EeeeeeG – Element General
Documentation Screen

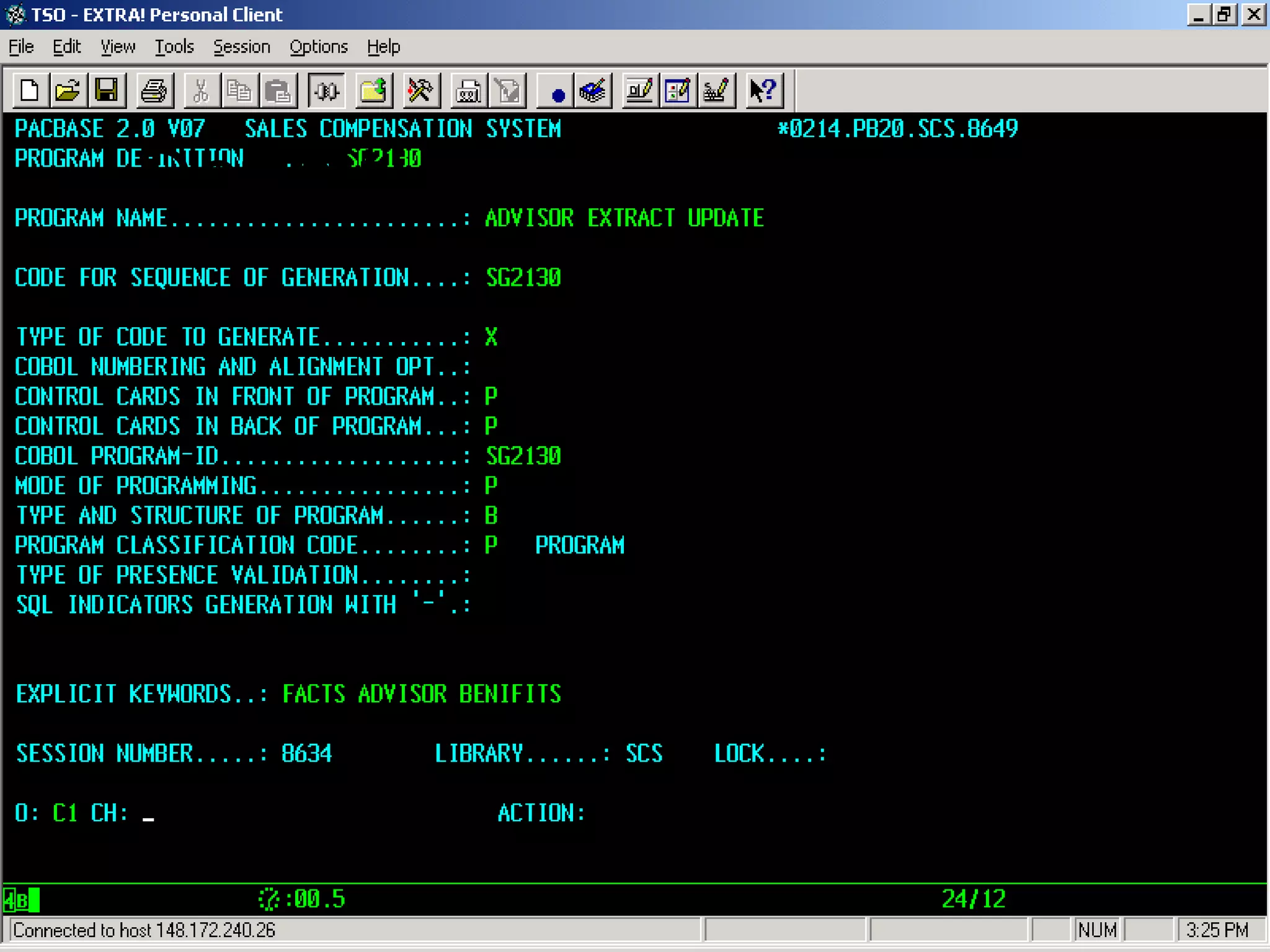

24. Definition Menu

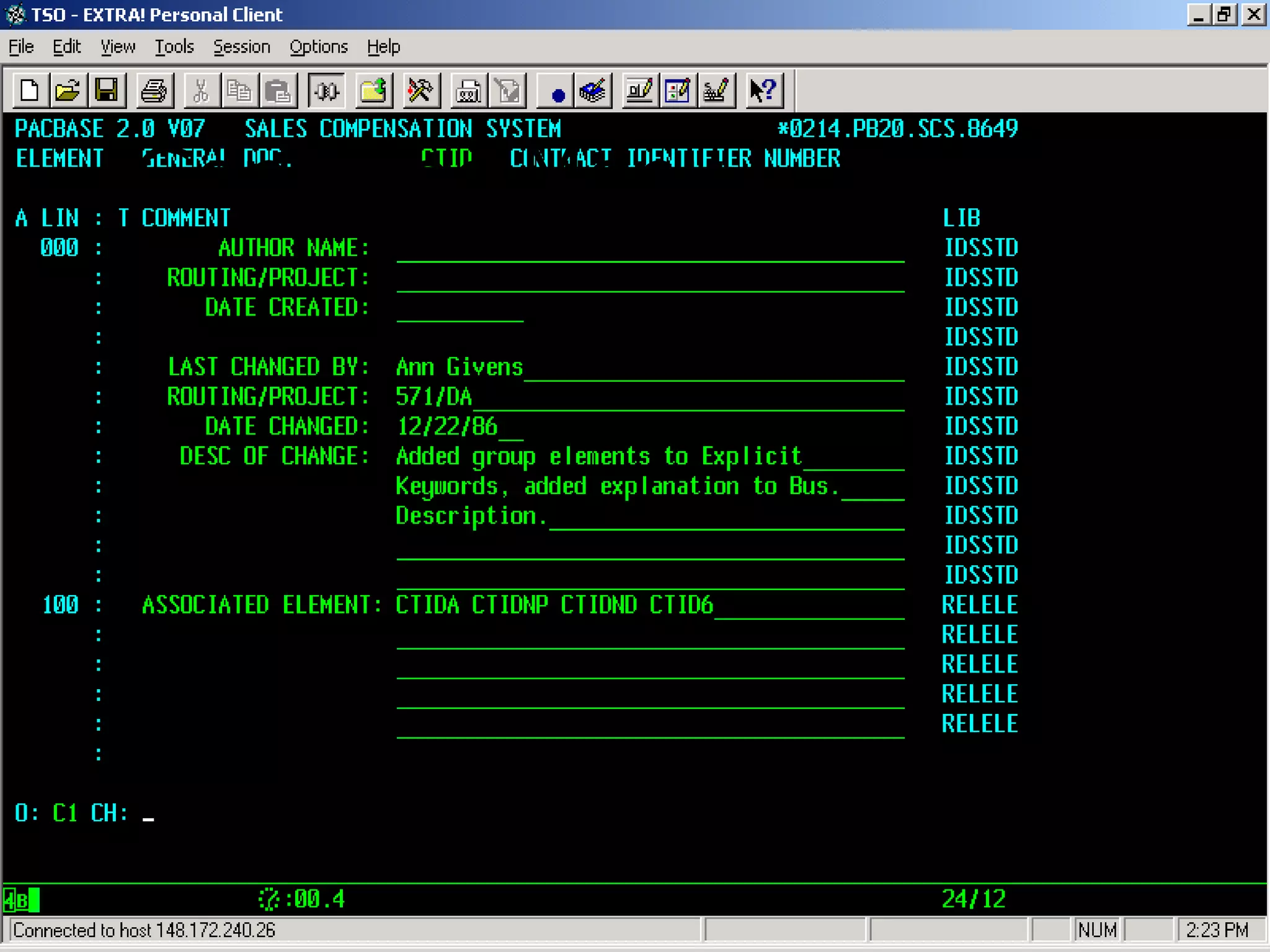

25. Gen. Doc Menu

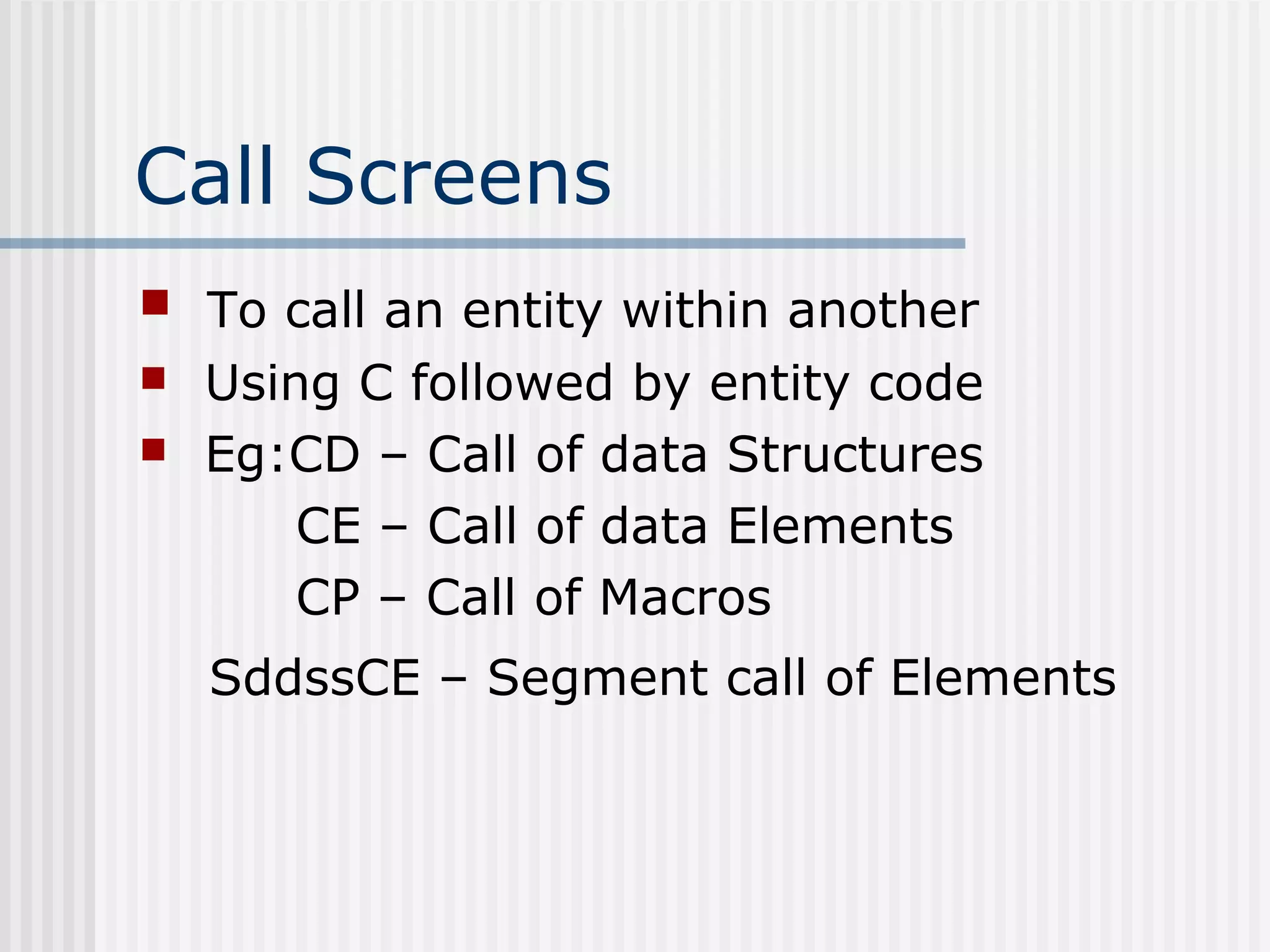

26. Call Screens
 To call an entity within another
 Using C followed by entity code
 Eg:CD – Call of data Structures
CE – Call of data Elements
CP – Call of Macros
SddssCE – Segment call of Elements

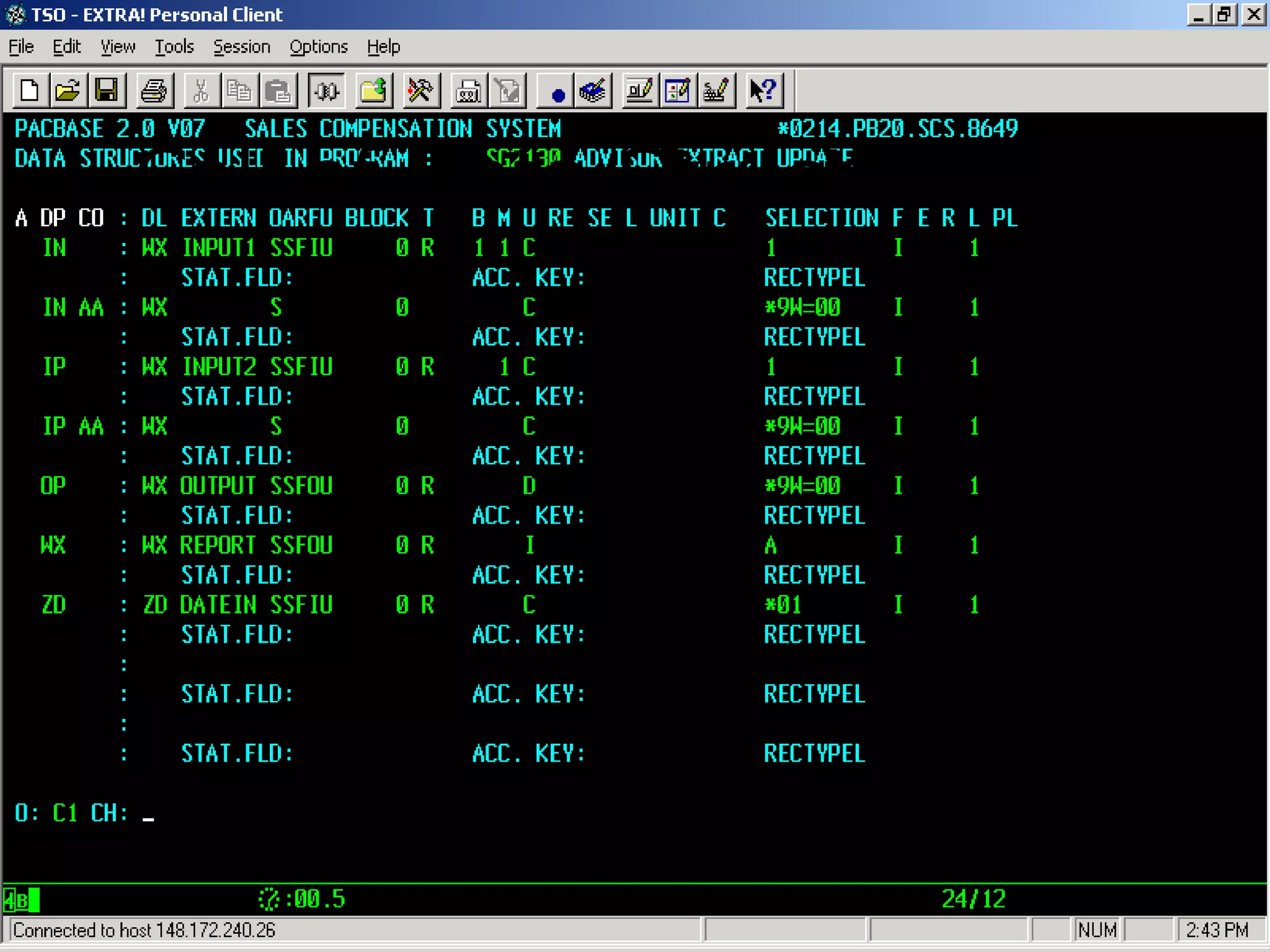

27. Call of Data Structures

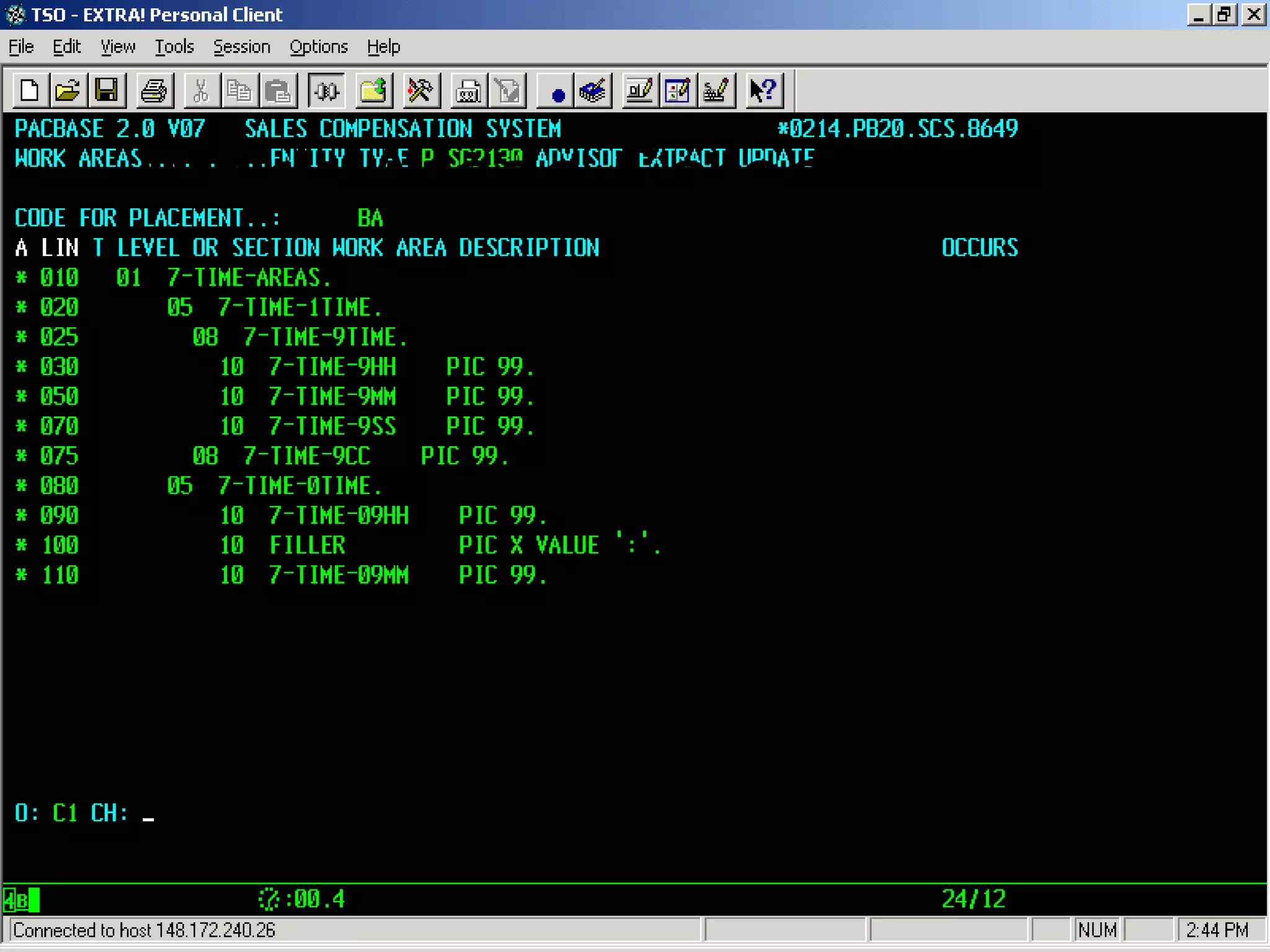

28. Work Areas Screen

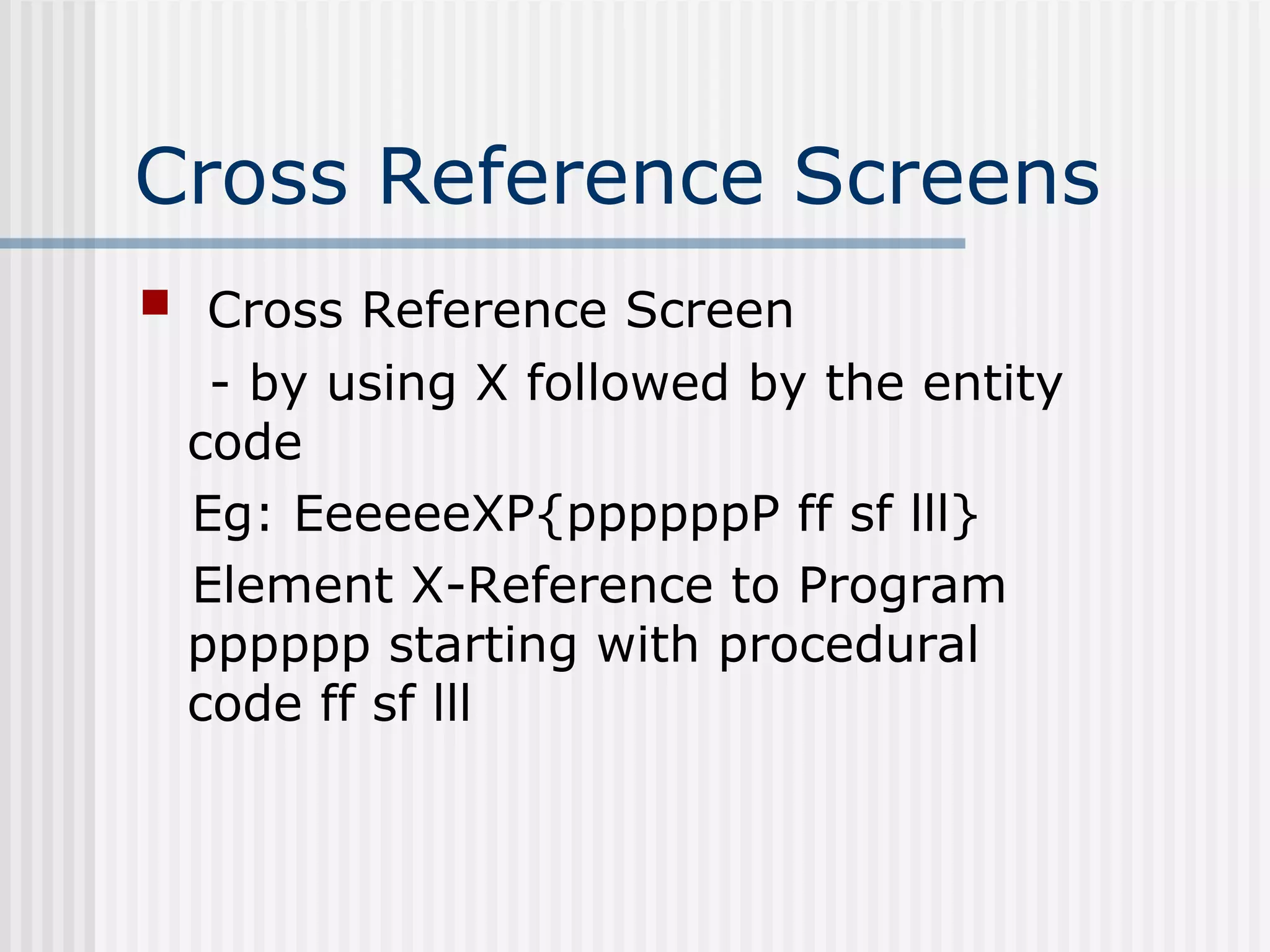

29. Cross Reference Screens
 Cross Reference Screen
- by using X followed by the entity
code
Eg: EeeeeeXP{ppppppP ff sf lll}
Element X-Reference to Program
pppppp starting with procedural
code ff sf lll

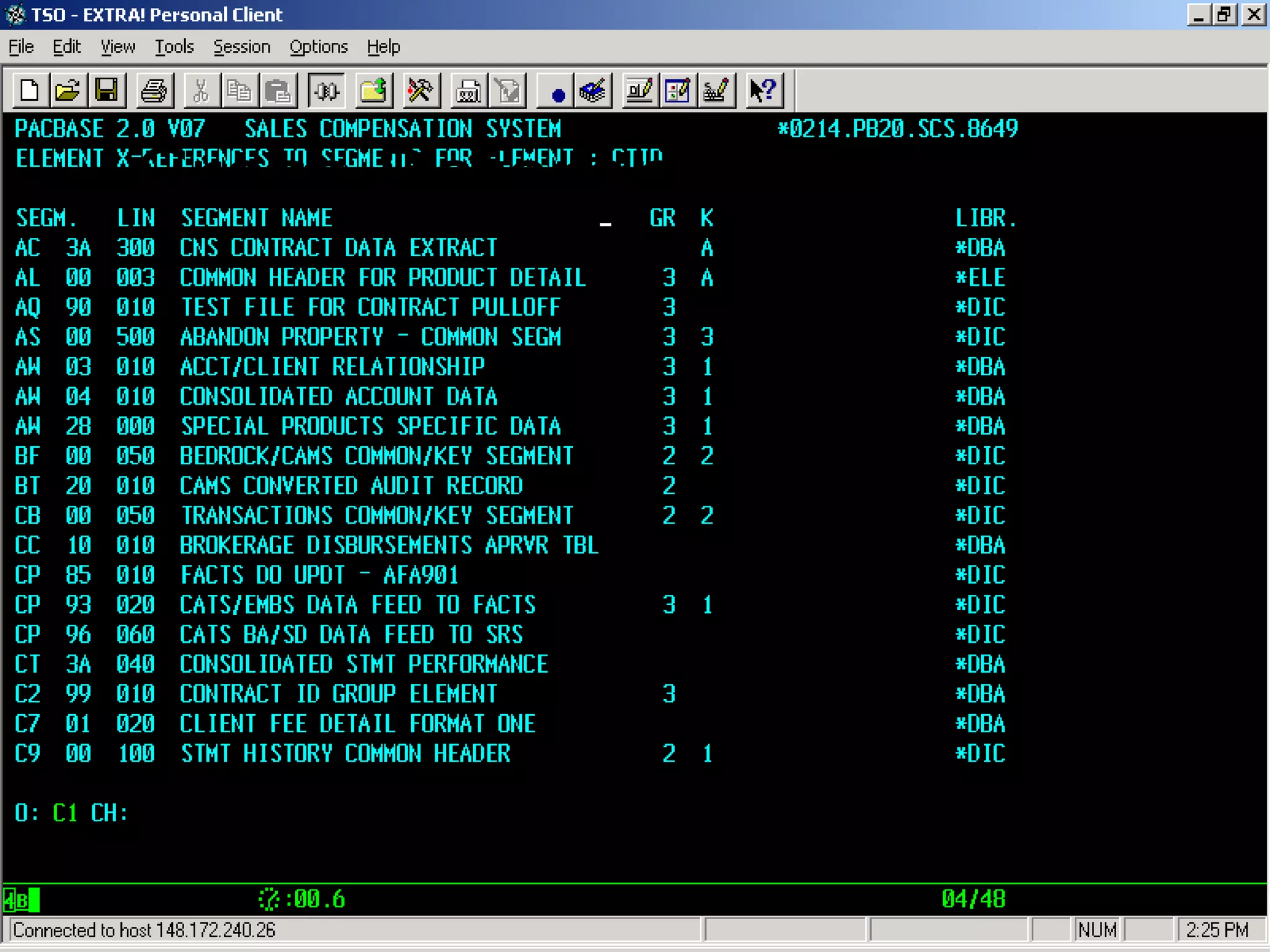

30. Cross Reference Screen

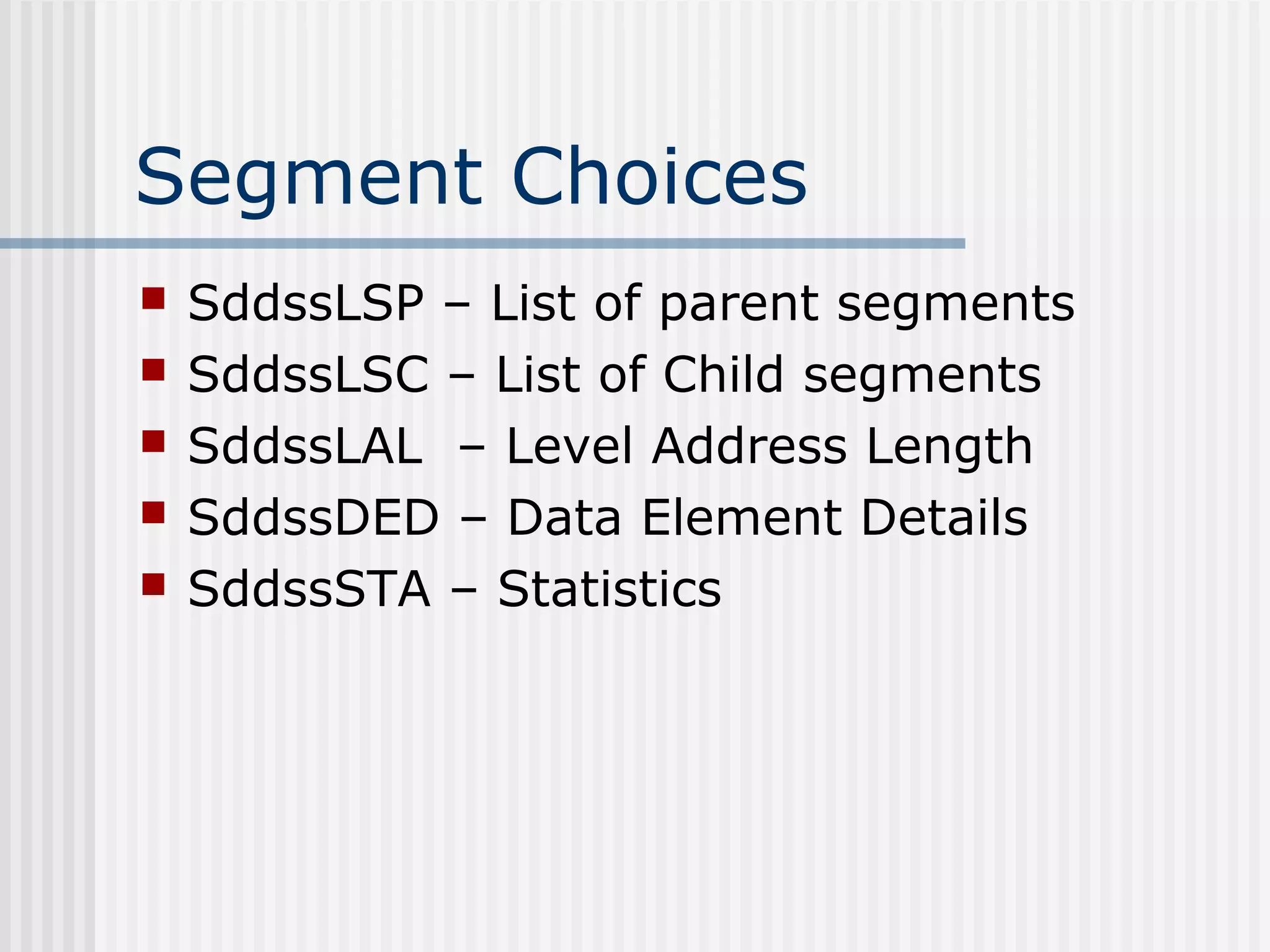

31. Segment Choices
 SddssLSP – List of parent segments
 SddssLSC – List of Child segments
 SddssLAL – Level Address Length
 SddssDED – Data Element Details
 SddssSTA – Statistics

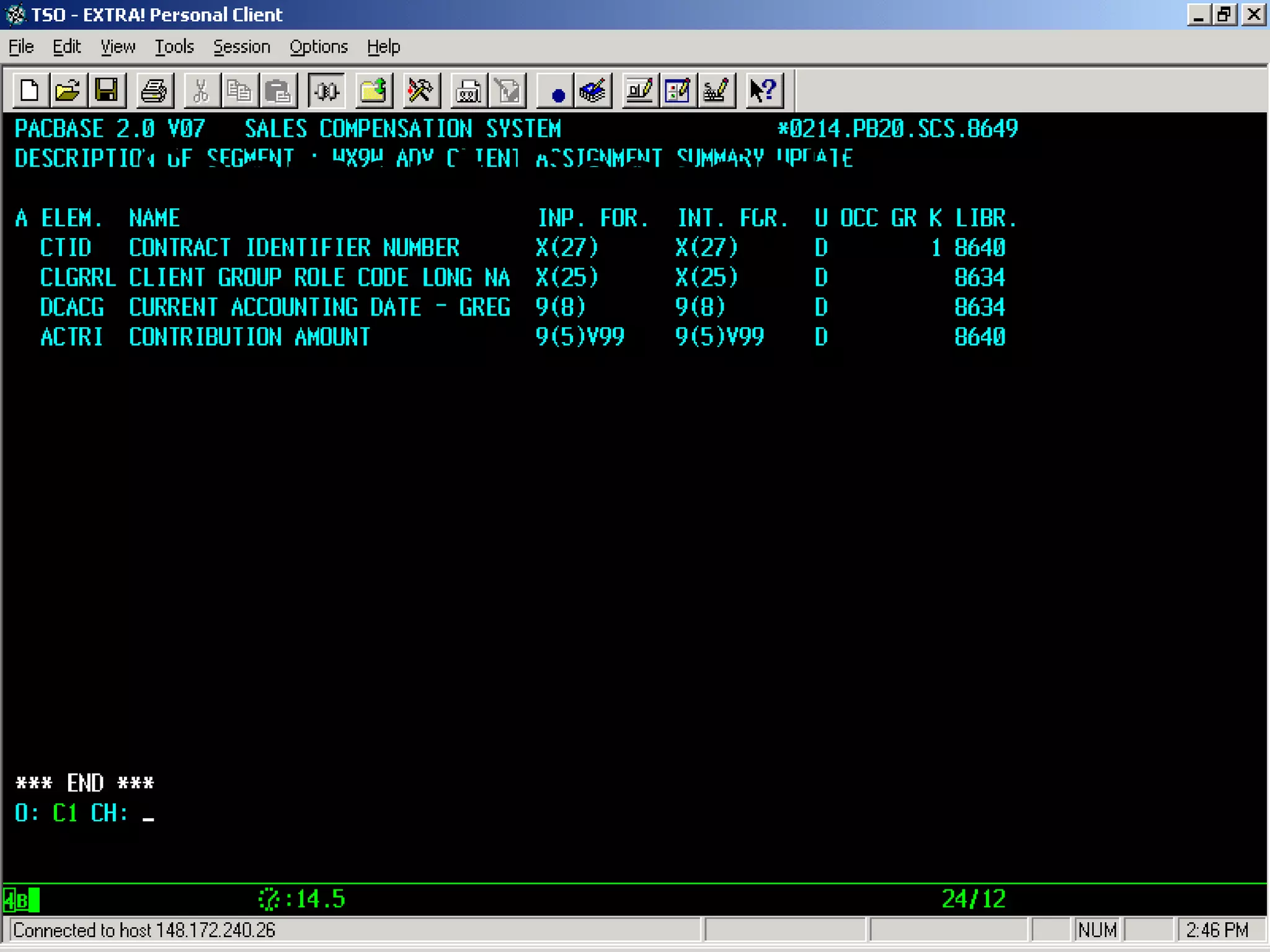

32. Segment Description

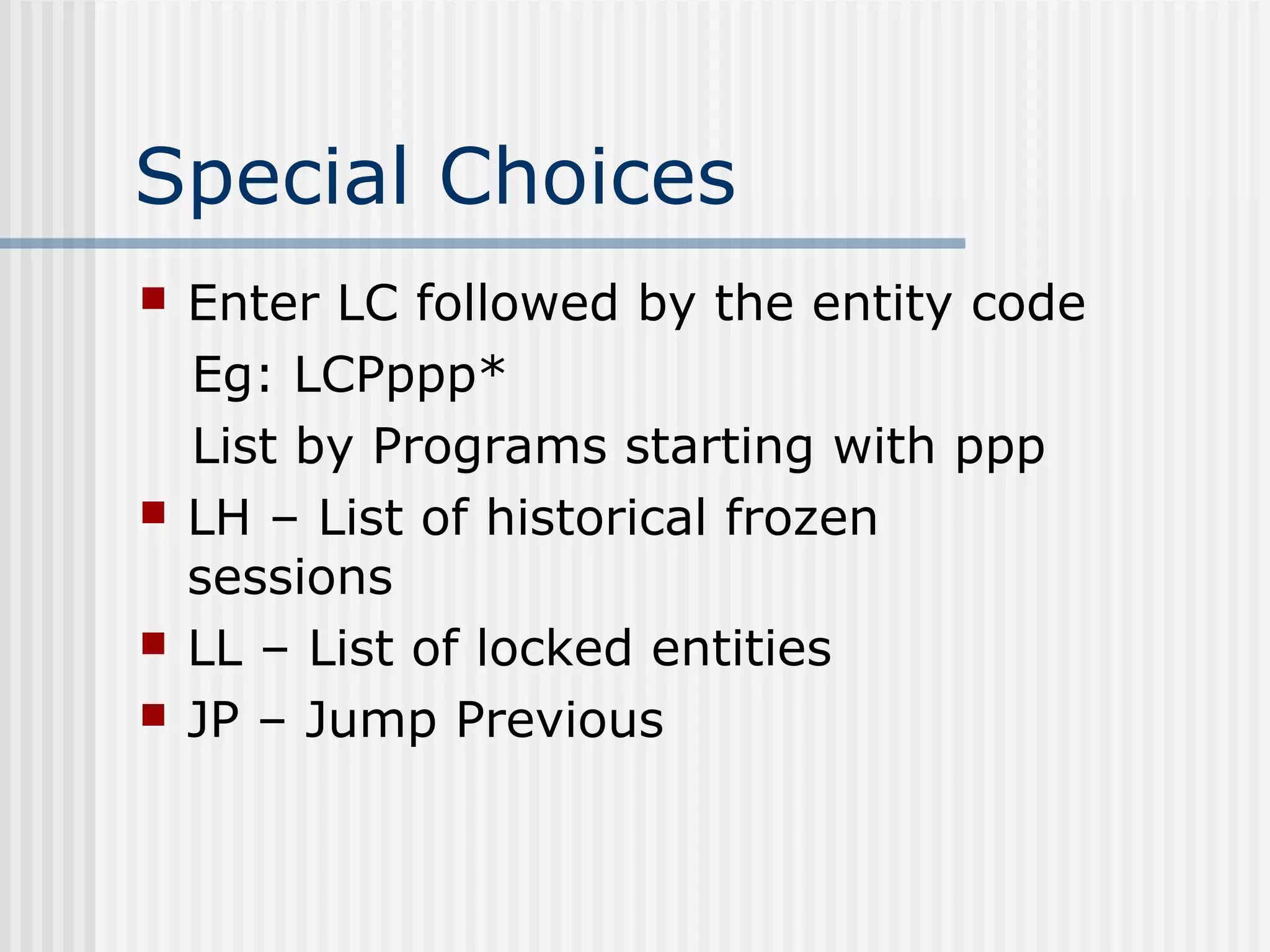

33. Special Choices
 Enter LC followed by the entity code
Eg: LCPppp*
List by Programs starting with ppp
 LH – List of historical frozen
sessions
 LL – List of locked entities
 JP – Jump Previous

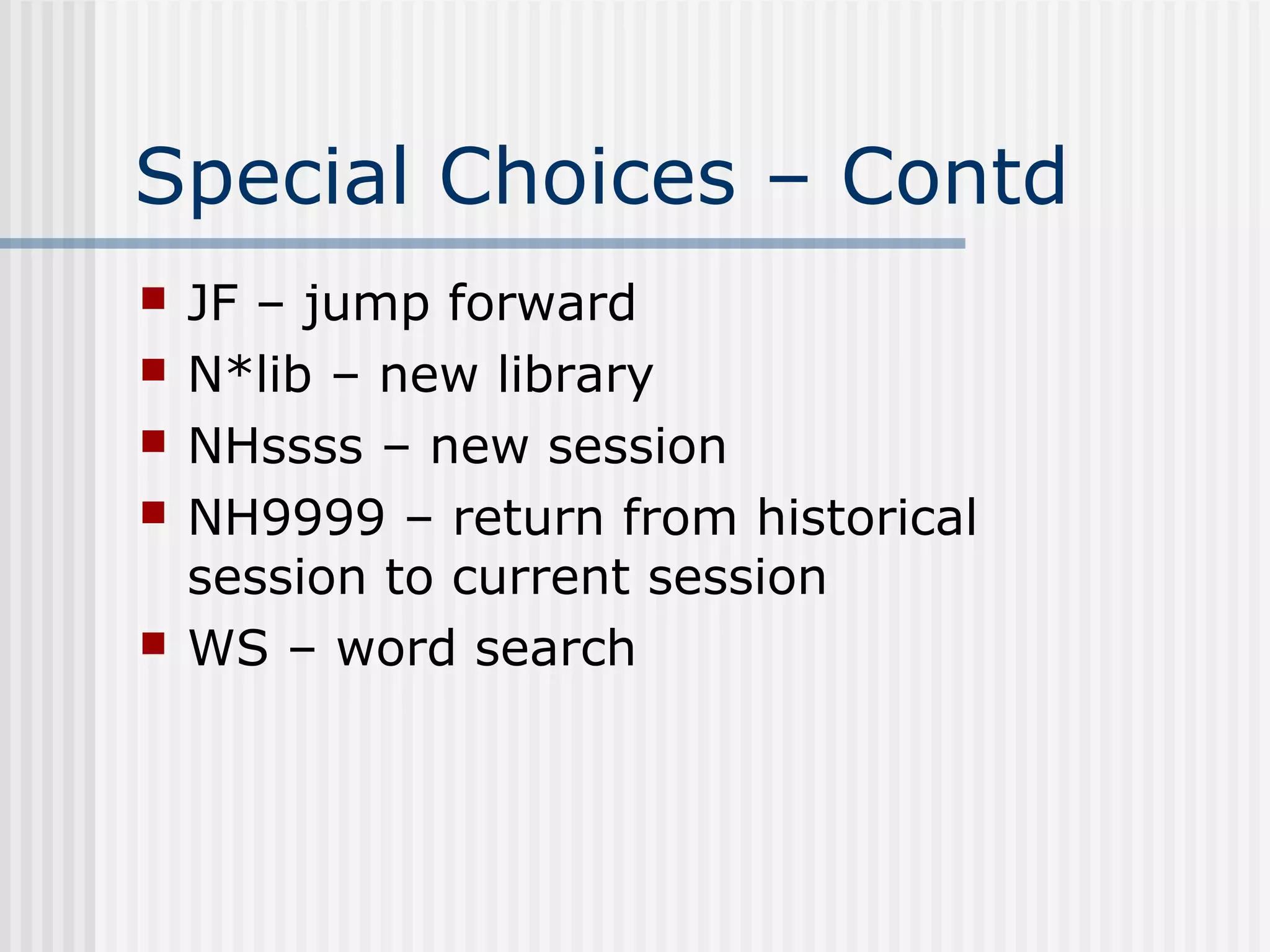

34. Special Choices – Contd
 JF – jump forward
 N*lib – new library
 NHssss – new session
 NH9999 – return from historical
session to current session
 WS – word search

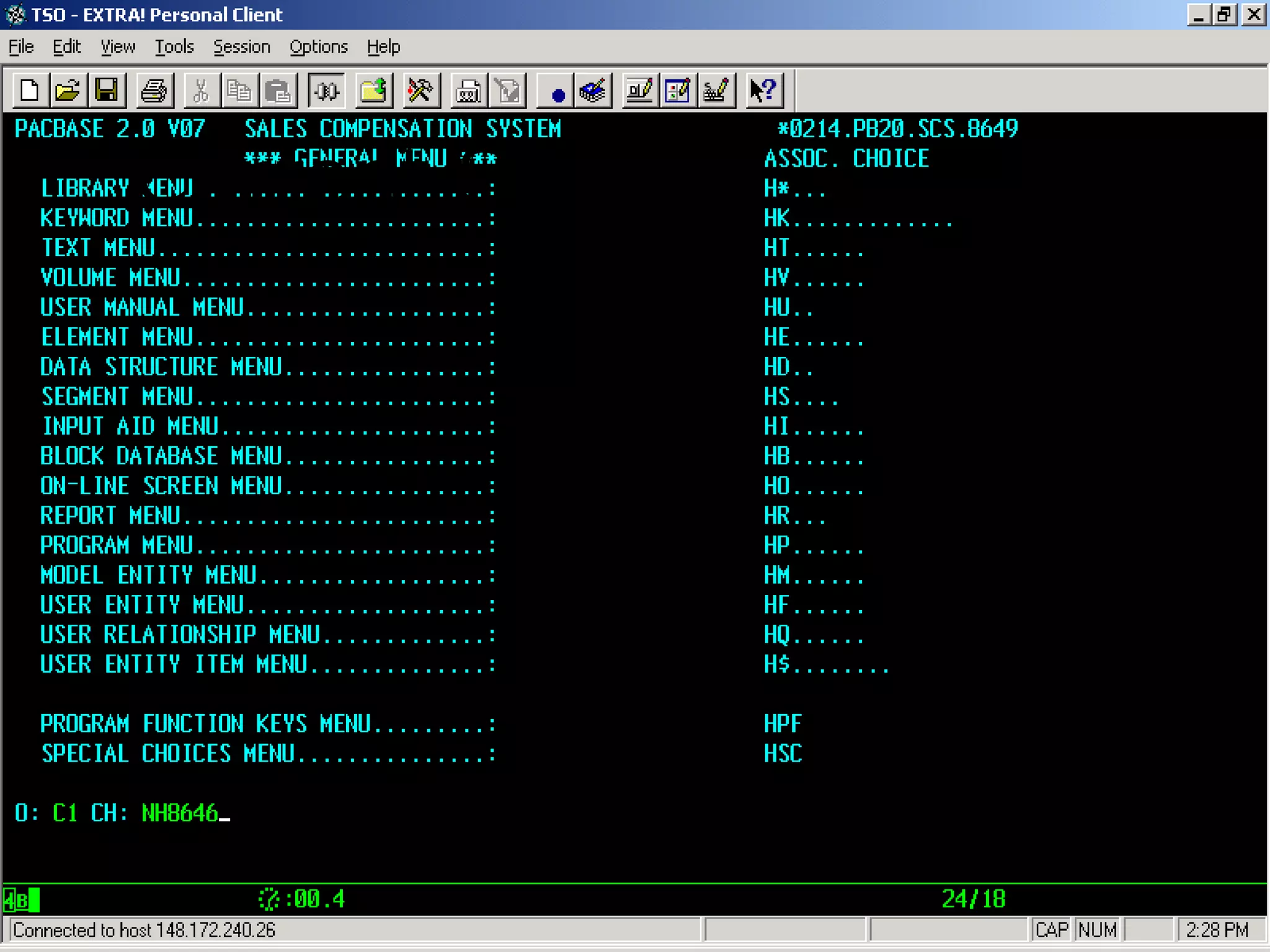

35. Current Session

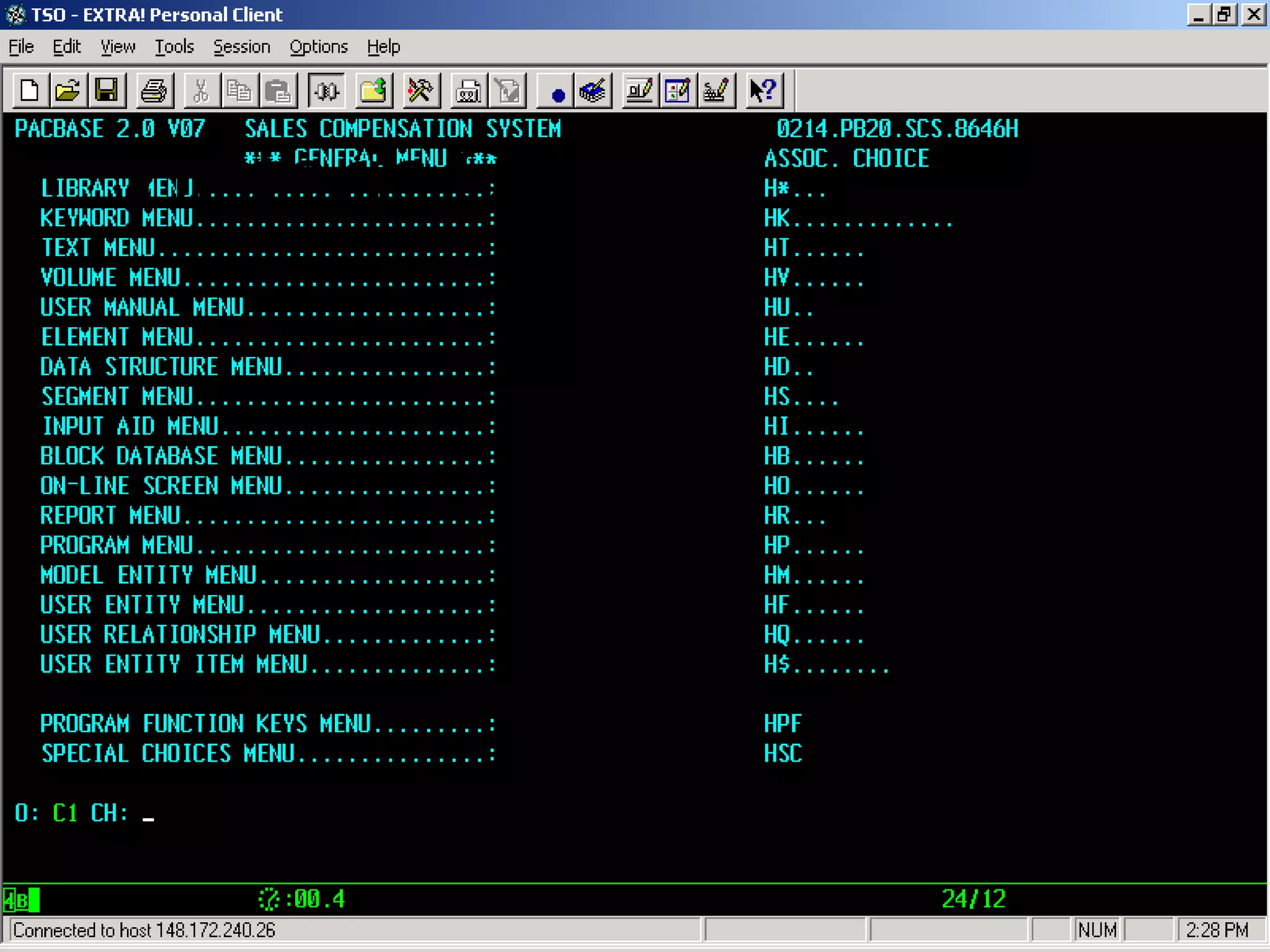

36. Historic Session

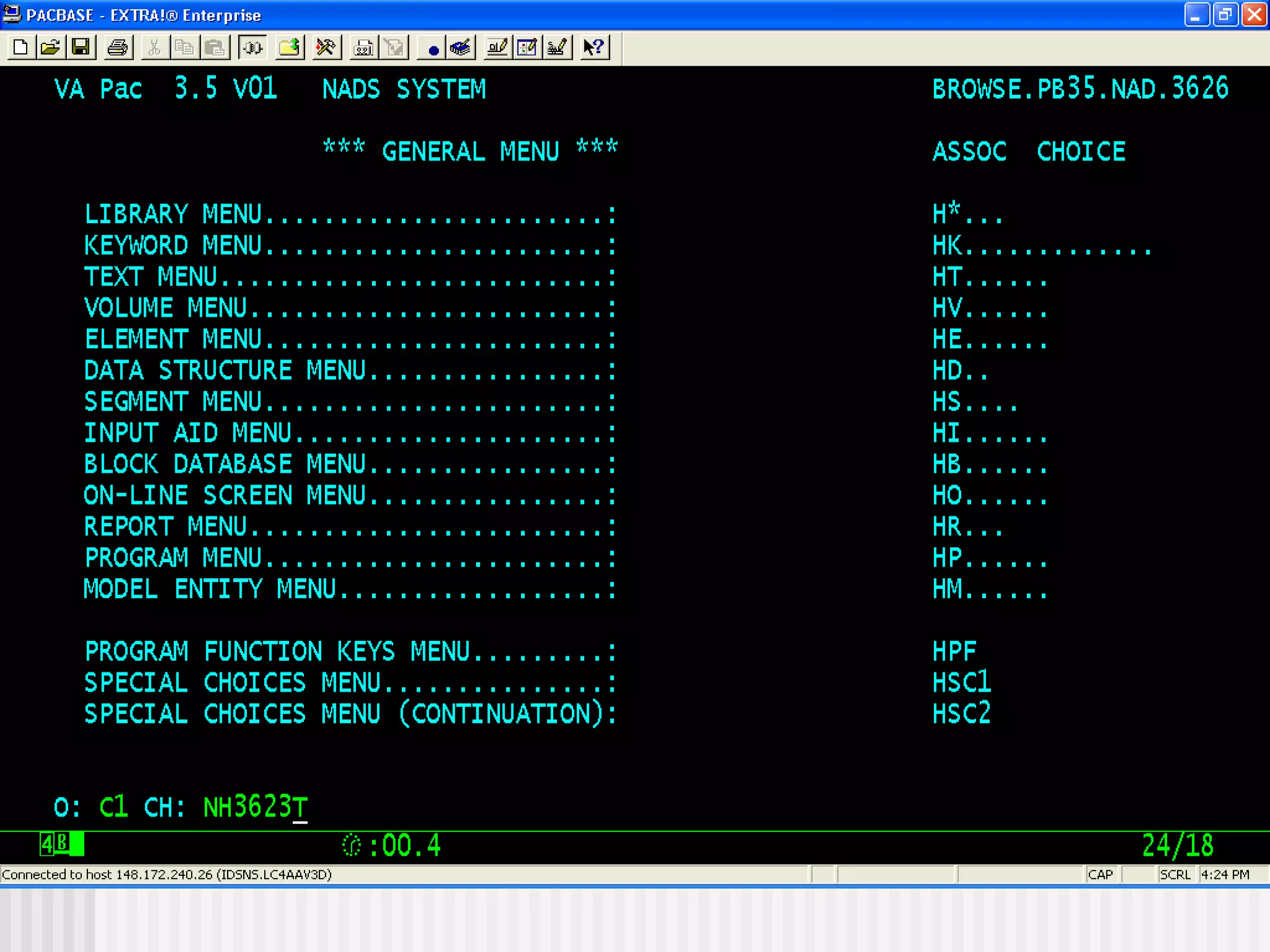

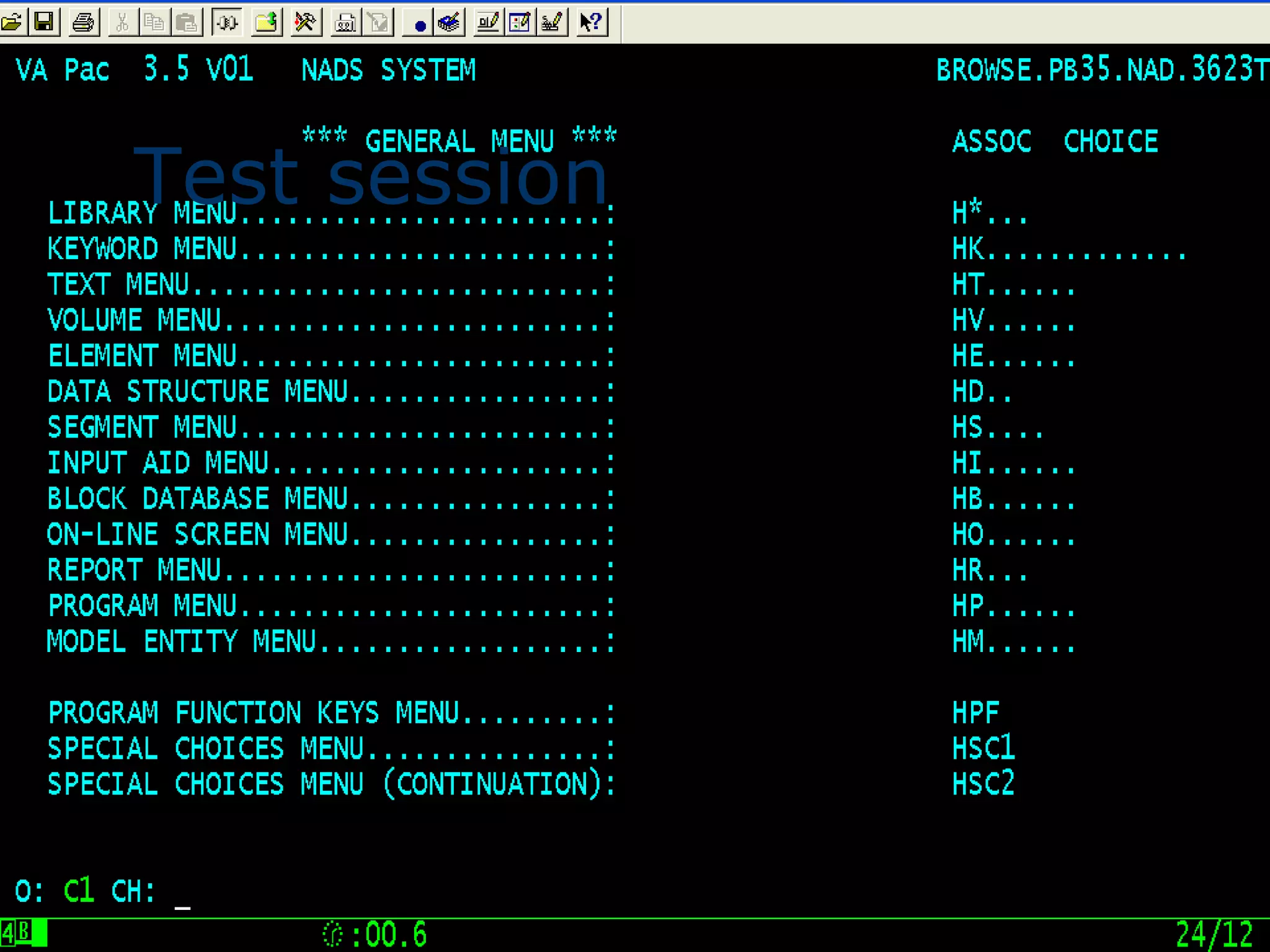

37. Test Session

38. Test session

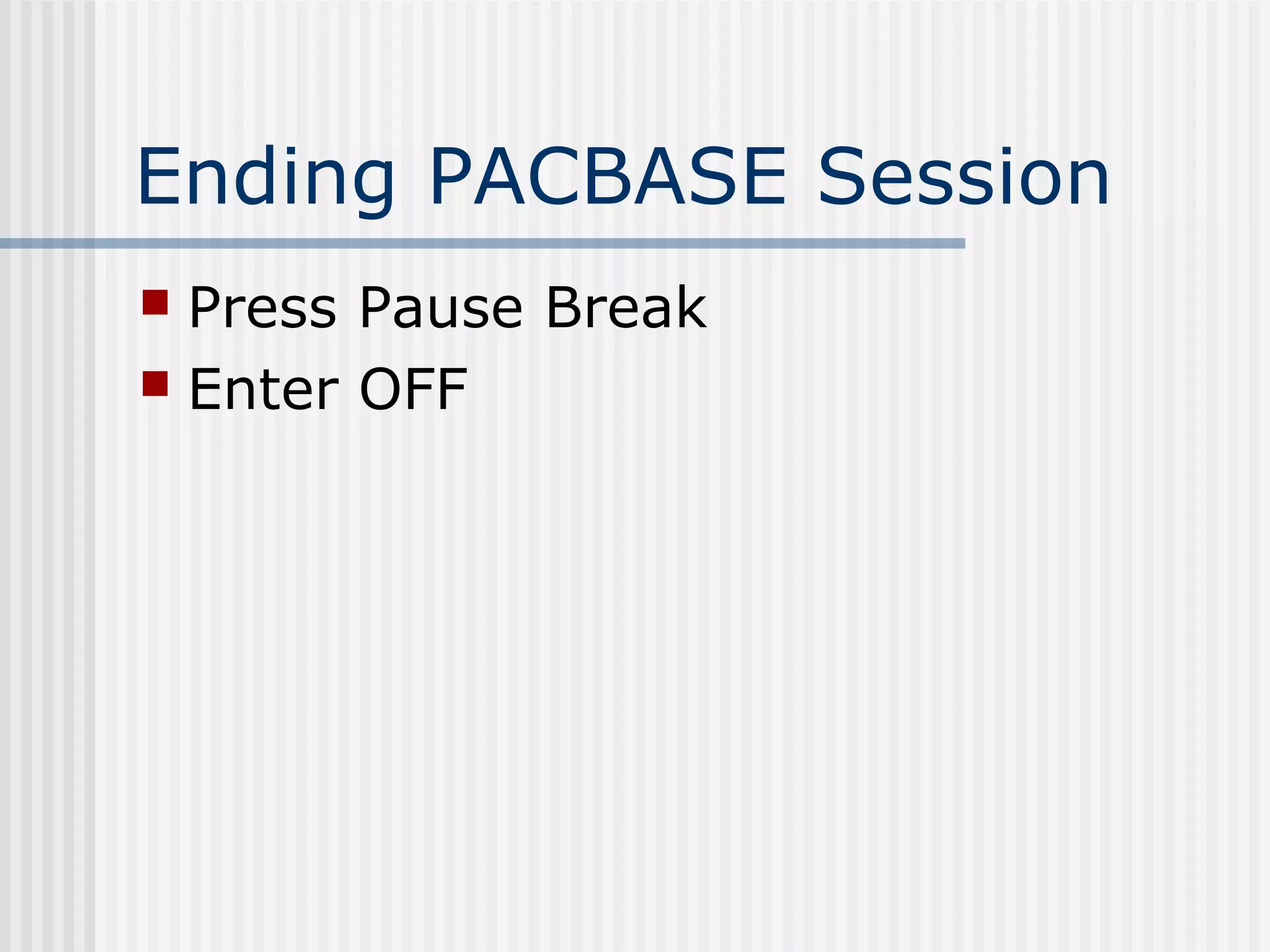

39. Ending PACBASE Session
 Press Pause Break
 Enter OFF

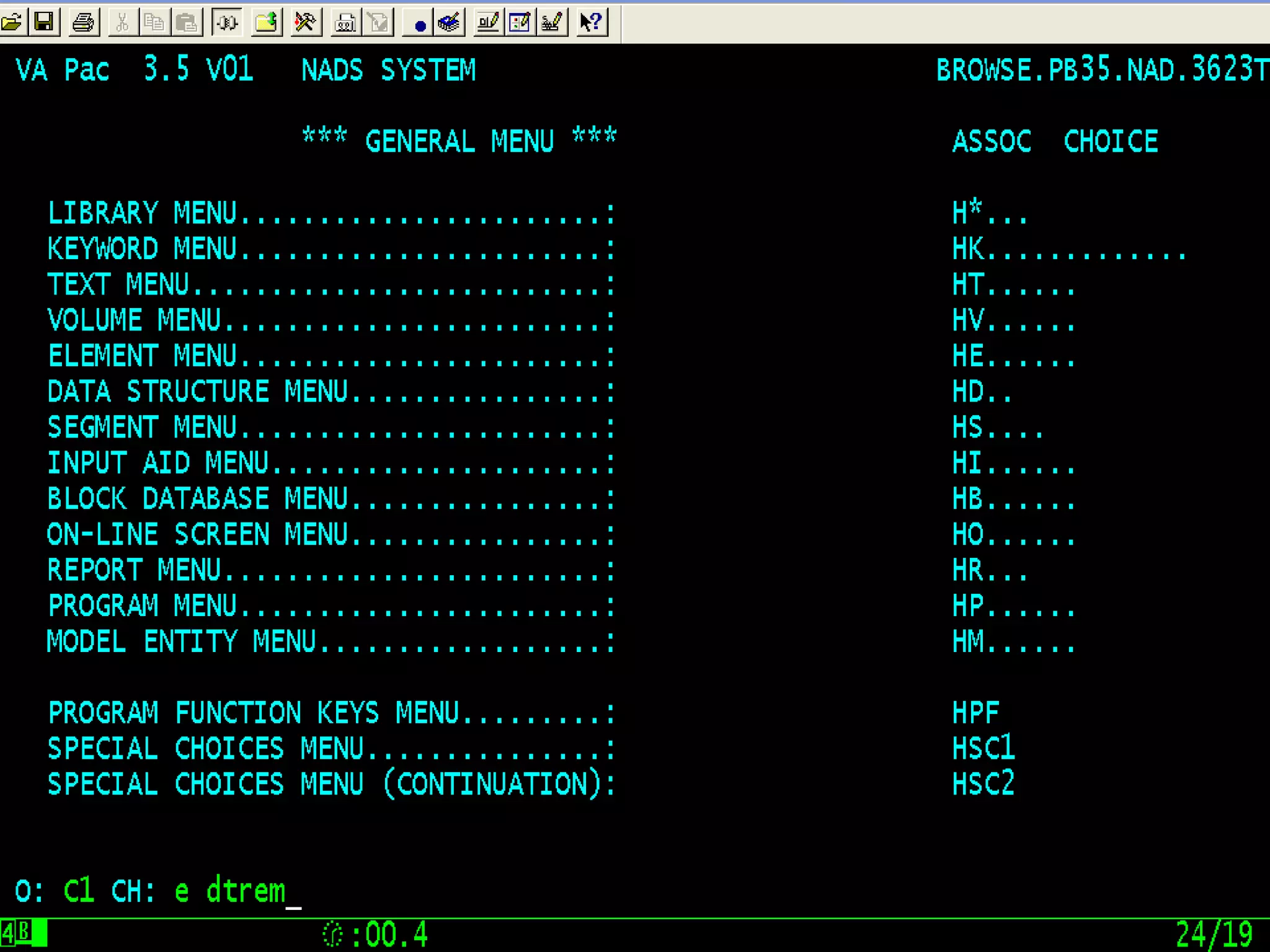

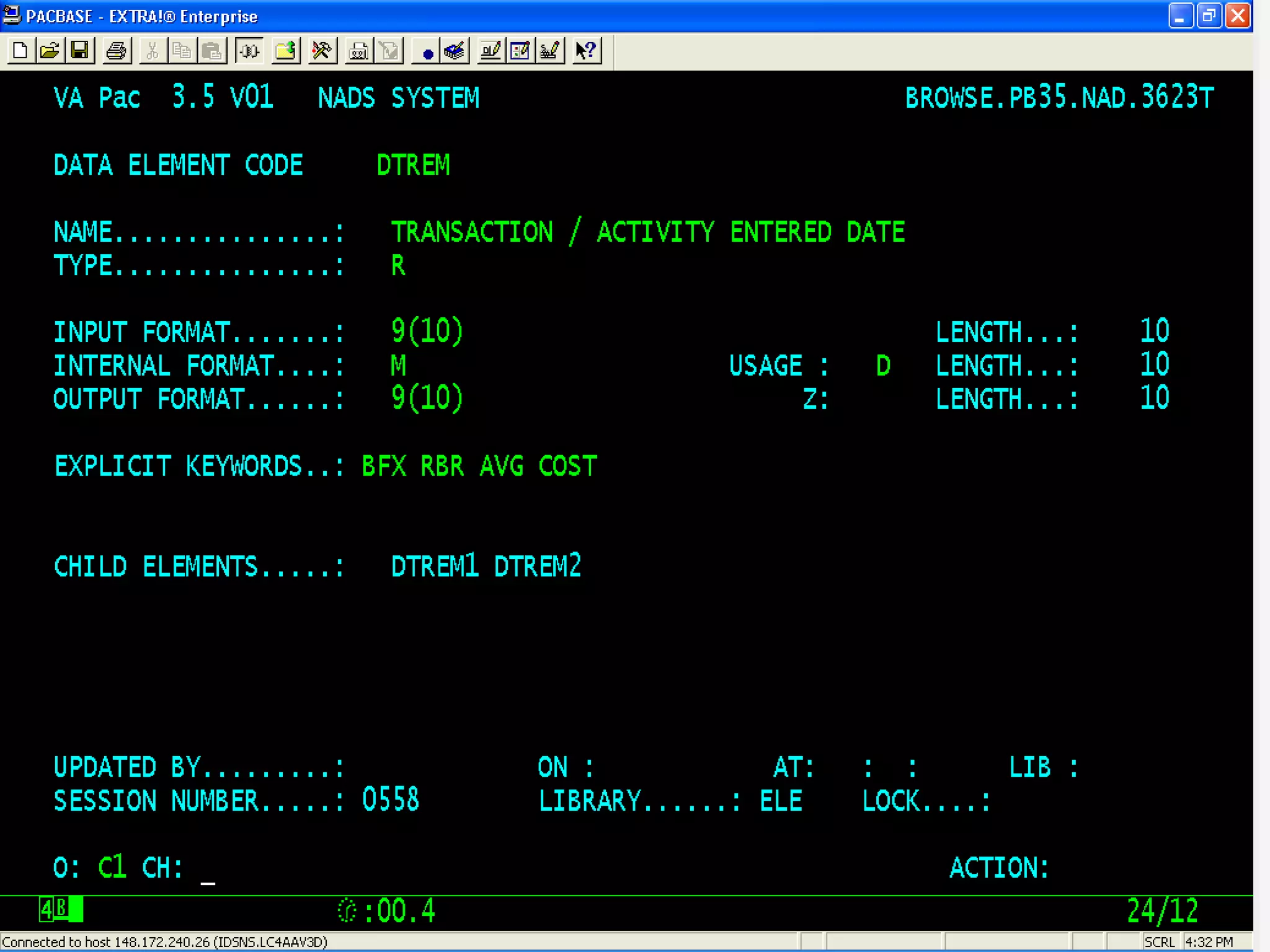

40. View element 1

41. View element2

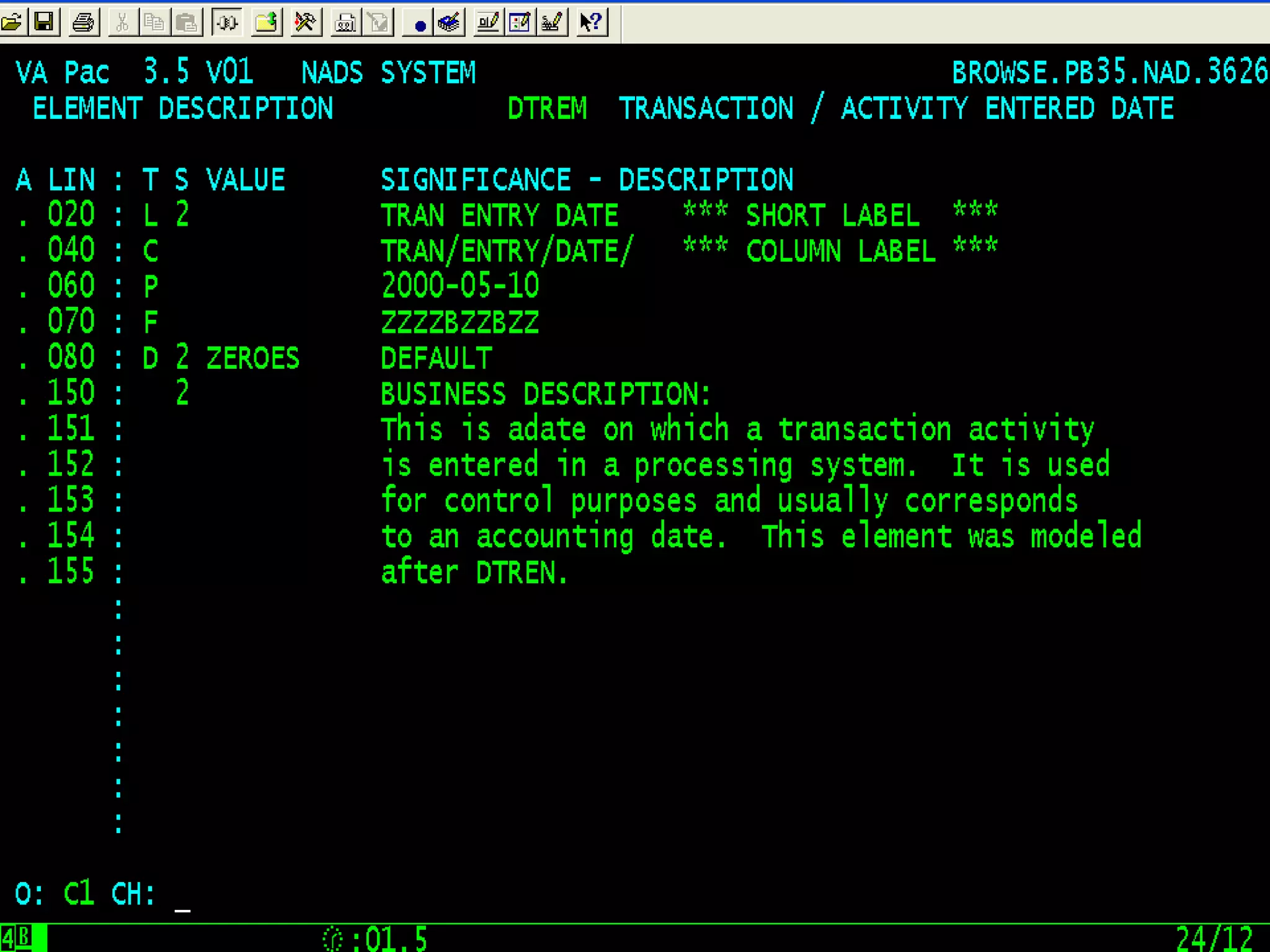

42. View Element3

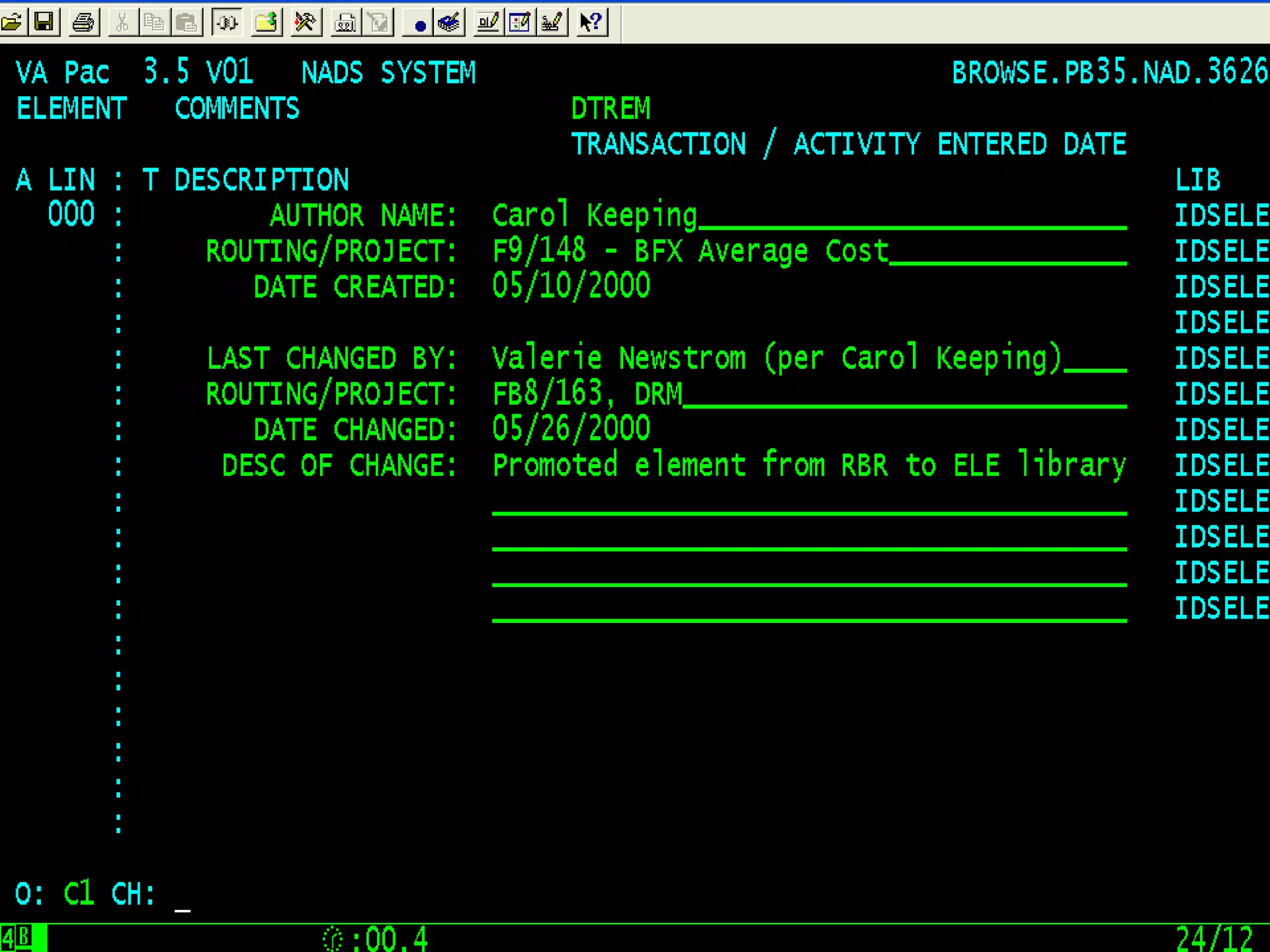

43. General Description

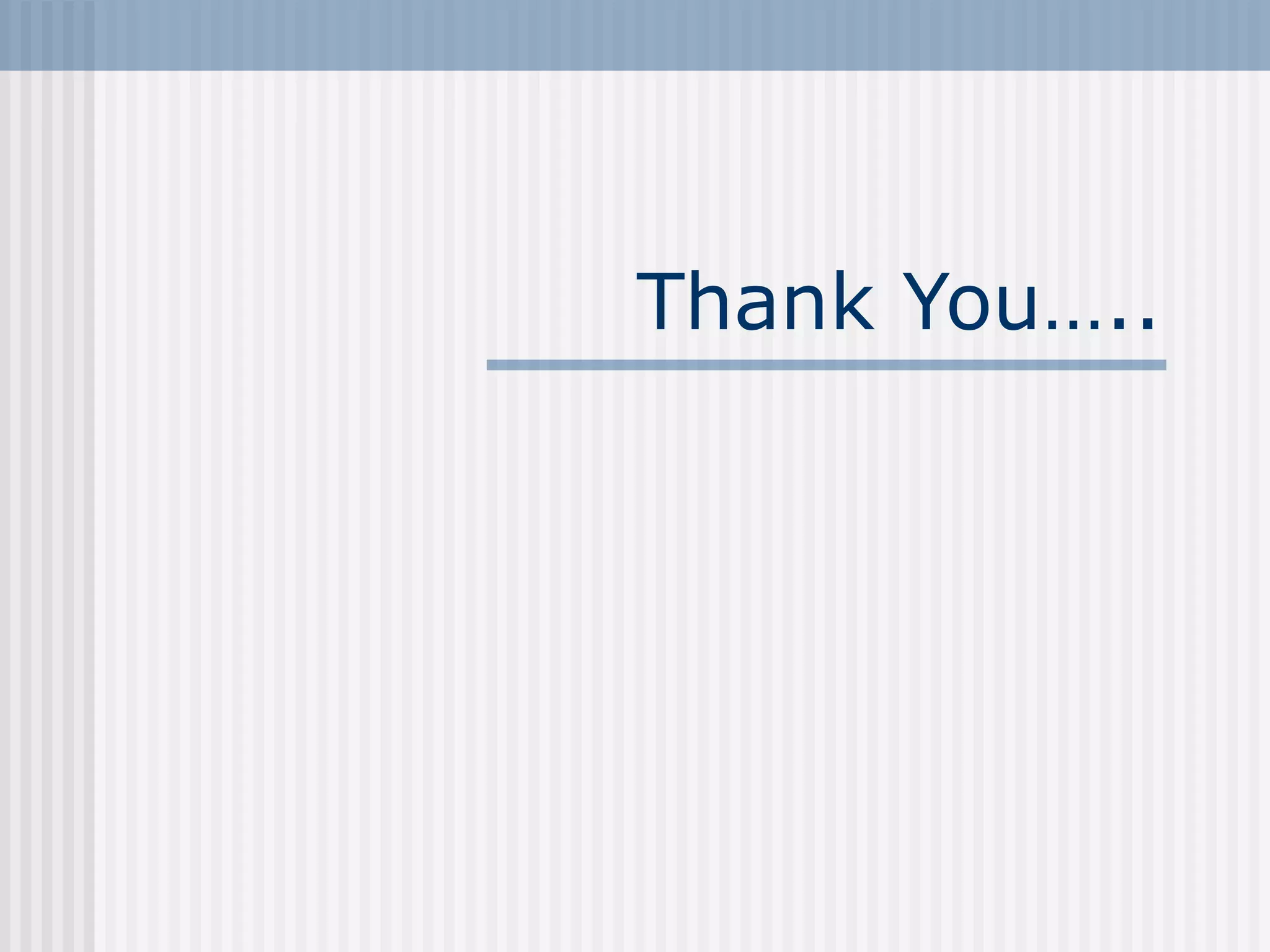

44. Thank You…..
