The document describes the basic components and functions of a computer system. It shows how a computer (S) sends data to a destination (X) by first sending a signal to either a hub or switch. The hub or switch then broadcasts the signal to all connected computers to locate the destination and route the data from the source.

1. James Bennett

2. •X=
Destination
• S = Source

3. Mathematical
Chip
Video Process CPU
CPU or
Unprocessed
input Processed
returns
Programs and
documents that
Random Access Inputs and
are running
Memory Outputs
Boot Save work
up when powering
Setup down
Storag
e
OS Files
Data
Application

4. Computer C sends a
signal to the Hub which
then sends a broadcast to
all computers to locate to
destination.
X
A D
B C
S
BROADCA
ST

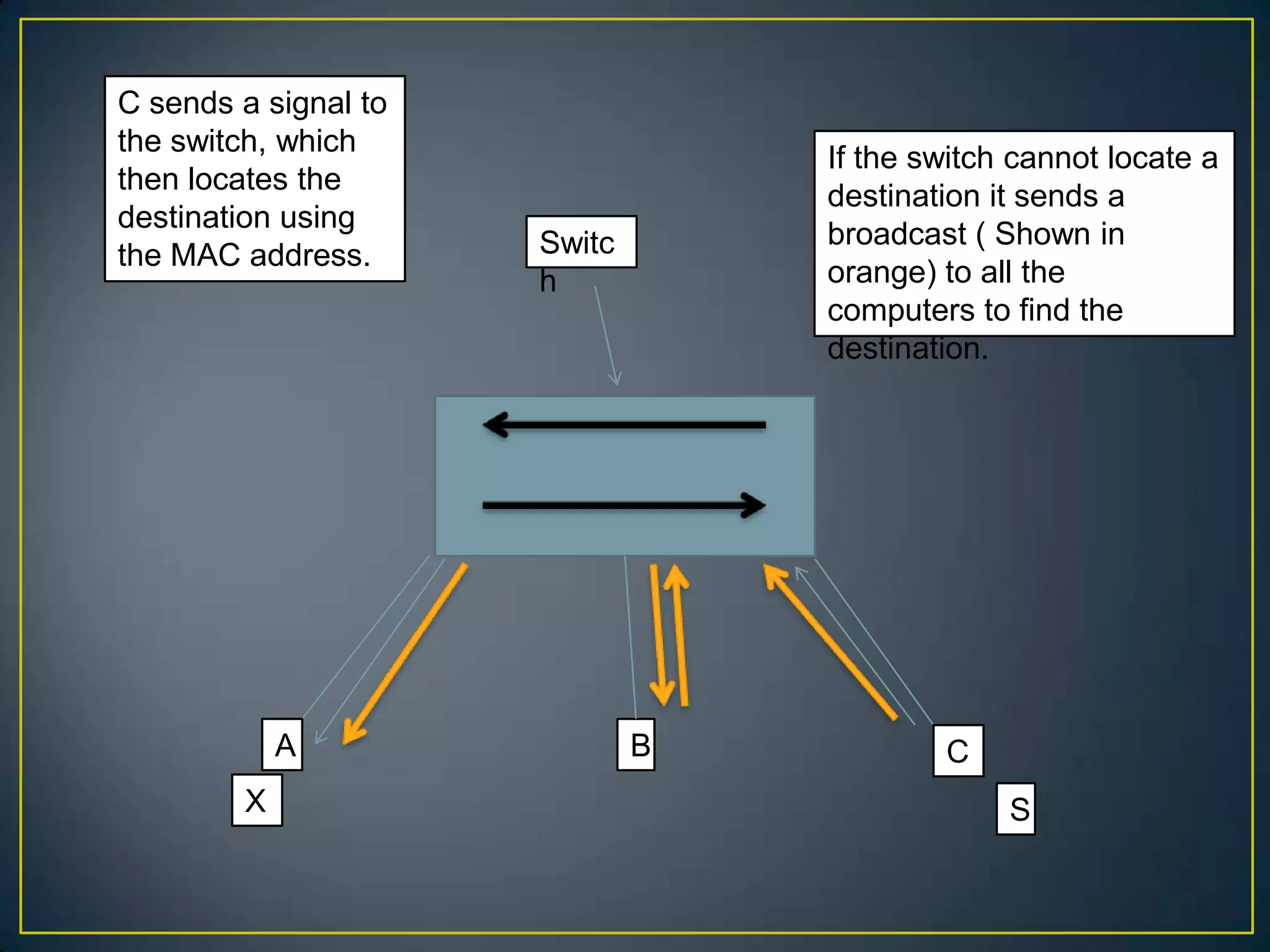

5. C sends a signal to
the switch, which
If the switch cannot locate a
then locates the
destination it sends a
destination using
Switc broadcast ( Shown in
the MAC address.
h orange) to all the
computers to find the
destination.
A B C
X S
