1. OXYGEN ADMINISTRATION
(O2)
By:
Ajit Kumar
Nursing Tutor

2. Definition
Oxygen is a colourless ,tasteless ,odourless Gas that is
essential for body organ to survive.
PaCo2 - Partial Carbondioxide
Normal Range - 35 to 45 mmhg
Pao2 - Partial OOxyeg
Normal Range in Children - 80 to 100 mmhg
Normal Range in Adult - 50 to 80 mmhg

3. Spo2 full form is -
S – Saturation capillary
P - Peripheral
O2 - Oxygen
Normal Spo2 is - 96 to 100 %

4. Colour of Oxygen Cylinder is -
Black Body and white Neck
Humidifier water change
in every 24 hour.

5. Supply of Oxygen :
Thre are two ways to Supply oxygen in Hospital.
1. By Pipe/ Wall outlet
The pressure Store under 50 to 60 lbs
2. By Oxygen Cylinder
The Pressure under 2200 lbs
( 1000kg/Square inch)

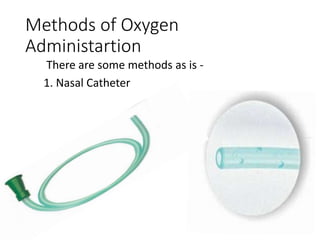

6. Methods of Oxygen
Administartion
There are some methods as is -
1. Nasal Catheter

7. • Flow rate is 2-4 ltr/min.
• Change catheter every 8 to 12 hour.
• Most common method used in HoHospital.
• Inserted to the Uvula.

8. 2. Nasal Cannula / Nasal Pronge

9. • It is Disposable.
• Two Cannula about 1.5 cm.
• Used for Low medium Concentration of Oxygen 24
to 44%
• Flow rate 1 to 6 ltr/min.
• Never Deliver more than 2-3 ltr/min to the patient
with COPD because patient not Tolerate.
• Increase Co2 is called Hypercapnia.
• Decrease Co2 is called Hypocapnia.

10. 3. O2 Mask or Simple mask

11. • Flow Rate is 4 to 8 ltr/min.
• O2 Concentration is 40 to 60%.
• 5 ltr O2 = 40%
• 6 ltr O2 = 45 to 50%
• 8 ltr O2 = 55 to 60 %

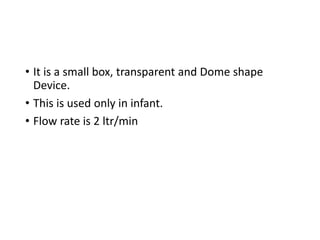

12. 4. O2 Hood method

13. • It is a small box, transparent and Dome shape
Device.
• This is used only in infant.
• Flow rate is 2 ltr/min

14. 5. O2 tent Method

15. • It is a Canopy over the patient.
• Canopy should be Transparent.
• Flow rate is 8 to 10 ltr/min.

16. 6. Venturi Mask / Venti Mask

17. • Normal flow rate is 3 to 15 ltr/ltr.
• Best method to Deliver oxygen in COPD patient.
• In COPD Flow rate is < 4 ltr / Min.
• The venturi mask colur Code, flow rate and Oxygen
Concentration -

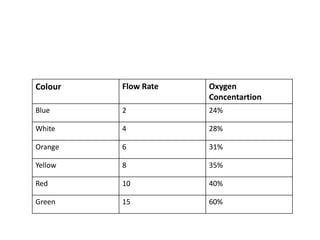

18. Colour Flow Rate Oxygen
Concentartion
Blue 2 24%
White 4 28%
Orange 6 31%
Yellow 8 35%
Red 10 40%
Green 15 60%

19. 7. Partial Rebreather Mask

20. • Flow rate is 6 to 15 ltr/min.
• Oxygen Concentration 70 to

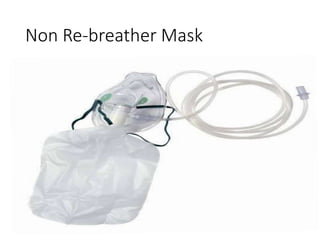

21. Non Re-breather Mask

22. • Flow Rate is 10 to 15 ltr/min.
• Provide Higher concentartion of oxygen and can be
deliver and oxygen concentration > 90%
• It is most common method to use for oxygen.

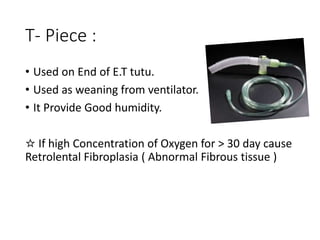

23. T- Piece :
• Used on End of E.T tutu.
• Used as weaning from ventilator.
• It Provide Good humidity.
☆ If high Concentration of Oxygen for > 30 day cause
Retrolental Fibroplasia ( Abnormal Fibrous tissue )

24. • N2o * Nitrous Oxide- Laughing Gas
• Use in Analgesic and Anesthesia for O.T
• Colour - Blue Colour.
• Hilium - Colur Brown
• Used in MRI Machine to detect to Image.
