This document provides an overview of operating HBase clusters in production environments. It discusses leveraging existing knowledge of distributed systems, getting metrics set up using tools like Ganglia and OpenTSDB, automating tasks with Puppet, Chef and Fabric, setting up alerting with Nagios and Zabbix, and different backup strategies for HBase including offline distcp backups, replication to another cluster, and using HBase snapshots. The goals are to help operations teams understand how to manage HBase and empower them to work with their own operations organizations.

1. HBase, Meet OPs.
OPs, Meet HBase
Kevin O'Dell
Jean-Daniel Cryans

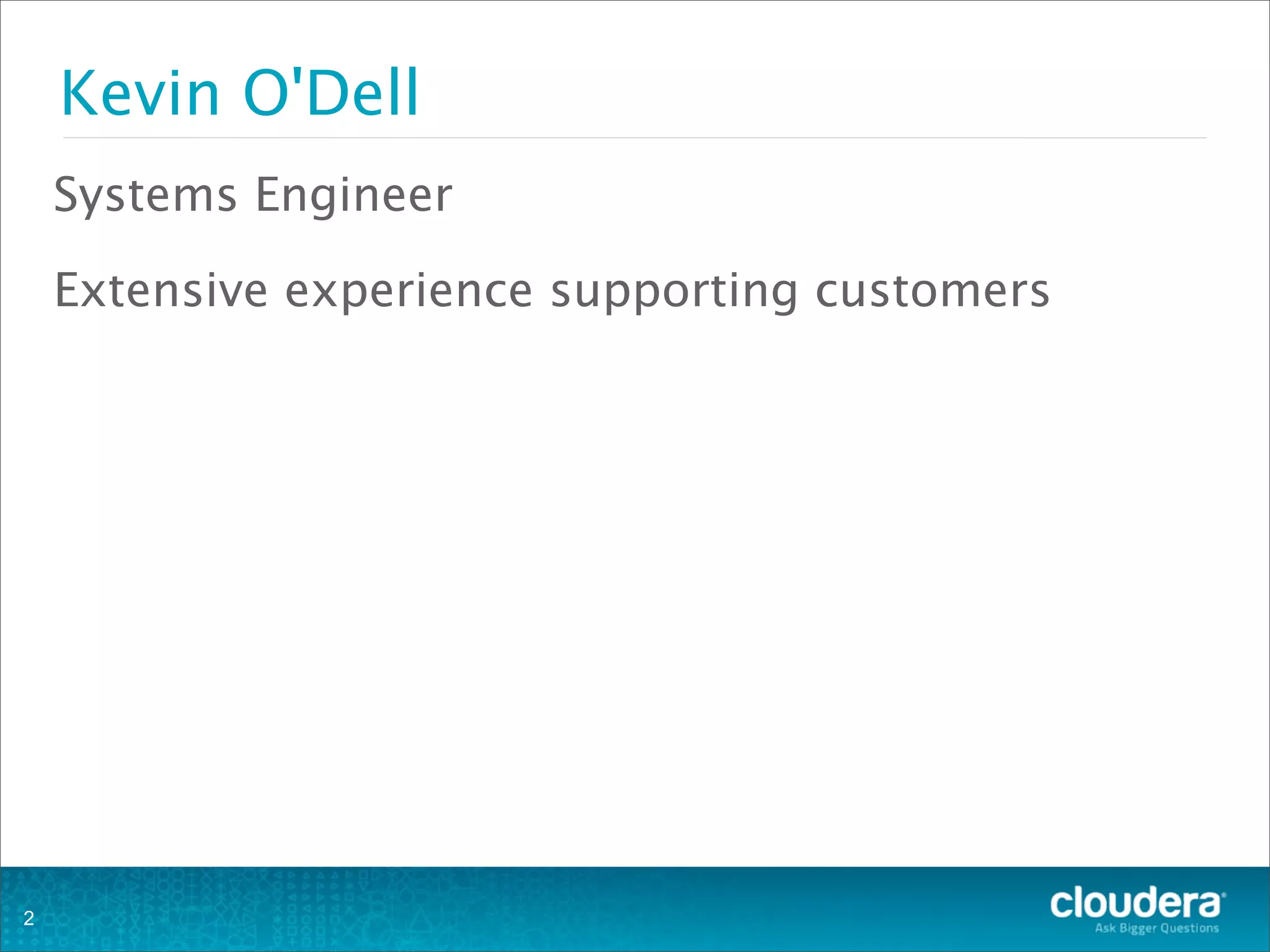

2. Kevin O'Dell
Systems Engineer
Extensive experience supporting customers
2

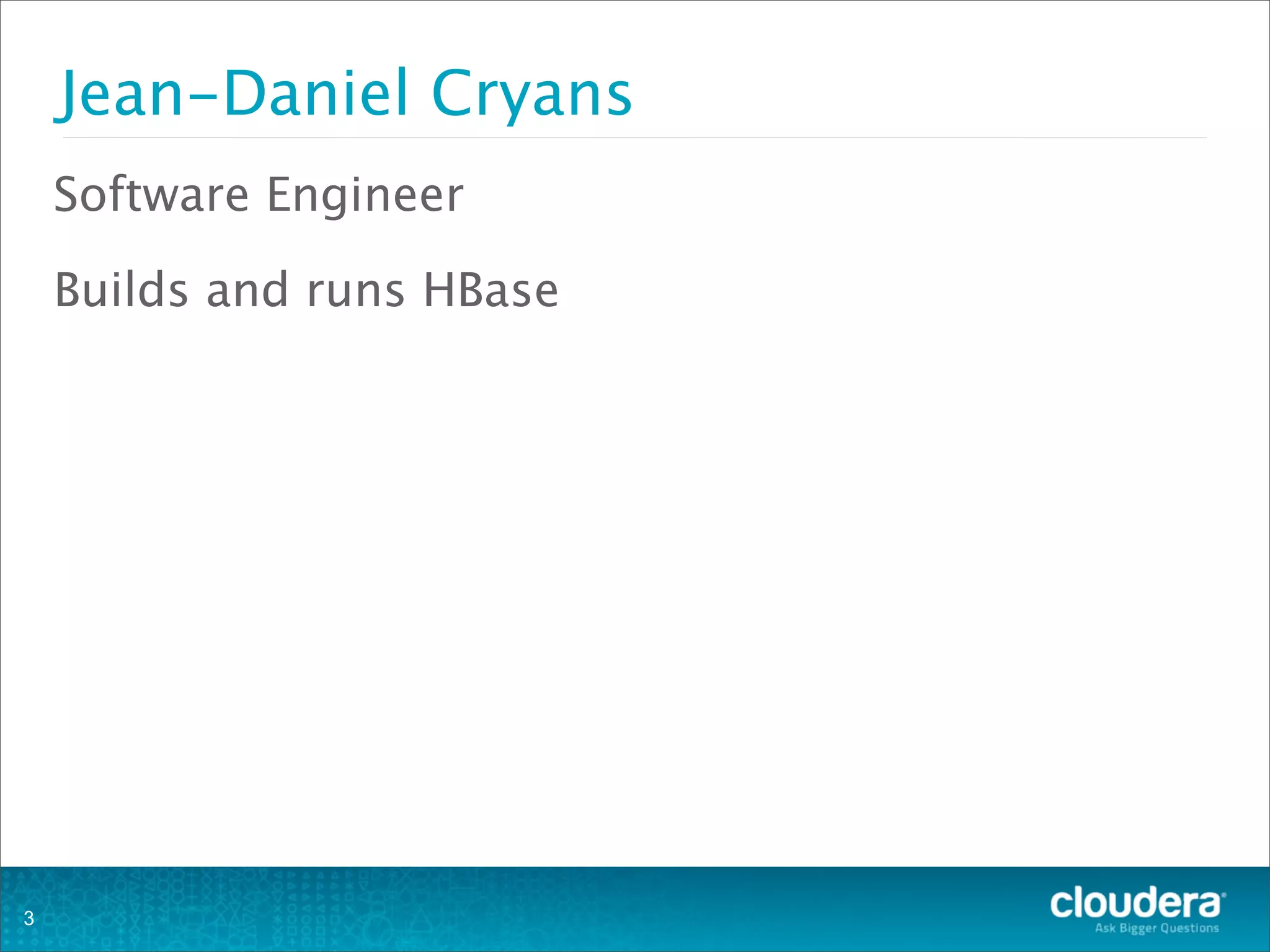

3. Jean-Daniel Cryans
Software Engineer
Builds and runs HBase
3

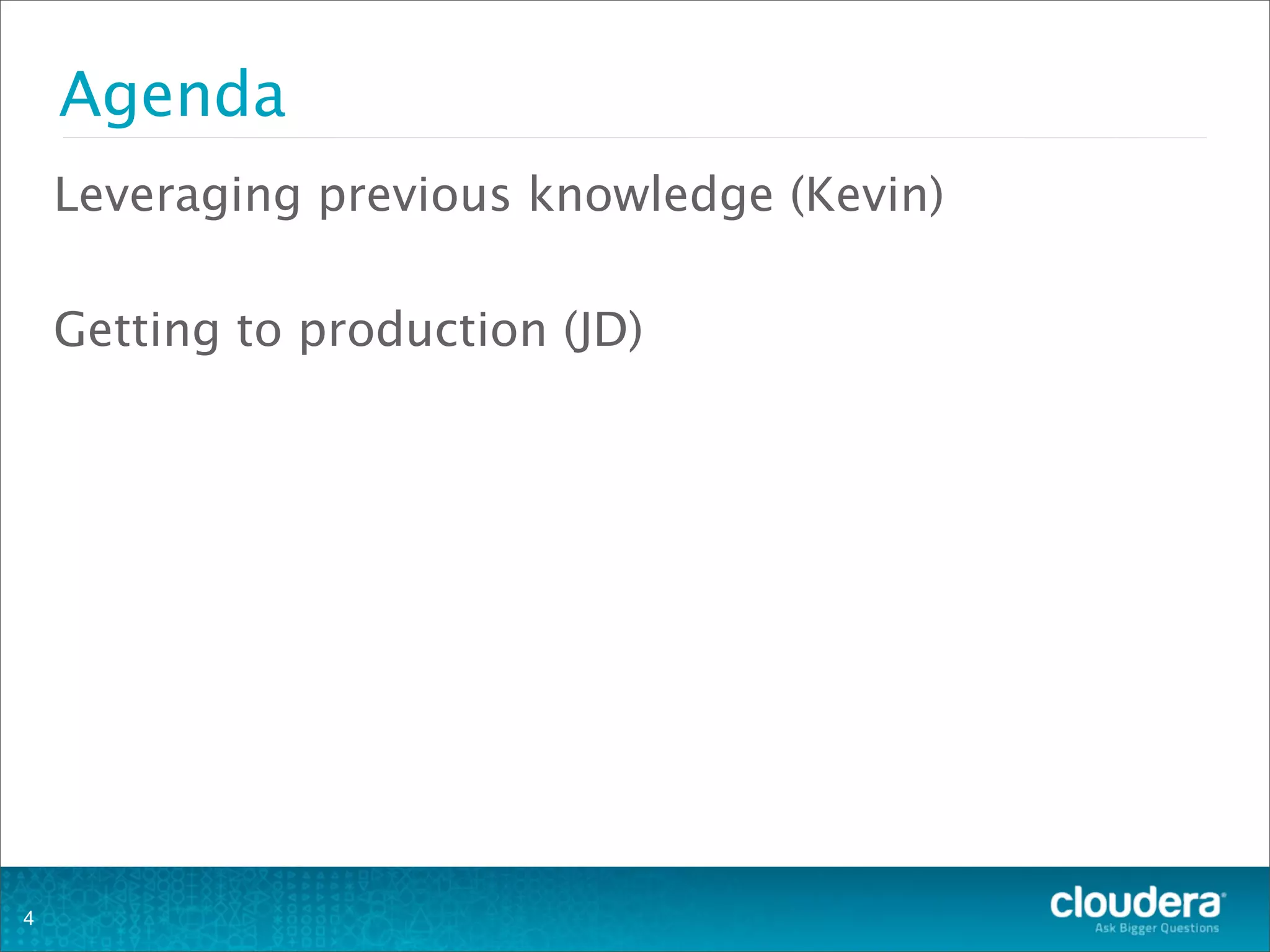

4. Agenda
Leveraging previous knowledge (Kevin)
Getting to production (JD)
4

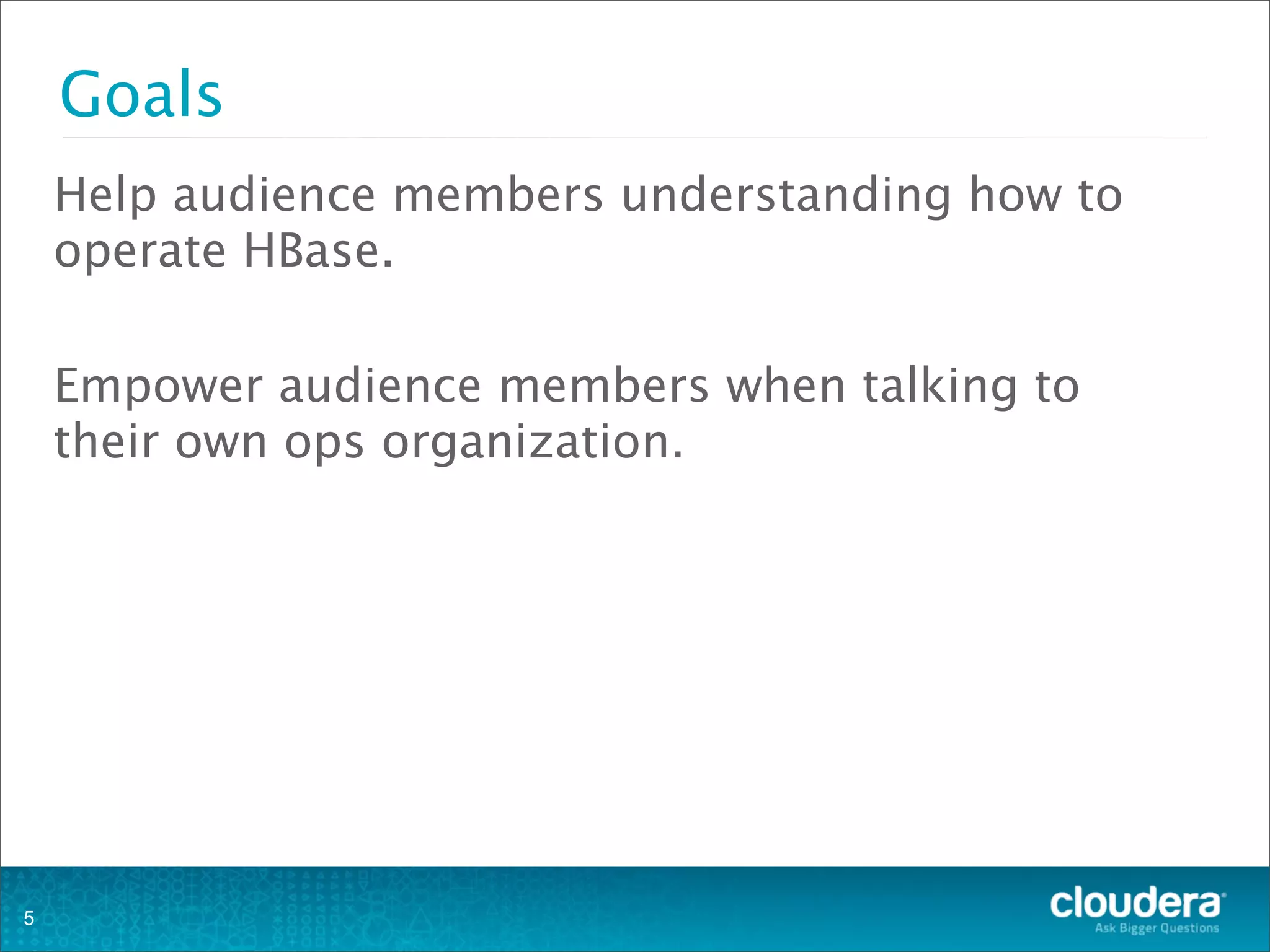

5. Goals
Help audience members understanding how to
operate HBase.
Empower audience members when talking to
their own ops organization.
5

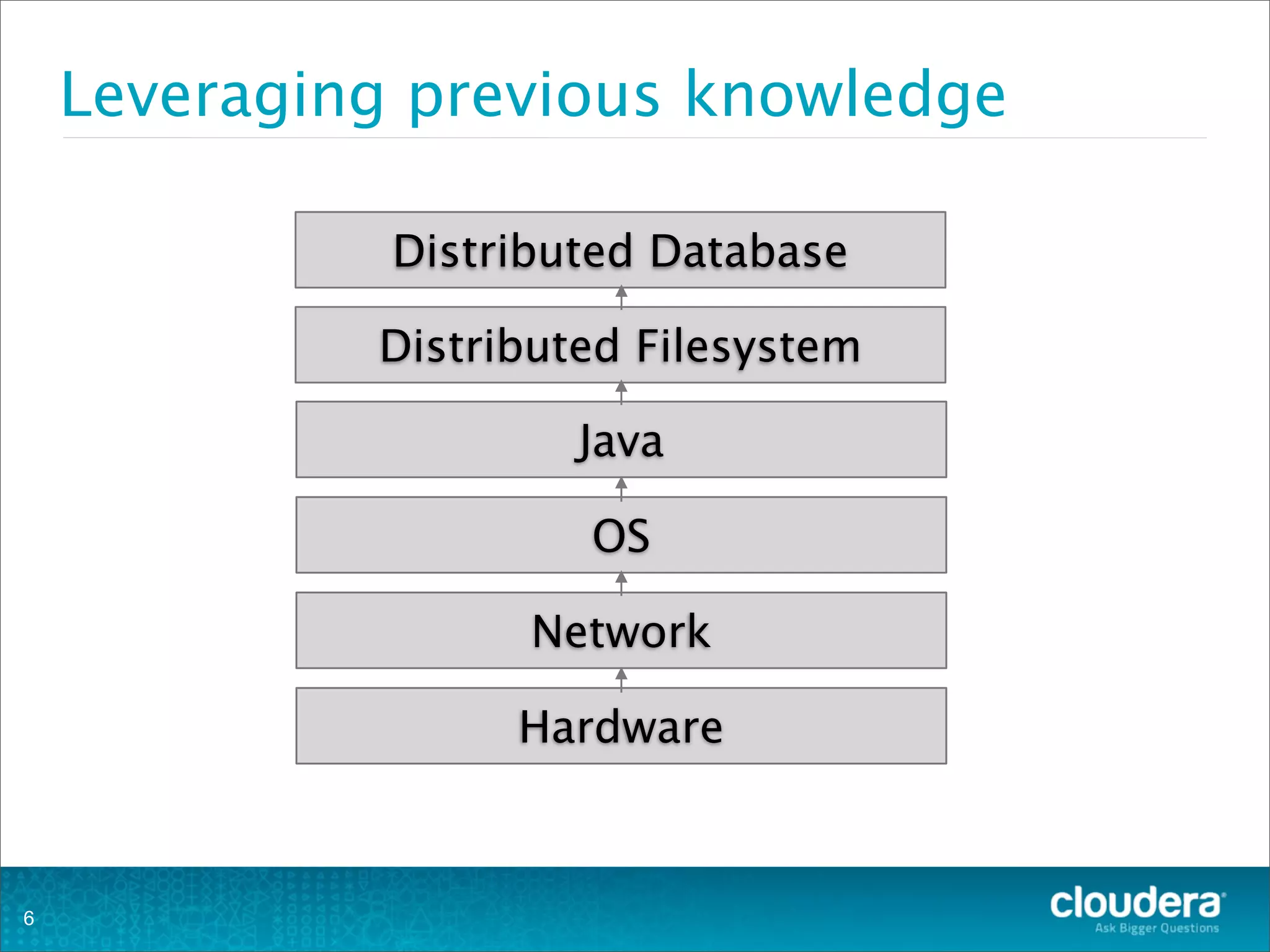

6. Leveraging previous knowledge
Distributed Filesystem
Distributed Database
6
Java
OS
Network
Hardware

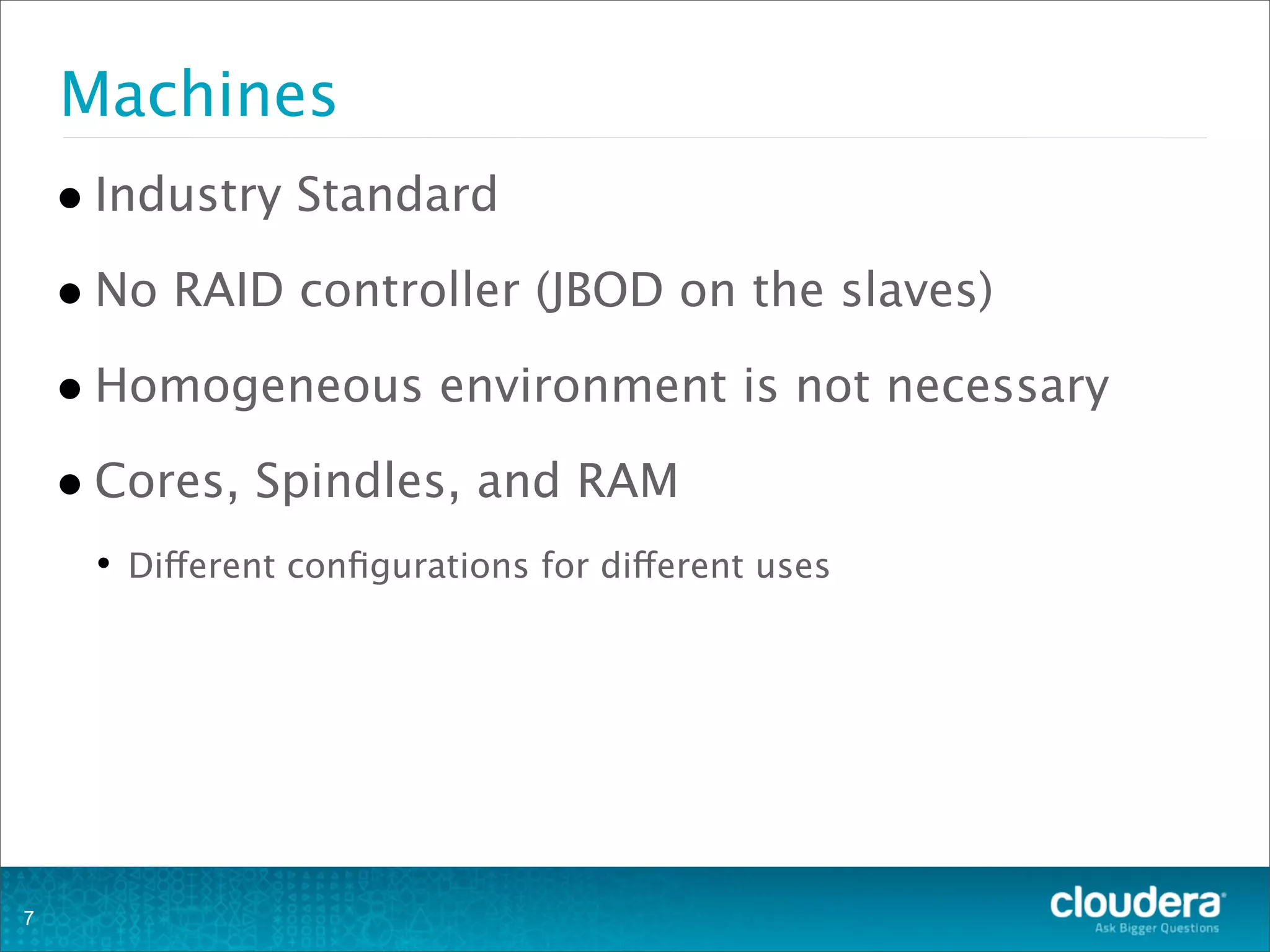

7. Machines
•Industry Standard
•No RAID controller (JBOD on the slaves)
•Homogeneous environment is not necessary
•Cores, Spindles, and RAM
• Different configurations for different uses
7

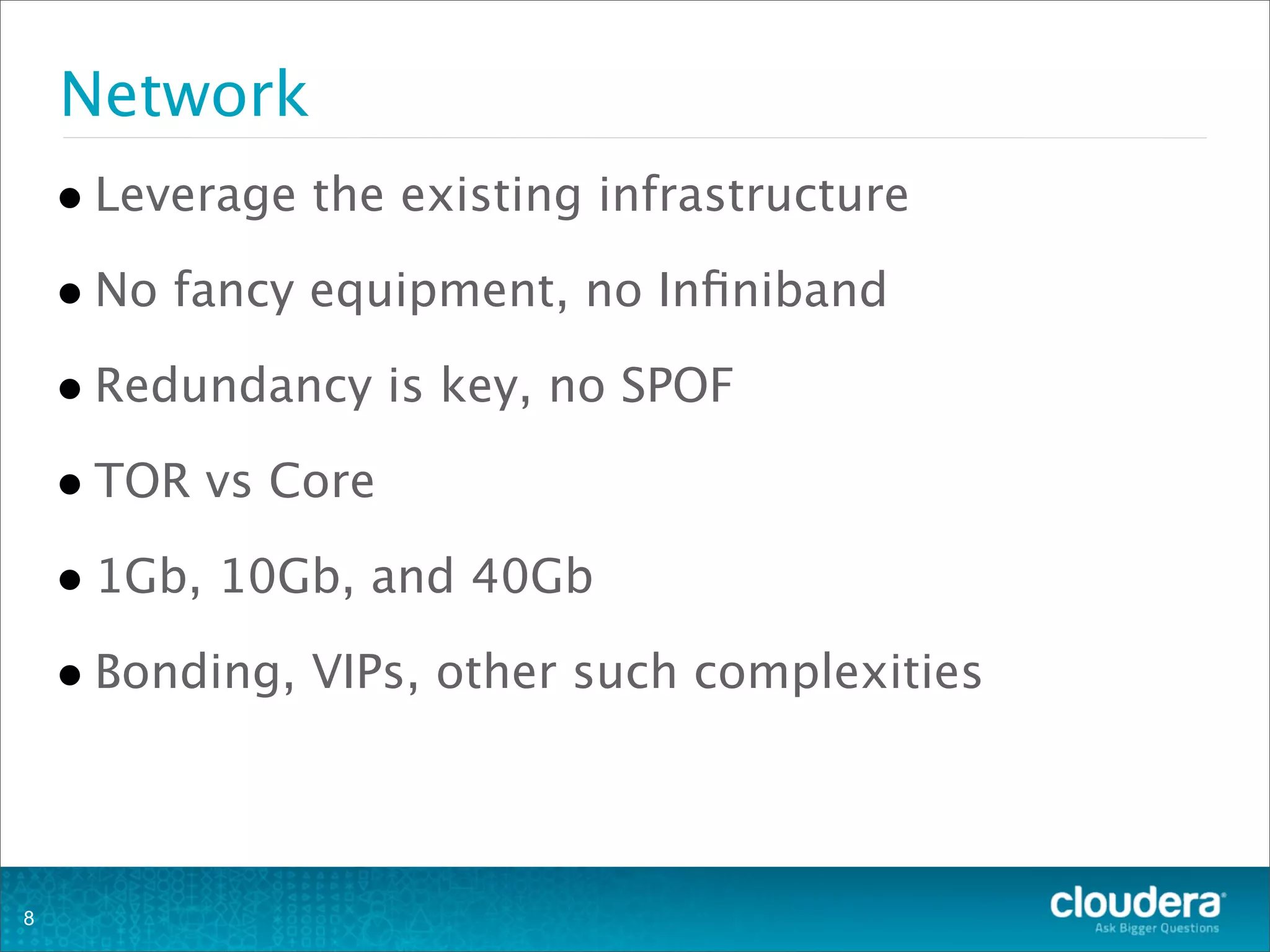

8. Network
•Leverage the existing infrastructure
•No fancy equipment, no Infiniband
•Redundancy is key, no SPOF
•TOR vs Core
•1Gb, 10Gb, and 40Gb
•Bonding, VIPs, other such complexities
8

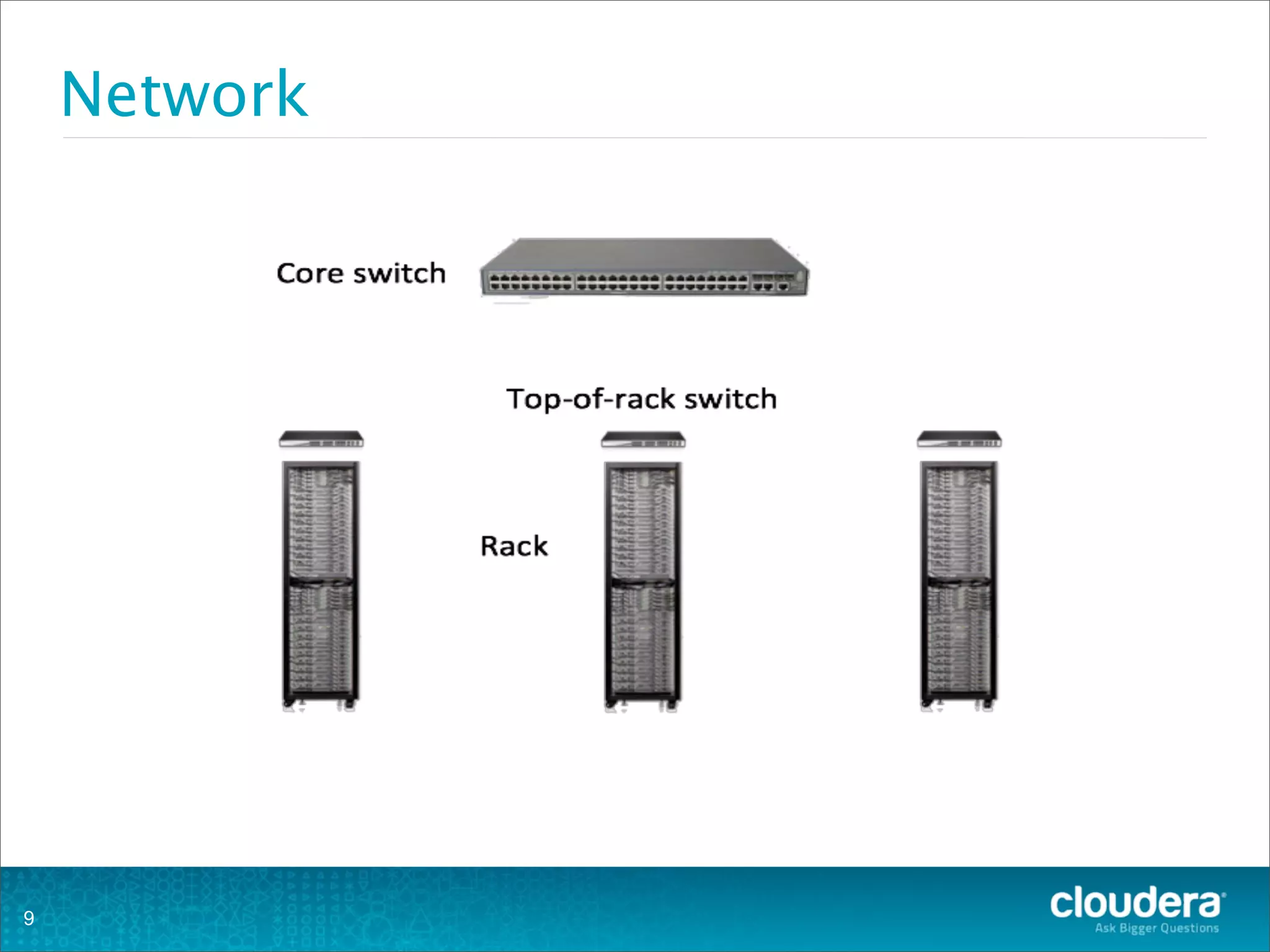

9. Network
9

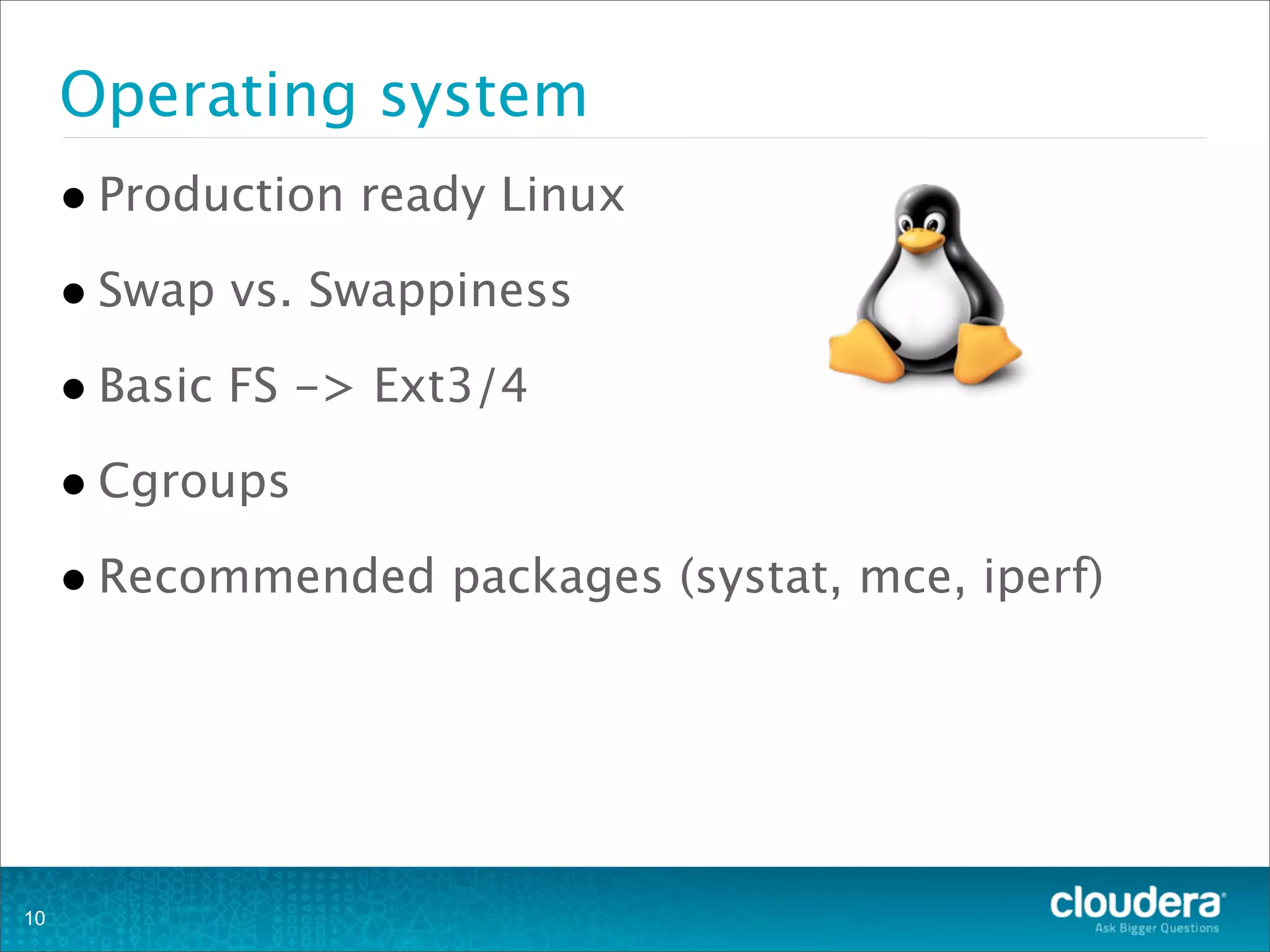

10. Operating system
•Production ready Linux
•Swap vs. Swappiness
•Basic FS -> Ext3/4
•Cgroups
•Recommended packages (systat, mce, iperf)
10

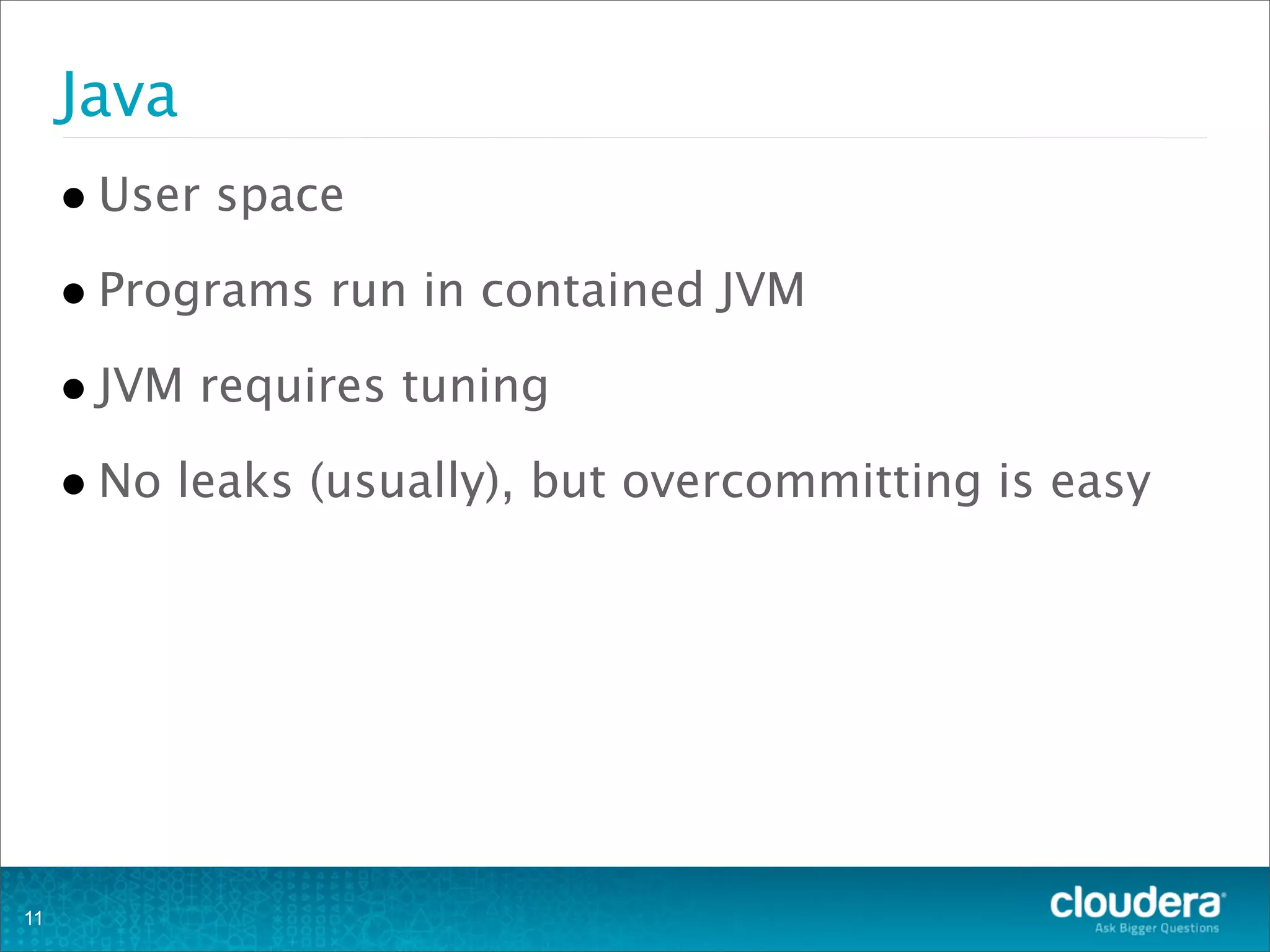

11. Java
•User space
•Programs run in contained JVM
•JVM requires tuning
•No leaks (usually), but overcommitting is easy
11

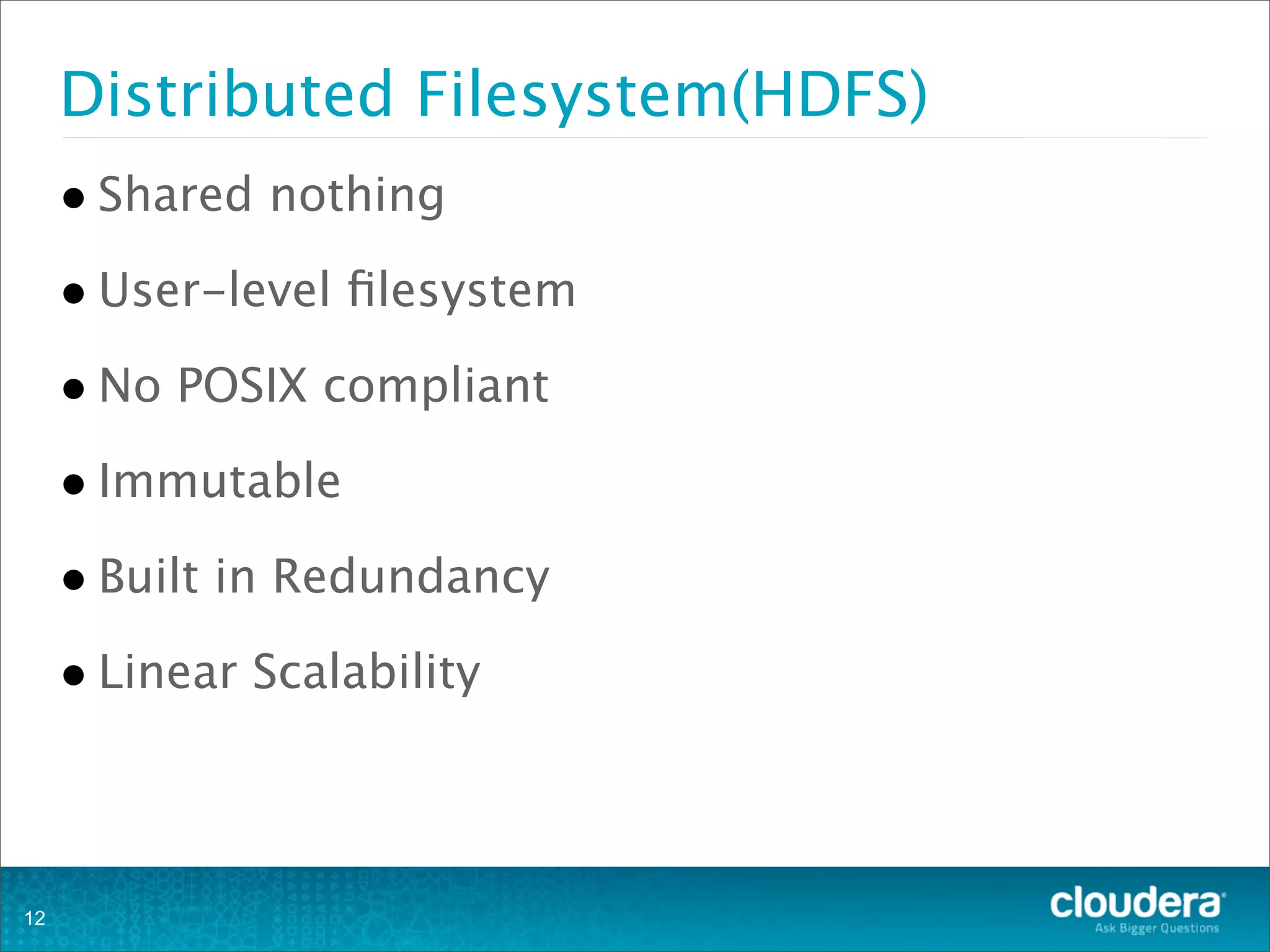

12. Distributed Filesystem(HDFS)
•Shared nothing
•User-level filesystem
•No POSIX compliant
•Immutable
•Built in Redundancy
•Linear Scalability
12

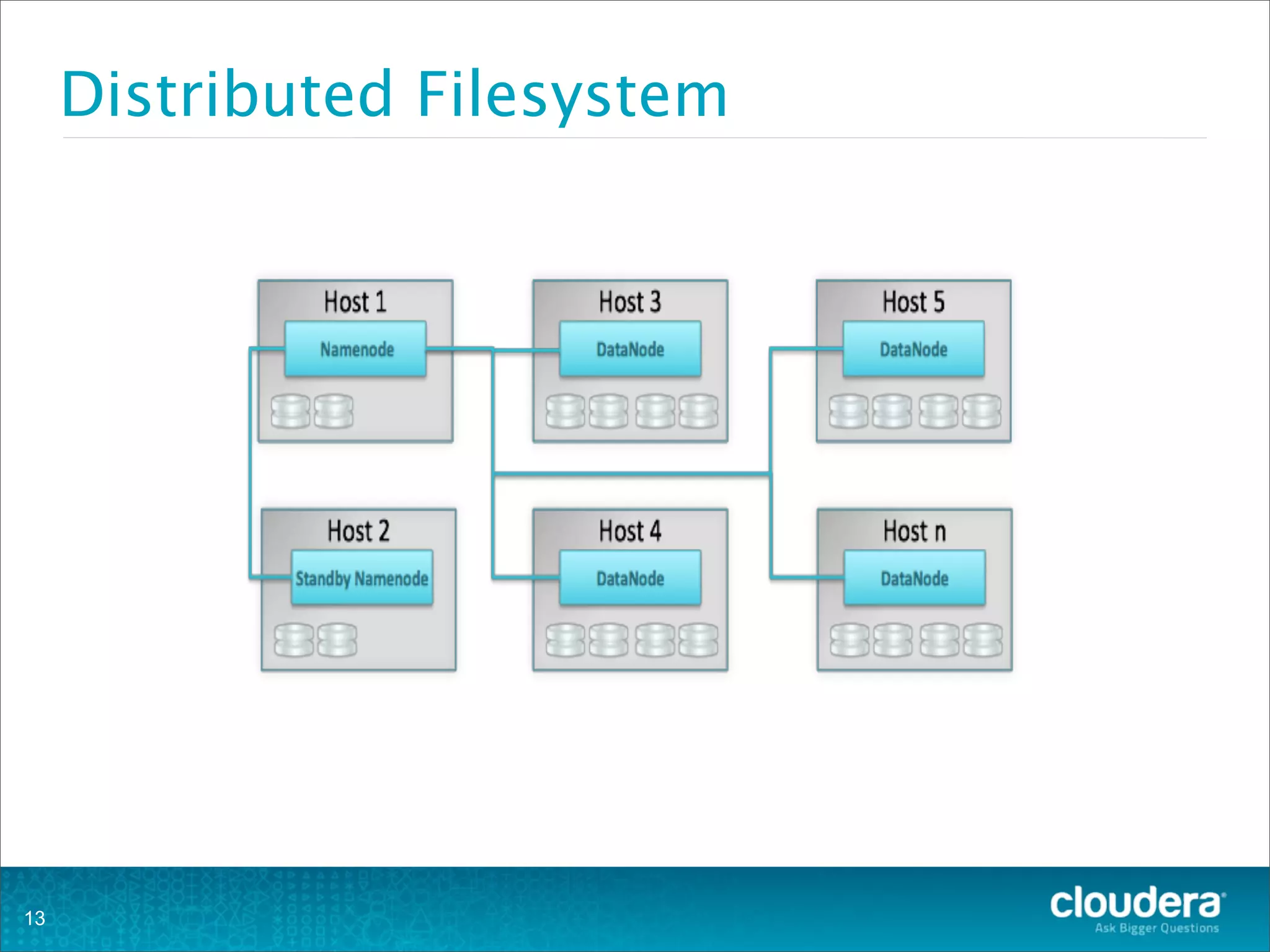

13. Distributed Filesystem
13

14. Distributed Database(HBase)
•Distributed Hash table
•Get, put, delete, scan, and CaS
•Denormalization is necessary
•Not a parallel database, just distributed
•Write-ahead log / data durability
•Master/slave replication
•ACID compliance
14

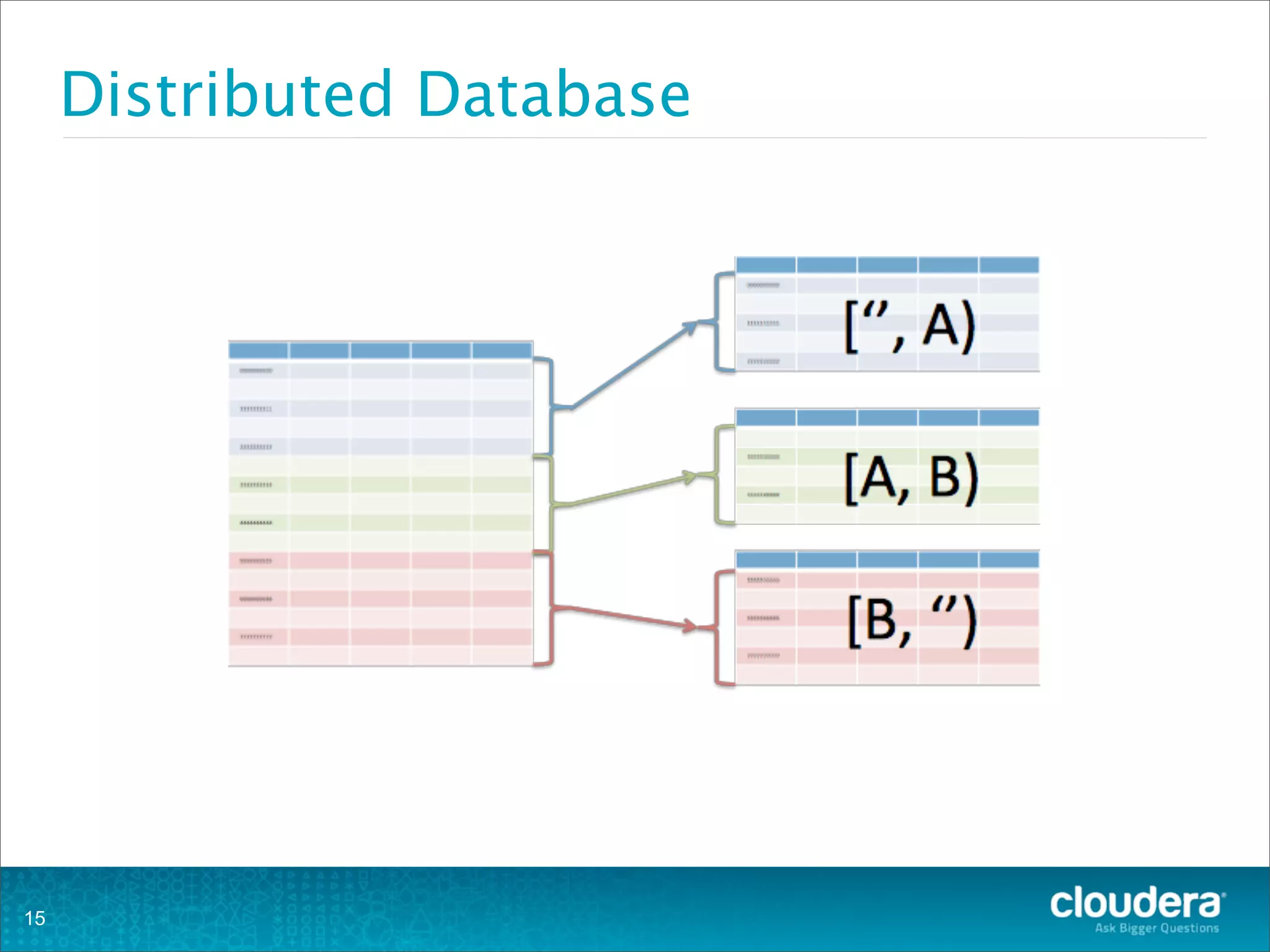

15. Distributed Database
15

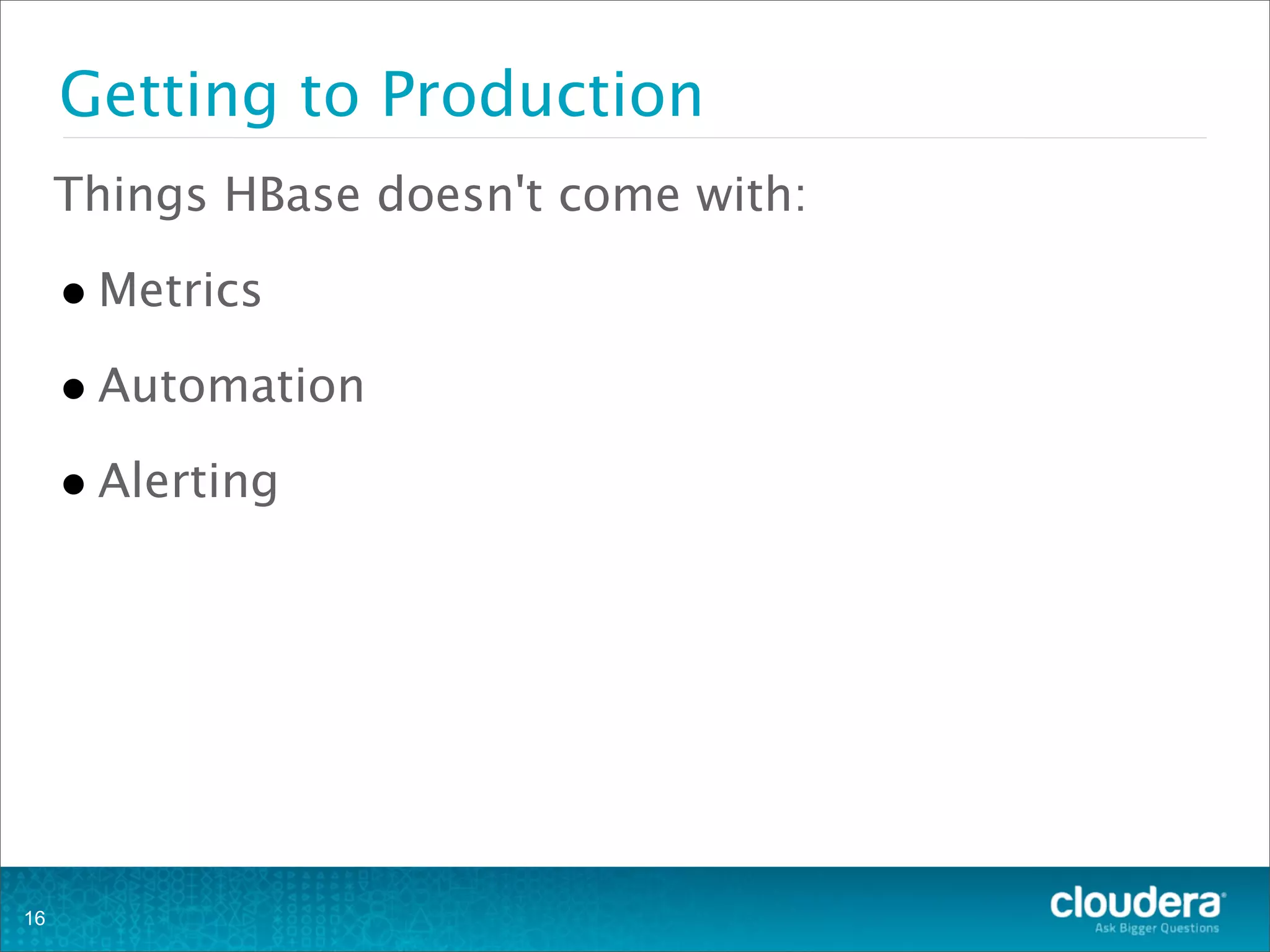

16. Getting to Production
Things HBase doesn't come with:
•Metrics
•Automation
•Alerting
16

17. Metrics
Tony was really excited to try his
new cluster
17

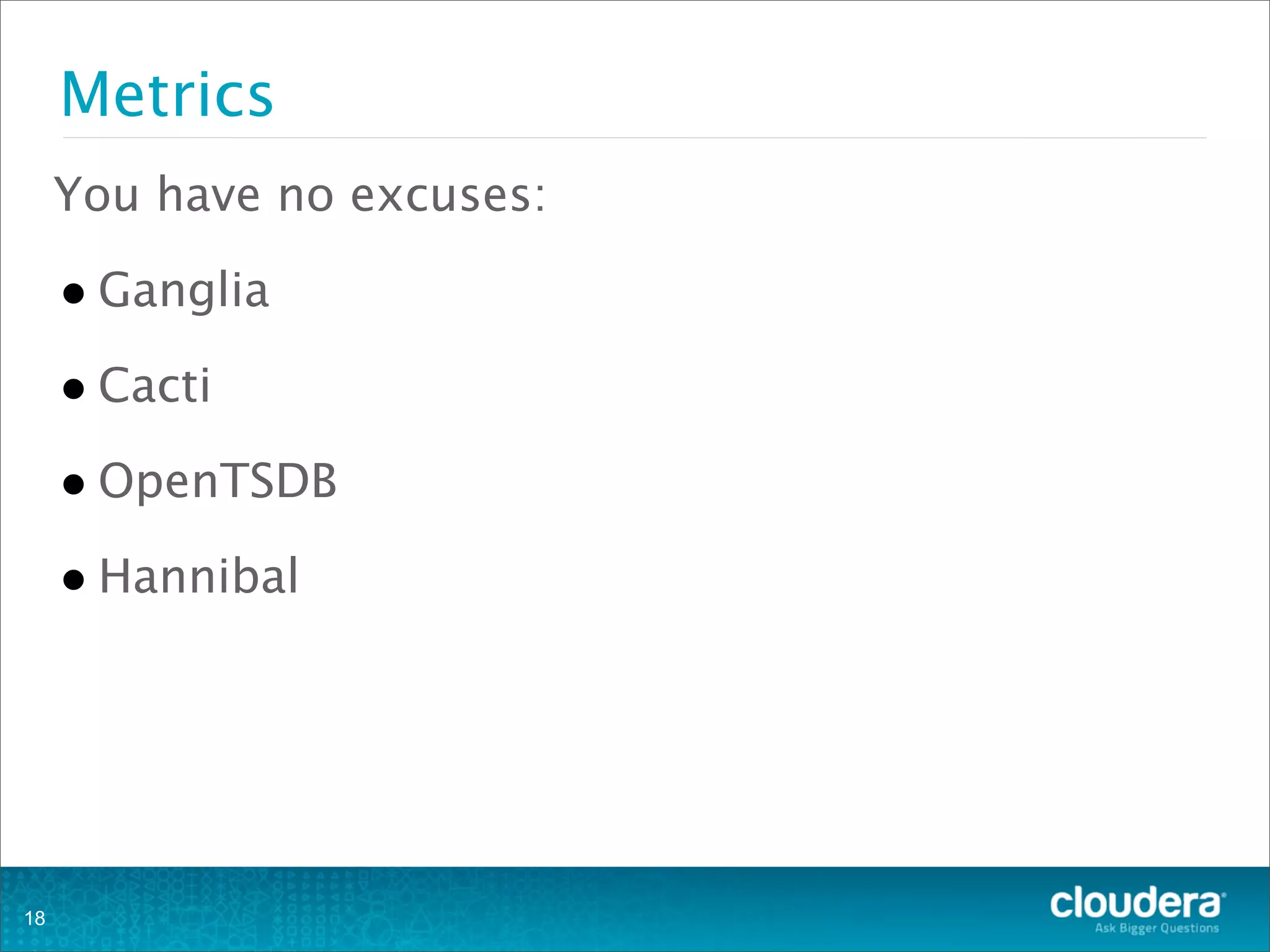

18. Metrics
You have no excuses:
•Ganglia
•Cacti
•OpenTSDB
•Hannibal
18

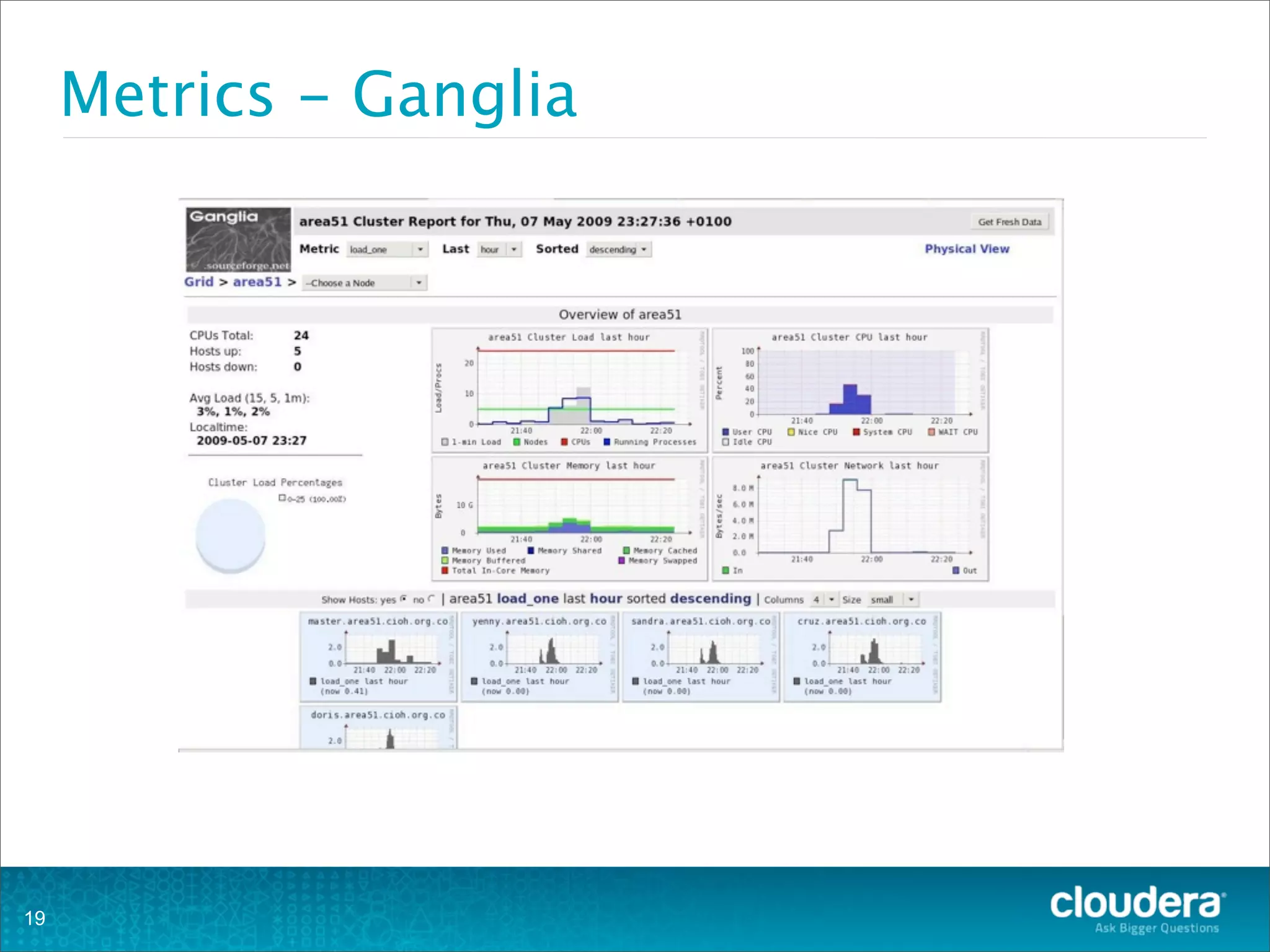

19. Metrics - Ganglia
19

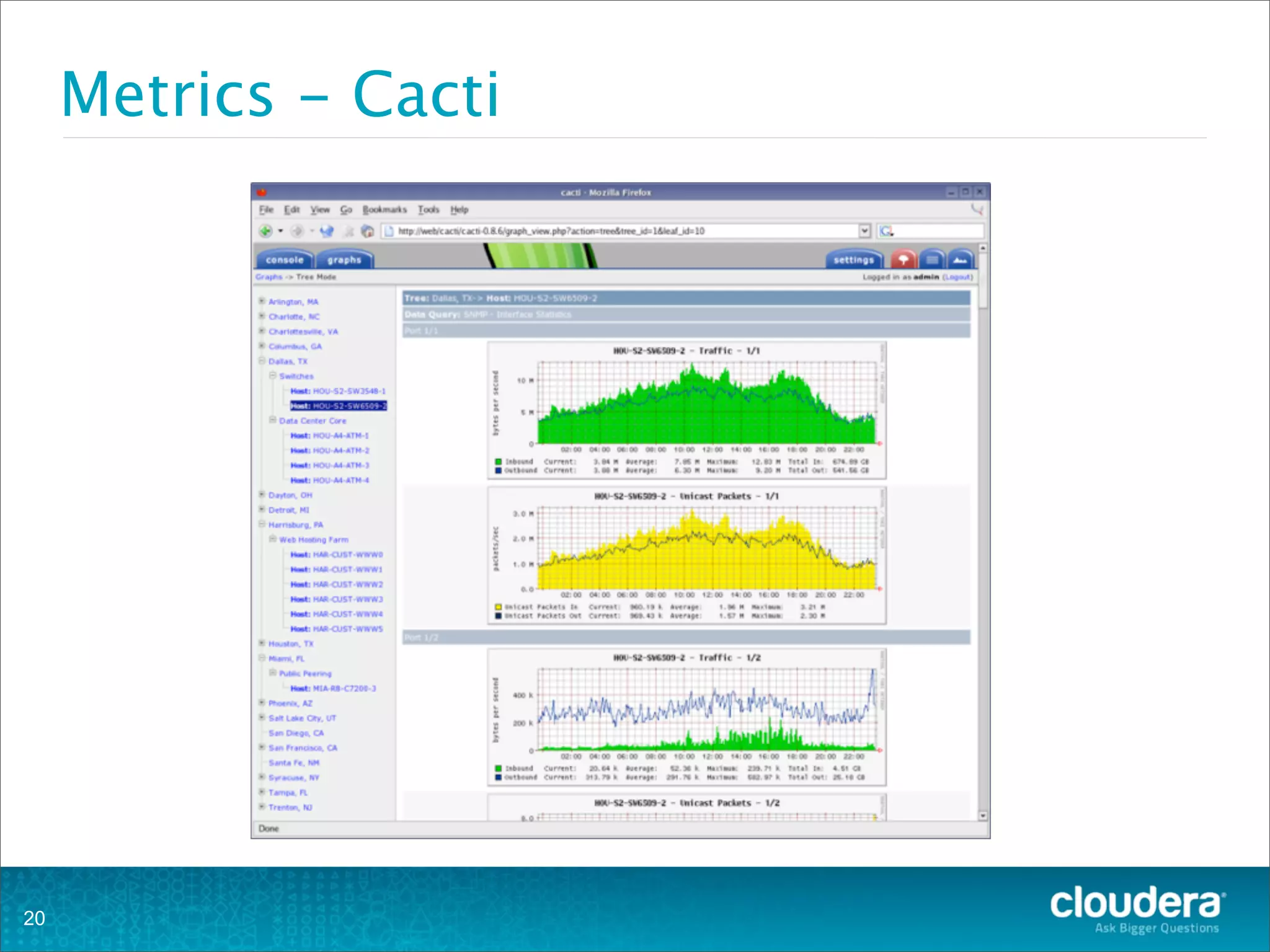

20. Metrics - Cacti
20

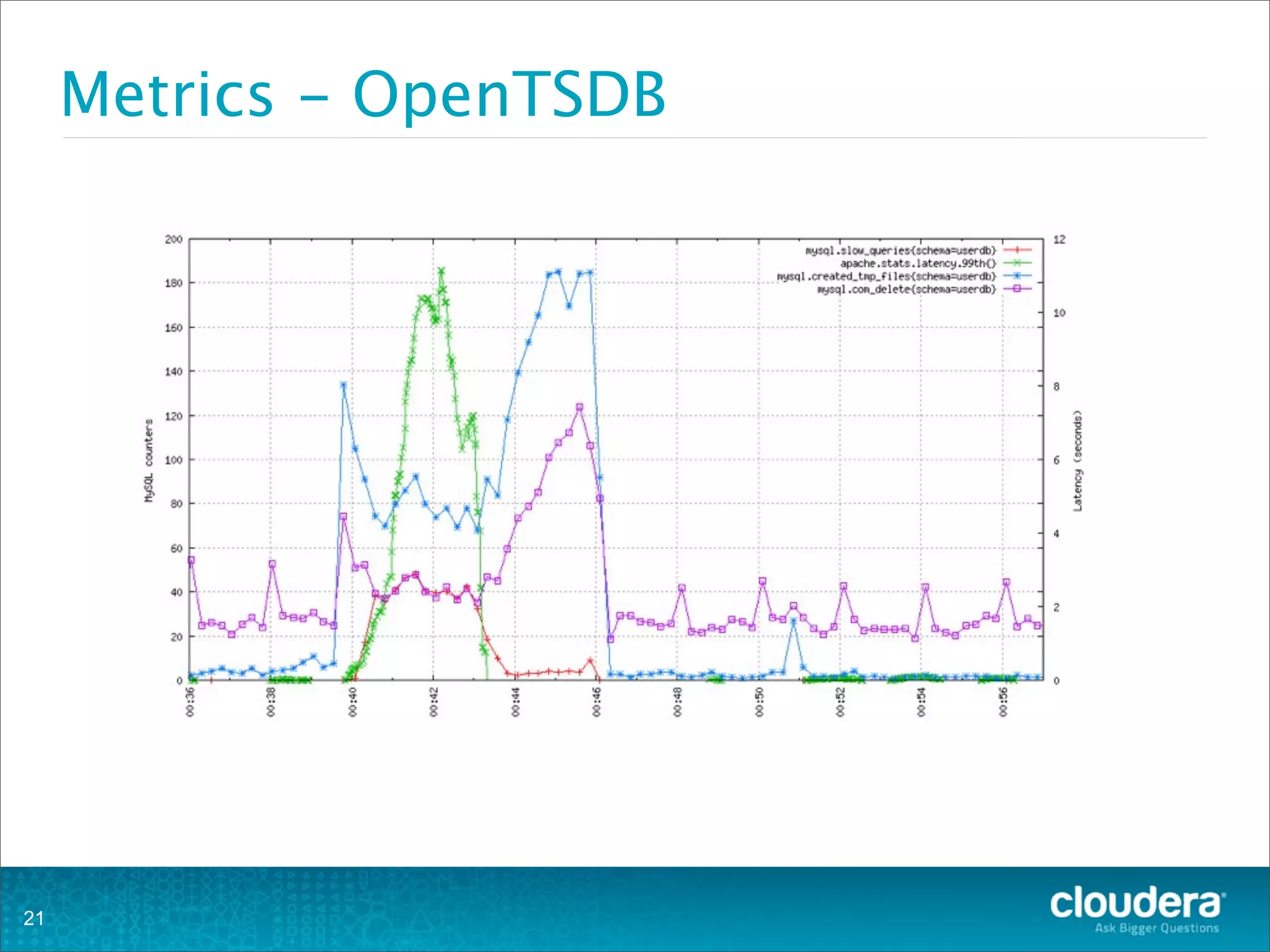

21. Metrics - OpenTSDB
21

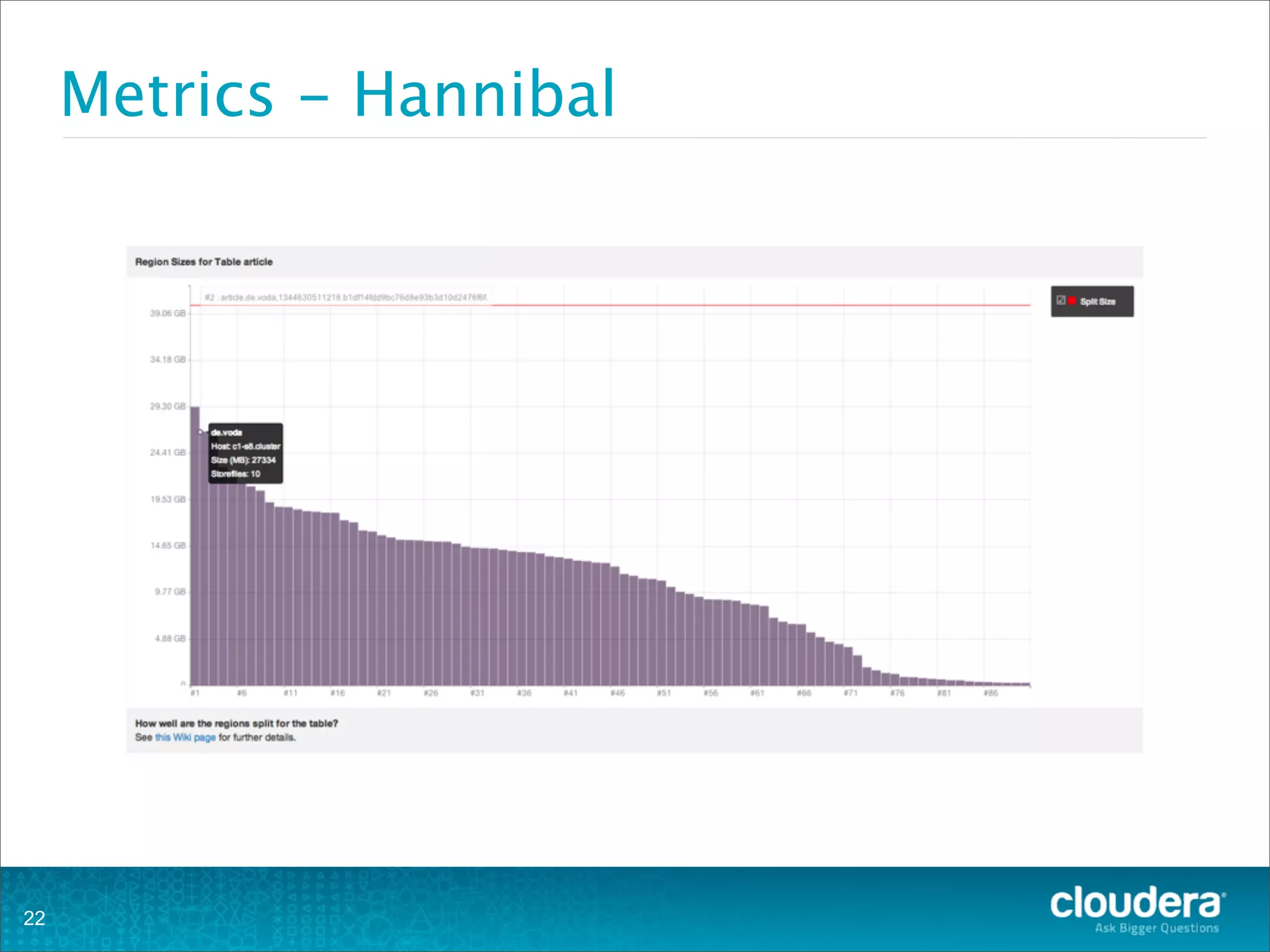

22. Metrics - Hannibal
22

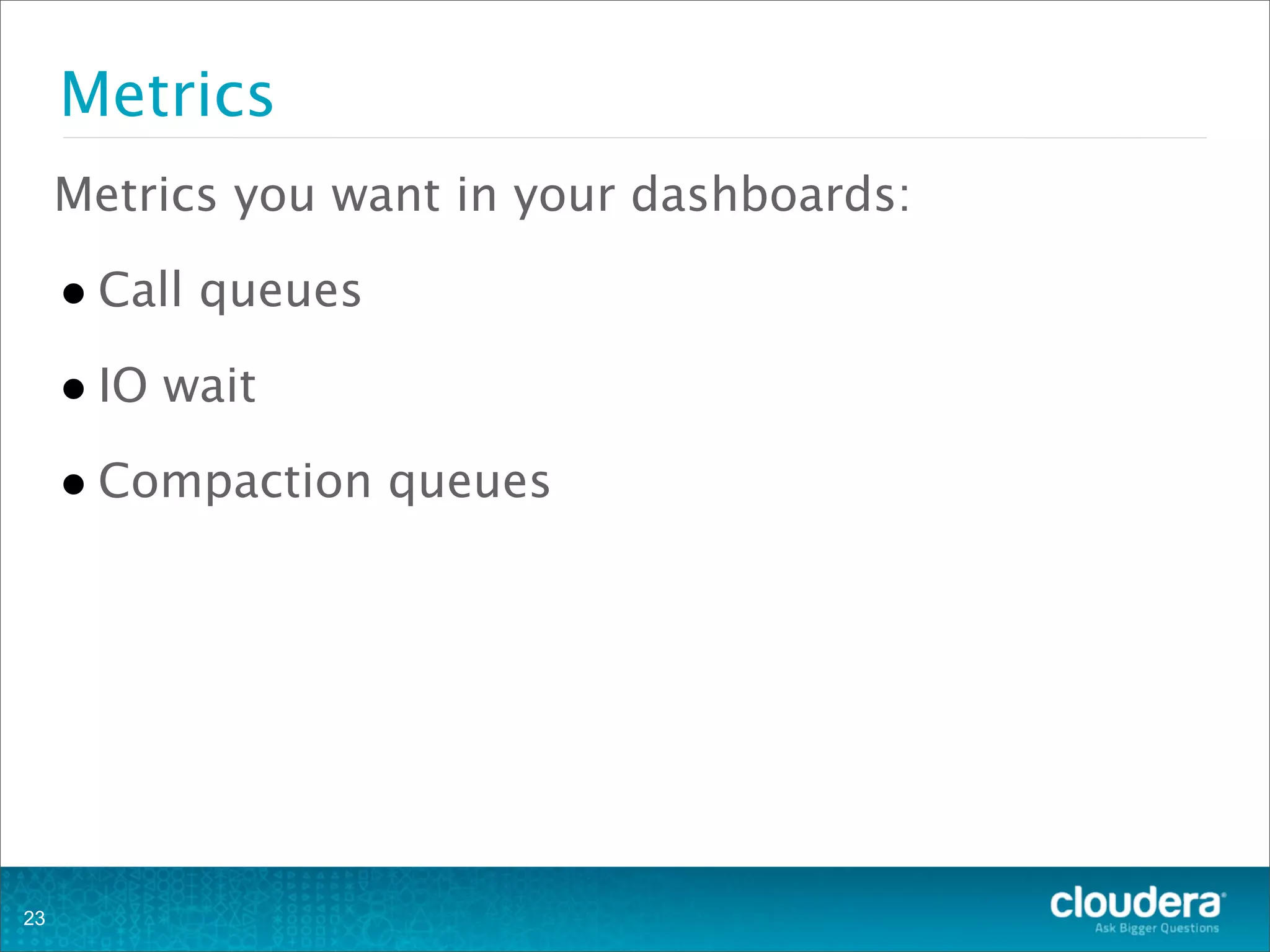

23. Metrics
Metrics you want in your dashboards:
•Call queues
•IO wait
•Compaction queues
23

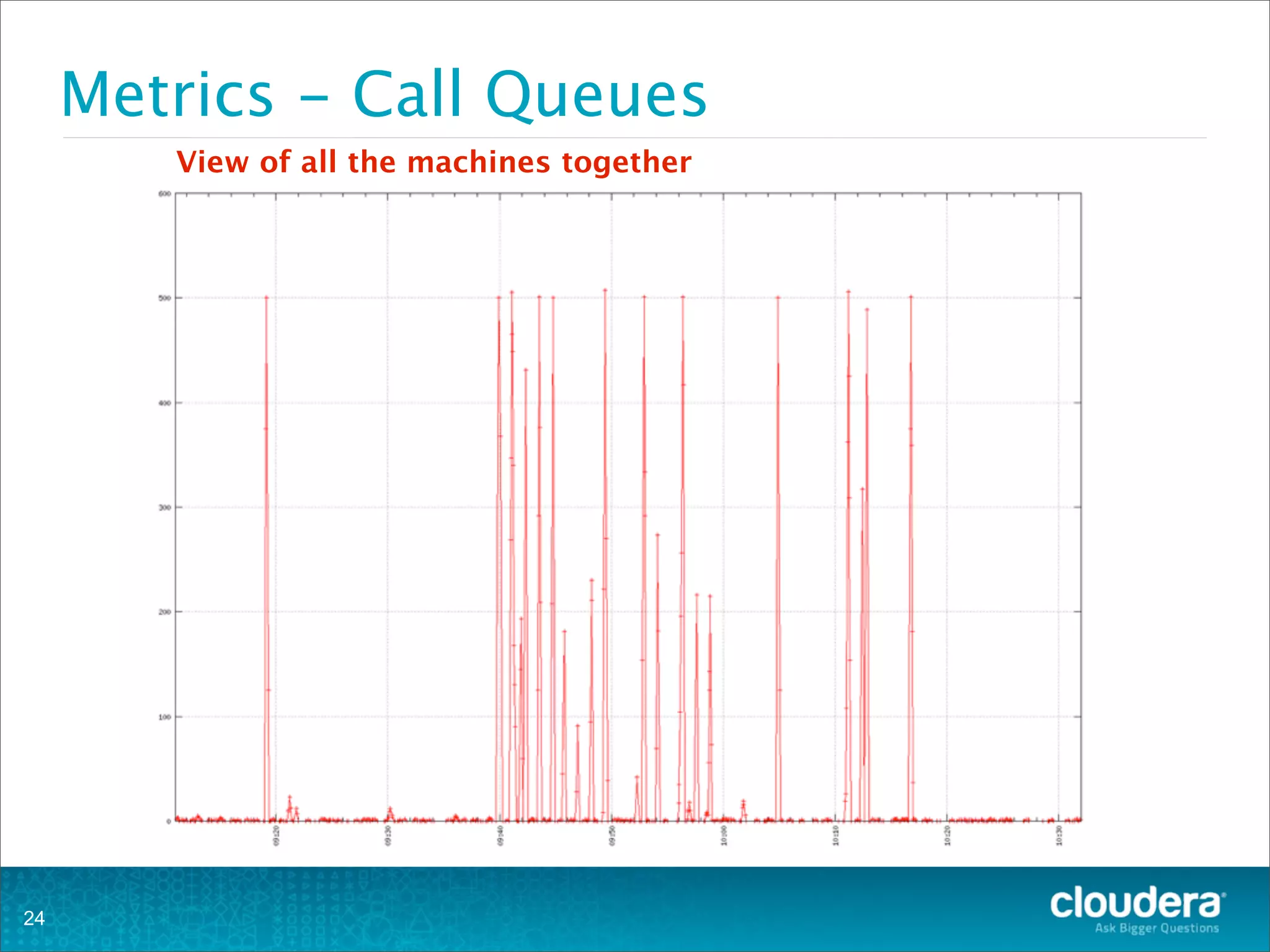

24. Metrics - Call Queues
24
View of all the machines together

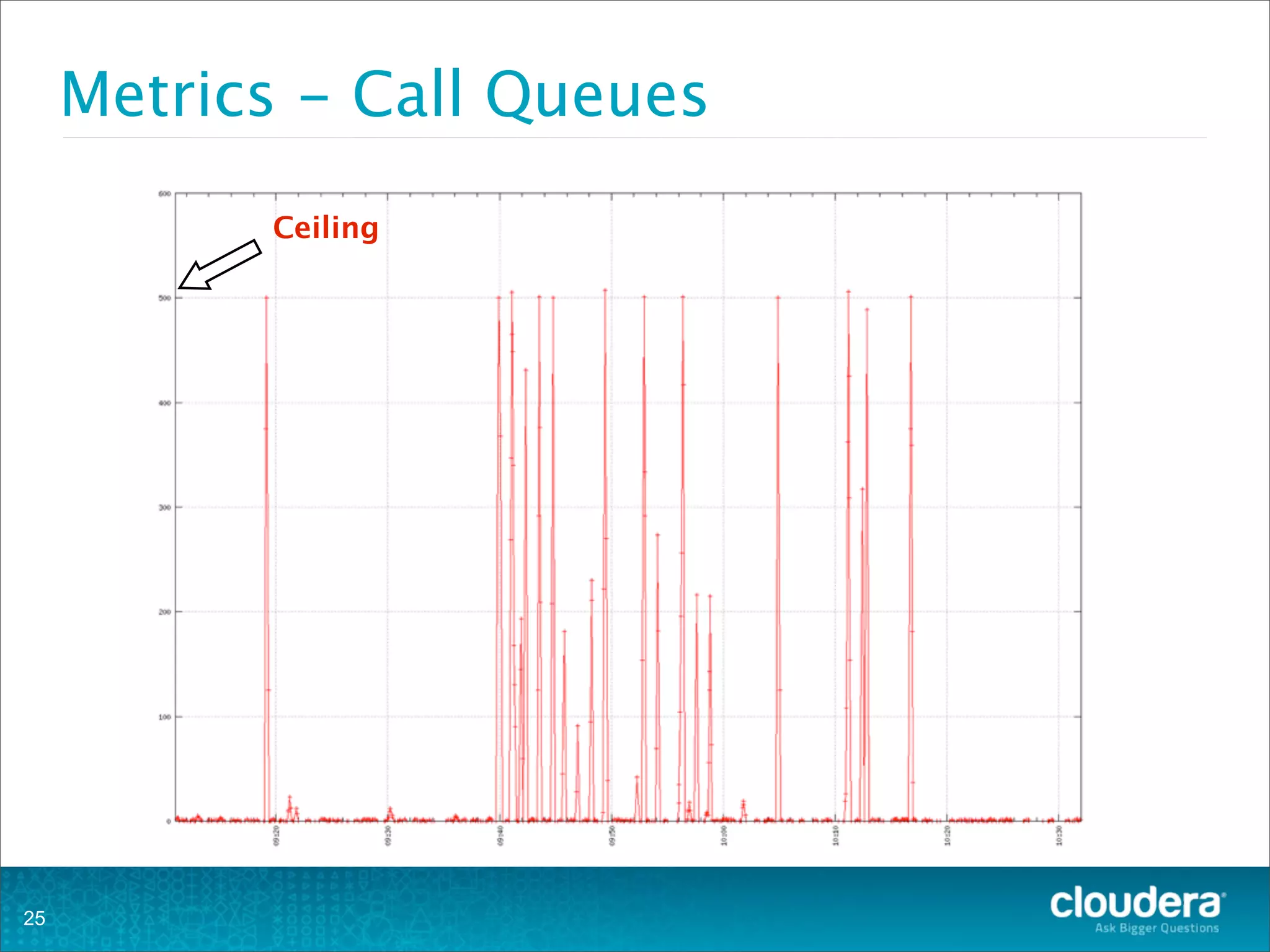

25. Metrics - Call Queues
25
Ceiling

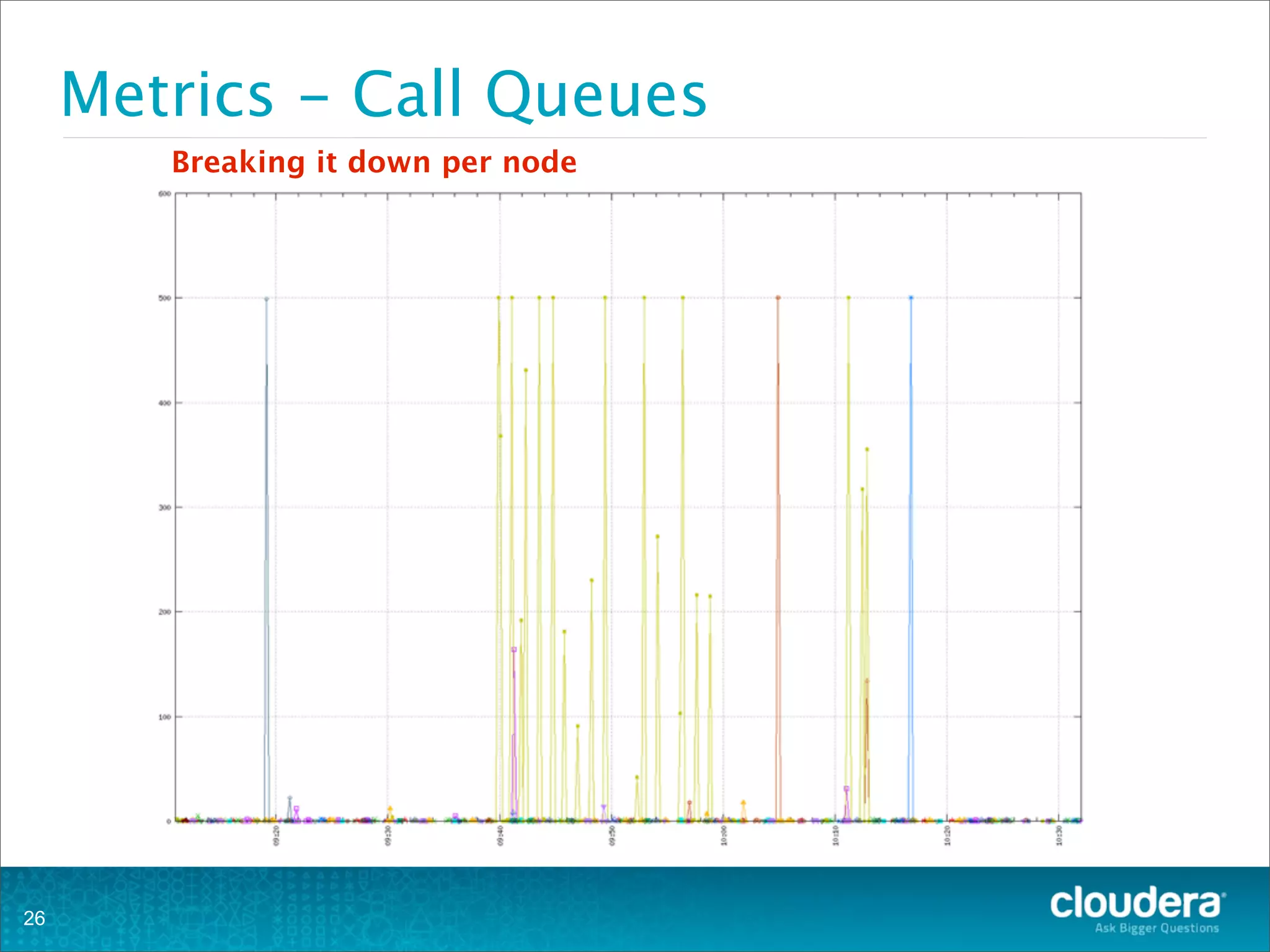

26. Metrics - Call Queues
26
Breaking it down per node

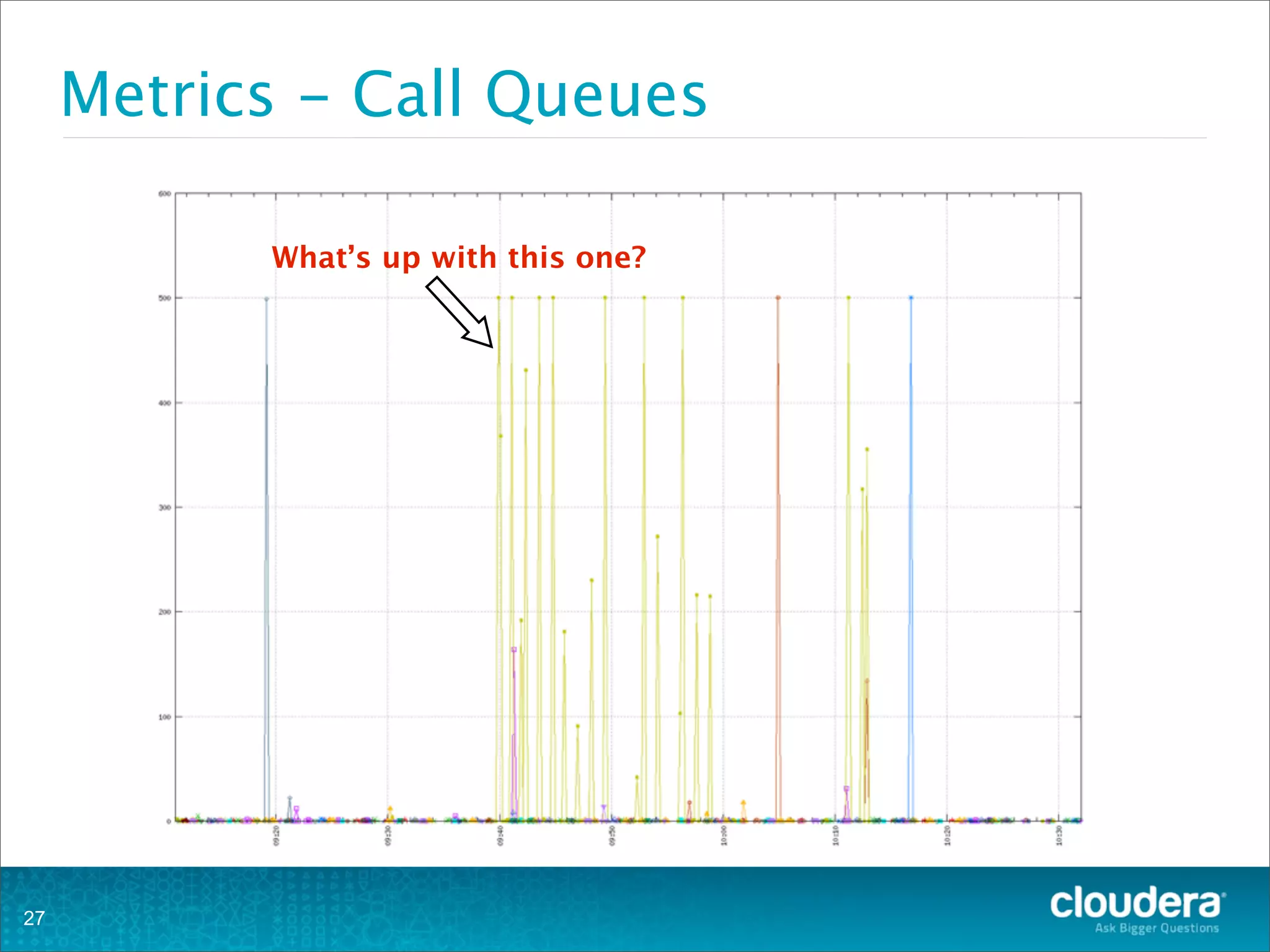

27. Metrics - Call Queues
27
What’s up with this one?

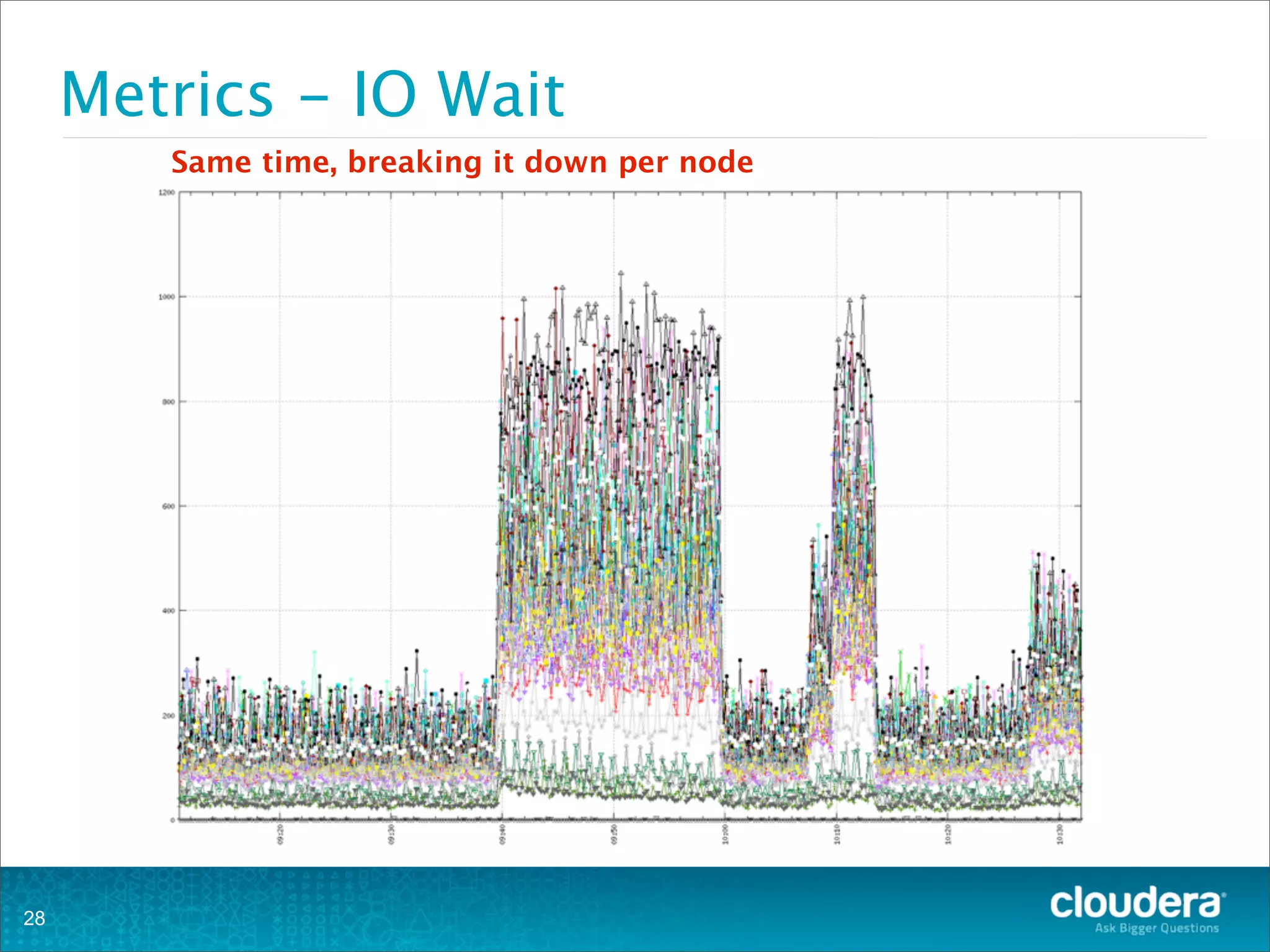

28. Metrics - IO Wait
28
Same time, breaking it down per node

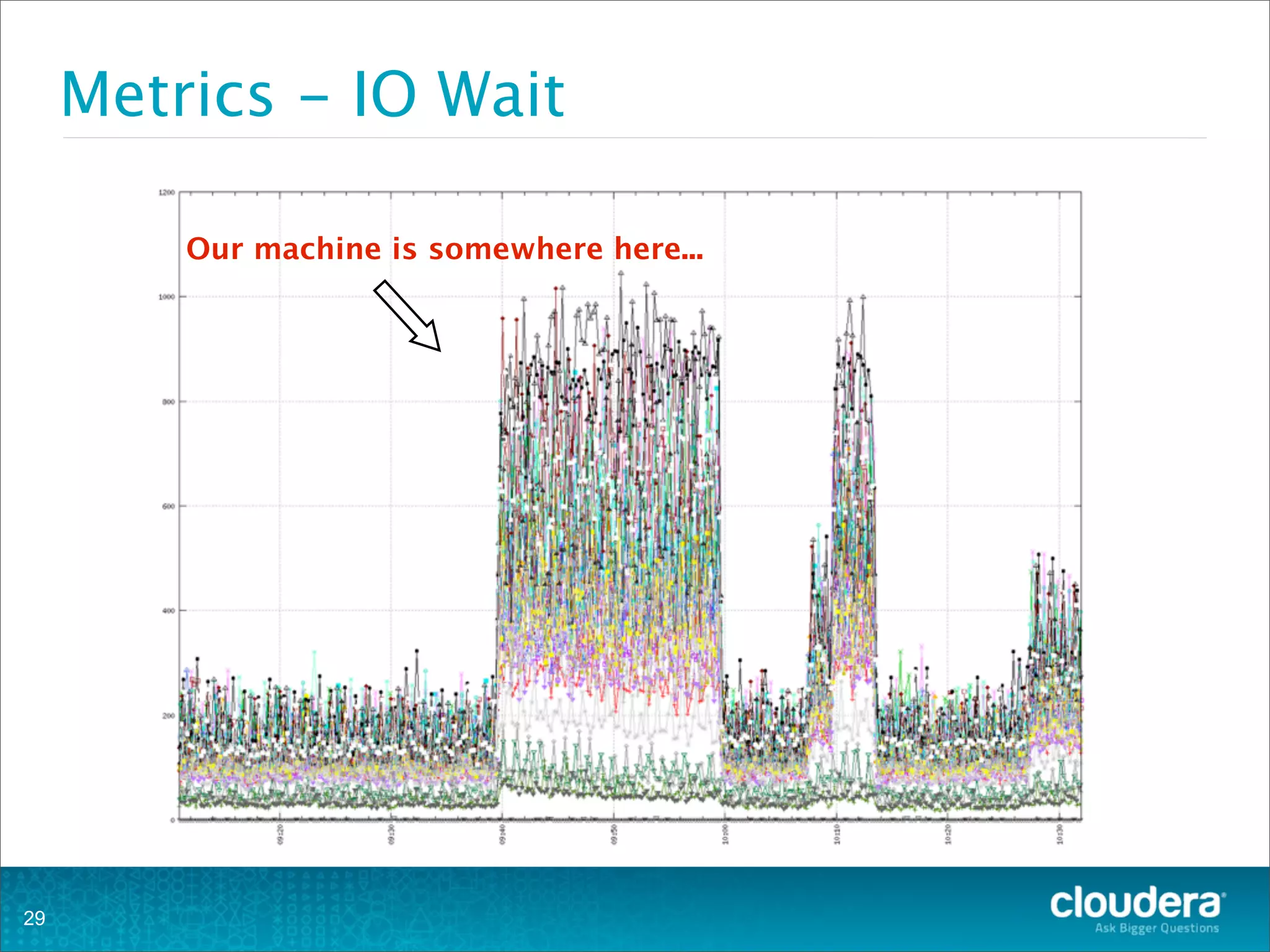

29. Metrics - IO Wait
29
Our machine is somewhere here...

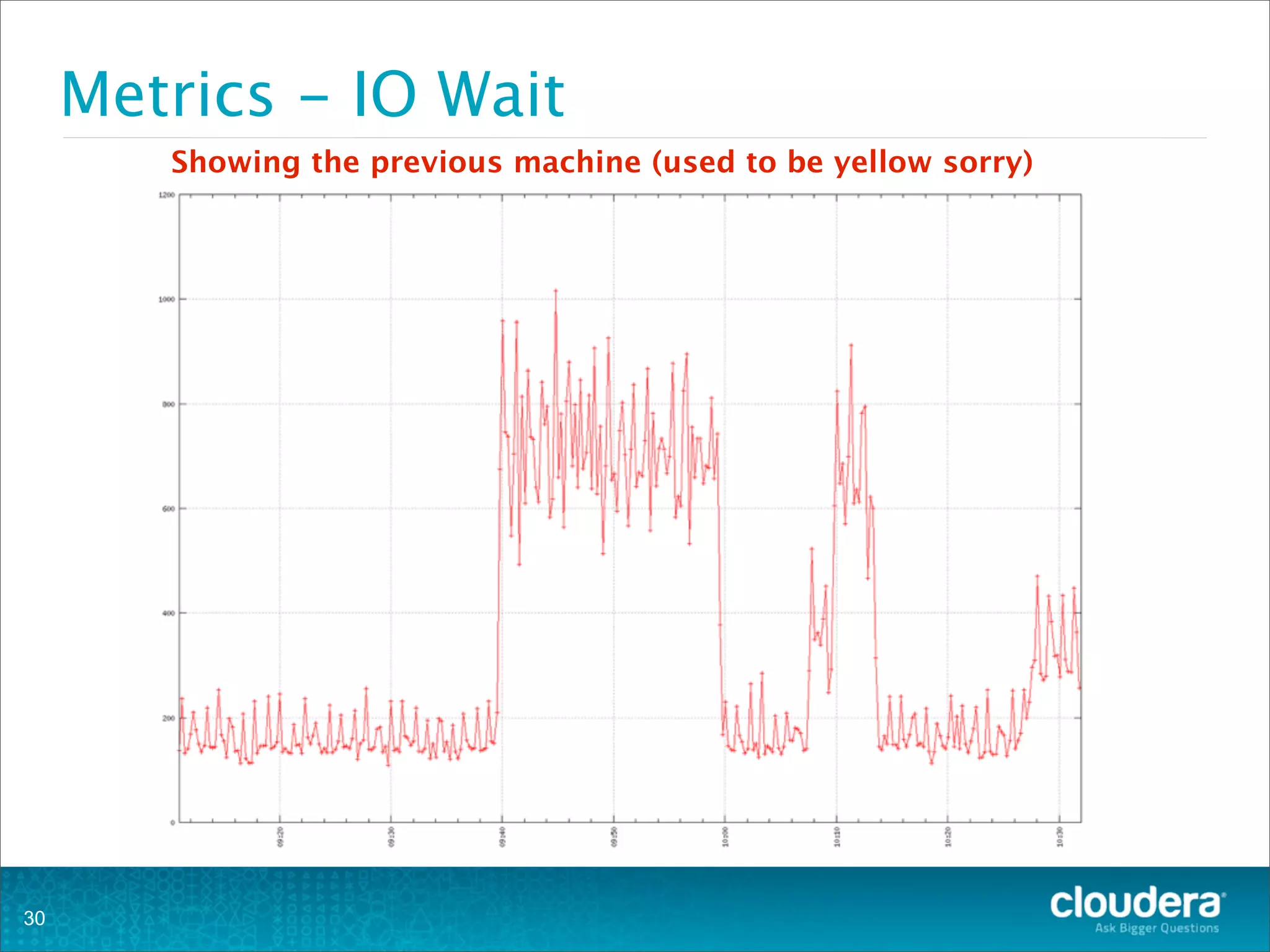

30. Metrics - IO Wait
30
Showing the previous machine (used to be yellow sorry)

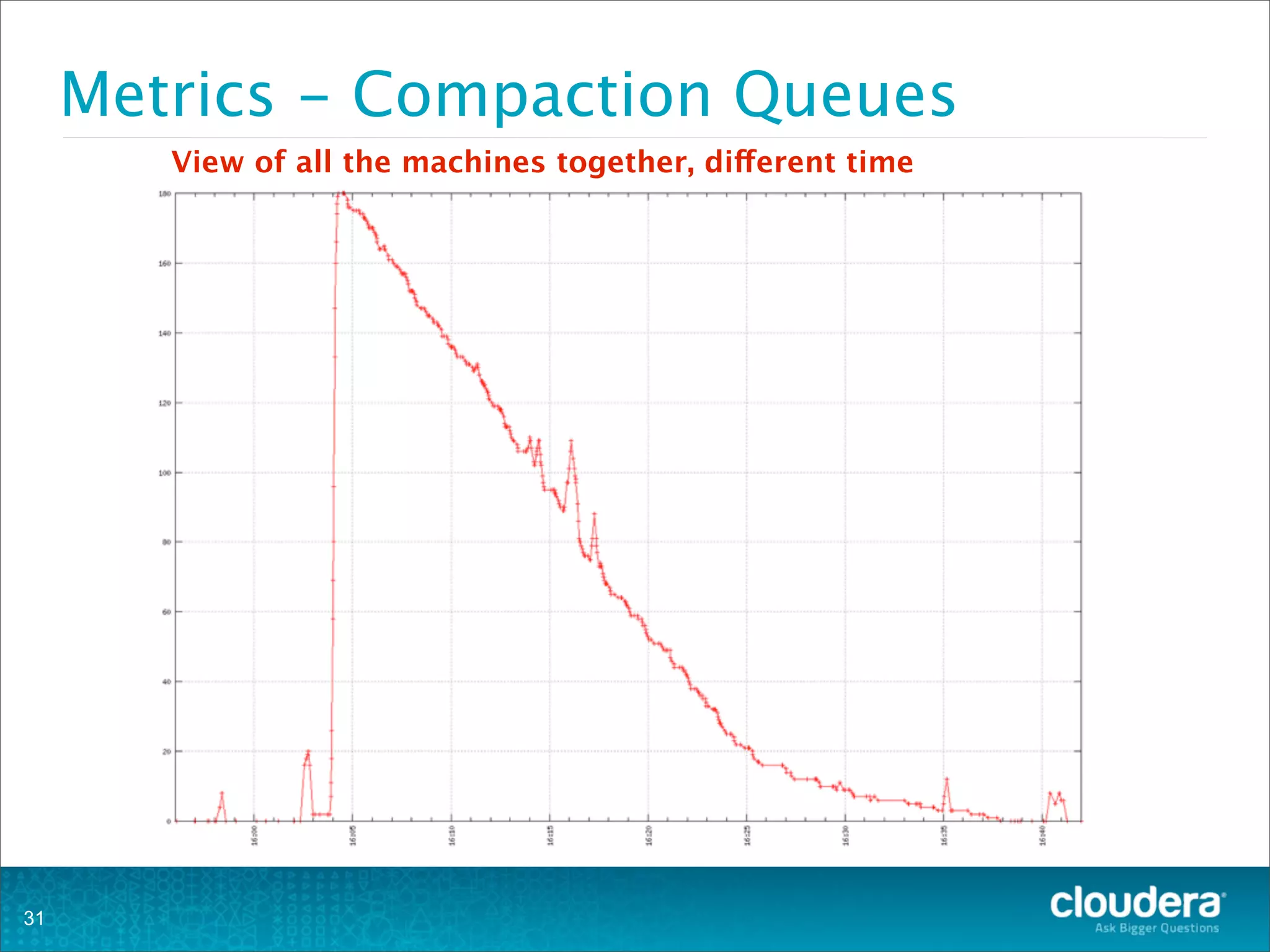

31. Metrics - Compaction Queues
31
View of all the machines together, different time

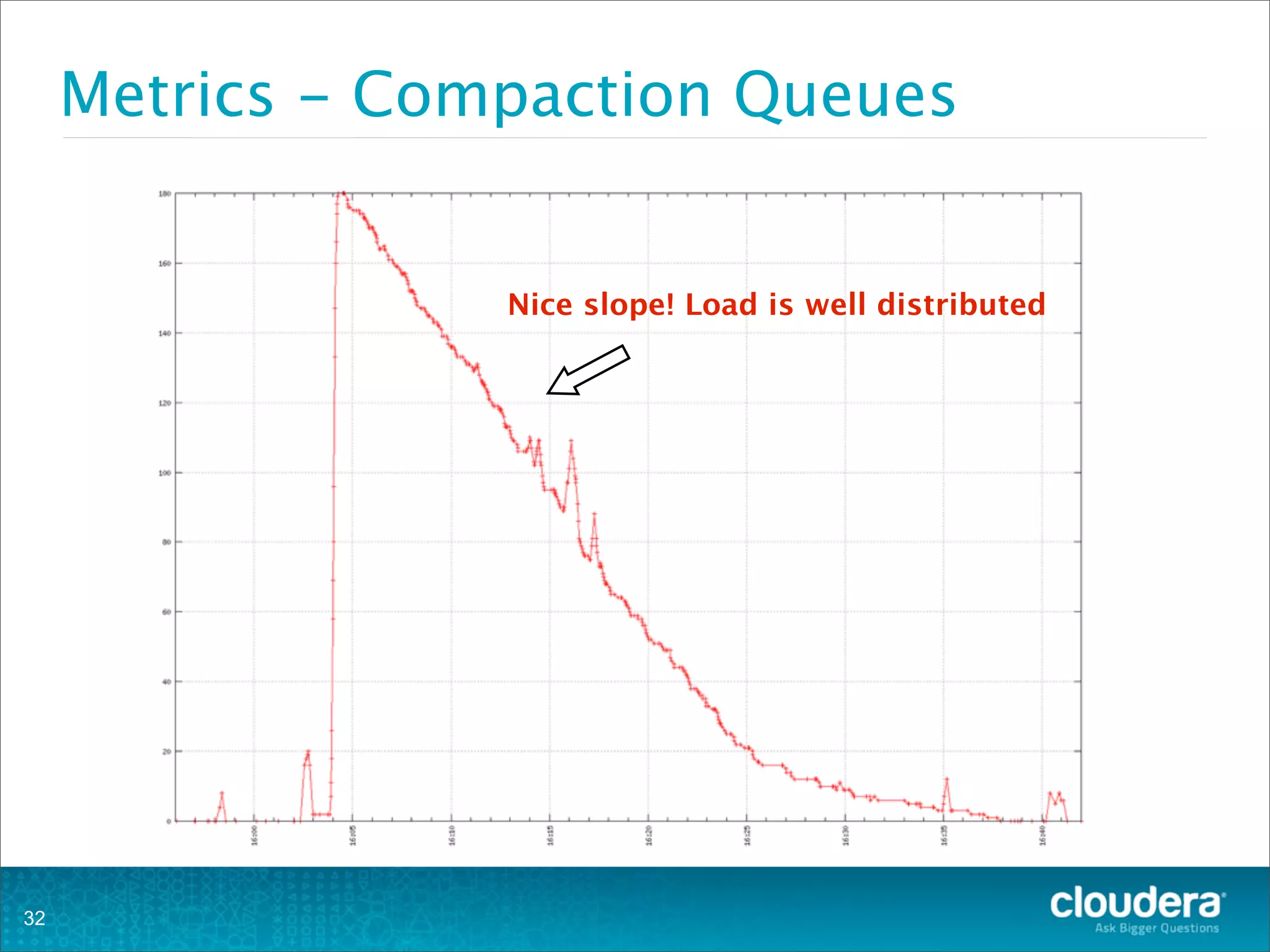

32. Metrics - Compaction Queues
32
Nice slope! Load is well distributed

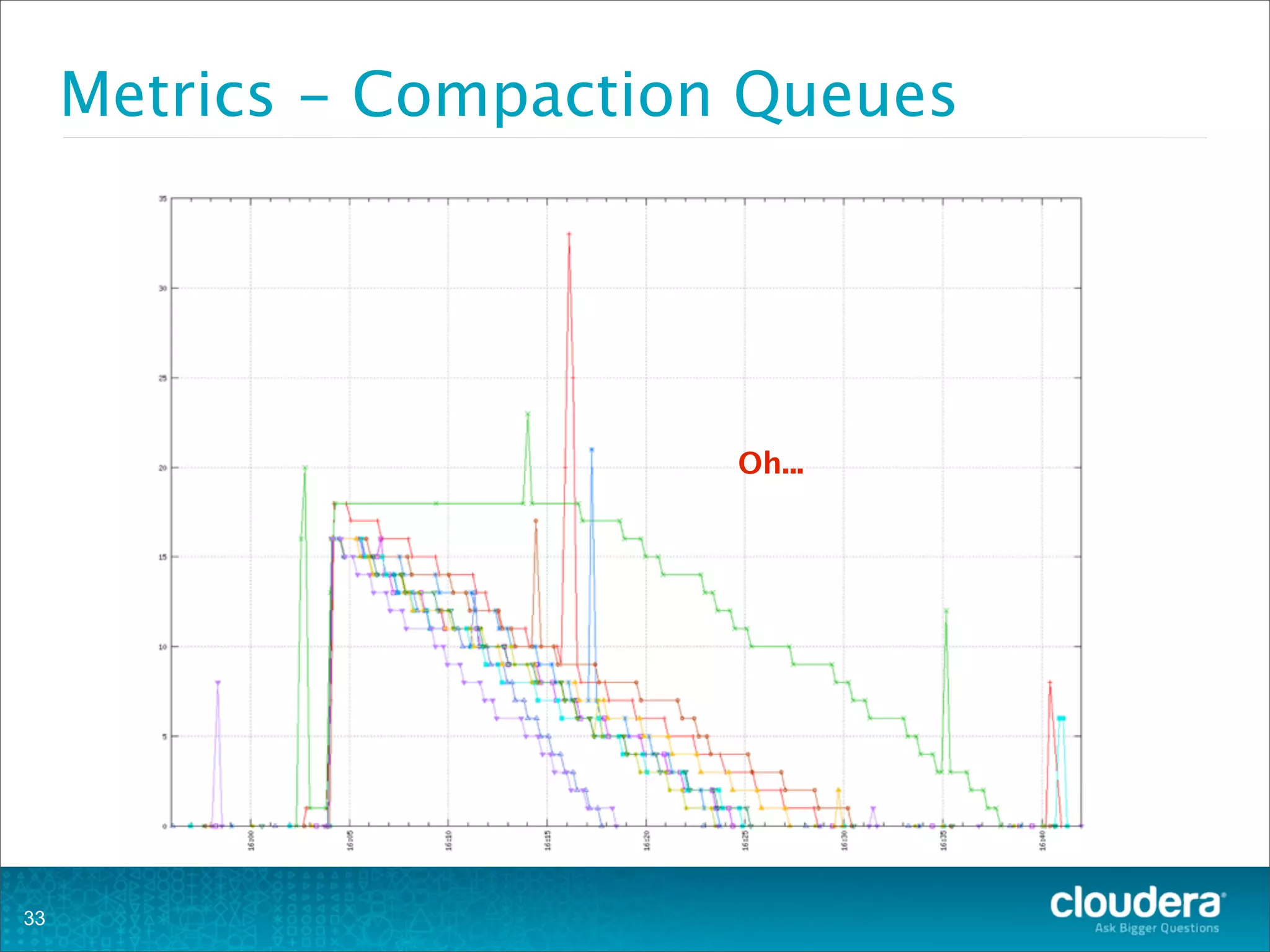

33. Metrics - Compaction Queues
33
Oh...

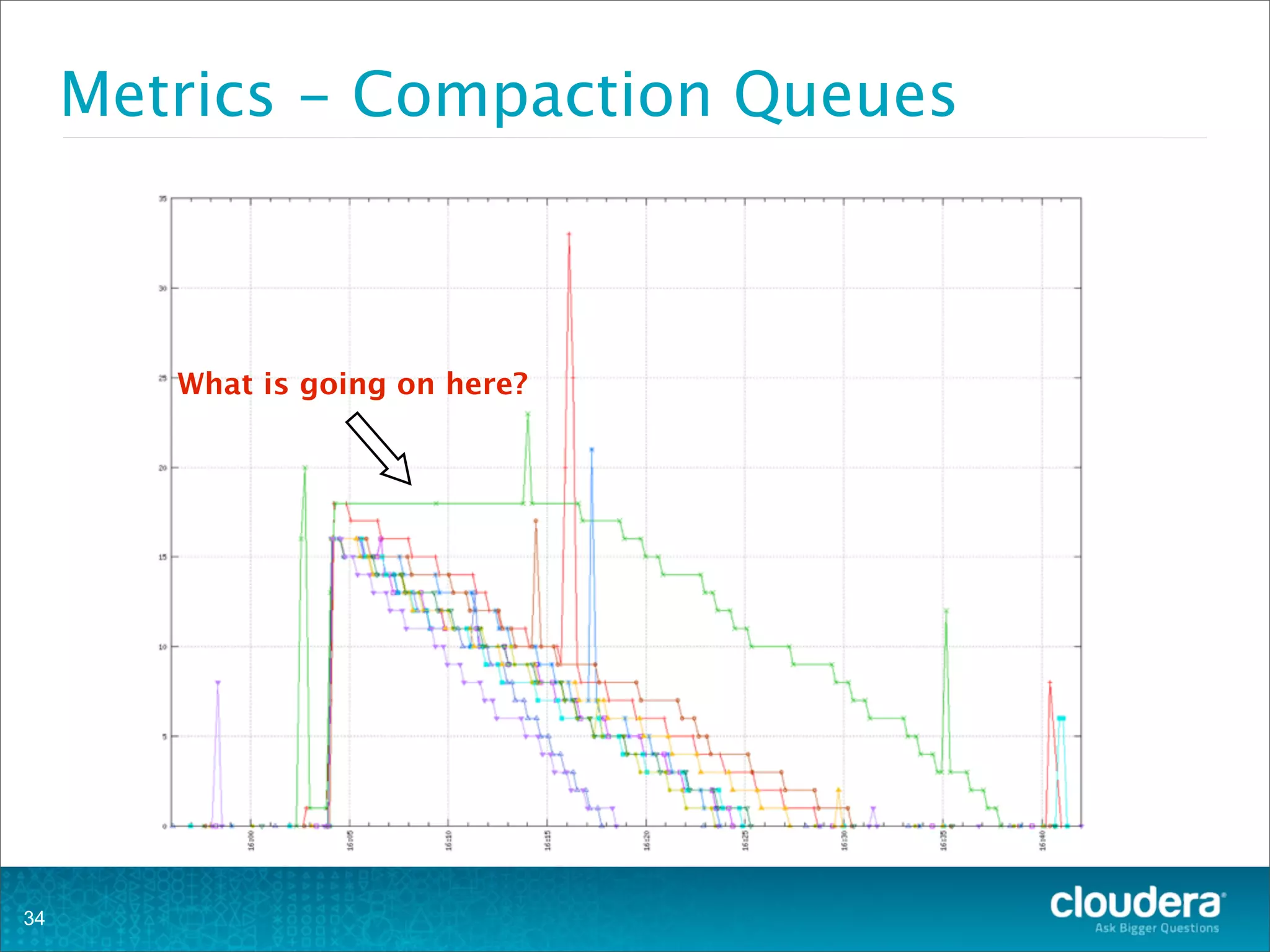

34. Metrics - Compaction Queues
34
What is going on here?

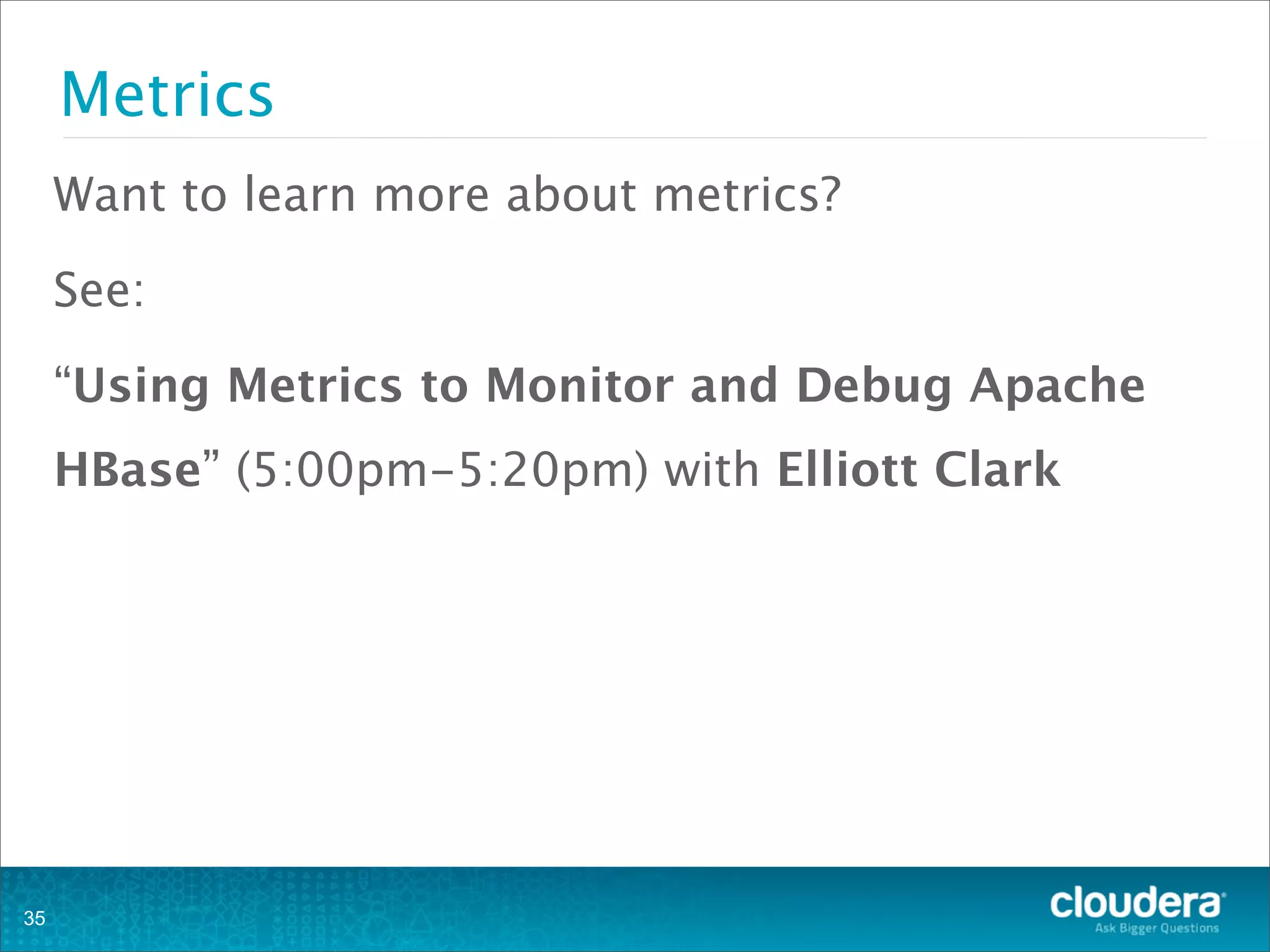

35. Metrics
Want to learn more about metrics?
See:
“Using Metrics to Monitor and Debug Apache
HBase” (5:00pm-5:20pm) with Elliott Clark
35

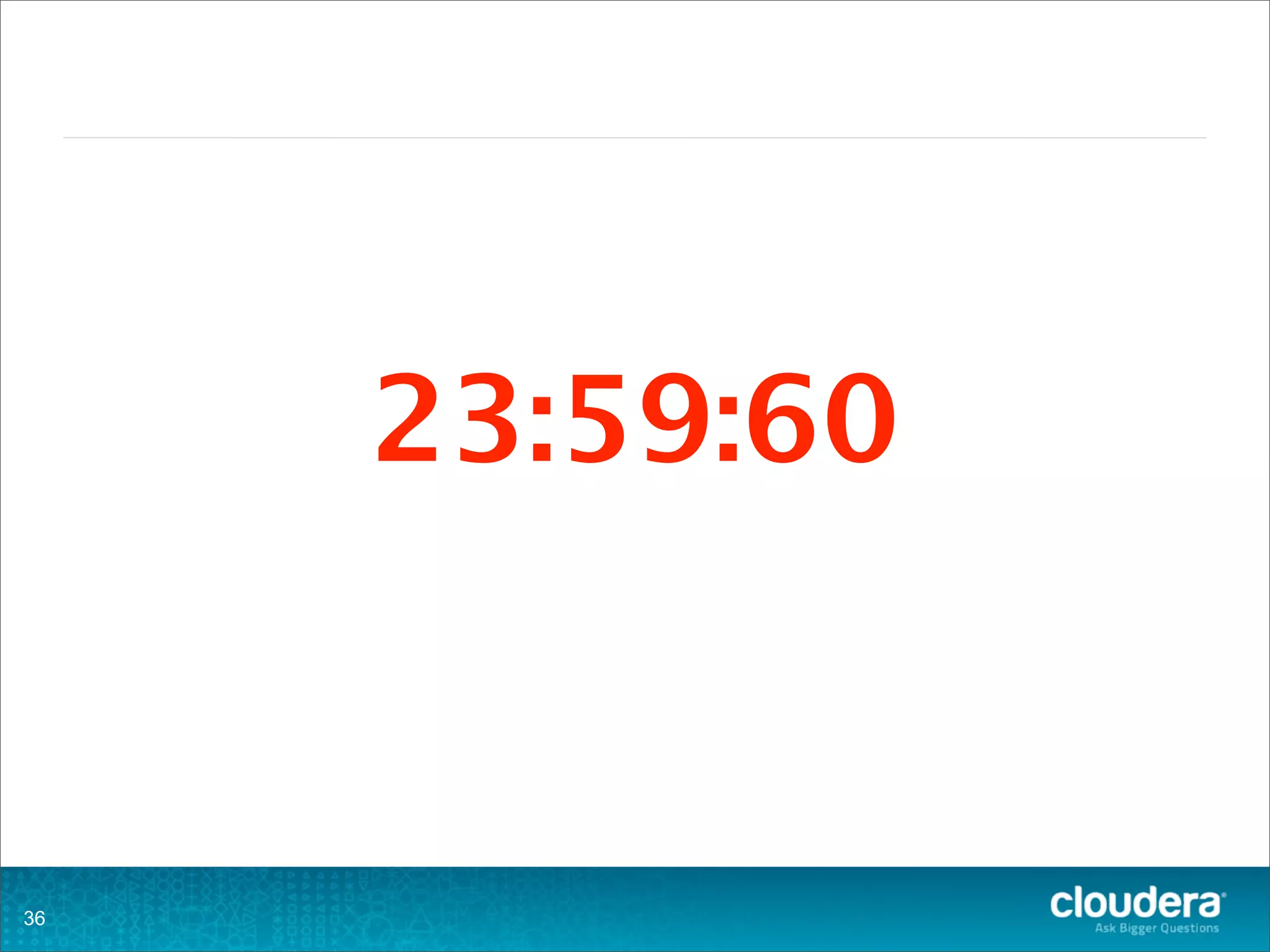

36. 23:59:60
36

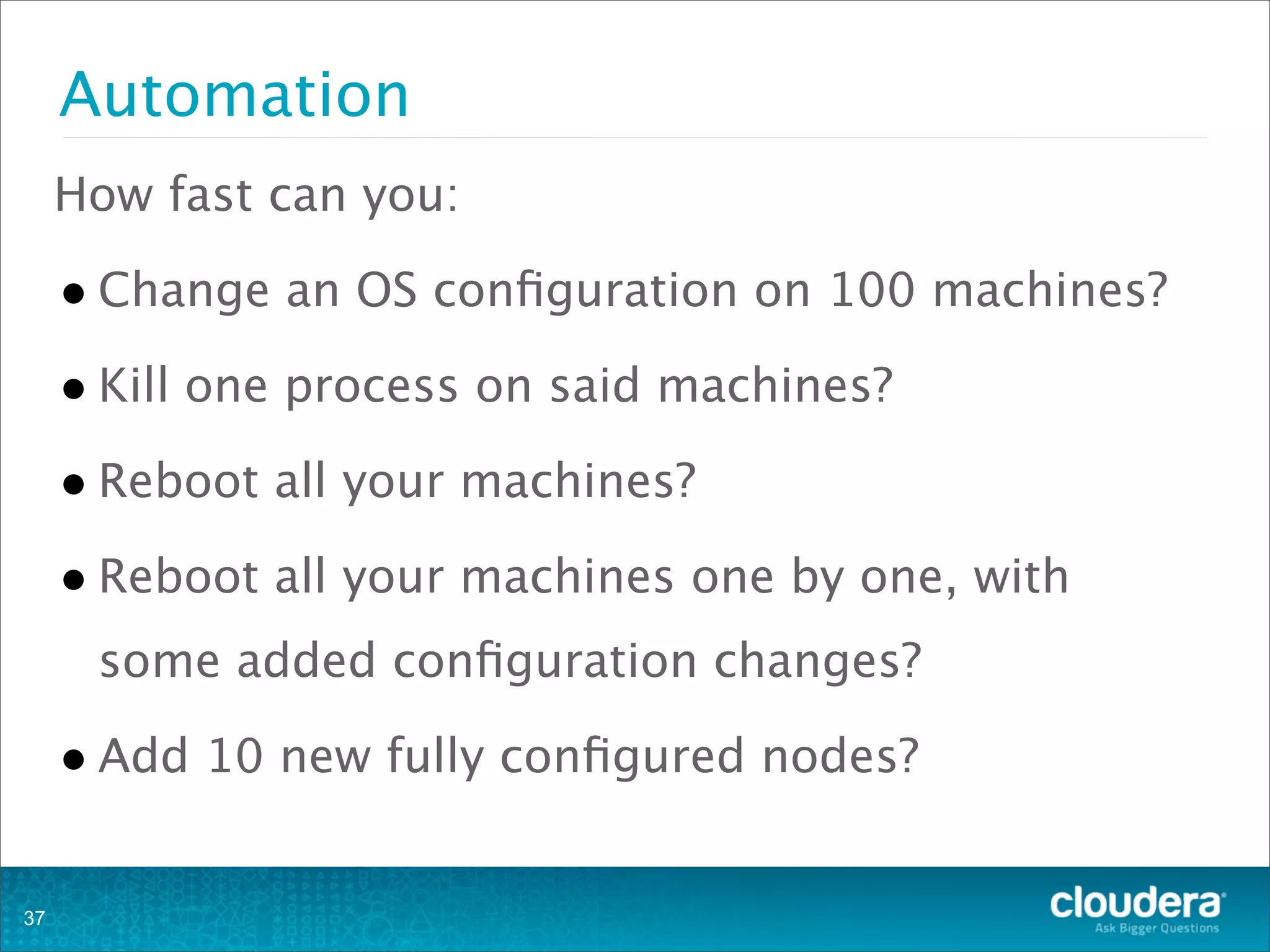

37. Automation
How fast can you:
•Change an OS configuration on 100 machines?
•Kill one process on said machines?
•Reboot all your machines?
•Reboot all your machines one by one, with
some added configuration changes?
•Add 10 new fully configured nodes?
37

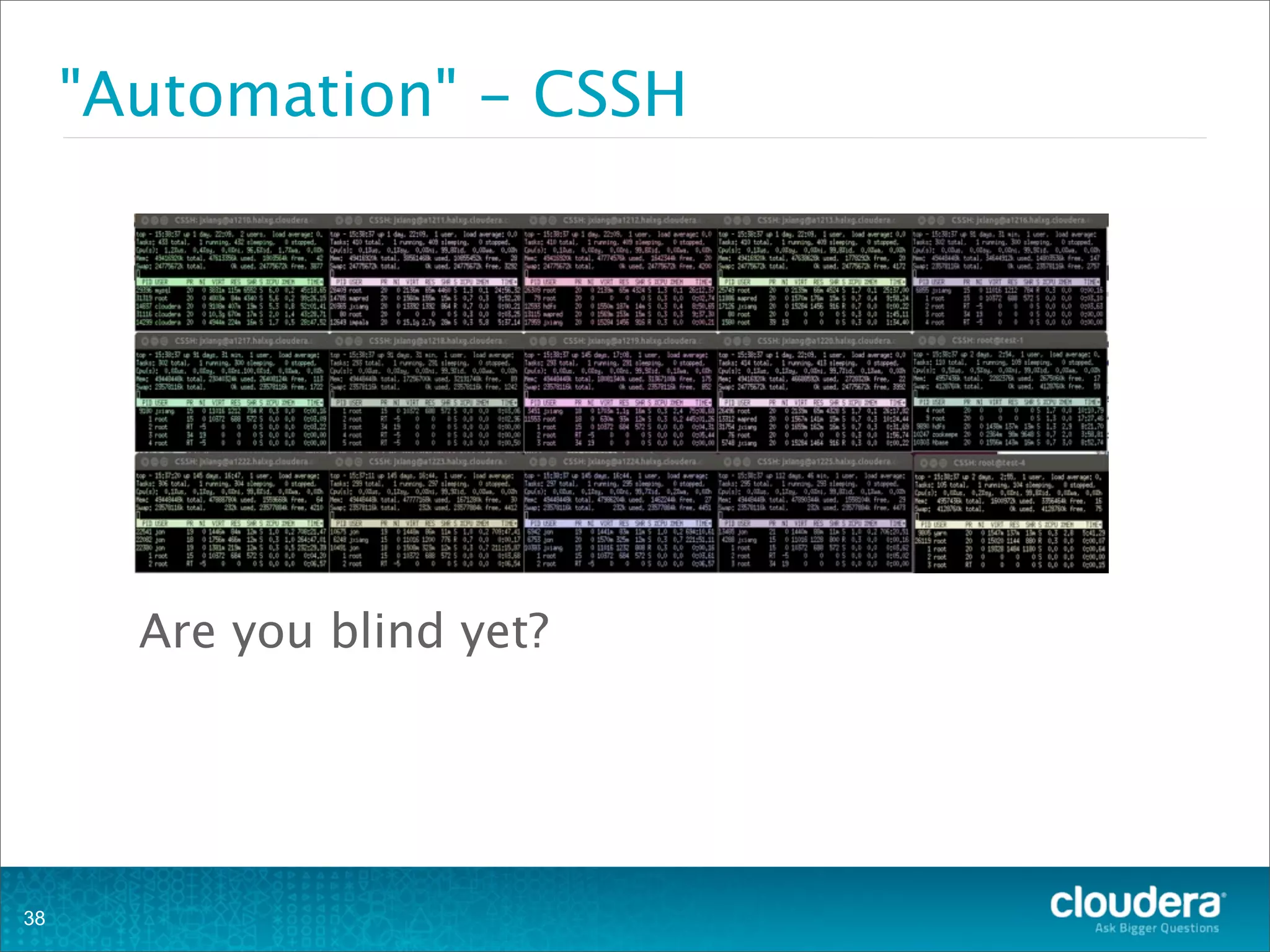

38. "Automation" - CSSH
Are you blind yet?
38

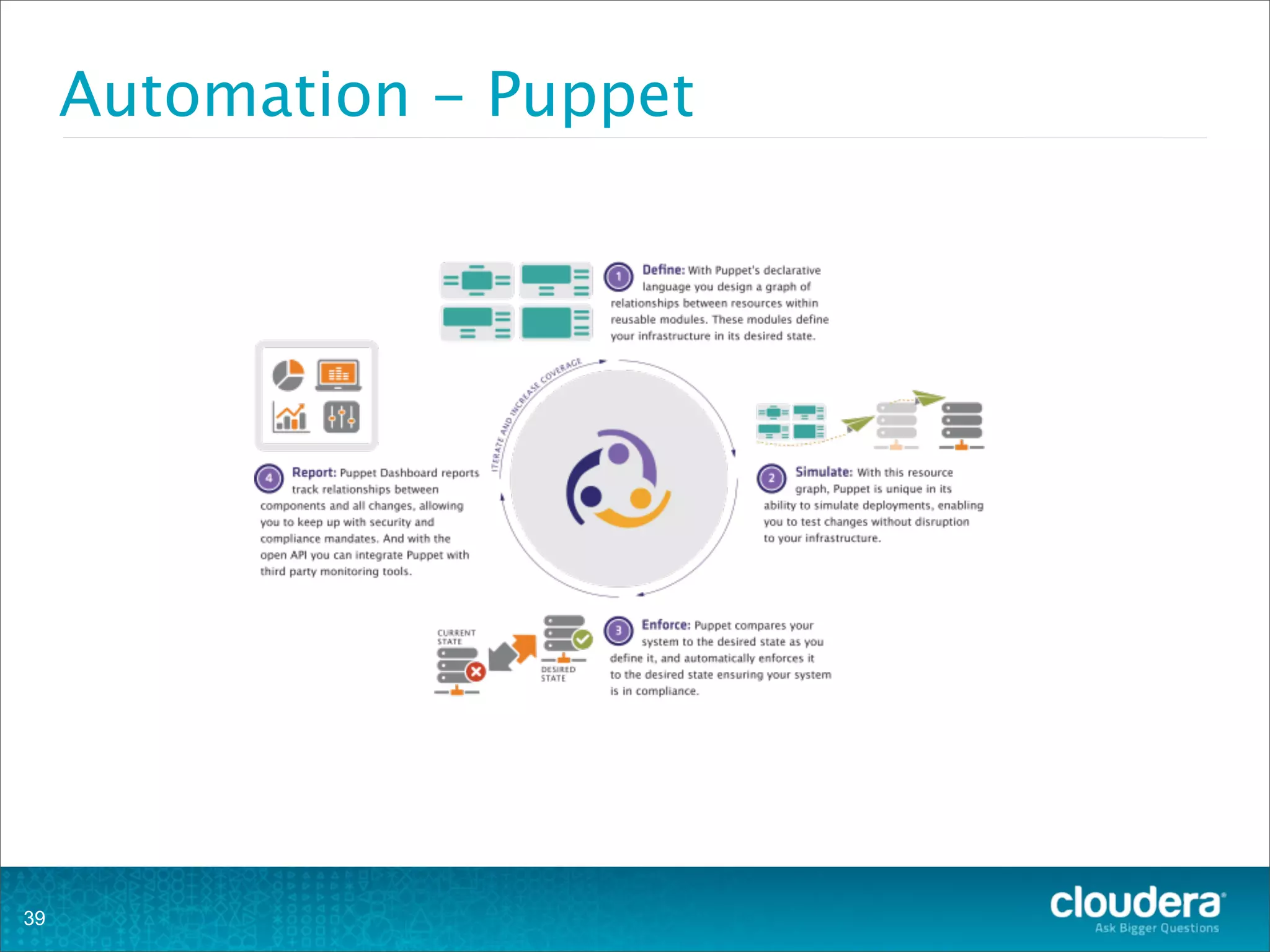

39. Automation - Puppet
39

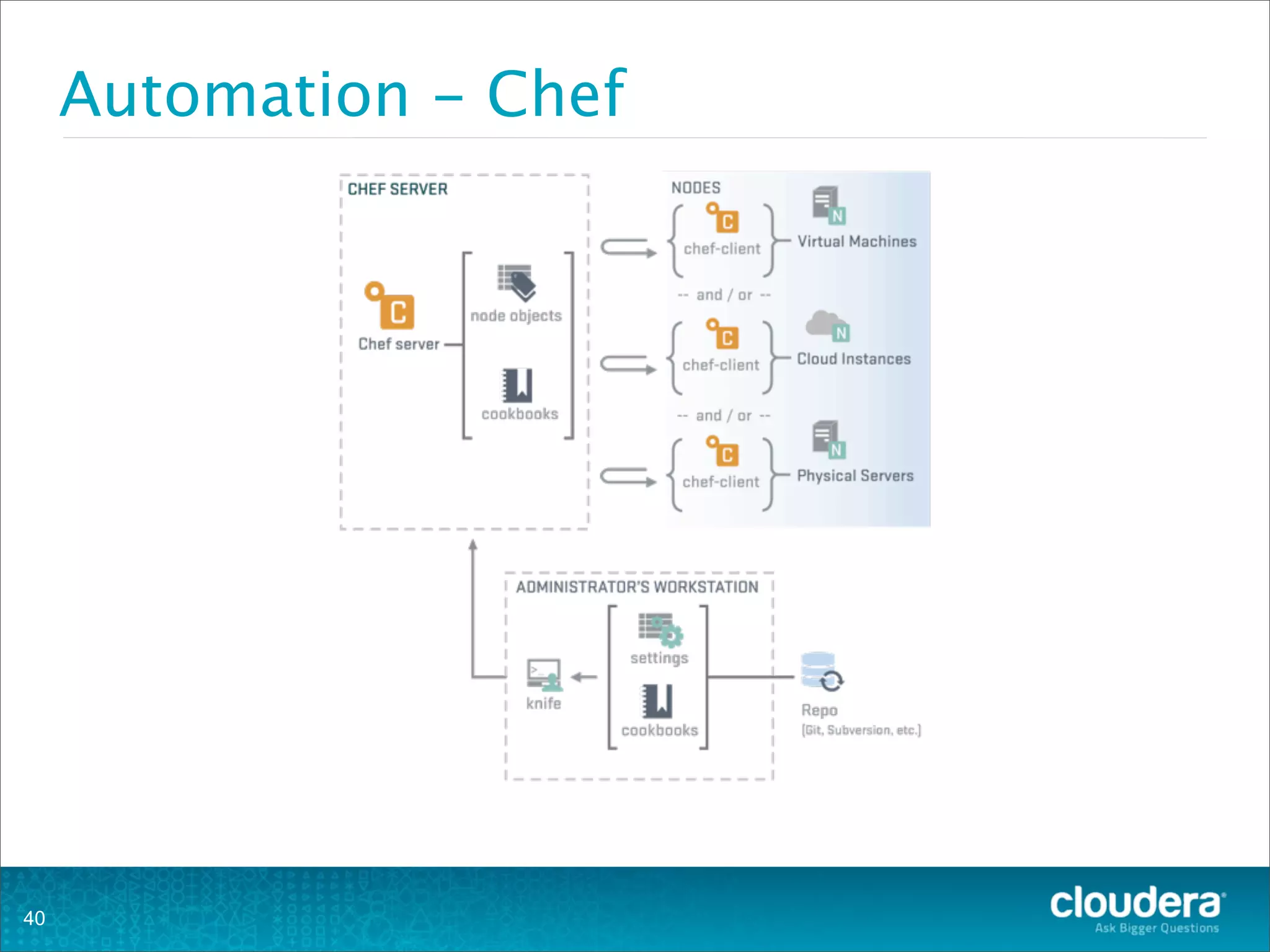

40. Automation - Chef
40

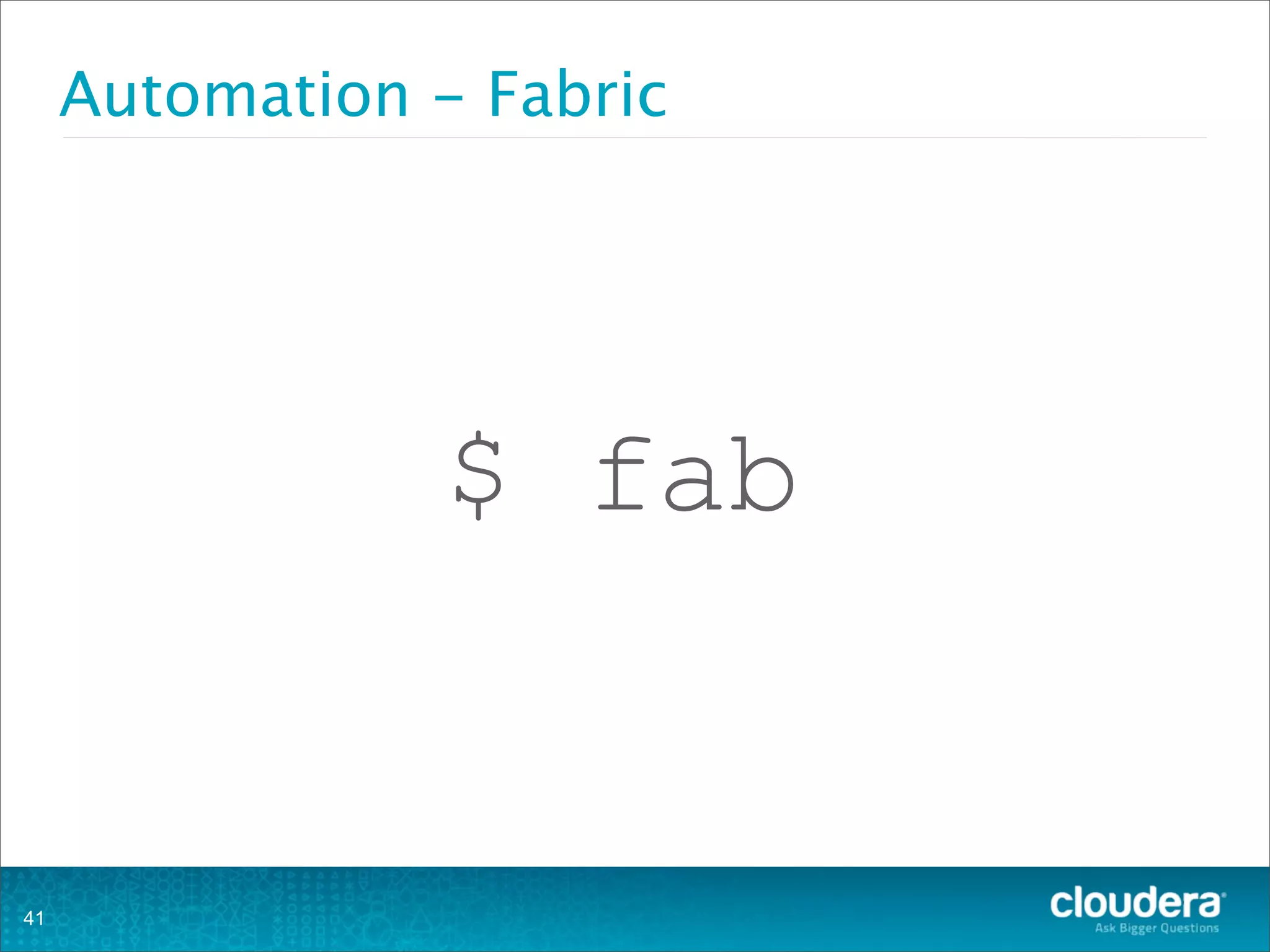

41. Automation - Fabric
$ fab
41

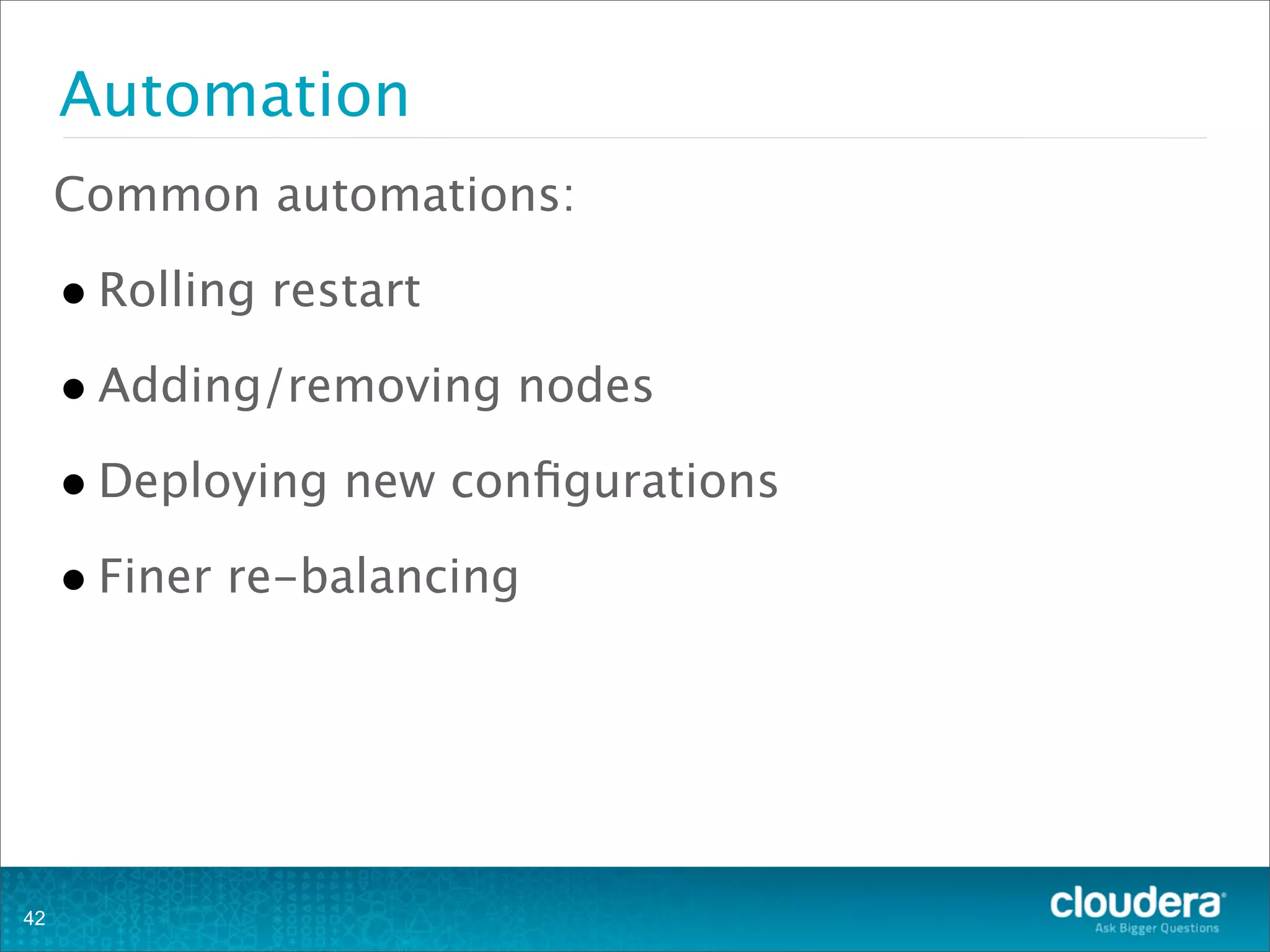

42. Automation
Common automations:
•Rolling restart
•Adding/removing nodes
•Deploying new configurations
•Finer re-balancing
42

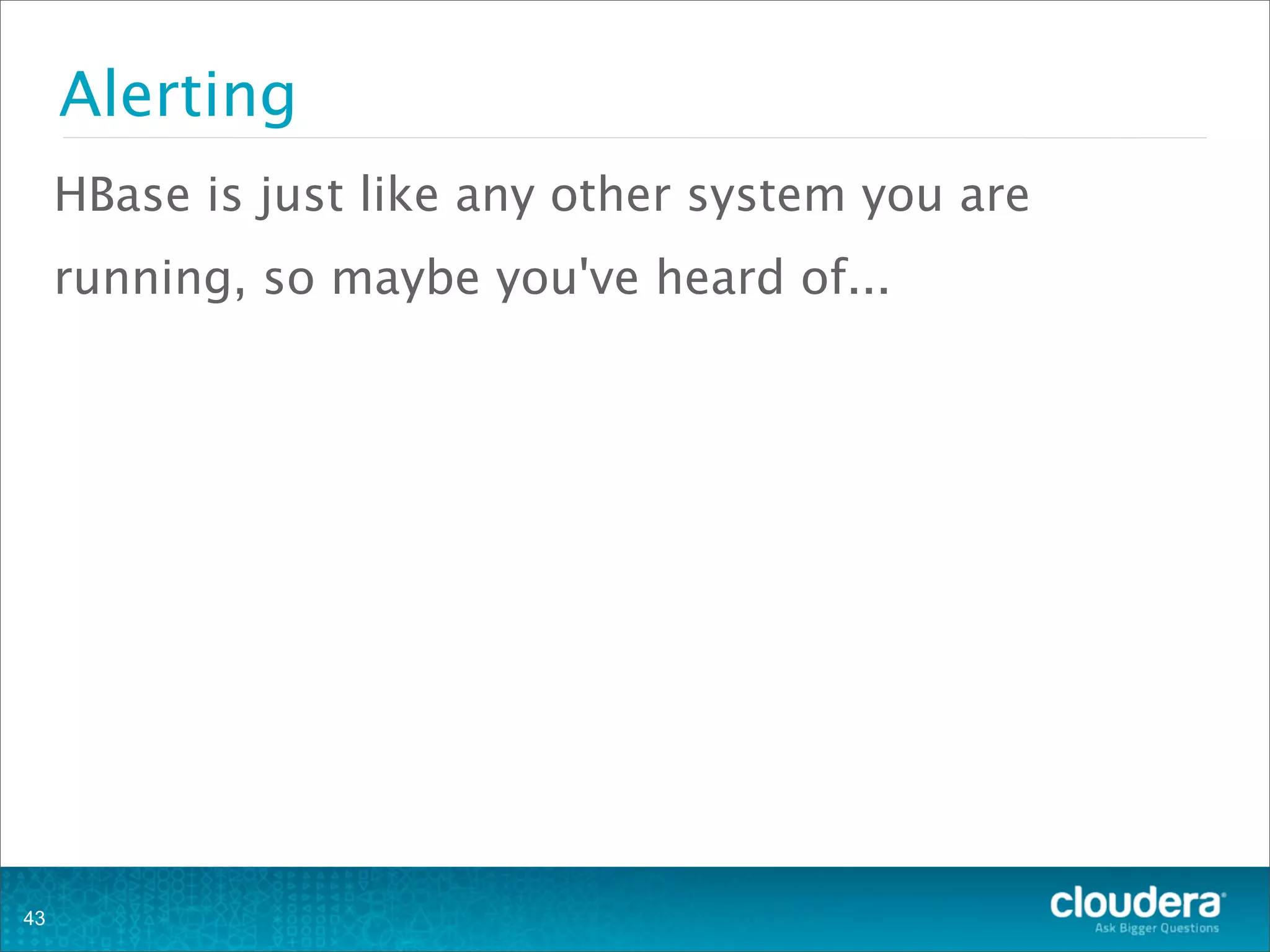

43. Alerting
HBase is just like any other system you are
running, so maybe you've heard of...
43

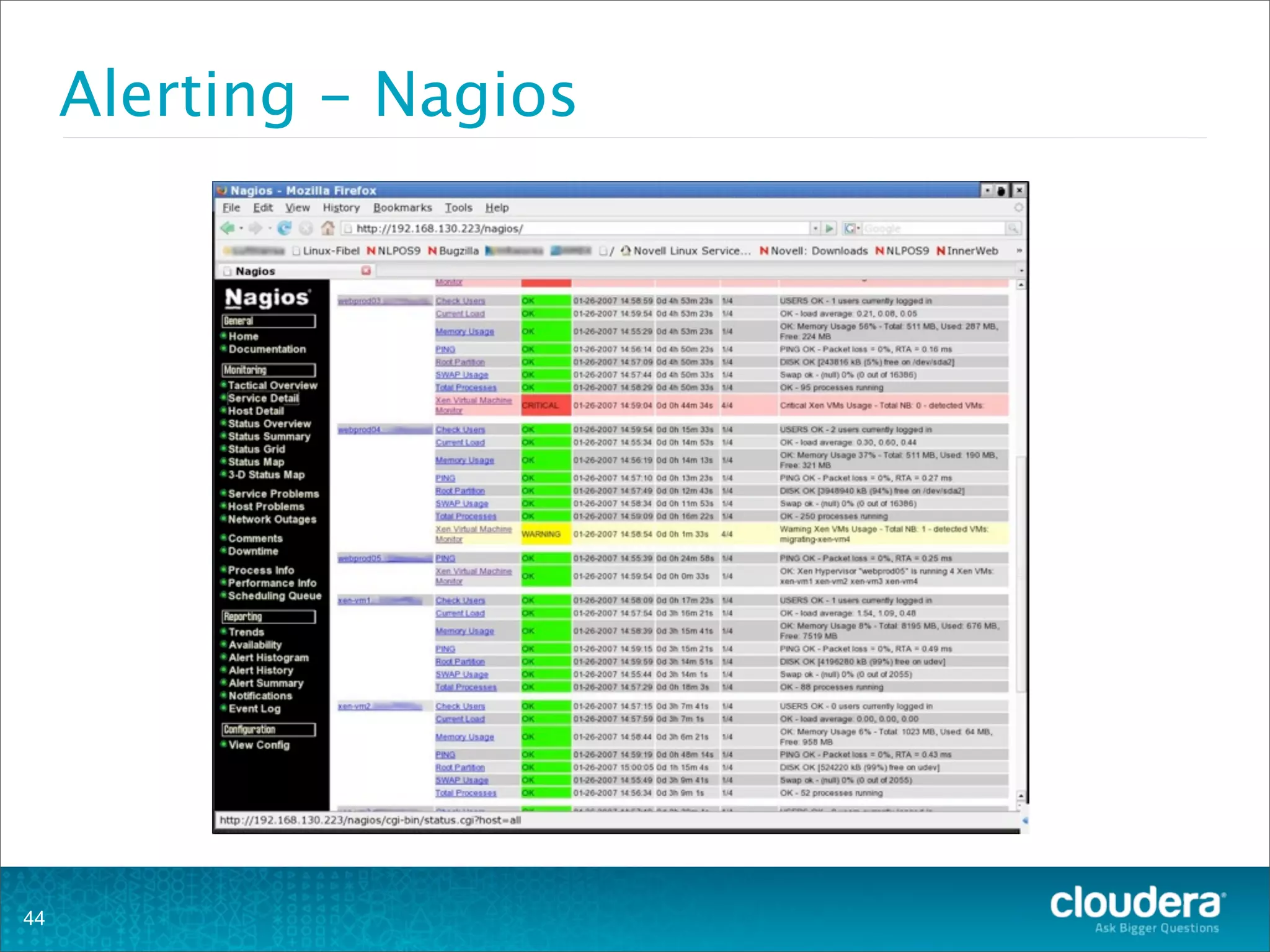

44. Alerting - Nagios
44

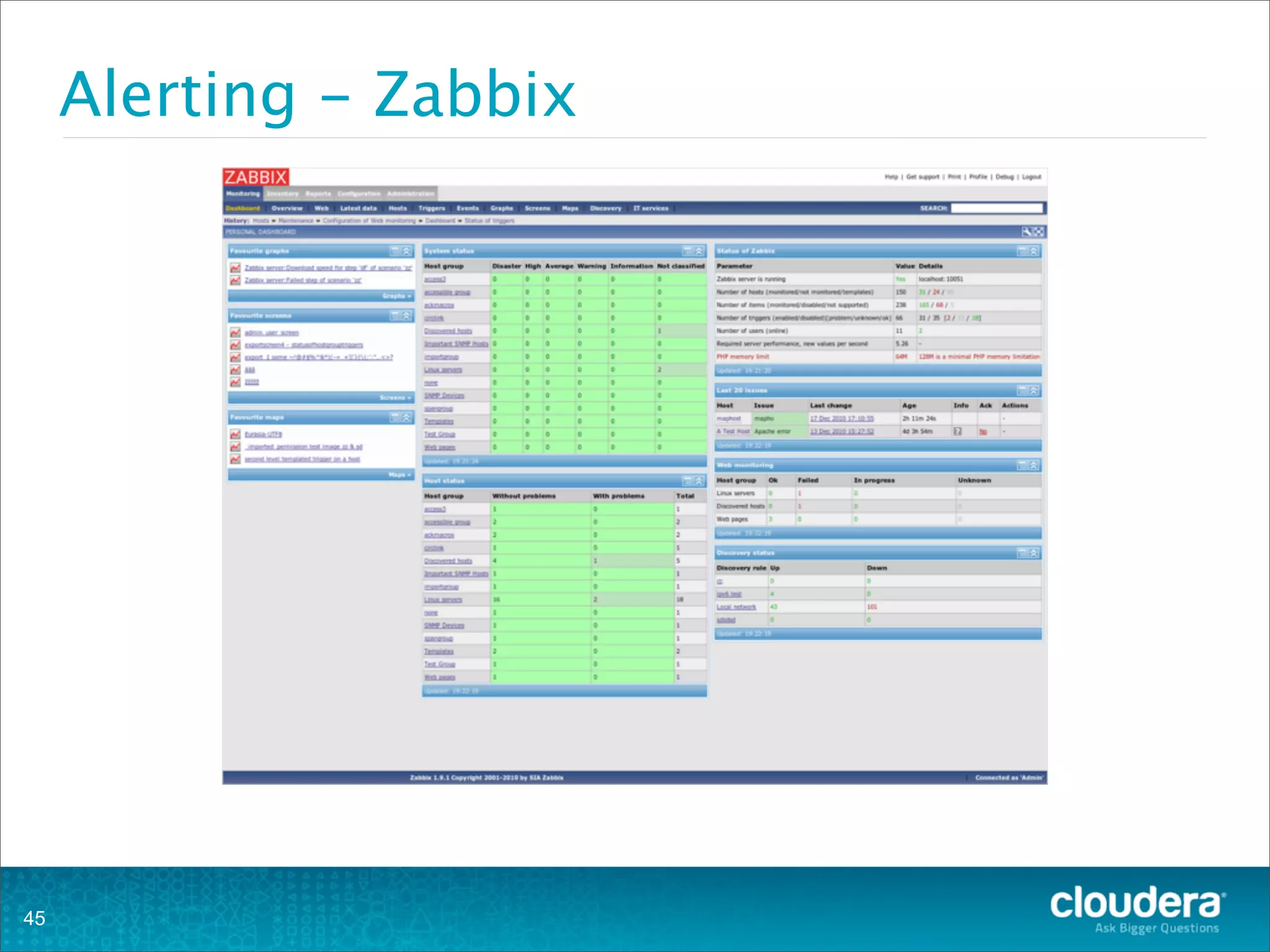

45. Alerting - Zabbix
45

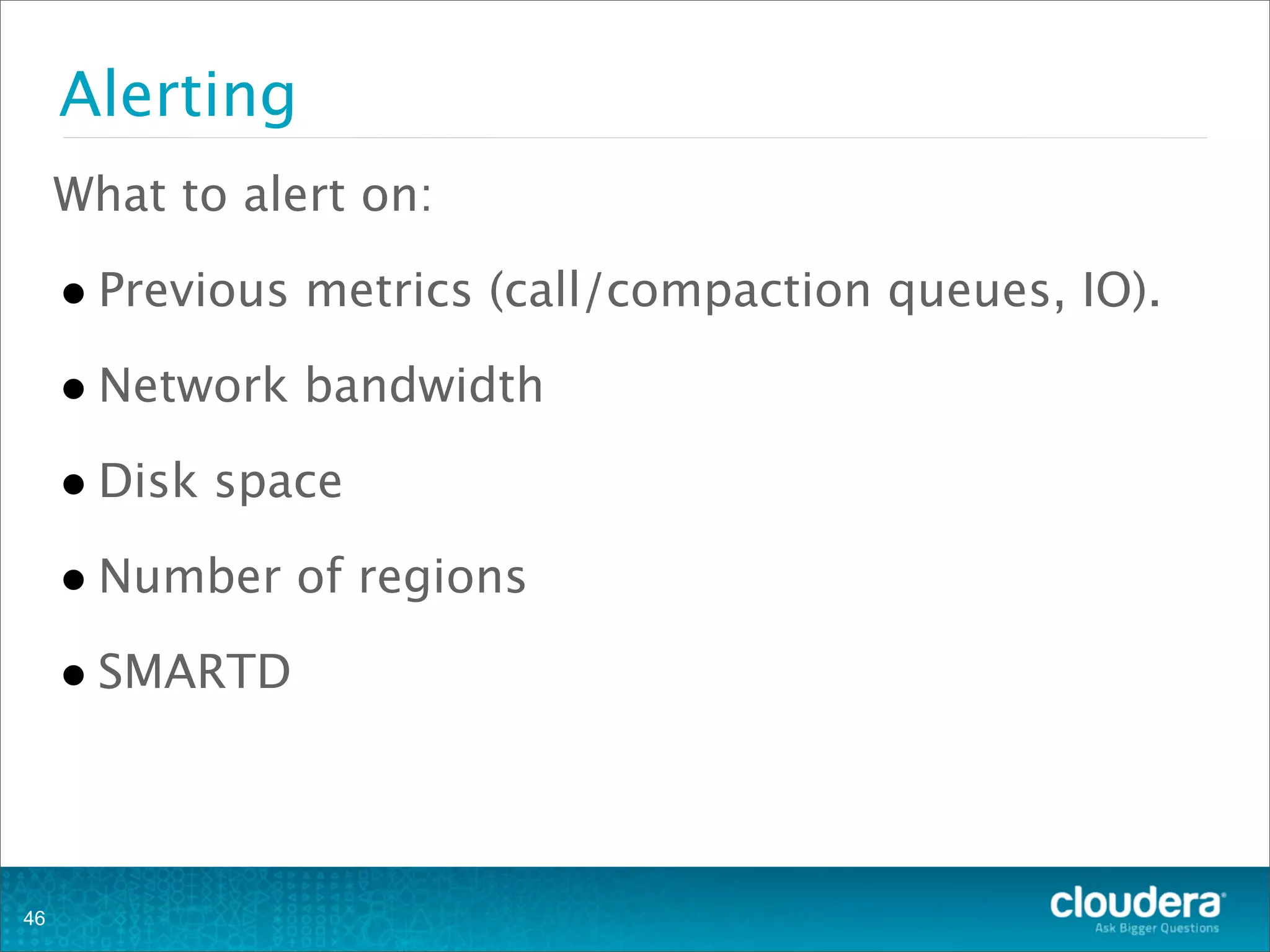

46. Alerting
What to alert on:
•Previous metrics (call/compaction queues, IO).
•Network bandwidth
•Disk space
•Number of regions
•SMARTD
46

47. Backup
47

48. Backup
48
No, you’re not the only one.
Now drop that gun.

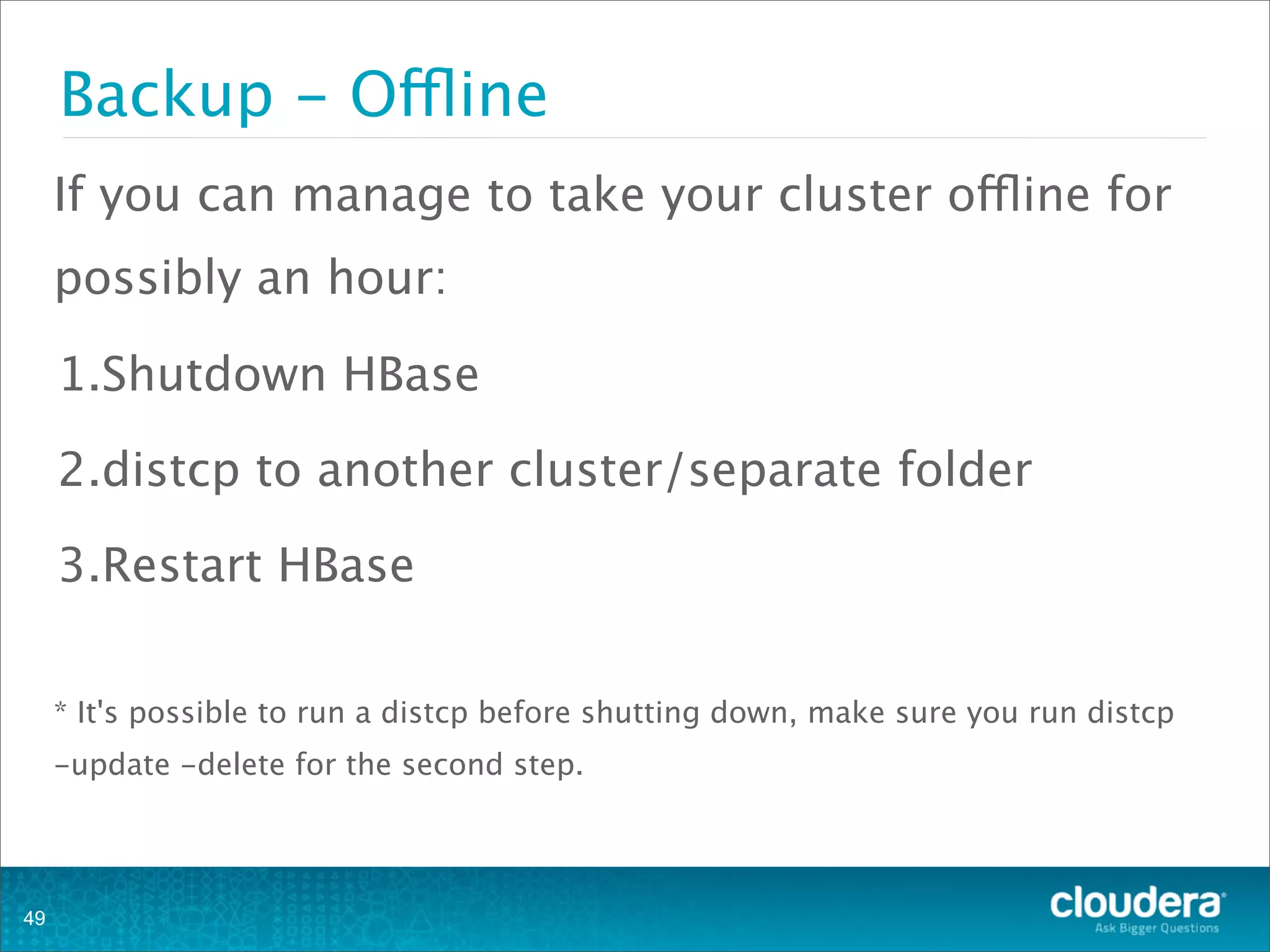

49. If you can manage to take your cluster offline for
possibly an hour:
1.Shutdown HBase
2.distcp to another cluster/separate folder
3.Restart HBase
* It's possible to run a distcp before shutting down, make sure you run distcp
-update -delete for the second step.
Backup - Offline
49

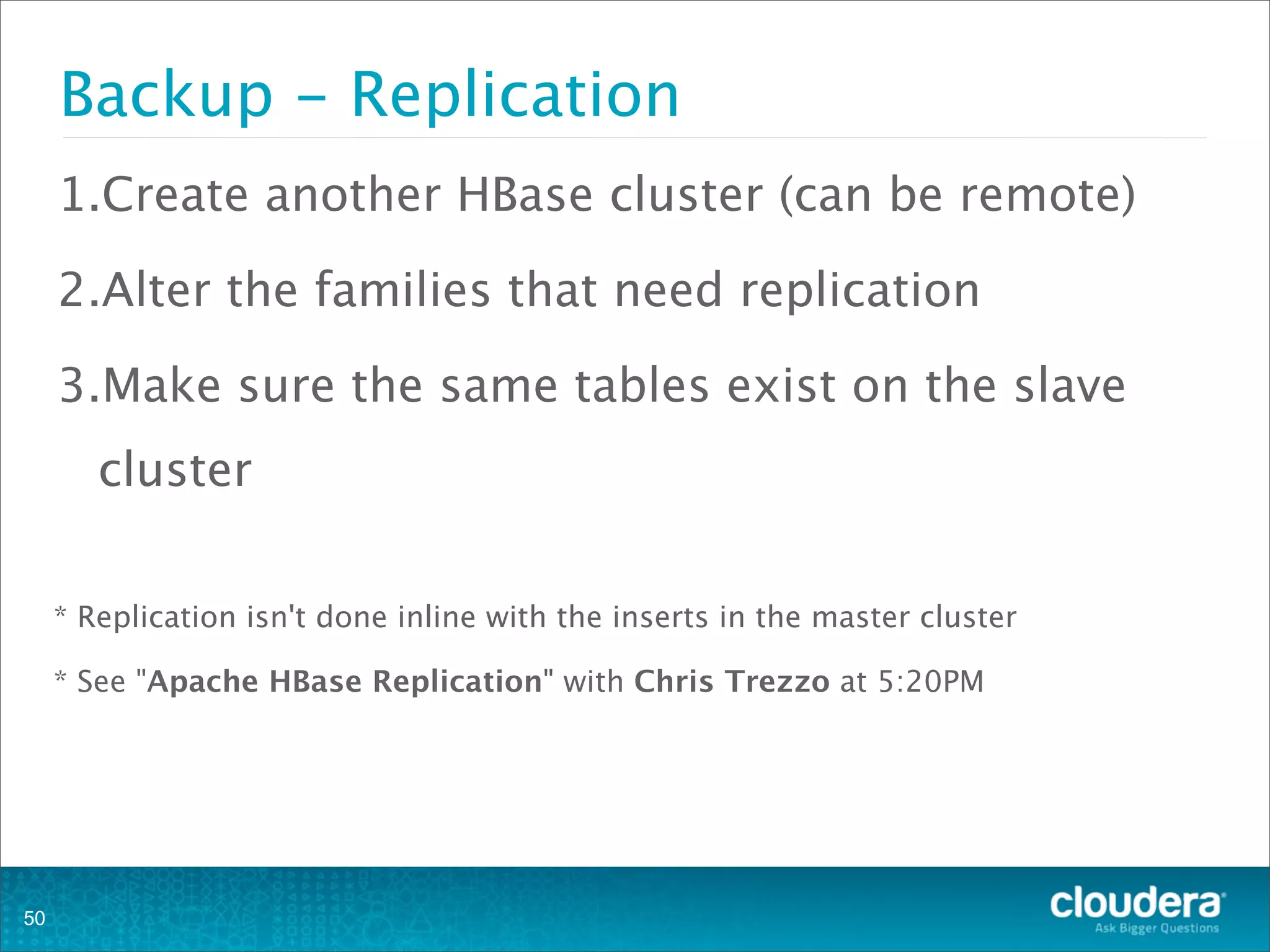

50. 1.Create another HBase cluster (can be remote)
2.Alter the families that need replication
3.Make sure the same tables exist on the slave
cluster
* Replication isn't done inline with the inserts in the master cluster
* See "Apache HBase Replication" with Chris Trezzo at 5:20PM
Backup - Replication
50

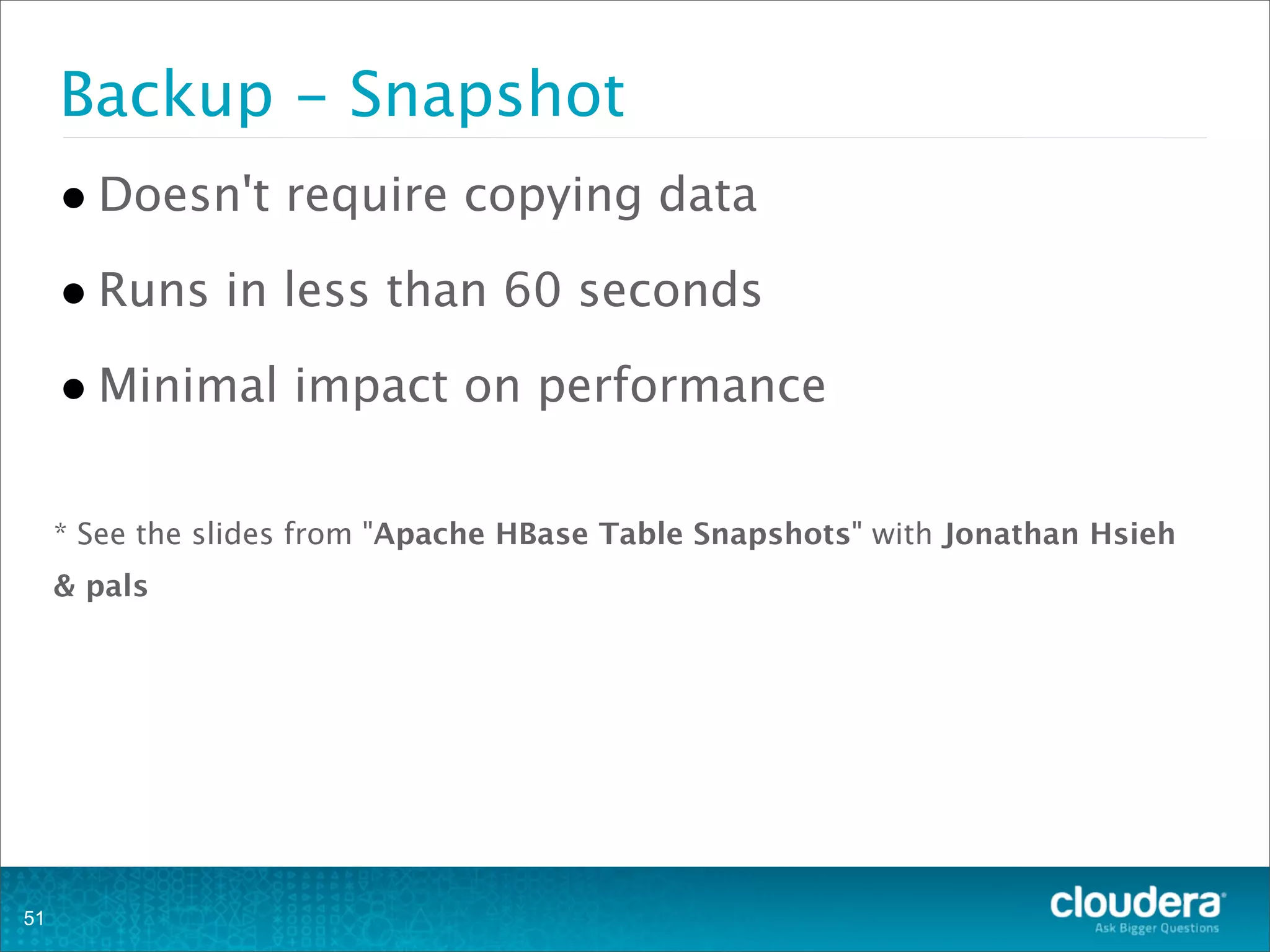

51. •Doesn't require copying data
•Runs in less than 60 seconds
•Minimal impact on performance
* See the slides from "Apache HBase Table Snapshots" with Jonathan Hsieh
& pals
Backup - Snapshot
51

52. Thank You!
52
