Rigorous and Multi-tenant HBase Performance

The document discusses techniques for rigorously measuring Apache HBase performance in both standalone and multi-tenant environments. It introduces the Yahoo! Cloud Serving Benchmark (YCSB) and best practices for cluster setup, workload generation, data loading, and measurement. These include pre-splitting tables, warming caches, setting target throughput, and using appropriate workload distributions. The document also covers challenges in achieving good multi-tenant performance across HBase, MapReduce and Apache Solr.

Software◦Technology◦
1 Rigorous and Multi-tenant HBase Performance Govind Kamat, Yanpei Chen Performance Engineering

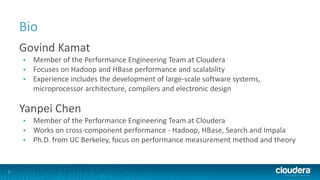

2 Bio Govind Kamat • Member of the Performance Engineering Team at Cloudera • Focuses on Hadoop and HBase performance and scalability • Experience includes the development of large-scale software systems, microprocessor architecture, compilers and electronic design Yanpei Chen • Member of the Performance Engineering Team at Cloudera • Works on cross-component performance - Hadoop, HBase, Search and Impala • Ph.D. from UC Berkeley, focus on performance measurement method and theory
3 Outline • Apache HBase overview • Measuring performance + YCSB basics • Cluster setup best practices • Techniques for rigorous measurement • HBase in a multi-tenant environment

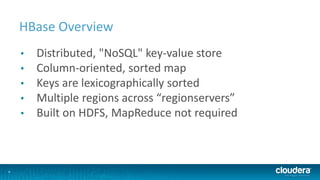

4 HBase Overview • Distributed, "NoSQL" key-value store • Column-oriented, sorted map • Keys are lexicographically sorted • Multiple regions across “regionservers” • Built on HDFS, MapReduce not required

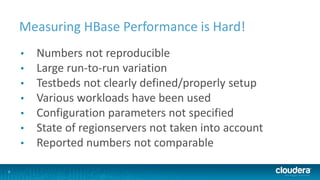

5 Measuring HBase Performance is Hard! • Numbers not reproducible • Large run-to-run variation • Testbeds not clearly defined/properly setup • Various workloads have been used • Configuration parameters not specified • State of regionservers not taken into account • Reported numbers not comparable

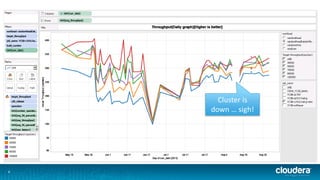

6 Cluster is down … sigh!

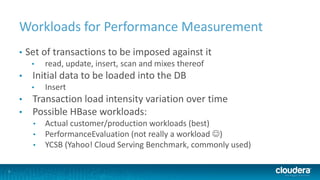

7 Workloads for Performance Measurement • Set of transactions to be imposed against it • read, update, insert, scan and mixes thereof • Initial data to be loaded into the DB • Insert • Transaction load intensity variation over time • Possible HBase workloads: • Actual customer/production workloads (best) • PerformanceEvaluation (not really a workload ) • YCSB (Yahoo! Cloud Serving Benchmark, commonly used)

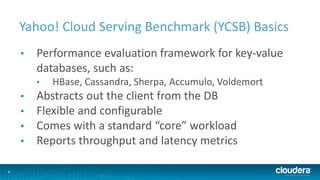

8 Yahoo! Cloud Serving Benchmark (YCSB) Basics • Performance evaluation framework for key-value databases, such as: • HBase, Cassandra, Sherpa, Accumulo, Voldemort • Abstracts out the client from the DB • Flexible and configurable • Comes with a standard “core” workload • Reports throughput and latency metrics

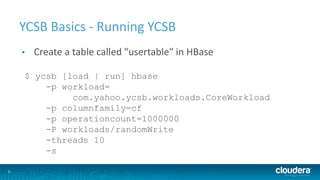

9 YCSB Basics - Running YCSB • Create a table called "usertable" in HBase $ ycsb [load | run] hbase -p workload= com.yahoo.ycsb.workloads.CoreWorkload -p columnfamily=cf -p operationcount=1000000 -P workloads/randomWrite -threads 10 -s

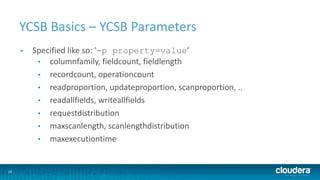

10 YCSB Basics – YCSB Parameters • Specified like so: '-p property=value’ • columnfamily, fieldcount, fieldlength • recordcount, operationcount • readproportion, updateproportion, scanproportion, .. • readallfields, writeallfields • requestdistribution • maxscanlength, scanlengthdistribution • maxexecutiontime

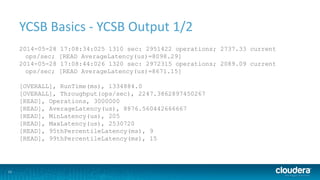

11 YCSB Basics - YCSB Output 1/2 2014-05-28 17:08:34:025 1310 sec: 2951422 operations; 2737.33 current ops/sec; [READ AverageLatency(us)=8098.29] 2014-05-28 17:08:44:026 1320 sec: 2972315 operations; 2089.09 current ops/sec; [READ AverageLatency(us)=8671.15] [OVERALL], RunTime(ms), 1334884.0 [OVERALL], Throughput(ops/sec), 2247.3862897450267 [READ], Operations, 3000000 [READ], AverageLatency(us), 8876.560442666667 [READ], MinLatency(us), 205 [READ], MaxLatency(us), 2530720 [READ], 95thPercentileLatency(ms), 9 [READ], 99thPercentileLatency(ms), 15

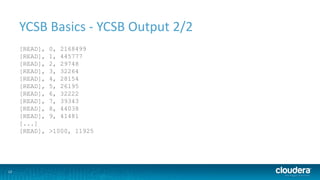

12 YCSB Basics - YCSB Output 2/2 [READ], 0, 2168499 [READ], 1, 445777 [READ], 2, 29748 [READ], 3, 32264 [READ], 4, 28154 [READ], 5, 26195 [READ], 6, 32222 [READ], 7, 39343 [READ], 8, 44038 [READ], 9, 41481 [...] [READ], >1000, 11925

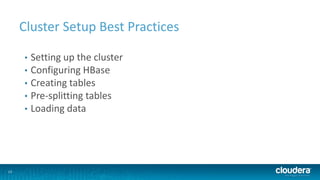

13 Cluster Setup Best Practices • Setting up the cluster • Configuring HBase • Creating tables • Pre-splitting tables • Loading data

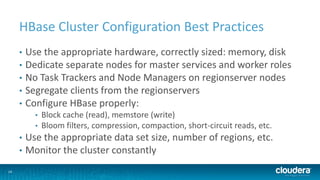

14 HBase Cluster Configuration Best Practices • Use the appropriate hardware, correctly sized: memory, disk • Dedicate separate nodes for master services and worker roles • No Task Trackers and Node Managers on regionserver nodes • Segregate clients from the regionservers • Configure HBase properly: • Block cache (read), memstore (write) • Bloom filters, compression, compaction, short-circuit reads, etc. • Use the appropriate data set size, number of regions, etc. • Monitor the cluster constantly

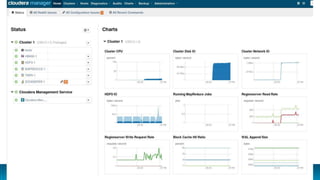

15

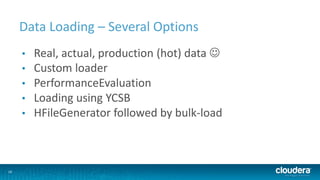

16 Data Loading – Several Options • Real, actual, production (hot) data  • Custom loader • PerformanceEvaluation • Loading using YCSB • HFileGenerator followed by bulk-load

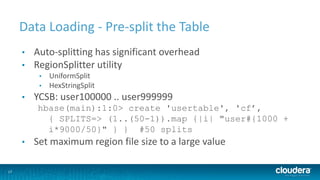

17 Data Loading - Pre-split the Table • Auto-splitting has significant overhead • RegionSplitter utility • UniformSplit • HexStringSplit • YCSB: user100000 .. user999999 hbase(main):1:0> create 'usertable', 'cf’, { SPLITS=> (1..(50-1)).map {|i| "user#{1000 + i*9000/50}" } } #50 splits • Set maximum region file size to a large value

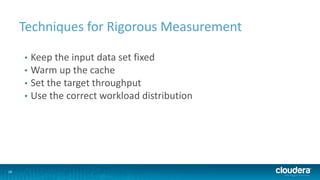

18 Techniques for Rigorous Measurement • Keep the input data set fixed • Warm up the cache • Set the target throughput • Use the correct workload distribution

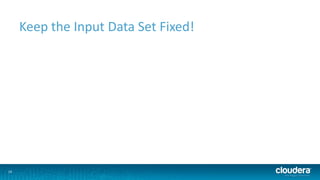

19 Keep the Input Data Set Fixed!

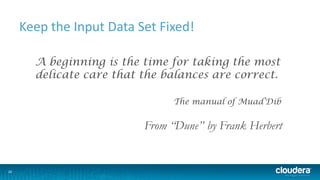

20 Keep the Input Data Set Fixed! A beginning is the time for taking the most delicate care that the balances are correct. The manual of Muad’Dib From “Dune” by Frank Herbert
21 Cluster is down … sigh!

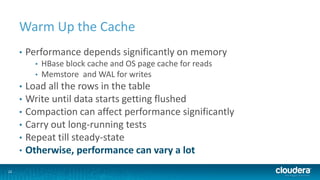

22 Warm Up the Cache • Performance depends significantly on memory • HBase block cache and OS page cache for reads • Memstore and WAL for writes • Load all the rows in the table • Write until data starts getting flushed • Compaction can affect performance significantly • Carry out long-running tests • Repeat till steady-state • Otherwise, performance can vary a lot

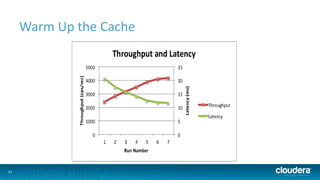

23 Warm Up the Cache

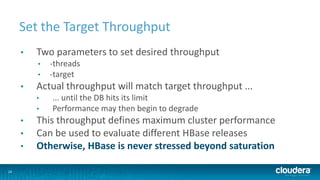

24 Set the Target Throughput • Two parameters to set desired throughput • -threads • -target • Actual throughput will match target throughput ... • ... until the DB hits its limit • Performance may then begin to degrade • This throughput defines maximum cluster performance • Can be used to evaluate different HBase releases • Otherwise, HBase is never stressed beyond saturation

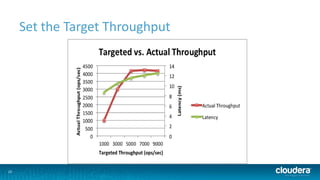

25 Set the Target Throughput

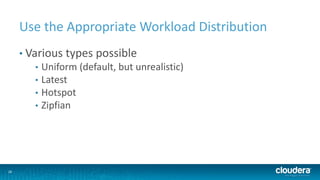

26 Use the Appropriate Workload Distribution • Various types possible • Uniform (default, but unrealistic) • Latest • Hotspot • Zipfian

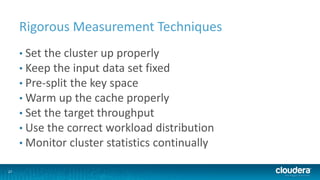

27 Rigorous Measurement Techniques • Set the cluster up properly • Keep the input data set fixed • Pre-split the key space • Warm up the cache properly • Set the target throughput • Use the correct workload distribution • Monitor cluster statistics continually

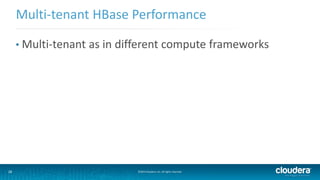

28 ©2014 Cloudera, Inc. All rights reserved. • Multi-tenant as in different compute frameworks Multi-tenant HBase Performance

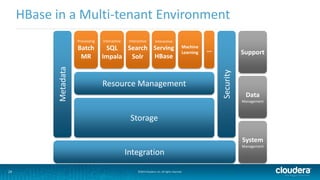

29 ©2014 Cloudera, Inc. All rights reserved. HBase in a Multi-tenant Environment Integration Storage Resource Management Metadata Processing Batch MR … Interactive SQL Impala Interactive Search Solr Interactive Serving HBase Machine Learning System Management Data Management Support Security

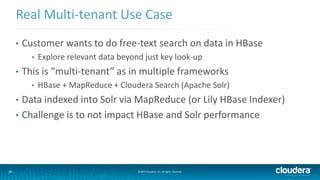

30 ©2014 Cloudera, Inc. All rights reserved. • Customer wants to do free-text search on data in HBase • Explore relevant data beyond just key look-up • This is “multi-tenant” as in multiple frameworks • HBase + MapReduce + Cloudera Search (Apache Solr) • Data indexed into Solr via MapReduce (or Lily HBase Indexer) • Challenge is to not impact HBase and Solr performance Real Multi-tenant Use Case

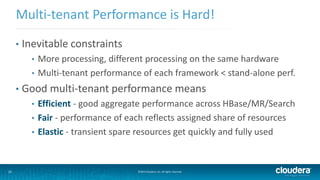

31 ©2014 Cloudera, Inc. All rights reserved. • Inevitable constraints • More processing, different processing on the same hardware • Multi-tenant performance of each framework < stand-alone perf. • Good multi-tenant performance means • Efficient - good aggregate performance across HBase/MR/Search • Fair - performance of each reflects assigned share of resources • Elastic - transient spare resources get quickly and fully used Multi-tenant Performance is Hard!

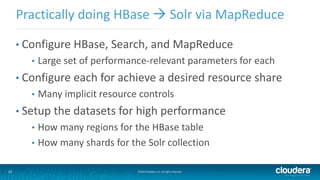

32 ©2014 Cloudera, Inc. All rights reserved. • Configure HBase, Search, and MapReduce • Large set of performance-relevant parameters for each • Configure each for achieve a desired resource share • Many implicit resource controls • Setup the datasets for high performance • How many regions for the HBase table • How many shards for the Solr collection Practically doing HBase  Solr via MapReduce

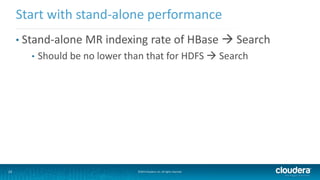

33 ©2014 Cloudera, Inc. All rights reserved. Start with stand-alone performance • Stand-alone MR indexing rate of HBase  Search • Should be no lower than that for HDFS  Search

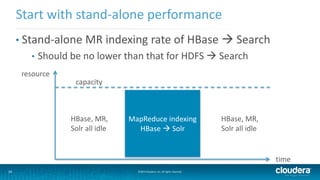

34 ©2014 Cloudera, Inc. All rights reserved. • Stand-alone MR indexing rate of HBase  Search • Should be no lower than that for HDFS  Search Start with stand-alone performance time MapReduce indexing HBase  Solr resource HBase, MR, Solr all idle HBase, MR, Solr all idle capacity

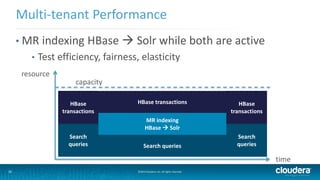

35 ©2014 Cloudera, Inc. All rights reserved. • MR indexing HBase  Solr while both are active • Test efficiency, fairness, elasticity Multi-tenant Performance HBase transactions HBase transactions HBase transactions MR indexing HBase  Solr Search queries Search queriesSearch queries time resource capacity

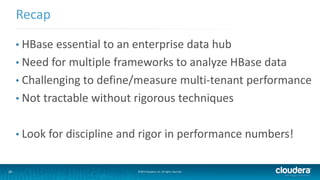

36 ©2014 Cloudera, Inc. All rights reserved. • HBase essential to an enterprise data hub • Need for multiple frameworks to analyze HBase data • Challenging to define/measure multi-tenant performance • Not tractable without rigorous techniques • Look for discipline and rigor in performance numbers! Recap

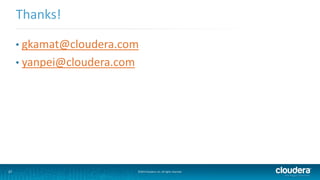

37 ©2014 Cloudera, Inc. All rights reserved. • gkamat@cloudera.com • yanpei@cloudera.com Thanks!

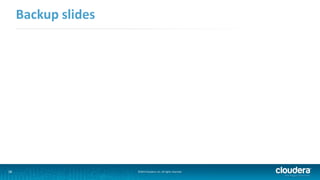

38 ©2014 Cloudera, Inc. All rights reserved. Backup slides

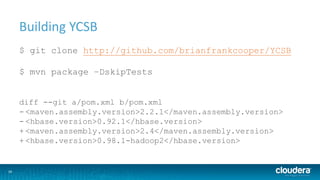

39 Building YCSB $ git clone http://github.com/brianfrankcooper/YCSB $ mvn package –DskipTests diff --git a/pom.xml b/pom.xml - <maven.assembly.version>2.2.1</maven.assembly.version> - <hbase.version>0.92.1</hbase.version> + <maven.assembly.version>2.4</maven.assembly.version> + <hbase.version>0.98.1-hadoop2</hbase.version>

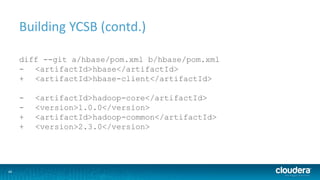

40 Building YCSB (contd.) diff --git a/hbase/pom.xml b/hbase/pom.xml - <artifactId>hbase</artifactId> + <artifactId>hbase-client</artifactId> - <artifactId>hadoop-core</artifactId> - <version>1.0.0</version> + <artifactId>hadoop-common</artifactId> + <version>2.3.0</version>
